1. Mykola Borozdin, TL
Wix Serverless from inside
mykola.borozdin@gmail.com
1
aka хуяк-хуяк в продакшн

2. Author
1. SE Master of science
2. 8 years in the industry
3. From enterprise outstaff to product infra
4. From Java to Scala-Typescript
5. Did not work with Node.JS before Wix
2

3. 1. The Motivation
2. The Present
3. The Past
4. The Future
Agenda
3

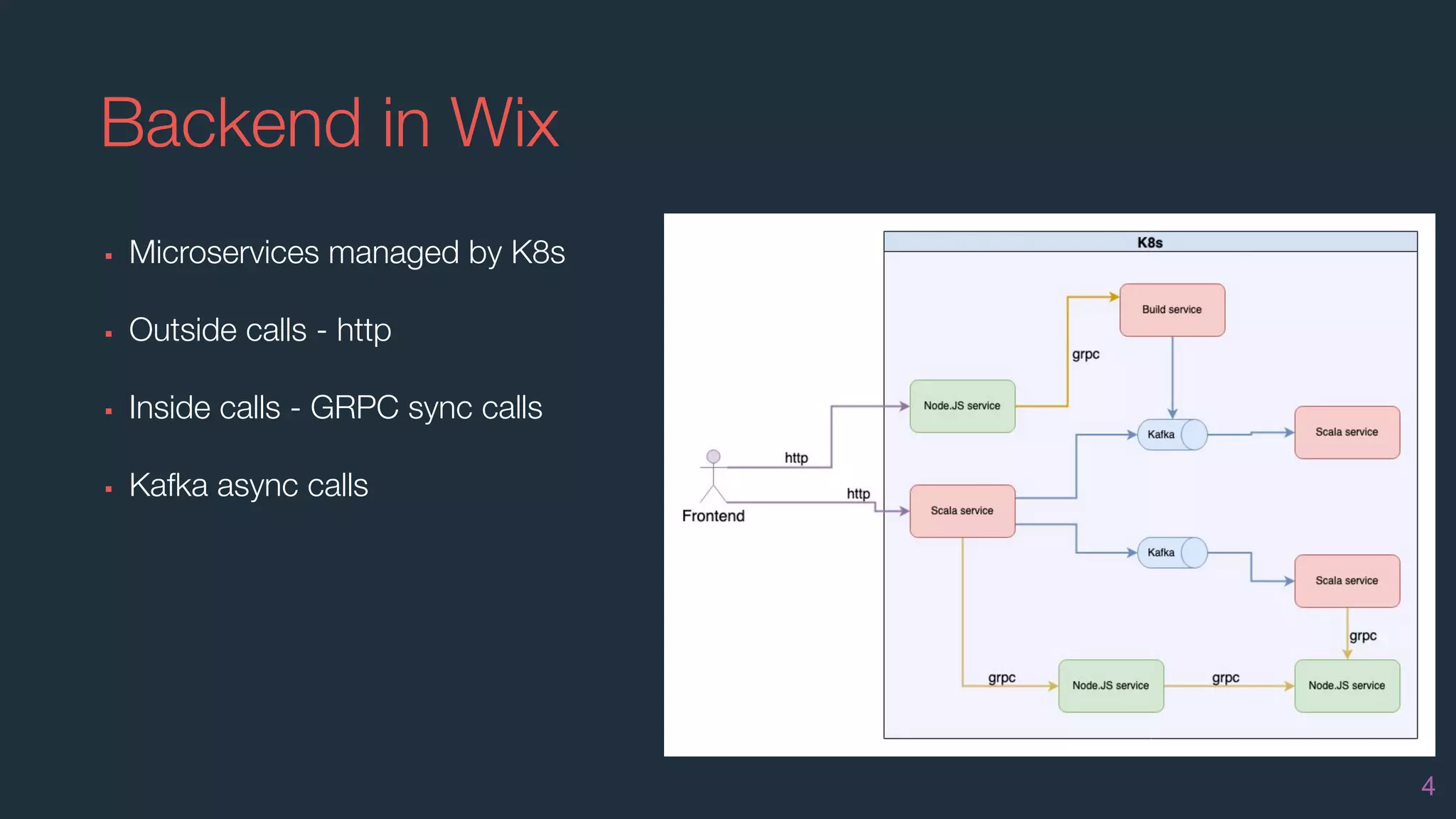

4. Backend in Wix
4
▪ Microservices managed by K8s
▪ Outside calls - http
▪ Inside calls - GRPC sync calls
▪ Kafka async calls

5. Wix Node Platform
1. Wix Bootstrap - Scala, Java
2. JS - the most popular language
3. Frontenders & JVM languages !== Love
4. Node.js translation of Wix Bootstrap
5

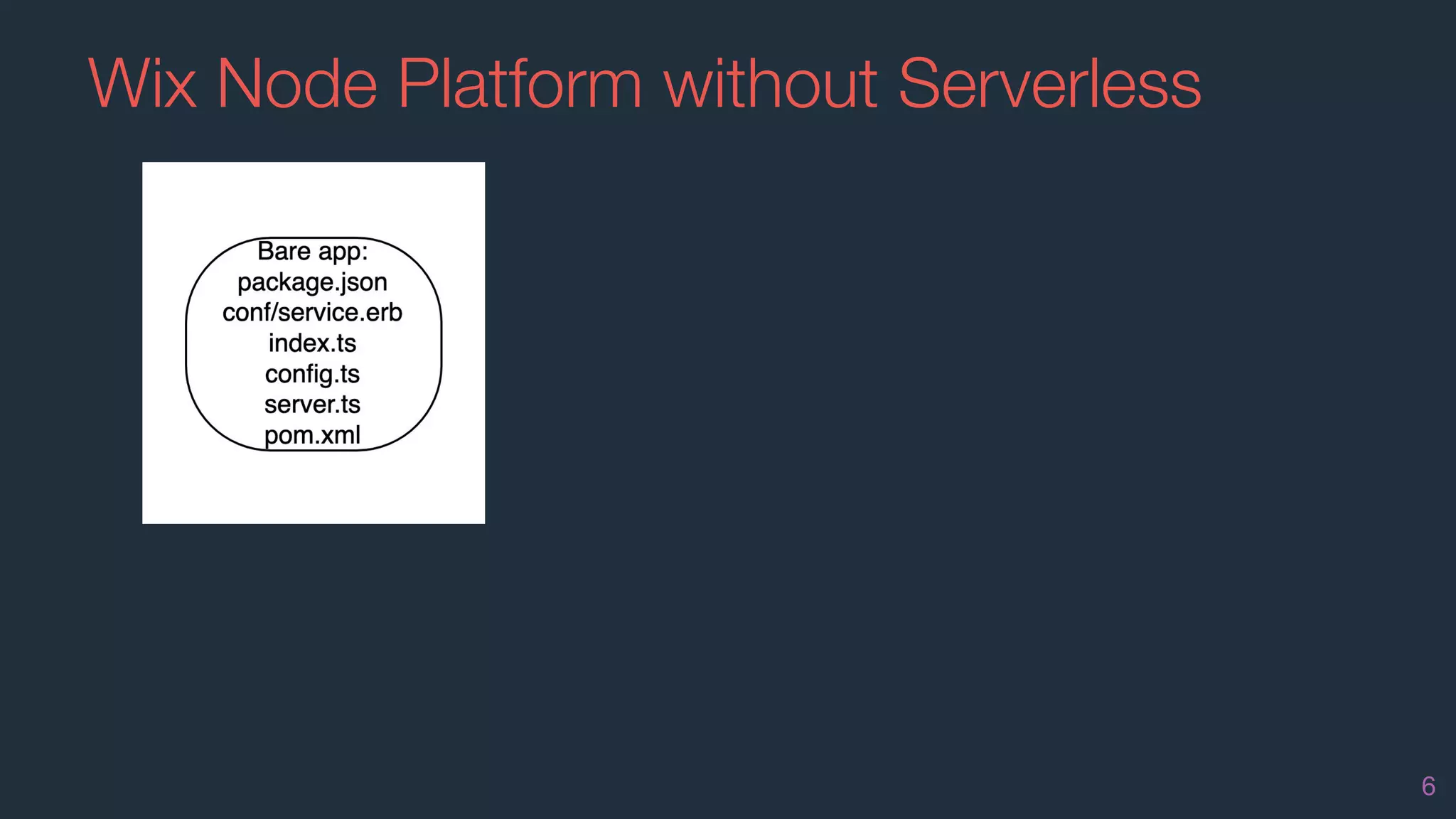

6. Wix Node Platform without Serverless
6

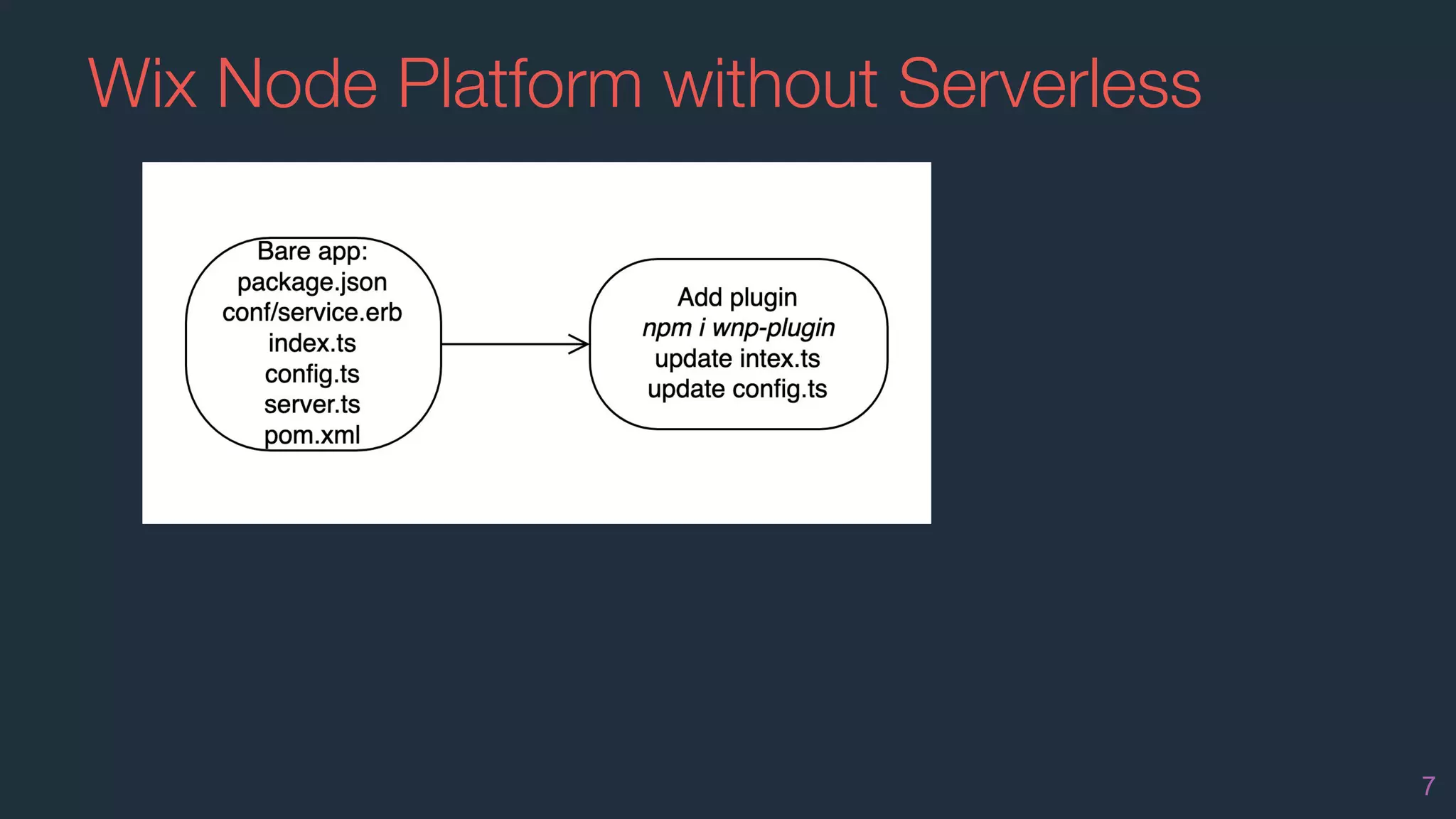

7. Wix Node Platform without Serverless
7

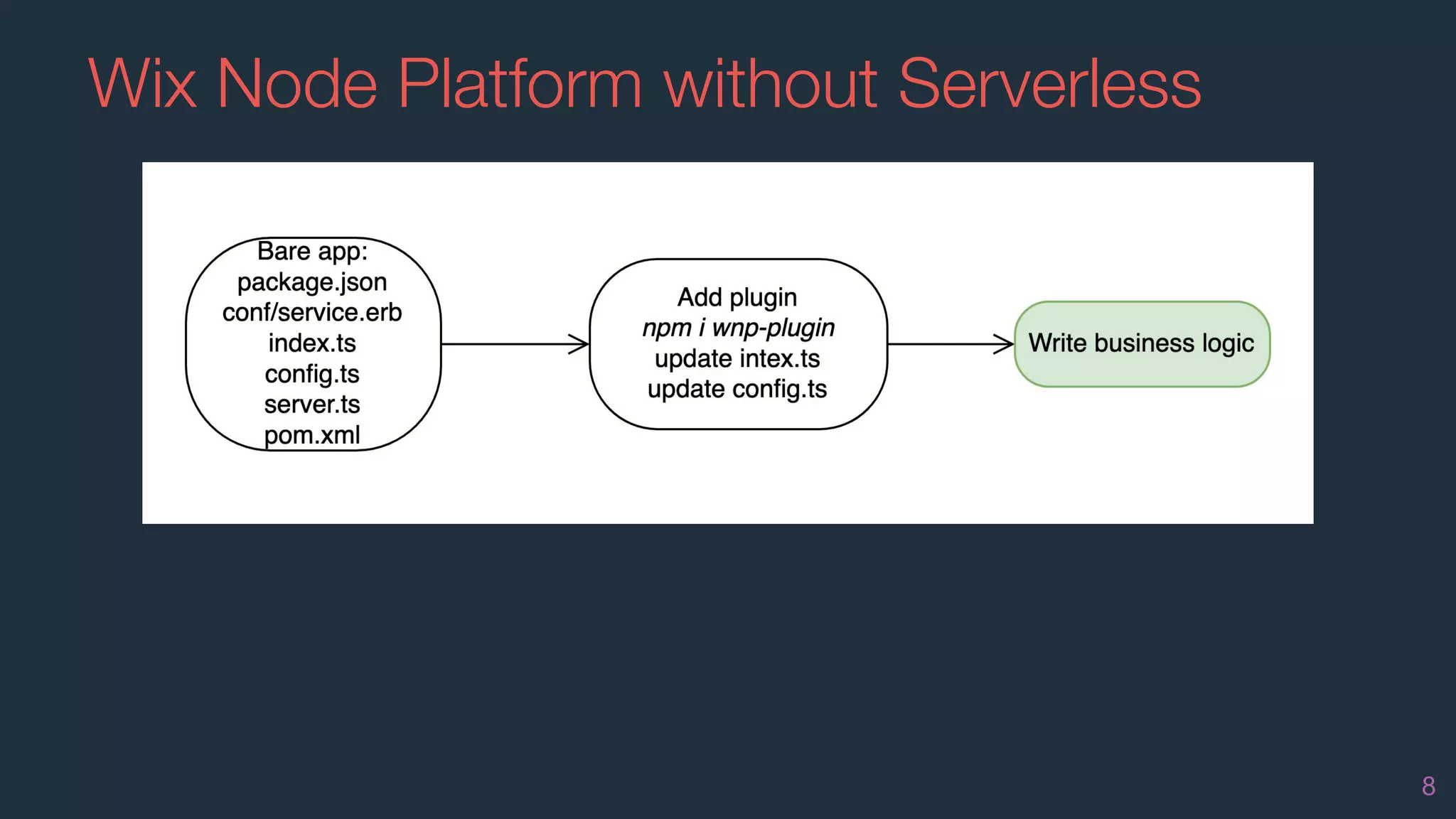

8. Wix Node Platform without Serverless
8

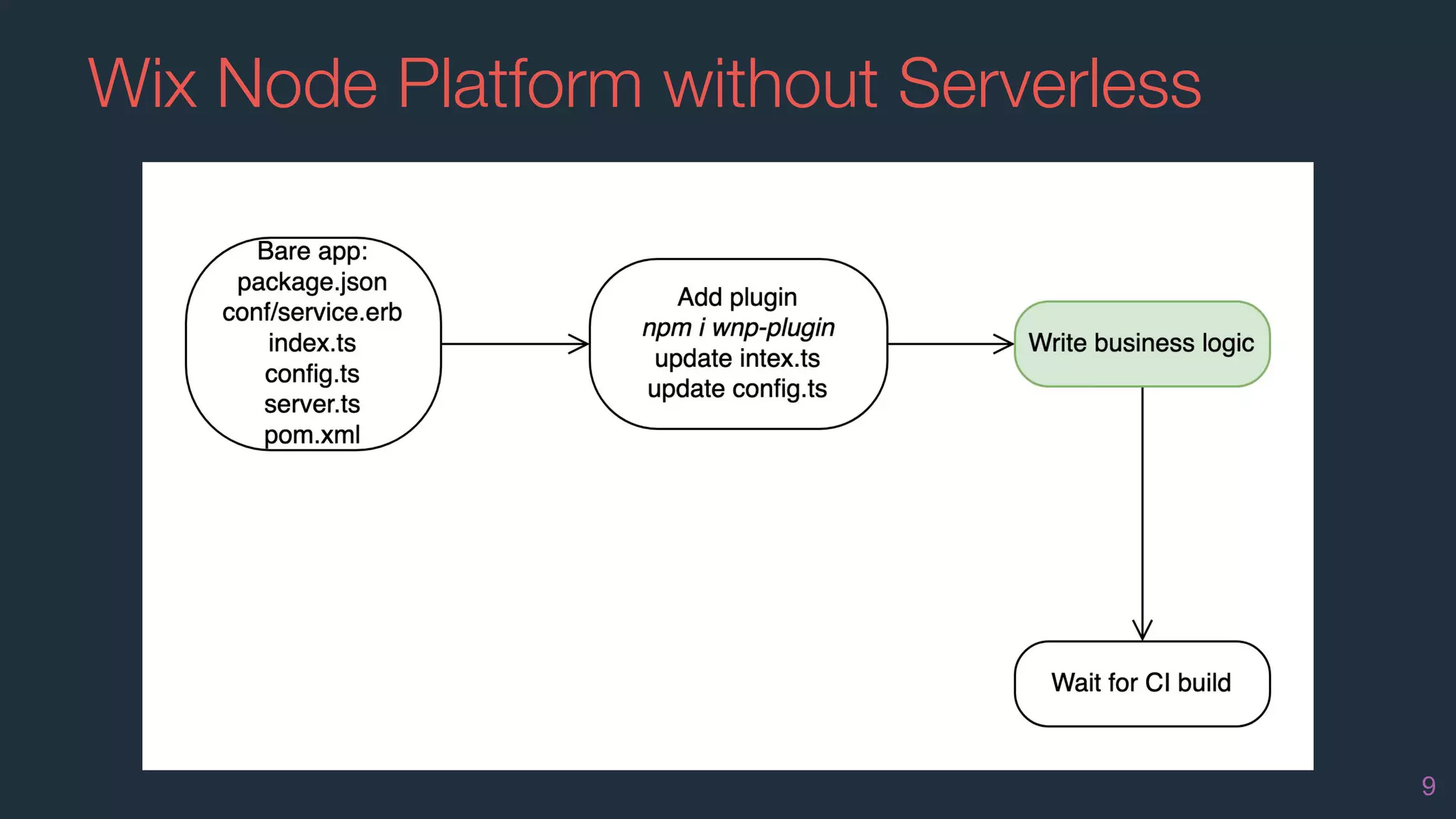

9. Wix Node Platform without Serverless
9

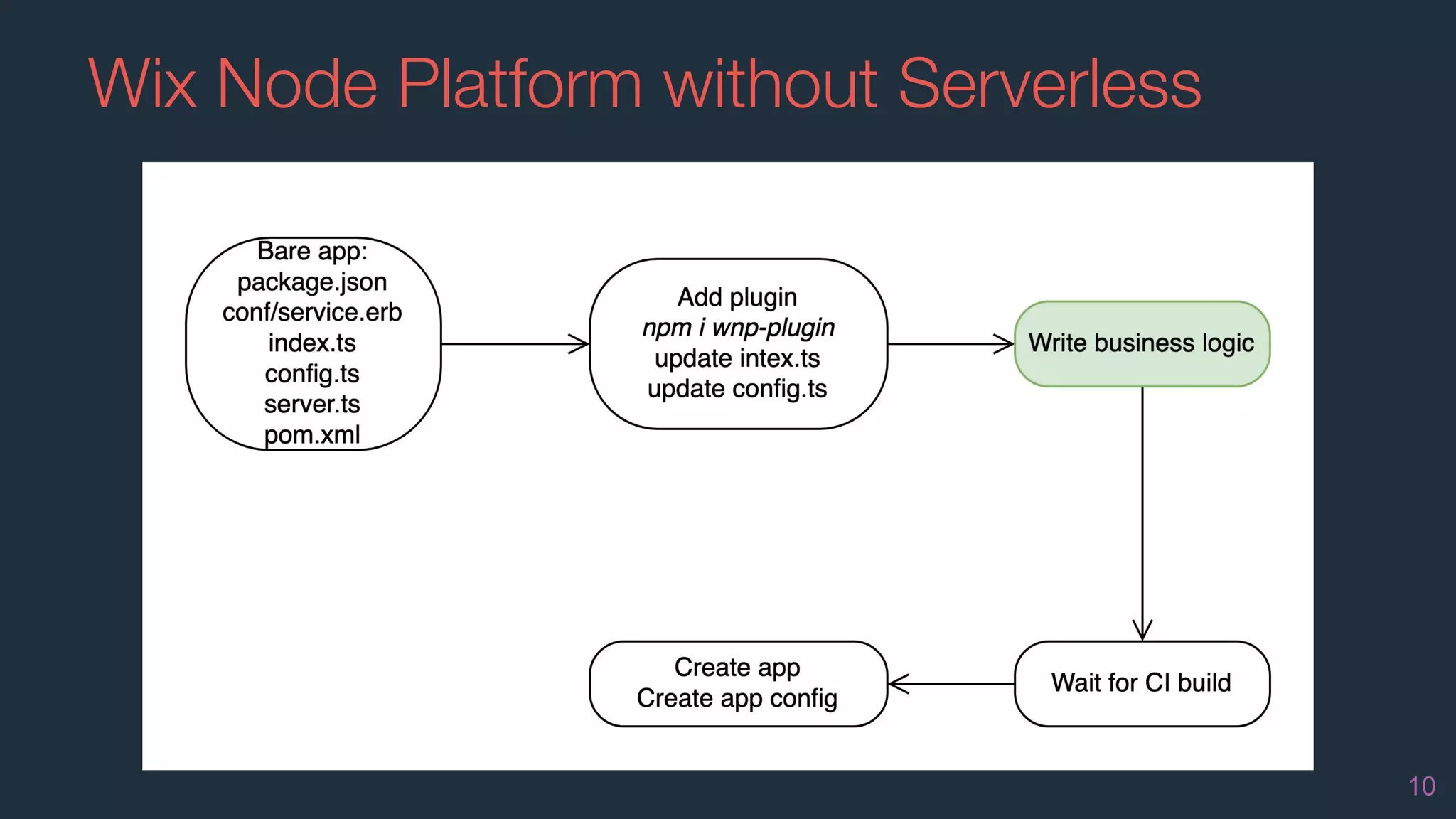

10. Wix Node Platform without Serverless
10

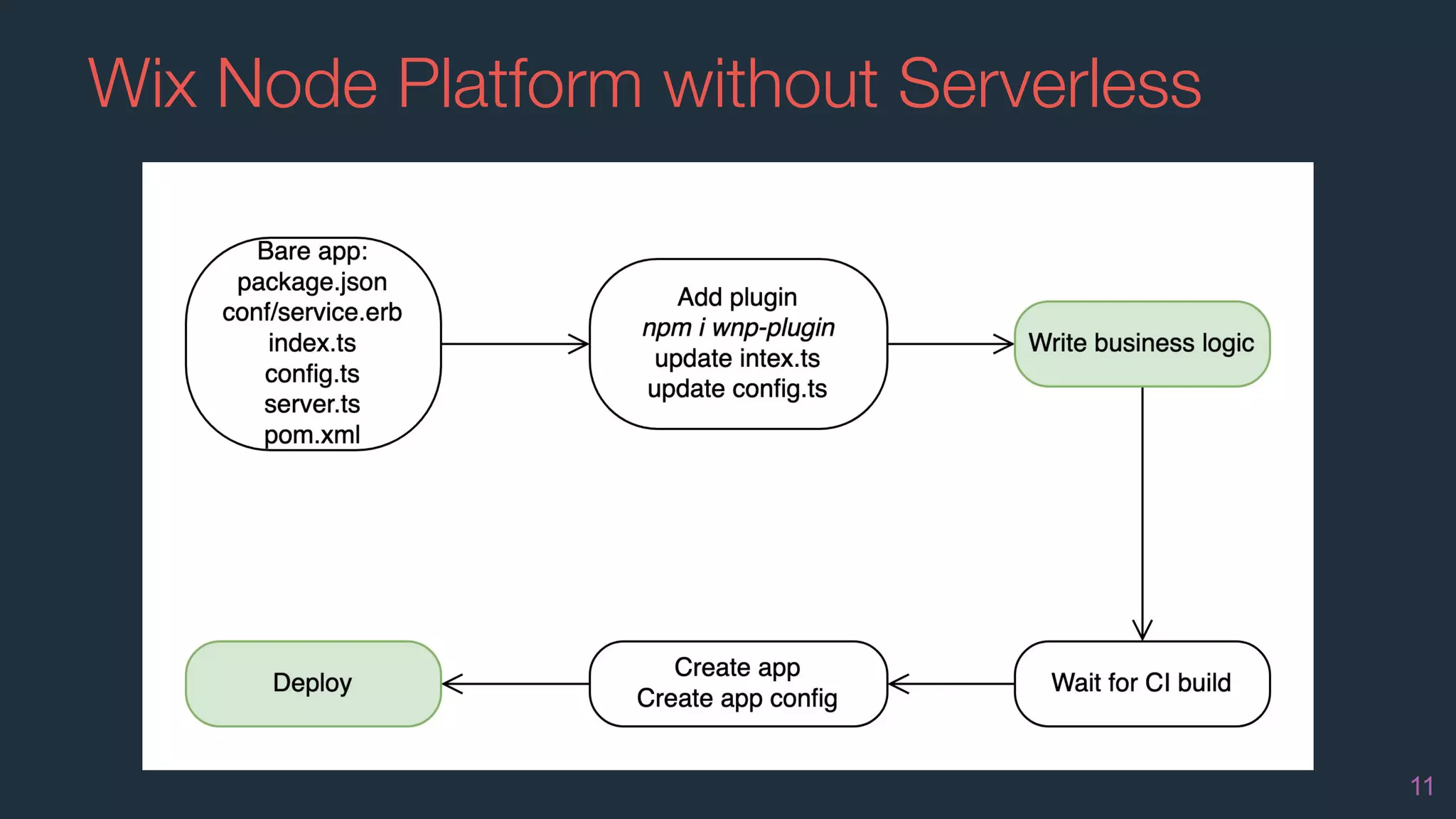

11. Wix Node Platform without Serverless
11

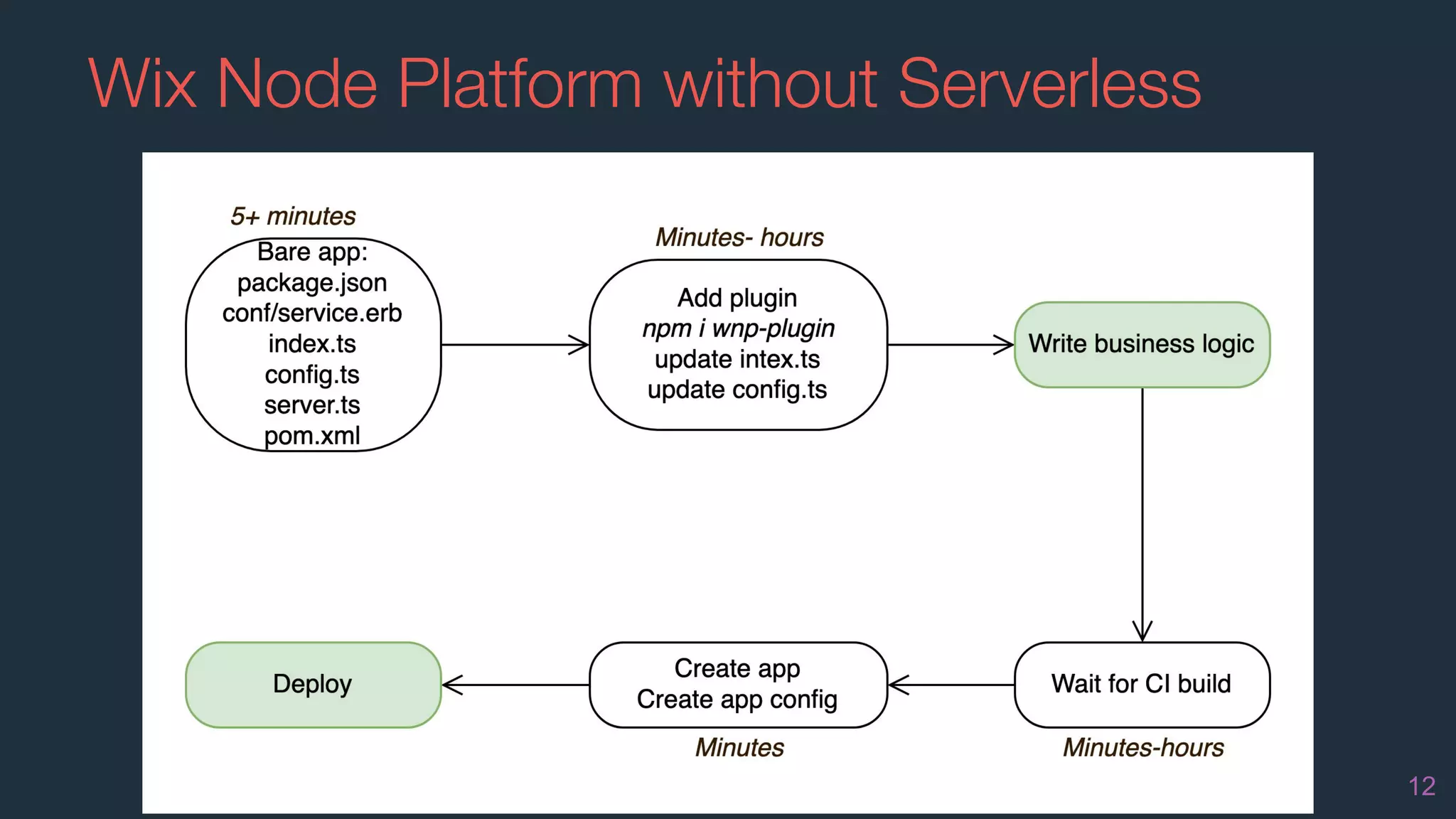

12. Wix Node Platform without Serverless
12

13. Serverless
▪ Function as a service
▪ Resources on demand
▪ No infra management
13

14. Wix Serverless
▪ All plugins and testkits wired out of the box
▪ Built-in autoscaling, metrics, logs, alerts
▪ Create & deploy with #serverless in commit, CLI or web app
▪ From commit to production in less than a minute
▪ Deploy status Slack notifications
14

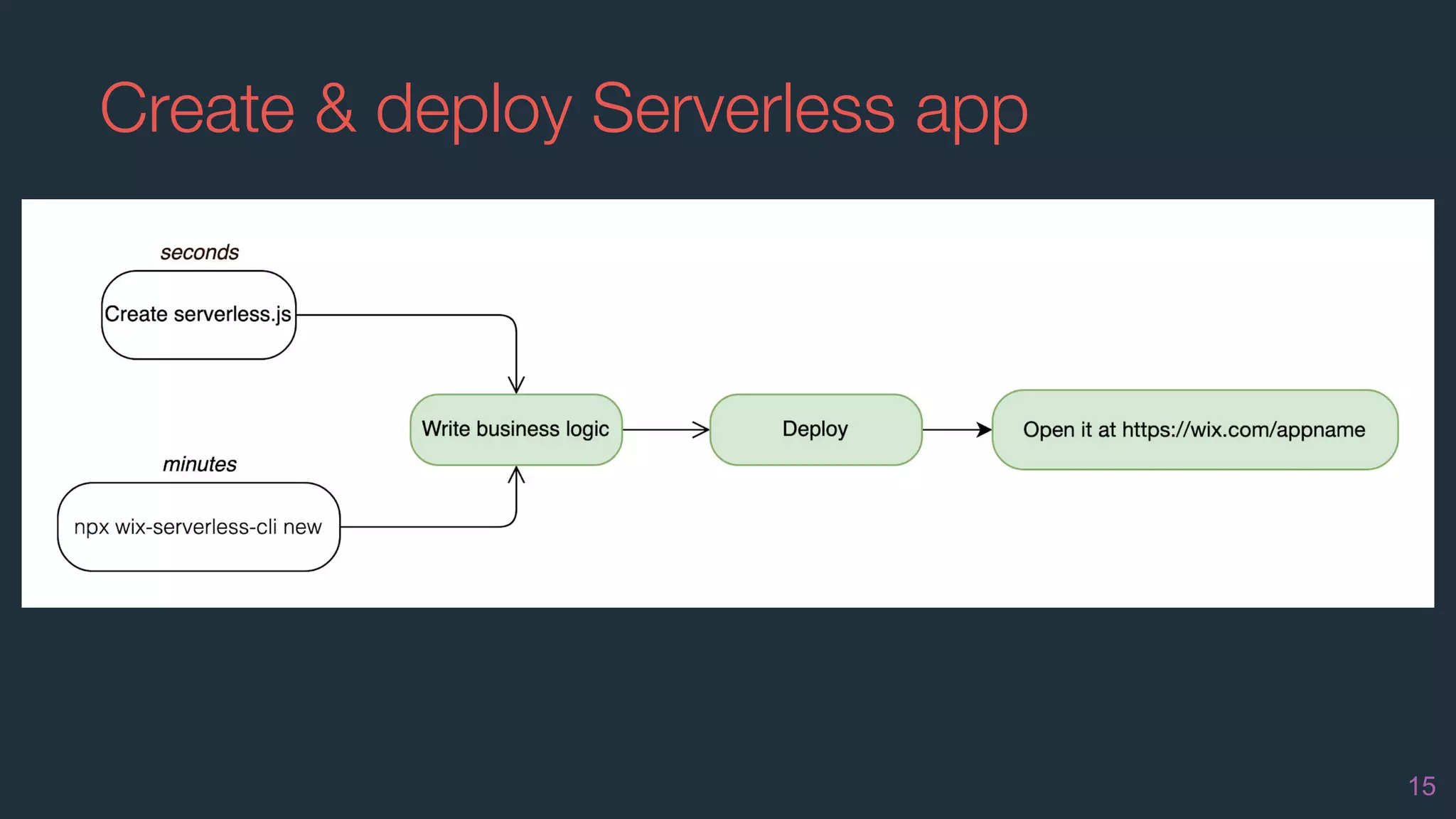

15. Create & deploy Serverless app
15

16. DOs
▪ IO-intensive services
▪ Call GRPC service
▪ Send message to Kafka
16
▪ CPU-intensive services
▪ Parsing 200 MB JSONs
▪ Rendering images
DON’Ts

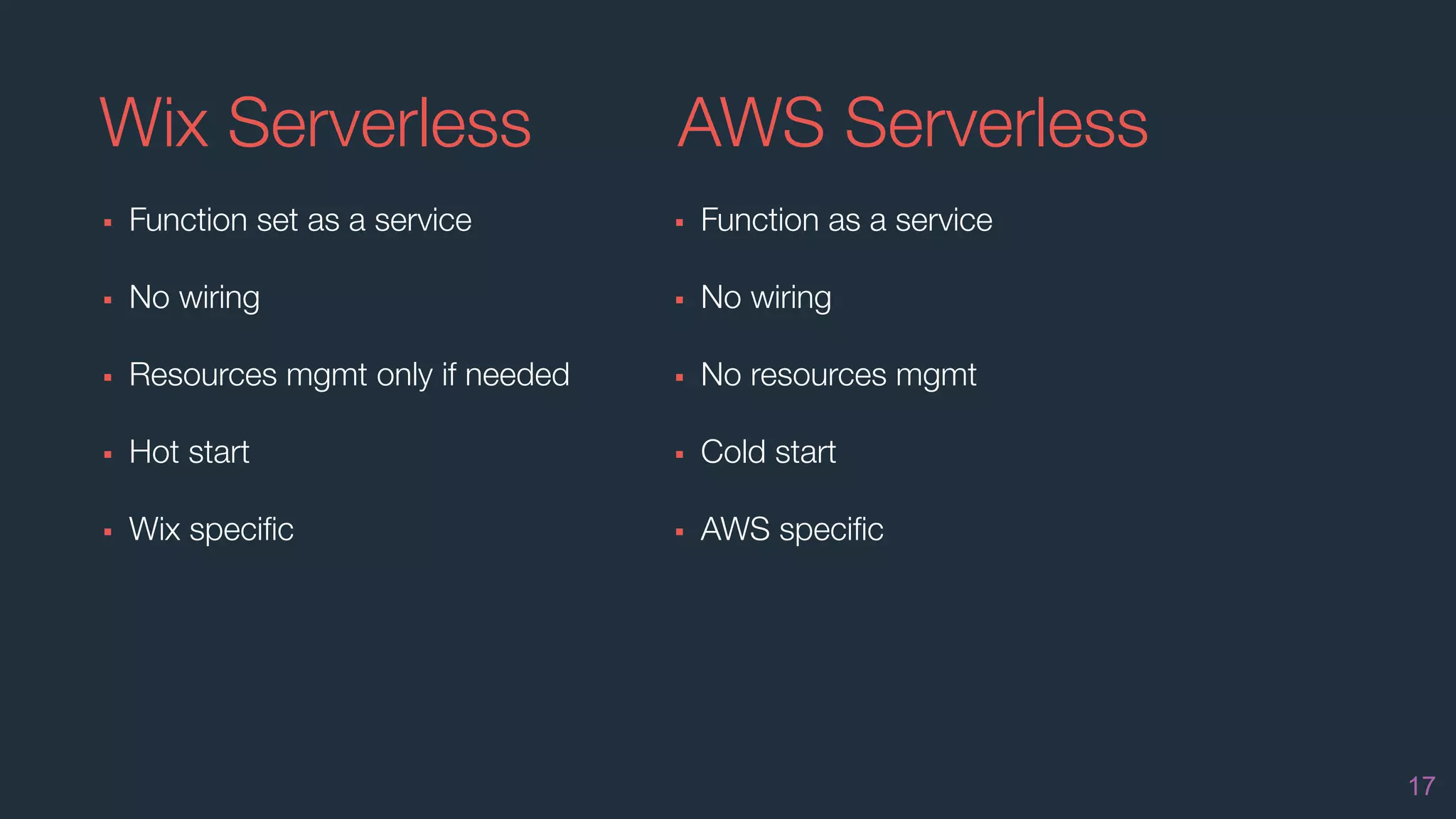

17. Wix Serverless
▪ Function set as a service
▪ No wiring
▪ Resources mgmt only if needed
▪ Hot start
▪ Wix specific
17
▪ Function as a service
▪ No wiring
▪ No resources mgmt
▪ Cold start
▪ AWS specific
AWS Serverless

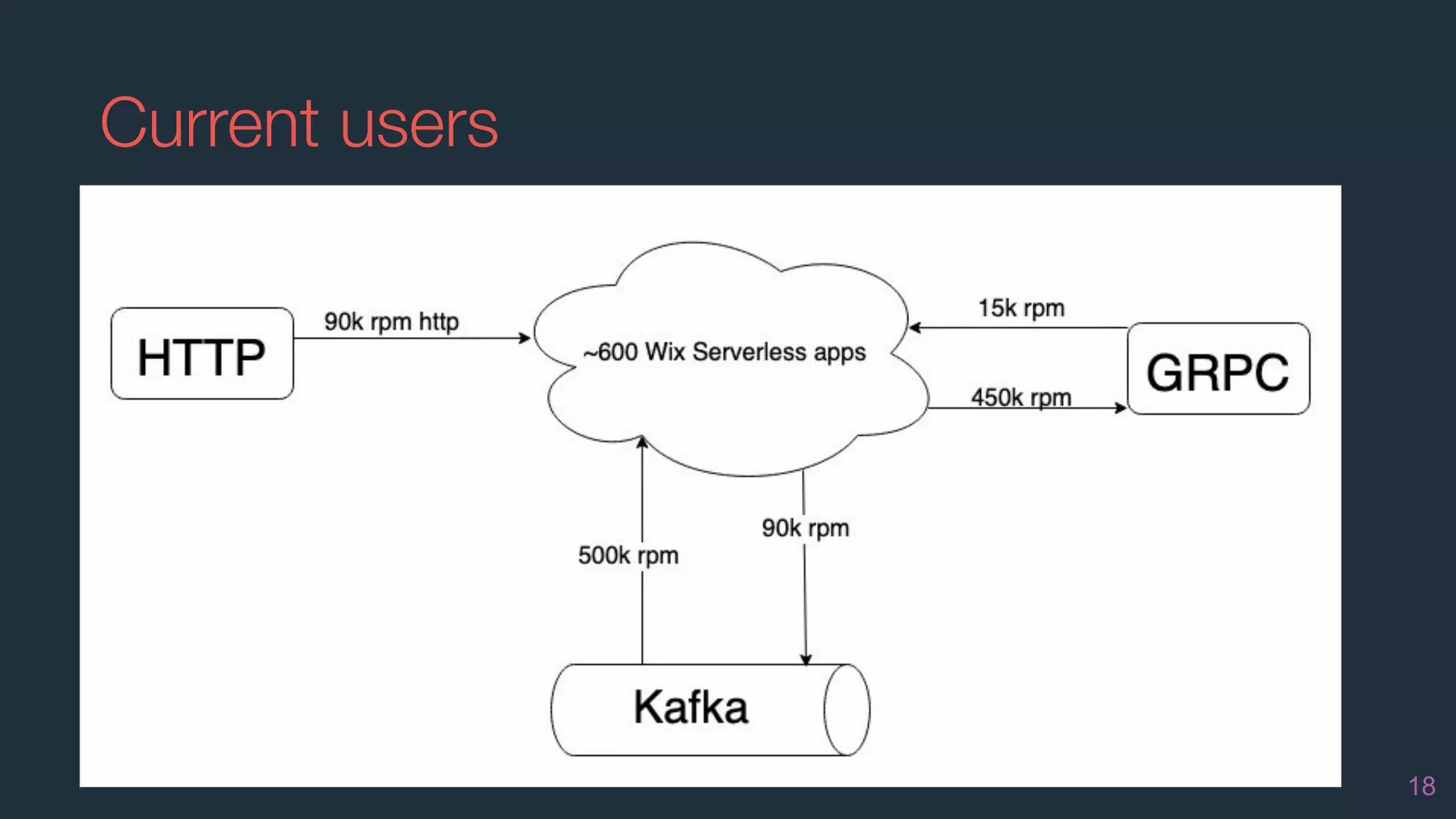

18. Current users
▪ ~600 production applications
▪ ~110k rpm http/grpc traffic
▪ ~600k rpm Kafka traffic
18

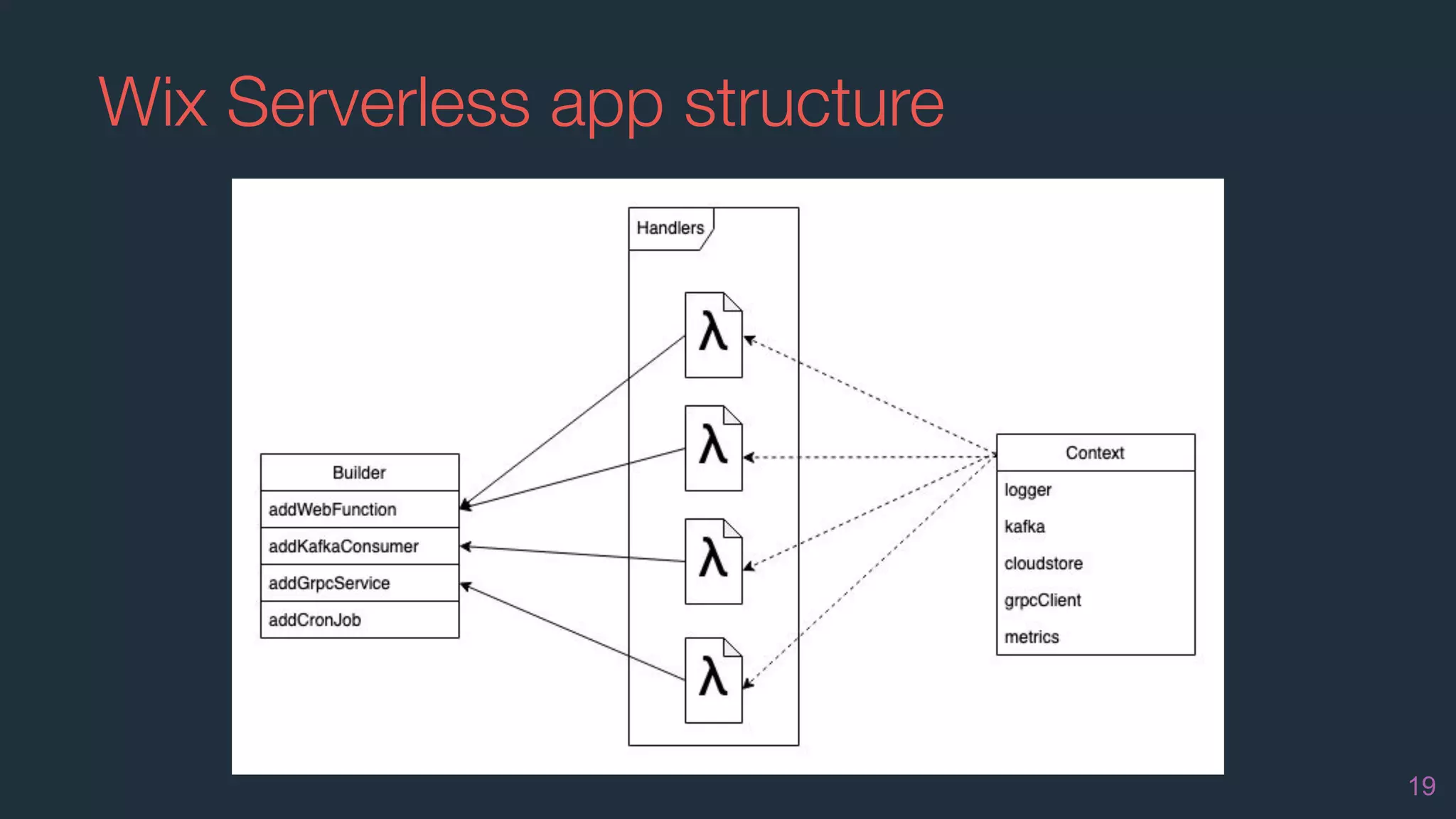

19. Wix Serverless app structure
19

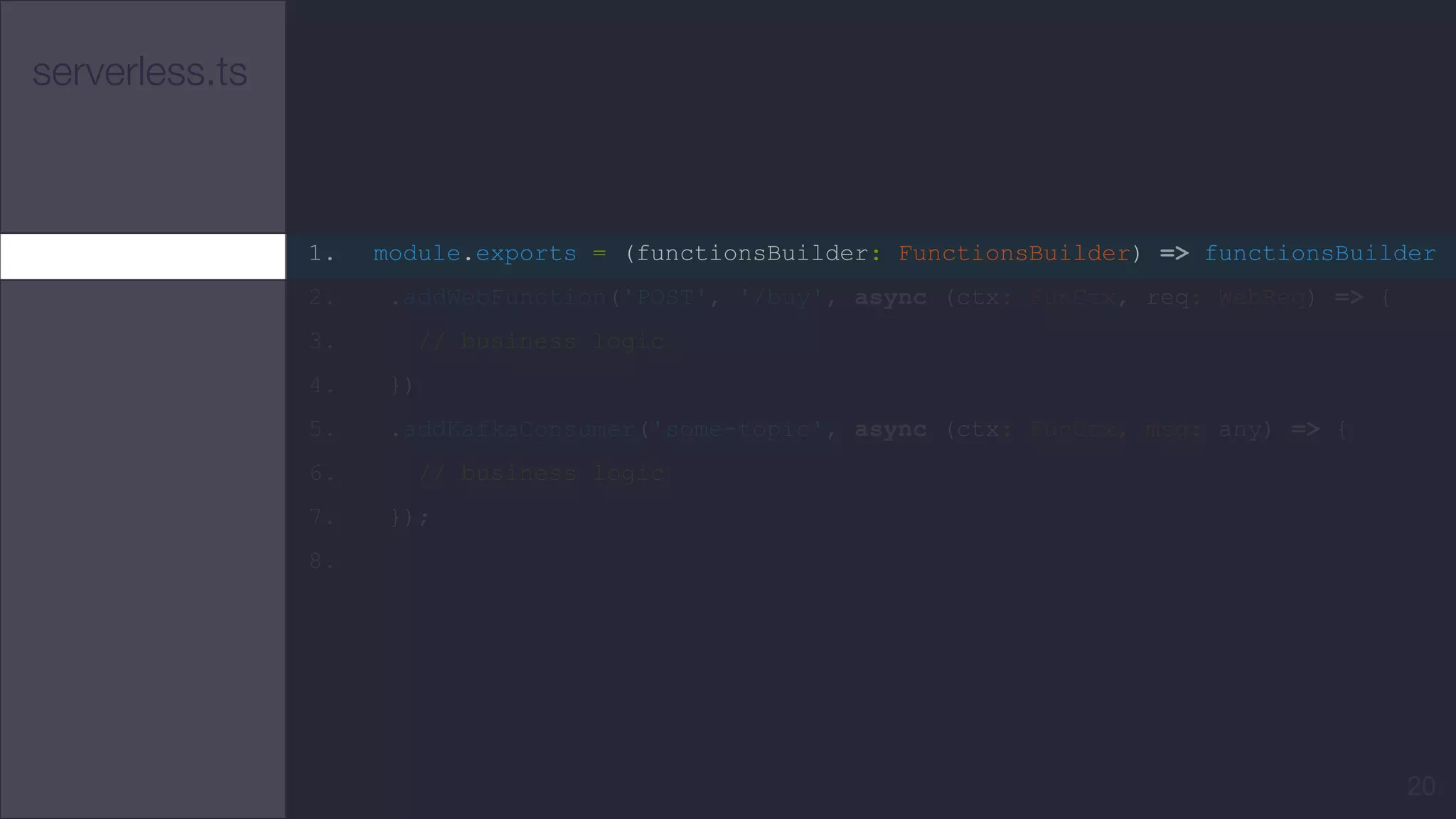

20. serverless.ts
1. module.exports = (functionsBuilder: FunctionsBuilder) => functionsBuilder
2. .addWebFunction('POST', '/buy', async (ctx: FunCtx, req: WebReq) => {
3. // business logic
4. })
5. .addKafkaConsumer('some-topic', async (ctx: FunCtx, msg: any) => {
6. // business logic
7. });
8.
20

21. serverless.ts
1. module.exports = (functionsBuilder: FunctionsBuilder) => functionsBuilder
2. .addWebFunction('POST', '/buy', async (ctx: FunCtx, req: WebReq) => {
3. // business logic
4. })
5. .addKafkaConsumer('some-topic', async (ctx: FunCtx, msg: any) => {
6. // business logic
7. });
8.
21

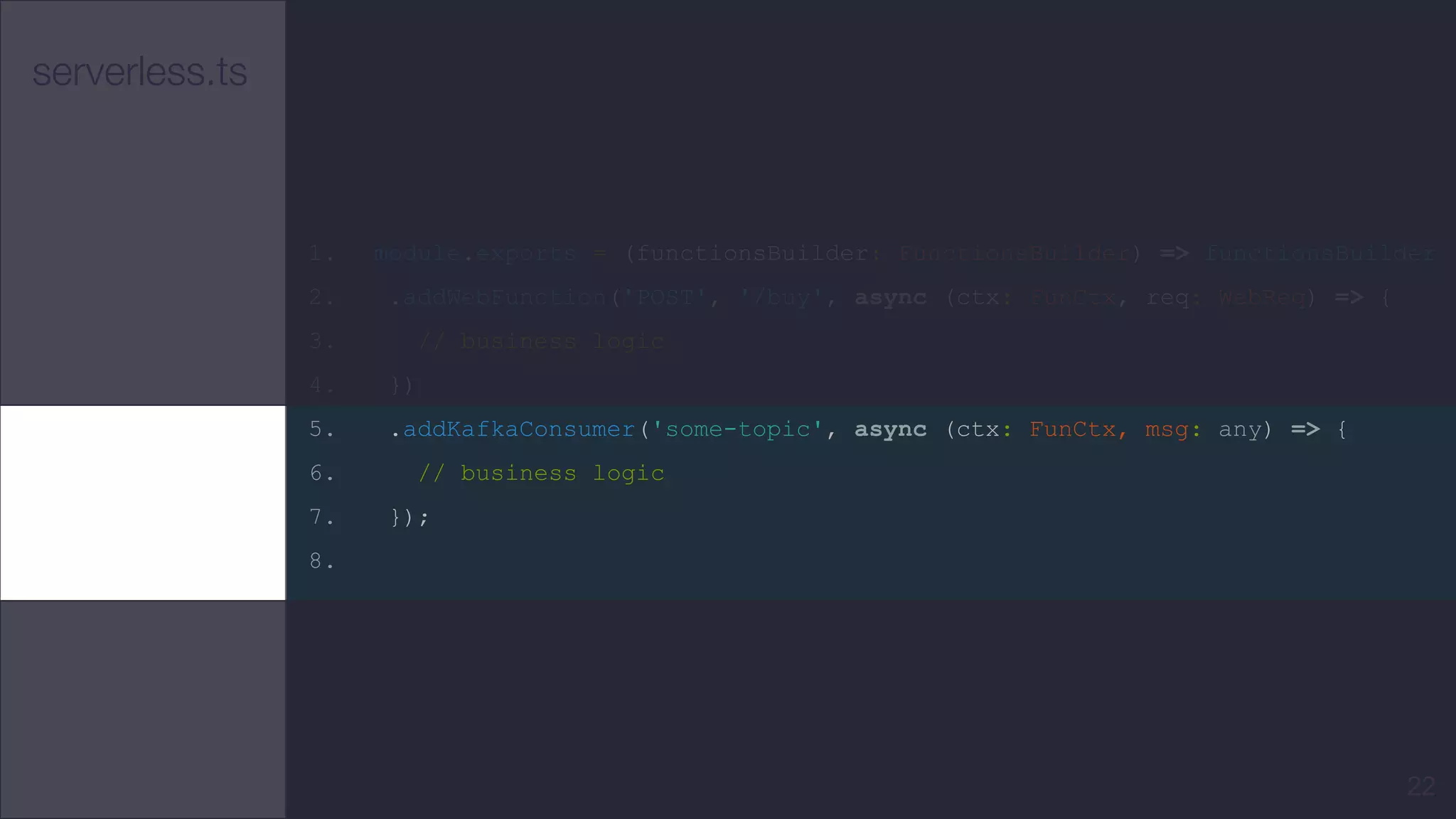

22. serverless.ts
1. module.exports = (functionsBuilder: FunctionsBuilder) => functionsBuilder
2. .addWebFunction('POST', '/buy', async (ctx: FunCtx, req: WebReq) => {
3. // business logic
4. })
5. .addKafkaConsumer('some-topic', async (ctx: FunCtx, msg: any) => {
6. // business logic
7. });
8.
22

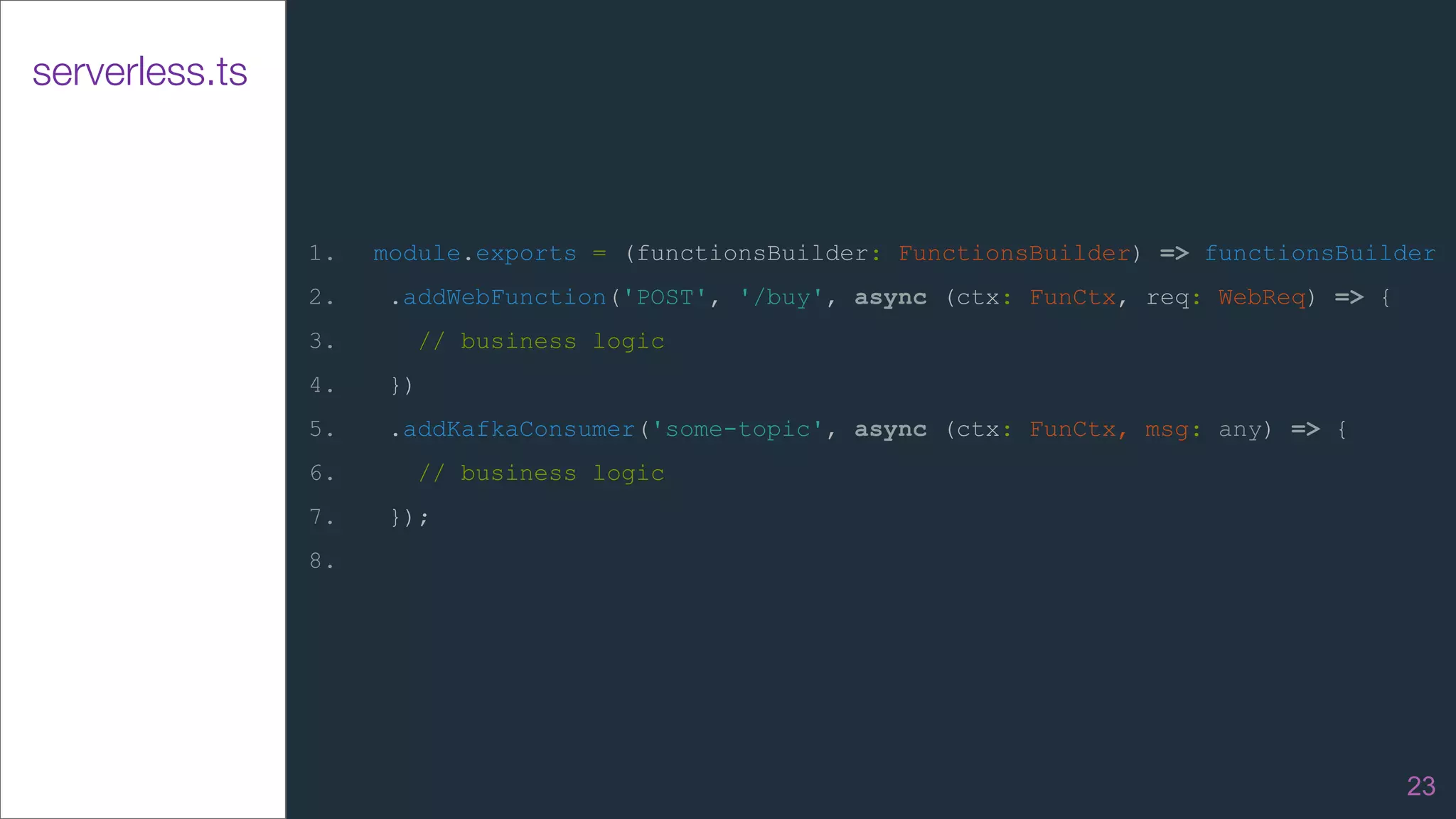

23. serverless.ts
1. module.exports = (functionsBuilder: FunctionsBuilder) => functionsBuilder
2. .addWebFunction('POST', '/buy', async (ctx: FunCtx, req: WebReq) => {
3. // business logic
4. })
5. .addKafkaConsumer('some-topic', async (ctx: FunCtx, msg: any) => {
6. // business logic
7. });
8.
23

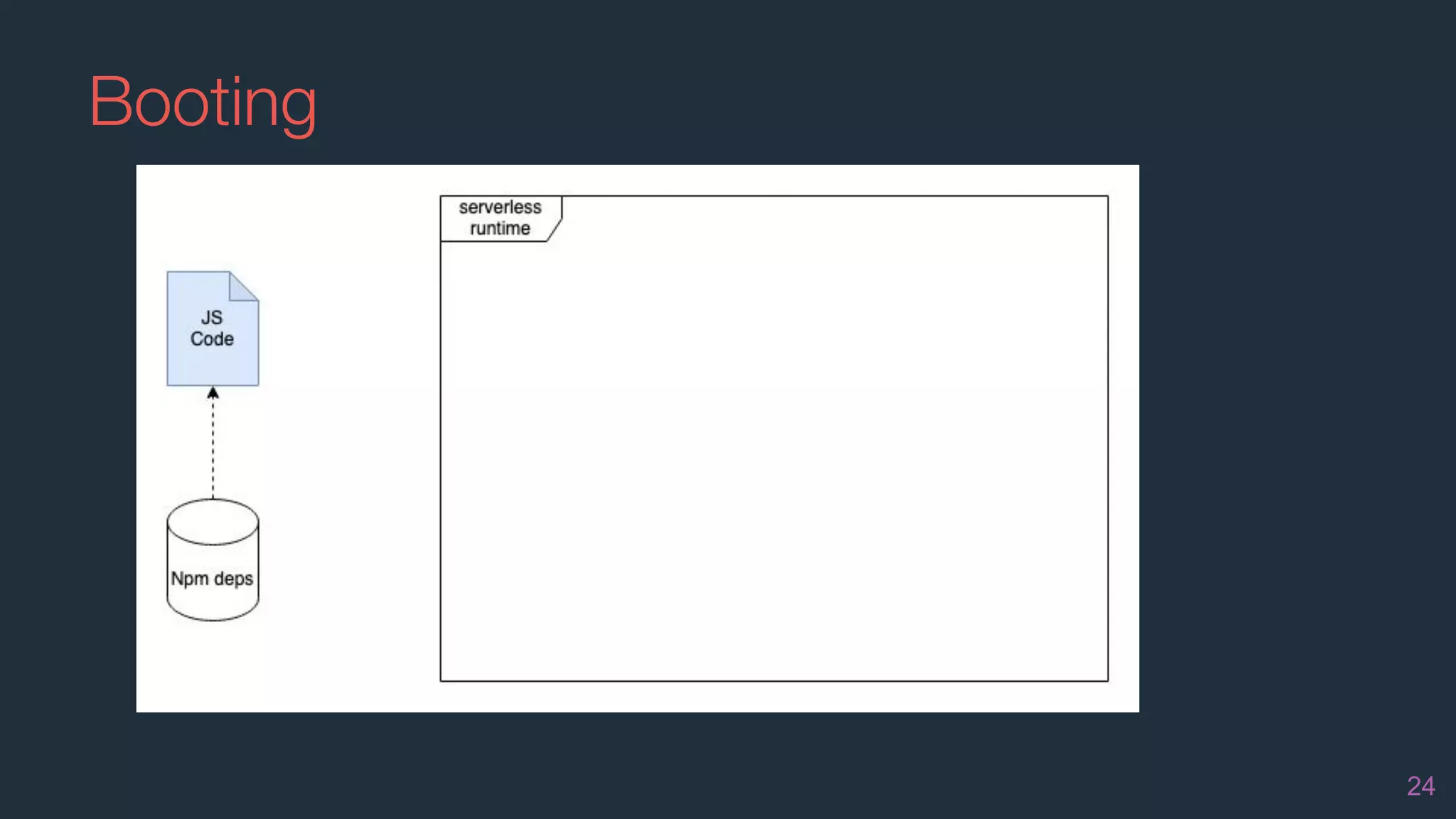

24. Booting
24

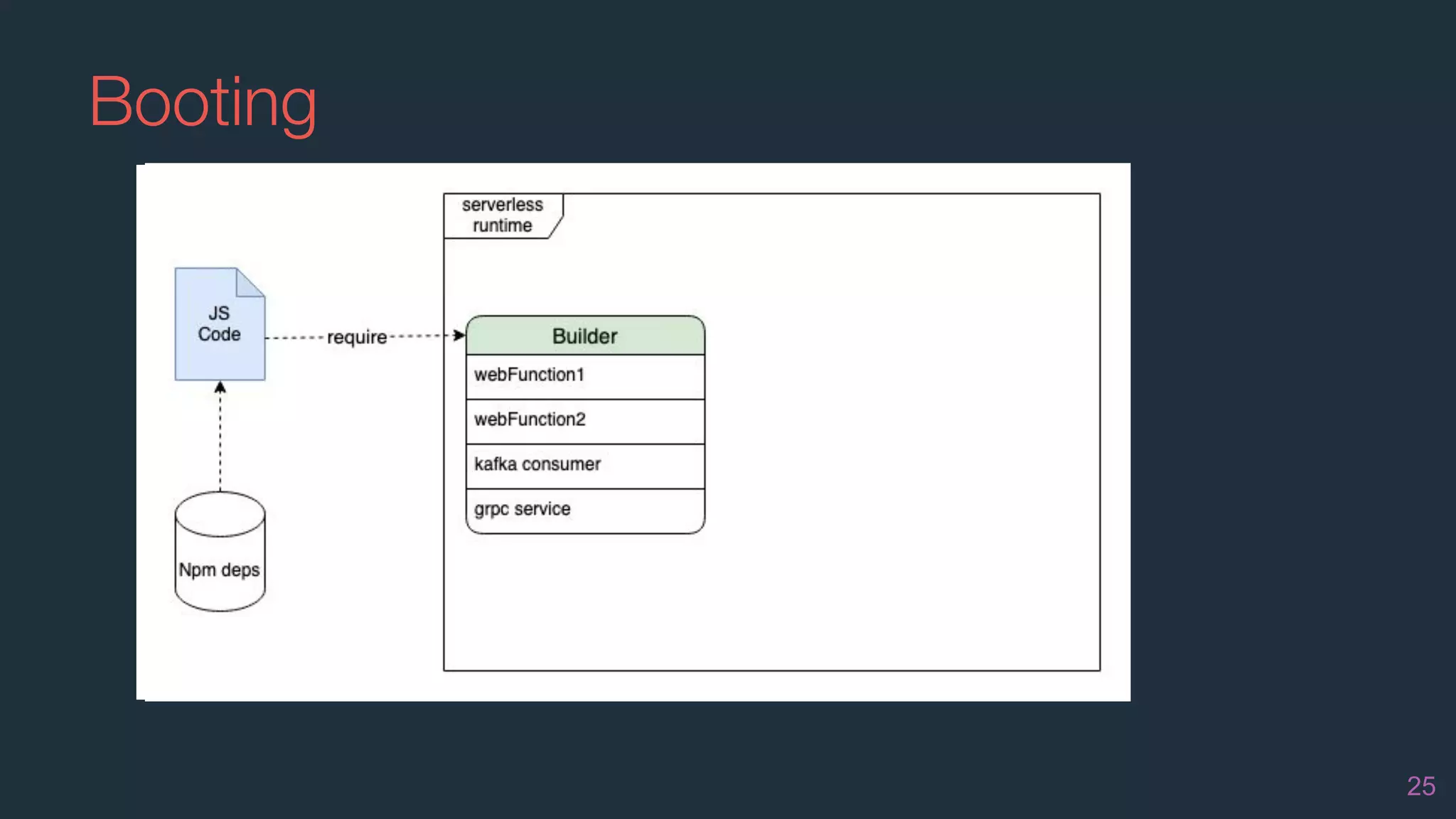

25. Booting
25

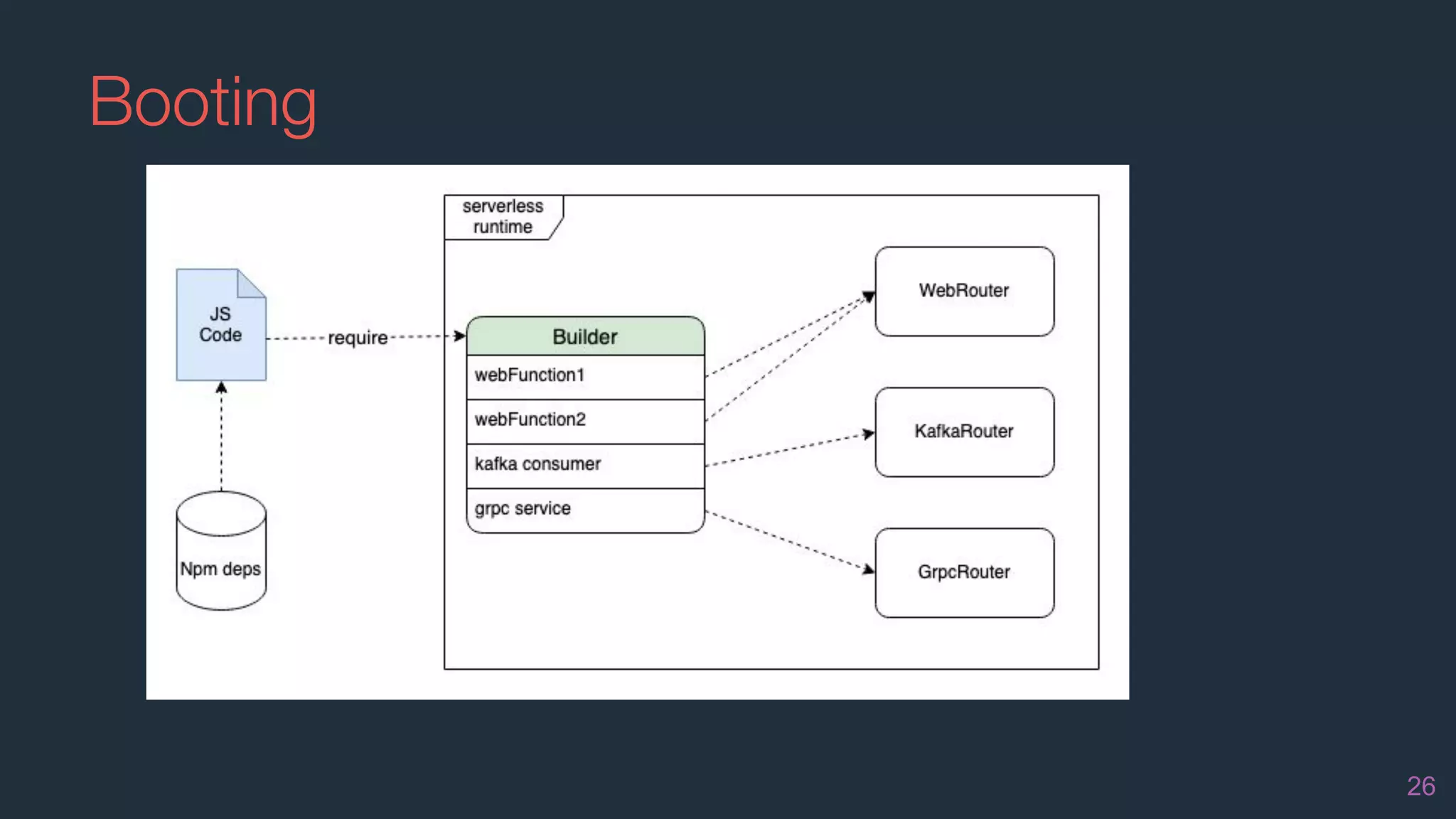

26. Booting
26

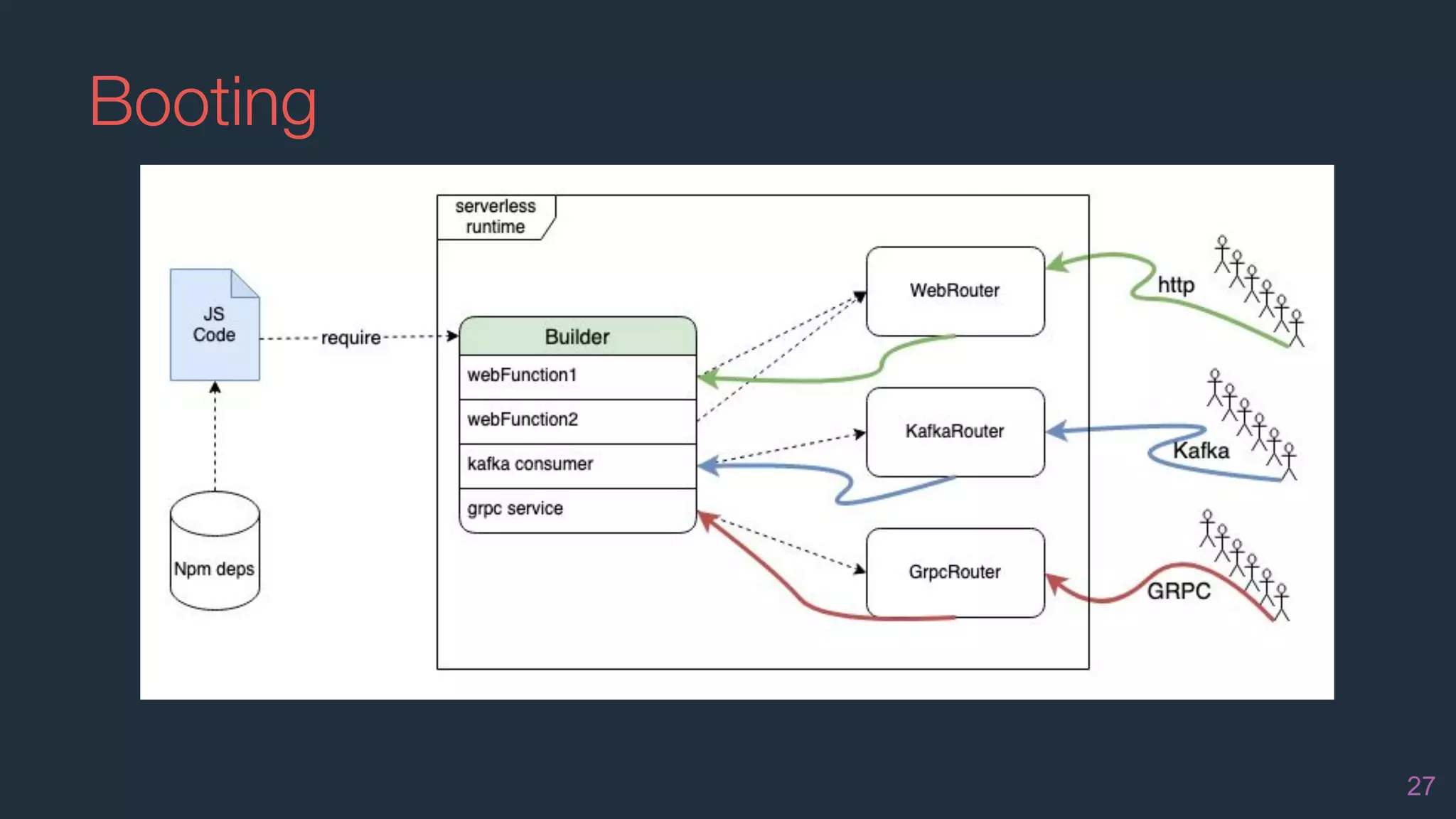

27. Booting
27

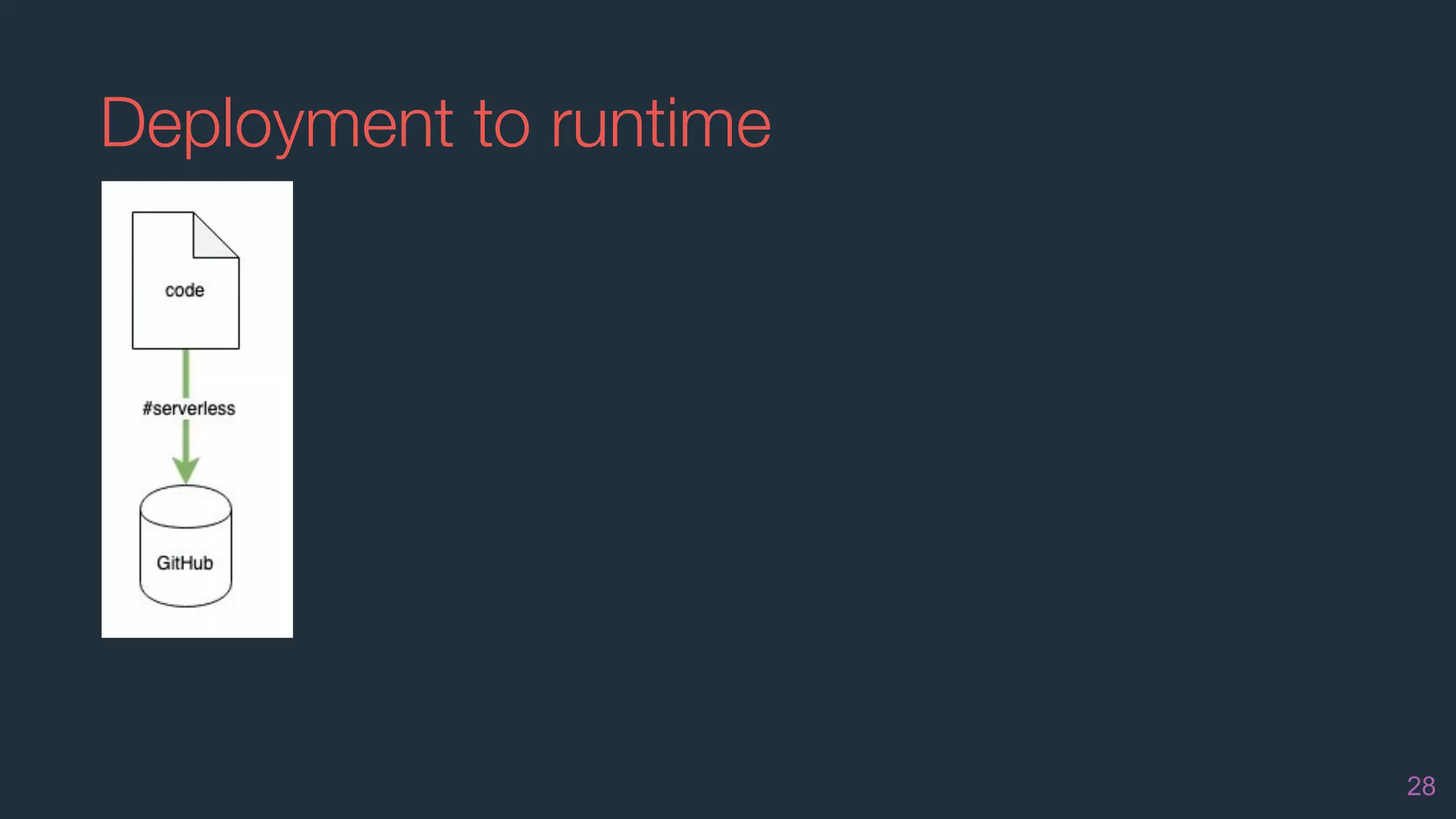

28. Deployment to runtime
28

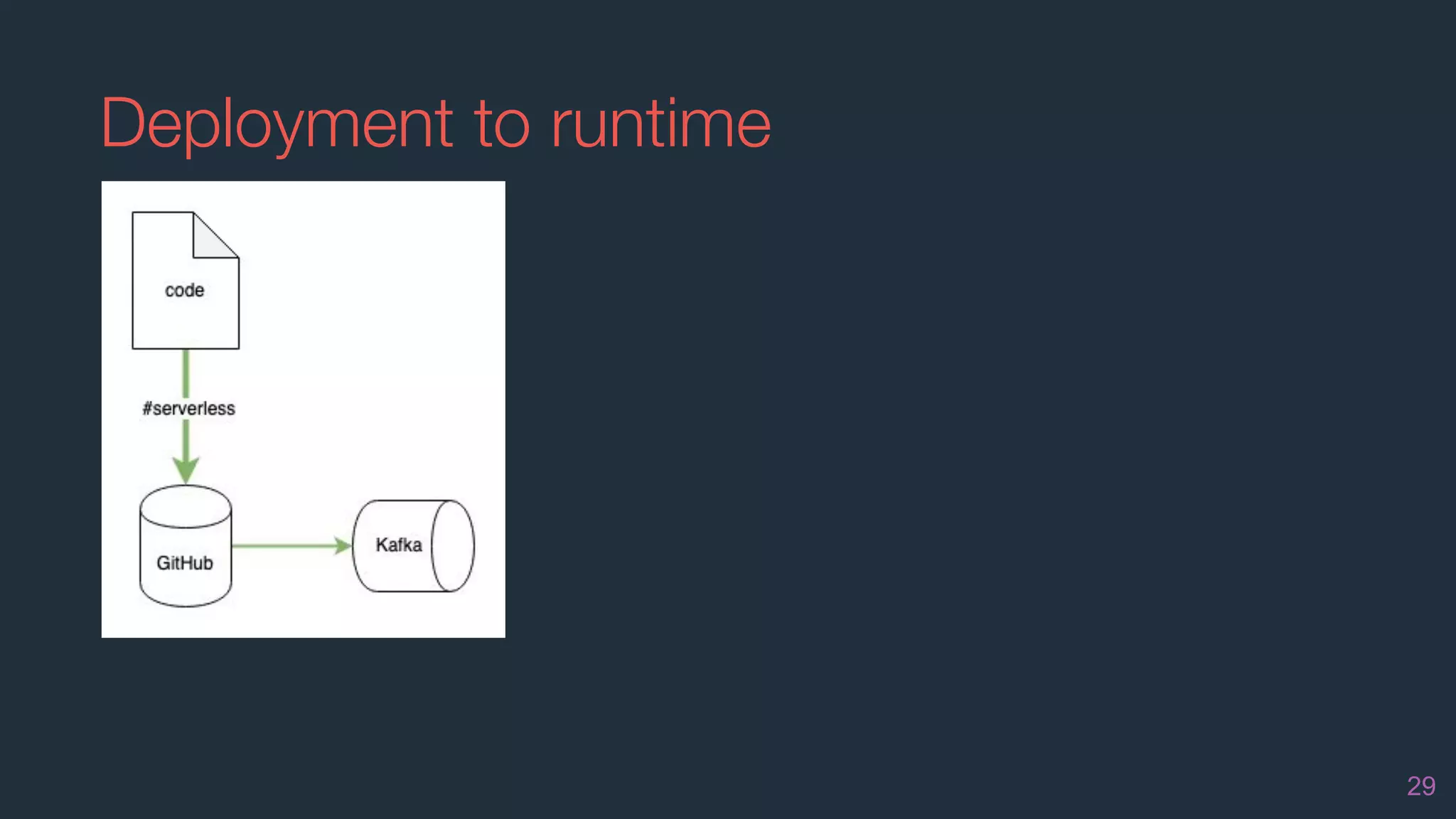

29. Deployment to runtime
29

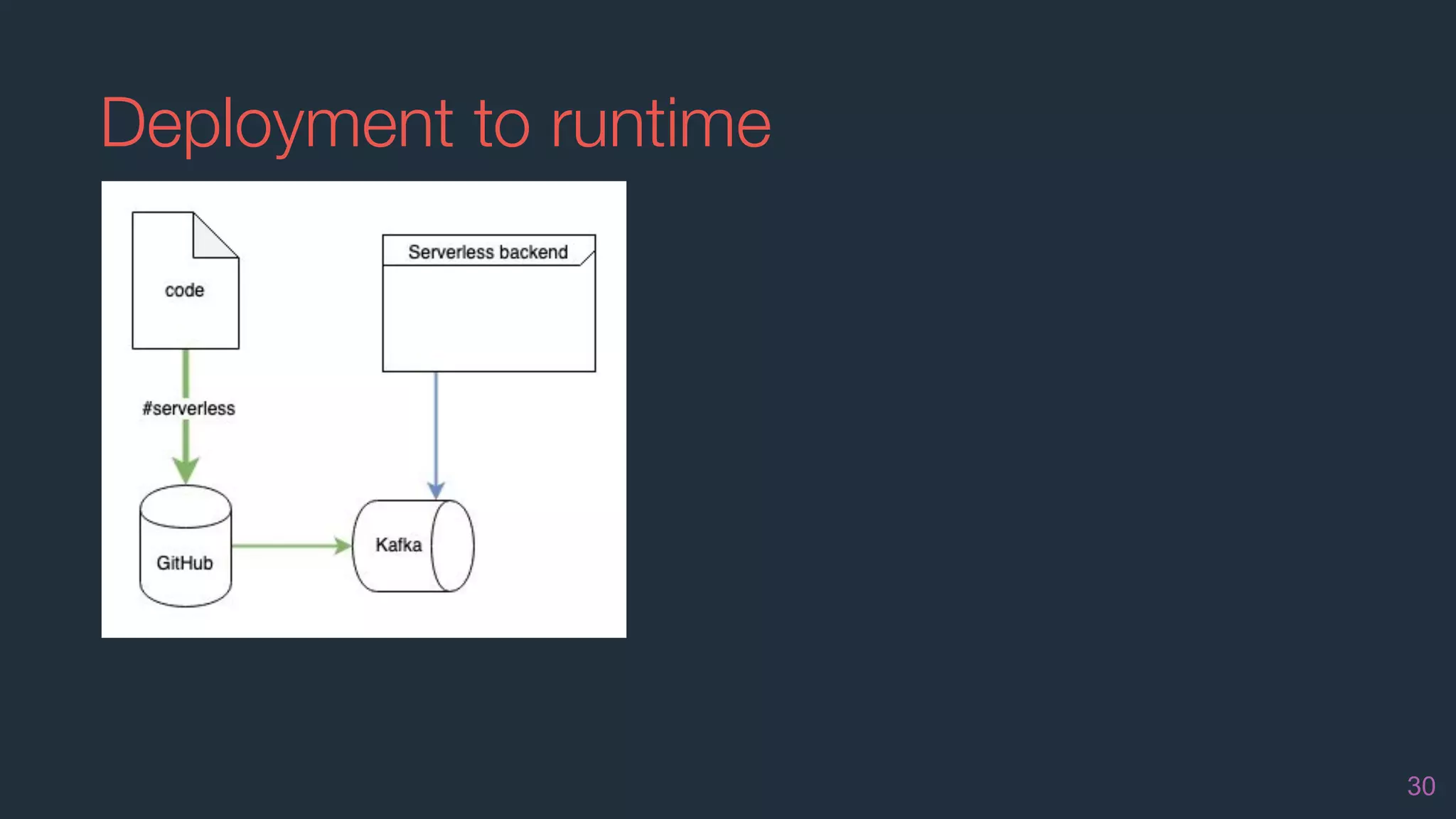

30. Deployment to runtime
30

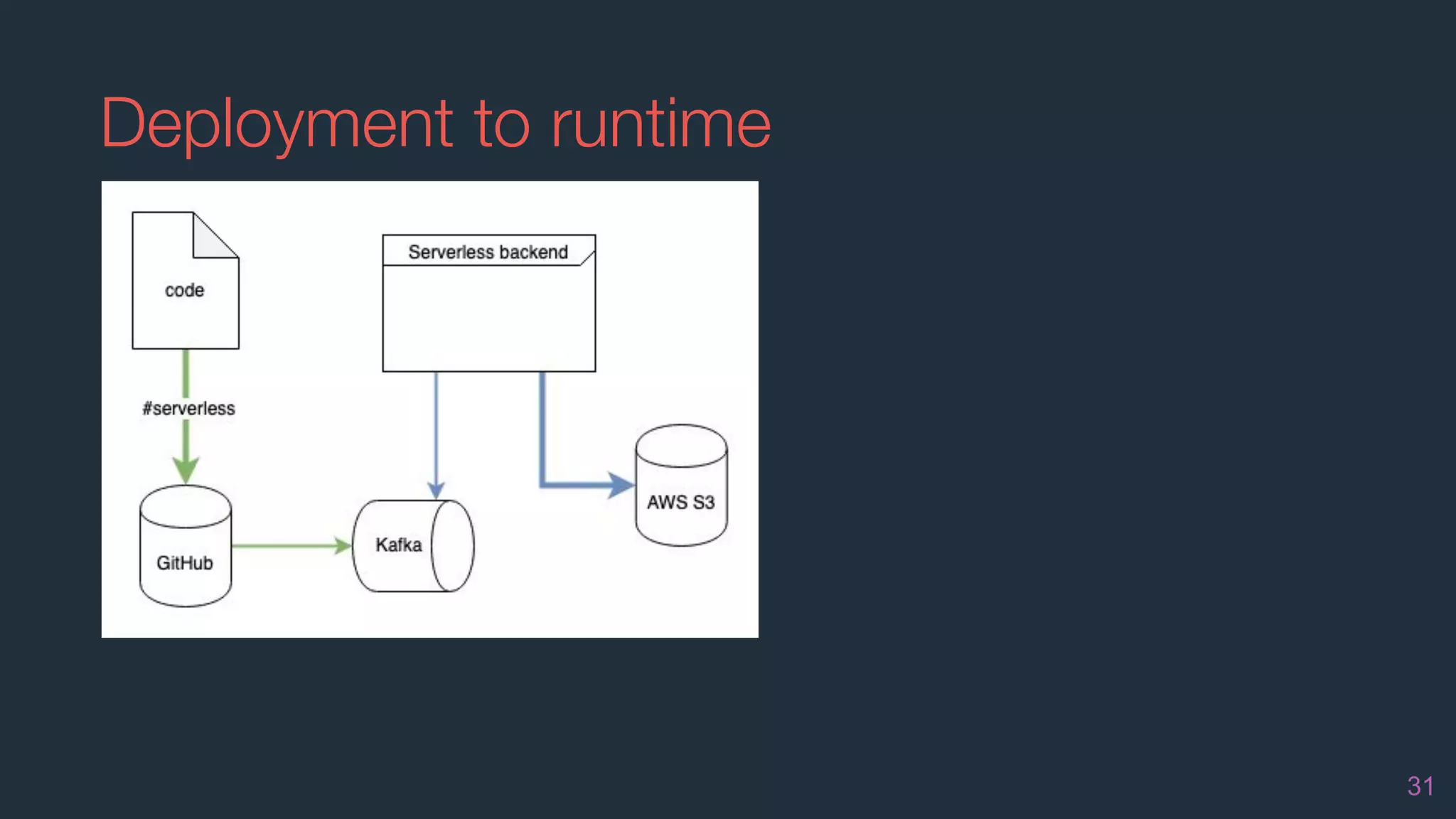

31. Deployment to runtime
31

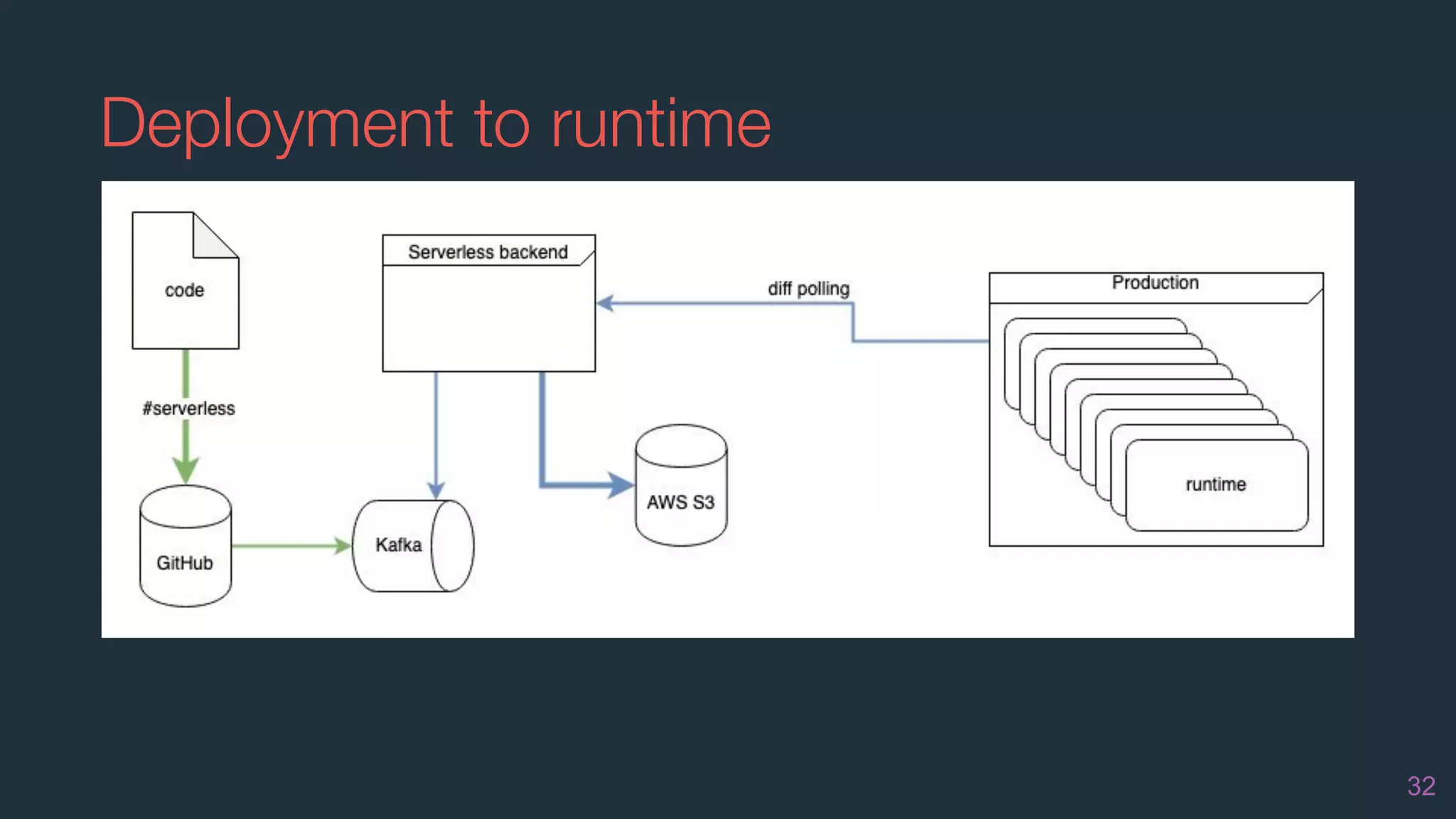

32. Deployment to runtime
32

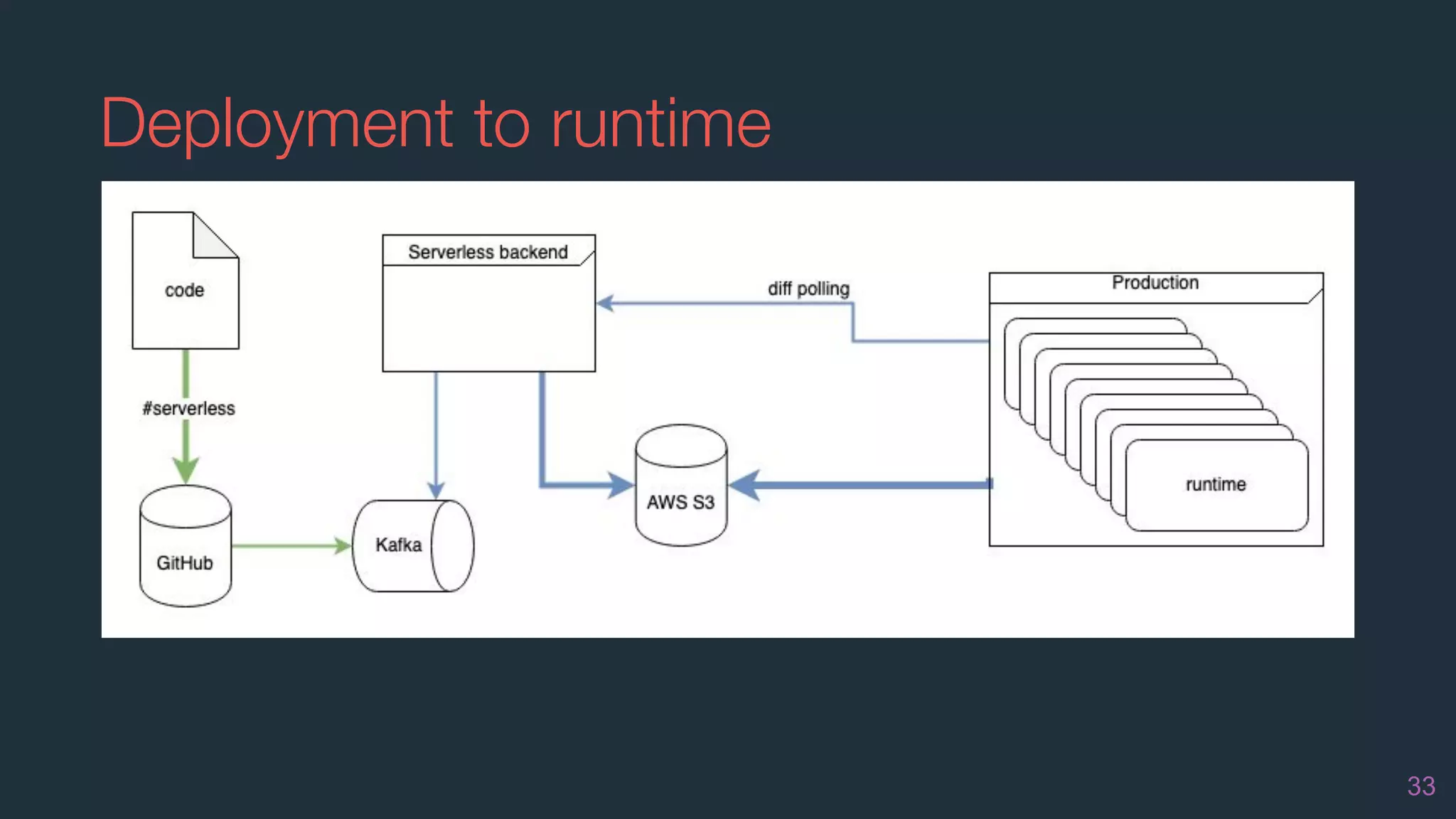

33. Deployment to runtime
33

34. The Past
34

35. Story 1
35
Deployment process evolution

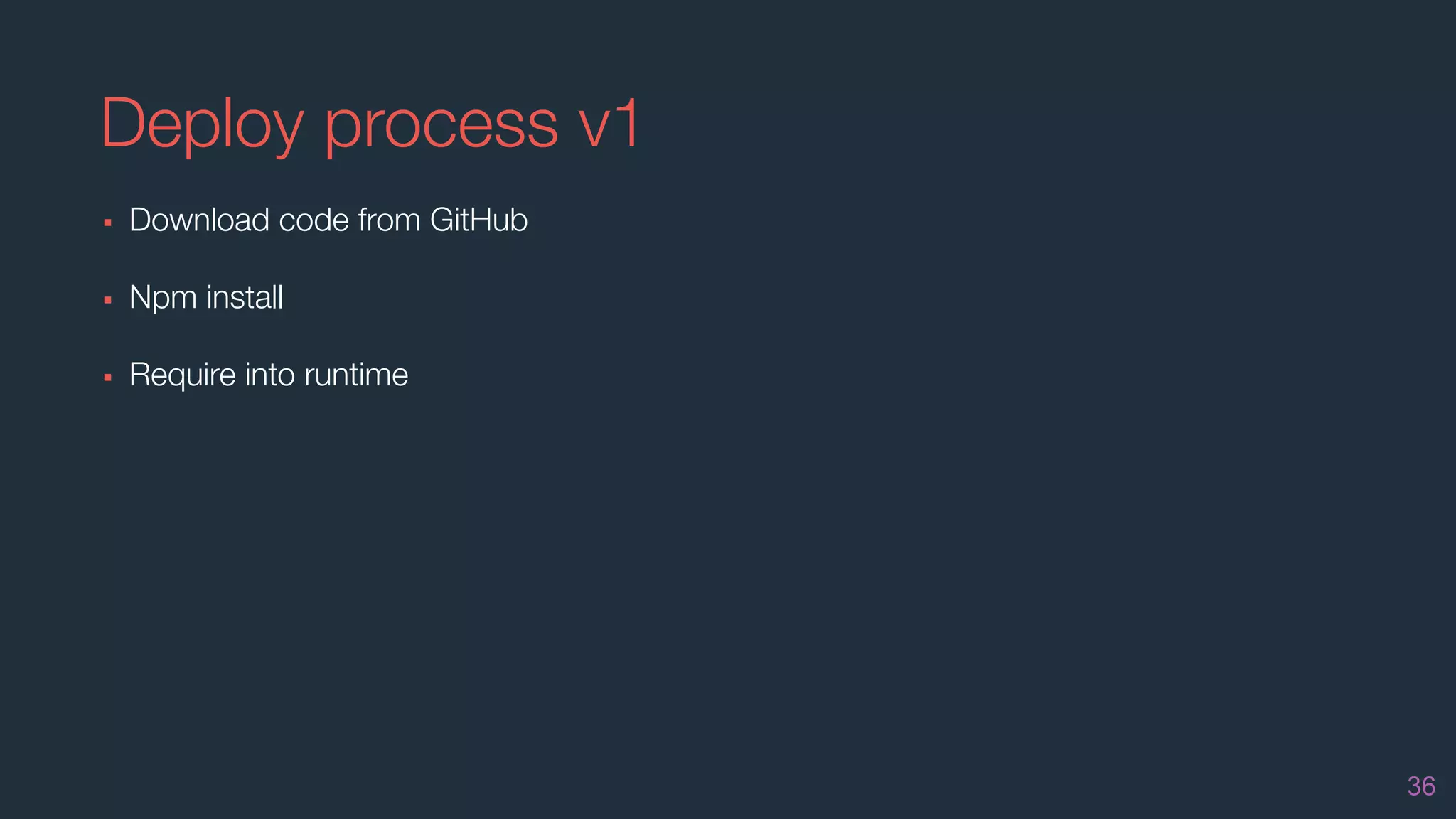

36. Deploy process v1
▪ Download code from GitHub
▪ Npm install
▪ Require into runtime
36

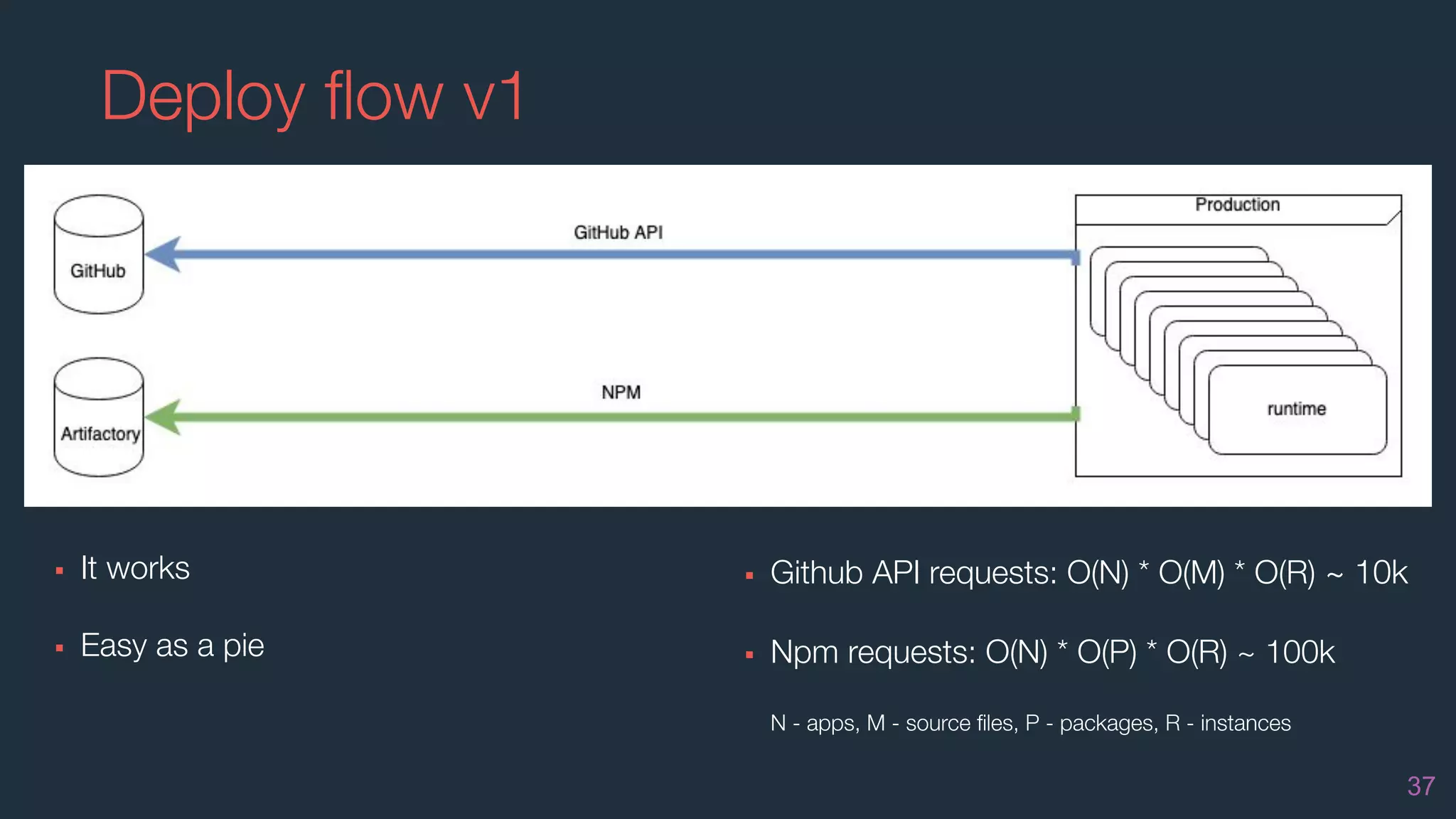

37. Deploy flow v1
37
▪ It works
▪ Easy as a pie
▪ Github API requests: O(N) * O(M) * O(R) ~ 10k
▪ Npm requests: O(N) * O(P) * O(R) ~ 100k
N - apps, M - source files, P - packages, R - instances

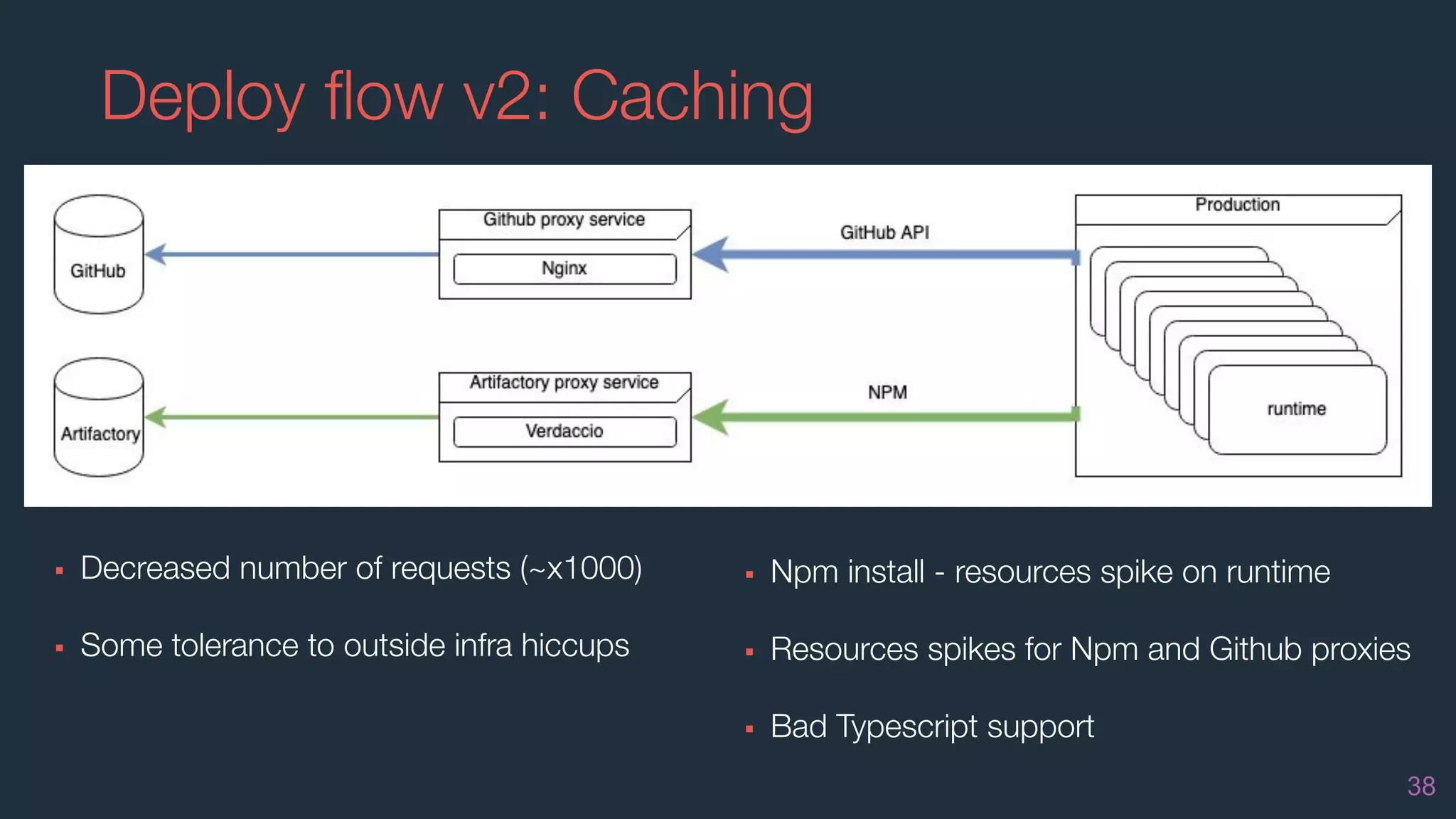

38. Deploy flow v2: Caching
38
▪ Decreased number of requests (~x1000)
▪ Some tolerance to outside infra hiccups
▪ Npm install - resources spike on runtime
▪ Resources spikes for Npm and Github proxies
▪ Bad Typescript support

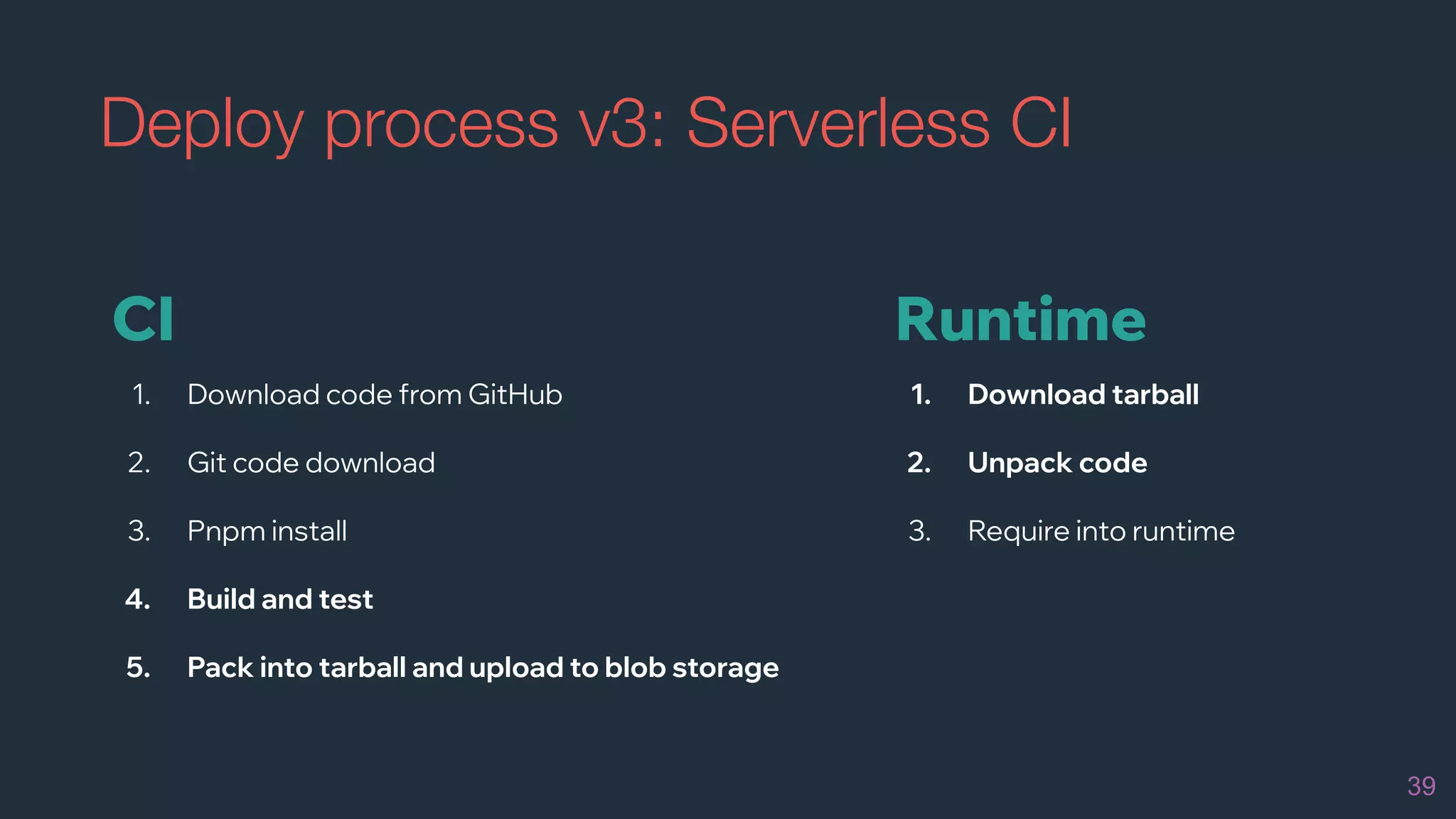

39. Deploy process v3: Serverless CI
39
Runtime
CI
1. Download code from GitHub
2. Git code download
3. Pnpm install
4. Build and test
5. Pack into tarball and upload to blob storage
1. Download tarball
2. Unpack code
3. Require into runtime

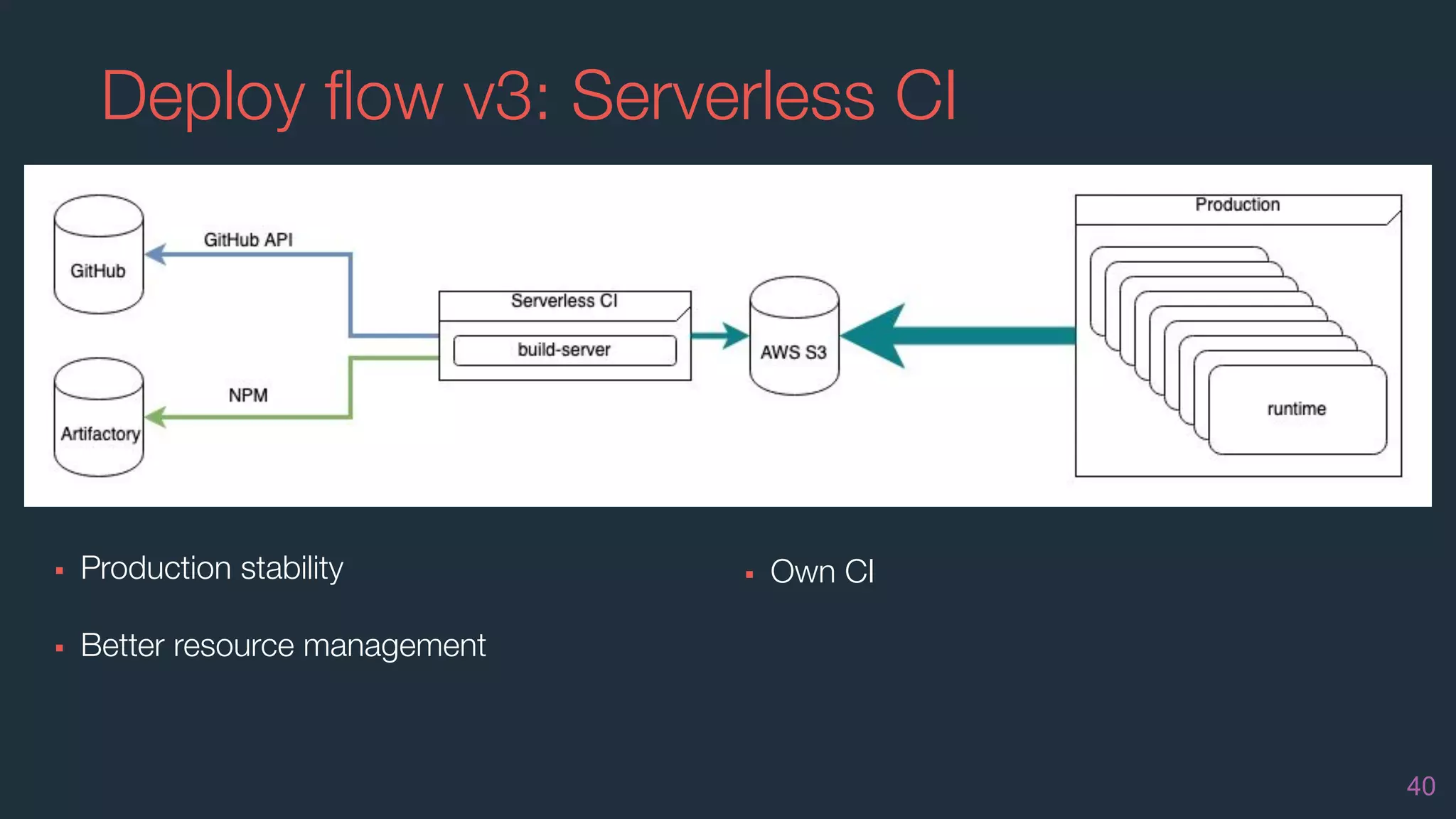

40. Deploy flow v3: Serverless CI
40
▪ Production stability
▪ Better resource management
▪ Own CI

41. 41
in Serverless
Story 2

42. Taming the Greyhound
▪ Greyhound - Wix’s Kafka framework
▪ Retries, resilient producers, cluster discovery,
context propagation, serialization
▪ No successful Node.js alternative
▪ Need Greyhound in Serverless
42

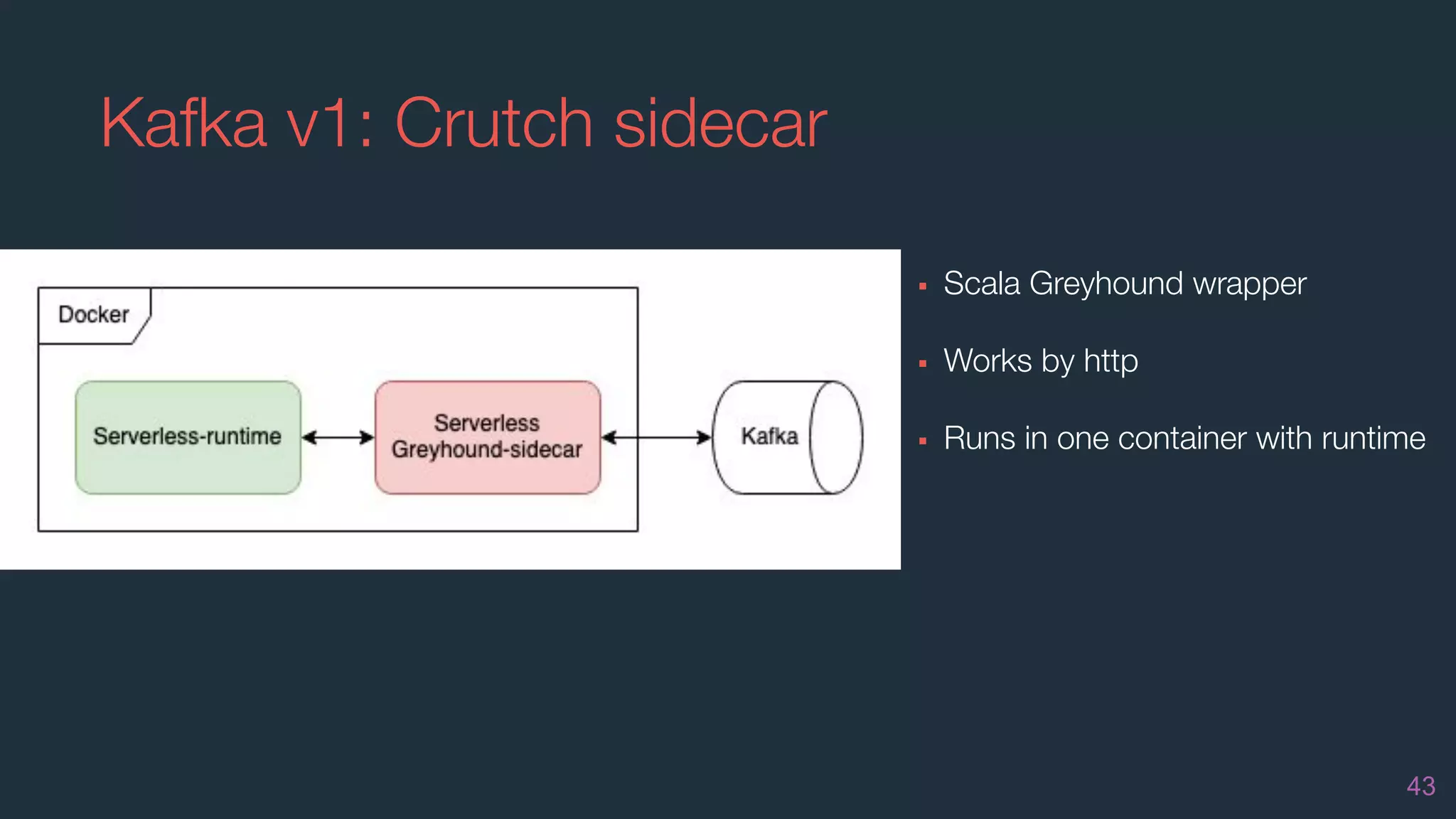

43. Kafka v1: Crutch sidecar
43
▪ Scala Greyhound wrapper
▪ Works by http
▪ Runs in one container with runtime

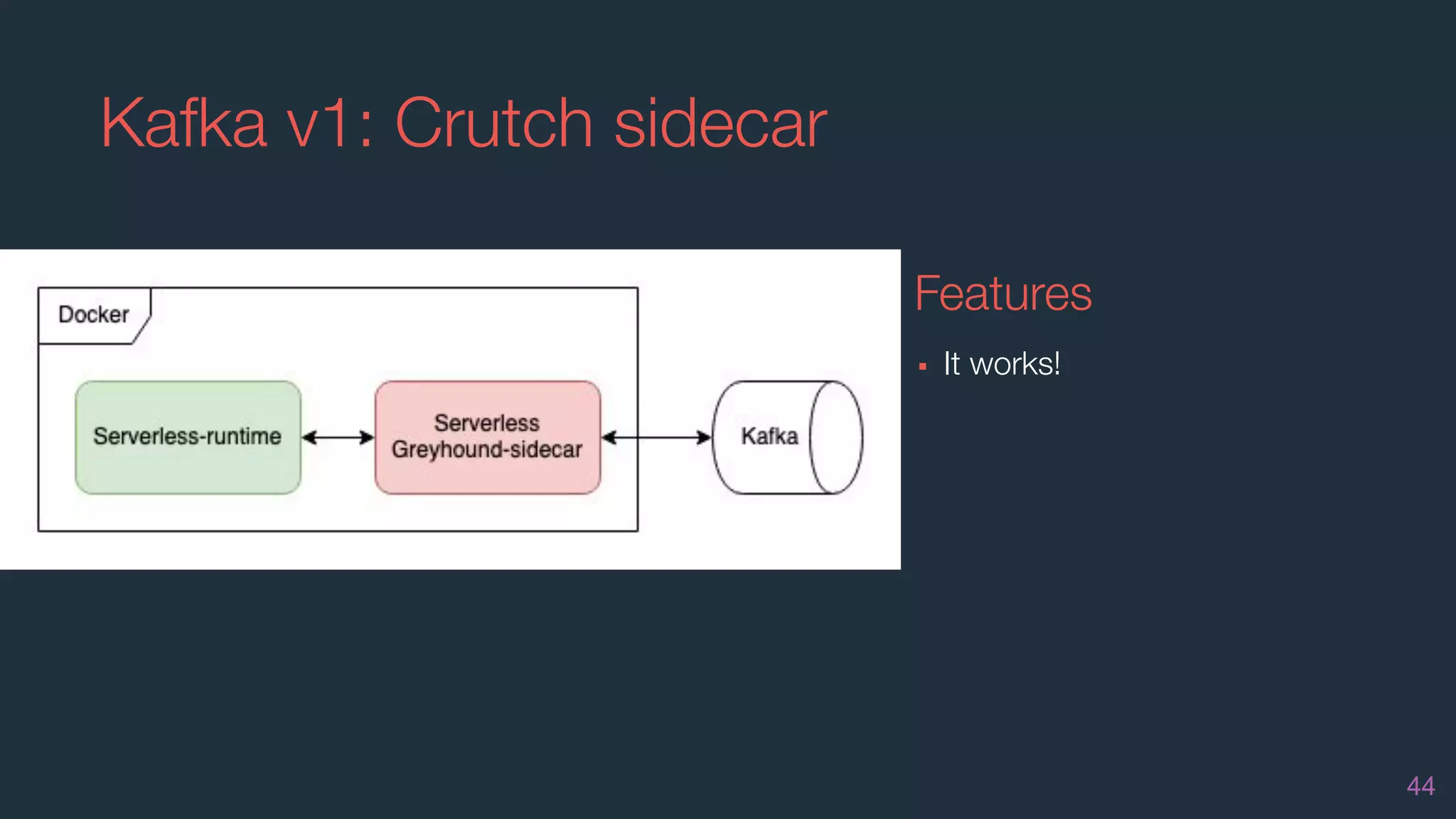

44. Kafka v1: Crutch sidecar
44
Features
▪ It works!

45. Kafka v1: Crutch sidecar
45
Issues
▪ Our own Greyhound wrapper
▪ OOM Killer

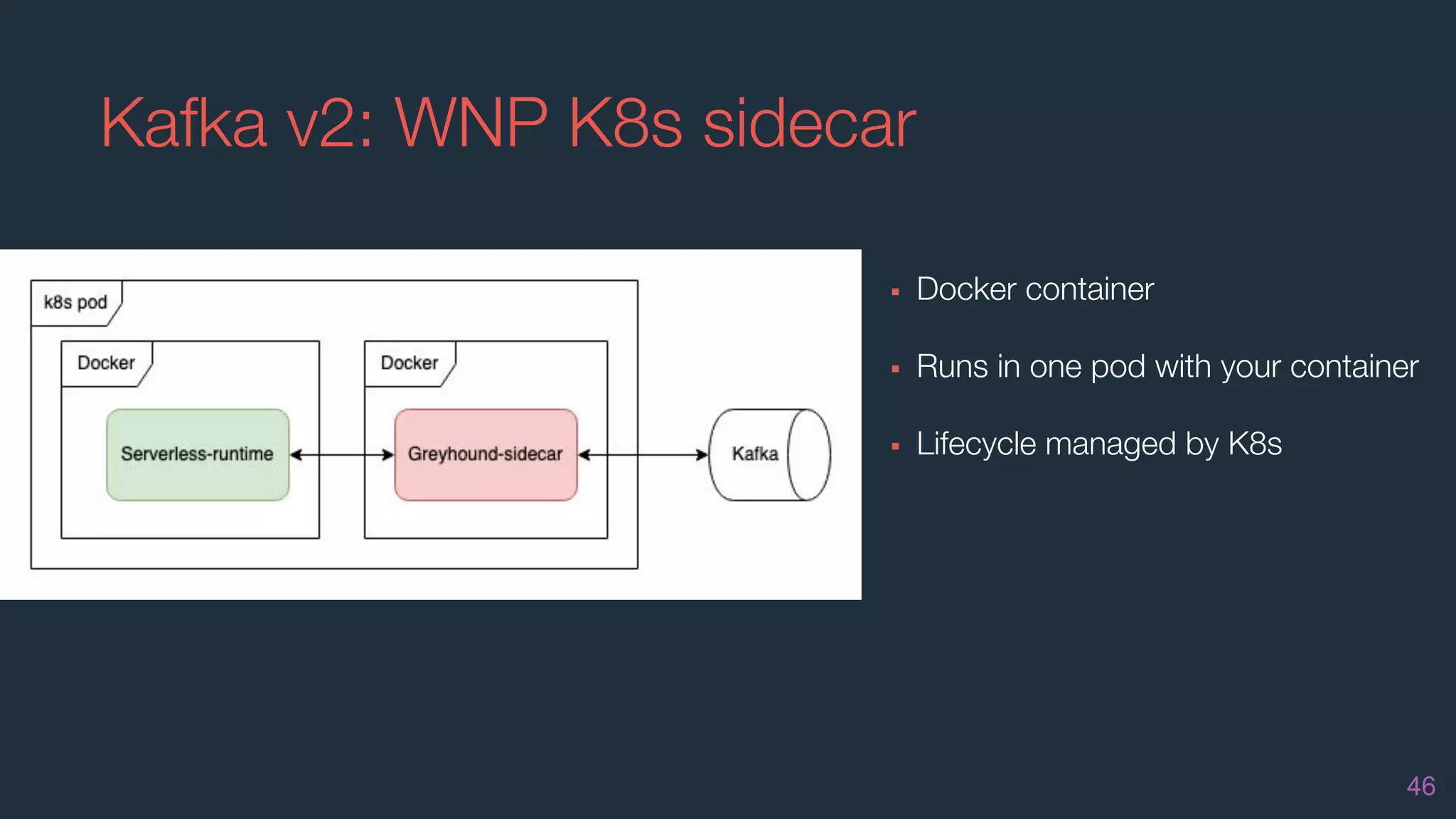

46. Kafka v2: WNP K8s sidecar
46
▪ Docker container
▪ Runs in one pod with your container
▪ Lifecycle managed by K8s

47. Kafka v2: WNP K8s sidecar
47
Features
▪ Wix standard solution
▪ Much more stable

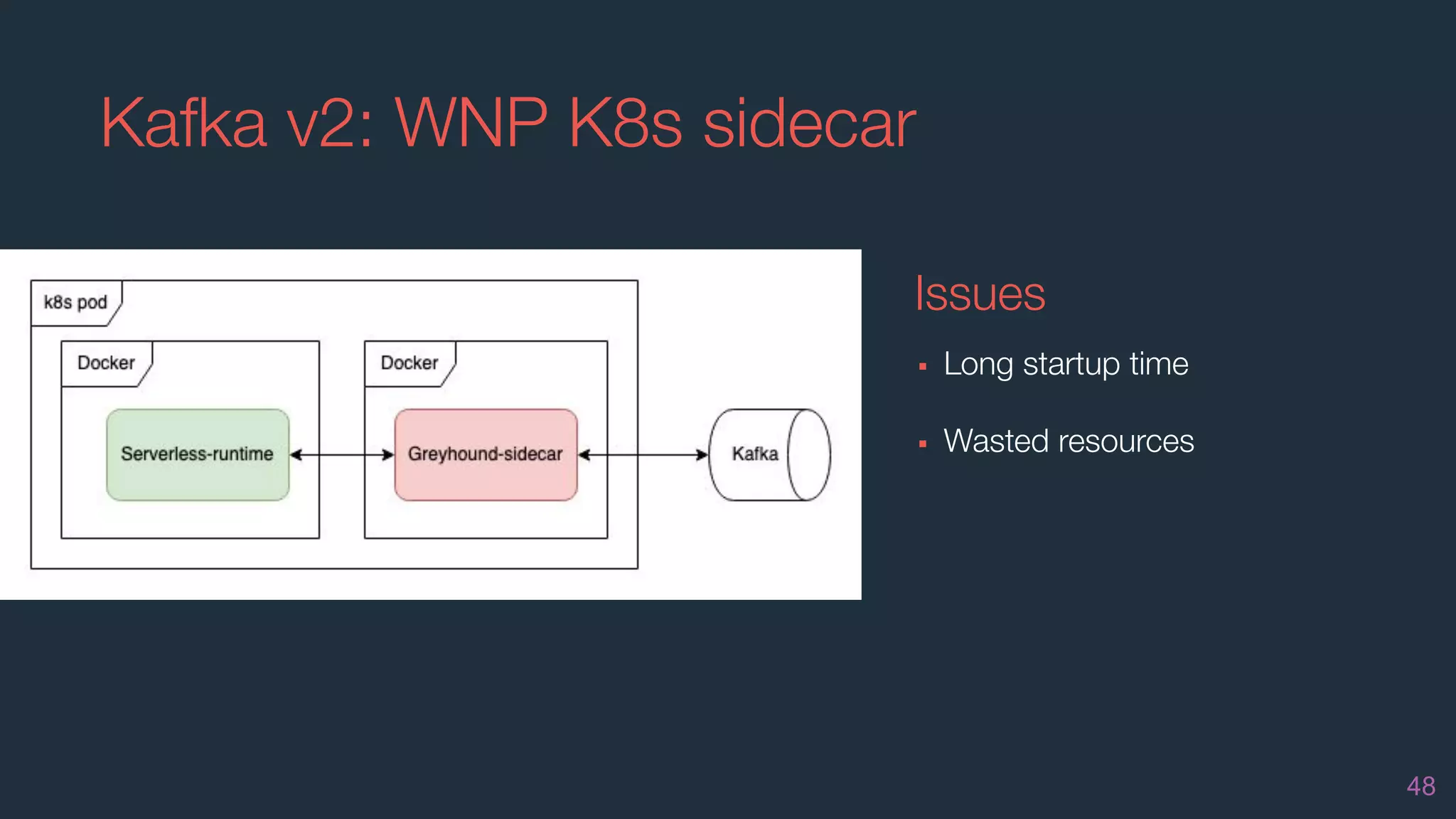

48. Kafka v2: WNP K8s sidecar
48
Issues
▪ Long startup time
▪ Wasted resources

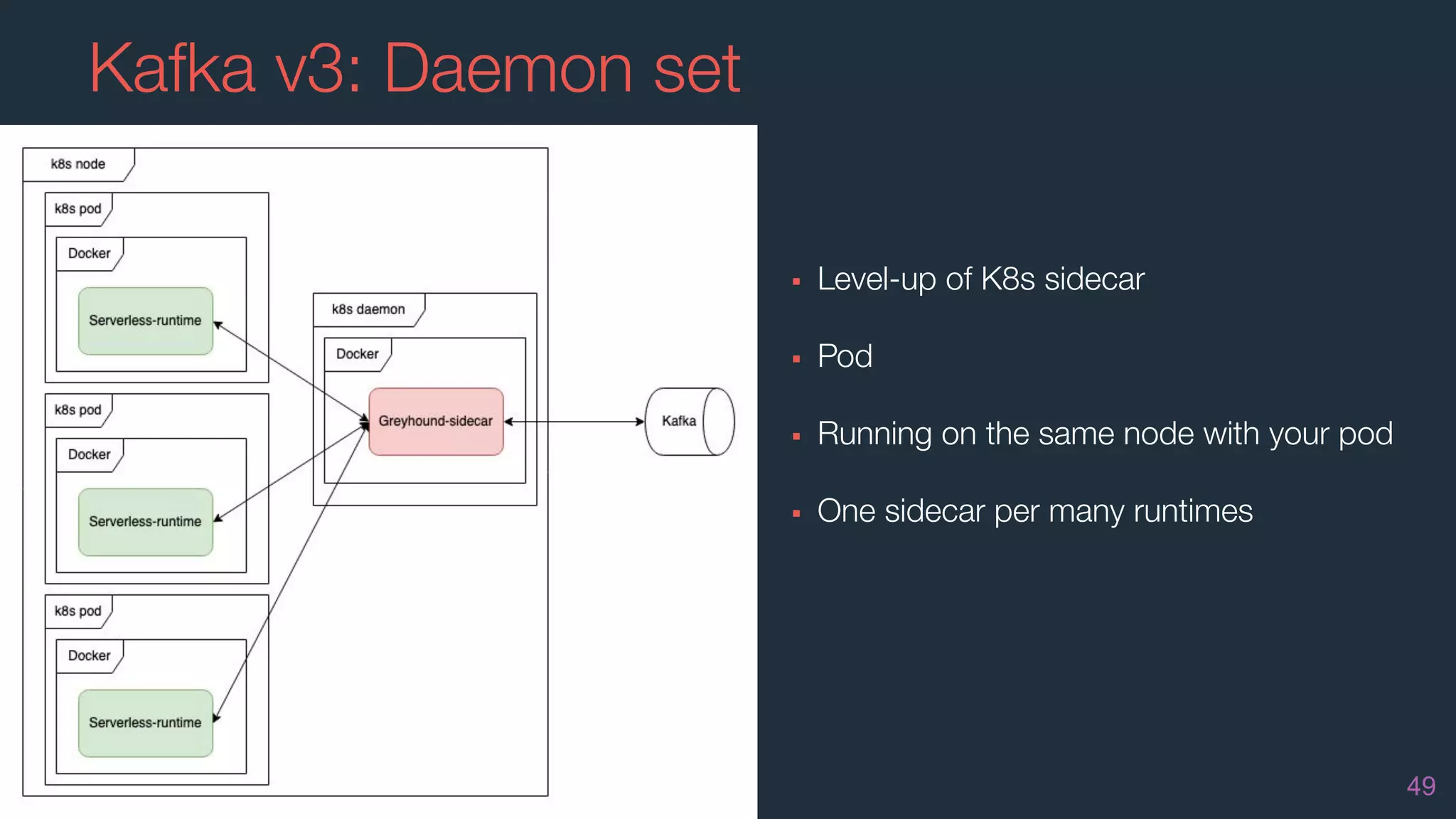

49. Kafka v3: Daemon set
49
▪ Level-up of K8s sidecar
▪ Pod
▪ Running on the same node with your pod
▪ One sidecar per many runtimes

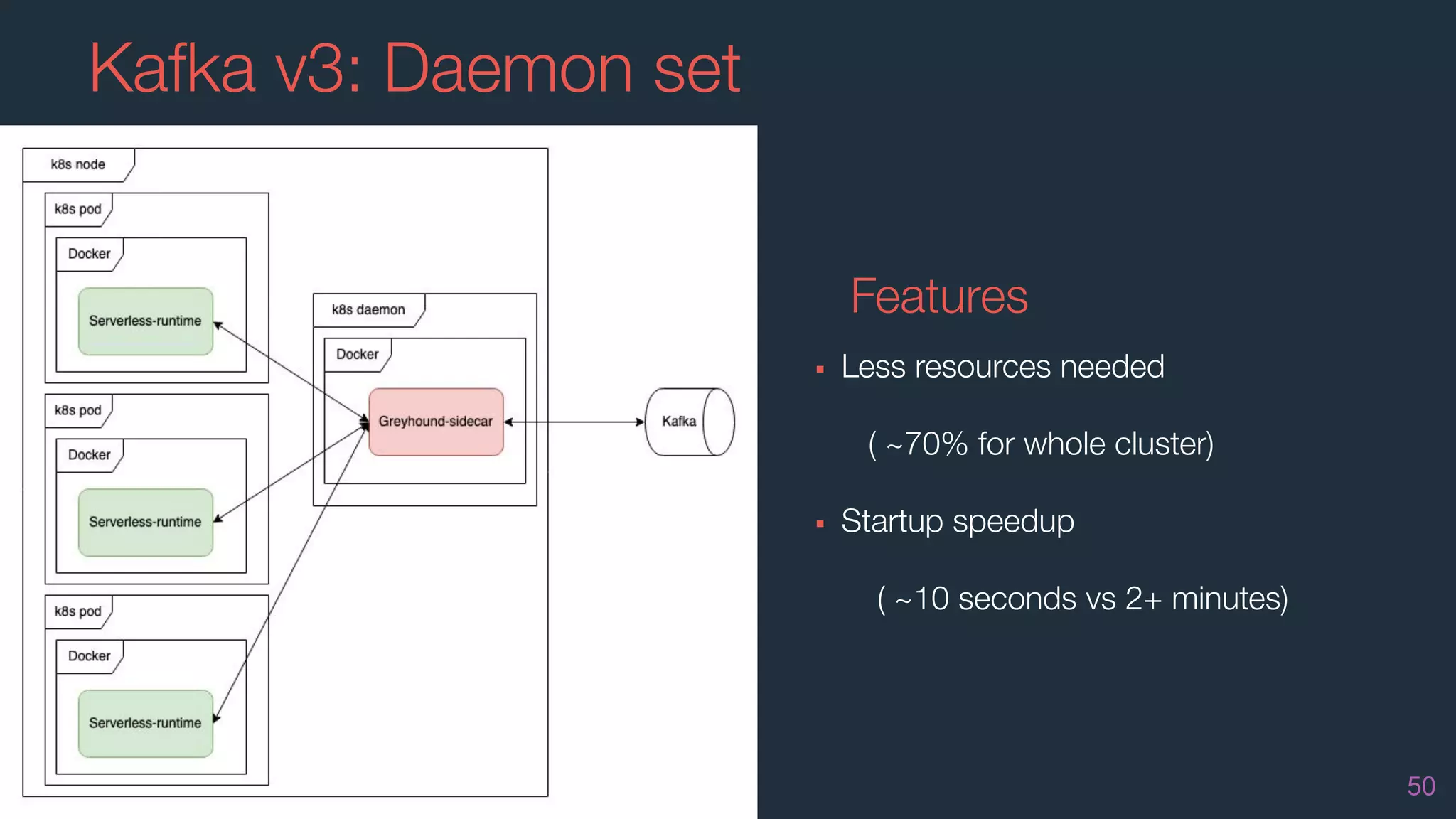

50. Kafka v3: Daemon set
50
Features
▪ Less resources needed
( ~70% for whole cluster)
▪ Startup speedup
( ~10 seconds vs 2+ minutes)

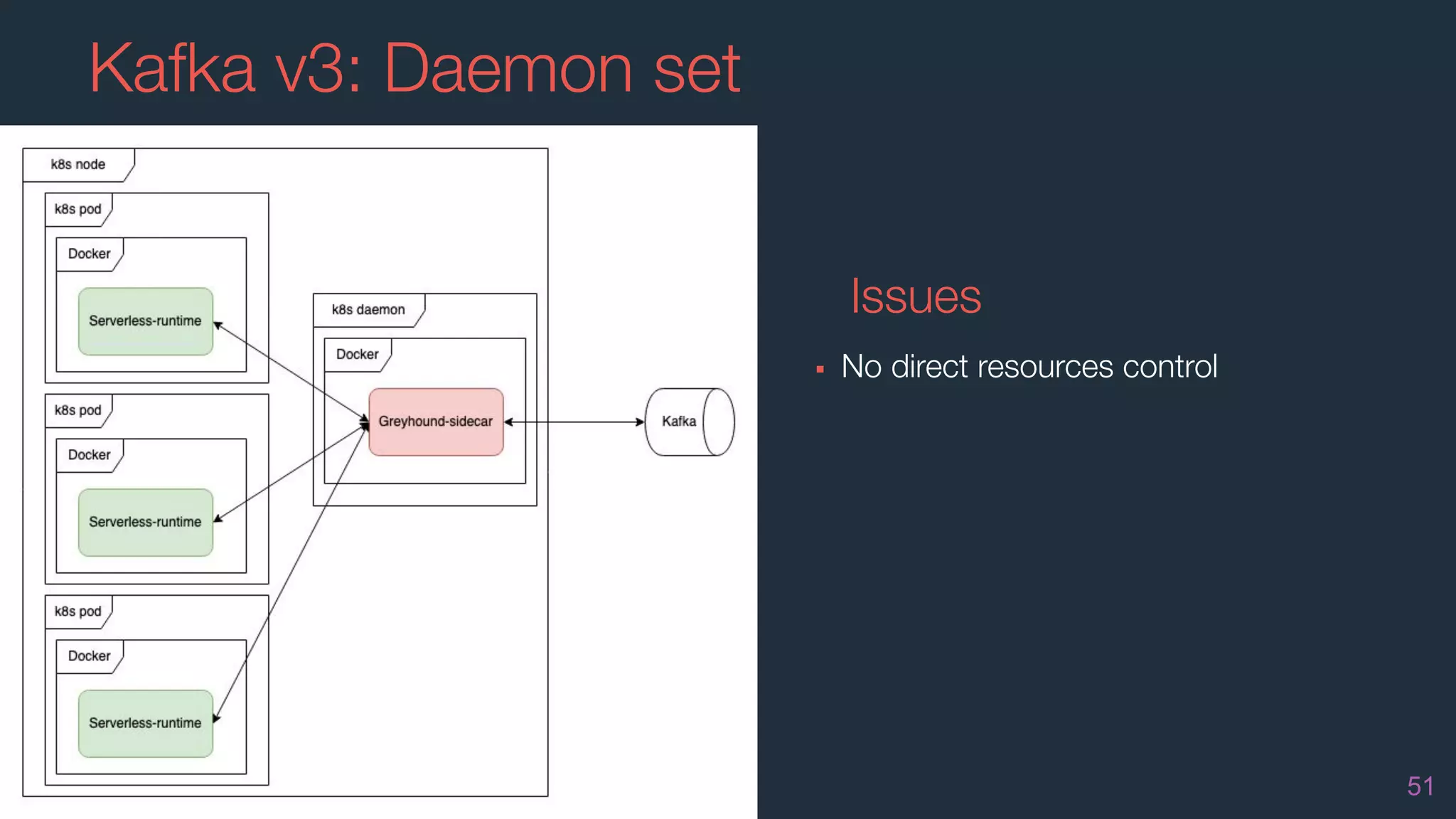

51. Kafka v3: Daemon set
51
Issues
▪ No direct resources control

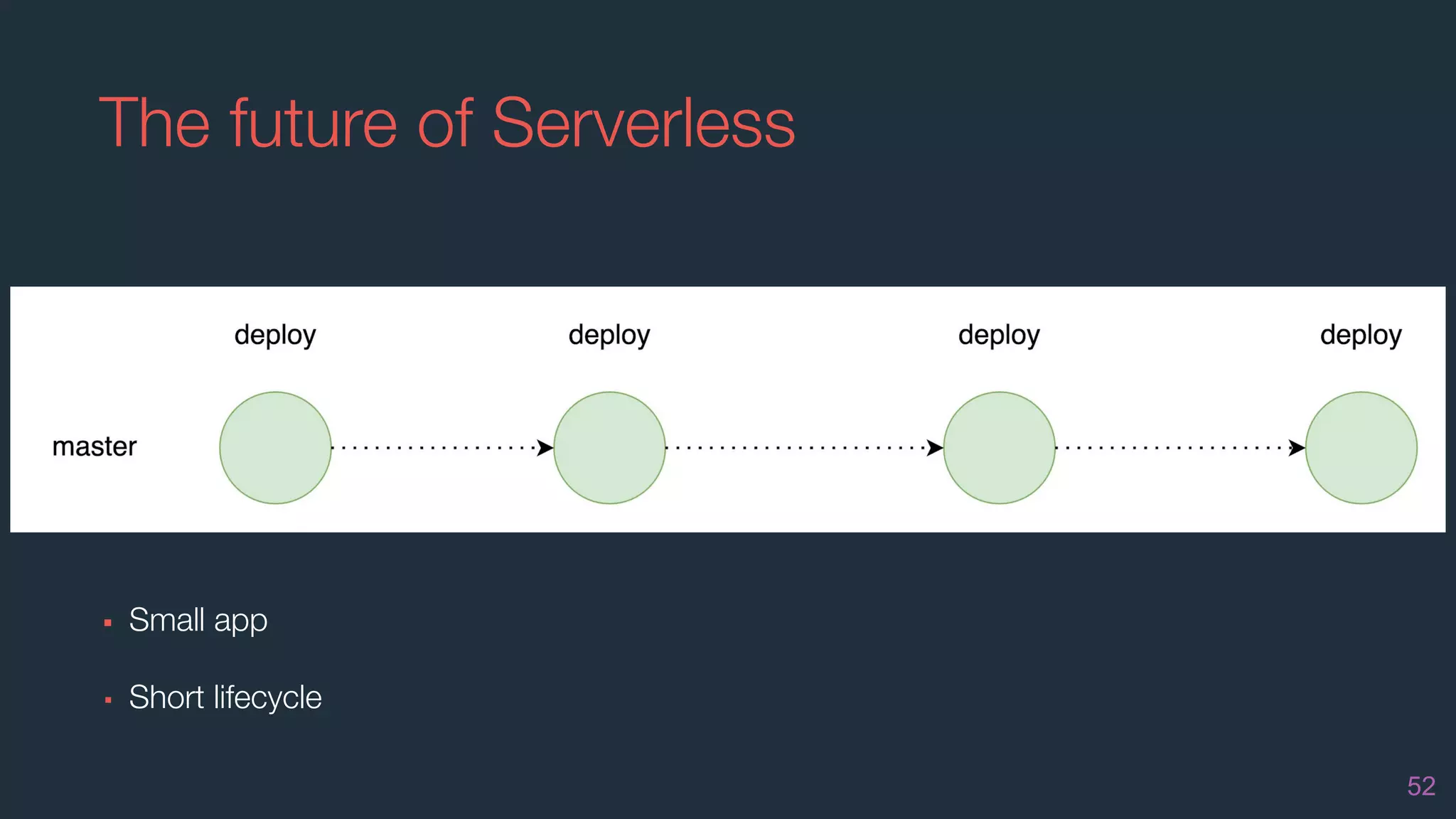

52. The future of Serverless
52
▪ Small app
▪ Short lifecycle

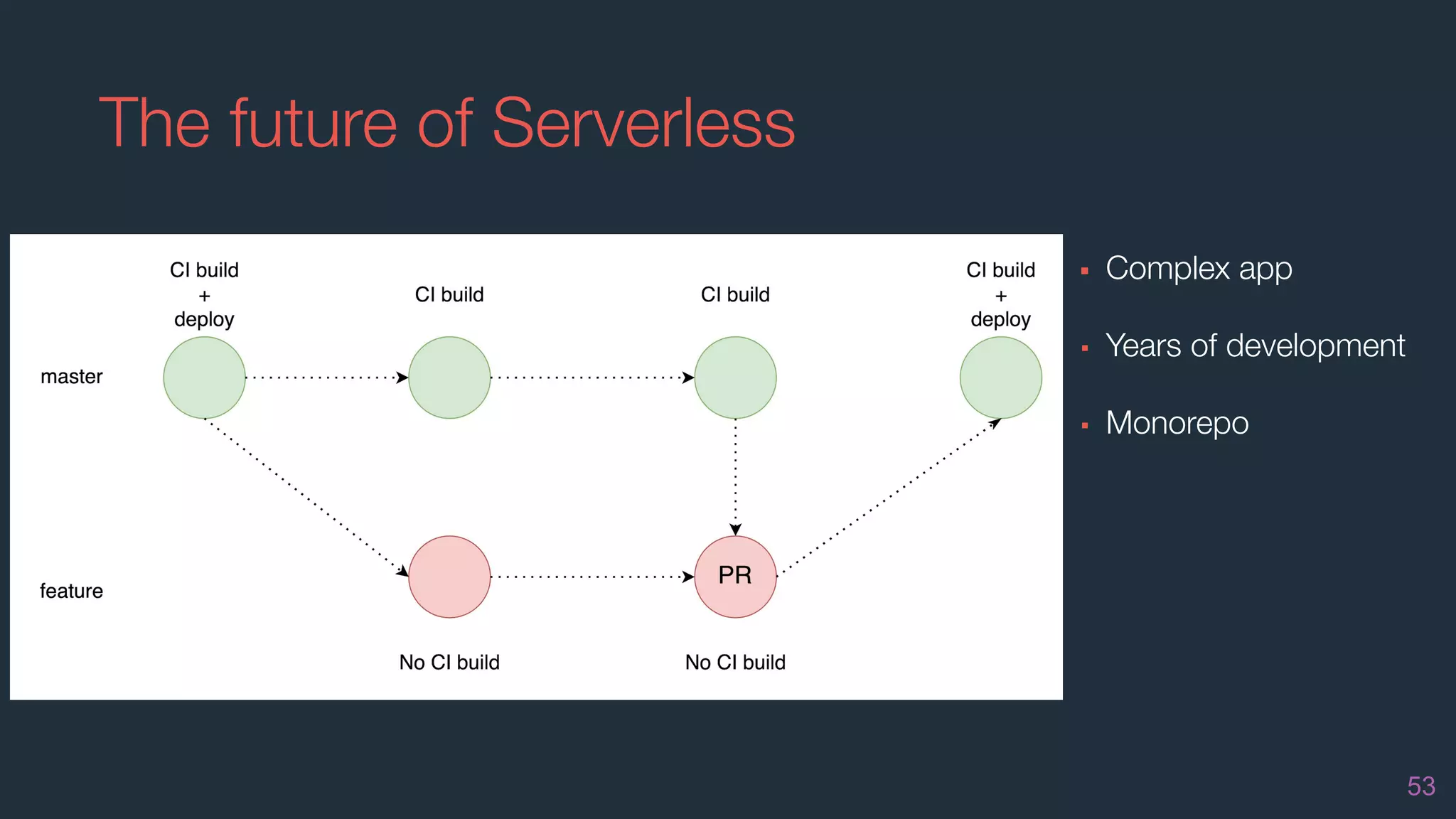

53. The future of Serverless
53
▪ Complex app
▪ Years of development
▪ Monorepo

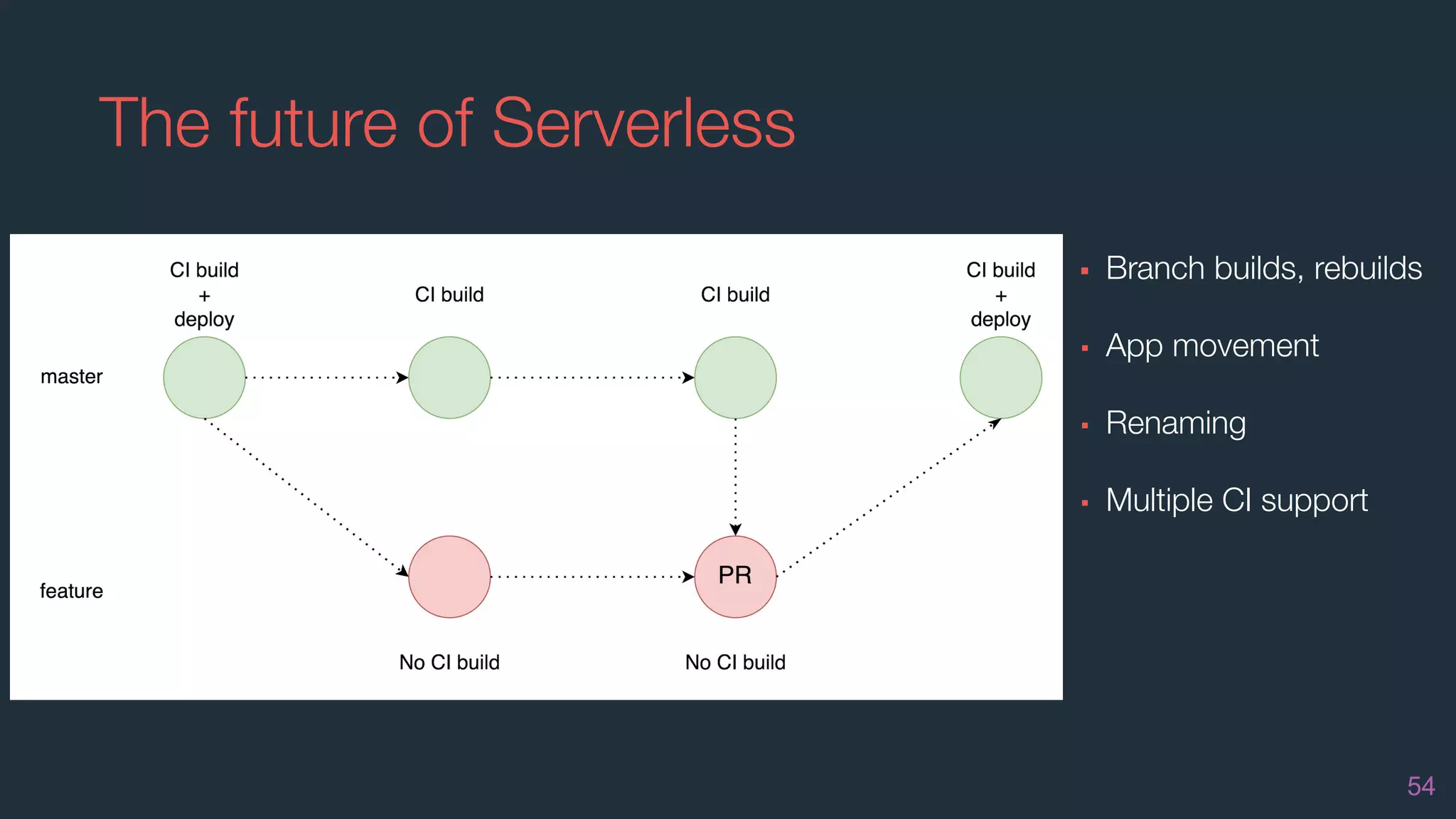

54. The future of Serverless
54
▪ Branch builds, rebuilds
▪ App movement
▪ Renaming
▪ Multiple CI support

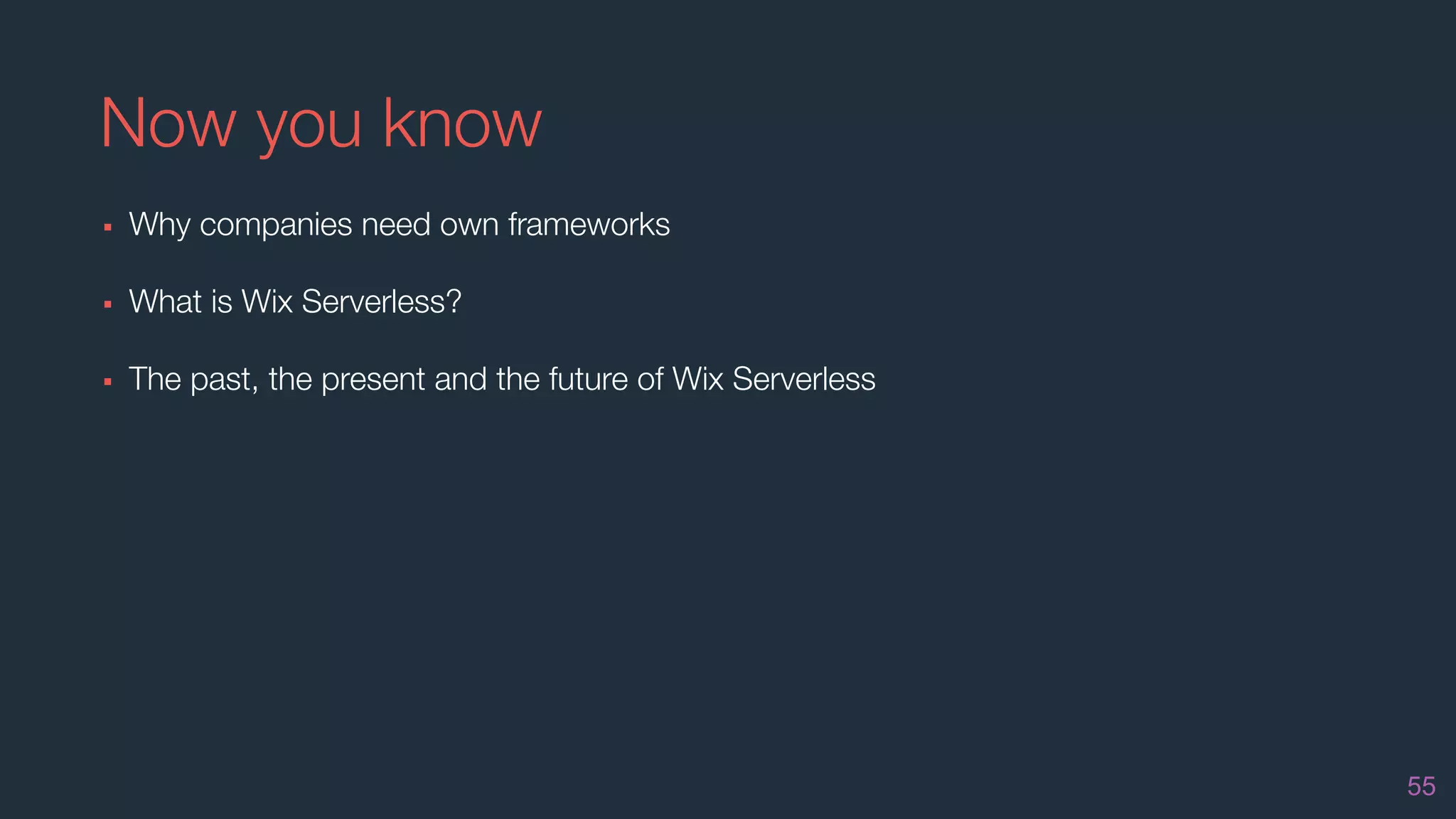

55. Now you know
55
▪ Why companies need own frameworks
▪ What is Wix Serverless?
▪ The past, the present and the future of Wix Serverless

56. Thank you
mykola.borozdin@gmail.com
56
