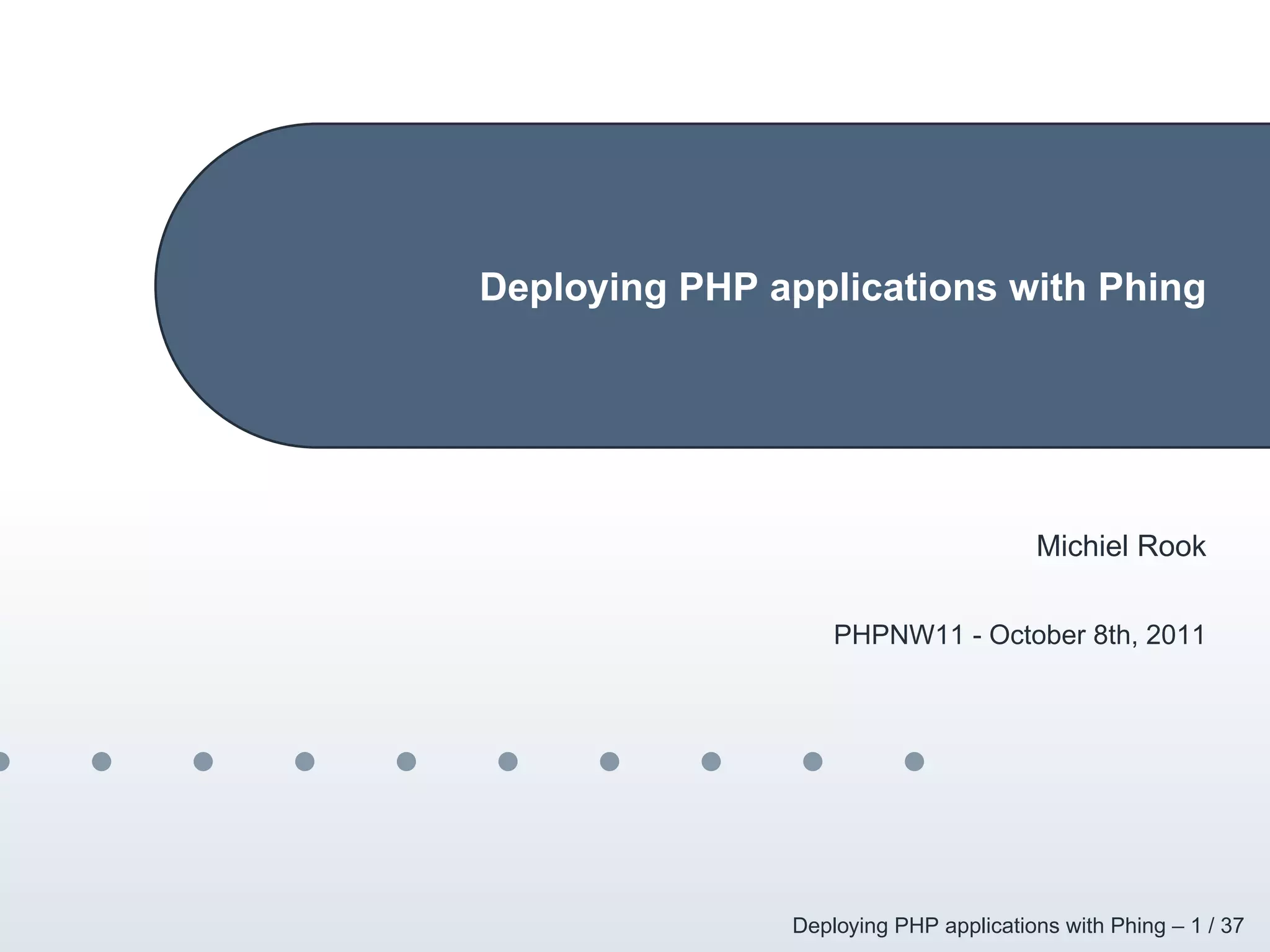

1. Deploying PHP applications with Phing
Michiel Rook
PHPNW11 - October 8th, 2011
Deploying PHP applications with Phing – 1 / 37

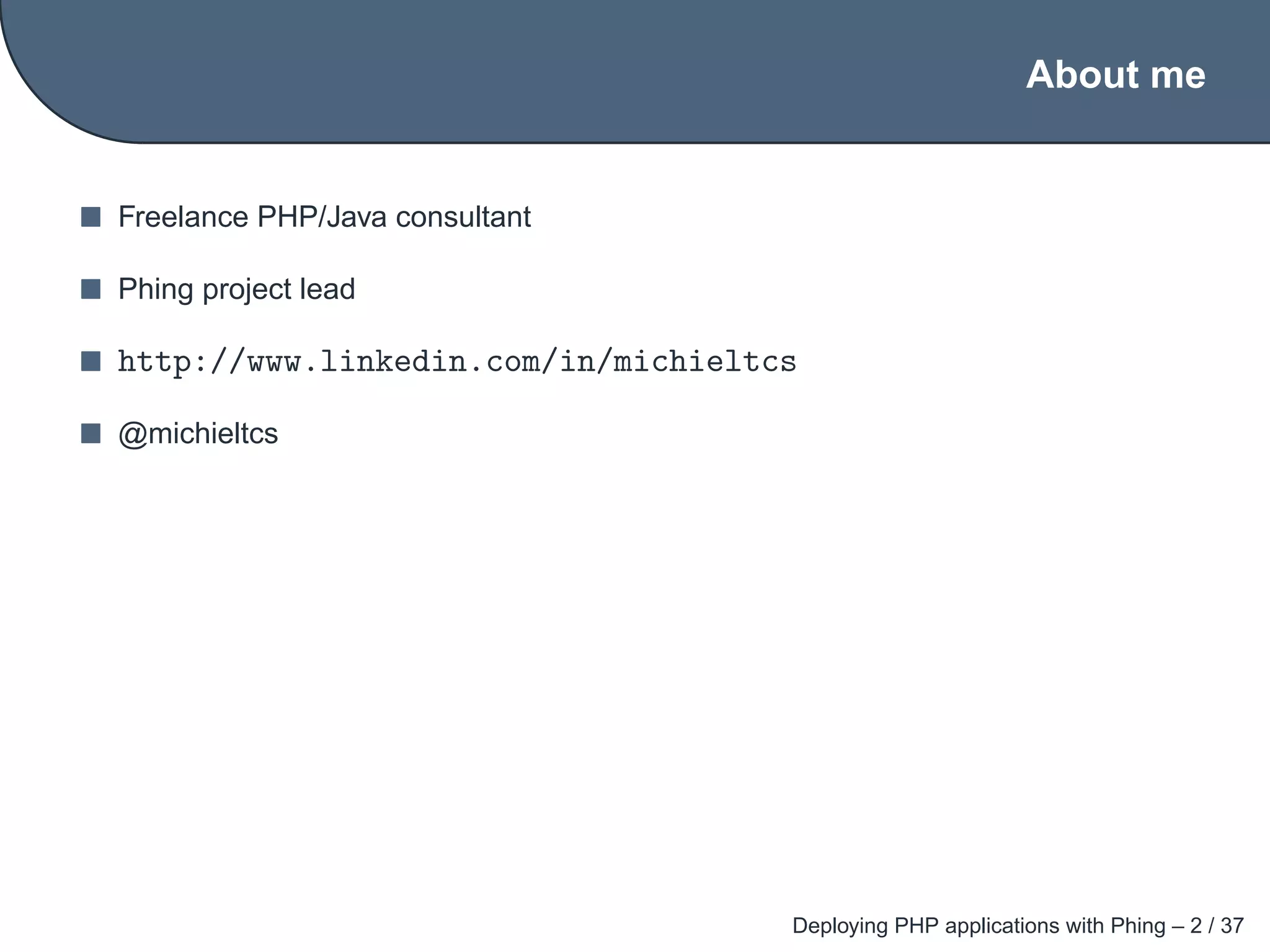

2. About me
Freelance PHP/Java consultant
Phing project lead
http://www.linkedin.com/in/michieltcs
@michieltcs
Deploying PHP applications with Phing – 2 / 37

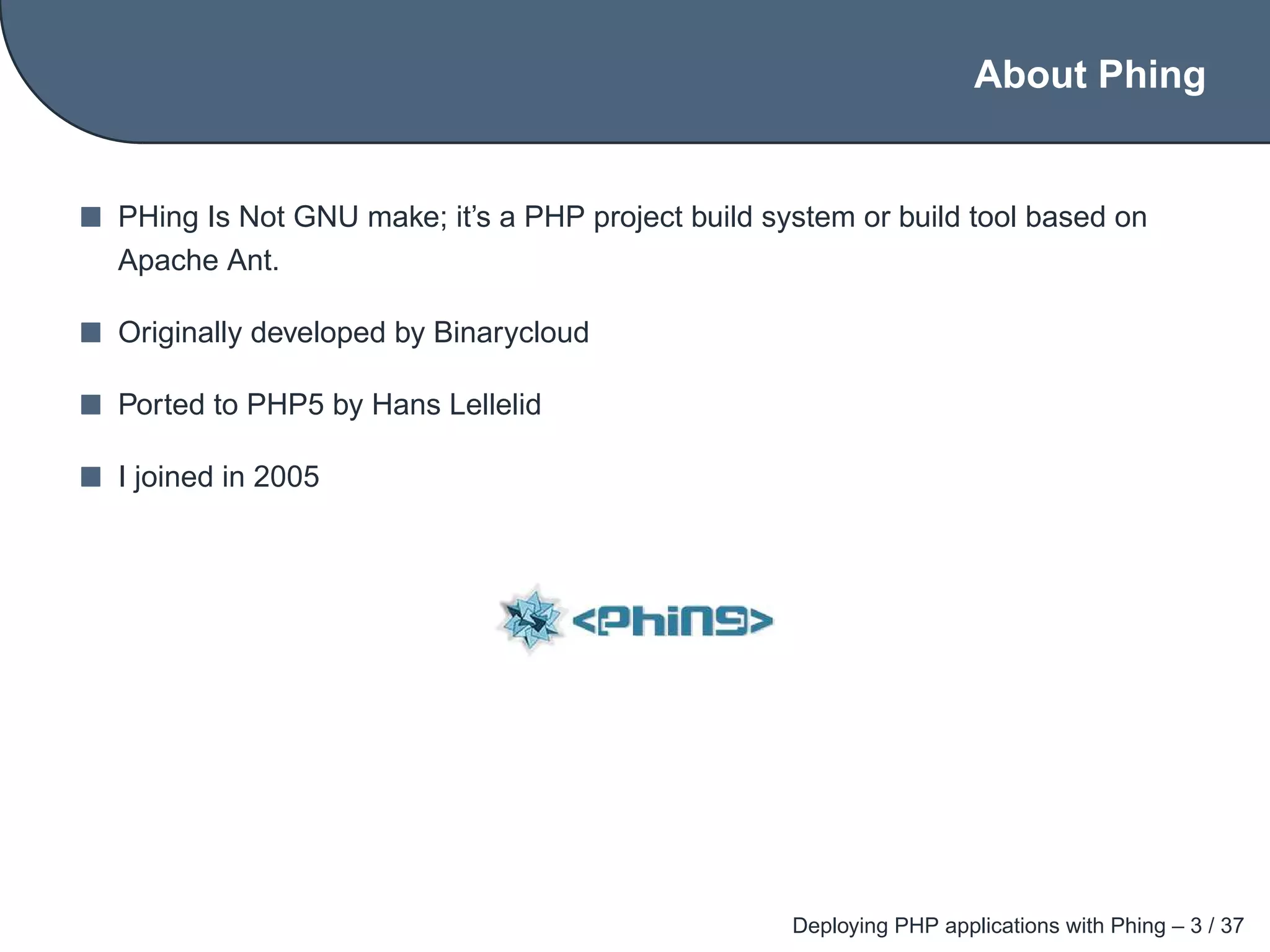

3. About Phing
PHing Is Not GNU make; it’s a PHP project build system or build tool based on
Apache Ant.
Originally developed by Binarycloud
Ported to PHP5 by Hans Lellelid
I joined in 2005
Deploying PHP applications with Phing – 3 / 37

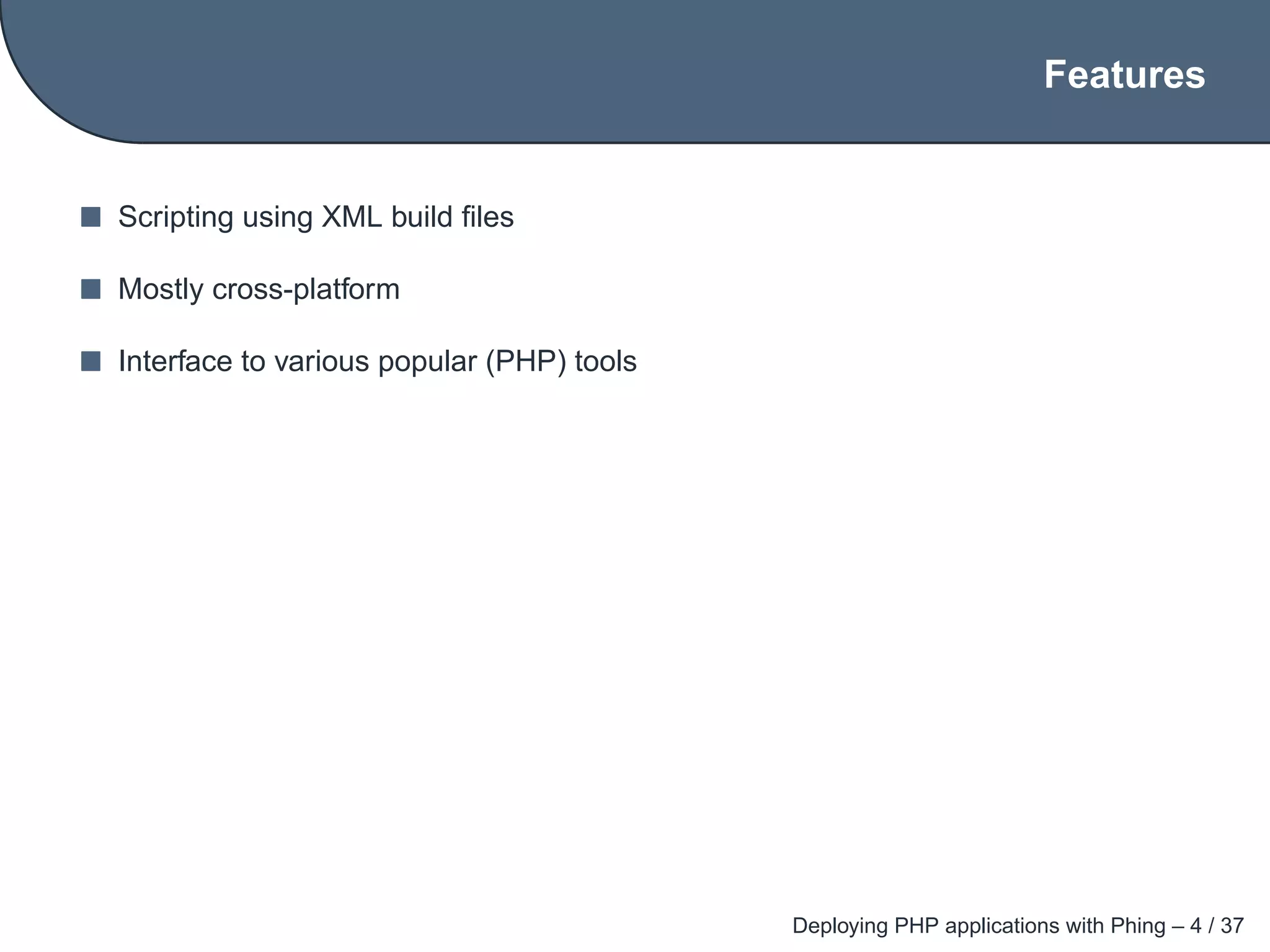

4. Features
Scripting using XML build files
Mostly cross-platform
Interface to various popular (PHP) tools
Deploying PHP applications with Phing – 4 / 37

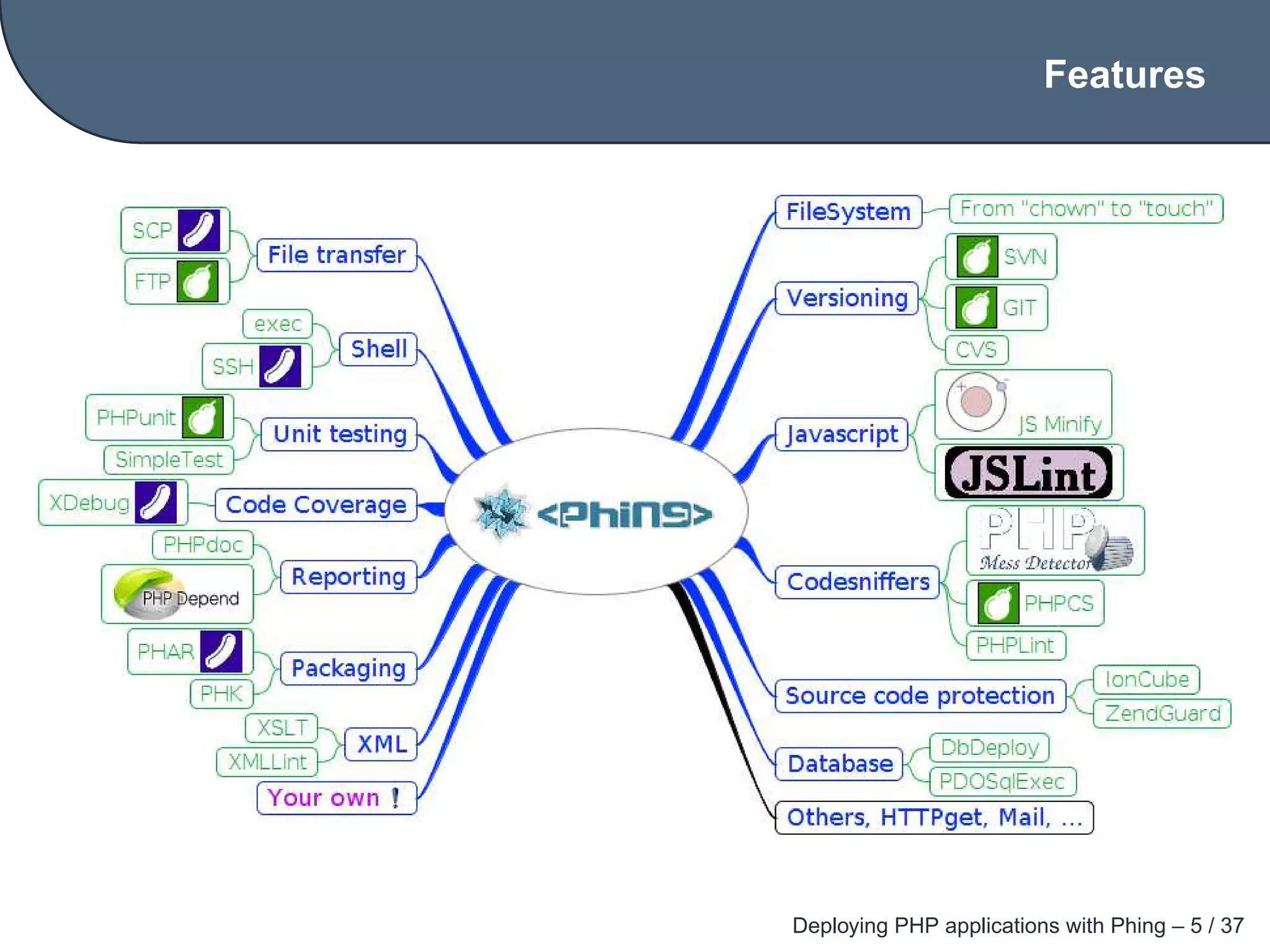

5. Features
Deploying PHP applications with Phing – 5 / 37

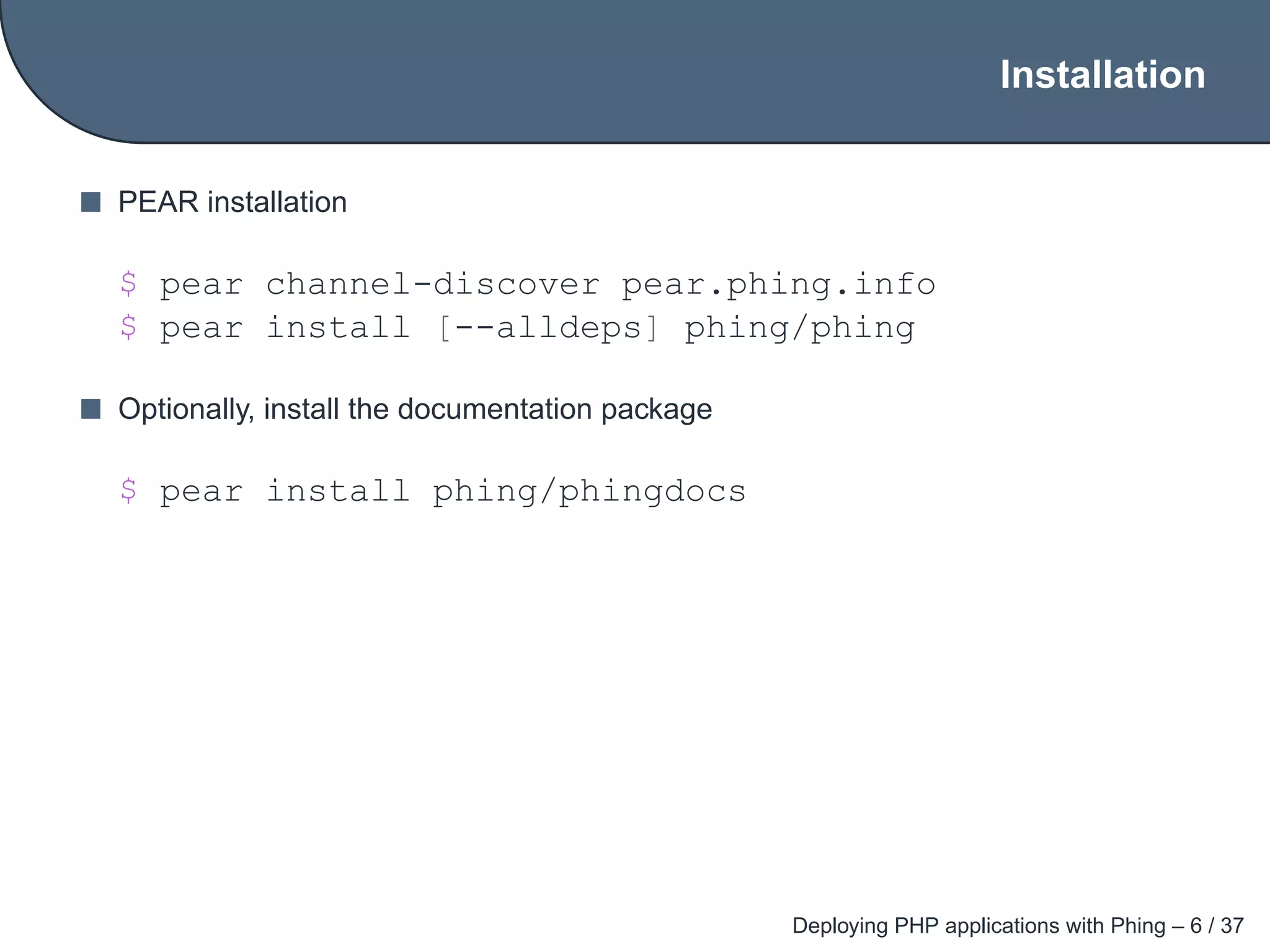

6. Installation
PEAR installation
$ pear channel-discover pear.phing.info
$ pear install [--alldeps] phing/phing
Optionally, install the documentation package
$ pear install phing/phingdocs
Deploying PHP applications with Phing – 6 / 37

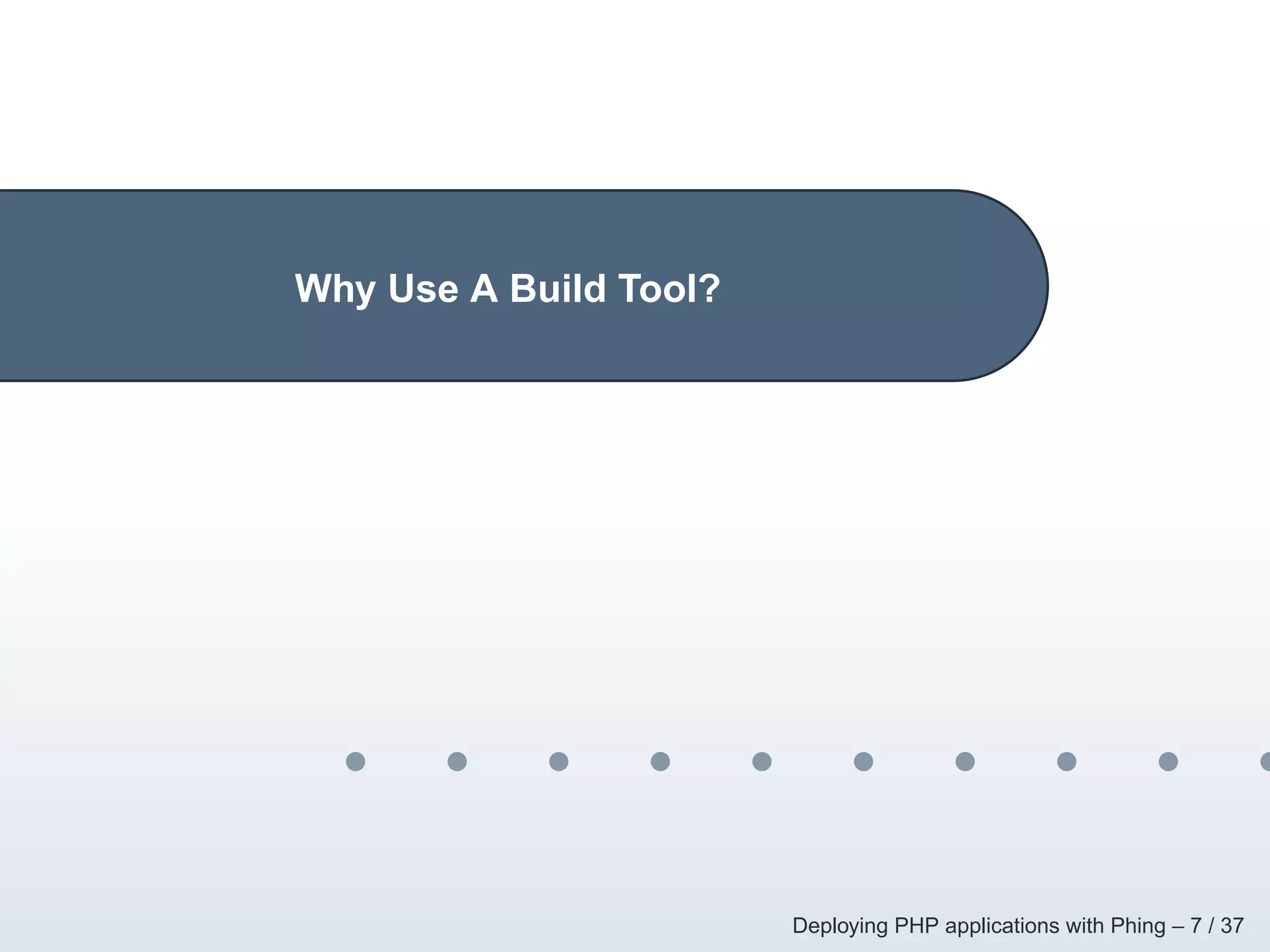

7. Why Use A Build Tool?
Deploying PHP applications with Phing – 7 / 37

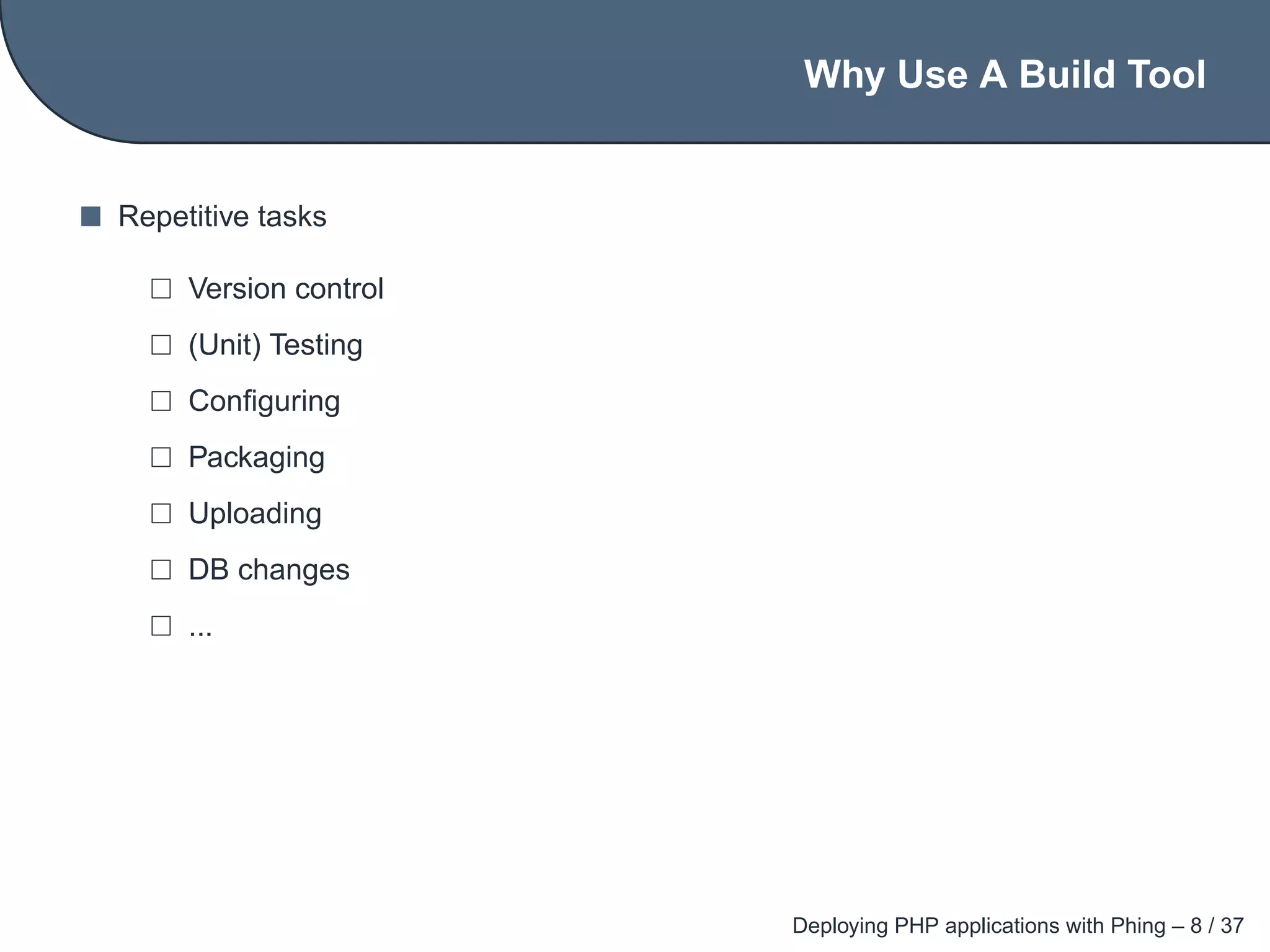

8. Why Use A Build Tool
Repetitive tasks
Version control
(Unit) Testing
Configuring
Packaging
Uploading
DB changes
...
Deploying PHP applications with Phing – 8 / 37

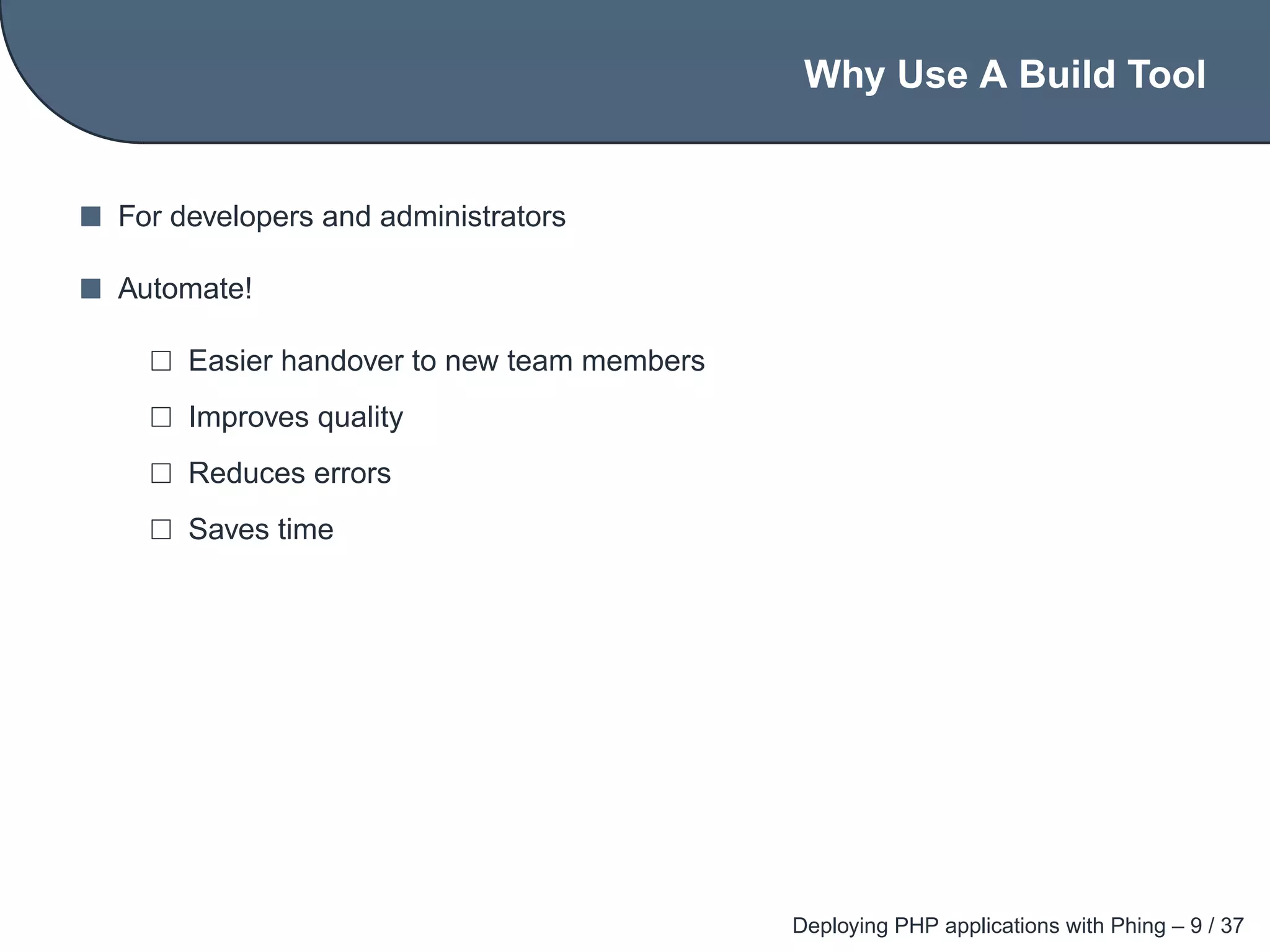

9. Why Use A Build Tool
For developers and administrators
Automate!
Easier handover to new team members
Improves quality
Reduces errors
Saves time
Deploying PHP applications with Phing – 9 / 37

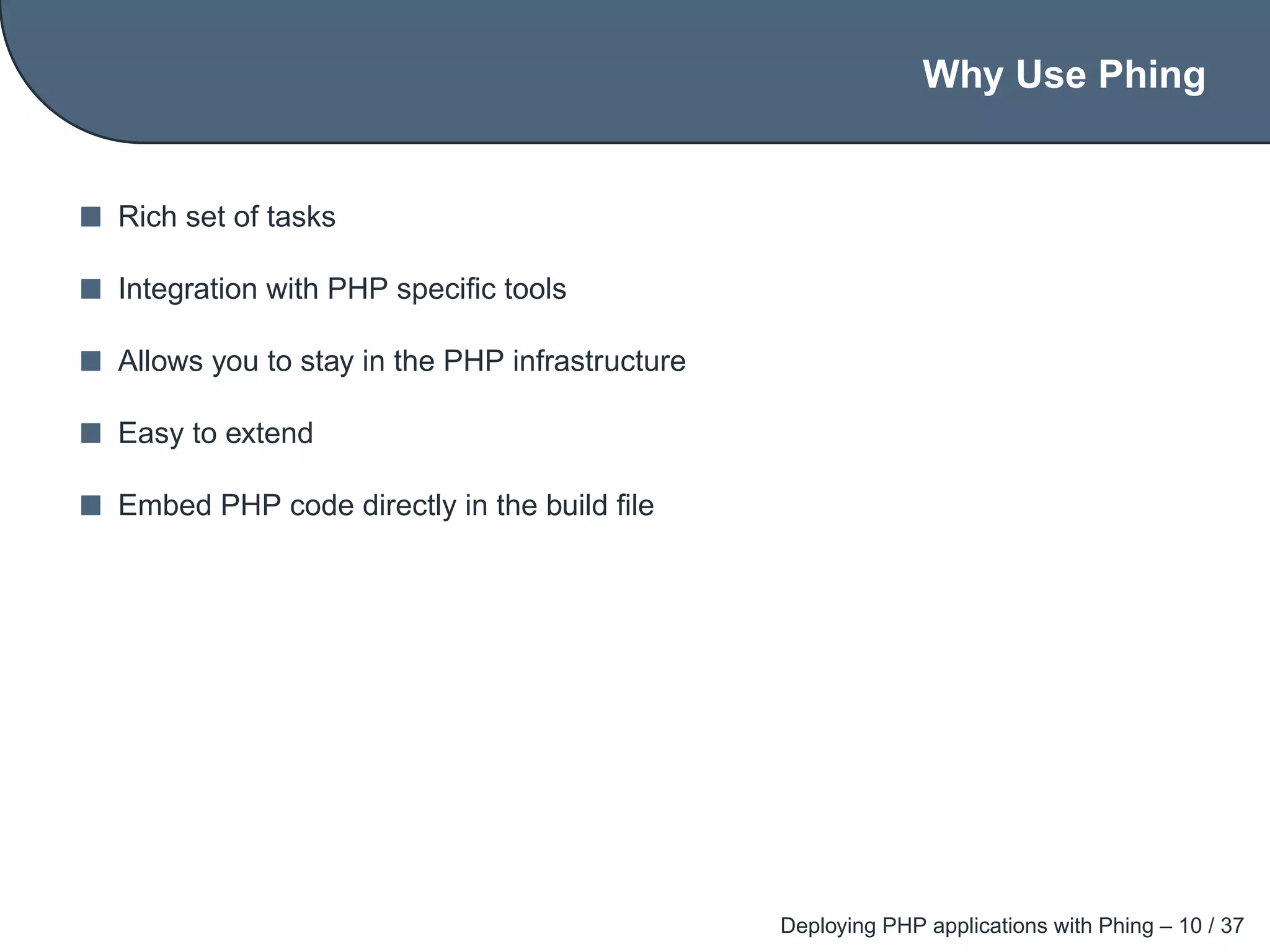

10. Why Use Phing
Rich set of tasks
Integration with PHP specific tools
Allows you to stay in the PHP infrastructure
Easy to extend
Embed PHP code directly in the build file
Deploying PHP applications with Phing – 10 / 37

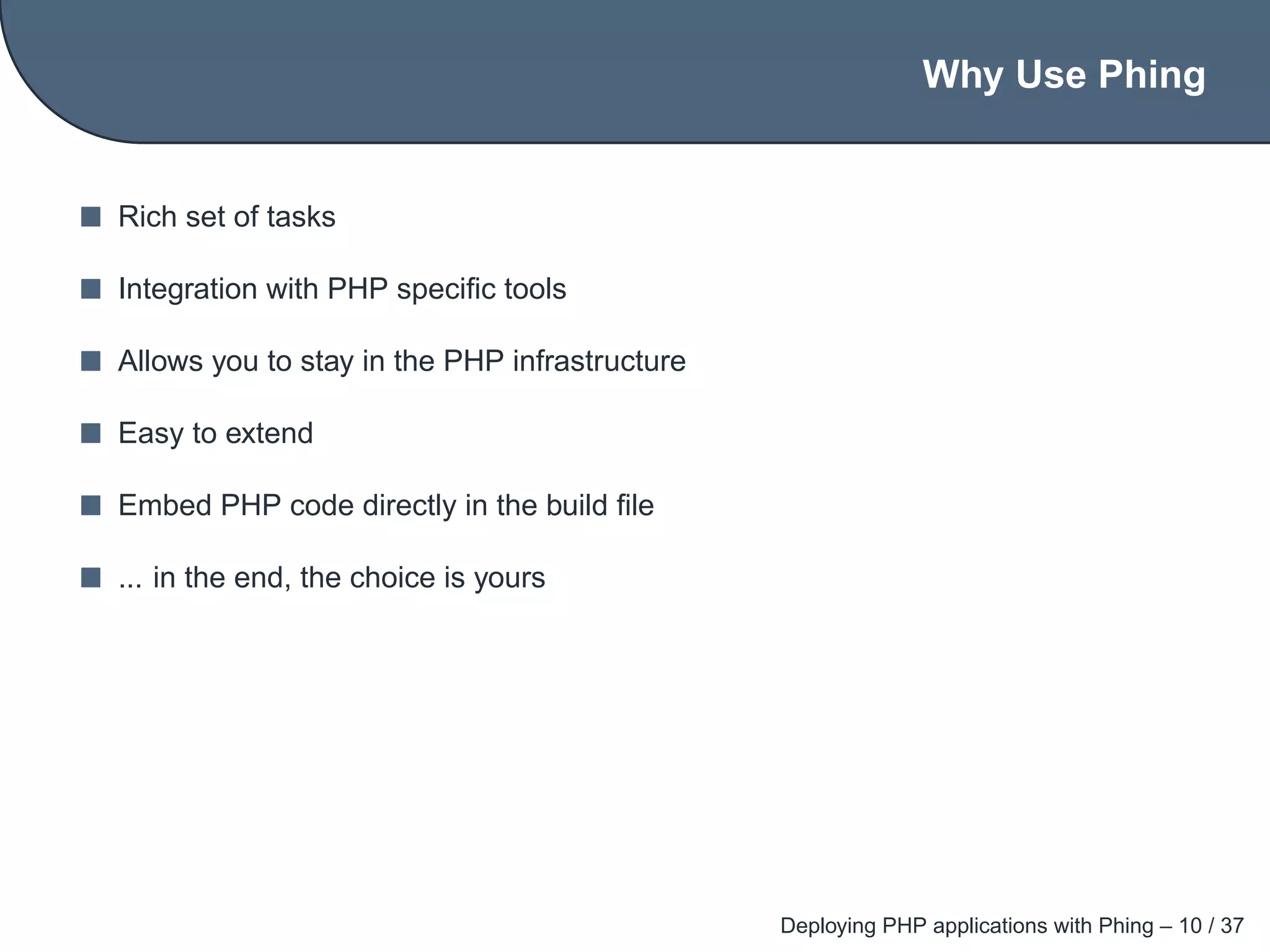

11. Why Use Phing
Rich set of tasks
Integration with PHP specific tools
Allows you to stay in the PHP infrastructure
Easy to extend
Embed PHP code directly in the build file
... in the end, the choice is yours
Deploying PHP applications with Phing – 10 / 37

12. The Basics
Deploying PHP applications with Phing – 11 / 37

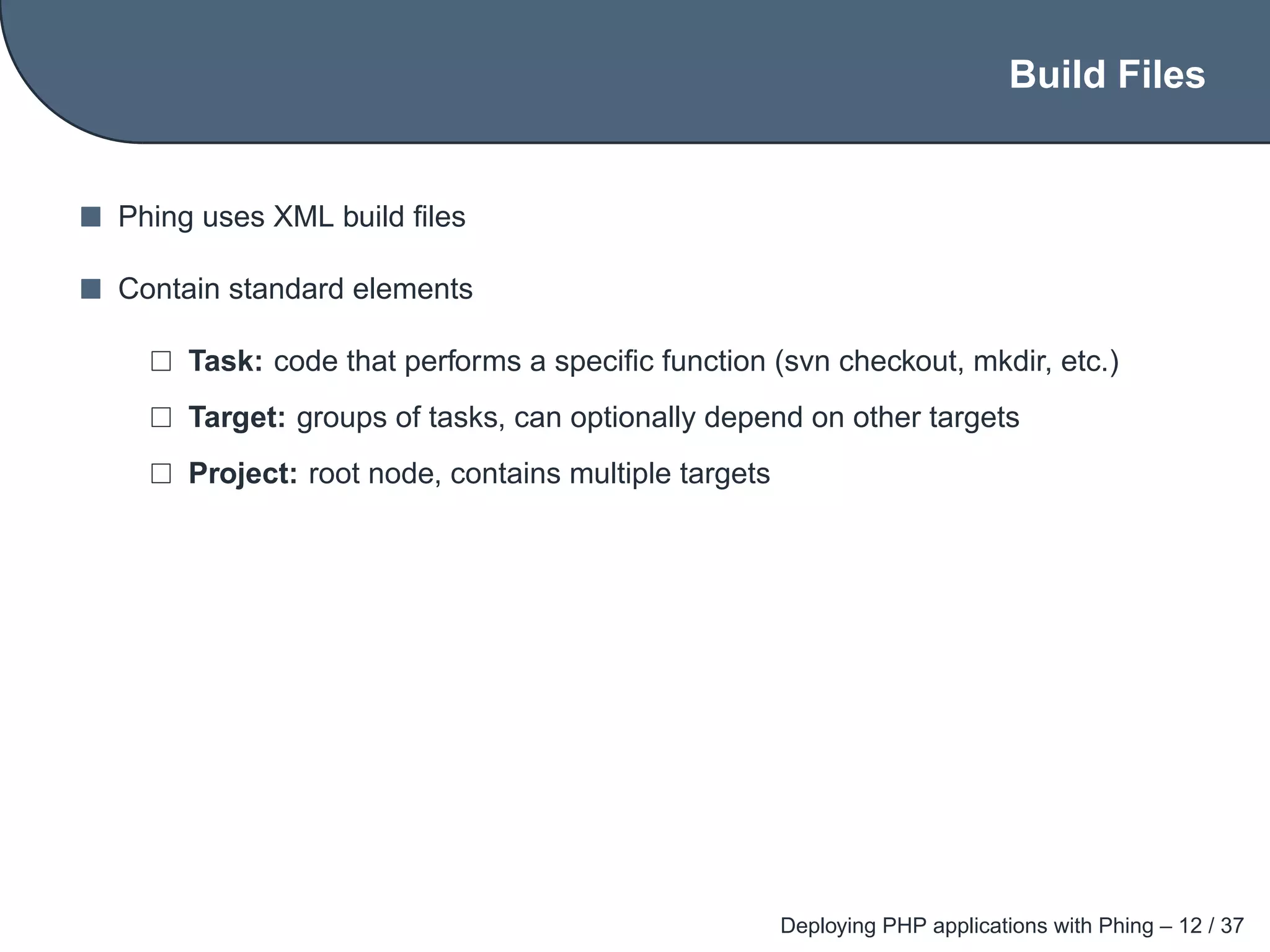

13. Build Files
Phing uses XML build files
Contain standard elements
Task: code that performs a specific function (svn checkout, mkdir, etc.)
Target: groups of tasks, can optionally depend on other targets
Project: root node, contains multiple targets
Deploying PHP applications with Phing – 12 / 37

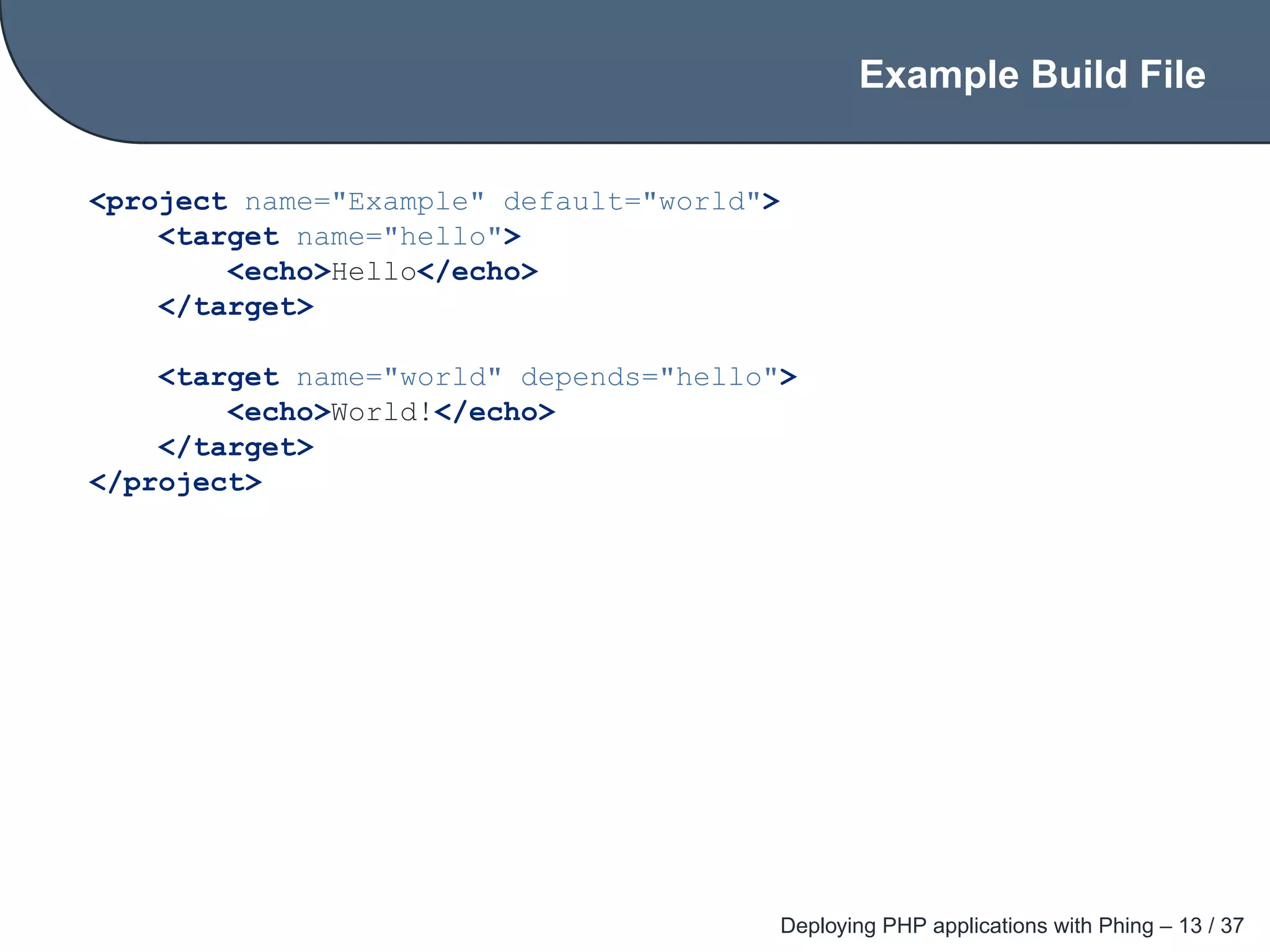

14. Example Build File
<project name="Example" default="world">
<target name="hello">
<echo>Hello</echo>
</target>
<target name="world" depends="hello">
<echo>World!</echo>
</target>
</project>
Deploying PHP applications with Phing – 13 / 37

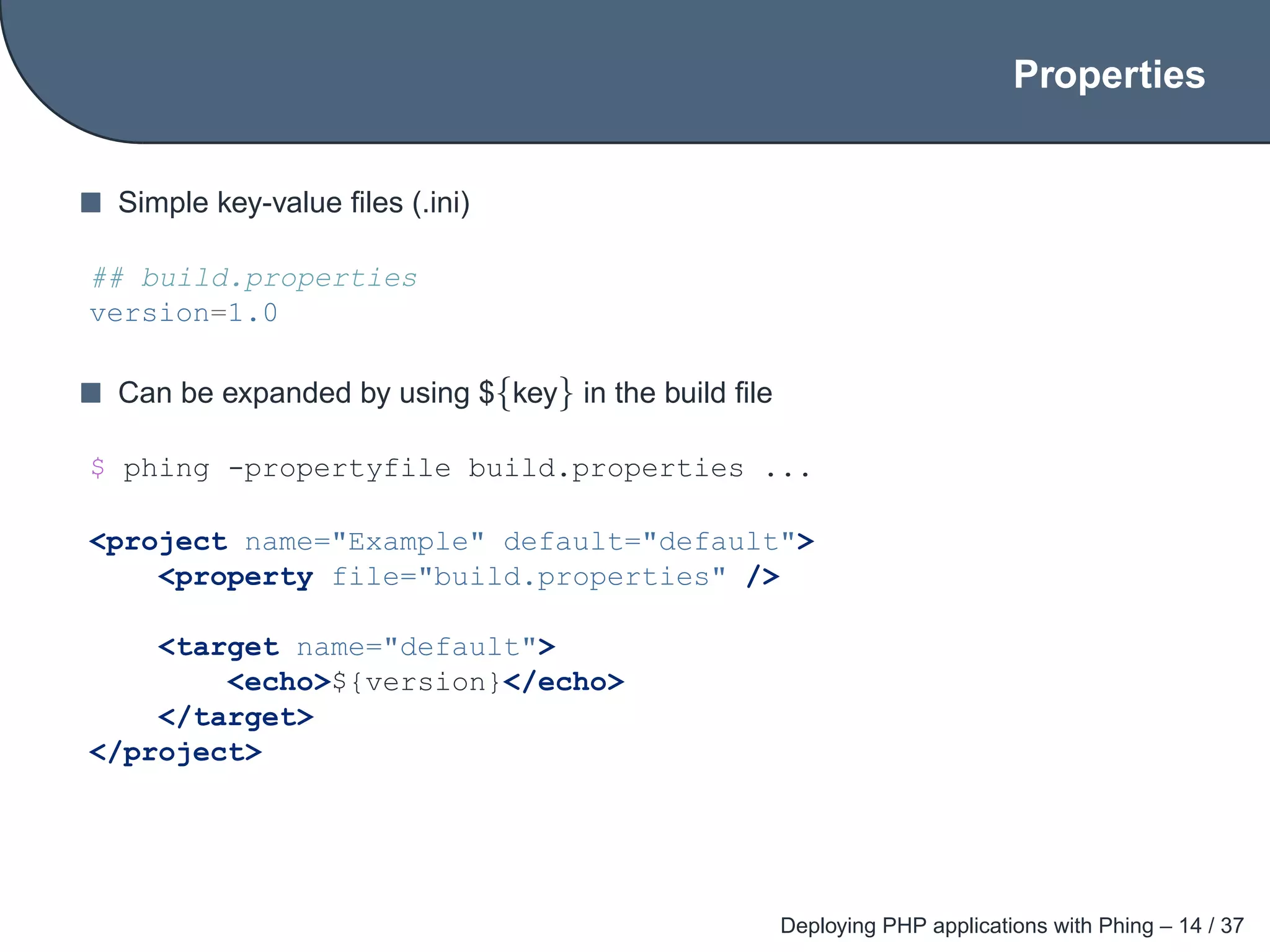

15. Properties
Simple key-value files (.ini)
## build.properties
version=1.0
Can be expanded by using ${key} in the build file
$ phing -propertyfile build.properties ...
<project name="Example" default="default">
<property file="build.properties" />
<target name="default">
<echo>${version}</echo>
</target>
</project>
Deploying PHP applications with Phing – 14 / 37

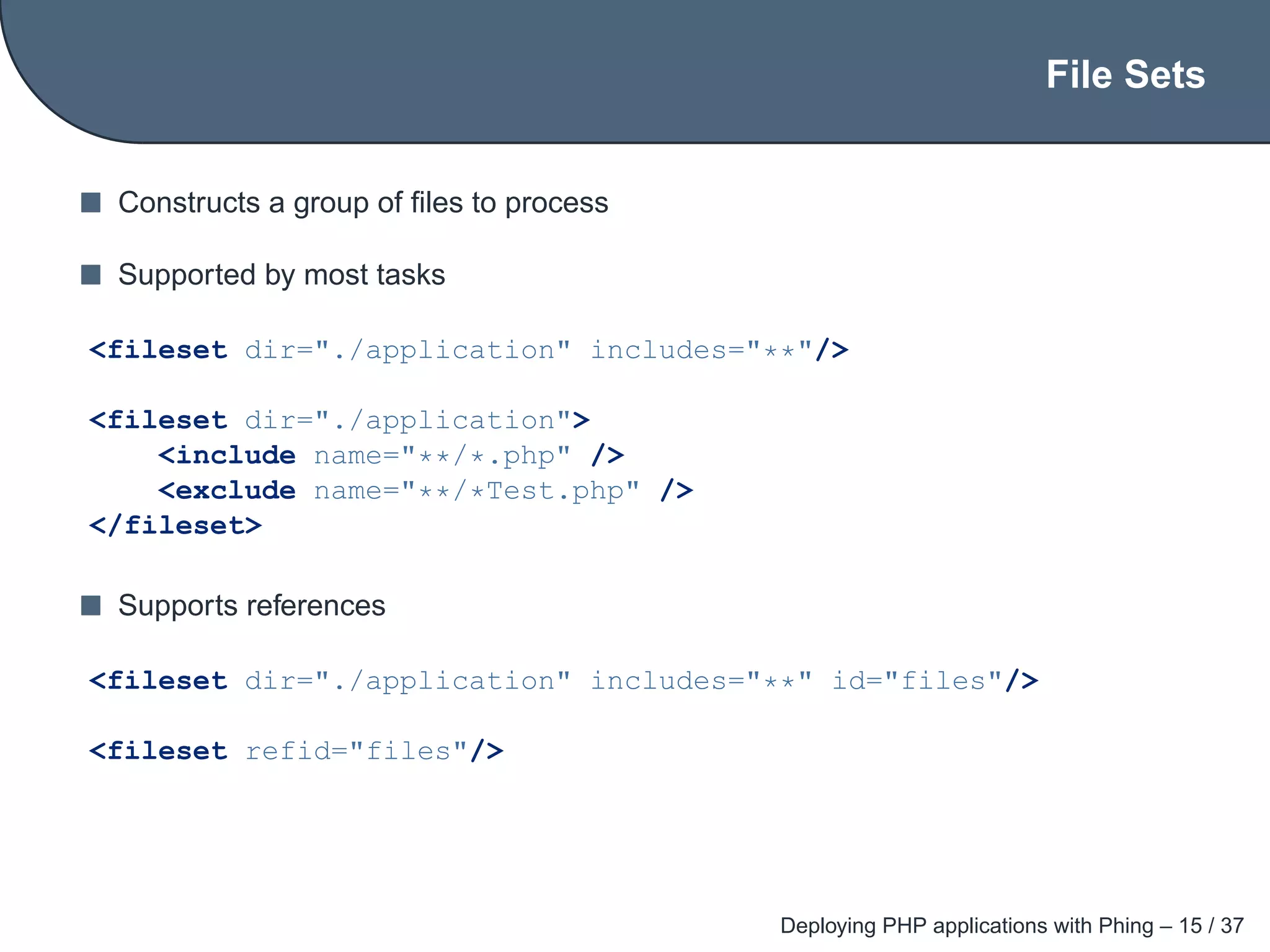

16. File Sets
Constructs a group of files to process
Supported by most tasks
<fileset dir="./application" includes="**"/>
<fileset dir="./application">
<include name="**/*.php" />
<exclude name="**/*Test.php" />
</fileset>
Supports references
<fileset dir="./application" includes="**" id="files"/>
<fileset refid="files"/>
Deploying PHP applications with Phing – 15 / 37

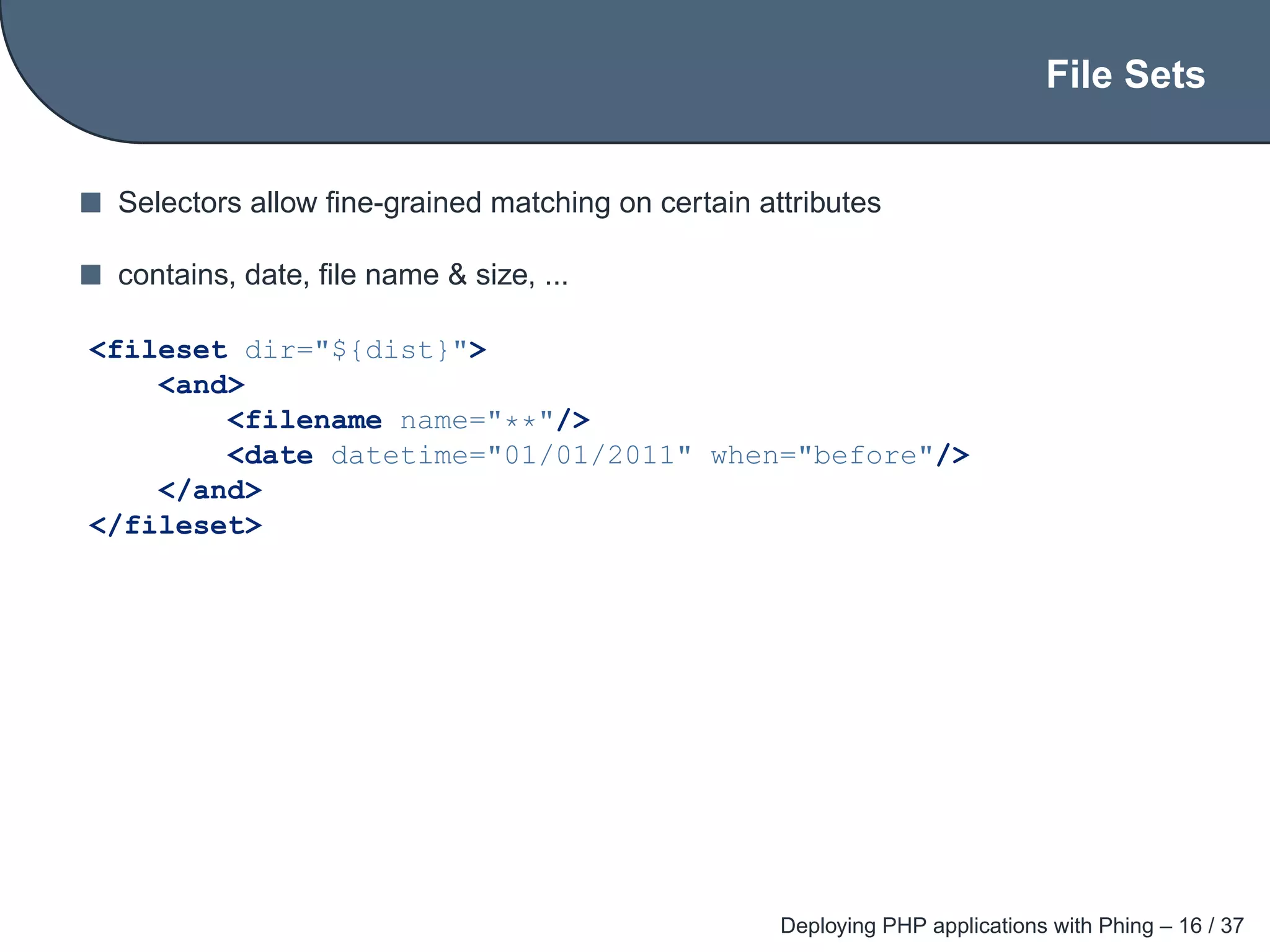

17. File Sets
Selectors allow fine-grained matching on certain attributes
contains, date, file name & size, ...
<fileset dir="${dist}">
<and>
<filename name="**"/>
<date datetime="01/01/2011" when="before"/>
</and>
</fileset>
Deploying PHP applications with Phing – 16 / 37

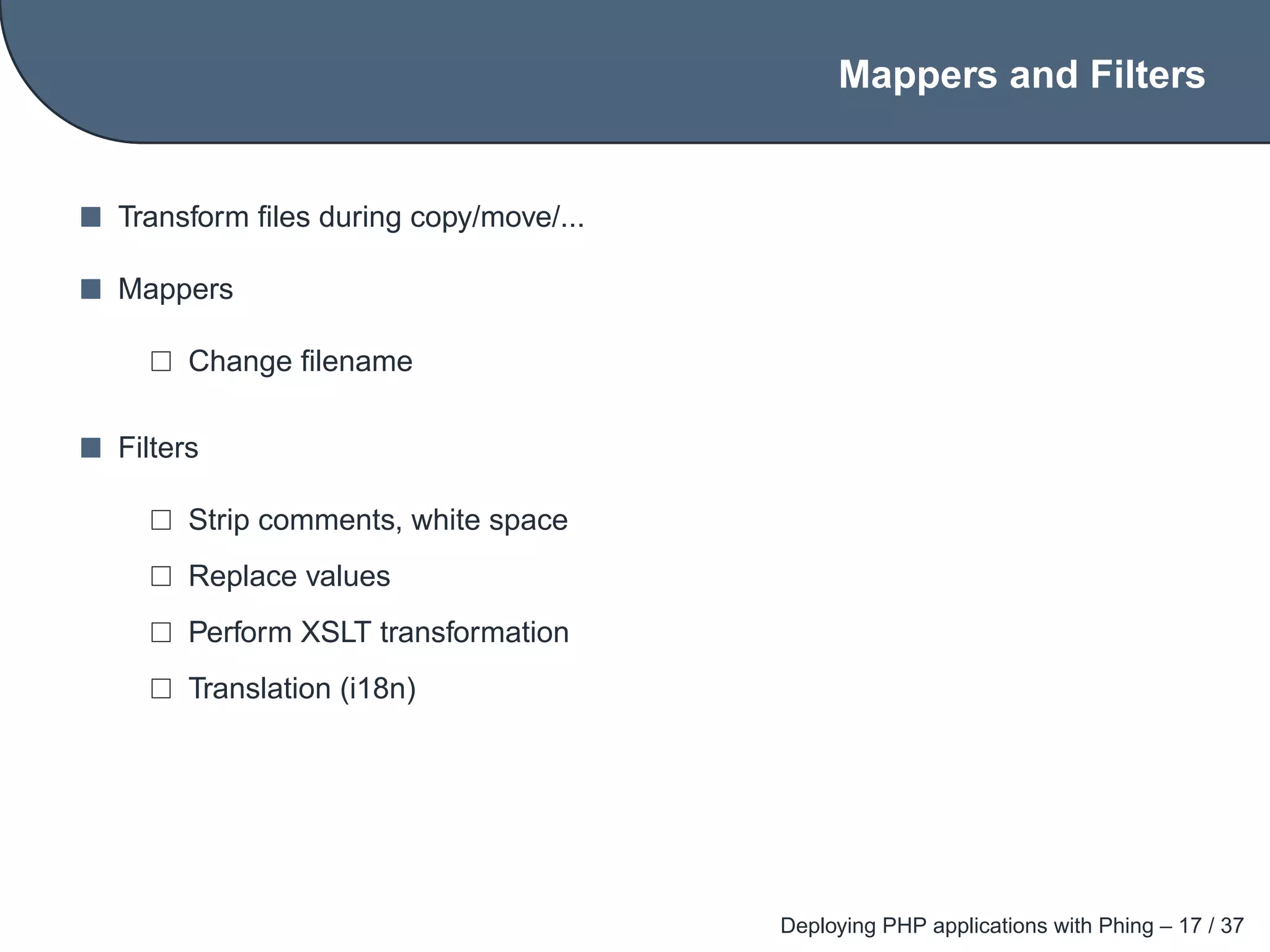

18. Mappers and Filters
Transform files during copy/move/...
Mappers
Change filename
Filters
Strip comments, white space
Replace values
Perform XSLT transformation
Translation (i18n)
Deploying PHP applications with Phing – 17 / 37

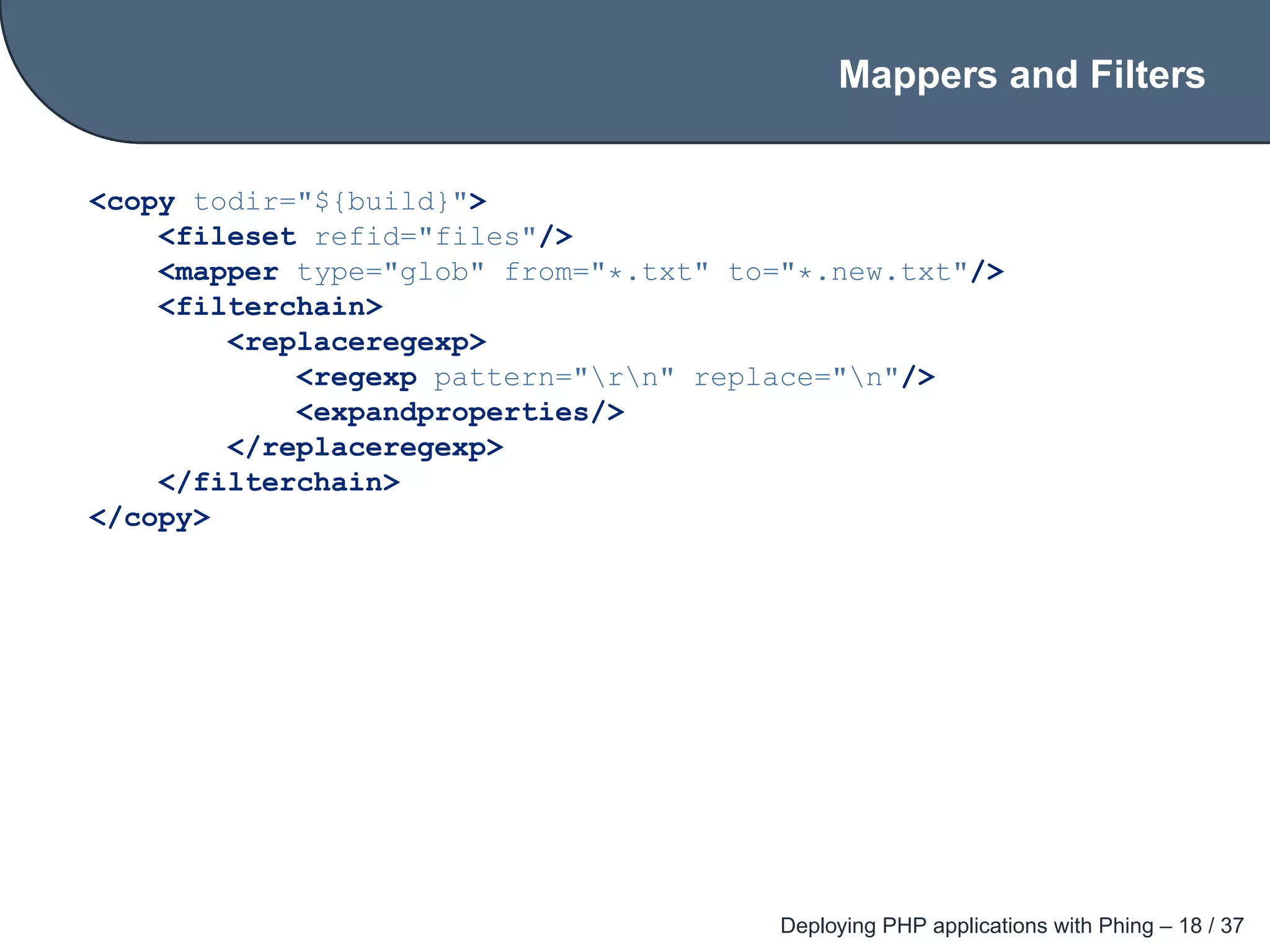

19. Mappers and Filters
<copy todir="${build}">
<fileset refid="files"/>
<mapper type="glob" from="*.txt" to="*.new.txt"/>
<filterchain>
<replaceregexp>
<regexp pattern="rn" replace="n"/>
<expandproperties/>
</replaceregexp>
</filterchain>
</copy>
Deploying PHP applications with Phing – 18 / 37

20. Practical Examples
Deploying PHP applications with Phing – 19 / 37

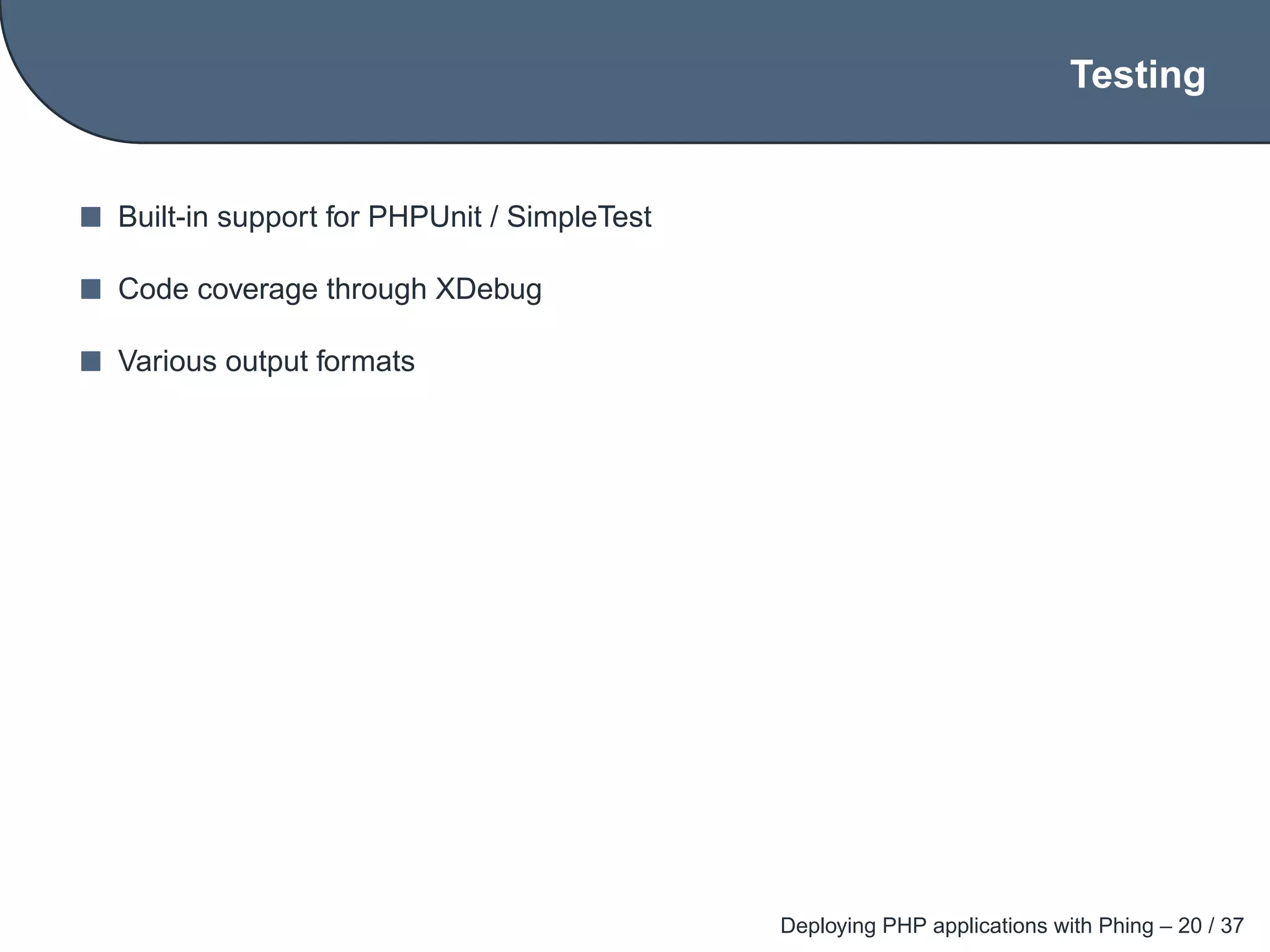

21. Testing
Built-in support for PHPUnit / SimpleTest
Code coverage through XDebug
Various output formats
Deploying PHP applications with Phing – 20 / 37

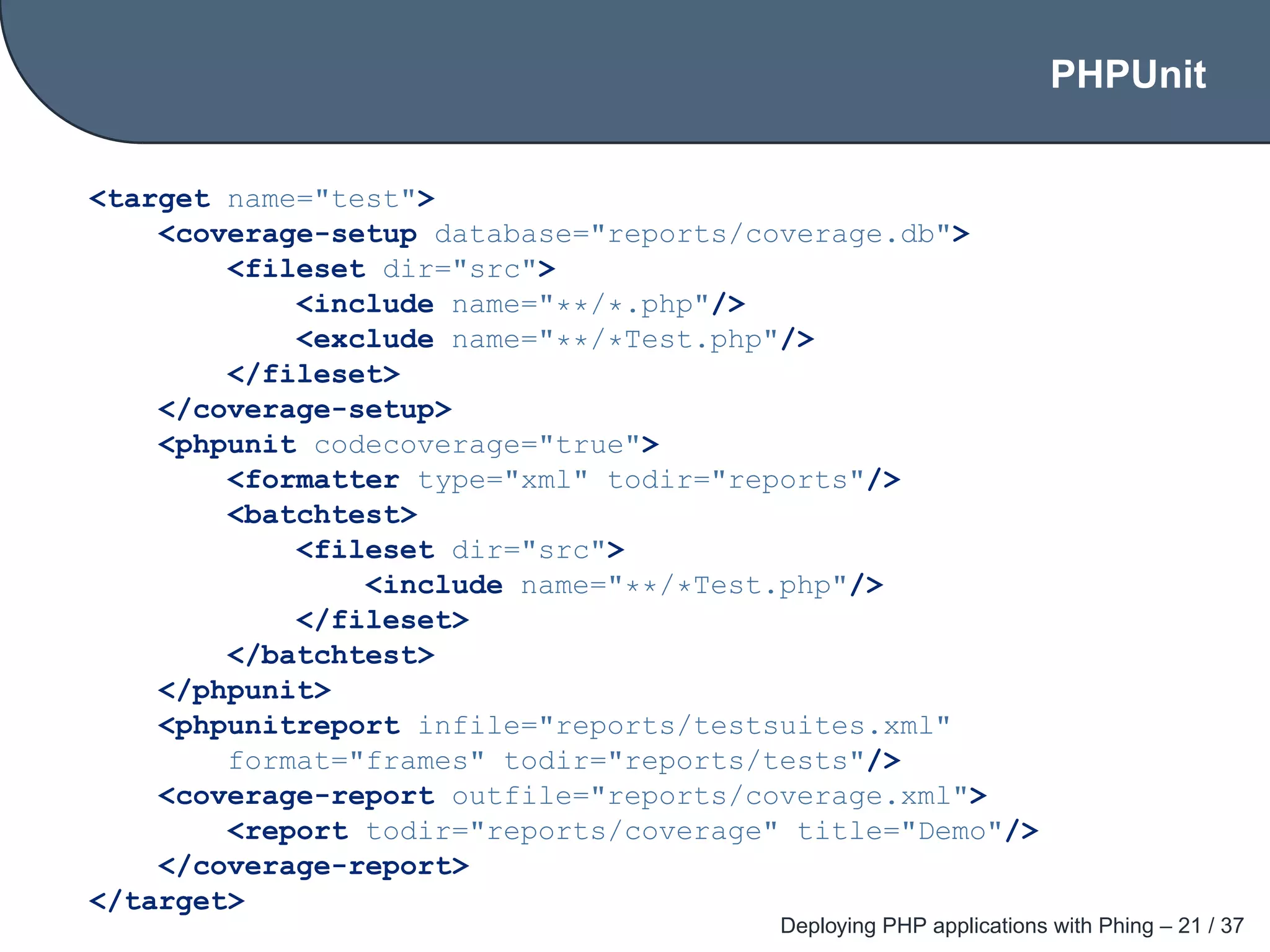

22. PHPUnit
<target name="test">
<coverage-setup database="reports/coverage.db">
<fileset dir="src">
<include name="**/*.php"/>
<exclude name="**/*Test.php"/>
</fileset>
</coverage-setup>
<phpunit codecoverage="true">
<formatter type="xml" todir="reports"/>
<batchtest>
<fileset dir="src">
<include name="**/*Test.php"/>
</fileset>
</batchtest>
</phpunit>
<phpunitreport infile="reports/testsuites.xml"
format="frames" todir="reports/tests"/>
<coverage-report outfile="reports/coverage.xml">
<report todir="reports/coverage" title="Demo"/>
</coverage-report>
</target>
Deploying PHP applications with Phing – 21 / 37

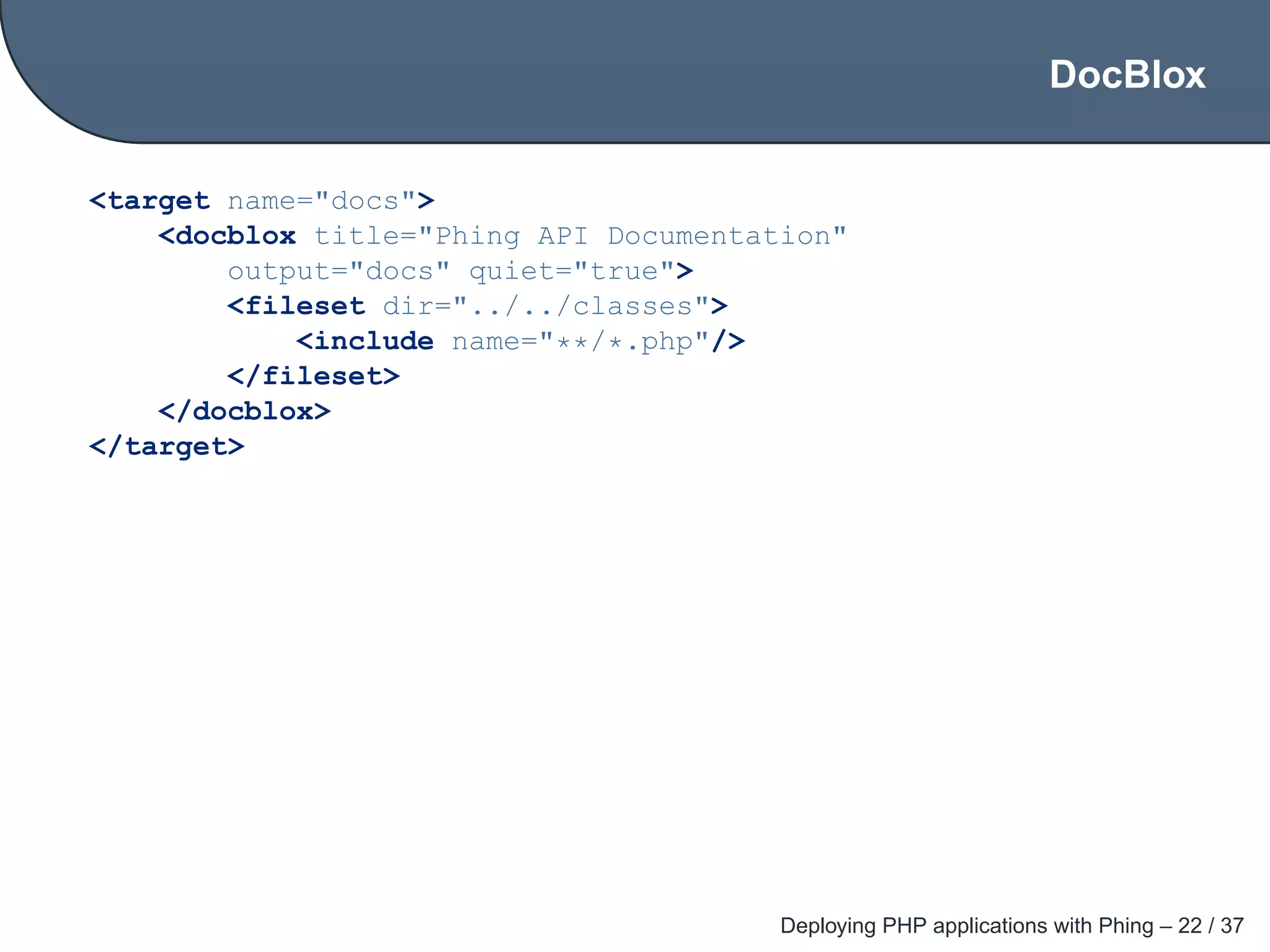

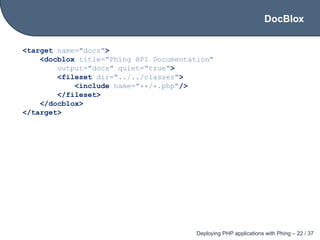

23. DocBlox
<target name="docs">
<docblox title="Phing API Documentation"
output="docs" quiet="true">
<fileset dir="../../classes">
<include name="**/*.php"/>
</fileset>
</docblox>
</target>
Deploying PHP applications with Phing – 22 / 37

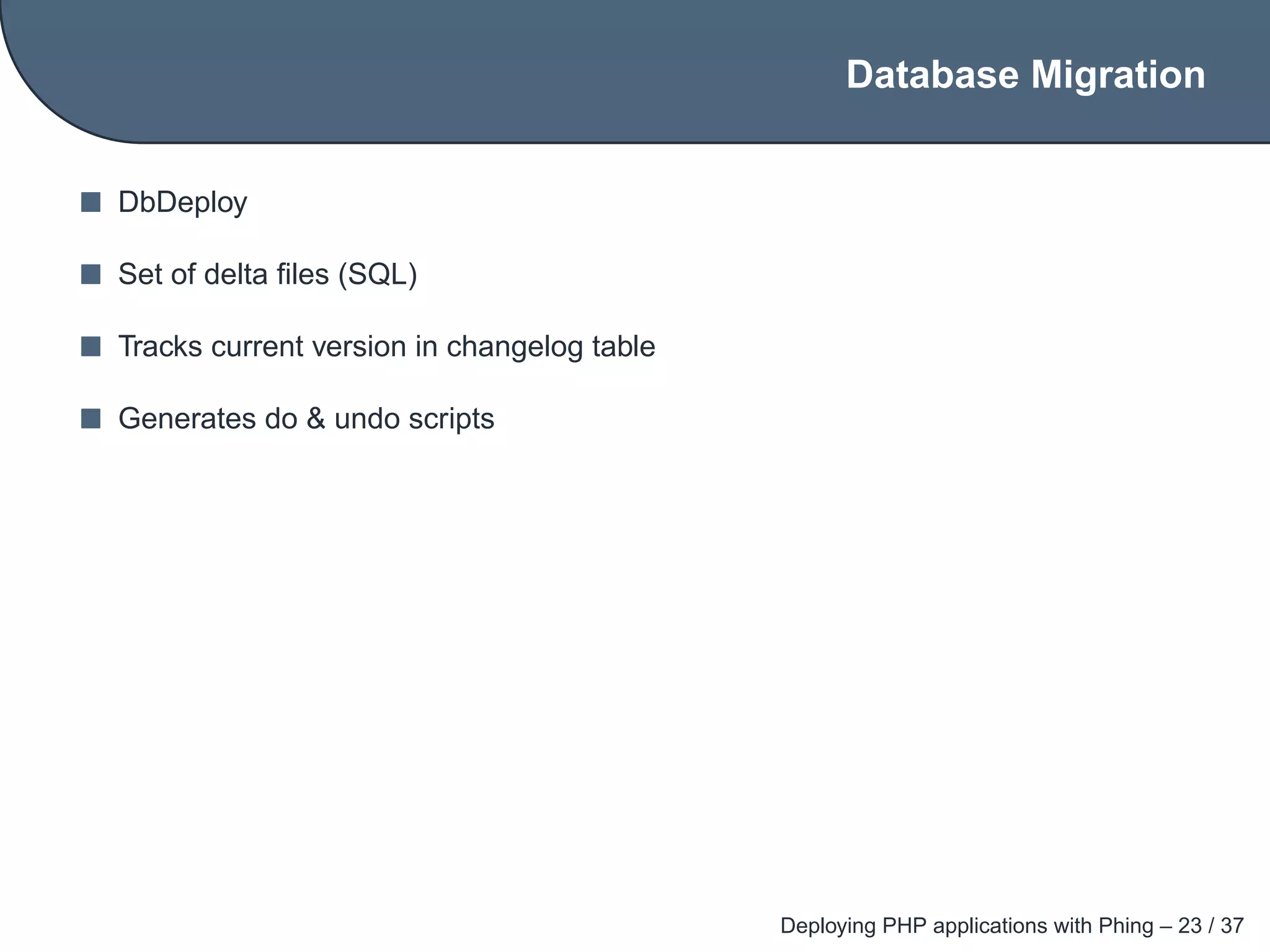

24. Database Migration
DbDeploy
Set of delta files (SQL)
Tracks current version in changelog table
Generates do & undo scripts
Deploying PHP applications with Phing – 23 / 37

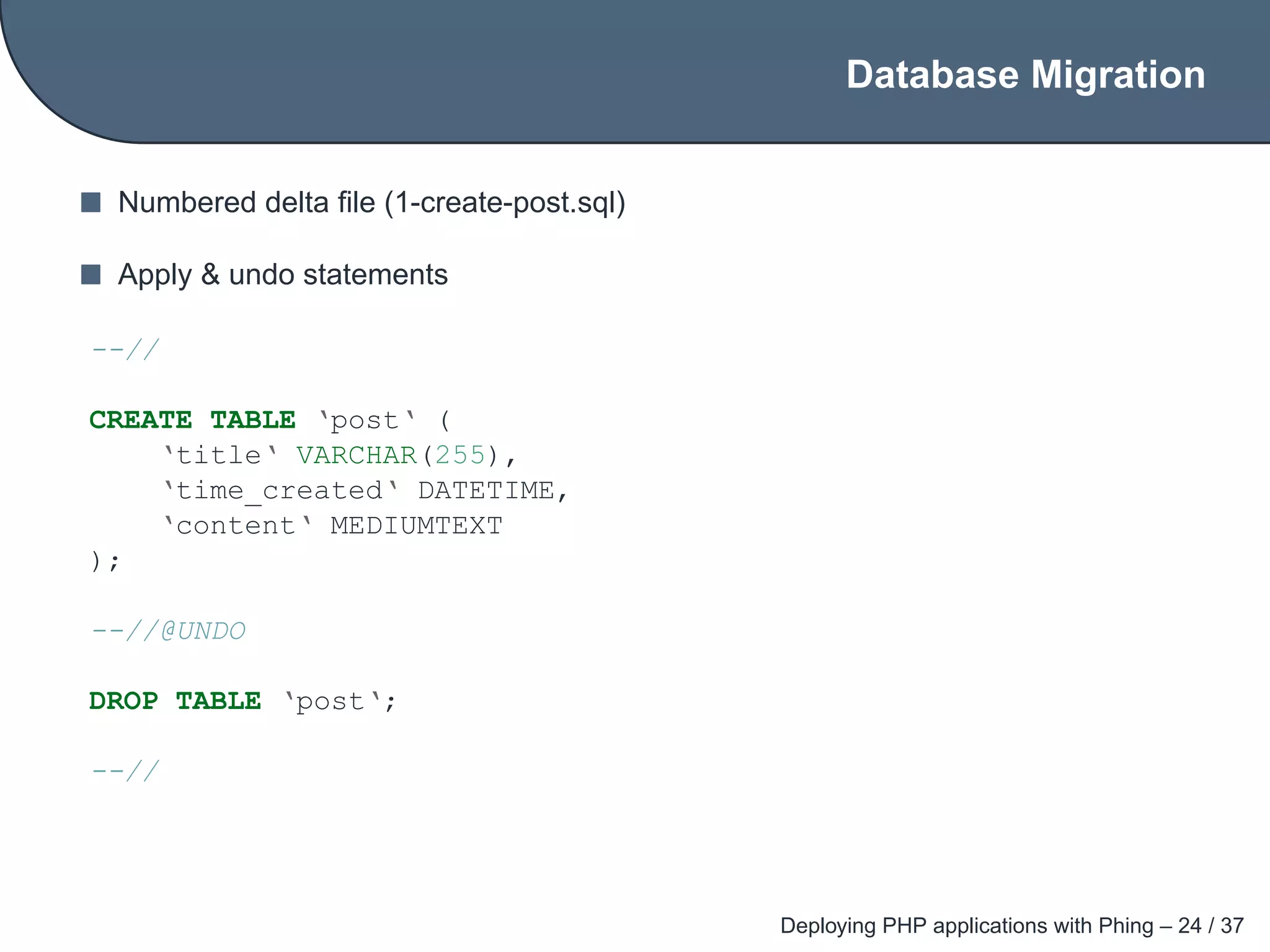

25. Database Migration
Numbered delta file (1-create-post.sql)
Apply & undo statements
--//
CREATE TABLE ‘post‘ (
‘title‘ VARCHAR(255),
‘time_created‘ DATETIME,
‘content‘ MEDIUMTEXT
);
--//@UNDO
DROP TABLE ‘post‘;
--//
Deploying PHP applications with Phing – 24 / 37

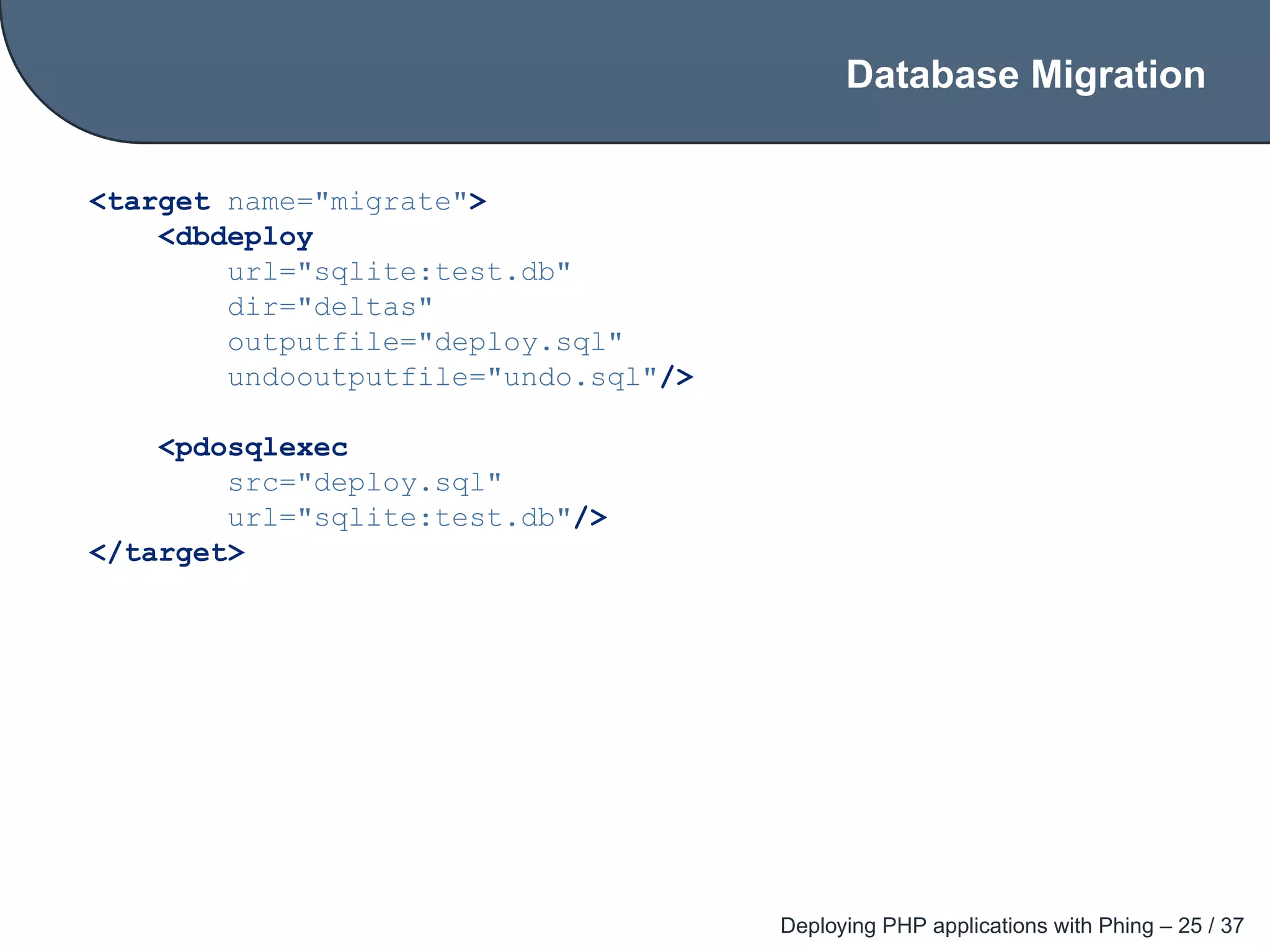

26. Database Migration
<target name="migrate">
<dbdeploy
url="sqlite:test.db"
dir="deltas"
outputfile="deploy.sql"
undooutputfile="undo.sql"/>
<pdosqlexec
src="deploy.sql"
url="sqlite:test.db"/>
</target>
Deploying PHP applications with Phing – 25 / 37

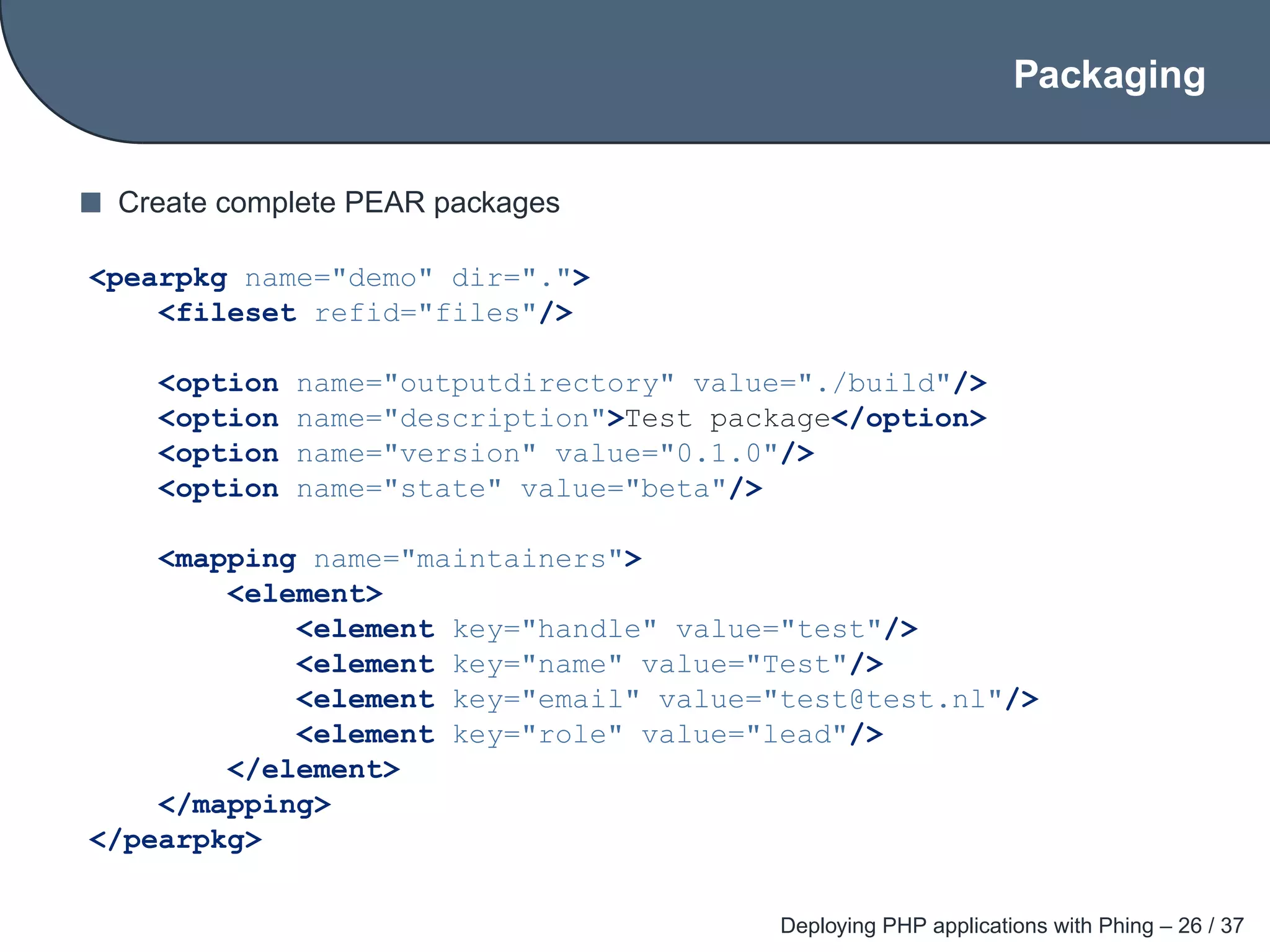

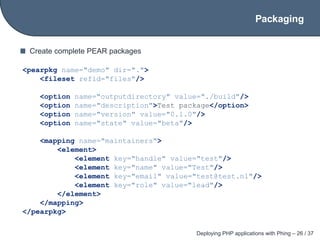

27. Packaging
Create complete PEAR packages
<pearpkg name="demo" dir=".">
<fileset refid="files"/>
<option name="outputdirectory" value="./build"/>
<option name="description">Test package</option>
<option name="version" value="0.1.0"/>
<option name="state" value="beta"/>
<mapping name="maintainers">
<element>
<element key="handle" value="test"/>
<element key="name" value="Test"/>
<element key="email" value="test@test.nl"/>
<element key="role" value="lead"/>
</element>
</mapping>
</pearpkg>
Deploying PHP applications with Phing – 26 / 37

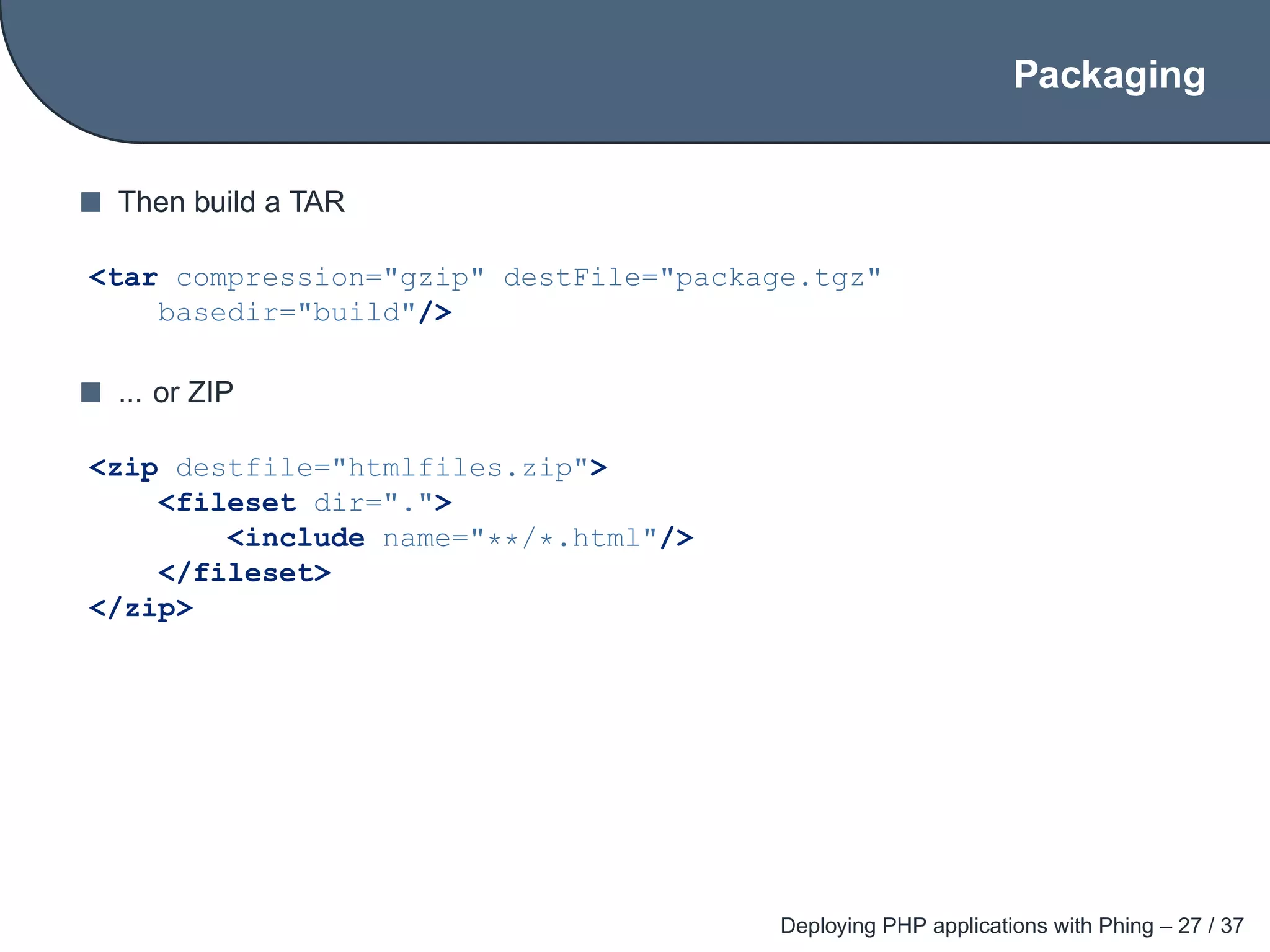

28. Packaging
Then build a TAR
<tar compression="gzip" destFile="package.tgz"
basedir="build"/>
... or ZIP
<zip destfile="htmlfiles.zip">
<fileset dir=".">
<include name="**/*.html"/>
</fileset>
</zip>
Deploying PHP applications with Phing – 27 / 37

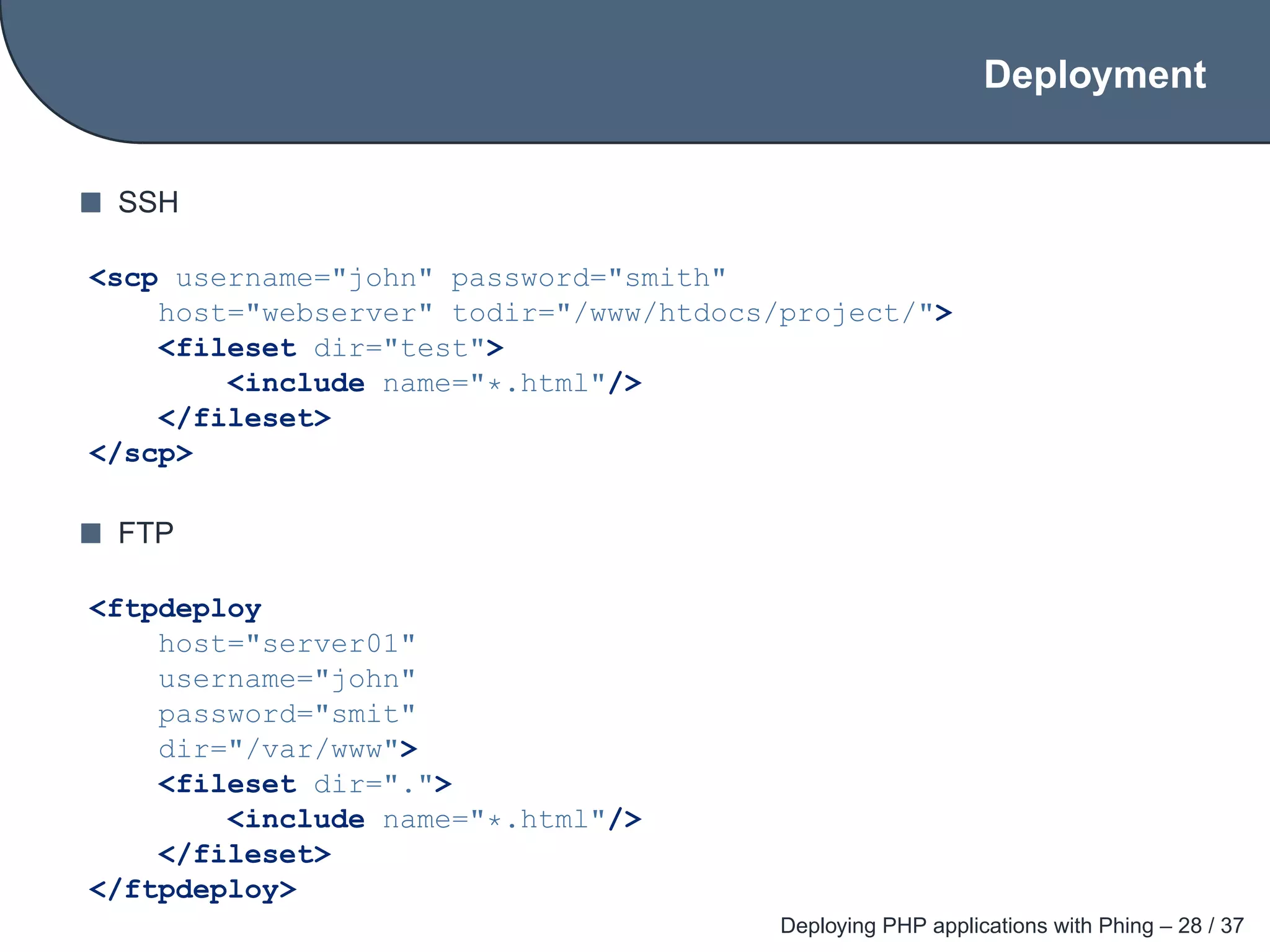

29. Deployment
SSH
<scp username="john" password="smith"
host="webserver" todir="/www/htdocs/project/">
<fileset dir="test">
<include name="*.html"/>
</fileset>
</scp>
FTP
<ftpdeploy
host="server01"
username="john"
password="smit"
dir="/var/www">
<fileset dir=".">
<include name="*.html"/>
</fileset>
</ftpdeploy>
Deploying PHP applications with Phing – 28 / 37

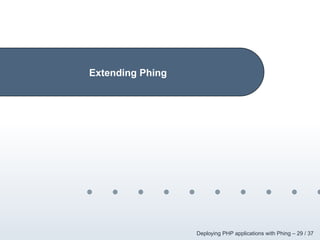

30. Extending Phing
Deploying PHP applications with Phing – 29 / 37

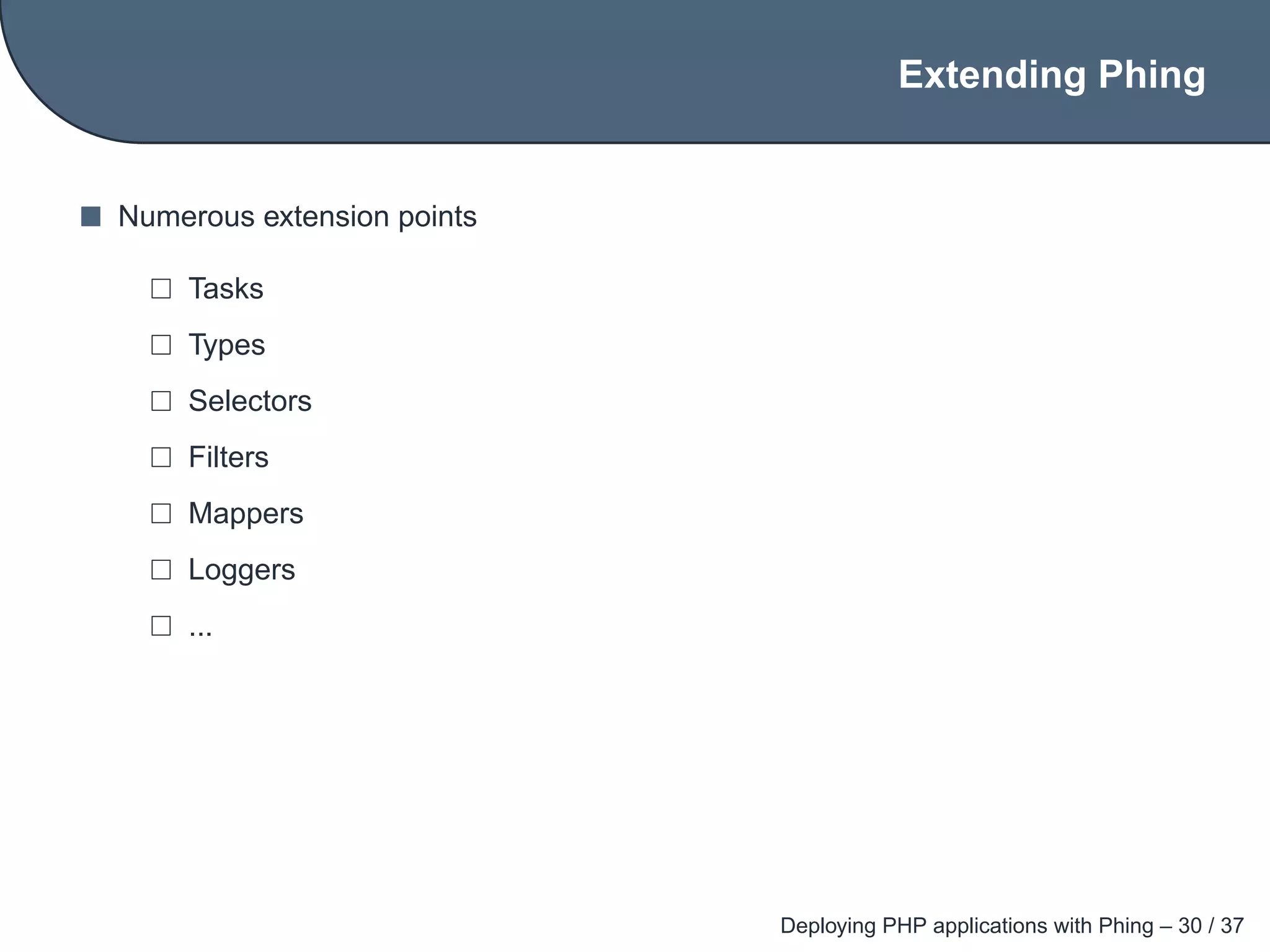

31. Extending Phing
Numerous extension points
Tasks
Types
Selectors
Filters
Mappers
Loggers
...
Deploying PHP applications with Phing – 30 / 37

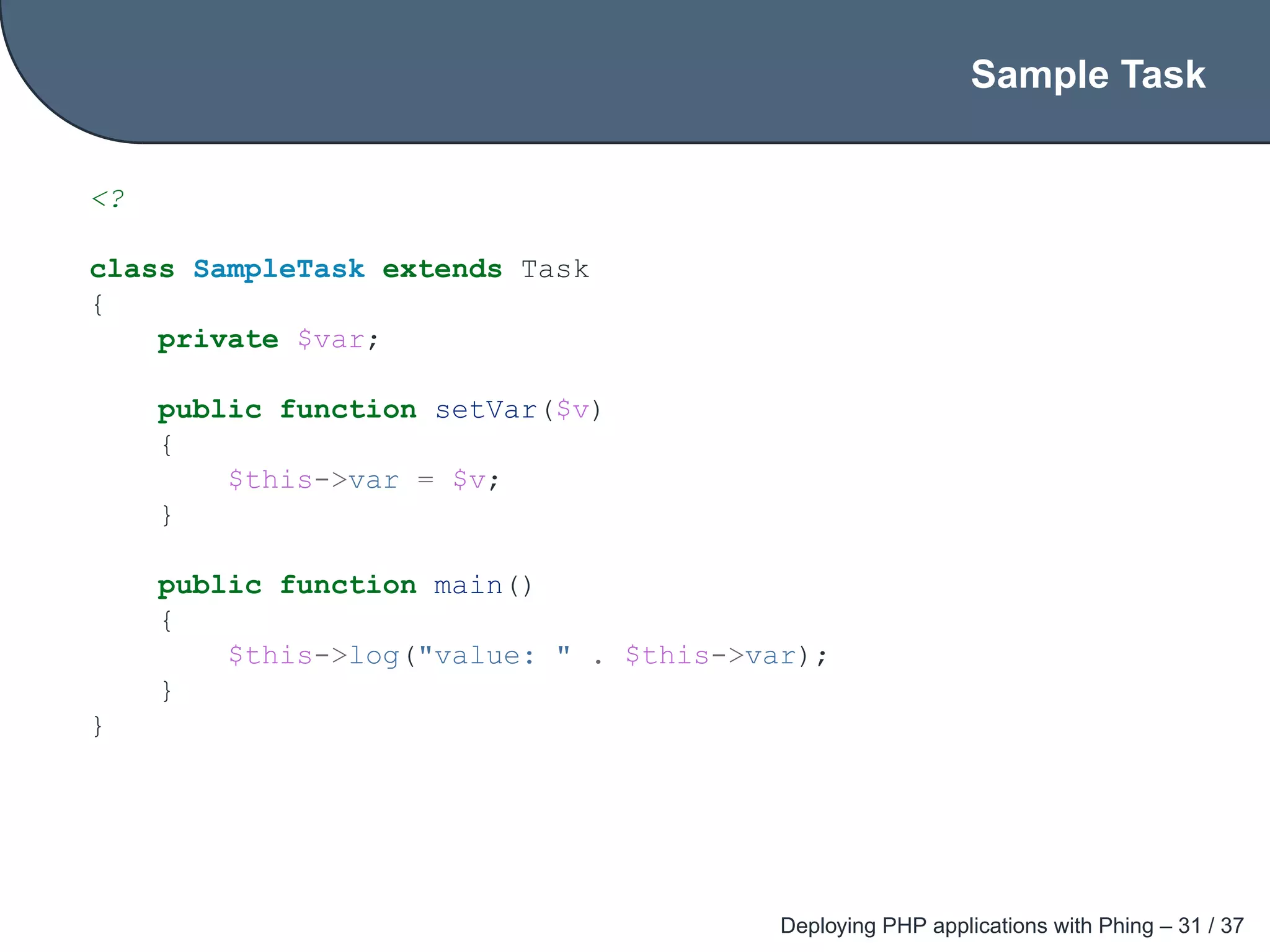

32. Sample Task
<?
class SampleTask extends Task
{
private $var;
public function setVar($v)
{
$this->var = $v;
}
public function main()
{
$this->log("value: " . $this->var);
}
}
Deploying PHP applications with Phing – 31 / 37

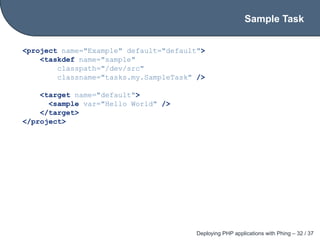

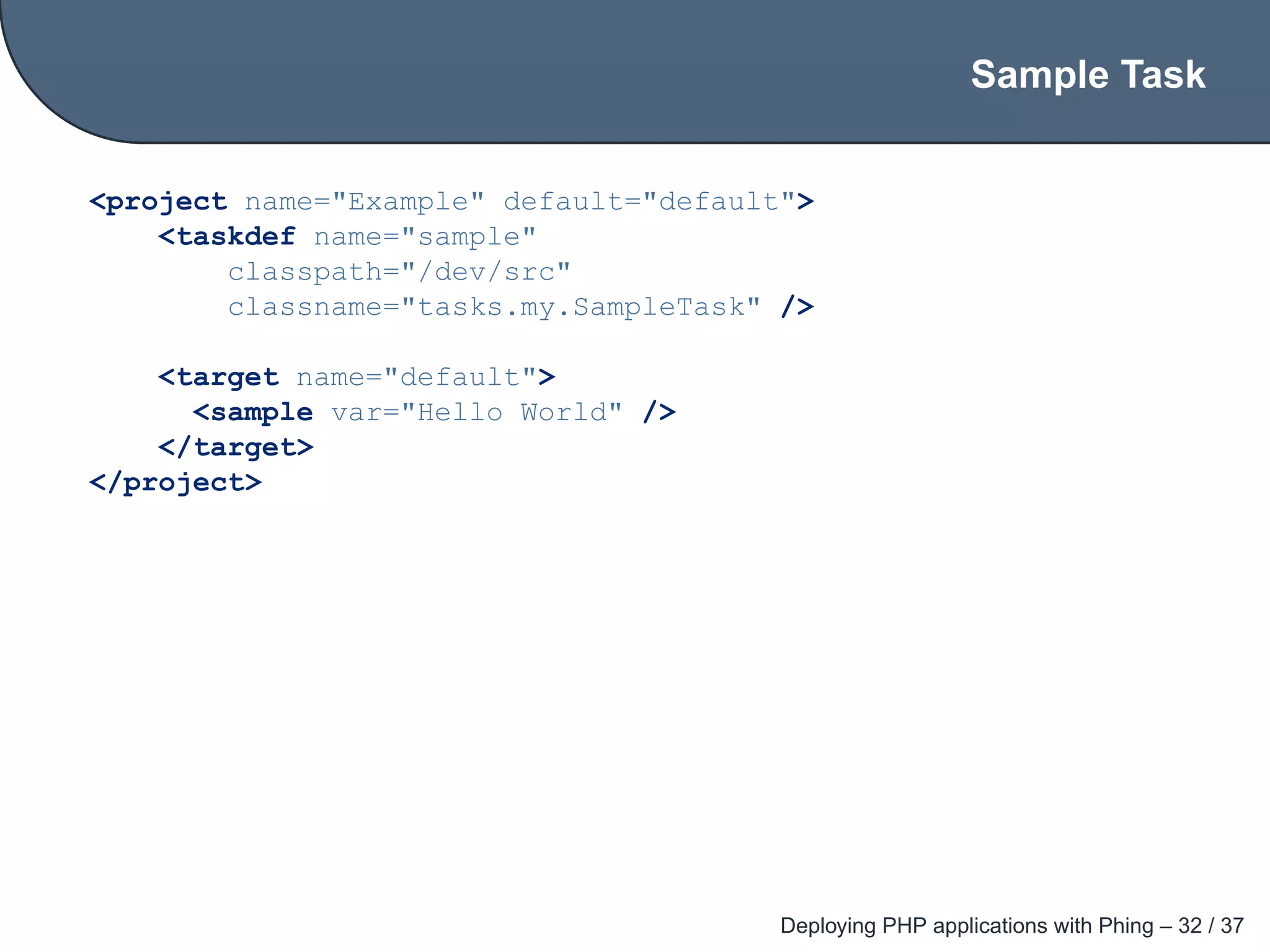

33. Sample Task
<project name="Example" default="default">
<taskdef name="sample"
classpath="/dev/src"
classname="tasks.my.SampleTask" />
<target name="default">
<sample var="Hello World" />
</target>
</project>
Deploying PHP applications with Phing – 32 / 37

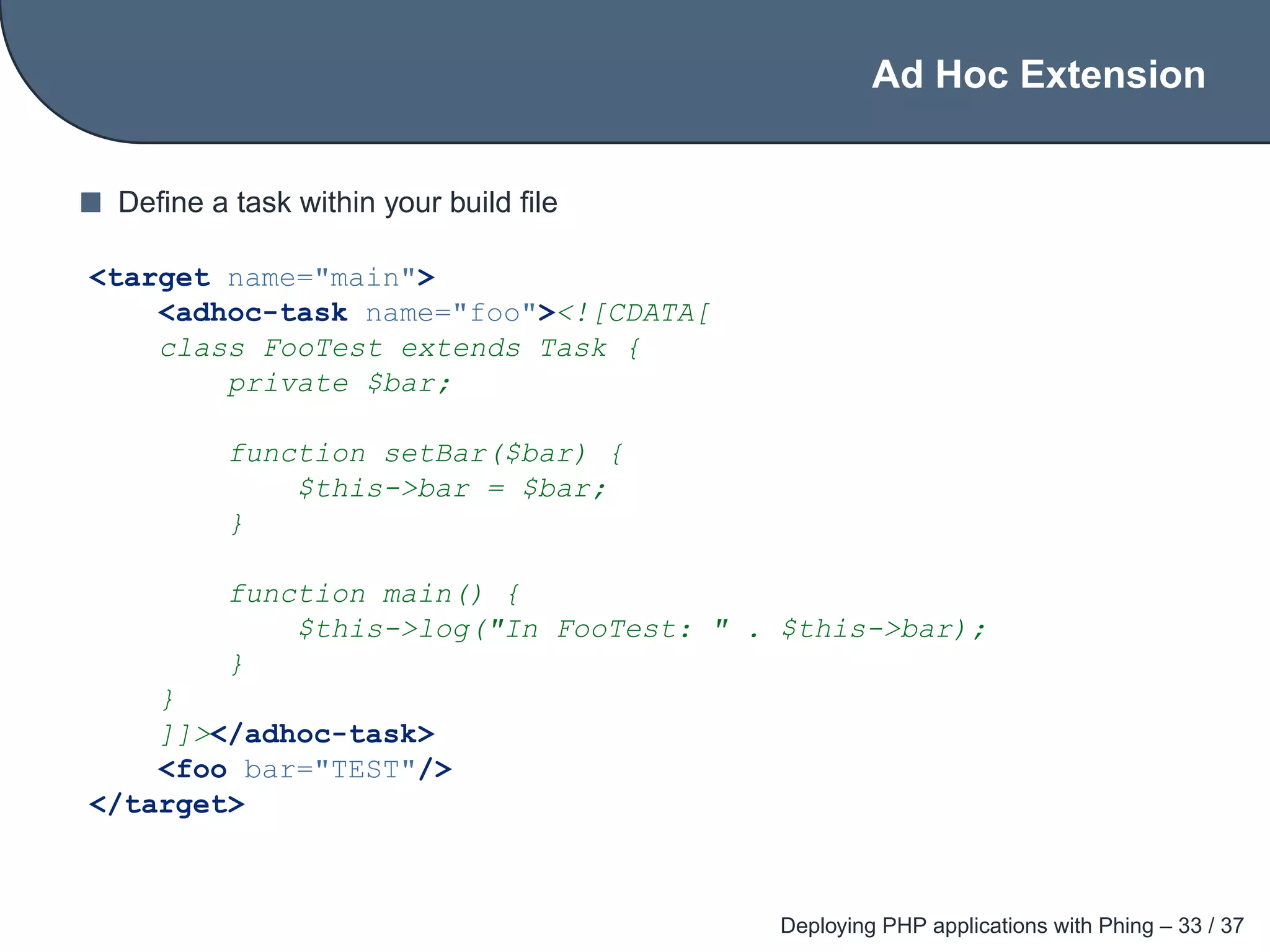

34. Ad Hoc Extension
Define a task within your build file
<target name="main">
<adhoc-task name="foo"><![CDATA[
class FooTest extends Task {
private $bar;
function setBar($bar) {
$this->bar = $bar;
}
function main() {
$this->log("In FooTest: " . $this->bar);
}
}
]]></adhoc-task>
<foo bar="TEST"/>
</target>
Deploying PHP applications with Phing – 33 / 37

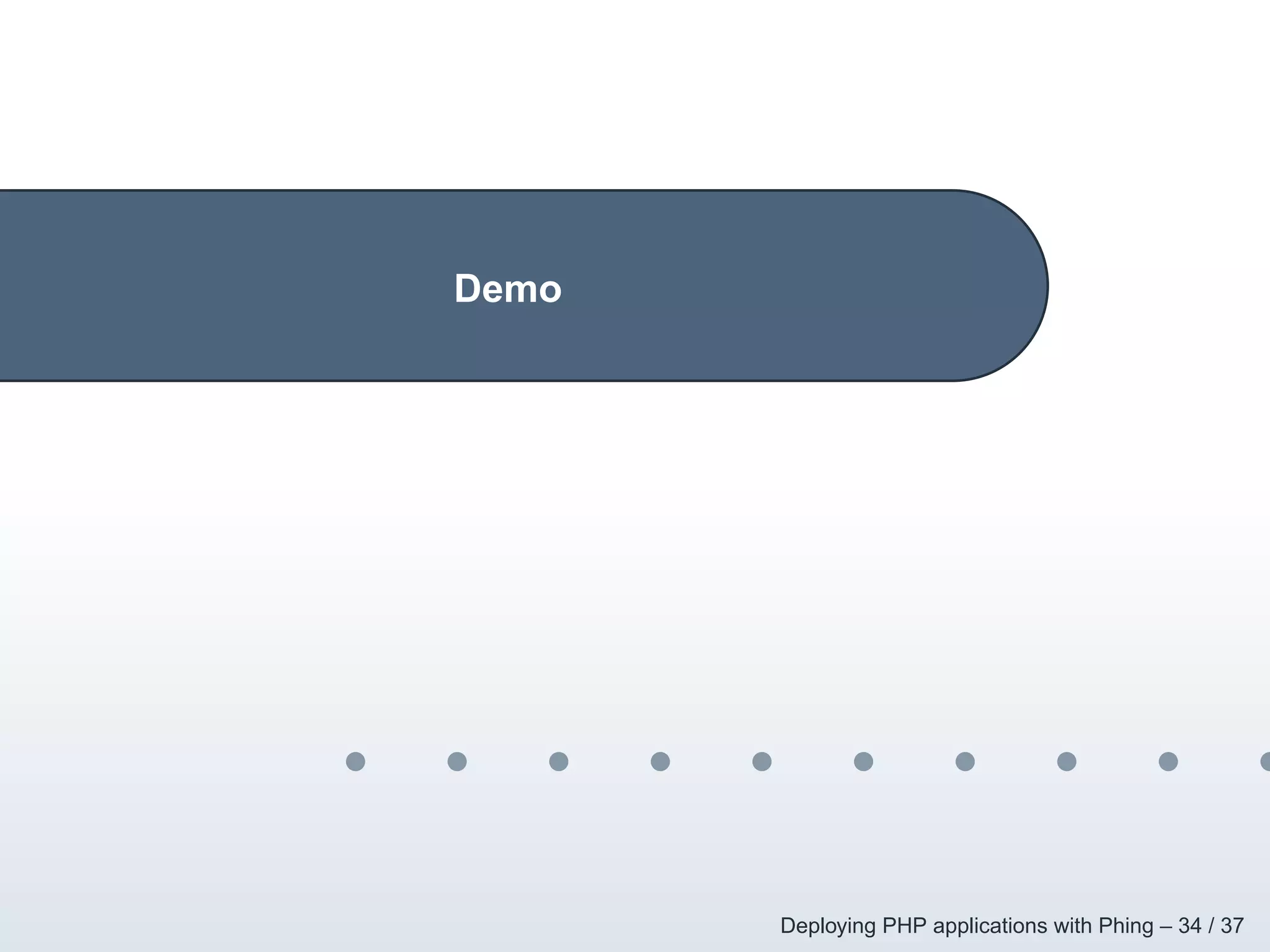

35. Demo
Deploying PHP applications with Phing – 34 / 37

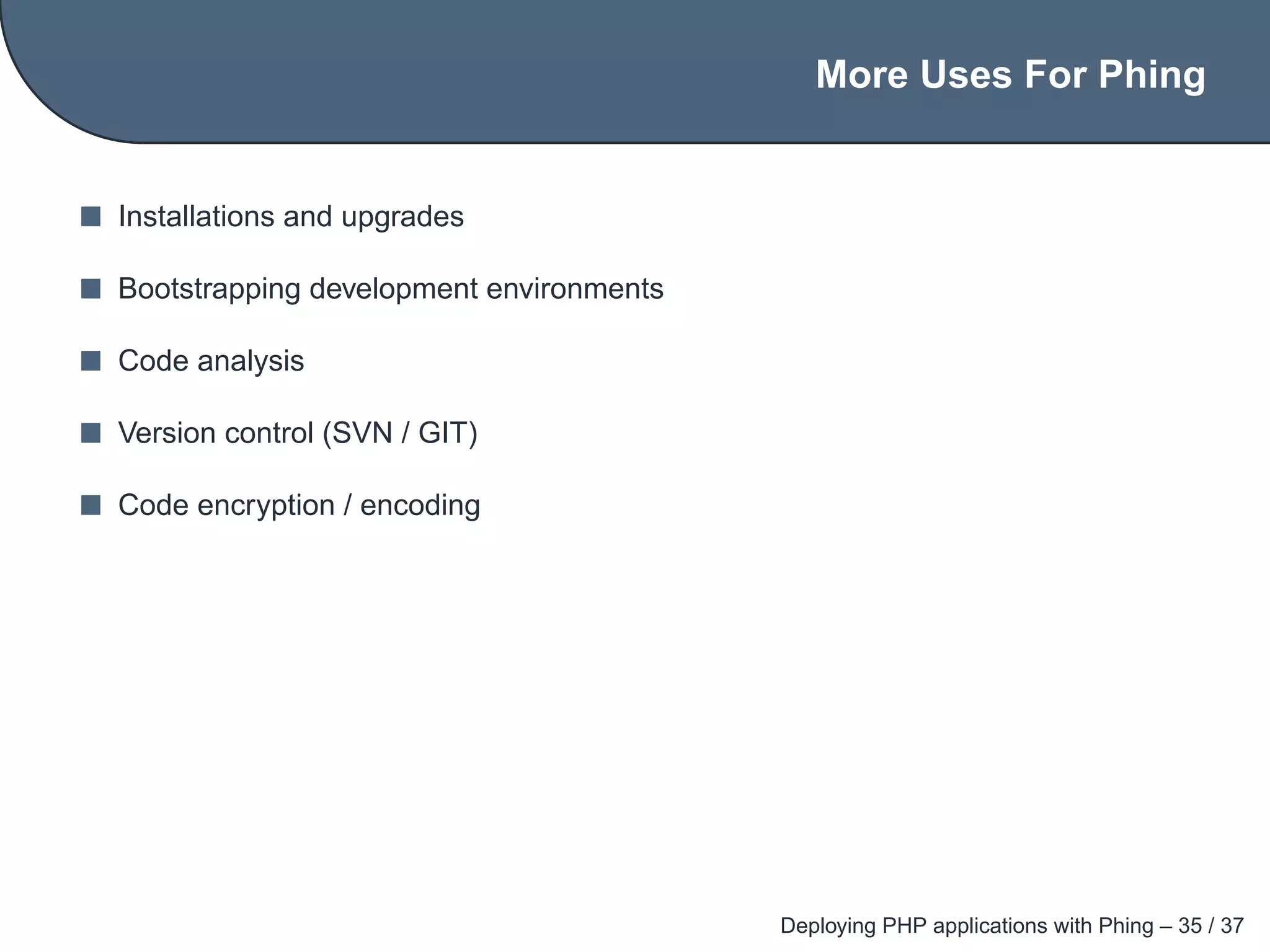

36. More Uses For Phing
Installations and upgrades
Bootstrapping development environments
Code analysis
Version control (SVN / GIT)
Code encryption / encoding
Deploying PHP applications with Phing – 35 / 37

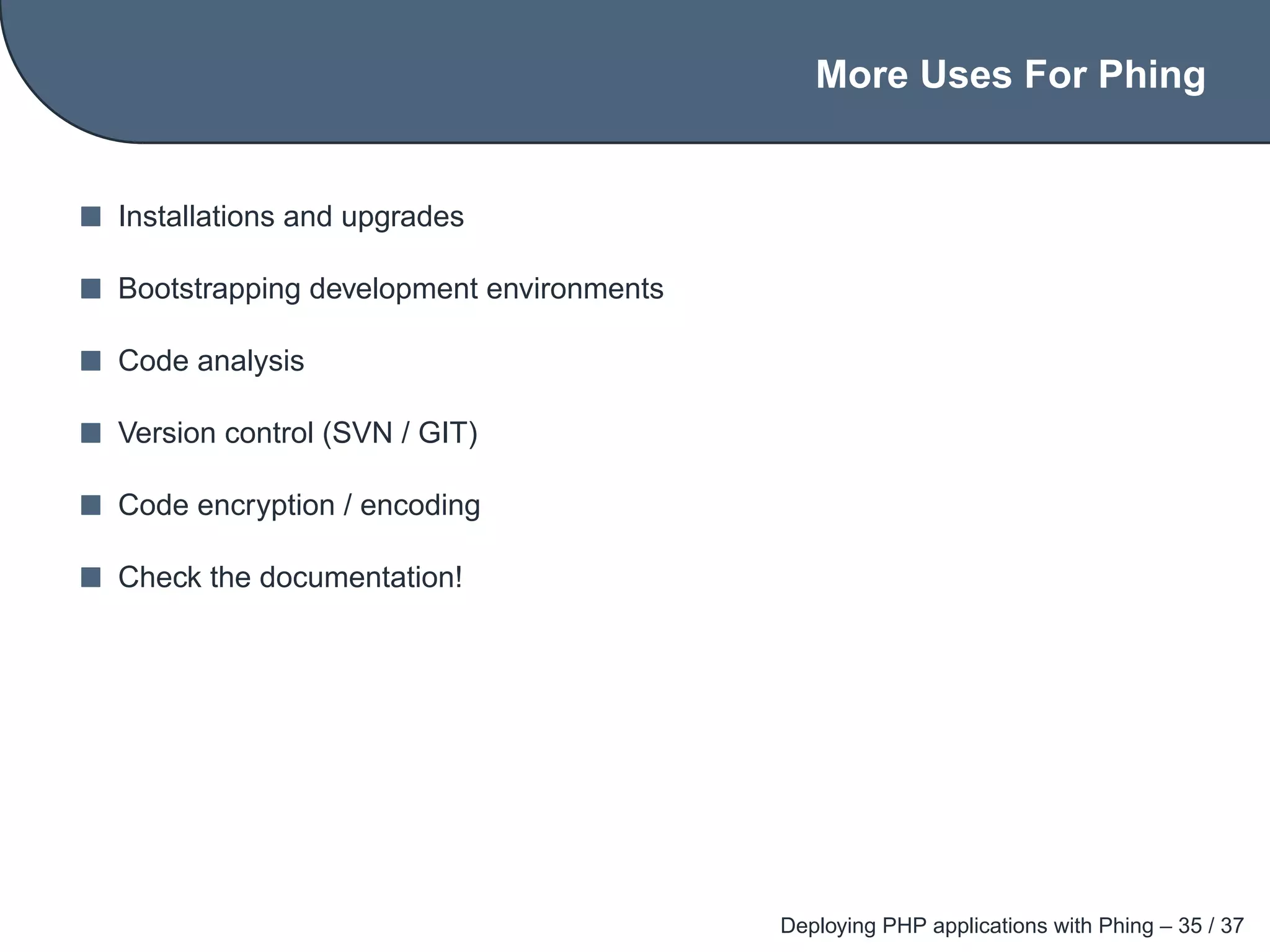

37. More Uses For Phing
Installations and upgrades
Bootstrapping development environments
Code analysis
Version control (SVN / GIT)
Code encryption / encoding
Check the documentation!
Deploying PHP applications with Phing – 35 / 37

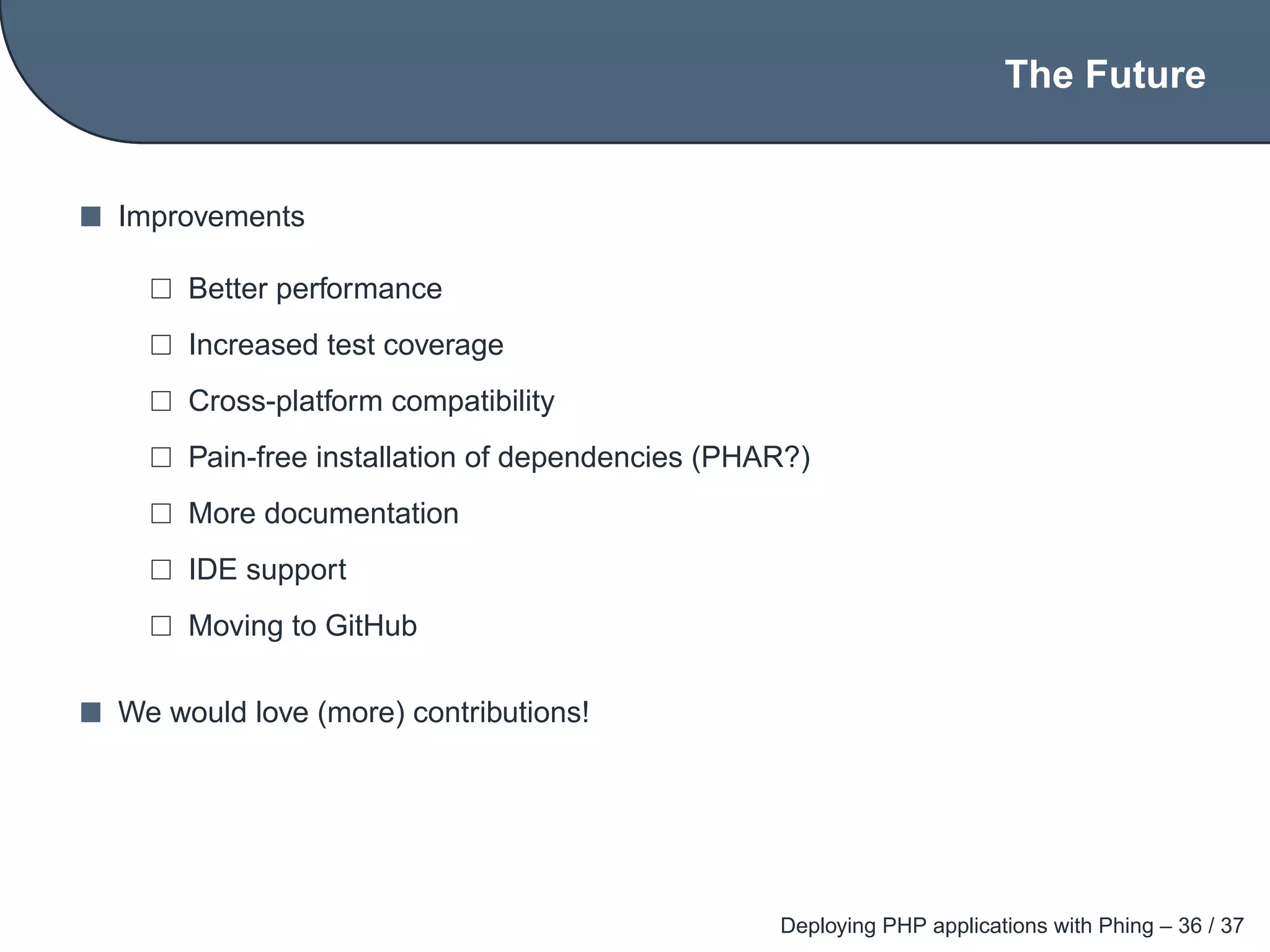

38. The Future
Improvements
Better performance
Increased test coverage
Cross-platform compatibility
Pain-free installation of dependencies (PHAR?)
More documentation
IDE support
Moving to GitHub
We would love (more) contributions!
Deploying PHP applications with Phing – 36 / 37

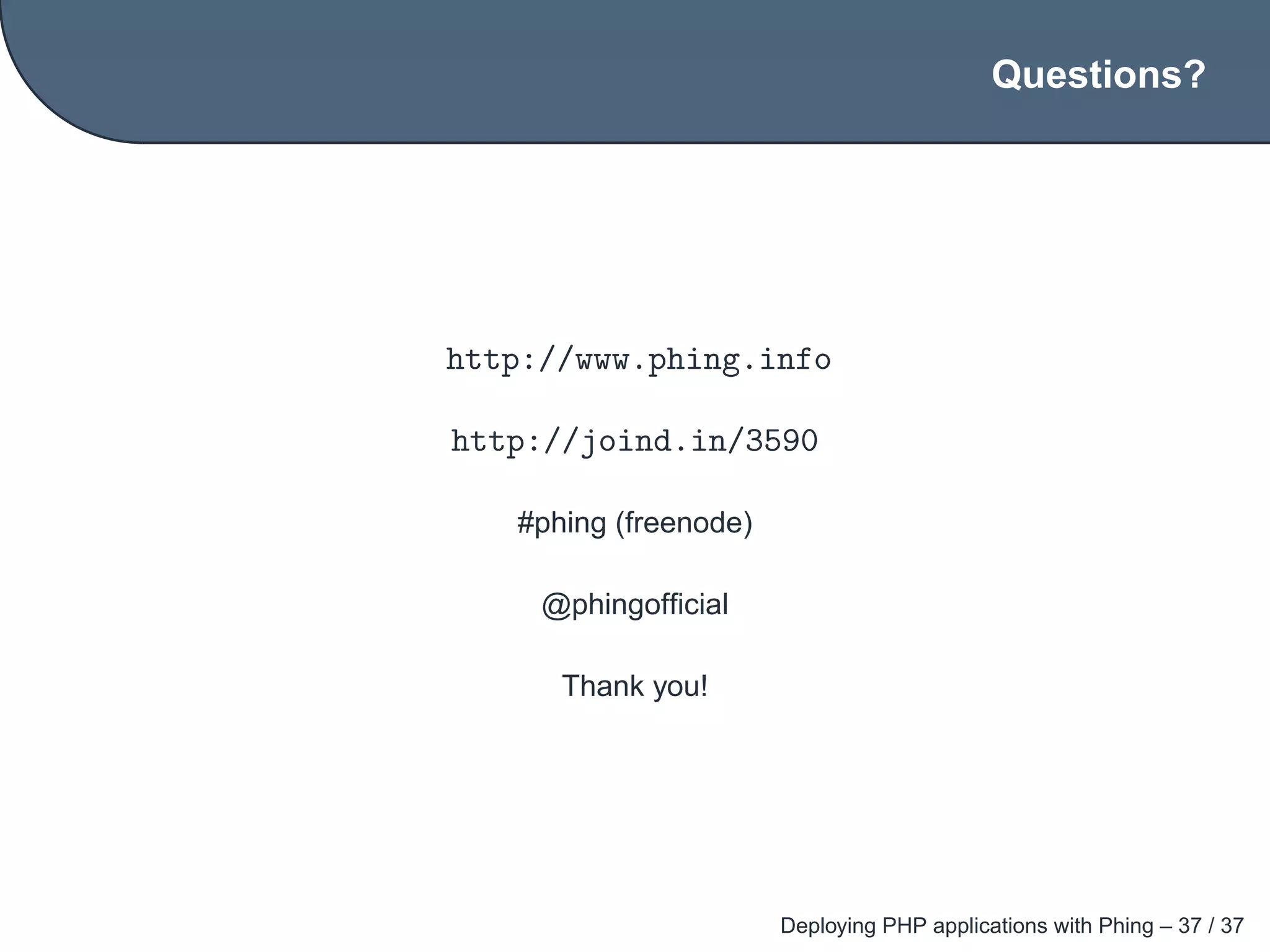

39. Questions?
http://www.phing.info
http://joind.in/3590
#phing (freenode)
@phingofficial
Thank you!
Deploying PHP applications with Phing – 37 / 37
