Symfony Under Control by Maxim Romanovsky
- 1. Continuous Integration andAutomated Deployments for Symfony-based projects Symfony 2 under control PHP Minsk User Group
- 2.
- 3. Max Romanovsky maxromanovsky.com max.romanovsky@gmail.com Maxim_Romanovsky@epam.com Twitter, LinkedIn,SensioLabs Connect, MoiKrug: maxromanovsky Who am I 3
- 4. Continuous integration (CI)is the practice, in software engineering, of merging all developer working copies with a shared mainline several times a day. http://en.wikipedia.org/wiki/Continuous_integr ation http://www.martinfowler.com/articles/continuo usIntegration.html What is Continuous Integration? 4

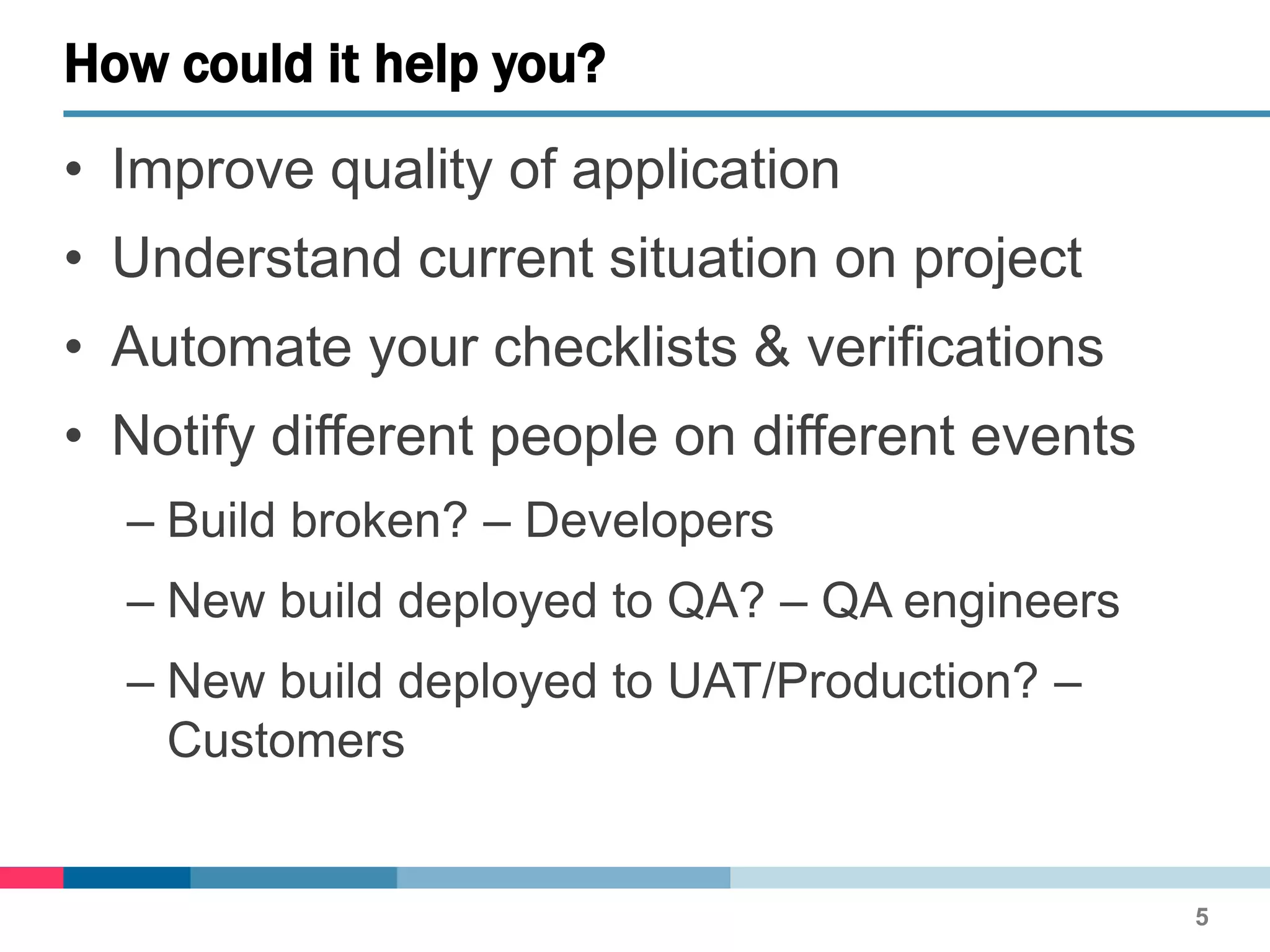

- 5. • Improve qualityof application • Understand current situation on project • Automate your checklists & verifications • Notify different people on different events – Build broken? – Developers – New build deployed to QA? – QA engineers – New build deployed to UAT/Production? – Customers How could it help you? 5

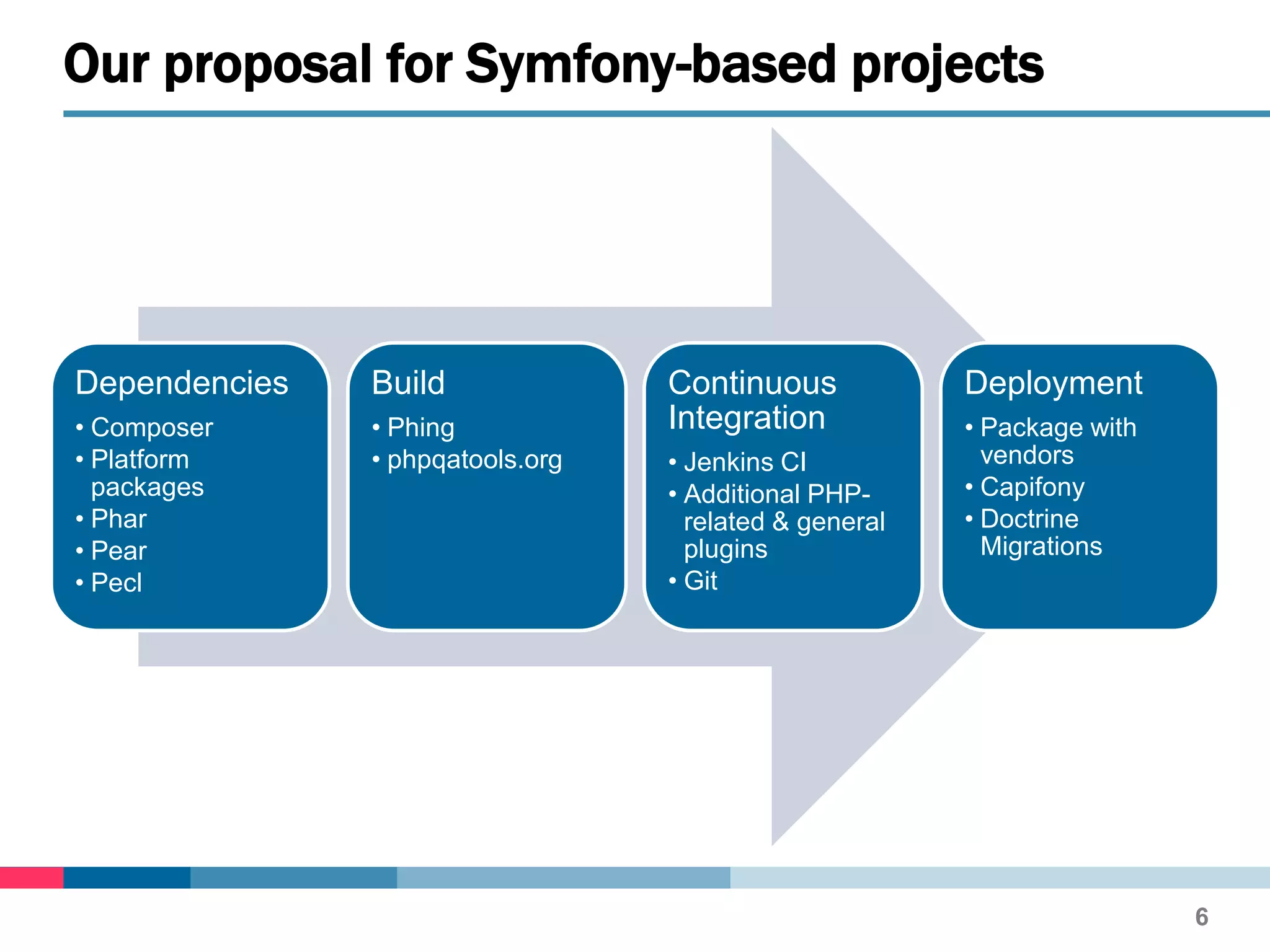

- 6. Dependencies • Composer • Platform packages •Phar • Pear • Pecl Build • Phing • phpqatools.org Continuous Integration • Jenkins CI • Additional PHP- related & general plugins • Git Deployment • Package with vendors • Capifony • Doctrine Migrations Our proposal for Symfony-based projects 6
- 7.

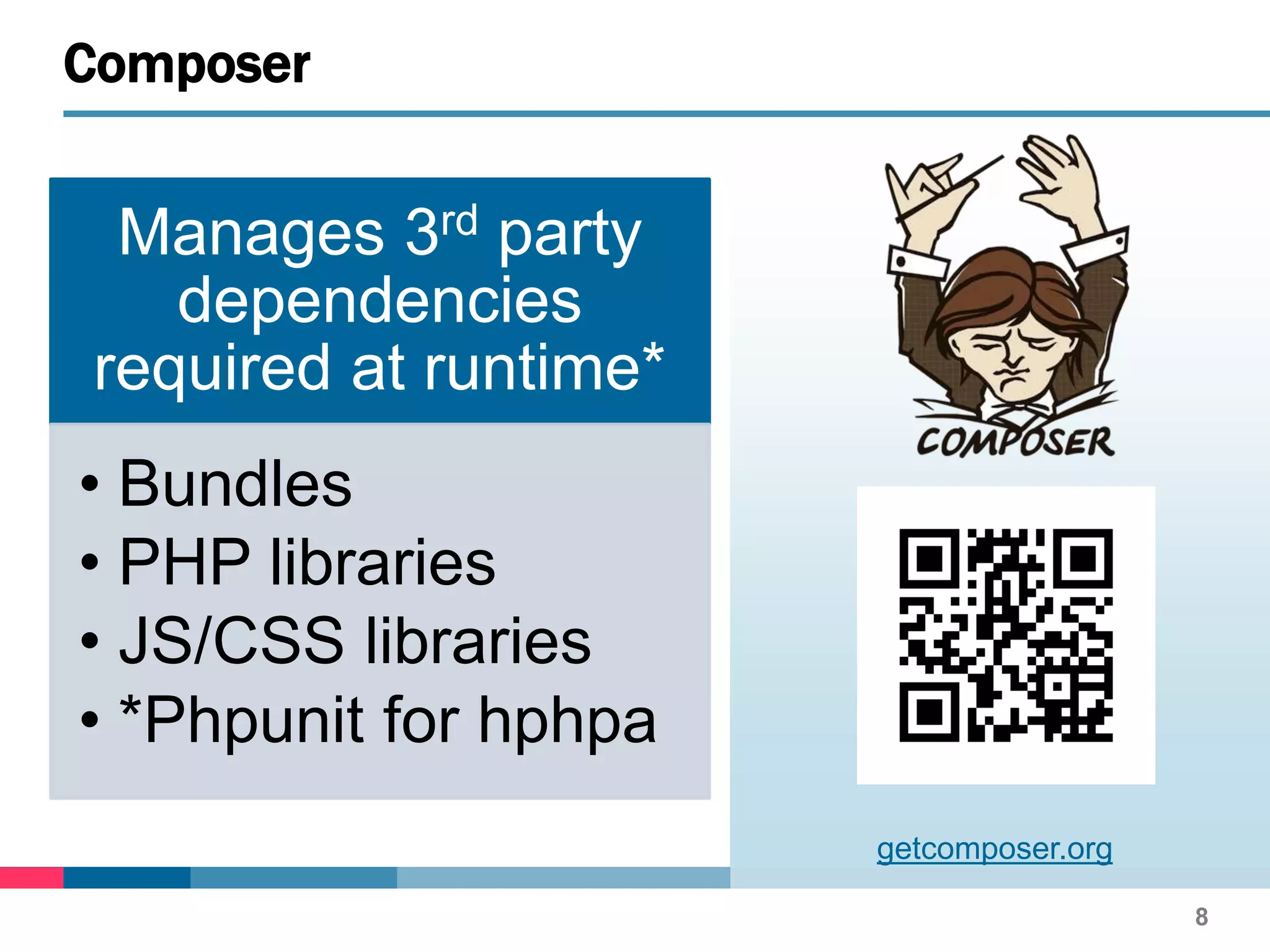

- 8. Manages 3rd party dependencies requiredat runtime* • Bundles • PHP libraries • JS/CSS libraries • *Phpunit for hphpa 8 Composer getcomposer.org

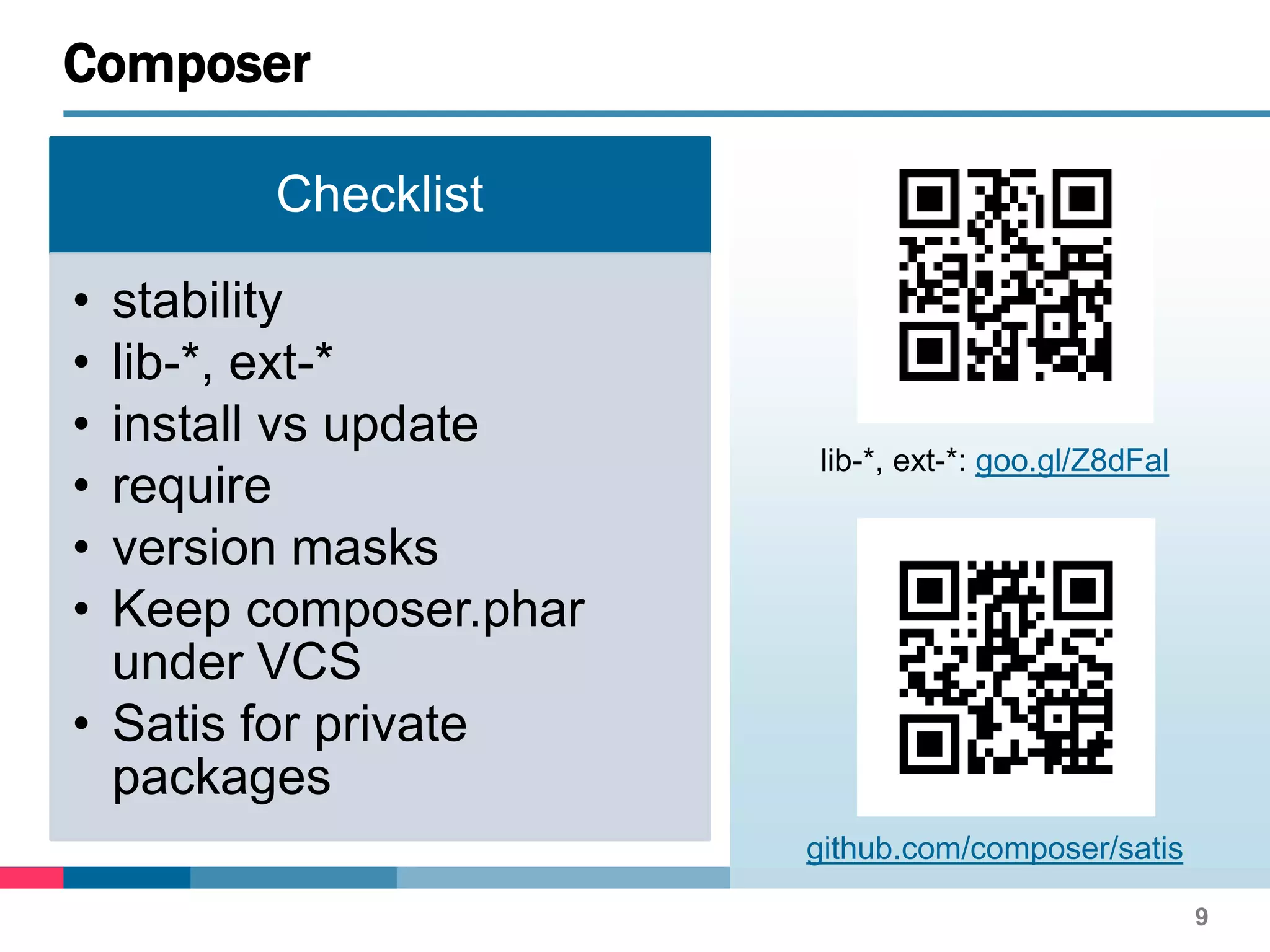

- 9. Checklist • stability • lib-*,ext-* • install vs update • require • version masks • Keep composer.phar under VCS • Satis for private packages 9 Composer github.com/composer/satis lib-*, ext-*: goo.gl/Z8dFal

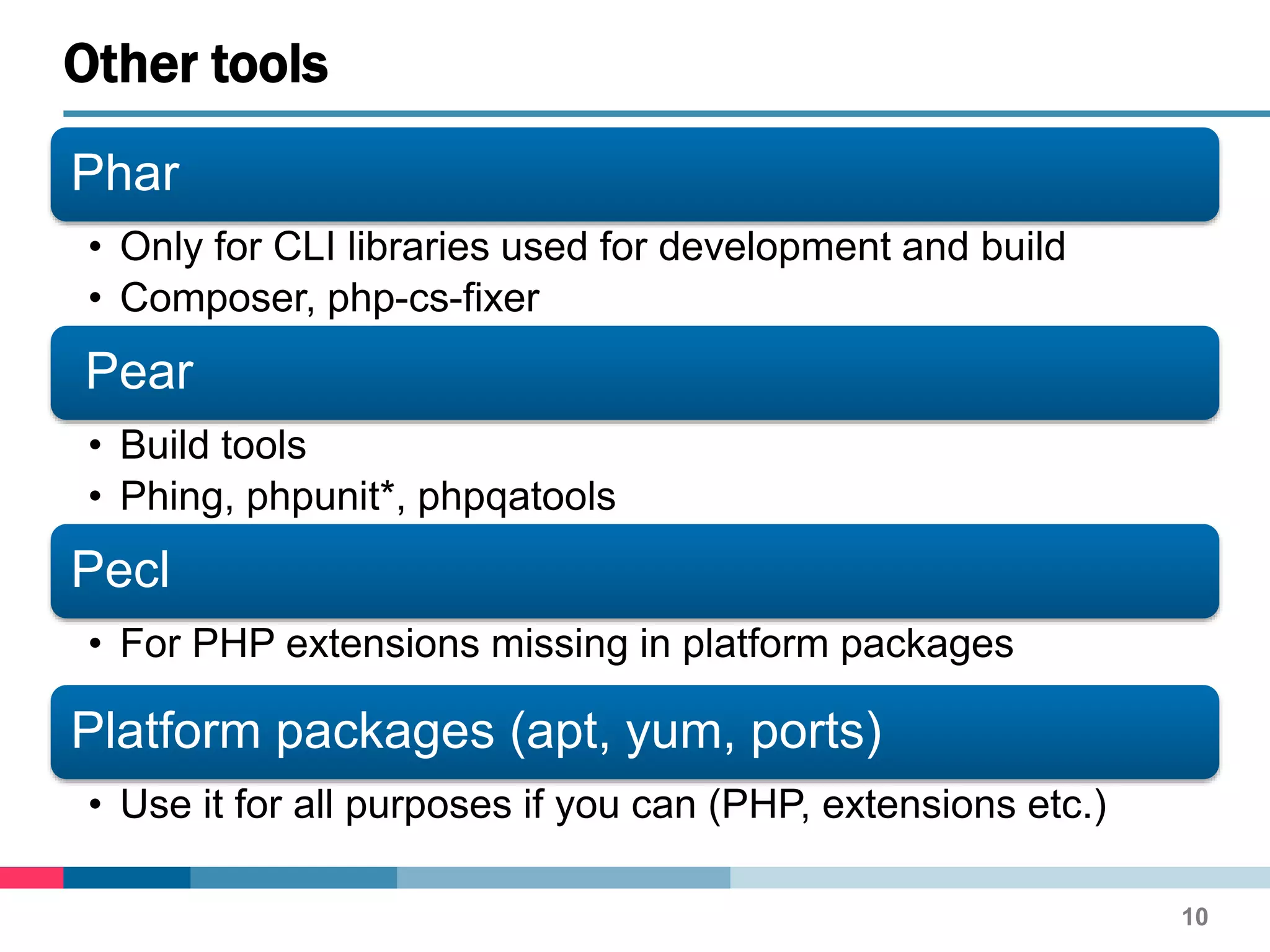

- 10. Phar • Only forCLI libraries used for development and build • Composer, php-cs-fixer Pear • Build tools • Phing, phpunit*, phpqatools Pecl • For PHP extensions missing in platform packages Platform packages (apt, yum, ports) • Use it for all purposes if you can (PHP, extensions etc.) Other tools 10

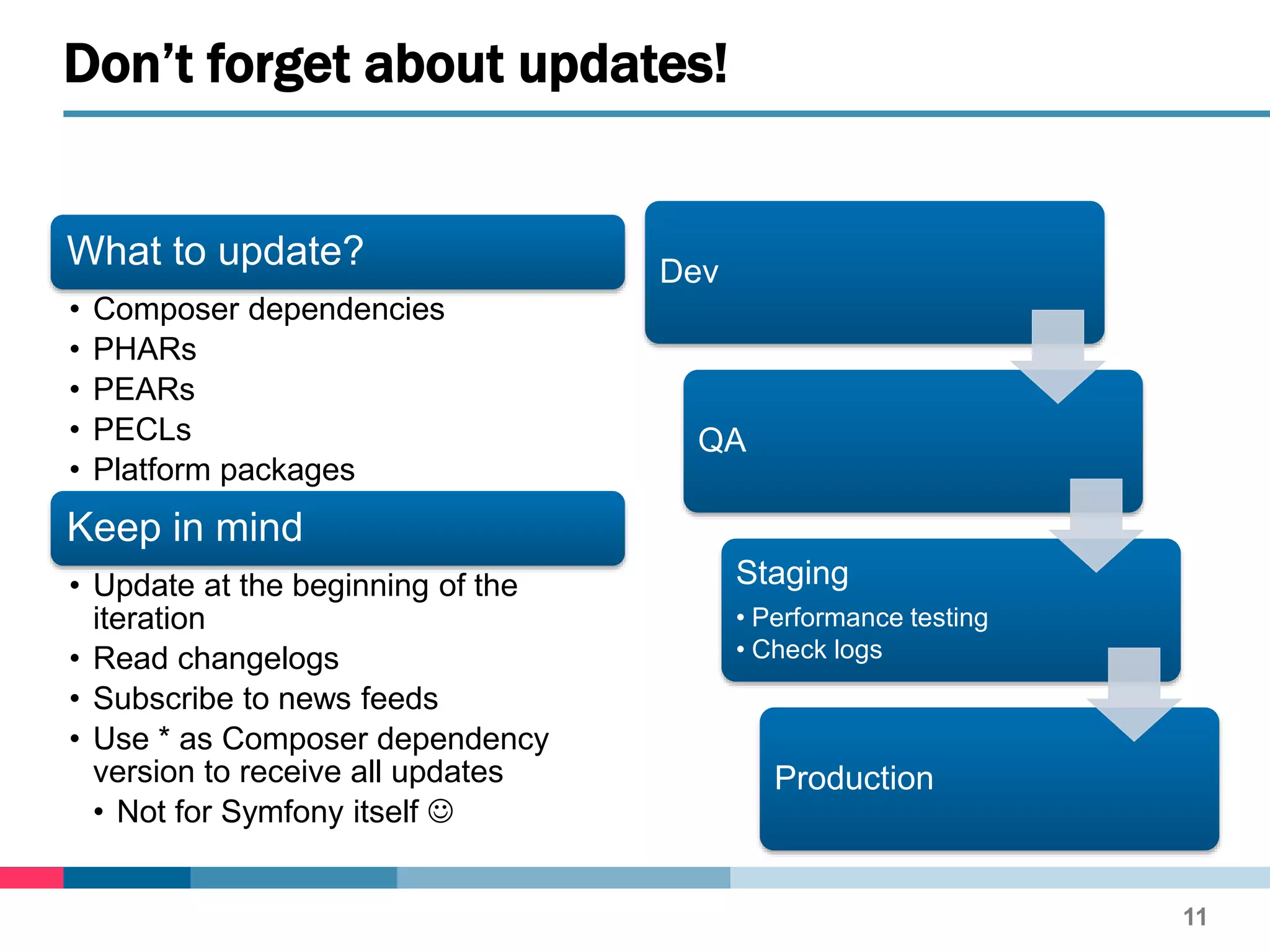

- 11. What to update? •Composer dependencies • PHARs • PEARs • PECLs • Platform packages Keep in mind • Update at the beginning of the iteration • Read changelogs • Subscribe to news feeds • Use * as Composer dependency version to receive all updates • Not for Symfony itself Dev QA Staging • Performance testing • Check logs Production 11 Don’t forget about updates!
- 12.

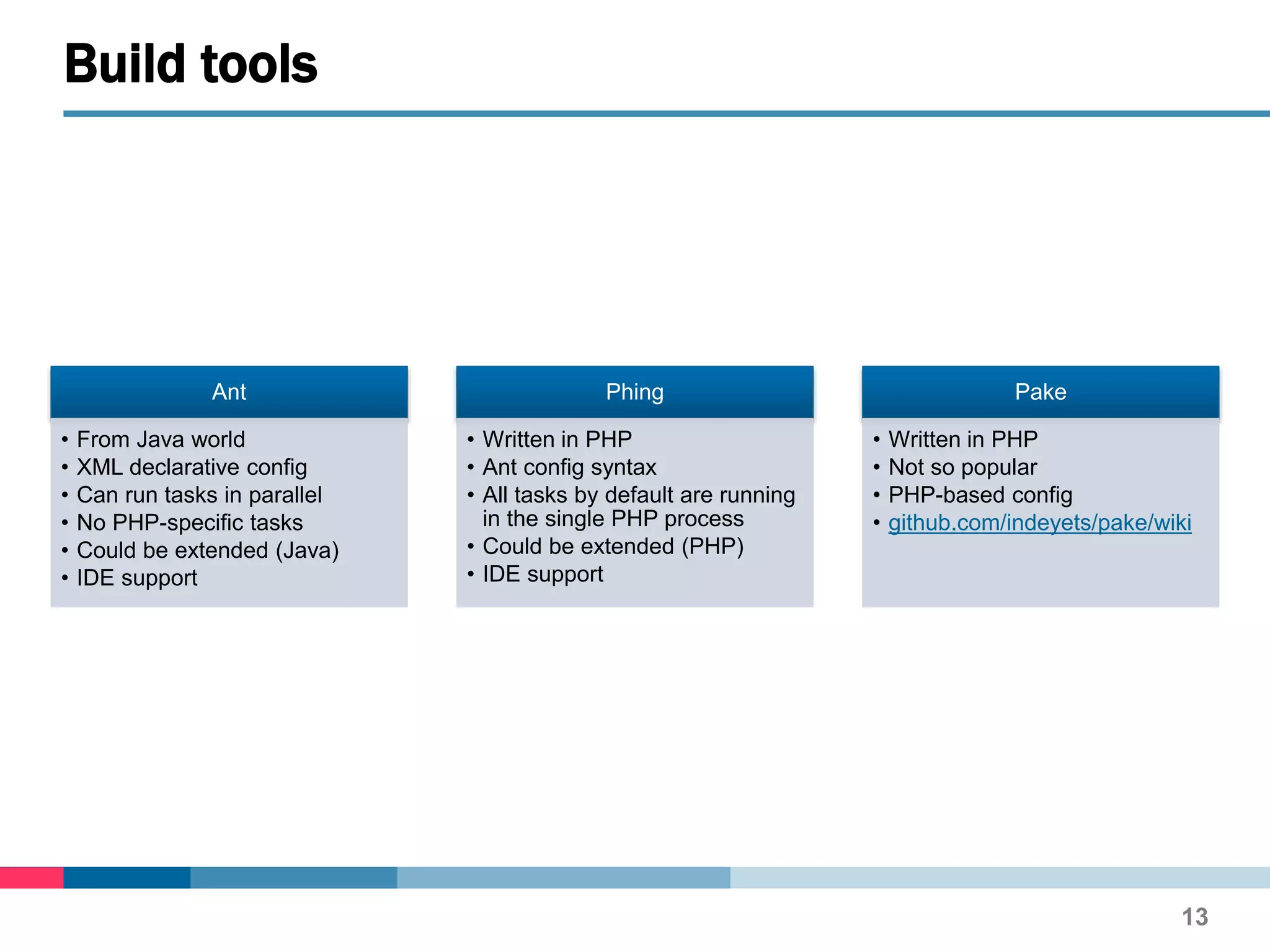

- 13. Ant • From Javaworld • XML declarative config • Can run tasks in parallel • No PHP-specific tasks • Could be extended (Java) • IDE support Phing • Written in PHP • Ant config syntax • All tasks by default are running in the single PHP process • Could be extended (PHP) • IDE support Pake • Written in PHP • Not so popular • PHP-based config • github.com/indeyets/pake/wiki Build tools 13

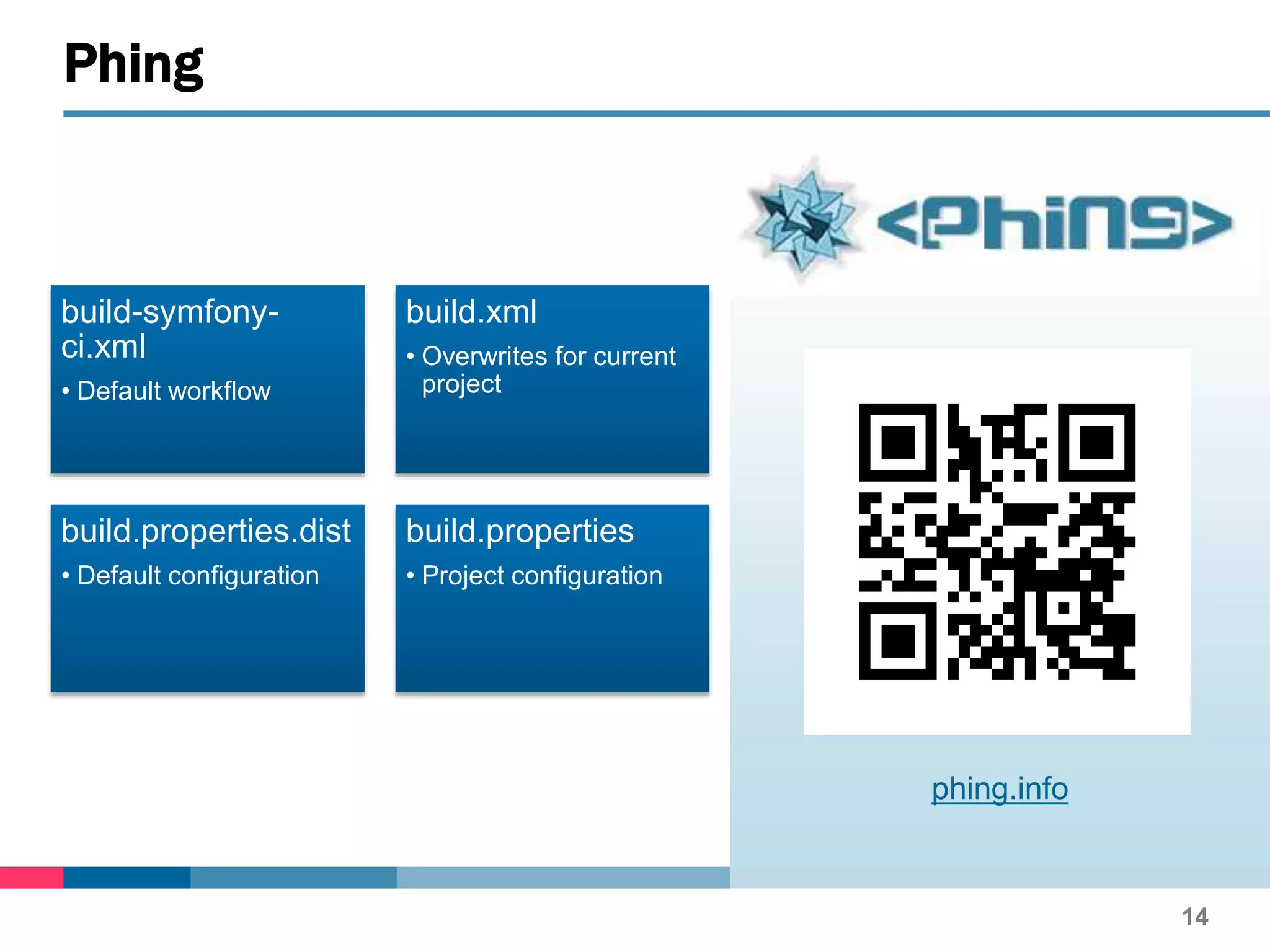

- 14. build-symfony- ci.xml • Default workflow build.xml •Overwrites for current project build.properties.dist • Default configuration build.properties • Project configuration 14 Phing phing.info

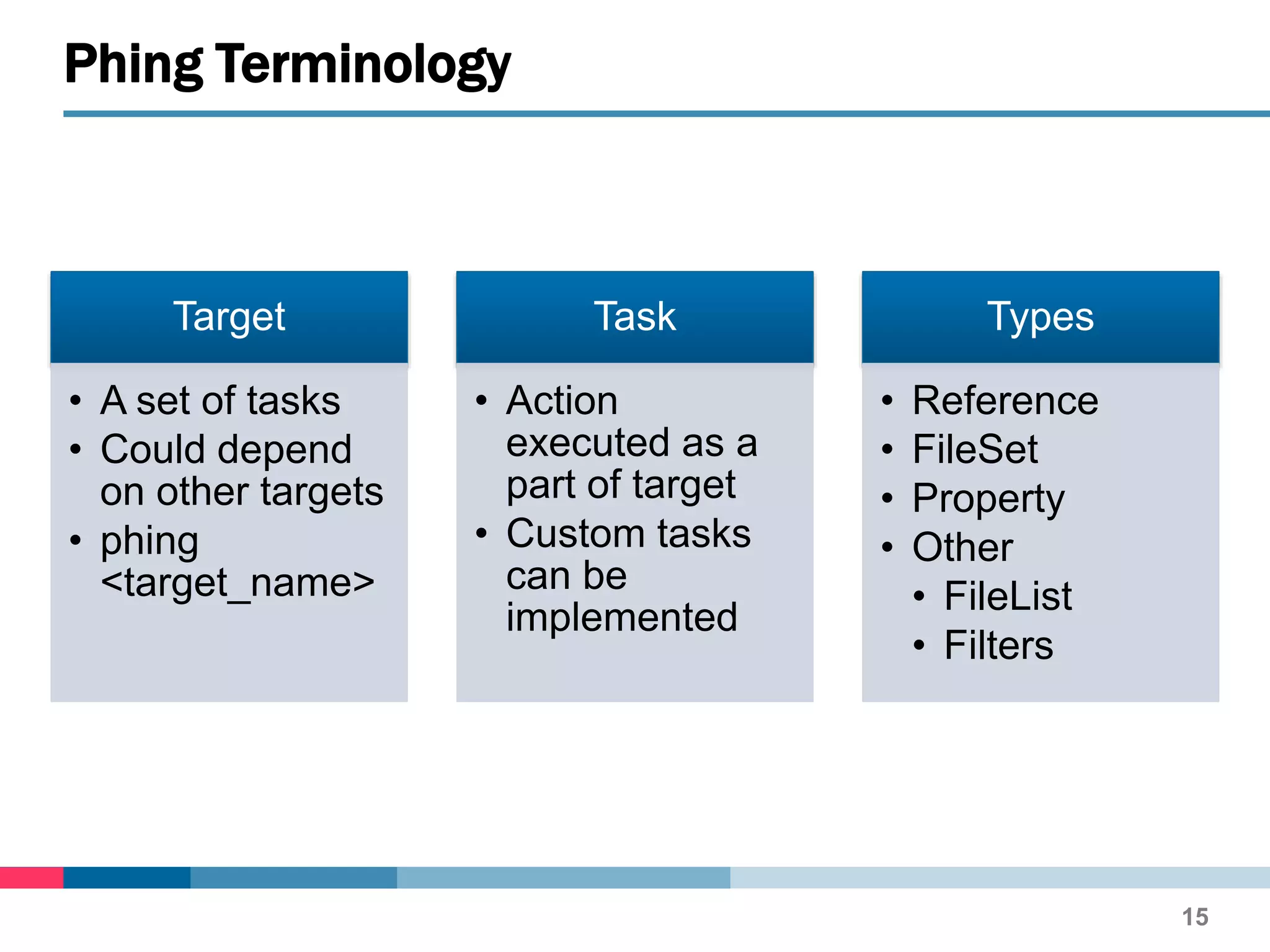

- 15. Target • A setof tasks • Could depend on other targets • phing <target_name> Task • Action executed as a part of target • Custom tasks can be implemented Types • Reference • FileSet • Property • Other • FileList • Filters Phing Terminology 15

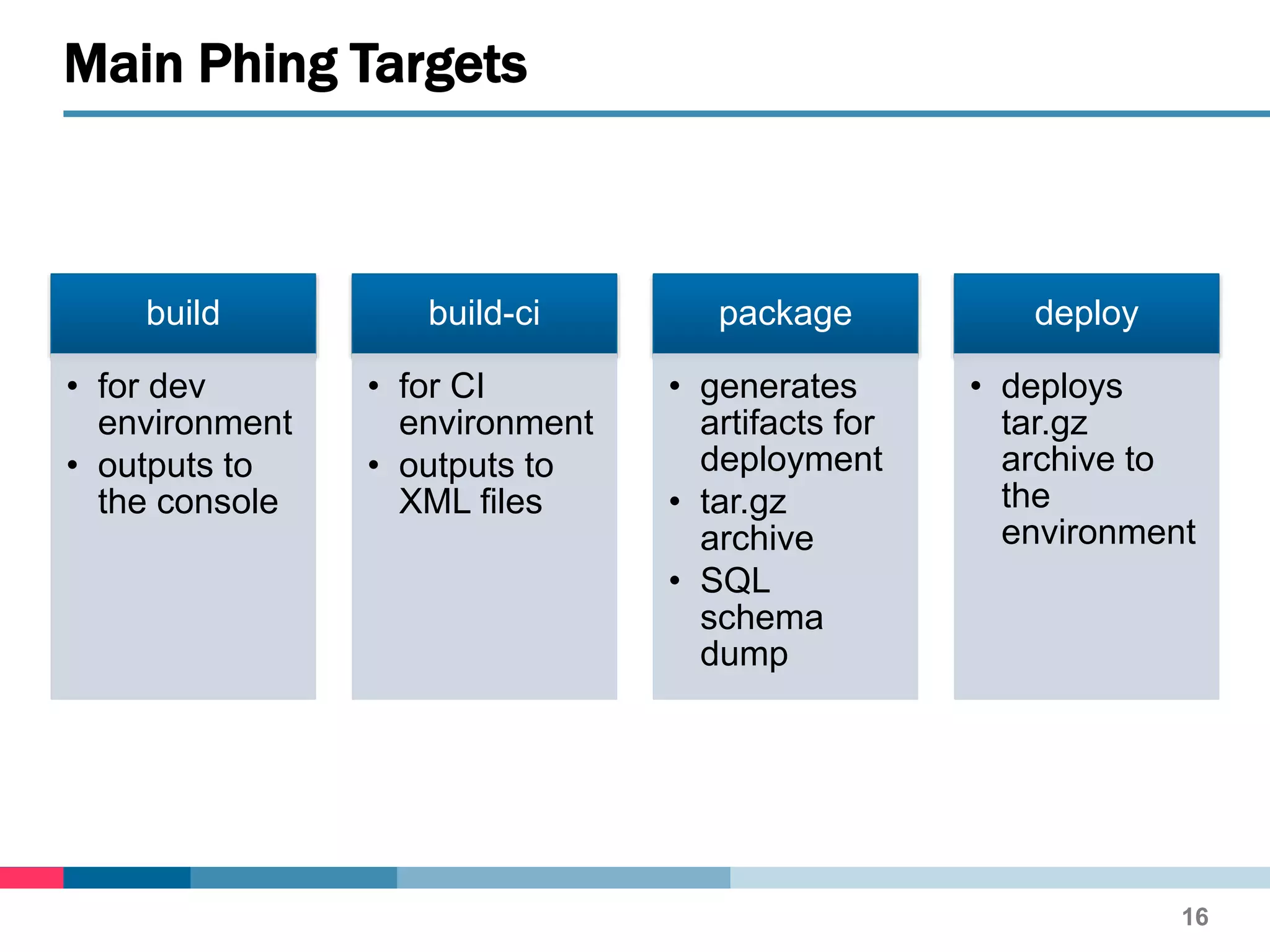

- 16. build • for dev environment •outputs to the console build-ci • for CI environment • outputs to XML files package • generates artifacts for deployment • tar.gz archive • SQL schema dump deploy • deploys tar.gz archive to the environment Main Phing Targets 16

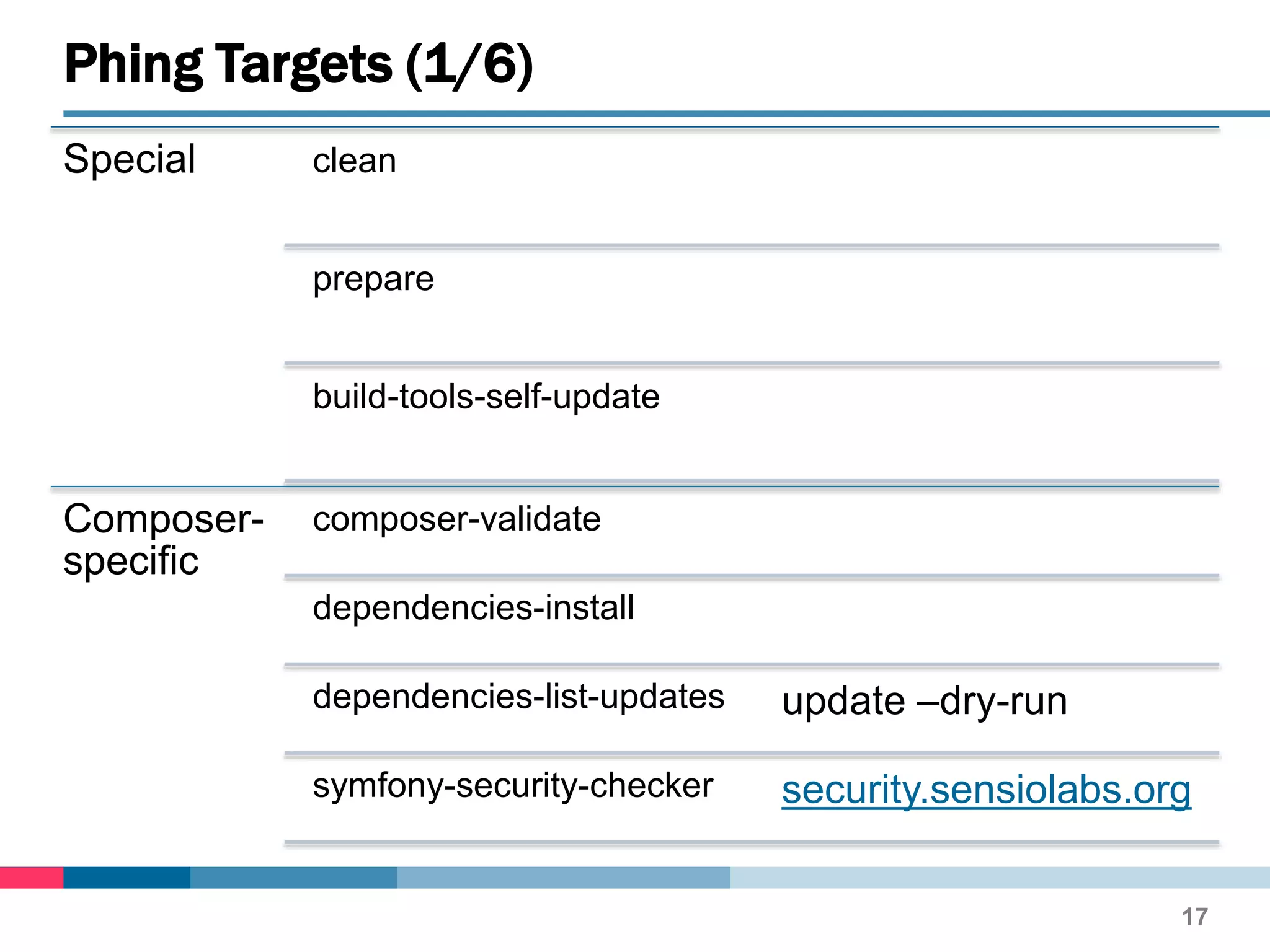

- 17. Special clean prepare build-tools-self-update Composer- specific composer-validate dependencies-install dependencies-list-updates update–dry-run symfony-security-checker security.sensiolabs.org Phing Targets (1/6) 17

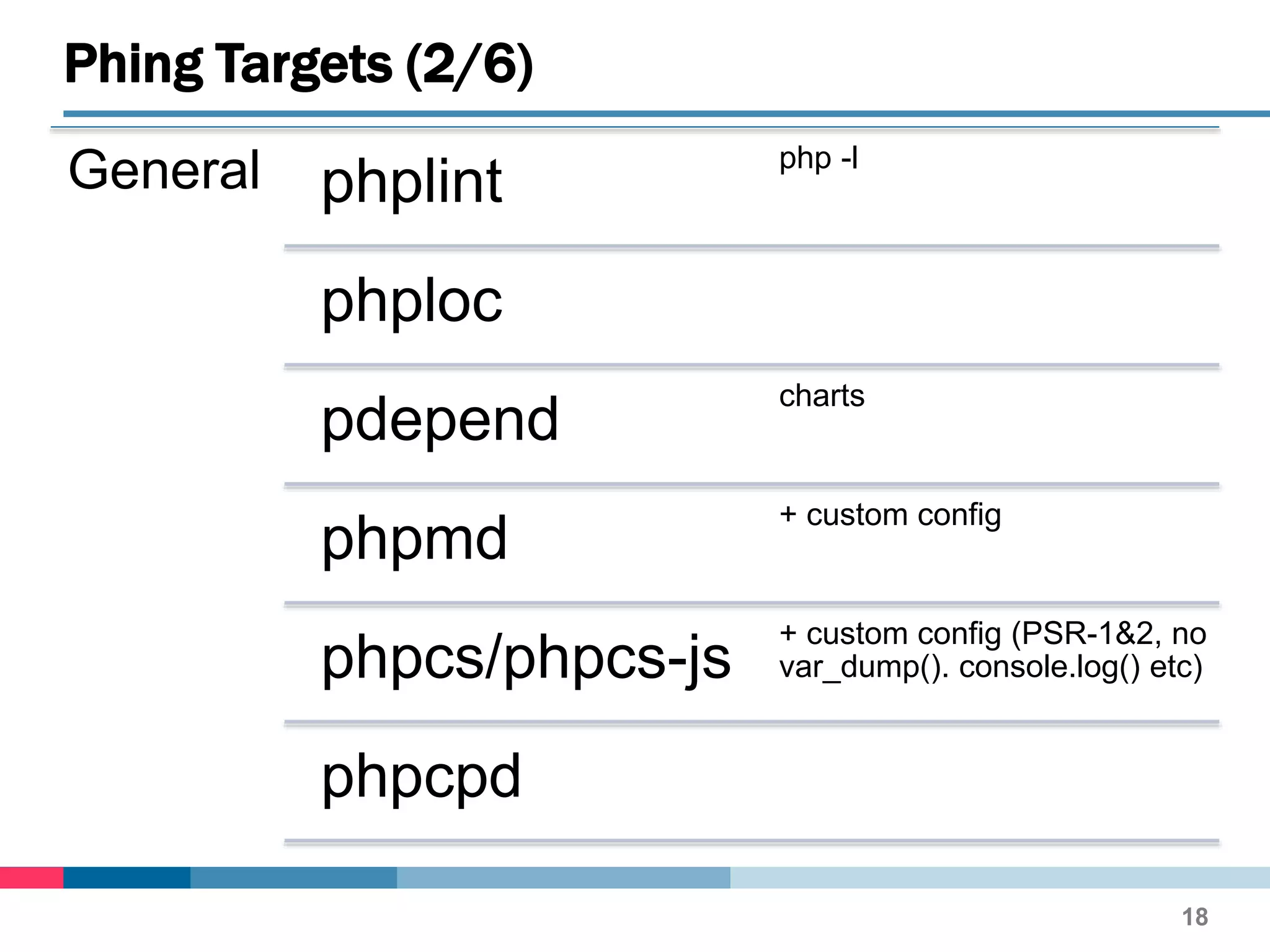

- 18. General phplint php -l phploc pdepend charts phpmd +custom config phpcs/phpcs-js + custom config (PSR-1&2, no var_dump(). console.log() etc) phpcpd Phing Targets (2/6) 18

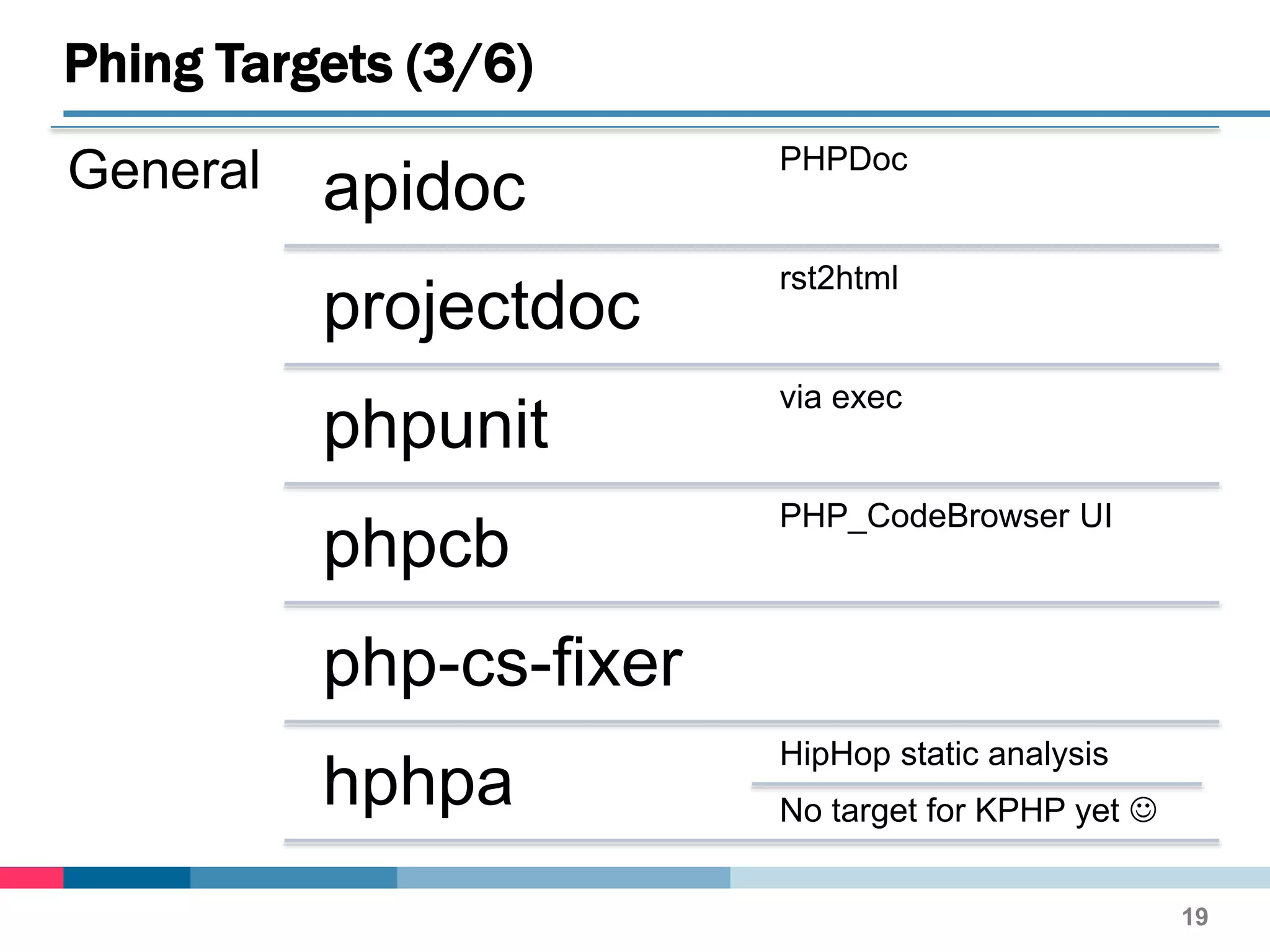

- 19. General apidoc PHPDoc projectdoc rst2html phpunit via exec phpcb PHP_CodeBrowserUI php-cs-fixer hphpa HipHop static analysis No target for KPHP yet Phing Targets (3/6) 19

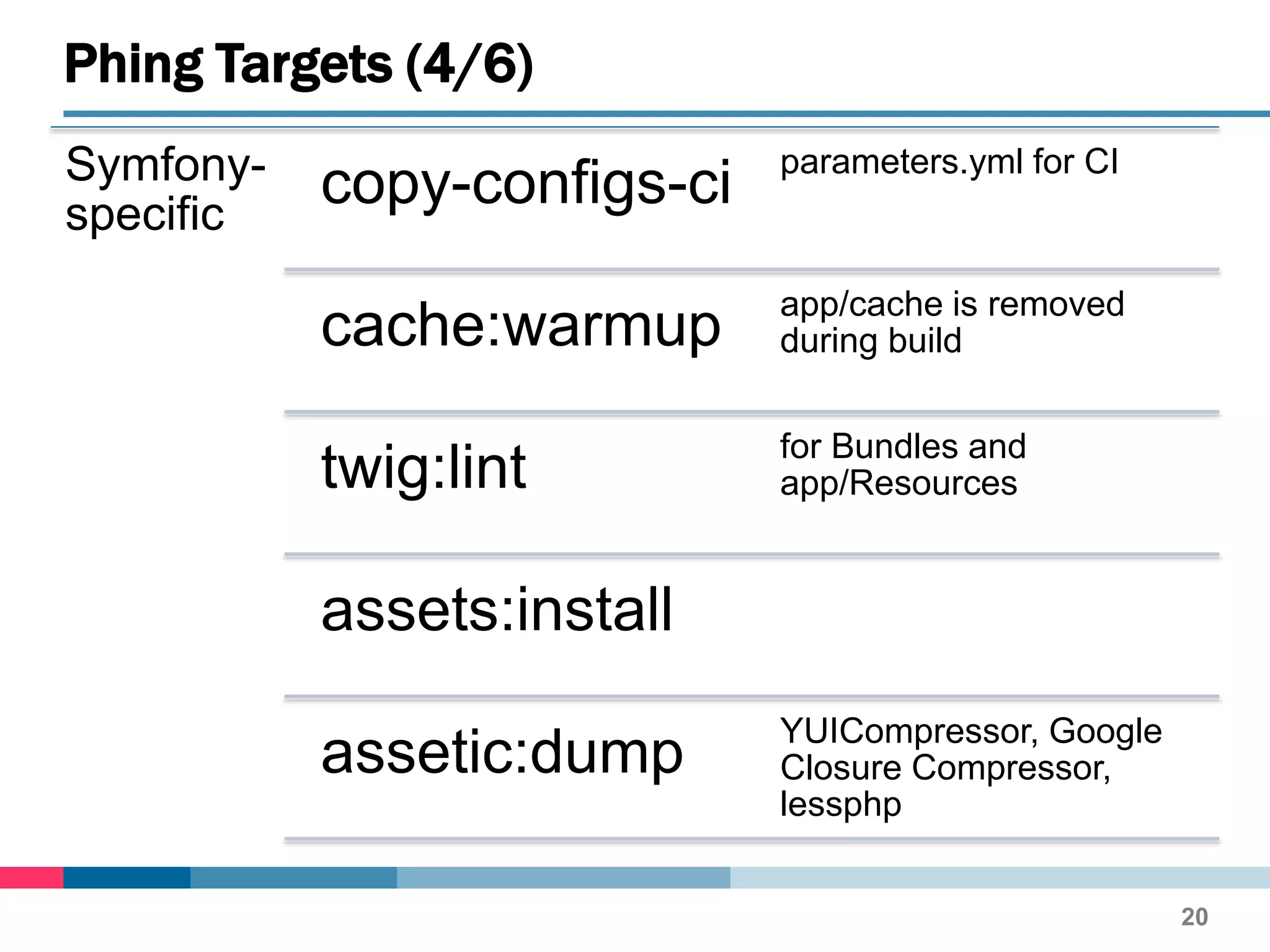

- 20. Symfony- specific copy-configs-ci parameters.yml forCI cache:warmup app/cache is removed during build twig:lint for Bundles and app/Resources assets:install assetic:dump YUICompressor, Google Closure Compressor, lessphp Phing Targets (4/6) 20
- 21.

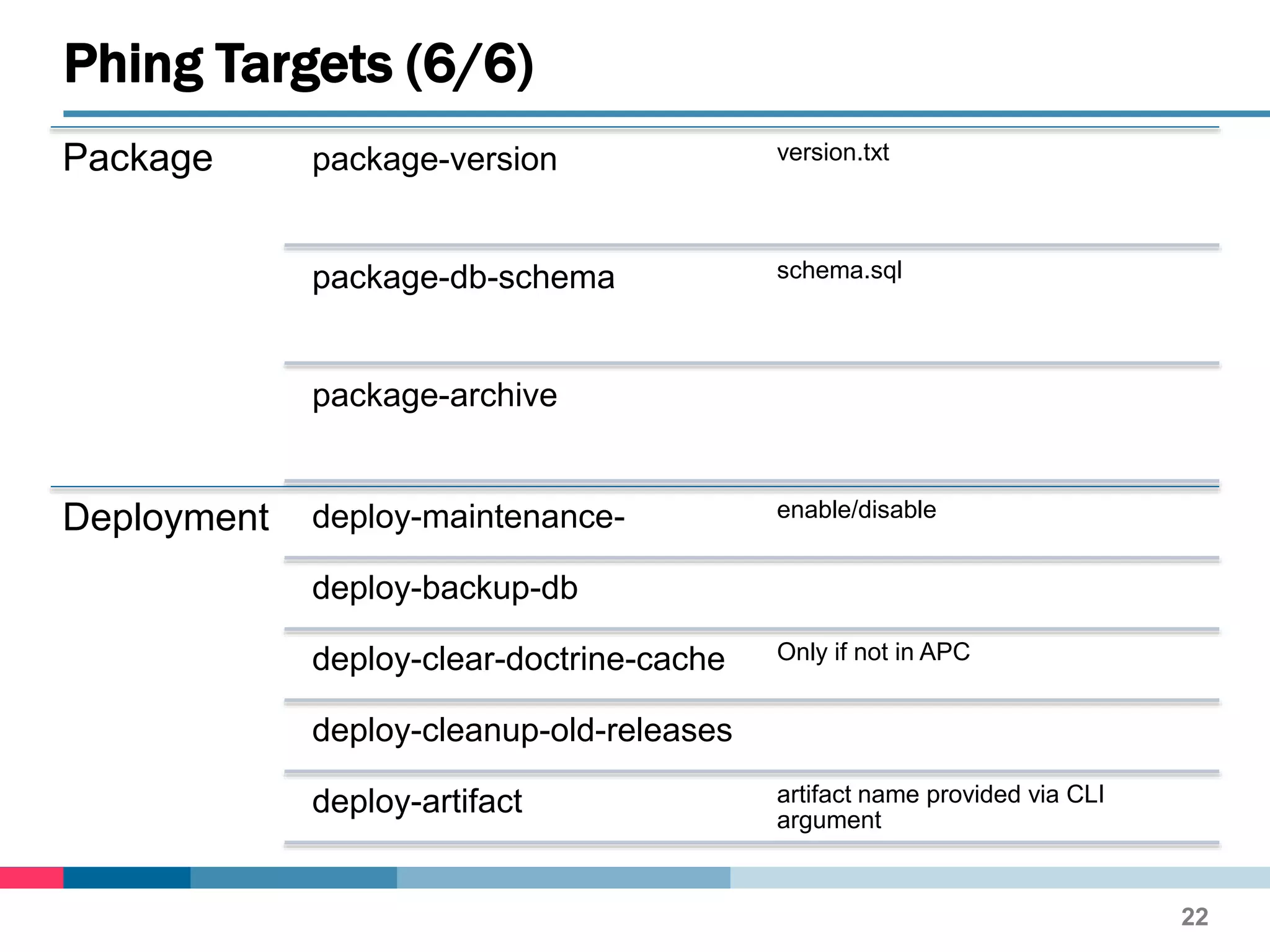

- 22. Package package-version version.txt package-db-schemaschema.sql package-archive Deployment deploy-maintenance- enable/disable deploy-backup-db deploy-clear-doctrine-cache Only if not in APC deploy-cleanup-old-releases deploy-artifact artifact name provided via CLI argument Phing Targets (6/6) 22

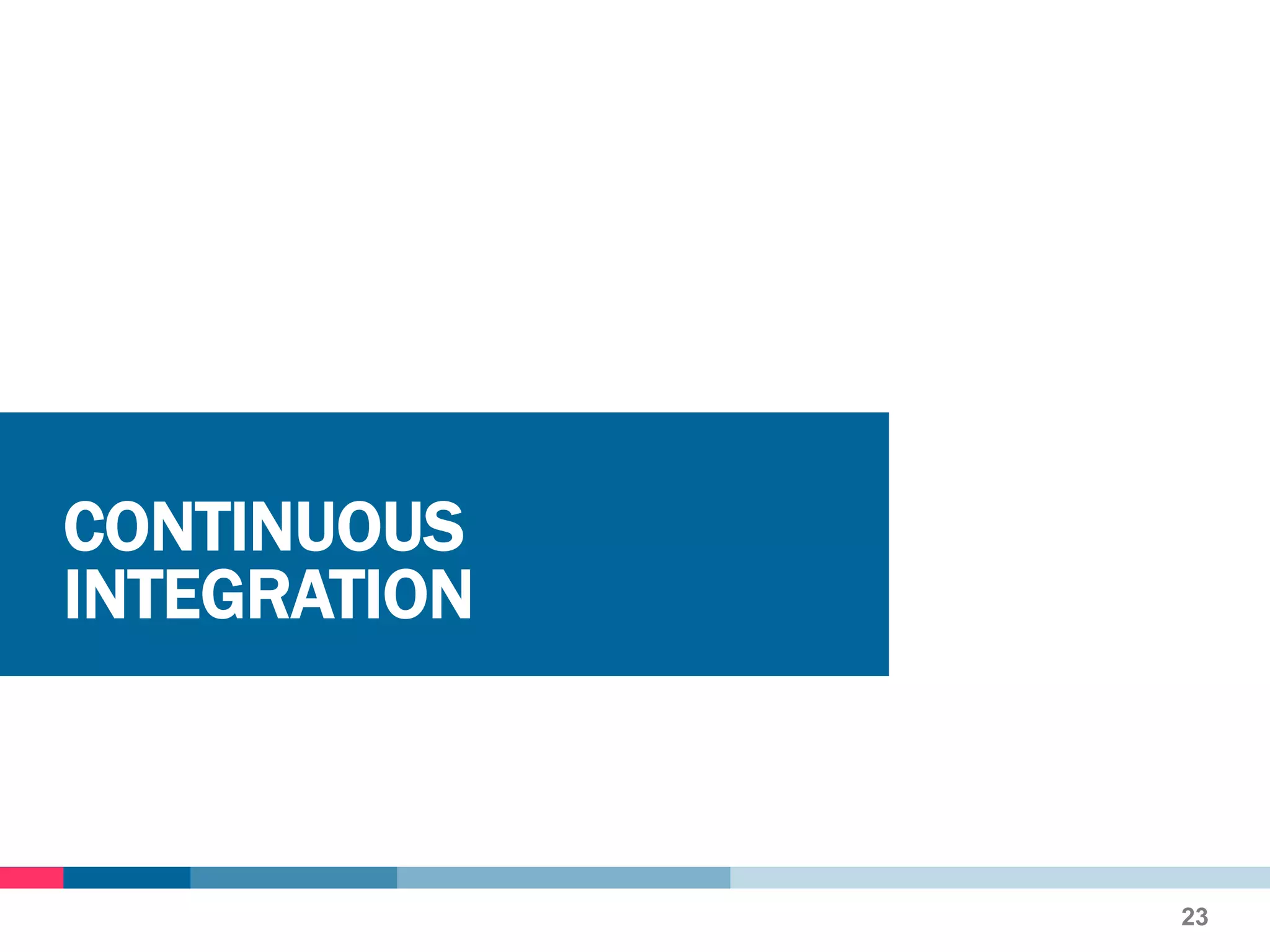

- 23.

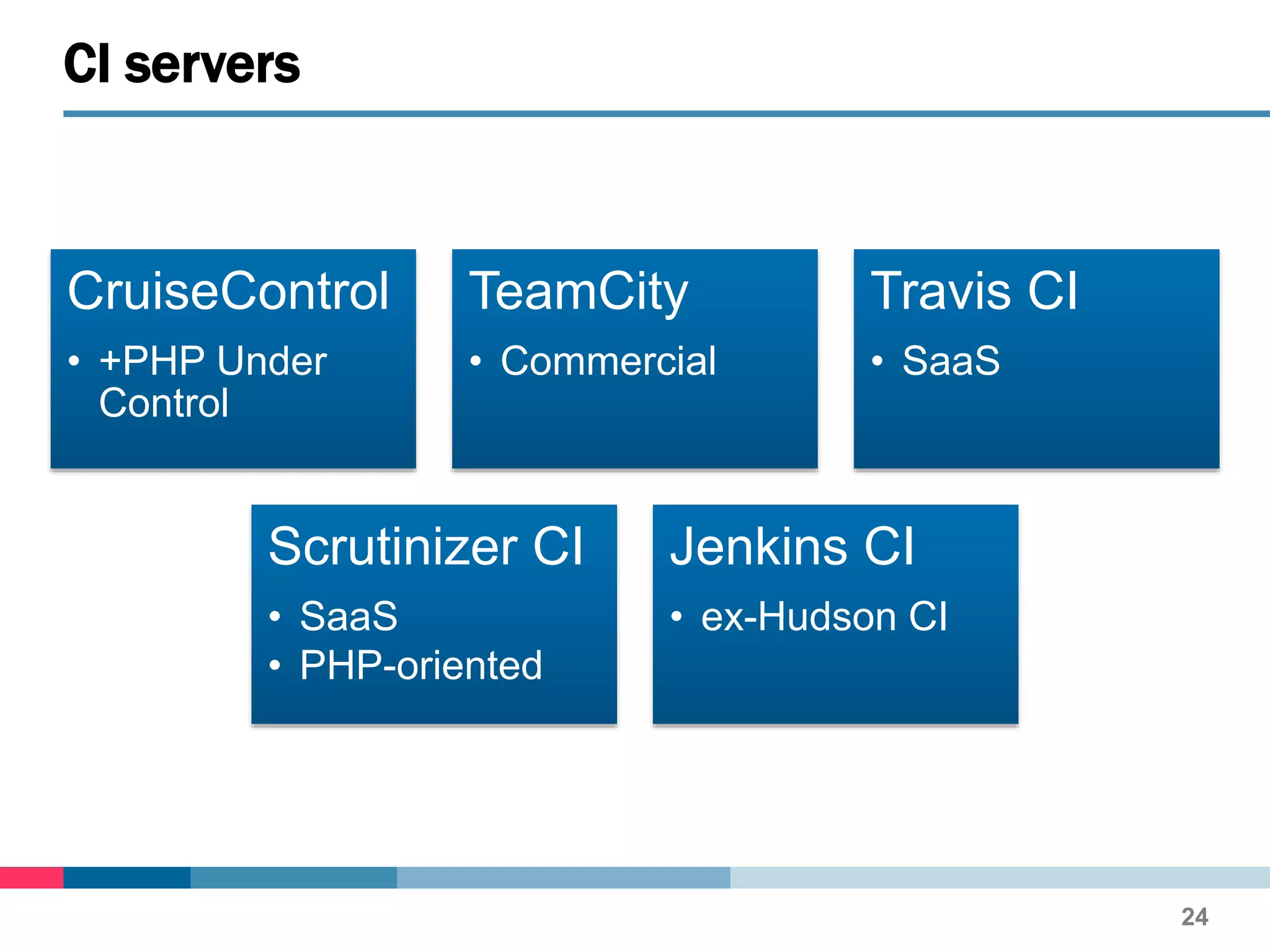

- 24. CruiseControl • +PHP Under Control TeamCity •Commercial Travis CI • SaaS Scrutinizer CI • SaaS • PHP-oriented Jenkins CI • ex-Hudson CI CI servers 24

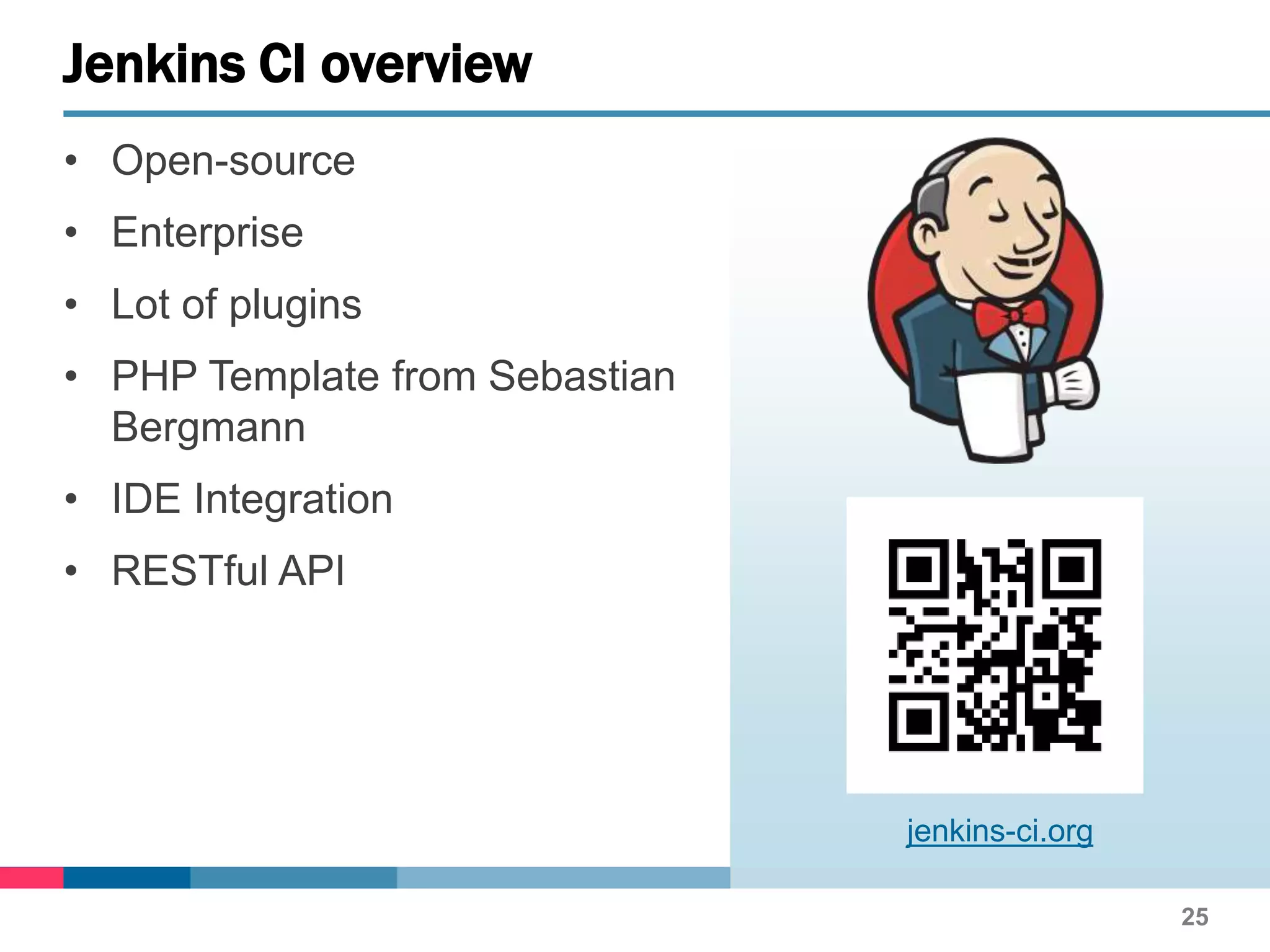

- 25. • Open-source • Enterprise •Lot of plugins • PHP Template from Sebastian Bergmann • IDE Integration • RESTful API 25 Jenkins CI overview jenkins-ci.org

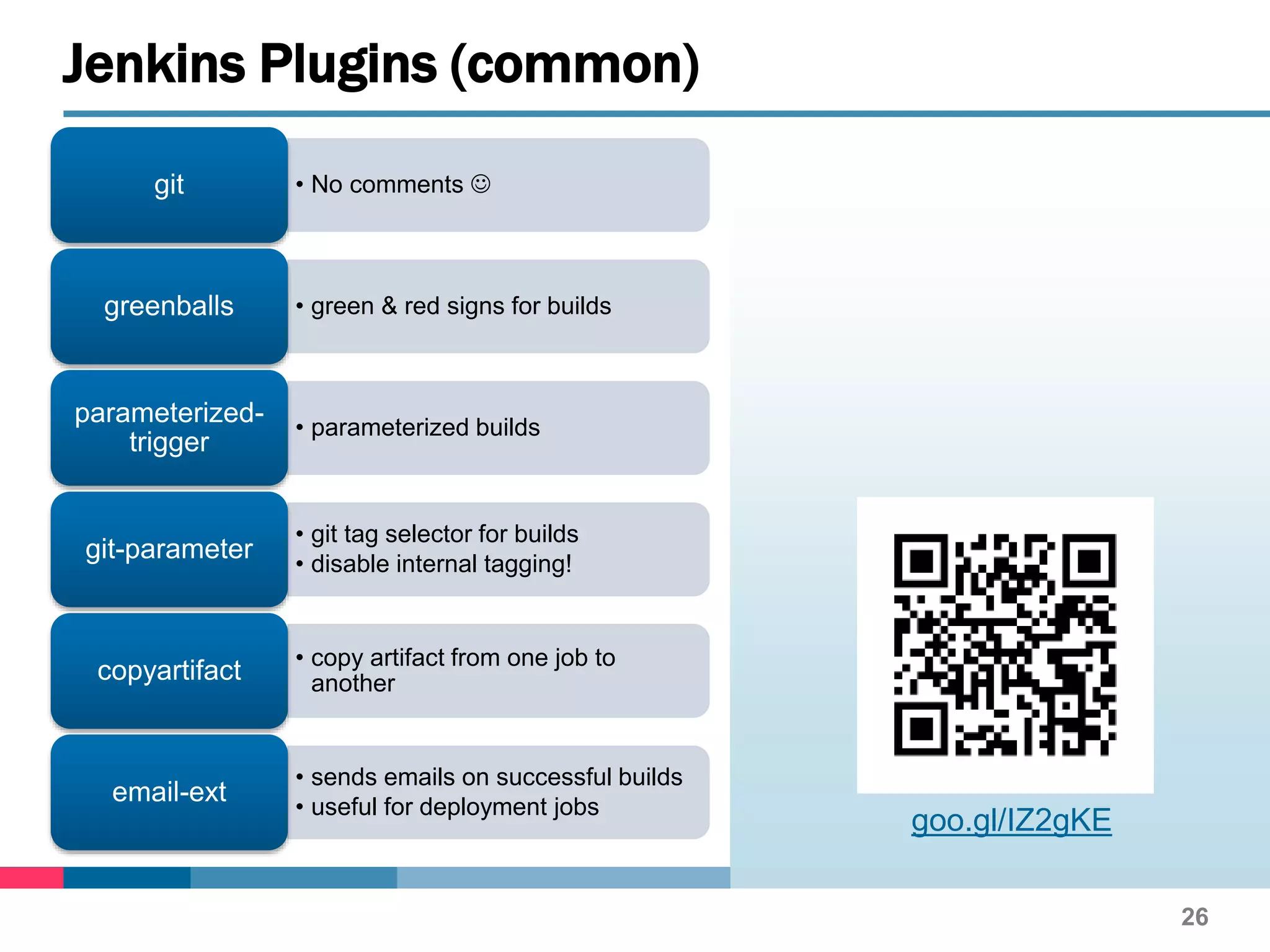

- 26. • No commentsgit • green & red signs for buildsgreenballs • parameterized builds parameterized- trigger • git tag selector for builds • disable internal tagging! git-parameter • copy artifact from one job to anothercopyartifact • sends emails on successful builds • useful for deployment jobs email-ext 26 Jenkins Plugins (common) goo.gl/IZ2gKE

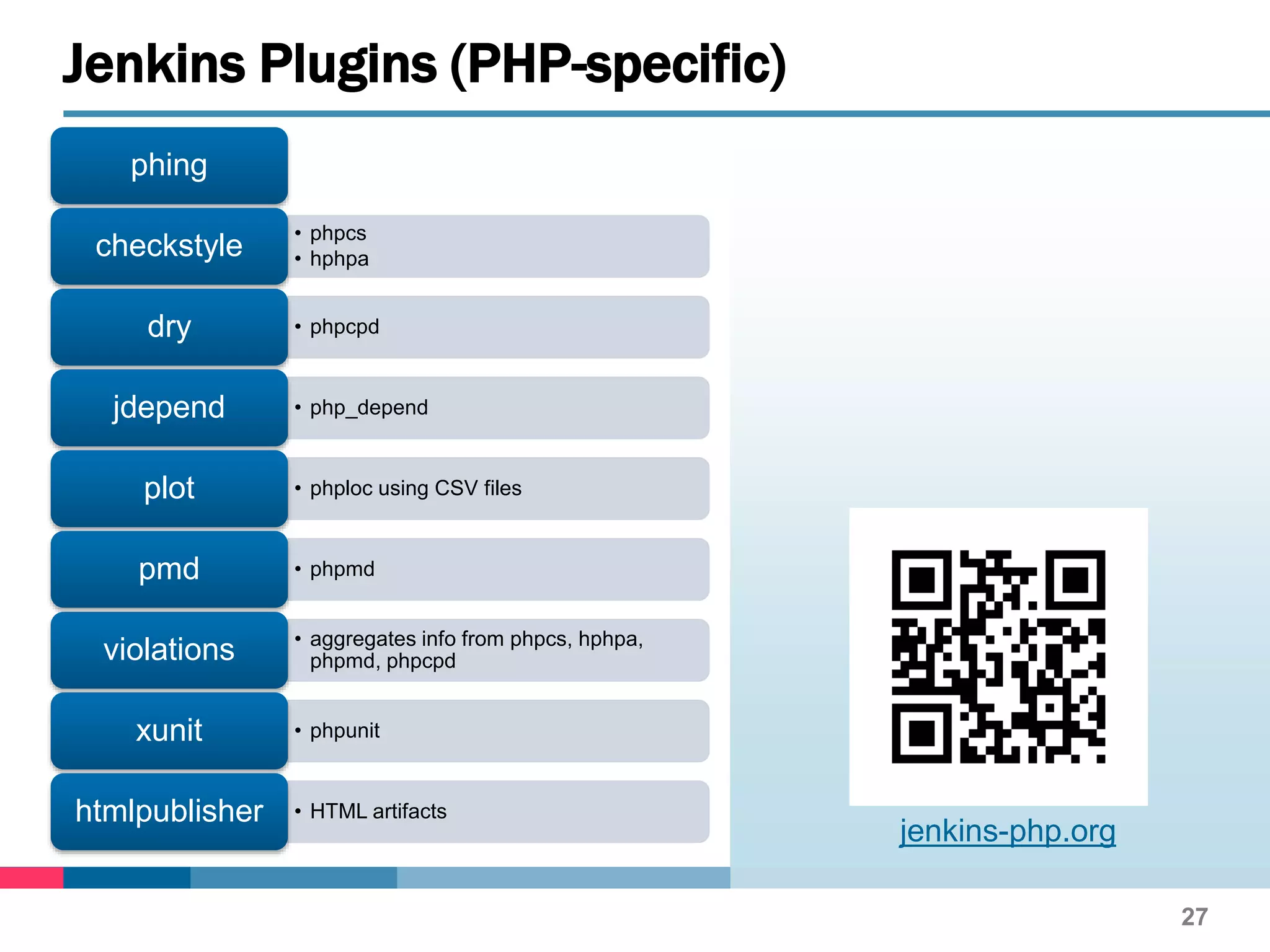

- 27. phing • phpcs • hphpacheckstyle •phpcpddry • php_dependjdepend • phploc using CSV filesplot • phpmdpmd • aggregates info from phpcs, hphpa, phpmd, phpcpdviolations • phpunitxunit • HTML artifactshtmlpublisher 27 Jenkins Plugins (PHP-specific) jenkins-php.org

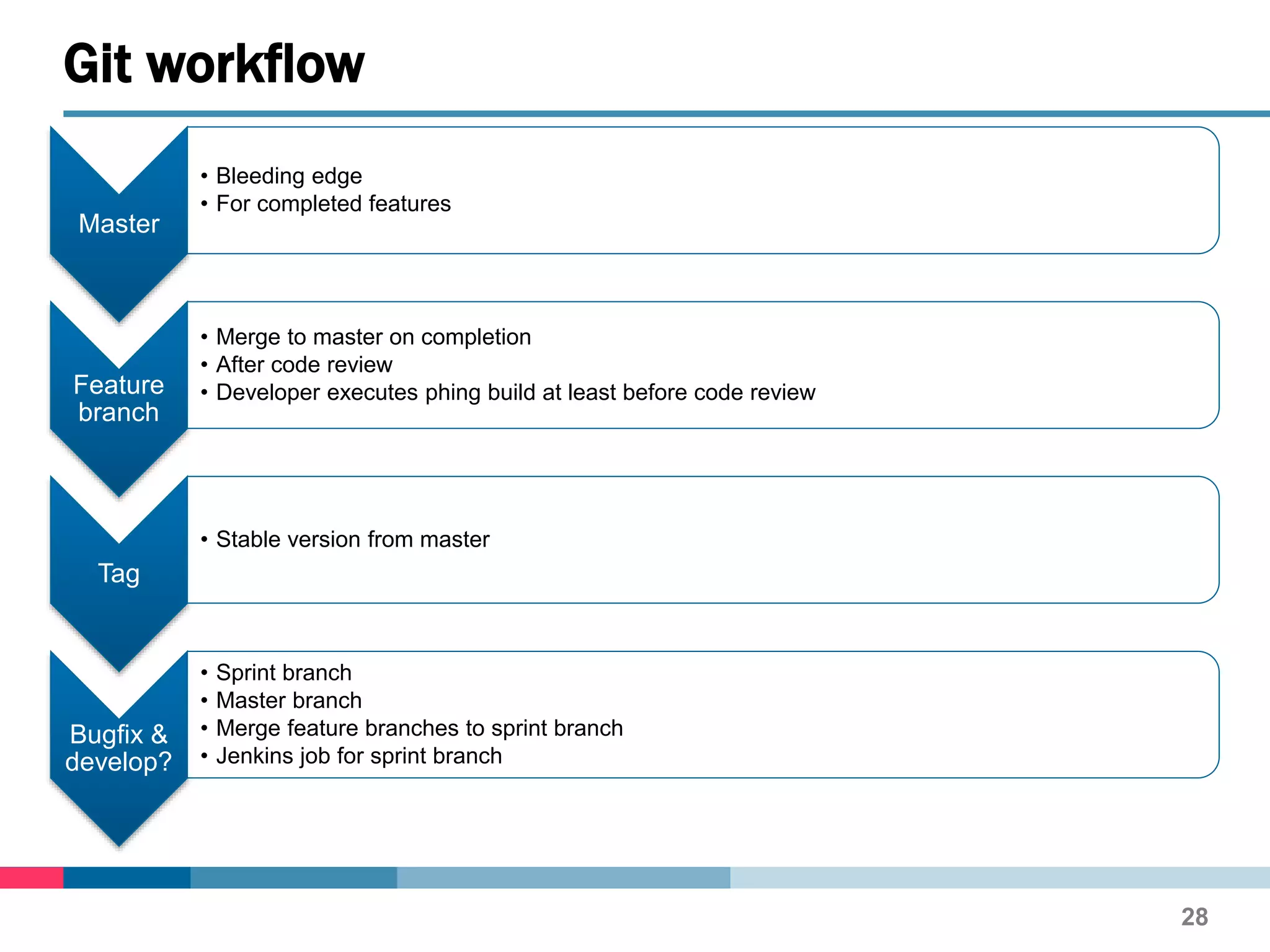

- 28. Master • Bleeding edge •For completed features Feature branch • Merge to master on completion • After code review • Developer executes phing build at least before code review Tag • Stable version from master Bugfix & develop? • Sprint branch • Master branch • Merge feature branches to sprint branch • Jenkins job for sprint branch Git workflow 28

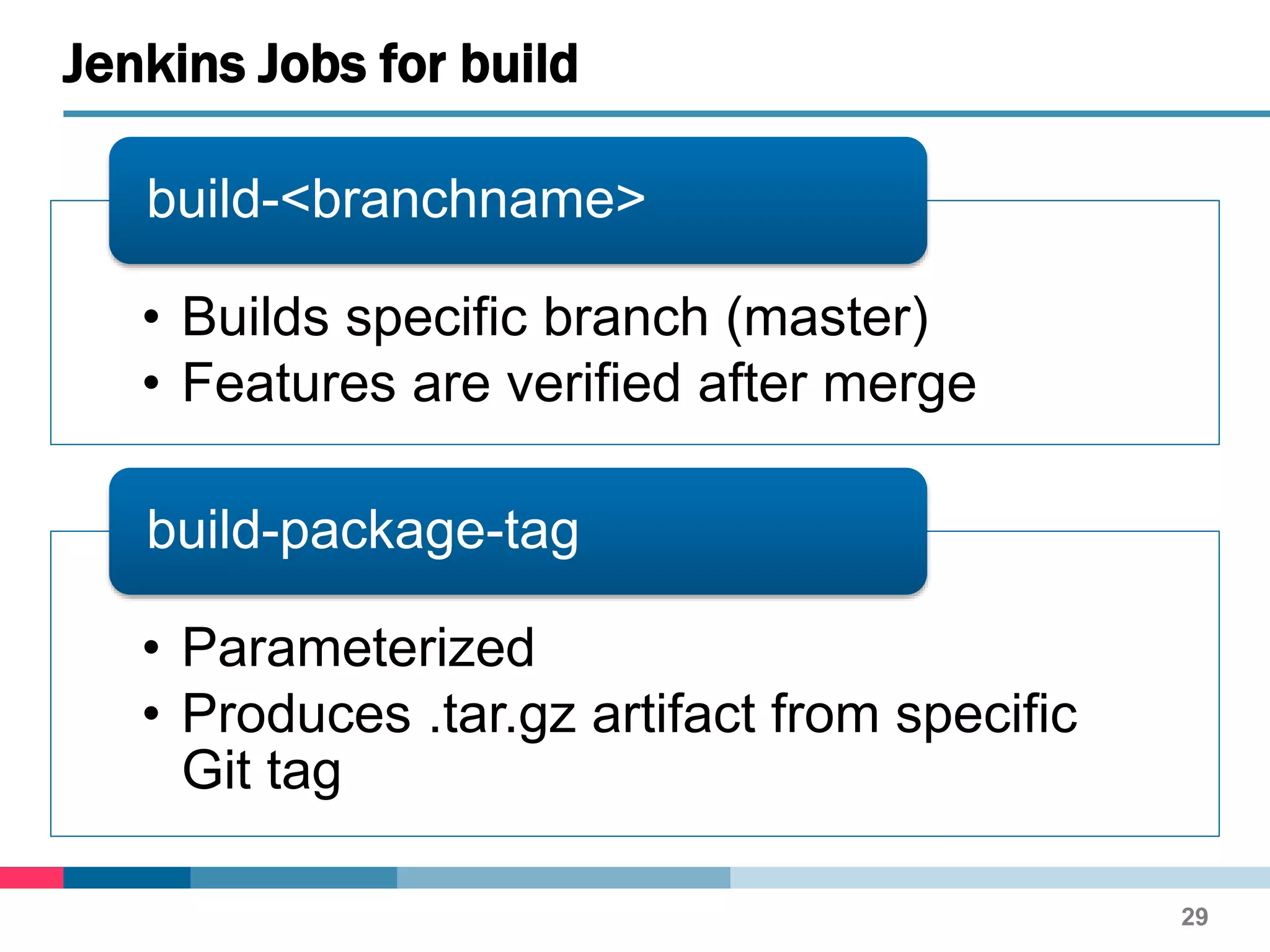

- 29. • Builds specificbranch (master) • Features are verified after merge build-<branchname> • Parameterized • Produces .tar.gz artifact from specific Git tag build-package-tag Jenkins Jobs for build 29

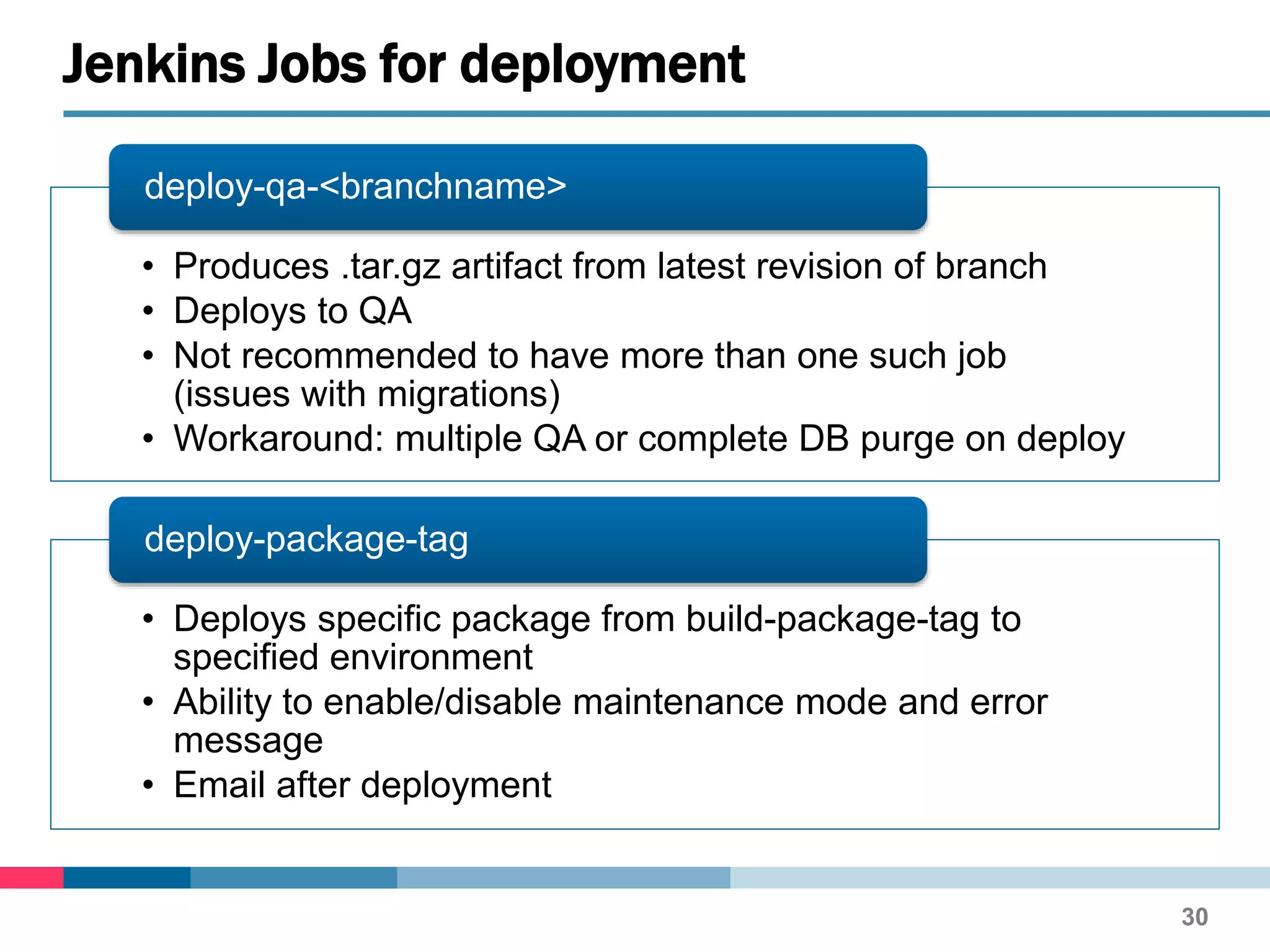

- 30. • Produces .tar.gzartifact from latest revision of branch • Deploys to QA • Not recommended to have more than one such job (issues with migrations) • Workaround: multiple QA or complete DB purge on deploy deploy-qa-<branchname> • Deploys specific package from build-package-tag to specified environment • Ability to enable/disable maintenance mode and error message • Email after deployment deploy-package-tag Jenkins Jobs for deployment 30

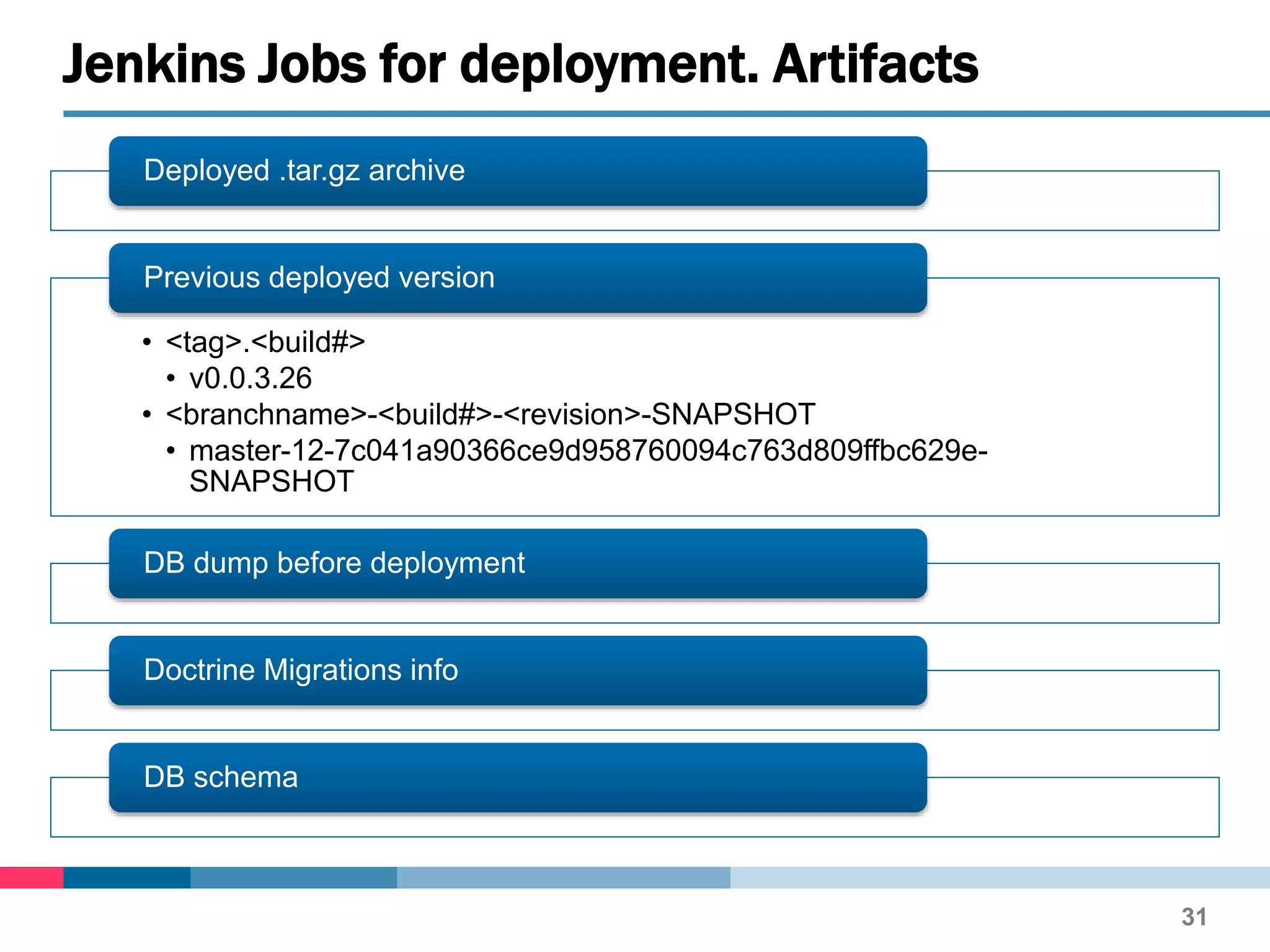

- 31. Deployed .tar.gz archive •<tag>.<build#> • v0.0.3.26 • <branchname>-<build#>-<revision>-SNAPSHOT • master-12-7c041a90366ce9d958760094c763d809ffbc629e- SNAPSHOT Previous deployed version DB dump before deployment Doctrine Migrations info DB schema Jenkins Jobs for deployment. Artifacts 31

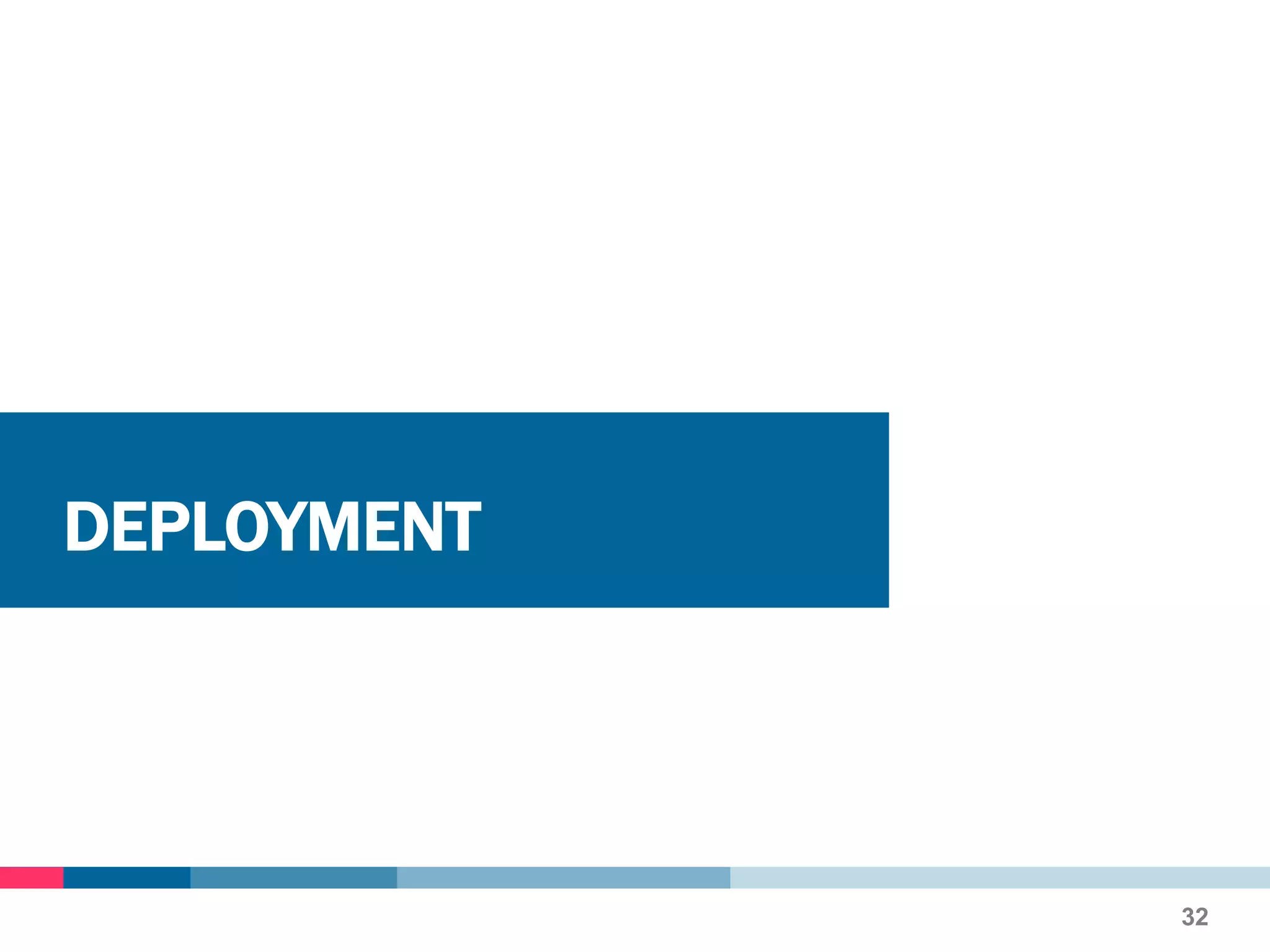

- 32.

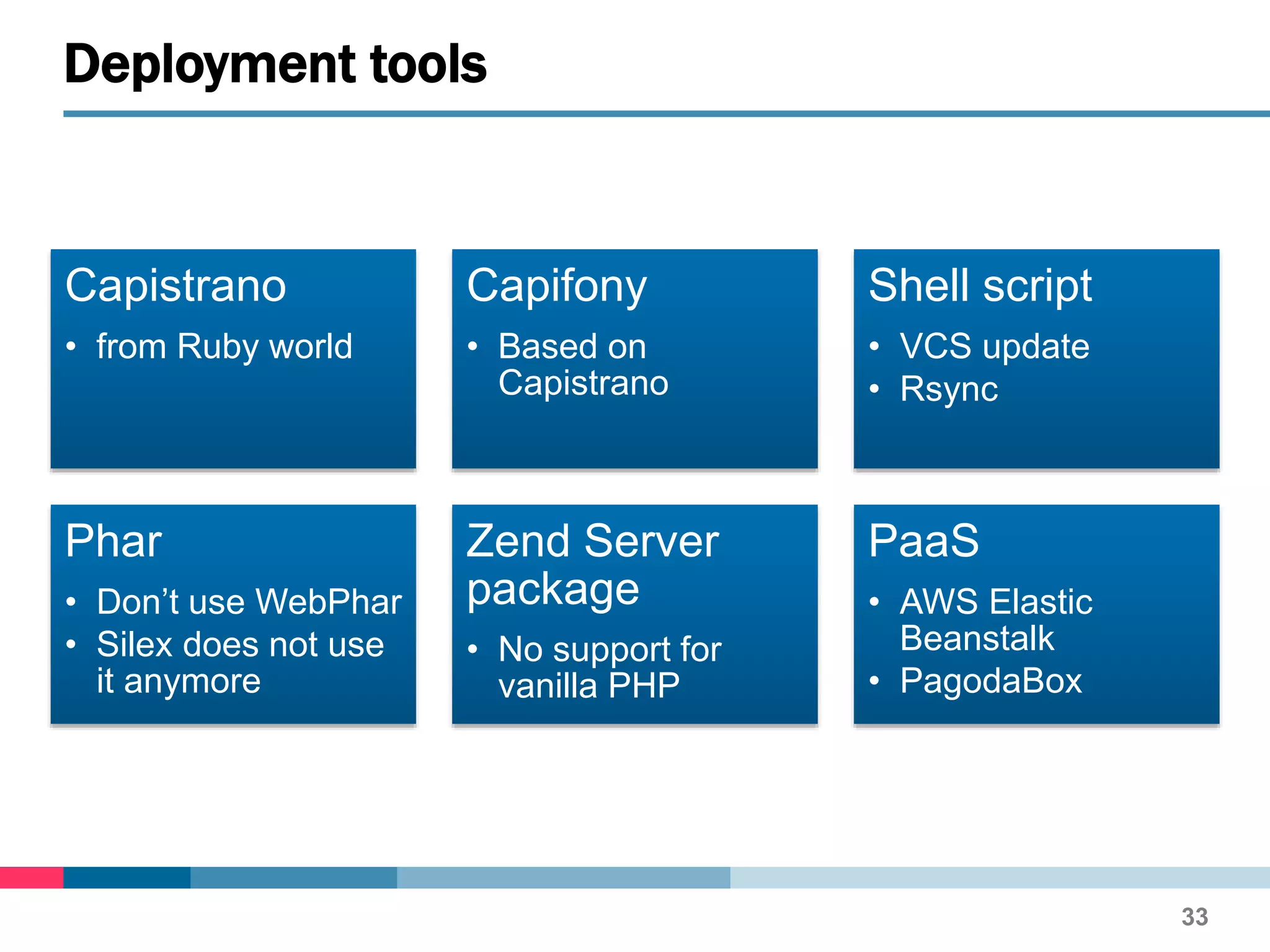

- 33. Capistrano • from Rubyworld Capifony • Based on Capistrano Shell script • VCS update • Rsync Phar • Don’t use WebPhar • Silex does not use it anymore Zend Server package • No support for vanilla PHP PaaS • AWS Elastic Beanstalk • PagodaBox Deployment tools 33

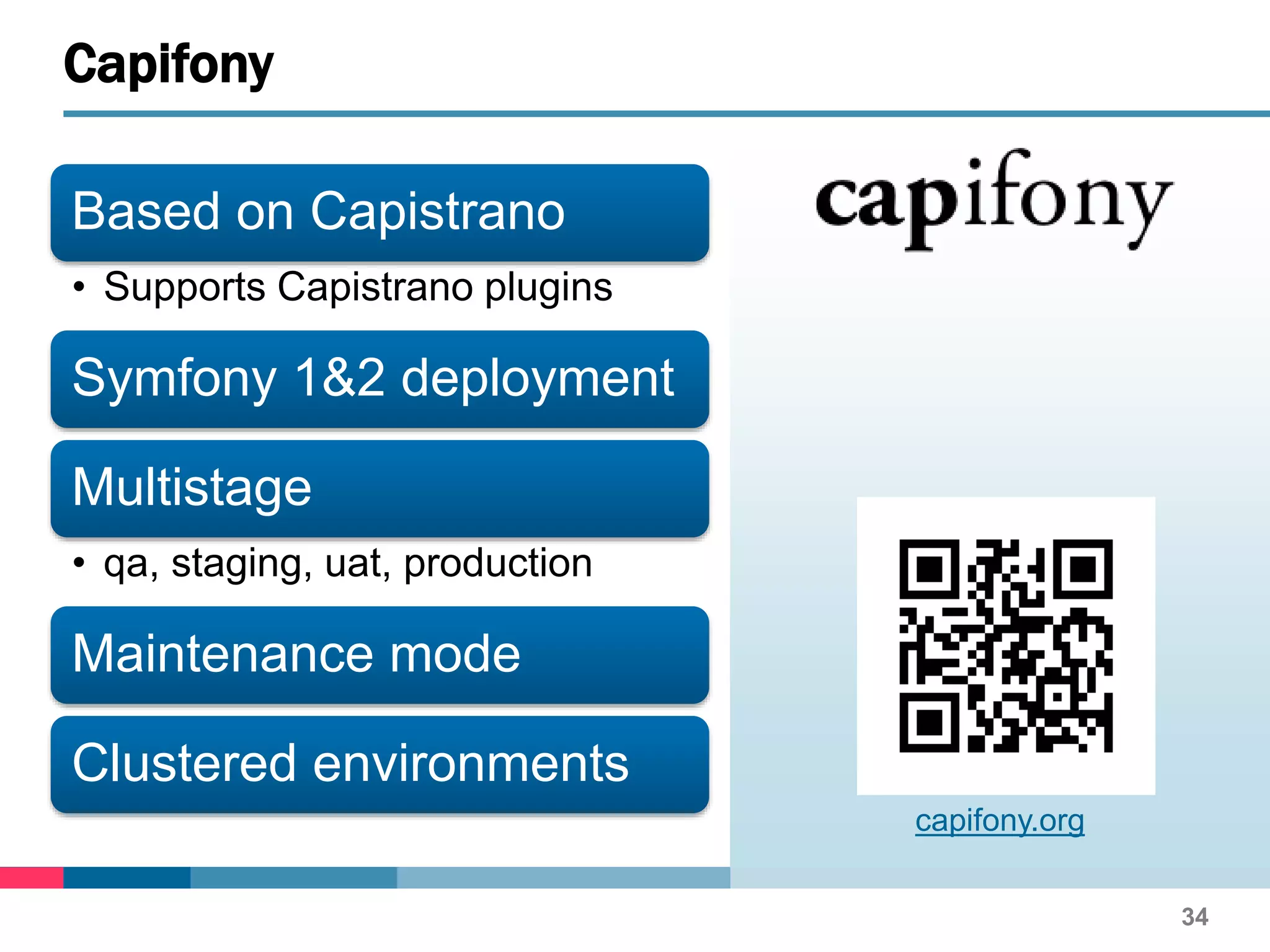

- 34. Based on Capistrano •Supports Capistrano plugins Symfony 1&2 deployment Multistage • qa, staging, uat, production Maintenance mode Clustered environments 34 Capifony capifony.org

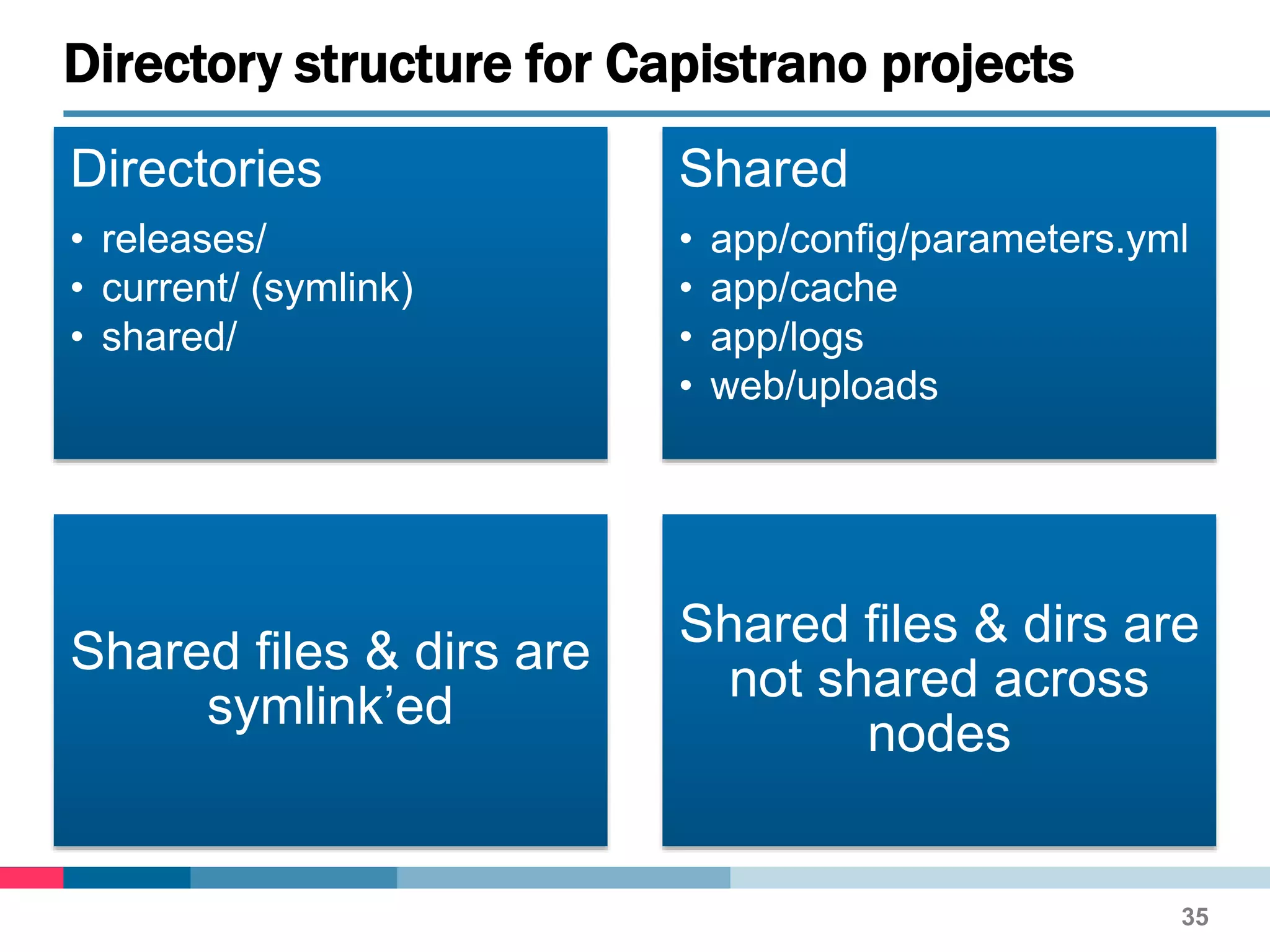

- 35. Directories • releases/ • current/(symlink) • shared/ Shared • app/config/parameters.yml • app/cache • app/logs • web/uploads Shared files & dirs are symlink’ed Shared files & dirs are not shared across nodes Directory structure for Capistrano projects 35

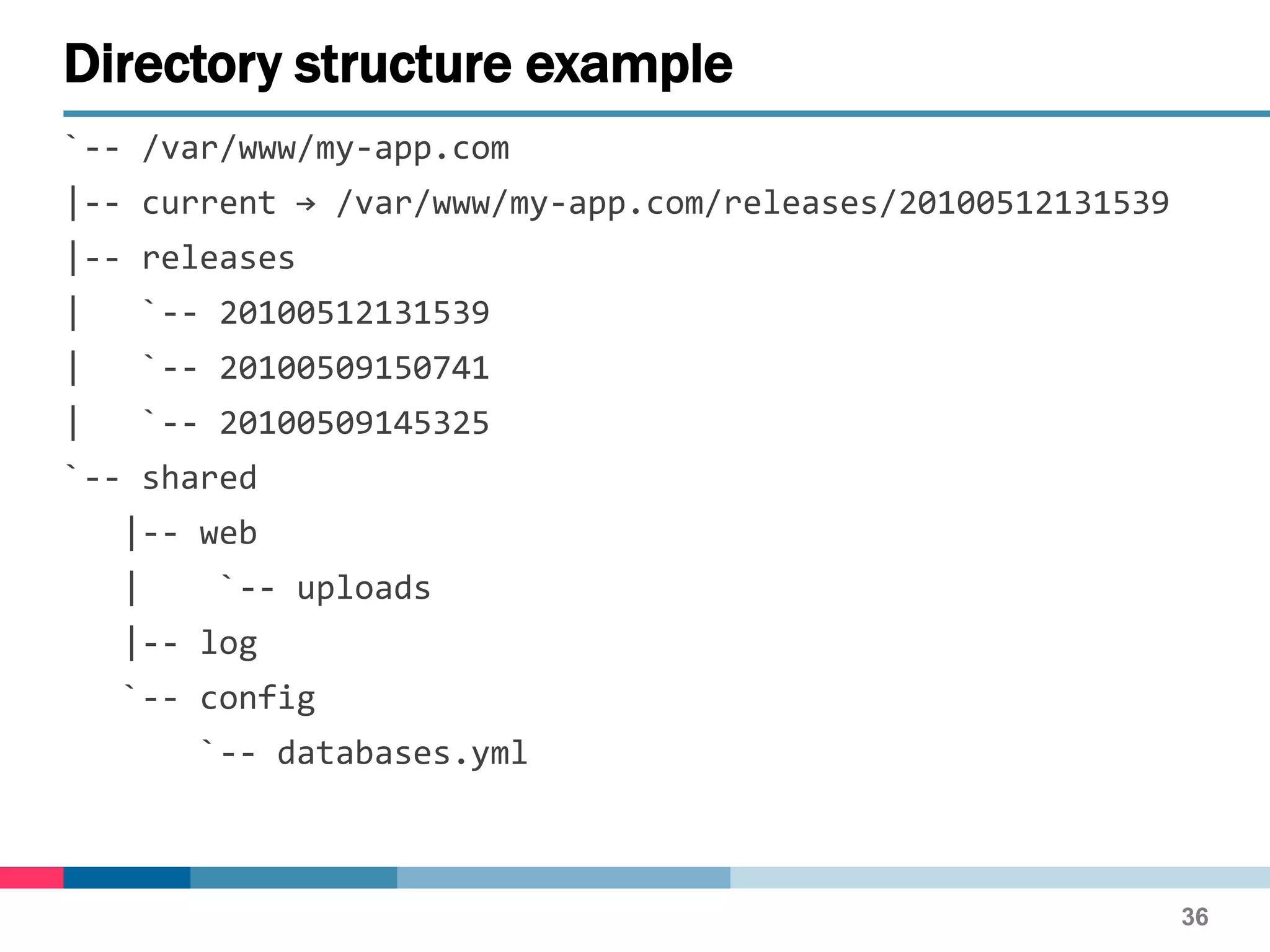

- 36. `-- /var/www/my-app.com |-- current→ /var/www/my-app.com/releases/20100512131539 |-- releases | `-- 20100512131539 | `-- 20100509150741 | `-- 20100509145325 `-- shared |-- web | `-- uploads |-- log `-- config `-- databases.yml Directory structure example 36

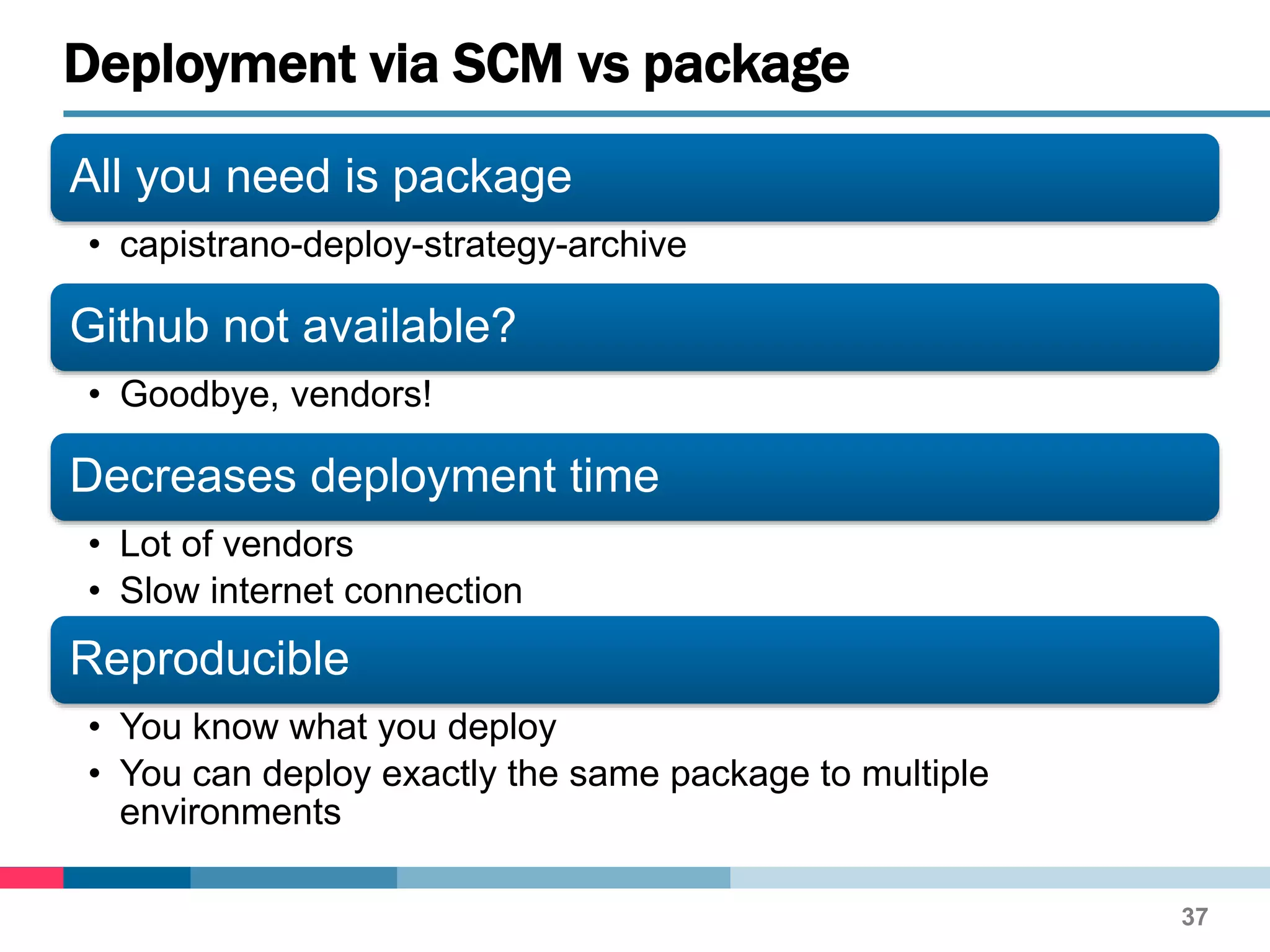

- 37. All you needis package • capistrano-deploy-strategy-archive Github not available? • Goodbye, vendors! Decreases deployment time • Lot of vendors • Slow internet connection Reproducible • You know what you deploy • You can deploy exactly the same package to multiple environments Deployment via SCM vs package 37

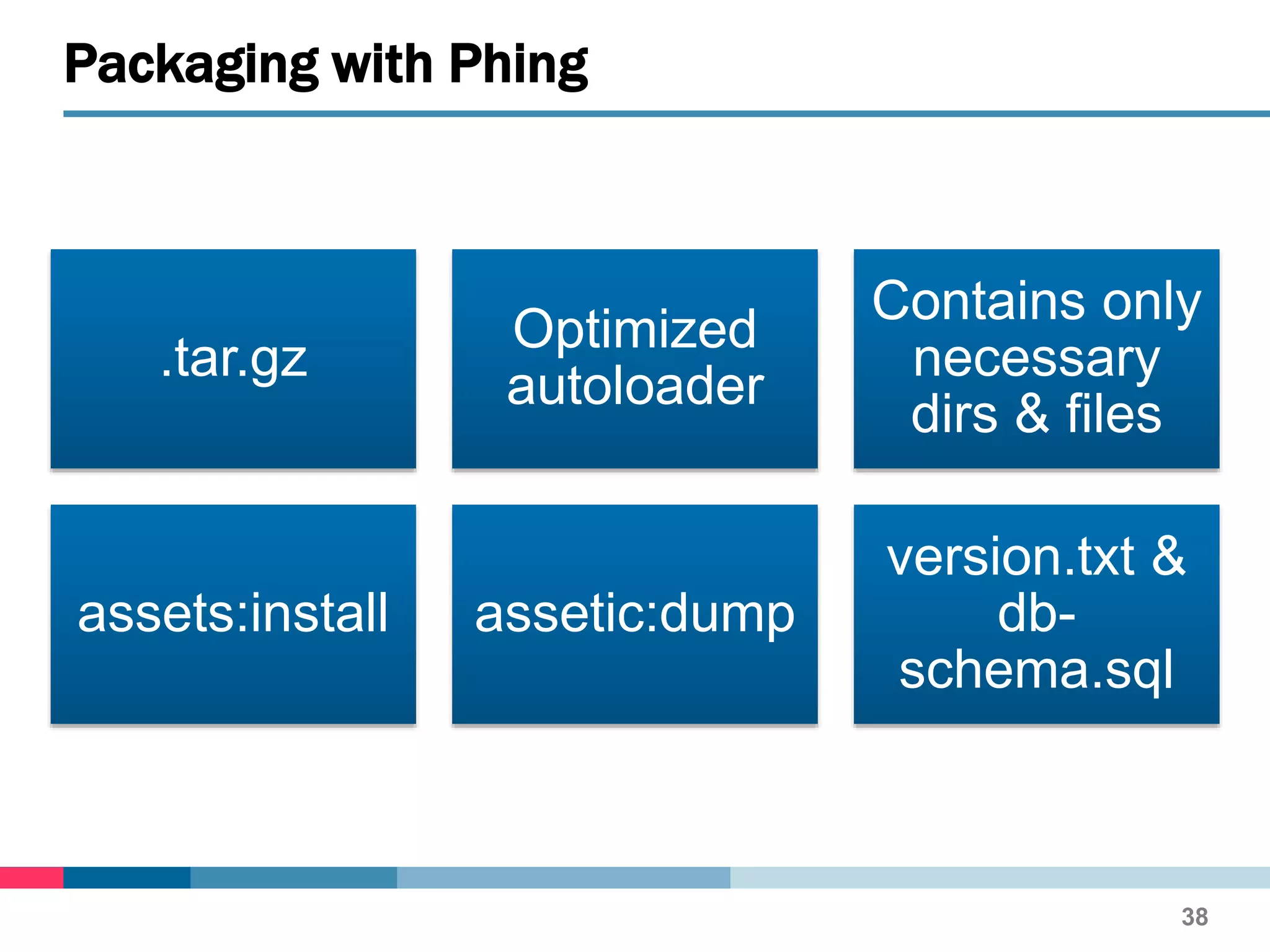

- 38. .tar.gz Optimized autoloader Contains only necessary dirs &files assets:install assetic:dump version.txt & db- schema.sql Packaging with Phing 38
- 39.

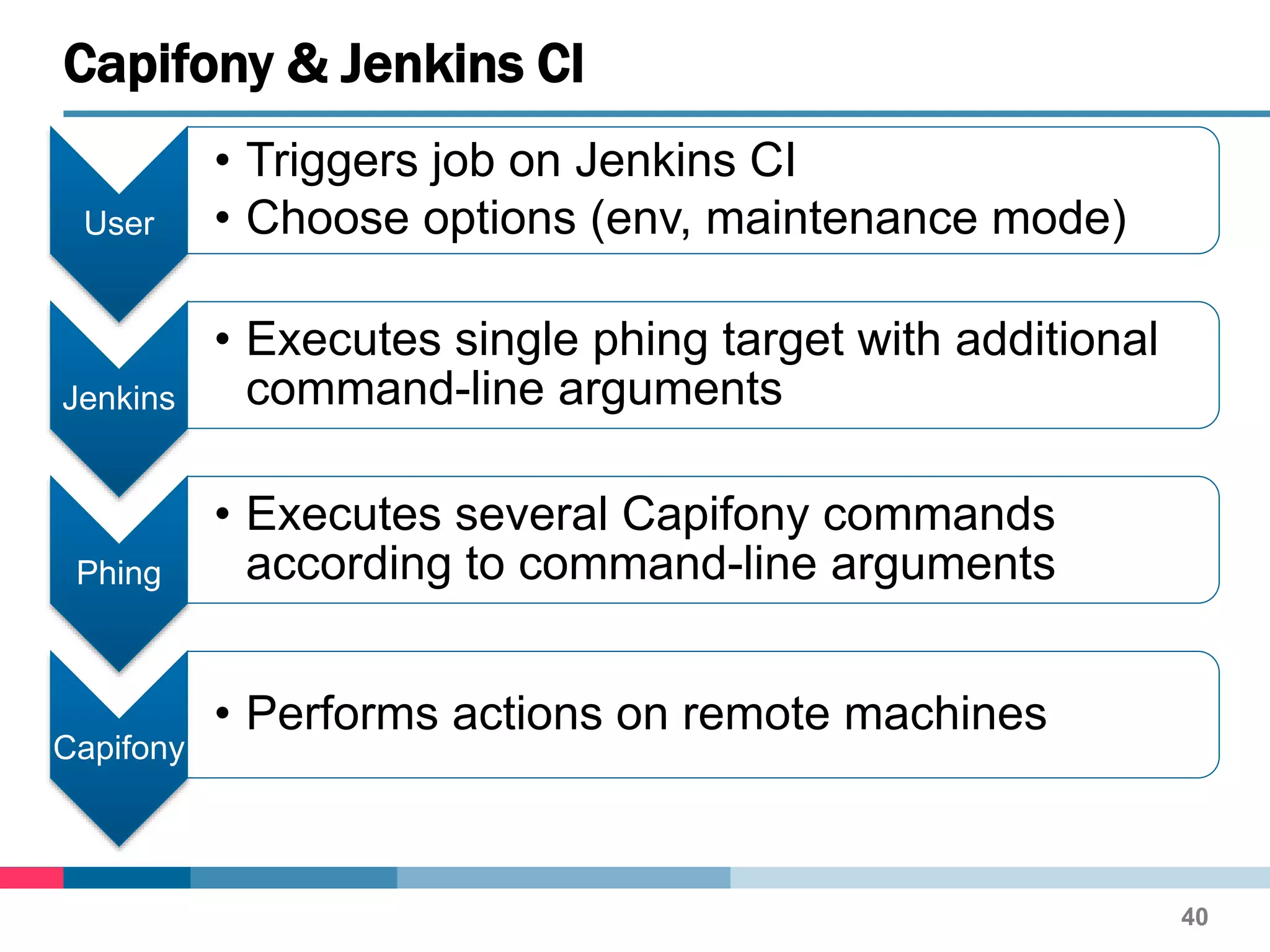

- 40. User • Triggers jobon Jenkins CI • Choose options (env, maintenance mode) Jenkins • Executes single phing target with additional command-line arguments Phing • Executes several Capifony commands according to command-line arguments Capifony • Performs actions on remote machines Capifony & Jenkins CI 40

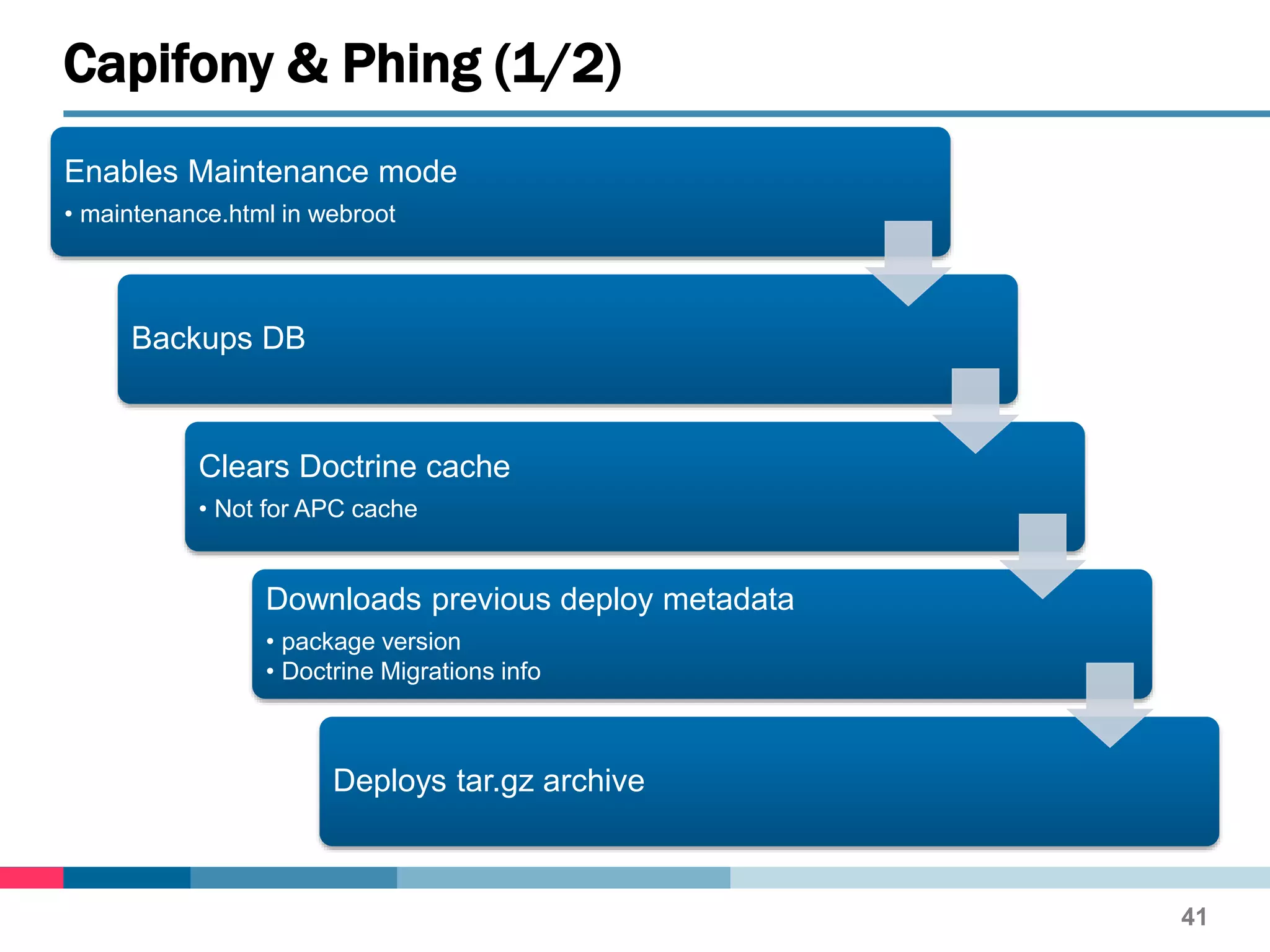

- 41. Enables Maintenance mode •maintenance.html in webroot Backups DB Clears Doctrine cache • Not for APC cache Downloads previous deploy metadata • package version • Doctrine Migrations info Deploys tar.gz archive Capifony & Phing (1/2) 41

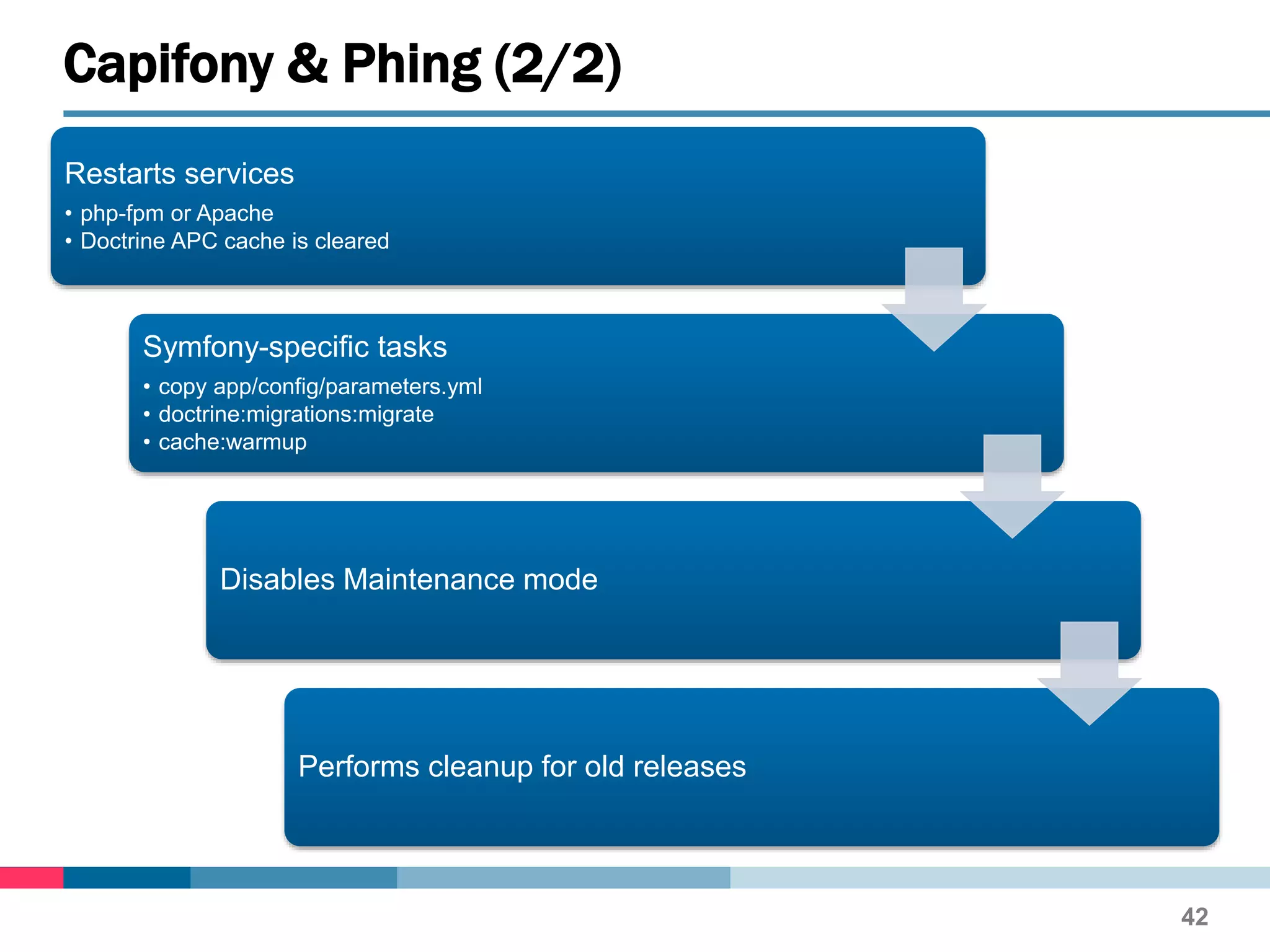

- 42. Restarts services • php-fpmor Apache • Doctrine APC cache is cleared Symfony-specific tasks • copy app/config/parameters.yml • doctrine:migrations:migrate • cache:warmup Disables Maintenance mode Performs cleanup for old releases Capifony & Phing (2/2) 42

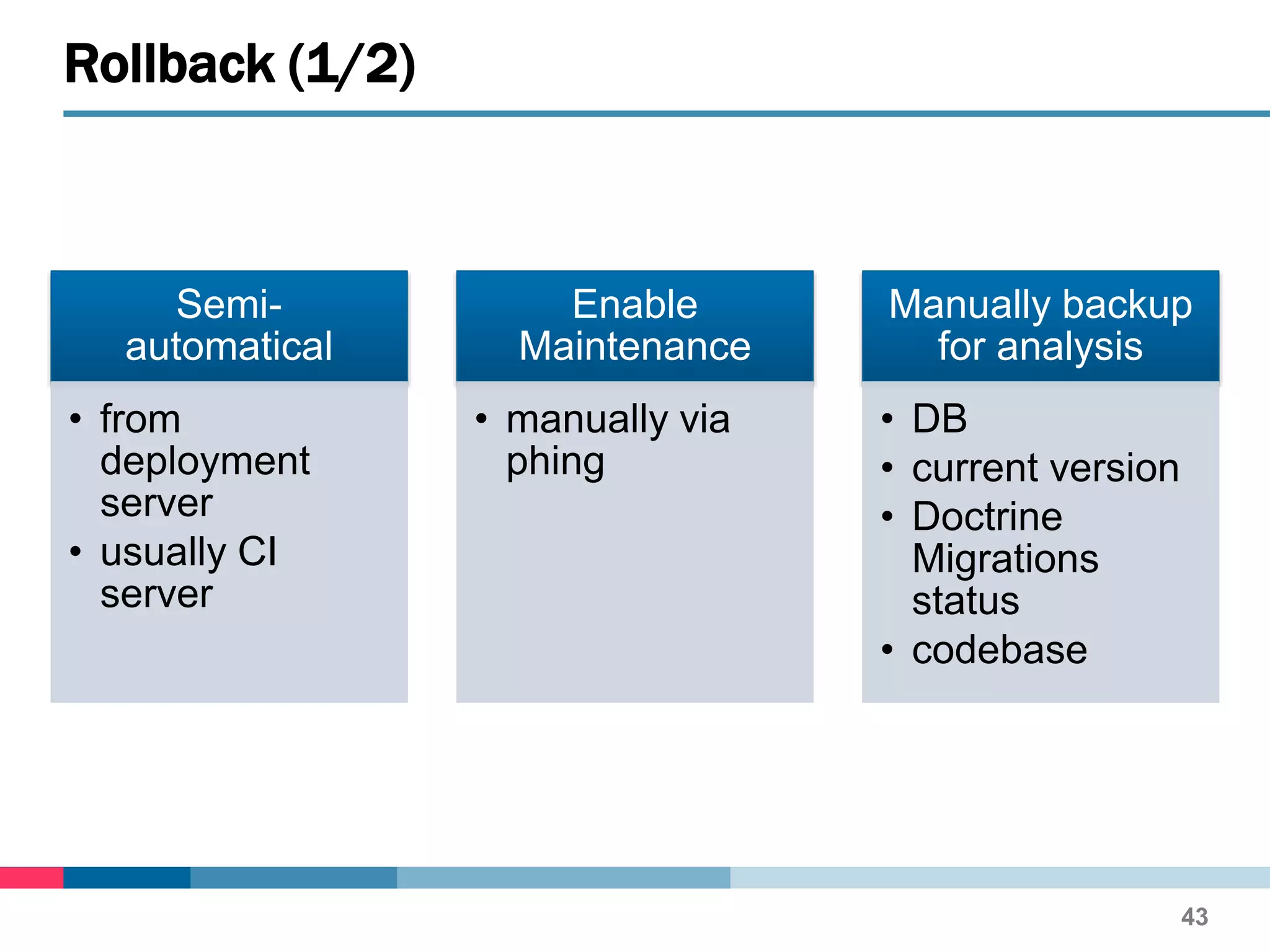

- 43. Semi- automatical • from deployment server • usuallyCI server Enable Maintenance • manually via phing Manually backup for analysis • DB • current version • Doctrine Migrations status • codebase Rollback (1/2) 43

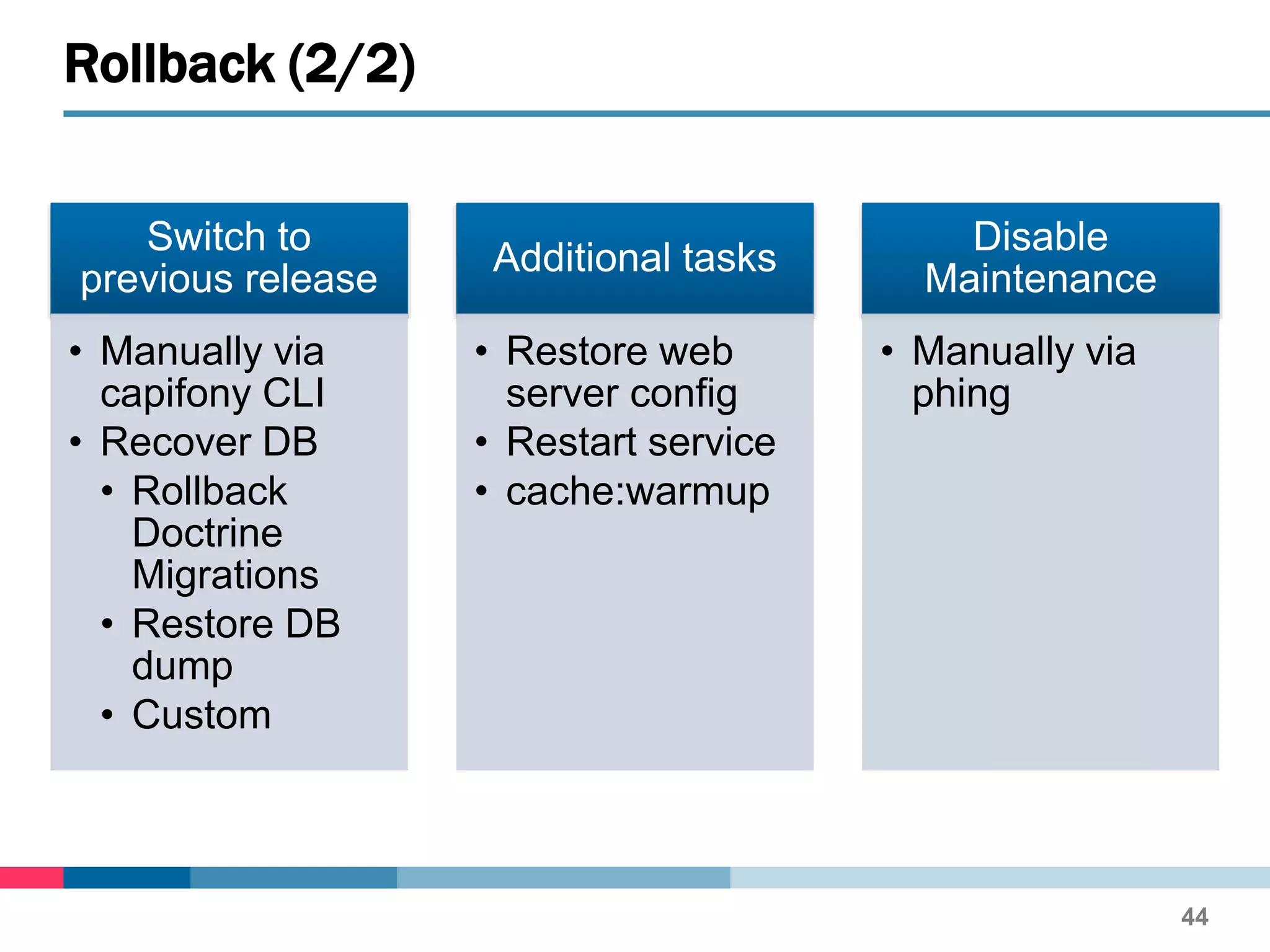

- 44. Switch to previous release •Manually via capifony CLI • Recover DB • Rollback Doctrine Migrations • Restore DB dump • Custom Additional tasks • Restore web server config • Restart service • cache:warmup Disable Maintenance • Manually via phing Rollback (2/2) 44

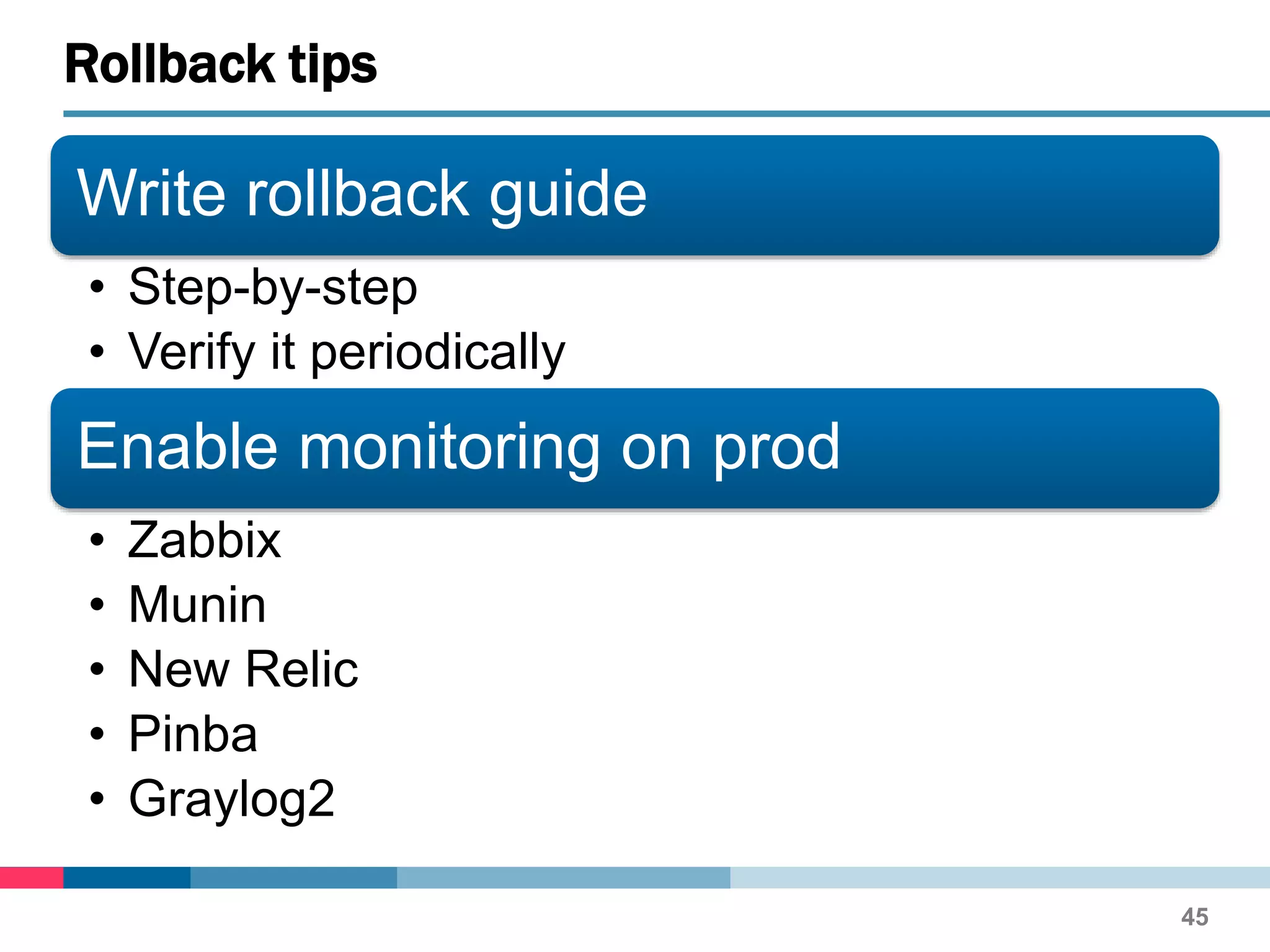

- 45. Write rollback guide •Step-by-step • Verify it periodically Enable monitoring on prod • Zabbix • Munin • New Relic • Pinba • Graylog2 Rollback tips 45
- 46.

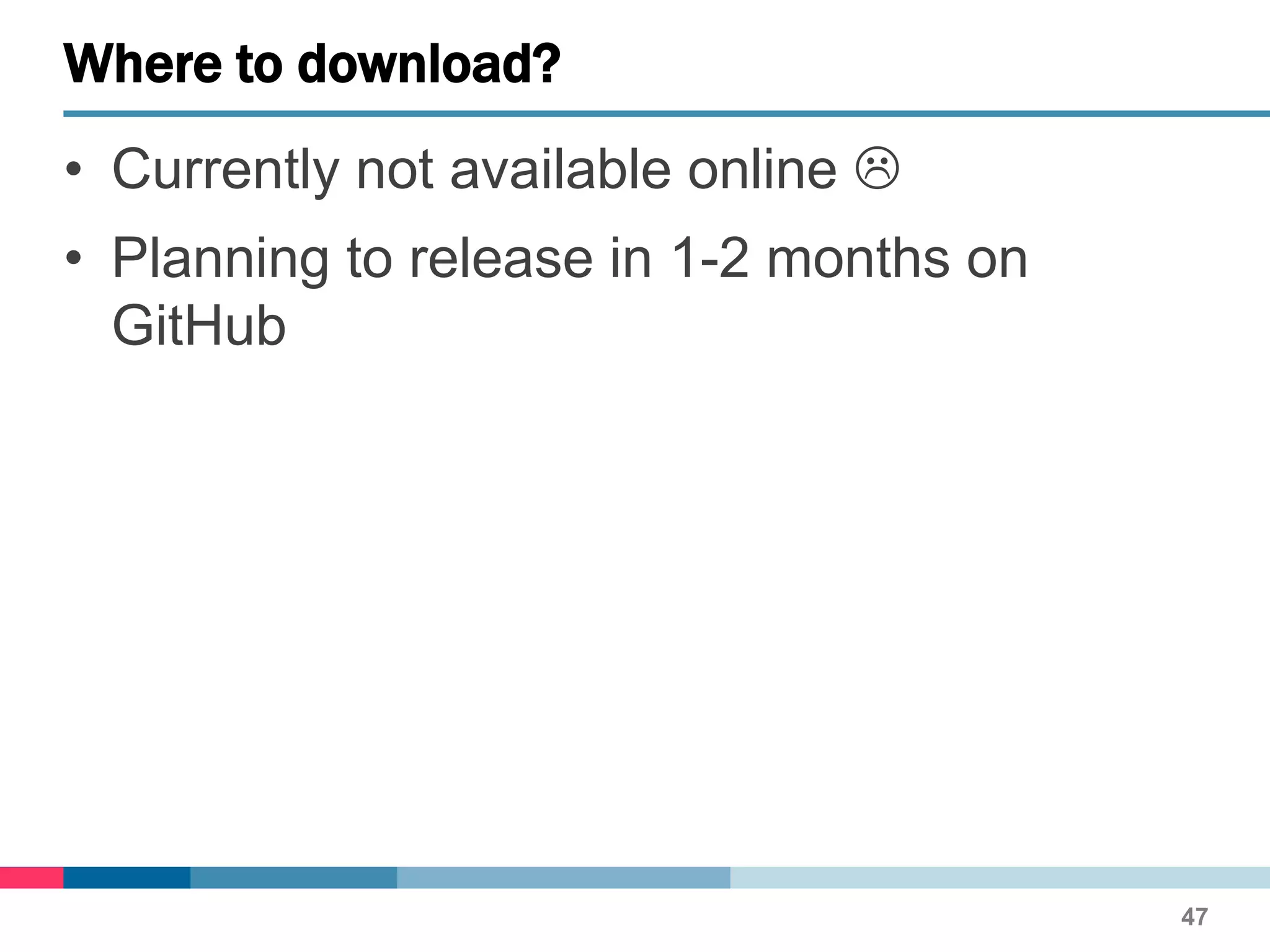

- 47. • Currently notavailable online • Planning to release in 1-2 months on GitHub Where to download? 47

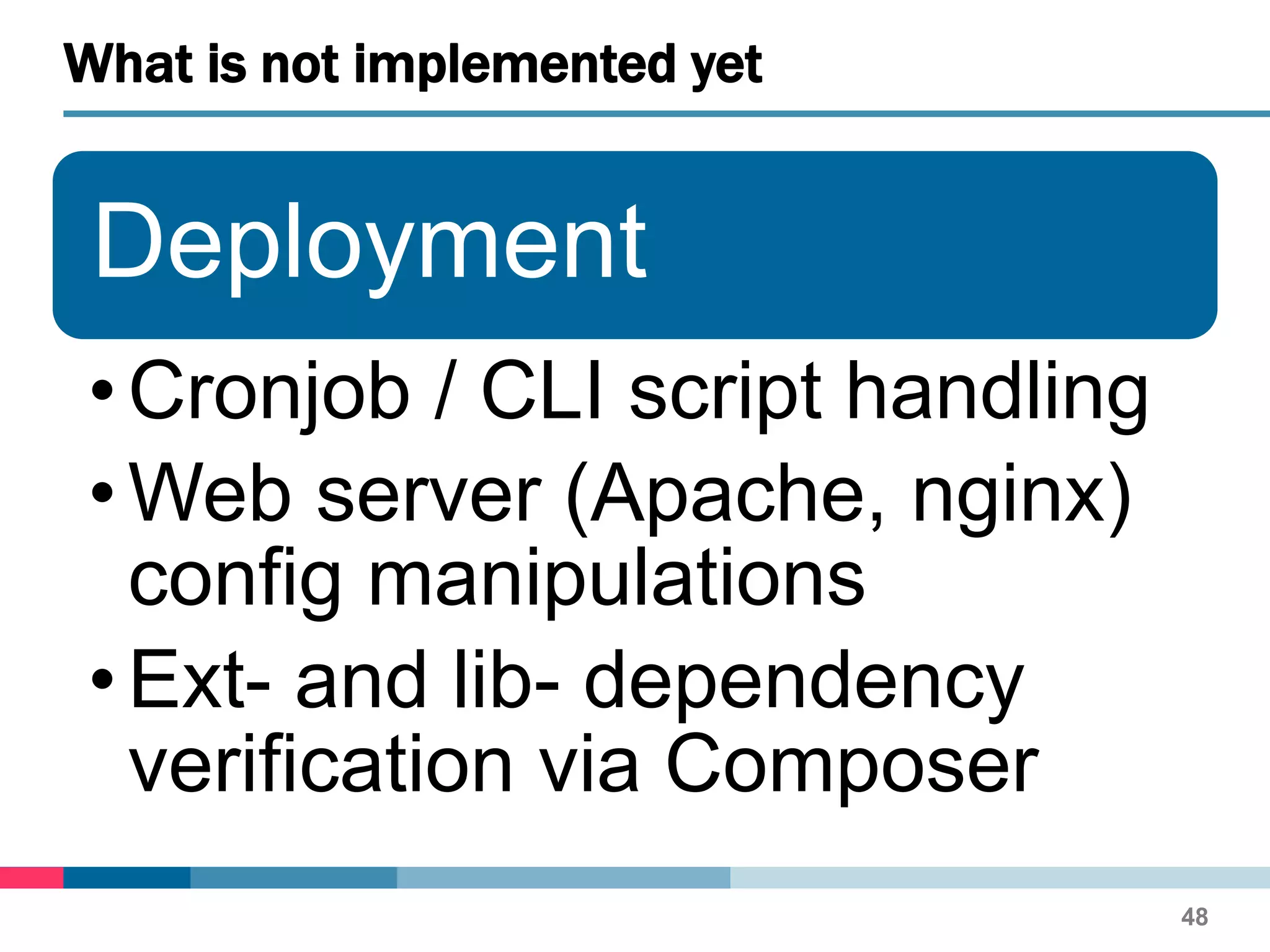

- 48. Deployment •Cronjob / CLIscript handling •Web server (Apache, nginx) config manipulations •Ext- and lib- dependency verification via Composer What is not implemented yet 48
