This document summarizes a presentation about continuous integration and continuous delivery for Magento projects. It introduces the speaker and defines continuous integration as merging code into a shared repository multiple times per day, verified by automated builds. Continuous delivery is described as producing software in short cycles to allow reliable releases at any time. The presentation provides tips for setting up Jenkins and Phing to implement continuous integration and continuous delivery workflows for Magento, including build triggers, steps, and deployment.

1. Meet Magento Croatia
Osijek
18.03.2017.
2017
#MM17HR

2. Magento Continuous Integration &
Continuous Delivery
Denis Ristić

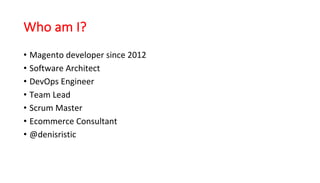

3. Who am I?
• Magento developer since 2012
• Software Architect
• DevOps Engineer
• Team Lead
• Scrum Master
• Ecommerce Consultant
• @denisristic

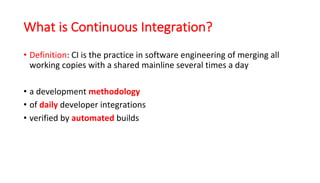

4. What is Continuous Integration?
• Definition: CI is the practice in software engineering of merging all
working copies with a shared mainline several times a day
• a development methodology
• of daily developer integrations
• verified by automated builds

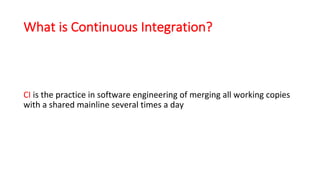

5. What is Continuous Integration?
CI is the practice in software engineering of merging all working copies
with a shared mainline several times a day

6. What is Continuous Integration?
• What is CI?
• a development methodology
• of daily developer integrations
• verified by automated builds
• What is not CI?
• nightly builds
• dev branches
• building via IDEs

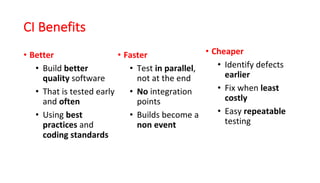

7. CI Benefits
• Better
• Build better
quality software
• That is tested early
and often
• Using best
practices and
coding standards
• Faster
• Test in parallel,
not at the end
• No integration
points
• Builds become a
non event
• Cheaper
• Identify defects
earlier
• Fix when least
costly
• Easy repeatable
testing

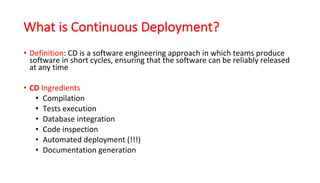

8. What is Continuous Deployment?
• Definition: CD is a software engineering approach in which teams produce
software in short cycles, ensuring that the software can be reliably released
at any time
• CD Ingredients
• Compilation
• Tests execution
• Database integration
• Code inspection
• Automated deployment (!!!)
• Documentation generation

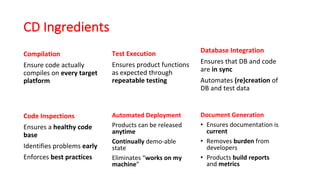

9. CD Ingredients
Compilation
Ensure code actually
compiles on every target
platform
Test Execution
Ensures product functions
as expected through
repeatable testing
Database Integration
Ensures that DB and code
are in sync
Automates (re)creation of
DB and test data
Code Inspections
Ensures a healthy code
base
Identifies problems early
Enforces best practices
Automated Deployment
Products can be released
anytime
Continually demo-able
state
Eliminates “works on my
machine”
Document Generation
• Ensures documentation is
current
• Removes burden from
developers
• Products build reports
and metrics

10. How do I get started?
When do I build?
• At every check-in
• Every time a
dependency changes
How do I build?
• Use a single build script
• That can run from
console
• Do not depend on an
IDE
How to do it continuously?
• Use a dedicated CI server,
not cron
• Trigger on all daily check-
ins
• Not (only) at midnight
Pay attention to your builds
• Provide immediate
feedback
• Make it easily accessible
• Require no developer
effort
• Metrics Matter
• Identify key metrics and
track them visually
• Act on them
immediately

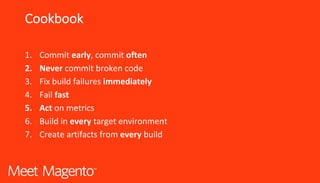

11. Cookbook
1. Commit early, commit often
2. Never commit broken code
3. Fix build failures immediately
4. Fail fast
5. Act on metrics
6. Build in every target environment
7. Create artifacts from every build

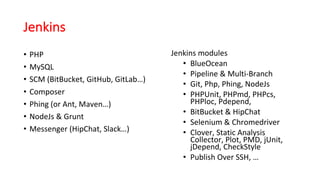

12. Jenkins
• PHP
• MySQL
• SCM (BitBucket, GitHub, GitLab…)
• Composer
• Phing (or Ant, Maven…)
• NodeJs & Grunt
• Messenger (HipChat, Slack…)
Jenkins modules
• BlueOcean
• Pipeline & Multi-Branch
• Git, Php, Phing, NodeJs
• PHPUnit, PHPmd, PHPcs,
PHPloc, Pdepend,
• BitBucket & HipChat
• Selenium & Chromedriver
• Clover, Static Analysis
Collector, Plot, PMD, jUnit,
jDepend, CheckStyle
• Publish Over SSH, …

13. Jenkins Jobs
• Freestyle
• While standard Jenkins “freestyle” jobs support simple continuous
integration by allowing you to define sequential tasks in an application
lifecycle, they do not create a persistent record of execution, enable one
script to address all the steps in a complex workflow, or confer the other
advantages of pipelines
• Pipeline
• Pipelines enable you to define the whole application lifecycle. Pipeline
functionality helps Jenkins to support continuous delivery (CD).
• Multibranch pipeline
• The Multibranch Pipeline project type enables you to implement different
Jenkinsfiles for different branches of the same project. In a Multibranch
Pipeline project, Jenkins automatically discovers, manages and executes
Pipelines for branches which contain a Jenkinsfile in source control.

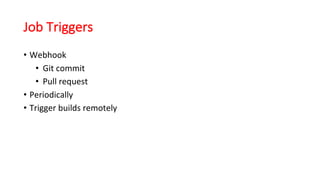

14. Job Triggers
• Webhook
• Git commit
• Pull request
• Periodically
• Trigger builds remotely

15. Build steps
• Checkout SCM
• Notify BitBucket & HipChat
• Phing Build (build.xml)
• Clean & prepare workspace
• Composer install
• Magento clean, chmod, enable modules, install?, sync db?, compile, upgrade, deploy
static content
• phplint, phpcs, phpcpd, phpmd, phploc, pdepend, phpunit, grunt, build docs
• Create release (git tag) & ChangeLog
• Create artefacts
• Deploy to staging and/or production
• Notify BitBucket & HipChat

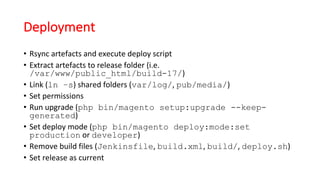

16. Deployment
• Rsync artefacts and execute deploy script
• Extract artefacts to release folder (i.e.
/var/www/public_html/build-17/)
• Link (ln –s) shared folders (var/log/, pub/media/)
• Set permissions
• Run upgrade (php bin/magento setup:upgrade --keep-
generated)
• Set deploy mode (php bin/magento deploy:mode:set
production or developer)
• Remove build files (Jenkinsfile, build.xml, build/, deploy.sh)
• Set release as current

17. Server folder structure after deployment
├── public_html -> release-0.2
├── release-0.1
│ ├── app
│ ├── dev
│ ├── ...
├── release-0.2
│ ├── app
│ ├── dev
│ ├── lib
│ ├── phpserver
│ ├── pub
│ │ ├── errors
│ │ ├── media -> ../../static/pub/media
│ │ ├── opt
│ │ └── static
│ ├── setup
│ ├── update
│ ├── var
│ │ ├── backups
│ │ ├── cache
│ │ ├── log -> ../../static/var/log
│ │ ├── ...
│ └── vendor
└── static
├── pub
│ └── media
│ ├── captcha
│ ├── catalog
│ ├── ...
└── var
└── log

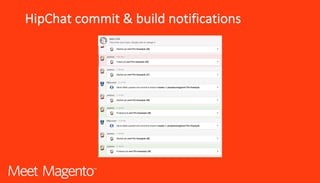

18. HipChat commit & build notifications

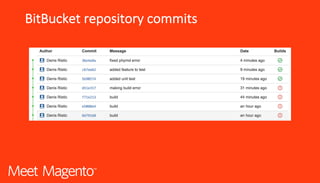

19. BitBucket repository commits

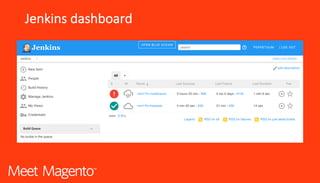

20. Jenkins dashboard

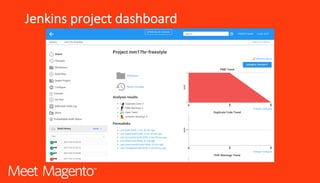

21. Jenkins project dashboard

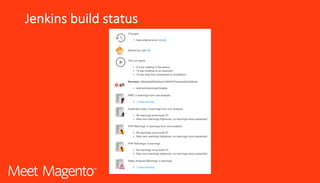

22. Jenkins build status

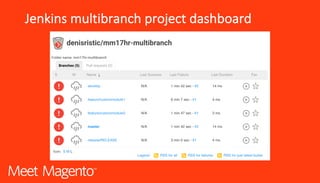

23. Jenkins multibranch project dashboard

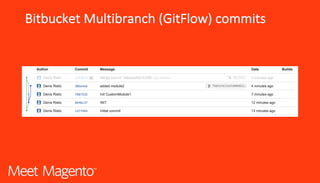

24. Bitbucket Multibranch (GitFlow) commits

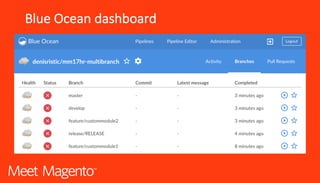

25. Blue Ocean dashboard

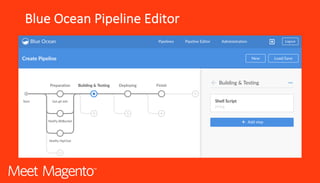

26. Blue Ocean Pipeline Editor

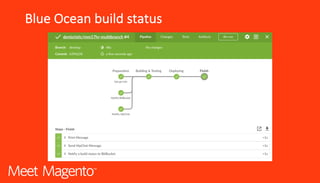

27. Blue Ocean build status

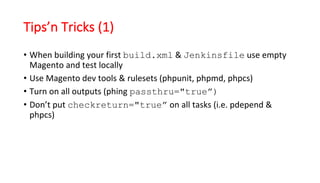

28. Tips’n Tricks (1)
• When building your first build.xml & Jenkinsfile use empty
Magento and test locally
• Use Magento dev tools & rulesets (phpunit, phpmd, phpcs)
• Turn on all outputs (phing passthru="true”)
• Don’t put checkreturn="true” on all tasks (i.e. pdepend &
phpcs)

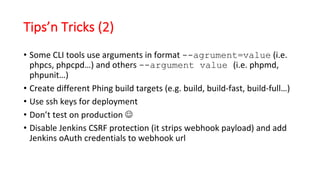

29. Tips’n Tricks (2)
• Some CLI tools use arguments in format --agrument=value (i.e.
phpcs, phpcpd…) and others --argument value (i.e. phpmd,
phpunit…)
• Create different Phing build targets (e.g. build, build-fast, build-full…)
• Use ssh keys for deployment
• Don’t test on production J
• Disable Jenkins CSRF protection (it strips webhook payload) and add
Jenkins oAuth credentials to webhook url

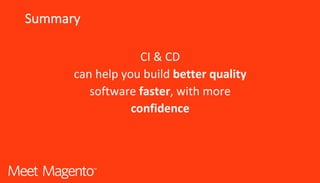

30. Summary
CI & CD
can help you build better quality
software faster, with more
confidence

31. Thank you!
