Devesh Kumar presented on the Symbian mobile operating system. Symbian OS was developed by Symbian for smartphones and was widely used by Nokia. It discussed the history and founders of Symbian. Key features of Symbian OS include its thread-based processing, memory management using virtual paging, and client-server architecture. Strengths include robust memory management, but weaknesses include a lack of virtual memory. Symbian also had a microkernel architecture and included various interfaces like Series 80. The presentation provided an overview of developing on Symbian OS and concluded by comparing it to Android.

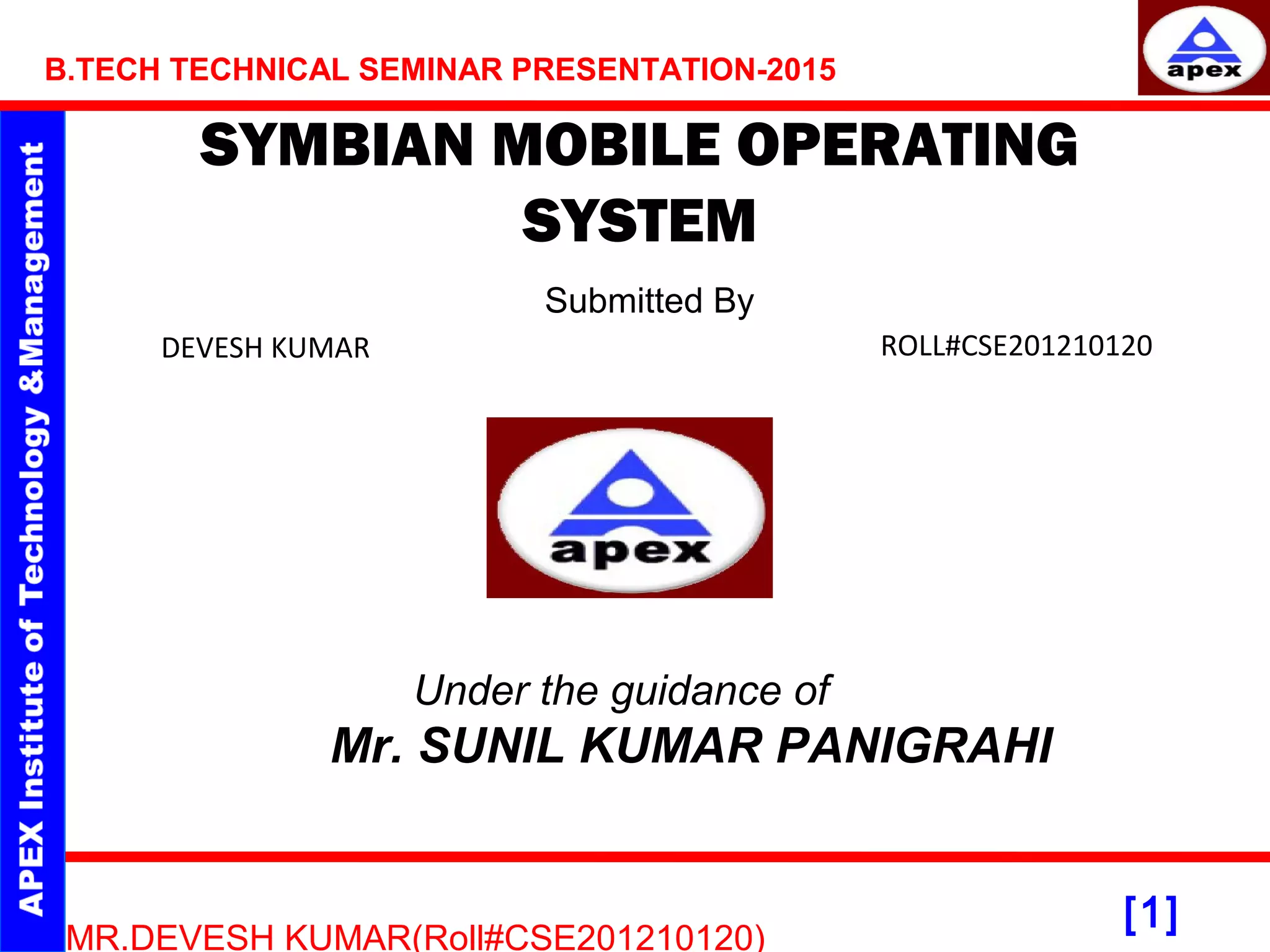

1. [1]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
SYMBIAN MOBILE OPERATING
SYSTEM
Under the guidance of
Mr. SUNIL KUMAR PANIGRAHI
DEVESH KUMAR ROLL#CSE201210120
MR.DEVESH KUMAR(Roll#CSE201210120)
Submitted By

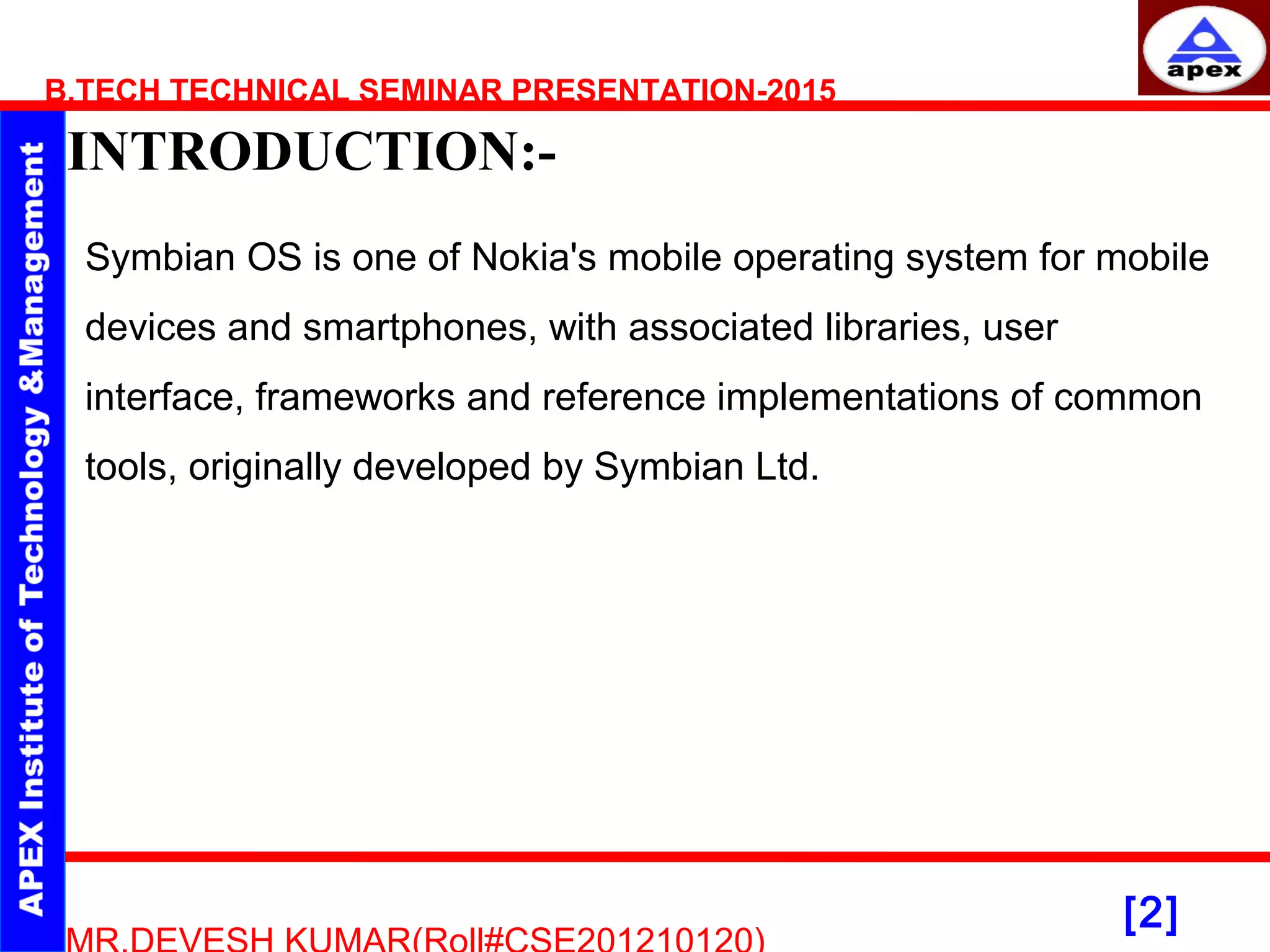

2. [2]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
Symbian OS is one of Nokia's mobile operating system for mobile
devices and smartphones, with associated libraries, user
interface, frameworks and reference implementations of common
tools, originally developed by Symbian Ltd.
INTRODUCTION:-

3. [3]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
 Psion founded by David Potter inn 1980 launched the Psion
Organizer, the world's first volume-produced handheld computer in
1984.
 In June 1998 - Symbian is established as a private independent
company and is owned by Ericsson, Nokia, Motorola and Psion.
From this point onwards has EPOC OS been called Symbian OS.
 In February 2004 - Symbian OS v8.0 is announced.
 In February 2005 - Symbian OS v9 is announced.
 In May 2006 - 100th commercial phone model ships
HISTORY:-

4. [4]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
HISTORY Contd..
In 2008, the former Symbian Software Limited was acquired by Nokia
and a new independent non-profit organization called the Symbian
Foundation was established.
The platform has been designated as the successor to Symbian OS,
following the official launch of the Symbian Foundation in April 2009.
The Symbian Platform was officially made available as open source
code in February 2010.

5. [5]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
CHARACTERISTICS….
 PROCESSING THREAD BASED
 MEMORY MANAGEMENT
 INPUT/OUTPUT
KERNEL EXTENSION
DEVICE DRIVERS
DMA(DIRECT MEMORY ACCESS)
BLOCKING I/O
STOAGE MEDIA

6. [6]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
MEMORY MANAGEMENT
How Symbian OS Addresses Memory
1. Symbian OS is a 32-bit operating system, addresses can
range up to 4 GB
2. Symbian OS divides memory into virtual pages and physical
frames
3. Symbian OS adopts a two-level page table strategy

7. [7]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
MEMORY MANAGEMENT
MR.DEVESH KUMAR(Roll#CSE201210120)

8. [8]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
FEATURES…
1. CLIENT SERVER ACHITECTURE
2. EVENT MANAGEMENT
3. OBJECT ORIENTED DESIGN
4. POWER MANAGEMENT
5. ROBUST AND DEPENDABLE
6. FULL A MLTI-TASKING
7. AN OPEN OPERATING SYSTEM
8. MEMORY MANAGEMENT
MR.DEVESH KUMAR(Roll#CSE201210120)

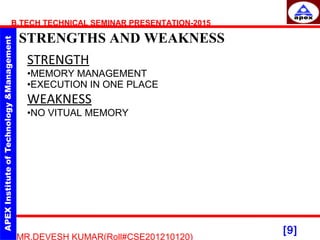

9. [9]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
STRENGTHS AND WEAKNESS
MR.DEVESH KUMAR(Roll#CSE201210120)
STRENGTH
•MEMORY MANAGEMENT
•EXECUTION IN ONE PLACE
WEAKNESS
•NO VITUAL MEMORY

10. [10]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
SYMBIAN ACHITECTURE
• Symbian has a microkernel architecture, which means that
the minimum necessary is within the kernel to maximise
robustness, availability and responsiveness.
• Symbian is designed to compatibility with other devices,
especially removable media file systems.
• There is also a large volume of User Interface (UI) Code.
• Symbian includes a reference user-interface called
"TechView".
• It is very similar to the user interface from the Psion Series 5
personal organiser and is not used for any production phone
user interface.

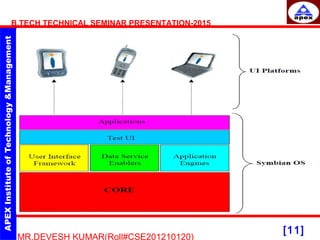

11. [11]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
MR.DEVESH KUMAR(Roll#CSE201210120)

12. [12]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
MR.DEVESH KUMAR(Roll#CSE201210120)

13. [13]
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
PLATFORM SECURITY
Trust
•Access to private data
Security
•Cost control
•Compromise important telephone functionality
Protection
•Software ownership
•DRM

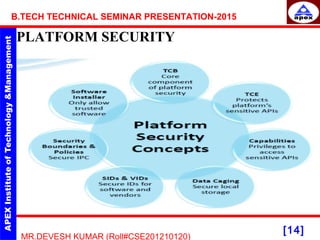

14. [14]
MR.DEVESH KUMAR (Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
PLATFORM SECURITY

15. [15]
MR.DEVESH KUMAR (Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
Example of Applications where the Symbian OS
is being used
• Nokia Series 80 interface
• UIQ interface(Used for PDAs such as Sony
Ericsson P800 )
• Nokia S60 interface
• Nokia S40 interface

16. [16]
MR.DEVESH KUMAR (Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
DEVELOPING SYMBIAN OS
• As of 2010, the SDK for Symbian is standard C++, using Qt. It
can be used with either Qt creator, or Carbide (the older IDE
previously used for Symbian development).
• A phone simulator allows testing of Qt apps.
• It is also possible to develop using Symbian C++, although it is
not a standard implementation.
• Prior to the release of the Qt SDK, this was the standard
development environment.

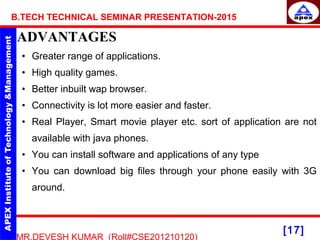

17. [17]
MR.DEVESH KUMAR (Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
ADVANTAGES
• Greater range of applications.
• High quality games.
• Better inbuilt wap browser.
• Connectivity is lot more easier and faster.
• Real Player, Smart movie player etc. sort of application are not
available with java phones.
• You can install software and applications of any type
• You can download big files through your phone easily with 3G
around.

18. [18]
MR.DEVESH KUMAR(Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
DISADVANTAGE
• The OS is not available for PCs .
• The Symbian OS can be easily affected by a Virus.

19. [19]
MR.DEVESH KUMAR (Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
Communication in Symbian OS
• Figure Communication in Symbian OS has
block oriented structure.

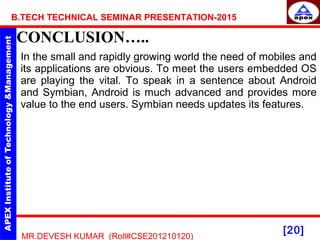

20. [20]
MR.DEVESH KUMAR (Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
CONCLUSION…..
In the small and rapidly growing world the need of mobiles and
its applications are obvious. To meet the users embedded OS
are playing the vital. To speak in a sentence about Android
and Symbian, Android is much advanced and provides more
value to the end users. Symbian needs updates its features.

21. [21]
MR.DEVESH KUMAR (Roll#CSE201210120)
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
REFERENCE
1. http://www.symbianwiki.com
2. www.symbian.com
3. www.symbian.com/technology/symbos-phones.html

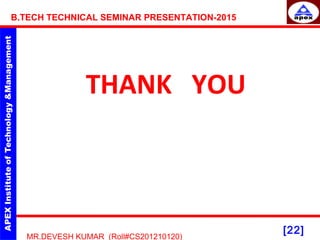

22. [22]
MR.DEVESH KUMAR (Roll#CS201210120)
THANK YOU
B.TECH TECHNICAL SEMINAR PRESENTATION-2015
