This document provides information about the Indira Paryavaran Bhawan building project in New Delhi. It summarizes that the building was constructed as a net zero energy green building for the Ministry of Environment and Forests. It achieved several sustainable design features like 40% energy savings, zero electricity billing, 55% water savings, and the largest rooftop solar power system of 930KWp on a multi-story building, making it the first government building to receive both 5-star GRIHA and LEED Platinum ratings.

1. NAME-M.SRIRAM
ROLL NO. -22011NA007
INDIRA PARYAVARAN
BHAWAN
JOR BAGH , NEW DELHI

2. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR.SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :01

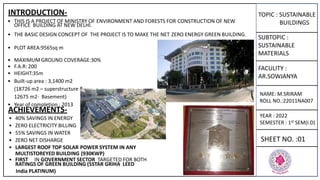

INTRODUCTION-
• THIS IS A PROJECT OF MINISTRY OF ENVIRONMENT AND FORESTS FOR CONSTRUCTION OF NEW
OFFICE BUILDING AT NEW DELHI.
• THE BASIC DESIGN CONCEPT OF THE PROJECT IS TO MAKE THE NET ZERO ENERGY GREEN BUILDING.
• PLOT AREA:9565sq m
• MAXIMUM GROUND COVERAGE:30%
• F.A.R: 200
• HEIGHT:35m
• Built-up area : 3,1400 m2
(18726 m2 – superstructure &
12675 m2- Basement)
• Year of completion : 2013
ACHIEVEMENTS-
• 40% SAVINGS IN ENERGY
• ZERO ELECTRICITY BILLING
• 55% SAVINGS IN WATER
• ZERO NET DISHARGE
• LARGEST ROOF TOP SOLAR POWER SYSTEM IN ANY
MULTISTOREYED BUILDING (930KWP)
• FIRST IN GOVERNMENT SECTOR TARGETED FOR BOTH
RATINGS OF GREEN BUILDING (5STAR GRIHA LEED
India PLATINUM)

3. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR.SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :02

4. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :03

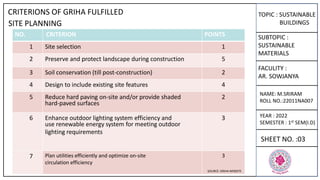

CRITERIONS OF GRIHA FULFILLED
SITE PLANNING
NO. CRITERION POINTS
1 Site selection 1
2 Preserve and protect landscape during construction 5
3 Soil conservation (till post-construction) 2
4 Design to include existing site features 4
5 Reduce hard paving on-site and/or provide shaded 2
hard-paved surfaces
6 Enhance outdoor lighting system efficiency and 3
use renewable energy system for meeting outdoor
lighting requirements
7 Plan utilities efficiently and optimize on-site
circulation efficiency
3
SOURCE: GRIHA WEBSITE

5. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :04

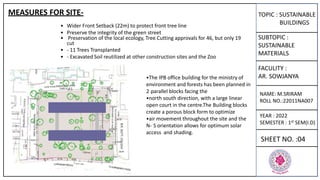

• Wider Front Setback (22m) to protect front tree line
• Preserve the integrity of the green street
• Preservation of the local ecology, Tree Cutting approvals for 46, but only 19
cut
• - 11 Trees Transplanted
• - Excavated Soil reutilized at other construction sites and the Zoo
•The IPB office building for the ministry of
environment and forests has been planned in
2 parallel blocks facing the
•north south direction, with a large linear
open court in the centre.The Building blocks
create a porous block form to optimize
•air movement throughout the site and the
N- S orientation allows for optimum solar
access and shading.
MEASURES FOR SITE-

6. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :05

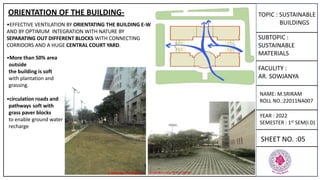

ORIENTATION OF THE BUILDING-
•EFFECTIVE VENTILATION BY ORIENTATING THE BUILDING E-W
AND BY OPTIMUM INTEGRATION WITH NATURE BY
SEPARATING OUT DIFFERENT BLOCKS WITH CONNECTING
CORRIDORS AND A HUGE CENTRAL COURT YARD.
•More than 50% area
outside
the building is soft
with plantation and
grassing.
•circulation roads and
pathways soft with
grass paver blocks
to enable ground water
recharge

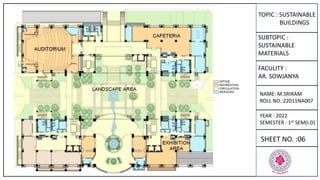

7. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :06

8. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :07

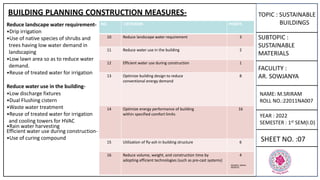

BUILDING PLANNING CONSTRUCTION MEASURES-
Reduce landscape water requirement-
•Drip irrigation
•Use of native species of shrubs and
trees having low water demand in
landscaping
•Low lawn area so as to reduce water
demand.
•Reuse of treated water for irrigation
Reduce water use in the building-
•Low discharge fixtures
•Dual Flushing cistern
•Waste water treatment
•Reuse of treated water for irrigation
and cooling towers for HVAC
•Rain water harvesting
Efficient water use during construction-
•Use of curing compound
NO. CRITERION POINTS
10 Reduce landscape water requirement 3
11 Reduce water use in the building 2
12 Efficient water use during construction 1
13 Optimize building design to reduce
conventional energy demand
8
14 Optimize energy performance of building
within specified comfort limits
16
15 Utilization of fly-ash in building structure 6
16 Reduce volume, weight, and construction time by
adopting efficient technologies (such as pre-cast systems)
4
SOURCE: GRIHA
WEBSITE

9. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :08

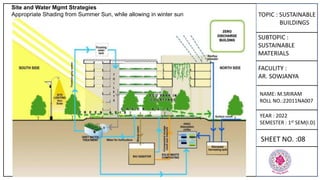

Site and Water Mgmt Strategies
Appropriate Shading from Summer Sun, while allowing in winter sun

10. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :09
Optimize building design to reduce conventional energy demand.-
• energy efficient light fittings to reduce energy demand
• part condenser water heat rejection by geothermal mechanism. this will also help in water conservation in
cooling towers for hvac system
• variable chilled water pumping system through vfd.vfd on cooling towers
fans and ahu.
• pre cooling of fresh air from toilet exhaust air through sensible & latent heat energy recovery wheel
• entire hot water generation through solar panels.
• maximum daylighting
• regenerative lifts.
• use of lux level sensor to optimize operation of artificial lighting.
• solar powered external lighting.
Optimize energy performance of building within specified comfort limits-
• Reducing energy consumption (compared to GRIHA benchmarks) while maintaining occupant
comfort:
• For achieving visual comfort:
• Direct line of sight to the outdoor environment to vision glazing for building
occupants for more than 90% of the occupied spaces.
• Avoiding Deep floor plates to create maximum daylighted spaces.
• Landscaping planned with native species and water body features in central
court and all around the building.
• For achieving thermal comfort:
• All circulation spaces or passages were naturally ventilated / shaded / not air
conditioned.
• Energy Efficient Chilled beam based Cooling system proposed together with
condenser water cooling through ground pipes.
• Openable windows were proposed in conditioned areas to be able to utilize
favourable outdoor conditions.
• Insulated Walls through using an integrated AAC + Rockwool combination
together with high efficiency DGU’s and UPVC.

11. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :10
Utilization of fly-ash in building structure-
•Ready Mix Concrete with PPC having more
than 30% fly ash content.
FLY ASH = 40 %
Reduce volume, weight,
and construction time
by adopting efficient
technologies (such as
pre-cast systems)-
ON SITE RENEWABLE ENERGY SYSTEM WITH
SOLAR PHOTOVOLTAIC CELLS TO MEET TOTAL
ENERGY DEMAND.
solar pv system
total area
total area of panels
annual energy generation
930KWp CAPACITY
6000 M2
4650 M2
14.3 lakh units
• Highest efficiency (20%
)Solar PV panels Grid Interactive System
NET ZERO ENERGY
ENERGY CONSERAVTION MEASURES-

12. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :11

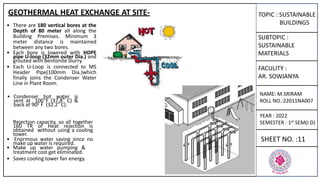

• There are 180 vertical bores at the
Depth of 80 meter all along the
Building Premises. Minimum 3
meter distance is maintained
between any two bores.
• Each bore is lowered with HDPE
pipe U-loop (32mm outer Dia.) and
grouted with Bentonite Slurry.
• Each U-Loop is connected to MS
Header Pipe(100mm Dia.)which
finally joins the Condenser Water
Line in Plant Room.
• Condenser hot water is
sent at 100°F (37.8° C) &
back at 900 F (32.2° C).
Rejection capacity, so all together
160 TR of Heat rejection is
obtained without using a cooling
tower.
• Enormous water saving since no
make up water is required.
• Make up water pumping &
treatment cost get eliminated.
• Saves cooling tower fan energy.
GEOTHERMAL HEAT EXCHANGE AT SITE-

13. TOPIC : SUSTAINABLE
BUILDINGS
SUBTOPIC :
SUSTAINABLE
MATERIALS
FACULITY :
AR. SOWJANYA
NAME: M.SRIRAM
ROLL NO.:22011NA007
YEAR : 2022
SEMESTER : 1st SEM(I.D)
SHEET NO. :12
•Stone available in nearby area for flooring
•Terrazzo flooring with locally available stone materials.
•Fly ash brick.
•AAC blocks.
•Jute bamboo composite for door frames & shutters.
•UPVC windows with hermetically sealed double using low
heat transmittance index glass.
•Use of high reflectance terrace tiles for low heat
ingress.
•Avoided aluminum as it has high embedded energy
•Sandstone Jalis.
•Stone and Ferrocement Jalis
Satisfies all the quality
parameters that a
normal flush door does
MATERIALS-
•Bamboo Jute Composite Doors and frames
& flooring
•High Efficiency Glass, high VLT, low SHGC &
Low U-value,
•Optimized by shading
•Light Shelves for bringing in diffused
sunlight
•Use of material available having Recycled
content
