1. Green Buildings and Eco-friendly
Construction Materials
Sustainability Concept

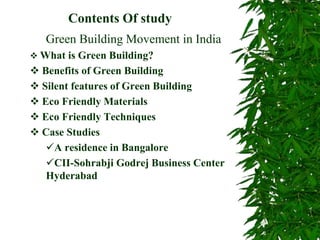

2. Contents Of study
Green Building Movement in India
What is Green Building?
Benefits of Green Building
Silent features of Green Building
Eco Friendly Materials
Eco Friendly Techniques
Case Studies
A residence in Bangalore
CII-Sohrabji Godrej Business Center
Hyderabad

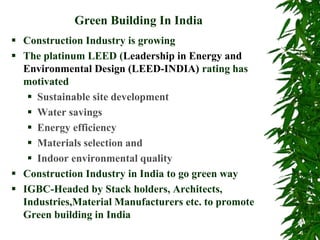

3. Green Building In India
Construction Industry is growing
The platinum LEED (Leadership in Energy and
Environmental Design (LEED-INDIA) rating has
motivated
Sustainable site development
Water savings
Energy efficiency
Materials selection and
Indoor environmental quality
Construction Industry in India to go green way
IGBC-Headed by Stack holders, Architects,
Industries,Material Manufacturers etc. to promote
Green building in India
4. What is a Green Building
Eco friendly or ecological construction is
building a structure that is beneficial or non
harmful and is resource efficient.
Use of key resources like Energy, Materials,
Water and Land more efficiently.
Sustainability is the practice of being able to
continue the harvesting, extractions etc. with
minimal long –term efforts on environment and
natural resources.

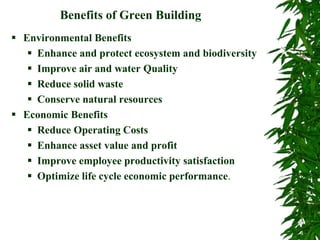

5. Benefits of Green Building
Environmental Benefits
Enhance and protect ecosystem and biodiversity
Improve air and water Quality
Reduce solid waste
Conserve natural resources
Economic Benefits
Reduce Operating Costs
Enhance asset value and profit
Improve employee productivity satisfaction
Optimize life cycle economic performance.

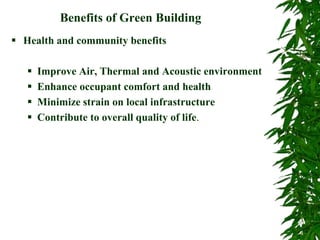

6. Benefits of Green Building
Health and community benefits
Improve Air, Thermal and Acoustic environment
Enhance occupant comfort and health
Minimize strain on local infrastructure
Contribute to overall quality of life.

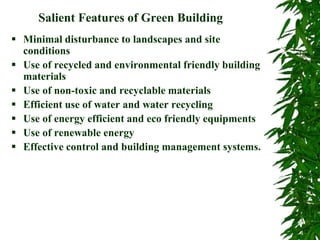

7. Salient Features of Green Building
Minimal disturbance to landscapes and site
conditions
Use of recycled and environmental friendly building
materials
Use of non-toxic and recyclable materials
Efficient use of water and water recycling
Use of energy efficient and eco friendly equipments
Use of renewable energy
Effective control and building management systems.

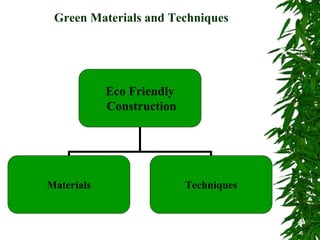

8. Green Materials and Techniques
Eco Friendly
Construction
Materials Techniques

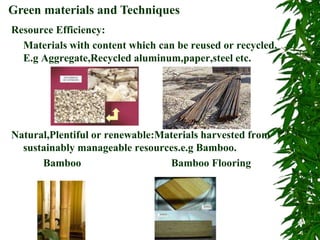

9. Resource Efficiency:
Materials with content which can be reused or recycled.
E.g Aggregate,Recycled aluminum,paper,steel etc.
Natural,Plentiful or renewable:Materials harvested from
sustainably manageable resources.e.g Bamboo.
Bamboo Bamboo Flooring
Green materials and Techniques

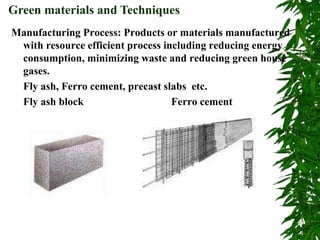

10. Manufacturing Process: Products or materials manufactured
with resource efficient process including reducing energy
consumption, minimizing waste and reducing green house
gases.
Fly ash, Ferro cement, precast slabs etc.
Fly ash block Ferro cement
Green materials and Techniques

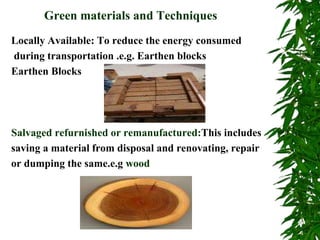

11. Green materials and Techniques
Locally Available: To reduce the energy consumed
during transportation .e.g. Earthen blocks
Earthen Blocks
Salvaged refurnished or remanufactured:This includes
saving a material from disposal and renovating, repair
or dumping the same.e.g wood

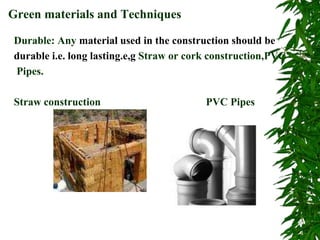

12. Durable: Any material used in the construction should be
durable i.e. long lasting.e,g Straw or cork construction,PVC
Pipes.
Straw construction PVC Pipes
Green materials and Techniques

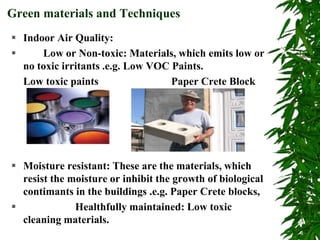

13. Indoor Air Quality:
Low or Non-toxic: Materials, which emits low or
no toxic irritants .e.g. Low VOC Paints.
Low toxic paints Paper Crete Block
Moisture resistant: These are the materials, which
resist the moisture or inhibit the growth of biological
contimants in the buildings .e.g. Paper Crete blocks,
Healthfully maintained: Low toxic
cleaning materials.
Green materials and Techniques

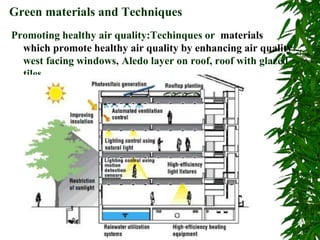

14. Promoting healthy air quality:Techinques or materials
which promote healthy air quality by enhancing air quality
west facing windows, Aledo layer on roof, roof with glazed
tiles.
Green materials and Techniques

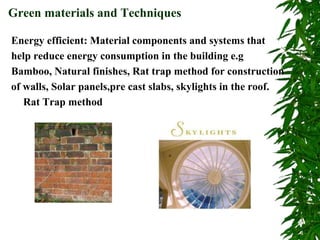

15. Energy efficient: Material components and systems that
help reduce energy consumption in the building e.g
Bamboo, Natural finishes, Rat trap method for construction
of walls, Solar panels,pre cast slabs, skylights in the roof.
Rat Trap method
Green materials and Techniques

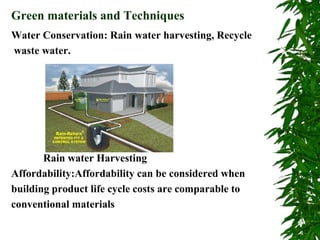

16. Water Conservation: Rain water harvesting, Recycle
waste water.
Rain water Harvesting
Affordability:Affordability can be considered when
building product life cycle costs are comparable to
conventional materials
Green materials and Techniques

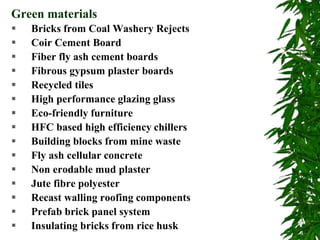

17. Bricks from Coal Washery Rejects
Coir Cement Board
Fiber fly ash cement boards
Fibrous gypsum plaster boards
Recycled tiles
High performance glazing glass
Eco-friendly furniture
HFC based high efficiency chillers
Building blocks from mine waste
Fly ash cellular concrete
Non erodable mud plaster
Jute fibre polyester
Recast walling roofing components
Prefab brick panel system
Insulating bricks from rice husk
Green materials

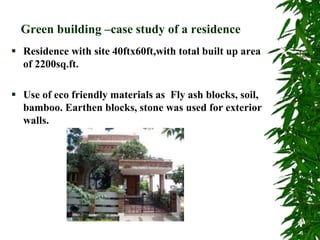

18. Green building –case study of a residence
Residence with site 40ftx60ft,with total built up area
of 2200sq.ft.
Use of eco friendly materials as Fly ash blocks, soil,
bamboo. Earthen blocks, stone was used for exterior
walls.

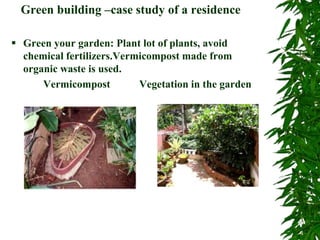

19. Green building –case study of a residence
Green your garden: Plant lot of plants, avoid
chemical fertilizers.Vermicompost made from
organic waste is used.
Vermicompost Vegetation in the garden

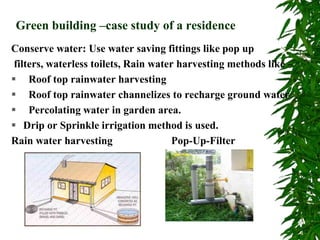

20. Green building –case study of a residence
Conserve water: Use water saving fittings like pop up
filters, waterless toilets, Rain water harvesting methods like –
Roof top rainwater harvesting
Roof top rainwater channelizes to recharge ground water
Percolating water in garden area.
Drip or Sprinkle irrigation method is used.
Rain water harvesting Pop-Up-Filter

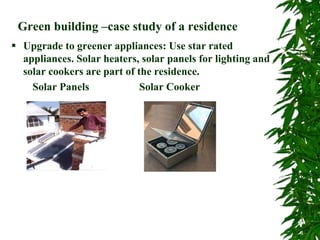

21. Green building –case study of a residence
Upgrade to greener appliances: Use star rated
appliances. Solar heaters, solar panels for lighting and
solar cookers are part of the residence.
Solar Panels Solar Cooker

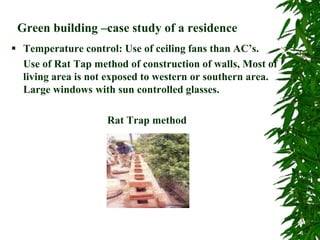

22. Green building –case study of a residence
Temperature control: Use of ceiling fans than AC’s.
Use of Rat Tap method of construction of walls, Most of
living area is not exposed to western or southern area.
Large windows with sun controlled glasses.
Rat Trap method

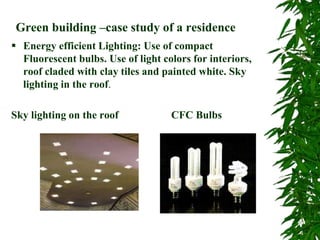

23. Green building –case study of a residence
Energy efficient Lighting: Use of compact
Fluorescent bulbs. Use of light colors for interiors,
roof claded with clay tiles and painted white. Sky
lighting in the roof.
Sky lighting on the roof CFC Bulbs

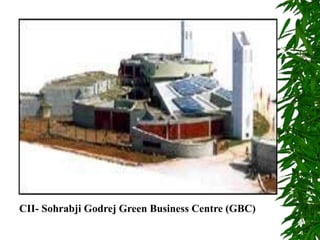

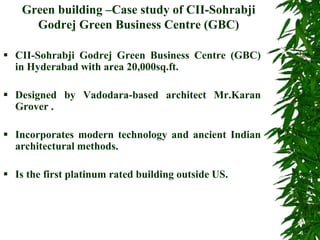

24. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
CII-Sohrabji Godrej Green Business Centre (GBC)
in Hyderabad with area 20,000sq.ft.
Designed by Vadodara-based architect Mr.Karan
Grover .
Incorporates modern technology and ancient Indian
architectural methods.
Is the first platinum rated building outside US.

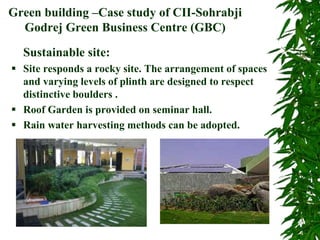

26. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
Sustainable site:
Site responds a rocky site. The arrangement of spaces
and varying levels of plinth are designed to respect
distinctive boulders .
Roof Garden is provided on seminar hall.
Rain water harvesting methods can be adopted.

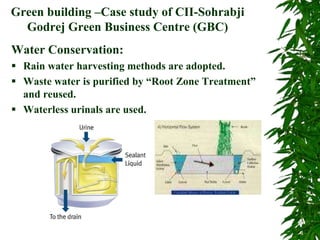

27. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
Water Conservation:
Rain water harvesting methods are adopted.
Waste water is purified by “Root Zone Treatment”
and reused.
Waterless urinals are used.

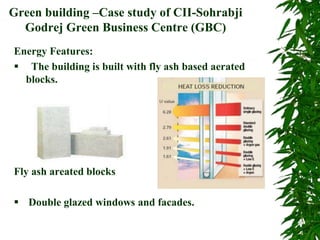

28. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
Energy Features:
The building is built with fly ash based aerated
blocks.
Fly ash areated blocks
Double glazed windows and facades.

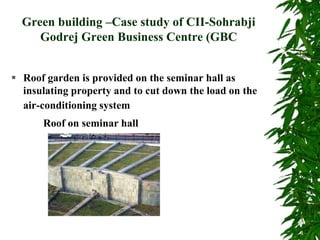

29. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC
Roof garden is provided on the seminar hall as
insulating property and to cut down the load on the
air-conditioning system
Roof on seminar hall

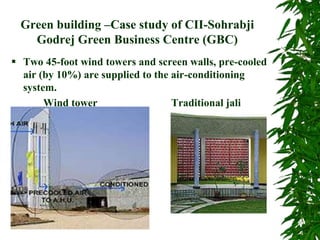

30. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
Two 45-foot wind towers and screen walls, pre-cooled
air (by 10%) are supplied to the air-conditioning
system.
Wind tower Traditional jali

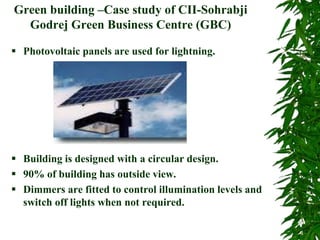

31. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
Photovoltaic panels are used for lightning.
Building is designed with a circular design.
90% of building has outside view.
Dimmers are fitted to control illumination levels and
switch off lights when not required.

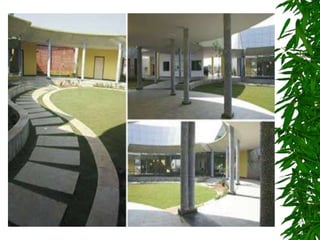

32.

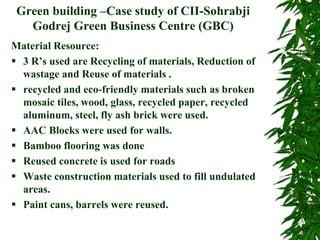

33. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
Material Resource:
3 R’s used are Recycling of materials, Reduction of
wastage and Reuse of materials .
recycled and eco-friendly materials such as broken
mosaic tiles, wood, glass, recycled paper, recycled
aluminum, steel, fly ash brick were used.
AAC Blocks were used for walls.
Bamboo flooring was done
Reused concrete is used for roads
Waste construction materials used to fill undulated
areas.
Paint cans, barrels were reused.
34. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC
Reused Chip Tiles

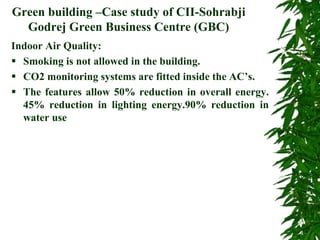

35. Green building –Case study of CII-Sohrabji
Godrej Green Business Centre (GBC)
Indoor Air Quality:
Smoking is not allowed in the building.
CO2 monitoring systems are fitted inside the AC’s.
The features allow 50% reduction in overall energy.
45% reduction in lighting energy.90% reduction in
water use

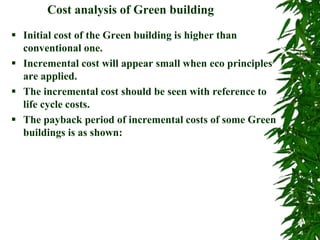

36. Cost analysis of Green building
Initial cost of the Green building is higher than
conventional one.
Incremental cost will appear small when eco principles
are applied.
The incremental cost should be seen with reference to
life cycle costs.
The payback period of incremental costs of some Green
buildings is as shown:

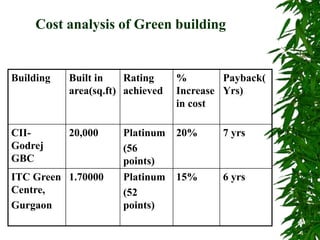

37. Cost analysis of Green building
Building Built in
area(sq.ft)
Rating
achieved
%
Increase
in cost
Payback(
Yrs)
CII-
Godrej
GBC
20,000 Platinum
(56
points)
20% 7 yrs
ITC Green
Centre,
Gurgaon
1.70000 Platinum
(52
points)
15% 6 yrs

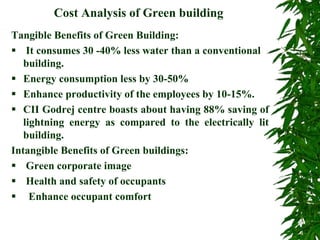

38. Cost Analysis of Green building
Tangible Benefits of Green Building:
It consumes 30 -40% less water than a conventional
building.
Energy consumption less by 30-50%
Enhance productivity of the employees by 10-15%.
CII Godrej centre boasts about having 88% saving of
lightning energy as compared to the electrically lit
building.
Intangible Benefits of Green buildings:
Green corporate image
Health and safety of occupants
Enhance occupant comfort
