Static code analysis is the analysis of computer software without executing programs to detect bugs. It was proposed to analyze an open source C++ project with about 20 developers to save money, improve team relations, and boost developer skills. Cppcheck, a free, open source static analysis tool, was used to analyze the project and detected various issues like memory leaks, resource leaks, errors, and inefficiencies. Coverity Scan and Clang static analyzer were also proposed as alternative static analysis tools. However, static code analysis is only one step, and other practices like code formatting, reviews, testing, and continuous integration are also important.

1. www.luxoft.com
C++ static code analysis
Last update 2 Jul 2016

2. www.luxoft.com

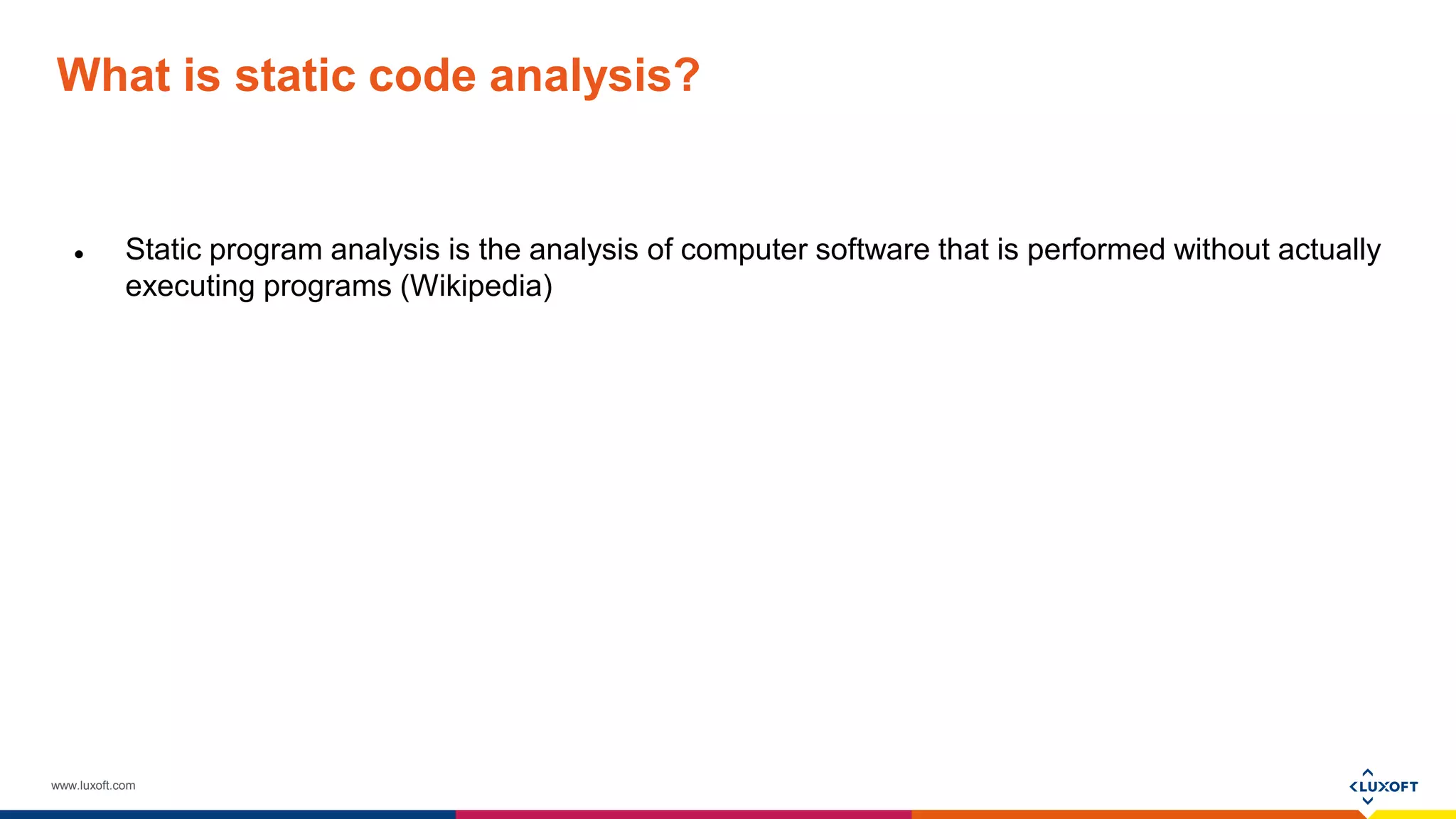

What is static code analysis?
 Static program analysis is the analysis of computer software that is performed without actually
executing programs (Wikipedia)

3. www.luxoft.com
Why do we need static code analysis
Save money
Improve relations in the team
Boost developers self-concept

4. www.luxoft.com
Project to analyse
 Open source
 C++ code base
 About 20 developers team
 Cross platform (Linux, QNX, Windows, Qt)
 SmartDeviceLink https://github.com/smartdevicelink/sdl_core/
SmartDeviceLink (SDL) is a standard set of protocols and messages that connect applications on a
smartphone to a vehicle head unit.

5. www.luxoft.com
CppCheck
Cppcheck is a static analysis tool for C/C++ code. Unlike C/C++ compilers and many other analysis
tools it does not detect syntax errors in the code. Cppcheck primarily detects the types of bugs that
the compilers normally do not detect. The goal is to detect only real errors in the code (i.e. have zero
false positives).
Cppcheck is a static analysis tool for C/C++ code.
 Free, open source
 Easy to use
 Perform analysis on local workstation
 Console plain text output
 A lot of plugins for most of IDE

6. www.luxoft.com
Cppcheck simple output
$ cppcheck -q --template='{id} {file}:{line} {message}' ./src/components
memleak mobile_message_handler.cc:161 Memory leak: outgoing_message
resourceLeak ini_file.cc:199 Resource leak: rd_fp
resourceLeak ini_file.cc:205 Resource leak: rd_fp
syntaxError sql_pt_representation.cc:76 Invalid number of character '(' when these macros are
defined: '__QNX__'.
memleak bluetooth_device_scanner_posix.cc:100 Memory leak: buffer
mismatchAllocDealloc file_system_win.cc:357 Mismatching allocation and deallocation:
security_descriptor

7. www.luxoft.com
Check compilence
SQLPTRepresentation::SQLPTRepresentation()
#if defined(__QNX__)
: db_(new utils::dbms::SQLDatabase(kDatabaseName)
#else
: db_(new utils::dbms::SQLDatabase(
file_system::ConcatPath(app_storage_folder, kDatabaseName),
"PolicyDatabase"))
#endif
{}

8. www.luxoft.com
Dummy errors
uint8_t* security_descriptor = new uint8_t[length];
…
delete security_descriptor;

9. www.luxoft.com
Cpp check analyse statistic
cppcheck -q --force --enable=all --template='{id} {file}:{line} {message}' ./src/components 2>&1 | grep -v test | tee ../cpp_check_output
cat cpp_check_output | awk '{print $1}' | sort | uniq -c | sort
1 knownConditionTrueFalse
1 mismatchAllocDealloc
1 missingInclude
1 noConstructor
1 syntaxError
1 unsignedLessThanZero
2 asctimeCalled
2 clarifyCondition
2 memleak
2 resourceLeak
2 sizeofDivisionMemfunc
2 unreachableCode
3 oppositeInnerCondition
3 passedByValue
4 duplicateBreak
4 uninitMemberVar
7 postfixOperator
8 unreadVariable
13 redundantAssignment
14 noExplicitConstructor
19 variableScope
26 unusedFunction

10. www.luxoft.com
unsignedLessThanZero

 const uint32_t packet_size = GetPacketSize(header_);
 if (packet_size <= 0) {

11. www.luxoft.com
False positive oppositeInnerCondition
if (!db_->Open()) {
...
for (int i = 0; i < attempts; ++i) {
usleep(sleep_interval_mcsec);
if (db_->Open()) {
...
}
}

12. www.luxoft.com

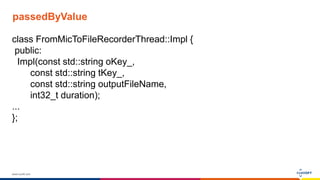

passedByValue
class FromMicToFileRecorderThread::Impl {
public:
Impl(const std::string oKey_,
const std::string tKey_,
const std::string outputFileName,
int32_t duration);
...
};

13. www.luxoft.com
Dummy errors
if (some_condition) {
return true;
break;
}
bool SQLDatabase::IsReadWrite() {
return sqlite3_db(conn_);
return true;
}
DWORD addressSize = sizeof(addressAsString);
addressSize = sizeof(addressAsString);

14. www.luxoft.com
variableScope
bool SpeakRequest::IsWhiteSpaceExist() {
const char* str = NULL;
if ((*message_)[strings::msg_params].keyExists(strings::tts_chunks)) {
...
for (; it_tc != it_tc_end; ++it_tc) {
str = (*it_tc)[strings::text].asCharArray();
if (strlen(str) && !CheckSyntax(str)) {
SDL_ERROR("Invalid tts_chunks syntax check failed");
return true;
}
...
}
}
return false;
}

15. www.luxoft.com
Coverity
 Free for open source projects
 Perform analyse on cloud
 Privode delailed interctive online report
 Provides limitted analyses per week.
Coverity Scan is a free cloud-based static analysis product for the open source
community.

16. www.luxoft.com
Clang static code analisys
 Free open source
 Privode delailed interctive html report
 Require clan build
 Perform analyzing within compiling
 Support incremental analyse
The Clang Static Analyzer is a source code analysis tool that finds bugs in C, C++, and
Objective-C programs.

17. www.luxoft.com

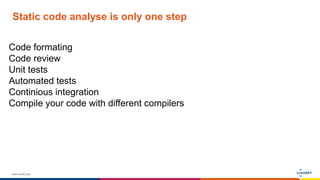

Static code analyse is only one step
Code formating
Code review
Unit tests
Automated tests
Continious integration
Compile your code with different compilers

18. www.luxoft.com
THANK YOU
