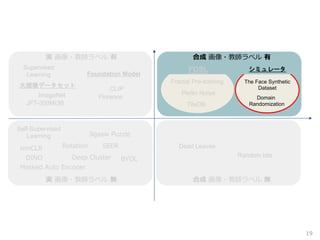

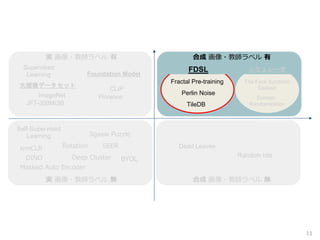

19. 19
合成 画像・教師ラベル 無
実 画像・教師ラベル 無
Supervised
Learning
Self-Supervised
Learning
simCLR
DINO
Masked Auto Encoder
Rotation
Jigsaw Puzzle
Deep Cluster
SEER
BYOL
実 画像・教師ラベル 有
Dead Leaves
Random bits
Foundation Model
CLIP
Florence
ImageNet
JFT-300M/3B
大規模データセット
合成 画像・教師ラベル 有
シミュレータ
Fractal Pre-training
TileDB
FDSL
Perlin Noise
The Face Synthetic
Dataset
Domain
Randomization

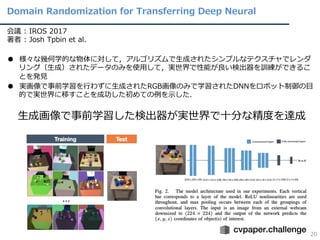

20. Domain Randomization for Transferring Deep Neural
20
会議 : IROS 2017
著者 : Josh Tpbin et al.
● 様々な幾何学的な物体に対して,アルゴリズムで⽣成されたシンプルなテクスチャでレンダ
リング(⽣成)されたデータのみを使⽤して,実世界で性能が良い検出器を訓練ができるこ
とを発⾒
● 実画像で事前学習を⾏わずに⽣成されたRGB画像のみで学習されたDNNをロボット制御の⽬
的で実世界に移すことを成功した初めての例を⽰した.
⽣成画像で事前学習した検出器が実世界で⼗分な精度を達成

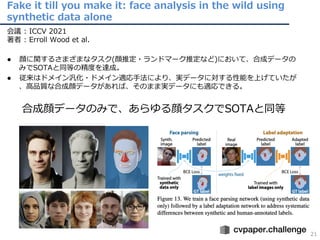

21. Fake it till you make it: face analysis in the wild using
synthetic data alone
21
会議 : ICCV 2021
著者 : Erroll Wood et al.
● 顔に関するさまざまなタスク(顔推定・ランドマーク推定など)において、合成データの
みでSOTAと同等の精度を達成。
● 従来はドメイン汎化・ドメイン適応⼿法により、実データに対する性能を上げていたが
、⾼品質な合成顔データがあれば、そのまま実データにも適応できる。
合成顔データのみで、あらゆる顔タスクでSOTAと同等

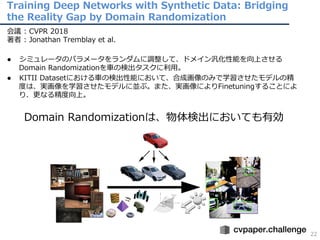

22. Training Deep Networks with Synthetic Data: Bridging
the Reality Gap by Domain Randomization
22
会議 : CVPR 2018
著者 : Jonathan Tremblay et al.
● シミュレータのパラメータをランダムに調整して、ドメイン汎化性能を向上させる
Domain Randomizationを⾞の検出タスクに利⽤。
● KITII Datasetにおける⾞の検出性能において、合成画像のみで学習させたモデルの精
度は、実画像を学習させたモデルに並ぶ。また、実画像によりFinetuningすることによ
り、更なる精度向上。
Domain Randomizationは、物体検出においても有効

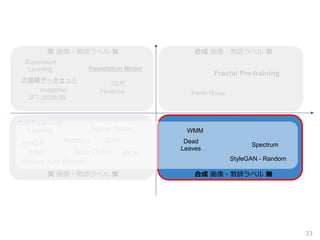

23. 23
合成 画像・教師ラベル 無
実 画像・教師ラベル 無
合成 画像・教師ラベル 有
Supervised
Learning
Self-Supervised
Learning
simCLR
DINO
Masked Auto Encoder
Rotation
Jigsaw Puzzle
Deep Cluster
SEER
BYOL
実 画像・教師ラベル 有
Foundation Model
CLIP
Florence
ImageNet
JFT-300M/3B
大規模データセット
Perlin Noise
Fractal Pre-training
Dead Leaves
MineCraftDB
DMLab
合成 画像・教師ラベル 無
Dead
Leaves
Spectrum
WMM
StyleGAN - Random

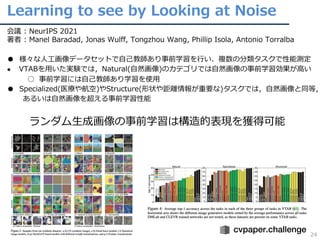

24. Learning to see by Looking at Noise
24
会議 : NeurIPS 2021
著者 : Manel Baradad, Jonas Wulff, Tongzhou Wang, Phillip Isola, Antonio Torralba
● 様々な⼈⼯画像データセットで⾃⼰教師あり事前学習を⾏い、複数の分類タスクで性能測定
● VTABを⽤いた実験では,Natural(⾃然画像)のカテゴリでは⾃然画像の事前学習効果が⾼い
○ 事前学習には⾃⼰教師あり学習を使⽤
● Specialized(医療や航空)やStructure(形状や距離情報が重要な)タスクでは,⾃然画像と同等,
あるいは⾃然画像を超える事前学習性能
ランダム⽣成画像の事前学習は構造的表現を獲得可能
