The Squid.link Gateway is an open Linux platform that bridges multiple wireless protocols for smart home, energy management, security, and healthcare applications. It is a modular gateway that can handle different wireless standards simultaneously, including Zigbee, Z-Wave, Wireless M-Bus, and WLAN. The gateway provides flexible options for wireless modules, design, and software development through starter kits, middleware partners, or turnkey solutions.

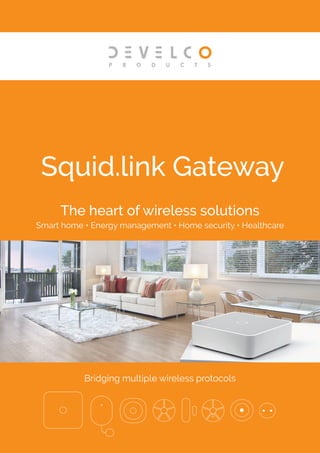

1. Squid.link Gateway
The heart of wireless solutions
Smart home • Energy management • Home security • Healthcare
Bridging multiple wireless protocols

2. 2Squid.link Gateway www.develcoproducts.com
Great interoperability
Modular platform
The Squid.link Gateway is an open Linux
platform including multiple wireless networks
for communication with smart meters, sensors,
smart plugs, thermostats etc.
The gateway is modular and can handle many
different wireless protocols at the same time.
Multiple protocols
The Squid.link Gateway has options for ZigBee,
Z-Wave, Wireless M-Bus and WLAN HAN
networks.
Communication with servers and e.g. smart
phones can be established via WLAN, Ethernet
(to local modem) or Cellular 2G/3G.
The price is extremely competitive since you
will only pay for your selected modules.
WLAN
Programmable Linux
gateway
Flexible solution
The gateway includes processor power
to implement even very complex local
intelligence. The memory options leave room
for data storage and logging.
You are no longer dependent on one vendor
but can combine your Home Area network
exactly the way you prefer.
Software options
Develco Products provides the Squid.link
Gateway with Linux and optionally Java. For
application of software, three options are
available:
1. Squid.link Starter Kit:
Complete hardware, software, development
tools and documentation package for own
software development
2. OSGi based middleware via partners, for own
high level software development
3. Turnkey software solutions from partners

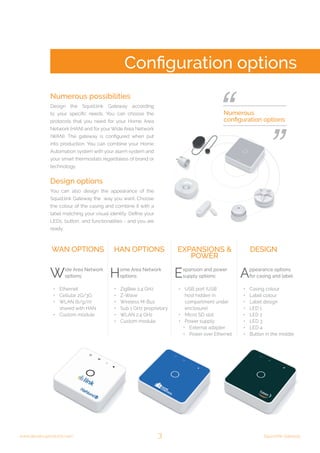

3. 3 Squid.link Gatewaywww.develcoproducts.com
Numerous possibilities
Design the Squid.link Gateway according
to your specific needs. You can choose the
protocols that you need for your Home Area
Network (HAN) and for your Wide Area Network
(WAN). The gateway is configured when put
into production. You can combine your Home
Automation system with your alarm system and
your smart thermostats regardsless of brand or
technology.
WAN options HAN options ExpansIONS &
power
Design
Wide Area Network
options:
• Ethernet
• Cellular 2G/3G
• WLAN (b/g/n)
shared with HAN
• Custom module
Home Area Network
options:
• ZigBee 2.4 GHz
• Z-Wave
• Wireless M-Bus
• Sub 1 GHz proprietary
• WLAN 2.4 GHz
• Custom module
Expansion and power
supply options:
• USB port (USB
host hidden in
compartment under
enclosure)
• Micro SD slot
• Power supply:
• External adapter
• Power over Ethernet
Appearance options
for casing and label:
• Casing colour
• Label colour
• Label design
• LED 1
• LED 2
• LED 3
• LED 4
• Button in the middle
Design options
You can also design the appearance of the
Squid.link Gateway the way you want. Choose
the colour of the casing and combine it with a
label matching your visual identity. Define your
LEDs, button, and functionalities - and you are
ready.
Configuration options
Numerous
configuration options

4. 4Squid.link Gateway www.develcoproducts.com
Open platform
Building your application on top of Develco Products open wireless platform enables you to focus on the quality
of your software. The platform includes the Squid.link Gateway and a number of wireless devices already tested in
large networks.
The Squid.link Gateway offers a fully open wireless platform based on open standards. Implementing your
application in C, Phyton, Java or other language gives you full access to wireless networks based on multiple
wireless standards.
Development tools
The Squid.link platform is delivered with a demo
application for a quick and easy start. Develco
Products provides a PC based tool for generating,
sending, receiving, and interpreting ZigBee telegrams
and other messages.
Applications can access the hardware interfaces
through an application API. This API is accesible
directly from an application running on the gateway or
from a server via the SmartAMM middleware.
Linux, Java & OSGI
For development, several Linux build variants are
available, e.g.:
• Linux for C and C++
• Linux with Oracle Java for JVM7 or JVM8
• Linux with Oracle Java, ProSyst Smart Home
middleware, Eclipse SmartHome
Or you can modify the Linux platform yourself to
match your needs.
Firmware
Demo application
Access to support forum
Development tools
Documentation for an easy start
Development
tools
Develco Products wireless platform
SmartAMM
server
ZigBee Z-Wave WLAN Ethernet
Wireless
M-Bus
2G/3G
Custom
module
Application
API
Firmware
Your application
LinuxOSGI
Eclipse
SmartHome Java
Wireless platform

5. 5 Squid.link Gatewaywww.develcoproducts.com
Wireless platform
Application API
The application API can be accessed from applications running on the gateway as well from a hosted application
running remotely. The remote access runs through a separate channel established between the gateway and the
server.
For easy access, a server middleware (SmartAMM server) is available through which you can debug the wireless
communication with the development tool.
3rd
party applications connect to the application API via a socket connection. The API supports:
Server settings (URL, port)
• SmartAMM server
• NTP server
• DNS server
• SSH Connect Home
IP settings
• DHCP/fixed IP (IPv4/IPv6)
System events
• MMI events
Wireless device access
• Access to ZB, ZW and WMB networks
Time sync
• UTC time
• Time zone
• Daylight saving
Bridging wireless
technologies
Demo application
The demo application enables you to set up a
smart home demo system by using the included
ready-to-use web application. Just connect your
PC or smartphone directly to the access point
of the Squid.link Gateway and you are ready to
start using the application.
You can add new products to the wireless
network, follow their current status, and control
electrical appliances via the smart plugs.

6. General
Dimensions (W x H x D)
Color
102 x 102 x 28 mm
White (or customer specific)
Power supply
Power consumption
External netadapter 5V DC, 2 Amp.
Optional Power over Ethernet (PoE)
Typical: 1.2 W Max. : 2.5 W
Ethernet 10/ 100 MHz
Expansions USB port (USB host hidden in compartment)
Micro SD slot
Environment IP class: IP20
Operation temperature 0 to +50°C
Wireless communication
ZigBee Chipset: NXP MKW22D512
Freequency: 2.4 GHZ
Protocol: ZigBee SE1.1, HA1.2 (prepared for Thread and Zig-
Bee 3.0)
Sensitivity: -101 dBm
Output power: +8 dBm
Wireless M-Bus/ Sub 1 GHz radio Chipset: NXP MKW01Z128
Freequency: 868MHz (315 – 955 MHz on request)
Protocol: Wireless M-Bus C1, T1, T2 (other protocols on re-
quest)Sensitivity: -99 dBm
Output power: +12 dBm
Z-Wave Chipset: ZM5304 module
Freequency: 868/908/921MHz, etc. (depending on region)
Protocol: Z-Wave Plus
Sensitivity: -103 dBm
Output power: +4 dBm
WLAN CSR6030A + RFFM8200
Freequency: 2.4 GHZ
Protocol: 802.11 b/g/n (Access Point and/or Station)
Sensitivity: -101 dBm
Output power: +18 dBm
Squid.link Gateway - Technical specifications
6Squid.link Gateway www.develcoproducts.com

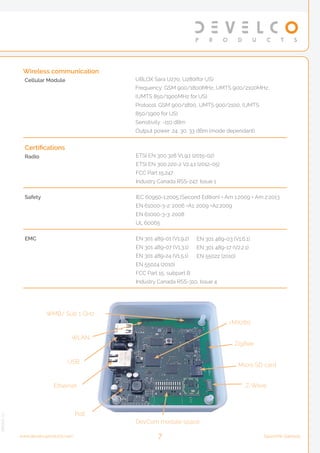

7. Certifications
Radio ETSI EN 300 328 V1.9.1 (2015-02)
ETSI EN 300 220-2 V2.4.1 (2012-05)
FCC Part 15.247
Industry Canada RSS-247, Issue 1
Safety IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
EN 61000-3-2: 2006 +A1: 2009 +A2:2009
EN 61000-3-3: 2008
UL 60065
EMC EN 301 489-01 (V1.9.2)
EN 301 489-07 (V1.3.1)
EN 301 489-24 (V1.5.1)
EN 55024 (2010)
FCC Part 15, subpart B
Industry Canada RSS-310, Issue 4
Wireless communication
Cellular Module UBLOX Sara U270, U280(for US)
Frequency: GSM 900/1800MHz, UMTS 900/2100MHz,
(UMTS 850/1900MHz for US)
Protocol: GSM 900/1800, UMTS 900/2100, (UMTS
850/1900 for US)
Sensitivity: -110 dBm
Output power: 24, 30, 33 dBm (mode dependant)
Ethernet
USB
WLAN
WMB/ Sub 1 GHz
i.MX280
ZigBee
Micro SD card
Z-Wave
DevCom module space
PoE
EN 301 489-03 (V1.6.1)
EN 301 489-17 (V2.2.1)
EN 55022 (2010)
7 Squid.link Gatewaywww.develcoproducts.com
Version2.1

8. About Develco Products
Develco Products delivers a wireless infrastructure platform for solution providers within
the smart home and energy management industries.
We provide high-volume customized products for companies supplying end-users with
Internet of Things solutions.
Tomorrow’s technology today
We are experts in wireless communication and have more than 10 years of experience in
developing products based on a wide range of wireless technologies.
We take pride in advancing the technology of Internet of Things, and work with leading
organizations and institutions in bringing you tomorrow’s wireless technology today.
