SQL Track: In Memory OLTP in SQL Server
Hekaton is Microsoft SQL Server's in-memory OLTP engine. It allows for creating memory-optimized tables to fully leverage RAM and provide faster performance than disk-based tables. Memory-optimized tables use new row formats and indexing structures like hash and range indexes that are optimized for memory. Stored procedures can be natively compiled for maximum speed when operating on memory-optimized tables. There are some limitations around data types and features supported. Diagnostic objects like DMVs provide visibility into Hekaton's memory usage and performance.
More Related Content
Similar to SQL Track: In Memory OLTP in SQL Server
![[JSS2015] In memory and operational analytics](https://cdn.slidesharecdn.com/ss_thumbnails/jss2015-inmemoryandoperationalanalytics-151211084342-thumbnail.jpg?width=640&height=640&fit=bounds)
SQL Track: In Memory OLTP in SQL Server
- 1. In Memory OLTP SQLserver 2014 Hekaton Engine Frederik Bogaerts
- 2.
- 3.

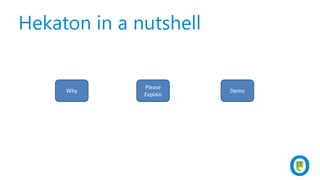

- 4. Hekaton in anutshell Please Explain Why Demo
- 5.
- 6. Hekaton – InMemory OLTP
- 7.

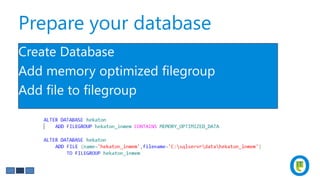

- 8. Prepare your database CreateDatabase Add memory optimized filegroup Add file to filegroup
- 9. Memory Optimized Tables CREATETABLE [Customer]( [CustomerID] INT NOT NULL PRIMARY KEY NONCLUSTERED HASH WITH (BUCKET_COUNT = 1000000), [Name] NVARCHAR(250) NOT NULL, [CustomerSince] DATETIME NULL INDEX [ICustomerSince] NONCLUSTERED ) WITH (MEMORY_OPTIMIZED = ON, DURABILITY = SCHEMA_AND_DATA);

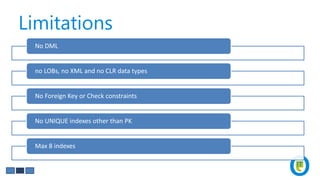

- 10. Limitations No DML no LOBs,no XML and no CLR data types No Foreign Key or Check constraints No UNIQUE indexes other than PK Max 8 indexes
- 11. Data Structures New Row Format Versioning: Timestamps No data page containers Row header Payload (table columns) Begin Ts End Ts StmtId IdxLinkCount 8 bytes 8 bytes 4 bytes 2 + 2 (padding) bytes 8 bytes * (IdxLinkCount) Source: Microsoft.com
- 12.
- 13.
- 14.

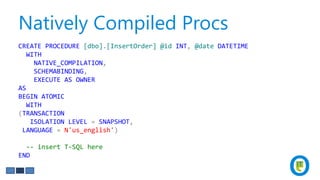

- 15. Natively Compiled Procs CREATEPROCEDURE [dbo].[InsertOrder] @id INT, @date DATETIME WITH NATIVE_COMPILATION, SCHEMABINDING, EXECUTE AS OWNER AS BEGIN ATOMIC WITH (TRANSACTION ISOLATION LEVEL = SNAPSHOT, LANGUAGE = N'us_english') -- insert T-SQL here END

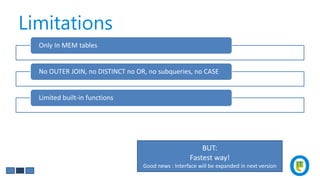

- 16. Limitations Only In MEMtables No OUTER JOIN, no DISTINCT no OR, no subqueries, no CASE Limited built-in functions BUT: Fastest way! Good news : Interface will be expanded in next version
- 17. T-SQL (Not) Supported INTEROP Truncate Dynamicen keyset cursors Cross database Linked servers Locking Hints – Isolation Levels Merge
- 18.

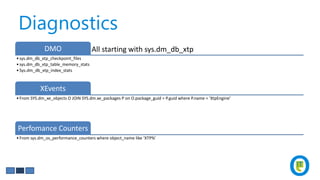

- 19. Diagnostics All starting withsys.dm_db_xtpDMO •sys.dm_db_xtp_checkpoint_files •sys.dm_db_xtp_table_memory_stats •Sys.dm_db_xtp_index_stats XEvents •From SYS.dm_xe_objects O JOIN SYS.dm.xe_packages P on O.package_guid = P.guid where P.name = ‘XtpEngine’ Perfomance Counters •From sys.dm_os_performance_counters where object_name like ‘XTP%’

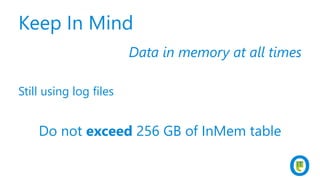

- 20. Keep In Mind Datain memory at all times Still using log files Do not exceed 256 GB of InMem table
- 21.
- 22.
- 24. Follow Technet Belgium @technetbelux Subscribeto the TechNet newsletter aka.ms/benews Be the first to know
- 25. A SQL querywalks into a bar and sees two tables. He walks up to them and says 'Can I join you? The SQL query found the table by doing a full scan of the other tables… In the meanwhile, the waitress arrived at the table. Woohoow what a nice view…
- 26.
- 27. Belgium’s biggest ITPRO Conference
Editor's Notes
- #3 http://msdn.microsoft.com/en-us/library/dn720242.aspx
- #7 As always with new technology, there are new concepts introduced. Throughout my session I’ll talk about these topics one by one.
- #19 Kicks in after a couple of minutes.
- #20 There are also addons done to the SYS.tables, here we can check whether we are dealing with In memory tables and the durability level of the
