This document discusses various issues encountered with a PostgreSQL database at InMobi. It includes discussions around high user connections, idle transactions, long-running queries, temporary file limits, out of memory errors, replication issues, partitions, tablespaces, SSH tunneling, and miscellaneous other topics. Potential solutions are provided around increasing connection pools, killing idle transactions, analyzing query plans, increasing configuration parameters, and ensuring proper replication setup.

1. tosivakumar@gmail.com soumya.r.subudhi@gmail.com19 March 2016

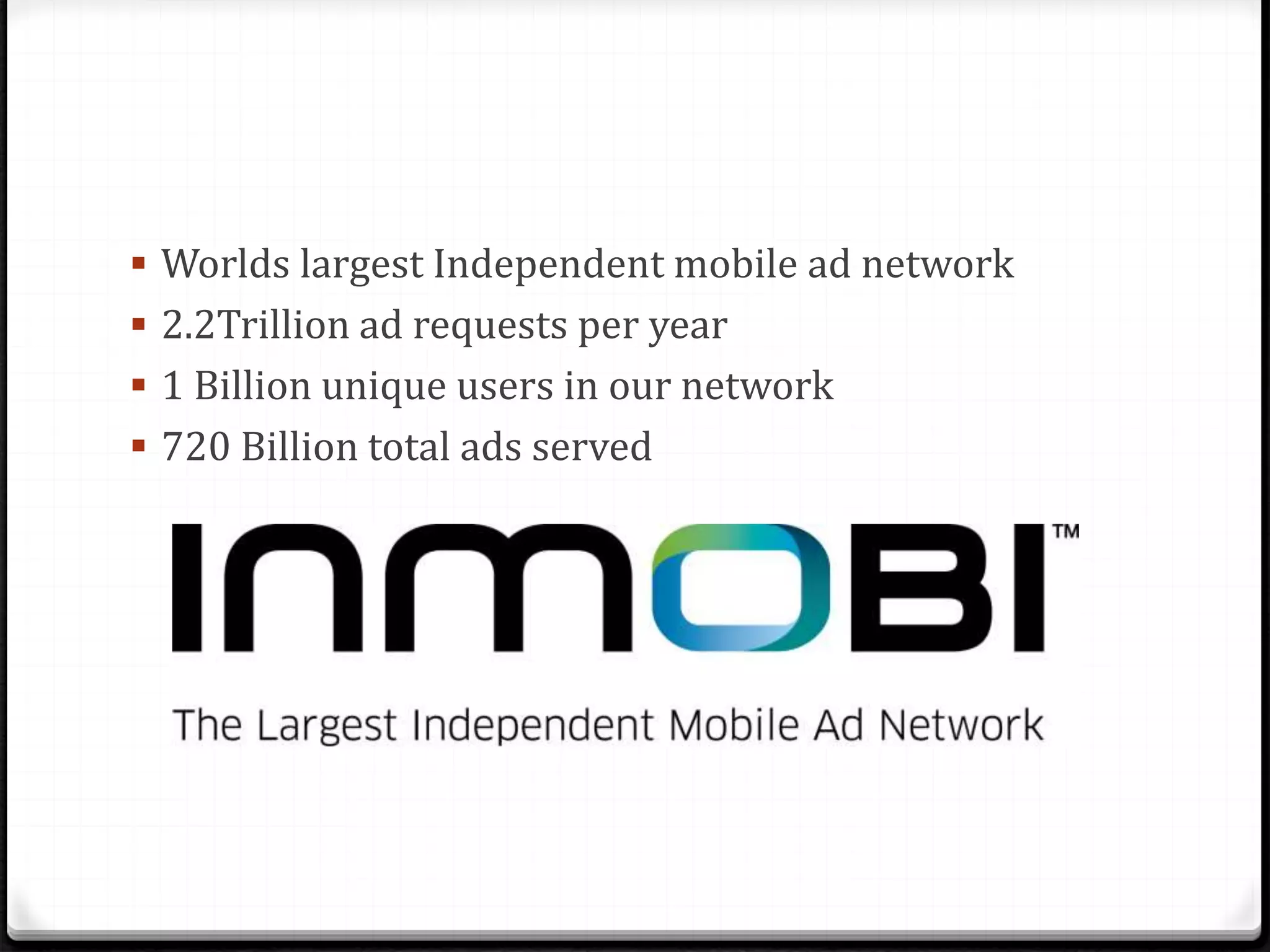

2.  Worlds largest Independent mobile ad network
 2.2Trillion ad requests per year
 1 Billion unique users in our network
 720 Billion total ads served

3. Database @ InMobi
OLTP OLAP

4. Database @ InMobi
 Average 1.5 Billion Transactions Per Day across the
clusters
 Average 18-22k QPS with a peak of 58k QPS
 5 min Average Write Duration < 8ms
 5 min Average Select Duration < 90 ms
 Warehouse Size of 14 TB
 Streaming Replication across 6 DC’s around the world
with WAL files in the order of 5 per sec including AWS

6. Today’s Agenda
 User connections
 Idle Transactions
 Replication issues
 Temporary file limit
 Out Of Memory issue
 Partitions
 Tablespaces on Master and slave
 SSH Tunneling
 Miscellaneous

7. User Connections
Database
C 1
C 3
C 2Direct
Connections
Concurrent
Connections
C 4
C 5

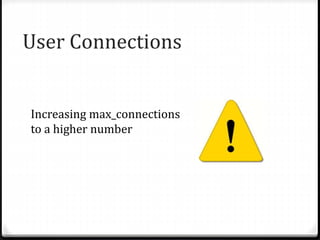

8. User Connections
Increasing max_connections
to a higher number

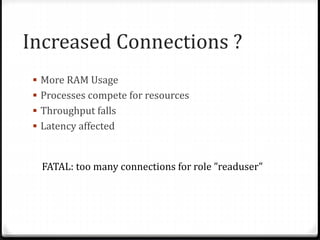

9. Increased Connections ?
 More RAM Usage
 Processes compete for resources
 Throughput falls
 Latency affected
FATAL: too many connections for role ”readuser"

10. Database
Connection
Pool
(pgbouncer)
Clients /
Applications
• Online restart/upgrade without stopping client connections
• Online reconfiguration of most of settings

11. User Connections
If not using db pooling :
 Enable client application pooling (Java,Hibernate,..)
 Avoid hang of connections
 Applications to be on same colo
 Good network bandwidth between hosts
 Giving each component(application) a separate user
 Improve performance by allocating more resources,
increasing RAM and CPU, use of SSDs

12. Idle in transactions
 Why idle in transactions ?
#ps-ef | grep postgres | grep idle
 Idle in transaction in slony
postgres: user db 127.0.0.1(55658) idle in transaction

13. Idle in transactions
 Alerting on idle in transaction
 Add a auto kill job – Careful
select * from pg_stat_activity where state = 'idle in
transaction’;
 select pg_terminate_backend(pid)
 Avoid using
# kill -9 <pid of process>

14. Long running queries
&
Same queries running multiple
times for more than 1 hour

15. Long running queries …
 Explain Analyze on the query
 Execution plan and cost of plan
 Missing indexes
 Partition pruning
 Statement timeout
statement_timeout = 3600000 (1 hour, in milliseconds)
 Checking if we are bottleneck on RAM,CPU

16. Temporary file limit issue
 Temporary file limit issue due to bad joins in query
 How work_mem related ?
SELECT temp_files "Number of temporary files” ,
temp_bytes "Size of temporary files”
FROM pg_stat_database psd;
Memory
2MB work_mem = 1MB

17. Temporary file limit issue …
 temp_file_limit = -1 (default) – No Limit
limit on per-session usage of temporary files for sorts, hashes, and
similar operations
Can be set to 20GB / 10 % of Disk space available whichever is less.

18. OOM Error
ERROR: out of memory
DETAIL: Failed on request of size
Postgres
Call
malloc( )
Kernel
Responds
NULL
OS level memory hit limit

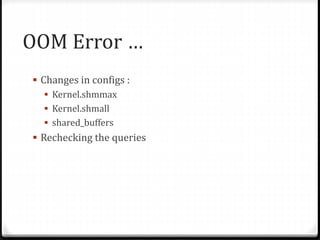

19. OOM Error …
 Changes in configs :
 Kernel.shmmax
 Kernel.shmall
 shared_buffers
 Rechecking the queries

20. Replication related issues

21. FATAL: requested WAL segment
00000002000032A80000002B has already been removed
 Calculate numbers of files created each 16MB in size
 Calculate network speed
 Disk space available at master
 Set wal_keep_segments

22. FATAL: could not send data to WAL stream: server closed
the connection unexpectedly
 Transient issue
 Issue with NIC , TOR

23. xlog filling the disk due to failure of archive_command
 Running out of space in pg_xlog
 Loss of recovery related benefits
 Slave getting out of sync

24. Few other issues with
replication …
 PANIC: WAL contains references to invalid pages
 FATAL: could not open file "pg_xlog/00000006.history”
 FATAL: hot standby is not possible because max_connections =
100 is a lower setting than on the master server (its value was
500)
 FATAL: base backup could not send data, aborting backup

25. Partitions

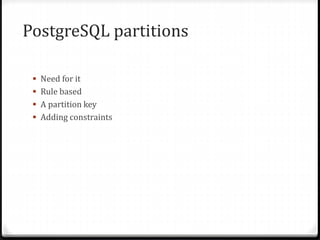

26. PostgreSQL partitions
 Need for it
 Rule based
 A partition key
 Adding constraints

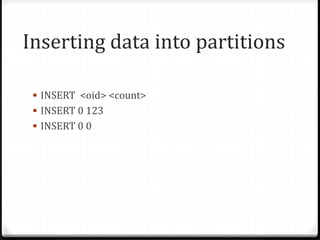

27. Inserting data into partitions
 INSERT <oid> <count>
 INSERT 0 123
 INSERT 0 0

28. too many partitions and max_locks_per_transaction issue
 max_locks_per_transaction = 64 (default)
 Check on locks
 Look at query plans

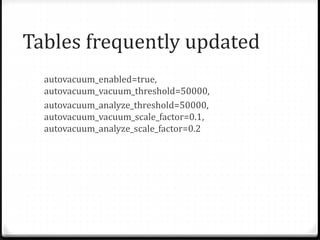

29. Tables frequently updated
autovacuum_enabled=true,
autovacuum_vacuum_threshold=50000,
autovacuum_analyze_threshold=50000,
autovacuum_vacuum_scale_factor=0.1,
autovacuum_analyze_scale_factor=0.2

30. Tablespace creation on
master and slave
 Addition of more disks
 Tablespace creation on master and slaves

31. Reading blocks and pages
 Data corrupted
 Index corrupted
 Recreate indexes
ERROR: could not read block xxx of relation base/xxx/xxx: I/O error
ERROR: could not read block xxx in file "base/xxx/xxx"
PANIC: _bt_restore_page: cannot add item to page

32. Cache Lookup
 Cache lookup failure for index during pg_dump
 Data corrupted

33. Secure TCP/IP Connections
with SSH Tunnels
 ssh -L 3333:foo.com:5432 joe@foo.com
 ssh –C -L 3333:foo.com:5432 joe@foo.com
 psql -h localhost -p 3333 postgres
 pg_basebackup -D /data-dir/ -p 3333 -U
replicationuser -h localhost -v

34. Socket connection issue
 umount -f and mount the disks - causing all socket
connections to fail
