The document discusses SQL Server 2014's in-memory OLTP feature. It begins by explaining the need for an in-memory architecture due to hardware trends. It then covers how the in-memory tables store and access data via optimized structures and algorithms. Native compiled stored procedures are also discussed. The benefits are high performance for hot datasets that fit entirely in memory, while limitations include unsupported data types and inability to partially store tables.

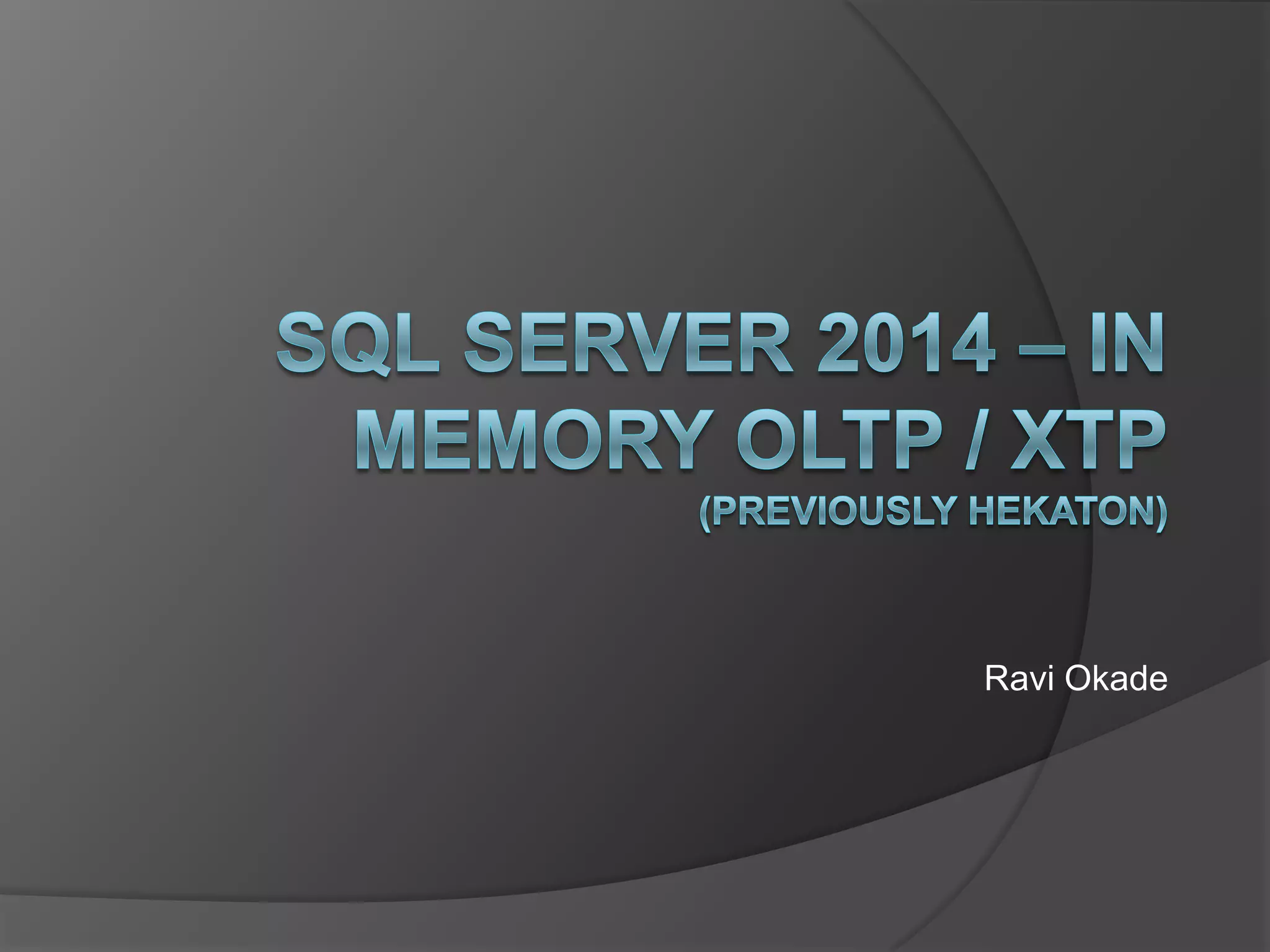

1. Ravi Okade

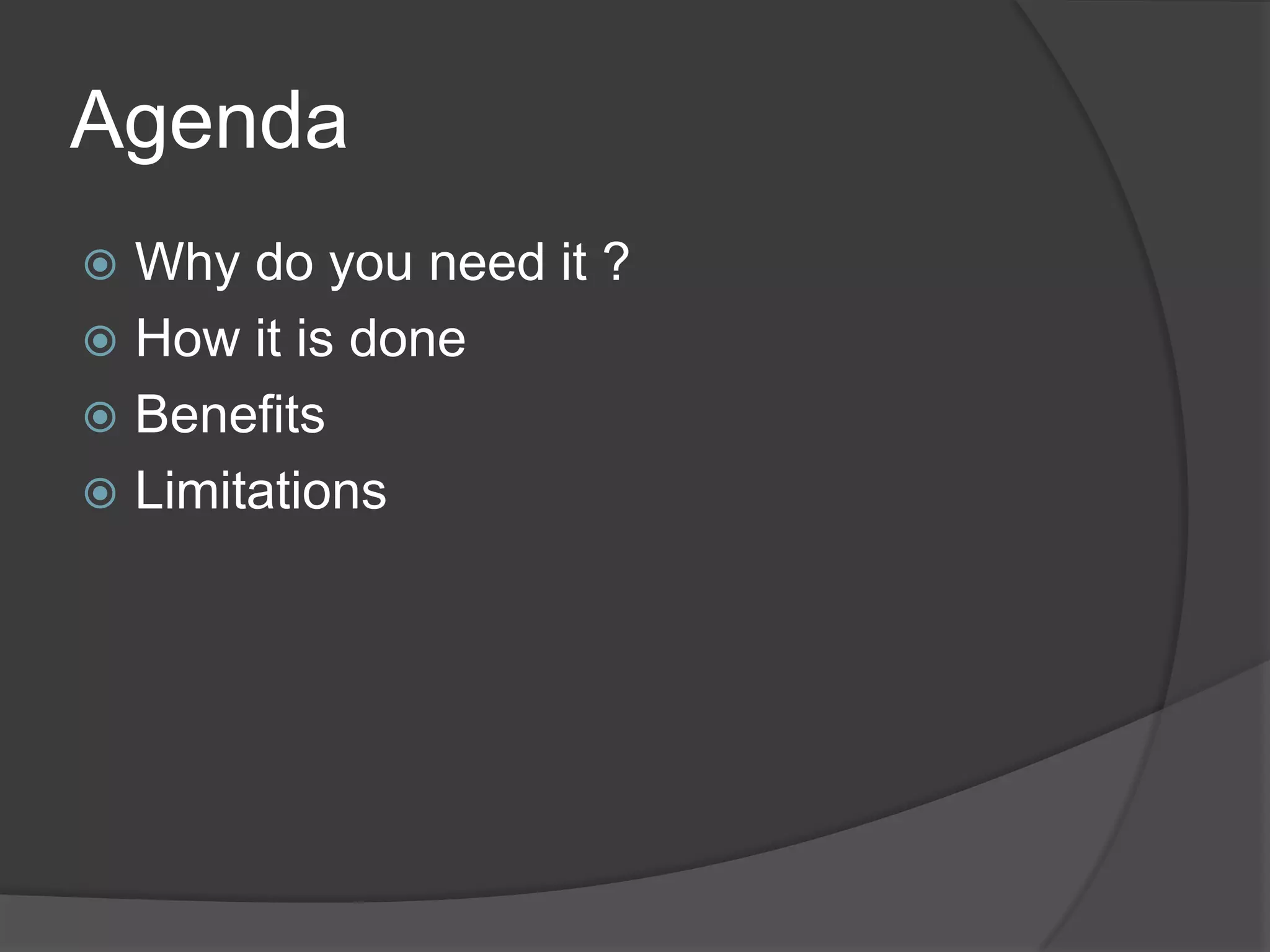

2. Agenda
 Why do you need it ?
 How it is done
 Benefits
 Limitations

3. Why do you need a new
architecture ?
 In-Memory
 Memory is cheap
 Servers have HUGE memory
 Some data is hot
 Traditional page based architecture has
limitations, even when all pages are in memory
 Native Compilation, Lock-less architecture
 Individual cores are not getting any faster
 While number of cores is increasing, Parallel
processing has its limits due to lock contention
 You cannot scale linearly by adding more cores

4. Comparable Products and
Technologies
 Similar Products
 Oracle TimesTen
 Sybase ASE
 Other technologies with some similarities
 Distributed Cache
○ Oracle Coherence is one of many distributed
cache’s that support query language (CQL). It can
also persist to Oracle. Another example with
similar capabilities is Gigaspaces
 NoSQL Databases
○ Most NoSQL databases support distributed
querying and aggressively cache data (e.g.
MongoDB)

5. What it all means..

6. Use Cases
 Hot tables – frequent inserts and
updates, but queried heavily e.g:
 Stock Trading applications
 Patient Vital Stats
 Flight information (live)
 Transient data e.g.:
 Web Session data
 Stock Market data
 Need for High speed OLTP queries

7. In-memory Architecture
 Main Concepts
 In-memory
 Lock free (row versions)
 Native compiled stored procedures
 Data storage optimizations
 Memory optimized data structures
 Transaction log optimization (block writes, no undo)
 Data file Optimization (Sequential writes, Merging)
 Index optimization (Only in-memory, Not persisted to
disk, no tx logging)
 No TempDB
 Garbage collection optimization (huh?)
 Non-durable option (Not persisted to disk)

8. In Memory – Myths and
Realities
 Myth: In-Memory OLTP is the same as
DBCC PINTABLE
 Reality: In-Memory OLTP uses a completely
new design built from the ground up.
 Myth: If SQL Server crashes all data is
lost
 Reality: No – it is persisted to disk and is
fully recoverable.

9. SQL Server 2014 In-Memory
Architecture
SQL Server Integration
• Same manageability,
administration & development
experience
• Integrated queries &
transactions
• Integrated HA and
backup/restore
Main-Memory Optimized
• Optimized for in-memory data
• Indexes (hash and range) exist
only in memory
• No buffer pool, B-trees
• Stream-based storage
T-SQL Compiled to Machine
Code
• T-SQL compiled to machine
code via C code generator and
VC
• Invoking a procedure is just a
DLL entry-point
• Aggressive optimizations @
compile-time
High Concurrency
• Multi-version optimistic
concurrency control with full
ACID support
• Core engine uses lock-free
algorithms
• No lock manager, latches or
spinlocks

10. In-Memory integration with SQL
Server

11. Memory Management
 Table data resides in memory at all
times.
 No paging.
 Must configure SQL box with sufficient memory to store
memory-optimized tables. Max supported 512GB
 Failure to allocate memory will fail transactional workload at
run-time

12. In-Memory Data Structures
 Rows
 New row format
○ Structure of the row is optimized for in-memory
residency and access.
 One copy of row
○ Indexes point to rows, they do not duplicate them.
 Indexes
 Hash Index for equality search
 memory-optimized B-tree for range and equality
search (In CTP2)
 Do not exist on disk – recreated during recovery.

13. In Memory – Table DDL: Need
filestream filegroup
FILEGROUP [Hekaton_DB_hk_fs_fg]
CONTAINS MEMORY_OPTIMIZED_DATA
(NAME = [Hekaton_DB_hk_fs_dir],
FILENAME =
'C:Hekaton_testsqlservrdataHekaton_DB_hk_fs_dir')

15. Table creation internals
CREATE TABLE DDL
Code generation and
compilation
Table DLL produced
Table DLL loaded

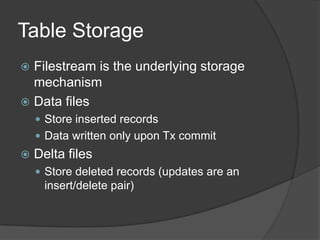

16. Table Storage
 Filestream is the underlying storage
mechanism
 Data files
 Store inserted records
 Data written only upon Tx commit
 Delta files
 Store deleted records (updates are an
insert/delete pair)

17. Transaction Logging
 Uses SQL transaction log to store
content
 All logging is logical
 No log records for physical structure
modifications.
 No index-specific / index-maintenance log
records.
 No UNDO information is logged

18. Native Compiled Stored
Procedures
 Compiled to C language and compiled
into a dll using VC
 Optimized aggressively at compile time
 Can only access In-memory tables
 Not all T-SQL constructs and functions
supported
 No alter procedure – must drop and
recreate

19. Procedure Creation
CREATE PROC DDL
Query optimization
Code generation and compilation
Procedure DLL produced
Procedure DLL loaded

21. Using Row Versions for Lock
free architecture
 SQL Server 2014 In Memory DB has no
locks (period).
 Row versions are used to maintain
updates
 No TempDB
 Row Versions which are no longer
referenced are garbage collected.
 Supports Snapshot, Repeatable Read
and Serializable Isolation levels

22. Transaction Isolation Levels
 SNAPSHOT
 Reads are consistent as of start of the transaction
 Writes are always consistent
 REPEATABLE READ
 Read operations yield same row versions if
repeated at commit time
 SERIALIZABLE
 Transaction is executed as if there are no
concurrent transactions – all actions happen at a
single serialization point (commit time)

23. Garbage Collection

24. Benefits
 Uses Commodity Hardware
 Works seamlessly with current SQL Server objects
 Yes, it is still ACID compliant
 Yes, you can mix in-memory and disk based tables in
the same database
 Yes, your transactions can span in-memory and disk
based tables
 No, you cannot have partial in-memory tables
 Yes, it has to fit in-memory 100%, forever.
 Yes, you can limit how much memory is used by the
in-memory tables (think resource pools) (not in
CTP1)
 Yes, you can have high availability

25. Limitations
 Row Sizes can’t be larger than 8060 bytes (incl.
Variable Length Columns)
 LOB, XML Data Types are not supported
 No Foreign Key and Check Constraints
 No IDENTITY, SEQUENCE
 No DML Triggers
 No ALTER Table (Need to recreate table)
 No Add/Remove Index (Need to recreate table)
 No diff backups
 Indexes are rebuilt (consider startup time)
 Disk files are merged while being loaded
 Running out of memory

26. CTP1 Limitations
 No B-Tree index (used for range search)
 No Resource Pools
 No always on

27. Demo
 Performance against disk based table
 Performance with native sproc
 Number of Tx records written disk vs
memory
 Northwind example
 [TBD] Dealing with transactions
 [TBD] Performance of T-SQL/Interop
sprocs with In memory tables
 [TBD] Disk files and merging ?
 [TBD] Backup, Tx log backup; no diff
backups

28. More information
 Tech-ed SQL Server 2014 Videos
 Microsoft SQL Server In-Memory OLTP: Overview of Project “Hekaton”
 Microsoft SQL Server In-Memory OLTP Project “Hekaton”: App Dev Deep Dive
 Microsoft SQL Server In-Memory OLTP Project “Hekaton”: Management Deep Dive
 Microsoft SQL Server 2014 In-Memory OLTP: Overview
 SQL Server In-Memory OLTP: DB Developer Deep Dive
 SQL Server In-Memory OLTP: DBA Deep Dive
 SIGMOD 2013 article by Microsoft
 Hekaton Whitepaper by Kalen Delaney
 High-Performance Concurrency Control Mechanisms for Main-Memory
Databases, Microsoft Research
 SQL Server 2014 - MSDN Online Documentation
 Blog articles by Bob Beauchemin
 Getting Started with SQL Server 2014 In-Memory OLTP (SQL Server
Team blog)
 Additional links
 Oracle TimesTen FAQs
 SQL Server In Memory Set up and Demos (My Blog)
