Delivering traditional File Server Workloads in a
secure manner to modern devices
Kenny Buntinx, Tim De Keukelaere

2. @KennyBuntinx
http://be.linkedin.com/KennyBuntinx
http://scug.be/blogs/sccm

3. @Tim_DK
http://be.linkedin.com/in/timdekeukelaere/
http://scug.be/tim/

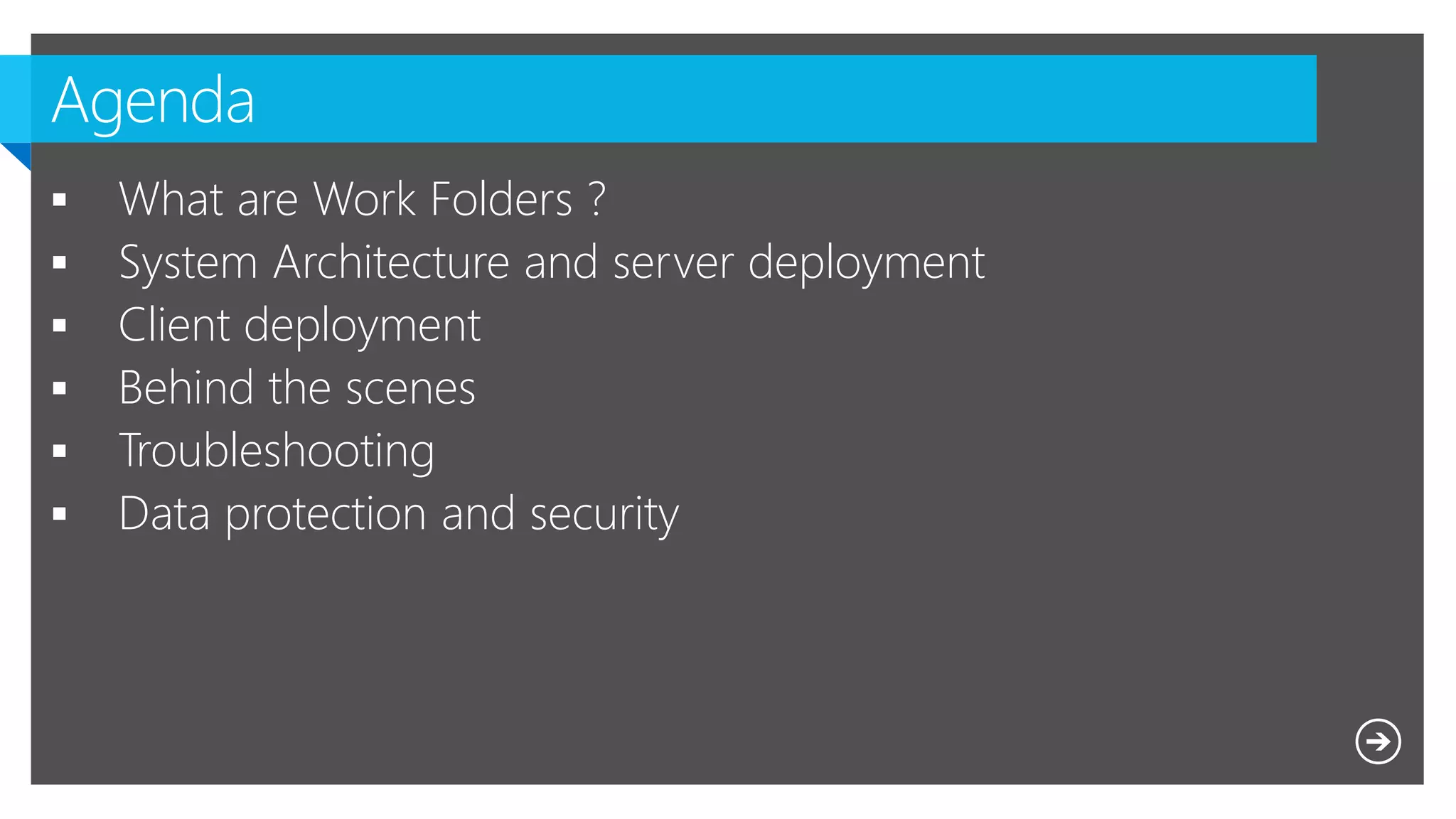

4. Microsoft NDA Confidential
 What are Work Folders ?
 System Architecture and server deployment
 Client deployment
 Behind the scenes
 Troubleshooting
 Data protection and security

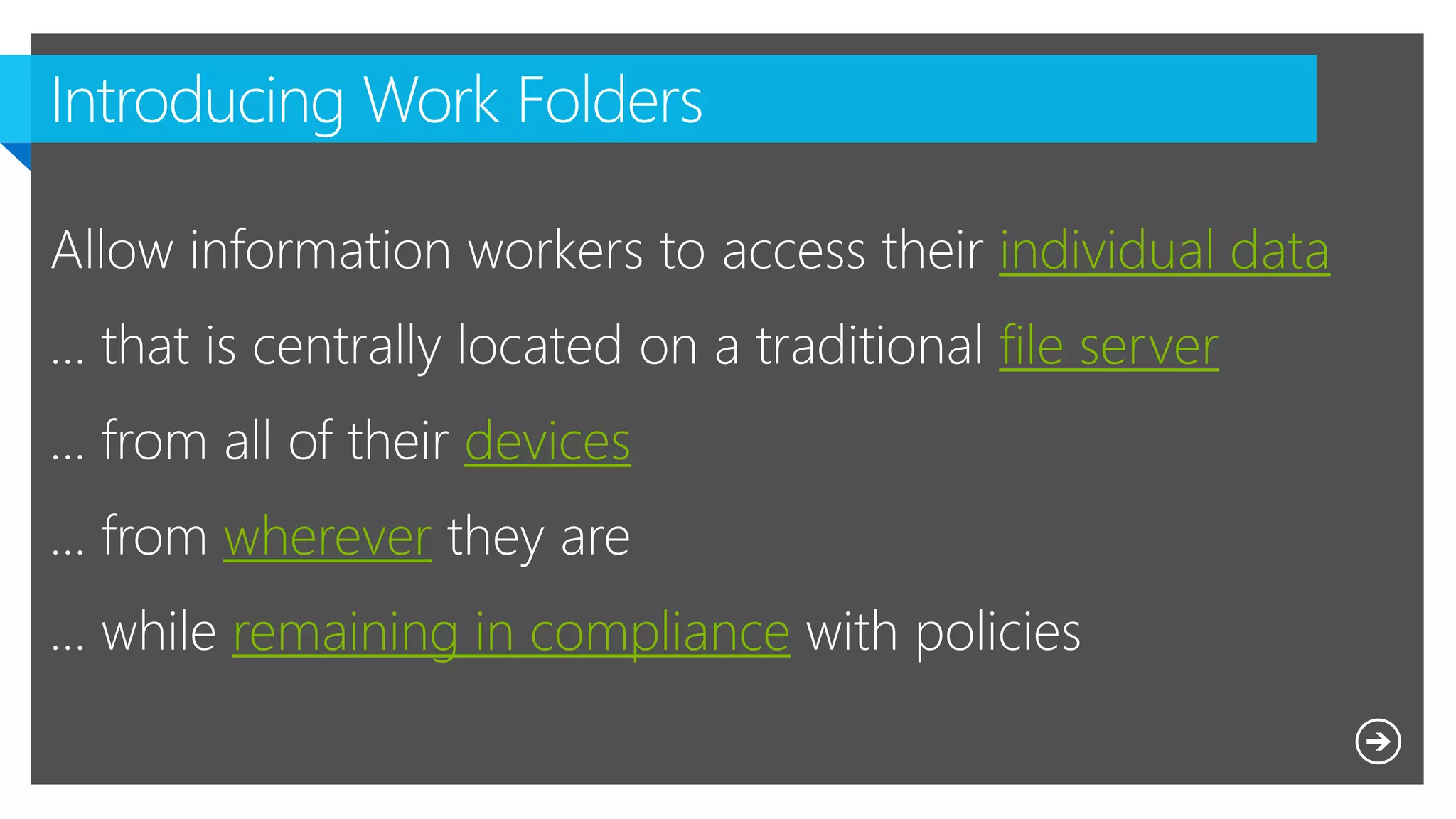

8. individual data
file server
devices
wherever
remaining in compliance

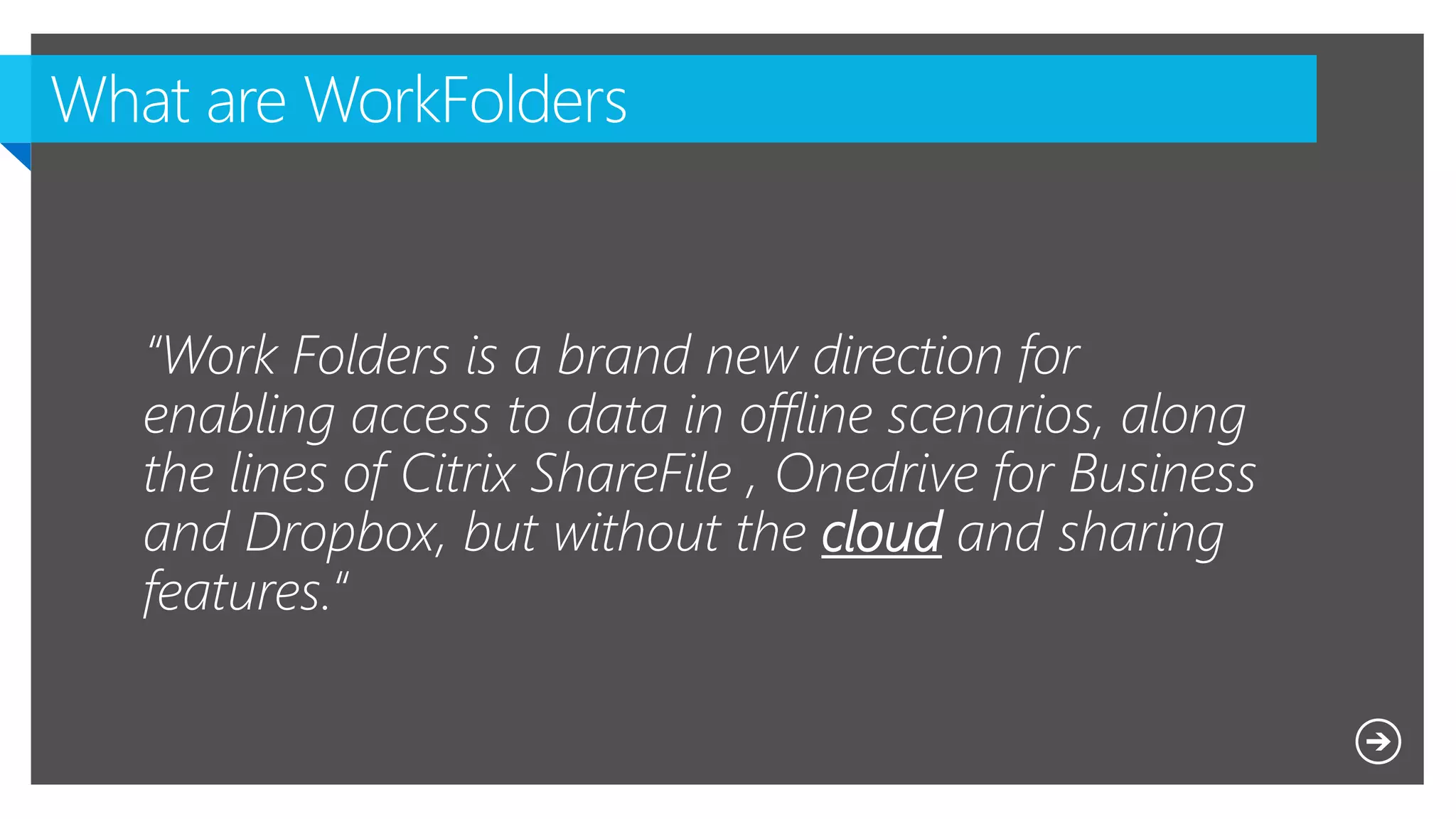

9. “Work Folders is a brand new direction for
enabling access to data in offline scenarios, along
the lines of Citrix ShareFile , Onedrive for Business
and Dropbox, but without the cloud and sharing
features.“

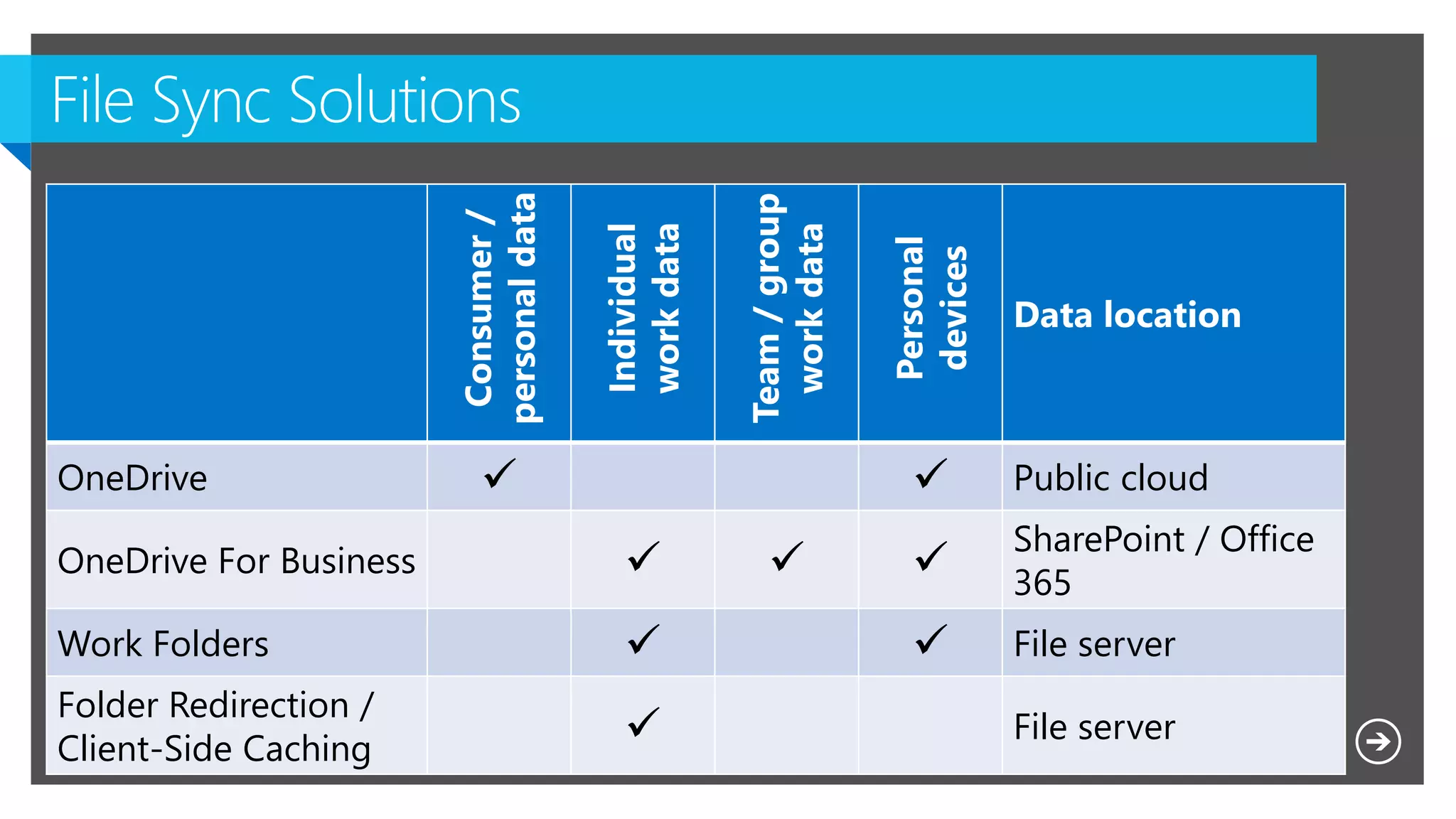

10. Consumer/
personaldata
Individual
workdata
Team/group
workdata
Personal
devices
Data location
OneDrive   Public cloud
OneDrive For Business   
SharePoint / Office
365
Work Folders   File server
Folder Redirection /
Client-Side Caching  File server

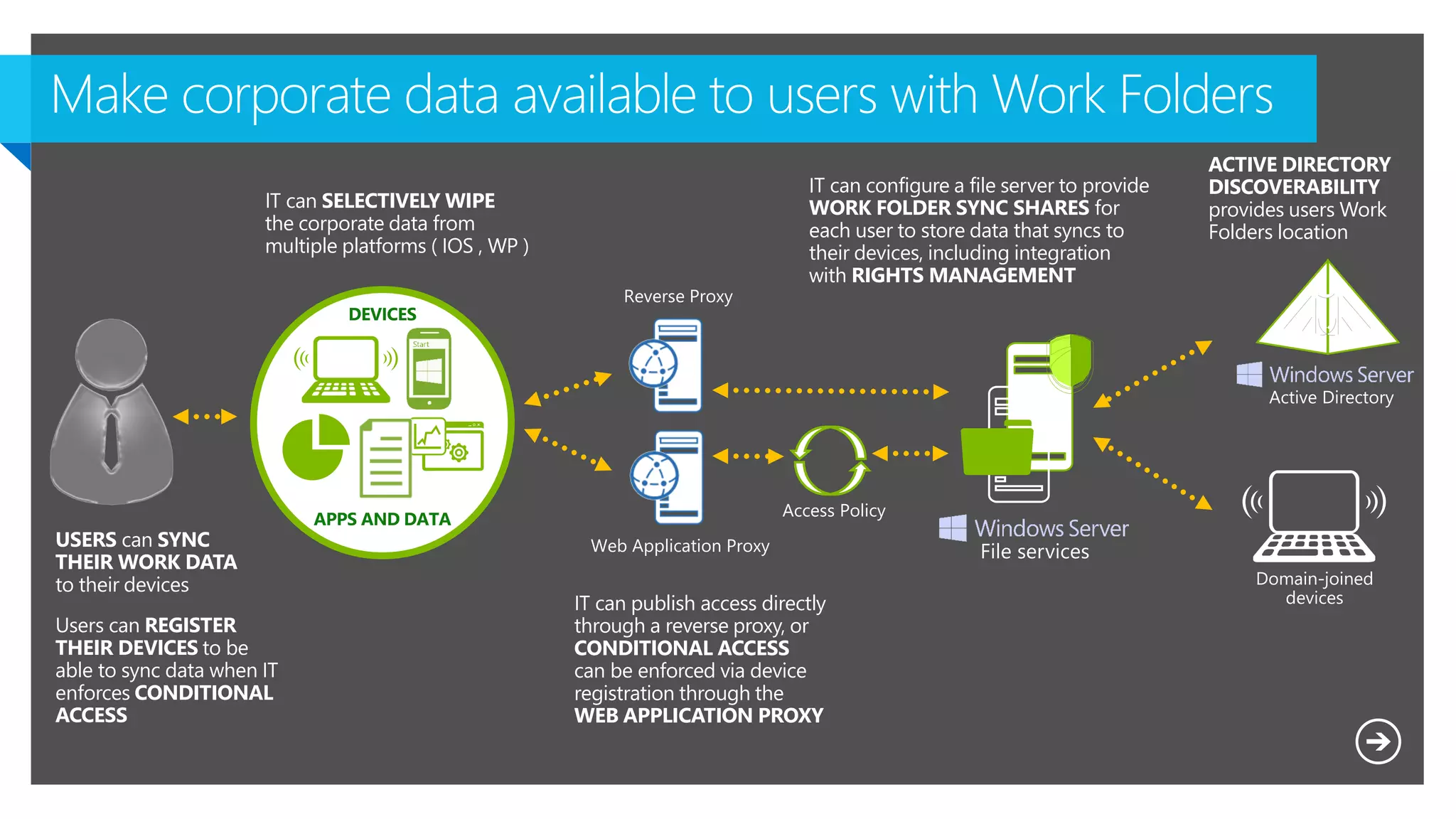

11. USERS can SYNC
THEIR WORK DATA
to their devices
Users can REGISTER
THEIR DEVICES to be
able to sync data when IT
enforces CONDITIONAL
ACCESS
IT can publish access directly
through a reverse proxy, or
CONDITIONAL ACCESS
can be enforced via device
registration through the
WEB APPLICATION PROXY
IT can configure a file server to provide
WORK FOLDER SYNC SHARES for
each user to store data that syncs to
their devices, including integration
with RIGHTS MANAGEMENT
IT can SELECTIVELY WIPE
the corporate data from
multiple platforms ( IOS , WP )
ACTIVE DIRECTORY
DISCOVERABILITY
provides users Work
Folders location

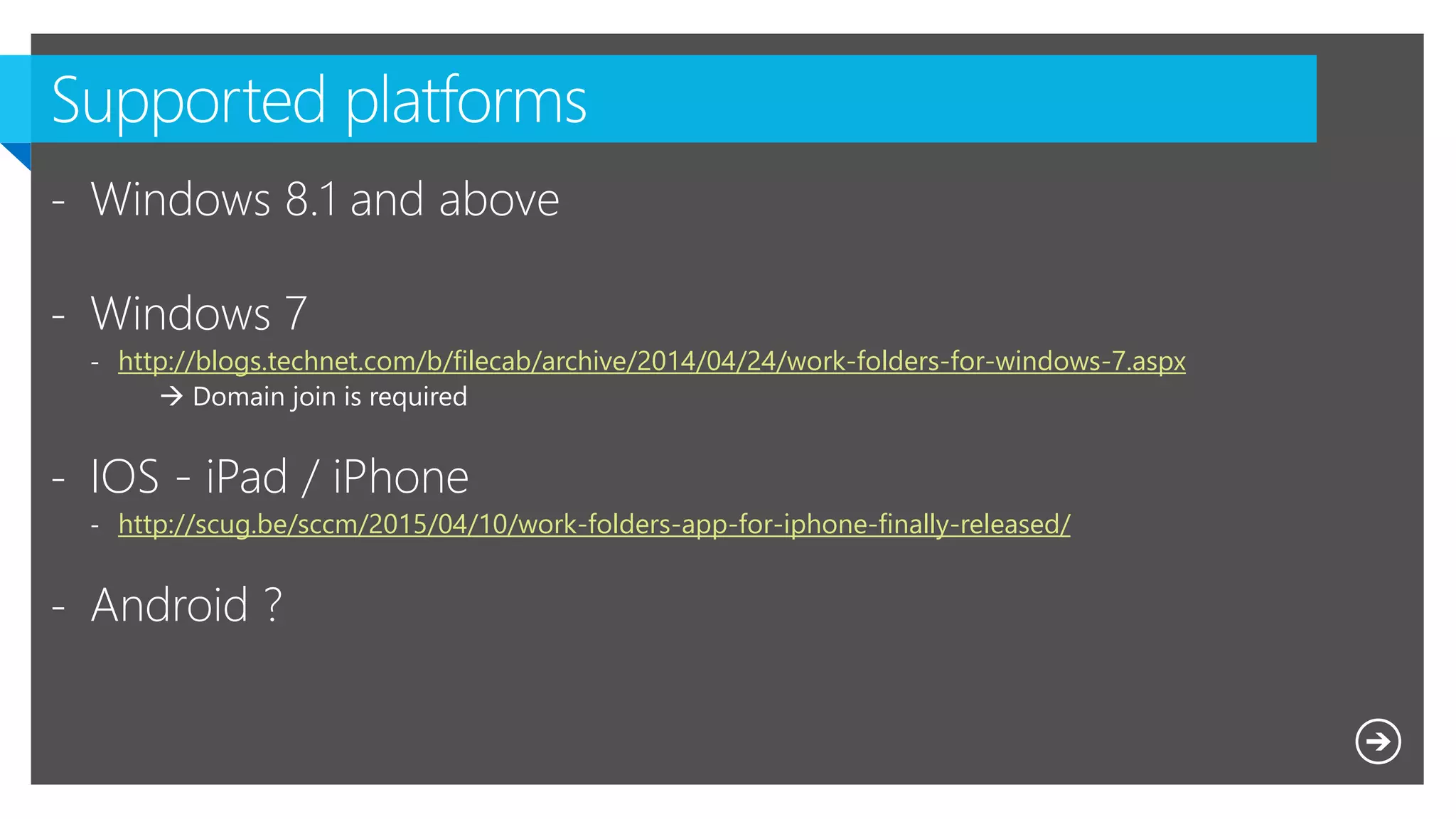

12. - Windows 8.1 and above
- Windows 7
- http://blogs.technet.com/b/filecab/archive/2014/04/24/work-folders-for-windows-7.aspx
 Domain join is required
- IOS - iPad / iPhone
- http://scug.be/sccm/2015/04/10/work-folders-app-for-iphone-finally-released/
- Android ?

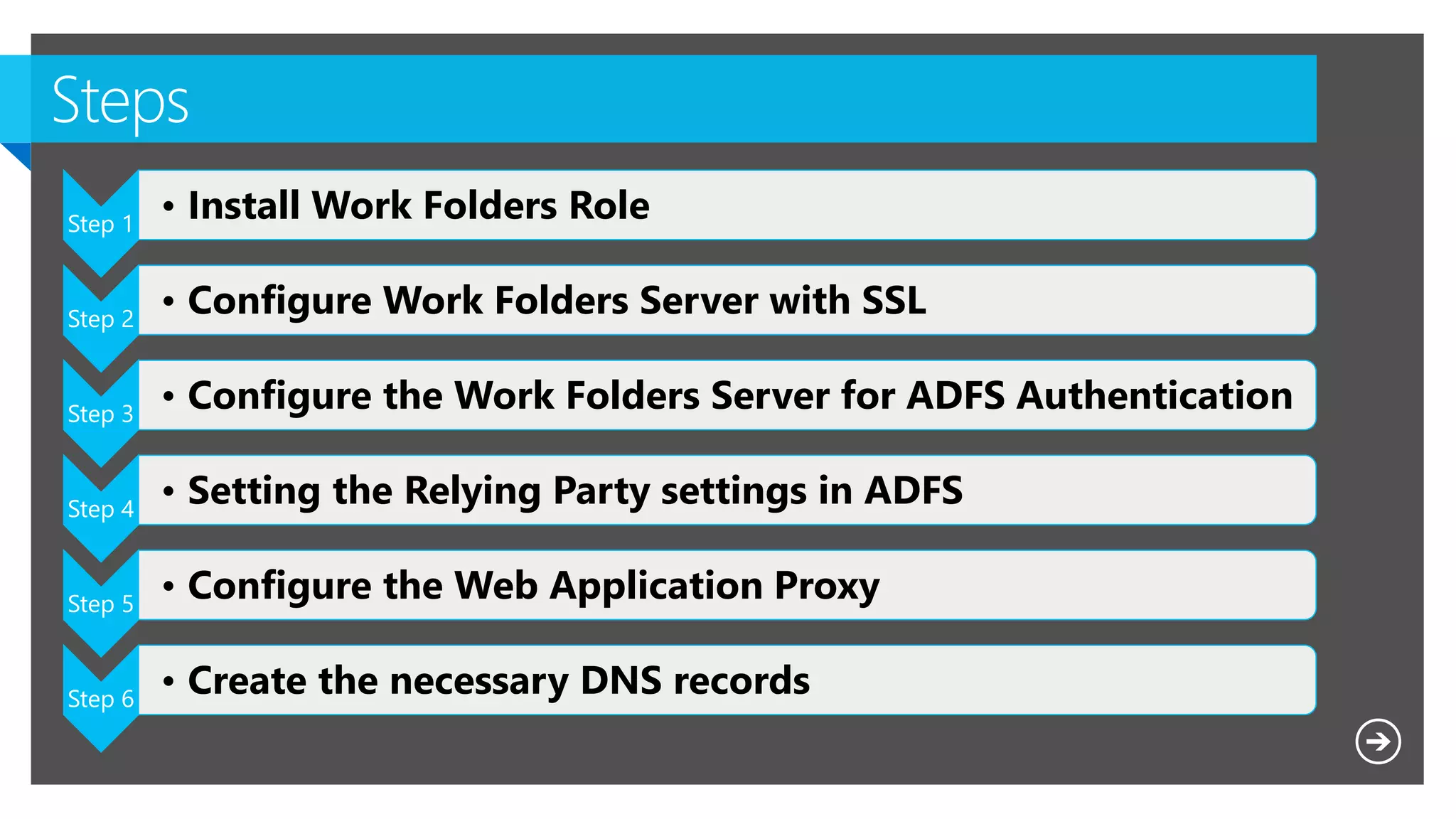

14. Step 1
• Install Work Folders Role
Step 2
• Configure Work Folders Server with SSL
Step 3
• Configure the Work Folders Server for ADFS Authentication
Step 4
• Setting the Relying Party settings in ADFS
Step 5
• Configure the Web Application Proxy
Step 6
• Create the necessary DNS records

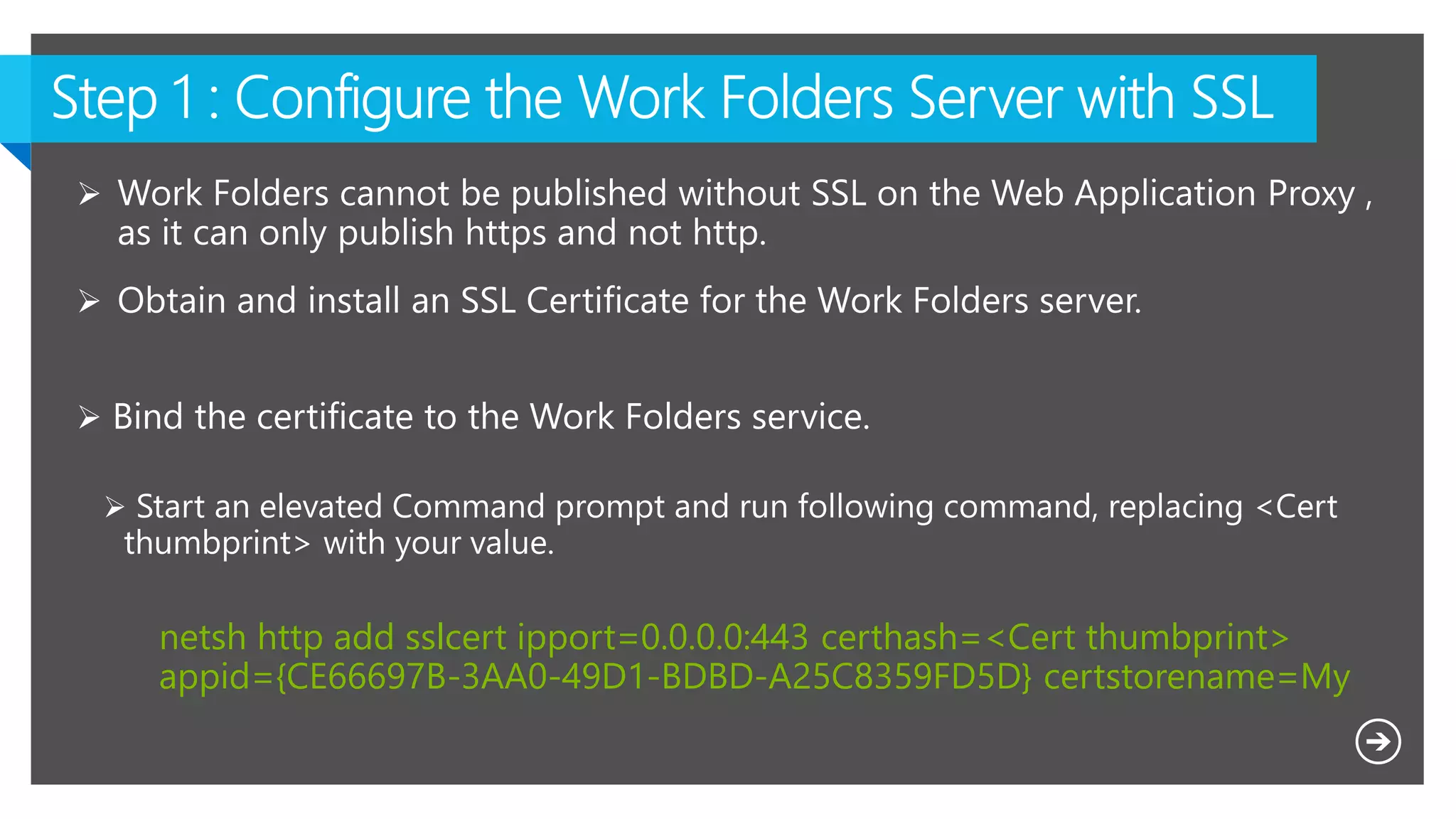

15. netsh http add sslcert ipport=0.0.0.0:443 certhash=<Cert thumbprint>
appid={CE66697B-3AA0-49D1-BDBD-A25C8359FD5D} certstorename=My

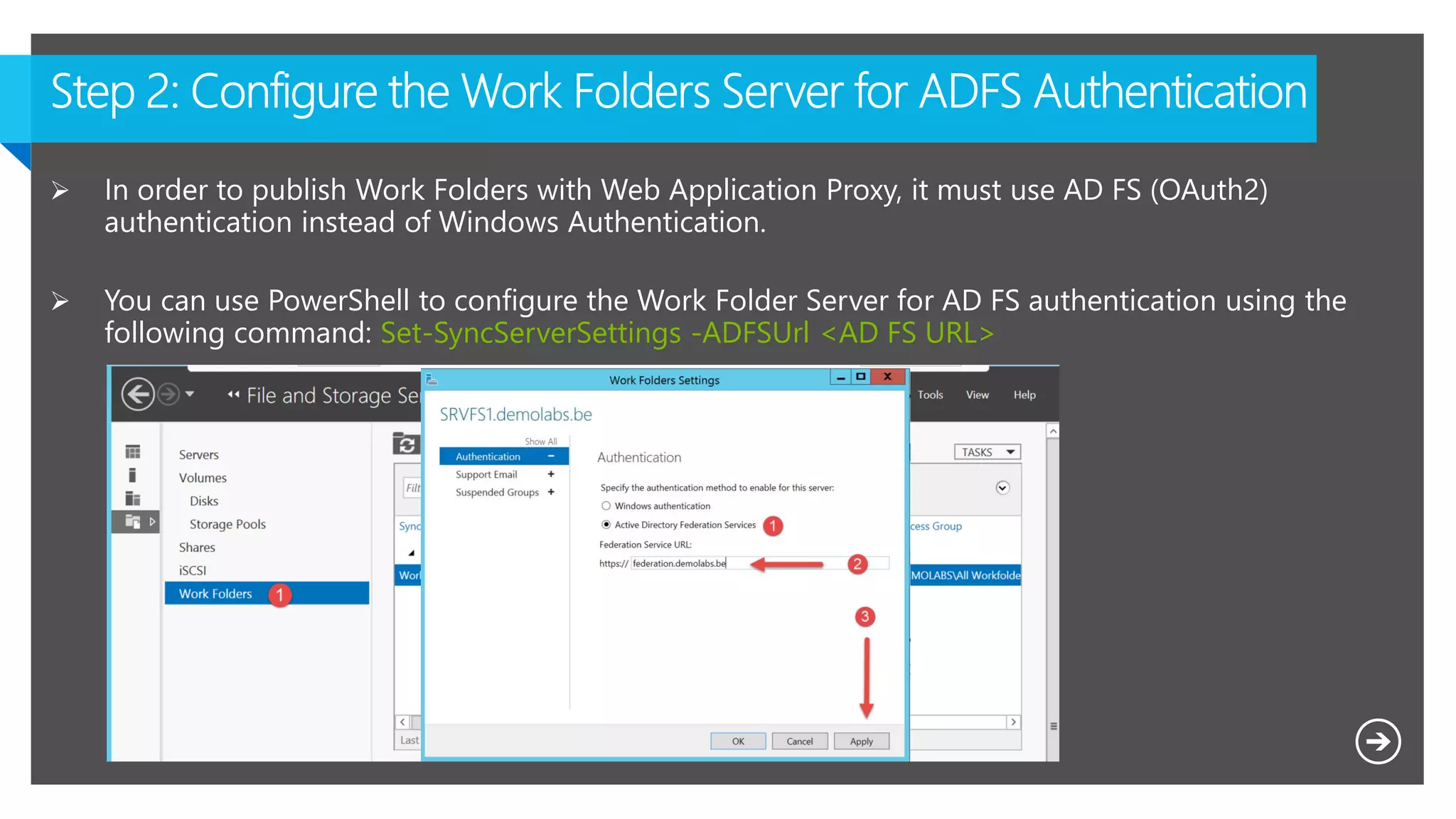

16.  In order to publish Work Folders with Web Application Proxy, it must use AD FS (OAuth2)
authentication instead of Windows Authentication.
 You can use PowerShell to configure the Work Folder Server for AD FS authentication using the
following command: Set-SyncServerSettings -ADFSUrl <AD FS URL>

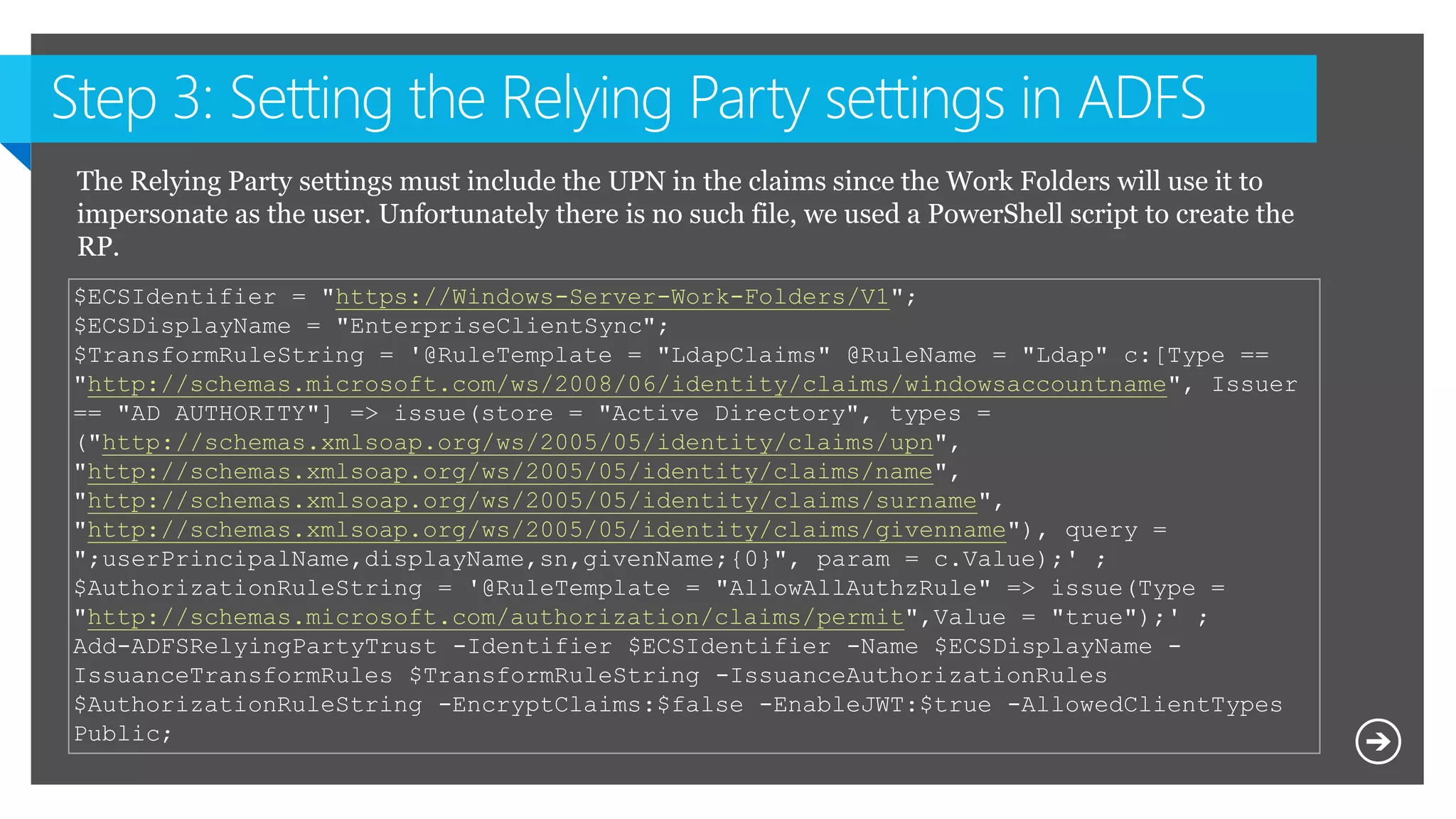

17. $ECSIdentifier = "https://Windows-Server-Work-Folders/V1";
$ECSDisplayName = "EnterpriseClientSync";
$TransformRuleString = '@RuleTemplate = "LdapClaims" @RuleName = "Ldap" c:[Type ==
"http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname", Issuer
== "AD AUTHORITY"] => issue(store = "Active Directory", types =
("http://schemas.xmlsoap.org/ws/2005/05/identity/claims/upn",
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name",
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname",
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname"), query =
";userPrincipalName,displayName,sn,givenName;{0}", param = c.Value);' ;
$AuthorizationRuleString = '@RuleTemplate = "AllowAllAuthzRule" => issue(Type =
"http://schemas.microsoft.com/authorization/claims/permit",Value = "true");' ;
Add-ADFSRelyingPartyTrust -Identifier $ECSIdentifier -Name $ECSDisplayName -
IssuanceTransformRules $TransformRuleString -IssuanceAuthorizationRules
$AuthorizationRuleString -EncryptClaims:$false -EnableJWT:$true -AllowedClientTypes
Public;
The Relying Party settings must include the UPN in the claims since the Work Folders will use it to
impersonate as the user. Unfortunately there is no such file, we used a PowerShell script to create the
RP.

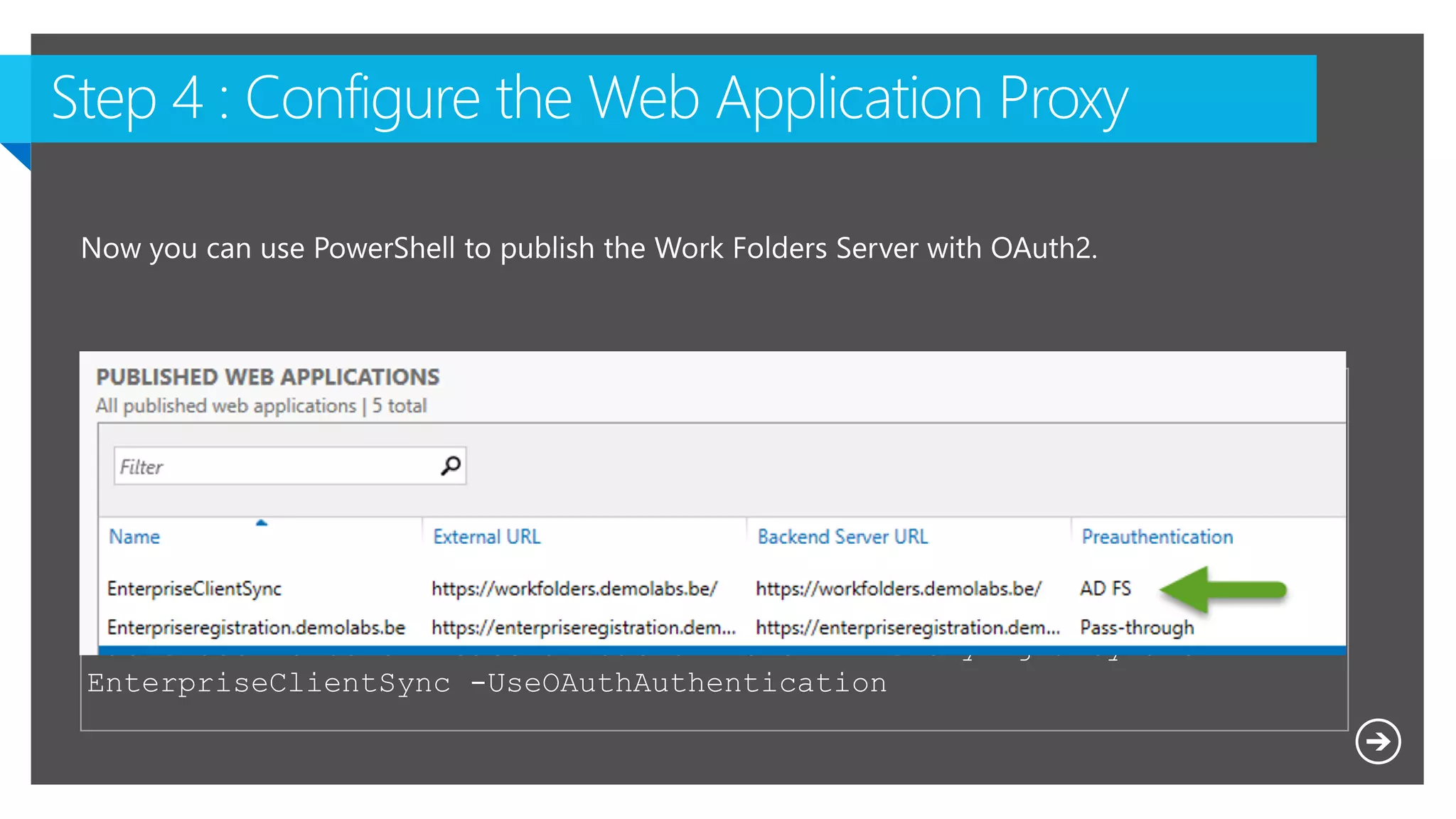

18. $WAPAppName = "EnterpriseClientSync"
$ExternalURL = "https://Workfolders.demolabs.be/"
$BackEndServerURL = "https://Workfolders.demolabs.be/"
Add-WebApplicationProxyApplication -Name $WAPAppName -ExternalURL
$ExternalURL -ExternalCertificateThumbprint $cert.Thumbprint -
BackendServerUrl $BackEndServerURL -ExternalPreauthentication ADFS -
ClientCertificateAuthenticationBindingMode None -
BackendServerCertificateValidation None -ADFSRelyingPartyName
EnterpriseClientSync -UseOAuthAuthentication

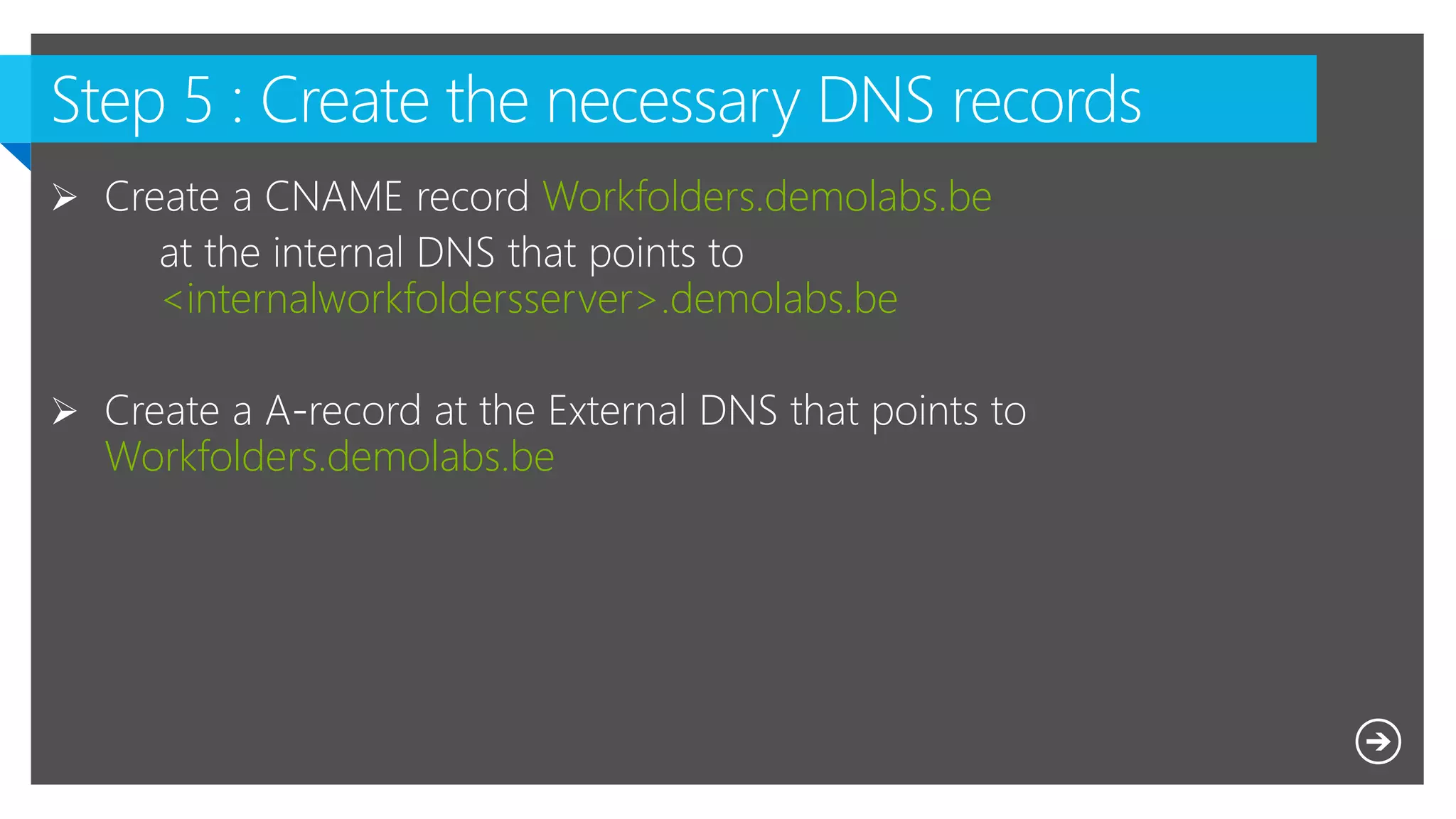

19. Workfolders.demolabs.be
<internalworkfoldersserver>.demolabs.be
Workfolders.demolabs.be

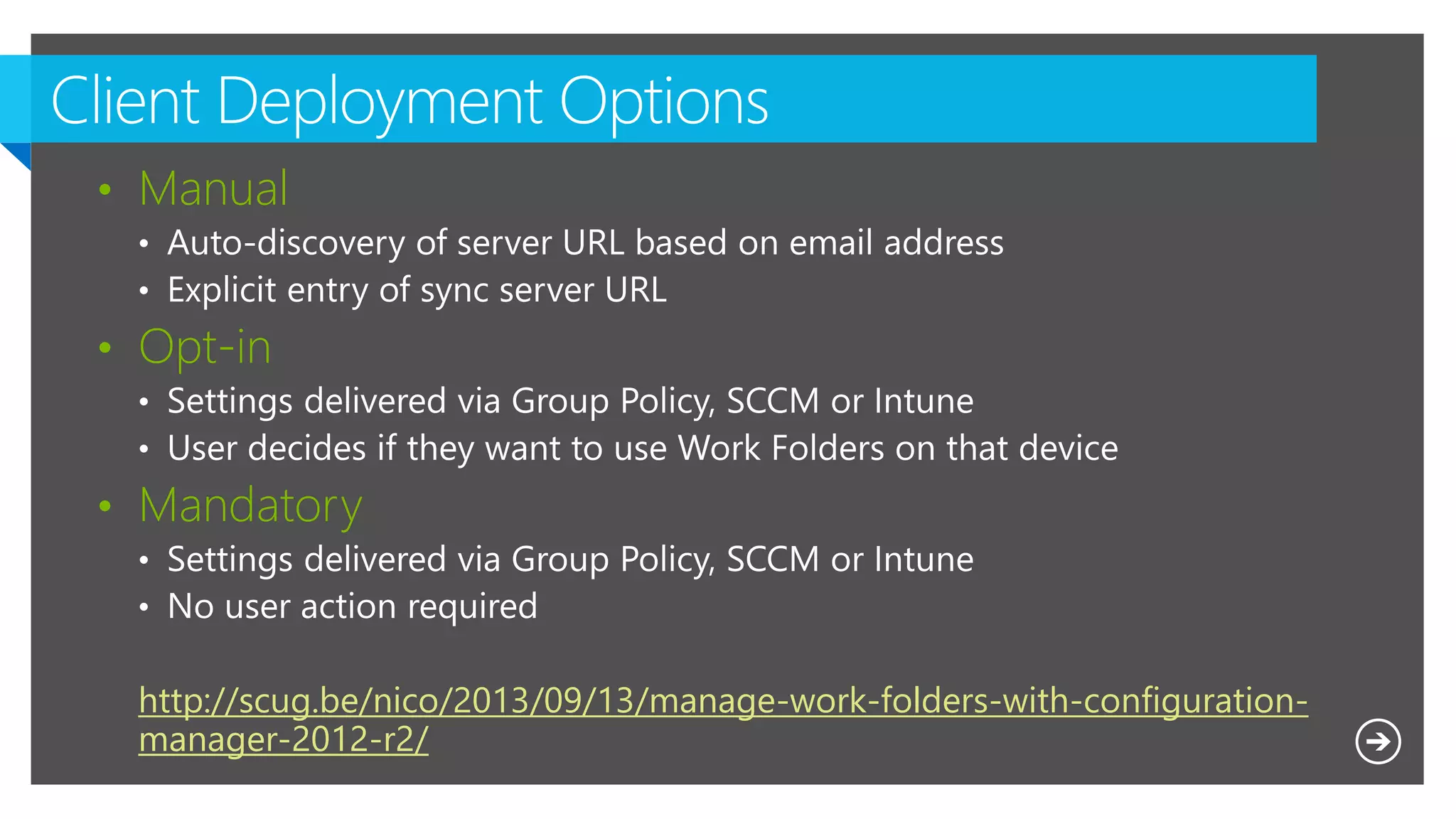

22. • Manual
• Opt-in
• Mandatory
http://scug.be/nico/2013/09/13/manage-work-folders-with-configuration-
manager-2012-r2/

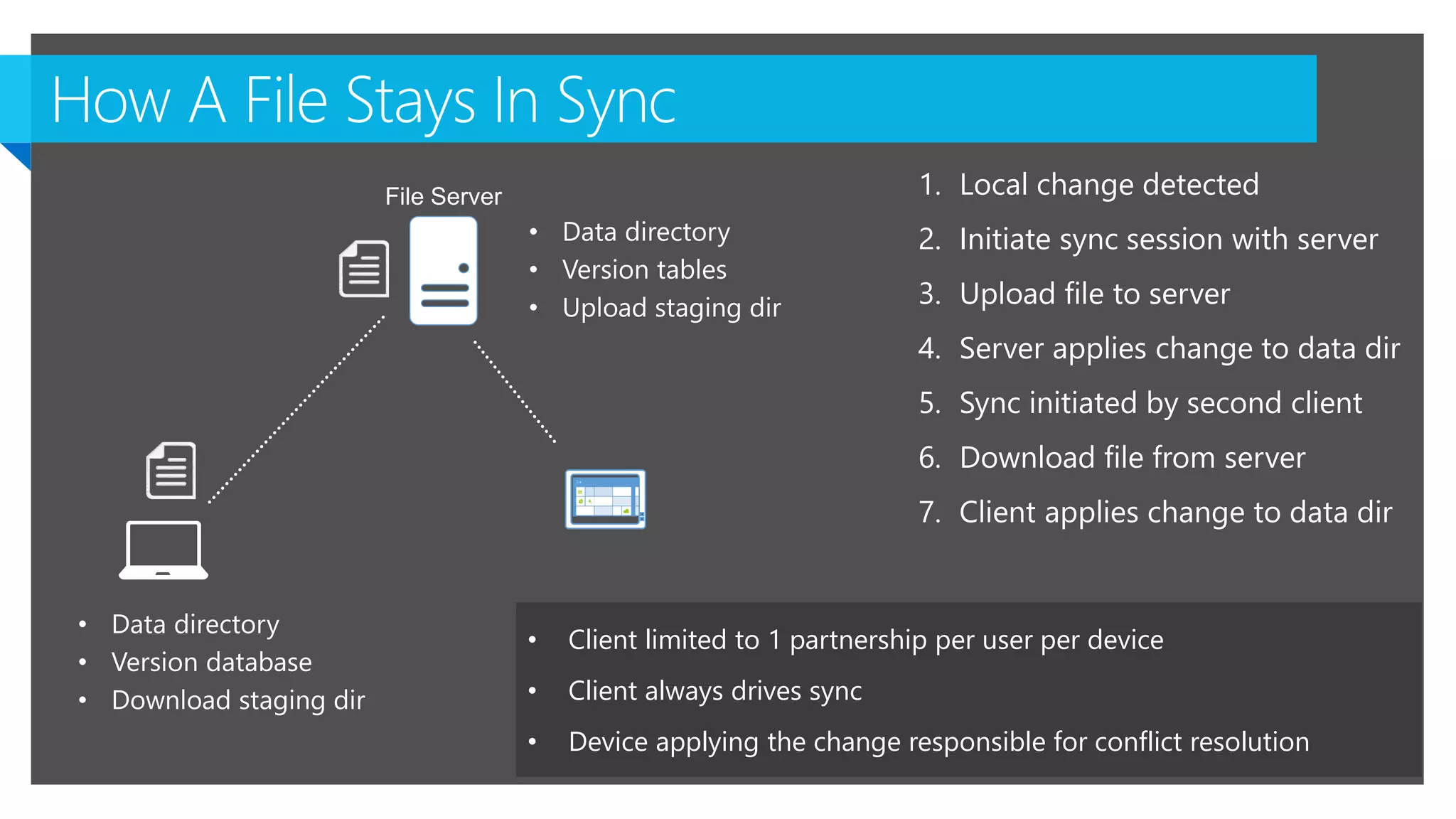

23. 1. Local change detected
2. Initiate sync session with server
3. Upload file to server
4. Server applies change to data dir
5. Sync initiated by second client
6. Download file from server
7. Client applies change to data dir
• Client limited to 1 partnership per user per device
• Client always drives sync
• Device applying the change responsible for conflict resolution

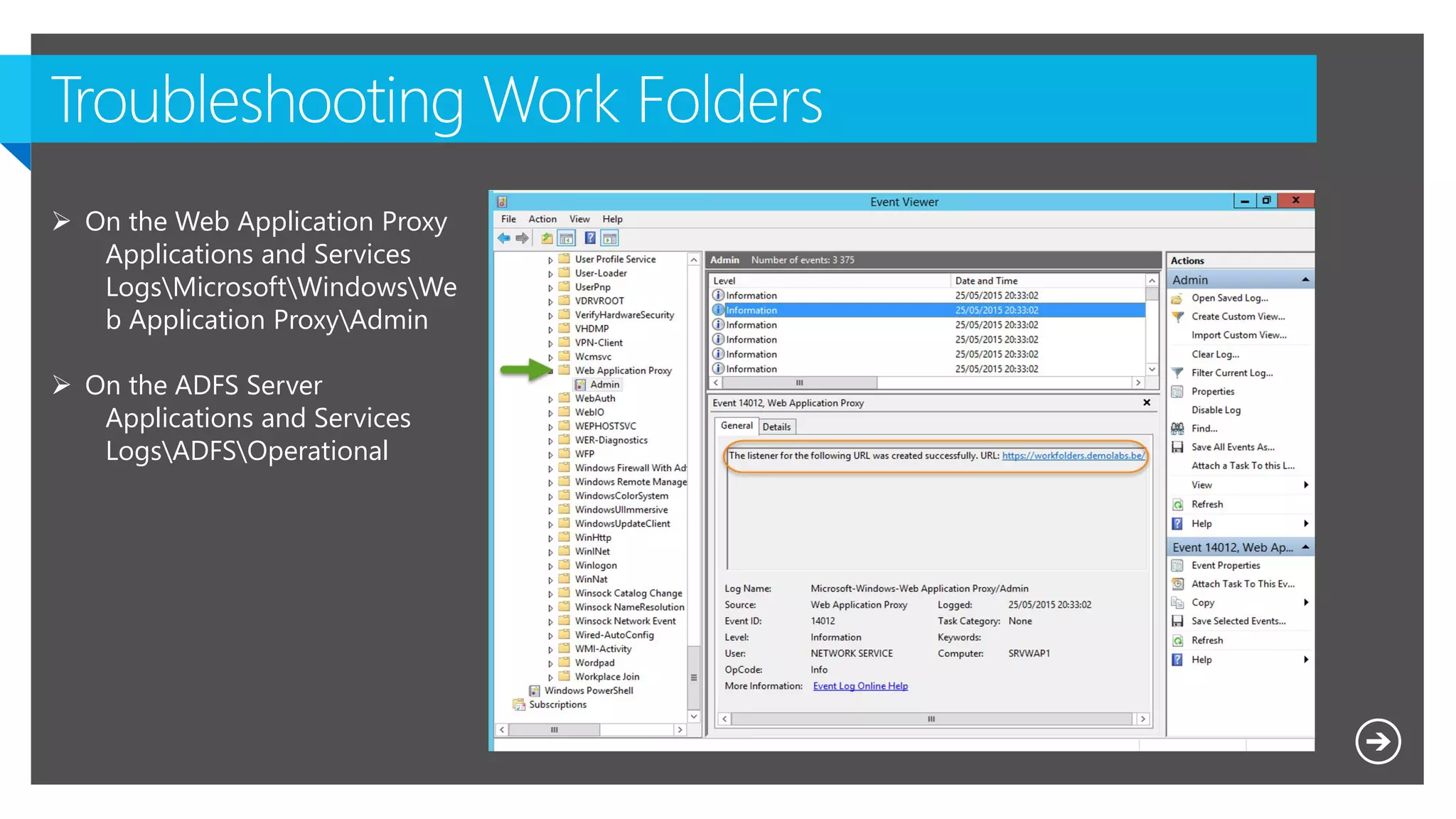

25.  On the Web Application Proxy
Applications and Services
LogsMicrosoftWindowsWe
b Application ProxyAdmin
 On the ADFS Server
Applications and Services
LogsADFSOperational

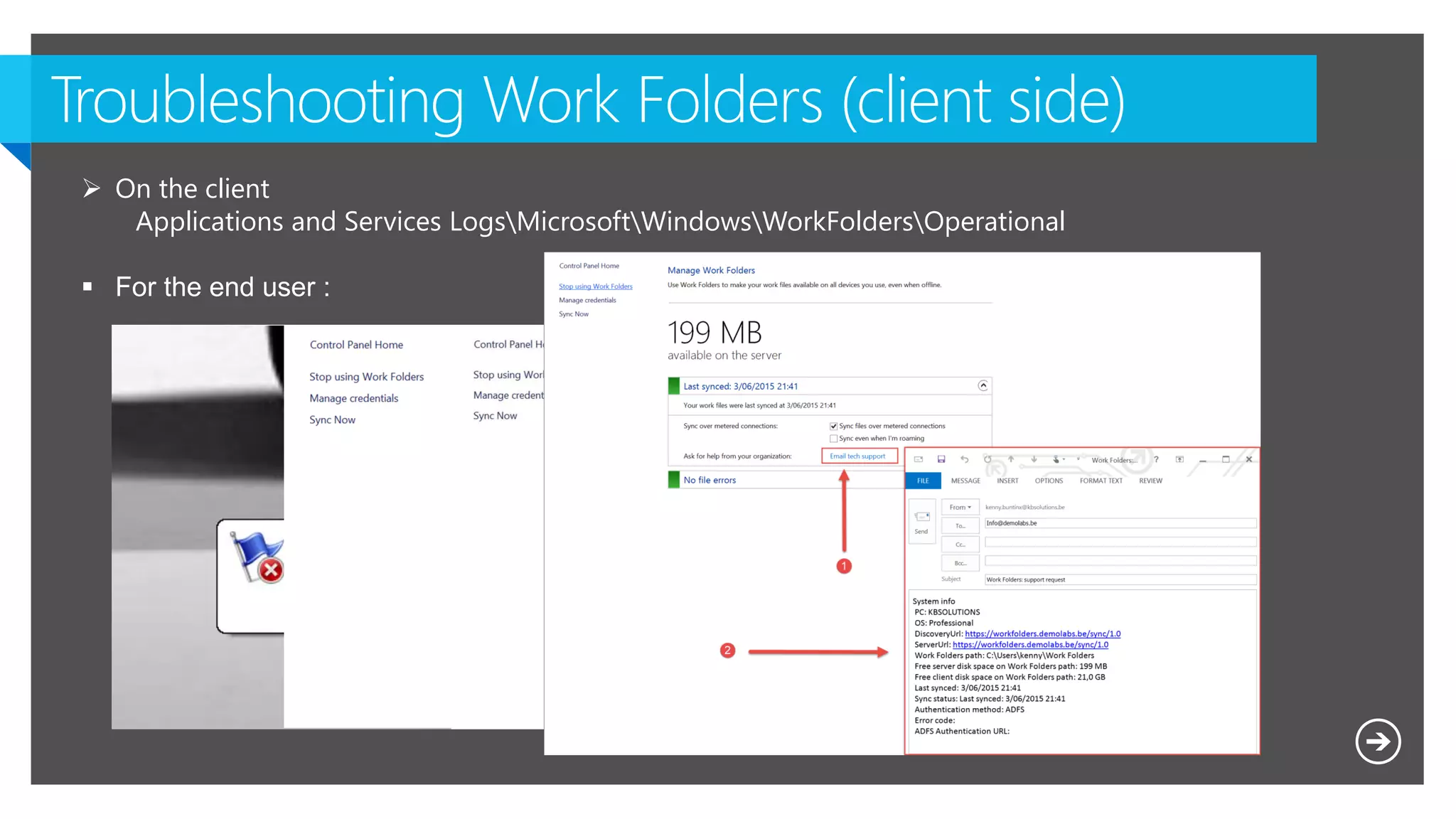

26.  On the client
Applications and Services LogsMicrosoftWindowsWorkFoldersOperational
 For the end user :
