Presented for: Sun-N-Fun 2012 By: Scott R. Landorf A/W FAASTeam Program Manager, Great Lakes Region Date: March27, 2012 Federal Aviation AdministrationSport Aviation Safety FAA Safety Team

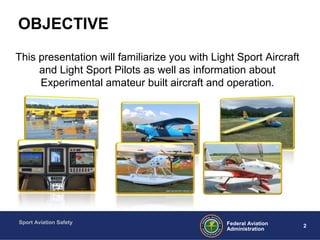

Sport Aviation Safety 2Federal Aviation Administration OBJECTIVE This presentation will familiarize you with Light Sport Aircraft and Light Sport Pilots as well as information about Experimental amateur built aircraft and operation.

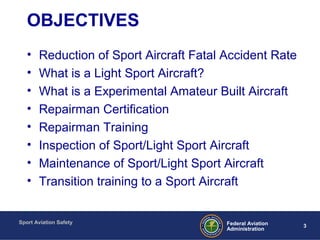

Sport Aviation Safety 3Federal Aviation Administration OBJECTIVES • Reduction of Sport Aircraft Fatal Accident Rate • What is a Light Sport Aircraft? • What is a Experimental Amateur Built Aircraft • Repairman Certification • Repairman Training • Inspection of Sport/Light Sport Aircraft • Maintenance of Sport/Light Sport Aircraft • Transition training to a Sport Aircraft

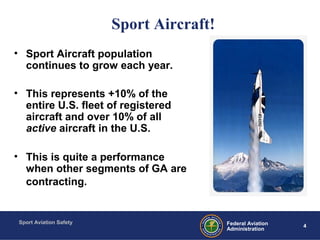

Sport Aviation Safety 4Federal Aviation Administration Sport Aircraft! • Sport Aircraft population continues to grow each year. • This represents +10% of the entire U.S. fleet of registered aircraft and over 10% of all active aircraft in the U.S. • This is quite a performance when other segments of GA are contracting.

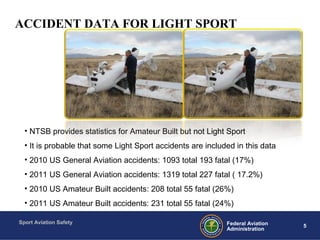

Sport Aviation Safety 5Federal Aviation Administration • NTSB provides statistics for Amateur Built but not Light Sport • It is probable that some Light Sport accidents are included in this data • 2010 US General Aviation accidents: 1093 total 193 fatal (17%) • 2011 US General Aviation accidents: 1319 total 227 fatal ( 17.2%) • 2010 US Amateur Built accidents: 208 total 55 fatal (26%) • 2011 US Amateur Built accidents: 231 total 55 fatal (24%) ACCIDENT DATA FOR LIGHT SPORT

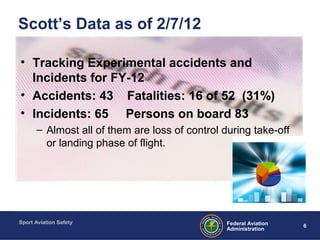

Sport Aviation Safety 6Federal Aviation Administration Scott’s Data as of 2/7/12 • Tracking Experimental accidents and Incidents for FY-12 • Accidents: 43 Fatalities: 16 of 52 (31%) • Incidents: 65 Persons on board 83 – Almost all of them are loss of control during take-off or landing phase of flight.

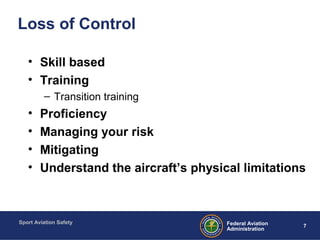

Sport Aviation Safety 7Federal Aviation Administration Loss of Control • Skill based • Training – Transition training • Proficiency • Managing your risk • Mitigating • Understand the aircraft’s physical limitations

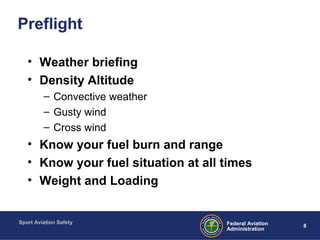

Sport Aviation Safety 8Federal Aviation Administration Preflight • Weather briefing • Density Altitude – Convective weather – Gusty wind – Cross wind • Know your fuel burn and range • Know your fuel situation at all times • Weight and Loading

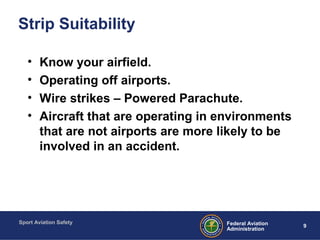

Sport Aviation Safety 9Federal Aviation Administration Strip Suitability • Know your airfield. • Operating off airports. • Wire strikes – Powered Parachute. • Aircraft that are operating in environments that are not airports are more likely to be involved in an accident.

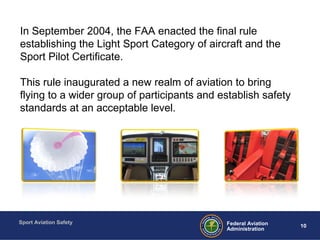

Sport Aviation Safety 10Federal Aviation Administration SPORT PILOT OVERVIEWIn September 2004, the FAA enacted the final rule establishing the Light Sport Category of aircraft and the Sport Pilot Certificate. This rule inaugurated a new realm of aviation to bring flying to a wider group of participants and establish safety standards at an acceptable level.

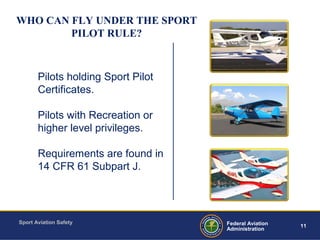

Sport Aviation Safety 11Federal Aviation Administration WHO CAN FLY UNDER THE SPORT PILOT RULE? Pilots holding Sport Pilot Certificates. Pilots with Recreation or higher level privileges. Requirements are found in 14 CFR 61 Subpart J.

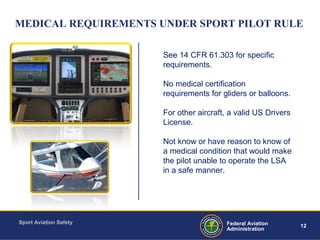

Sport Aviation Safety 12Federal Aviation Administration MEDICAL REQUIREMENTS UNDER SPORT PILOT RULE See 14 CFR 61.303 for specific requirements. No medical certification requirements for gliders or balloons. For other aircraft, a valid US Drivers License. Not know or have reason to know of a medical condition that would make the pilot unable to operate the LSA in a safe manner.

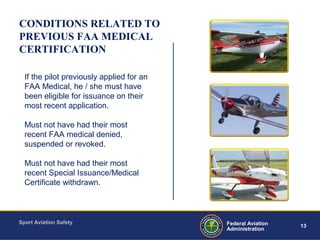

Sport Aviation Safety 13Federal Aviation Administration CONDITIONS RELATED TO PREVIOUS FAA MEDICAL CERTIFICATION If the pilot previously applied for an FAA Medical, he / she must have been eligible for issuance on their most recent application. Must not have had their most recent FAA medical denied, suspended or revoked. Must not have had their most recent Special Issuance/Medical Certificate withdrawn.

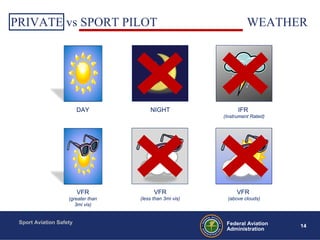

Sport Aviation Safety 14Federal Aviation Administration DAY NIGHT IFR (Instrument Rated) PRIVATE vs SPORT PILOT LIMITATIONS: WEATHER VFR (less than 3mi vis) VFR (above clouds) VFR (greater than 3mi vis)

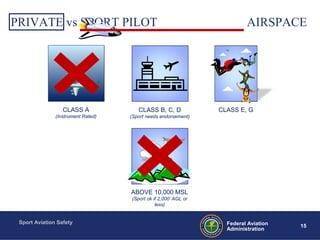

Sport Aviation Safety 15Federal Aviation Administration PRIVATE vs SPORT PILOT LIMITATIONS: AIRSPACE CLASS A (Instrument Rated) CLASS B, C, D (Sport needs endorsement) ABOVE 10,000 MSL (Sport ok if 2,000’ AGL or less) CLASS E, G
Sport Aviation Safety 16Federal Aviation Administration SPORT PILOT LIMITATIONS: TYPE OF FLIGHTS CHARITABLE SALES DEMOS Watch This! CROSS COUNTRY PASSENG ERS (Sport: only ONE) BUSINES S TOWING (UL or LSA glider)
Sport Aviation Safety 17Federal Aviation Administration

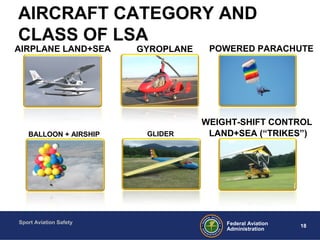

Sport Aviation Safety 18Federal Aviation Administration AIRCRAFT CATEGORY AND CLASS OF LSA AIRPLANE LAND+SEA WEIGHT-SHIFT CONTROL LAND+SEA (“TRIKES”) GYROPLANE POWERED PARACHUTE GLIDERBALLOON + AIRSHIP

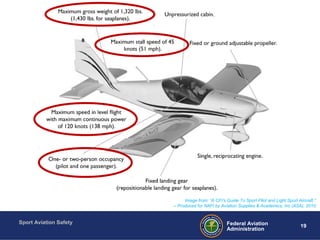

Sport Aviation Safety 19Federal Aviation Administration Image from: “A CFI’s Guide To Sport Pilot and Light Sport Aircraft.” – Produced for NAFI by Aviation Supplies & Academics, Inc (ASA), 2010.

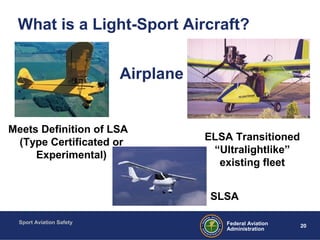

Sport Aviation Safety 20Federal Aviation Administration Airplane What is a Light-Sport Aircraft? ELSA Transitioned “Ultralightlike” existing fleet SLSA Meets Definition of LSA (Type Certificated or Experimental)

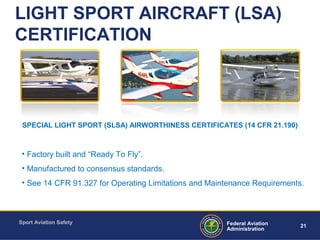

Sport Aviation Safety 21Federal Aviation Administration LIGHT SPORT AIRCRAFT (LSA) CERTIFICATION • Factory built and “Ready To Fly”. • Manufactured to consensus standards. • See 14 CFR 91.327 for Operating Limitations and Maintenance Requirements. SPECIAL LIGHT SPORT (SLSA) AIRWORTHINESS CERTIFICATES (14 CFR 21.190)

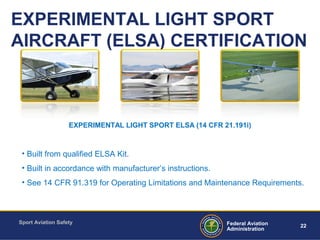

Sport Aviation Safety 22Federal Aviation Administration EXPERIMENTAL LIGHT SPORT AIRCRAFT (ELSA) CERTIFICATION • Built from qualified ELSA Kit. • Built in accordance with manufacturer’s instructions. • See 14 CFR 91.319 for Operating Limitations and Maintenance Requirements. EXPERIMENTAL LIGHT SPORT ELSA (14 CFR 21.191i)

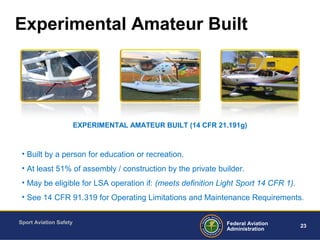

Sport Aviation Safety 23Federal Aviation Administration Experimental Amateur Built • Built by a person for education or recreation. • At least 51% of assembly / construction by the private builder. • May be eligible for LSA operation if: (meets definition Light Sport 14 CFR 1). • See 14 CFR 91.319 for Operating Limitations and Maintenance Requirements. EXPERIMENTAL AMATEUR BUILT (14 CFR 21.191g)

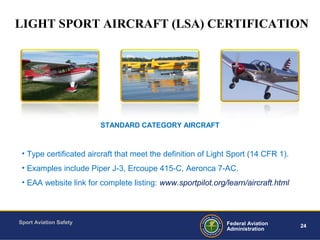

Sport Aviation Safety 24Federal Aviation Administration • Type certificated aircraft that meet the definition of Light Sport (14 CFR 1). • Examples include Piper J-3, Ercoupe 415-C, Aeronca 7-AC. • EAA website link for complete listing: www.sportpilot.org/learn/aircraft.html STANDARD CATEGORY AIRCRAFT LIGHT SPORT AIRCRAFT (LSA) CERTIFICATION

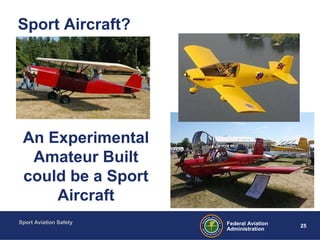

Sport Aviation Safety 25Federal Aviation Administration Sport Aircraft? An Experimental Amateur Built could be a Sport Aircraft

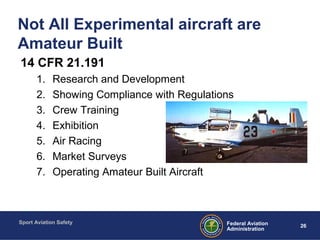

Sport Aviation Safety 26Federal Aviation Administration Not All Experimental aircraft are Amateur Built 14 CFR 21.191 1. Research and Development 2. Showing Compliance with Regulations 3. Crew Training 4. Exhibition 5. Air Racing 6. Market Surveys 7. Operating Amateur Built Aircraft
Sport Aviation Safety 27Federal Aviation Administration Part 103 Ultralight (powered/unpowered) • Hanglider • Paraglider • Training exemption holders • Multiengine aircraft • Powered lift • Helicopters • Complex aircraft • Retractable gear (except water operations or Glider) • Controllable pitch propeller What is NOT a Light-Sport Aircraft?
Sport Aviation Safety 28Federal Aviation Administration Light-sport Category Light-sport category—certificated as either:  Light-sport aircraft (LSA) [§21.190] or  For the experimental purpose of operating light-sport aircraft (ELSA) [§21.191(i)] Goal: To maintain an acceptable level of certitude for safety Design approval is self-attested, base on FAA-accepted consensus standards used by the manufacturer

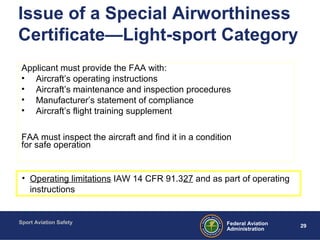

Sport Aviation Safety 29Federal Aviation Administration Issue of a Special Airworthiness Certificate—Light-sport Category Applicant must provide the FAA with: • Aircraft’s operating instructions • Aircraft’s maintenance and inspection procedures • Manufacturer’s statement of compliance • Aircraft’s flight training supplement FAA must inspect the aircraft and find it in a condition for safe operation • Operating limitations IAW 14 CFR 91.327 and as part of operating instructions

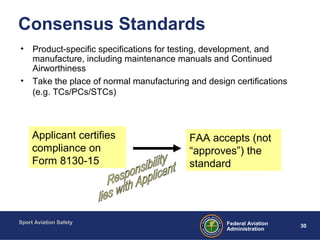

Sport Aviation Safety 30Federal Aviation Administration Consensus Standards • Product-specific specifications for testing, development, and manufacture, including maintenance manuals and Continued Airworthiness • Take the place of normal manufacturing and design certifications (e.g. TCs/PCs/STCs) Applicant certifies compliance on Form 8130-15 FAA accepts (not “approves”) the standard
Sport Aviation Safety 31Federal Aviation Administration What Is a Consensus Standard? A consensus standard is an industry-developed standard that applies to aircraft design, production, and airworthiness. It is accepted by the FAA for the purpose of certificating light-sport aircraft. It includes, but is not limited to, standards for aircraft design and performance, required equipment, manufacturer quality assurance systems, production acceptance test procedures, operating instructions, maintenance and inspection procedures, identification and recording of major repairs and major alterations, and continued airworthiness.

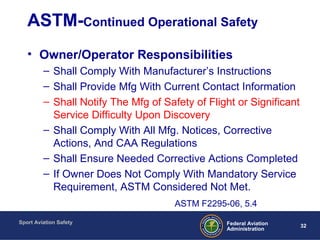

Sport Aviation Safety 32Federal Aviation Administration ASTM-Continued Operational Safety • Owner/Operator Responsibilities – Shall Comply With Manufacturer’s Instructions – Shall Provide Mfg With Current Contact Information – Shall Notify The Mfg of Safety of Flight or Significant Service Difficulty Upon Discovery – Shall Comply With All Mfg. Notices, Corrective Actions, And CAA Regulations – Shall Ensure Needed Corrective Actions Completed – If Owner Does Not Comply With Mandatory Service Requirement, ASTM Considered Not Met. ASTM F2295-06, 5.4

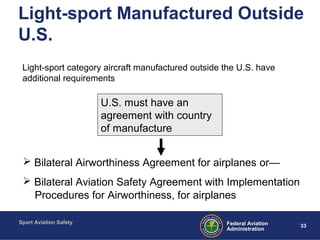

Sport Aviation Safety 33Federal Aviation Administration Light-sport Manufactured Outside U.S. Light-sport category aircraft manufactured outside the U.S. have additional requirements U.S. must have an agreement with country of manufacture  Bilateral Airworthiness Agreement for airplanes or—  Bilateral Aviation Safety Agreement with Implementation Procedures for Airworthiness, for airplanes

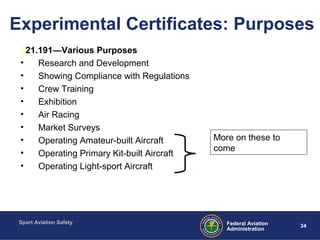

Sport Aviation Safety 34Federal Aviation Administration Experimental Certificates: Purposes §21.191—Various Purposes • Research and Development • Showing Compliance with Regulations • Crew Training • Exhibition • Air Racing • Market Surveys • Operating Amateur-built Aircraft • Operating Primary Kit-built Aircraft • Operating Light-sport Aircraft More on these to come
Sport Aviation Safety 35Federal Aviation Administration Experimental Certificates: Operating Amateur-Built Aircraft Can be built from plans and raw materials Often built from “quick- build” kits Major portion constructed for recreation or education

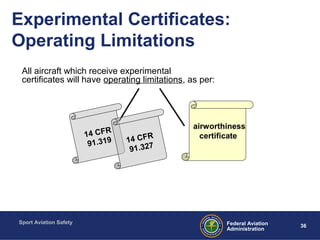

Sport Aviation Safety 36Federal Aviation Administration Experimental Certificates: Operating Limitations All aircraft which receive experimental certificates will have operating limitations, as per: 14 CFR 91.319 airworthiness certificate 14 CFR 91.327

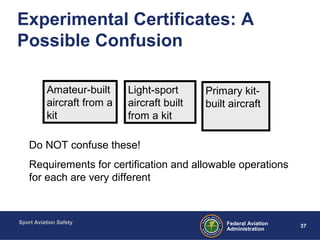

Sport Aviation Safety 37Federal Aviation Administration Do NOT confuse these! Requirements for certification and allowable operations for each are very different Experimental Certificates: A Possible Confusion Amateur-built aircraft from a kit Primary kit- built aircraft Light-sport aircraft built from a kit

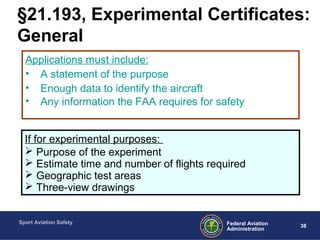

Sport Aviation Safety 38Federal Aviation Administration §21.193, Experimental Certificates: General Applications must include: • A statement of the purpose • Enough data to identify the aircraft • Any information the FAA requires for safety If for experimental purposes:  Purpose of the experiment  Estimate time and number of flights required  Geographic test areas  Three-view drawings
Sport Aviation Safety 39Federal Aviation Administration Documentation • Airworthiness/ Registration/Operating Limitations/Placards/ Weight and Balance: Must be on board, or the aircraft is not legal to be operated.

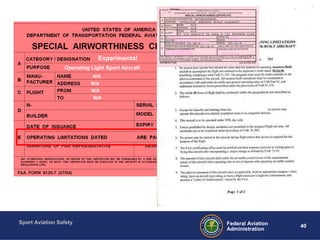

Sport Aviation Safety 40Federal Aviation Administration Experimental Operating Light Sport Aircraft

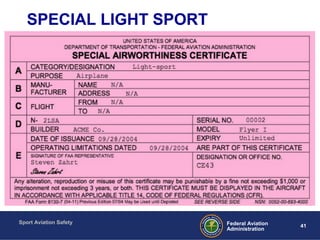

Sport Aviation Safety 41Federal Aviation Administration SPECIAL LIGHT SPORT
Sport Aviation Safety 42Federal Aviation Administration SLSA OPERATING LIMITATIONS ATTACHED TO AIRWORTHINESS CERTIFICATE

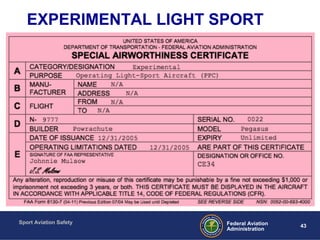

Sport Aviation Safety 43Federal Aviation Administration EXPERIMENTAL LIGHT SPORT

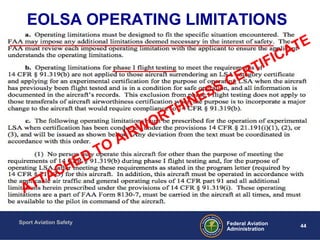

Sport Aviation Safety 44Federal Aviation Administration ATTACHED TO AIRWORTHINESS CERTIFICATE EOLSA OPERATING LIMITATIONS

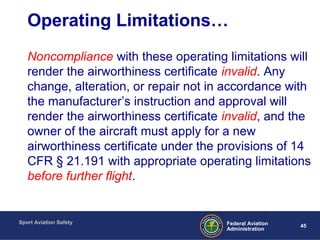

Sport Aviation Safety 45Federal Aviation Administration Operating Limitations… Noncompliance with these operating limitations will render the airworthiness certificate invalid. Any change, alteration, or repair not in accordance with the manufacturer’s instruction and approval will render the airworthiness certificate invalid, and the owner of the aircraft must apply for a new airworthiness certificate under the provisions of 14 CFR § 21.191 with appropriate operating limitations before further flight.

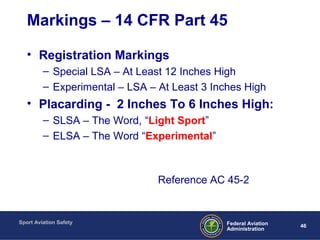

Sport Aviation Safety 46Federal Aviation Administration Markings – 14 CFR Part 45 • Registration Markings – Special LSA – At Least 12 Inches High – Experimental – LSA – At Least 3 Inches High • Placarding - 2 Inches To 6 Inches High: – SLSA – The Word, “Light Sport” – ELSA – The Word “Experimental” Reference AC 45-2

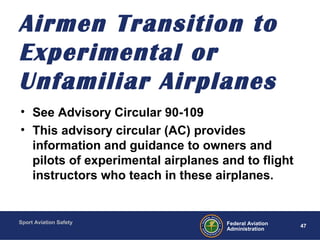

Sport Aviation Safety 47Federal Aviation Administration Airmen Transition to Experimental or Unfamiliar Airplanes • See Advisory Circular 90-109 • This advisory circular (AC) provides information and guidance to owners and pilots of experimental airplanes and to flight instructors who teach in these airplanes.
Sport Aviation Safety 48Federal Aviation Administration Flight testing and First Flight, or second, third, ……. • 90% of the accidents occur on the first flight. • Unfortunately, most of these accidents happen to second or third owners. • The main cause of experimental airplane fatal accidents is pilot performance particularly in the transition phase to an unfamiliar airplane.
Sport Aviation Safety 49Federal Aviation Administration Transition Training for Pilots

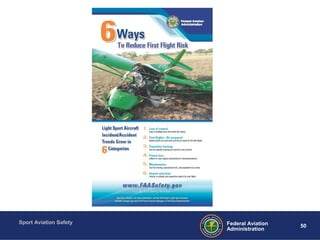

Sport Aviation Safety 50Federal Aviation Administration

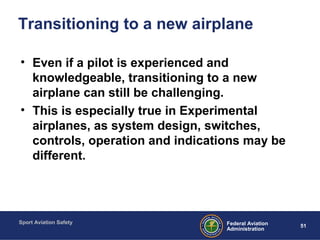

Sport Aviation Safety 51Federal Aviation Administration Transitioning to a new airplane • Even if a pilot is experienced and knowledgeable, transitioning to a new airplane can still be challenging. • This is especially true in Experimental airplanes, as system design, switches, controls, operation and indications may be different.

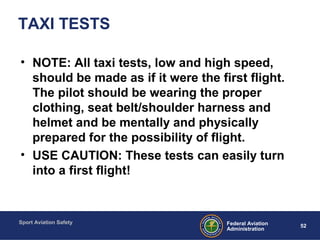

Sport Aviation Safety 52Federal Aviation Administration TAXI TESTS • NOTE: All taxi tests, low and high speed, should be made as if it were the first flight. The pilot should be wearing the proper clothing, seat belt/shoulder harness and helmet and be mentally and physically prepared for the possibility of flight. • USE CAUTION: These tests can easily turn into a first flight!

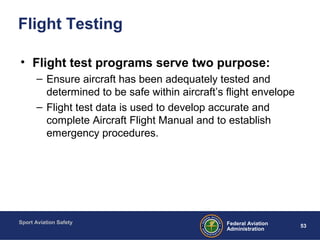

Sport Aviation Safety 53Federal Aviation Administration Flight Testing • Flight test programs serve two purpose: – Ensure aircraft has been adequately tested and determined to be safe within aircraft’s flight envelope – Flight test data is used to develop accurate and complete Aircraft Flight Manual and to establish emergency procedures.

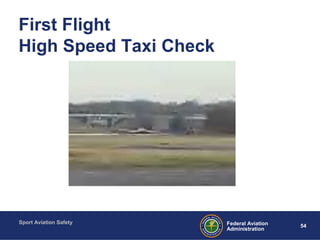

Sport Aviation Safety 54Federal Aviation Administration First Flight High Speed Taxi Check

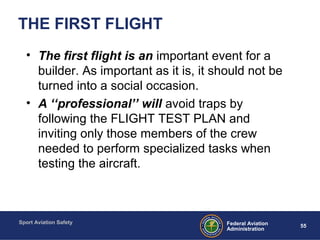

Sport Aviation Safety 55Federal Aviation Administration THE FIRST FLIGHT • The first flight is an important event for a builder. As important as it is, it should not be turned into a social occasion. • A ‘‘professional’’ will avoid traps by following the FLIGHT TEST PLAN and inviting only those members of the crew needed to perform specialized tasks when testing the aircraft.

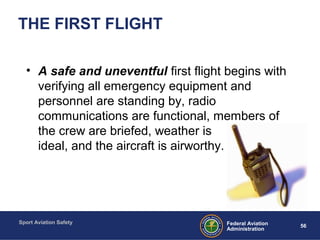

Sport Aviation Safety 56Federal Aviation Administration THE FIRST FLIGHT • A safe and uneventful first flight begins with verifying all emergency equipment and personnel are standing by, radio communications are functional, members of the crew are briefed, weather is ideal, and the aircraft is airworthy.

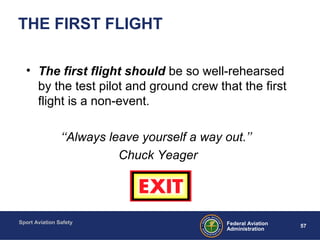

Sport Aviation Safety 57Federal Aviation Administration THE FIRST FLIGHT • The first flight should be so well-rehearsed by the test pilot and ground crew that the first flight is a non-event. ‘‘Always leave yourself a way out.’’ Chuck Yeager

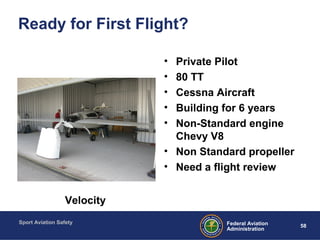

Sport Aviation Safety 58Federal Aviation Administration Ready for First Flight? • Private Pilot • 80 TT • Cessna Aircraft • Building for 6 years • Non-Standard engine Chevy V8 • Non Standard propeller • Need a flight review Velocity
Sport Aviation Safety 59Federal Aviation Administration THE FIRST FLIGHT • The two objectives of the first flights are to determine engine reliability and flight control characteristics. • Under no circumstances should a pilot takeoff in an aircraft with known airworthiness problems. – The Law of Aerodynamics does not often forgive these types of mistakes.

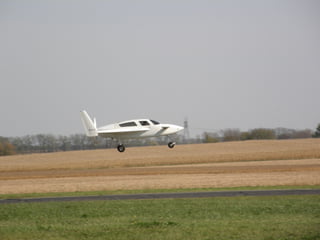

Sport Aviation Safety 60Federal Aviation Administration First Flight • Scott, I had my first flight. Attached is a picture of the plane on it's first flight. • On the first flight I had oil pressure issue and oil level issues. Neither were to big of a problem except they added a great deal of concern on the flight. • Plane flew very well.

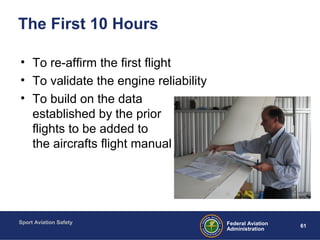

Sport Aviation Safety 61Federal Aviation Administration The First 10 Hours • To re-affirm the first flight • To validate the engine reliability • To build on the data established by the prior flights to be added to the aircrafts flight manual
Sport Aviation Safety 62Federal Aviation Administration The First 11+ Hours • To re-affirm the previous flights • Continue to validate the engine reliability • To build on the data established by the prior flights to be added to the aircrafts flight manual to include: – Stalls – Climb and Decent Speeds – Slow Flight – Aircraft Configurations – Flaps, Gears, etc. – Aircraft Stability

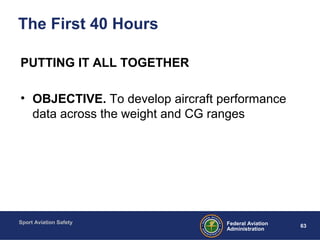

Sport Aviation Safety 63Federal Aviation Administration The First 40 Hours PUTTING IT ALL TOGETHER • OBJECTIVE. To develop aircraft performance data across the weight and CG ranges

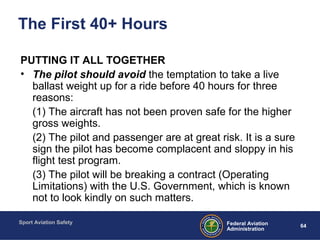

Sport Aviation Safety 64Federal Aviation Administration The First 40+ Hours PUTTING IT ALL TOGETHER • The pilot should avoid the temptation to take a live ballast weight up for a ride before 40 hours for three reasons: (1) The aircraft has not been proven safe for the higher gross weights. (2) The pilot and passenger are at great risk. It is a sure sign the pilot has become complacent and sloppy in his flight test program. (3) The pilot will be breaking a contract (Operating Limitations) with the U.S. Government, which is known not to look kindly on such matters.

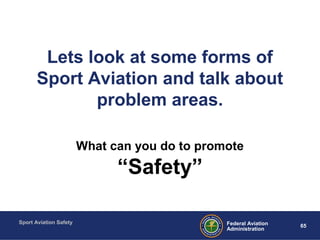

Sport Aviation Safety 65Federal Aviation Administration Lets look at some forms of Sport Aviation and talk about problem areas. What can you do to promote “Safety”

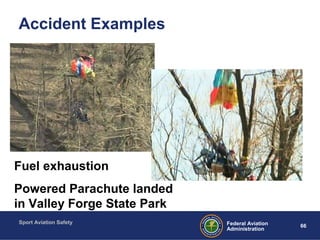

Sport Aviation Safety 66Federal Aviation Administration Accident Examples Fuel exhaustion Powered Parachute landed in Valley Forge State Park

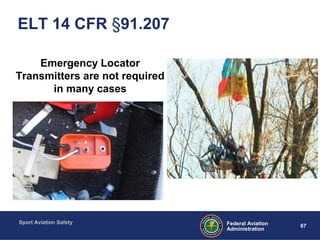

Sport Aviation Safety 67Federal Aviation Administration ELT 14 CFR §91.207 Emergency Locator Transmitters are not required in many cases

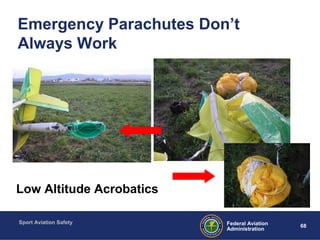

Sport Aviation Safety 68Federal Aviation Administration Emergency Parachutes Don’t Always Work Low Altitude Acrobatics

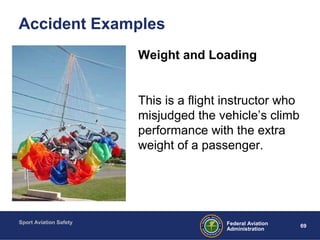

Sport Aviation Safety 69Federal Aviation Administration Accident Examples Weight and Loading This is a flight instructor who misjudged the vehicle’s climb performance with the extra weight of a passenger.

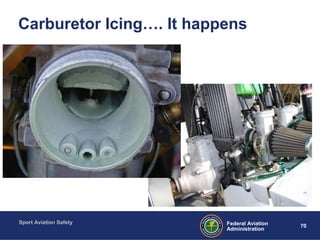

Sport Aviation Safety 70Federal Aviation Administration Carburetor Icing…. It happens

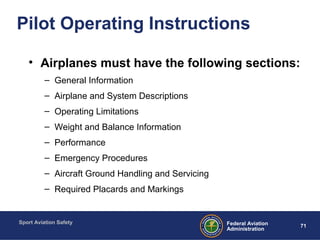

Sport Aviation Safety 71Federal Aviation Administration Pilot Operating Instructions • Airplanes must have the following sections: – General Information – Airplane and System Descriptions – Operating Limitations – Weight and Balance Information – Performance – Emergency Procedures – Aircraft Ground Handling and Servicing – Required Placards and Markings

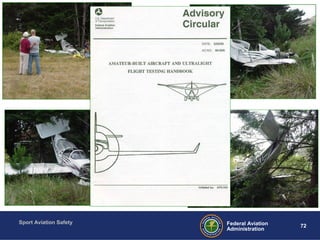

Sport Aviation Safety 72Federal Aviation Administration
Sport Aviation Safety 73Federal Aviation Administration

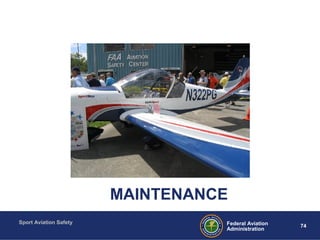

Sport Aviation Safety 74Federal Aviation Administration MAINTENANCE

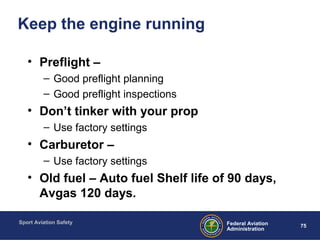

Sport Aviation Safety 75Federal Aviation Administration Keep the engine running • Preflight – – Good preflight planning – Good preflight inspections • Don’t tinker with your prop – Use factory settings • Carburetor – – Use factory settings • Old fuel – Auto fuel Shelf life of 90 days, Avgas 120 days.

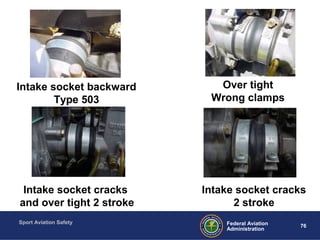

Sport Aviation Safety 76Federal Aviation Administration Intake socket backward Type 503 Intake socket cracks 2 stroke Intake socket cracks and over tight 2 stroke Over tight Wrong clamps

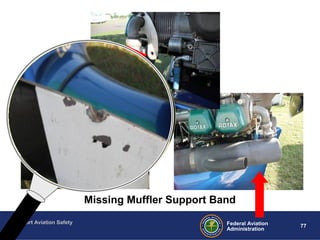

Sport Aviation Safety 77Federal Aviation Administration Missing Muffler Support Band
Sport Aviation Safety 78Federal Aviation Administration Apollo Monsoon Trike Life Limited Parts “Pit Pin”

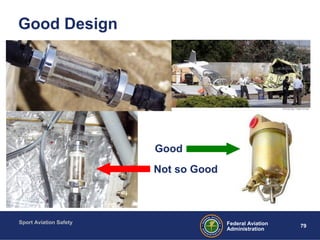

Sport Aviation Safety 79Federal Aviation Administration Good Design Good Not so Good

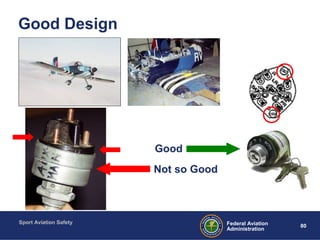

Sport Aviation Safety 80Federal Aviation Administration Good Design Good Not so Good
Sport Aviation Safety 81Federal Aviation Administration Good Workmanship
Sport Aviation Safety 82Federal Aviation Administration RANS S-15 Loose Ballast Bag Good Workmanship

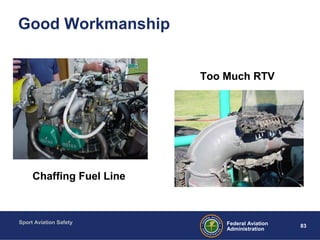

Sport Aviation Safety 83Federal Aviation Administration Chaffing Fuel Line Too Much RTV Good Workmanship

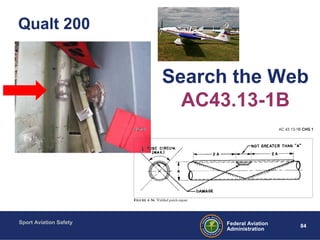

Sport Aviation Safety 84Federal Aviation Administration Qualt 200 Search the Web AC43.13-1B

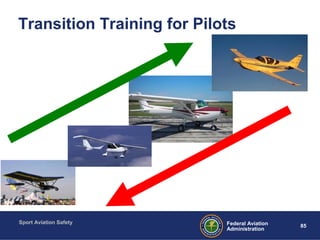

Sport Aviation Safety 85Federal Aviation Administration Transition Training for Pilots

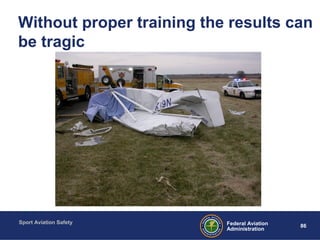

Sport Aviation Safety 86Federal Aviation Administration Without proper training the results can be tragic

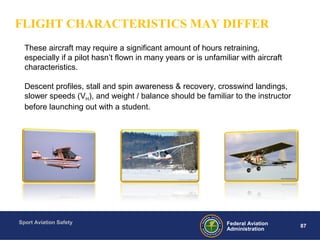

Sport Aviation Safety 87Federal Aviation Administration These aircraft may require a significant amount of hours retraining, especially if a pilot hasn’t flown in many years or is unfamiliar with aircraft characteristics. Descent profiles, stall and spin awareness & recovery, crosswind landings, slower speeds (VH), and weight / balance should be familiar to the instructor before launching out with a student. FLIGHT CHARACTERISTICS MAY DIFFER

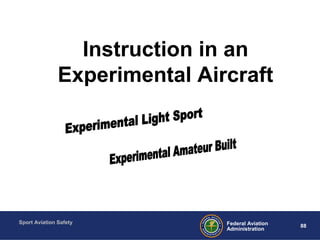

Sport Aviation Safety 88Federal Aviation Administration Instruction in an Experimental Aircraft

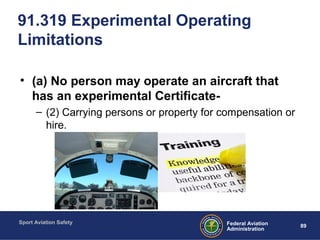

Sport Aviation Safety 89Federal Aviation Administration 91.319 Experimental Operating Limitations • (a) No person may operate an aircraft that has an experimental Certificate- – (2) Carrying persons or property for compensation or hire.

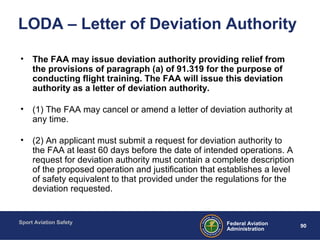

Sport Aviation Safety 90Federal Aviation Administration LODA – Letter of Deviation Authority • The FAA may issue deviation authority providing relief from the provisions of paragraph (a) of 91.319 for the purpose of conducting flight training. The FAA will issue this deviation authority as a letter of deviation authority. • (1) The FAA may cancel or amend a letter of deviation authority at any time. • (2) An applicant must submit a request for deviation authority to the FAA at least 60 days before the date of intended operations. A request for deviation authority must contain a complete description of the proposed operation and justification that establishes a level of safety equivalent to that provided under the regulations for the deviation requested.
Sport Aviation Safety 91Federal Aviation Administration

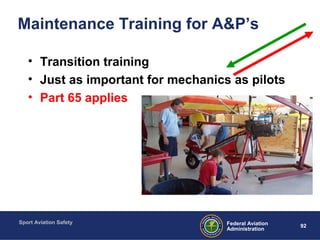

Sport Aviation Safety 92Federal Aviation Administration Maintenance Training for A&P’s • Transition training • Just as important for mechanics as pilots • Part 65 applies

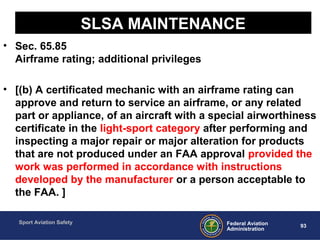

Sport Aviation Safety 93Federal Aviation Administration SLSA MAINTENANCE • Sec. 65.85 Airframe rating; additional privileges • [(b) A certificated mechanic with an airframe rating can approve and return to service an airframe, or any related part or appliance, of an aircraft with a special airworthiness certificate in the light-sport category after performing and inspecting a major repair or major alteration for products that are not produced under an FAA approval provided the work was performed in accordance with instructions developed by the manufacturer or a person acceptable to the FAA. ]
Sport Aviation Safety 94Federal Aviation Administration SLSA MAINTENANCE • Sec. 65.87 Powerplant rating; additional privileges. • [(b) A certificated mechanic with a powerplant rating can approve and return to service a powerplant or propeller, or any related part or appliance, of an aircraft with a special airworthiness certificate in the light-sport category after performing and inspecting a major repair or major alteration for products that are not produced under an FAA approval, provided the work was performed in accordance with instructions developed by the manufacturer or a person acceptable to the FAA. ]

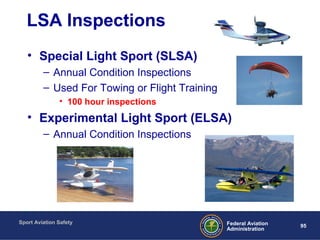

Sport Aviation Safety 95Federal Aviation Administration LSA Inspections • Special Light Sport (SLSA) – Annual Condition Inspections – Used For Towing or Flight Training • 100 hour inspections • Experimental Light Sport (ELSA) – Annual Condition Inspections
Sport Aviation Safety 96Federal Aviation Administration Light Sport Repairman There is One Light Sport Repairman Certificate. Two Ratings: –Inspection –Maintenance 14 CFR Part 65.107

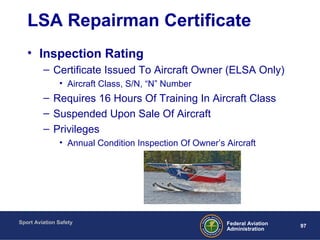

Sport Aviation Safety 97Federal Aviation Administration LSA Repairman Certificate • Inspection Rating – Certificate Issued To Aircraft Owner (ELSA Only) • Aircraft Class, S/N, “N” Number – Requires 16 Hours Of Training In Aircraft Class – Suspended Upon Sale Of Aircraft – Privileges • Annual Condition Inspection Of Owner’s Aircraft

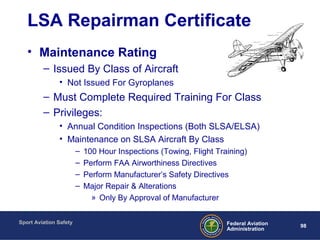

Sport Aviation Safety 98Federal Aviation Administration LSA Repairman Certificate • Maintenance Rating – Issued By Class of Aircraft • Not Issued For Gyroplanes – Must Complete Required Training For Class – Privileges: • Annual Condition Inspections (Both SLSA/ELSA) • Maintenance on SLSA Aircraft By Class – 100 Hour Inspections (Towing, Flight Training) – Perform FAA Airworthiness Directives – Perform Manufacturer’s Safety Directives – Major Repair & Alterations » Only By Approval of Manufacturer

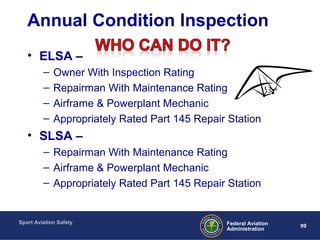

Sport Aviation Safety 99Federal Aviation Administration Annual Condition Inspection • ELSA – – Owner With Inspection Rating – Repairman With Maintenance Rating – Airframe & Powerplant Mechanic – Appropriately Rated Part 145 Repair Station • SLSA – – Repairman With Maintenance Rating – Airframe & Powerplant Mechanic – Appropriately Rated Part 145 Repair Station
Sport Aviation Safety 100Federal Aviation Administration Maintenance- • ELSA – Anyone • SLSA – Repairman: Maintenance Rating • With The Appropriate Class – Airframe & Powerplant Mechanic • Must Meet Part 65.81 – Previously Performed – Appropriately Rated Part 145 Repair Station • Preventive Maintenance – Part 43, Appendix A (c)

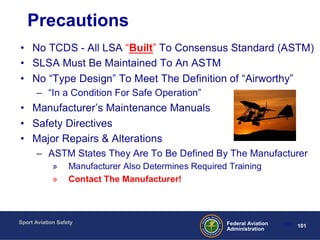

Sport Aviation Safety 101Federal Aviation Administration Precautions 101

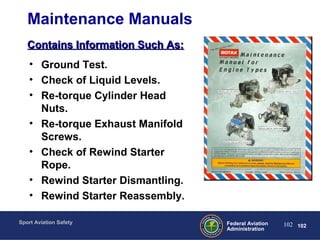

Sport Aviation Safety 102Federal Aviation Administration 102 Maintenance Manuals • Ground Test. • Check of Liquid Levels. • Re-torque Cylinder Head Nuts. • Re-torque Exhaust Manifold Screws. • Check of Rewind Starter Rope. • Rewind Starter Dismantling. • Rewind Starter Reassembly. Contains Information Such As:Contains Information Such As:
Sport Aviation Safety 103Federal Aviation Administration Rotax LMM-912
Sport Aviation Safety 104Federal Aviation Administration Summary Our safety message is not unique to Sport Pilots or Sport Aircraft. We encourage the use of all the safety tools available.

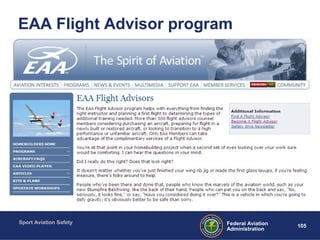

Sport Aviation Safety 105Federal Aviation Administration EAA Flight Advisor program

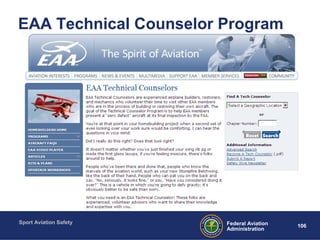

Sport Aviation Safety 106Federal Aviation Administration EAA Technical Counselor Program
Sport Aviation Safety 107Federal Aviation Administration FAASafety.gov

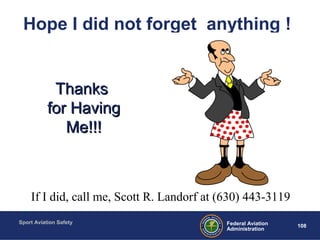

Sport Aviation Safety 108Federal Aviation Administration Hope I did not forget anything ! If I did, call me, Scott R. Landorf at (630) 443-3119 ThanksThanks for Havingfor Having Me!!!Me!!!

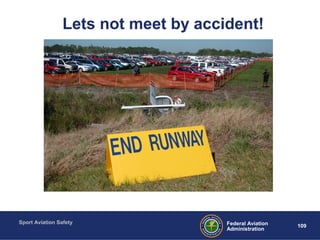

Sport Aviation Safety 109Federal Aviation Administration Lets not meet by accident!
