SPARQL By Example:
The Cheat Sheet
Accompanies slides at:
http://www.cambridgesemantics.com/semantic-university/sparql-by-example
Comments & questions to:
Lee Feigenbaum <lee@cambridgesemantics.com>
VP Marketing & Technology, Cambridge Semantics
Co-chair, W3C SPARQL Working Group
Conventions
Red text means:
“This is a core part of the SPARQL syntax or
language.”
Blue text means:
“This is an example of query-specific text or
values that might go into a SPARQL query.”

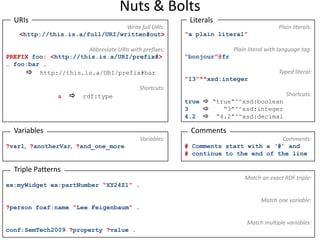

Nuts & Bolts
Write full URIs:
<http://this.is.a/full/URI/written#out>
Abbreviate URIs with prefixes:
PREFIX foo: <http://this.is.a/URI/prefix#>
… foo:bar …
 http://this.is.a/URI/prefix#bar
Shortcuts:
a  rdf:type
URIs
Plain literals:
“a plain literal”
Plain literal with language tag:
“bonjour”@fr
Typed literal:
“13”^^xsd:integer
Shortcuts:
true  “true”^^xsd:boolean
3  “3”^^xsd:integer
4.2  “4.2”^^xsd:decimal
Literals
Variables:
?var1, ?anotherVar, ?and_one_more
Variables
Comments:
# Comments start with a „#‟ and
# continue to the end of the line
Comments
Match an exact RDF triple:
ex:myWidget ex:partNumber “XY24Z1” .
Match one variable:
?person foaf:name “Lee Feigenbaum” .
Match multiple variables:
conf:SemTech2009 ?property ?value .
Triple Patterns
Common Prefixes
More common prefixes at http://prefix.cc
prefix... …stands for
rdf: http://xmlns.com/foaf/0.1/
rdfs: http://www.w3.org/2000/01/rdf-schema#
owl: http://www.w3.org/2002/07/owl#
xsd: http://www.w3.org/2001/XMLSchema#
dc: http://purl.org/dc/elements/1.1/
foaf: http://xmlns.com/foaf/0.1/
Anatomy of a Query
PREFIX foo: <…>
PREFIX bar: <…>
…
SELECT …
FROM <…>
FROM NAMED <…>
WHERE {
…
}
GROUP BY …
HAVING …
ORDER BY …
LIMIT …
OFFSET …
VALUES …
Declare prefix
shortcuts
(optional)
Query result
clause
Query pattern
Query modifiers
(optional)
Define the
dataset (optional)
4 Types of SPARQL Queries
Project out specific variables and expressions:
SELECT ?c ?cap (1000 * ?people AS ?pop)
Project out all variables:
SELECT *
Project out distinct combinations only:
SELECT DISTINCT ?country
Results in a table of values (in XML or JSON):
SELECT queries
?c ?cap ?pop
ex:France ex:Paris 63,500,000
ex:Canada ex:Ottawa 32,900,000
ex:Italy ex:Rome 58,900,000
Construct RDF triples/graphs:
CONSTRUCT {
?country a ex:HolidayDestination ;
ex:arrive_at ?capital ;
ex:population ?population .
}
Results in RDF triples (in any RDF serialization):
ex:France a ex:HolidayDestination ;
ex:arrive_at ex:Paris ;
ex:population 635000000 .
ex:Canada a ex:HolidayDestination ;
ex:arrive_at ex:Ottawa ;
ex:population 329000000 .
CONSTRUCT queries
Ask whether or not there are any matches:
ASK
Result is either “true” or “false” (in XML or JSON):
true, false
ASK queries
Describe the resources matched by the given variables:
DESCRIBE ?country
Result is RDF triples (in any RDF serialization) :
ex:France a geo:Country ;
ex:continent geo:Europe ;
ex:flag <http://…/flag-france.png> ;
…
DESCRIBE queries
Combining SPARQL Graph Patterns
Consider A and B as graph patterns.
A Basic Graph Pattern – one or more triple patterns
A . B
 Conjunction. Join together the results of solving A and B by matching the
values of any variables in common.
Optional Graph Patterns
A OPTIONAL { B }
 Left join. Join together the results of solving A and B by matching the
values of any variables in common, if possible. Keep all solutions from A whether or
not there’s a matching solution in B
Combining SPARQL Graph Patterns
Consider A and B as graph patterns.
Either-or Graph Patterns
{ A } UNION { B }
 Disjunction. Include both the results of solving A and the results of
solving B.
“Subtracted” Graph Patterns (SPARQL 1.1)
A MINUS { B }
 Negation. Solve A. Solve B. Include only those results from solving A that
are not compatible with any of the results from B.
SPARQL Subqueries (SPARQL 1.1)
Consider A and B as graph patterns.
A .
{
SELECT …
WHERE {
B
}
}
C .
 Join the results of the subquery with the results of solving A and C.
SPARQL Filters
• SPARQL FILTERs eliminate solutions that do not cause an
expression to evaluate to true.
• Place FILTERs in a query inline within a basic graph pattern
A . B . FILTER ( …expr… )
Category Functions / Operators Examples
Logical &
Comparisons
!, &&, ||, =, !=, <, <=, >,
>=, IN, NOT IN
?hasPermit || ?age < 25
Conditionals
(SPARQL 1.1)
EXISTS, NOT EXISTS, IF,
COALESCE
NOT EXISTS { ?p foaf:mbox ?email }
Math
+, -, *, /, abs, round,
ceil, floor, RAND
?decimal * 10 > ?minPercent
Strings
(SPARQL 1.1)
STRLEN, SUBSTR, UCASE,
LCASE, STRSTARTS, CONCAT,
STRENDS, CONTAINS,
STRBEFORE, STRAFTER
STRLEN(?description) < 255
Date/time
(SPARQL 1.1)
now, year, month, day,
hours, minutes, seconds,
timezone, tz
month(now()) < 4
SPARQL tests
isURI, isBlank,
isLiteral, isNumeric,
bound
isURI(?person) || !bound(?person)
Constructors
(SPARQL 1.1)
URI, BNODE, STRDT,
STRLANG, UUID, STRUUID
STRLANG(?text, “en”) = “hello”@en
Accessors str, lang, datatype lang(?title) = “en”
Hashing (1.1) MD5, SHA1, SHA256, SHA512 BIND(SHA256(?email) AS ?hash)
Miscellaneous
sameTerm, langMatches,
regex, REPLACE
regex(?ssn, “d{3}-d{2}-d{4}”)
Aggregates (SPARQL 1.1)
1. Partition results into
groups based on the
expression(s) in the
GROUP BY clause
2. Evaluate projections
and aggregate functions
in SELECT clause to get
one result per group
3. Filter aggregated
results via the HAVING
clause
?key ?val ?other1
1 4 …
1 4 …
2 5 …
2 4 …
2 10 …
2 2 …
2 1 …
3 3 …
?key ?sum_of_val
1 8
2 22
3 3
?key ?sum_of_val
1 8
3 3
SPARQL 1.1 includes: COUNT, SUM, AVG, MIN, MAX, SAMPLE, GROUP_CONCAT
Property Paths (SPARQL 1.1)
• Property paths allow triple patterns to match arbitrary-
length paths through a graph
• Predicates are combined with regular-expression-like
operators:
Construct Meaning
path1/path2 Forwards path (path1 followed by path2)
^path1 Backwards path (object to subject)
path1|path2 Either path1 or path2
path1* path1, repeated zero or more times
path1+ path1, repeated one or more times
path1? path1, optionally
!uri Any predicate except uri
!^uri Any backwards (object to subject) predicate except uri
RDF Datasets
A SPARQL queries a default graph (normally) and zero or
more named graphs (when inside a GRAPH clause).
ex:g1
ex:g2
ex:g3
Default graph
(the merge of zero or more graphs)
Named graphs
ex:g1
ex:g4
PREFIX ex: <…>
SELECT …
FROM ex:g1
FROM ex:g4
FROM NAMED ex:g1
FROM NAMED ex:g2
FROM NAMED ex:g3
WHERE {
… A …
GRAPH ex:g3 {
… B …
}
GRAPH ?graph {
… C …
}
}
OR
OR
SPARQL Over HTTP (the SPARQL Protocol)
http://host.domain.com/sparql/endpoint?<parameters>
where <parameters> can include:
query=<encoded query string>
e.g. SELECT+*%0DWHERE+{…
default-graph-uri=<encoded graph URI>
e.g. http%3A%2F%2Fexmaple.com%2Ffoo…
n.b. zero of more occurrences of default-graph-uri
named-graph-uri=<encoded graph URI>
e.g. http%3A%2F%2Fexmaple.com%2Fbar…
n.b. zero of more occurrences of named-graph-uri
HTTP GET or POST. Graphs given in the protocol override graphs given in the
query.
Federated Query (SPARQL 1.1)
PREFIX ex: <…>
SELECT …
FROM ex:g1
WHERE {
… A …
SERVICE ex:s1 {
… B …
}
SERVICE ex:s2 {
… C …
}
}
ex:g1
Web
SPARQL Endpoint
ex:s2
SPARQL Endpoint
ex:s1
Local Graph Store
SPARQL 1.1 Update
SPARQL Update Language Statements
INSERT DATA { triples }
DELETE DATA {triples}
[ DELETE { template } ] [ INSERT { template } ] WHERE { pattern }
LOAD <uri> [ INTO GRAPH <uri> ]
CLEAR GRAPH <uri>
CREATE GRAPH <uri>
DROP GRAPH <uri>
[ … ] denotes optional parts of SPARQL 1.1 Update syntax
Some Public SPARQL Endpoints
Name URL What’s there?
SPARQLer http://sparql.org/sparql.html
General-purpose query
endpoint for Web-accessible
data
DBPedia http://dbpedia.org/sparql
Extensive RDF data from
Wikipedia
DBLP http://www4.wiwiss.fu-berlin.de/dblp/snorql/
Bibliographic data from
computer science journals
and conferences
LinkedMDB http://data.linkedmdb.org/sparql
Films, actors, directors,
writers, producers, etc.
World
Factbook
http://www4.wiwiss.fu-
berlin.de/factbook/snorql/
Country statistics from the
CIA World Factbook
bio2rdf http://bio2rdf.org/sparql
Bioinformatics data from
around 40 public databases
SPARQL Resources
• SPARQL Specifications Overview
– http://www.w3.org/TR/sparql11-overview/
• SPARQL implementations
– http://esw.w3.org/topic/SparqlImplementations
• SPARQL endpoints
– http://esw.w3.org/topic/SparqlEndpoints
• SPARQL Frequently Asked Questions
– http://www.thefigtrees.net/lee/sw/sparql-faq
• Common SPARQL extensions
– http://esw.w3.org/topic/SPARQL/Extensions

More Related Content

What's hot

Choosing the Right Graph Database to Succeed in Your Project
Choosing the Right Graph Database to Succeed in Your ProjectChoosing the Right Graph Database to Succeed in Your Project
Choosing the Right Graph Database to Succeed in Your Project
Ontotext

Graph database Use Cases
Graph database Use CasesGraph database Use Cases
Graph database Use Cases
Max De Marzi

RDF and OWL
RDF and OWLRDF and OWL
RDF and OWL
Rachel Lovinger

Introduction to Graph Databases
Introduction to Graph DatabasesIntroduction to Graph Databases
Introduction to Graph Databases
Max De Marzi

SPARQL Tutorial
SPARQL TutorialSPARQL Tutorial
SPARQL Tutorial
Leigh Dodds

RDF Data Model
RDF Data ModelRDF Data Model
RDF Data Model
Jose Emilio Labra Gayo

Querying the Wikidata Knowledge Graph
Querying the Wikidata Knowledge GraphQuerying the Wikidata Knowledge Graph
Querying the Wikidata Knowledge Graph
Ioan Toma

Graph database
Graph database Graph database
Graph database
Shruti Arya

Knowledge Graphs - The Power of Graph-Based Search
Knowledge Graphs - The Power of Graph-Based SearchKnowledge Graphs - The Power of Graph-Based Search
Knowledge Graphs - The Power of Graph-Based Search
Neo4j

Spark DataFrames and ML Pipelines
Spark DataFrames and ML PipelinesSpark DataFrames and ML Pipelines
Spark DataFrames and ML Pipelines
Databricks

SPARQL in a nutshell
SPARQL in a nutshellSPARQL in a nutshell
SPARQL in a nutshell
Fabien Gandon

Getting Started with Knowledge Graphs
Getting Started with Knowledge GraphsGetting Started with Knowledge Graphs
Getting Started with Knowledge Graphs
Peter Haase

ESWC 2017 Tutorial Knowledge Graphs
ESWC 2017 Tutorial Knowledge GraphsESWC 2017 Tutorial Knowledge Graphs
ESWC 2017 Tutorial Knowledge Graphs
Peter Haase

Data Modeling with Neo4j
Data Modeling with Neo4jData Modeling with Neo4j
Data Modeling with Neo4j
Neo4j

RDF, SPARQL and Semantic Repositories
RDF, SPARQL and Semantic RepositoriesRDF, SPARQL and Semantic Repositories
RDF, SPARQL and Semantic Repositories
Marin Dimitrov

Rdf In A Nutshell V1
Rdf In A Nutshell V1Rdf In A Nutshell V1
Rdf In A Nutshell V1
Fabien Gandon

RDFS In A Nutshell V1
RDFS In A Nutshell V1RDFS In A Nutshell V1
RDFS In A Nutshell V1
Fabien Gandon

Evolution of the Graph Schema
Evolution of the Graph SchemaEvolution of the Graph Schema
Evolution of the Graph Schema
Joshua Shinavier

Graph databases
Graph databasesGraph databases
Graph databases
Vinoth Kannan

Transpilers Gone Wild: Introducing Hydra
Transpilers Gone Wild: Introducing HydraTranspilers Gone Wild: Introducing Hydra
Transpilers Gone Wild: Introducing Hydra
Joshua Shinavier


What's hot (20)

Choosing the Right Graph Database to Succeed in Your Project
Choosing the Right Graph Database to Succeed in Your ProjectChoosing the Right Graph Database to Succeed in Your Project
Choosing the Right Graph Database to Succeed in Your Project

Graph database Use Cases
Graph database Use CasesGraph database Use Cases
Graph database Use Cases

RDF and OWL
RDF and OWLRDF and OWL
RDF and OWL

Introduction to Graph Databases
Introduction to Graph DatabasesIntroduction to Graph Databases
Introduction to Graph Databases

SPARQL Tutorial
SPARQL TutorialSPARQL Tutorial
SPARQL Tutorial

RDF Data Model
RDF Data ModelRDF Data Model
RDF Data Model

Querying the Wikidata Knowledge Graph
Querying the Wikidata Knowledge GraphQuerying the Wikidata Knowledge Graph
Querying the Wikidata Knowledge Graph

Graph database
Graph database Graph database
Graph database

Knowledge Graphs - The Power of Graph-Based Search
Knowledge Graphs - The Power of Graph-Based SearchKnowledge Graphs - The Power of Graph-Based Search
Knowledge Graphs - The Power of Graph-Based Search

Spark DataFrames and ML Pipelines
Spark DataFrames and ML PipelinesSpark DataFrames and ML Pipelines
Spark DataFrames and ML Pipelines

SPARQL in a nutshell
SPARQL in a nutshellSPARQL in a nutshell
SPARQL in a nutshell

Getting Started with Knowledge Graphs
Getting Started with Knowledge GraphsGetting Started with Knowledge Graphs
Getting Started with Knowledge Graphs

ESWC 2017 Tutorial Knowledge Graphs
ESWC 2017 Tutorial Knowledge GraphsESWC 2017 Tutorial Knowledge Graphs
ESWC 2017 Tutorial Knowledge Graphs

Data Modeling with Neo4j
Data Modeling with Neo4jData Modeling with Neo4j
Data Modeling with Neo4j

RDF, SPARQL and Semantic Repositories
RDF, SPARQL and Semantic RepositoriesRDF, SPARQL and Semantic Repositories
RDF, SPARQL and Semantic Repositories

Rdf In A Nutshell V1
Rdf In A Nutshell V1Rdf In A Nutshell V1
Rdf In A Nutshell V1

RDFS In A Nutshell V1
RDFS In A Nutshell V1RDFS In A Nutshell V1
RDFS In A Nutshell V1

Evolution of the Graph Schema
Evolution of the Graph SchemaEvolution of the Graph Schema
Evolution of the Graph Schema

Graph databases
Graph databasesGraph databases
Graph databases

Transpilers Gone Wild: Introducing Hydra
Transpilers Gone Wild: Introducing HydraTranspilers Gone Wild: Introducing Hydra
Transpilers Gone Wild: Introducing Hydra


Similar to SPARQL Cheat Sheet

SPARQL introduction and training (130+ slides with exercices)
SPARQL introduction and training (130+ slides with exercices)SPARQL introduction and training (130+ slides with exercices)
SPARQL introduction and training (130+ slides with exercices)
Thomas Francart

Sparql
SparqlSparql
Querying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQLQuerying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQL
Emanuele Della Valle

AnzoGraph DB - SPARQL 101
AnzoGraph DB - SPARQL 101AnzoGraph DB - SPARQL 101
AnzoGraph DB - SPARQL 101
Cambridge Semantics

Genomic Analysis in Scala
Genomic Analysis in ScalaGenomic Analysis in Scala
Genomic Analysis in Scala
Ryan Williams

SPARQL-DL - Theory & Practice
SPARQL-DL - Theory & PracticeSPARQL-DL - Theory & Practice
SPARQL-DL - Theory & Practice
Adriel Café

The Semantics of SPARQL
The Semantics of SPARQLThe Semantics of SPARQL
The Semantics of SPARQL
Olaf Hartig

The Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQLThe Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQL
Myungjin Lee

Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Allison Jai O'Dell

SWT Lecture Session 3 - SPARQL
SWT Lecture Session 3 - SPARQLSWT Lecture Session 3 - SPARQL
SWT Lecture Session 3 - SPARQL
Mariano Rodriguez-Muro

SPARQL Query Forms
SPARQL Query FormsSPARQL Query Forms
SPARQL Query Forms
Leigh Dodds

Triplestore and SPARQL
Triplestore and SPARQLTriplestore and SPARQL
Triplestore and SPARQL
Lino Valdivia

SWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQLSWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQL
Mariano Rodriguez-Muro

Java 8
Java 8Java 8
Java 8
vilniusjug

Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1
net2-project

Transformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs PigTransformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs Pig
Lester Martin

Towards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression DerivativesTowards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression Derivatives
Jose Emilio Labra Gayo

Introduction to SPARQL
Introduction to SPARQLIntroduction to SPARQL
Introduction to SPARQL
Jose Emilio Labra Gayo

Introduction to SPARQL
Introduction to SPARQLIntroduction to SPARQL
Introduction to SPARQL
Jose Emilio Labra Gayo

Rewriting Java In Scala
Rewriting Java In ScalaRewriting Java In Scala
Rewriting Java In Scala
Skills Matter


Similar to SPARQL Cheat Sheet (20)

SPARQL introduction and training (130+ slides with exercices)
SPARQL introduction and training (130+ slides with exercices)SPARQL introduction and training (130+ slides with exercices)
SPARQL introduction and training (130+ slides with exercices)

Sparql
SparqlSparql
Sparql

Querying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQLQuerying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQL

AnzoGraph DB - SPARQL 101
AnzoGraph DB - SPARQL 101AnzoGraph DB - SPARQL 101
AnzoGraph DB - SPARQL 101

Genomic Analysis in Scala
Genomic Analysis in ScalaGenomic Analysis in Scala
Genomic Analysis in Scala

SPARQL-DL - Theory & Practice
SPARQL-DL - Theory & PracticeSPARQL-DL - Theory & Practice
SPARQL-DL - Theory & Practice

The Semantics of SPARQL
The Semantics of SPARQLThe Semantics of SPARQL
The Semantics of SPARQL

The Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQLThe Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQL

Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...

SWT Lecture Session 3 - SPARQL
SWT Lecture Session 3 - SPARQLSWT Lecture Session 3 - SPARQL
SWT Lecture Session 3 - SPARQL

SPARQL Query Forms
SPARQL Query FormsSPARQL Query Forms
SPARQL Query Forms

Triplestore and SPARQL
Triplestore and SPARQLTriplestore and SPARQL
Triplestore and SPARQL

SWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQLSWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQL

Java 8
Java 8Java 8
Java 8

Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1

Transformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs PigTransformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs Pig

Towards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression DerivativesTowards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression Derivatives

Introduction to SPARQL
Introduction to SPARQLIntroduction to SPARQL
Introduction to SPARQL

Introduction to SPARQL
Introduction to SPARQLIntroduction to SPARQL
Introduction to SPARQL

Rewriting Java In Scala
Rewriting Java In ScalaRewriting Java In Scala
Rewriting Java In Scala


More from LeeFeigenbaum

Data Segmenting in Anzo
Data Segmenting in AnzoData Segmenting in Anzo
Data Segmenting in Anzo
LeeFeigenbaum

Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011
LeeFeigenbaum

Evolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic WebEvolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic Web
LeeFeigenbaum

Taking the Tech out of SemTech
Taking the Tech out of SemTechTaking the Tech out of SemTech
Taking the Tech out of SemTech
LeeFeigenbaum

CSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web TutorialCSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web Tutorial
LeeFeigenbaum

What;s Coming In SPARQL2?
What;s Coming In SPARQL2?What;s Coming In SPARQL2?
What;s Coming In SPARQL2?
LeeFeigenbaum

SPARQL 1.1 Status
SPARQL 1.1 StatusSPARQL 1.1 Status
SPARQL 1.1 Status
LeeFeigenbaum

Semantic Web Landscape 2009
Semantic Web Landscape 2009Semantic Web Landscape 2009
Semantic Web Landscape 2009
LeeFeigenbaum


More from LeeFeigenbaum (8)

Data Segmenting in Anzo
Data Segmenting in AnzoData Segmenting in Anzo
Data Segmenting in Anzo

Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011

Evolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic WebEvolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic Web

Taking the Tech out of SemTech
Taking the Tech out of SemTechTaking the Tech out of SemTech
Taking the Tech out of SemTech

CSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web TutorialCSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web Tutorial

What;s Coming In SPARQL2?
What;s Coming In SPARQL2?What;s Coming In SPARQL2?
What;s Coming In SPARQL2?

SPARQL 1.1 Status
SPARQL 1.1 StatusSPARQL 1.1 Status
SPARQL 1.1 Status

Semantic Web Landscape 2009
Semantic Web Landscape 2009Semantic Web Landscape 2009
Semantic Web Landscape 2009


Recently uploaded

Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Zilliz

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides
Google Developer Group - Harare

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities
Priyanka Aash

Retrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with RagasRetrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with Ragas
Zilliz

The Path to General-Purpose Robots - Coatue
The Path to General-Purpose Robots - CoatueThe Path to General-Purpose Robots - Coatue
The Path to General-Purpose Robots - Coatue
Razin Mustafiz

LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdfLeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
SelfMade bd

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights
SynapseIndia

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
alexjohnson7307

Mastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for SuccessMastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for Success
David Wilson

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10
ankush9927

The History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal EmbeddingsThe History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal Embeddings
Zilliz

kk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdfkk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdf
KIRAN KV

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries
Brian Pichman

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
SAI KAILASH R

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase
Jimmy Lai

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development
Baishakhi Ray

Finetuning GenAI For Hacking and Defending
Finetuning GenAI For Hacking and DefendingFinetuning GenAI For Hacking and Defending
Finetuning GenAI For Hacking and Defending
Priyanka Aash

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17
Bhajan Mehta


Recently uploaded (20)

Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities

Retrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with RagasRetrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with Ragas

The Path to General-Purpose Robots - Coatue
The Path to General-Purpose Robots - CoatueThe Path to General-Purpose Robots - Coatue
The Path to General-Purpose Robots - Coatue

LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdfLeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...

Mastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for SuccessMastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for Success

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10

The History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal EmbeddingsThe History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal Embeddings

kk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdfkk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdf

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development

Finetuning GenAI For Hacking and Defending
Finetuning GenAI For Hacking and DefendingFinetuning GenAI For Hacking and Defending
Finetuning GenAI For Hacking and Defending

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17


SPARQL Cheat Sheet

  • 1. SPARQL By Example: The Cheat Sheet Accompanies slides at: http://www.cambridgesemantics.com/semantic-university/sparql-by-example Comments & questions to: Lee Feigenbaum <lee@cambridgesemantics.com> VP Marketing & Technology, Cambridge Semantics Co-chair, W3C SPARQL Working Group
  • 2. Conventions Red text means: “This is a core part of the SPARQL syntax or language.” Blue text means: “This is an example of query-specific text or values that might go into a SPARQL query.”
  • 3. Nuts & Bolts Write full URIs: <http://this.is.a/full/URI/written#out> Abbreviate URIs with prefixes: PREFIX foo: <http://this.is.a/URI/prefix#> … foo:bar …  http://this.is.a/URI/prefix#bar Shortcuts: a  rdf:type URIs Plain literals: “a plain literal” Plain literal with language tag: “bonjour”@fr Typed literal: “13”^^xsd:integer Shortcuts: true  “true”^^xsd:boolean 3  “3”^^xsd:integer 4.2  “4.2”^^xsd:decimal Literals Variables: ?var1, ?anotherVar, ?and_one_more Variables Comments: # Comments start with a „#‟ and # continue to the end of the line Comments Match an exact RDF triple: ex:myWidget ex:partNumber “XY24Z1” . Match one variable: ?person foaf:name “Lee Feigenbaum” . Match multiple variables: conf:SemTech2009 ?property ?value . Triple Patterns
  • 4. Common Prefixes More common prefixes at http://prefix.cc prefix... …stands for rdf: http://xmlns.com/foaf/0.1/ rdfs: http://www.w3.org/2000/01/rdf-schema# owl: http://www.w3.org/2002/07/owl# xsd: http://www.w3.org/2001/XMLSchema# dc: http://purl.org/dc/elements/1.1/ foaf: http://xmlns.com/foaf/0.1/
  • 5. Anatomy of a Query PREFIX foo: <…> PREFIX bar: <…> … SELECT … FROM <…> FROM NAMED <…> WHERE { … } GROUP BY … HAVING … ORDER BY … LIMIT … OFFSET … VALUES … Declare prefix shortcuts (optional) Query result clause Query pattern Query modifiers (optional) Define the dataset (optional)
  • 6. 4 Types of SPARQL Queries Project out specific variables and expressions: SELECT ?c ?cap (1000 * ?people AS ?pop) Project out all variables: SELECT * Project out distinct combinations only: SELECT DISTINCT ?country Results in a table of values (in XML or JSON): SELECT queries ?c ?cap ?pop ex:France ex:Paris 63,500,000 ex:Canada ex:Ottawa 32,900,000 ex:Italy ex:Rome 58,900,000 Construct RDF triples/graphs: CONSTRUCT { ?country a ex:HolidayDestination ; ex:arrive_at ?capital ; ex:population ?population . } Results in RDF triples (in any RDF serialization): ex:France a ex:HolidayDestination ; ex:arrive_at ex:Paris ; ex:population 635000000 . ex:Canada a ex:HolidayDestination ; ex:arrive_at ex:Ottawa ; ex:population 329000000 . CONSTRUCT queries Ask whether or not there are any matches: ASK Result is either “true” or “false” (in XML or JSON): true, false ASK queries Describe the resources matched by the given variables: DESCRIBE ?country Result is RDF triples (in any RDF serialization) : ex:France a geo:Country ; ex:continent geo:Europe ; ex:flag <http://…/flag-france.png> ; … DESCRIBE queries
  • 7. Combining SPARQL Graph Patterns Consider A and B as graph patterns. A Basic Graph Pattern – one or more triple patterns A . B  Conjunction. Join together the results of solving A and B by matching the values of any variables in common. Optional Graph Patterns A OPTIONAL { B }  Left join. Join together the results of solving A and B by matching the values of any variables in common, if possible. Keep all solutions from A whether or not there’s a matching solution in B
  • 8. Combining SPARQL Graph Patterns Consider A and B as graph patterns. Either-or Graph Patterns { A } UNION { B }  Disjunction. Include both the results of solving A and the results of solving B. “Subtracted” Graph Patterns (SPARQL 1.1) A MINUS { B }  Negation. Solve A. Solve B. Include only those results from solving A that are not compatible with any of the results from B.
  • 9. SPARQL Subqueries (SPARQL 1.1) Consider A and B as graph patterns. A . { SELECT … WHERE { B } } C .  Join the results of the subquery with the results of solving A and C.
  • 10. SPARQL Filters • SPARQL FILTERs eliminate solutions that do not cause an expression to evaluate to true. • Place FILTERs in a query inline within a basic graph pattern A . B . FILTER ( …expr… )
  • 11. Category Functions / Operators Examples Logical & Comparisons !, &&, ||, =, !=, <, <=, >, >=, IN, NOT IN ?hasPermit || ?age < 25 Conditionals (SPARQL 1.1) EXISTS, NOT EXISTS, IF, COALESCE NOT EXISTS { ?p foaf:mbox ?email } Math +, -, *, /, abs, round, ceil, floor, RAND ?decimal * 10 > ?minPercent Strings (SPARQL 1.1) STRLEN, SUBSTR, UCASE, LCASE, STRSTARTS, CONCAT, STRENDS, CONTAINS, STRBEFORE, STRAFTER STRLEN(?description) < 255 Date/time (SPARQL 1.1) now, year, month, day, hours, minutes, seconds, timezone, tz month(now()) < 4 SPARQL tests isURI, isBlank, isLiteral, isNumeric, bound isURI(?person) || !bound(?person) Constructors (SPARQL 1.1) URI, BNODE, STRDT, STRLANG, UUID, STRUUID STRLANG(?text, “en”) = “hello”@en Accessors str, lang, datatype lang(?title) = “en” Hashing (1.1) MD5, SHA1, SHA256, SHA512 BIND(SHA256(?email) AS ?hash) Miscellaneous sameTerm, langMatches, regex, REPLACE regex(?ssn, “d{3}-d{2}-d{4}”)
  • 12. Aggregates (SPARQL 1.1) 1. Partition results into groups based on the expression(s) in the GROUP BY clause 2. Evaluate projections and aggregate functions in SELECT clause to get one result per group 3. Filter aggregated results via the HAVING clause ?key ?val ?other1 1 4 … 1 4 … 2 5 … 2 4 … 2 10 … 2 2 … 2 1 … 3 3 … ?key ?sum_of_val 1 8 2 22 3 3 ?key ?sum_of_val 1 8 3 3 SPARQL 1.1 includes: COUNT, SUM, AVG, MIN, MAX, SAMPLE, GROUP_CONCAT
  • 13. Property Paths (SPARQL 1.1) • Property paths allow triple patterns to match arbitrary- length paths through a graph • Predicates are combined with regular-expression-like operators: Construct Meaning path1/path2 Forwards path (path1 followed by path2) ^path1 Backwards path (object to subject) path1|path2 Either path1 or path2 path1* path1, repeated zero or more times path1+ path1, repeated one or more times path1? path1, optionally !uri Any predicate except uri !^uri Any backwards (object to subject) predicate except uri
  • 14. RDF Datasets A SPARQL queries a default graph (normally) and zero or more named graphs (when inside a GRAPH clause). ex:g1 ex:g2 ex:g3 Default graph (the merge of zero or more graphs) Named graphs ex:g1 ex:g4 PREFIX ex: <…> SELECT … FROM ex:g1 FROM ex:g4 FROM NAMED ex:g1 FROM NAMED ex:g2 FROM NAMED ex:g3 WHERE { … A … GRAPH ex:g3 { … B … } GRAPH ?graph { … C … } } OR OR
  • 15. SPARQL Over HTTP (the SPARQL Protocol) http://host.domain.com/sparql/endpoint?<parameters> where <parameters> can include: query=<encoded query string> e.g. SELECT+*%0DWHERE+{… default-graph-uri=<encoded graph URI> e.g. http%3A%2F%2Fexmaple.com%2Ffoo… n.b. zero of more occurrences of default-graph-uri named-graph-uri=<encoded graph URI> e.g. http%3A%2F%2Fexmaple.com%2Fbar… n.b. zero of more occurrences of named-graph-uri HTTP GET or POST. Graphs given in the protocol override graphs given in the query.
  • 16. Federated Query (SPARQL 1.1) PREFIX ex: <…> SELECT … FROM ex:g1 WHERE { … A … SERVICE ex:s1 { … B … } SERVICE ex:s2 { … C … } } ex:g1 Web SPARQL Endpoint ex:s2 SPARQL Endpoint ex:s1 Local Graph Store
  • 17. SPARQL 1.1 Update SPARQL Update Language Statements INSERT DATA { triples } DELETE DATA {triples} [ DELETE { template } ] [ INSERT { template } ] WHERE { pattern } LOAD <uri> [ INTO GRAPH <uri> ] CLEAR GRAPH <uri> CREATE GRAPH <uri> DROP GRAPH <uri> [ … ] denotes optional parts of SPARQL 1.1 Update syntax
  • 18. Some Public SPARQL Endpoints Name URL What’s there? SPARQLer http://sparql.org/sparql.html General-purpose query endpoint for Web-accessible data DBPedia http://dbpedia.org/sparql Extensive RDF data from Wikipedia DBLP http://www4.wiwiss.fu-berlin.de/dblp/snorql/ Bibliographic data from computer science journals and conferences LinkedMDB http://data.linkedmdb.org/sparql Films, actors, directors, writers, producers, etc. World Factbook http://www4.wiwiss.fu- berlin.de/factbook/snorql/ Country statistics from the CIA World Factbook bio2rdf http://bio2rdf.org/sparql Bioinformatics data from around 40 public databases
  • 19. SPARQL Resources • SPARQL Specifications Overview – http://www.w3.org/TR/sparql11-overview/ • SPARQL implementations – http://esw.w3.org/topic/SparqlImplementations • SPARQL endpoints – http://esw.w3.org/topic/SparqlEndpoints • SPARQL Frequently Asked Questions – http://www.thefigtrees.net/lee/sw/sparql-faq • Common SPARQL extensions – http://esw.w3.org/topic/SPARQL/Extensions
