Slides from the "Data flow architecture in angular2 with redux". Introduction to Redux, it's inspirations and implementation. Join the "AngularJS-IL" meetup group for more community events and workshops! (http://www.meetup.com/AngularJS-IL/events/229660127/)

1. DATA FLOW
ARCHITECTURE IN
ANGULAR2 WITH REDUX
Nir Kaufman
Deep dive into the pattern & implementation

2. NIR KUFMN
Nir Kaufman
- Doing Angular for years
- Wrote a book about Angular2
- Plays the electric Bass
Head of Angular Development @ 500Tech
*This picture has been retouched.
The actual speaker may look different

4. SPEAK.ANGULAR.CO.IL

5. /user/AngularJSIL

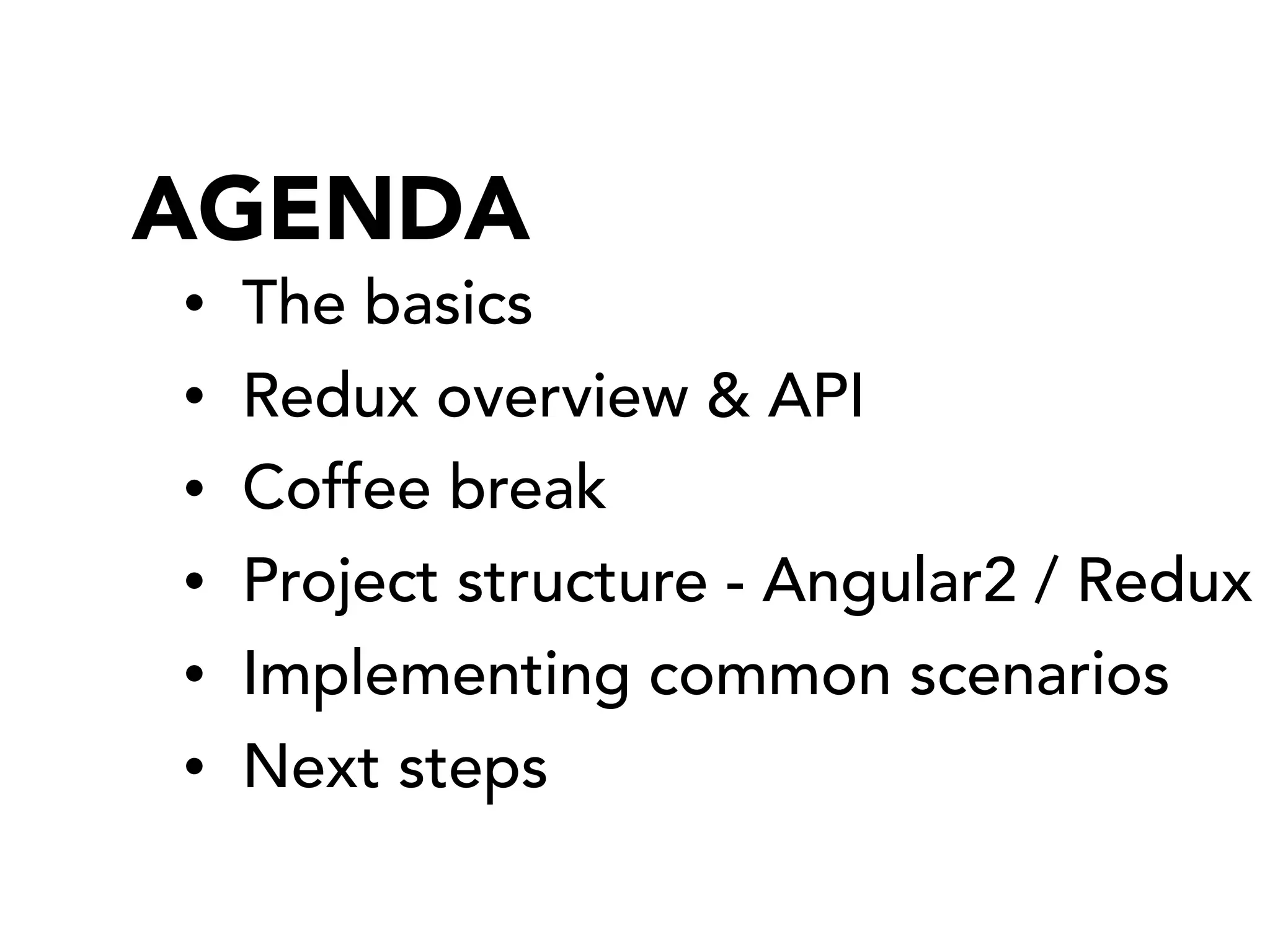

6. AGENDA
• The basics
• Redux overview & API
• Coffee break
• Project structure - Angular2 / Redux
• Implementing common scenarios
• Next steps

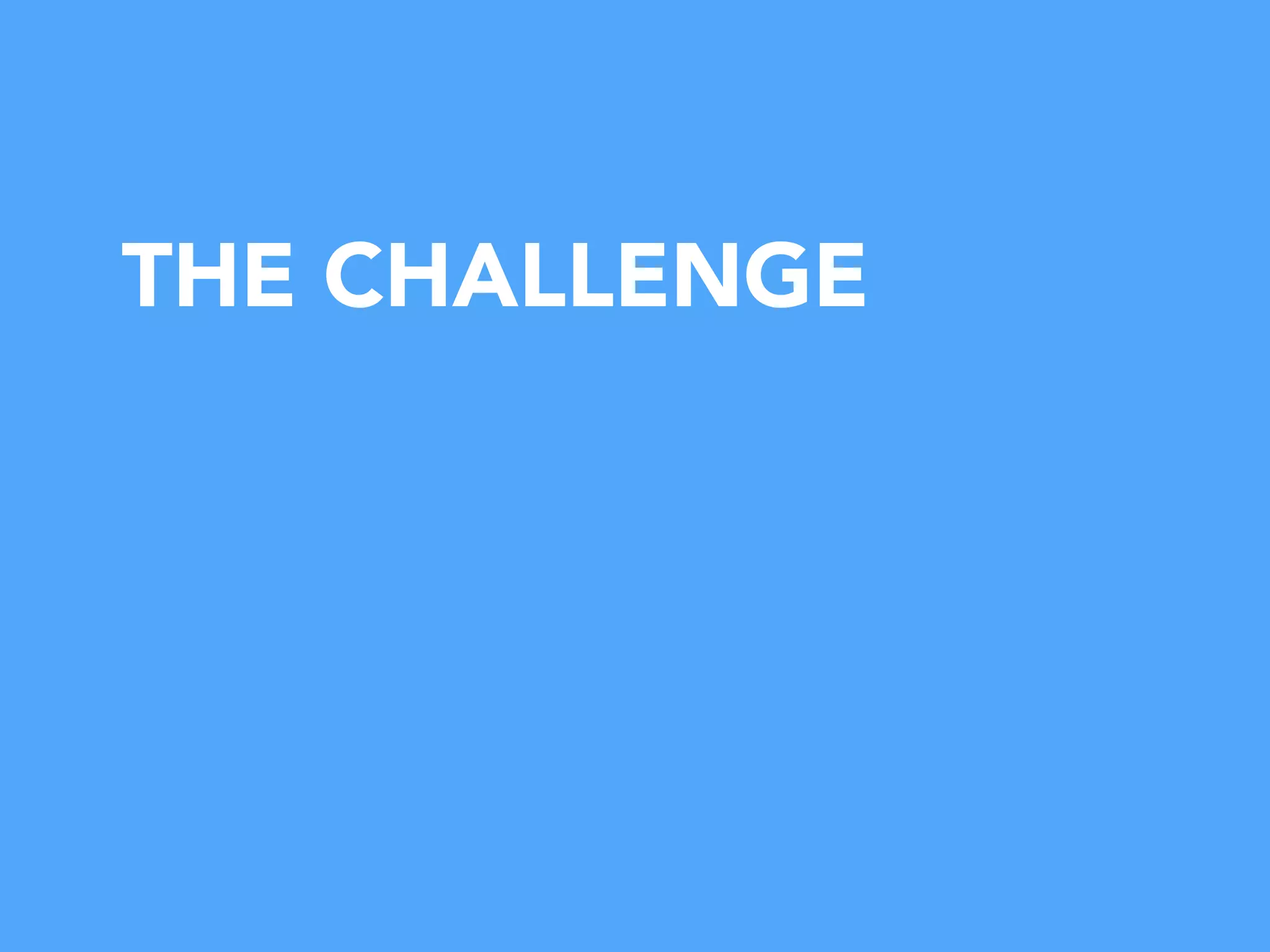

7. THE CHALLENGE

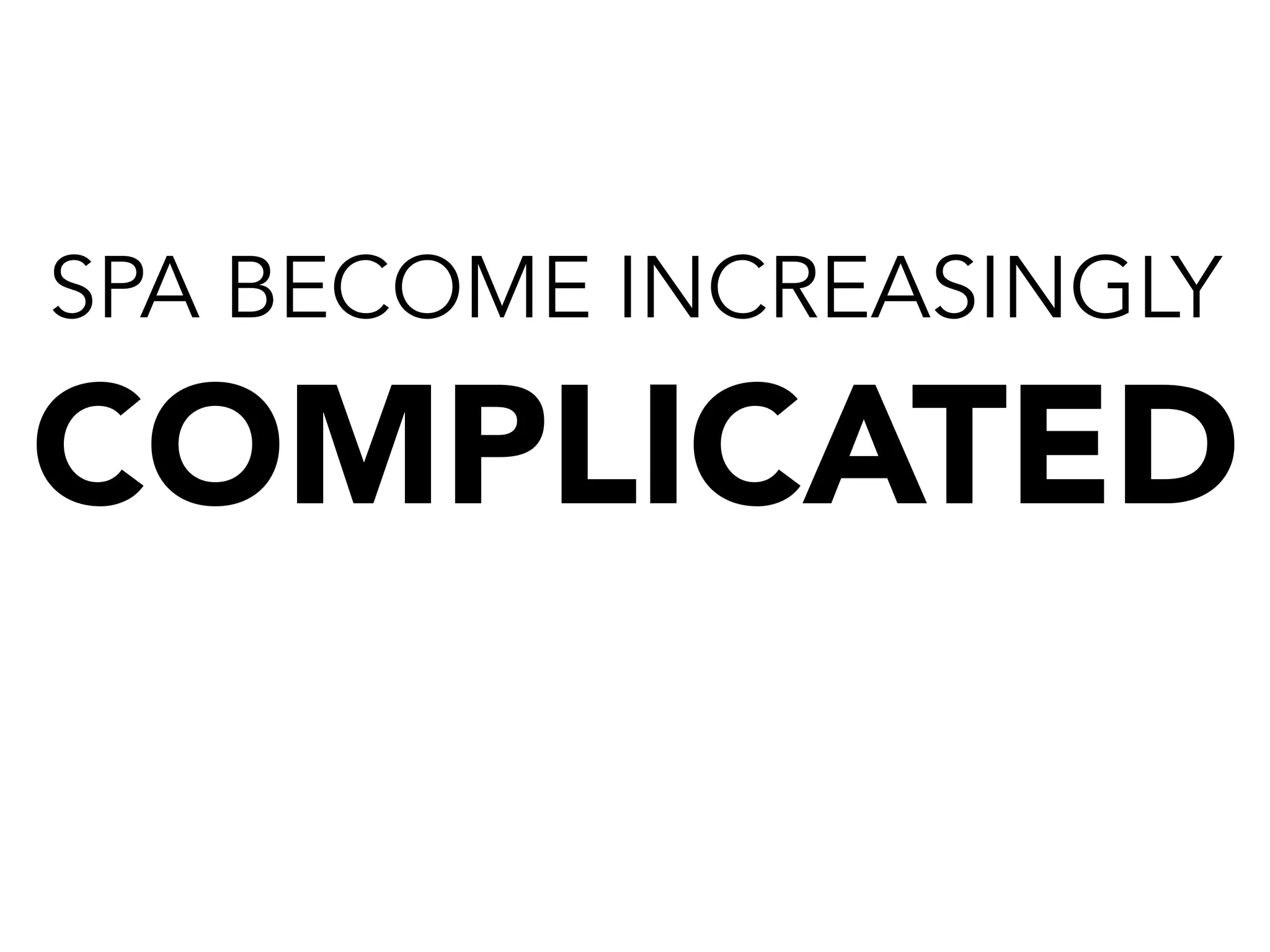

8. SPA BECOME INCREASINGLY
COMPLICATED

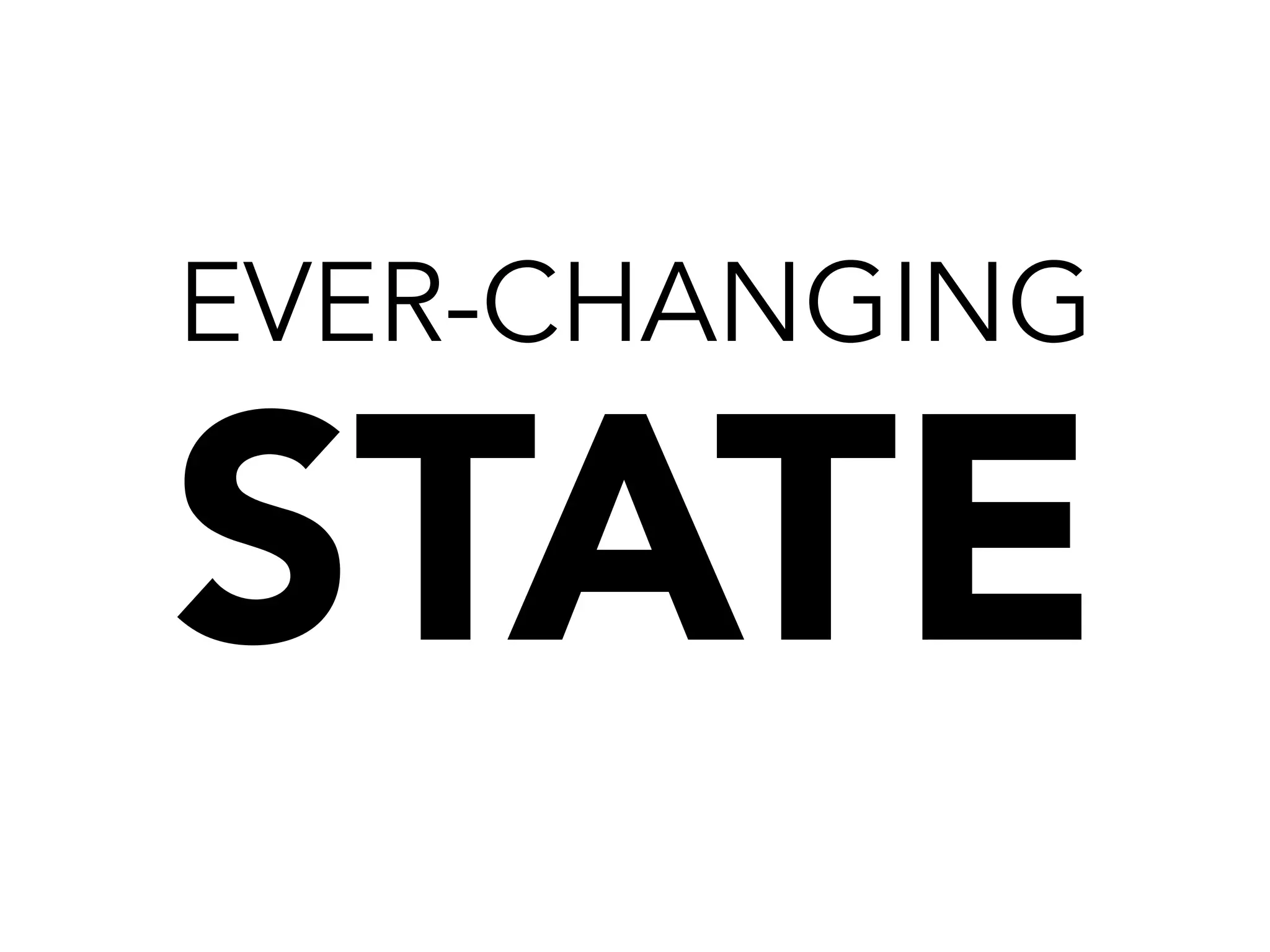

10. EVER-CHANGING
STATE

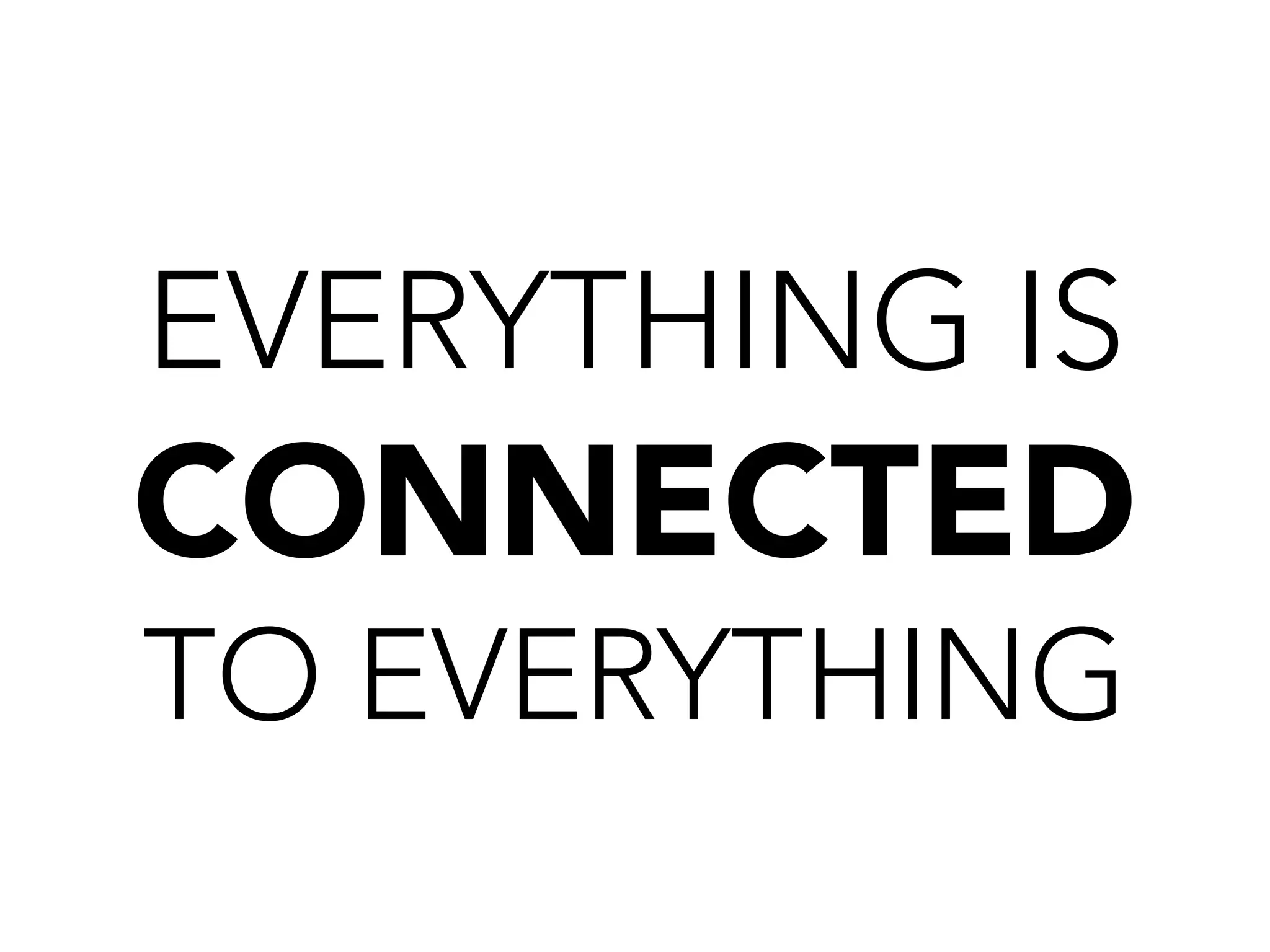

11. EVERYTHING IS
CONNECTED
TO EVERYTHING

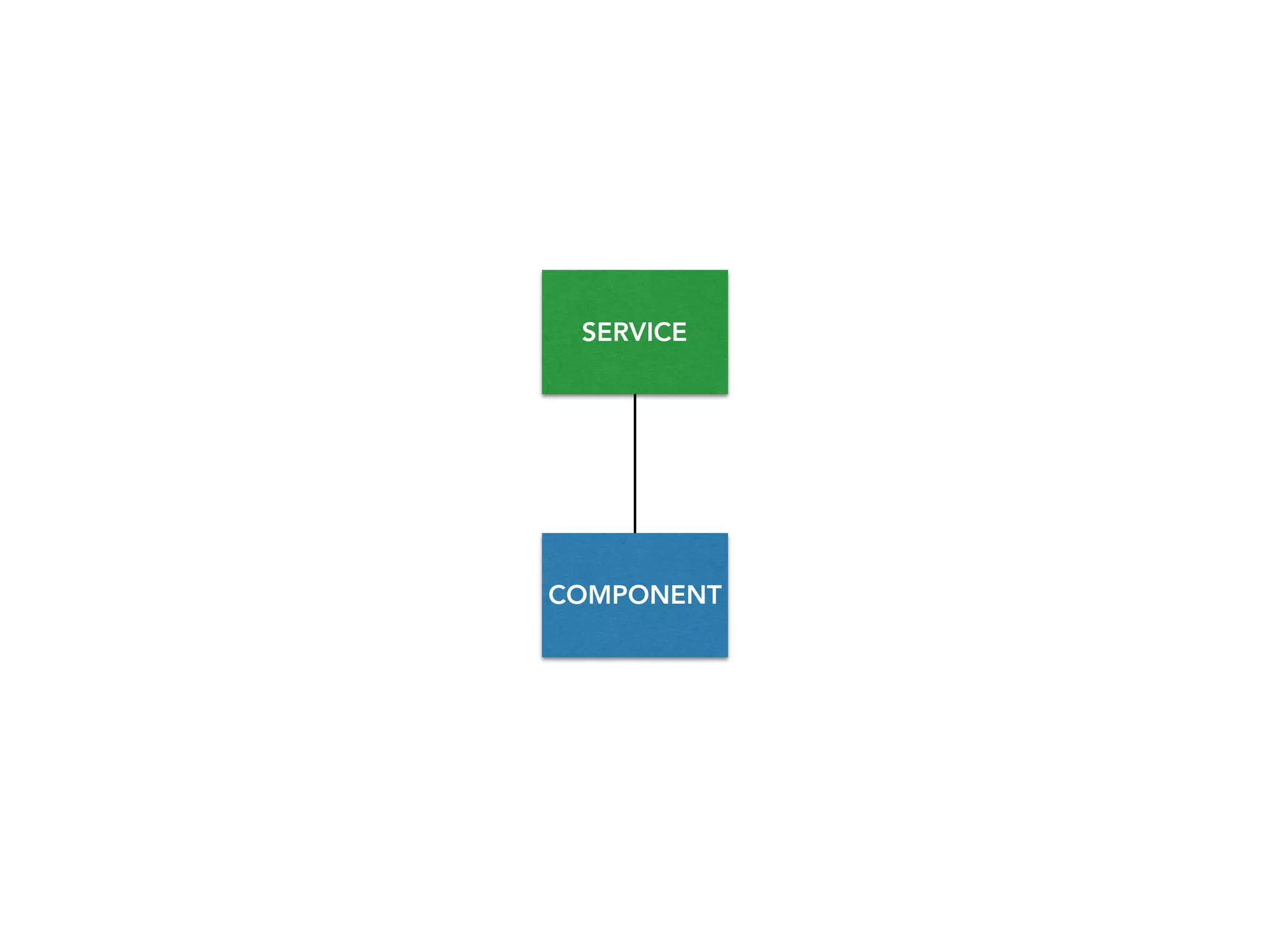

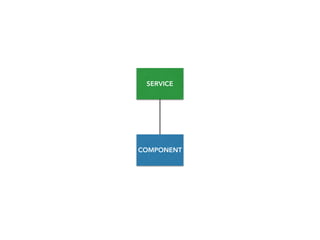

12. COMPONENT
SERVICE

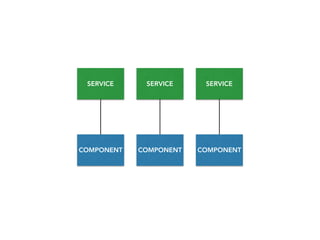

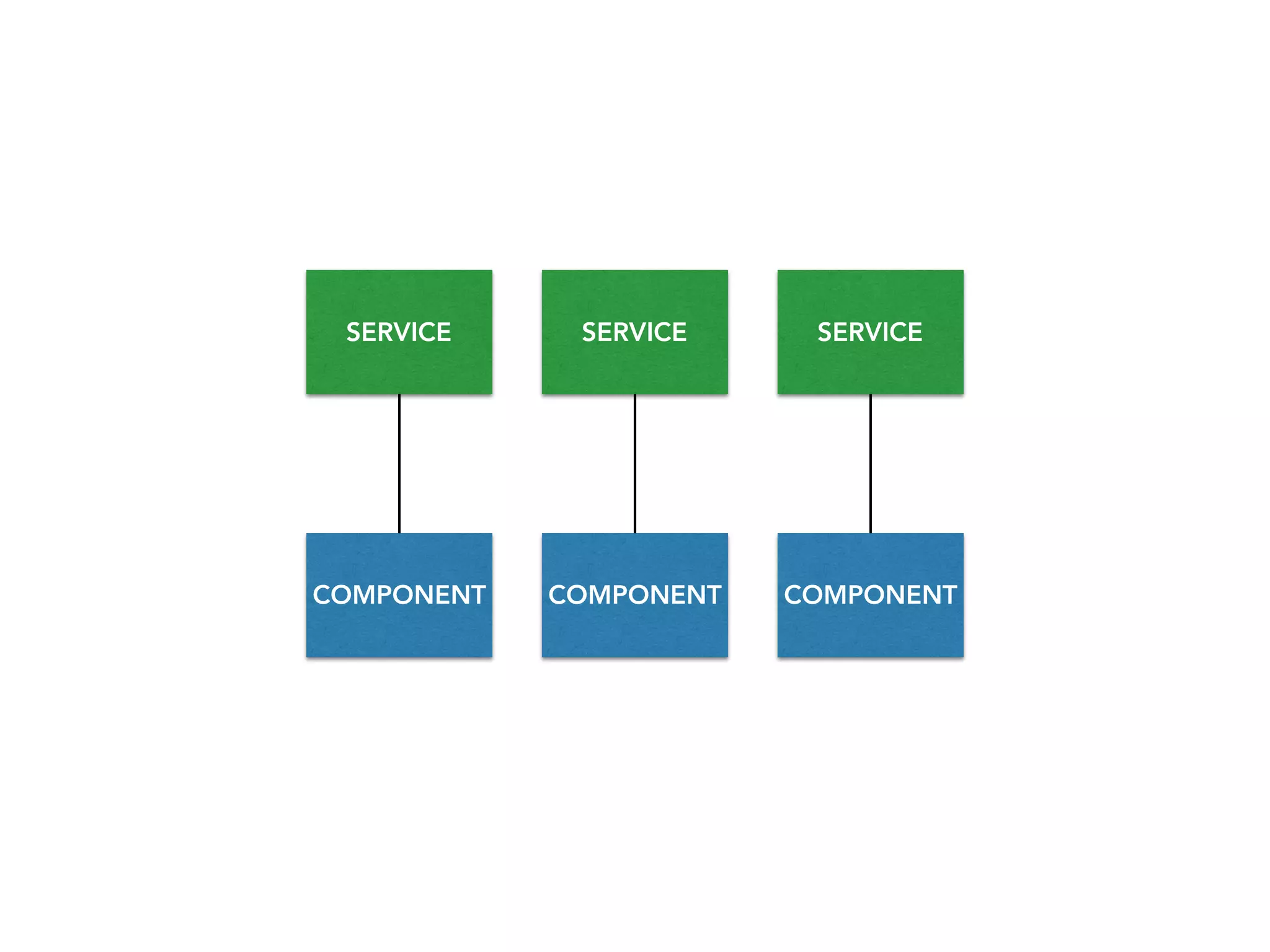

13. COMPONENT
SERVICE
COMPONENT
SERVICE
COMPONENT
SERVICE

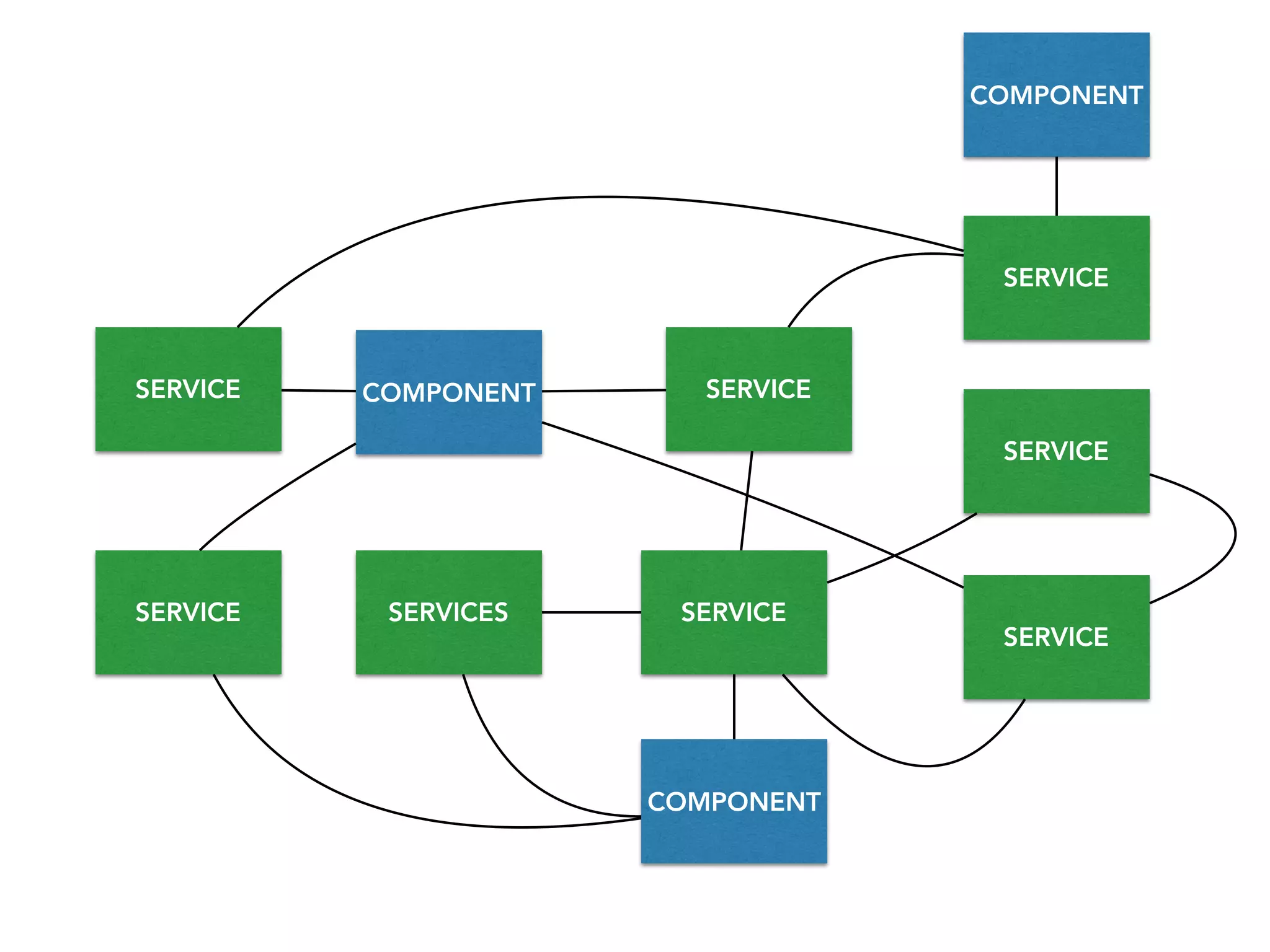

14. COMPONENT
SERVICESERVICES
SERVICE
SERVICE
SERVICE
SERVICE
COMPONENTSERVICE
SERVICE
COMPONENT

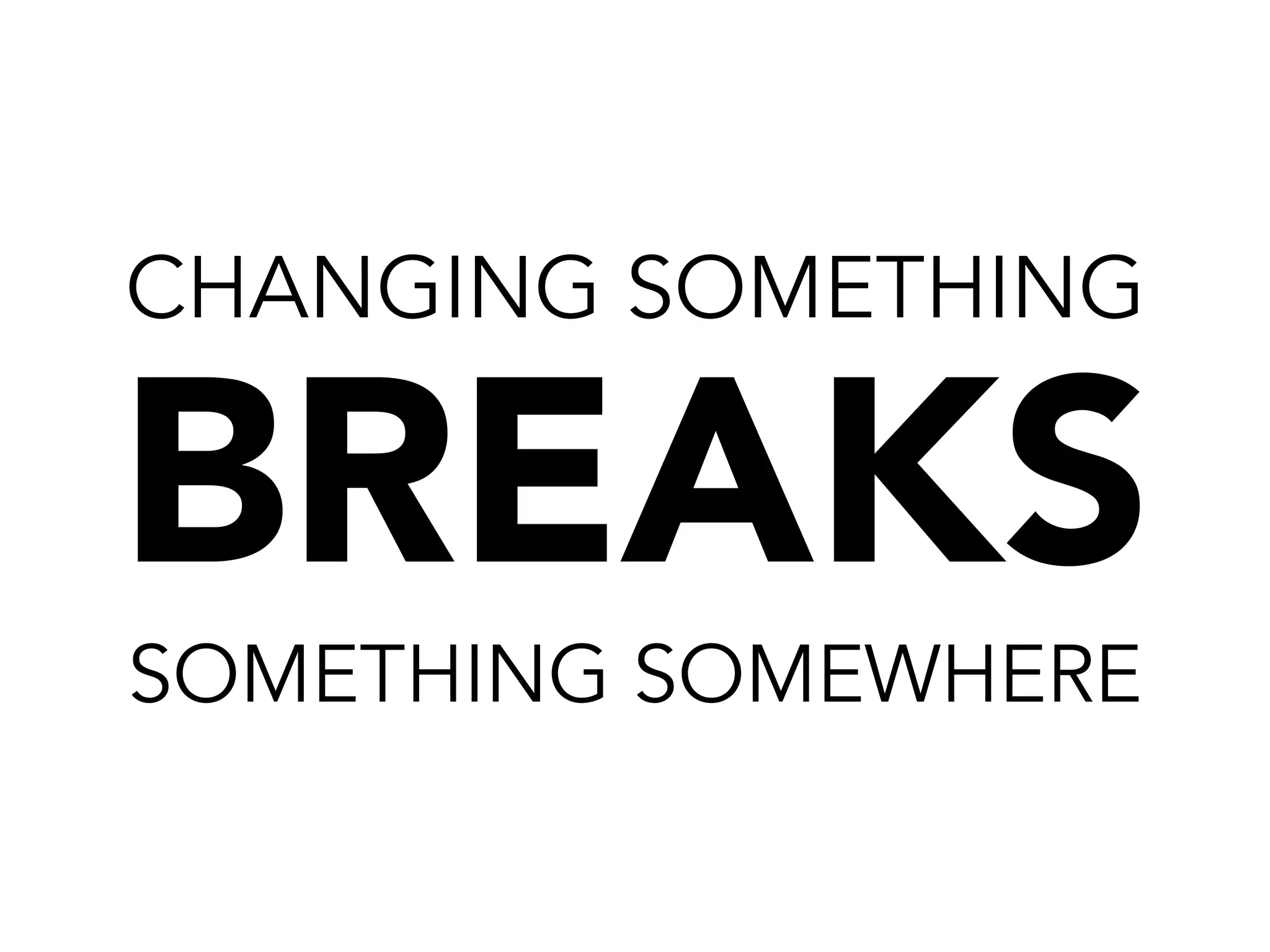

15. CHANGING SOMETHING
BREAKS
SOMETHING SOMEWHERE

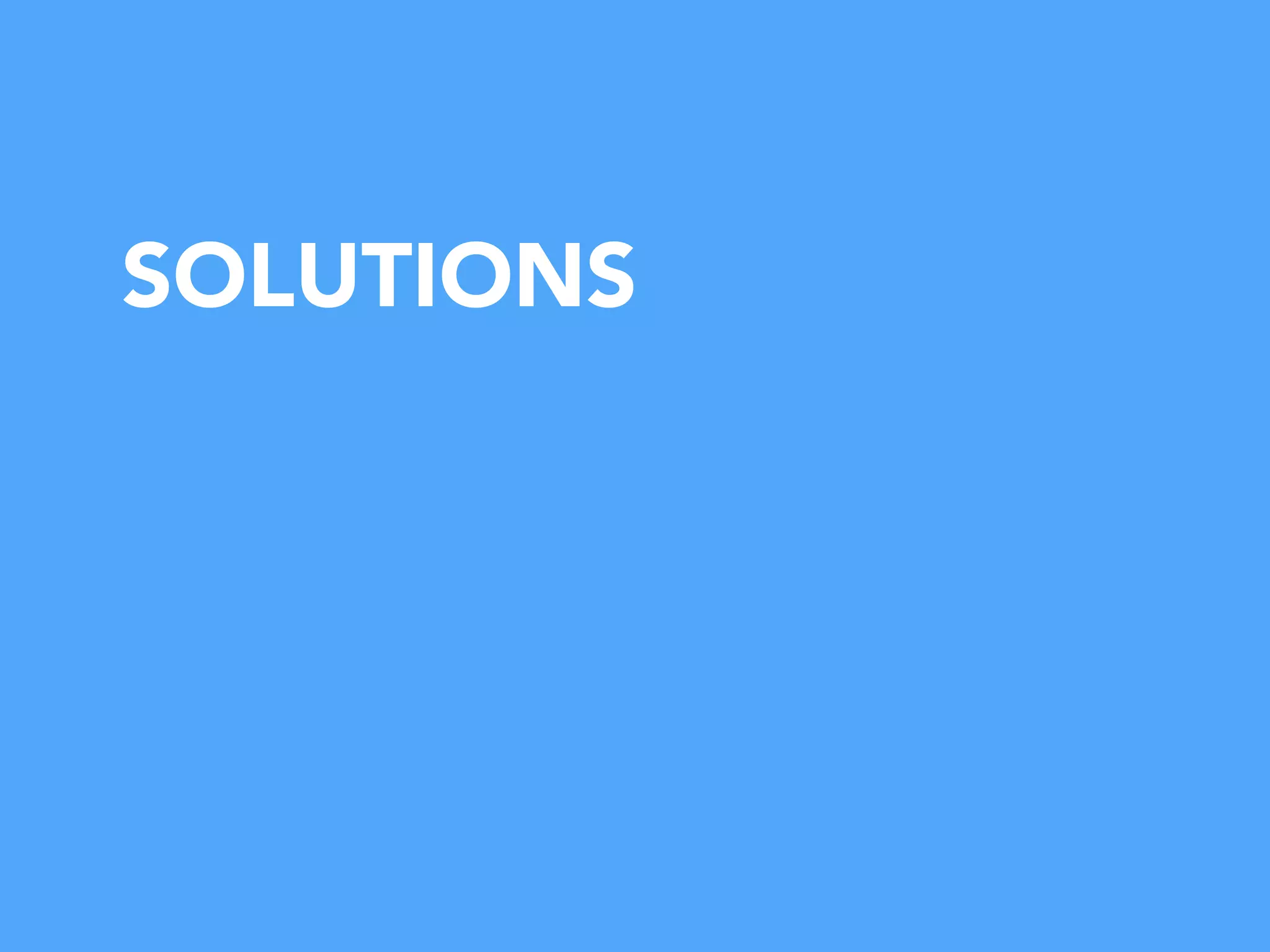

16. SOLUTIONS

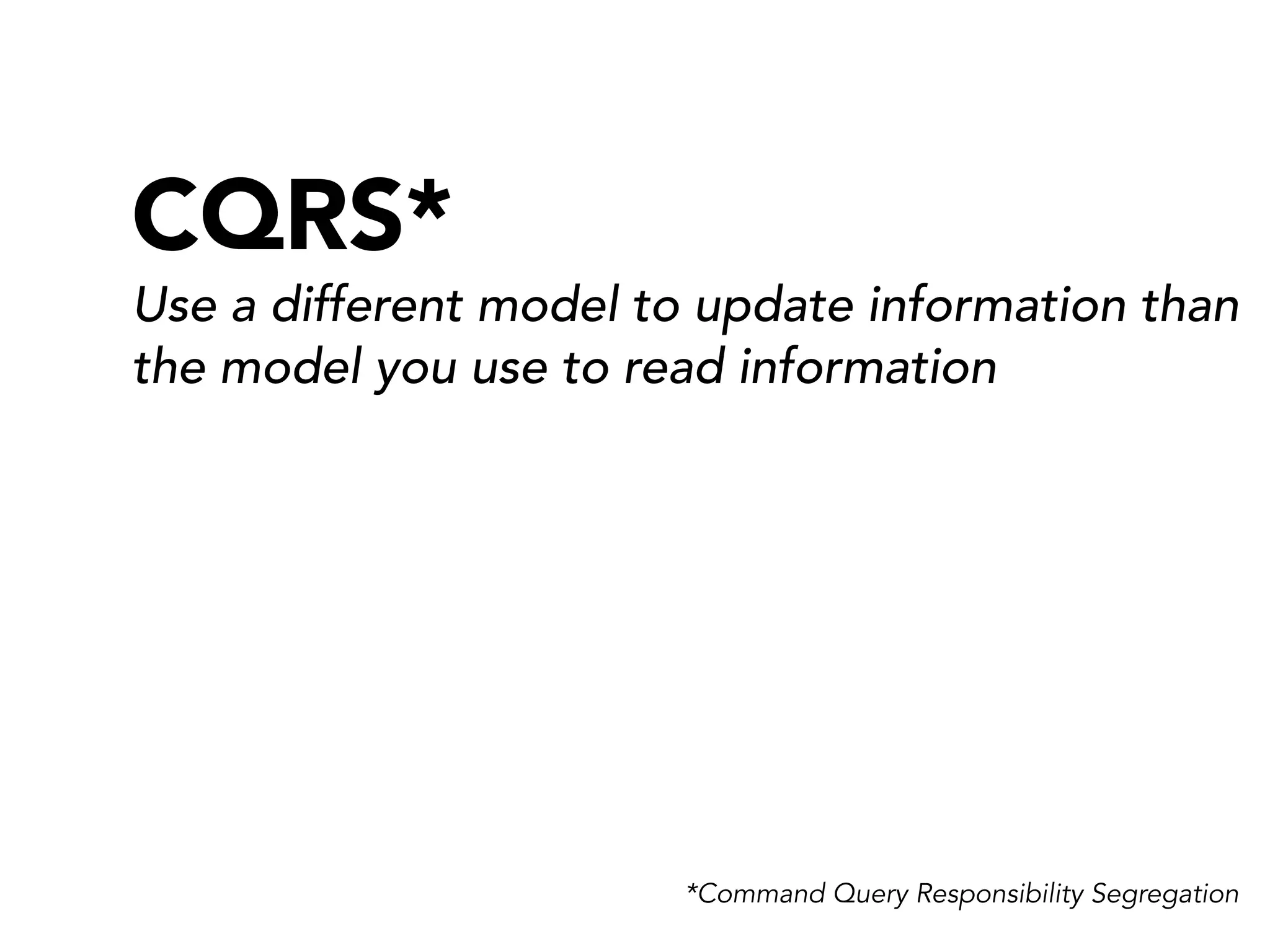

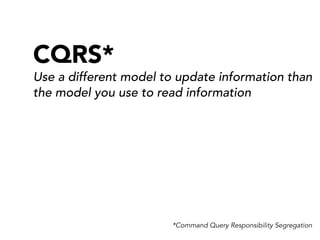

17. CQRS*
Use a different model to update information than
the model you use to read information
*Command Query Responsibility Segregation

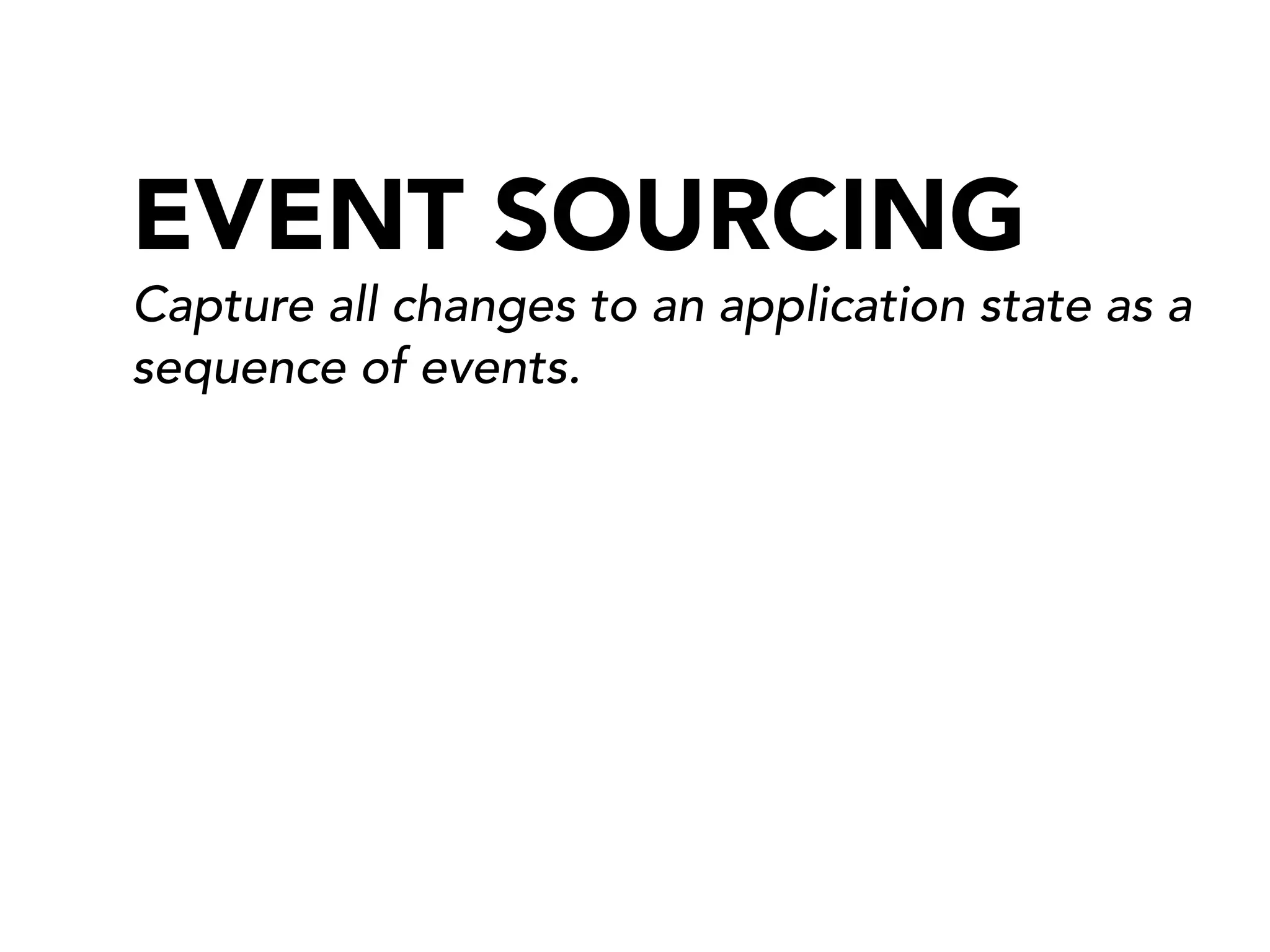

18. EVENT SOURCING
Capture all changes to an application state as a
sequence of events.

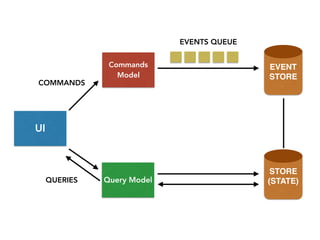

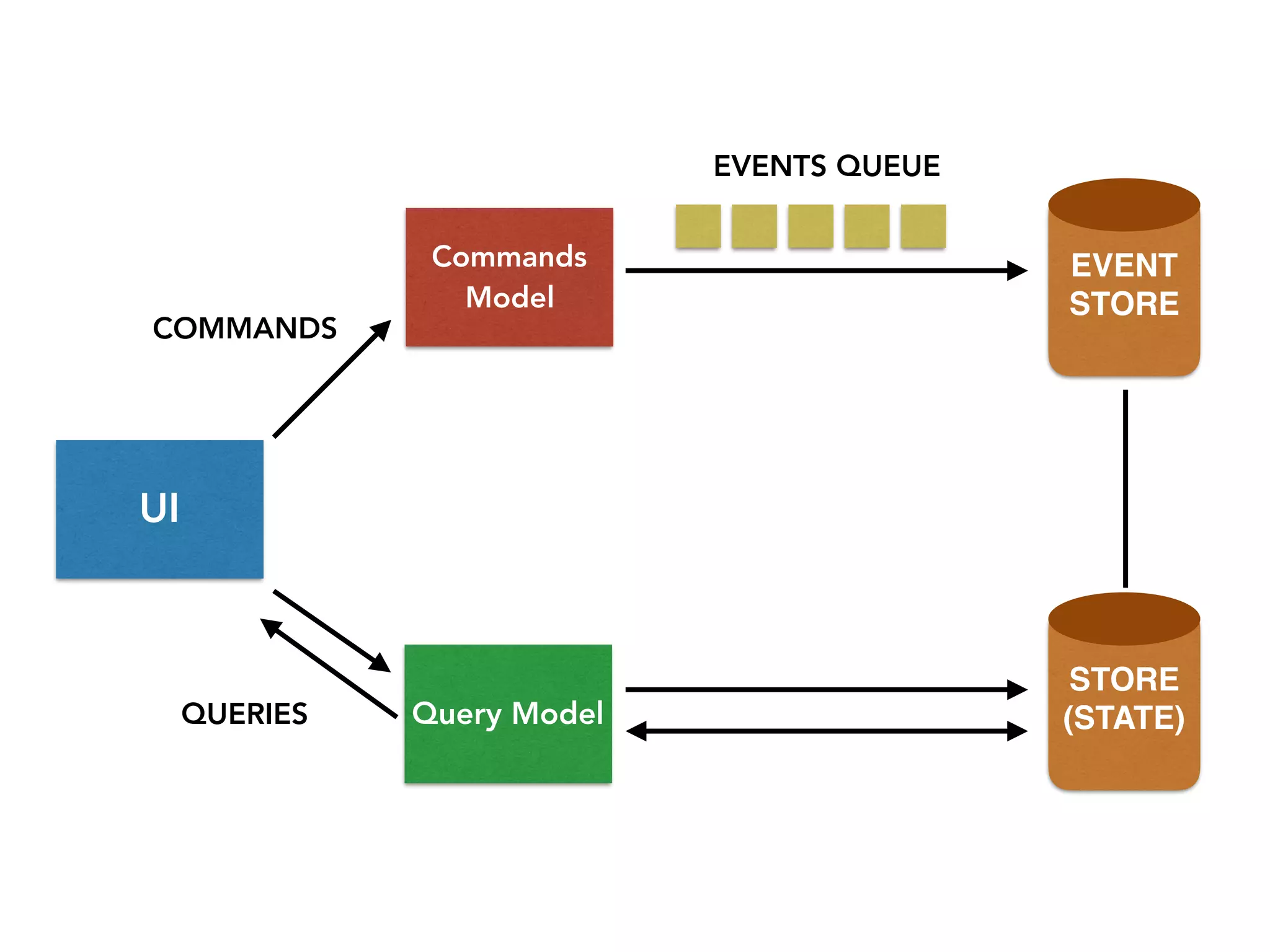

19. UI
Commands
Model
Query Model
EVENT
STORE
STORE
(STATE)
EVENTS QUEUE
COMMANDS
QUERIES

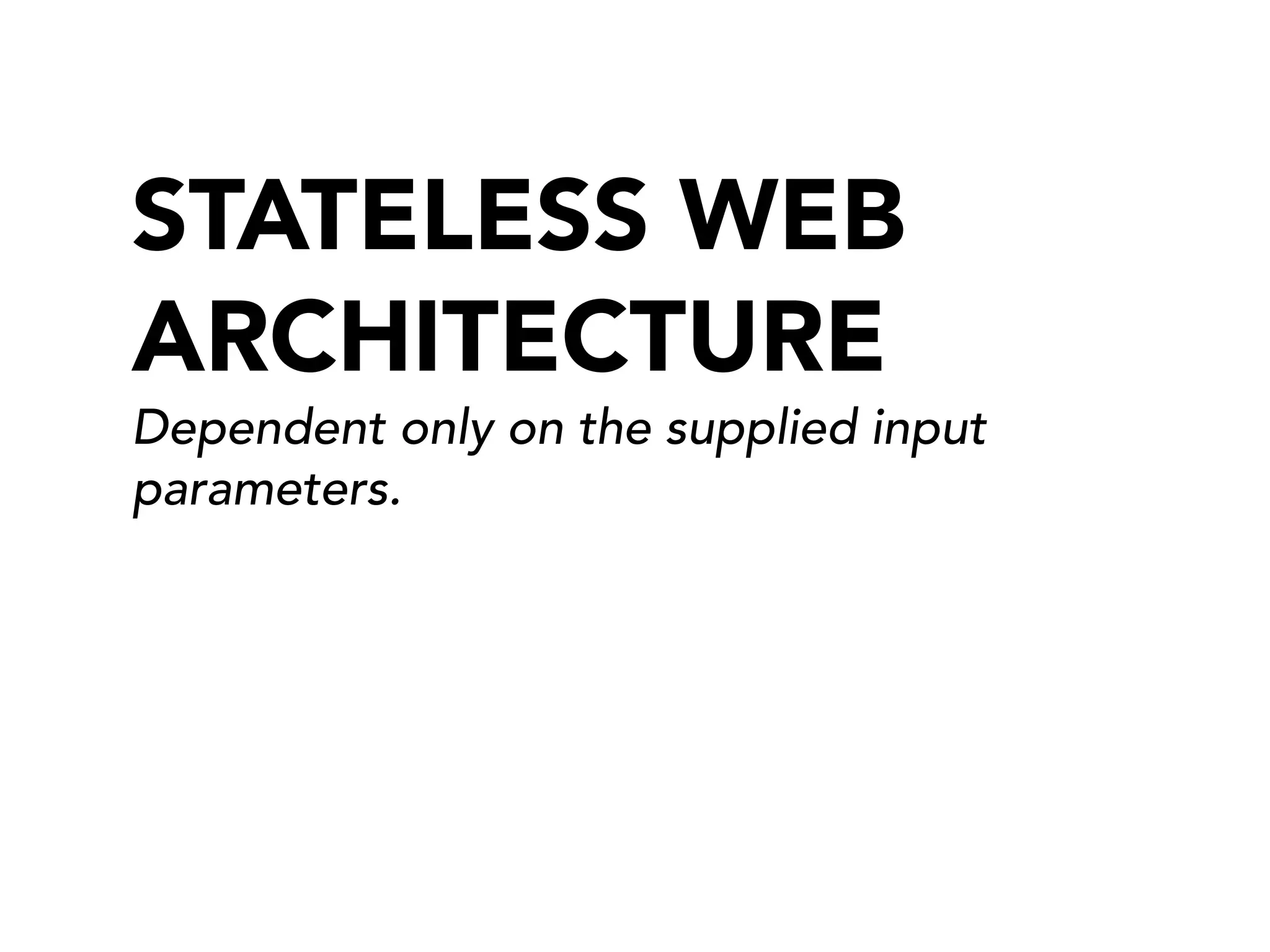

20. STATELESS WEB
ARCHITECTURE
Dependent only on the supplied input
parameters.

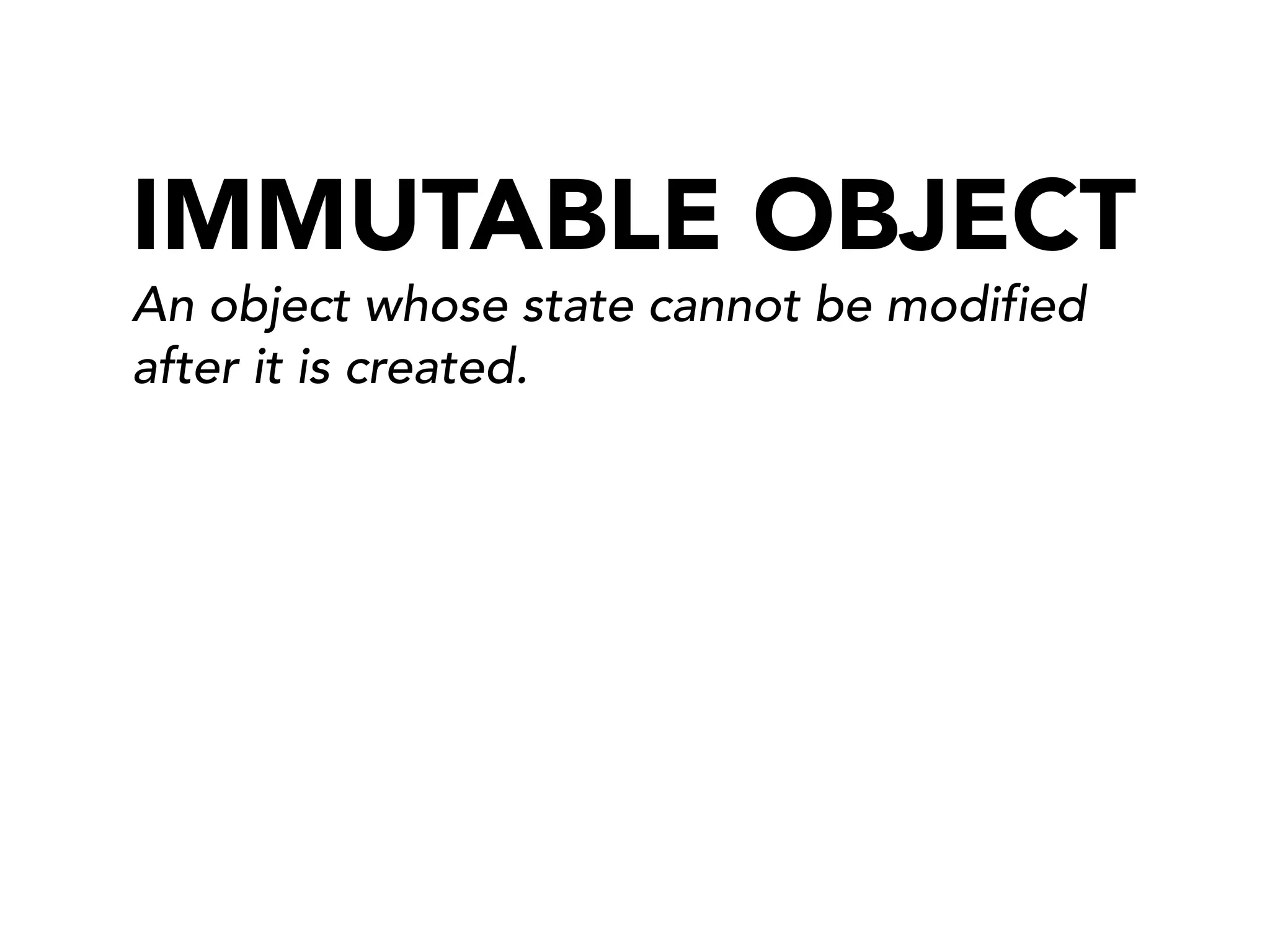

21. IMMUTABLE OBJECT
An object whose state cannot be modified
after it is created.

22. ENTER REDUX

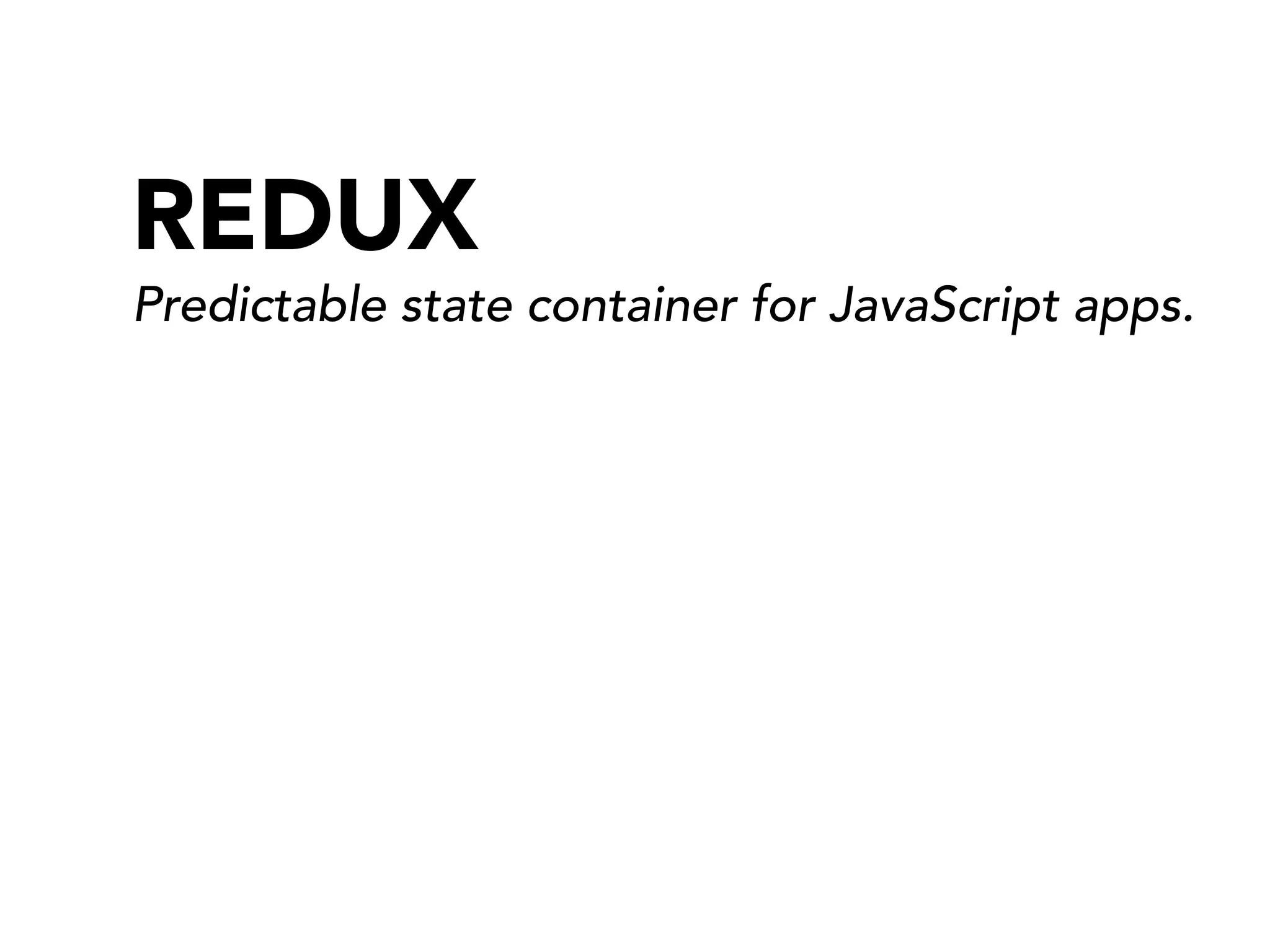

23. REDUX
Predictable state container for JavaScript apps.

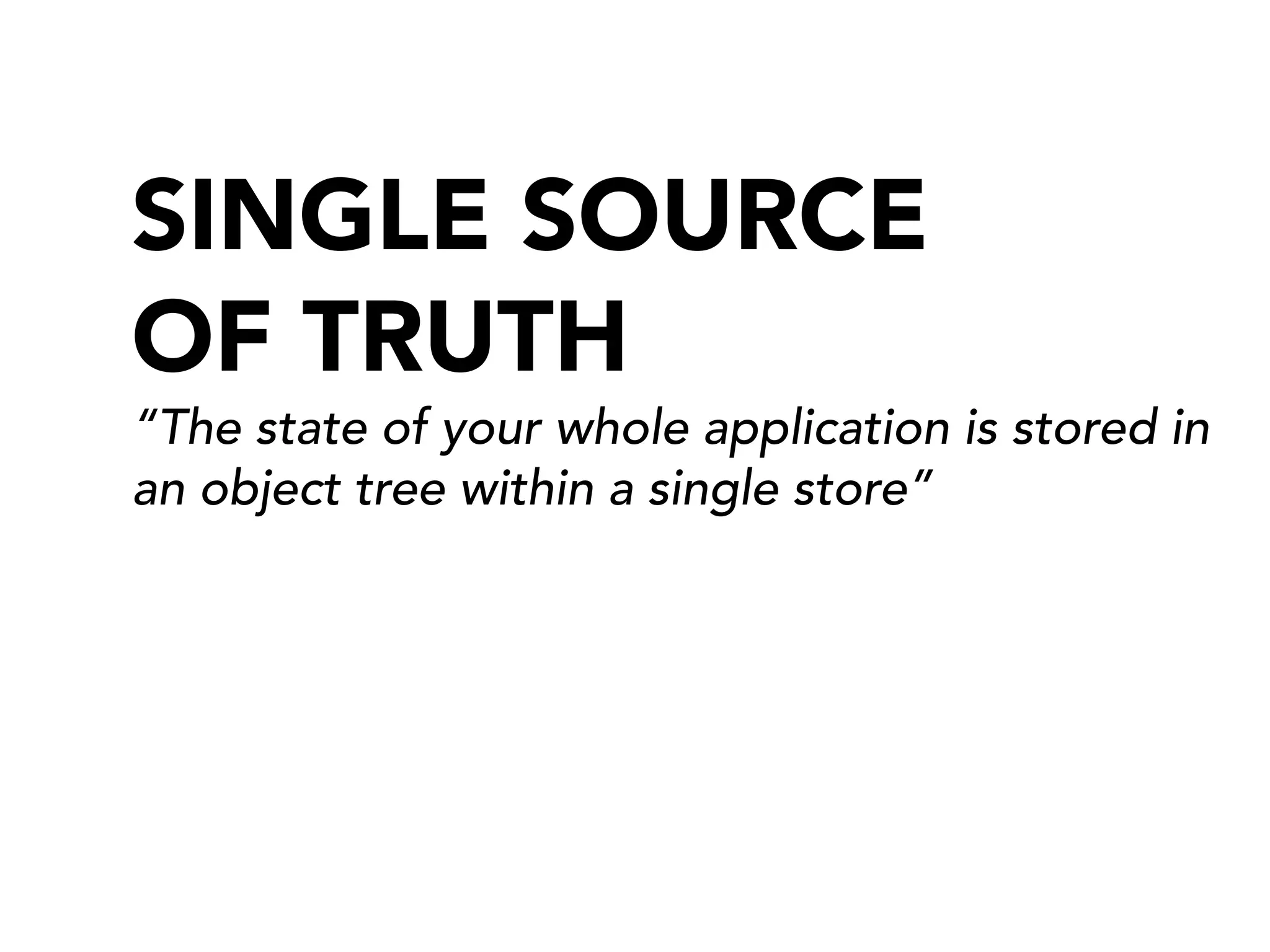

24. SINGLE SOURCE
OF TRUTH
“The state of your whole application is stored in
an object tree within a single store”

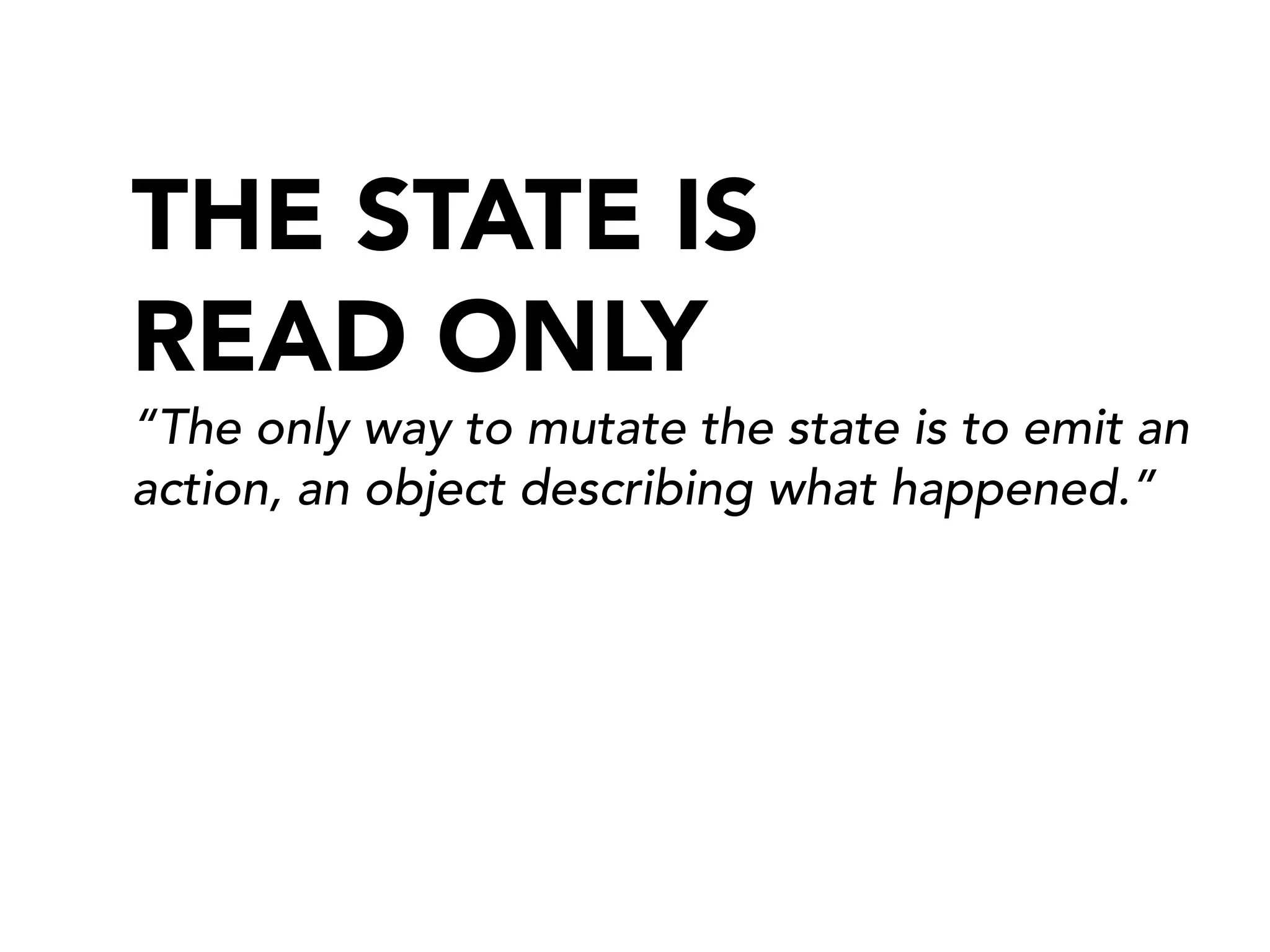

25. THE STATE IS
READ ONLY
“The only way to mutate the state is to emit an
action, an object describing what happened.”

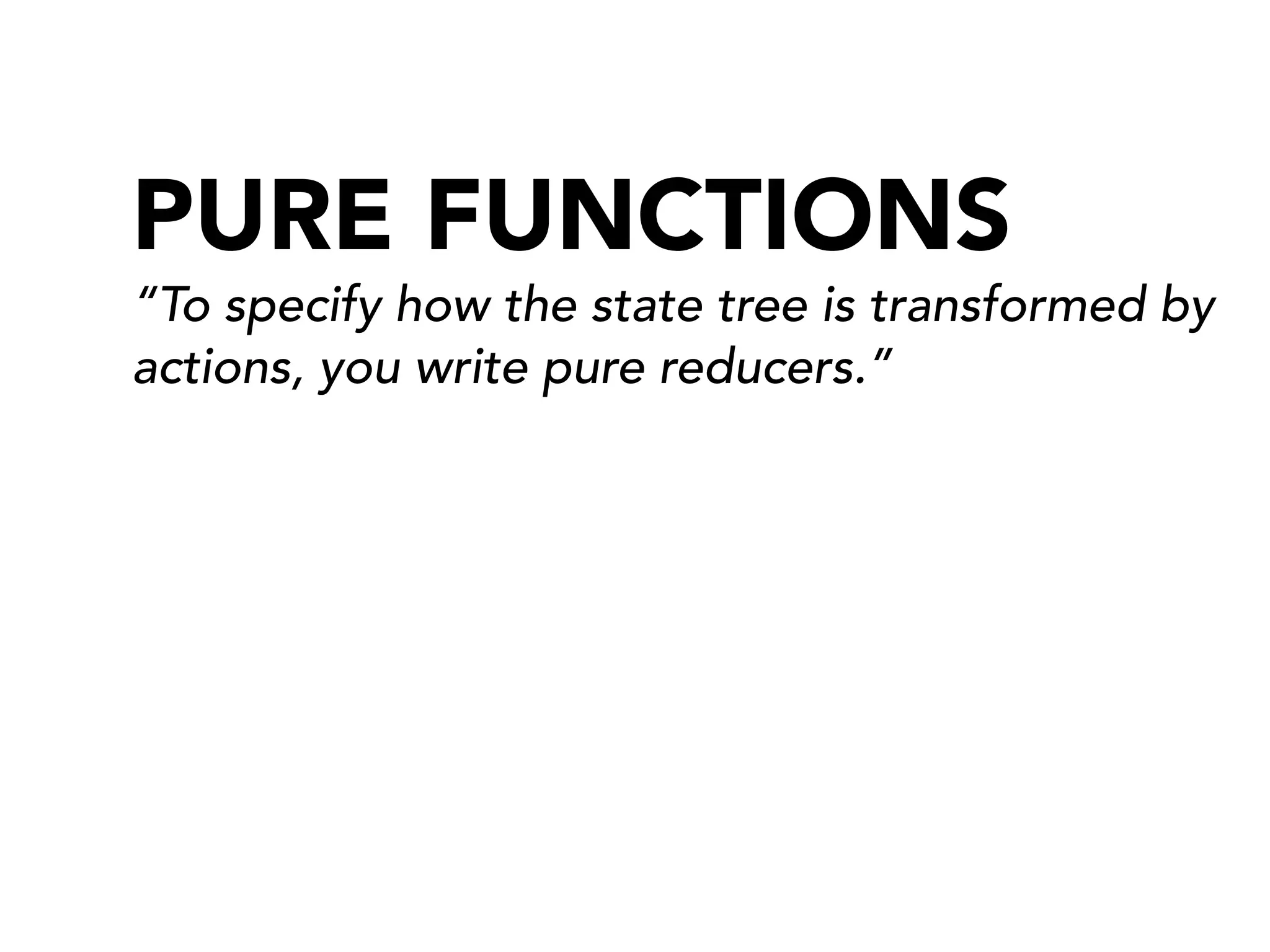

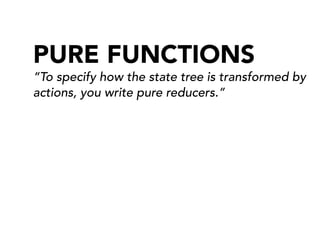

26. PURE FUNCTIONS
“To specify how the state tree is transformed by
actions, you write pure reducers.”

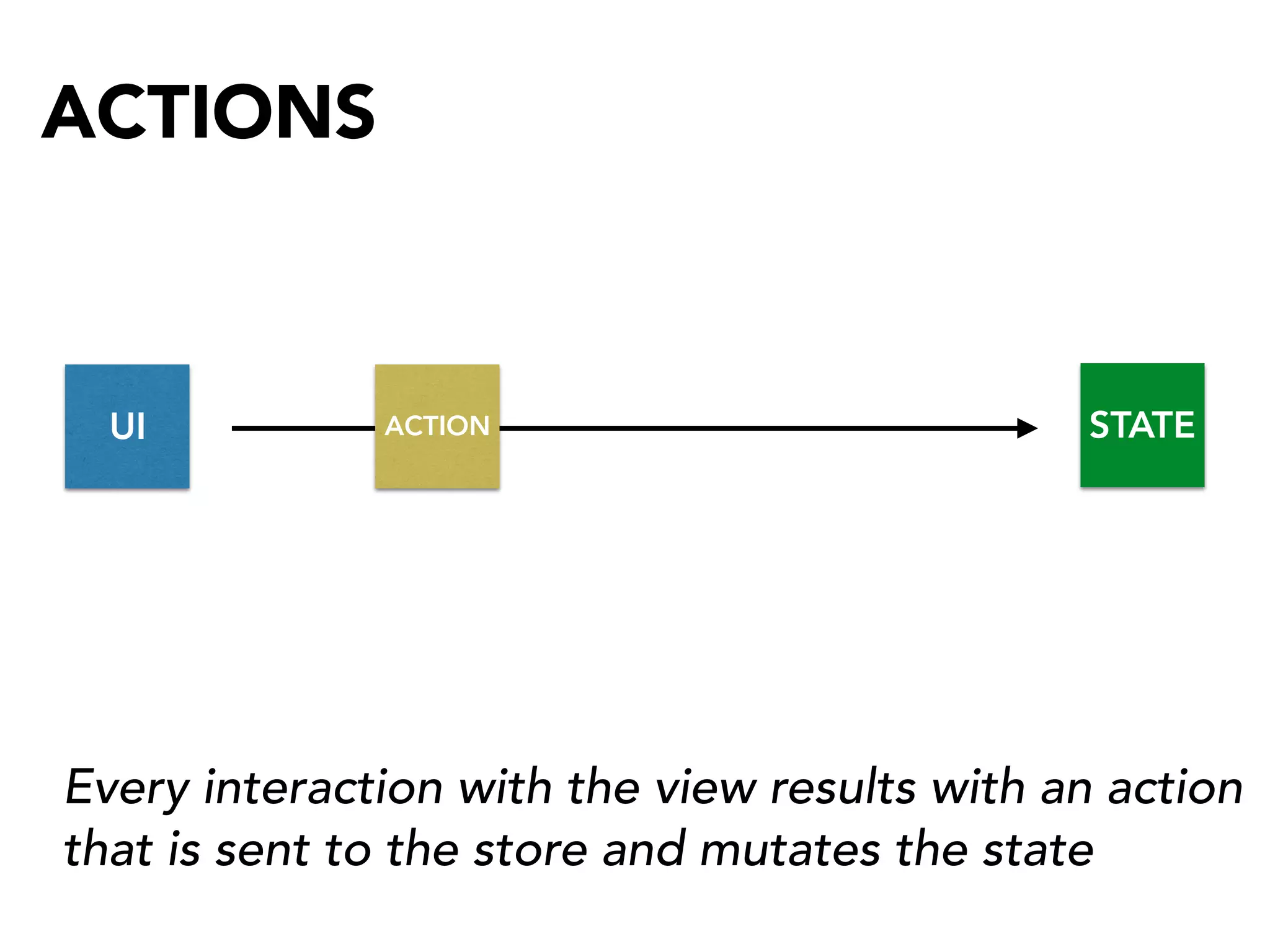

27. Every interaction with the view results with an action
that is sent to the store and mutates the state
ACTIONS
UI STATEACTION

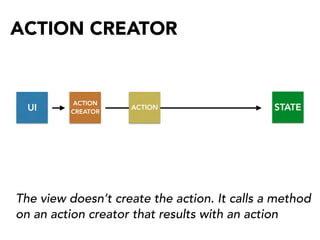

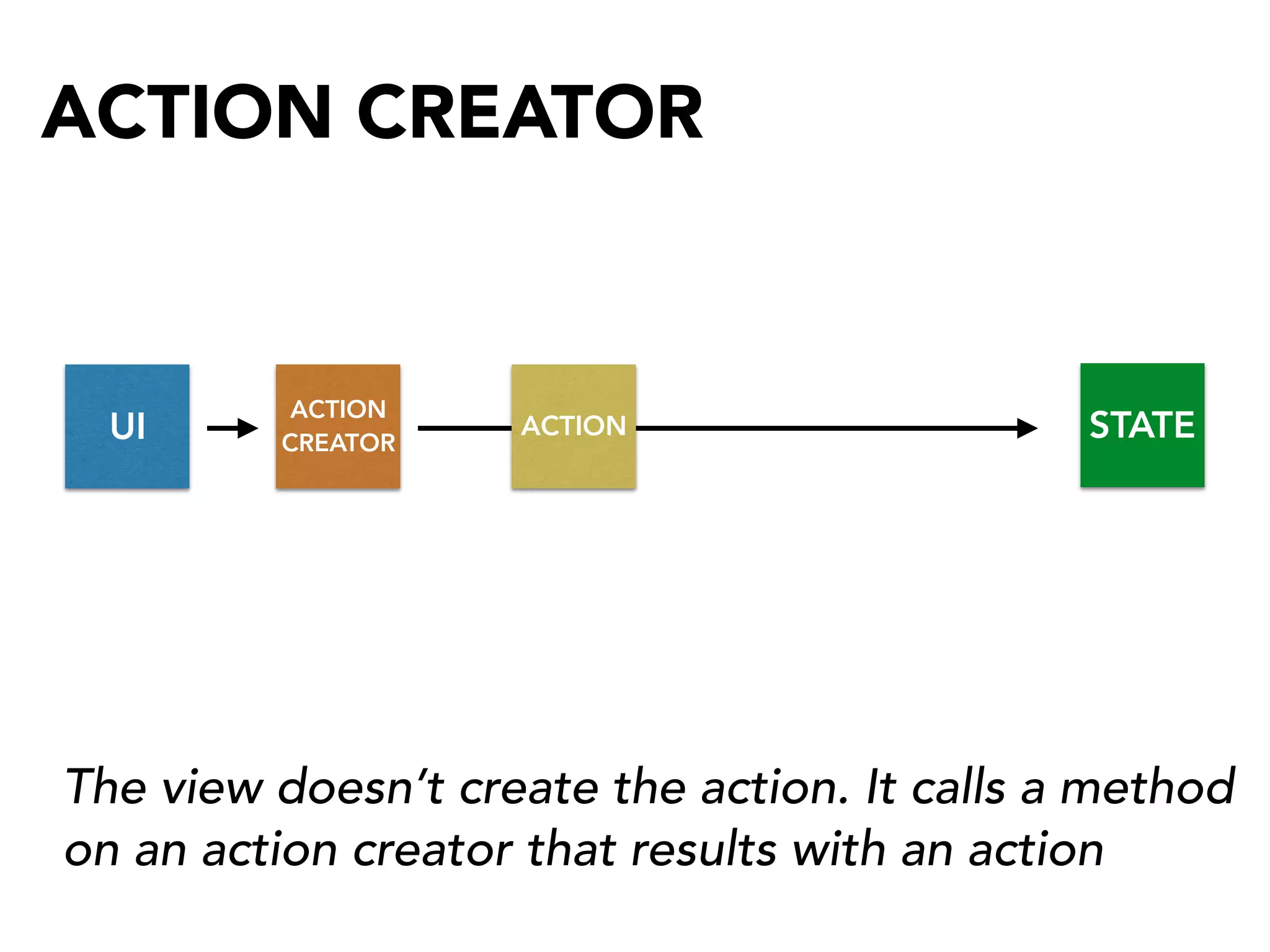

28. The view doesn’t create the action. It calls a method
on an action creator that results with an action
ACTION CREATOR
UI STATEACTION
ACTION
CREATOR

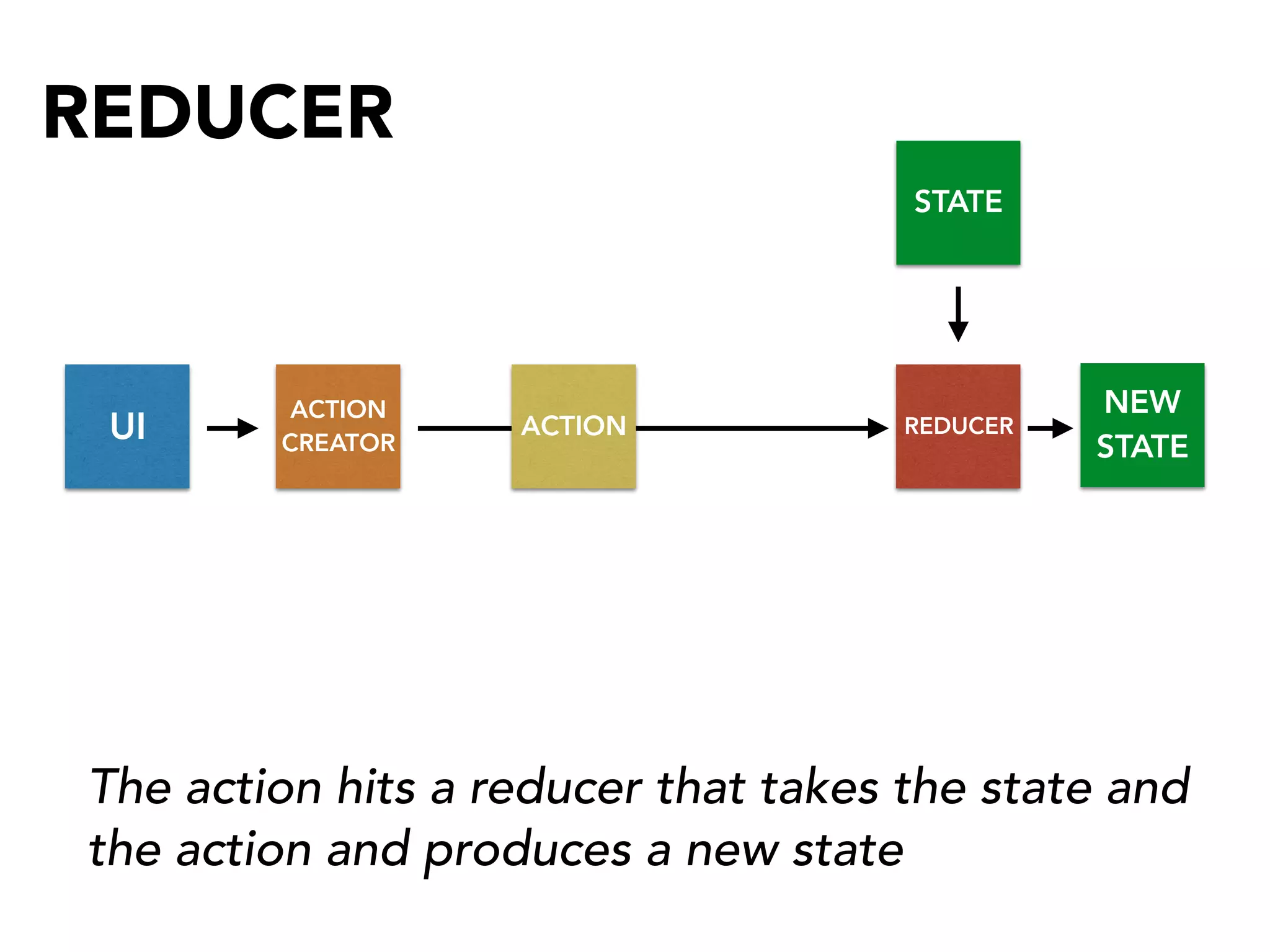

29. The action hits a reducer that takes the state and
the action and produces a new state
REDUCER
UI
NEW
STATE
ACTION
ACTION
CREATOR
STATE
REDUCER

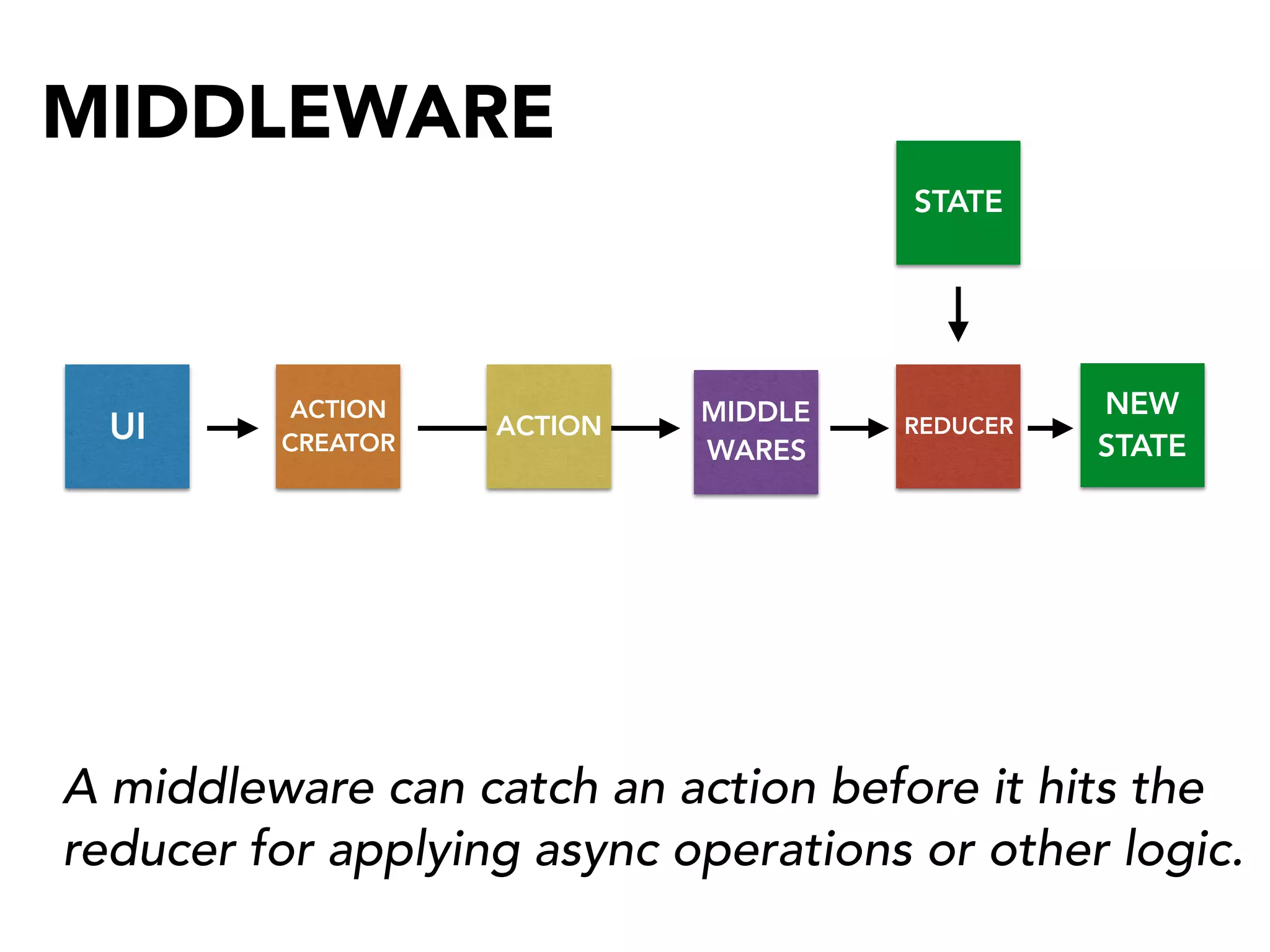

30. A middleware can catch an action before it hits the
reducer for applying async operations or other logic.
MIDDLEWARE
UI
NEW
STATE
ACTION
ACTION
CREATOR
STATE
REDUCER
MIDDLE
WARES

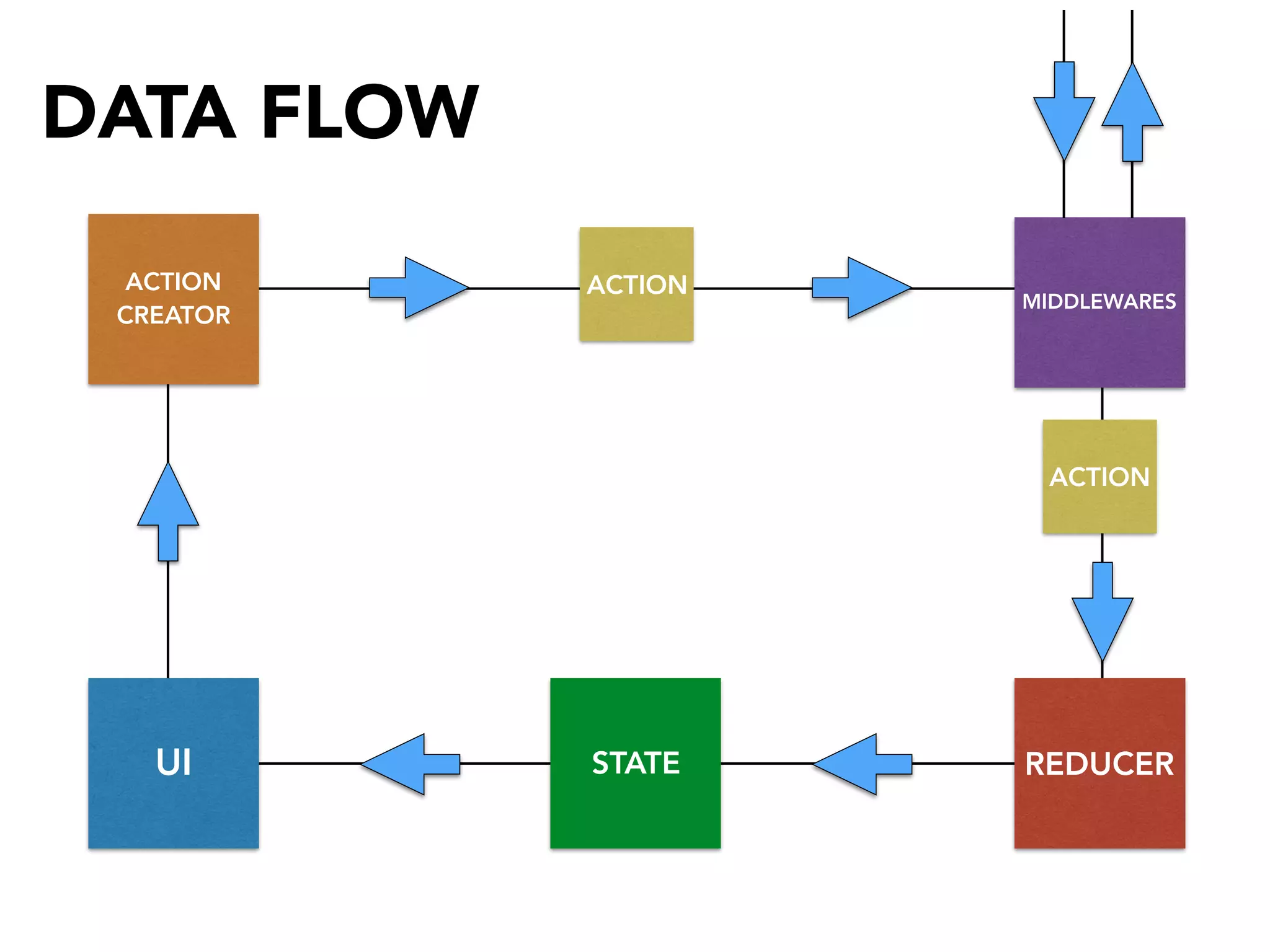

31. UI
MIDDLEWARES
ACTION
STATE REDUCER
ACTION
CREATOR
ACTION
DATA FLOW

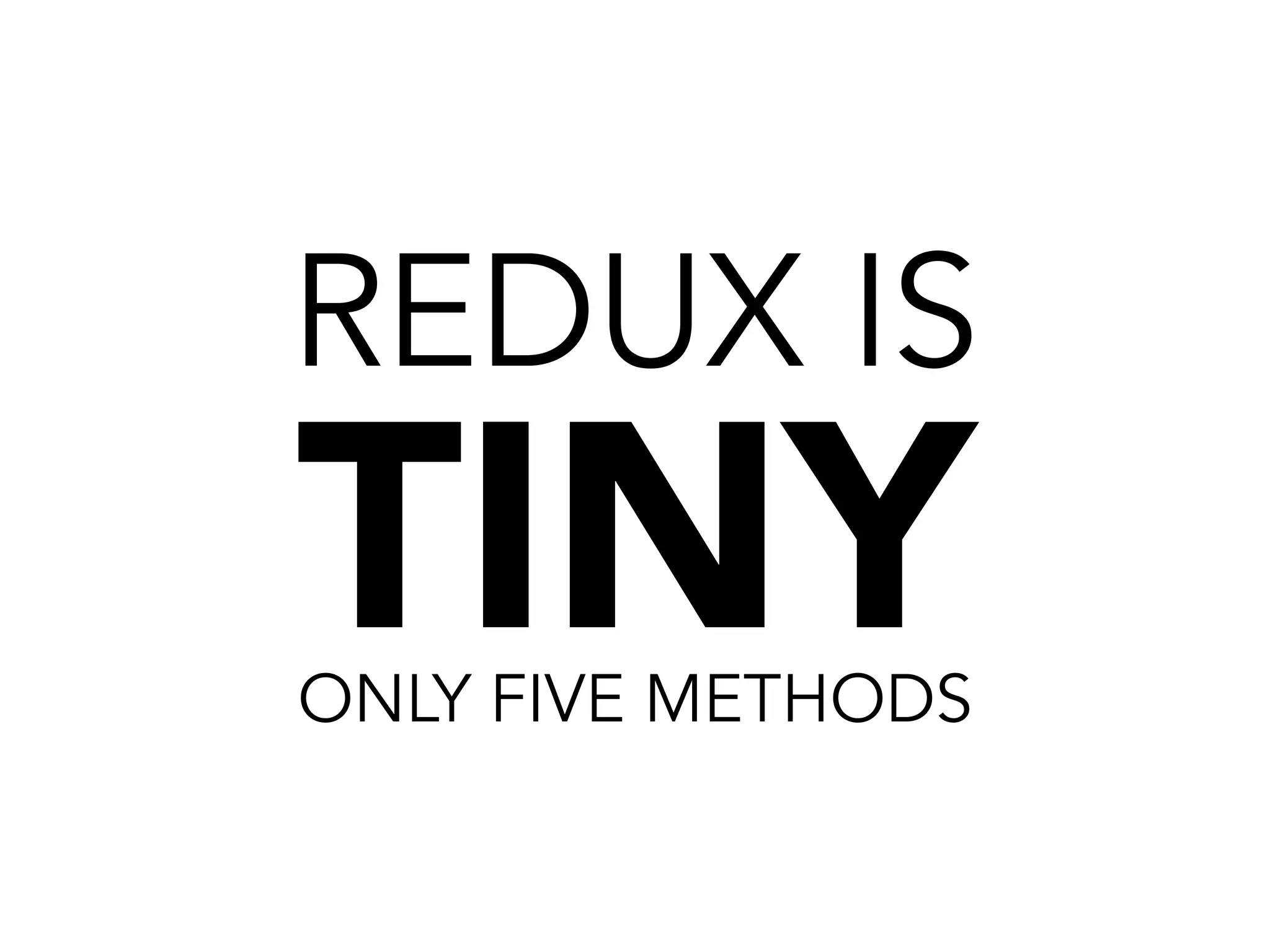

32. REDUX IS
TINYONLY FIVE METHODS

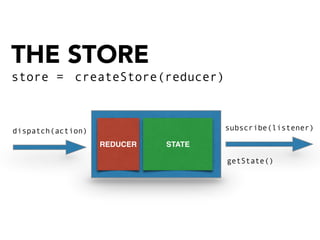

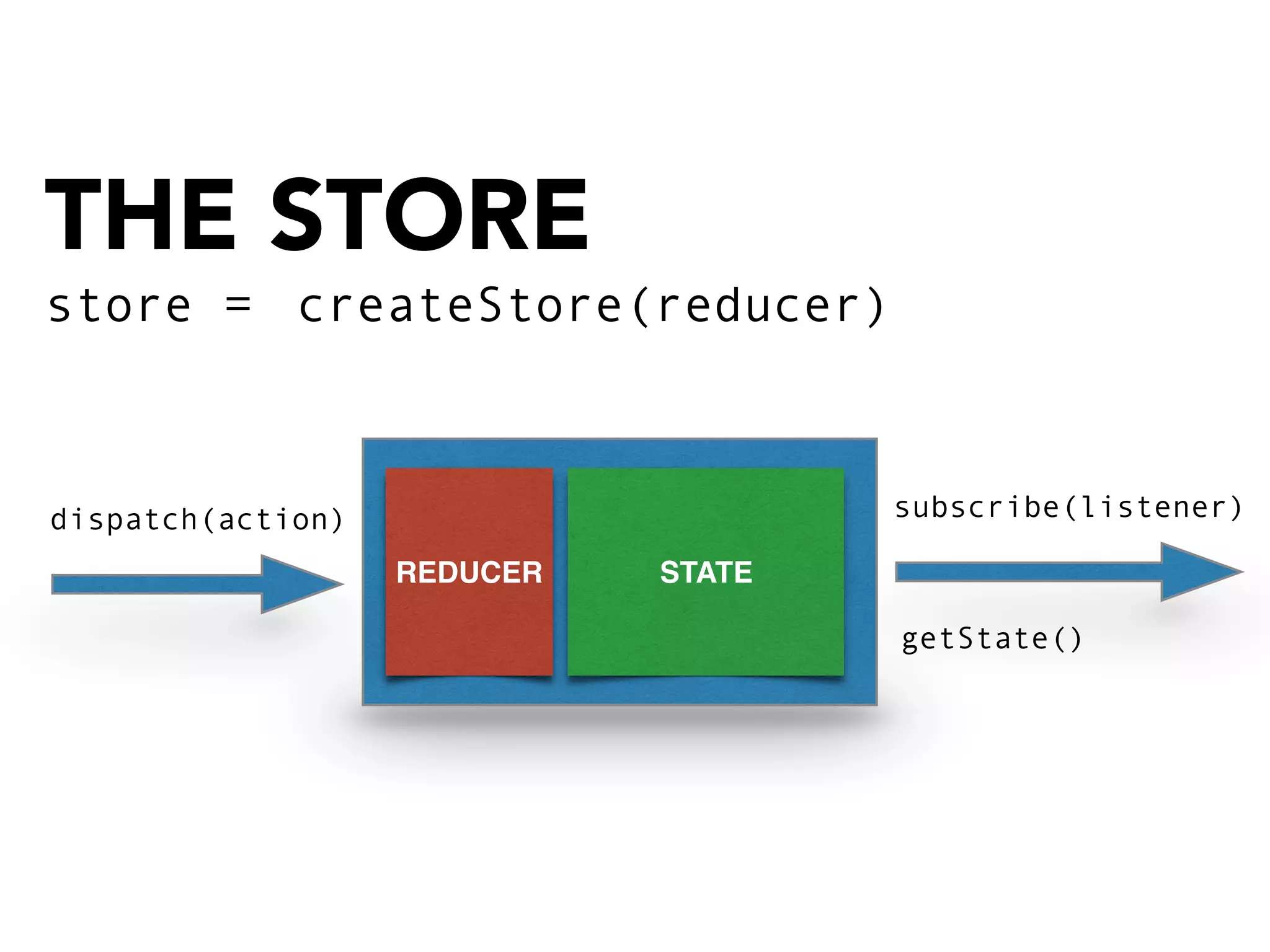

33. THE STORE
store = createStore(reducer)
STATEREDUCER
dispatch(action) subscribe(listener)
getState()

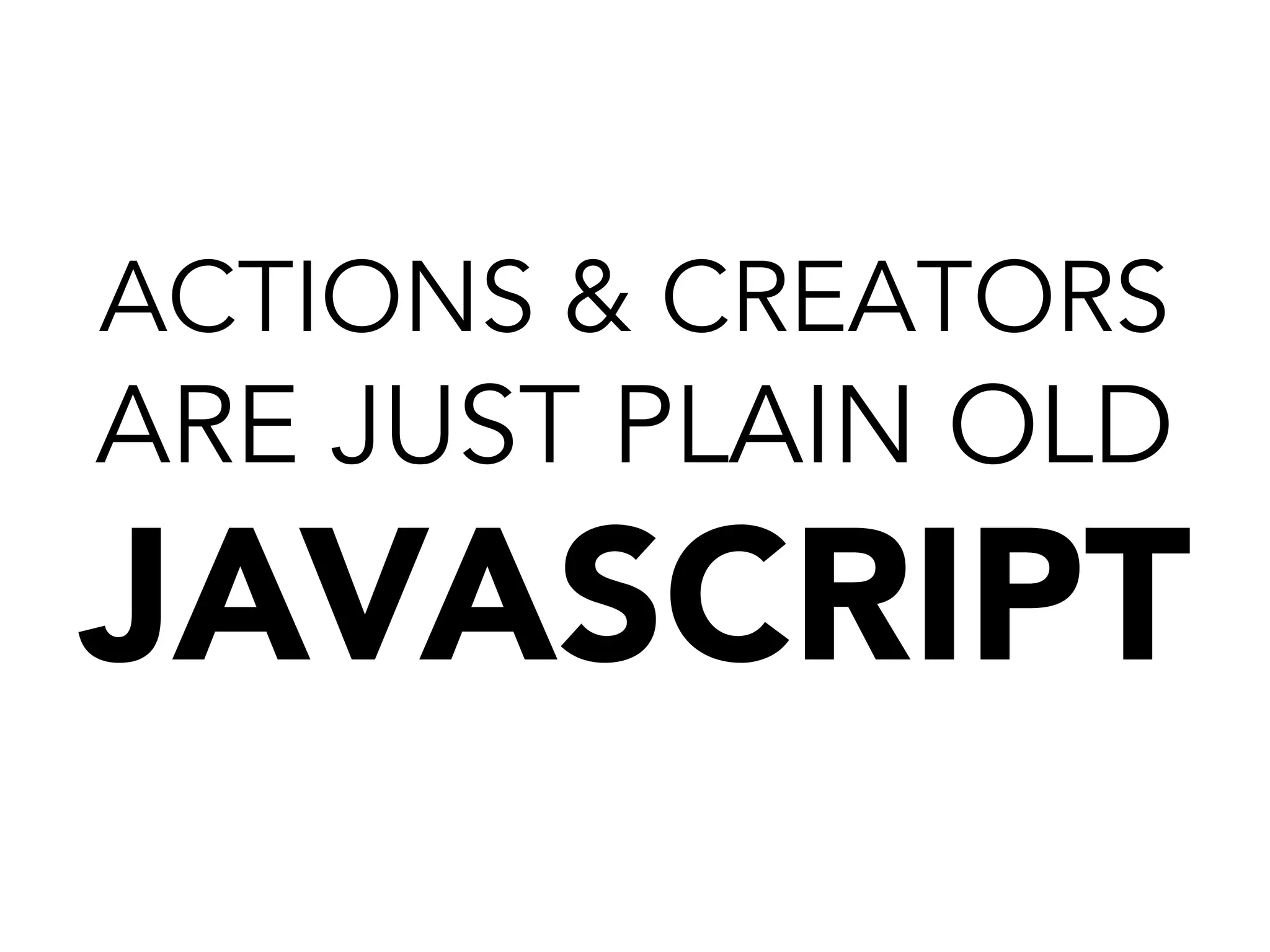

34. ACTIONS & CREATORS
ARE JUST PLAIN OLD
JAVASCRIPT

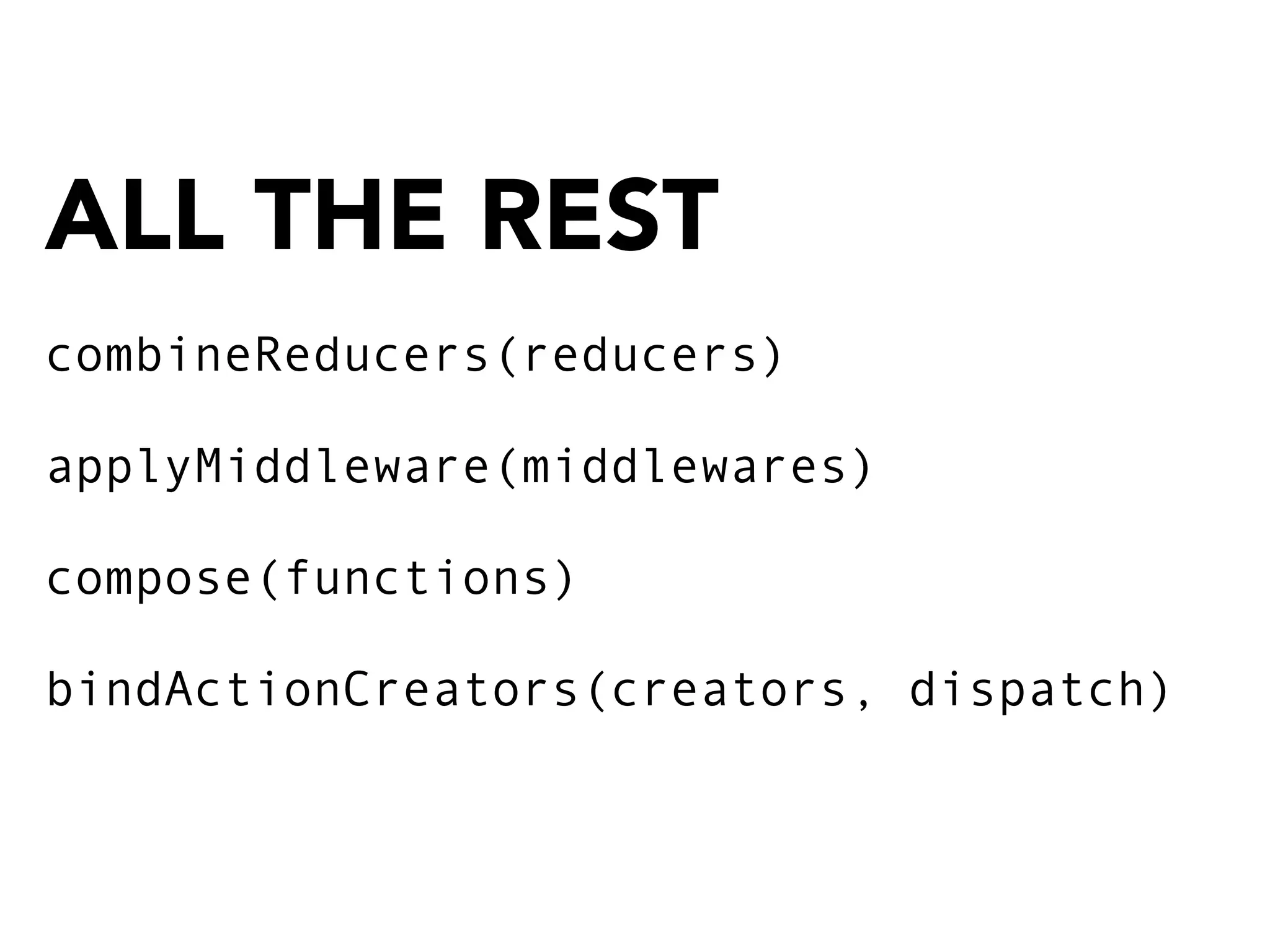

35. ALL THE REST
combineReducers(reducers)
applyMiddleware(middlewares)
compose(functions)
bindActionCreators(creators, dispatch)

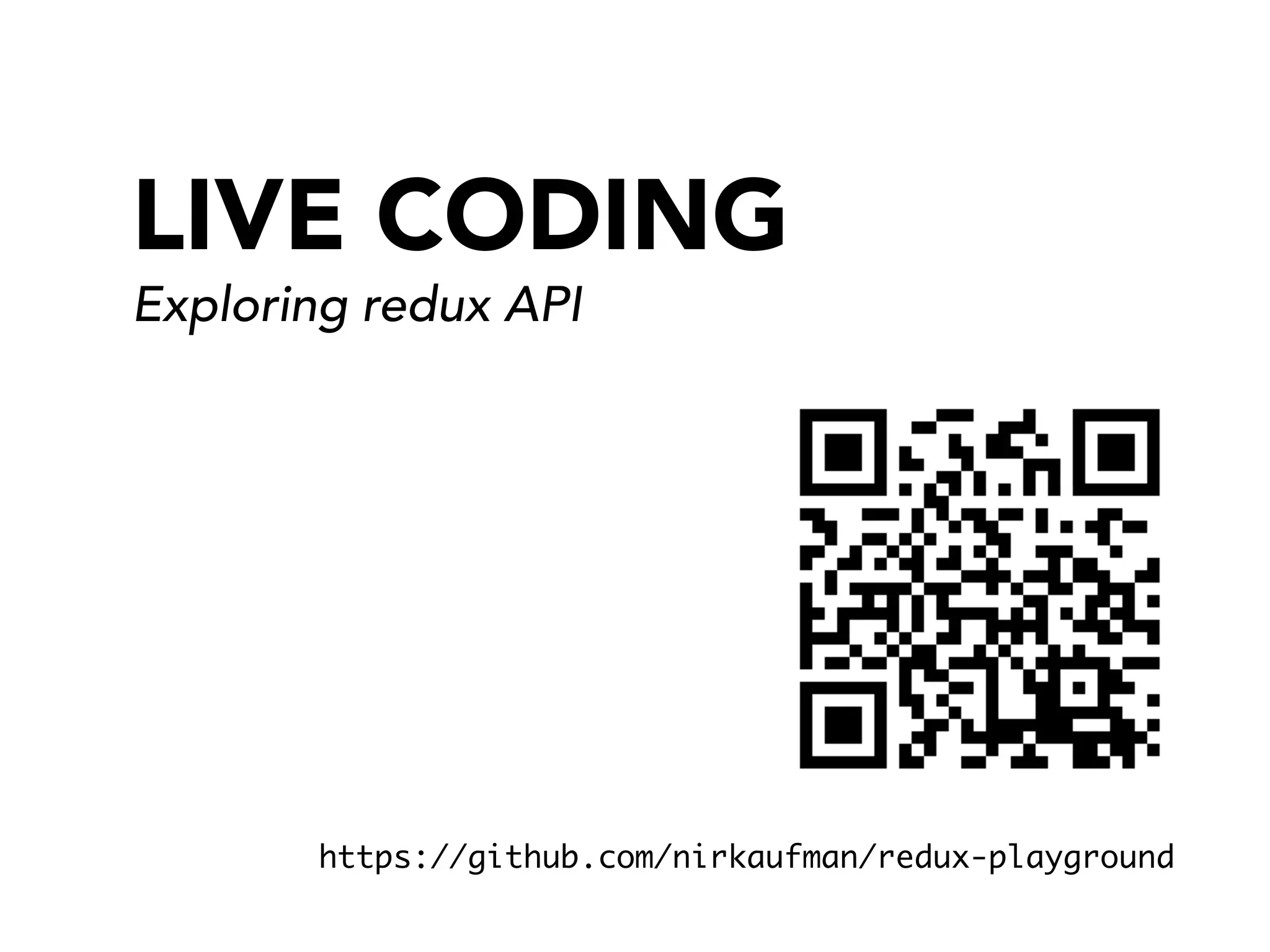

36. LIVE CODING
Exploring redux API
https://github.com/nirkaufman/redux-playground

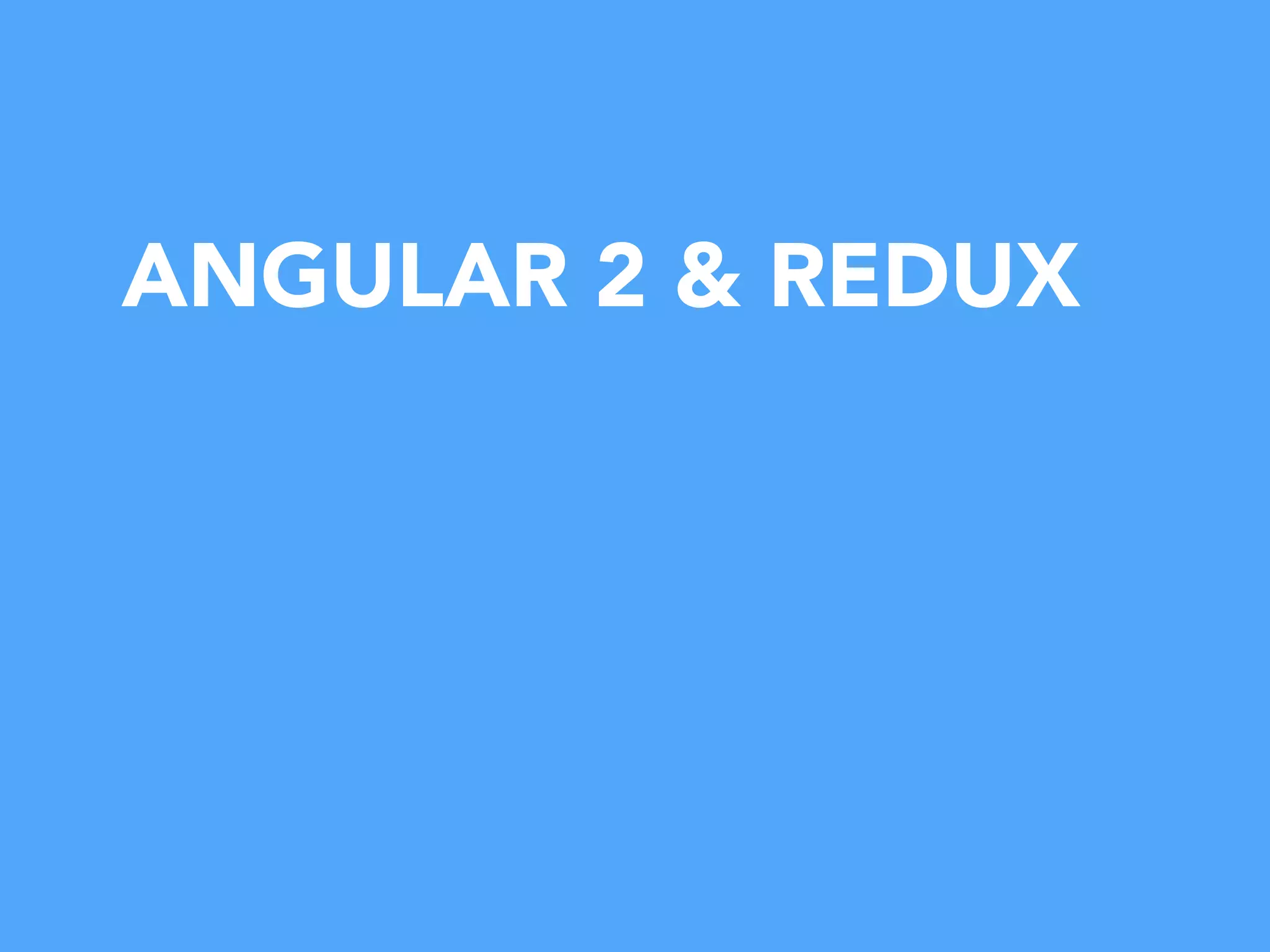

37. ANGULAR 2 & REDUX

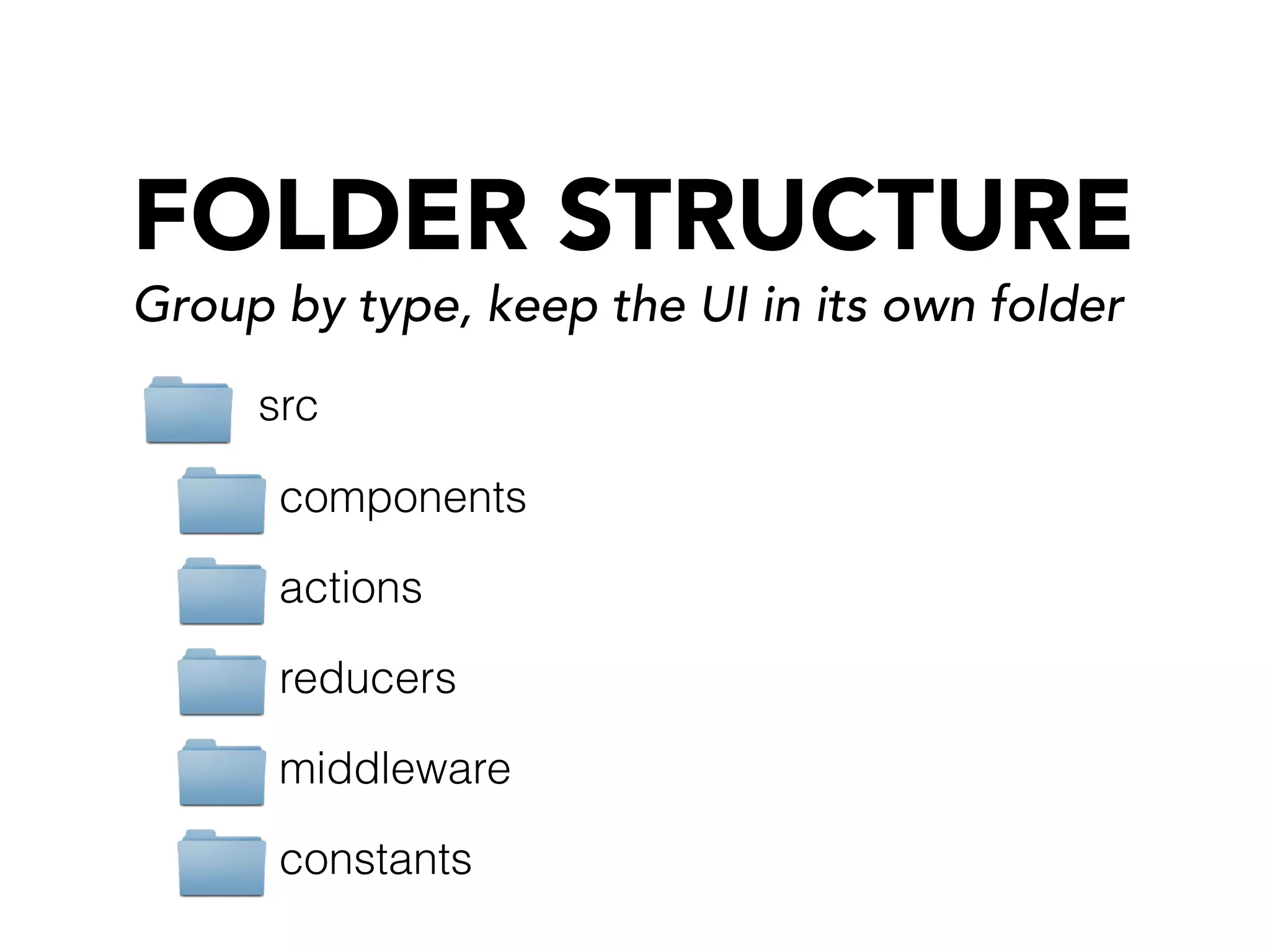

38. FOLDER STRUCTURE
Group by type, keep the UI in its own folder
src
components
actions
reducers
middleware
constants

39. ANGULAR BINDINGS
Convenience methods for cleaner code
UI state

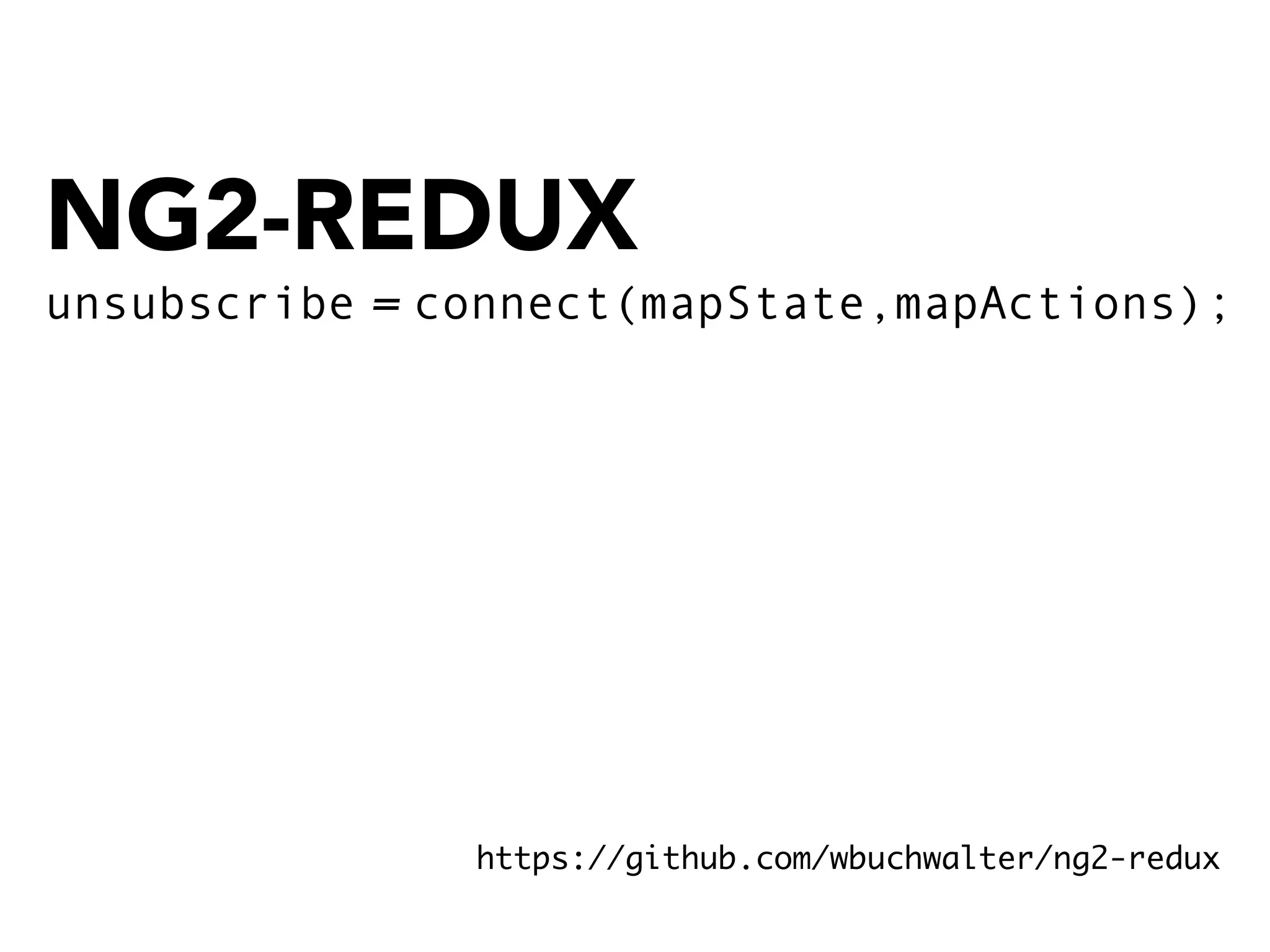

40. NG2-REDUX
unsubscribe = connect(mapState,mapActions);
https://github.com/wbuchwalter/ng2-redux

41. LIVE CODING

42. STEP 1
THE TODO LIST

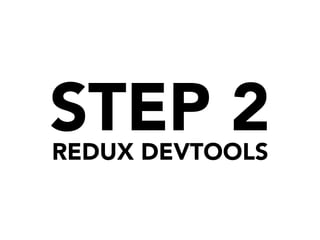

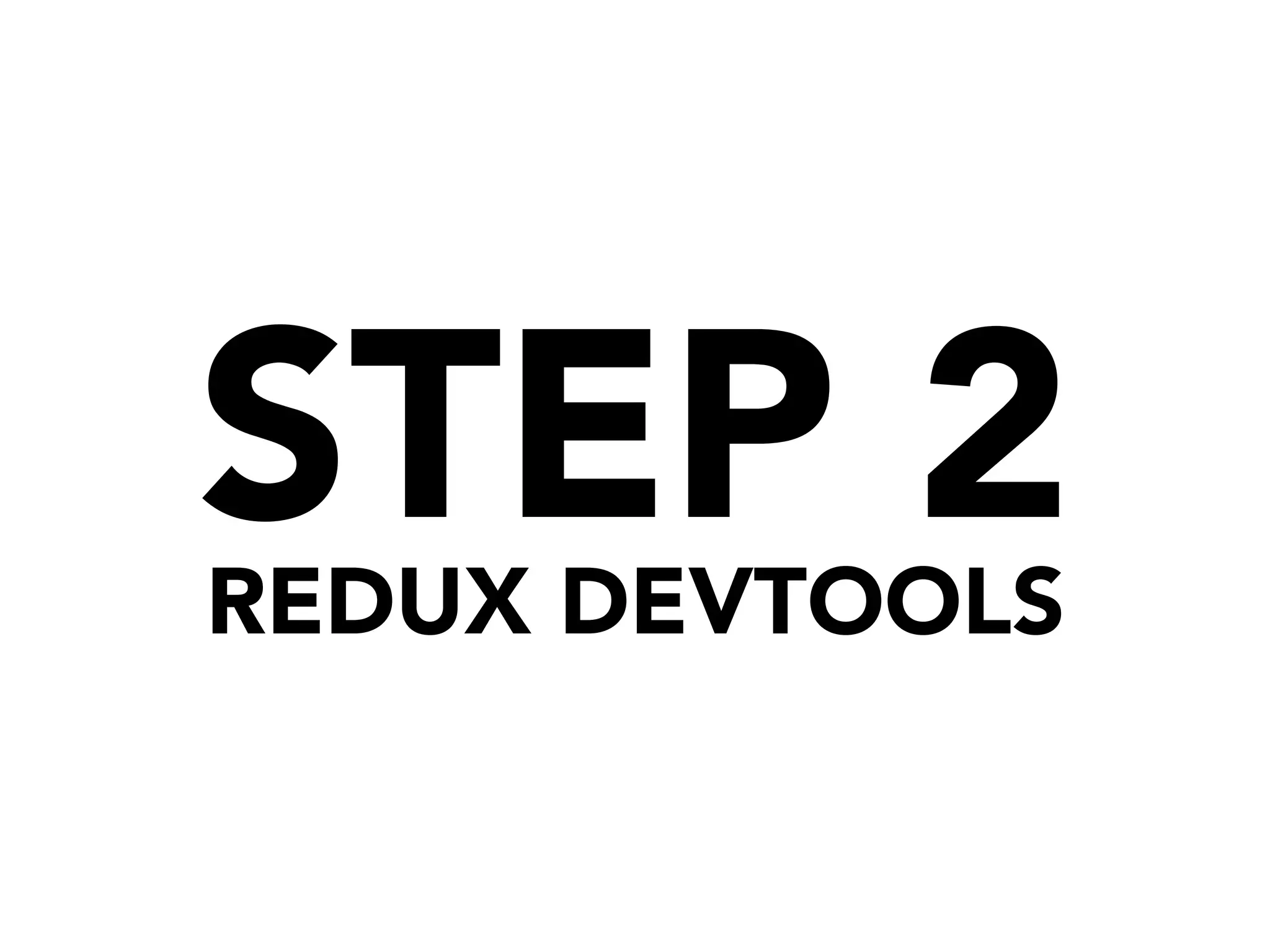

43. STEP 2REDUX DEVTOOLS

44. STEP 3LOGGER MIDDLEWARE

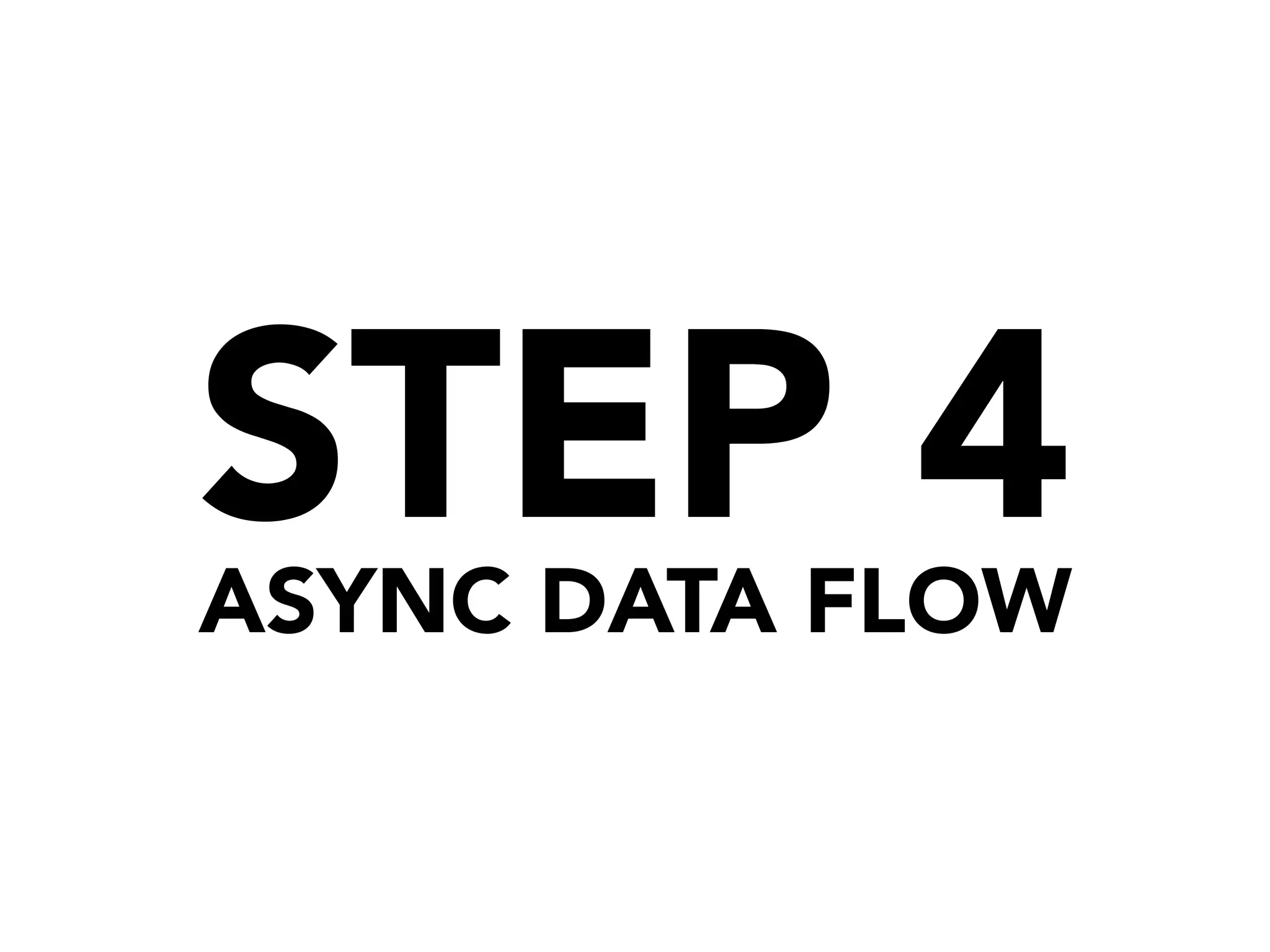

45. STEP 4ASYNC DATA FLOW

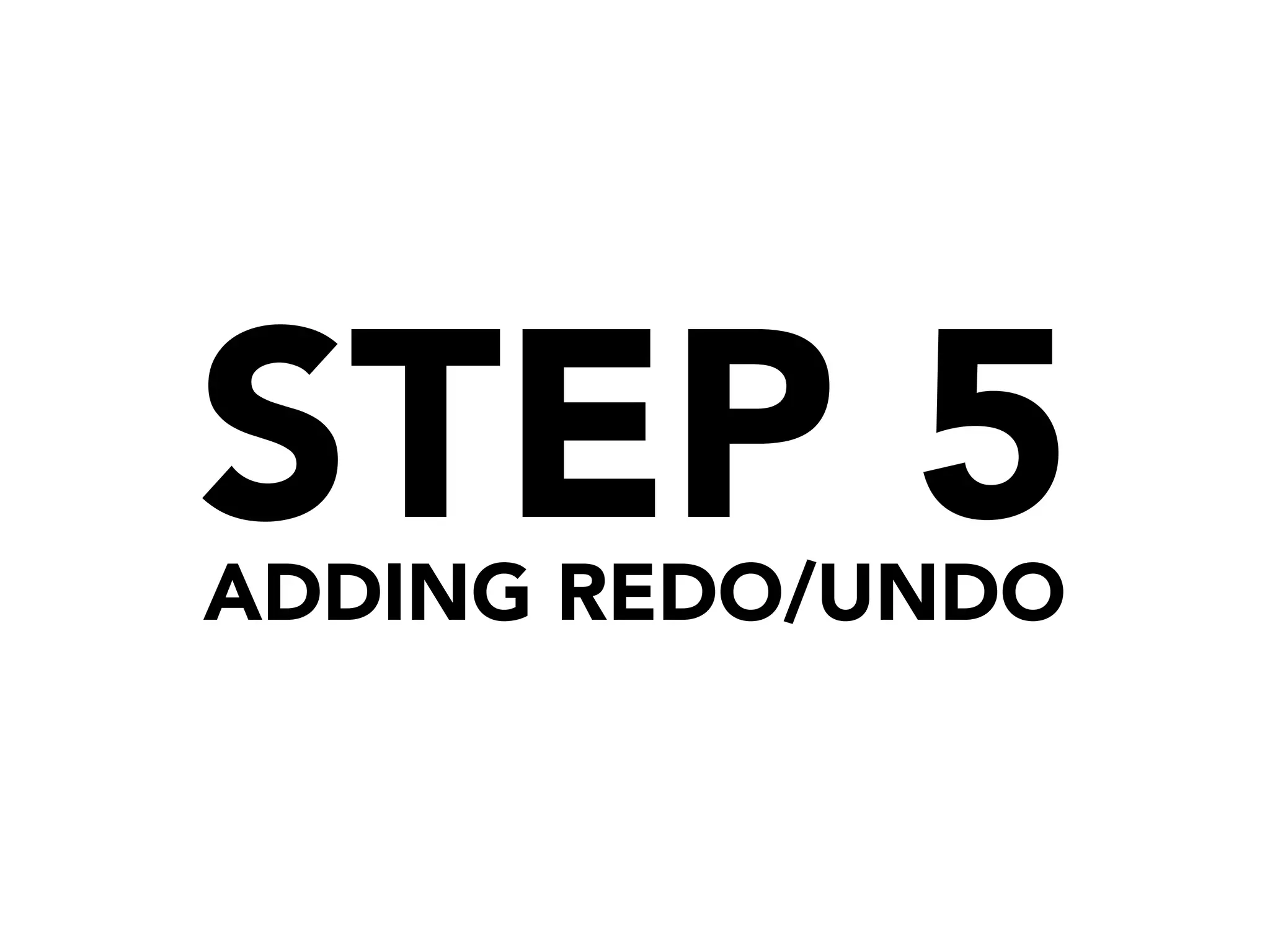

46. STEP 5ADDING REDO/UNDO

47. NEXT STEPS

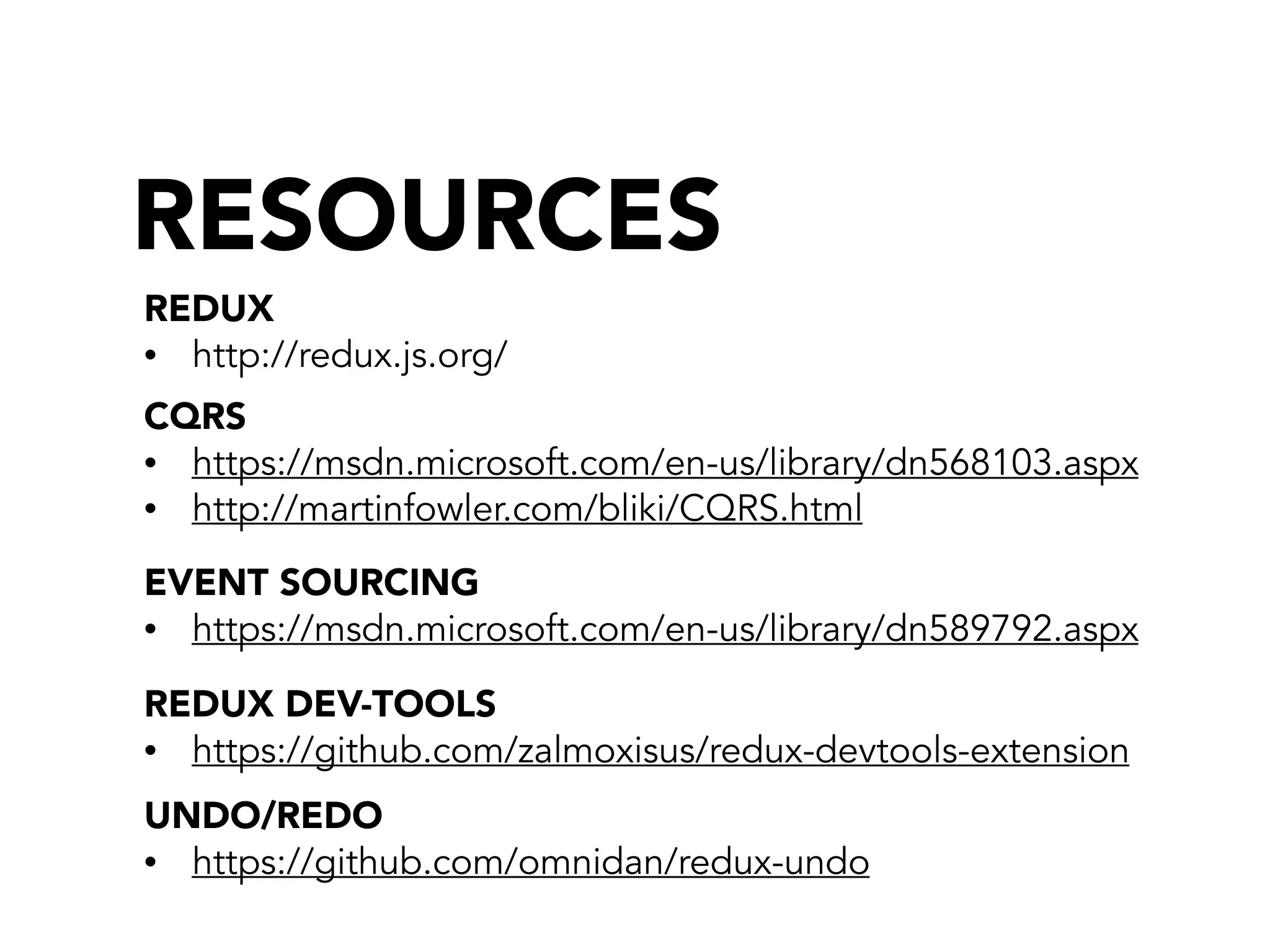

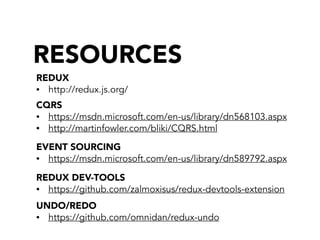

48. RESOURCES
CQRS
• https://msdn.microsoft.com/en-us/library/dn568103.aspx
• http://martinfowler.com/bliki/CQRS.html
EVENT SOURCING
• https://msdn.microsoft.com/en-us/library/dn589792.aspx
REDUX DEV-TOOLS
• https://github.com/zalmoxisus/redux-devtools-extension
UNDO/REDO
• https://github.com/omnidan/redux-undo
REDUX
• http://redux.js.org/

49. THANKS!
Nir@500tech.com
@nirkaufman on twitter
slideshare.net/nirkaufman/
github.com/nirkaufman
All pictures belong
to their respective authors
