1. Solaris 11 Base Box
MSOSUG 18th Feb 2014
Alan Chalmers
http://resilvered.blogspot.com.au/
@bigal
Wednesday, 19 February 14

2. Vagrant
• a tool for building and distributing working
environments
• development started in 2010
• wrapper around virtualbox
• supports additional hypervisors or
providers
• https://www.vagrantup.com/
Wednesday, 19 February 14

3. Base Box
• A basic unit of OS for Vagrant
• http://www.vagrantbox.es/ + others
Wednesday, 19 February 14

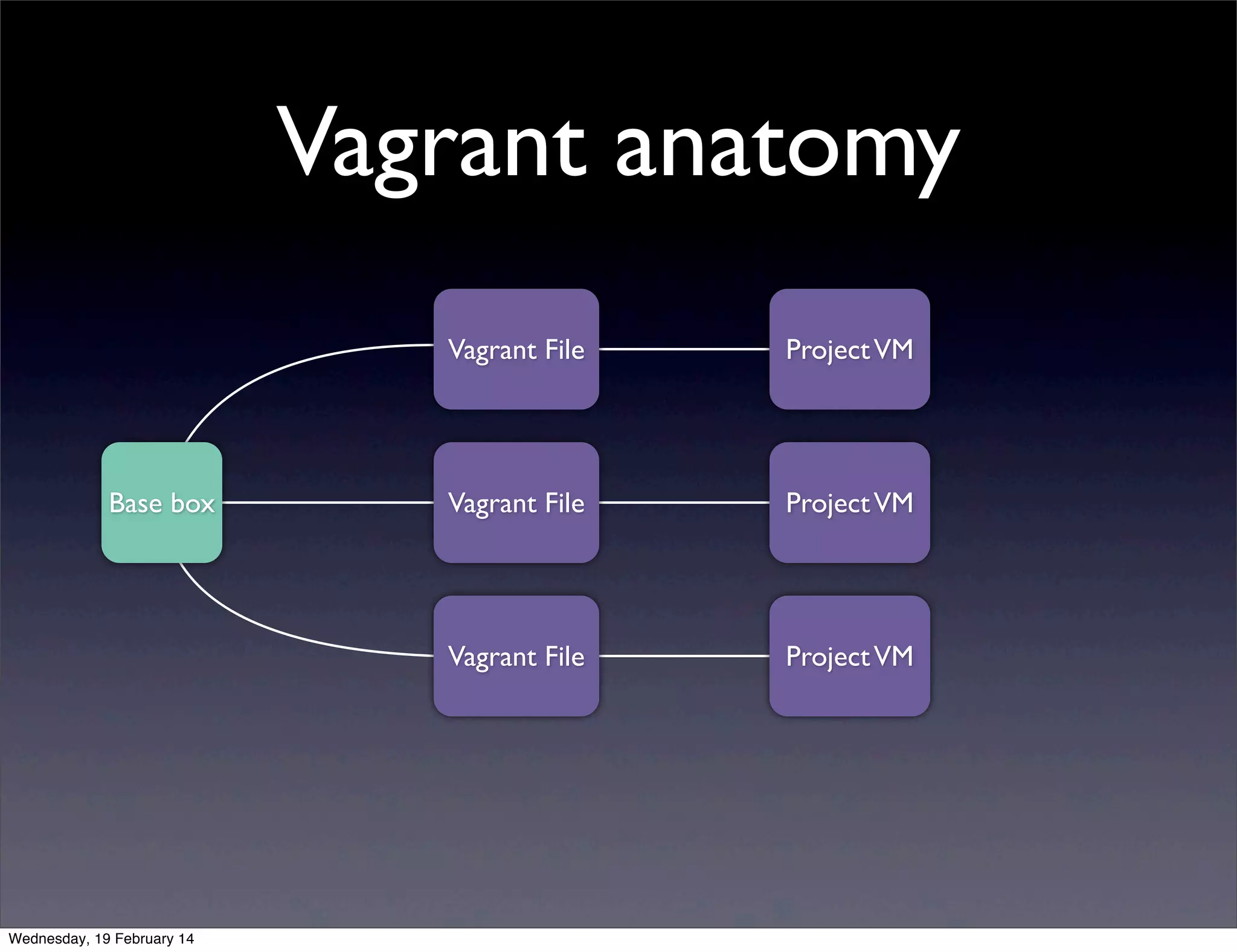

4. Vagrant anatomy
Vagrant File
Wednesday, 19 February 14
Vagrant File
Project VM
Vagrant File
Base box
Project VM
Project VM

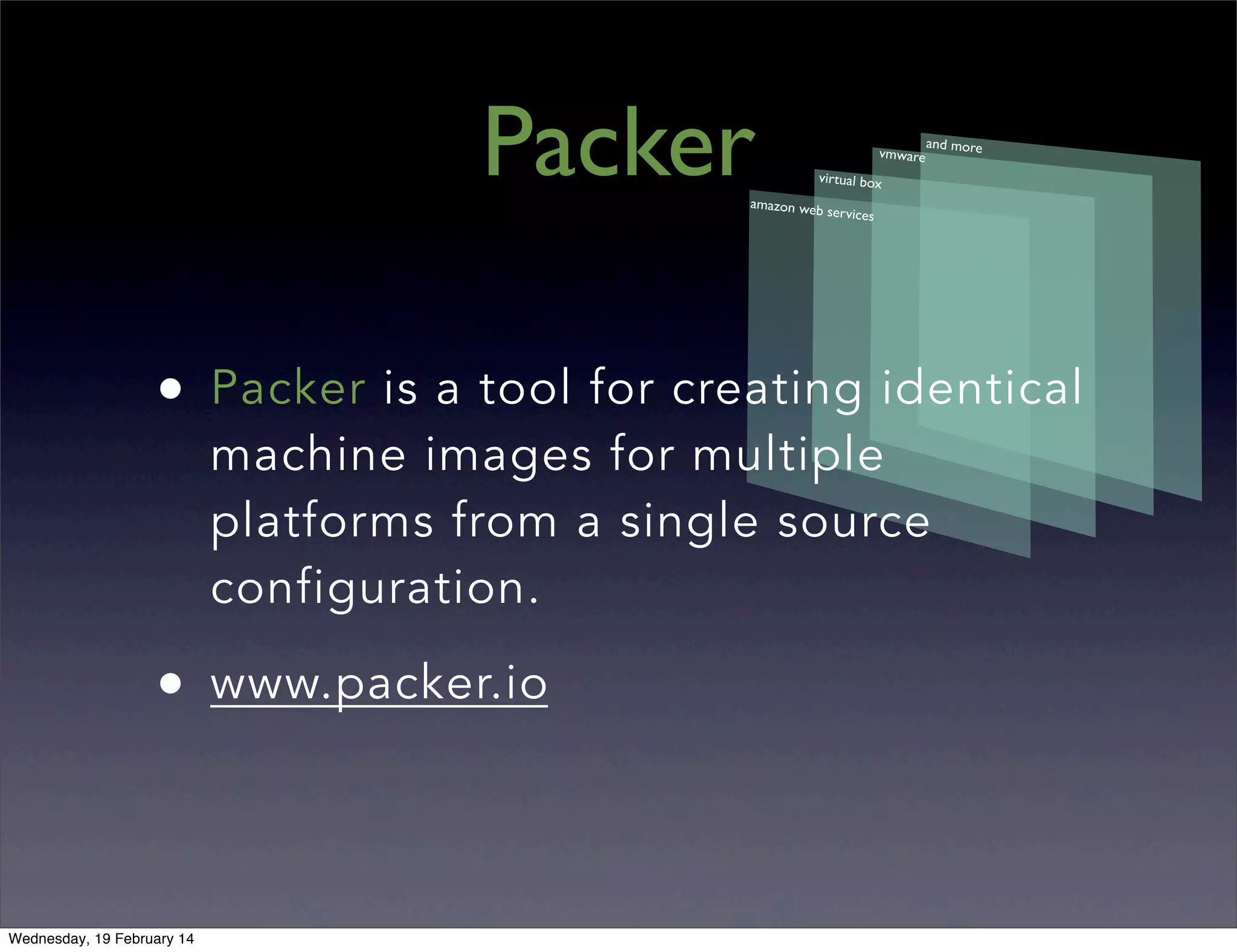

5. Packer
vmware
and more
virtual box
amazon web
services
•
Packer is a tool for creating identical
machine images for multiple
platforms from a single source
configuration.
•
www.packer.io
Wednesday, 19 February 14

6. Packer File
• json
• Builders
• Provisioners
• Post Processors
Wednesday, 19 February 14

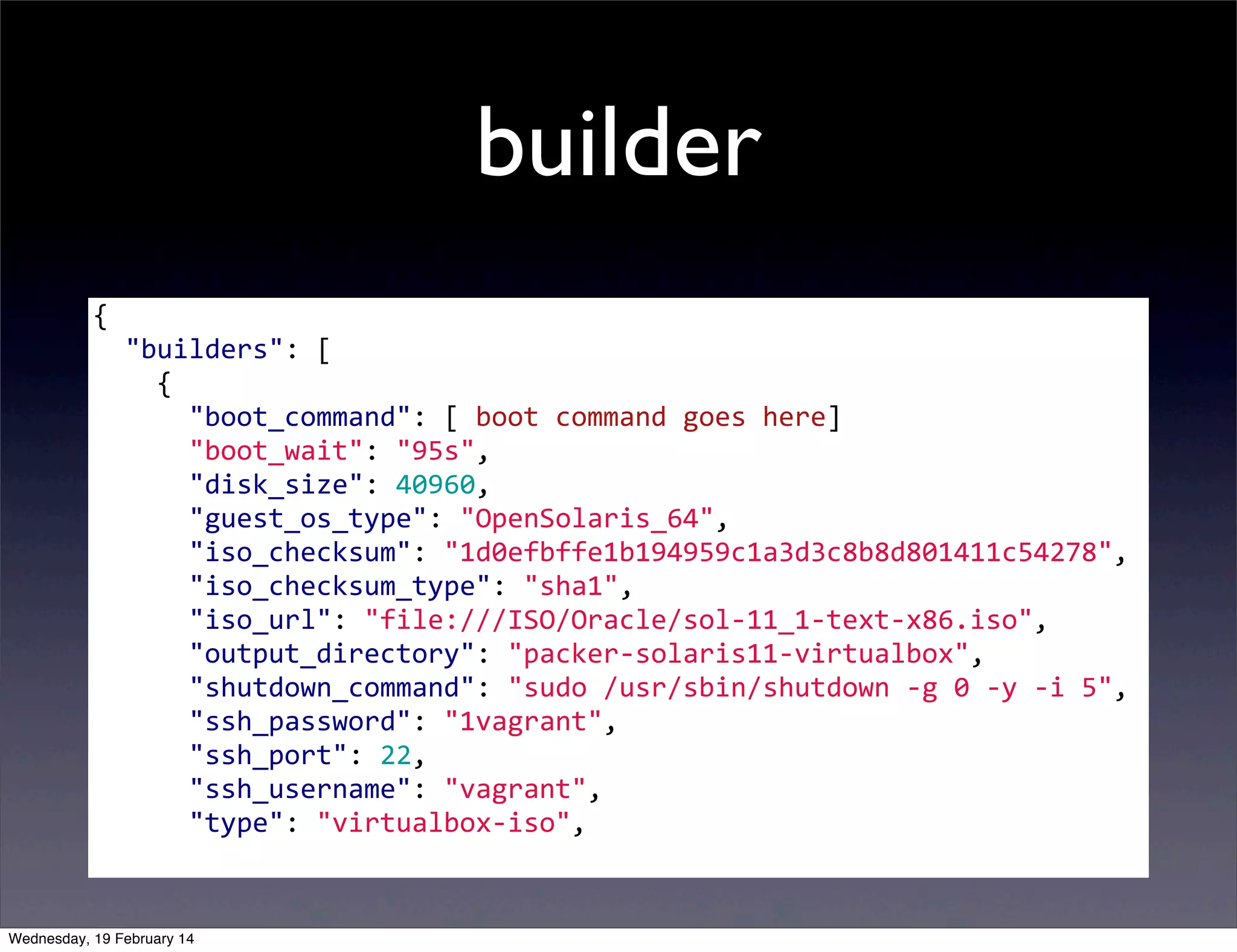

7. builder
{
"builders":
[
{
"boot_command":
[
boot
command
goes
here]
"boot_wait":
"95s",
"disk_size":
40960,
"guest_os_type":
"OpenSolaris_64",
"iso_checksum":
"1d0efbffe1b194959c1a3d3c8b8d801411c54278",
"iso_checksum_type":
"sha1",
"iso_url":
"file:///ISO/Oracle/sol-­‐11_1-­‐text-­‐x86.iso",
"output_directory":
"packer-­‐solaris11-­‐virtualbox",
"shutdown_command":
"sudo
/usr/sbin/shutdown
-­‐g
0
-­‐y
-­‐i
5",
"ssh_password":
"1vagrant",
"ssh_port":
22,
"ssh_username":
"vagrant",
"type":
"virtualbox-­‐iso",
Wednesday, 19 February 14

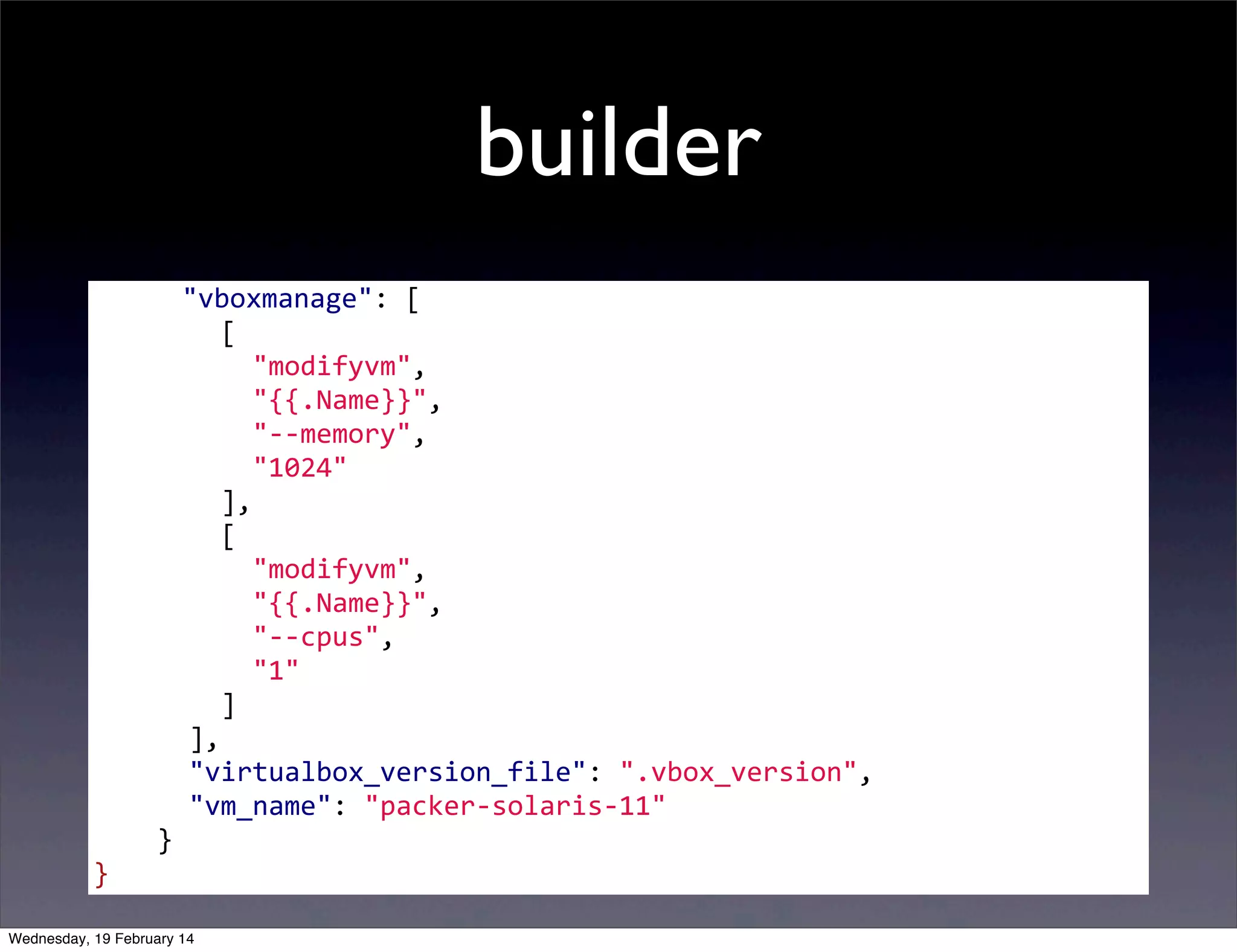

8. builder
"vboxmanage":
[
[
"modifyvm",
"{{.Name}}",
"-­‐-­‐memory",
"1024"
],
[
"modifyvm",
"{{.Name}}",
"-­‐-­‐cpus",
"1"
]
],
"virtualbox_version_file":
".vbox_version",
"vm_name":
"packer-­‐solaris-­‐11"
}
}
Wednesday, 19 February 14

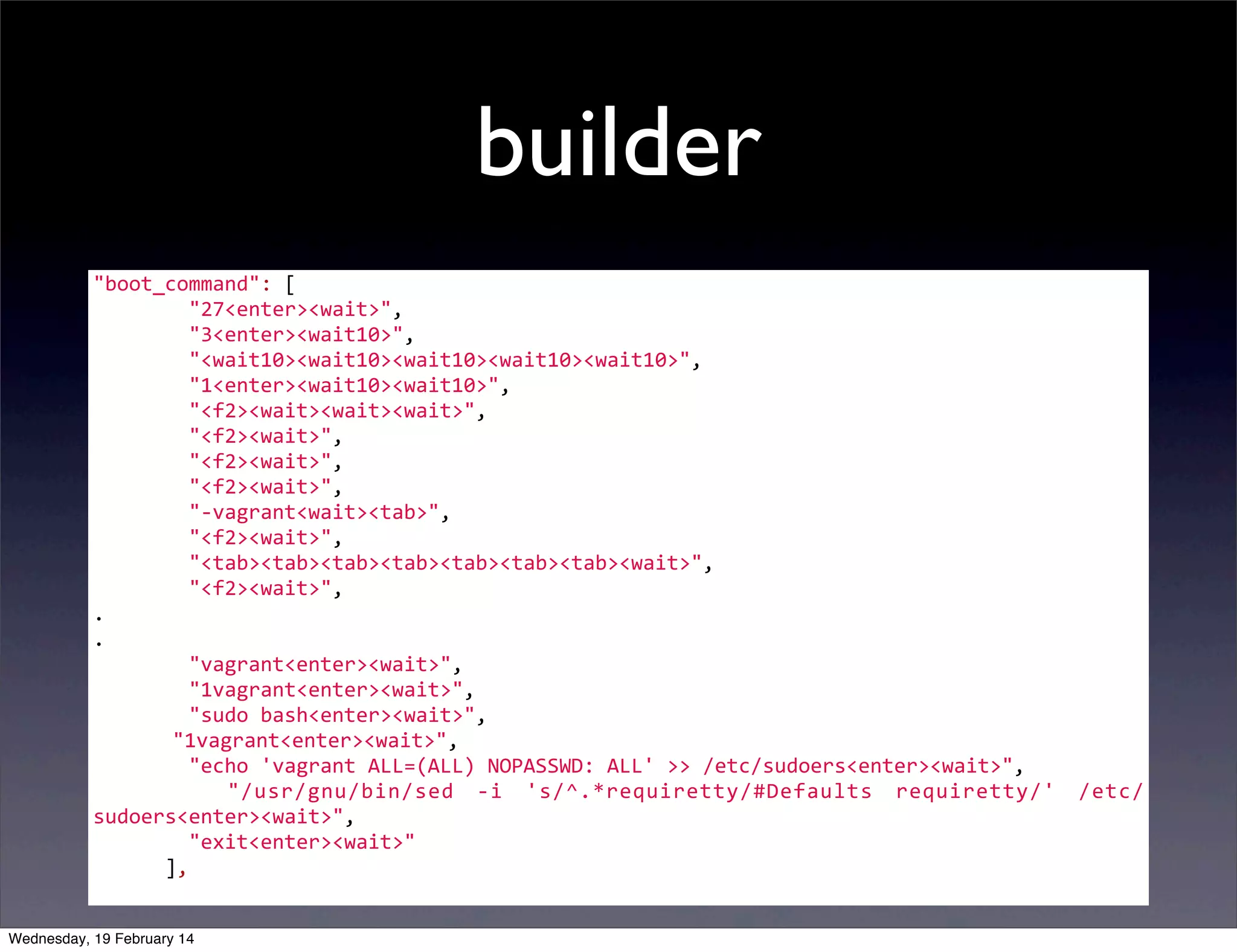

9. builder
"boot_command":
[
"27<enter><wait>",
"3<enter><wait10>",
"<wait10><wait10><wait10><wait10><wait10>",
"1<enter><wait10><wait10>",
"<f2><wait><wait><wait>",
"<f2><wait>",
"<f2><wait>",
"<f2><wait>",
"-­‐vagrant<wait><tab>",
"<f2><wait>",
"<tab><tab><tab><tab><tab><tab><tab><wait>",
"<f2><wait>",
.
.
"vagrant<enter><wait>",
"1vagrant<enter><wait>",
"sudo
bash<enter><wait>",
"1vagrant<enter><wait>",
"echo
'vagrant
ALL=(ALL)
NOPASSWD:
ALL'
>>
/etc/sudoers<enter><wait>",
"/usr/gnu/bin/sed
-­‐i
's/^.*requiretty/#Defaults
requiretty/'
/etc/
sudoers<enter><wait>",
"exit<enter><wait>"
],
Wednesday, 19 February 14

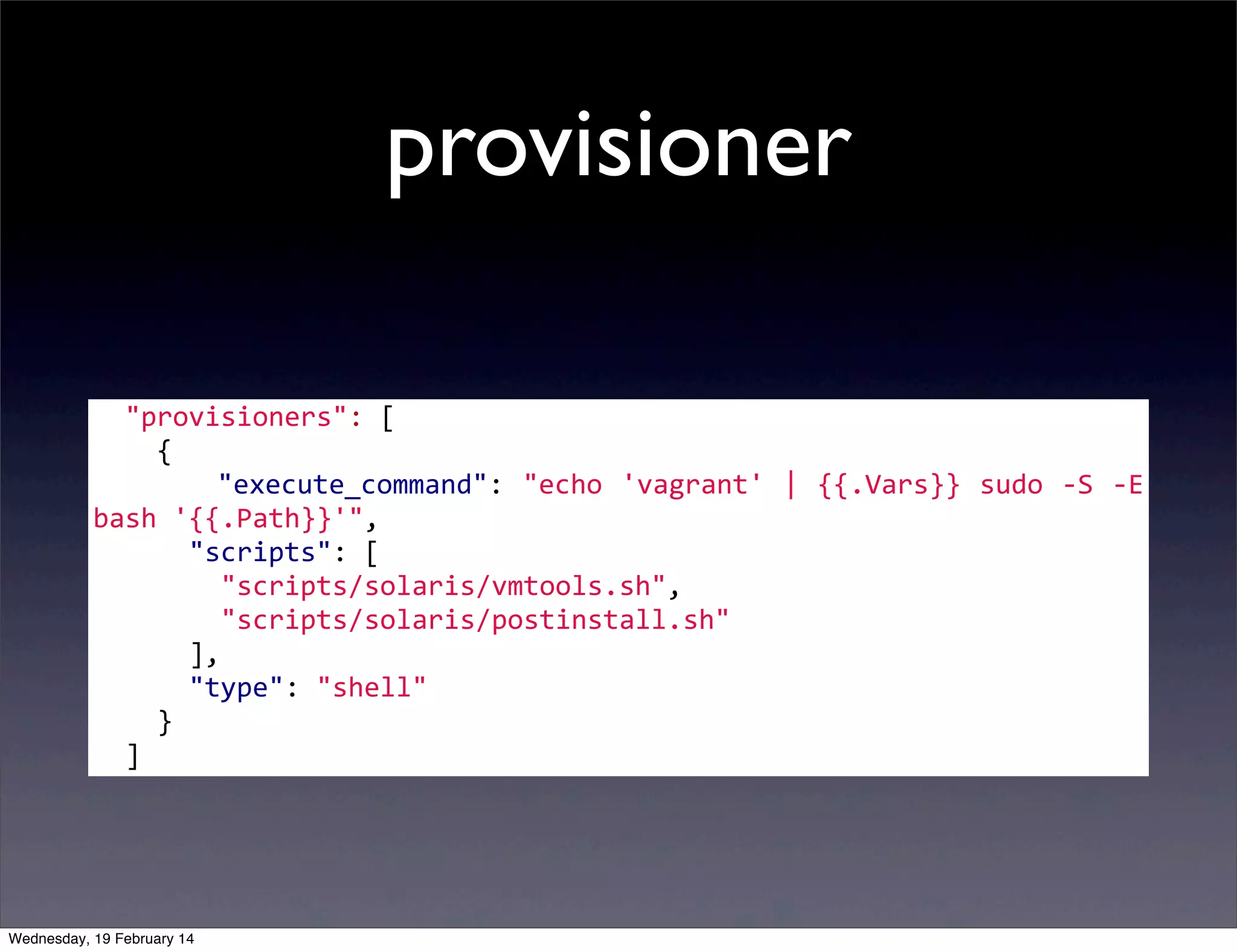

10. provisioner
"provisioners":
[
{
"execute_command":
"echo
'vagrant'
|
{{.Vars}}
sudo
-­‐S
-­‐E
bash
'{{.Path}}'",
"scripts":
[
"scripts/solaris/vmtools.sh",
"scripts/solaris/postinstall.sh"
],
"type":
"shell"
}
]
Wednesday, 19 February 14

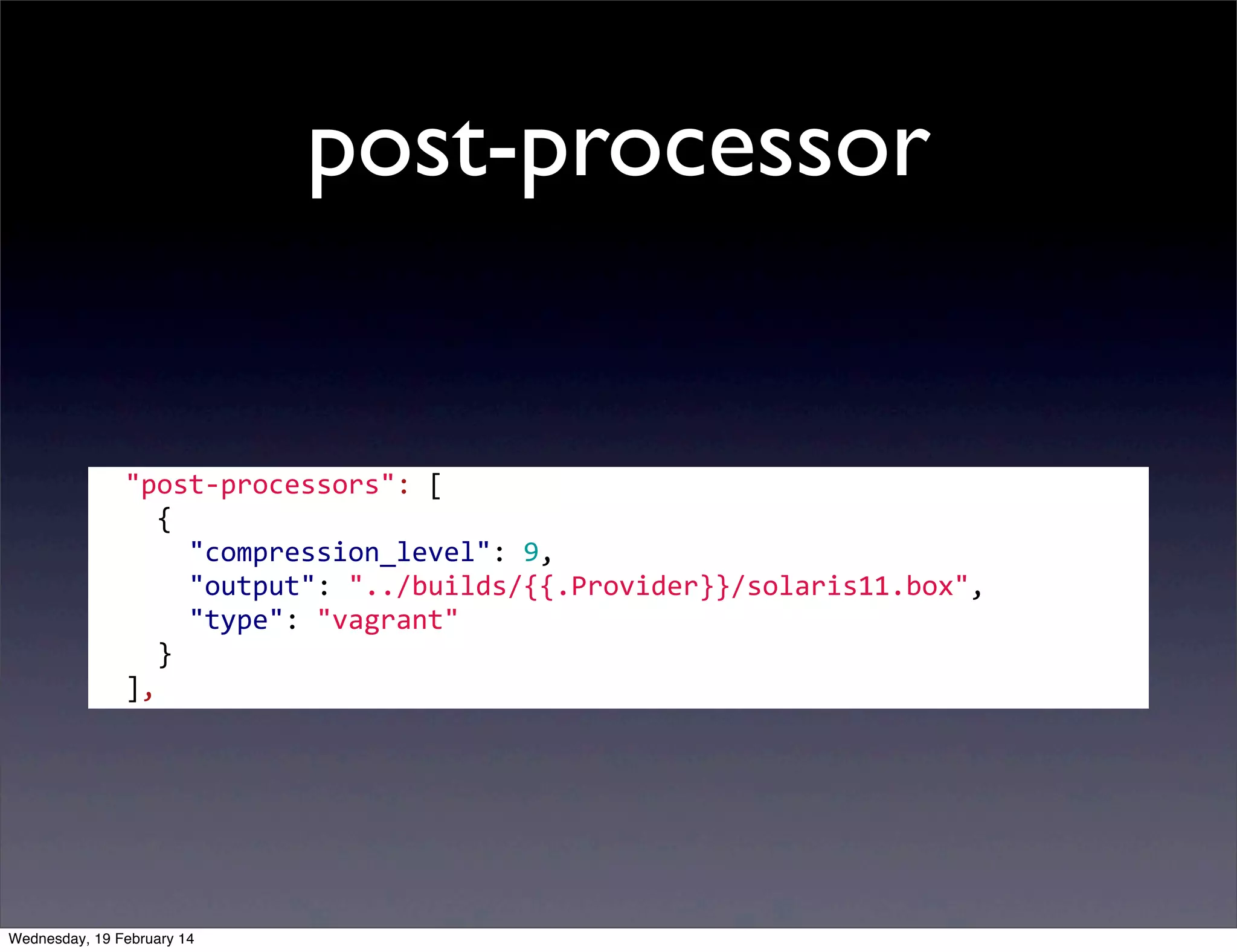

11. post-processor
"post-­‐processors":
[
{
"compression_level":
9,
"output":
"../builds/{{.Provider}}/solaris11.box",
"type":
"vagrant"
}
],
Wednesday, 19 February 14

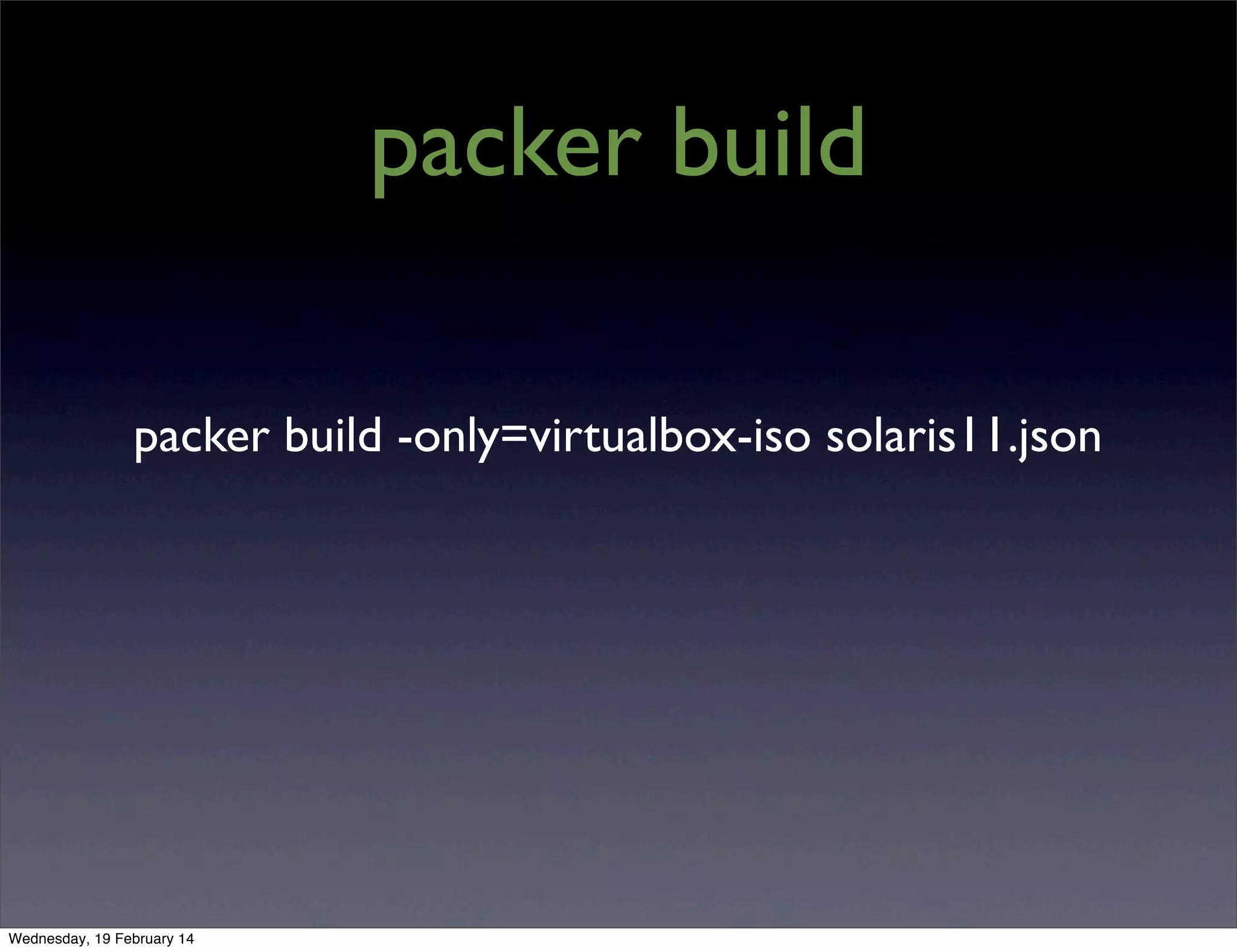

12. packer build
packer build -only=virtualbox-iso solaris11.json
Wednesday, 19 February 14

13. Quick Demo
• Questions to @bigal
• http://resilvered.blogspot.com.au/
• https://github.com/Alanc-au/packer
Wednesday, 19 February 14
