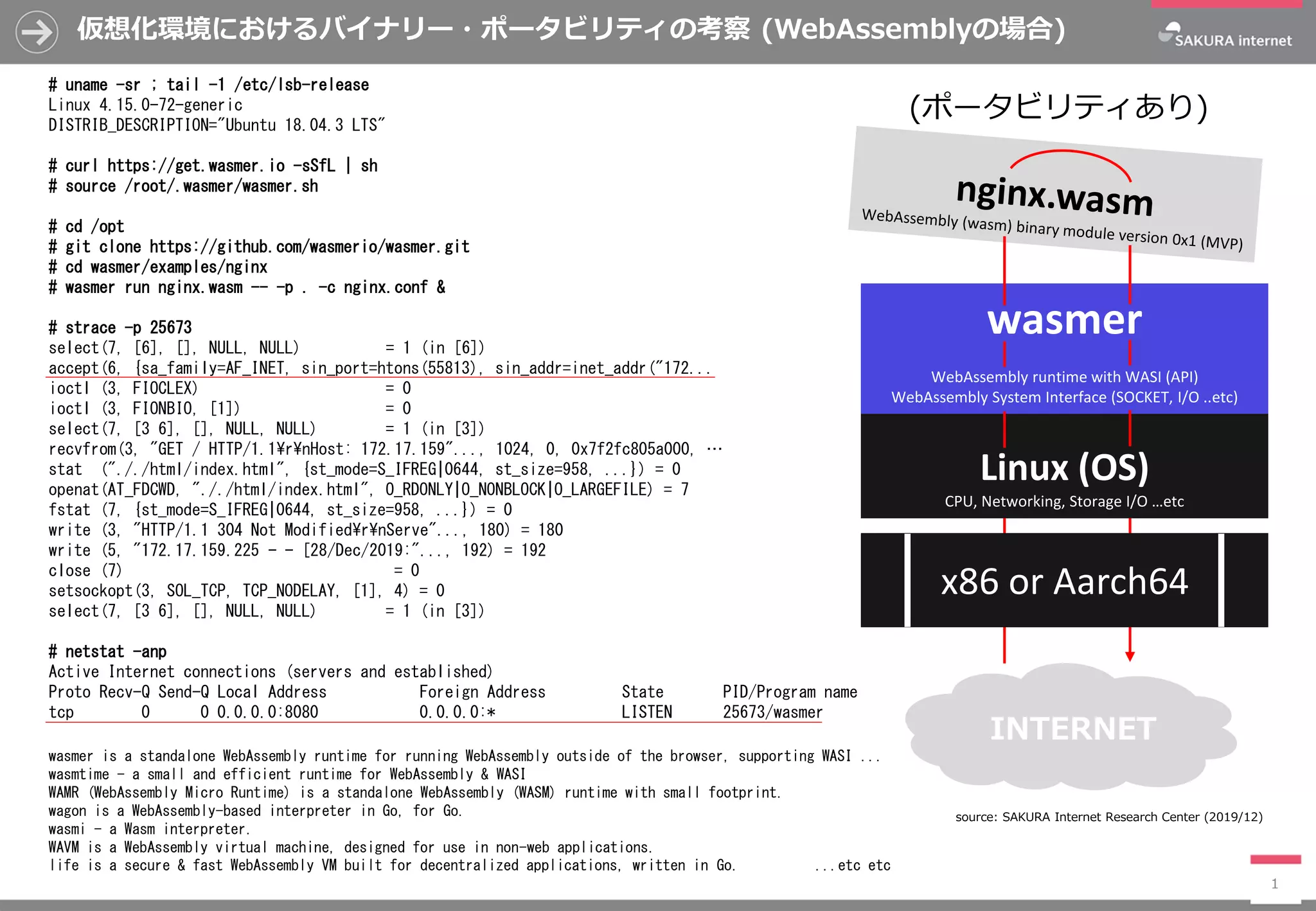

![仮想化環境におけるバイナリー・ポータビリティの考察 (WebAssemblyの場合)
1
# uname -sr ; tail -1 /etc/lsb-release
Linux 4.15.0-72-generic
DISTRIB_DESCRIPTION="Ubuntu 18.04.3 LTS"
# curl https://get.wasmer.io -sSfL | sh
# source /root/.wasmer/wasmer.sh
# cd /opt
# git clone https://github.com/wasmerio/wasmer.git
# cd wasmer/examples/nginx
# wasmer run nginx.wasm -- -p . -c nginx.conf &
# strace -p 25673
select(7, [6], [], NULL, NULL) = 1 (in [6])
accept(6, {sa_family=AF_INET, sin_port=htons(55813), sin_addr=inet_addr("172...
ioctl (3, FIOCLEX) = 0
ioctl (3, FIONBIO, [1]) = 0
select(7, [3 6], [], NULL, NULL) = 1 (in [3])
recvfrom(3, "GET / HTTP/1.1¥r¥nHost: 172.17.159"..., 1024, 0, 0x7f2fc805a000, …
stat ("././html/index.html", {st_mode=S_IFREG|0644, st_size=958, ...}) = 0
openat(AT_FDCWD, "././html/index.html", O_RDONLY|O_NONBLOCK|O_LARGEFILE) = 7
fstat (7, {st_mode=S_IFREG|0644, st_size=958, ...}) = 0
write (3, "HTTP/1.1 304 Not Modified¥r¥nServe"..., 180) = 180
write (5, "172.17.159.225 - - [28/Dec/2019:"..., 192) = 192
close (7) = 0
setsockopt(3, SOL_TCP, TCP_NODELAY, [1], 4) = 0
select(7, [3 6], [], NULL, NULL) = 1 (in [3])
# netstat -anp
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:8080 0.0.0.0:* LISTEN 25673/wasmer
wasmer
WebAssembly runtime with WASI (API)
WebAssembly System Interface (SOCKET, I/O ..etc)
Linux (OS)
CPU, Networking, Storage I/O …etc
INTERNET
(ポータビリティあり)
source: SAKURA Internet Research Center (2019/12)
x86 or Aarch64
wasmer is a standalone WebAssembly runtime for running WebAssembly outside of the browser, supporting WASI ...
wasmtime - a small and efficient runtime for WebAssembly & WASI
WAMR (WebAssembly Micro Runtime) is a standalone WebAssembly (WASM) runtime with small footprint.
wagon is a WebAssembly-based interpreter in Go, for Go.
wasmi - a Wasm interpreter.
WAVM is a WebAssembly virtual machine, designed for use in non-web applications.
life is a secure & fast WebAssembly VM built for decentralized applications, written in Go. ...etc etc](https://image.slidesharecdn.com/src20191280v1-191229134522/75/WebAssembly-1-2048.jpg)
Uploaded byNaoto MATSUMOTO
仮想化環境におけるバイナリー・ポータビリティの考察 (WebAssemblyの場合)
1. The document discusses binary portability in virtualized environments using WebAssembly as an example. 2. It shows the steps to run an nginx WebAssembly binary using the wasmer runtime on Linux, including cloning the wasmer repository and running an nginx.wasm file. 3. A strace command is used to view the system calls made by the wasmer process running the nginx WebAssembly binary. This demonstrates it functioning like a normal Linux program and interacting with the operating system for I/O.
仮想化環境におけるバイナリー・ポータビリティの考察 (WebAssemblyの場合)
- 1. 仮想化環境におけるバイナリー・ポータビリティの考察 (WebAssemblyの場合) 1 # uname-sr ; tail -1 /etc/lsb-release Linux 4.15.0-72-generic DISTRIB_DESCRIPTION="Ubuntu 18.04.3 LTS" # curl https://get.wasmer.io -sSfL | sh # source /root/.wasmer/wasmer.sh # cd /opt # git clone https://github.com/wasmerio/wasmer.git # cd wasmer/examples/nginx # wasmer run nginx.wasm -- -p . -c nginx.conf & # strace -p 25673 select(7, [6], [], NULL, NULL) = 1 (in [6]) accept(6, {sa_family=AF_INET, sin_port=htons(55813), sin_addr=inet_addr("172... ioctl (3, FIOCLEX) = 0 ioctl (3, FIONBIO, [1]) = 0 select(7, [3 6], [], NULL, NULL) = 1 (in [3]) recvfrom(3, "GET / HTTP/1.1¥r¥nHost: 172.17.159"..., 1024, 0, 0x7f2fc805a000, … stat ("././html/index.html", {st_mode=S_IFREG|0644, st_size=958, ...}) = 0 openat(AT_FDCWD, "././html/index.html", O_RDONLY|O_NONBLOCK|O_LARGEFILE) = 7 fstat (7, {st_mode=S_IFREG|0644, st_size=958, ...}) = 0 write (3, "HTTP/1.1 304 Not Modified¥r¥nServe"..., 180) = 180 write (5, "172.17.159.225 - - [28/Dec/2019:"..., 192) = 192 close (7) = 0 setsockopt(3, SOL_TCP, TCP_NODELAY, [1], 4) = 0 select(7, [3 6], [], NULL, NULL) = 1 (in [3]) # netstat -anp Active Internet connections (servers and established) Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name tcp 0 0 0.0.0.0:8080 0.0.0.0:* LISTEN 25673/wasmer wasmer WebAssembly runtime with WASI (API) WebAssembly System Interface (SOCKET, I/O ..etc) Linux (OS) CPU, Networking, Storage I/O …etc INTERNET (ポータビリティあり) source: SAKURA Internet Research Center (2019/12) x86 or Aarch64 wasmer is a standalone WebAssembly runtime for running WebAssembly outside of the browser, supporting WASI ... wasmtime - a small and efficient runtime for WebAssembly & WASI WAMR (WebAssembly Micro Runtime) is a standalone WebAssembly (WASM) runtime with small footprint. wagon is a WebAssembly-based interpreter in Go, for Go. wasmi - a Wasm interpreter. WAVM is a WebAssembly virtual machine, designed for use in non-web applications. life is a secure & fast WebAssembly VM built for decentralized applications, written in Go. ...etc etc
