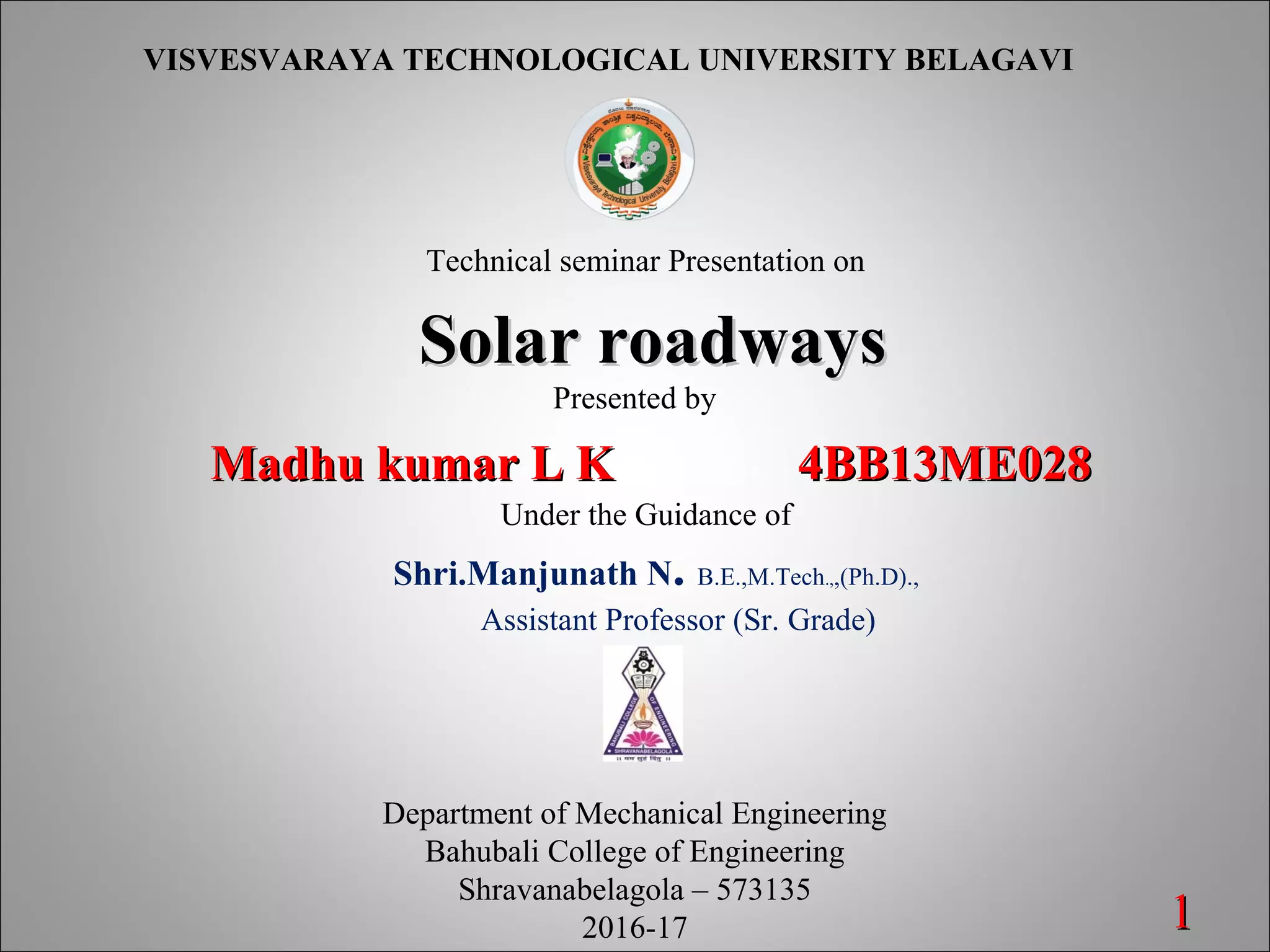

VISVESVARAYA TECHNOLOGICAL UNIVERSITY BELAGAVI
Technical seminar Presentation on
Solar roadwaysSolar roadways
Presented by
Madhu kumar L K 4BB13ME028Madhu kumar L K 4BB13ME028
Under the Guidance of
Shri.Manjunath N. B.E.,M.Tech.,,(Ph.D).,
Assistant Professor (Sr. Grade)
Department of Mechanical Engineering
Bahubali College of Engineering
Shravanabelagola – 573135
2016-17

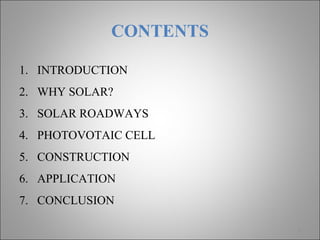

2. CONTENTS
1. INTRODUCTION
2. WHY SOLAR?
3. SOLAR ROADWAYS
4. PHOTOVOTAIC CELL
5. CONSTRUCTION
6. APPLICATION
7. CONCLUSION
2

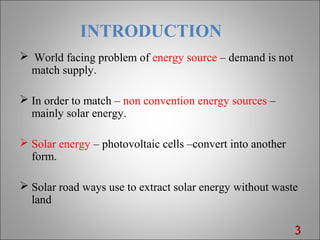

3. INTRODUCTION
 World facing problem of energy source – demand is not
match supply.
 In order to match – non convention energy sources –
mainly solar energy.
 Solar energy – photovoltaic cells –convert into another
form.
 Solar road ways use to extract solar energy without waste
land
33

4. Contt…

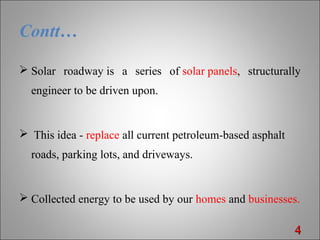

 Solar roadway is a series of solar panels, structurally
engineer to be driven upon.
 This idea - replace all current petroleum-based asphalt
roads, parking lots, and driveways.
 Collected energy to be used by our homes and businesses.
44

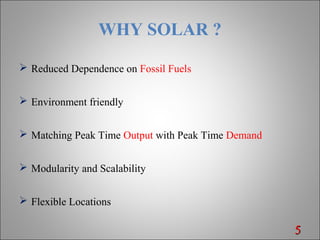

5. WHY SOLAR ?
 Reduced Dependence on Fossil Fuels
 Environment friendly
 Matching Peak Time Output with Peak Time Demand
 Modularity and Scalability
 Flexible Locations
55

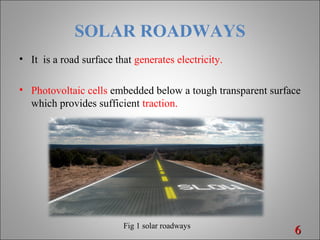

6. SOLAR ROADWAYS
• It is a road surface that generates electricity.
• Photovoltaic cells embedded below a tough transparent surface
which provides sufficient traction.
66Fig 1 solar roadways

7. PHOTOVOLTAIC CELL
• Conversion of light energy into electrical energy called
photovoltaic cell
77

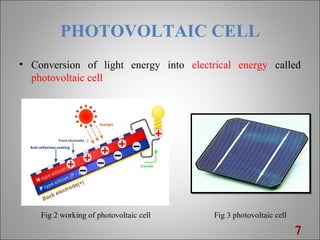

Fig 2 working of photovoltaic cell Fig 3 photovoltaic cell

8. SOLAR ROAD CONSTRUCTION
A solar roadway consist of three layers:
Road surface layer/Glass layer
Electronics layer
Base plate layer

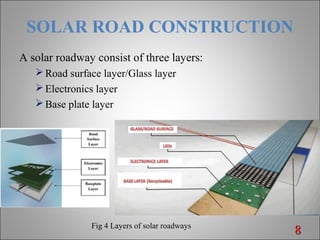

88Fig 4 Layers of solar roadways

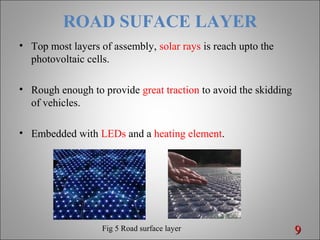

9. ROAD SUFACE LAYER
• Top most layers of assembly, solar rays is reach upto the
photovoltaic cells.
• Rough enough to provide great traction to avoid the skidding
of vehicles.
• Embedded with LEDs and a heating element.
99Fig 5 Road surface layer

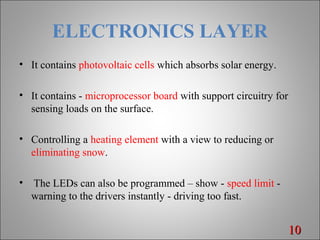

10. ELECTRONICS LAYER
• It contains photovoltaic cells which absorbs solar energy.
• It contains - microprocessor board with support circuitry for
sensing loads on the surface.
• Controlling a heating element with a view to reducing or
eliminating snow.
• The LEDs can also be programmed – show - speed limit -
warning to the drivers instantly - driving too fast.
1010

11. Contt…
1111

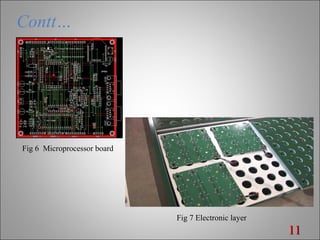

Fig 7 Electronic layer
Fig 6 Microprocessor board

12. BASE PLATE LAYER
• Electronics layer collects energy from the sun - base plate
layer - distributes that power.
• Data signals (phone, TV, internet, etc.) down the line to all
homes and businesses connected to the solar roadway.
• It needs to be weatherproof to protect the electronics layer
above it.
1212

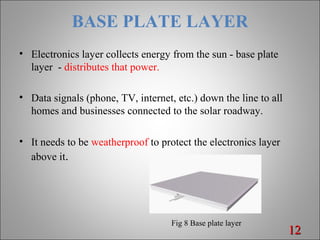

Fig 8 Base plate layer

13. 1313

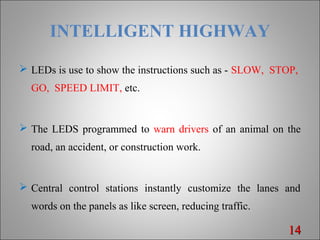

14. INTELLIGENT HIGHWAY
 LEDs is use to show the instructions such as - SLOW, STOP,
GO, SPEED LIMIT, etc.
 The LEDS programmed to warn drivers of an animal on the
road, an accident, or construction work.
 Central control stations instantly customize the lanes and
words on the panels as like screen, reducing traffic.
1414

15. 1515
Fig 9 LED glow highways
Fig 10 signal of animal in road

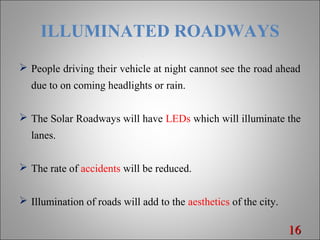

16. ILLUMINATED ROADWAYS
 People driving their vehicle at night cannot see the road ahead
due to on coming headlights or rain.
 The Solar Roadways will have LEDs which will illuminate the
lanes.
 The rate of accidents will be reduced.
 Illumination of roads will add to the aesthetics of the city.
1616

17. 1717
Fig11 Illuminated roadways
Fig 12 A look of city

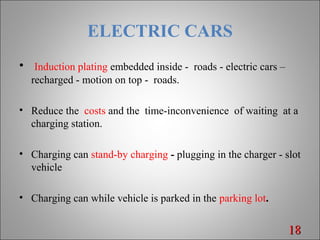

18. ELECTRIC CARS
• Induction plating embedded inside - roads - electric cars –
recharged - motion on top - roads.
• Reduce the costs and the time-inconvenience of waiting at a
charging station.
• Charging can stand-by charging - plugging in the charger - slot
vehicle
• Charging can while vehicle is parked in the parking lot.
1818

19. 1919Fig 14 On road charge
Fig13 Road side charger

20. SNOW ICE MANAGMENT
 Snow on roads, It makes driving dangerous.
Asphalt roads they get damaged when this snow is melted and
increases the maintenance cost.
A Solar Roadway heat themselves with their embedded heating
elements and melt away all the snow.
The panels is used stored energy to stay heated to slightly
above freezing, which would eliminate snow.
2020

21. Contt…
2121

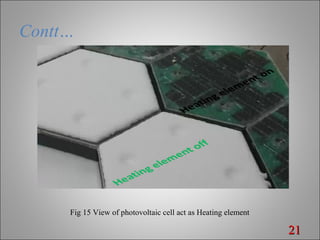

Fig 15 View of photovoltaic cell act as Heating element

22. 2222
Fig 16 solar roadway clears snows

23. Parking lots
2323
Fig 17 LED glows in parking lots

24. A LOOK ON THE FUTURE
24

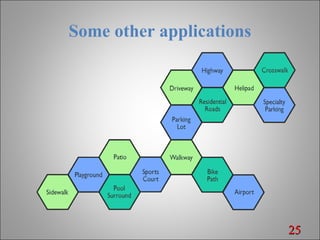

25. Some other applications
2525

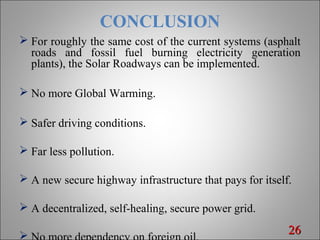

26. CONCLUSION
 For roughly the same cost of the current systems (asphalt
roads and fossil fuel burning electricity generation
plants), the Solar Roadways can be implemented.
 No more Global Warming.
 Safer driving conditions.
 Far less pollution.
 A new secure highway infrastructure that pays for itself.
 A decentralized, self-healing, secure power grid.
 2626

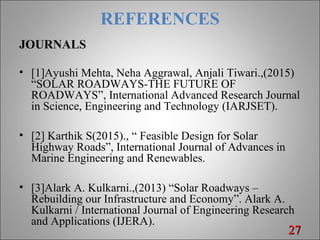

27. REFERENCES
