1. Solar Project Development
AF-Mercados EMI 1 FirstGreen

2.  Detailed Site Plan
 Calculation of Solar Resource
 Environmental Characteristics (Temp ,Wind
 The Project Site Speed, Shading)
 Installed Capacity??  Module type/Mounting System
 Approximate Cost  System Design Outline Planning Permission
 Estimated Energy Yield  Detailed Assessment of Grid Connection
 Cost & Likelihood of Likelihood, Cost & Timing
Achieving Grid-Connection  Predicted Energy Yield & Financial
 Permitting Requirements?? Modeling based on that
 Submission of Permit Application
 Contracting Strategy (EPC/Multi Contract)
 Decision on Financing Approach
 PV Module/Other Tender Documentation
 Supplier & Contractor Selection &
A Project Sponsor Ranking
A Potential Site  Project Risk Analysis
Funds for Feasibility  Financial Modeling Covering Full Lifecycle
 Preparation of DPR
Assessments  Securing Financing for the Project
AF-Mercados EMI 2 FirstGreen

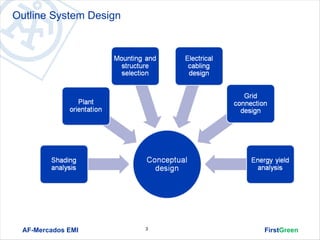

3. Outline System Design
AF-Mercados EMI 3 FirstGreen

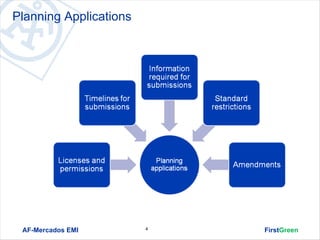

4. Planning Applications
AF-Mercados EMI 4 FirstGreen

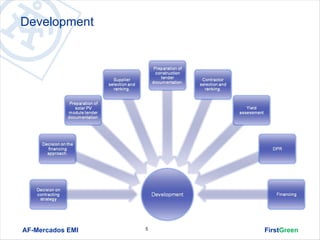

5. Development
AF-Mercados EMI 5 FirstGreen

6. Yield assessment
AF-Mercados EMI 6 FirstGreen

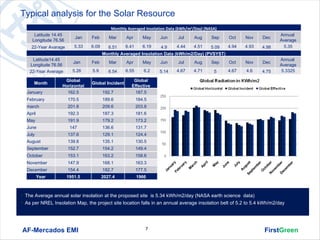

7. Typical analysis for the Solar Resource
Monthly Averaged Insolation Data (kWh/m2/Day) (NASA)
Latitude 14.45 Annual
Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Longitude 76.56 Average
22-Year Avarage 5.33 6.09 6.51 6.41 6.19 4.9 4.44 4.51 5.09 4.94 4.93 4.98 5.35
Monthly Averaged Insolation Data (kWh/m2/Day) (PVSYST)
Latitude14.45 Annual
Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Longitude 76.56 Average
22-Year Average 5.26 5.9 6.54 6.55 6.2 5.14 4.67 4.71 5 4.67 4.6 4.75 5.3325
Global Global
Month Global Incident
Horizontal Effective
January 162.5 192.7 187.5
February 170.5 189.6 184.5
march 201.8 209.6 203.8
April 192.3 187.3 181.6
May 191.9 179.2 173.2
June 147 136.6 131.7
July 137.6 129.1 124.4
August 139.8 135.1 130.5
September 152.7 154.2 149.4
October 153.1 163.2 158.6
November 147.9 168.1 163.3
December 154.4 182.7 177.5
Year 1951.5 2027.4 1966
• The Average annual solar insolation at the proposed site is 5.34 kWh/m2/day (NASA earth science data)
• As per NREL Insolation Map, the project site location falls in an annual average insolation belt of 5.2 to 5.4 kWh/m2/day
AF-Mercados EMI 7 FirstGreen

8. Detailed Project Report
AF-Mercados EMI 8 FirstGreen

9. Typical Plant Layout
AF-Mercados EMI 9 FirstGreen

10. SITE SELECTION
AF-Mercados EMI 10 FirstGreen

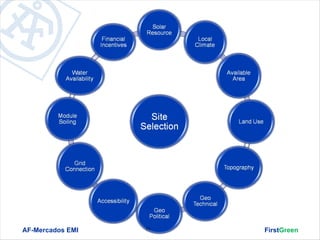

11. AF-Mercados EMI 11 FirstGreen

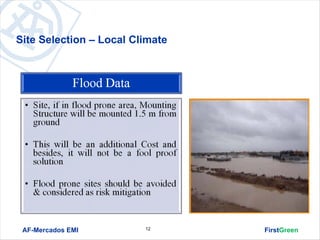

12. Site Selection – Local Climate
AF-Mercados EMI 12 FirstGreen

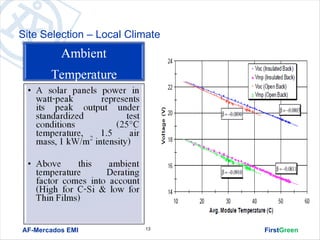

13. Site Selection – Local Climate
AF-Mercados EMI 13 FirstGreen

14. Site Selection – Local Climate
AF-Mercados EMI 14 FirstGreen

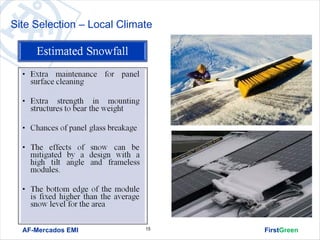

15. Site Selection – Local Climate
AF-Mercados EMI 15 FirstGreen

16. Site Selection – Local Characteristics
AF-Mercados EMI 16 FirstGreen

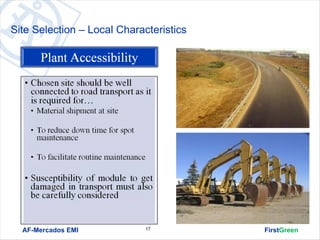

17. Site Selection – Local Characteristics
AF-Mercados EMI 17 FirstGreen

18. Site Selection – Local Characteristics
AF-Mercados EMI 18 FirstGreen

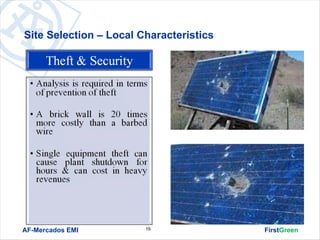

19. Site Selection – Local Characteristics
AF-Mercados EMI 19 FirstGreen

20. Site Selection – Soil Characteristics
Load
Bearing
Class of Material
Pressure
(lb/ft2)
Crystalline Bedrock 12000
Sedimentary Rock 6000
Sandy Gravel or Gravel
5000
Sand, Silty Sand,
Clayey Sand, Silty
Gravel & Clayey Gravel
3000
Clay, Sandy Clay, Silty
Clay & Clayey Silt 2000
AF-Mercados EMI 20 FirstGreen

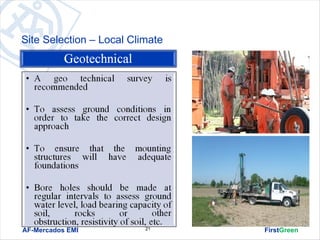

21. Site Selection – Local Climate
AF-Mercados EMI 21 FirstGreen

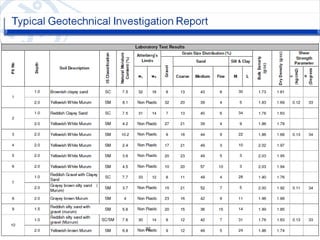

22. AF-Mercados EMI 22 FirstGreen

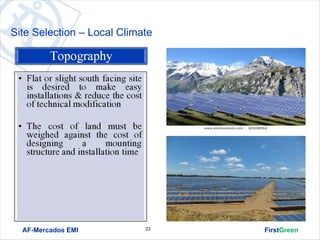

23. Site Selection – Local Climate
AF-Mercados EMI 23 FirstGreen

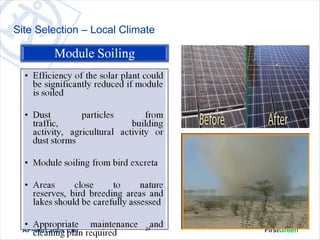

24. Site Selection – Local Climate
AF-Mercados EMI 24 FirstGreen

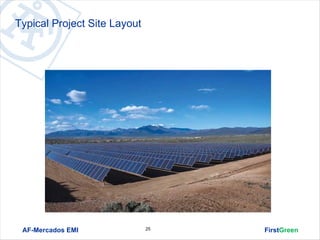

25. Typical Project Site Layout
AF-Mercados EMI 25 FirstGreen

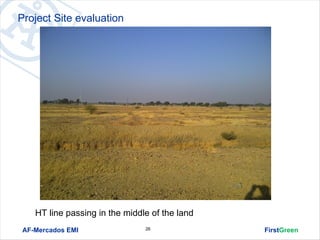

26. Project Site evaluation
HT line passing in the middle of the land
AF-Mercados EMI 26 FirstGreen

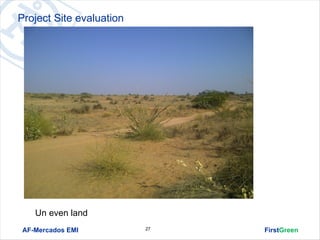

27. Project Site evaluation
Un even land
AF-Mercados EMI 27 FirstGreen

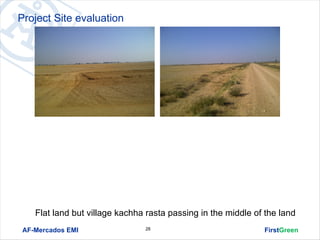

28. Project Site evaluation
Flat land but village kachha rasta passing in the middle of the land
AF-Mercados EMI 28 FirstGreen

29. Yield Assessment
AF-Mercados EMI

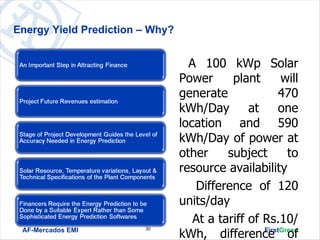

30. Energy Yield Prediction – Why?
A 100 kWp Solar
Power plant will
generate 470
kWh/Day at one
location and 590
kWh/Day of power at
other subject to
resource availability
 Difference of 120
units/day
 At a tariff of Rs.10/
AF-Mercados EMI
kWh, difference of
FirstGreen
30

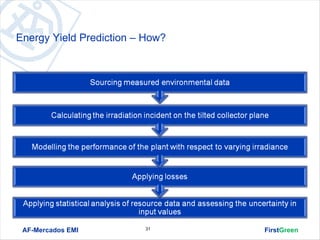

31. Energy Yield Prediction – How?
AF-Mercados EMI 31 FirstGreen

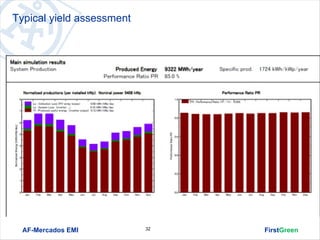

32. Typical yield assessment
AF-Mercados EMI 32 FirstGreen

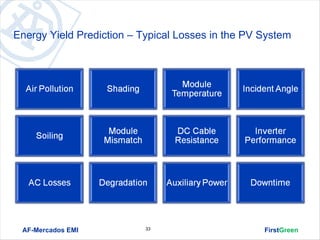

33. Energy Yield Prediction – Typical Losses in the PV System
AF-Mercados EMI 33 FirstGreen

34. Typical losses in the plant
AF-Mercados EMI 34 FirstGreen

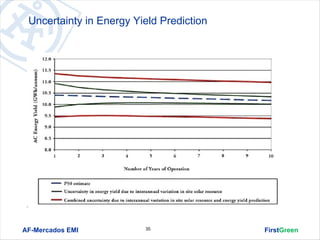

35. Uncertainty in Energy Yield Prediction
AF-Mercados EMI 35 FirstGreen

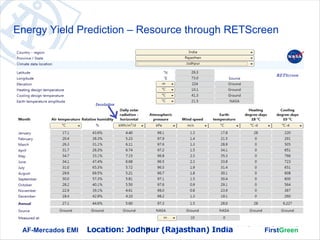

36. Energy Yield Prediction – Resource through RETScreen
AF-Mercados EMI Location: Jodhpur (Rajasthan) India
36 FirstGreen
