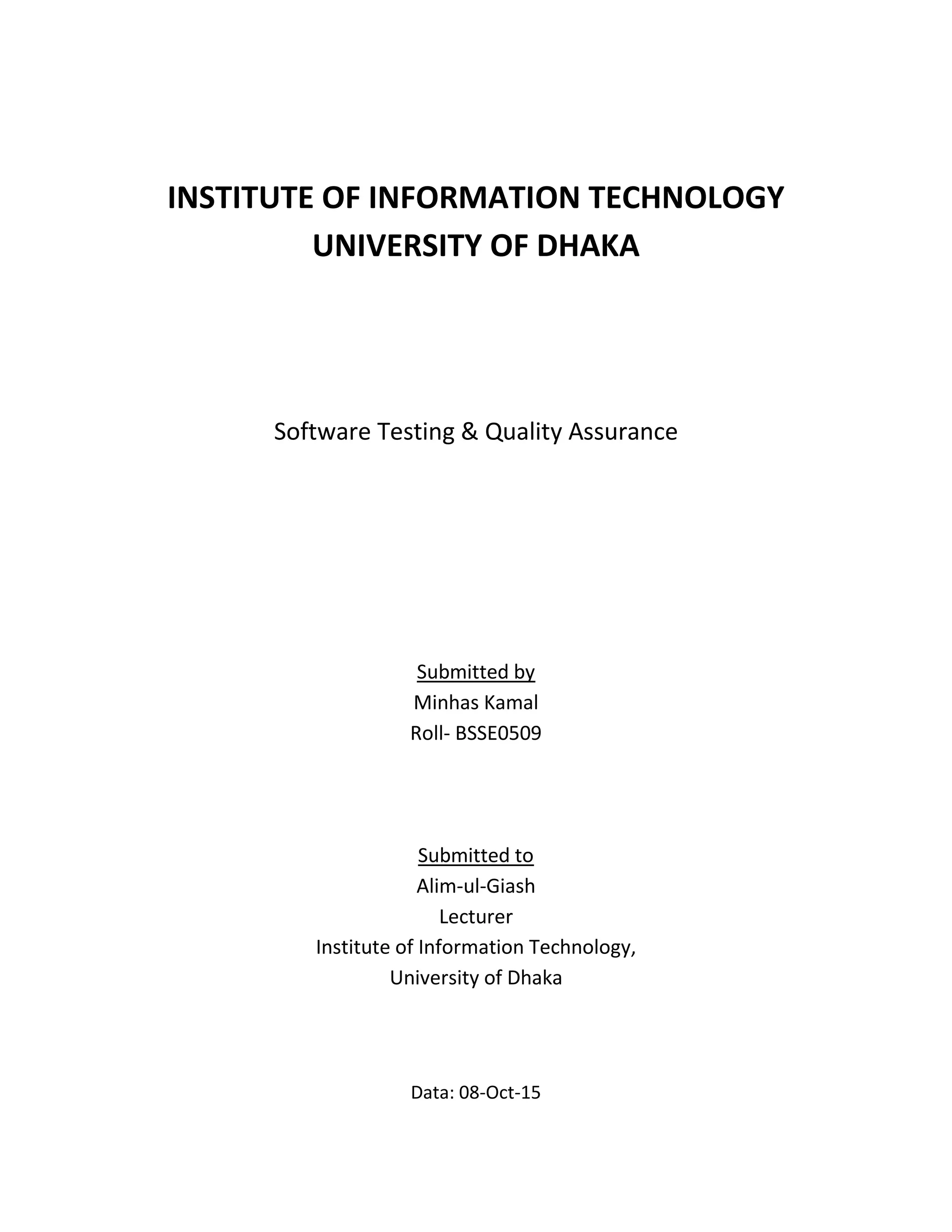

Software Testing & Quality Assurance- Black-Box Testing. Methods- Cause-Effect Graphing Technique, Equivalence Class Testing Technique, and State Table Based Testing. Documented in 2nd year of Bachelor of Science in Software Engineering (BSSE) course at Institute of Information Technology, University of Dhaka (IIT, DU).

1. INSTITUTE OF INFORMATION TECHNOLOGY
UNIVERSITY OF DHAKA
Software Testing & Quality Assurance
Submitted by
Minhas Kamal
Roll- BSSE0509
Submitted to
Alim-ul-Giash
Lecturer
Institute of Information Technology,
University of Dhaka
Data: 08-Oct-15

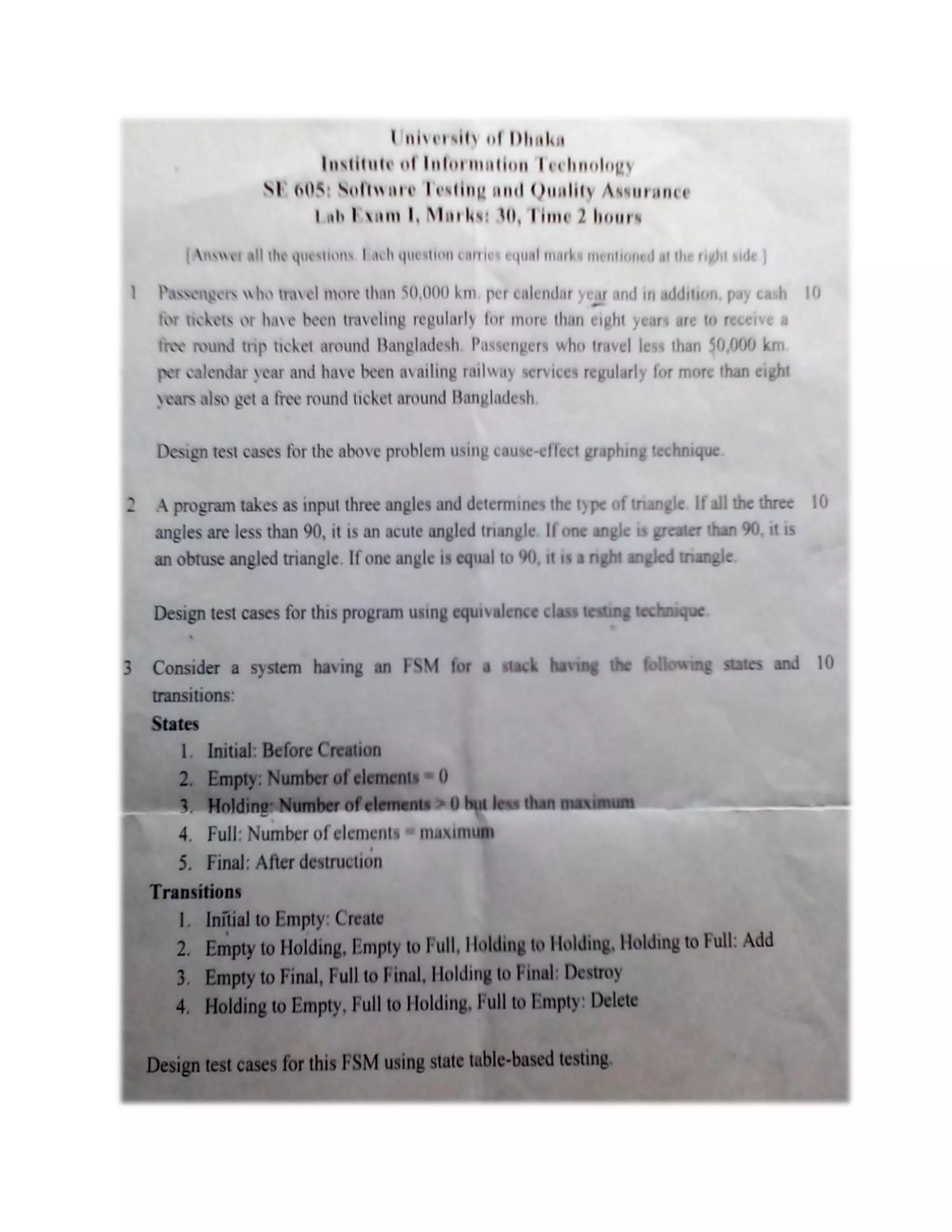

3. Answer to the question no
Let,
C1 = Passenger is traveling more than 50000 km/year
C2 = Passenger pays cash for tickets
C3 = Passenger has been traveling more than 8 years
C4 = Passenger travels less than 50000 km/year
C5 = Passenger has been availing railway services more than 8 years
E1 = Passenger gets a free round ticket around Bangladesh
E2 = Passenger does not get a free
Cause-Effect Graph:
Answer to the question no- 1
= Passenger is traveling more than 50000 km/year
= Passenger pays cash for tickets
= Passenger has been traveling more than 8 years
= Passenger travels less than 50000 km/year
= Passenger has been availing railway services more than 8 years
= Passenger gets a free round ticket around Bangladesh
= Passenger does not get a free round ticket around Bangladesh

4. Cause-Effect Table:
Test Case:
Test
Case ID
Total Travelling
Distance
Pays
Cash
Total Travelling
Years
Availing Railway
Services
Expected Output
TC-1 60000 Yes 5 5 Get Free Round Ticket
TC-2 55000 No 9 3 Get Free Round Ticket
TC-3 30000 Yes 9 9 Get Free Round Ticket
TC-4 20000 No 2 3 No Free Round Ticket
TC-5 30000 Yes 9 5 No Free Round Ticket
TC-6 15000 No 3 11 Get Free Round Ticket
Answer to the question no- 2
Let,
I1 = {<A, B, C>: A =90}
I2 = {<A, B, C>: B =90}
I3 = {<A, B, C>: C =90}
I4 = {<A, B, C>: A>90}
I5 = {<A, B, C>: B>90}
R1 R2 R3 R4 R5
C1 T T F F T
C2 T I I I F
C3 I T I I F
C4 F F T T F
C5 I I F T I
E1 x x x
E2 x x

5. I6 = {<A, B, C>: C>90}
I7 = {<A, B, C>: A< 90, B<90, C<90}
I8 = {<A, B, C>: (A+B+C) != 180}
I9 = {<A, B, C>: A<=0}
I10 = {<A, B, C>: B<=0}
I11 = {<A, B, C>: C<=0}
Test Case:
Test Case
ID
A B C Expected Output
Classes Covered by
the Test Case
TC-1 90 50 40 Right Angled Triangle I1
TC-2 60 90 30 Right Angled Triangle I2
TC-3 45 45 90 Right Angled Triangle I3
TC-4 100 50 30 Obtuse Angled Triangle I4
TC-5 60 110 10 Obtuse Angled Triangle I5
TC-6 40 20 120 Obtuse Angled Triangle I6
TC-7 80 55 45 Acute Angled Triangle I7
TC-8 75 150 45 Invalid Input I8
TC-9 -30 20 40 Invalid Input I8, I9
TC-10 120 -40 100 Invalid Input I10
TC-11 30 50 -100 Invalid Input I11

6. Answer to the question no
State Graph:
State Table:
StateInput Event Create
Initial Empty
Empty Empty
Holding Holding
Full Full
Answer to the question no- 3
Create Add Delete
Empty Initial Initial
Empty Holding/Full Empty
Holding Holding/Full Empty
Full Empty/Holding
Destroy
Initial
Final
Final
Final

7. Test Case:
Test Case ID Test Source Input Expected Output
Current State Event Output Next State
TC-1 Cell-1 Initial Create T2 Empty
TC-2 Cell-2 Initial Add T1 Initial
TC-3 Cell-3 Initial Delete T1 Initial
TC-4 Cell-4 Initial Destroy T1 Initial
TC-5 Cell-5 Empty Create T2 Empty
TC-6 Cell-6 Empty Add T3/T4 Holding/Full
TC-7 Cell-7 Empty Delete T2 Empty
TC-8 Cell-8 Empty Destroy T5 Final
TC-9 Cell-9 Holding Create T3 Holding
TC-10 Cell-10 Holding Add T3/T4 Holding/Full
TC-11 Cell-11 Holding Delete T2 Empty
TC-12 Cell-12 Holding Destroy T5 Final
TC-13 Cell-13 Full Create T4 Full
TC-14 Cell-14 Full Add T4 Full
TC-15 Cell-15 Full Delete T2/T3 Empty/Holding
TC-16 Cell-16 Full Destroy T5 Final
