1. 1
ResearchColab
Testing Document
Team: Reckless 7
Institute of Information Technology
University of Dhaka
25th
November, 2016

2. 2

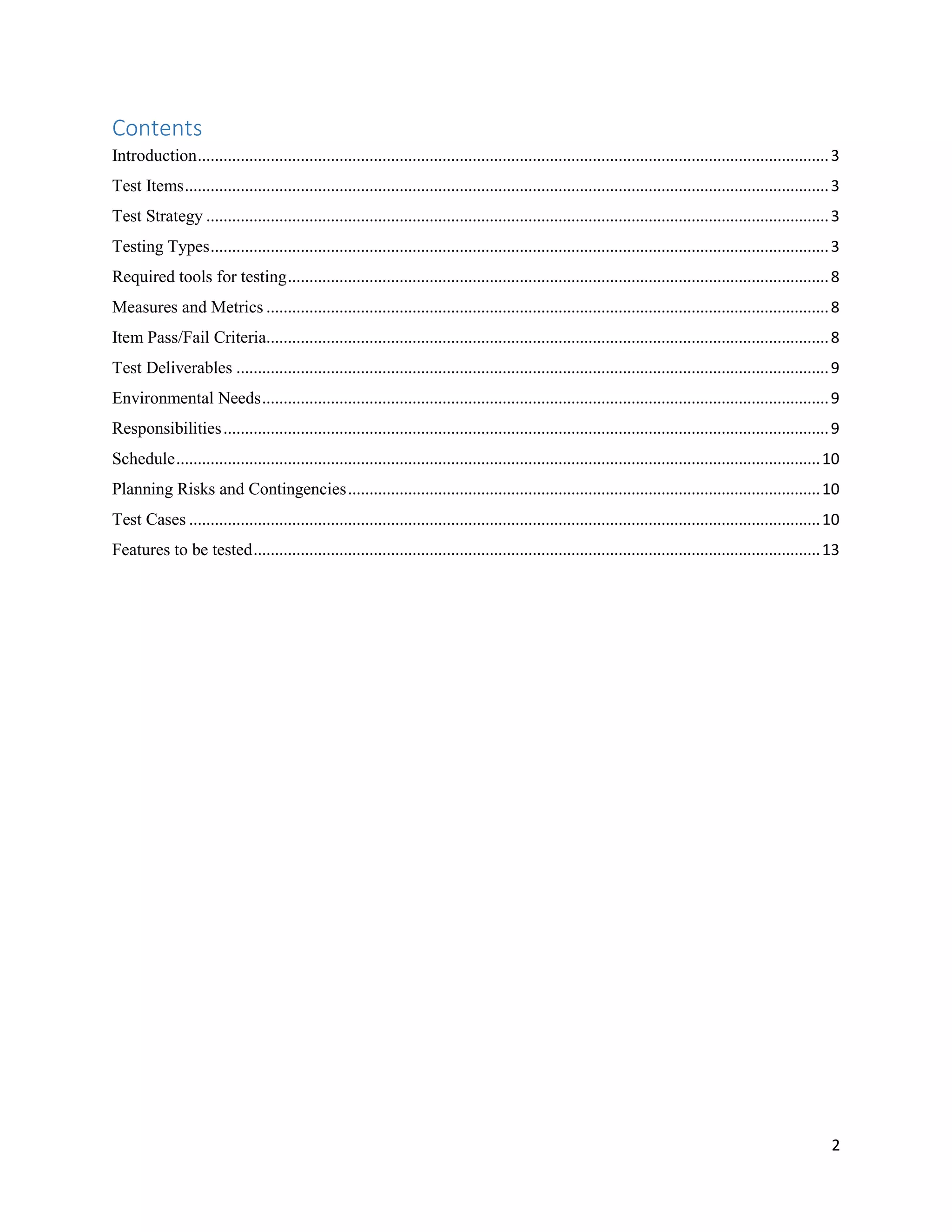

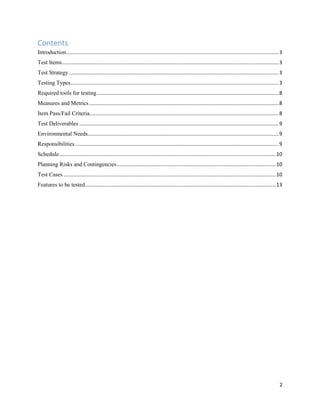

Contents
Introduction...................................................................................................................................................3
Test Items......................................................................................................................................................3
Test Strategy .................................................................................................................................................3
Testing Types................................................................................................................................................3
Required tools for testing..............................................................................................................................8
Measures and Metrics ...................................................................................................................................8
Item Pass/Fail Criteria...................................................................................................................................8
Test Deliverables ..........................................................................................................................................9
Environmental Needs....................................................................................................................................9
Responsibilities.............................................................................................................................................9

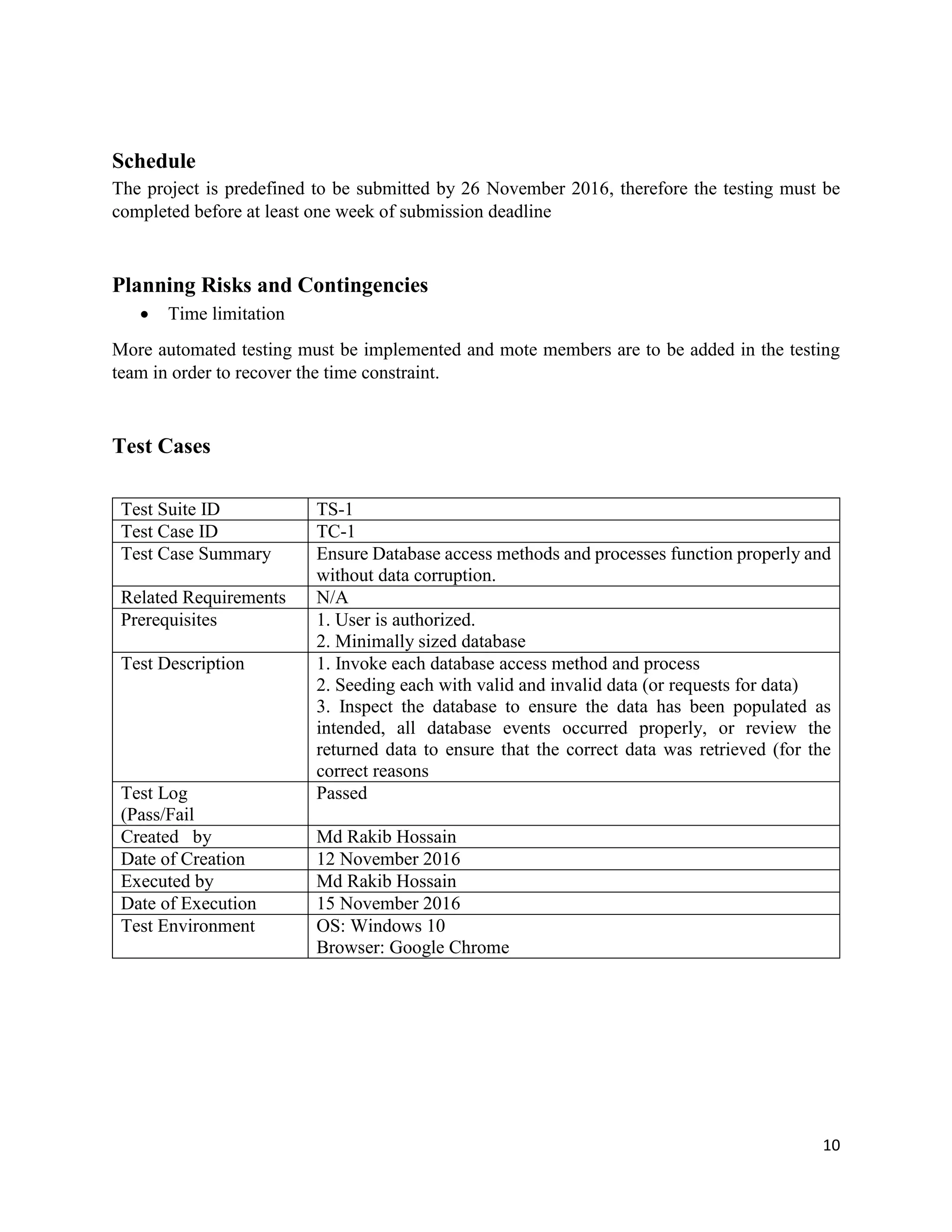

Schedule......................................................................................................................................................10
Planning Risks and Contingencies..............................................................................................................10

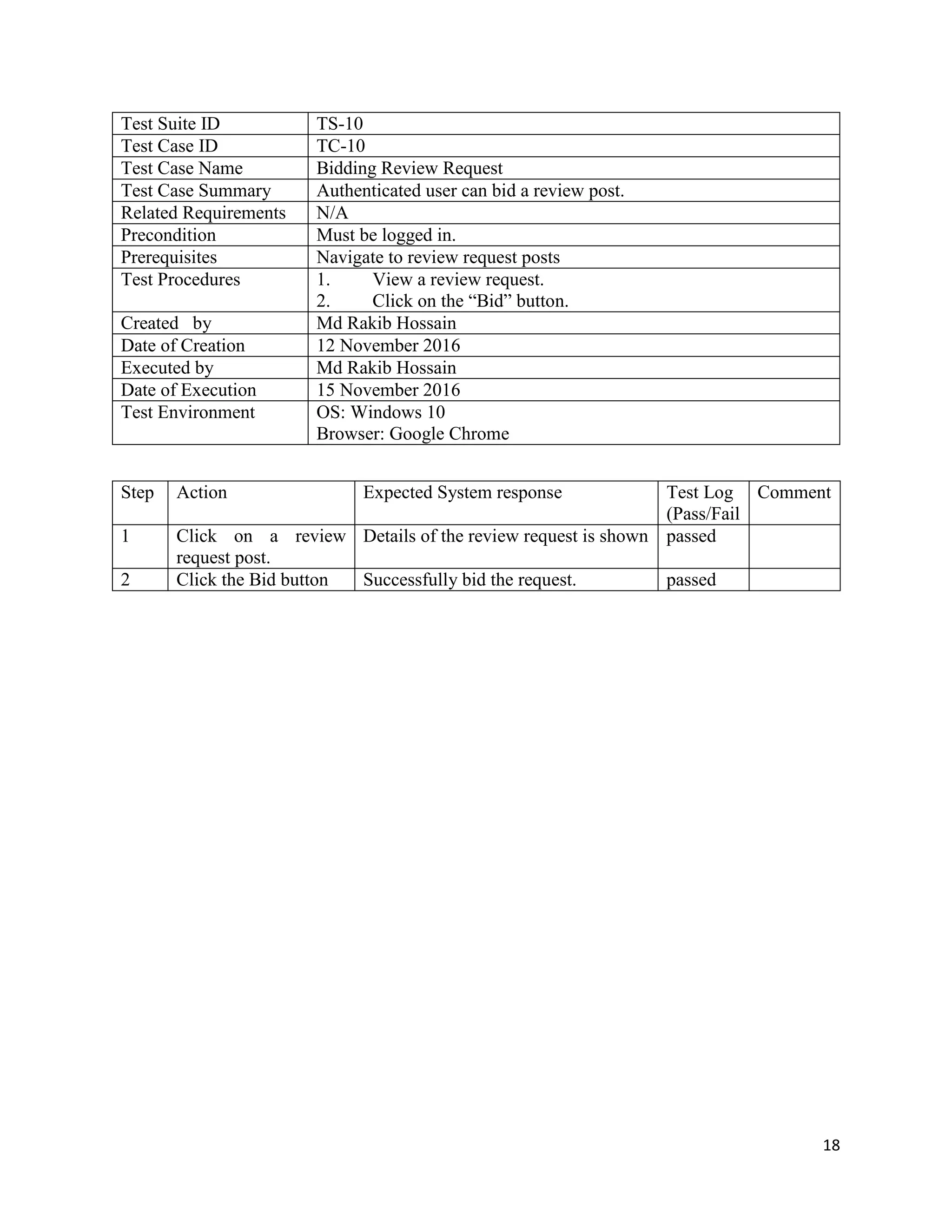

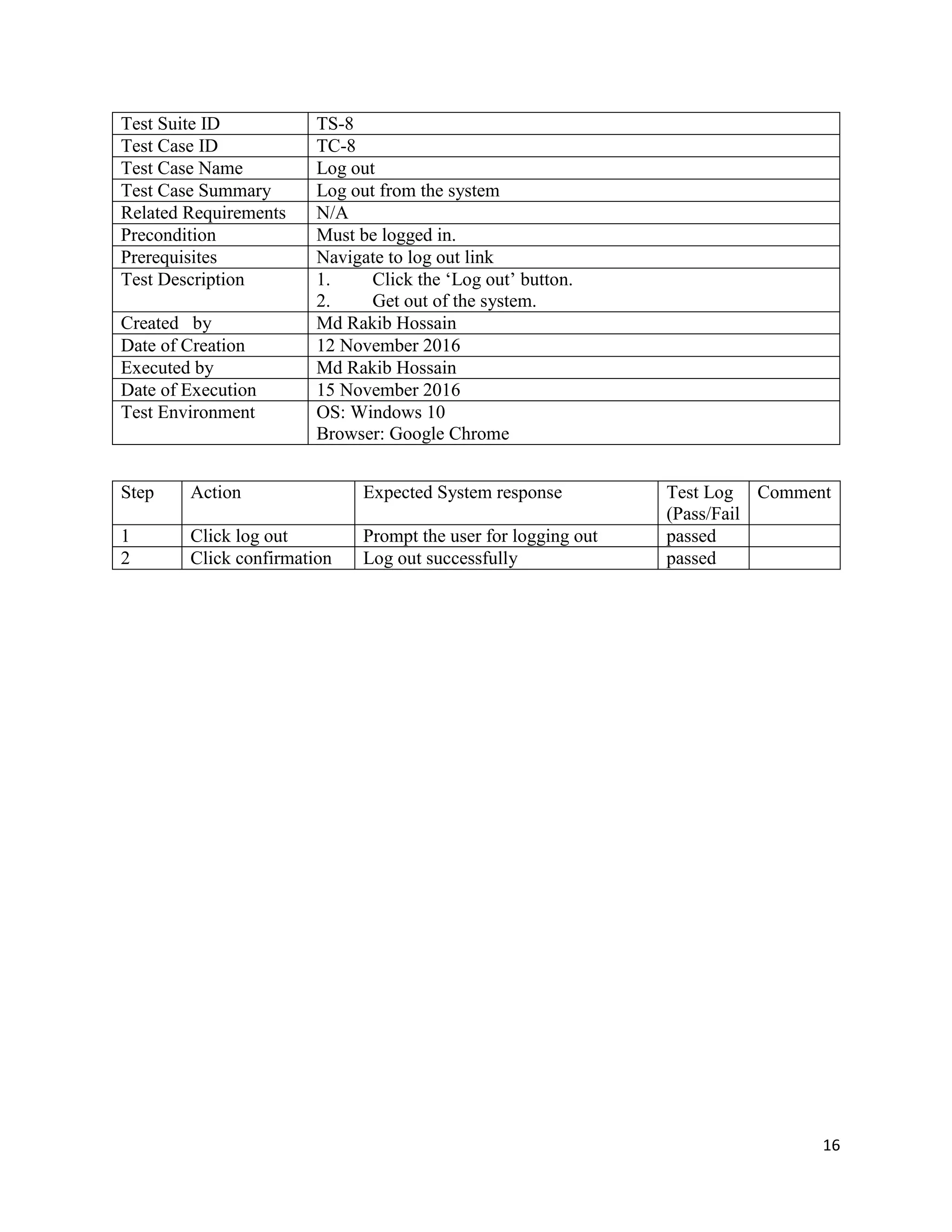

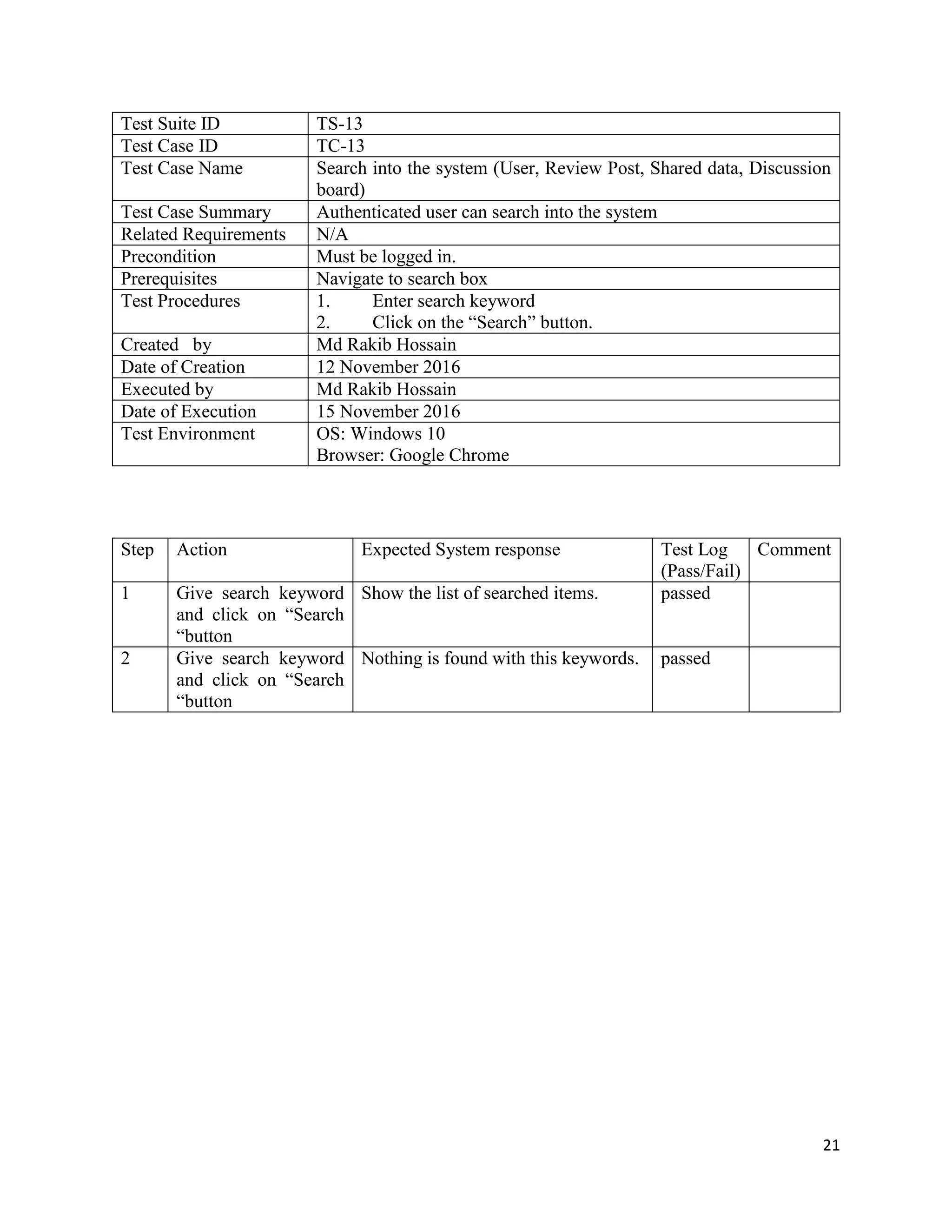

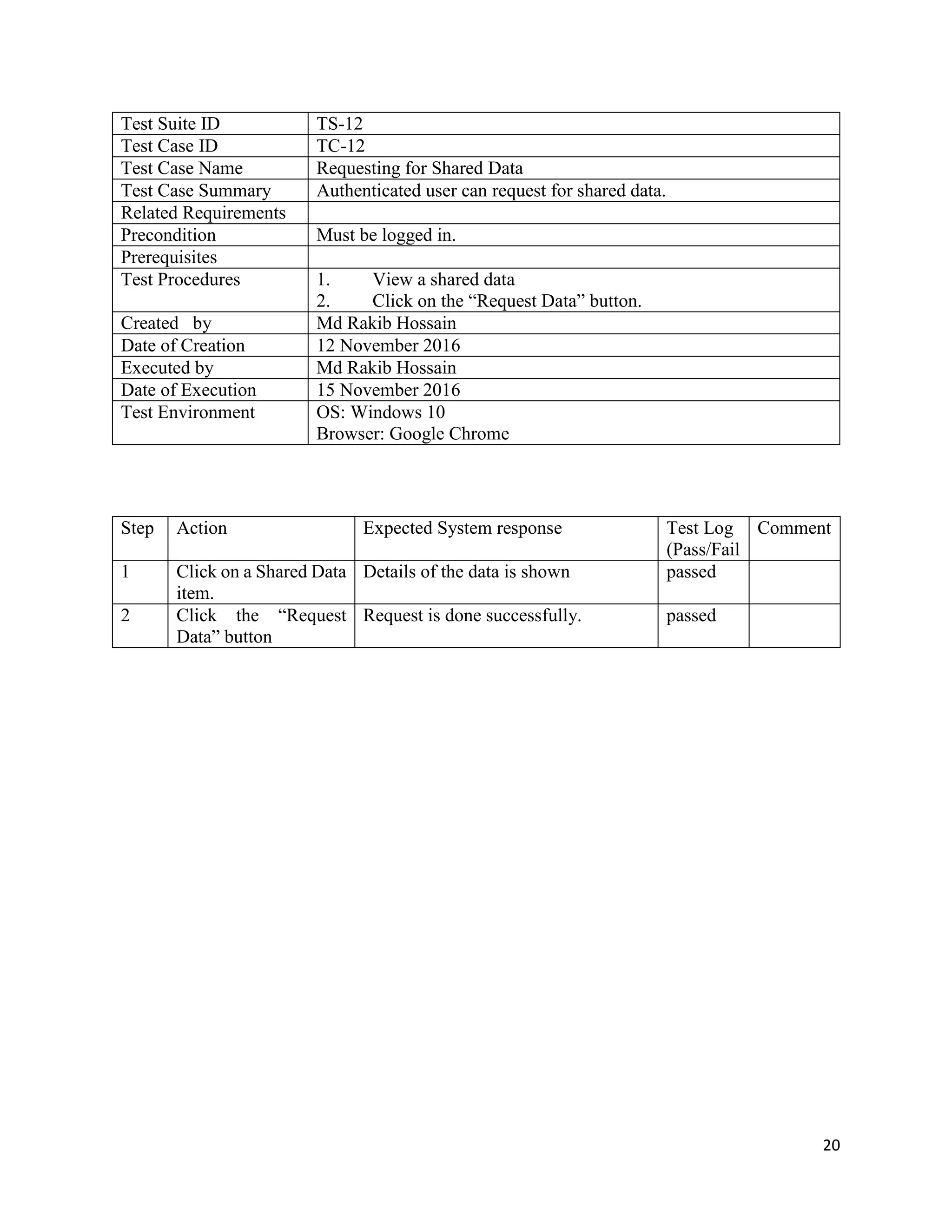

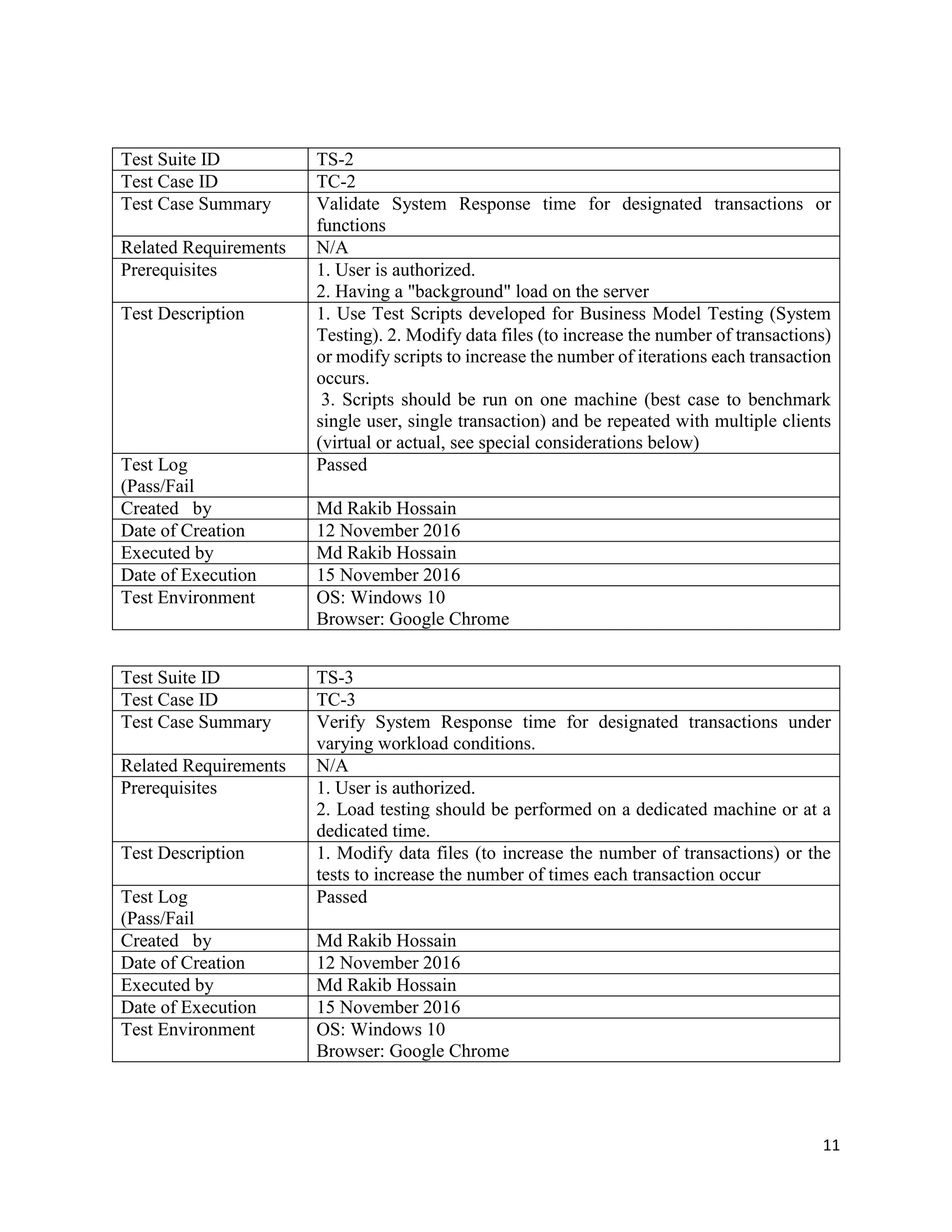

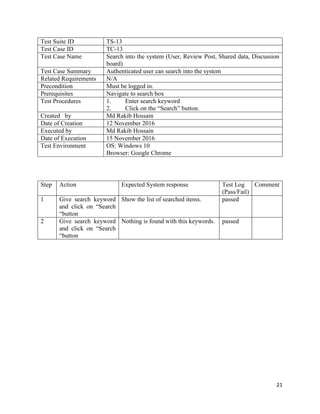

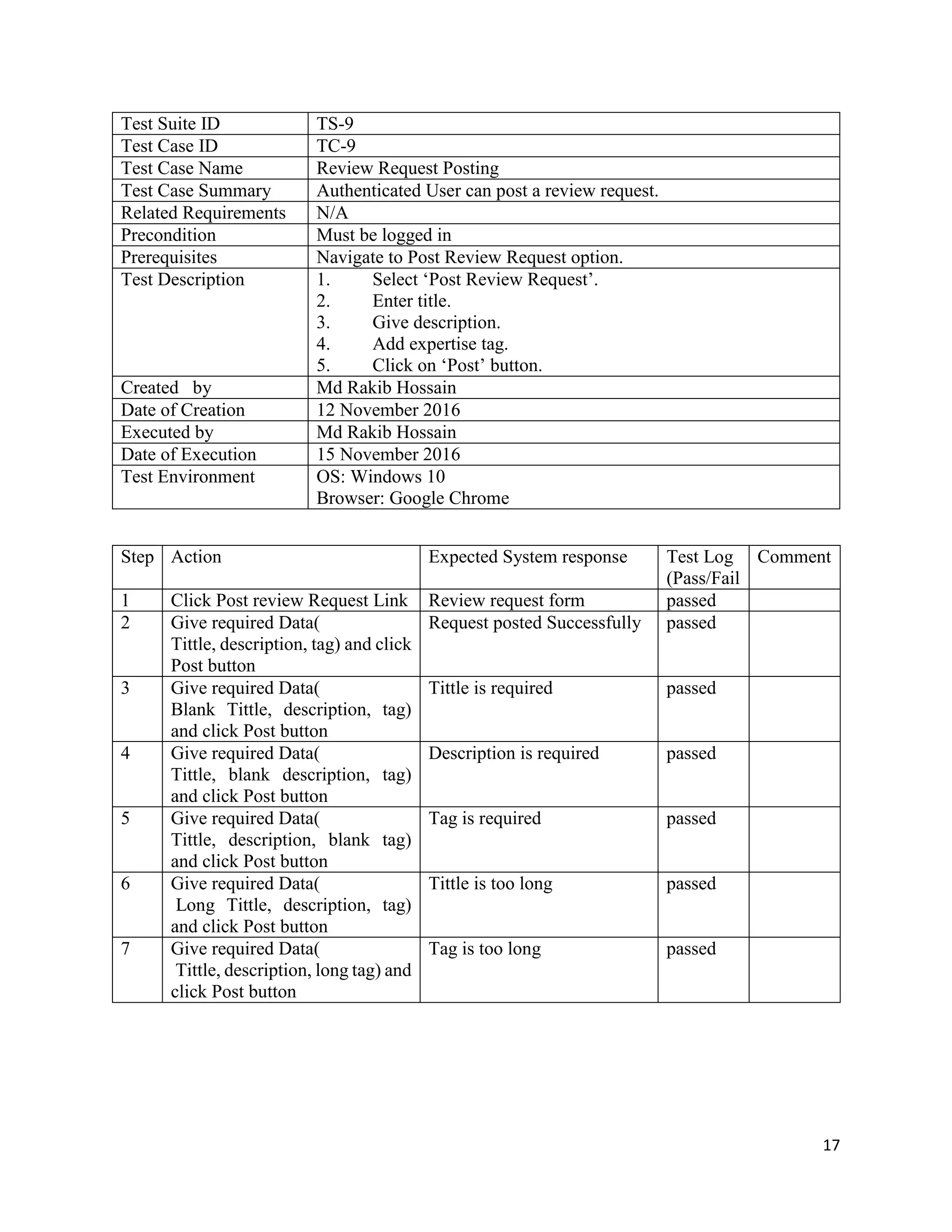

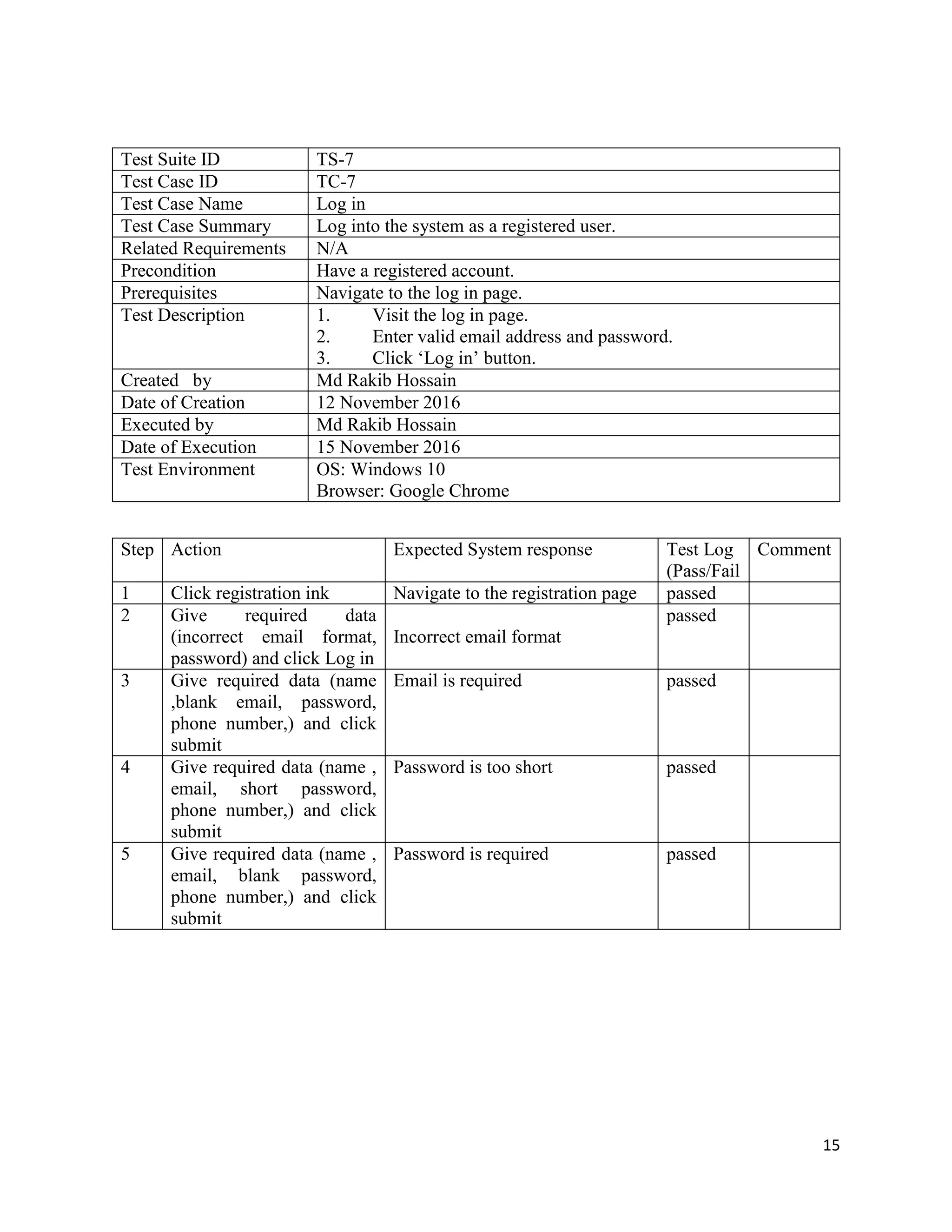

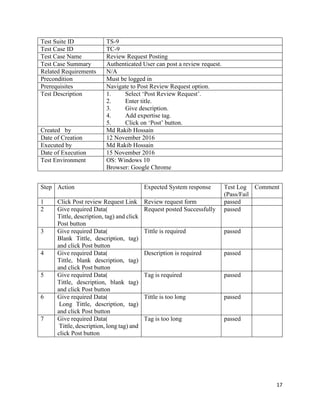

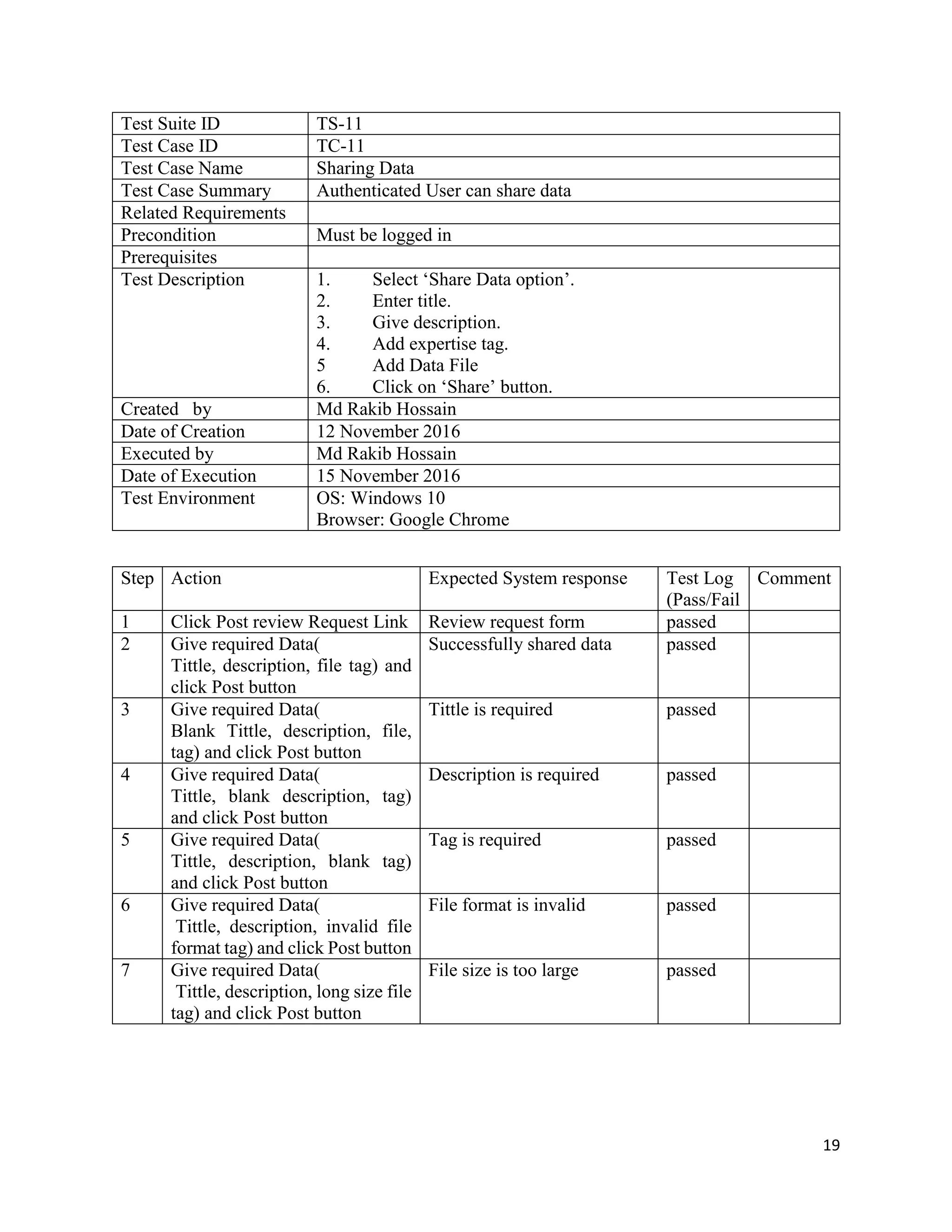

Test Cases ...................................................................................................................................................10

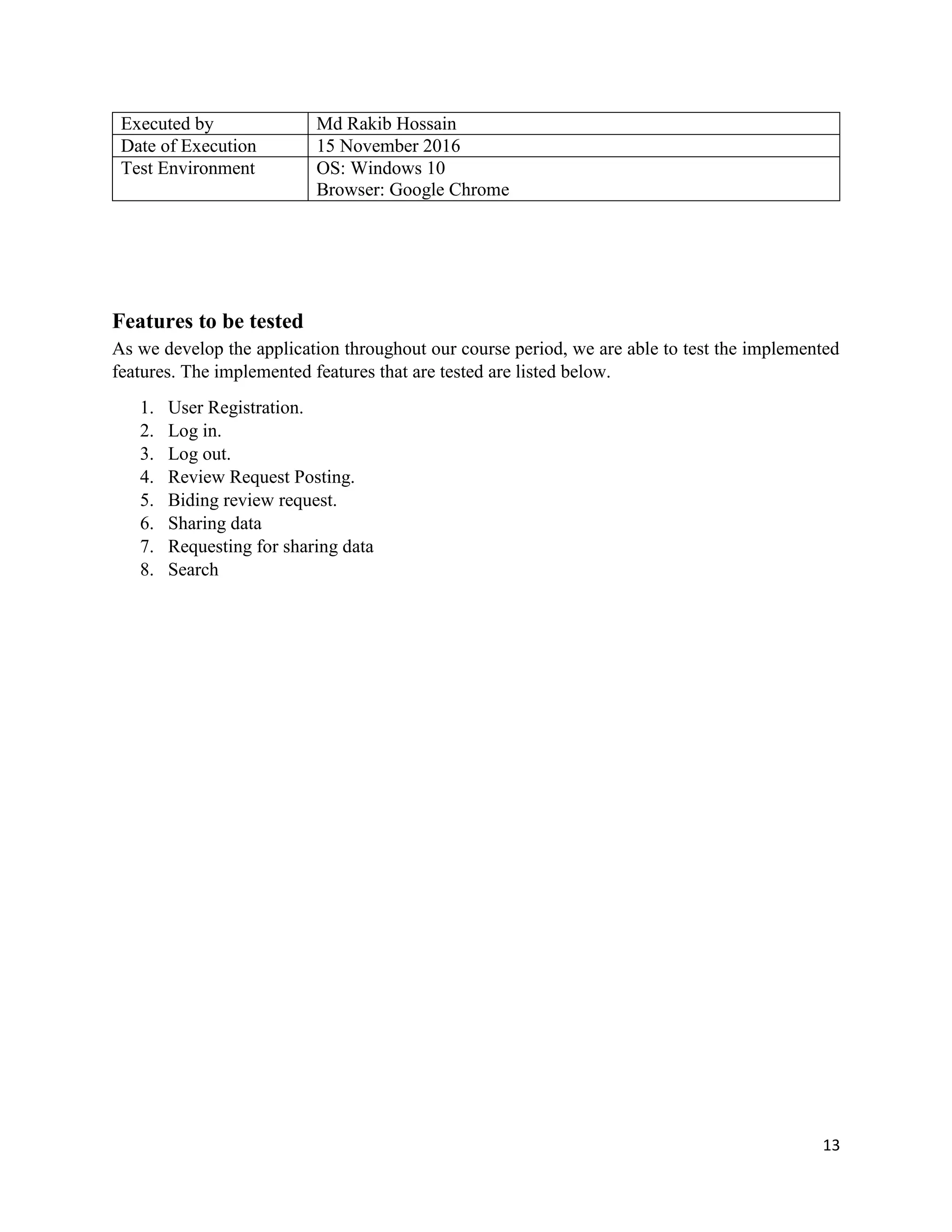

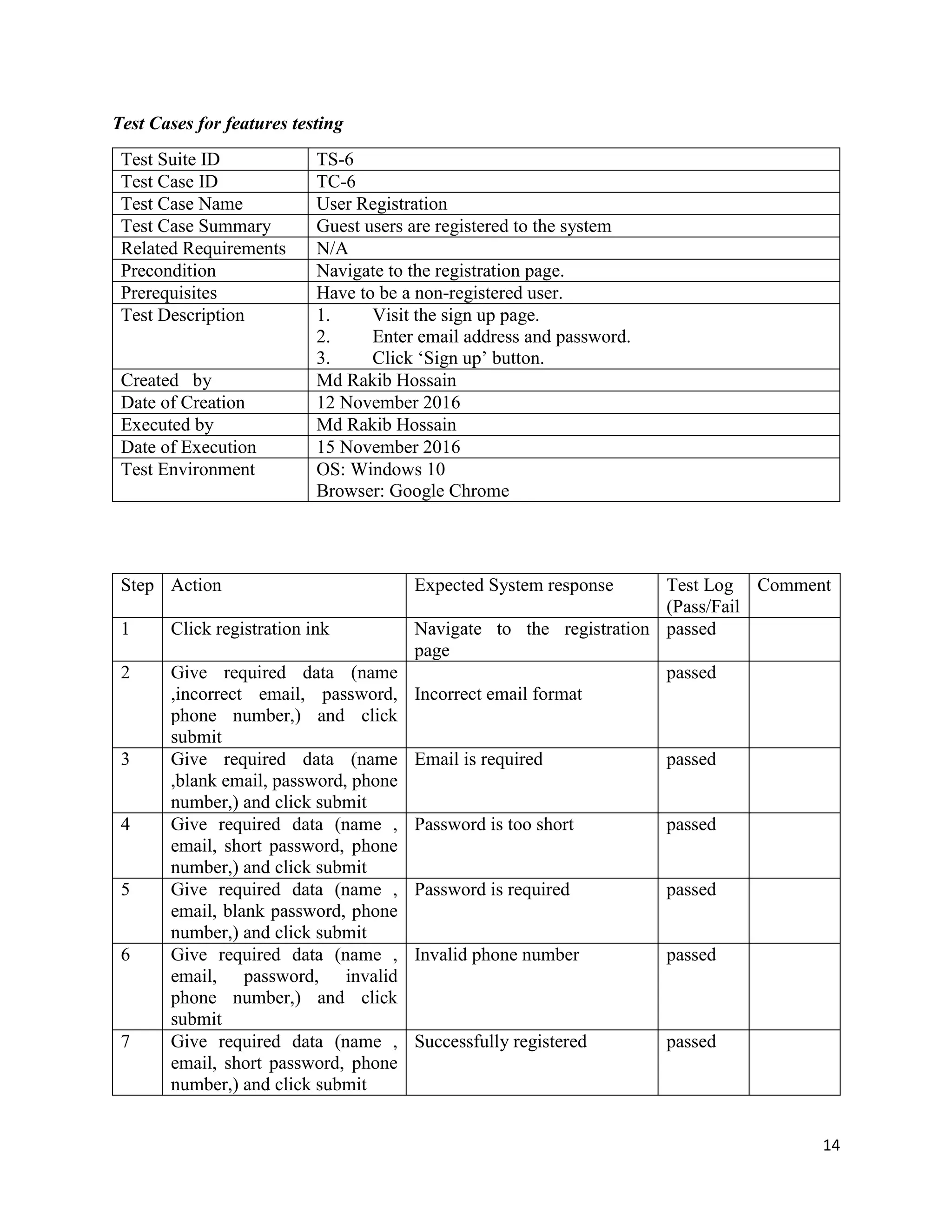

Features to be tested....................................................................................................................................13

3. 3

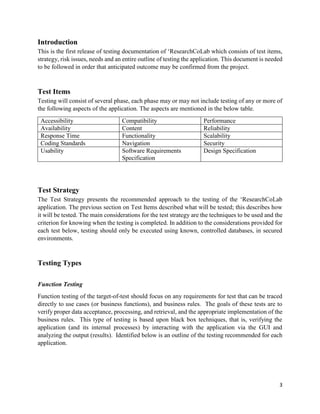

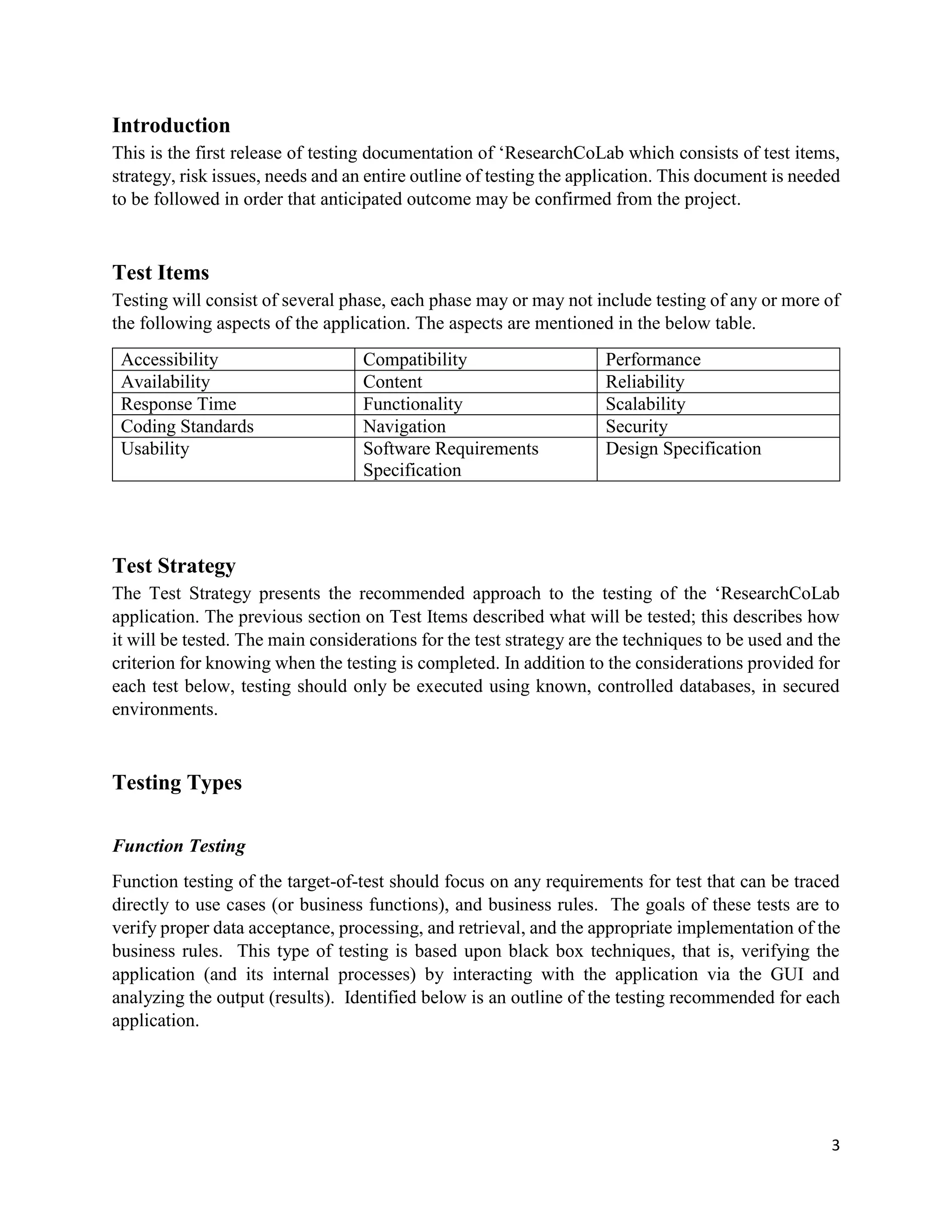

Introduction
This is the first release of testing documentation of ‘ResearchCoLab which consists of test items,
strategy, risk issues, needs and an entire outline of testing the application. This document is needed
to be followed in order that anticipated outcome may be confirmed from the project.
Test Items
Testing will consist of several phase, each phase may or may not include testing of any or more of
the following aspects of the application. The aspects are mentioned in the below table.
Accessibility Compatibility Performance
Availability Content Reliability
Response Time Functionality Scalability
Coding Standards Navigation Security
Usability Software Requirements
Specification
Design Specification
Test Strategy
The Test Strategy presents the recommended approach to the testing of the ‘ResearchCoLab
application. The previous section on Test Items described what will be tested; this describes how
it will be tested. The main considerations for the test strategy are the techniques to be used and the
criterion for knowing when the testing is completed. In addition to the considerations provided for
each test below, testing should only be executed using known, controlled databases, in secured
environments.
Testing Types
Function Testing
Function testing of the target-of-test should focus on any requirements for test that can be traced
directly to use cases (or business functions), and business rules. The goals of these tests are to
verify proper data acceptance, processing, and retrieval, and the appropriate implementation of the
business rules. This type of testing is based upon black box techniques, that is, verifying the
application (and its internal processes) by interacting with the application via the GUI and
analyzing the output (results). Identified below is an outline of the testing recommended for each
application.

4. 4

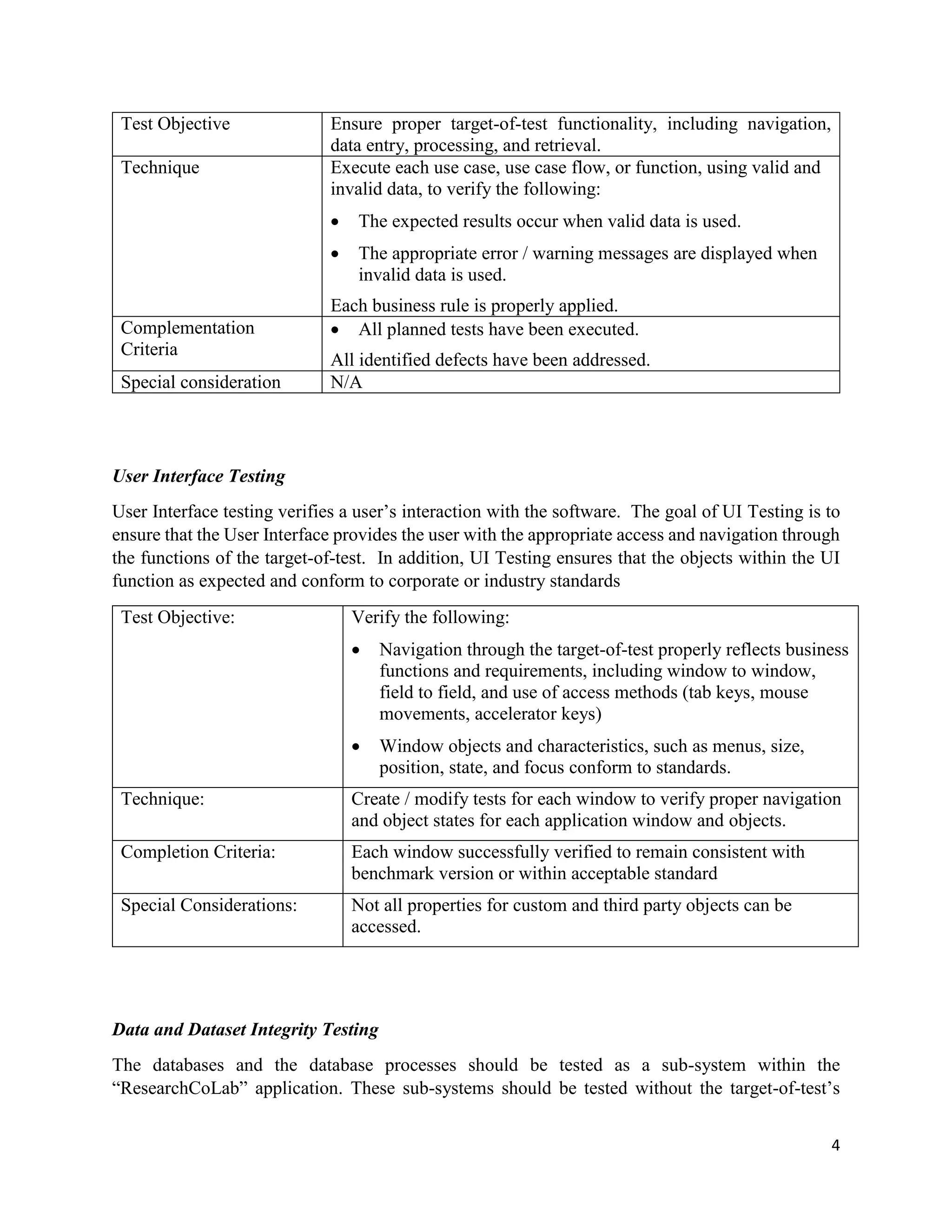

Test Objective Ensure proper target-of-test functionality, including navigation,
data entry, processing, and retrieval.
Technique Execute each use case, use case flow, or function, using valid and
invalid data, to verify the following:
 The expected results occur when valid data is used.
 The appropriate error / warning messages are displayed when
invalid data is used.
Each business rule is properly applied.
Complementation
Criteria
 All planned tests have been executed.
All identified defects have been addressed.
Special consideration N/A
User Interface Testing
User Interface testing verifies a user’s interaction with the software. The goal of UI Testing is to
ensure that the User Interface provides the user with the appropriate access and navigation through
the functions of the target-of-test. In addition, UI Testing ensures that the objects within the UI
function as expected and conform to corporate or industry standards
Test Objective: Verify the following:
 Navigation through the target-of-test properly reflects business
functions and requirements, including window to window,
field to field, and use of access methods (tab keys, mouse
movements, accelerator keys)
 Window objects and characteristics, such as menus, size,
position, state, and focus conform to standards.
Technique: Create / modify tests for each window to verify proper navigation
and object states for each application window and objects.
Completion Criteria: Each window successfully verified to remain consistent with
benchmark version or within acceptable standard
Special Considerations: Not all properties for custom and third party objects can be
accessed.
Data and Dataset Integrity Testing
The databases and the database processes should be tested as a sub-system within the
“ResearchCoLab” application. These sub-systems should be tested without the target-of-test’s

5. 5

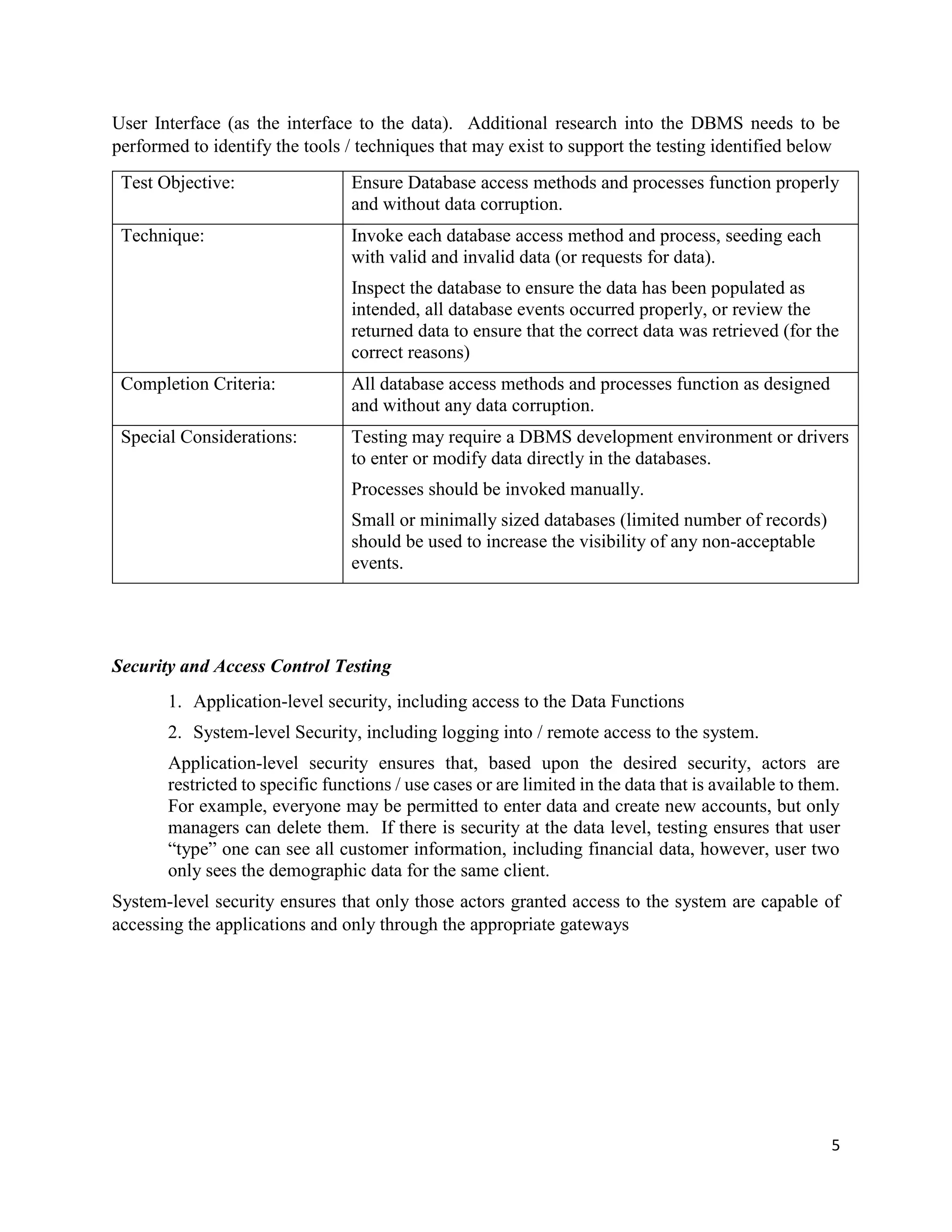

User Interface (as the interface to the data). Additional research into the DBMS needs to be
performed to identify the tools / techniques that may exist to support the testing identified below
Test Objective: Ensure Database access methods and processes function properly
and without data corruption.
Technique: Invoke each database access method and process, seeding each
with valid and invalid data (or requests for data).
Inspect the database to ensure the data has been populated as
intended, all database events occurred properly, or review the
returned data to ensure that the correct data was retrieved (for the
correct reasons)
Completion Criteria: All database access methods and processes function as designed
and without any data corruption.
Special Considerations: Testing may require a DBMS development environment or drivers
to enter or modify data directly in the databases.
Processes should be invoked manually.
Small or minimally sized databases (limited number of records)
should be used to increase the visibility of any non-acceptable
events.
Security and Access Control Testing
1. Application-level security, including access to the Data Functions
2. System-level Security, including logging into / remote access to the system.
Application-level security ensures that, based upon the desired security, actors are
restricted to specific functions / use cases or are limited in the data that is available to them.
For example, everyone may be permitted to enter data and create new accounts, but only
managers can delete them. If there is security at the data level, testing ensures that user
“type” one can see all customer information, including financial data, however, user two
only sees the demographic data for the same client.
System-level security ensures that only those actors granted access to the system are capable of
accessing the applications and only through the appropriate gateways

6. 6

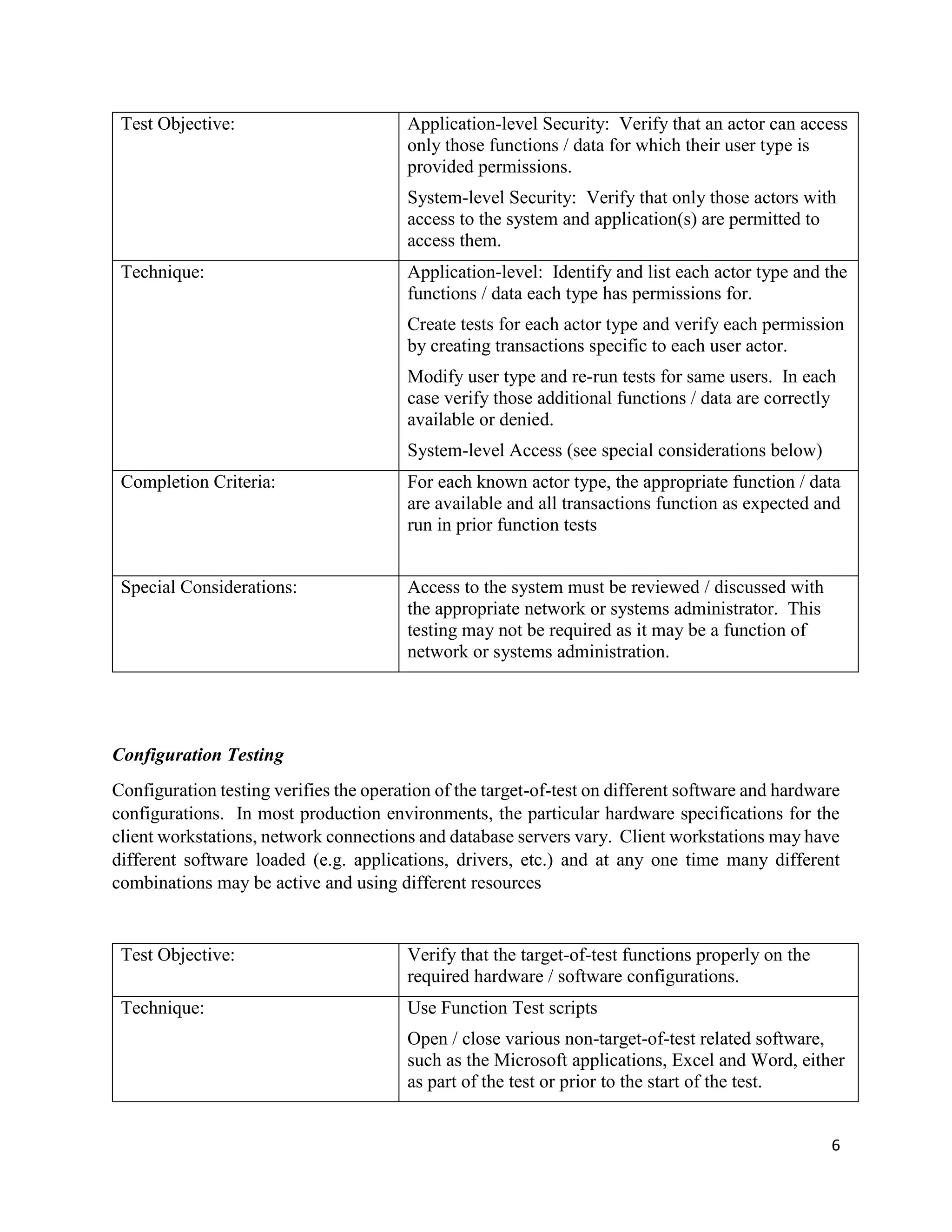

Test Objective: Application-level Security: Verify that an actor can access
only those functions / data for which their user type is
provided permissions.
System-level Security: Verify that only those actors with
access to the system and application(s) are permitted to
access them.
Technique: Application-level: Identify and list each actor type and the
functions / data each type has permissions for.
Create tests for each actor type and verify each permission
by creating transactions specific to each user actor.
Modify user type and re-run tests for same users. In each
case verify those additional functions / data are correctly
available or denied.
System-level Access (see special considerations below)
Completion Criteria: For each known actor type, the appropriate function / data
are available and all transactions function as expected and
run in prior function tests
Special Considerations: Access to the system must be reviewed / discussed with
the appropriate network or systems administrator. This
testing may not be required as it may be a function of
network or systems administration.
Configuration Testing
Configuration testing verifies the operation of the target-of-test on different software and hardware
configurations. In most production environments, the particular hardware specifications for the
client workstations, network connections and database servers vary. Client workstations may have
different software loaded (e.g. applications, drivers, etc.) and at any one time many different
combinations may be active and using different resources
Test Objective: Verify that the target-of-test functions properly on the
required hardware / software configurations.
Technique: Use Function Test scripts
Open / close various non-target-of-test related software,
such as the Microsoft applications, Excel and Word, either
as part of the test or prior to the start of the test.

7. 7

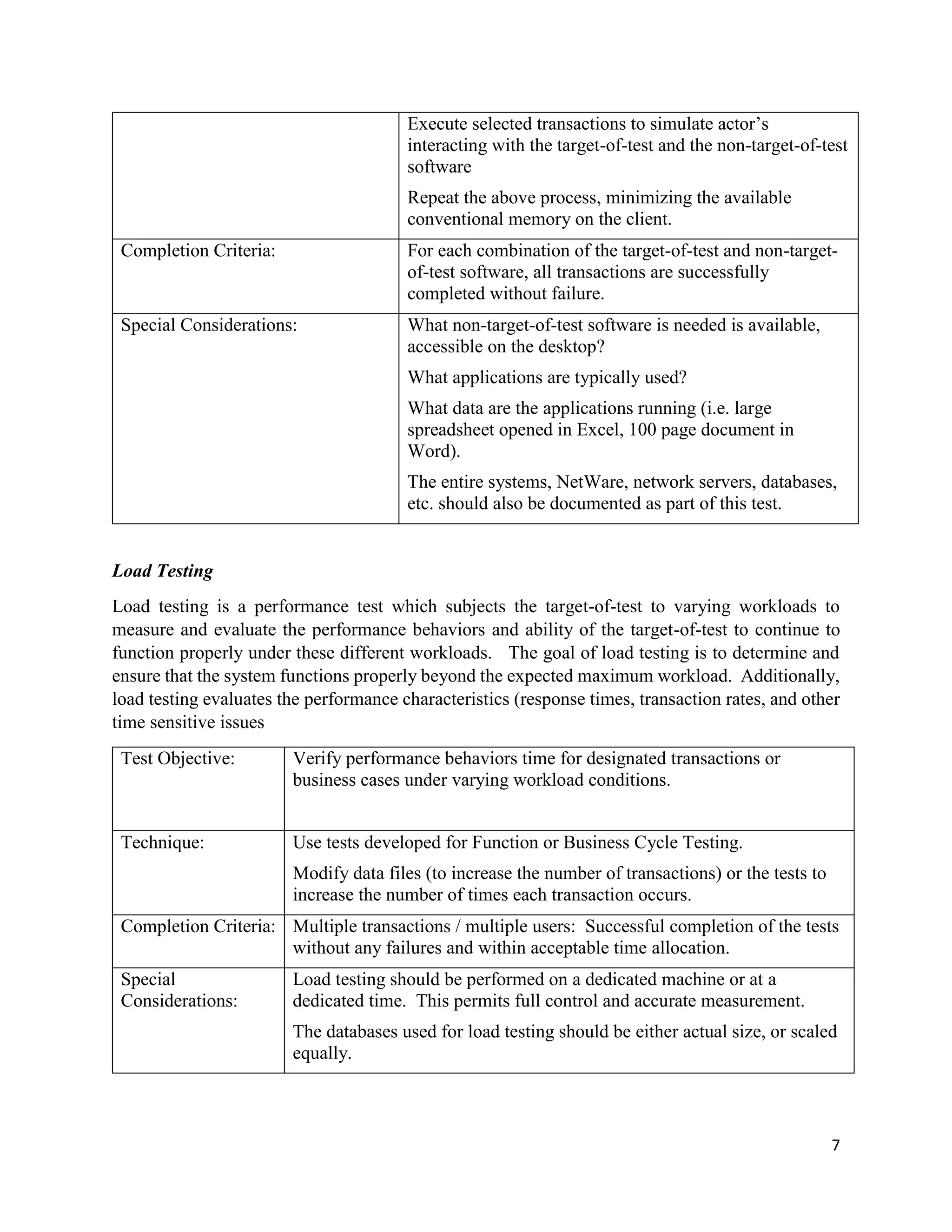

Execute selected transactions to simulate actor’s
interacting with the target-of-test and the non-target-of-test
software
Repeat the above process, minimizing the available
conventional memory on the client.
Completion Criteria: For each combination of the target-of-test and non-target-
of-test software, all transactions are successfully
completed without failure.
Special Considerations: What non-target-of-test software is needed is available,
accessible on the desktop?
What applications are typically used?
What data are the applications running (i.e. large
spreadsheet opened in Excel, 100 page document in
Word).
The entire systems, NetWare, network servers, databases,
etc. should also be documented as part of this test.
Load Testing
Load testing is a performance test which subjects the target-of-test to varying workloads to
measure and evaluate the performance behaviors and ability of the target-of-test to continue to
function properly under these different workloads. The goal of load testing is to determine and
ensure that the system functions properly beyond the expected maximum workload. Additionally,
load testing evaluates the performance characteristics (response times, transaction rates, and other
time sensitive issues
Test Objective: Verify performance behaviors time for designated transactions or
business cases under varying workload conditions.
Technique: Use tests developed for Function or Business Cycle Testing.
Modify data files (to increase the number of transactions) or the tests to
increase the number of times each transaction occurs.
Completion Criteria: Multiple transactions / multiple users: Successful completion of the tests
without any failures and within acceptable time allocation.
Special
Considerations:
Load testing should be performed on a dedicated machine or at a
dedicated time. This permits full control and accurate measurement.
The databases used for load testing should be either actual size, or scaled
equally.

8. 8

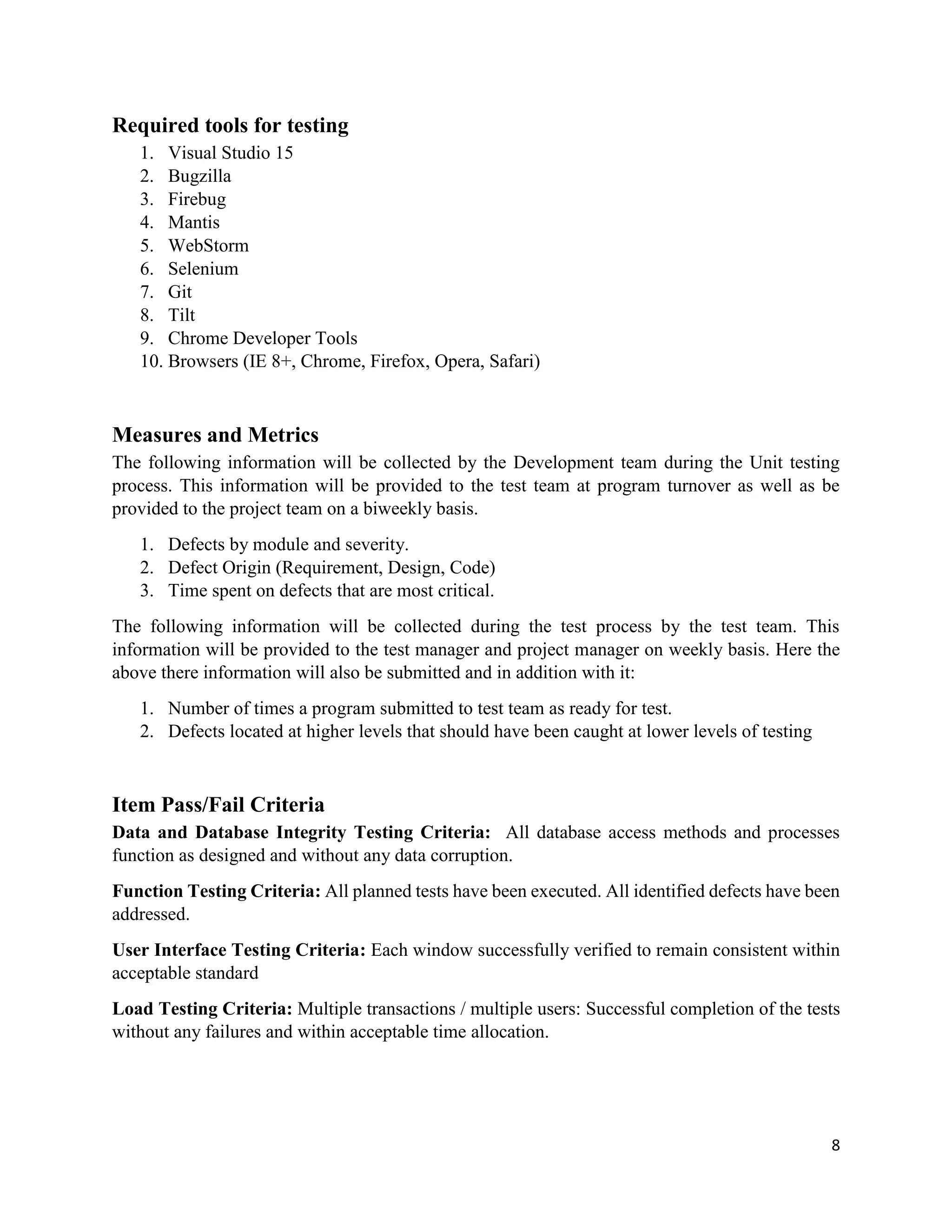

Required tools for testing
1. Visual Studio 15
2. Bugzilla
3. Firebug
4. Mantis
5. WebStorm
6. Selenium
7. Git
8. Tilt
9. Chrome Developer Tools
10. Browsers (IE 8+, Chrome, Firefox, Opera, Safari)
Measures and Metrics
The following information will be collected by the Development team during the Unit testing
process. This information will be provided to the test team at program turnover as well as be
provided to the project team on a biweekly basis.
1. Defects by module and severity.
2. Defect Origin (Requirement, Design, Code)
3. Time spent on defects that are most critical.
The following information will be collected during the test process by the test team. This
information will be provided to the test manager and project manager on weekly basis. Here the
above there information will also be submitted and in addition with it:
1. Number of times a program submitted to test team as ready for test.
2. Defects located at higher levels that should have been caught at lower levels of testing
Item Pass/Fail Criteria
Data and Database Integrity Testing Criteria: All database access methods and processes
function as designed and without any data corruption.
Function Testing Criteria: All planned tests have been executed. All identified defects have been
addressed.
User Interface Testing Criteria: Each window successfully verified to remain consistent within
acceptable standard
Load Testing Criteria: Multiple transactions / multiple users: Successful completion of the tests
without any failures and within acceptable time allocation.

9. 9

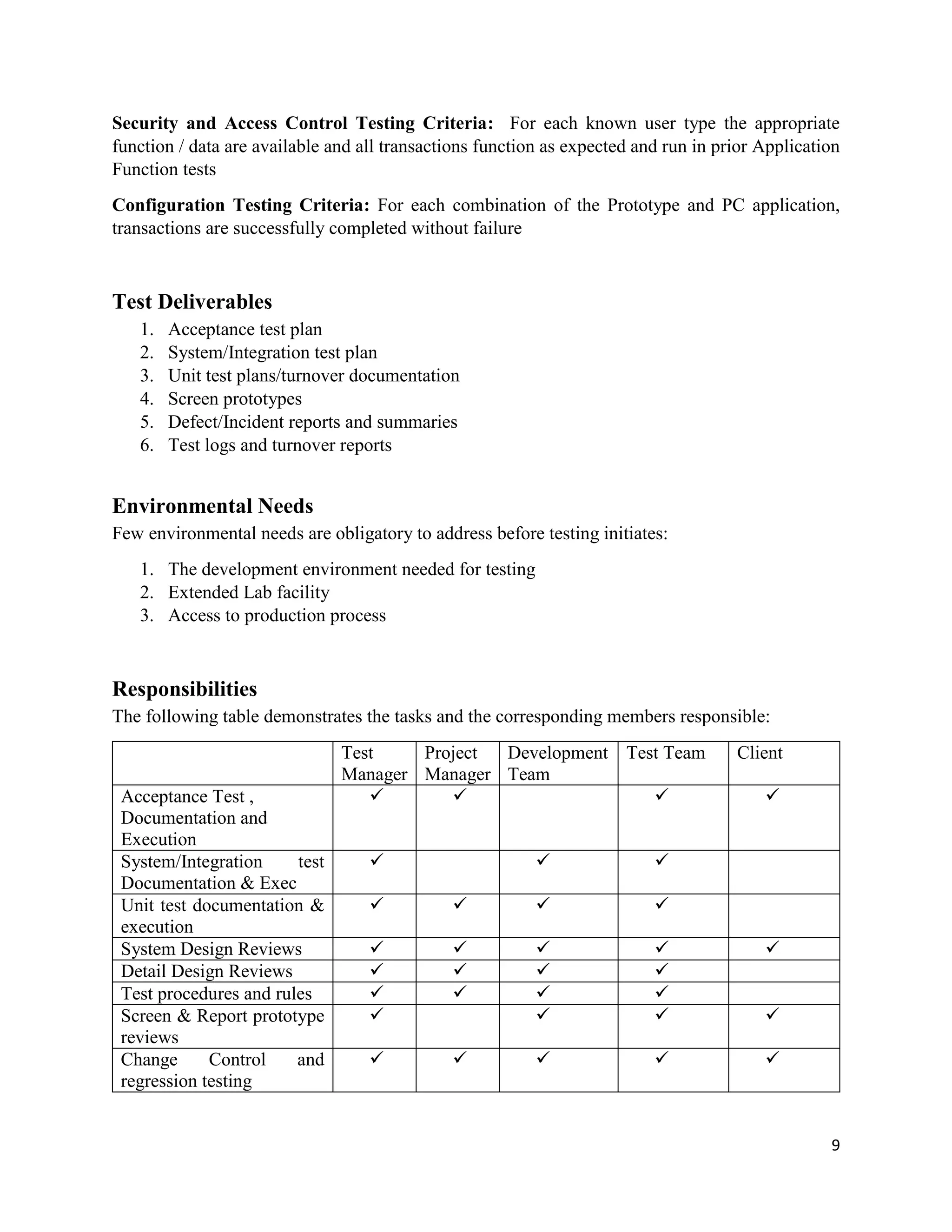

Security and Access Control Testing Criteria: For each known user type the appropriate
function / data are available and all transactions function as expected and run in prior Application
Function tests
Configuration Testing Criteria: For each combination of the Prototype and PC application,
transactions are successfully completed without failure
Test Deliverables
1. Acceptance test plan
2. System/Integration test plan
3. Unit test plans/turnover documentation
4. Screen prototypes
5. Defect/Incident reports and summaries
6. Test logs and turnover reports
Environmental Needs
Few environmental needs are obligatory to address before testing initiates:
1. The development environment needed for testing
2. Extended Lab facility
3. Access to production process
Responsibilities
The following table demonstrates the tasks and the corresponding members responsible:
Test
Manager
Project
Manager
Development
Team
Test Team Client
Acceptance Test ,
Documentation and
Execution
   
System/Integration test
Documentation & Exec
  
Unit test documentation &
execution
   
System Design Reviews     
Detail Design Reviews    
Test procedures and rules    
Screen & Report prototype
reviews
   
Change Control and
regression testing
    

10. 10
Schedule
The project is predefined to be submitted by 26 November 2016, therefore the testing must be
completed before at least one week of submission deadline
Planning Risks and Contingencies
 Time limitation
More automated testing must be implemented and mote members are to be added in the testing
team in order to recover the time constraint.
Test Cases
Test Suite ID TS-1
Test Case ID TC-1
Test Case Summary Ensure Database access methods and processes function properly and
without data corruption.
Related Requirements N/A
Prerequisites 1. User is authorized.
2. Minimally sized database
Test Description 1. Invoke each database access method and process
2. Seeding each with valid and invalid data (or requests for data)
3. Inspect the database to ensure the data has been populated as
intended, all database events occurred properly, or review the
returned data to ensure that the correct data was retrieved (for the
correct reasons
Test Log
(Pass/Fail
Passed
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome

11. 11
Test Suite ID TS-2
Test Case ID TC-2
Test Case Summary Validate System Response time for designated transactions or
functions
Related Requirements N/A
Prerequisites 1. User is authorized.
2. Having a "background" load on the server
Test Description 1. Use Test Scripts developed for Business Model Testing (System
Testing). 2. Modify data files (to increase the number of transactions)
or modify scripts to increase the number of iterations each transaction
occurs.
3. Scripts should be run on one machine (best case to benchmark
single user, single transaction) and be repeated with multiple clients
(virtual or actual, see special considerations below)
Test Log
(Pass/Fail
Passed
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Test Suite ID TS-3
Test Case ID TC-3
Test Case Summary Verify System Response time for designated transactions under
varying workload conditions.
Related Requirements N/A
Prerequisites 1. User is authorized.
2. Load testing should be performed on a dedicated machine or at a
dedicated time.
Test Description 1. Modify data files (to increase the number of transactions) or the
tests to increase the number of times each transaction occur
Test Log
(Pass/Fail
Passed
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome

12. 12
Test Suite ID TS-4
Test Case ID TC-4
Test Case Summary Verify that user can access only those functions/data for which their
user type is provided permissions
Related Requirements N/A
Prerequisites 1. User is authorized.
2. Access to the system must be reviewed/discussed with the
appropriate network or systems administrator.
Test Description 1. Identify and list each user type and the functions/data each type has
permissions for.
2. Create tests for each user type and verify permission by creating
transactions specific to each user type.
3. Modify user type and re-run tests for same users. In each case verify
those additional functions/data are correctly available or denied.
Test Log
(Pass/Fail
Passed
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Test Suite ID TS-5
Test Case ID TC-5
Test Case Summary Validate and verify that the client Applications function properly on
the prescribed client workstations
Related Requirements N/A
Prerequisites 1. User is authorized.
2. What PC Applications are available, accessible on the clients?
3. What applications are typically used?
4. What data are the applications running (i.e. large spreadsheet
opened in Excel, 100 page document in Word).
5. The entire systems, network servers, databases, etc. should also be
documented as part of this test
Test Description 1. Use Integration and System Test scripts Open / close various PC
applications, either as part of the test or prior to the start of the test.
2. Execute selected transactions to simulate user activities into and
out of various PC applications.
3. Repeat the above process, minimizing the available conventional
memory on the client
Test Log
(Pass/Fail
Passed
Created by Md Rakib Hossain
Date of Creation 12 November 2016

13. 13
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Features to be tested
As we develop the application throughout our course period, we are able to test the implemented
features. The implemented features that are tested are listed below.
1. User Registration.
2. Log in.
3. Log out.
4. Review Request Posting.
5. Biding review request.
6. Sharing data
7. Requesting for sharing data
8. Search

14. 14
Test Cases for features testing
Test Suite ID TS-6
Test Case ID TC-6
Test Case Name User Registration
Test Case Summary Guest users are registered to the system
Related Requirements N/A
Precondition Navigate to the registration page.
Prerequisites Have to be a non-registered user.
Test Description 1. Visit the sign up page.
2. Enter email address and password.
3. Click ‘Sign up’ button.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail
Comment
1 Click registration ink Navigate to the registration
page
passed
2 Give required data (name
,incorrect email, password,
phone number,) and click
submit
Incorrect email format
passed
3 Give required data (name
,blank email, password, phone
number,) and click submit
Email is required passed
4 Give required data (name ,
email, short password, phone
number,) and click submit
Password is too short passed
5 Give required data (name ,
email, blank password, phone
number,) and click submit
Password is required passed
6 Give required data (name ,
email, password, invalid
phone number,) and click
submit
Invalid phone number passed
7 Give required data (name ,
email, short password, phone
number,) and click submit
Successfully registered passed

15. 15
Test Suite ID TS-7
Test Case ID TC-7
Test Case Name Log in
Test Case Summary Log into the system as a registered user.
Related Requirements N/A
Precondition Have a registered account.
Prerequisites Navigate to the log in page.
Test Description 1. Visit the log in page.
2. Enter valid email address and password.
3. Click ‘Log in’ button.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail
Comment
1 Click registration ink Navigate to the registration page passed
2 Give required data
(incorrect email format,
password) and click Log in
Incorrect email format
passed
3 Give required data (name
,blank email, password,
phone number,) and click
submit
Email is required passed
4 Give required data (name ,
email, short password,
phone number,) and click
submit
Password is too short passed
5 Give required data (name ,
email, blank password,
phone number,) and click
submit
Password is required passed

16. 16
Test Suite ID TS-8
Test Case ID TC-8
Test Case Name Log out
Test Case Summary Log out from the system
Related Requirements N/A
Precondition Must be logged in.
Prerequisites Navigate to log out link
Test Description 1. Click the ‘Log out’ button.
2. Get out of the system.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail
Comment
1 Click log out Prompt the user for logging out passed
2 Click confirmation Log out successfully passed

17. 17
Test Suite ID TS-9
Test Case ID TC-9
Test Case Name Review Request Posting
Test Case Summary Authenticated User can post a review request.
Related Requirements N/A
Precondition Must be logged in
Prerequisites Navigate to Post Review Request option.
Test Description 1. Select ‘Post Review Request’.
2. Enter title.
3. Give description.
4. Add expertise tag.
5. Click on ‘Post’ button.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail
Comment
1 Click Post review Request Link Review request form passed
2 Give required Data(
Tittle, description, tag) and click
Post button
Request posted Successfully passed
3 Give required Data(
Blank Tittle, description, tag)
and click Post button
Tittle is required passed
4 Give required Data(
Tittle, blank description, tag)
and click Post button
Description is required passed
5 Give required Data(
Tittle, description, blank tag)
and click Post button
Tag is required passed
6 Give required Data(
Long Tittle, description, tag)
and click Post button
Tittle is too long passed
7 Give required Data(
Tittle, description, long tag) and
click Post button
Tag is too long passed

18. 18
Test Suite ID TS-10
Test Case ID TC-10
Test Case Name Bidding Review Request
Test Case Summary Authenticated user can bid a review post.
Related Requirements N/A
Precondition Must be logged in.
Prerequisites Navigate to review request posts
Test Procedures 1. View a review request.
2. Click on the “Bid” button.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail
Comment
1 Click on a review
request post.
Details of the review request is shown passed
2 Click the Bid button Successfully bid the request. passed

19. 19
Test Suite ID TS-11
Test Case ID TC-11
Test Case Name Sharing Data
Test Case Summary Authenticated User can share data
Related Requirements
Precondition Must be logged in
Prerequisites
Test Description 1. Select ‘Share Data option’.
2. Enter title.
3. Give description.
4. Add expertise tag.
5 Add Data File
6. Click on ‘Share’ button.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail
Comment
1 Click Post review Request Link Review request form passed
2 Give required Data(
Tittle, description, file tag) and
click Post button
Successfully shared data passed
3 Give required Data(
Blank Tittle, description, file,
tag) and click Post button
Tittle is required passed
4 Give required Data(
Tittle, blank description, tag)
and click Post button
Description is required passed
5 Give required Data(
Tittle, description, blank tag)
and click Post button
Tag is required passed
6 Give required Data(
Tittle, description, invalid file
format tag) and click Post button
File format is invalid passed
7 Give required Data(
Tittle, description, long size file
tag) and click Post button
File size is too large passed

20. 20
Test Suite ID TS-12
Test Case ID TC-12
Test Case Name Requesting for Shared Data
Test Case Summary Authenticated user can request for shared data.
Related Requirements
Precondition Must be logged in.
Prerequisites
Test Procedures 1. View a shared data
2. Click on the “Request Data” button.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail
Comment
1 Click on a Shared Data
item.
Details of the data is shown passed
2 Click the “Request
Data” button
Request is done successfully. passed

21. 21
Test Suite ID TS-13
Test Case ID TC-13
Test Case Name Search into the system (User, Review Post, Shared data, Discussion
board)
Test Case Summary Authenticated user can search into the system
Related Requirements N/A
Precondition Must be logged in.
Prerequisites Navigate to search box
Test Procedures 1. Enter search keyword
2. Click on the “Search” button.
Created by Md Rakib Hossain
Date of Creation 12 November 2016
Executed by Md Rakib Hossain
Date of Execution 15 November 2016
Test Environment OS: Windows 10
Browser: Google Chrome
Step Action Expected System response Test Log
(Pass/Fail)
Comment
1 Give search keyword
and click on “Search
“button
Show the list of searched items. passed
2 Give search keyword
and click on “Search
“button
Nothing is found with this keywords. passed
