- 1. ® IBM Software Group ©2004 IBM Corporation Integrated Security Architecture James Andoniadis IBM Canada

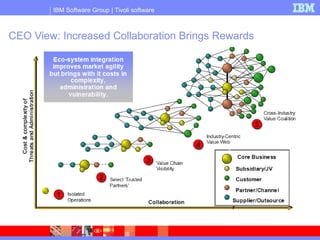

- 2. IBM Software Group| Tivoli software CEO View: Increased Collaboration Brings Rewards

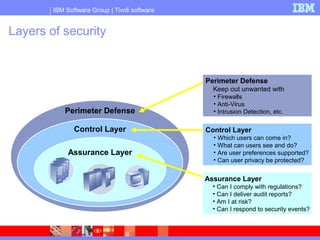

- 3. IBM Software Group| Tivoli software Layers of security Perimeter Defense Keep out unwanted with • Firewalls • Anti-Virus • Intrusion Detection, etc.Perimeter Defense Control Layer Assurance Layer Control Layer • Which users can come in? • What can users see and do? • Are user preferences supported? • Can user privacy be protected? Assurance Layer • Can I comply with regulations? • Can I deliver audit reports? • Am I at risk? • Can I respond to security events?

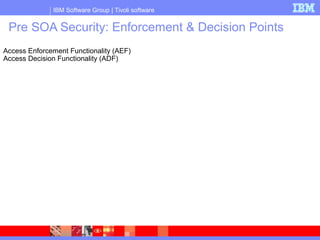

- 4. IBM Software Group| Tivoli software Pre SOA Security: Enforcement & Decision Points Access Enforcement Functionality (AEF) Access Decision Functionality (ADF)
- 5. IBM Software Group| Tivoli software Directory Management View Web Access Control Network Access Control Customer Employee Transactional Web Presentation Informational Web Presentation Certificate Status Responder External Directory Transactional Web Integration External SMTP Gateway Internal SMTP Gateway Network Dispatcher Delegated User Management Internal ePortal, LDAP- enabled apps Single Sign On Application Access Control Network Authentication & Authorization Internal Directory LOB Applications Databases Application Directory Network Operating Systems Identity Management Certifcate Authority Web Single Sign On Messaging CRM/ ERP (PeopleSoft) Meta-Directory LDAP Directory Proxy External ePortal

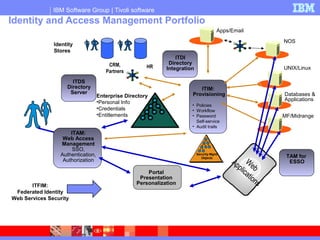

- 6. IBM Software Group| Tivoli software Identity and Access Management Portfolio Apps/Email UNIX/Linux NOS Databases & Applications MF/Midrange Identity Stores HRCRM, Partners Security Mgmt Objects ITIM: Provisioning • Policies • Workflow • Password Self-service • Audit trails W eb Applications Enterprise Directory •Personal Info •Credentials •Entitlements ITFIM: Federated Identity Web Services Security Portal Presentation Personalization ITAM: Web Access Management SSO, Authentication, Authorization ITDI Directory Integration ITDS Directory Server TAM for ESSO
- 7. IBM Software Group| Tivoli software
- 8. IBM Software Group| Tivoli software Governments as Identity Providers “TRUST provides ACCESS” The United States is an “Identity Provider” because it issues a Passport as proof of identification USA Vouches for its Citizens Users Users Germany:Identity Provider Users USA:Identity Provider China:Identity Provider

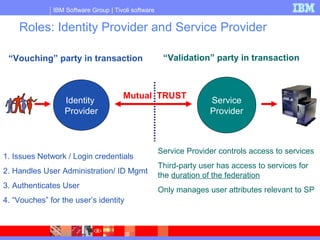

- 9. IBM Software Group| Tivoli software Roles: Identity Provider and Service Provider 1. Issues Network / Login credentials 2. Handles User Administration/ ID Mgmt 3. Authenticates User 4. “Vouches” for the user’s identity Service Provider controls access to services Third-party user has access to services for the duration of the federation Only manages user attributes relevant to SP Identity Provider “Vouching” party in transaction “Validation” party in transaction Service Provider Mutual TRUST

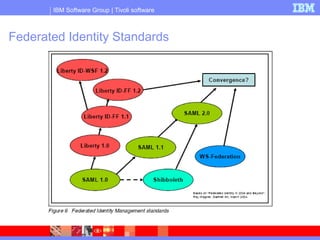

- 10. IBM Software Group| Tivoli software Federated Identity Standards

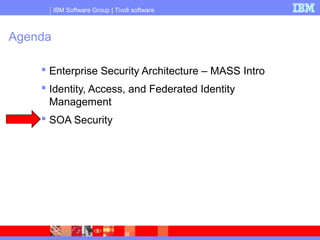

- 11. IBM Software Group| Tivoli software Agenda Enterprise Security Architecture – MASS Intro Identity, Access, and Federated Identity Management SOA Security

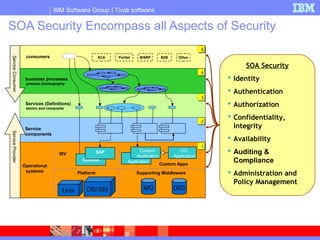

- 12. IBM Software Group| Tivoli software Custom Application Packaged Application Packaged Application Custom Application consumers business processes process choreography services atomic and composite ServiceConsumerServiceProvider 11 22 33 44 55 OO ApplicationCustom ApplicationOutlook SAP Custom Application business processes process choreography Services (Definitions) atomic and composite Service components ServiceConsumerServiceProvider 11 22 33 44 55 OO ApplicationISV Custom Apps Platform Operational systems Supporting Middleware MQ DB2Unix OS/390 SOA Security Encompass all Aspects of Security SOA Security Identity Authentication Authorization Confidentiality, Integrity Availability Auditing & Compliance Administration and Policy Management SCA Portlet WSRP B2B Other

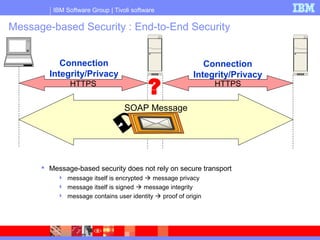

- 13. IBM Software Group| Tivoli software Message-based Security : End-to-End Security Message-based security does not rely on secure transport message itself is encrypted message privacy message itself is signed message integrity message contains user identity proof of origin HTTPS HTTPS SOAP Message Connection Integrity/Privacy Connection Integrity/Privacy ?

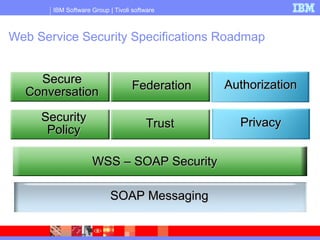

- 14. IBM Software Group| Tivoli software Web Service Security Specifications Roadmap WSS – SOAP SecurityWSS – SOAP Security SecuritySecurity PolicyPolicy SecureSecure ConversationConversation TrustTrust FederationFederation PrivacyPrivacy AuthorizationAuthorization SOAP MessagingSOAP Messaging

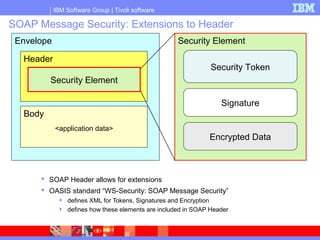

- 15. IBM Software Group| Tivoli software SOAP Message Security: Extensions to Header SOAP Header allows for extensions OASIS standard “WS-Security: SOAP Message Security” defines XML for Tokens, Signatures and Encryption defines how these elements are included in SOAP Header Envelope Body Header <application data> Security Element Security Token Signature Encrypted Data Security Element

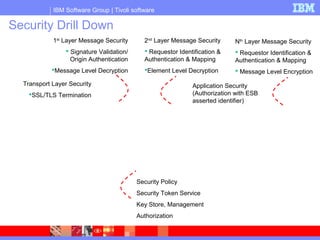

- 16. IBM Software Group| Tivoli software Security Drill Down Transport Layer Security SSL/TLS Termination 1st Layer Message Security Signature Validation/ Origin Authentication Message Level Decryption 2nd Layer Message Security Requestor Identification & Authentication & Mapping Element Level Decryption Application Security (Authorization with ESB asserted identifier) Security Policy Security Token Service Key Store, Management Authorization Nth Layer Message Security Requestor Identification & Authentication & Mapping Message Level Encryption
- 17. IBM Software Group| Tivoli software SOAP Moving to SOA – Accommodate Web Services HTTP

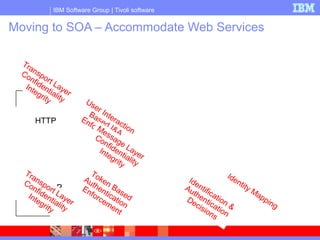

- 18. IBM Software Group| Tivoli software SOAP Moving to SOA – Accommodate Web Services Transport Layer Confidentiality Integrity Transport Layer Confidentiality Integrity HTTP User Interaction Based I&A Enforcement Identification & Authentication Decisions Token Based Authentication Enforcement Identity Mapping Message Layer Confidentiality Integrity
- 19. IBM Software Group| Tivoli software Moving to SOA, Adding the ESB… (Mandatory Scary Picture) Common Auditing & Reporting Service Tivoli Federated Identity Manager Tivoli Access Manager H/W: DataPower XS40 S/W: WebSphere Web Svs. G/W S/W: Tivoli Access Manager Reverse Proxy/Web PI TivoliDirectoryServer WebSphere Enterprise Service Bus DP XI50 TFIM,TAM TFIM TFIM TFIM TAMTAM

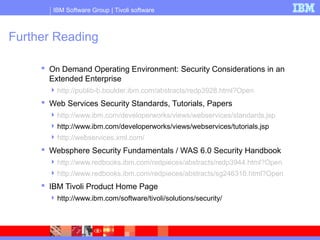

- 20. IBM Software Group| Tivoli software Further Reading On Demand Operating Environment: Security Considerations in an Extended Enterprise http://publib-b.boulder.ibm.com/abstracts/redp3928.html?Open Web Services Security Standards, Tutorials, Papers http://www.ibm.com/developerworks/views/webservices/standards.jsp http://www.ibm.com/developerworks/views/webservices/tutorials.jsp http://webservices.xml.com/ Websphere Security Fundamentals / WAS 6.0 Security Handbook http://www.redbooks.ibm.com/redpieces/abstracts/redp3944.html?Open http://www.redbooks.ibm.com/redpieces/abstracts/sg246316.html?Open IBM Tivoli Product Home Page http://www.ibm.com/software/tivoli/solutions/security/

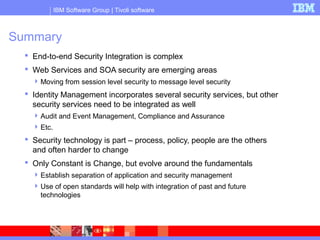

- 21. IBM Software Group| Tivoli software Summary End-to-end Security Integration is complex Web Services and SOA security are emerging areas Moving from session level security to message level security Identity Management incorporates several security services, but other security services need to be integrated as well Audit and Event Management, Compliance and Assurance Etc. Security technology is part – process, policy, people are the others and often harder to change Only Constant is Change, but evolve around the fundamentals Establish separation of application and security management Use of open standards will help with integration of past and future technologies
- 22. IBM Software Group| Tivoli software Questions?
- 23. IBM Software Group| Tivoli software Security 101 Definitions Authentication - Identify who you are Userid/password, PKI certificates, Kerberos, Tokens, Biometrics Authorization – What you can access Access Enforcement Function / Access Decision Function Roles, Groups, Entitlements Administration – Applying security policy to resource protection Directories, administration interfaces, delegation, self-service Audit – Logging security success / failures Basis of monitoring, accountability/non-repudiation, investigation, forensics Assurance – Security integrity and compliance to policy Monitoring (Intrusion Detection, AntiVirus, Compliance), Vulnerability Testing Asset Protection Data Confidentiality, Integrity, Data Privacy Availability Backup/recovery, disaster recovery, high availability/redundance
- 24. IBM Software Group| Tivoli software Agenda Enterprise Security Architecture – MASS Intro Identity, Access, and Federated Identity Management SOA Security
- 25. IBM Software Group| Tivoli software MASS – Processes for a Security Management Architecture

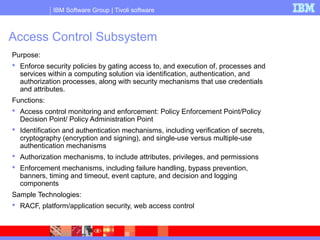

- 26. IBM Software Group| Tivoli software Access Control Subsystem Purpose: Enforce security policies by gating access to, and execution of, processes and services within a computing solution via identification, authentication, and authorization processes, along with security mechanisms that use credentials and attributes. Functions: Access control monitoring and enforcement: Policy Enforcement Point/Policy Decision Point/ Policy Administration Point Identification and authentication mechanisms, including verification of secrets, cryptography (encryption and signing), and single-use versus multiple-use authentication mechanisms Authorization mechanisms, to include attributes, privileges, and permissions Enforcement mechanisms, including failure handling, bypass prevention, banners, timing and timeout, event capture, and decision and logging components Sample Technologies: RACF, platform/application security, web access control

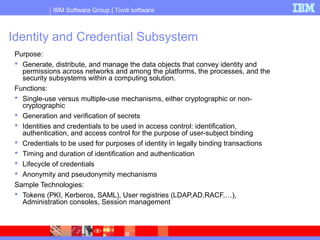

- 27. IBM Software Group| Tivoli software Identity and Credential Subsystem Purpose: Generate, distribute, and manage the data objects that convey identity and permissions across networks and among the platforms, the processes, and the security subsystems within a computing solution. Functions: Single-use versus multiple-use mechanisms, either cryptographic or non- cryptographic Generation and verification of secrets Identities and credentials to be used in access control: identification, authentication, and access control for the purpose of user-subject binding Credentials to be used for purposes of identity in legally binding transactions Timing and duration of identification and authentication Lifecycle of credentials Anonymity and pseudonymity mechanisms Sample Technologies: Tokens (PKI, Kerberos, SAML), User registries (LDAP,AD,RACF,…), Administration consoles, Session management
- 28. IBM Software Group| Tivoli software Information Flow Control Subsystem Purpose: Enforce security policies by gating the flow of information within a computing solution, affecting the visibility of information within a computing solution, and ensuring the integrity of information flowing within a computing solution. Functions: Flow permission or prevention Flow monitoring and enforcement Transfer services and environments: open or trusted channel, open or trusted path, media conversions, manual transfer, and import to or export between domain Encryption Storage mechanisms: cryptography and hardware security modules Sample Technologies: Firewalls, VPNs, SSL

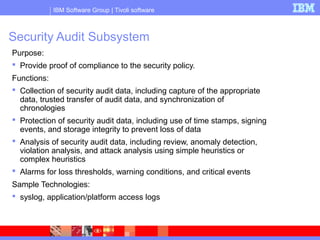

- 29. IBM Software Group| Tivoli software Security Audit Subsystem Purpose: Provide proof of compliance to the security policy. Functions: Collection of security audit data, including capture of the appropriate data, trusted transfer of audit data, and synchronization of chronologies Protection of security audit data, including use of time stamps, signing events, and storage integrity to prevent loss of data Analysis of security audit data, including review, anomaly detection, violation analysis, and attack analysis using simple heuristics or complex heuristics Alarms for loss thresholds, warning conditions, and critical events Sample Technologies: syslog, application/platform access logs
- 30. IBM Software Group| Tivoli software Solution Integrity Subsystem Purpose: address the requirement for reliable and correct operation of a computing solution in support of meeting the legal and technical standard for its processes Functions: Physical protection for data objects, such as cryptographic keys, and physical components, such as cabling, hardware, and so on Continued operations including fault tolerance, failure recovery, and self-testing Storage mechanisms: cryptography and hardware security modules Accurate time source for time measurement and time stamps Alarms and actions when physical or passive attack is detected Sample Technologies: Systems Management solutions - performance, availability, disaster recovery, storage management Operational Security tools: , Host and Network Intrusion Detection Sensors (Snort), Event Correlation tools, Host security monitoring/enforcement tools (Tripwire, TAMOS), Host/Network Vulnerability Monitors/Scanners (Neesus), Anti-Virus software

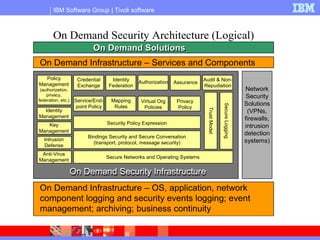

- 31. IBM Software Group| Tivoli software On Demand SolutionsOn Demand Solutions On Demand Infrastructure – Services and Components Network Security Solutions (VPNs, firewalls, intrusion detection systems) On Demand Infrastructure – OS, application, network component logging and security events logging; event management; archiving; business continuity Policy Management (authorization, privacy, federation, etc.) Identity Management Key Management Intrusion Defense Anti-Virus Management Audit & Non- Repudiation AssuranceAuthorizationIdentity Federation Credential Exchange Secure Networks and Operating Systems SecureLogging TrustModel Bindings Security and Secure Conversation (transport, protocol, message security) Security Policy Expression Privacy Policy Virtual Org Policies Mapping Rules Service/End- point Policy On Demand Security InfrastructureOn Demand Security Infrastructure On Demand Security Architecture (Logical)
