The University of Toronto’s Dr. Samah el-Tantawy has developed MARLIN-ATSC (Multi-agent Reinforcement Learning for Integrated Network of Adaptive Traffic Signal Controllers), an artificial intelligence traffic system that uses cameras and inter-system collaboration to determine how best to manage traffic flow throughout a region. MARLIN’s success is largely due to its adaptive nature, which allows it to learn and adjust as it gathers traffic pattern information. Read more: http://www.utne.com/science-and-technology/marlin-transforms-traffic.aspx#ixzz2yxjuDpCP visit http://techronto.com for more information like this.

1. Smart Traffic Lights that Learn !
Multi-Agent Reinforcement Learning Integrated Network
of Adaptive Traffic Signal Controllers
M A R L I N
Samah El-Tantawy, Ph.D. Post Doctoral Fellow, Dept of Civil Engineering
Baher Abdulhai, Ph.D., P.Eng. Director, ITS Centre and Testbed, Dept of Civil Engineering
Hossam Abdelgawad, Ph.D., P.Eng. Manager of ITS Centre and Testbed
ACGM 2013- Intelligent Transport for Smart Cities

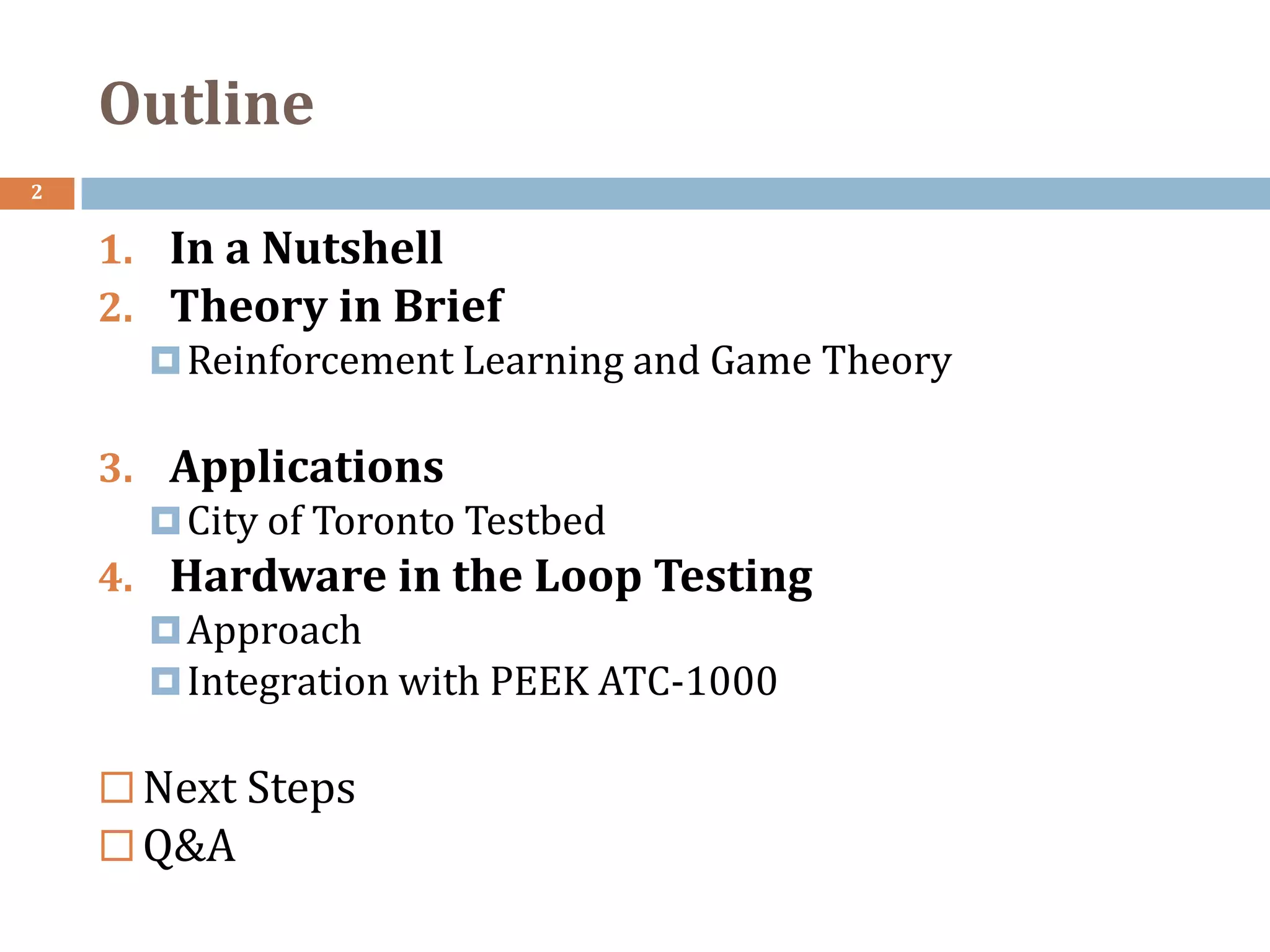

2. Outline
2
1. In a Nutshell
2. Theory in Brief
Reinforcement Learning and Game Theory
3. Applications
City of Toronto Testbed
4. Hardware in the Loop Testing
Approach
Integration with PEEK ATC-1000
Next Steps
Q&A

3. In a Nutshell
3
 Grand objective
 Intersections "talk to each other",
 Each is affected by what is happening upstream
 Each affects what is happening downstream –
 Whole network control in one shot from a grand brain is the dream
 Issue
 Intractable theoretically,
 Too complex practically,
 Requires massive and very expensive communication
 Solution
 Decentralized,
 Self learning: agents learn to control their local intersection, and
 Game theory based: agents learn to collaborate

4. What is MARLIN?
4
 Artificial-intelligence-based control
software
 Enables traffic lights to self-learn
and self-collaborate with
neighbouring traffic lights
 Cuts down motorists’ delay, fuel
consumption and the negative
environmental effects of congestion
 Easier to operate (self learning)
 Less expensive communication if
even necessary (less costly)

5. MARLIN-ATSC: Level 4
Evolution of “Adaptive” Signal Control
Level 0
• Fixed-Time
and
Actuated
Control
• TRANSYT
• 1969, UK
Level 1
• Centralized
Control, Off-
line
Optimization
• SCATS
• 1979,
Australia
• >50
installations
worldwide
Level 2
• Centralized
Control, On-line
Optimization
• SCOOT
• 1981, UK
• >170
installations
worldwide
Level 3
• Distributed
Control, Model-
Based
• OPAC, RHODES
• 1992, USA
• 5 installations in
USA
Level 4
• Distributed
Self-Learning
Control
• MARLIN-ATSC
• 2011, Canada
5

6. Issues with Leading ATSC Technologies?
• Expensive
• Not scalable
• Not robust
Centralized
• Relying on an accurate traffic modelling
framework
• the accuracy of which is questionable
Model-Based
• Increasing the complexity of the system
exponentially with the increase in the number of
intersections/controllers
Curse of
Dimensionality
• Requiring highly skilled labour to operate due to
their complexity.
Human
Intervention
Requirements
6

7. Why is MARLIN Different?
7
MARLIN
Self-Learning
Decentralized
Model-Free
CoordinatedScalable
Pattern
Sensitive
Generic
Human Intervention Requirements
Centralized
Inefficient Coordination
Model-Based
Curse of Dimensionality
Prediction
Requirement
Specific Design

8. Learning the Control Law:
Reinforcement Learning Architecture
8
Environment
RL Architecture
Agent
State RewardAction
Goal: Optimal Control law = mapping between states and actions
)],(),(max[),(),( 111 kkkkk
a
kkkkkkk
asQasQrasQasQ  

),(maxarg 11
asQa kk
a
k 
 Balancing exploration and exploitation
Q a1 a2
s1 -10 -5
s2 -3 -15
Q Table

9. RL-based ATSC Architecture
RL Software
Agent
State
(Queue Lengths)
Reward
(Delay Savings)
Action
(Extend
/Switch)
Traffic Simulation
Environment
9

10. 10
 Each agent plays a game with each adjacent
intersection in its neighborhood
I5 I6I4
I2 I3I1
I8 I9I7
I5 I6I4
I2 I3I1
I8 I9I7
I5 I6I4
I2 I3I1
I8 I9I7
Example for Intermediate Intersection
(4 Games )
Example for Edge Intersection
( 3 Games)
Example for Corner Intersection
( 2 Games)
MARLIN- ATSC: Coordination Principle

11. MARLIN-ATSC: (a) Independent Mode, (b) Integrated Mode
MARLIN-ATSC Available Modes
Queue Length 1
Delay 1Extend 1
Queue Length 2
Delay 2Extend 2
MARLIN-ATSC
Queue Length 1
Delay 1Extend 1
Queue Length 2
Delay 2Extend 2
(a)
(b)
11

12. Large-Scale Application
Network-Wide MOE in the Normal Scenario
12
System
MOE
BC
%
Improvments
MARL-TI Vs.
BC
%
Improvments
MARLIN-IC Vs.
BC
% Improvments
MARLIN-IC Vs.
MARL-TI
Average Intersection
Delay (sec/veh)
35.27 27% 38% 14%
Throughput (veh) 23084 3% 6% 3%
Avg Queue Length (veh) 8.66 24% 32% 11%
Std. Avg. Queue Length
(veh)
2.12 23% 31% 10%
Avg. Link Delay (sec) 9.45 10% 47% 41%

13. Large-Scale Application
% Improvement in Average Delay
13
MARLIN-IC vs BC
% Improvement
Area 1
Area 2
Area 3

14. Large-Scale Application
Average Route Travel Time for Selected Routes
14
0
1
2
3
4
5
6
7
8
1 2 3 4 5 6 7 8 9 10 11 12
AverageTravelTime(min)
Time Interval (5 min)
Gardiner EB
BC MARL-TI MARLIN-IC
Freeway

15. Large-Scale Application
Average Route Travel Time for Selected Routes
15
0
2
4
6
8
10
12
14
16
18
20
1 2 3 4 5 6 7 8 9 10 11 12
AverageTravelTime(min)
Time Interval (5 min)
LakeShore EB to Spadina NB
BC MARL-TI MARLIN-IC
MajorArterial

16. Controller Interface Device(CID)
RS485 to USB
Traffic Signal Controller
RS485 -
SDLC protocol
USB -
SDLC protocol
Industrial Computer
Ethernet -
NTCIP protocol
Paramics
Modeller
MARLIN-HILS Architecture
16

17. HILS Setup: Demo
17

18. Conclusion
18
 MARLIN state of the art gen4+
 Thoroughly developed and tested
 Patent Pending Status
 On going:
 HILS & PEEK ATC-1000 Integration
 Potential Field Operation Test
 Productization
 From TSP to People Priority (PSP)

19. Samah El-Tantawy samah.el.tantawy@utoronto.ca
Baher Abdulhai baher.abdulhai@utoronto.ca
Hossam Abdelgawad h.abdel.gawad@utoronto.ca
ACGM 2013- Intelligent Transport for Smart Cities
