The document discusses the evolution of small cell technology. It notes that customer behavior is evolving with bring your own device policies becoming more common. Indoor connectivity experiences need improvement as most time is spent indoors. Small cell deployments need to evolve to support 5G readiness, IoT, new market entrants, and more cost-effective deployment methods. Ericsson is addressing this evolution by developing new multi-operator small cell solutions to better enable traditional and non-traditional operators and create easy to deploy solutions. This includes a radio dot system and outdoor strand-mounted units.

1. Small cells
evolution

2. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 2
What’s happening
An evolution in thinking
EVOLUTION IN
CUSTOMER BEHAVIOR
EVOLUTION OF
THE MARKET
EVOLUTION OF
DEPLOYMENTS
› 75% of companies either already allow employees to bring their own devices
or have plans to integrate a BYOD- friendly policy in the near future, namely
due employee availability and productivity increases that follow
(Source TechPro Research)
› 90% of our time is spent indoors, yet 60% of users are unsatisfied with their
indoor cellular connectivity experience (Source Ericsson ConsumerLab)
› 5G Readiness requirements
› IoT and Cloud strategy adoption and deployment
› New and non-traditional players entering the wireless marketplace
› Need to think outside the box, find more cost-effective means to deploy the
required amount of small cells to support evolution of market and customer

3. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 3
What’s not happening
Massive small cell
deployments indoors
Large-scale outdoor
deployments of
small cells
Multi-operator small cell
deployments

4. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 4
How do we fix this
Deliver new
multi-operator
solutions
Enable traditional
and non-traditional
operators
Create solutions that
are easy to deploy and
fit seamlessly into the
selected environment

5. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 5
Small cells evolution
Delivering new solutions
in the Ericsson Radio Dot
System for Multi-Operators1
2
Extending our small cell site
portfolio with new outdoor
strand-mount unit

6. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 6
Small cells evolution
Delivering new solutions
in the Ericsson Radio Dot
System for Multi-Operators1
2
Extending our small cell site
portfolio with new outdoor
strand-mount unit

7. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 7

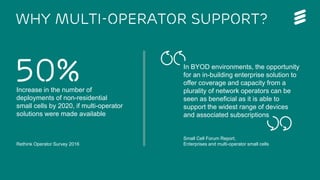

Why Multi-operator support?
In BYOD environments, the opportunity
for an in-building enterprise solution to
offer coverage and capacity from a
plurality of network operators can be
seen as beneficial as it is able to
support the widest range of devices
and associated subscriptions
Increase in the number of
deployments of non-residential
small cells by 2020, if multi-operator
solutions were made available
50%
Rethink Operator Survey 2016
Small Cell Forum Report,
Enterprises and multi-operator small cells

8. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 8

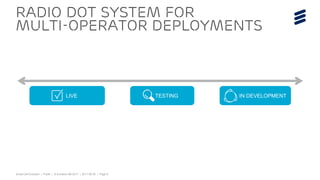

Radio dot system for
multi-operator deployments
IN DEVELOPMENTTESTINGLIVE

9. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 9

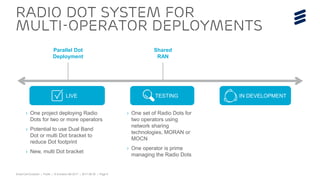

Radio dot system for
multi-operator deployments
Parallel Dot
Deployment
Shared
RAN
IN DEVELOPMENTTESTINGLIVE
› One project deploying Radio
Dots for two or more operators
› Potential to use Dual Band
Dot or multi Dot bracket to
reduce Dot footprint
› New, multi Dot bracket
› One set of Radio Dots for
two operators using
network sharing
technologies, MORAN or
MOCN
› One operator is prime
managing the Radio Dots

10. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 10

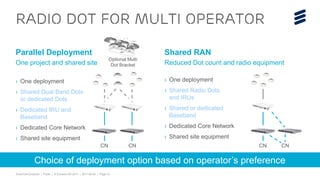

Shared RAN
Reduced Dot count and radio equipment
› One deployment
› Shared Radio Dots
and IRUs
› Shared or dedicated
Baseband
› Dedicated Core Network
› Shared site equipment
Parallel Deployment
One project and shared site
› One deployment
› Shared Dual Band Dots
or dedicated Dots
› Dedicated IRU and
Baseband
› Dedicated Core Network
› Shared site equipment
Radio Dot for Multi operator
CN CNCN CN
Optional Multi
Dot Bracket
Choice of deployment option based on operator’s preference

11. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 11
New multi-dot enclosure

12. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 12

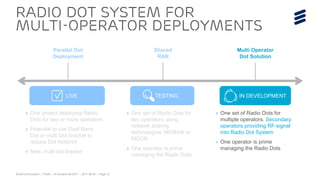

Radio dot system for
multi-operator deployments
Multi Operator
Dot Solution
Parallel Dot
Deployment
Shared
RAN
IN DEVELOPMENTTESTINGLIVE
› One project deploying Radio
Dots for two or more operators
› Potential to use Dual Band
Dot or multi Dot bracket to
reduce Dot footprint
› New, multi dot bracket
› One set of Radio Dots for
two operators using
network sharing
technologies, MORAN or
MOCN
› One operator is prime
managing the Radio Dots
› One set of Radio Dots for
multiple operators. Secondary
operators providing RF-signal
into Radio Dot System
› One operator is prime
managing the Radio Dots

13. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 13

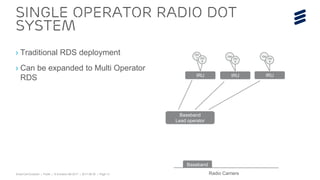

› Traditional RDS deployment
› Can be expanded to Multi Operator
RDS
Single Operator radio dot
system
Dot
1 Dot
8
Dot
Dot
8
Baseband
Lead operator
IRU IRU
Baseband
Dot
Dot
8
IRU
Radio Carriers

14. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 14

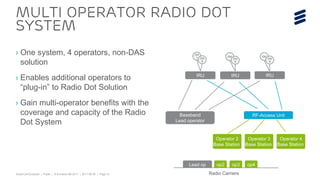

› One system, 4 operators, non-DAS
solution
› Enables additional operators to
“plug-in” to Radio Dot Solution
› Gain multi-operator benefits with the
coverage and capacity of the Radio
Dot System
Multi Operator radio dot
system
Dot
1 Dot
8
Dot
Dot
8
RF-Access UnitBaseband
Lead operator
IRU IRU
Operator 2
Base Station
op3op2
Operator 3
Base Station
Lead op
Operator 4
Base Station
op4
Dot
Dot
8
IRU
Radio Carriers

15. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 15
New RF-Access Unit (RAU)
› 3x RF inputs 2x2MIMO
› Connection to 4 IRUs
› 19” building practice -48V or AC
› Integrated part of Ericsson Radio
System HW and SW. Managed, installed
and handled like other components in
Ericsson Radio System
DUP DL
UL
1A
DUP DL
UL
1B
DUP DL
UL
2A
DUP DL
UL
2B
DUP DL
UL
3A
DUP DL
UL
3B
RAUXXXX
› Ensure operator independence
› Deliver superior coverage and capacity
› Guaranteed minimal footprint and delivered
with cost efficiencies in mind

16. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 16

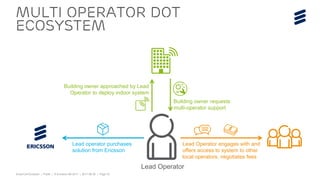

Multi operator dot
ecosystem
Lead Operator engages with and
offers access to system to other
local operators, negotiates fees
Lead operator purchases
solution from Ericsson
Building owner approached by Lead
Operator to deploy indoor system
Building owner requests
multi-operator support
Lead Operator

17. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 17
Use cases
Keep travelers
connected on the road
Provide seamless
mobility and high
performing networks,
indoors and outdoors
AIRPORT
LARGE CAMPUS
HIGH RISE BUILDING
Support multiple
tenants and ensure
Enterprise applications
work properly
MANUFACTURING
OFFICE BUILDING
STADIUM
Connect people and
devices (IoT applications)
Support Enterprise and
critical voice applications
Ensure guests have
access to content and
fellow fans throughout
the game

18. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 18

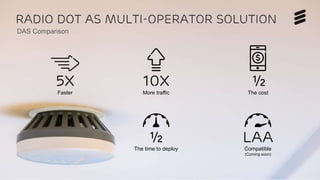

Radio dot as Multi-operator solution
½
10X
More traffic
The time to deploy
½
The cost
LAA
Compatible
(Coming soon)
5X
Faster
DAS Comparison

19. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 19
Small cells evolution
Delivering new solutions
in the Ericsson Radio Dot
System for Multi-Operators1
2
Extending our small cell
site portfolio with new
outdoor strand-mount unit

20. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 20
› New site acquisition possibilities and cost savings for mobile
operator
› Reinforce partnerships between tower companies, non traditional
operators, utilities
› Tap into the extensive R&D expertise and knowledge from
previous BelAir Networks cable-strand Wi-Fi portfolio
› Large market … 100s of 1,000s of strand mounted
Wi-Fi units in US
Outdoor small cells
Sizing up the strand opportunity

21. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 21
Cable strand-mount for
outdoor small cells
› New outdoor site solution – a bracket enabling cable-mounted small
cells for both mobile and cable operators for dense areas requiring
better coverage and capacity.
› Houses
– Radio 2203
– Radio 2205 (LAA)
– Radio 2208 (CBRS)
› Solutions and configurations for 2-4 radios, enabling multi-operator
support

22. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 22
› Part of the Ericsson Site Solutions portfolio
› Delivers unique opportunity for operators to
deploy outdoor small cells on aerial strand
› Offers a zero footprint solution for outdoor
small cells deployment
› Creates multi-operator opportunities for
outdoor small cell deployments
Cable strand-mount For
outdoor small cells

23. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 23
Small cells evolution
› Offering a fully integrated system, working
together, to deliver the best performance
for our customers and their customers
› Delivering easy to install, high performing
systems that enable our customers’
customers to reap the benefits of a
multi-operator system
Multi-Operator
Solutions
› Accelerate 5G progress
› Zero footprint
› Less headache than traditional sites
which require zoning approvals, higher
tower rental fees
› Delivers a wealth of options and
business models for both mobile and
cable operators (licensed, unlicensed,
multi-operator deployments)
Outdoor Strand-mount
Small Cell Solution

24. Small Cell Evolution | Public | © Ericsson AB 2017 | 2017-08-30 | Page 24
Addressing the evolution
Non traditional
operators are going to
be bigger participants
in mobile networks
moving forward –
Ericsson is working to
enable their
contributions
IoT is becoming a major
demand on networks.
Ericsson has designed
solutions that will
support massive
amount of things that
will need to be
connected
5G: Everybody is talking
about 5G and all major
operators are making
plans. Small cells will be
required to deliver 5G
and Ericsson’s robust
portfolio is there to
support the evolution
