Huawei 5G Overview.pdf
- 1.
- 2. Contents 5G Vision Huawei 5GResearch Progress Huawei 5G Collaboration

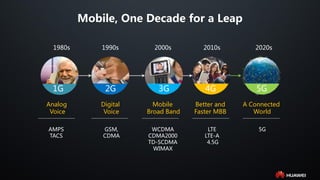

- 3. Mobile, One Decadefor a Leap GSM, CDMA AMPS TACS WCDMA CDMA2000 TD-SCDMA WIMAX LTE LTE-A 4.5G 5G Analog Voice Digital Voice Mobile Broad Band Better and Faster MBB A Connected World 1990s 1980s 2000s 2010s 2020s 1G 2G 3G 4G 5G
- 4. 5G: Three KeyFeatures 1 Million/KM² Connections 10 Gbit/s Peak Speed 1 ms Latency 5G will Create New User Experiences
- 5. ＝ 300+ Mbit/s 100X ofcurrent HD video requirements Virtual Reality, An Immersive Experience Uplink Data Rate for Cloud Access Everywhere Cloud Storage as Fast as Local Storage Ultra High Reliability 1 ms Latency Over 1 Gbit/s
- 6. Diversified Challenges andGaps to Reach 5G Network Architecture Slicing Ability Required Connections 1,000K Connections Per km2 Mobility 500km/h High-speed Railway Throughput 10Gbps Per Connection Latency 1 ms E2E Latency 5G 100Mbps 10K 350Km/h 30~50ms Inflexible LTE GAP 30~50x 100x 100x 1.5x NFV/SDN

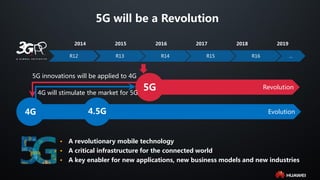

- 7. Revolution Evolution 4G 2014 2015 20162017 2018 2019 5G will be a Revolution R14 R13 R15 R16 5G R12 … 4.5G • A revolutionary mobile technology • A critical infrastructure for the connected world • A key enabler for new applications, new business models and new industries 5G innovations will be applied to 4G 4G will stimulate the market for 5G
- 8. Contents 5G Vision Huawei 5GResearch Progress Huawei 5G Collaboration
- 9. Huawei 5G ResearchInvestment Huawei began 5G research in 2009 at the launch of the world's first commercial LTE network Research Standard Product Deploy $600m For 5G Research & Standard 2013~2018 More investment for product development
- 10. Global Talents Focusingon 5G Research Paris Moscow Stockholm Shenzhen Chengdu Ottawa Shanghai Stockholm, Sweden •System Architecture •Algorithms Paris, France •Standardization Munich, Germany •Verticals New Jersey, USA •5G Transmission Ottawa, Canada •5G Radio •Network Architecture 5G Research Centers in China •Shen zhen •Shang hai •Cheng du Moscow, Russia •Fundamental Algorithms 500+ 5G Experts 9 5G Research Centers Munich New Jersey
- 11. 5GPPP Flagship Program •METIS-II: Mobile and wireless communications Enablers for 2020 Information Society-II •FANTASTIC-5G : Flexible Air interface for scalable service delivery within wireless communication networks of the 5th Generation •mmMAGIC: Millimeter-wave based mobile radio access network for Fifth Generation Integrated Communications •5G-Xhaul: Dynamically reconfigurable optical-wireless backhaul/fronthaul with cognitive control plane for small cells and cloud-RANs •5GEX: 5G Exchange Huawei Leads 5 Projects
- 12. Huawei is oneof Key Founder of 5GVIA Vertical Industry Accelerator SI, ISV, Customers Vendors, Telco Operators WG-2: 5G Health Care WG-4: 5G Smart Grid WG-1: 5G Automobile WG-3: 5G Smart Manufacture Regulator, Industry Organization, Standard Organization 5G VIA ... … AIOTI
- 13. Huawei is oneof Key Founder of 5GIC Launched world’s first 5G Testbed London 4th November 2014 5G Innovation Center
- 14. Key Concerns forReaching 5G Flexibility & Spectrum Efficiency One Physical Network Multiple Industries New Air Interface New Architecture Aggregate All Available Bands Spectrum
- 15. 5G is aFull Spectrum Access WRC15/19 WRC19 10 50 40 30 20 60 80 70 90 1 5 4 2 6 3 GHz Visible Light Cellular Bands 100 (<6GHz aggregation with >6GHz) Priority: <6GHz, Macro Cell E-Band (+V-Band) has significant advantage for indoor/outdoor, access/self-backhaul ultra-capacity solution High Band (Complementary Band) Low Band (Core Band)
- 16. A New Architectureto Carry MBB & Verticals From Mobile Internet to a Connected World Industry Defined Air Interface Service Oriented Cloud-Formation Industry Defined Network Slicing One Infrastructure Many Industry Services Many Network Slices
- 17. New Air Interface SCMA F-OFDM PolarCode Full Duplex Massive MIMO Mobile Internet Internet of Things One air interface fits many applications with high flexibility, at least a 3x spectrum efficiency improvement Adaptive Air Interface

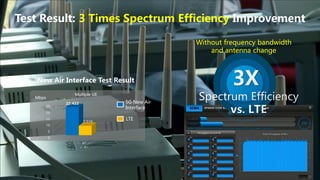

- 18. New Air InterfaceTest Result 0 5 10 15 20 25 22.422 7.516 Multiple UE Mbps 5G New Air Interface LTE Test Result: 3 Times Spectrum Efficiency Improvement Without frequency bandwidth and antenna change

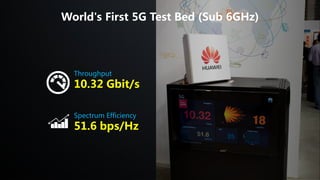

- 19. World's First 5GTest Bed (Sub 6GHz) Throughput 10.32 Gbit/s Spectrum Efficiency 51.6 bps/Hz
- 20. Huawei High BandTest Bed (>6GHz) 9.6GHz BW 115 Gbit/s 20 Breaks World Record

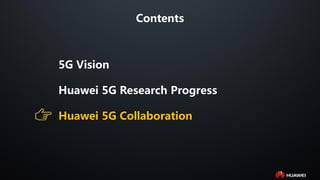

- 21. Contents 5G Vision Huawei 5GResearch Progress Huawei 5G Collaboration
- 22. Cooperation with MobileNetwork Operators
- 23. Academic Contributions Harvard University Joint Researchon 5G with 20+ Top Universities around the World New York University Stanford University Shanghai Jiao Tong University Tsinghua University The Hong Kong University of Science and Technology Cambridge University 190+ on 5G new air technology, new architecture, etc (by 2014) …… Papers University of Surrey TUM TUD Chalmers University of Technology …… …… North America Asia Europe
- 24. A Global UnifiedStandard for 5G 3G 4G IEEE 5G WCDMA EV-DO TD-SCDMA LTE-FDD LTE-TDD WLAN Global Unified Standard WiMAX IEEE Other Industries Global Roaming Scale Economics
- 25. Huawei Recognized asthe 5G Industry Leader Global 1st Award for 5G Industry in Jun, 2015: “Biggest Contribution to 5G Development”
