The Significance of TV White Spaces
The document discusses the significance of TV white spaces (TVWS) in providing license-exempt access to unused spectrum, highlighting potential challenges like legal issues and restrictive requirements. It presents a vision for enhanced spectrum access between 3 GHz and 9 GHz, emphasizing the utility of higher frequencies. Additionally, it addresses misconceptions about TV spectrum and explores technologies like MIMO and beamforming for improved wireless communication efficiency.
More Related Content
Similar to The Significance of TV White Spaces
The Significance of TV White Spaces
- 1. Significance of TV White Spaces Brough Turner netBlazr brough@netblazr.com

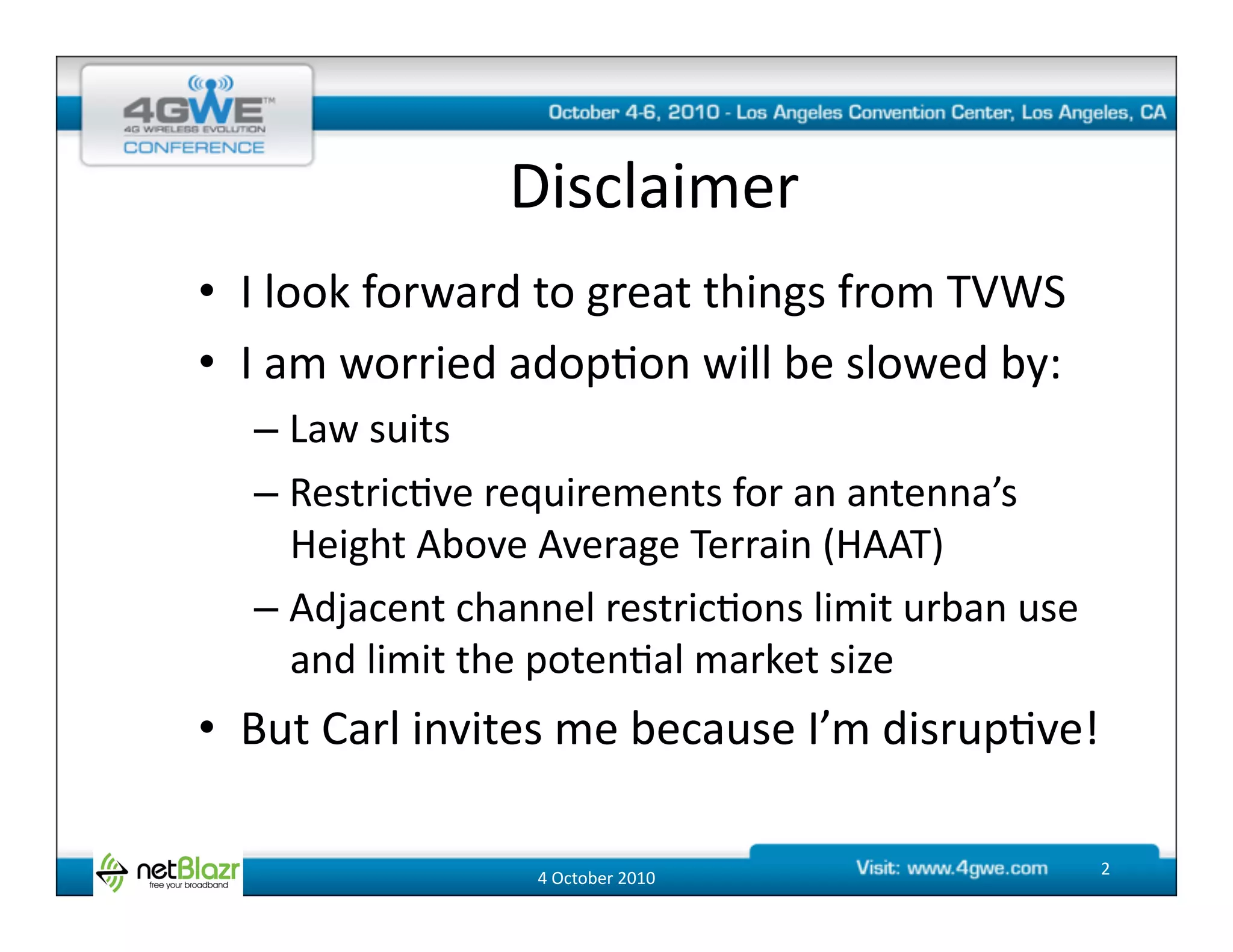

- 2. Disclaimer • I look forward to great things from TVWS • I am worried adop@on will be slowed by: – Law suits – Restric@ve requirements for an antenna’s Height Above Average Terrain (HAAT) – Adjacent channel restric@ons limit urban use and limit the poten@al market size • But Carl invites me because I’m disrup@ve! 4 October 2010 2

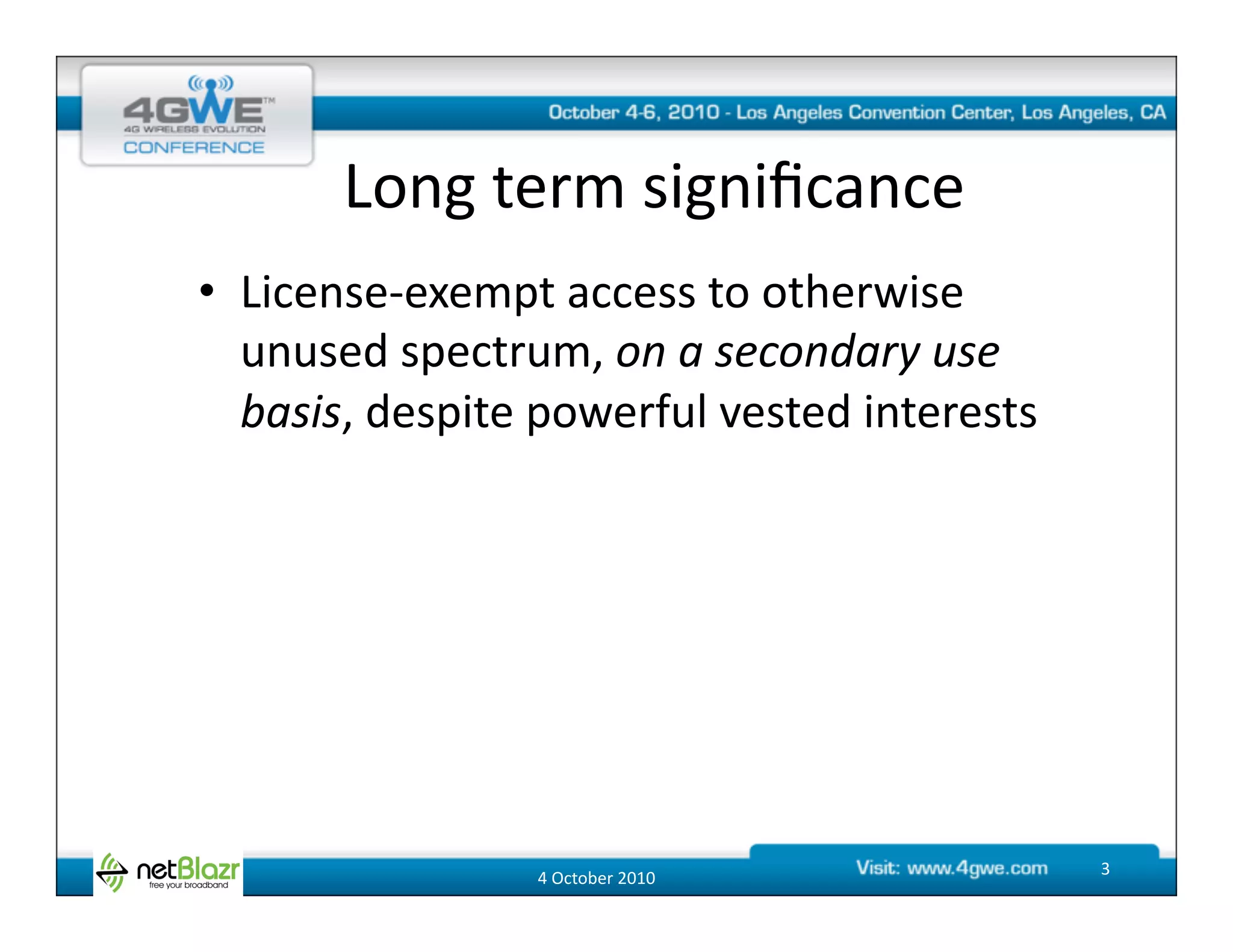

- 3. Long term significance • License-‐exempt access to otherwise unused spectrum, on a secondary use basis, despite powerful vested interests 4 October 2010 3

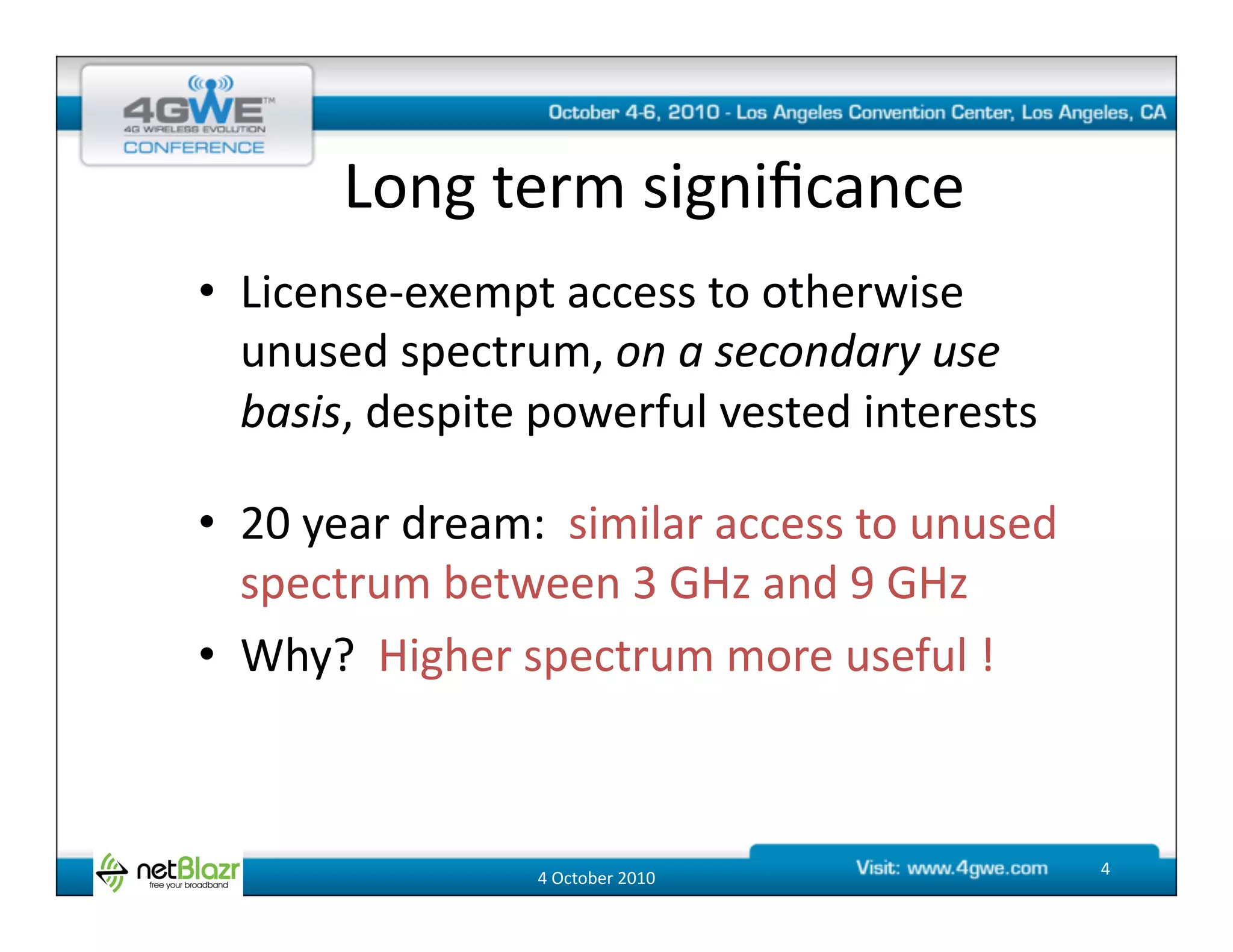

- 4. Long term significance • License-‐exempt access to otherwise unused spectrum, on a secondary use basis, despite powerful vested interests • 20 year dream: similar access to unused spectrum between 3 GHz and 9 GHz • Why? Higher spectrum more useful ! 4 October 2010 4
- 5. Spectrum Myths TV Spectrum is “beach front” spectrum 5
- 6. Spectrum Myths TV Spectrum is “beach front” spectrum • Based on 20th century technology, not physics! – Travels farther thru the air – No! – Thru windows – roughly the same – Goes thru masonry – yes, with 50,000 waas! 6

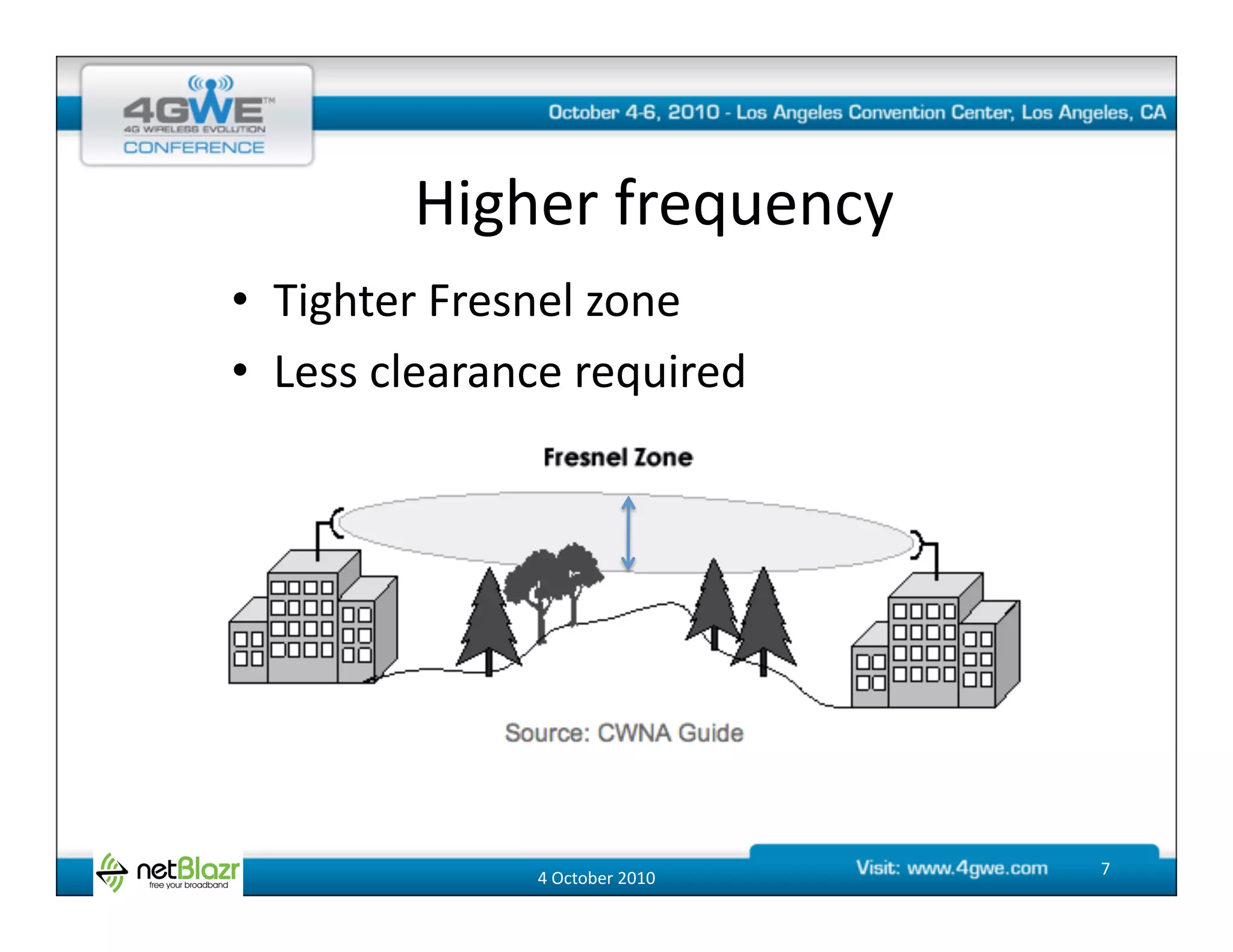

- 7. Higher frequency • Tighter Fresnel zone • Less clearance required 4 October 2010 7

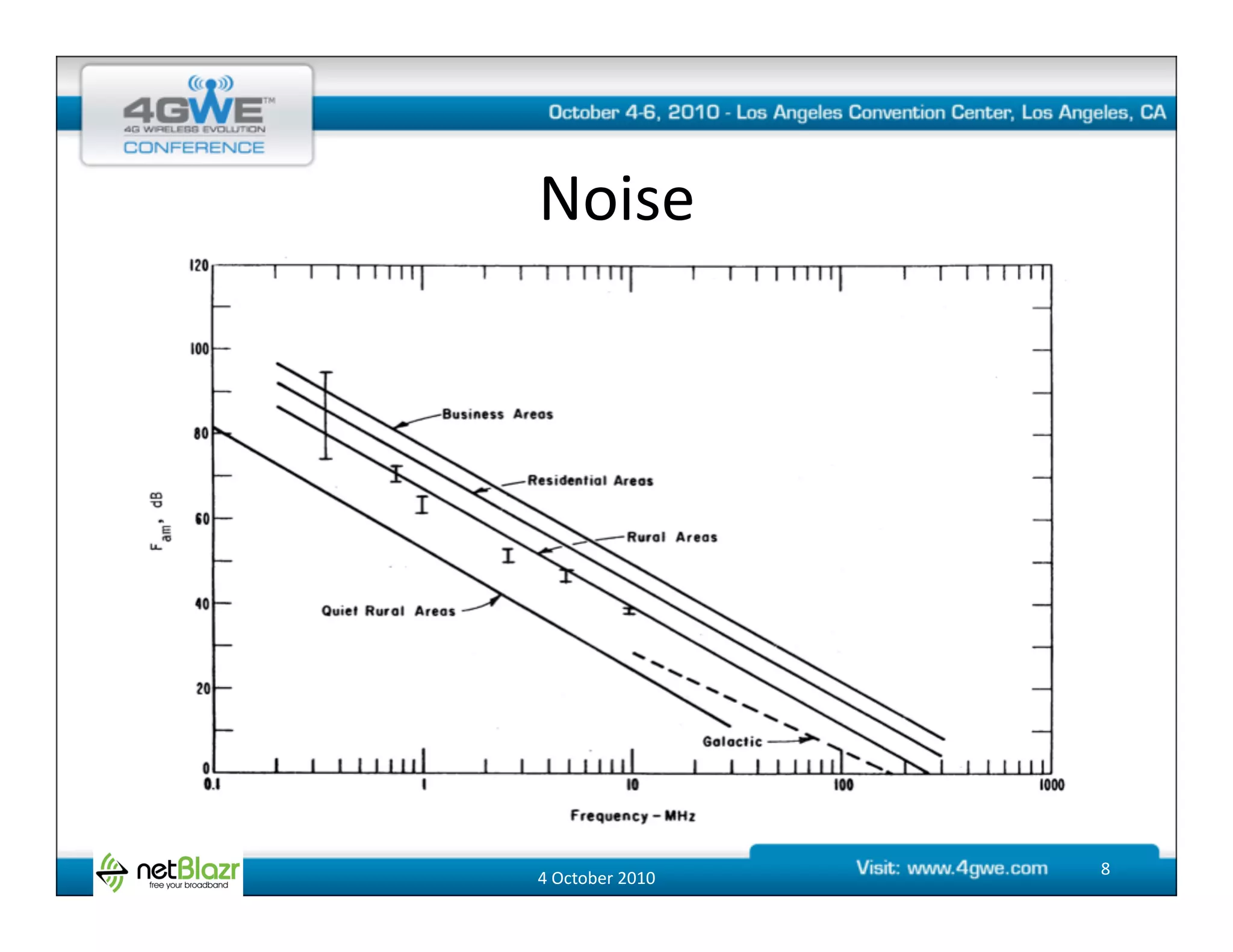

- 8. Noise 4 October 2010 8

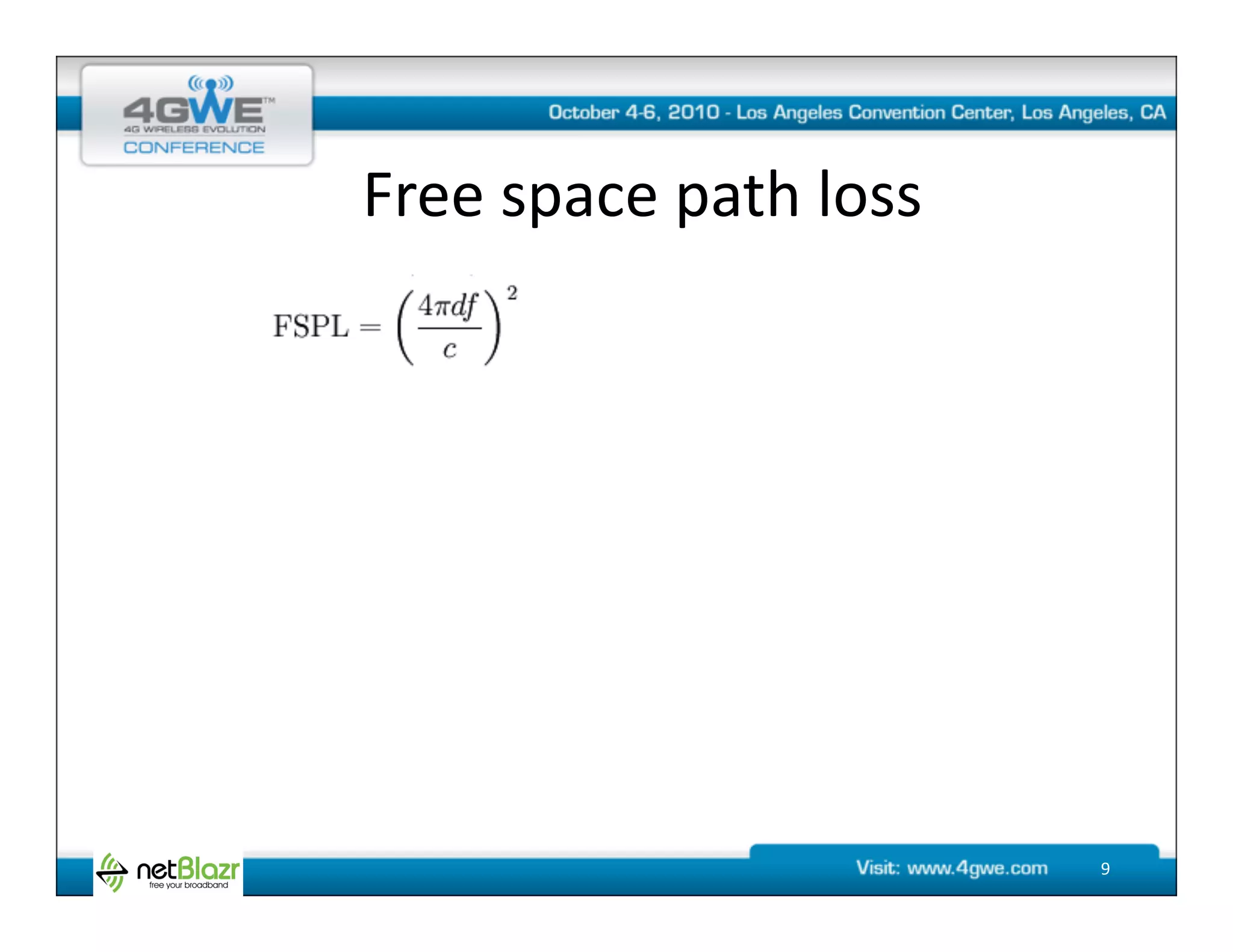

- 9. Free space path loss 9

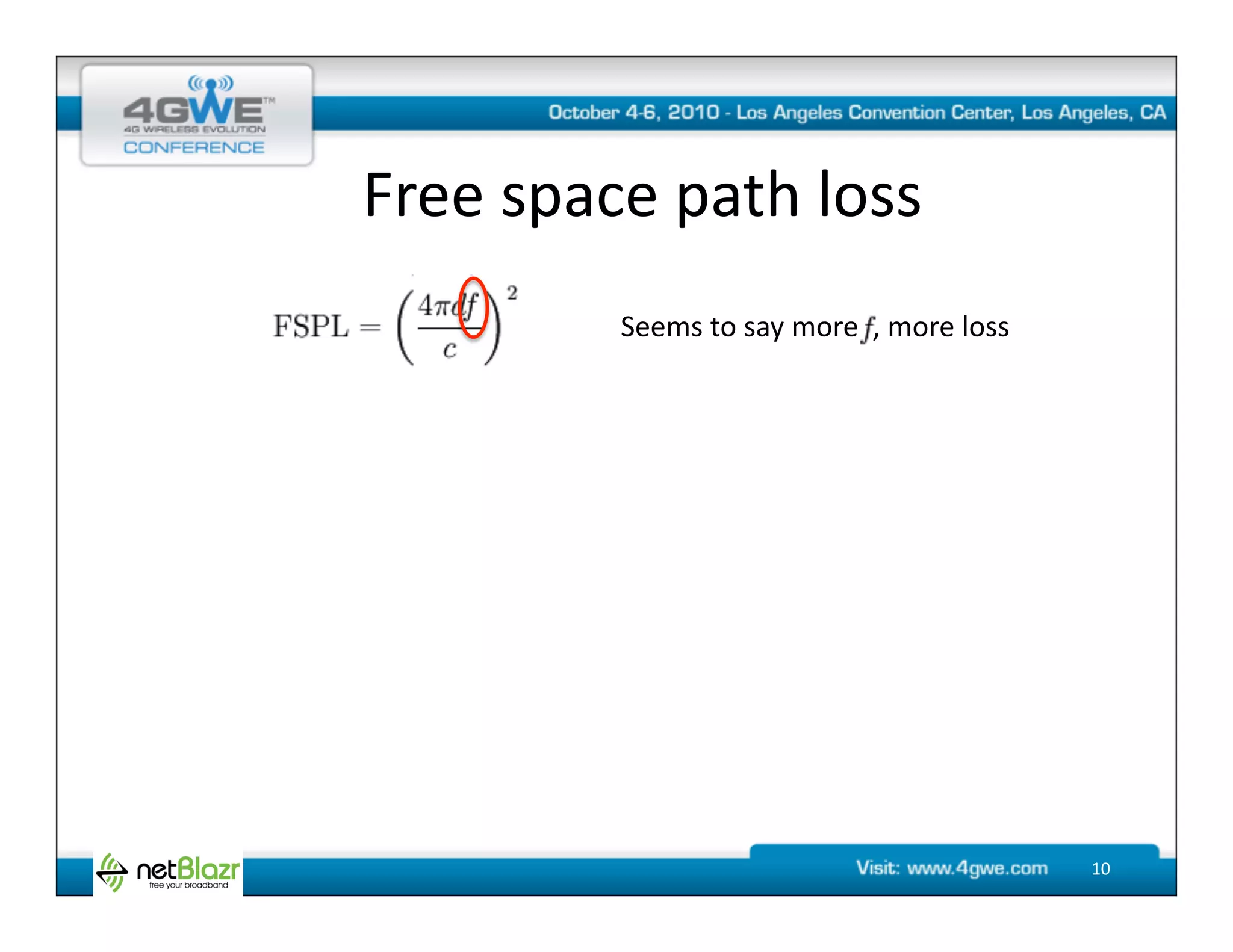

- 10. Free space path loss Seems to say more , more loss 10

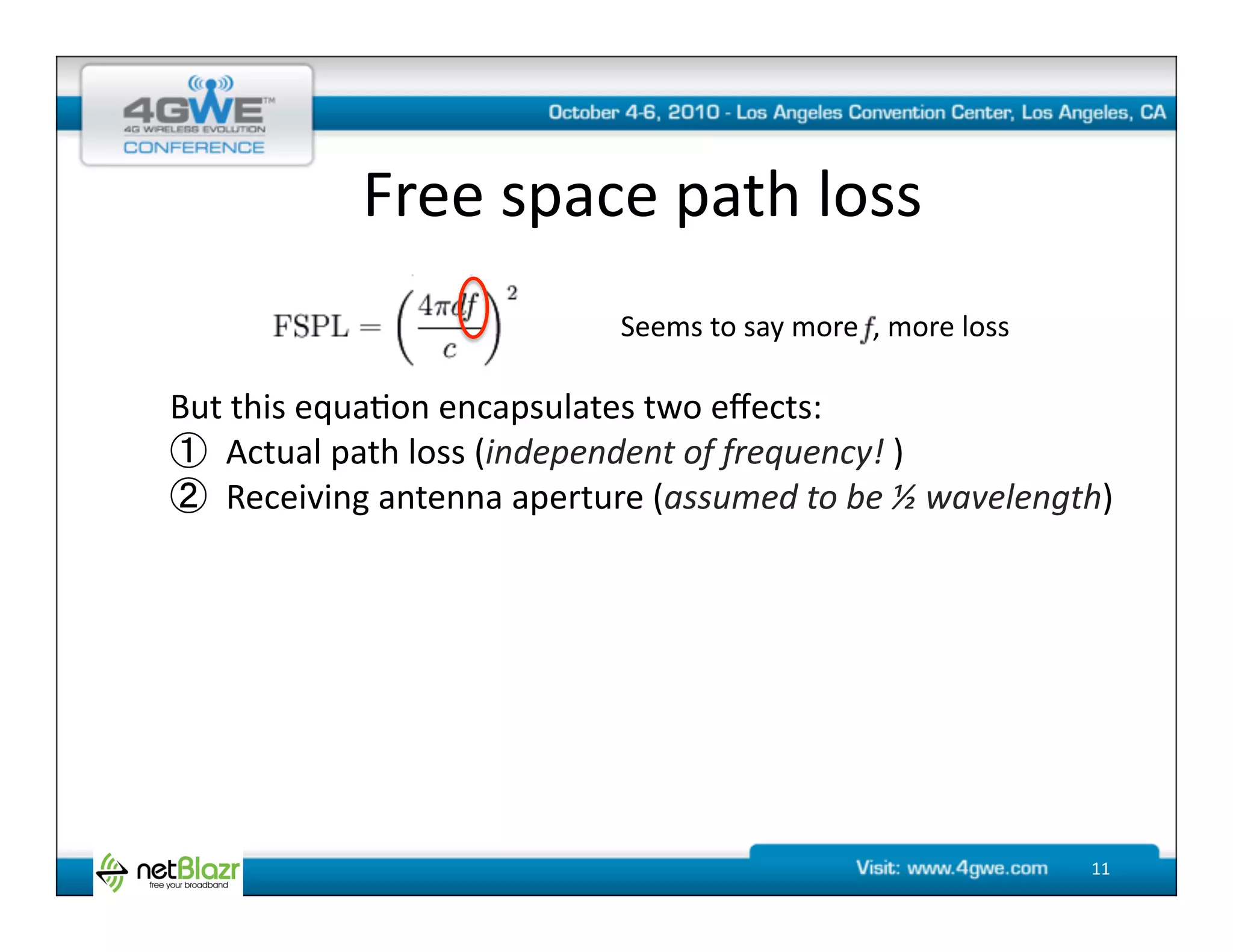

- 11. Free space path loss Seems to say more , more loss But this equa@on encapsulates two effects: Actual path loss (independent of frequency! ) Receiving antenna aperture (assumed to be ½ wavelength) 11

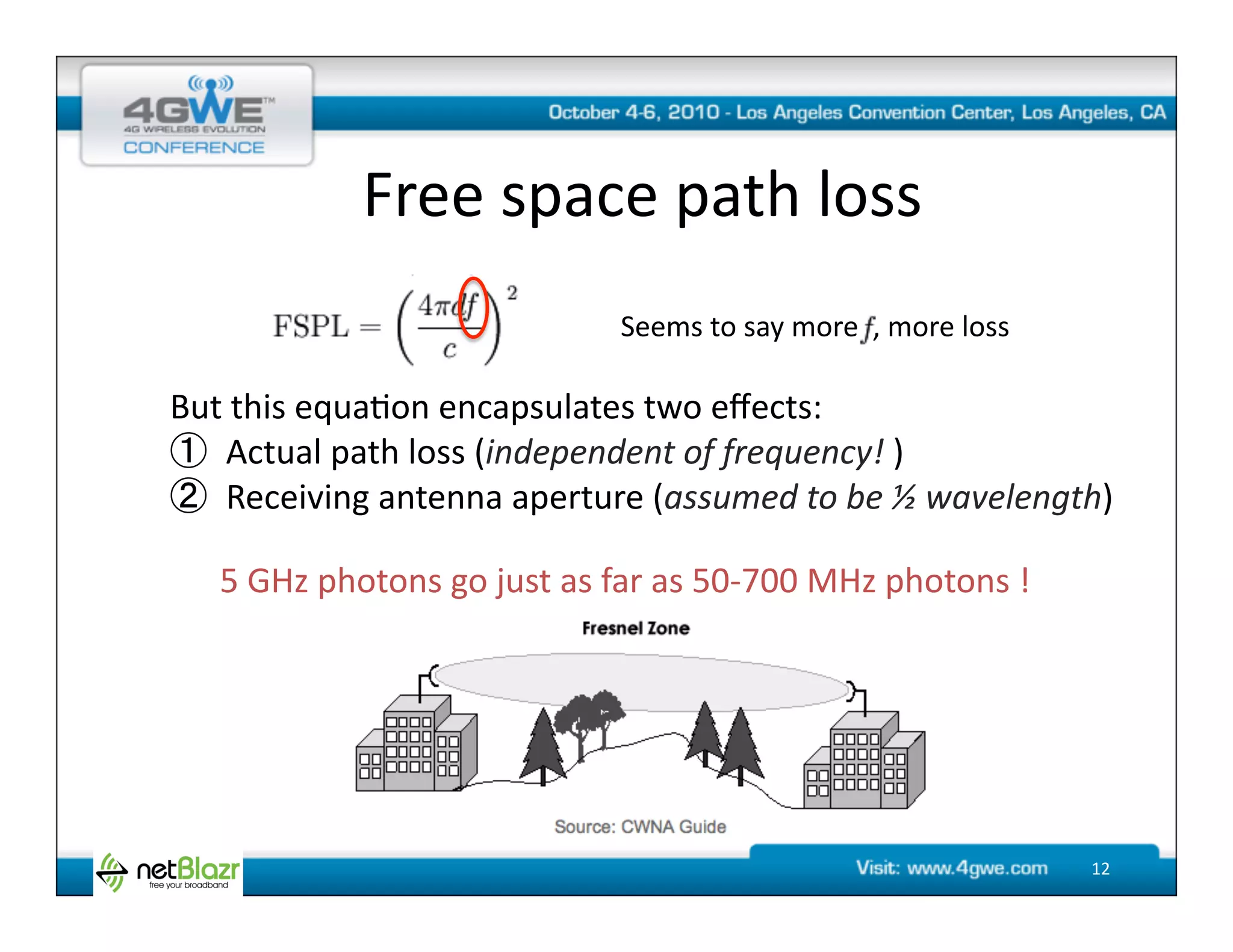

- 12. Free space path loss Seems to say more , more loss But this equa@on encapsulates two effects: Actual path loss (independent of frequency! ) Receiving antenna aperture (assumed to be ½ wavelength) 5 GHz photons go just as far as 50-‐700 MHz photons ! 12

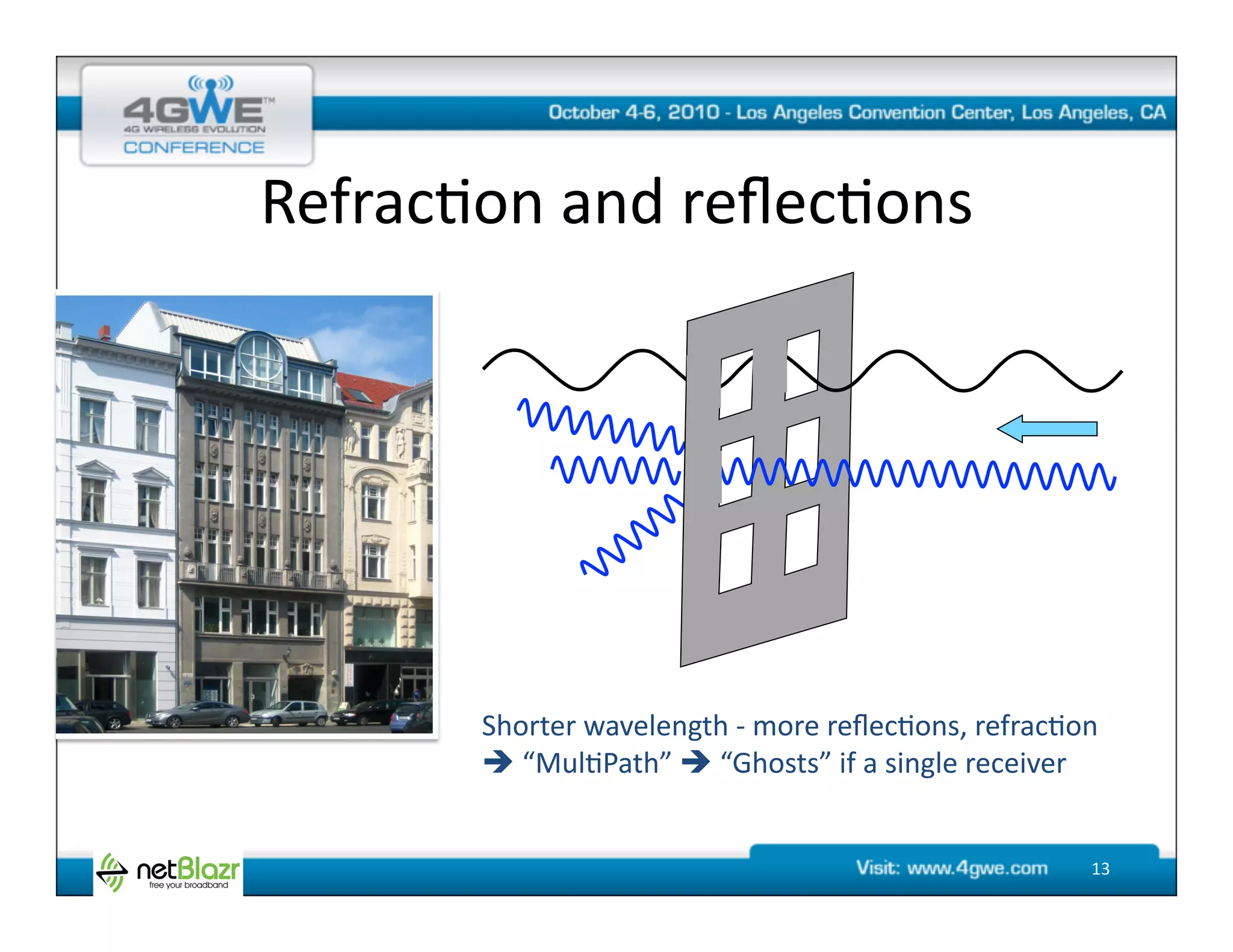

- 13. Refrac@on and reflec@ons Shorter wavelength -‐ more reflec@ons, refrac@on “Mul@Path” “Ghosts” if a single receiver 13

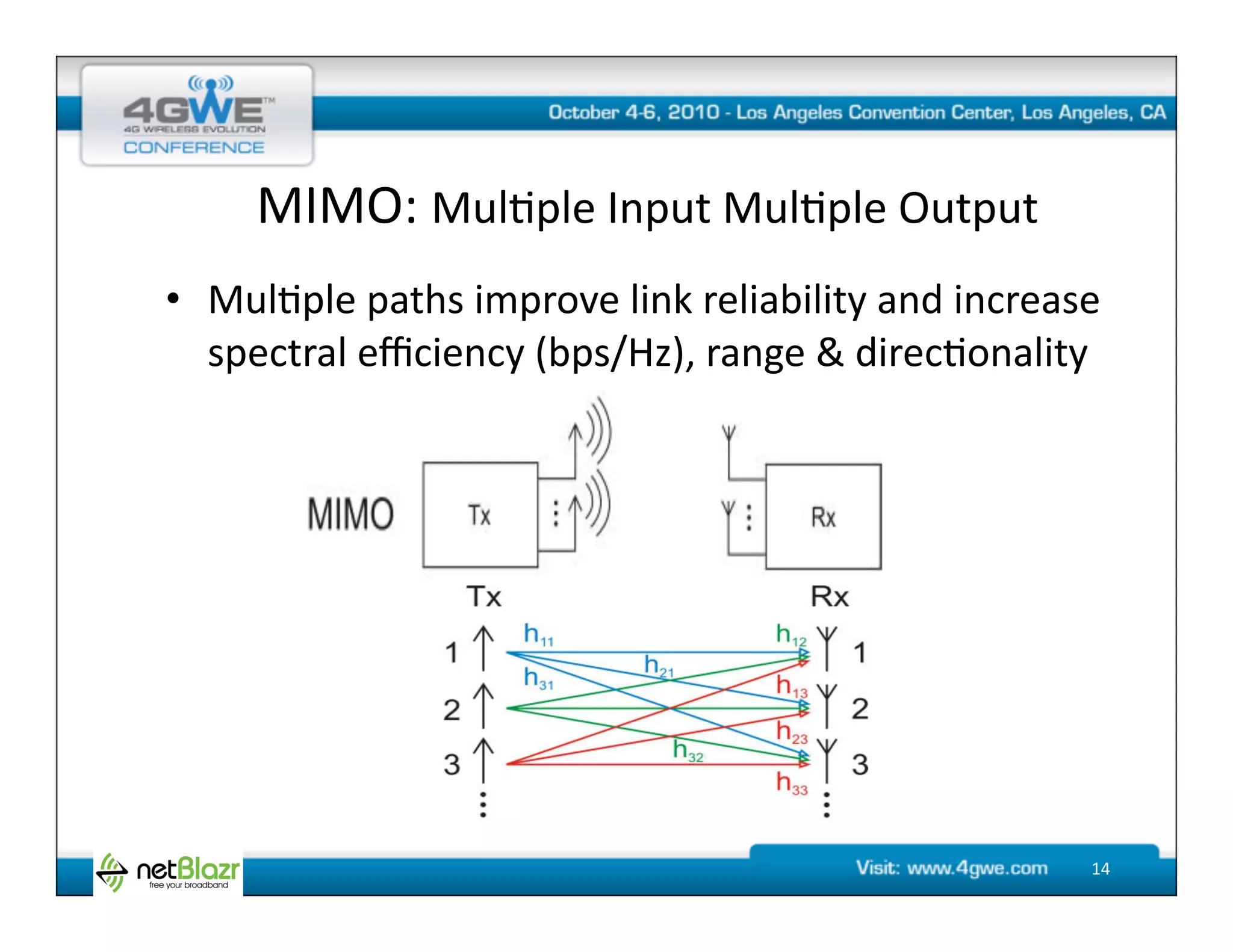

- 14. MIMO: Mul@ple Input Mul@ple Output • Mul@ple paths improve link reliability and increase spectral efficiency (bps/Hz), range & direc@onality 14
- 15. Beamforming ~2014: >300 Mbps Wi-‐Fi to ~1 Km at mass market prices … 4x4 MIMO with 8 antenna elements 15

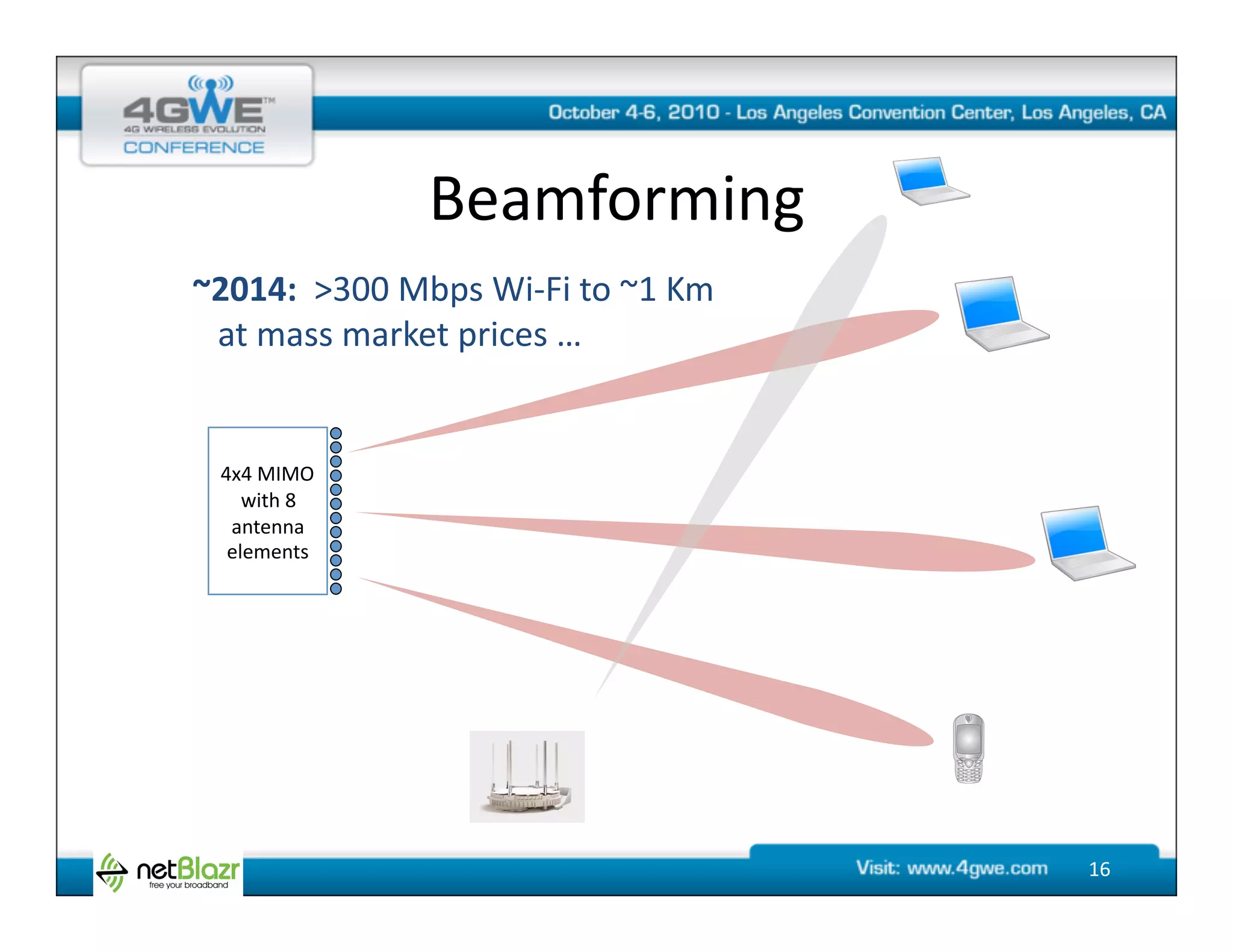

- 16. Beamforming ~2014: >300 Mbps Wi-‐Fi to ~1 Km at mass market prices … 4x4 MIMO with 8 antenna elements 16

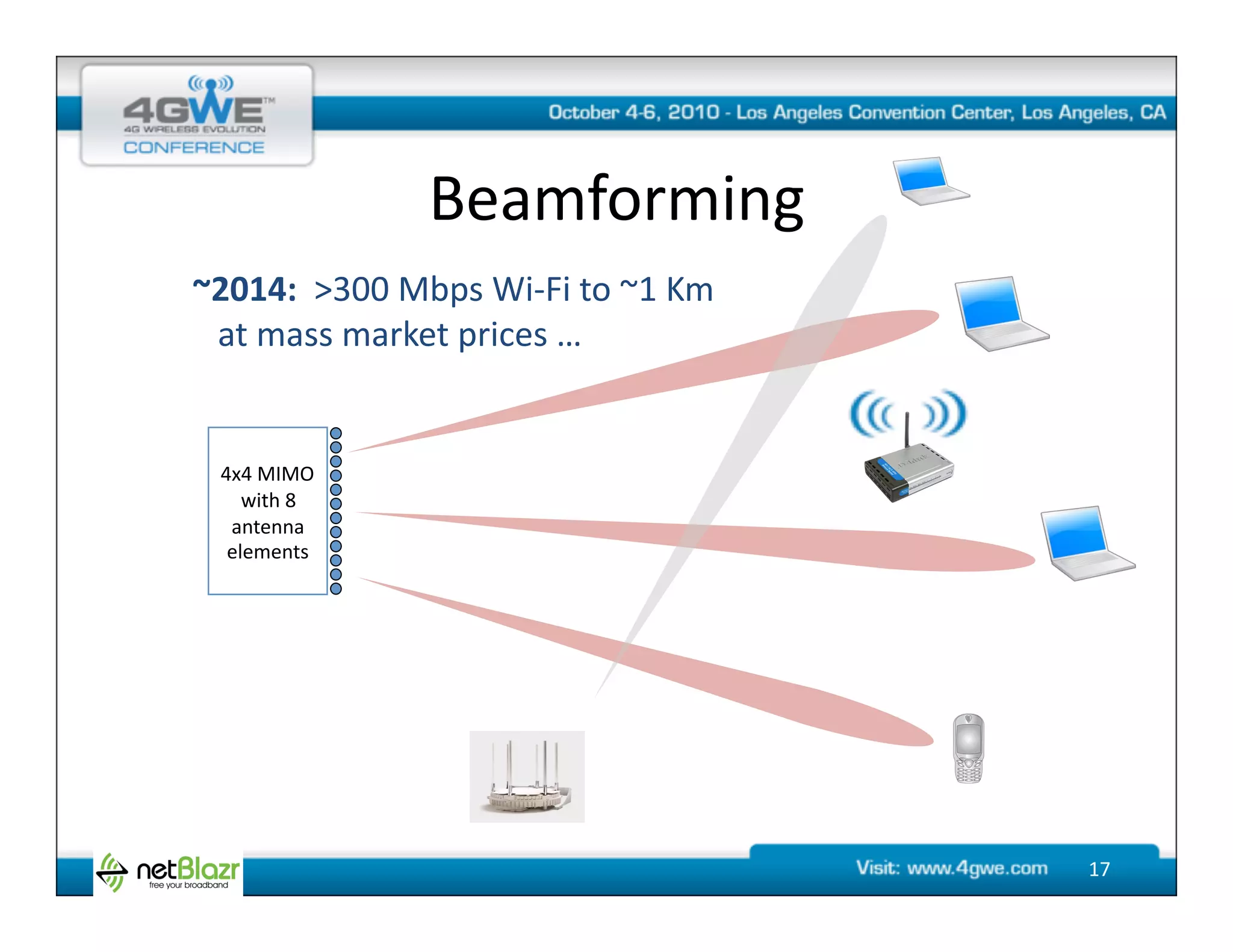

- 17. Beamforming ~2014: >300 Mbps Wi-‐Fi to ~1 Km at mass market prices … 4x4 MIMO with 8 antenna elements 17

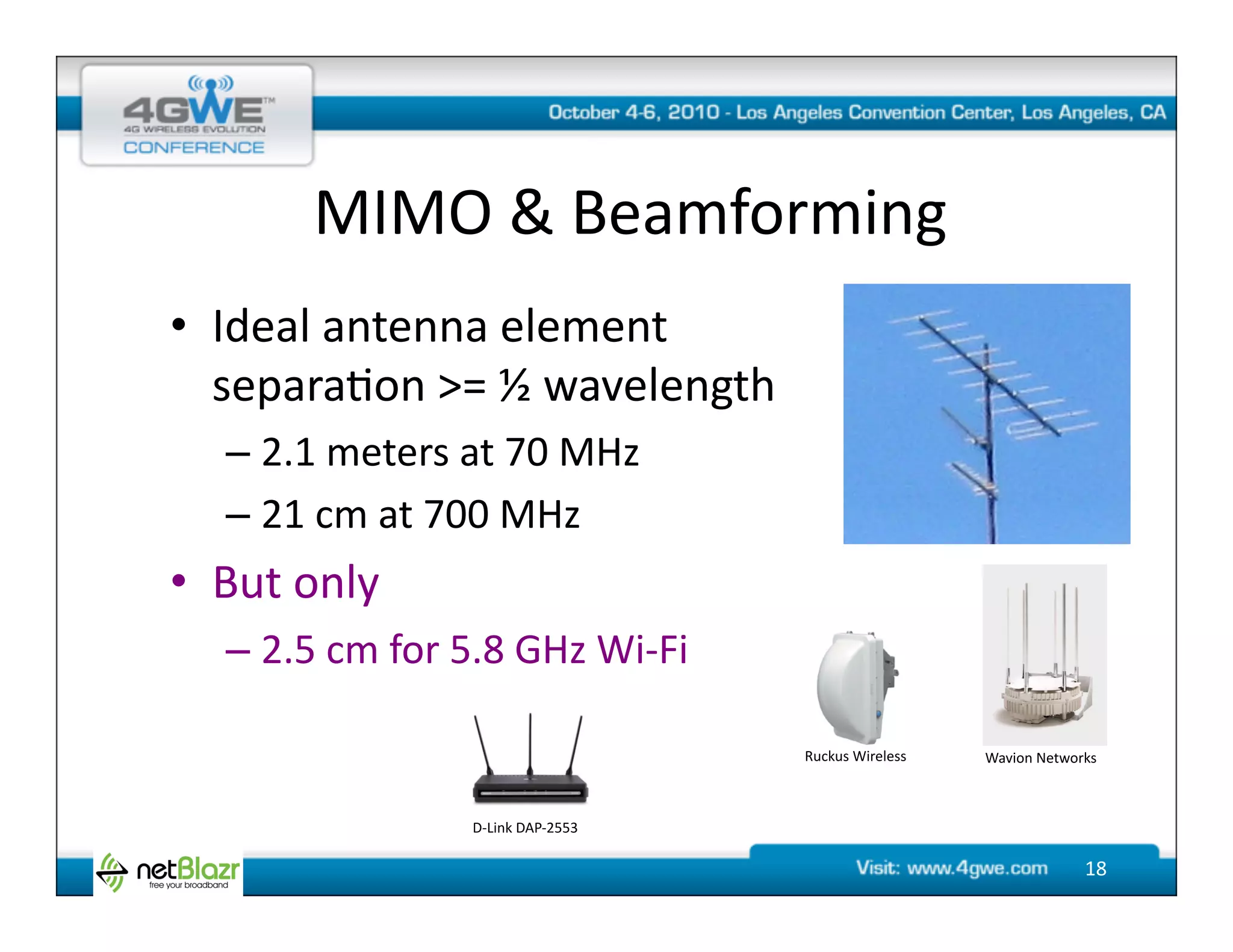

- 18. MIMO & Beamforming • Ideal antenna element separa@on >= ½ wavelength – 2.1 meters at 70 MHz – 21 cm at 700 MHz • But only – 2.5 cm for 5.8 GHz Wi-‐Fi Ruckus Wireless Wavion Networks D-‐Link DAP-‐2553 18
- 19. Thank You Brough Turner brough@netblazr.com
