Shs (square hollow section) size range
The document provides size ranges for square hollow section (SHS) steel tubes. It lists various dimensions including width, thickness, and coding for square hollow sections produced through different manufacturing methods, including painted, galvanized, and electric resistance welded (ERW) tubes. The sections can be produced in sizes ranging from 13x13mm to 300x300mm in width and thickness and in materials including steel, stainless steel, and aluminum. Tolerances for ERW tubes are also provided.
More Related Content
Shs (square hollow section) size range
- 1. SHS (Square HollowSection) Size range Section type: round, square, rectangular, oval and other special section type. Square Hollow Section (Painted) Code Width (A) Thickness (T) Code Width (A) Thickness (T) 13x13x1.8 13 mm 1.8 mm 65x65x6.0 65 mm 6.0 mm 15x15x1.8 15 mm 1.8 mm 75x75x2.5 75 mm 2.5 mm 20x20x1.6 20 mm 1.6 mm 75x75x3.0 75 mm 3.0 mm 25x25x1.6 25 mm 1.6 mm 75x75x3.5 75 mm 3.5 mm 25x25x2.0 25 mm 2.0 mm 75x75x4.0 75 mm 4.0 mm 25x25x2.5 25 mm 2.5 mm 75x75x5.0 75 mm 5.0 mm 25x25x3.0 25 mm 3.0 mm 75x75x6.0 75 mm 6.0 mm 30x30x1.6 30 mm 1.6 mm 89x89x2.0 89 mm 2.0 mm 30x30x2.0 30 mm 2.0 mm 89x89x3.5 89 mm 3.5 mm 30x30x2.5 30 mm 2.5 mm 89x89x5.0 89 mm 5.0 mm 30x30x3.0 30 mm 3.0 mm 89x89x6.0 89 mm 6.0 mm 35x35x1.6 35 mm 1.6 mm 100x100x3.0 100 mm 3.0 mm 35x35x2.0 35 mm 2.0 mm 100x100x4.0 100 mm 4.0 mm 35x35x2.5 35 mm 2.5 mm 100x100x5.0 100 mm 5.0 mm 35x35x3.0 35 mm 3.0 mm 100x100x6.0 100 mm 6.0 mm 40x40x1.6 40 mm 1.6 mm 100x100x9.0 100 mm 9.0 mm 40x40x2.0 40 mm 2.0 mm 125x125x4.0 125 mm 4.0 mm 40x40x2.5 40 mm 2.5 mm 125x125x5.0 125 mm 5.0 mm 40x40x3.0 40 mm 3.0 mm 125x125x6.0 125 mm 6.0 mm 40x40x4.0 40 mm 4.0 mm 125x125x9.0 125 mm 9.0 mm 50x50x1.6 50 mm 1.6 mm 150x150x4.0 150 mm 4.0 mm 50x50x2.0 50 mm 2.0 mm 150x150x5.0 150 mm 5.0 mm 50x50x2.5 50 mm 2.5 mm 150x150x6.0 150 mm 6.0 mm 50x50x3.0 50 mm 3.0 mm 150x150x9.0 150 mm 9.0 mm 50x50x4.0 50 mm 4.0 mm 200x200x5.0 200 mm 5.0 mm 50x50x5.0 50 mm 5.0 mm 200x200x6.0 200 mm 6.0 mm 50x50x6.0 50 mm 6.0 mm 200x200x9.0 200 mm 9.0 mm 65x65x2.0 65 mm 2.0 mm 250x250x6.0 250 mm 6.0 mm 65x65x2.5 65 mm 2.5 mm 250x250x9.0 250 mm 9.0 mm 65x65x3.0 65 mm 3.0 mm 300x300x6.0 300 mm 6.0 mm 65x65x4.0 65 mm 4.0 mm 300x300x9.0 300 mm 9.0 mm 65x65x5.0 65 mm 5.0 mm 300x300x12.7 300 mm 12.7 mm Add.: No. 273, Siping Road Tel:+8621 33780199 Shanghai, 200081, China Fax:+8621 5107 9722 Http://www.sunnysteel.com E-mail:sales@sunnysteel.com
- 2. SHS (Square HollowSection) Size range Section type: round, square, rectangular, oval and other special section type. Square Hollow Section (Galvenised) Code Width (A) Thickness (T) Code Width (A) Thickness (T) 20x20x1.6 20 mm 1.6 mm 65x65x4.0 65 mm 4.0 mm 25x25x1.6 25 mm 1.6 mm 65x65x5.0 65 mm 5.0 mm 25x25x2.0 25 mm 2.0 mm 75x75x2.0 75 mm 2.0 mm 25x25x2.5 25 mm 2.5 mm 75x75x2.5 75 mm 2.5 mm 25x25x3.0 25 mm 3.0 mm 75x75x3.0 75 mm 3.0 mm 30x30x1.6 30 mm 1.6 mm 75x75x3.5 75 mm 3.5 mm 30x30x2.0 30 mm 2.0 mm 75x75x4.0 75 mm 4.0 mm 35x35x1.6 35 mm 1.6 mm 75x75x5.0 75 mm 5.0 mm 35x35x2.0 35 mm 2.0 mm 89x89x2.0 89 mm 2.0 mm 35x35x2.5 35 mm 2.5 mm 89x89x3.5 89 mm 3.5 mm 35x35x3.0 35 mm 3.0 mm 89x89x5.0 89 mm 5.0 mm 40x40x1.6 40 mm 1.6 mm 100x100x2.5 100 mm 2.5 mm 40x40x2.0 40 mm 2.0 mm 100x100x3.0 100 mm 3.0 mm 40x40x2.5 40 mm 2.5 mm 100x100x4.0 100 mm 4.0 mm 40x40x3.0 40 mm 3.0 mm 100x100x5.0 100 mm 5.0 mm 40x40x4.0 40 mm 4.0 mm 125x125x4.0 125 mm 4.0 mm 50x50x1.6 50 mm 1.6 mm 125x125x5.0 125 mm 5.0 mm 50x50x2.0 50 mm 2.0 mm 50x50x2.5 50 mm 2.5 mm 50x50x3.0 50 mm 3.0 mm 50x50x4.0 50 mm 4.0 mm 50x50x5.0 50 mm 5.0 mm 65x65x2.0 65 mm 2.0 mm 65x65x2.5 65 mm 2.5 mm 65x65x3.0 65 mm 3.0 mm Add.: No. 273, Siping Road Tel:+8621 33780199 Shanghai, 200081, China Fax:+8621 5107 9722 Http://www.sunnysteel.com E-mail:sales@sunnysteel.com

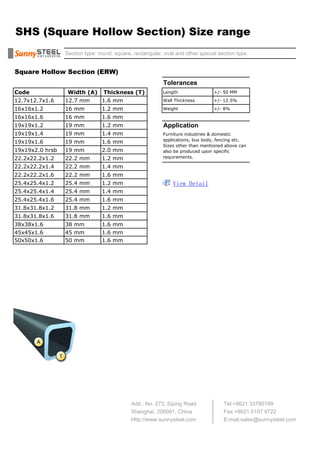

- 3. SHS (Square HollowSection) Size range Section type: round, square, rectangular, oval and other special section type. Square Hollow Section (ERW) Tolerances Code Width (A) Thickness (T) Length +/- 50 MM 12.7x12.7x1.6 12.7 mm 1.6 mm Wall Thickness +/- 12.5% 16x16x1.2 16 mm 1.2 mm Weight +/- 8% 16x16x1.6 16 mm 1.6 mm 19x19x1.2 19 mm 1.2 mm Application 19x19x1.4 19 mm 1.4 mm 19x19x1.6 19 mm 1.6 mm 19x19x2.0 hrsb 19 mm 2.0 mm 22.2x22.2x1.2 22.2 mm 1.2 mm 22.2x22.2x1.4 22.2 mm 1.4 mm 22.2x22.2x1.6 22.2 mm 1.6 mm 25.4x25.4x1.2 25.4 mm 1.2 mm View Detail 25.4x25.4x1.4 25.4 mm 1.4 mm 25.4x25.4x1.6 25.4 mm 1.6 mm 31.8x31.8x1.2 31.8 mm 1.2 mm 31.8x31.8x1.6 31.8 mm 1.6 mm 38x38x1.6 38 mm 1.6 mm 45x45x1.6 45 mm 1.6 mm 50x50x1.6 50 mm 1.6 mm Add.: No. 273, Siping Road Tel:+8621 33780199 Shanghai, 200081, China Fax:+8621 5107 9722 Http://www.sunnysteel.com E-mail:sales@sunnysteel.com Furniture industries & domestic applications, bus body, fencing etc. Sizes other than mentioned above can also be produced upon specific requirements.
- 4. SHS (Square HollowSection) Size range Section type: round, square, rectangular, oval and other special section type. Square Hollow Section (ERW Galvenised) Code Width (A) Thickness (T) 12.7x12.7x1.2 12.7 mm 1.2 mm 16x16x1.2 16 mm 1.2 mm 16x16x1.6 16 mm 1.6 mm 19x19x1.2 19 mm 1.2 mm 19x19x1.4 19 mm 1.4 mm 19x19x1.6 19 mm 1.6 mm 19x19x2.0 hrsb 19 mm 2.0 mm 22.2x22.2x1.2 22.2 mm 1.2 mm 22.2x22.2x1.4 22.2 mm 1.4 mm 22.2x22.2x1.6 22.2 mm 1.6 mm 25.4x25.4x1.2 25.4 mm 1.2 mm 25.4x25.4x1.4 25.4 mm 1.4 mm 25.4x25.4x1.6 25.4 mm 1.6 mm 30x30x1.2 30 mm 1.2 mm 30x30x1.6 30 mm 1.6 mm 38x38x1.6 38 mm 1.6 mm 50x50x1.6 50 mm 1.6 mm 60x60x1.6 60 mm 1.6 mm 65x65x1.6 65 mm 1.6 mm 65x65x2.5 65 mm 2.5 mm Square Hollow Section (ERW Black) Code Width (A) Thickness (T) 25.4x25.4x1.6 25.4 mm 1.6 mm 25.4x25.4x2.0 25.4 mm 2.0 mm 30x30x1.6 30 mm 1.6 mm 31.8x31.8x2.5 31.8 mm 2.5 mm 35x35x1.6 35 mm 1.6 mm 38x38x1.6 38 mm 1.6 mm 38x38x2.0 38 mm 2.0 mm 38x38x2.5 38 mm 2.5 mm 50x50x2.0 50 mm 2.0 mm 50x50x2.5 50 mm 2.5 mm 65x65x2.0 65 mm 2.0 mm Add.: No. 273, Siping Road Tel:+8621 33780199 Shanghai, 200081, China Fax:+8621 5107 9722 Http://www.sunnysteel.com E-mail:sales@sunnysteel.com
