- 1. 1 Ship Classification andTypes Adi Wirawan Husodo Jurusan Teknik Permesinan Kapal Politeknik Perkapalan Negeri Surabaya - ITS
- 2. Jenis-jenis Kapal (1) •Kapal-kapal niaga (merchant ships) • High speed craft • Yacth • Warship
- 3. Jenis-jenis Kapal (2) •Transport – Cargo, container ship, passenger ships, etc • Non Transport – Fishing vessels, service craft (tugs, supply vessels, warships)
- 4.
- 5. 5 Classification of Ship A.By usage • Merchant Ship • Naval & Coast Guard Vessel • Recreational Vessel • Utility Tugs • Research & Environmental Ship • Ferries B. By Support Type • Aerostatic Support • Hydrodynamic Support • Hydrostatic Support • Submarine
- 6. 6 Merchant Ships These shipsare intended to earn a profit in the distribution of goods. General Cargo, Tanker, LPG/LNG Carrier, Bulk Carrier, Container Vessel, etc. 1. GENERAL CARGO VESSEL • A lot of Cargo Hold (ruang muat) • Hatch (palka); akses ke ruang muat • Cargo handling equipment : derrick, winches, cranes • Double Bottom : ballast tank, FW tank, fuel tank, etc • Engine room & accommodation room backside • 2000 : 15000 ton displacement • 12 : 18 knots Velocity of service
- 7. 7 Merchant Ships 2. TANKERVESSEL • Liquid carrier (mostly oil) oil tanker • Cargo tank, equipped with longitudinal & transversal bulkhead • Piping system (network pipe) for cargo operation • Pump room • Fore peak & After peak Tank mostly used for water ballast • 12 : 16 knots Vs • Varies tons of displacement
- 8. 8 Merchant Ships 2. TANKERVESSEL (cont.) Tanker General Arrangement LNG tank arrangement
- 9. 9 Merchant Ships 3. BULKCARRIER • Single deck type of vessel • To carry the commodity things; sugar, grain, ore, dll • A lot of Cargo hold • Have 2 longitudinal bulkhead; divide into several cargo space and tank (wing tank) • Cargo hold: Centre hold and 2 wing tank • Up to 150.000 ton of displacement capacity • 12 to 16 knots Vs
- 10. 10 Merchant Ships 4. CONTAINERSHIP • Carry out containers (2435 mm x 2435 mm; 3 types of length: 6055 mm, 9125 mm, 12190 mm) • Wide hatch • Designed double bottom: ballast and improve the longitudinal strength of ship • Wing tank: ballast and heeling management (especially in loading unloading process) • Accommodation and ER in backside • Up to 30 knots of Vs

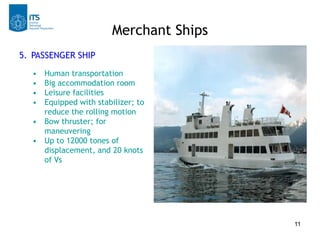

- 11. 11 Merchant Ships 5. PASSENGERSHIP • Human transportation • Big accommodation room • Leisure facilities • Equipped with stabilizer; to reduce the rolling motion • Bow thruster; for maneuvering • Up to 12000 tones of displacement, and 20 knots of Vs
- 12. 12 Naval & CoastGuard Vessel • Classified as combatants or auxiliaries. These ships tend to be extremely expensive because their missions require many performance capabilities such as speed, endurance, weapons payload, ability to operate and survive in hostile environments and reliability under combat conditions.
- 13. 13 • Recreational Vessel Personalpleasure craft and cruise liners are a specialized class of ships that are run to earn a profit by providing recreation services to the general public. Comfort and safety are of utmost importance. • Utility Tugs Designed for long operation and easy maintenance with a no frills approach. • Research & Environmental Ship Highly specialized equipment must be kept and often deployed into and out of the water. • Ferries People and Vehicles must be able to be loaded and unloaded with efficiency and safety in accordance with a strict time schedule in all weather conditions. By usage (cont.)
- 14.
