- 1. Wireless Workshop: MAC Layer Presentation ShawnG. Rainbolt February 22, 2015 Intro to W-LAN Technologies (IT/241) Gregory Ellis University of Phoenix
- 2. Summary of Presentation OWLAN Configurations O Peer-to-Peer O Example Layout O Advantages & Disadvantages O Security Risks O LAN O Example Layout O Advantages & Disadvantages O Security Risks O Hotspots O Example Layout O Advantages & Disadvantages O Security Risks O WLAN Authentication Methods O How it Works O Security Risks Methods O Recommended Method
- 3. WLAN Configurations O Peer-to-Peer ODirect connections are usually temporary (Coleman & Westcock, 2012). Considered an “independent basic service set” (IBSS) (DeLaet, 2004). O Each PC or device is equal to the other on the network. This “democracy” has no centralized computer monitoring or controlling the communication on the network (Wolf, 2002) O LAN O Connections are more long-term and are established with stronger authentication methods. O Exchange of data packets without connection to the Internet. O Hotspots O Multiple-point access grants easily accessible connection to the Internet. O Considered an “infrastructure basic service set”
- 4. WLAN: Peer-to-Peer O DirectConnection O Temporary or short-term O No centralized computer O Network resources are readily shared O Printers, Fax machines, and Shared files are not restricted to the used by one computer or device.
- 6. Peer-to-Peer Advantages Disadvantages O Out-of-boxReady O Easy to setup O Low cost O Short range, temporary connection O Almost no security features O One PTP session at a time permitted with shared resources (e.i. printer) O One down PC will break all network connections O Network speed can be diminished by one “hungry” computer.
- 7. WLAN: LAN O Connectionsare more long-term. O Begins with attaching an access-point (AP) O Usually the “edge” of a wired network O Stronger authentication methods. O Wired Equivalent Privacy (WEP) O No Internet connection needed. O LAN can be established for business intranet or at- home file-sharing network.
- 9. LAN Advantages Disadvantages O WEPSecurity encryption O Inexpensive medium of data transmission O High-data transmission rate O Shared resources O Wired line failure breaks down the wireless LAN O Limit to devices connected on one access point O Bandwidth diminishes as more devices connect to AP
- 10. WLAN: Hotspots O Multiple-pointaccess points O Required wireless (Wi-Fi) connection. O “Free” service is not for file sharing with others on network. O Smartphone can act as hotspots or tethering O Commonly compared to “ad-hoc” networking O Considered an “infrastructure basic service set” (IBS), though an AP is not required. O Based on hardware installed, where on the network its placed, and its available resources it lends O Becomes a node that forwards data to a destination
- 12. Hotspots Advantages Disadvantages O Freeaccess to a network O Quick access O Portability O Scalability O Limited, shared network resources O Security vulnerability O Hotspot fails, entire network fails
- 13. Authentication Methods O WLANAuthentication Methods O Open System Authentication O Shared Key Authentication
- 14. How Authentication Works (OpenSystem) “Exchange of Hellos” Only (Shared Key) 1. Device sends request to AP, AP sends cleartext back 2. Device encrypts the cleartext and sends back to AP 3. AP decrypts the device message, compares to original challenge 4. If messages match then AP sends confirmation O Security Risks Methods O Open System has only “handshakes” where other devices can “listen” and capture data exchange. O Shared Key uses WEP key and each data frame is encrypted. As long as the AP’s cleartext and device’s cleartext response is not captured by a would-be hacker, the data exchanges will stay private. O New 802.11 devices have “fragmentation of frames” that serves as another layer of protection.
- 15. Recommended Method O Itis my observation that it is best to have a newer wireless device that complies with the IEEE 802.11-2007 standard O Uses WEP O Shared Key O Authentication & Associations states O Fragmentation
- 16. References Coleman, D. D.,& Westcott, D. A. (2012). CWNA certified wireless network administrator official study guide: Exam PW0-104. (3rd ed.) Indianapolis, IN: Wiley Publishing. DeLaet, Gert. (December 30, 2004). “Cisco Network Security Fundamentals: Wireless Security.” Retrieved from: http://www.ciscopress.com/articles/article.asp?p=360065 Wolf, Michael. (April 19, 2002). “Home Networking: What Type is Best?” Retrieved from: http://www.informit.com/articles/article.aspx?p=26437&seqNum=3
Editor's Notes
- #2 MAC Layer Presentation Shawn G. Rainbolt February 22, 2015 Intro to W-LAN Technologies (IT/241) Gregory Ellis University of Phoenix

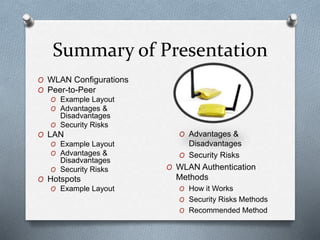

- #3 Summary of Presentation WLAN Configurations Peer-to-Peer Example Layout Advantages & Disadvantages Security Risks LAN Example Layout Advantages & Disadvantages Security Risks Hotspots Example Layout Advantages & Disadvantages Security Risks WLAN Authentication Methods How it Works Security Risks Methods Recommended Method (image credit: ecvv.com)
- #4 There are three WLAN configurations in “end-user” networking: Peer-to-Peer (PTP), LAN, and Hotspots (DeLaet, 2004). The first form of WLAN is a “multiple-segment” WLAN that extends coverage through the use of overlapping “cell” zones. There is no governing computer that monitors the exchange of data packets beside what is embedded in the operating system. An example of a common PTP is Bluetooth technology (such as a wireless headset to a smartphone). The second form of end-use networking is LAN. The network is established to pass data packets through a medium before reaching its destination, such as a hub, switch, or wireless router. The router, for example, has some built in security features and each computer on the network will have a firewall (to deal with only trusted computers inside the LAN). A common LAN configuration would be that of a home wireless network that connects 4 devices (for example). Within these more long-term connections, files can be shared immediately with those on the at-home network without an outside connection to the Internet. A third WLAN configuration would be Hotspot. Hotspot is referred to as “the infrastructure basic service set.” These networks are mostly public, such as schools, cafes, and small businesses. These multiple-point access areas grant easily accessible connection to the Internet without wires.
- #5 Direct connections are usually temporary (Coleman & Westcock, 2012). Considered an “independent basic service set” (IBSS) (DeLaet, 2004). Each PC or device is equal to the other on the network. This “democracy” has no centralized computer monitoring or controlling the communication on the network (Wolf, 2002)

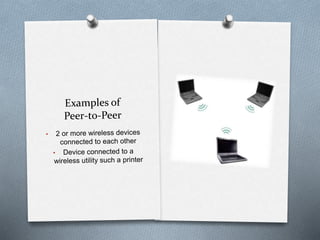

- #6 (image credit: technologyuk.net) Examples of Peer-to-Peer network are 2 or more wireless devices connected to each other, or a device connected to a wireless utility such as a printer.
- #7 Peer-to Peer networks have advantages and disadvantages. Depending on the need, a user may prefer the use of PTP networking. Advantages include that it is ready to set (right from the store box), easy to setup with a few clicks, and generally low cost. Most often the operating systems come with the feature of listening for available network connections and with a simple password can establish the PTP connection. Too, many devices (such as smartphones or tablets) have this capability already available – so no new software needs to be purchased. With every network connection, there are disadvantages. PTP is limited to short-range and temporary connection (often the connection ends with a successful transmission of a file). There are no security features with this connection besides what is already included with the operating system. If a printer is being used by another device it cannot be used by another PTP connection until it is finished. If one PC or device goes down the network connection ends.

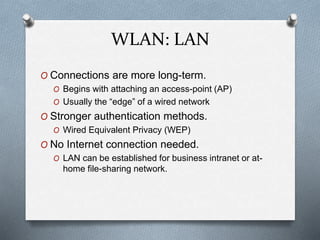

- #8 Connections are more long-term than compared to Peer-to-Peer or Hotspot. When a wireless access point is added to a network it creates a Local Area Network (LAN). Since, most access points are wired to a service provider, they are considered the “edge” of the wired network (the point were Internet connections become wireless). Within the LAN the authentication methods become stronger (more secure) starting with the Wired Equivalent Privacy (WEP). This security code system allows the group of devices to exchange encoded messages. This hides contents of the message from outsiders. When devices agree to the terms of use, and matching up the WEP keys the wireless routers grant access to the network. Often, it is the network administrator the sets up the hexadecimal digits used for WEP keys. Though most wireless LANs are used for the edge of a wired network to access the Internet, having a connection to the Internet is not required to setup and use a LAN. Some business intranets mimic the features of the Internet but do not allow all users full access to the Internet. Some at-home networks are setup just to exchange project files or other files to share between devices.
