This document discusses shading devices, their purposes, types, and design considerations. Shading devices are used externally or internally in buildings to protect from direct sunlight and create a comfortable interior environment. They can reduce cooling loads and costs by decreasing heat gain, while also improving comfort and aesthetics. Common types include internal devices like curtains, blinds, and louvers, and external horizontal, vertical, and egg-crate shading. Effective shading design considers the sun path and dimensions to block sunlight at different angles. Examples of shading designs in buildings are provided.

1. SHADING DEVICES
AND ITS APPLICATION

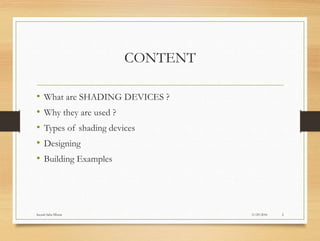

2. CONTENT
• What are SHADING DEVICES ?
• Why they are used ?
• Types of shading devices
• Designing
• Building Examples
11/29/2016Suyash Sahu IIIsem 2

3.  Shading devices are
equipments that are used
externally or internally or
in between the building
spaces to protect from
direct sunlight.
 Objective is to create
comfortable internal
environment
11/29/2016 3Suyash Sahu IIIsem

4. WHY SHADING DEVICES ?
• To reduce heat gain during summer, reduce the cooling loads and
therefore minimize costs.
• Improving internal environment for greater comfort.
• Some shading devices improve the internal or external aesthetics of
building.
• Therefore it is essential to use shading devices.
11/29/2016Suyash Sahu IIIsem 4

5. TYPES OF SHADING DEVICES
• INTERNAL
• EXTERNAL
11/29/2016Suyash Sahu IIIsem 5

6. 11/29/2016Suyash Sahu IIIsem 6
INTERNAL SHADING DEVICES
CURTAINS BLACKOUT BLINDS
ROLLER BLINDS
VERTICAL LOUVER BLINDSVENETIAN BLINDS

7. 11/29/2016Suyash Sahu IIIsem 7
EXTERNAL SHADING DEVICES
HORIZONTAL SHADING
VERTICAL SHADING
THE EGG-CRATE

8. 11/29/2016Suyash Sahu IIIsem 8

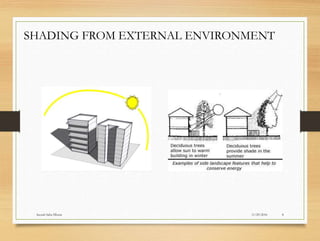

SHADING FROM EXTERNAL ENVIRONMENT

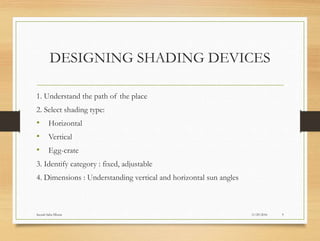

9. DESIGNING SHADING DEVICES
1. Understand the path of the place
2. Select shading type:
• Horizontal
• Vertical
• Egg-crate
3. Identify category : fixed, adjustable
4. Dimensions : Understanding vertical and horizontal sun angles
11/29/2016Suyash Sahu IIIsem 9

10. 11/29/2016Suyash Sahu IIIsem 10

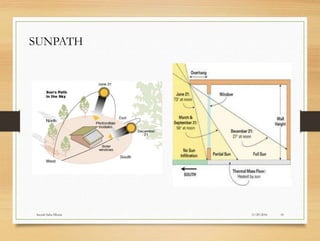

SUNPATH

11. BUILDING EXAMPLES
11/29/2016Suyash Sahu IIIsem 11

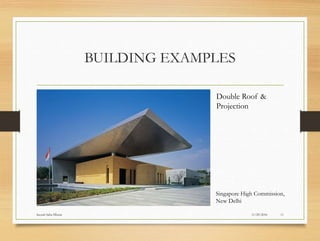

Double Roof &
Projection
Singapore High Commission,
New Delhi

12. BUILDING EXAMPLES
11/29/2016Suyash Sahu IIIsem 12
THE EGG-CRATE SHADING DEVICE
HIGH COURT, CHANDIGARH

13. BUILDING EXAMPLES
11/29/2016Suyash Sahu IIIsem 13

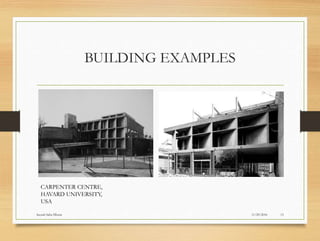

CARPENTER CENTRE,
HAVARD UNIVERSITY,
USA

14. BUILDING EXAMPLES
11/29/2016Suyash Sahu IIIsem 14

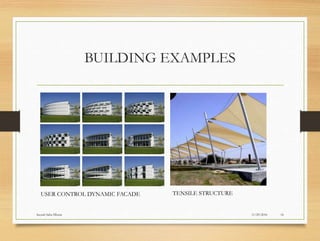

USER CONTROL DYNAMIC FACADE TENSILE STRUCTURE

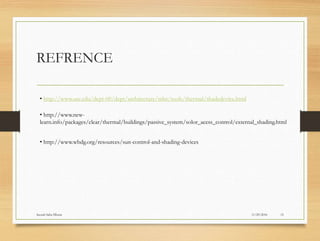

15. REFRENCE
11/29/2016Suyash Sahu IIIsem 15
• http://www.usc.edu/dept-00/dept/architecture/mbs/tools/thermal/shadedevice.html
• http://www.new-
learn.info/packages/clear/thermal/buildings/passive_system/solor_acess_control/external_shading.html
• http://www.wbdg.org/resources/sun-control-and-shading-devices

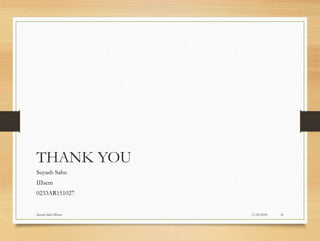

16. THANK YOU
Suyash Sahu
IIIsem
0233AR151027
11/29/2016Suyash Sahu IIIsem 16
