Shading devices are tools designed to block direct sunlight and create a comfortable internal environment, helping to reduce heat gain and cooling costs. They come in two main types: internal (like curtains and blinds) and external (such as horizontal and vertical shades). Effective design involves understanding sunlight paths and selecting appropriate types and dimensions for optimal performance.

1. SHADING DEVICES
AND ITS APPLICATION

2. CONTENT
• What are SHADING DEVICES ?
• Why they are used ?
• Types of shading devices
• Designing
• Building Examples
11/29/2016
Suyash Sahu IIIsem 2

3.  Shading devices are
equipments that are used
externally or internally or
in between the building
spaces to protect from
direct sunlight.
 Objective is to create
comfortable internal
environment
11/29/2016 3
Suyash Sahu IIIsem

4. WHY SHADING DEVICES ?
• To reduce heat gain during summer, reduce the cooling loads and
therefore minimize costs.
• Improving internal environment for greater comfort.
• Some shading devices improve the internal or external aesthetics of
building.
• Therefore it is essential to use shading devices.
11/29/2016
Suyash Sahu IIIsem 4

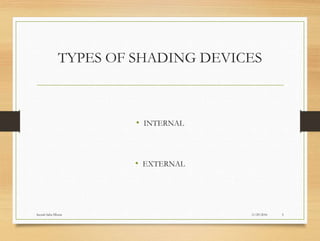

5. TYPES OF SHADING DEVICES
• INTERNAL
• EXTERNAL
11/29/2016
Suyash Sahu IIIsem 5

6. 11/29/2016
Suyash Sahu IIIsem 6

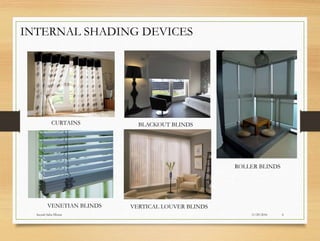

INTERNAL SHADING DEVICES
CURTAINS BLACKOUT BLINDS
ROLLER BLINDS
VERTICAL LOUVER BLINDS
VENETIAN BLINDS

7. 11/29/2016
Suyash Sahu IIIsem 7
EXTERNAL SHADING DEVICES
HORIZONTAL SHADING
VERTICAL SHADING
THE EGG-CRATE

8. 11/29/2016
Suyash Sahu IIIsem 8

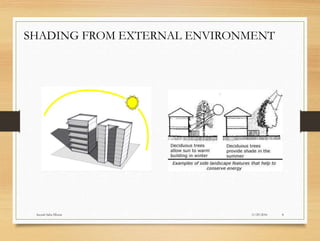

SHADING FROM EXTERNAL ENVIRONMENT

9. DESIGNING SHADING DEVICES
1. Understand the path of the place
2. Select shading type:
• Horizontal
• Vertical
• Egg-crate
3. Identify category : fixed, adjustable
4. Dimensions : Understanding vertical and horizontal sun angles
11/29/2016
Suyash Sahu IIIsem 9

10. 11/29/2016
Suyash Sahu IIIsem 10

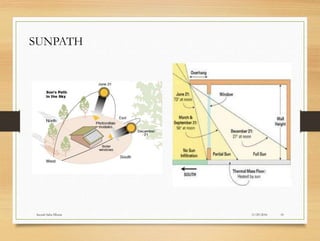

SUNPATH

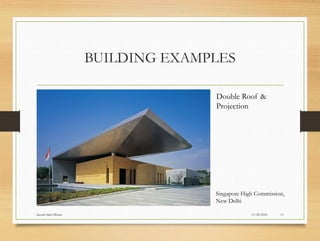

11. BUILDING EXAMPLES
11/29/2016
Suyash Sahu IIIsem 11
Double Roof &
Projection
Singapore High Commission,
New Delhi

12. BUILDING EXAMPLES
11/29/2016
Suyash Sahu IIIsem 12
THE EGG-CRATE SHADING DEVICE
HIGH COURT, CHANDIGARH

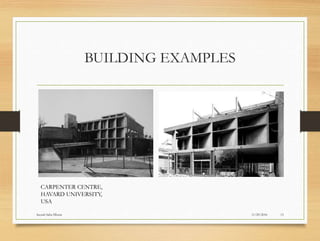

13. BUILDING EXAMPLES
11/29/2016
Suyash Sahu IIIsem 13
CARPENTER CENTRE,
HAVARD UNIVERSITY,
USA

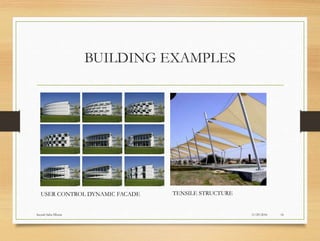

14. BUILDING EXAMPLES
11/29/2016
Suyash Sahu IIIsem 14
USER CONTROL DYNAMIC FACADE TENSILE STRUCTURE

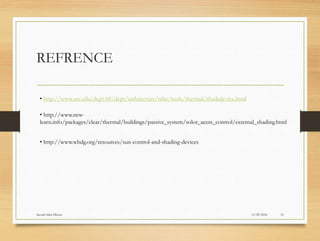

15. REFRENCE
11/29/2016
Suyash Sahu IIIsem 15
• http://www.usc.edu/dept-00/dept/architecture/mbs/tools/thermal/shadedevice.html
• http://www.new-
learn.info/packages/clear/thermal/buildings/passive_system/solor_acess_control/external_shading.html
• http://www.wbdg.org/resources/sun-control-and-shading-devices

16. THANK YOU
Suyash Sahu
IIIsem
0233AR151027
11/29/2016
Suyash Sahu IIIsem 16
