Secure Power Design Considerations
- 1. Secure Power designconsiderations Confidential Property of Schneider Electric |

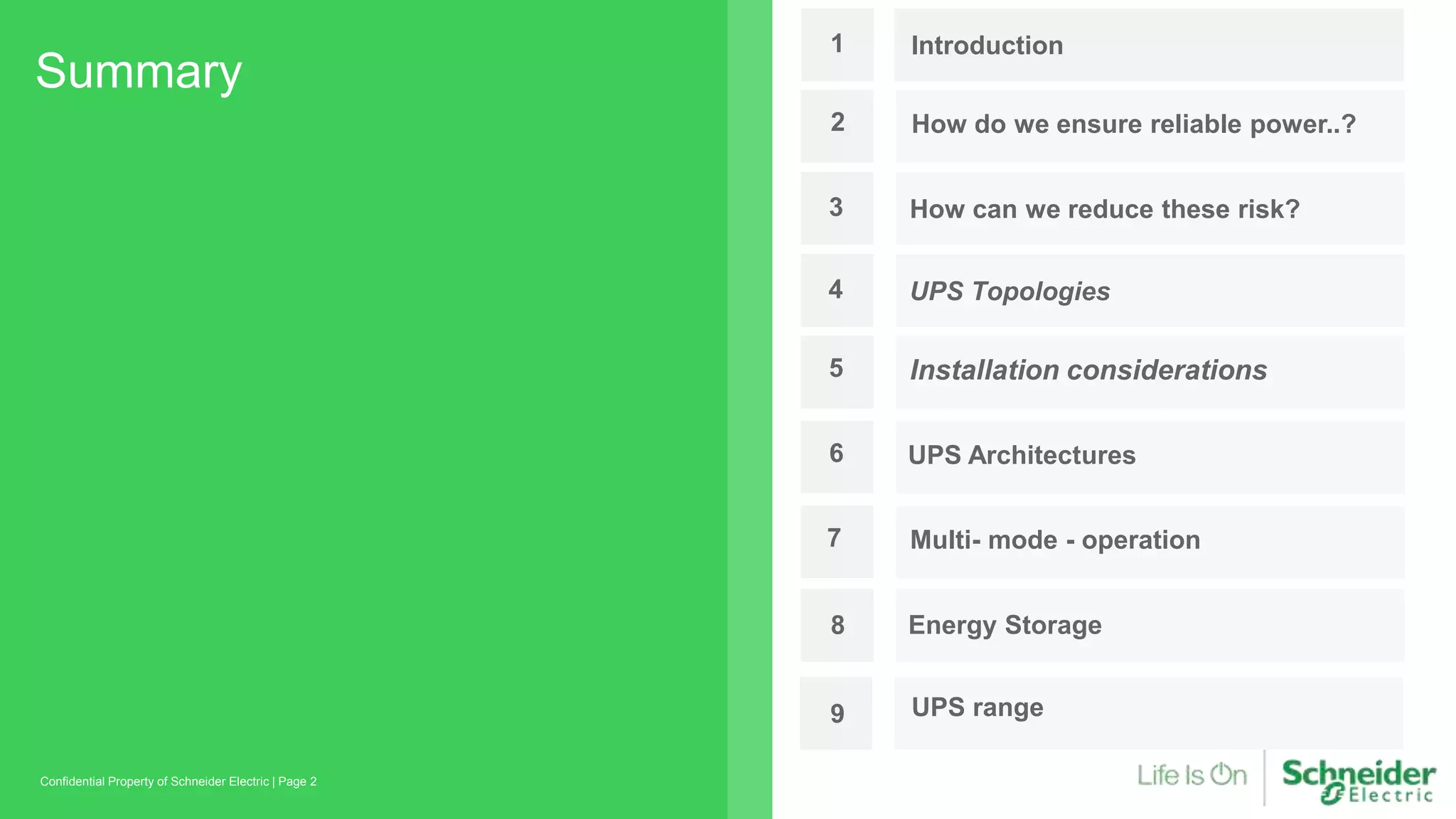

- 2. Summary Page 2Confidential Propertyof Schneider Electric | 1 Introduction 2 How do we ensure reliable power..? 3 How can we reduce these risk? 4 UPS Topologies 5 Installation considerations 6 UPS Architectures 7 Multi- mode - operation 8 Energy Storage UPS range9
- 3. More ELECTRIC Increase by 50%in the next 25 years More CONNECTED Connect 50bn devices by 2020 More DISTRIBUTED Solar PV and Storage to Account for ~50% of new capacity additions by 2030 More EFFICIENT Still.. 2/3 energy efficiency potential.. remains untapped .!! Our World Will Be…
- 4. Back to index Mining(Metals & Minerals) Water & Wastewater Datacenter Healthcare Oil and Gas Building No matter the type of business… reliable power is essential
- 5. Confidential Property ofSchneider Electric | Page 5 Confidential Property of Schneider Electric | How do we ensure reliable power..?

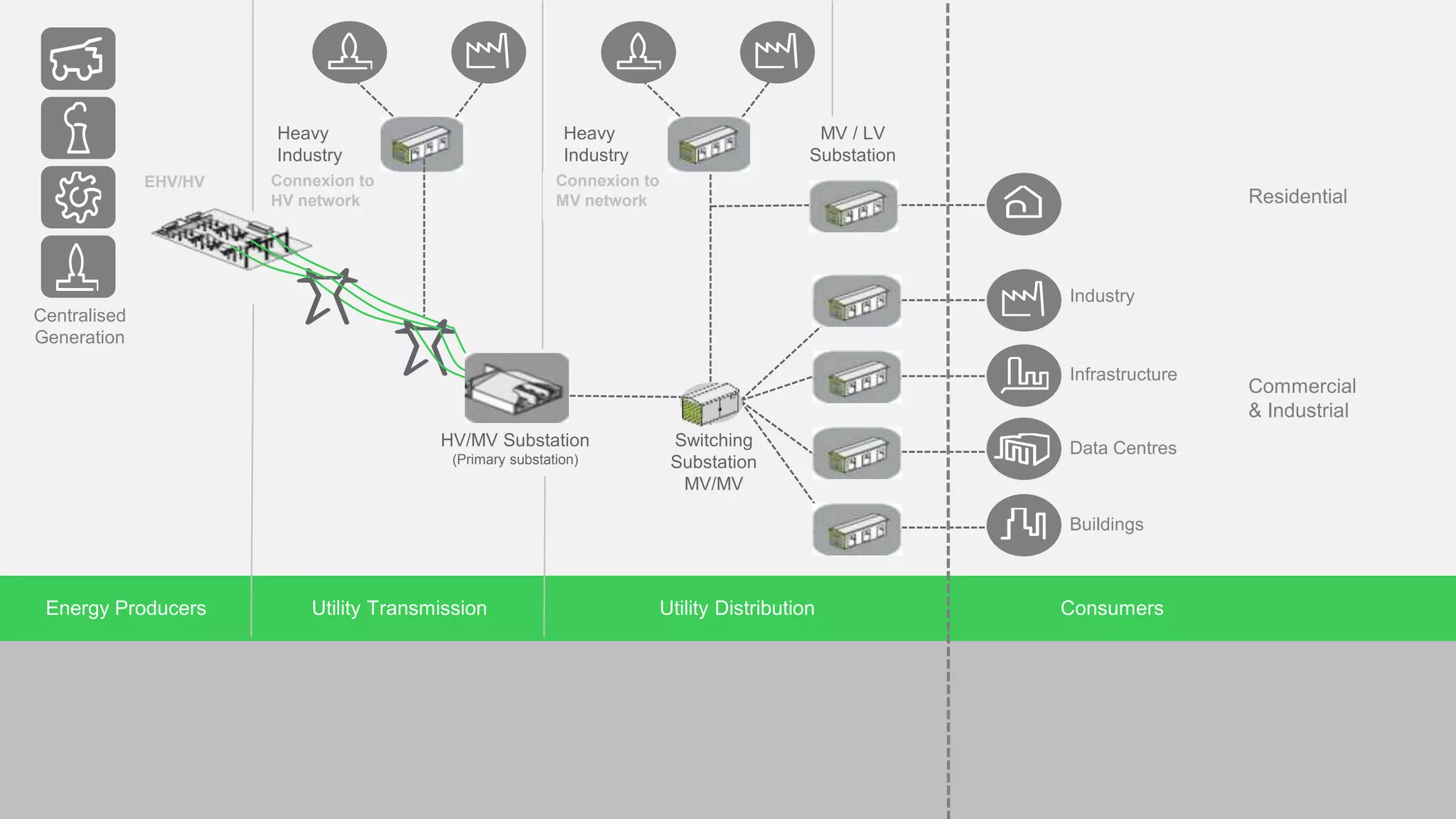

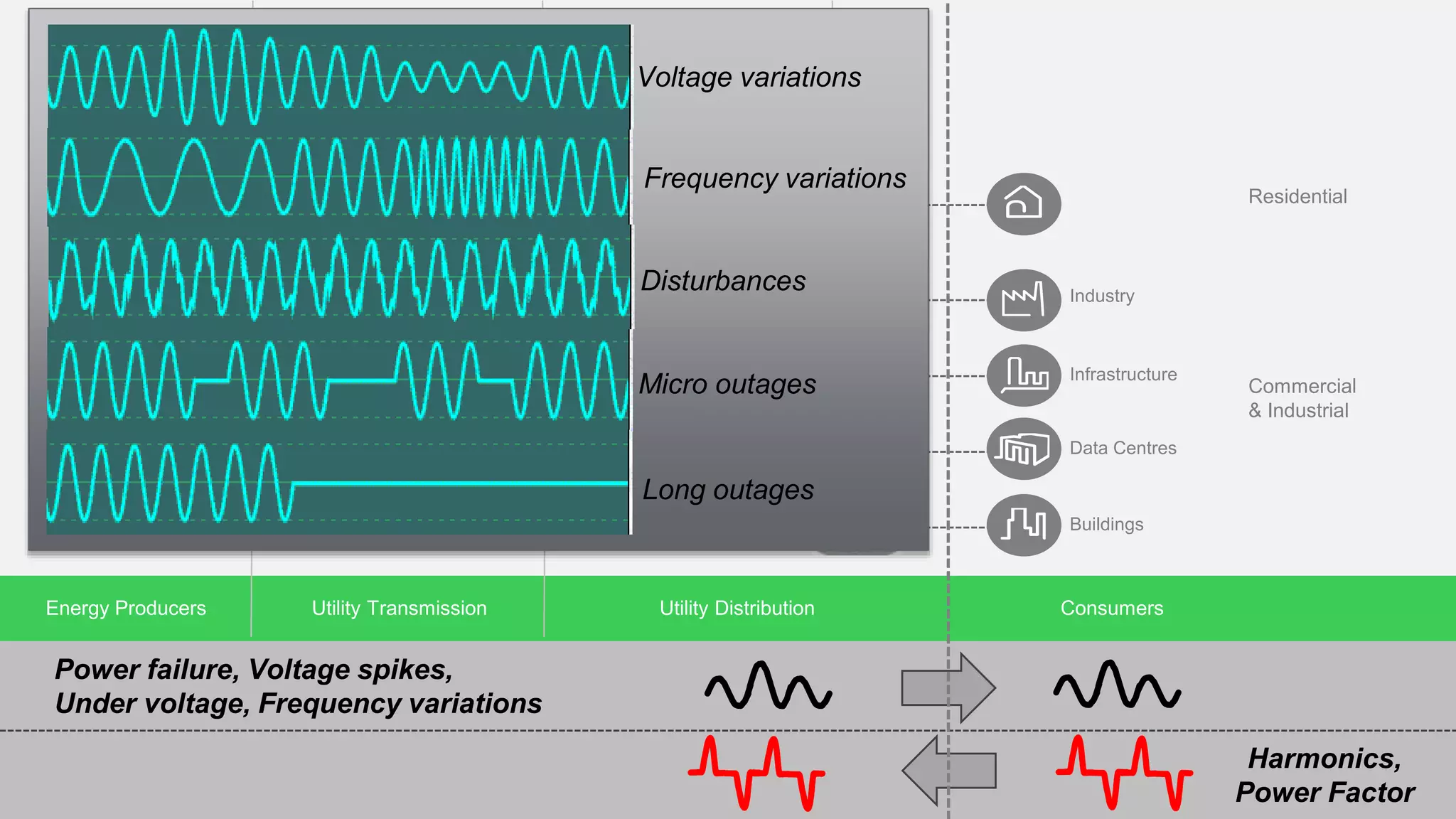

- 6. Heavy Industry Commercial & Industrial Industry Buildings Data Centres Residential Infrastructure EHV/HV Centralised Generation HV/MVSubstation (Primary substation) Switching Substation MV/MV Heavy Industry MV / LV Substation Connexion to HV network Connexion to MV network ConsumersEnergy Producers Utility Transmission Utility Distribution
- 7. Heavy Industry Commercial & Industrial Industry Buildings Data Centres Residential Infrastructure EHV/HV Centralised Generation HV/MVSubstation (Primary substation) Switching Substation MV/MV Heavy Industry MV / LV Substation Connexion to HV network Connexion to MV network ConsumersEnergy Producers Utility Transmission Utility Distribution Power failure, Voltage spikes, Under voltage, Frequency variations Harmonics, Power Factor Disturbances Voltage variations Frequency variations Micro outages Long outages
- 8. Confidential Property ofSchneider Electric | Page 8 Confidential Property of Schneider Electric | How can we reduce these risk? - Power failure - Voltage spikes - Under voltage - Frequency variations

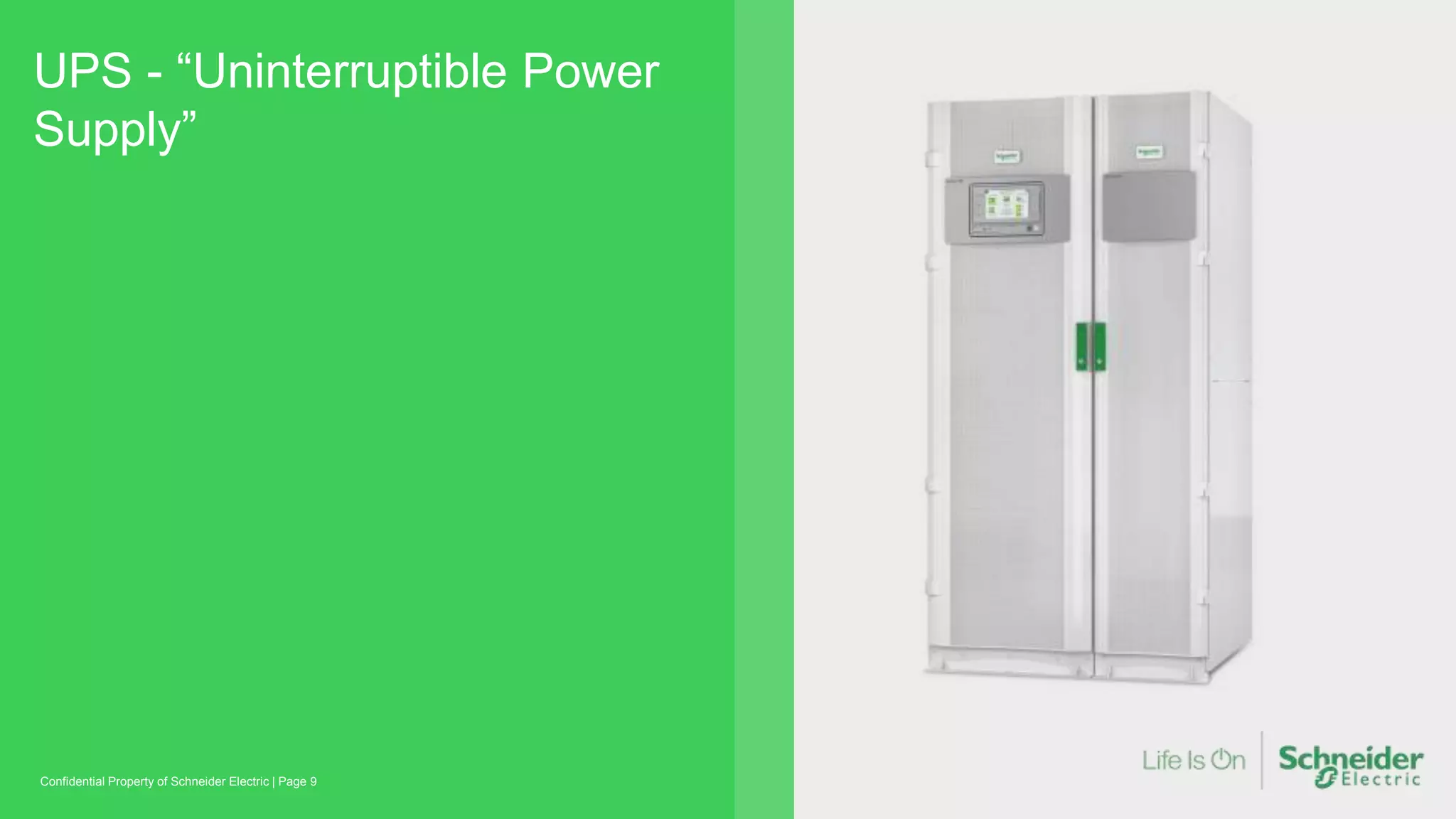

- 9. UPS - “UninterruptiblePower Supply” Page 9Confidential Property of Schneider Electric |

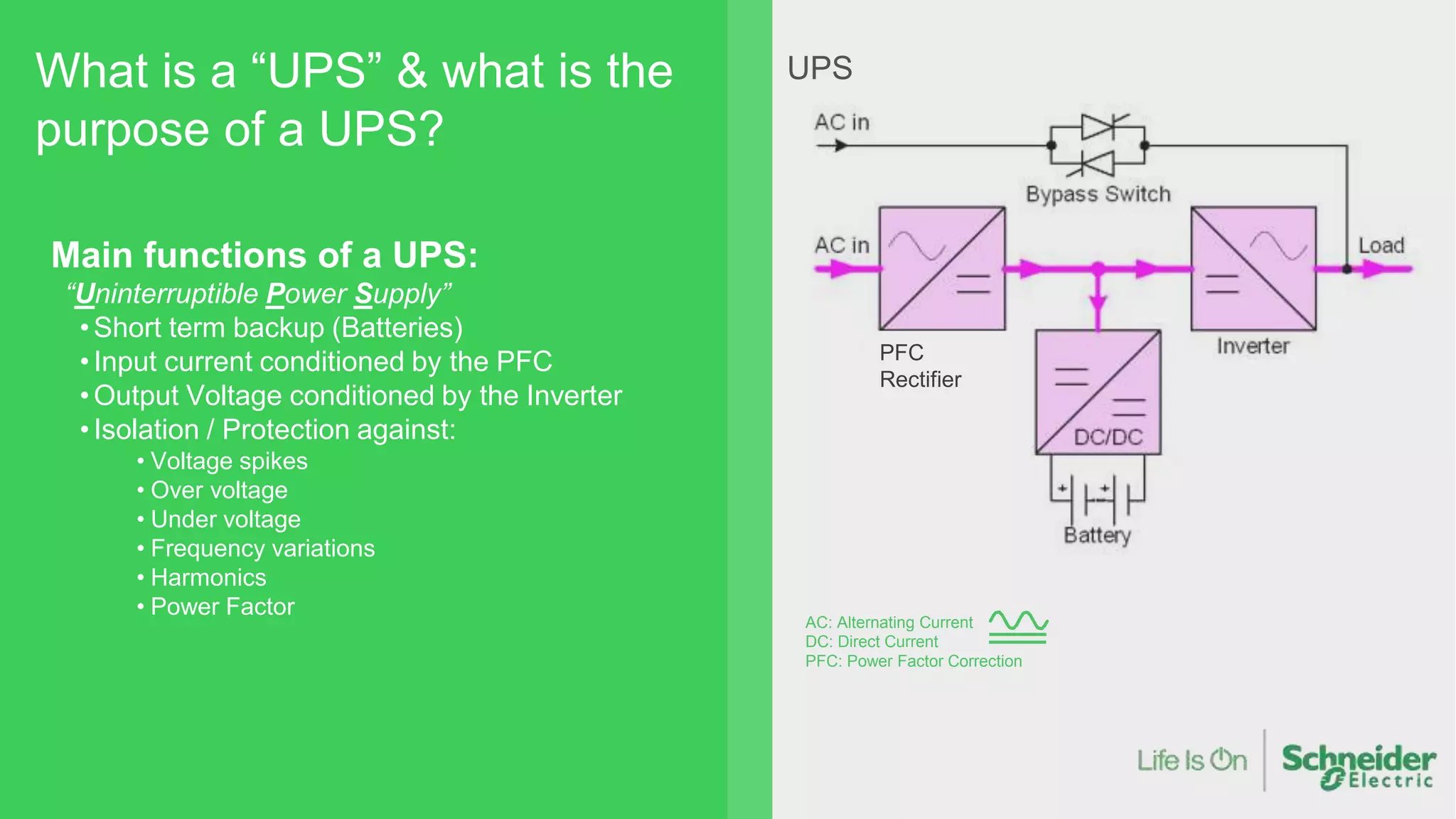

- 10. PFC Rectifier UPS AC: Alternating Current DC:Direct Current PFC: Power Factor Correction What is a “UPS” & what is the purpose of a UPS? Main functions of a UPS: “Uninterruptible Power Supply” •Short term backup (Batteries) •Input current conditioned by the PFC •Output Voltage conditioned by the Inverter •Isolation / Protection against: • Voltage spikes • Over voltage • Under voltage • Frequency variations • Harmonics • Power Factor

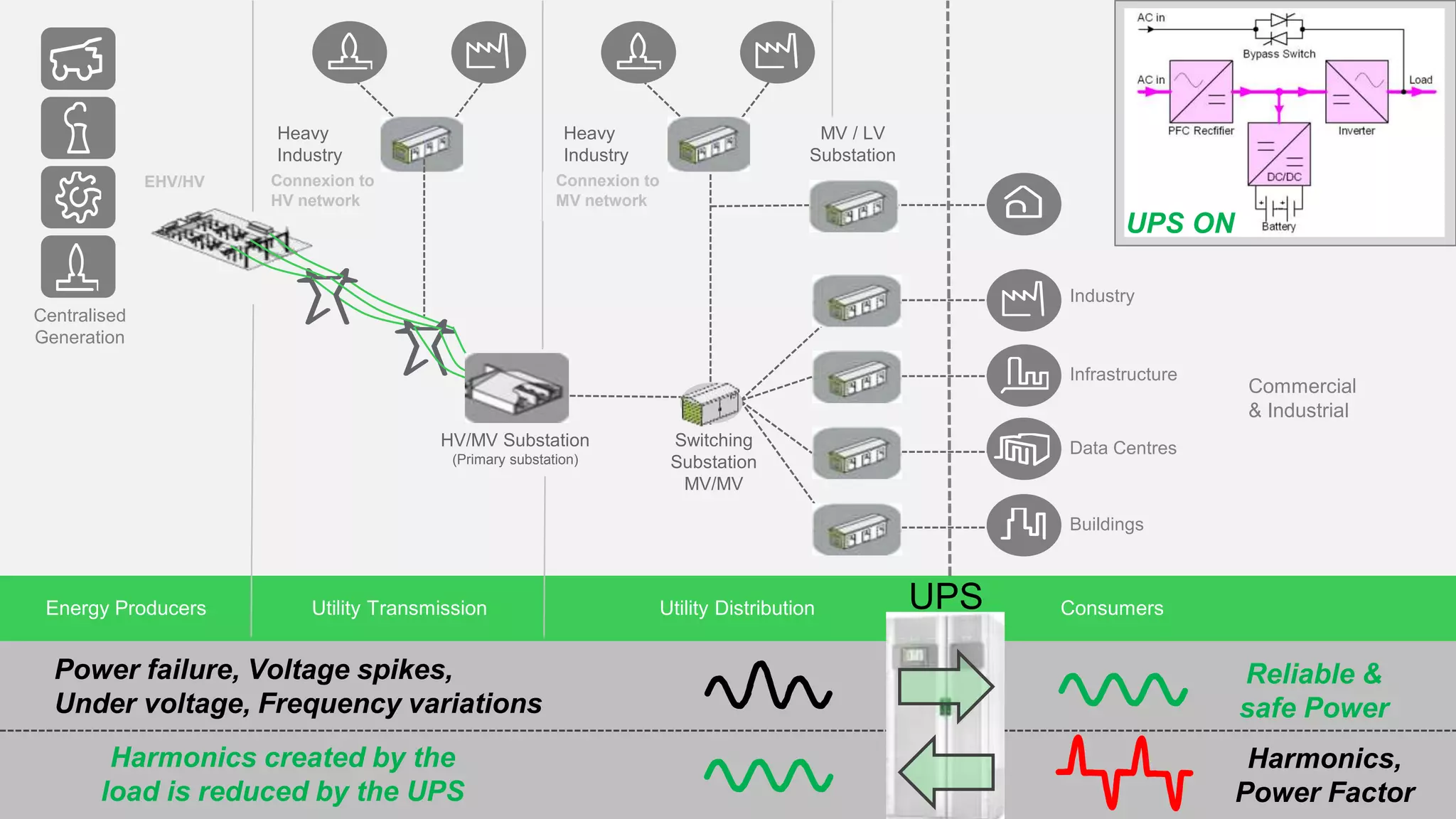

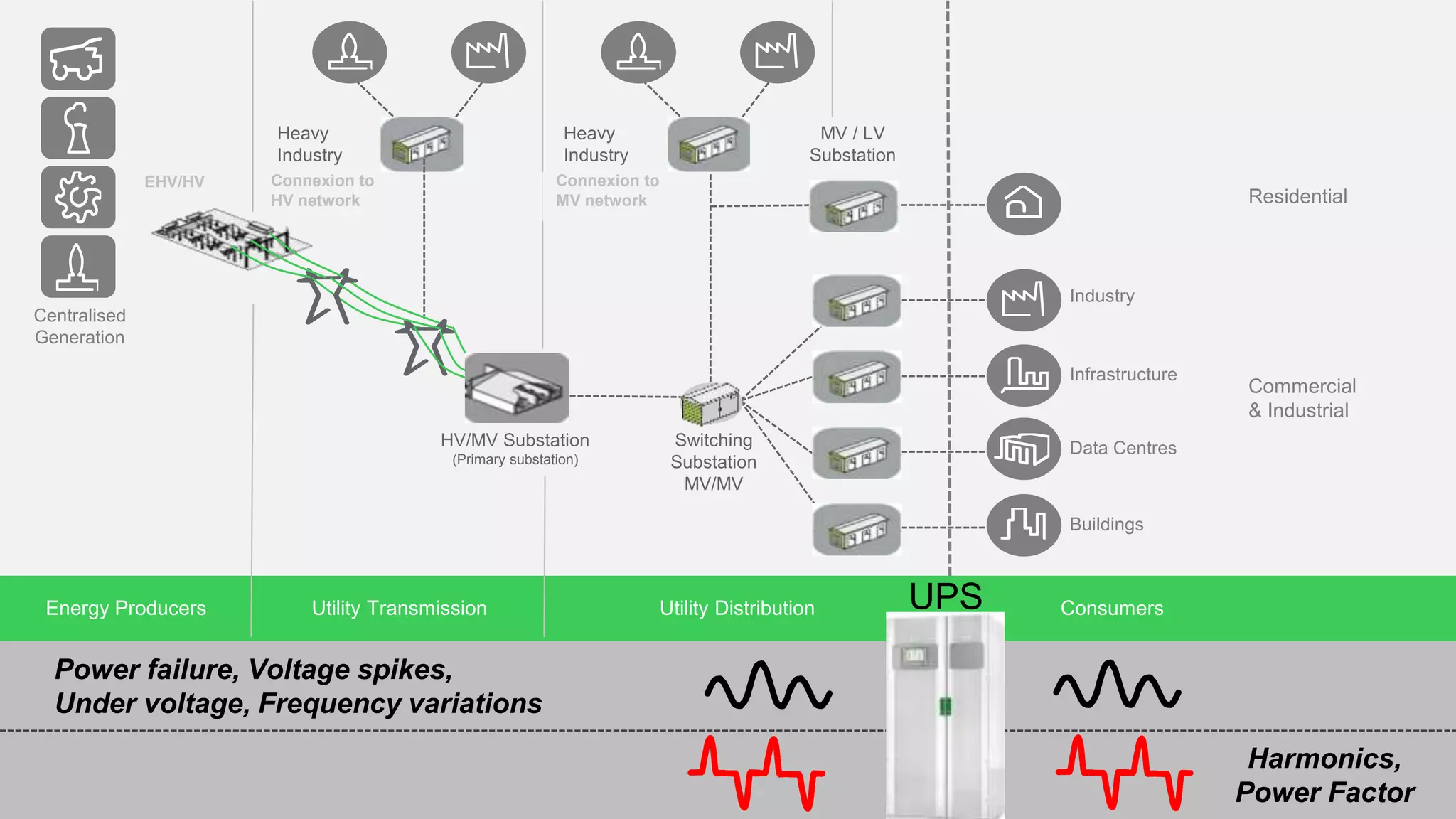

- 11. Heavy Industry Commercial & Industrial Industry Buildings Data Centres Residential Infrastructure EHV/HV Centralised Generation HV/MVSubstation (Primary substation) Switching Substation MV/MV Heavy Industry MV / LV Substation Connexion to HV network Connexion to MV network Energy Producers Utility Transmission Utility Distribution Power failure, Voltage spikes, Under voltage, Frequency variations Harmonics, Power Factor UPS Consumers
- 12. Heavy Industry Commercial & Industrial Industry Buildings Data Centres Residential Infrastructure EHV/HV Centralised Generation HV/MVSubstation (Primary substation) Switching Substation MV/MV Heavy Industry MV / LV Substation Connexion to HV network Connexion to MV network Energy Producers Utility Transmission Utility Distribution Power failure, Voltage spikes, Under voltage, Frequency variations Harmonics, Power Factor Power Grid Customer Grid UPS Consumers Reliable & safe Power Harmonics created by the load is reduced by the UPS UPS ON
- 13. UPS Topologies Page 13ConfidentialProperty of Schneider Electric |

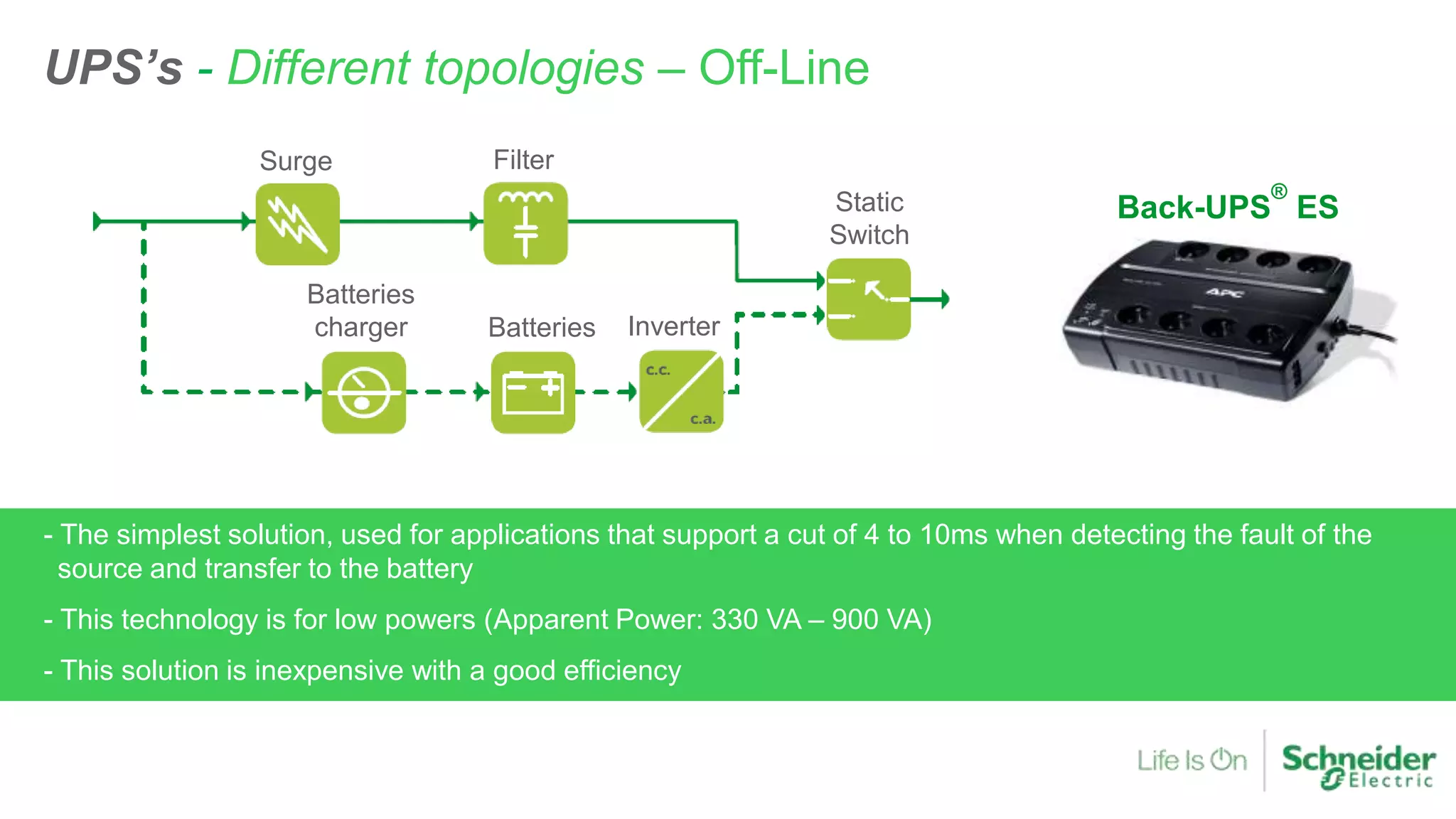

- 14. - The simplestsolution, used for applications that support a cut of 4 to 10ms when detecting the fault of the source and transfer to the battery - This technology is for low powers (Apparent Power: 330 VA – 900 VA) - This solution is inexpensive with a good efficiency UPS’s - Different topologies – Off-Line Back-UPS ® ES Surge Filter Static Switch Batteries charger Batteries Inverter

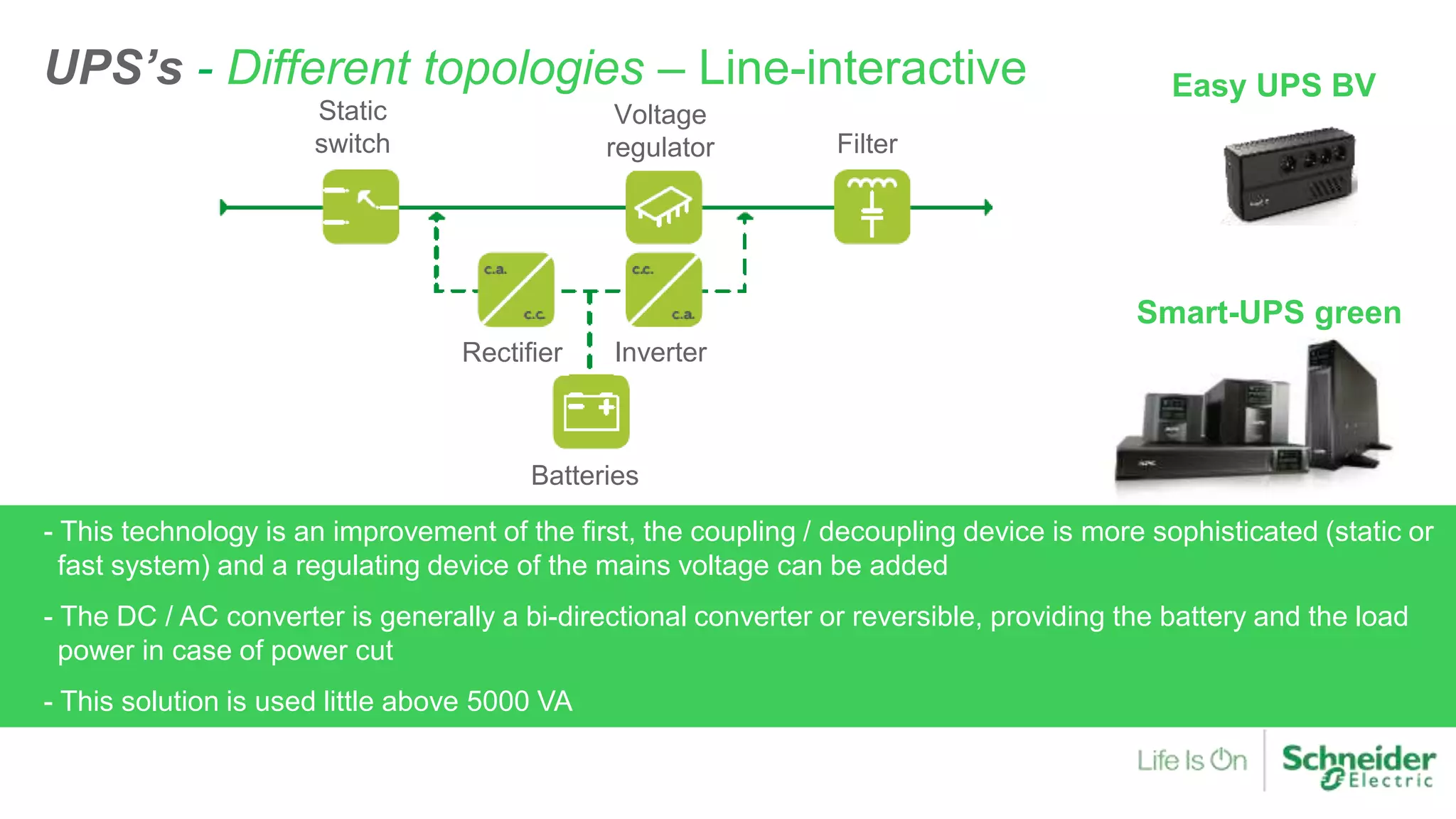

- 15. UPS’s - Differenttopologies – Line-interactive Easy UPS BV Smart-UPS green - This technology is an improvement of the first, the coupling / decoupling device is more sophisticated (static or fast system) and a regulating device of the mains voltage can be added - The DC / AC converter is generally a bi-directional converter or reversible, providing the battery and the load power in case of power cut - This solution is used little above 5000 VA Static switch Voltage regulator Filter Rectifier Inverter Batteries
- 16. UPS’s - Differenttopologies – On-line Double conversion - The load is permanently supplied by the converter, which allows to regulate frequency and voltage - This technology is particularly suitable for very disturbed networks or very sensitive applications - This technology is used for power supplies up to 1,6 MVA Smart-UPS RT Gamme Galaxy By-pass static switch Rectifier Inverter Batteries
- 17.
- 18. Click each logoto learn more. Because these are the primary organizations that create the requirements for UPS systems, you should have a general understanding of how they work and how Schneider Electric works with them. Page 18Confidential Property of Schneider Electric | Standards - UPS Requirements

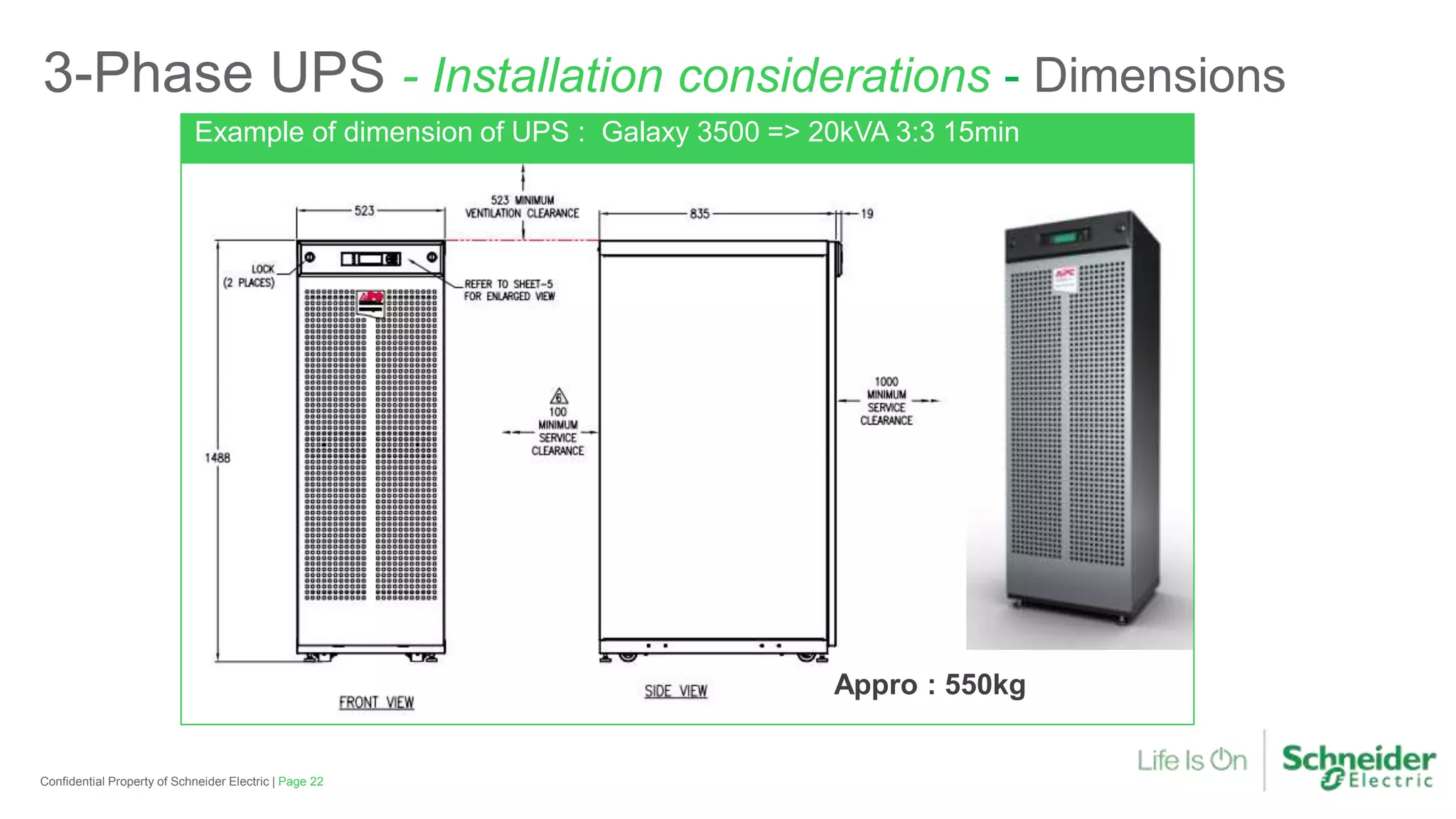

- 19. Appro : 550kg 3-PhaseUPS - Installation considerations - Dimensions Example of dimension of UPS : Galaxy 3500 => 20kVA 3:3 15min Page 22Confidential Property of Schneider Electric |

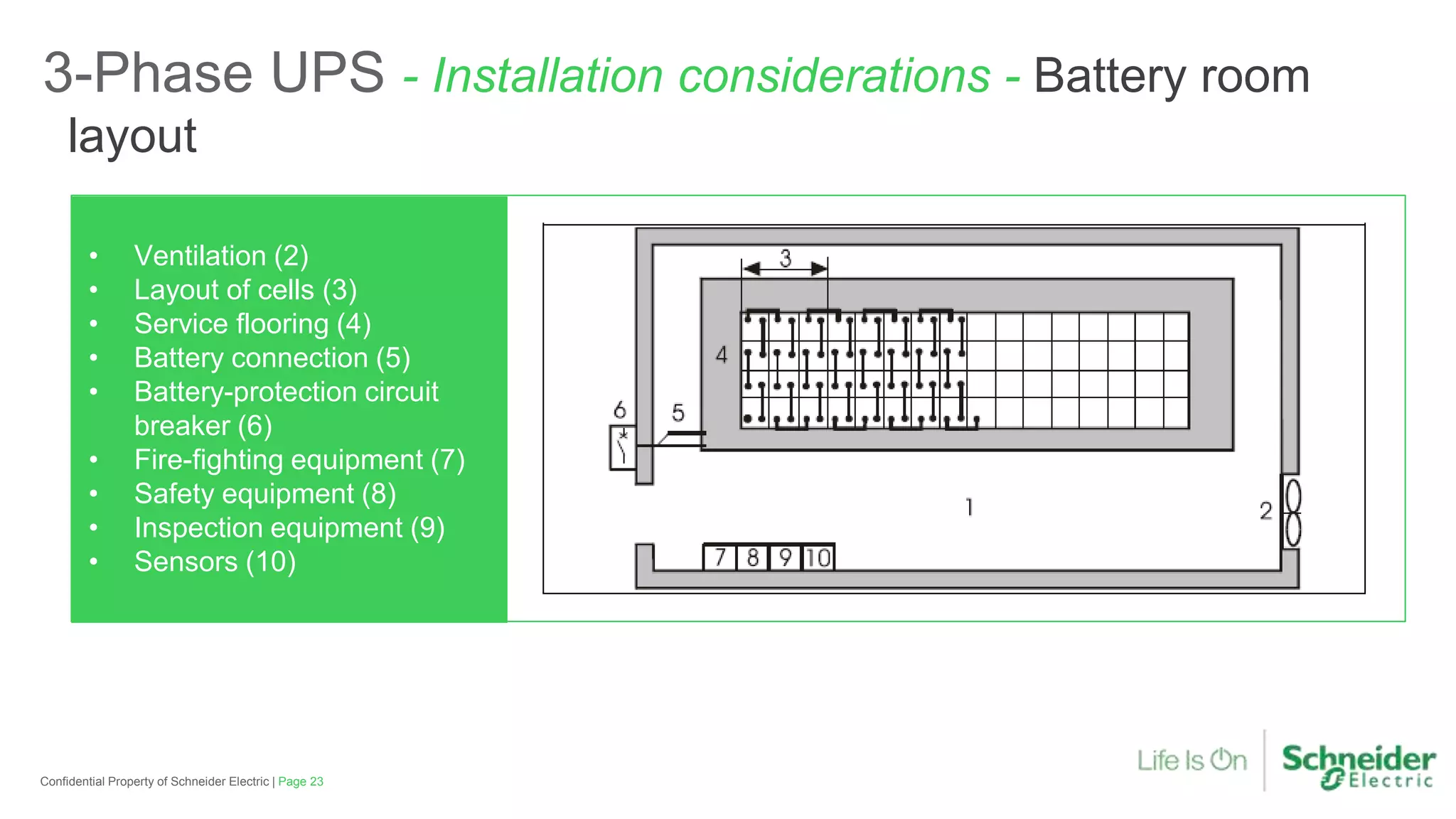

- 20. 3-Phase UPS -Installation considerations - Battery room layout Page 23Confidential Property of Schneider Electric | • Ventilation (2) • Layout of cells (3) • Service flooring (4) • Battery connection (5) • Battery-protection circuit breaker (6) • Fire-fighting equipment (7) • Safety equipment (8) • Inspection equipment (9) • Sensors (10)

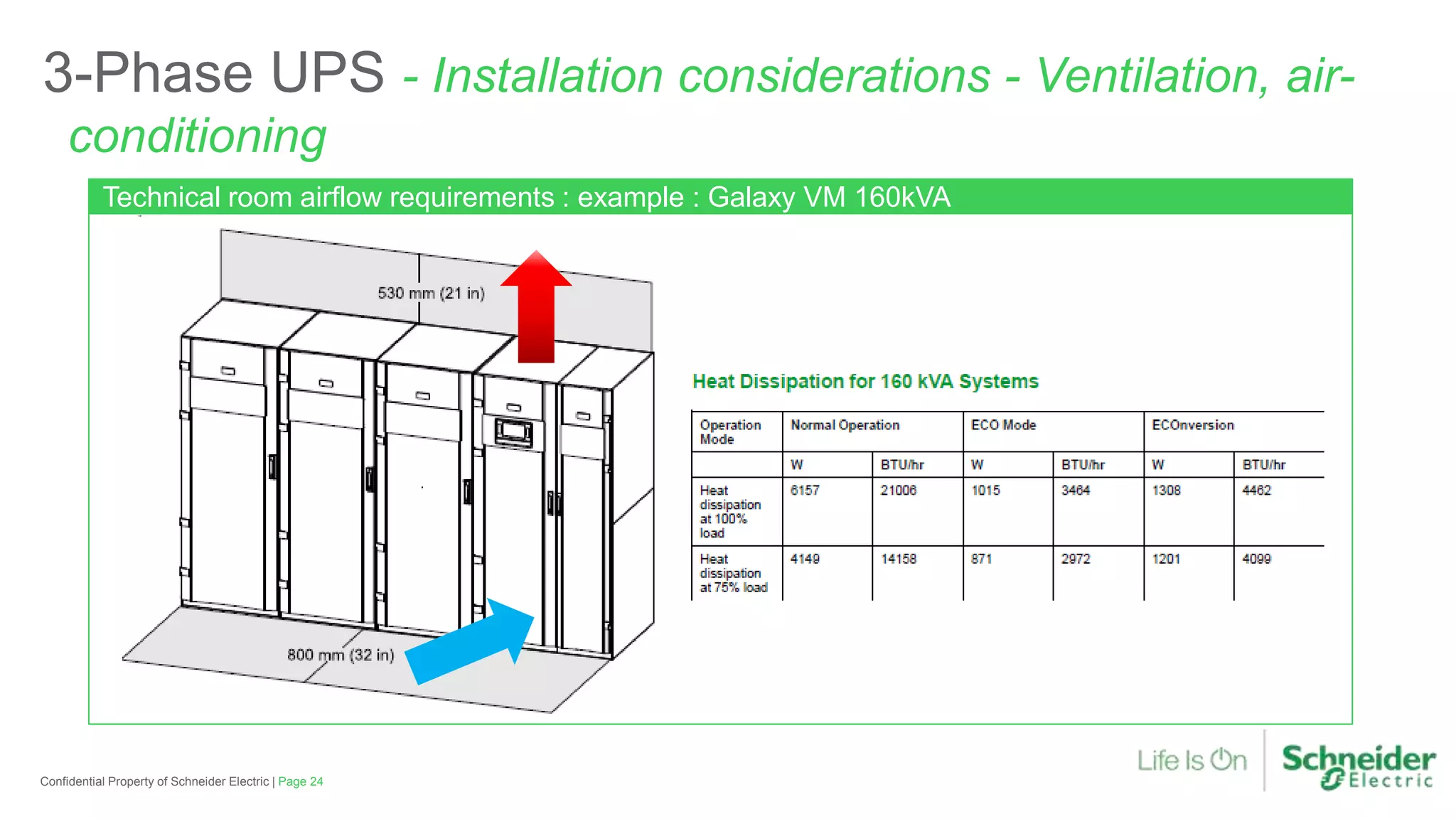

- 21. Technical room airflowrequirements : example : Galaxy VM 160kVA Page 24Confidential Property of Schneider Electric | 3-Phase UPS - Installation considerations - Ventilation, air- conditioning

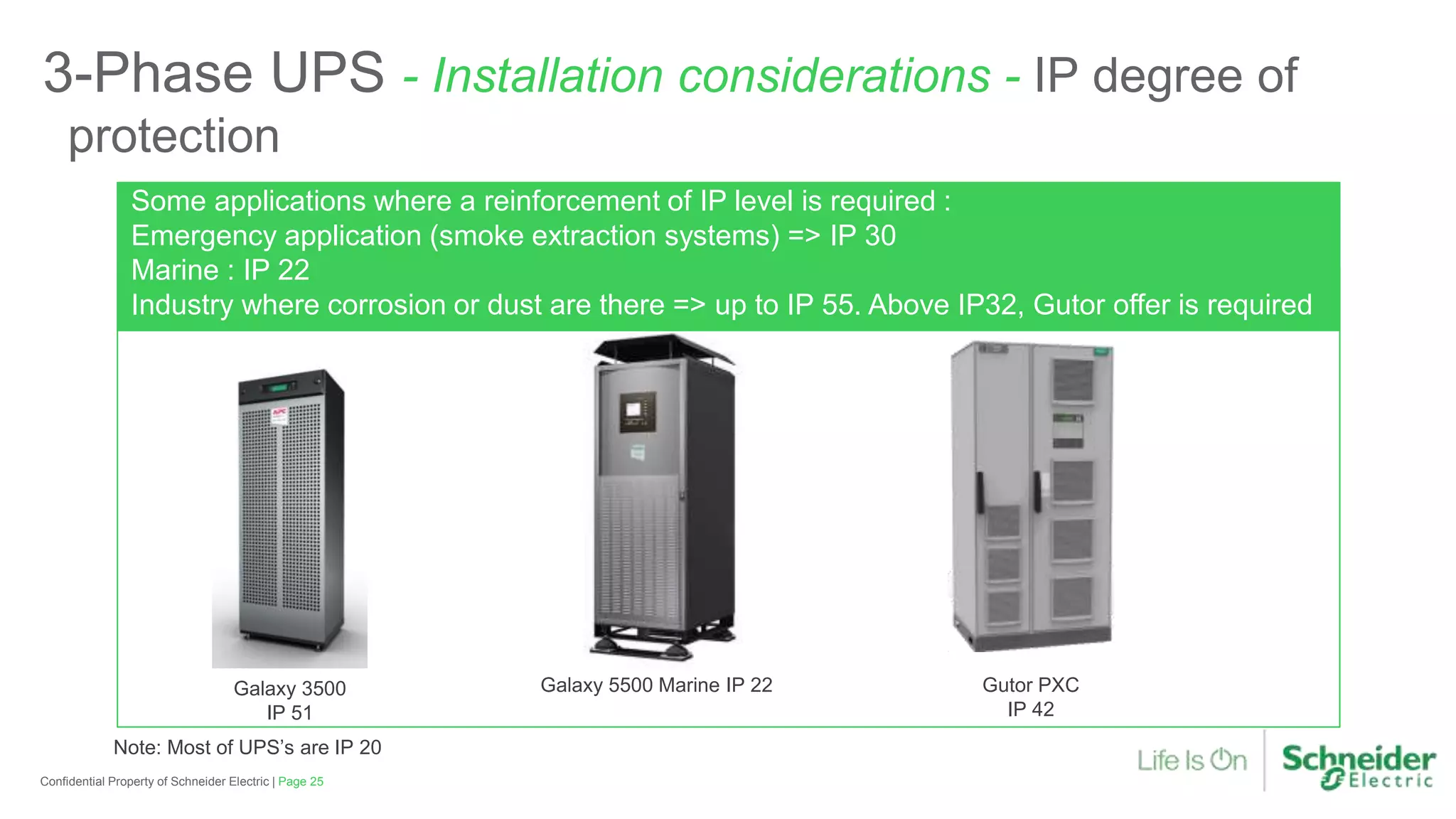

- 22. Galaxy 3500 IP 51 Galaxy5500 Marine IP 22 Gutor PXC IP 42 Some applications where a reinforcement of IP level is required : Emergency application (smoke extraction systems) => IP 30 Marine : IP 22 Industry where corrosion or dust are there => up to IP 55. Above IP32, Gutor offer is required 3-Phase UPS - Installation considerations - IP degree of protection Note: Most of UPS’s are IP 20 Page 25Confidential Property of Schneider Electric |
- 23. UPS Architectures Page 26ConfidentialProperty of Schneider Electric |

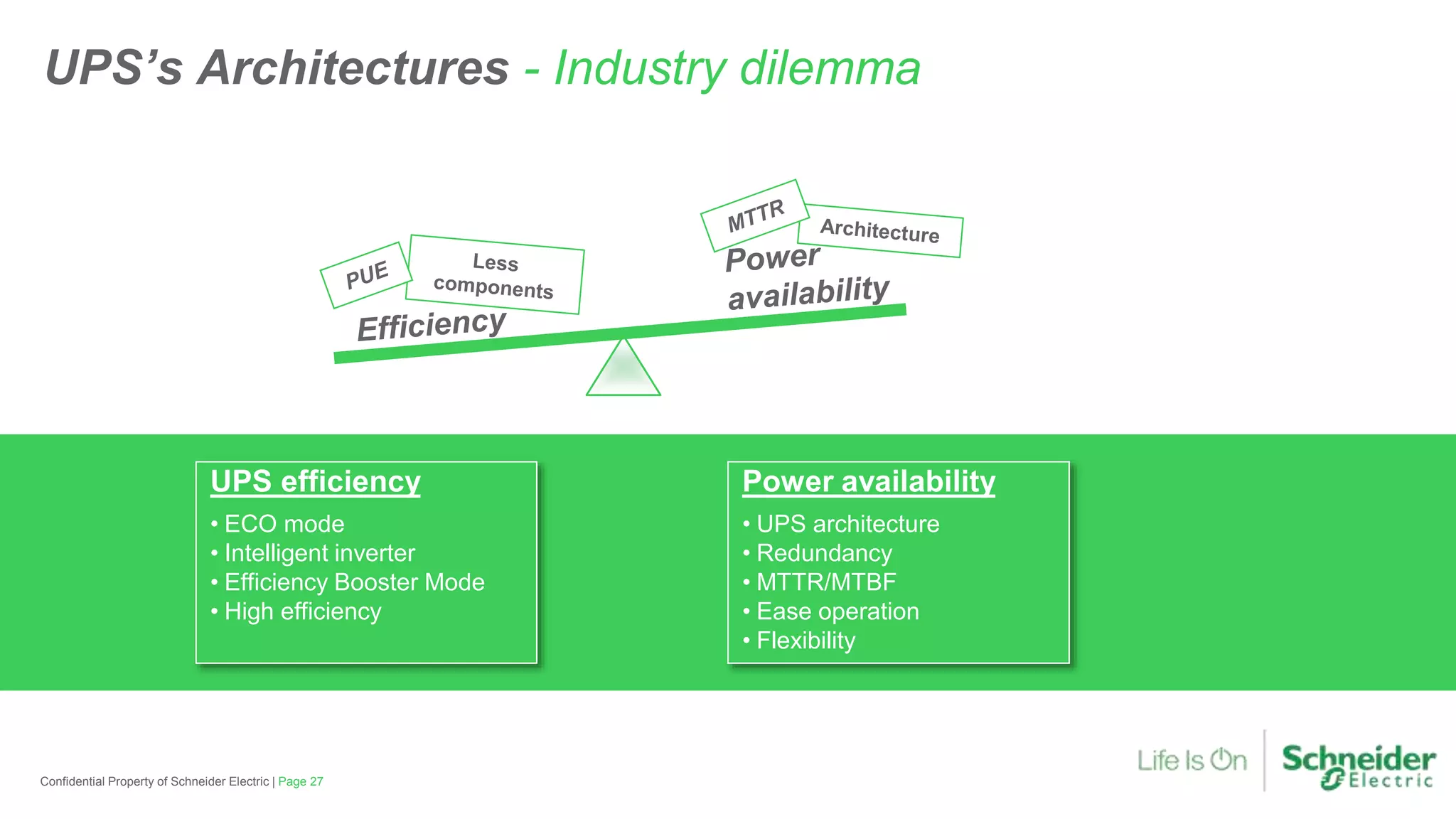

- 24. Page 27Confidential Propertyof Schneider Electric | UPS efficiency • ECO mode • Intelligent inverter • Efficiency Booster Mode • High efficiency UPS’s Architectures - Industry dilemma Power availability • UPS architecture • Redundancy • MTTR/MTBF • Ease operation • Flexibility

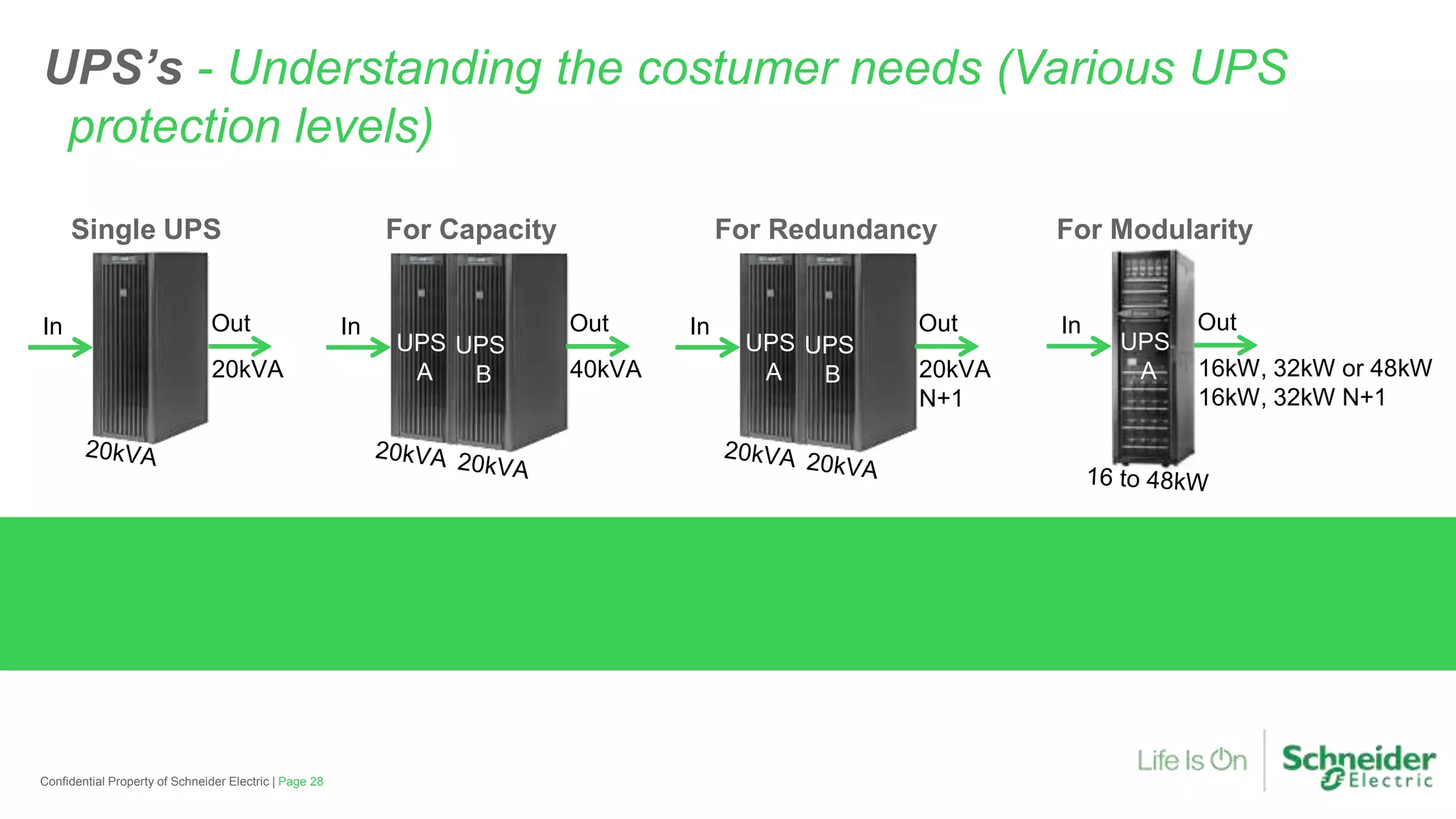

- 25. Single UPS Page 28ConfidentialProperty of Schneider Electric | 20kVA UPS A UPS B In Out For Capacity 40kVA In Out UPS A UPS B For Redundancy 20kVA N+1 In Out For Modularity UPS A 16kW, 32kW or 48kW 16kW, 32kW N+1 In Out UPS’s - Understanding the costumer needs (Various UPS protection levels)

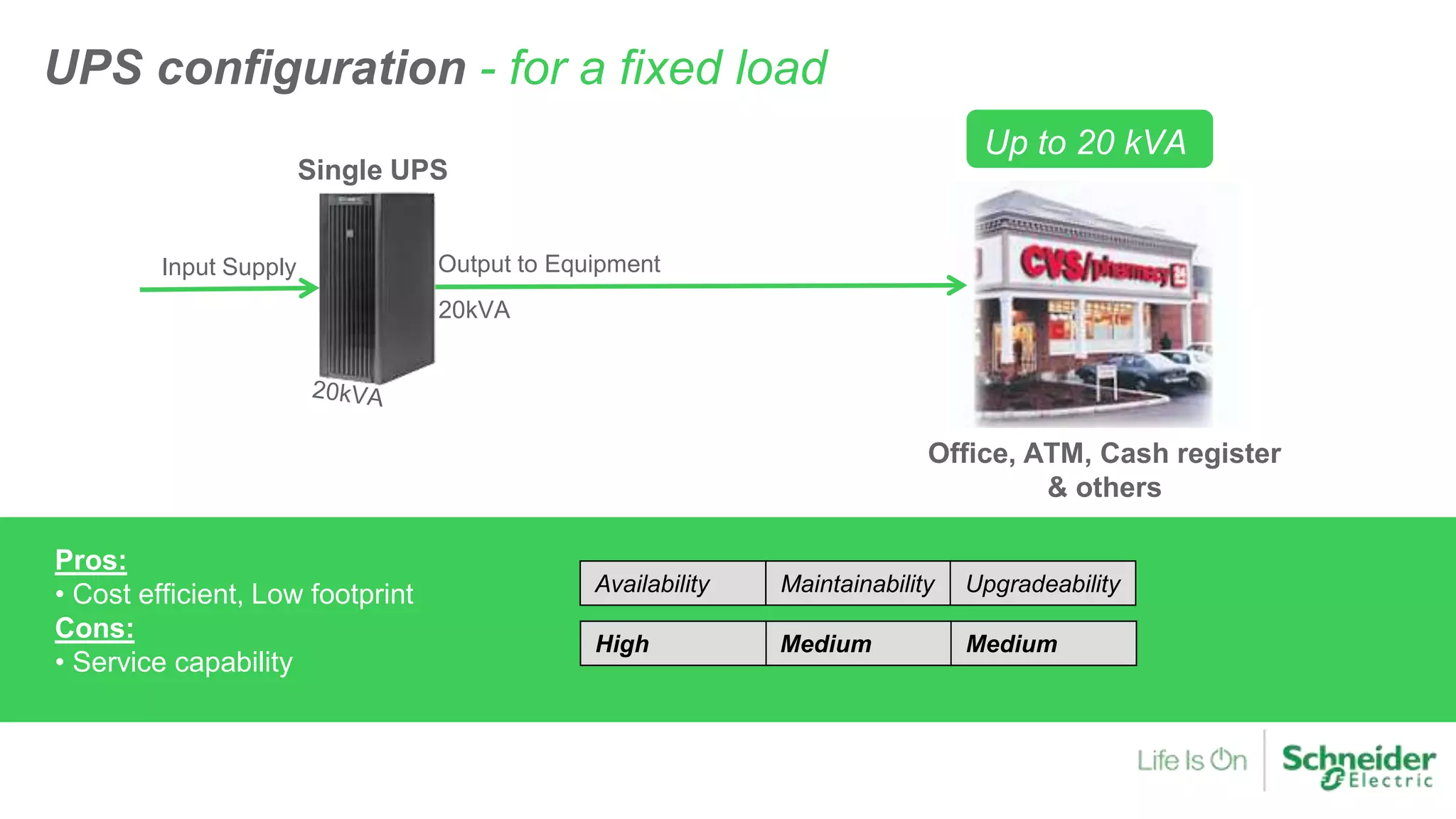

- 26. Pros: • Cost efficient,Low footprint Cons: • Service capability Availability Maintainability Upgradeability MediumMediumHigh Single UPS 20kVA Input Supply Output to Equipment Up to 20 kVA Office, ATM, Cash register & others UPS configuration - for a fixed load

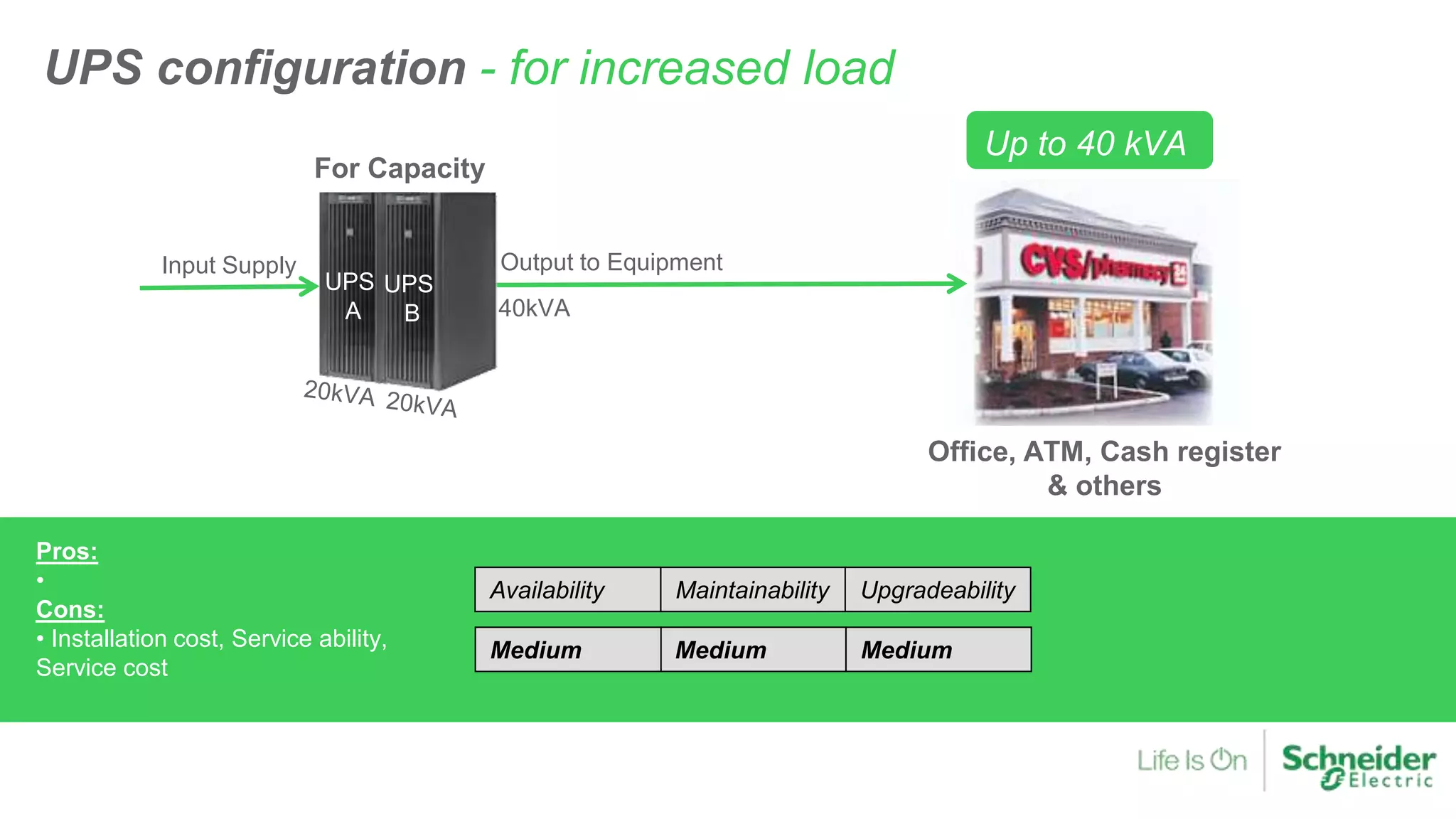

- 27. Single UPS Input SupplyOutput to Equipment Availability Maintainability Upgradeability MediumMediumMedium UPS A UPS B For Capacity 40kVA Office, ATM, Cash register & others Pros: • Cons: • Installation cost, Service ability, Service cost UPS configuration - for increased load Up to 40 kVA
- 28. Input Supply Outputto Equipment Availability Maintainability Upgradeability MediumHighVery High UPS A UPS B Office, ATM, Cash register & others For Redundancy 20kVA N+1 Pros: • High Reliability, Good Serviceability Cons: • Footprint, Higher upfront Cost, Lower Efficiency UPS BUPS A UPS configuration - for power Redundancy N+1 Up to 20 kVA

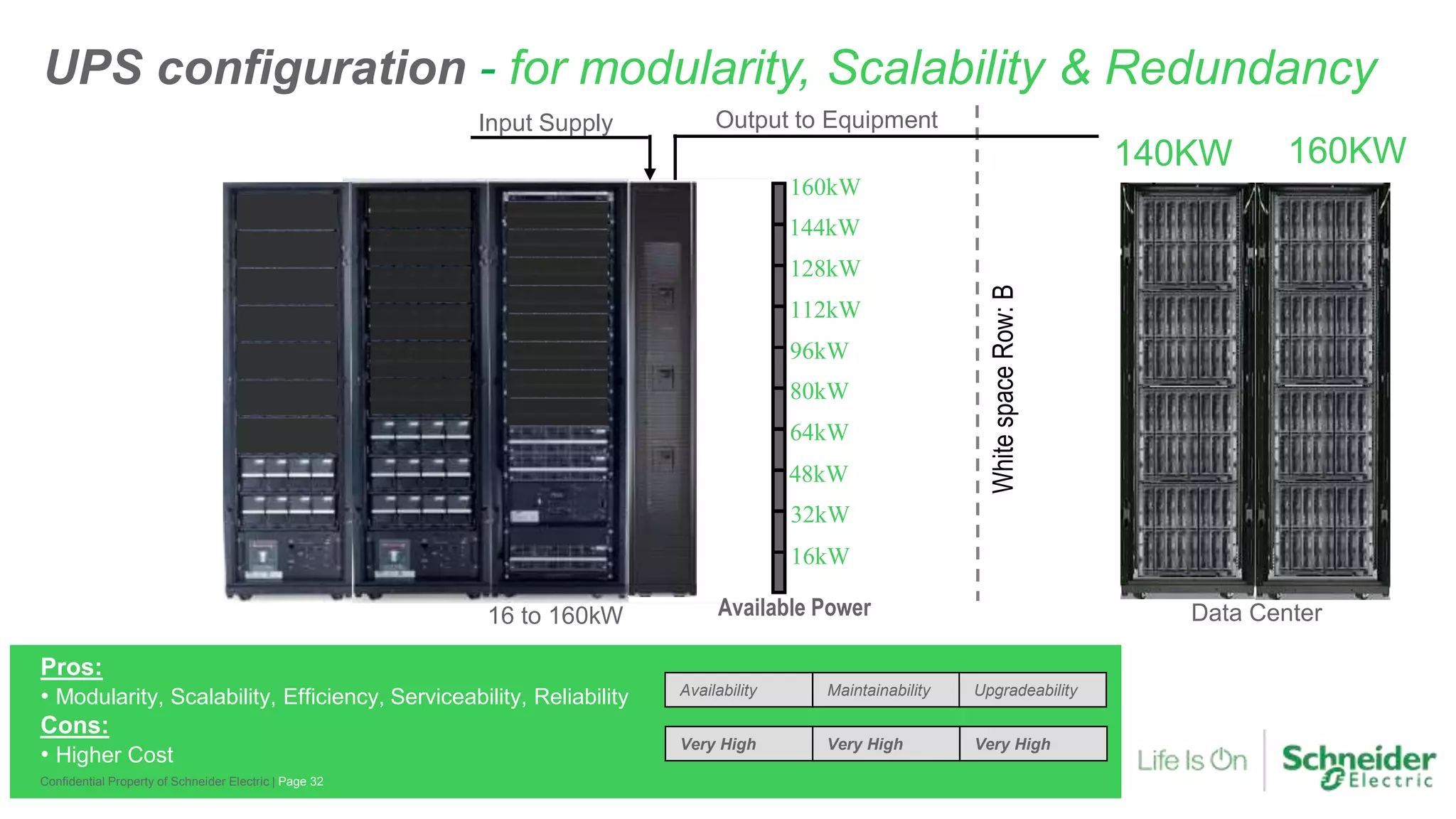

- 29. WhitespaceRow:B 16kW 32kW 48kW 64kW 160kW 144kW 128kW 112kW 96kW 80kW Available Power 20KW40KW60KW80KW100KW120KW140KW 160KW DataCenter Pros: • Modularity, Scalability, Efficiency, Serviceability, Reliability Cons: • Higher Cost Input Supply Output to Equipment Availability Maintainability Upgradeability Very HighVery HighVery High 16 to 160kW UPS configuration - for modularity, Scalability & Redundancy Page 32Confidential Property of Schneider Electric |

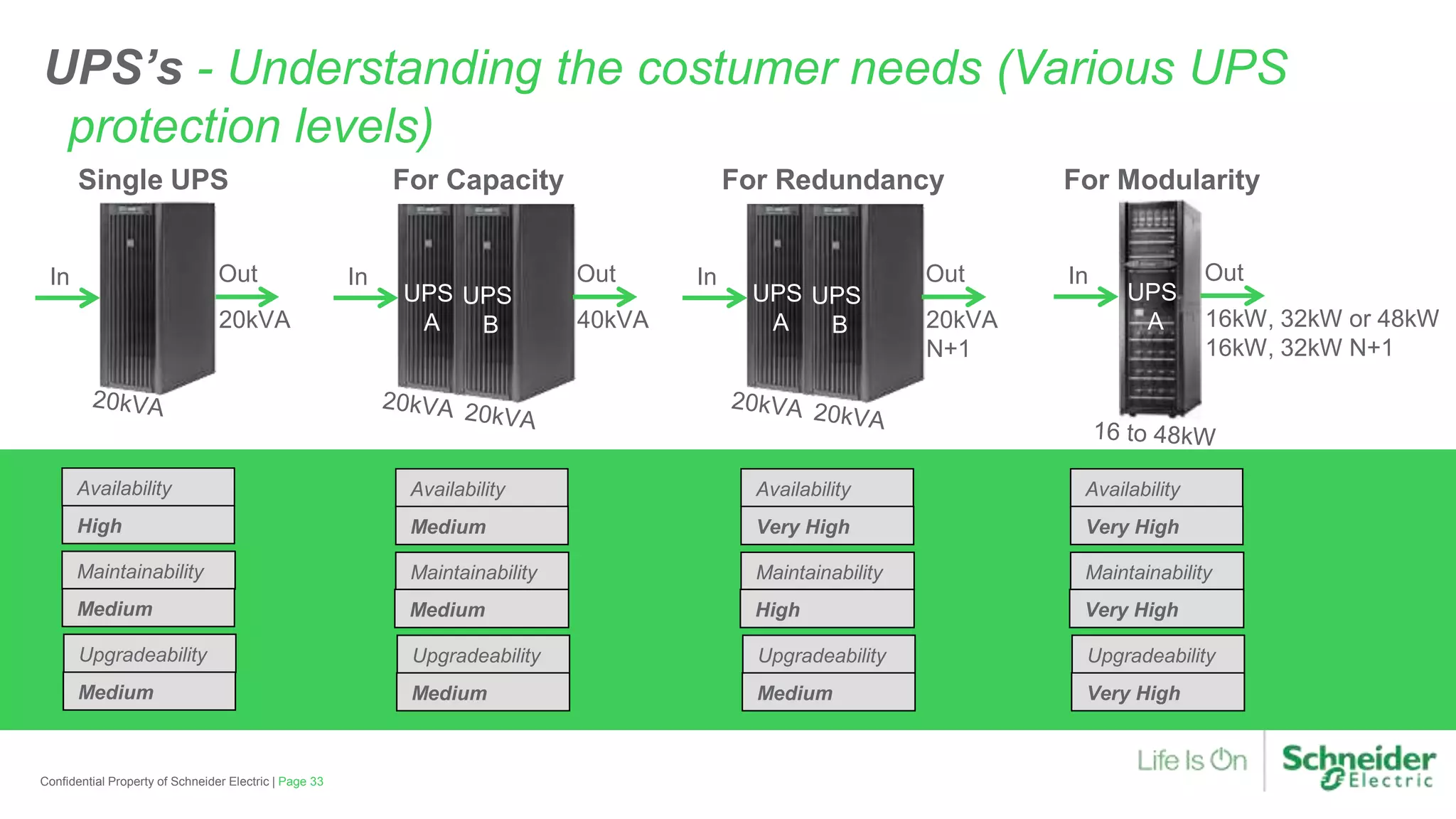

- 30. Single UPS Page 33ConfidentialProperty of Schneider Electric | 20kVA UPS A UPS B In Out For Capacity 40kVA In Out UPS A UPS B For Redundancy 20kVA N+1 In Out For Modularity UPS A 16kW, 32kW or 48kW 16kW, 32kW N+1 In Out Availability Maintainability Upgradeability Medium High Medium Availability Maintainability Upgradeability Medium Medium Medium Availability Maintainability Upgradeability Medium Very High High Availability Maintainability Upgradeability Very High Very High Very High UPS’s - Understanding the costumer needs (Various UPS protection levels)
- 31. “SBC”SystemBypassCabinet GalaxyVX1250kW “UPS A” “BBC” BatteryBreakerCabinet “BATT” BatteryCabinet Input Output 1 12 2 3 3 4 4 UPS’s - Understanding Single UPS configuration with all Aux. Page 34Confidential Property of Schneider Electric |

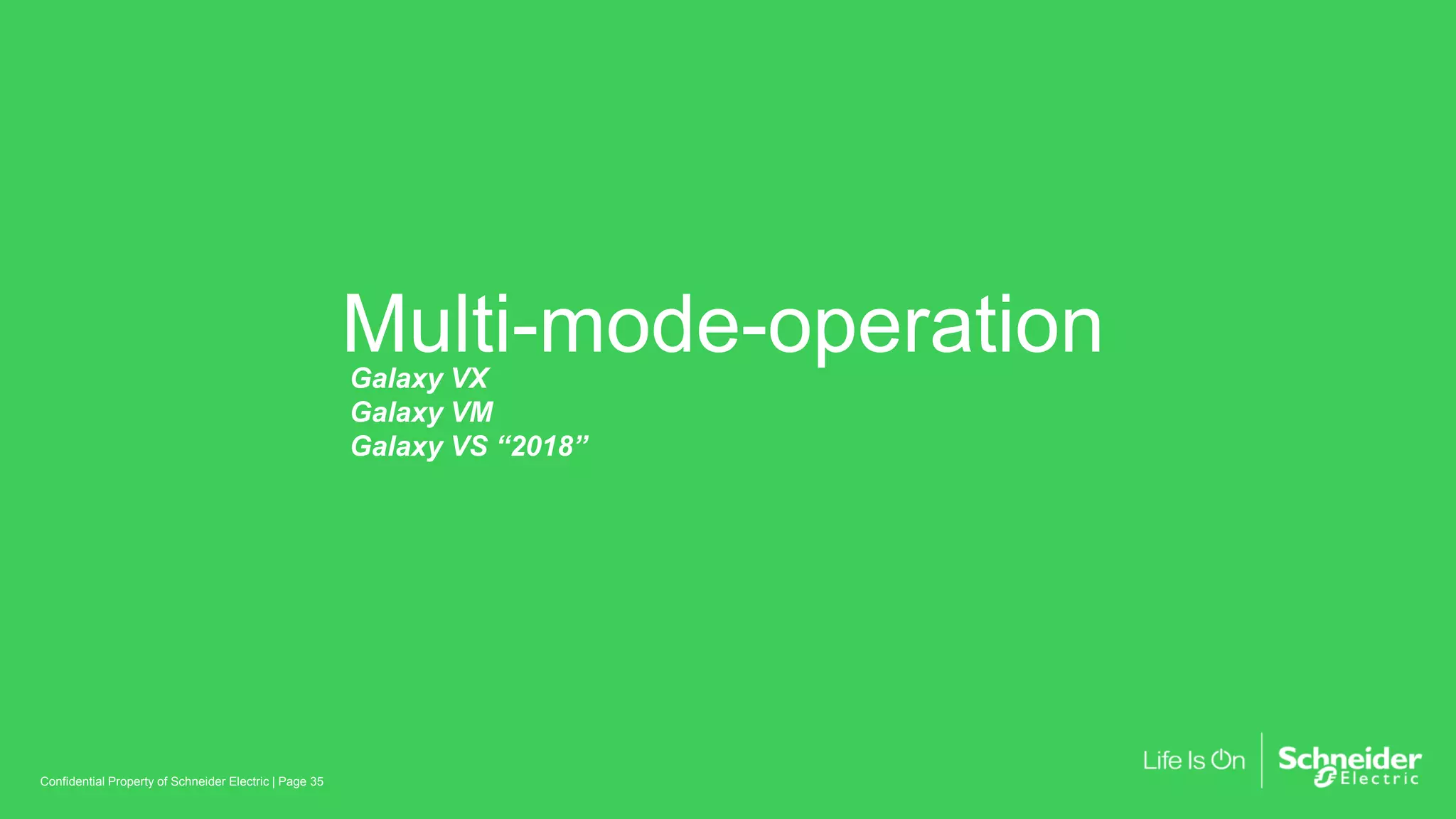

- 32. Multi-mode-operation Page 35Confidential Propertyof Schneider Electric | Galaxy VX Galaxy VM Galaxy VS “2018”

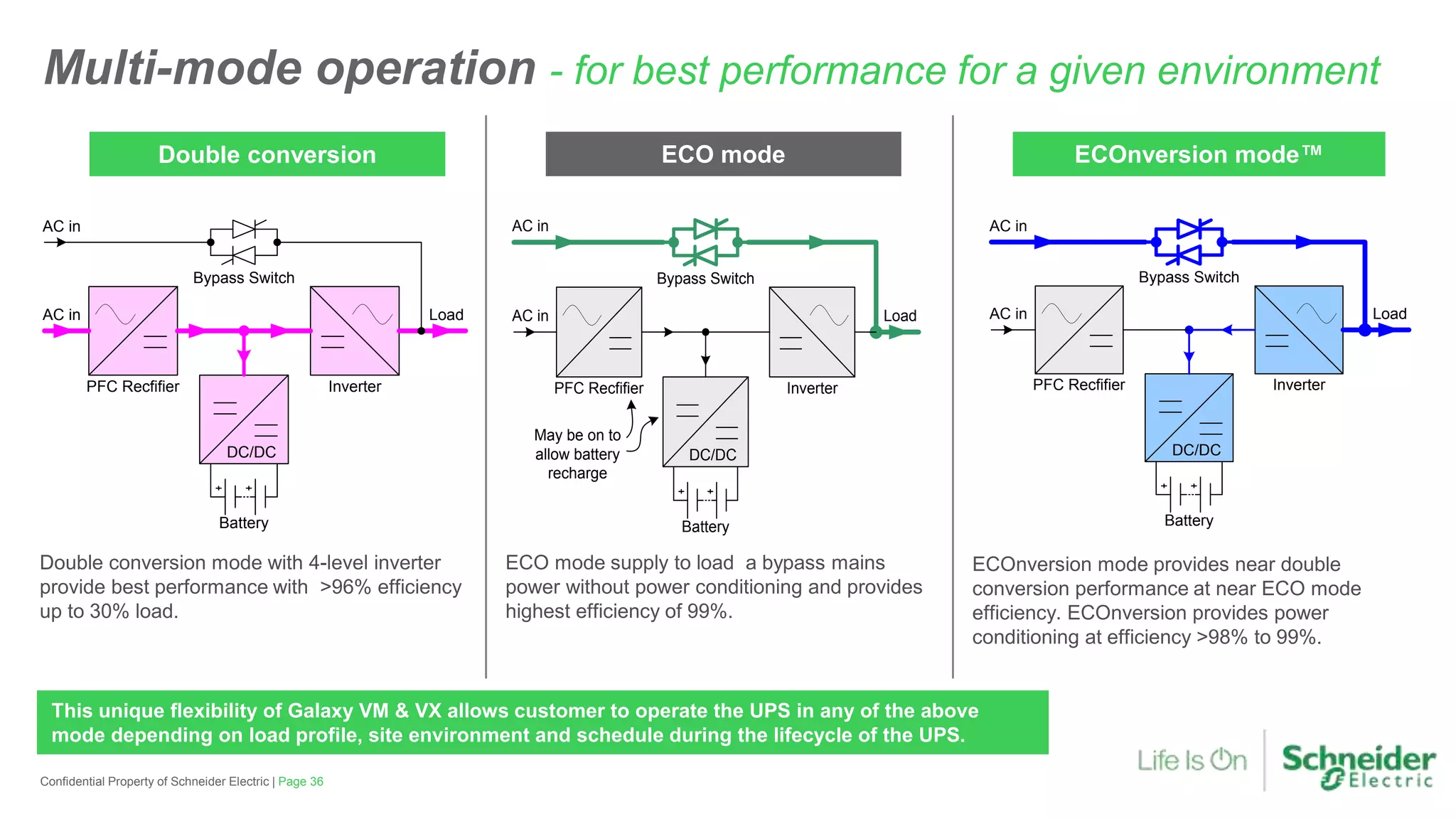

- 33. Multi-mode operation -for best performance for a given environment Battery DC/DC PFC Recfifier Inverter LoadAC in AC in Bypass Switch Battery DC/DC PFC Recfifier Inverter LoadAC in AC in Bypass Switch May be on to allow battery recharge Battery DC/DC PFC Recfifier Inverter LoadAC in AC in Bypass Switch Double conversion mode with 4-level inverter provide best performance with >96% efficiency up to 30% load. ECO mode supply to load a bypass mains power without power conditioning and provides highest efficiency of 99%. ECOnversion mode provides near double conversion performance at near ECO mode efficiency. ECOnversion provides power conditioning at efficiency >98% to 99%. This unique flexibility of Galaxy VM & VX allows customer to operate the UPS in any of the above mode depending on load profile, site environment and schedule during the lifecycle of the UPS. ECOnversion mode™Double conversion ECO mode Page 36Confidential Property of Schneider Electric |

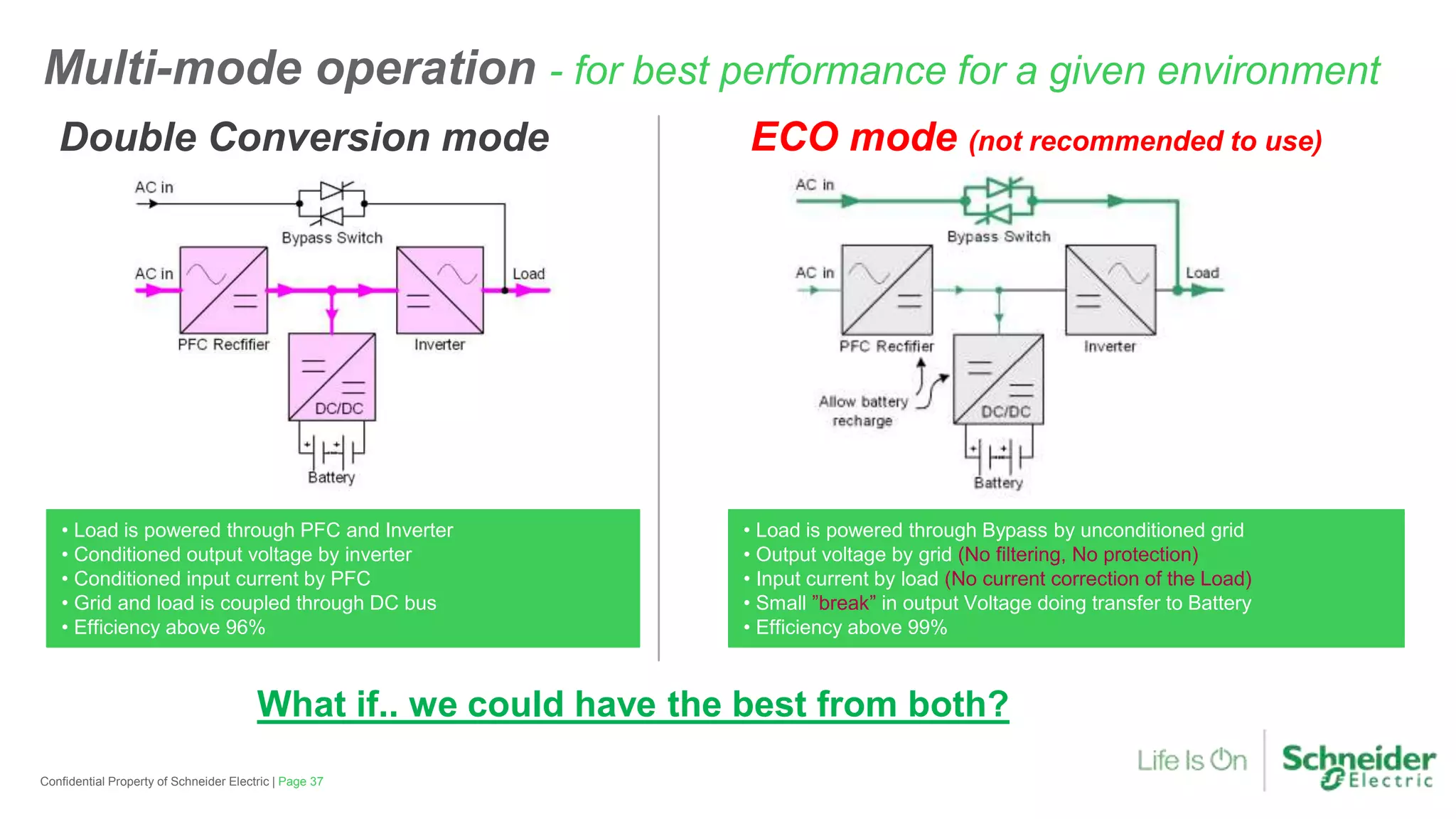

- 34. Multi-mode operation -for best performance for a given environment What if.. we could have the best from both? • Load is powered through PFC and Inverter • Conditioned output voltage by inverter • Conditioned input current by PFC • Grid and load is coupled through DC bus • Efficiency above 96% • Load is powered through Bypass by unconditioned grid • Output voltage by grid (No filtering, No protection) • Input current by load (No current correction of the Load) • Small ”break” in output Voltage doing transfer to Battery • Efficiency above 99% Double Conversion mode ECO mode (not recommended to use) Page 37Confidential Property of Schneider Electric |

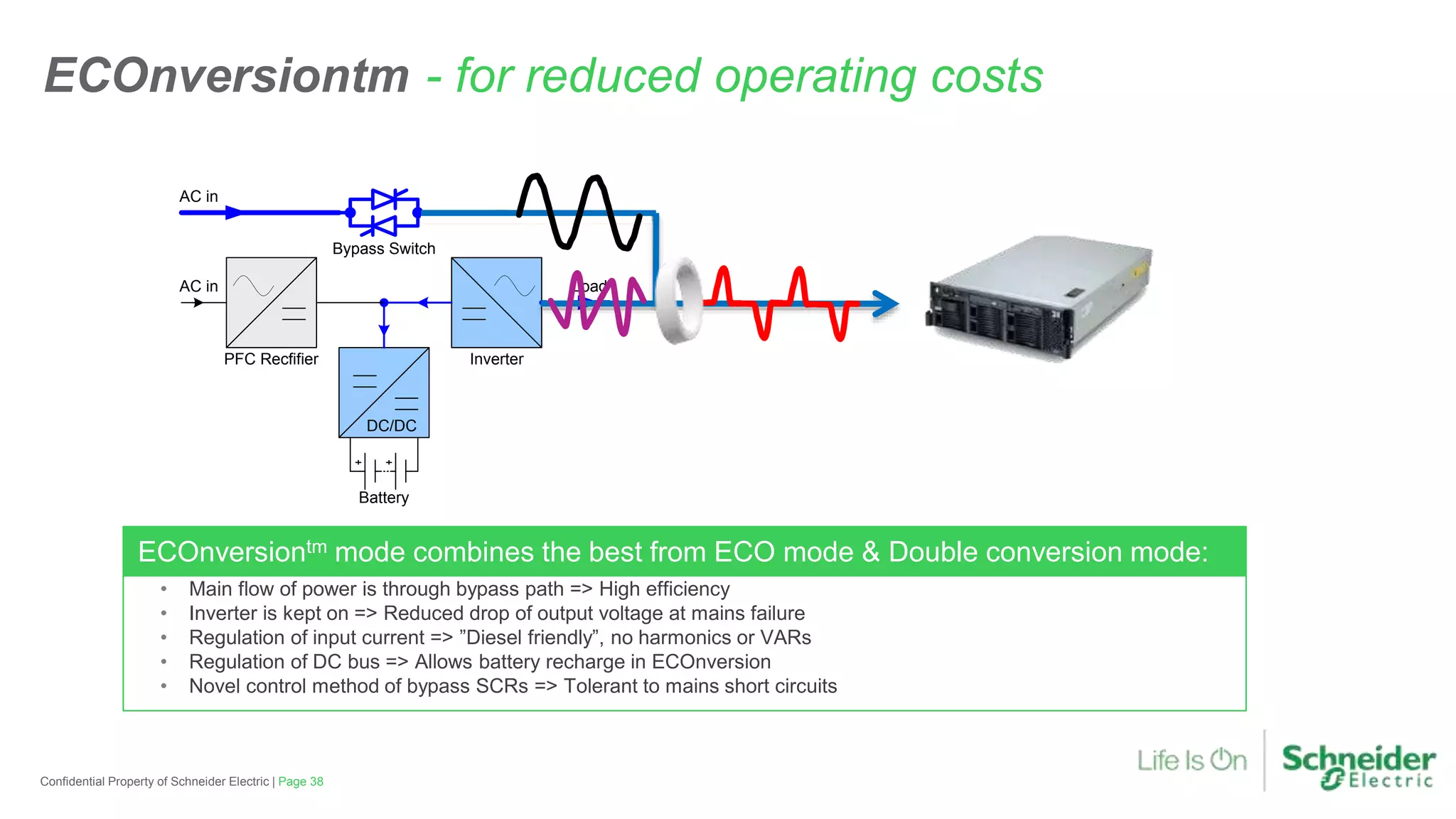

- 35. • Main flowof power is through bypass path => High efficiency • Inverter is kept on => Reduced drop of output voltage at mains failure • Regulation of input current => ”Diesel friendly”, no harmonics or VARs • Regulation of DC bus => Allows battery recharge in ECOnversion • Novel control method of bypass SCRs => Tolerant to mains short circuits ECOnversiontm - for reduced operating costs Battery DC/DC PFC Recfifier Inverter LoadAC in AC in Bypass Switch ECOnversiontm mode combines the best from ECO mode & Double conversion mode: Page 38Confidential Property of Schneider Electric |

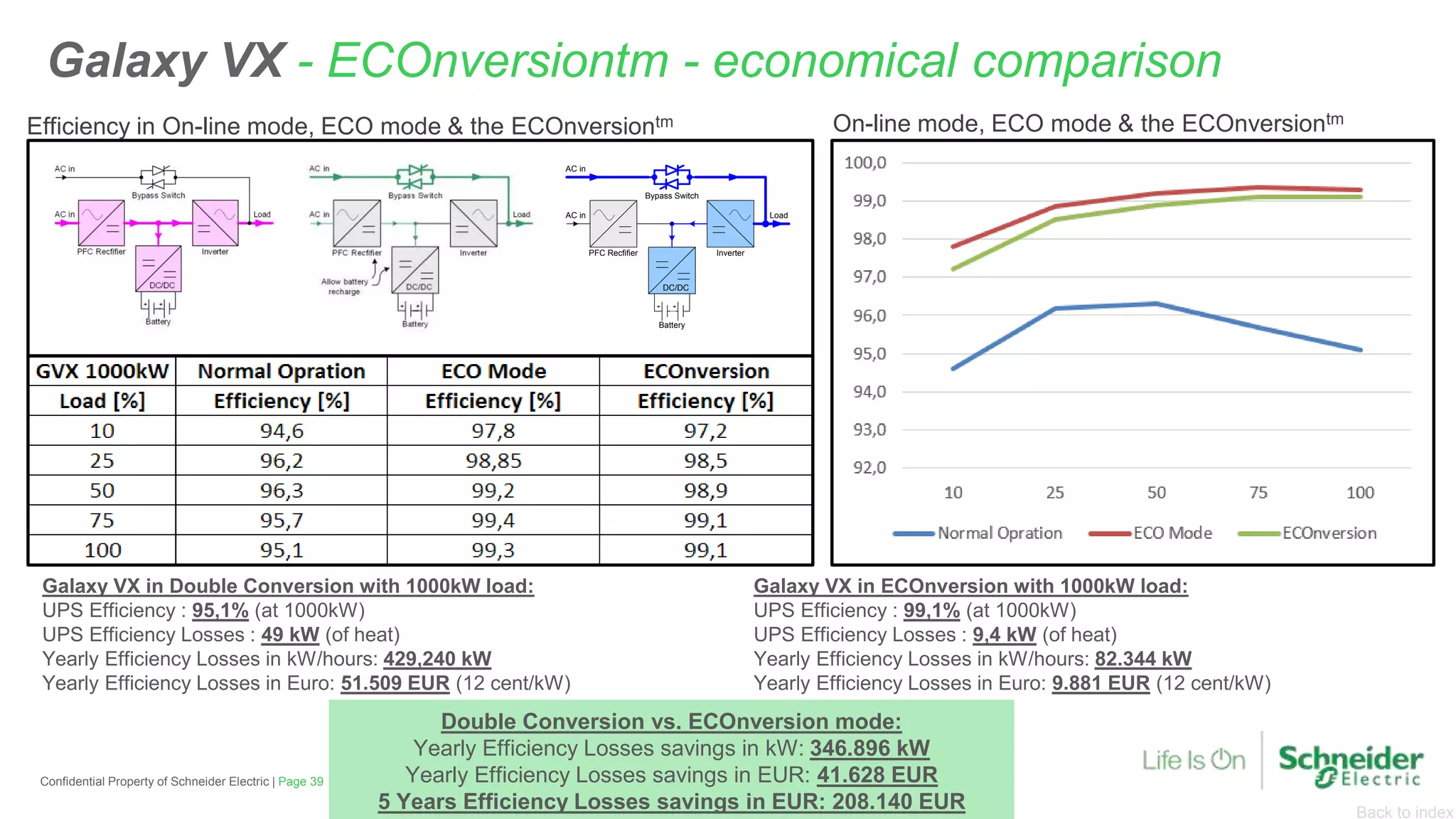

- 36. Back to index Battery DC/DC PFCRecfifier Inverter LoadAC in AC in Bypass Switch Efficiency in On-line mode, ECO mode & the ECOnversiontm On-line mode, ECO mode & the ECOnversiontm Page 39Confidential Property of Schneider Electric | Galaxy VX in Double Conversion with 1000kW load: UPS Efficiency : 95,1% (at 1000kW) UPS Efficiency Losses : 49 kW (of heat) Yearly Efficiency Losses in kW/hours: 429,240 kW Yearly Efficiency Losses in Euro: 51.509 EUR (12 cent/kW) Galaxy VX in ECOnversion with 1000kW load: UPS Efficiency : 99,1% (at 1000kW) UPS Efficiency Losses : 9,4 kW (of heat) Yearly Efficiency Losses in kW/hours: 82.344 kW Yearly Efficiency Losses in Euro: 9.881 EUR (12 cent/kW) Double Conversion vs. ECOnversion mode: Yearly Efficiency Losses savings in kW: 346.896 kW Yearly Efficiency Losses savings in EUR: 41.628 EUR 5 Years Efficiency Losses savings in EUR: 208.140 EUR Galaxy VX - ECOnversiontm - economical comparison Page 39Confidential Property of Schneider Electric |
- 37. SPoT mode Page 40ConfidentialProperty of Schneider Electric | Galaxy VX Galaxy VM Galaxy 7000

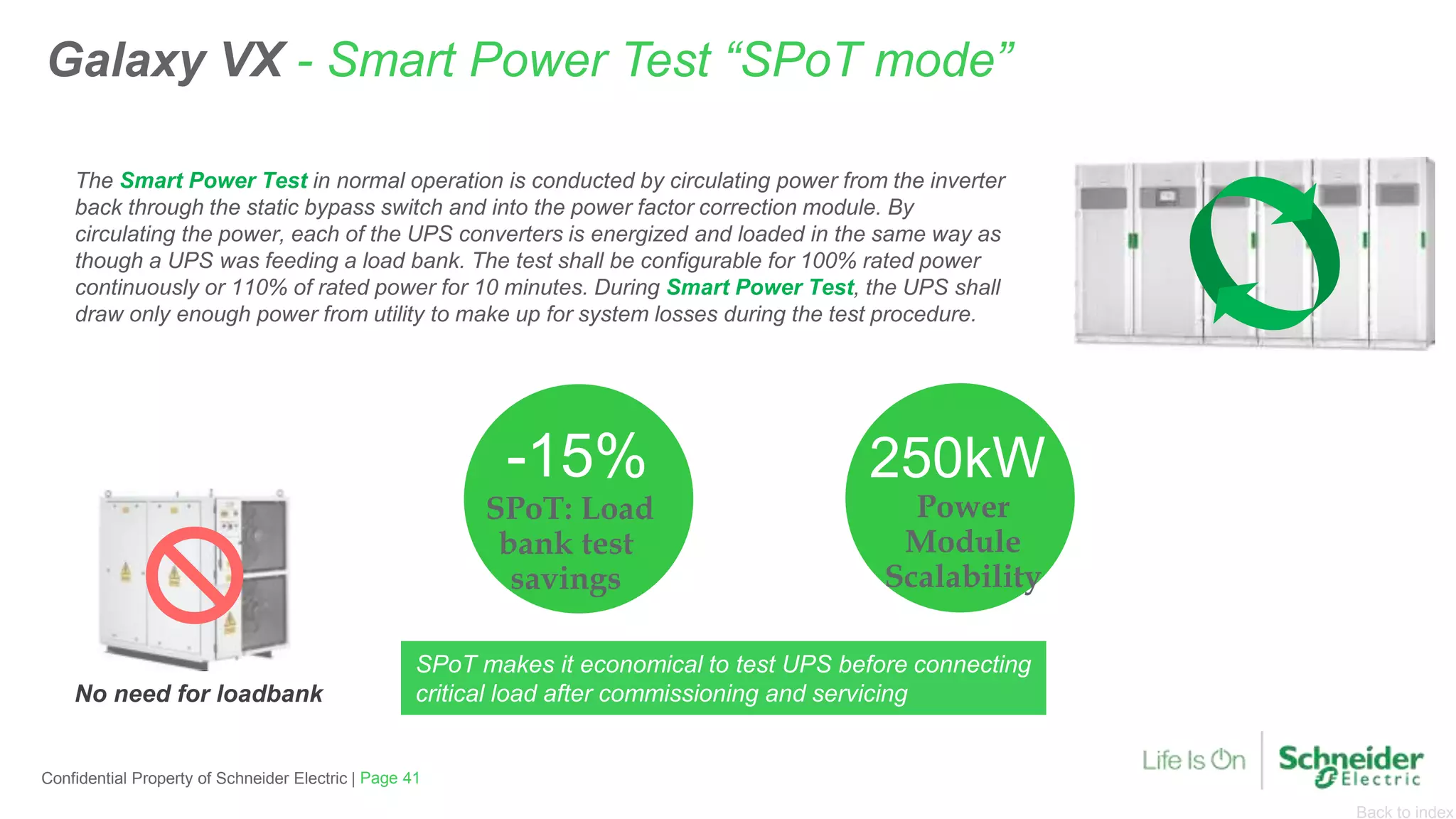

- 38. Back to index SPoT:Load bank test savings -15% Power Module Scalability 250kW Galaxy VX - Smart Power Test “SPoT mode” The Smart Power Test in normal operation is conducted by circulating power from the inverter back through the static bypass switch and into the power factor correction module. By circulating the power, each of the UPS converters is energized and loaded in the same way as though a UPS was feeding a load bank. The test shall be configurable for 100% rated power continuously or 110% of rated power for 10 minutes. During Smart Power Test, the UPS shall draw only enough power from utility to make up for system losses during the test procedure. No need for loadbank Page 41Confidential Property of Schneider Electric | SPoT makes it economical to test UPS before connecting critical load after commissioning and servicing

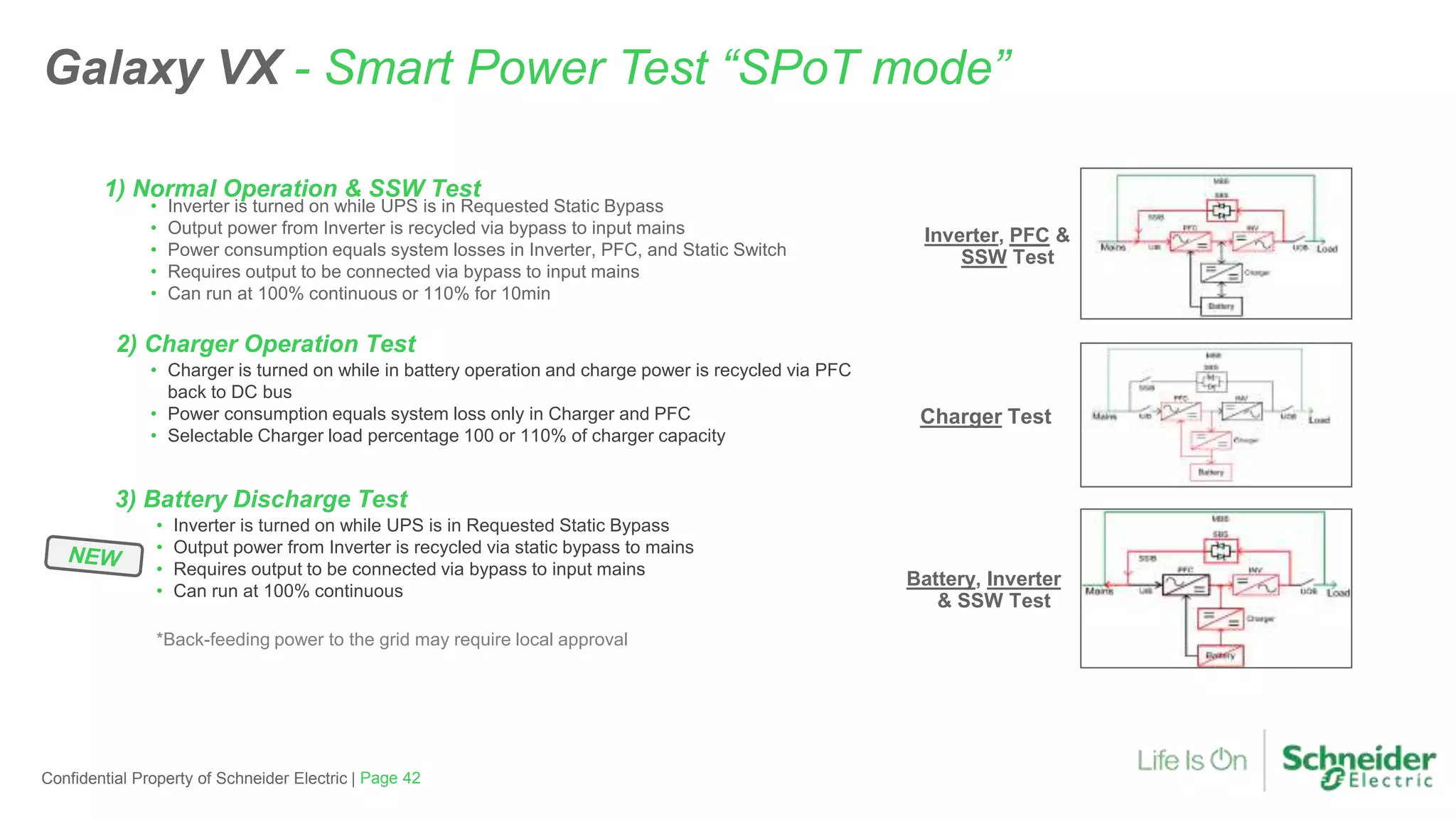

- 39. Inverter, PFC & SSWTest • Inverter is turned on while UPS is in Requested Static Bypass • Output power from Inverter is recycled via bypass to input mains • Power consumption equals system losses in Inverter, PFC, and Static Switch • Requires output to be connected via bypass to input mains • Can run at 100% continuous or 110% for 10min Page 42Confidential Property of Schneider Electric | 1) Normal Operation & SSW Test Galaxy VX - Smart Power Test “SPoT mode” • Charger is turned on while in battery operation and charge power is recycled via PFC back to DC bus • Power consumption equals system loss only in Charger and PFC • Selectable Charger load percentage 100 or 110% of charger capacity 2) Charger Operation Test Charger Test Battery, Inverter & SSW Test • Inverter is turned on while UPS is in Requested Static Bypass • Output power from Inverter is recycled via static bypass to mains • Requires output to be connected via bypass to input mains • Can run at 100% continuous *Back-feeding power to the grid may require local approval 3) Battery Discharge Test
- 40. Energy Storage Page 43ConfidentialProperty of Schneider Electric |
- 41. Customer Need: Frequent Flywheel Ultracaps EnergyStorage available Page 44Confidential Property of Schneider Electric | Example : Need 2 min 600 kW • Batteries – Sealed lead-acid The most commonly employed solution today – Vented lead-acid – Nickel cadmium Harsh environment – Lithium-ion Alternative solution to lead-acid • Ultracapacitors • Flywheels The various technologies currently available are the following
- 42. Li-ion Battery Page 45ConfidentialProperty of Schneider Electric | Range available • Galaxy VX • Galaxy VM • Galaxy 7000 • Symmetra MW • Symmetra PX250/500

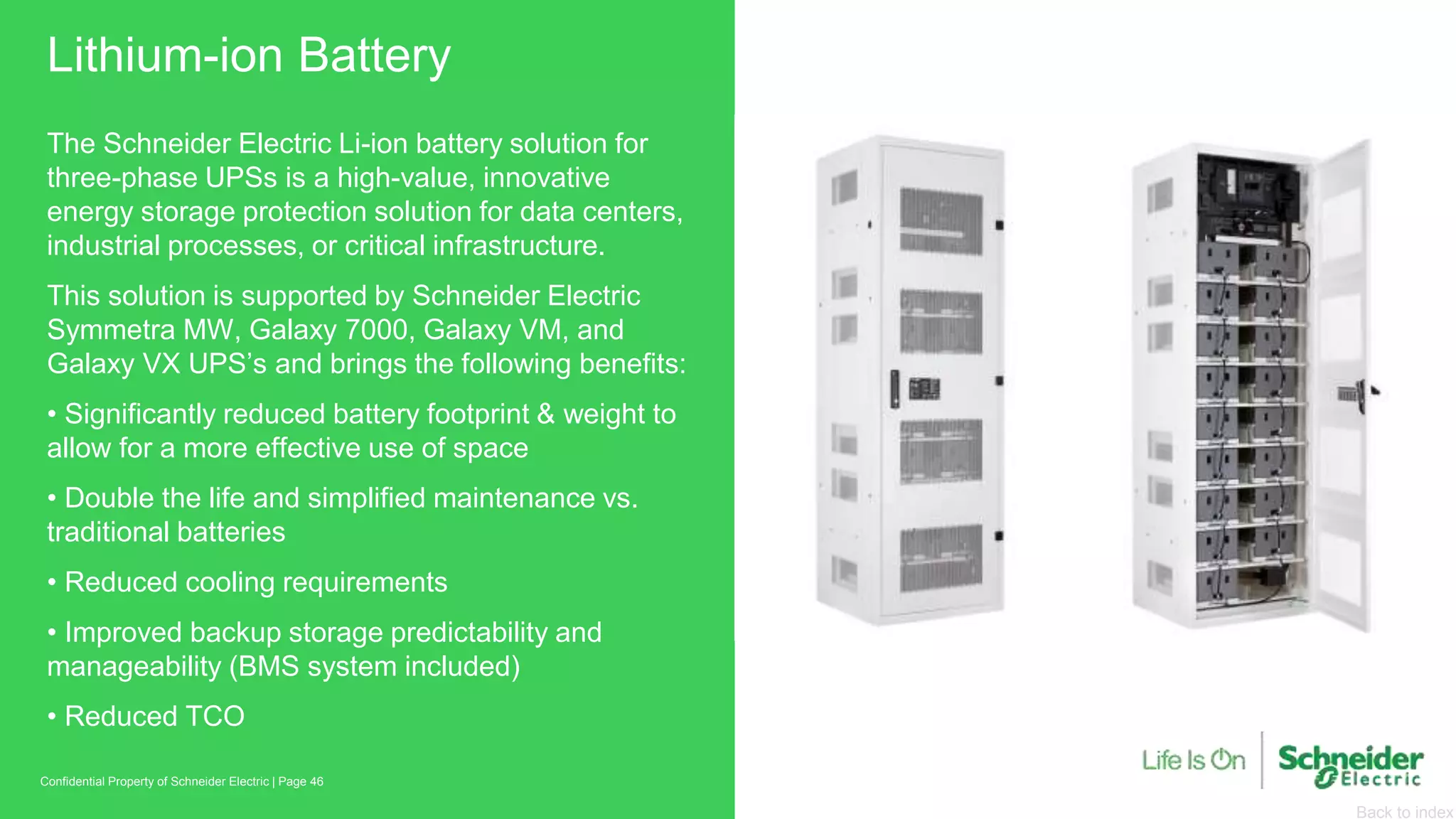

- 43. Back to index Lithium-ionBattery Page 46Confidential Property of Schneider Electric | The Schneider Electric Li-ion battery solution for three-phase UPSs is a high-value, innovative energy storage protection solution for data centers, industrial processes, or critical infrastructure. This solution is supported by Schneider Electric Symmetra MW, Galaxy 7000, Galaxy VM, and Galaxy VX UPS’s and brings the following benefits: • Significantly reduced battery footprint & weight to allow for a more effective use of space • Double the life and simplified maintenance vs. traditional batteries • Reduced cooling requirements • Improved backup storage predictability and manageability (BMS system included) • Reduced TCO

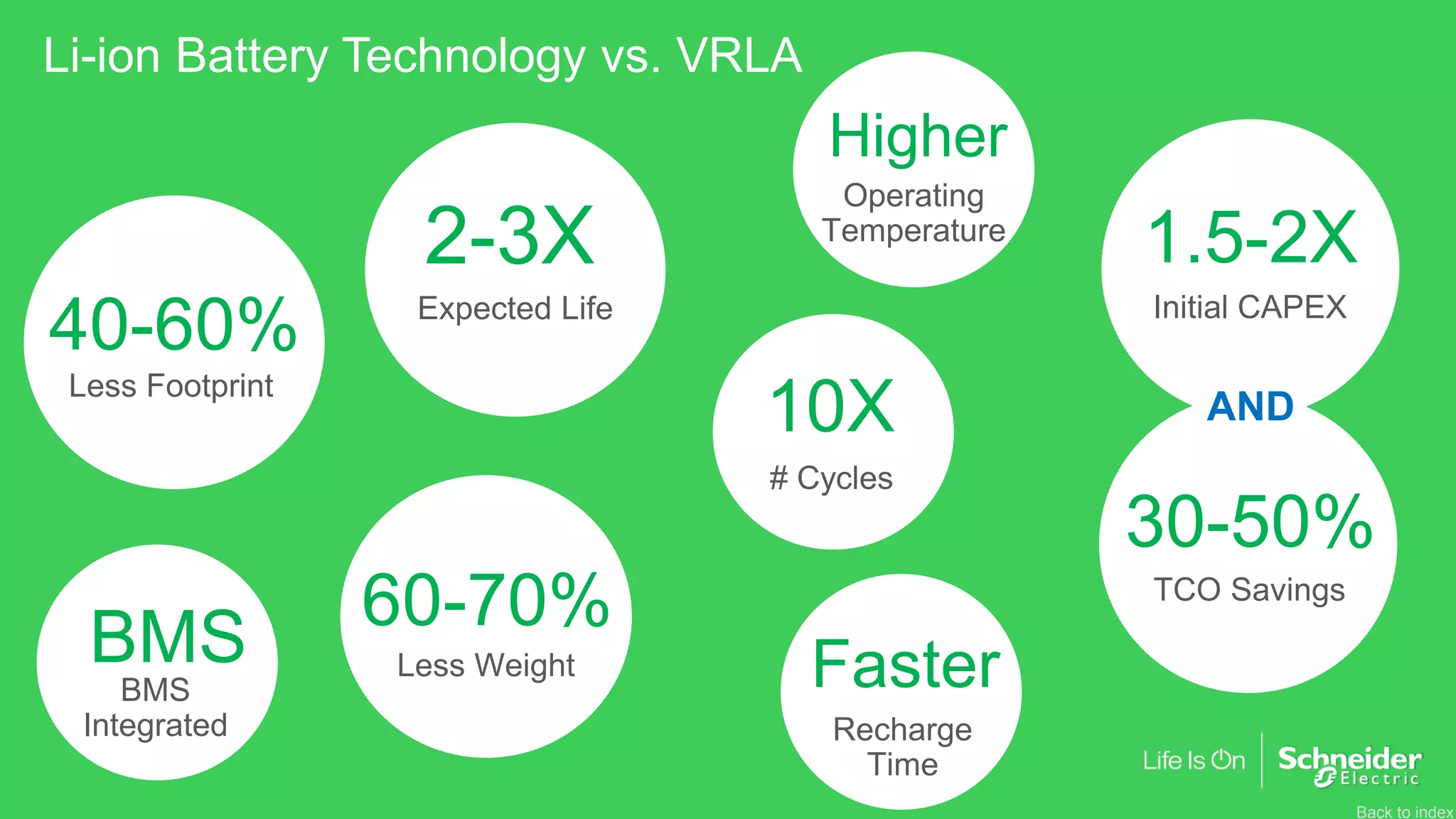

- 44. Back to index Li-ionBattery Technology vs. VRLA Less Footprint 40-60% Less Weight 60-70% Expected Life 2-3X # Cycles 10X Initial CAPEX 1.5-2X TCO Savings 30-50% AND Recharge Time Faster Operating Temperature Higher BMS Integrated BMS

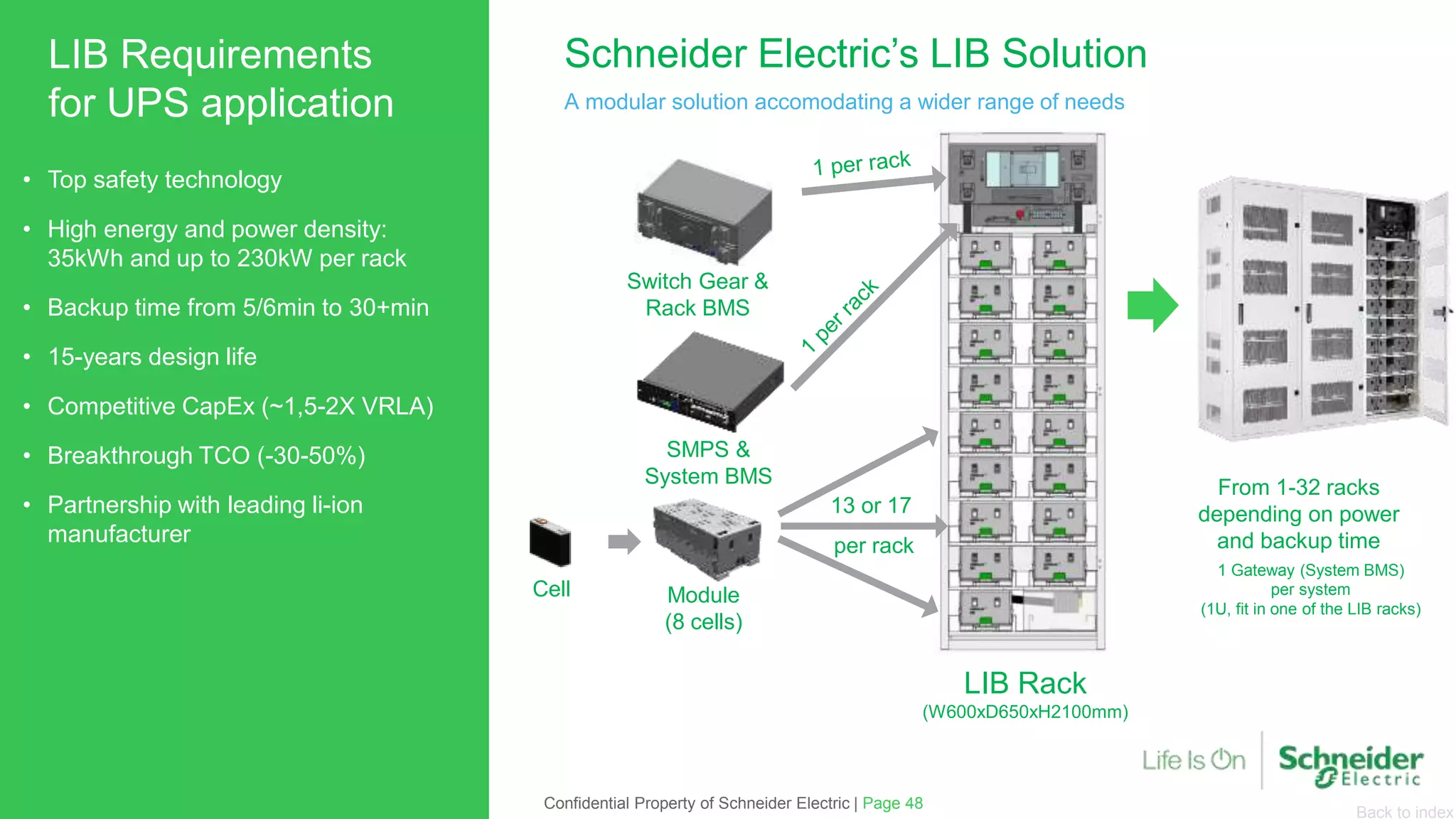

- 45. Back to index SchneiderElectric’s LIB Solution A modular solution accomodating a wider range of needs 13 or 17 per rack Cell Module (8 cells) Switch Gear & Rack BMS LIB Rack (W600xD650xH2100mm) LIB Requirements for UPS application • Top safety technology • High energy and power density: 35kWh and up to 230kW per rack • Backup time from 5/6min to 30+min • 15-years design life • Competitive CapEx (~1,5-2X VRLA) • Breakthrough TCO (-30-50%) • Partnership with leading li-ion manufacturer From 1-32 racks depending on power and backup time SMPS & System BMS 1 Gateway (System BMS) per system (1U, fit in one of the LIB racks) Page 48Confidential Property of Schneider Electric |

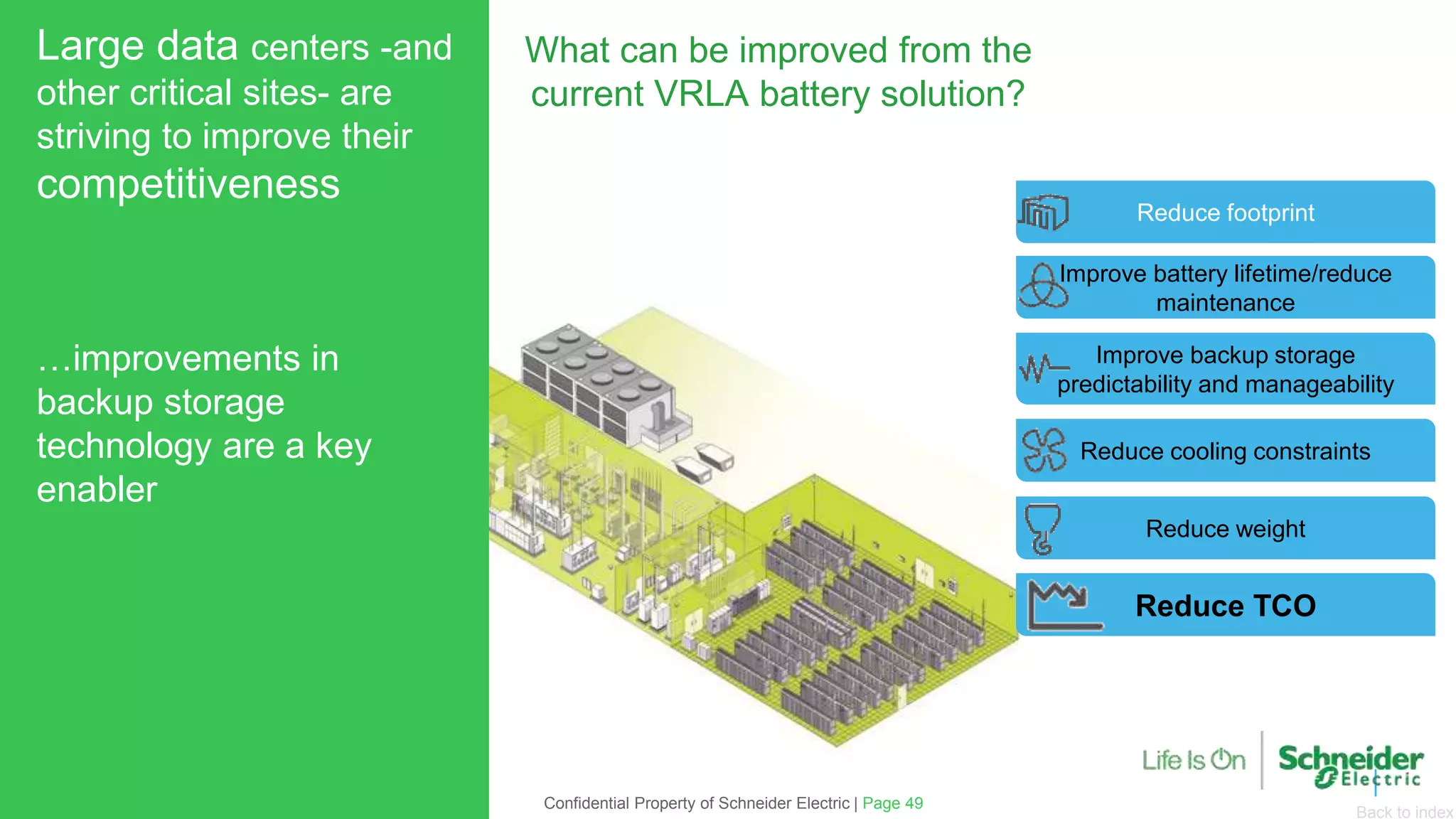

- 46. Back to index Foodand Beverage Large data centers -and other critical sites- are striving to improve their competitiveness …improvements in backup storage technology are a key enabler Improve battery lifetime/reduce maintenance Improve backup storage predictability and manageability Reduce footprint Reduce weight Reduce cooling constraints Reduce TCO What can be improved from the current VRLA battery solution? Page 49Confidential Property of Schneider Electric |
- 47.

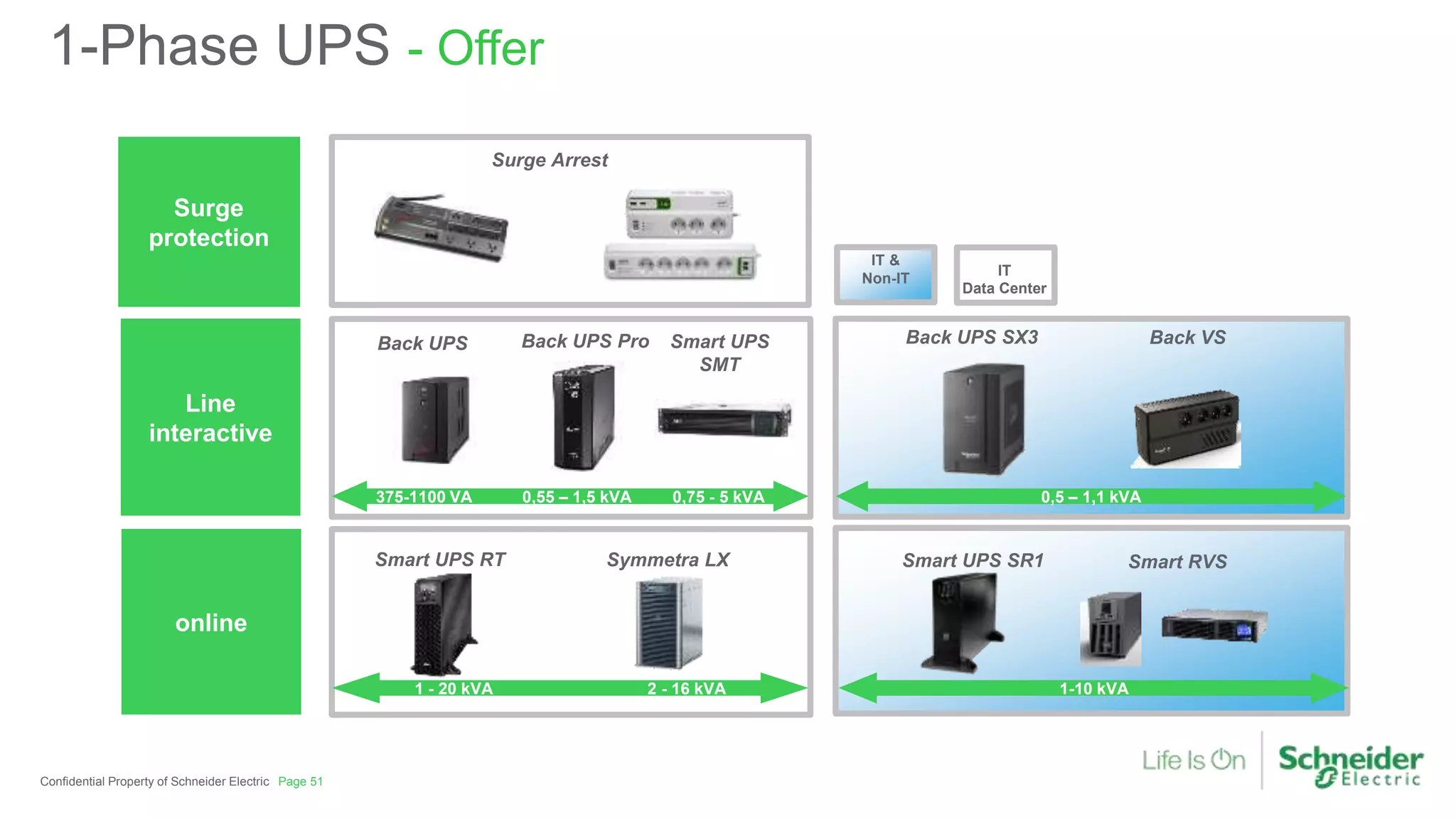

- 48. 1-Phase UPS -Offer 375-1100 VA 0,55 – 1,5 kVA 0,75 - 5 kVA 0,5 – 1,1 kVA Surge Arrest Smart UPS SMT Back UPS Line interactive Surge protection Back UPS SX3 online 1 - 20 kVA 2 - 16 kVA 1-10 kVA Smart UPS RT Smart UPS SR1 Confidential Property of Schneider Electric Page 51 Symmetra LX Back UPS Pro Back VS Smart RVS IT & Non-IT IT Data Center

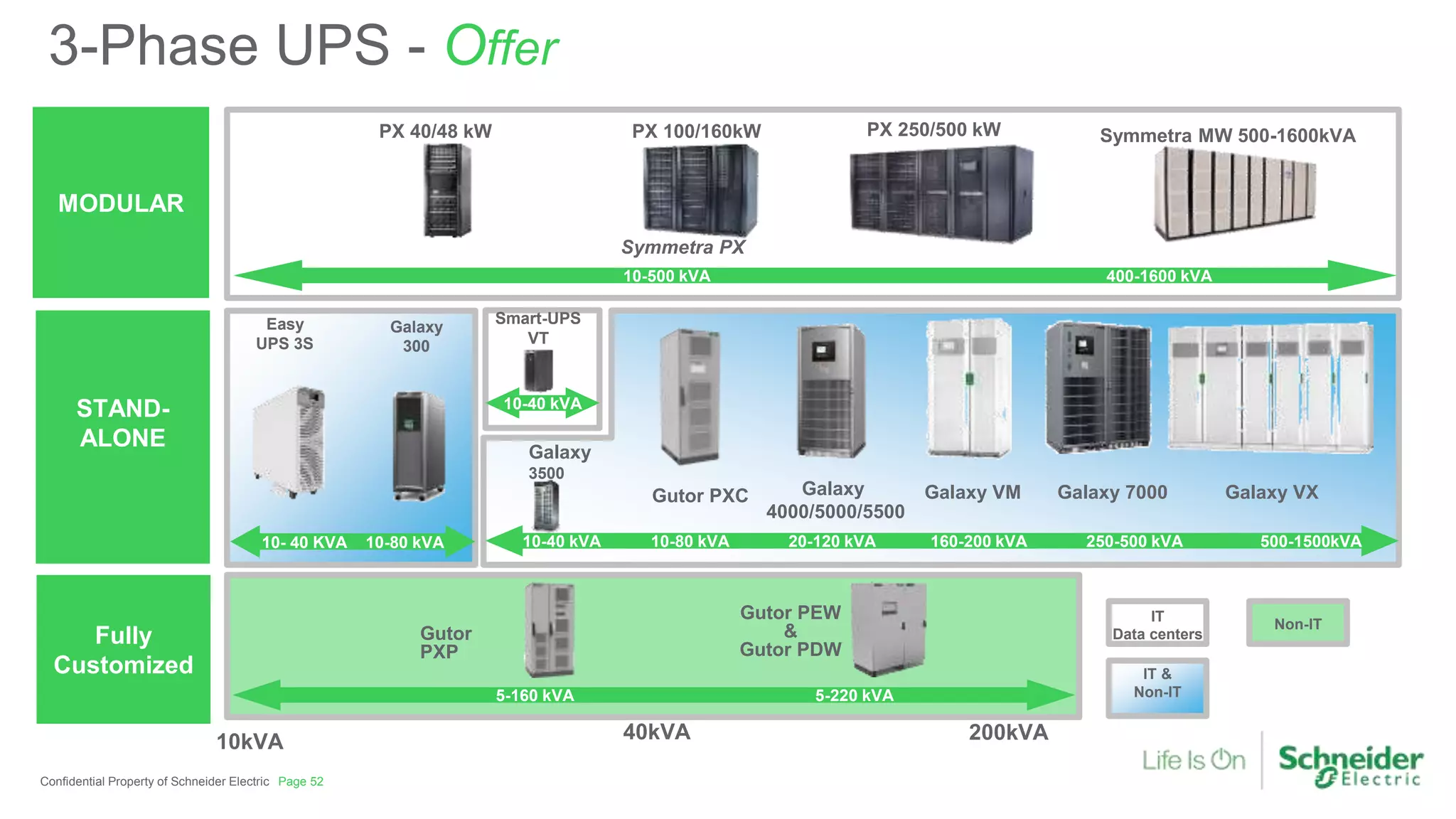

- 49. 10kVA 40kVA 200kVA SymmetraPX 3-Phase UPS - Offer Symmetra MW 500-1600kVA Galaxy 3500 Smart-UPS VT 10-40 kVA 10-40 kVA 10-80 kVA 20-120 kVA 160-200 kVA 250-500 kVA 500-1500kVA 10-500 kVA 400-1600 kVA PX 40/48 kW PX 250/500 kWPX 100/160kW Galaxy VM Galaxy VXGalaxy 4000/5000/5500 STAND- ALONE MODULAR Galaxy 7000 Fully Customized 5-160 kVA 5-220 kVA Gutor PXC Gutor PXP Gutor PEW & Gutor PDW Confidential Property of Schneider Electric Page 52 Galaxy 300 10- 40 KVA 10-80 kVA IT Data centers Non-IT IT & Non-IT Easy UPS 3S
- 50.
Editor's Notes
- #4 More Electric: Our world is becoming More Electric. Almost everything we interact with today is either already electric or becoming electric. Think about it. From the time you start your day in the morning to the time you finish your day – your home, your car, your work, your devices, your entertainment – almost everything is electric. Imagine the energy needed to power this. Electricity consumption will increase by 80% in next 25 years More Connected: Our lives are also becoming more connected. The Internet has already transformed the way we live, work and play. Now the Connected Things is going to take this to a brand new level. 50 billion things connected in the next 5 years. More Distributed: With such a widespread electrification and connectivity, energy models need rethinking as well. Which is why the generation of power needs to be closer to users. Distributed Energy is rapidly evolving globally. This is positive energy – renewable. In 2014 , Renewables overtook fossil fuels in investment value, with $295bn invested in renewables compared to $289bn invested in fossil fuels. And it is getting cheaper to do this. More Efficient: When our world is more electric, more connected and more distributed, new opportunities emerge and allows us to tap into even more efficiency – in industrial processes, in the energy value chain, in buildings, in transportation, in the global supply chain and even in the comfort and peace-of-mind of our homes. Additional Data Points: MORE ELECTRIC: The rising demand for electricity driven by urbanisation, digitisation and sustainability – in particular buildings, industry, intelligent devices and even transportation -- demands proven energy management approaches. Electricity consumption will DOUBLE within the next 20Y (urbanization). This is absolutely massive, esp. considering the yield of electricity production is around 30-40% only (3 units of primary energy to produce 1 unit of electricity). Most of the energy challenge lies into the growth of electricity production (& consumption). MORE DISTRIBUTED: In many parts of the world, energy generation is getting increasingly distributed. This is driven by new capabilities to provide local energy to facilities, particularly around positive or renewable energy and micro grids. Here are two cool reasons behind this trend: Energy storage has seen drastic improvements in its economics over the past 5 years Li-Ion Battery cost $/Kwhr dropping from 1000 in 2010 to around 200 in 2014 Falling prices of renewable energy Cost of Solar modules divided by 5 in last 5 years, to divide again by 2 in coming 20 years. This is now competitive with electricity prices and tariff. Only about 0.08% of the planet needs to be equipped with solar panels to cover world energy needs (125,000km²) Solar will reach (& already does) competitiveness with retail (& some day wholesale) prices of electricity. > Considerable modification of the traditional electricity distribution paradigm (solar + battery cheaper than retail electricity). Go for distribution of energy (small units) rather than high capex/opex power plants. Energy of the sun everyday = 3,500 times what humanity will consume in 2050… MORE CONNECTED: The Internet of Things will connect 50 billion more devices in the next 5 years. Also, think of all the sensors and embedded electronics in machines on shopfloors and plants all over the world. This will add new operational intelligence from data uncovered. This, in turn, will drive vast efficiency opportunities. Connectivity, ladies and gentlemen, is pervasive – all industries, all levels of enterprise and society. Data centers alone = 1-2% of total world electricity consumption, but the entire ICT sector = 10%. Consumption doubled btw 2000/2005, and grew at +56% btw 2005-2010. Digitization is also changing lives : Faster, simpler, more collaborative – More efficient MORE EFFICINECY OPPORTUNITIES: Our more electric world; the more distributed energy world; and the more connected world… they come together to create a more efficient world for us. However, two-thirds of the energy efficiency potential remains untapped1. There is massive energy efficiency opportunities in Industry, Infrastructure, Buildings and Datacenters. There is also significant energy wastage due to inefficient processes in industries such as refineries, steel, and cement, to name a few. One way to reduce this wastage is to embrace new technologies which can drive more efficient processes. Typically, the adoption of new technologies can result about 30% savings in energy consumption. Energy is wasted by inefficient transformation industries (refineries for instance). Around 760MTOE per Y in 2013 (out of 11BTOE consumed) Energy is wasted by inefficient power & heat transformation. Around 3,2BTOE per Y in 2013 (out of 11BTOE consumed) ! Reducing electricity consumption thus has a direct massive impact on primary resources consumption (which is why primary resource prices might remain durably low if large consumers such as Europe, NAM, China go forward with carbon reduction programs). This is just #1 topic. Energy is inefficiently used in all segments (ref. to the slide), and massive opportunities exist. Main paradigm: deploy what’s best (usually new tech easily consumes 30-50% less than old one). Few e.g.. Steel industry (electrical arc furnace 5GJ/t vs traditional furnace 14GJ/t). Cement plants (new tech 25% reduction at 3GJ/t). Aluminium plants (13% saving only with new process & equipment) Electric motors = 46% of total electricity consumption (64% in the industry). 21% could be saved (IEA) using EE techniques. Buildings = 30-60% saving depending on granularity (space / time) of the “Active controls” installed. Passive isolation brings 10-15%. Transport – Light duty = considerable progress over last decades. Up to 30% saving on fuel. And even more now with hybrid & full electric technologies. 80% of light duty transportation = small distances (within cities). Smart mobility can also take us there. Transport – Air industry. New Boeing 787 1,3MJ/seat/km vs Boeing 767 1,9MJ/seat/km >> considerable savings Transport – Marine. Shore connection Main issue: willingness to change, inertia of deployment of these new tech Lifetime of industrial plant ~ 50Y (or a power plant by the way) Buildings: by 2050, 75% of existing buildings will still be standing Transportation: sales of new vehicles = 7% of worldwide fleet every year + fleet is increasing (700M cars today vs 3B in 2050). >> very low rate of replacement
- #7 Recommended Script : To understand the emerging new world of distributed energy, we must first understand the old world of energy. This old world of energy is going through a massive transformation -- from a centralized, linear fashion of power generation, distribution and consumption….. to a more distributed and connected one. NEXT SLIDE
- #8 Recommended Script : To understand the emerging new world of distributed energy, we must first understand the old world of energy. This old world of energy is going through a massive transformation -- from a centralized, linear fashion of power generation, distribution and consumption….. to a more distributed and connected one. NEXT SLIDE
- #11 We need to have a look inside a UPS We need to understand how a UPS works Everybody know a rectifier (Used for your phones, Laptop) This is called double conversion This is how most UPS’s are made
- #12 Recommended Script : To understand the emerging new world of distributed energy, we must first understand the old world of energy. This old world of energy is going through a massive transformation -- from a centralized, linear fashion of power generation, distribution and consumption….. to a more distributed and connected one. NEXT SLIDE
- #13 Recommended Script : To understand the emerging new world of distributed energy, we must first understand the old world of energy. This old world of energy is going through a massive transformation -- from a centralized, linear fashion of power generation, distribution and consumption….. to a more distributed and connected one. NEXT SLIDE
- #15 L'utilisation est alimentée directement au travers d'un filtre lorsque l'alimentation normale est présente et de qualité suffisante. Lors d'une défaillance de cette alimentation, l'utilisation est alimentée par l'onduleur à partir de sa batterie . Ces alimentations sont réservées aux récepteurs de faible puissance de type bureautique ou micro informatique avec une alimentation normale peu perturbée. Le temps de transfert de l'alimentation normale vers l'onduleur est de quelques millisecondes à une dizaine de millisecondes habituellement ( temps de basculement d'un relais ) .
- #16 L'utilisation est alimentée directement au travers d'un dispositif de couplage / découplage lorsque l'alimentation normale est de qualité suffisante. L'onduleur est alors en parallèle avec l'utilisation et prélève l'énergie nécessaire à la charge de la batterie. Un dispositif de filtrage peut être intercalé entre l'alimentation normale et l'onduleur afin d'améliorer le taux de distorsion de la tension et également apporter une régulation de la tension de sortie. Dans ce dernier cas le courant réactif prélevé a l'alimentation normale peut être élevé puisque c'est généralement une inductance qui supporte la différence de tension entre les deux sources. Lors de la disparition de l'alimentation normale, le dispositif de découplage permet à l'onduleur d'alimenter directement l'utilisation. Ce dispositif de découplage doit évidemment être rapide pour éviter de perturber l'utilisation pendant le transfert des alimentations. Bien que certaines alimentations puissent assurer une régulation de l'amplitude, la régulation de fréquence n'est pas possible et cette particularité limite leur utilisation à des alimentations normales ne présentant pas de perturbation de fréquence. Elles sont donc à éviter dans le cas où un groupe moteur thermique-générateur peut se substituer au réseau lorsque celui-ci disparaît, en raison des fluctuations de fréquence de tels dispositifs surtout pour les puissances faibles.
- #17 L'utilisation est alimentée à travers la double conversion du redresseur et de l'onduleur, à partir de l'alimentation normale , lorsque celle-ci est dans les tolérances de tension et de fréquence admissibles par le redresseur . Lorsque l'alimentation normale sort de ces tolérances l'utilisation continue d'être alimentée par l'onduleur à partir de la batterie. L'utilisation est donc en permanence alimentée par l'onduleur qui délivre une tension dont la stabilité en amplitude et en fréquence peut être très élevée. De plus le nombre de phases ainsi que les fréquences en entrée et en sortie peuvent être différents. Le redresseur et la batterie délivrent une énergie hautement disponible que l'onduleur transforme en énergie de haute qualité. Certaines ASI comportent en plus de la chaîne redresseur / batterie / onduleur une voie by-pass, permettant généralement à travers un contacteur statique, d'alimenter directement l'utilisation en cas de forte surcharge ou d'arrêt de la chaîne précédente. Cette voie by-pass peut être de plus raccordée à une source appelée alimentation 2, différente de l'alimentation normale afin d'augmenter la disponibilité. Ces alimentations sont donc utilisées pour toutes les charges nécessitant un niveau de qualité élevé telles que les salles informatiques, les applications médicales ou les équipements de contrôle de procédés industriels. Elles s'imposent pour la plupart des applications lorsque l'alimentation normale est très perturbée comme dans les réseaux industriels ou ruraux.
- #29 All customers have different needs for UPS protection, depending on the critical level of the bizz they a running Therefore is important that we listen and understand the customers needs Here some UPS configurations we support with our offering
- #34 All customers have different needs for UPS protection, depending on the critical level of the bizz they a running Therefore is important that we listen and understand the customers needs Here some UPS configurations we support with our offering
- #35 Let try to convert these boxes into real UPS’s A UPS is not just a UPS.....
- #37 Galaxy VX is offering what we call.. multi-mode operation.. This is to ensure we can select the best possible operation mode… for best performance… for a given environment... Double conversion… ECO mode…& ECOnversion Galaxy VX is a Double conversion UPS... …developed with a 4-level inverter technology for high efficiency.. …and highest reliability in terms of UPS design And the way a double conv ups’s works… ..Power from the grid goes to the PFC… which converts the AC to DC store energy can be stored on the batteries. The Inverter the creates a new perfect sin wave to the load Galaxy VX also supports ECO mode..... Which is a operation mode.. which only offer high efficiency.. and very low reliability…not recommended to use Finally we have ECOnversion…. which is a combination of ECO mode… and Double Conversion…This is something NEW… we will also have a closer look at this doing the following slides -NEXT- ------ADD TO SLIDE AT SOME TIME------ Double conversion.. for tough environment ECO mode.. for none critical applications ECOnversion.. For the clever customer…
- #38 So before I will introduce this new innovative way solution… we need to understand the basic functionality of how a UPS works…. “READ” Double line by line “READ” ECO mode line by line “Click”
- #39 I would like present a new innovative UPS operation mode…. called ECOnversion… Read line by line…. (Novel : Ny)
- #40 The benefit of ECOnversion…. is off cause the capability to safely protect the critical load.. and to remove any harmonics created by the load …and to correct the power factor.. caused by the load.. when needed…. Another major benefit of ECOnversion.. is that.. “all this” is achieved while using.. a minimum of energy… consumed by the UPS…UPS losses.. This results in “major” energy saving in the electricity consumption by the UPS… living more power to the load.. and big savings on the electricity bill for the customer.. ..Lets have a closer look at the savings… we can achieve by using ECOnversion “Read Double Conv.” “Read ECOnversion” “CLICK” -> “Read Result” -NEXT-
- #42 SPoT mode… or Smart Power Test is a “On-side function test” of all critical components of the UPS.. like Power modules, SSW, Battery Charger and even the battery…. All performed with little preparation… or the requirement to rent a load bank…pulling cables to loadbank… etz. “Read line by line” The Smart Power Test.. in normal operation is conducted by….. 3 types of SPoT mode test are available
- #43 3 types of SPoT mode test are available SPoT mode is full functional test of the UPS… and is performed by the FSE before the critical load is connected to the UPS
- #49 The Li-ion battery solution consist of a ”LIB Rack” Multible ”battery modules” (30,4V) are inserted in the ”Rack” Each ”battery Module” includes 8 LIB cell’s (each 3,8V) --READ SLIDE-- SOC: State of charge, for batteries SOH: State of health, for batteries System BMS - Voltage, SMPS information, SOC (State of charge), SOH (State of health), Fault/Alarm Rack BMS - Voltage, Current, MCCB information, SOC, SOH, Trip/Alarm Module BMS - Voltage, Temperature
- #50 To summerize Li-ion -- READ LINE BY LINE –
