SDN - a new security paradigm?
- 1. Lecture by Jean-MarcANDRE UNIWAN 2016

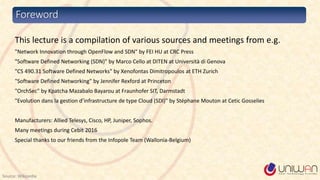

- 2. Foreword Source: Wikipedia This lectureis a compilation of various sources and meetings from e.g. "Network Innovation through OpenFlow and SDN" by FEI HU at CRC Press "Software Defined Networking (SDN)" by Marco Cello at DITEN at Università di Genova "CS 490.31 Software Defined Networks" by Xenofontas Dimitropoulos at ETH Zurich "Software Defined Networking" by Jennifer Rexford at Princeton "OrchSec" by Kpatcha Mazabalo Bayarou at Fraunhofer SIT, Darmstadt "Evolution dans la gestion d’infrastructure de type Cloud (SDI)" by Stéphane Mouton at Cetic Gosselies Manufacturers: Allied Telesys, Cisco, HP, Juniper, Sophos. Many meetings during Cebit 2016 Special thanks to our friends from the Infopole Team (Wallonia-Belgium)

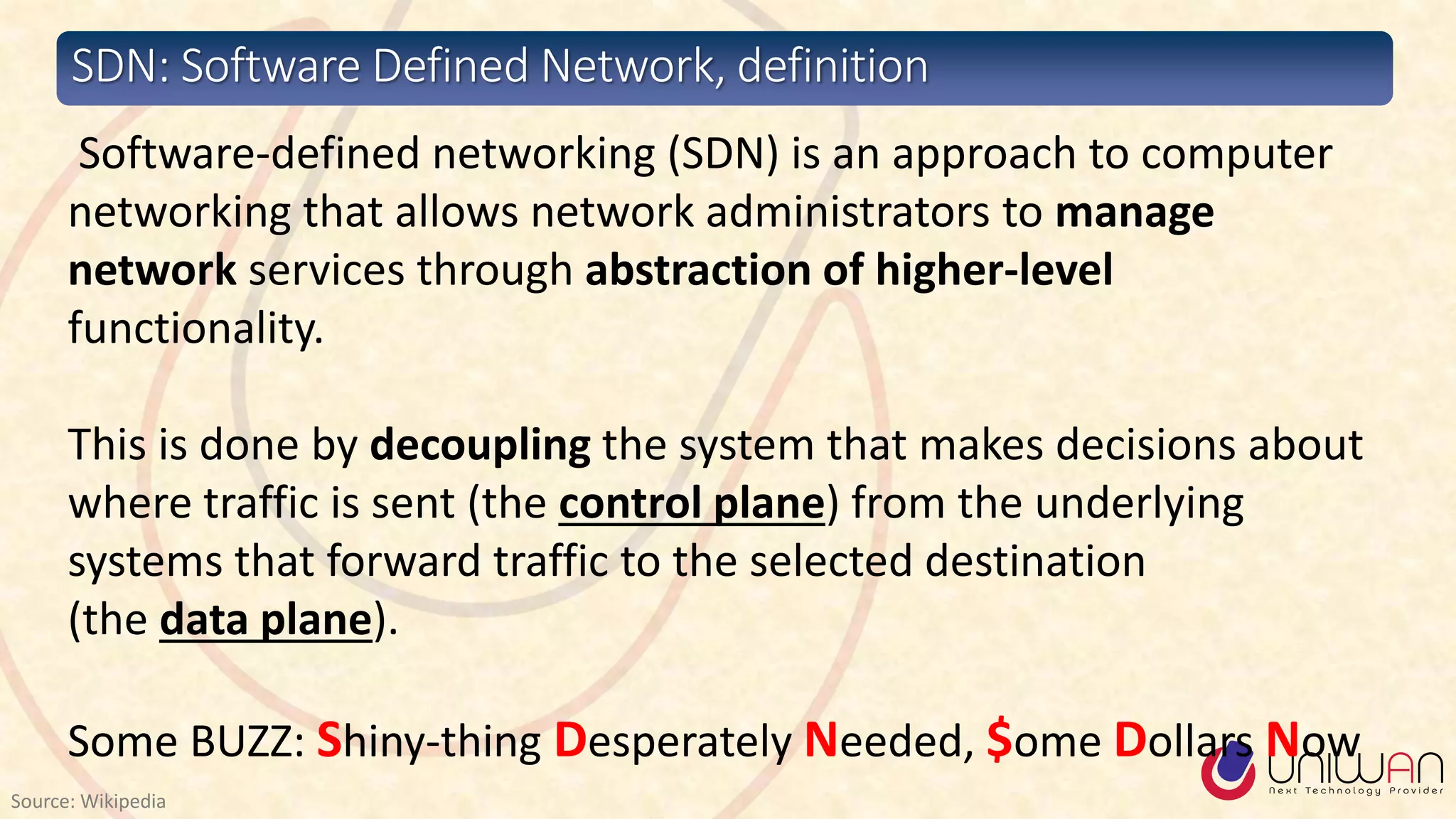

- 3. SDN: Software DefinedNetwork, definition Source: Wikipedia Software-defined networking (SDN) is an approach to computer networking that allows network administrators to manage network services through abstraction of higher-level functionality. This is done by decoupling the system that makes decisions about where traffic is sent (the control plane) from the underlying systems that forward traffic to the selected destination (the data plane). Some BUZZ: Shiny-thing Desperately Needed, $ome Dollars Now
- 4. A Short Historyof SDN Source: Marco Cello DITEN ~2004: Research on new management paradigms RCP, 4D [Princeton, CMU,….] SANE, Ethane [Stanford/Berkeley] 2008: Software-Defined Networking (SDN) NOX Network Operating System [Nicira] OpenFlow switch interface [Stanford/Nicira] 2011: Open Networking Foundation (~69 members) Board: Google, Yahoo, Verizon, DT, Microsoft, Facebook, NTT Members: Cisco, Juniper, HP, Dell, Broadcom, IBM,….. 2013: Latest Open Networking Summit 1600 attendees, Google: SDN used for their WAN Commercialized, in production use (few places)

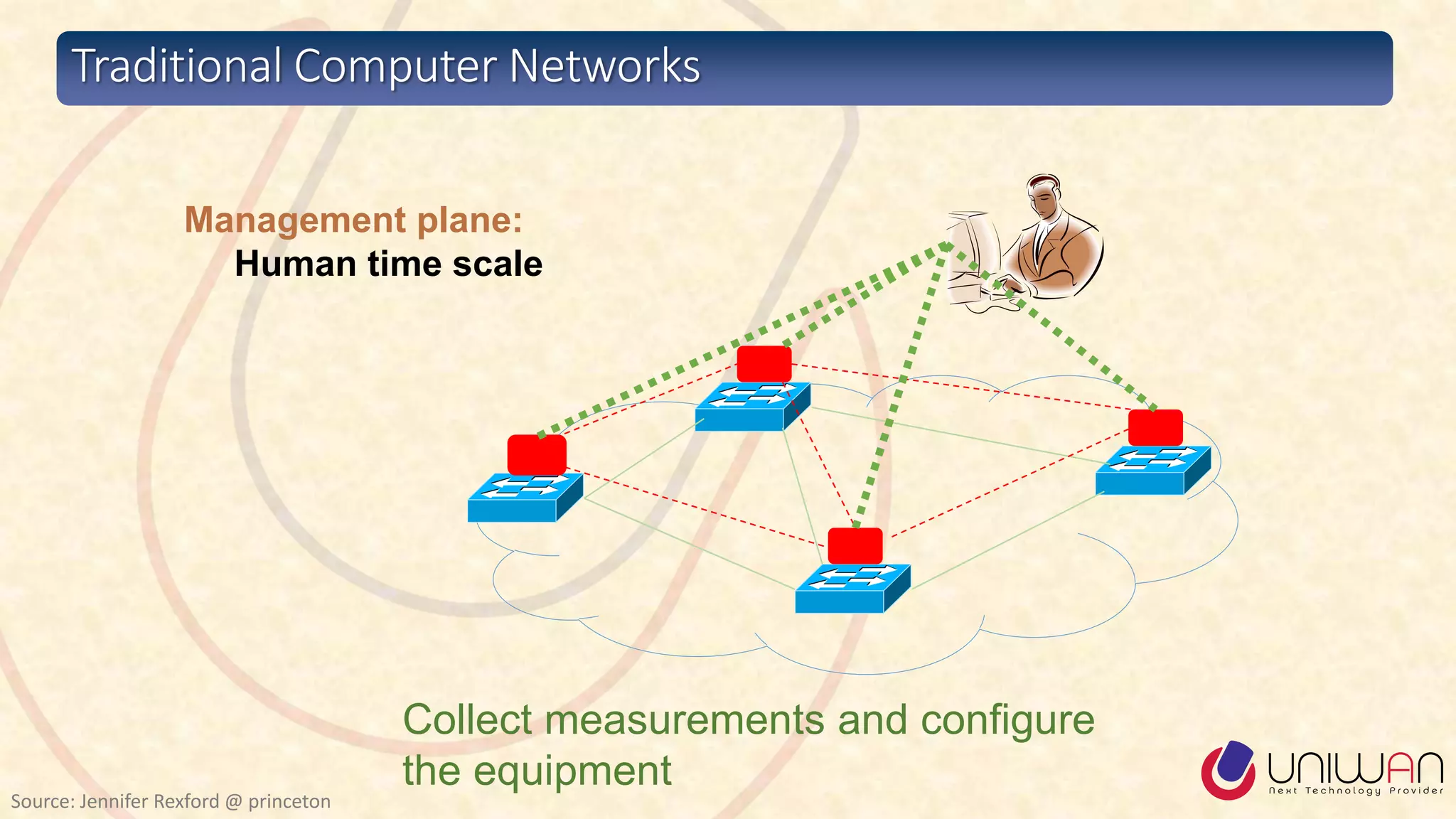

- 5. Traditional Computer Networks Collectmeasurements and configure the equipment Management plane: Human time scale Source: Jennifer Rexford @ princeton

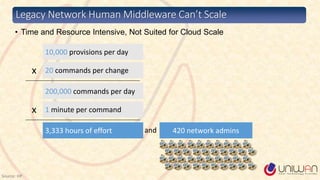

- 6. Legacy Network HumanMiddleware Can’t Scale 10,000 provisions per day 3,333 hours of effort 420 network adminsand 20 commands per changex Source: HP 200,000 commands per day 1 minute per commandx • Time and Resource Intensive, Not Suited for Cloud Scale

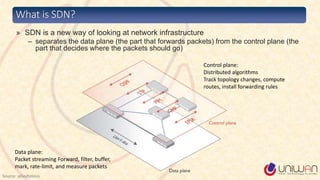

- 7. What is SDN? »SDN is a new way of looking at network infrastructure – separates the data plane (the part that forwards packets) from the control plane (the part that decides where the packets should go) What is SDN? Data plane: Packet streaming Forward, filter, buffer, mark, rate-limit, and measure packets Control plane: Distributed algorithms Track topology changes, compute routes, install forwarding rules Source: alliedtelesis

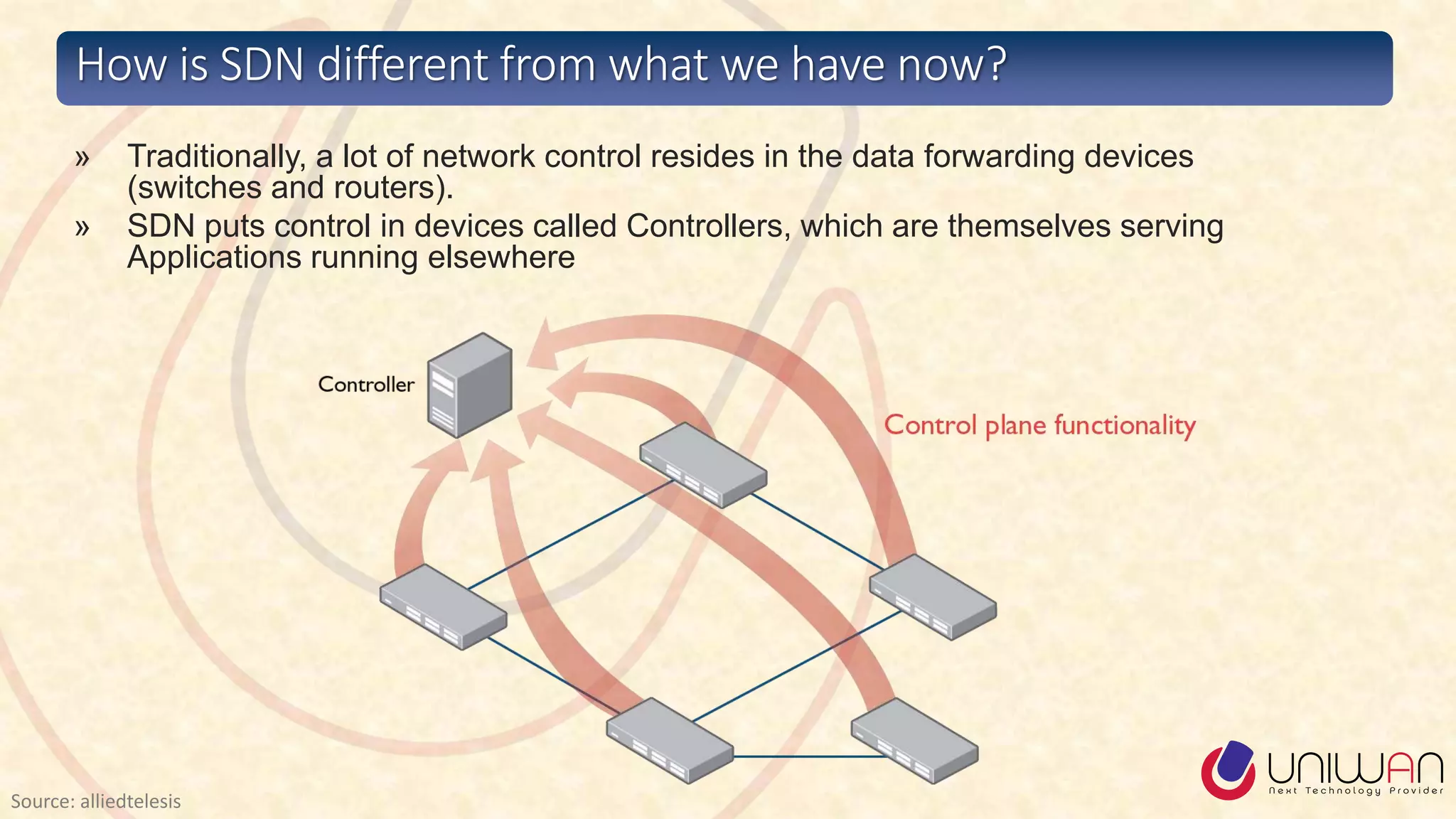

- 8. » Traditionally, alot of network control resides in the data forwarding devices (switches and routers). » SDN puts control in devices called Controllers, which are themselves serving Applications running elsewhere How is SDN different from what we have now? Source: alliedtelesis

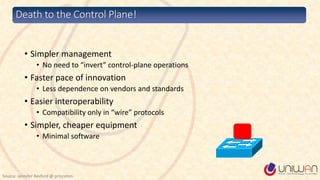

- 9. Death to theControl Plane! • Simpler management • No need to “invert” control-plane operations • Faster pace of innovation • Less dependence on vendors and standards • Easier interoperability • Compatibility only in “wire” protocols • Simpler, cheaper equipment • Minimal software Source: Jennifer Rexford @ princeton

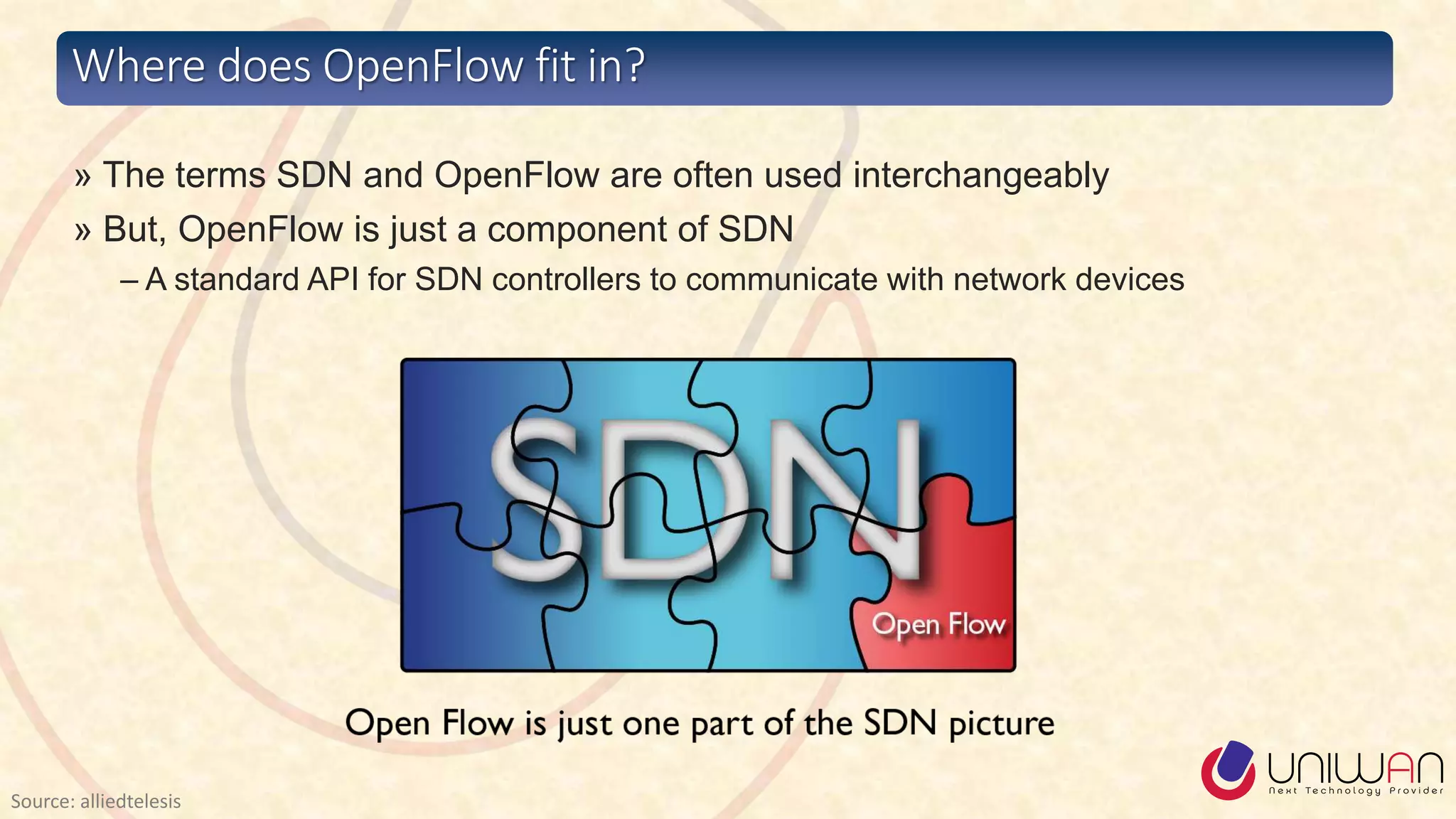

- 10. » The termsSDN and OpenFlow are often used interchangeably » But, OpenFlow is just a component of SDN – A standard API for SDN controllers to communicate with network devices Where does OpenFlow fit in? Source: alliedtelesis

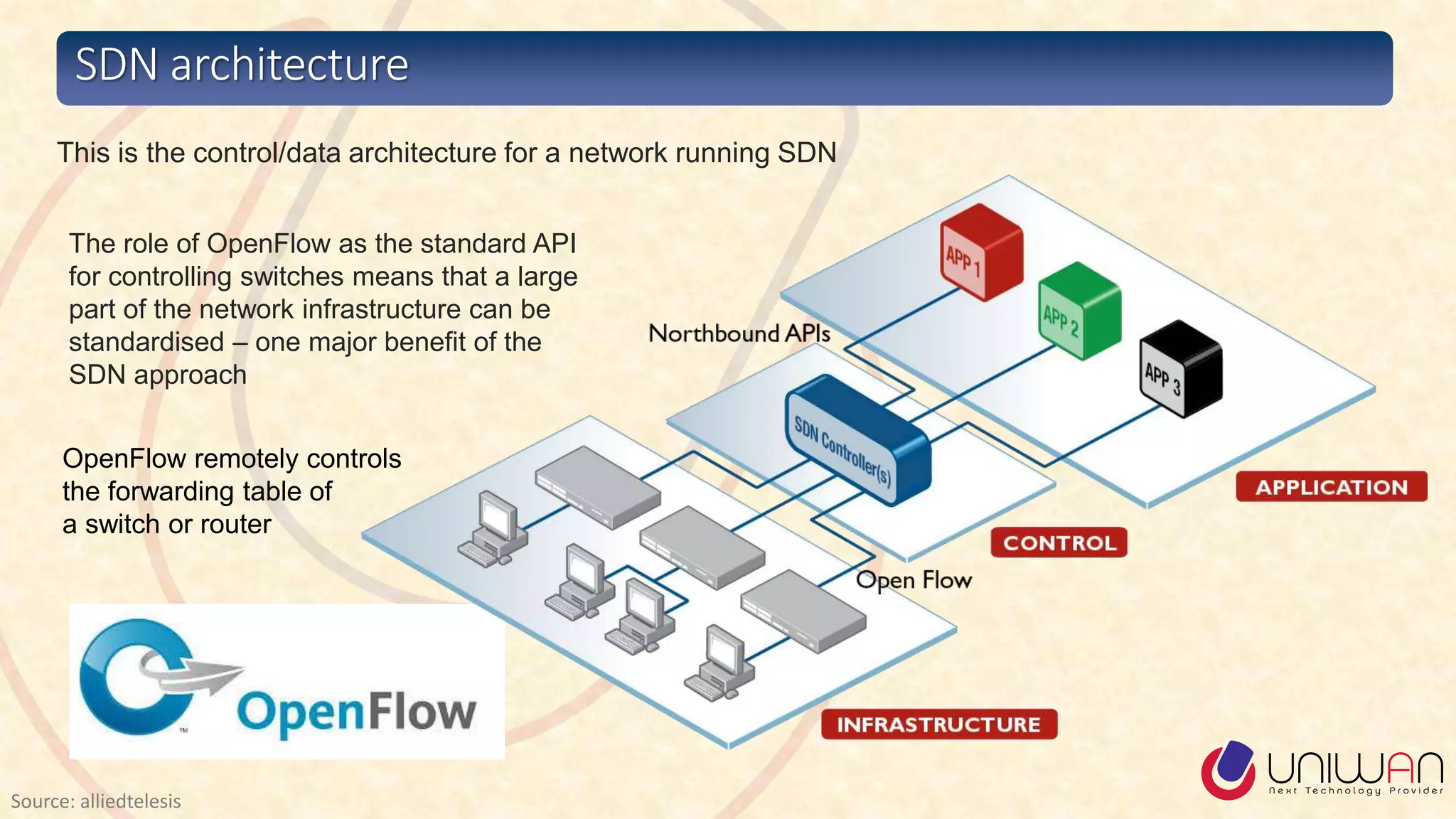

- 11. The role ofOpenFlow as the standard API for controlling switches means that a large part of the network infrastructure can be standardised – one major benefit of the SDN approach SDN architecture This is the control/data architecture for a network running SDN Source: alliedtelesis OpenFlow remotely controls the forwarding table of a switch or router

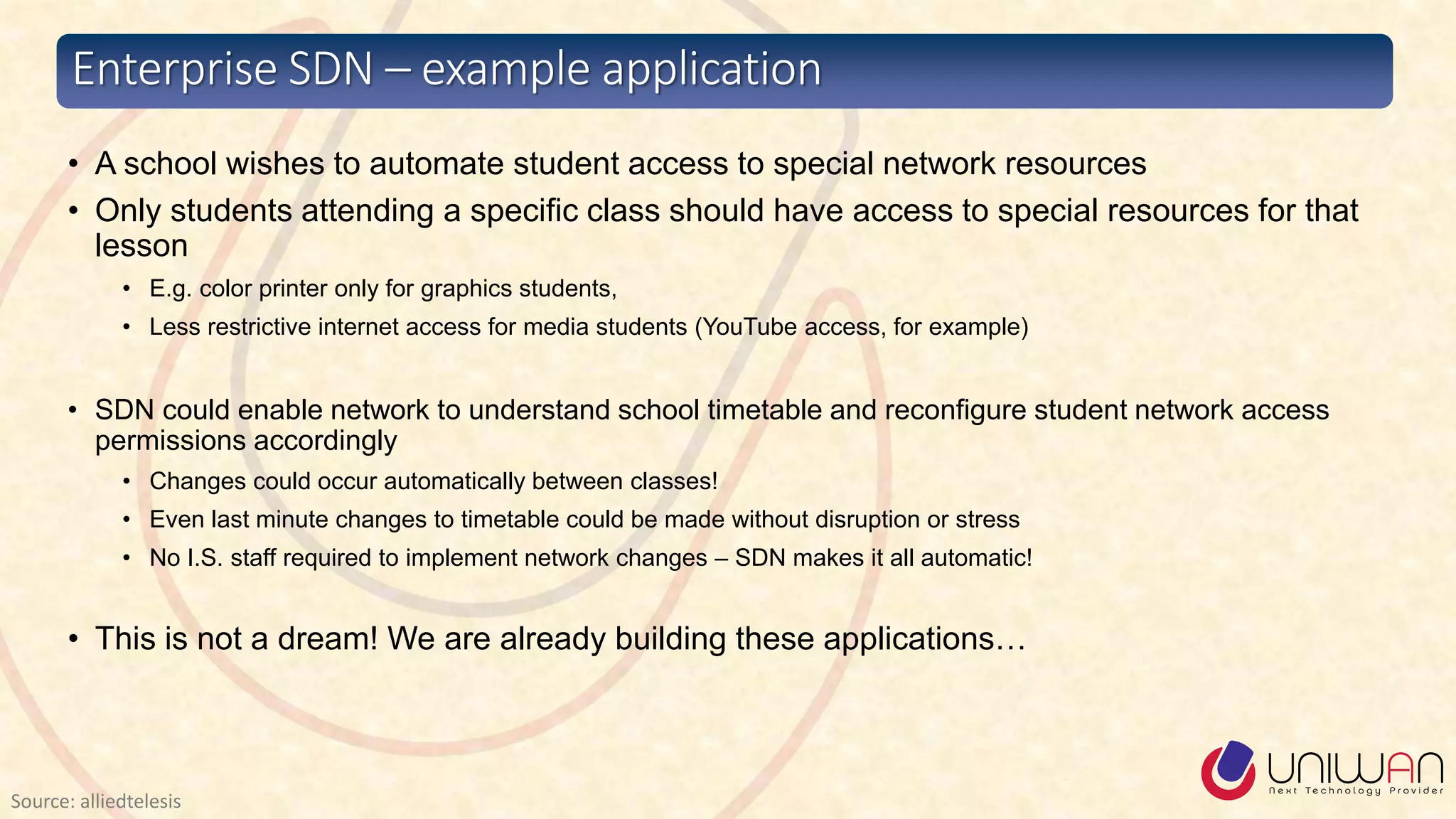

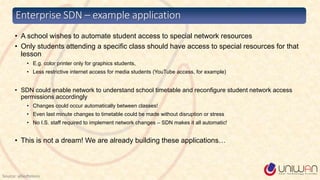

- 12. • A schoolwishes to automate student access to special network resources • Only students attending a specific class should have access to special resources for that lesson • E.g. color printer only for graphics students, • Less restrictive internet access for media students (YouTube access, for example) • SDN could enable network to understand school timetable and reconfigure student network access permissions accordingly • Changes could occur automatically between classes! • Even last minute changes to timetable could be made without disruption or stress • No I.S. staff required to implement network changes – SDN makes it all automatic! • This is not a dream! We are already building these applications… Enterprise SDN – example application Source: alliedtelesis

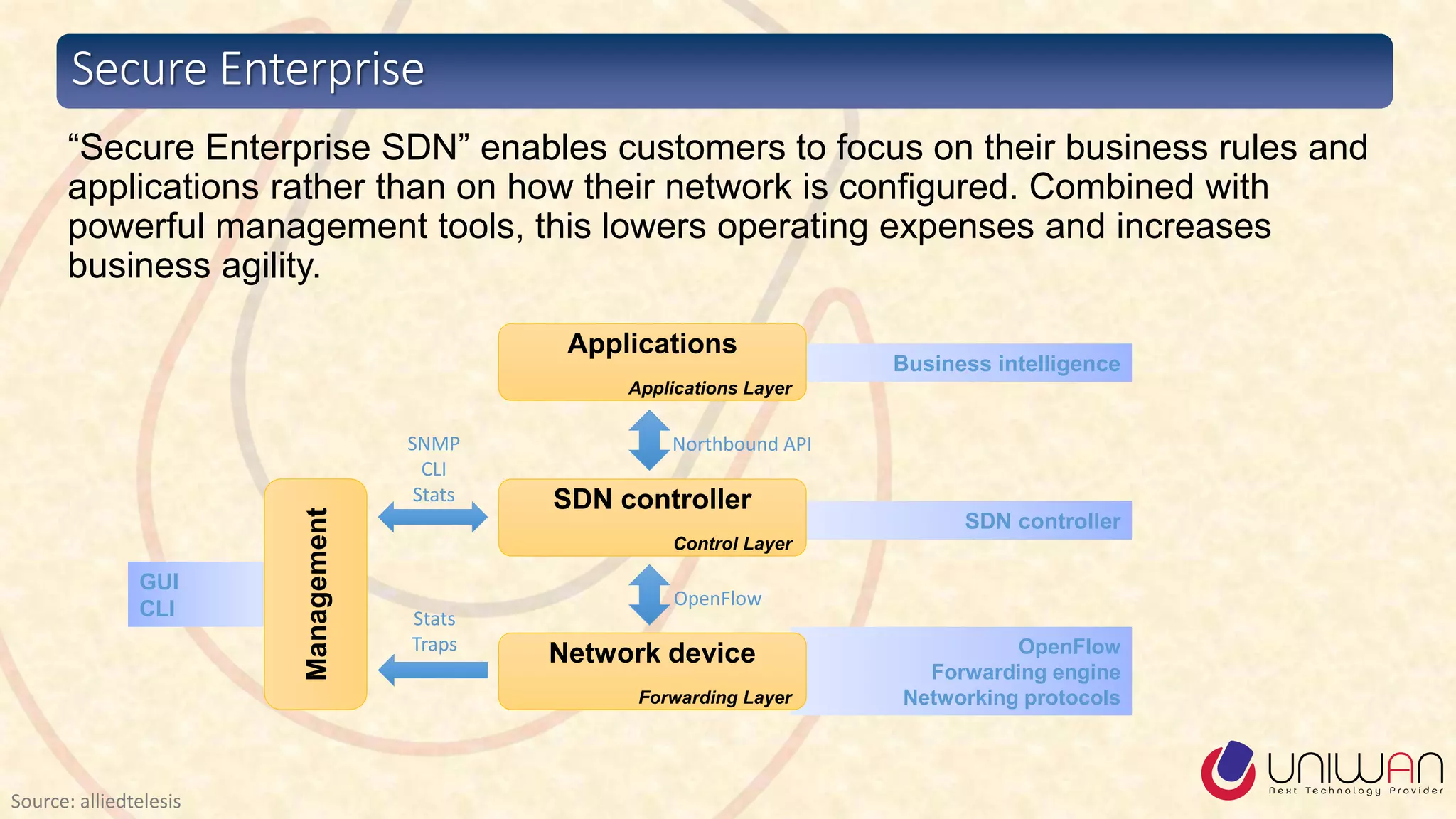

- 13. “Secure Enterprise SDN”enables customers to focus on their business rules and applications rather than on how their network is configured. Combined with powerful management tools, this lowers operating expenses and increases business agility. Secure Enterprise SDN controller OpenFlow Forwarding engine Networking protocols GUI CLI SDN controller Control Layer Network device Forwarding Layer Management OpenFlow SNMP CLI Stats Stats Traps Business intelligence Applications Applications Layer Northbound API Source: alliedtelesis

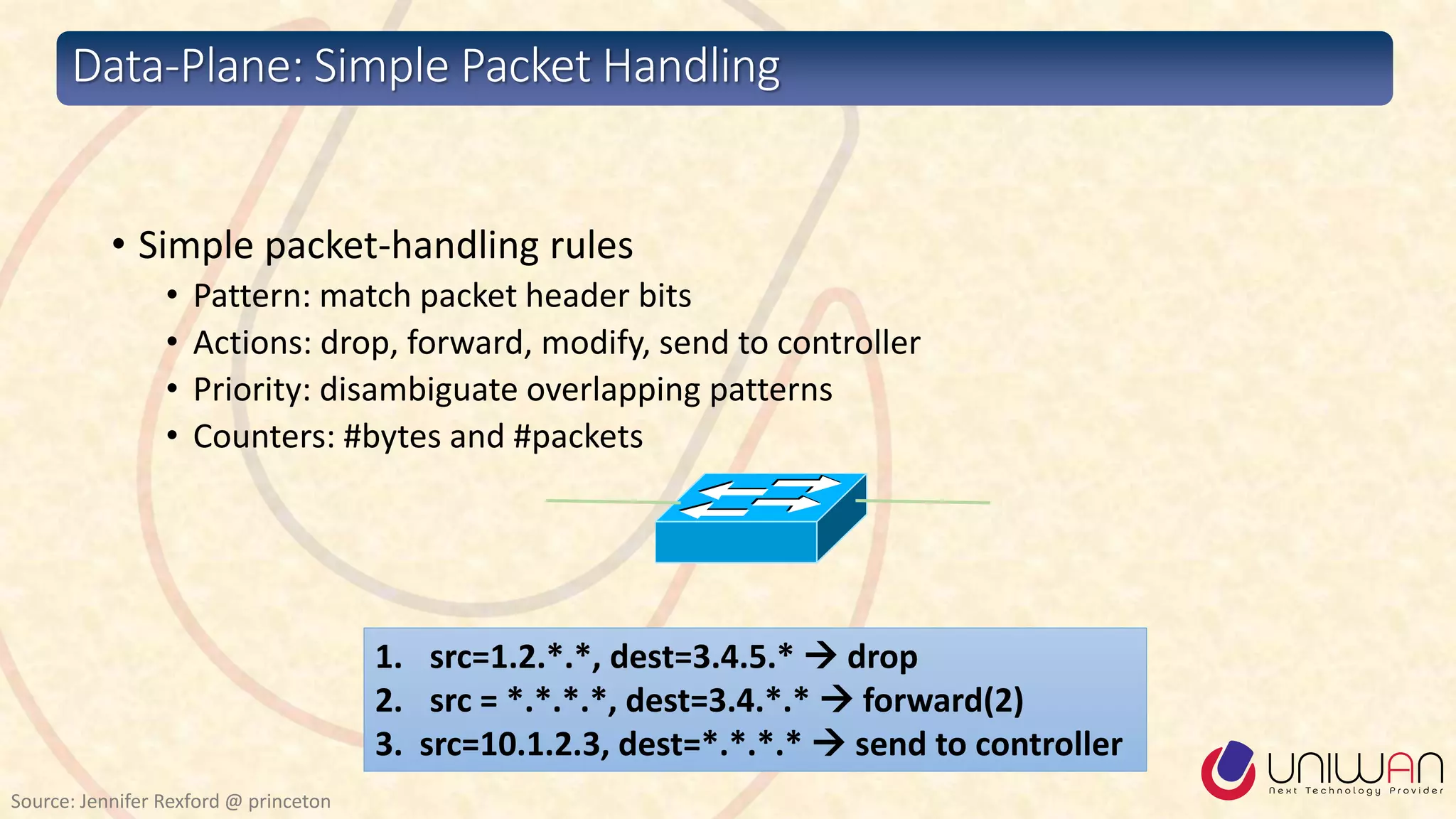

- 14. Data-Plane: Simple PacketHandling • Simple packet-handling rules • Pattern: match packet header bits • Actions: drop, forward, modify, send to controller • Priority: disambiguate overlapping patterns • Counters: #bytes and #packets 1. src=1.2.*.*, dest=3.4.5.* drop 2. src = *.*.*.*, dest=3.4.*.* forward(2) 3. src=10.1.2.3, dest=*.*.*.* send to controller Source: Jennifer Rexford @ princeton

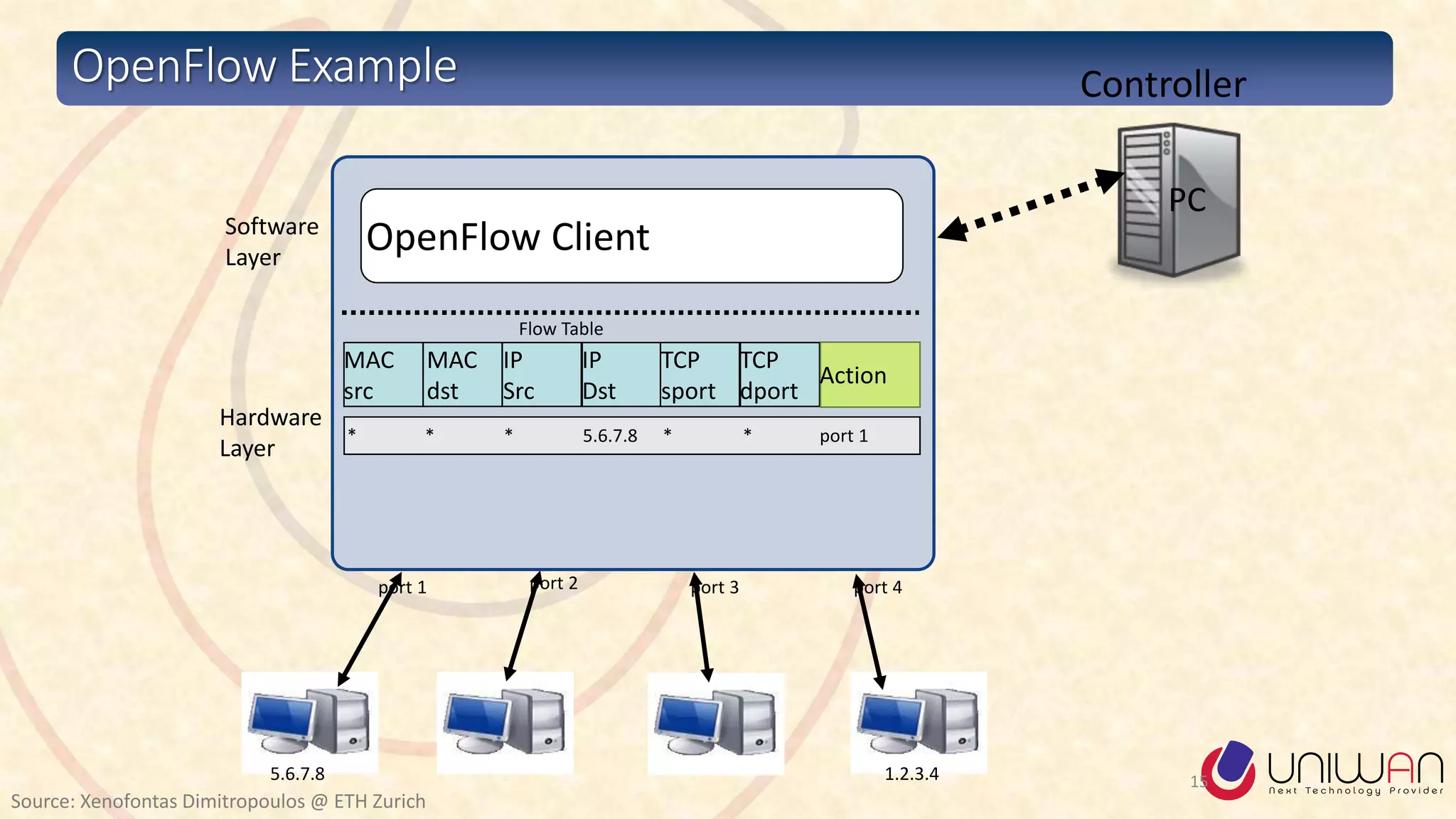

- 15. OpenFlow Example Controller PC Hardware Layer Software Layer FlowTable MAC src MAC dst IP Src IP Dst TCP sport TCP dport Action OpenFlow Client **5.6.7.8*** port 1 port 4port 3port 2port 1 1.2.3.45.6.7.8 15 Source: Xenofontas Dimitropoulos @ ETH Zurich

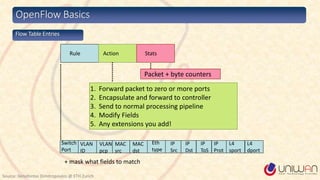

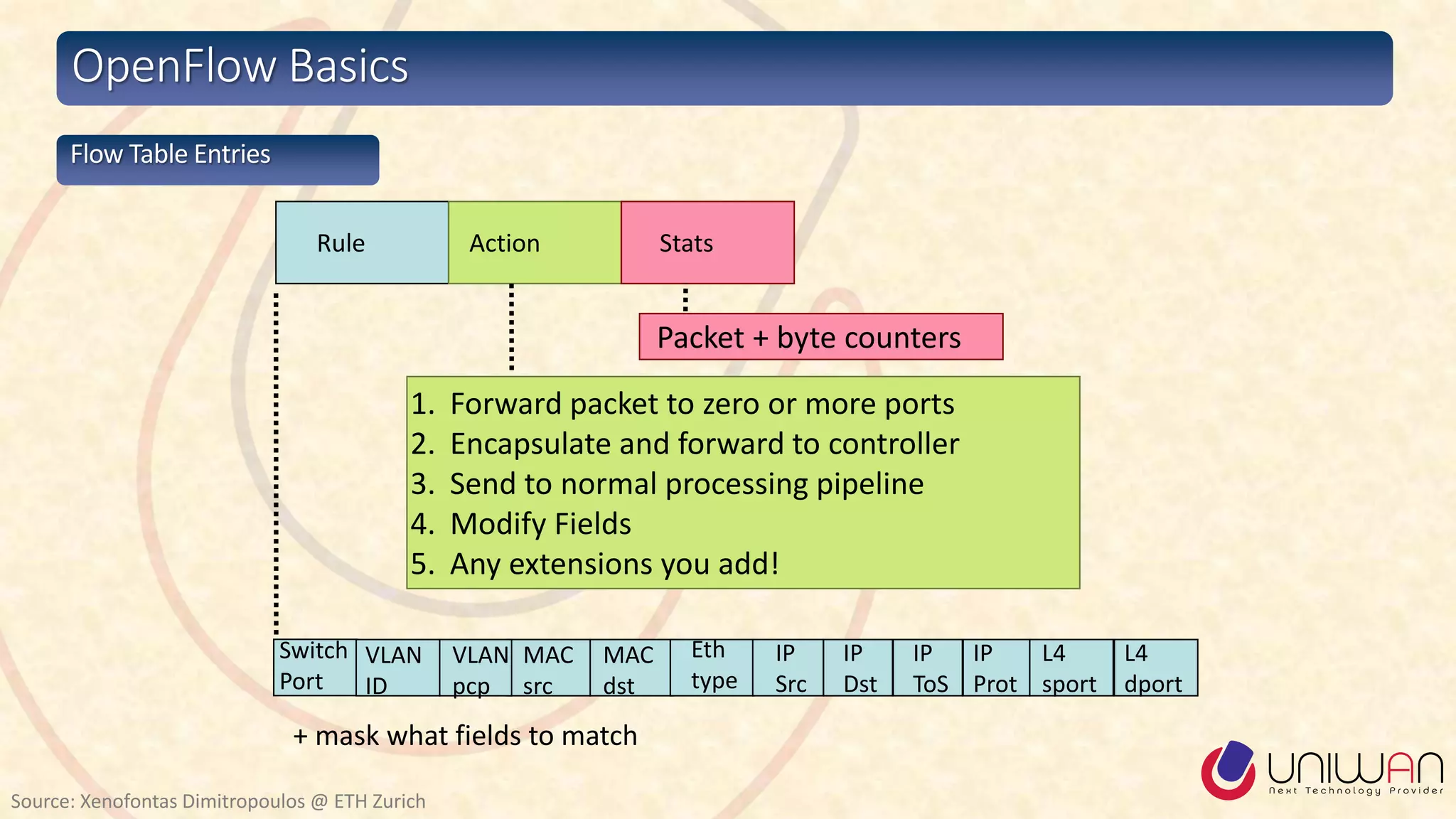

- 16. OpenFlow Basics Source: XenofontasDimitropoulos @ ETH Zurich Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot L4 sport L4 dport Rule Action Stats 1. Forward packet to zero or more ports 2. Encapsulate and forward to controller 3. Send to normal processing pipeline 4. Modify Fields 5. Any extensions you add! + mask what fields to match Packet + byte counters VLAN pcp IP ToS Flow Table Entries

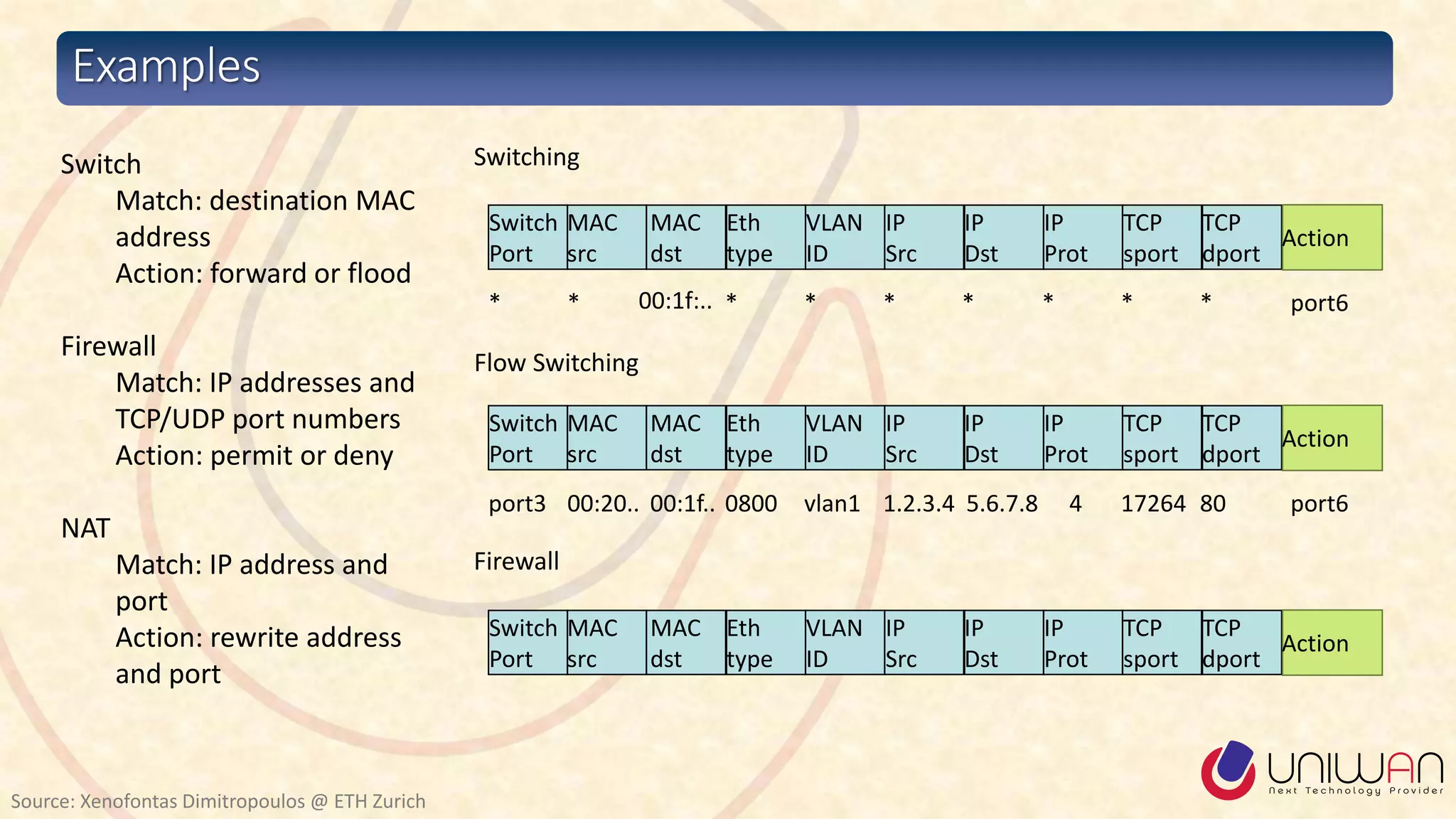

- 17. Examples Source: Xenofontas Dimitropoulos@ ETH Zurich Switching * Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action * 00:1f:.. * * * * * * * port6 Flow Switching port3 Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action 00:20.. 00:1f.. 0800 vlan1 1.2.3.4 5.6.7.8 4 17264 80 port6 Firewall Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action Switch Match: destination MAC address Action: forward or flood Firewall Match: IP addresses and TCP/UDP port numbers Action: permit or deny NAT Match: IP address and port Action: rewrite address and port

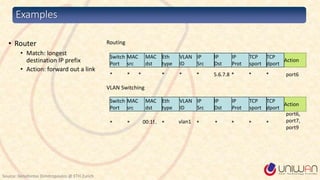

- 18. Examples Source: Xenofontas Dimitropoulos@ ETH Zurich Routing * Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action * * * * * 5.6.7.8 * * * port6 VLAN Switching * Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action * * vlan1 * * * * * port6, port7, port9 00:1f.. • Router • Match: longest destination IP prefix • Action: forward out a link

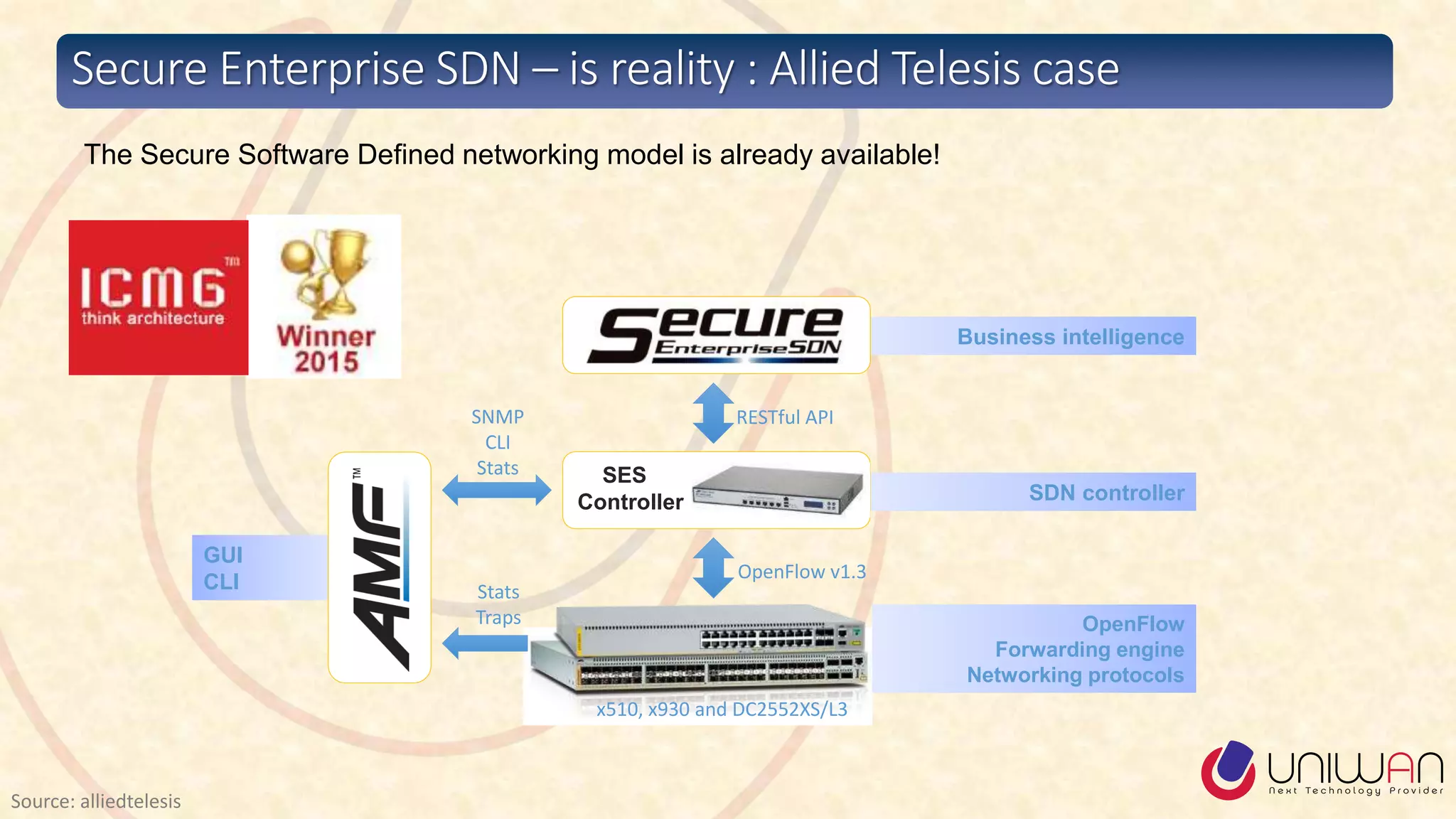

- 19. SDN controller SES Controller The SecureSoftware Defined networking model is already available! Secure Enterprise SDN – is reality : Allied Telesis case GUI CLI OpenFlow v1.3 SNMP CLI Stats Stats Traps Business intelligence RESTful API OpenFlow Forwarding engine Networking protocols x510, x930 and DC2552XS/L3 Source: alliedtelesis

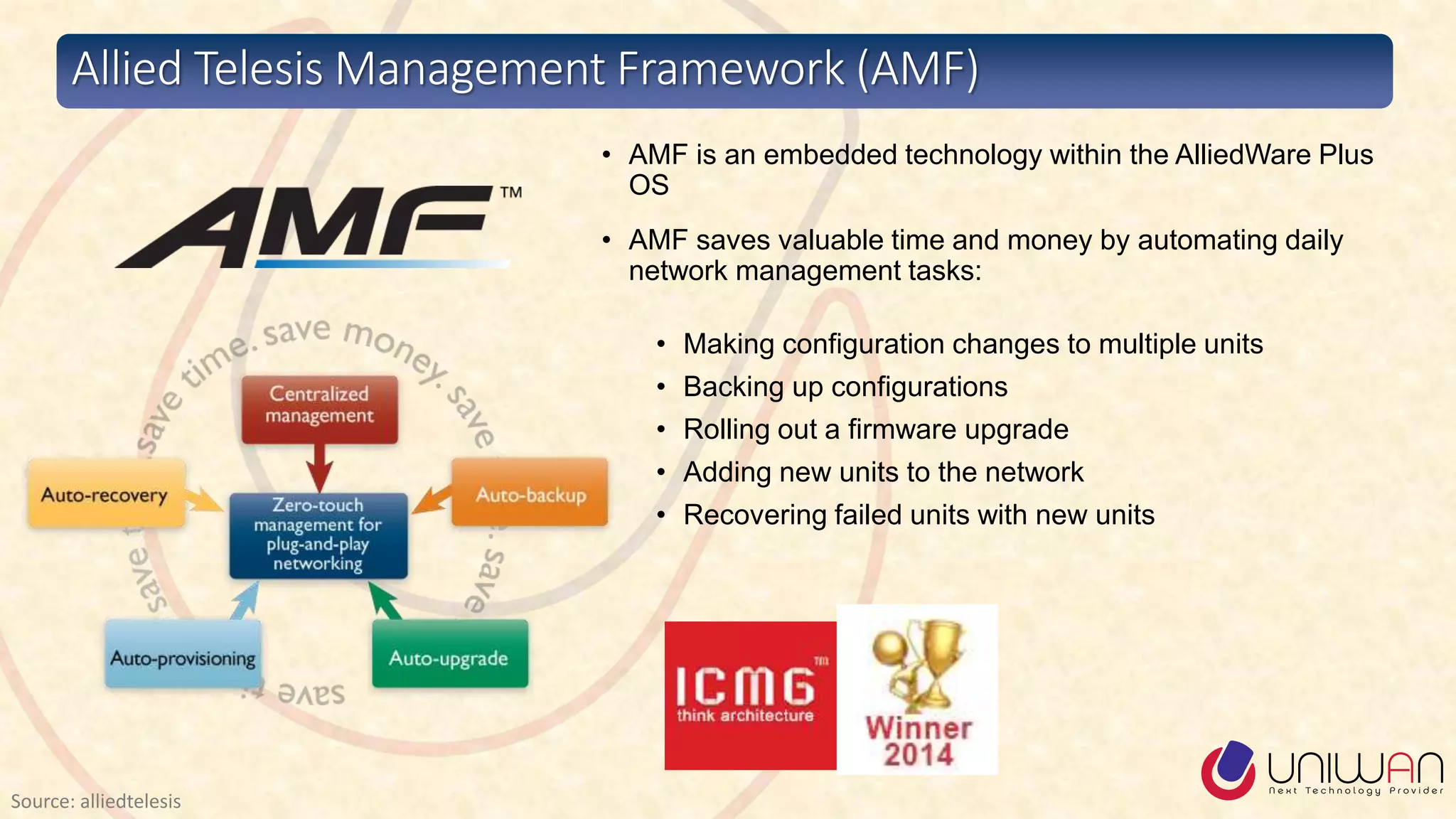

- 20. • AMF isan embedded technology within the AlliedWare Plus OS • AMF saves valuable time and money by automating daily network management tasks: • Making configuration changes to multiple units • Backing up configurations • Rolling out a firmware upgrade • Adding new units to the network • Recovering failed units with new units Allied Telesis Management Framework (AMF) Source: alliedtelesis

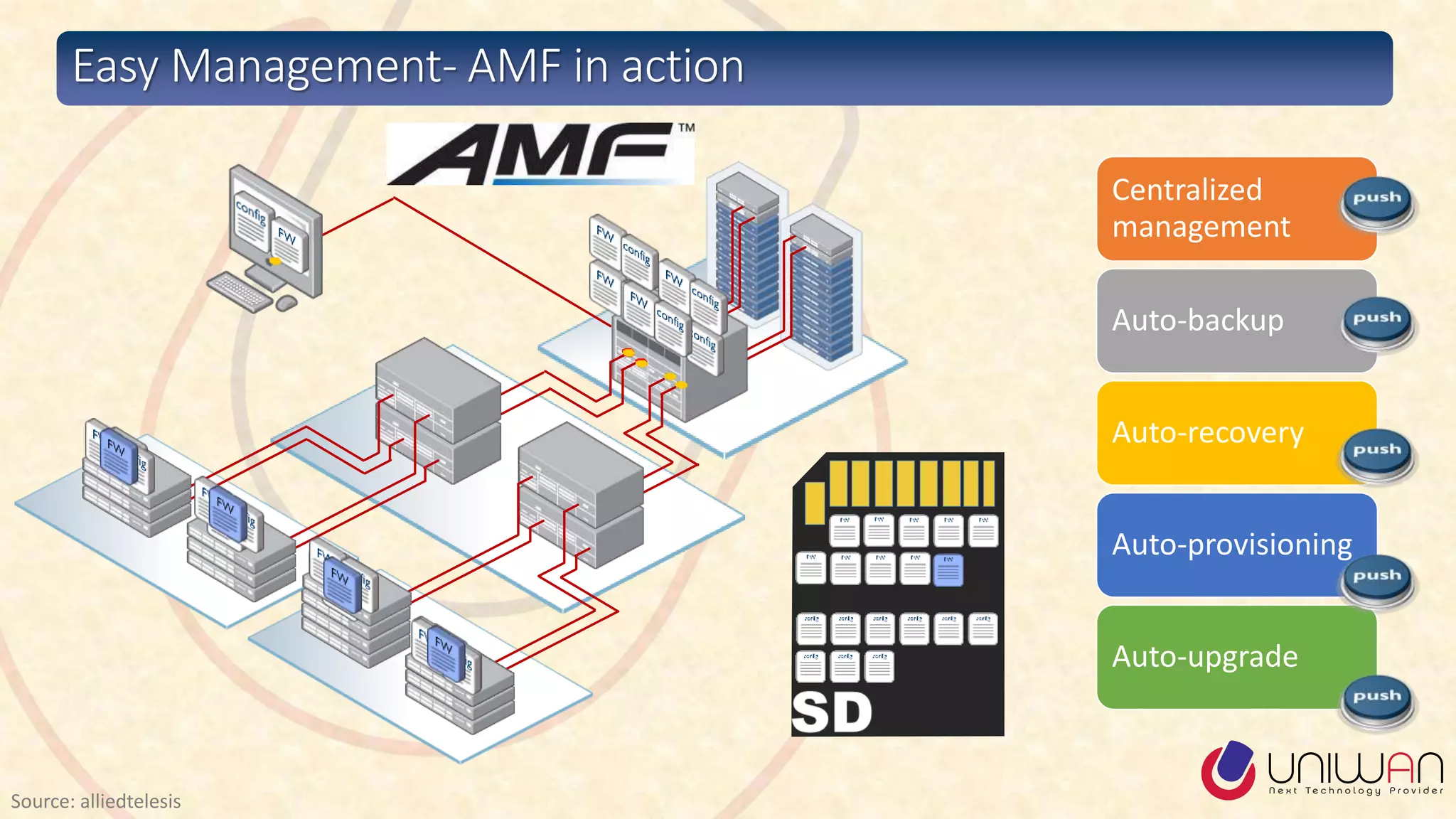

- 21. Easy Management- AMFin action Centralized management Auto-backup Auto-recovery Auto-provisioning Auto-upgrade Source: alliedtelesis

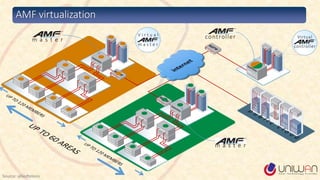

- 22. AMF virtualization m as t e r V i r t u a l m a s t e r Virtual controller controllerm a s t e r Source: alliedtelesis

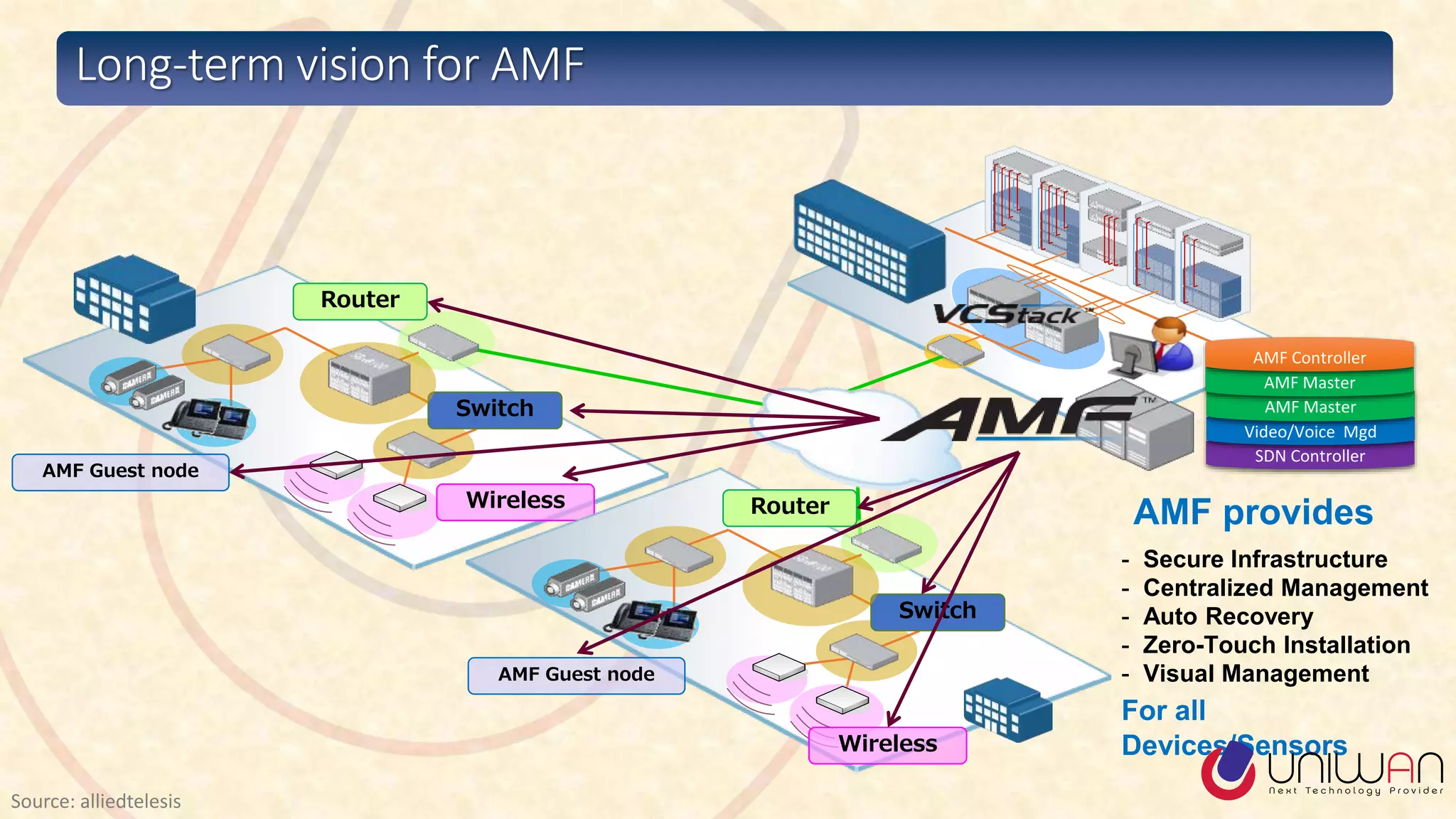

- 23. Switch Router AMF Guest node Wireless Switch Router AMFGuest node Wireless SDN Controller Video/Voice Mgd AMF Master AMF Master AMF Controller AMF provides - Secure Infrastructure - Centralized Management - Auto Recovery - Zero-Touch Installation - Visual Management For all Devices/Sensors Long-term vision for AMF Source: alliedtelesis
- 24. A Helpful Analogy FromNick McKeown’s talk “Making SDN Work” at the Open Networking Summit, April 2012

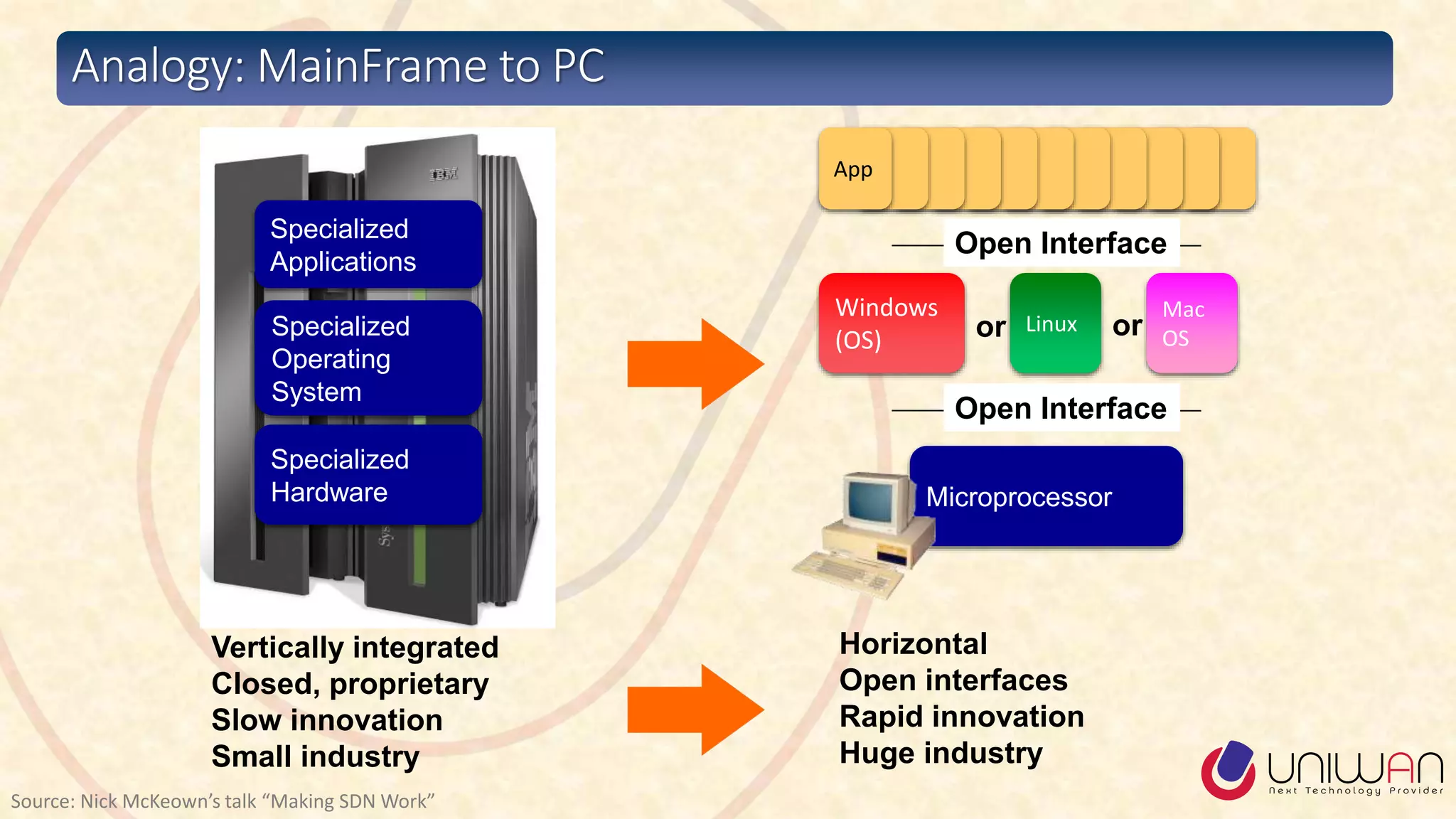

- 25. Analogy: MainFrame toPC Source: Nick McKeown’s talk “Making SDN Work” Vertically integrated Closed, proprietary Slow innovation Small industry Specialized Operating System Specialized Hardware AppAppAppAppAppAppAppAppAppAppApp Specialized Applications Horizontal Open interfaces Rapid innovation Huge industry Microprocessor Open Interface Linux Mac OS Windows (OS) or or Open Interface

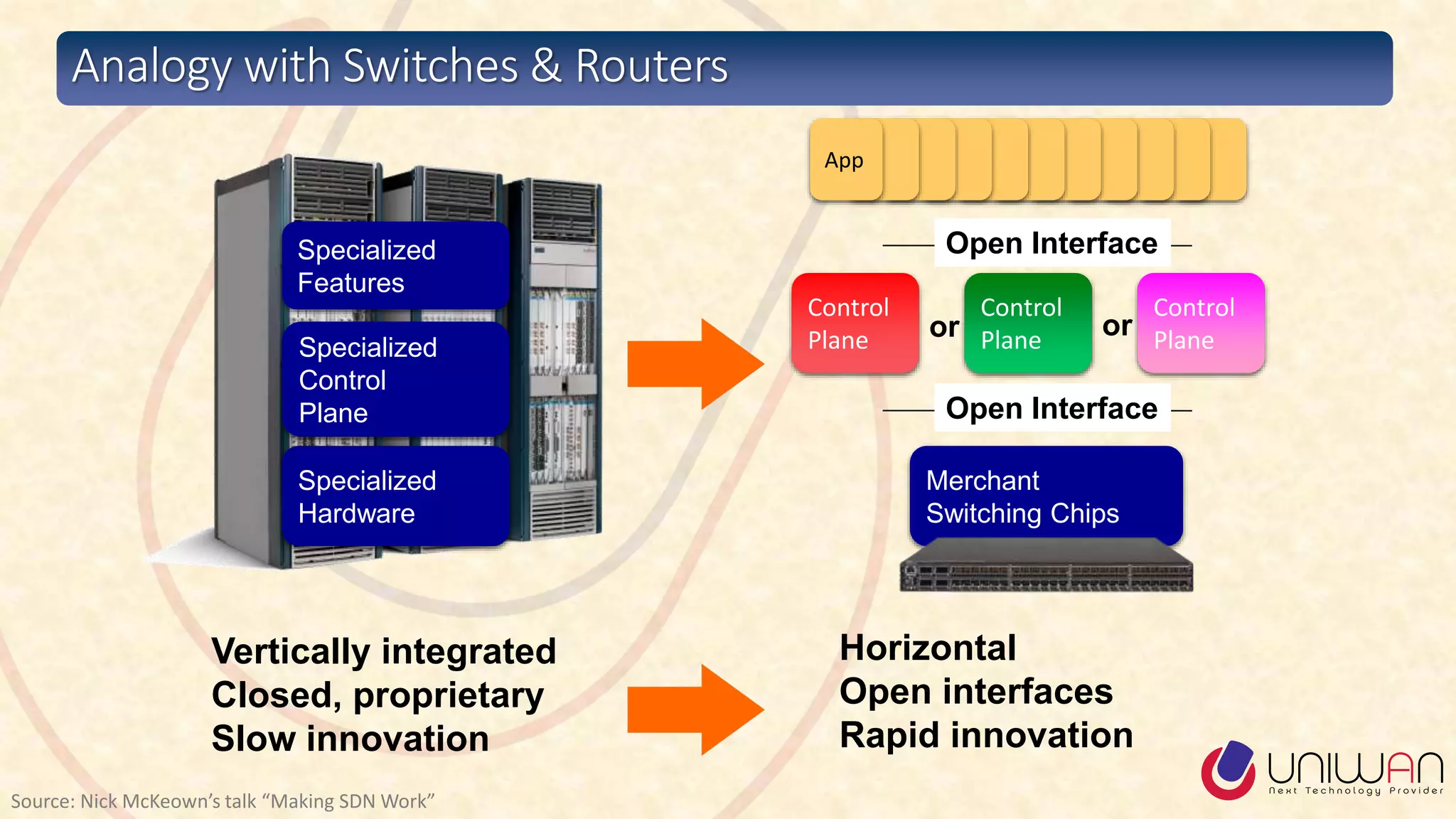

- 26. Analogy with Switches& Routers Vertically integrated Closed, proprietary Slow innovation AppAppAppAppAppAppAppAppAppAppApp Horizontal Open interfaces Rapid innovation Control Plane Control Plane Control Plane or or Open Interface Specialized Control Plane Specialized Hardware Specialized Features Merchant Switching Chips Open Interface Source: Nick McKeown’s talk “Making SDN Work”

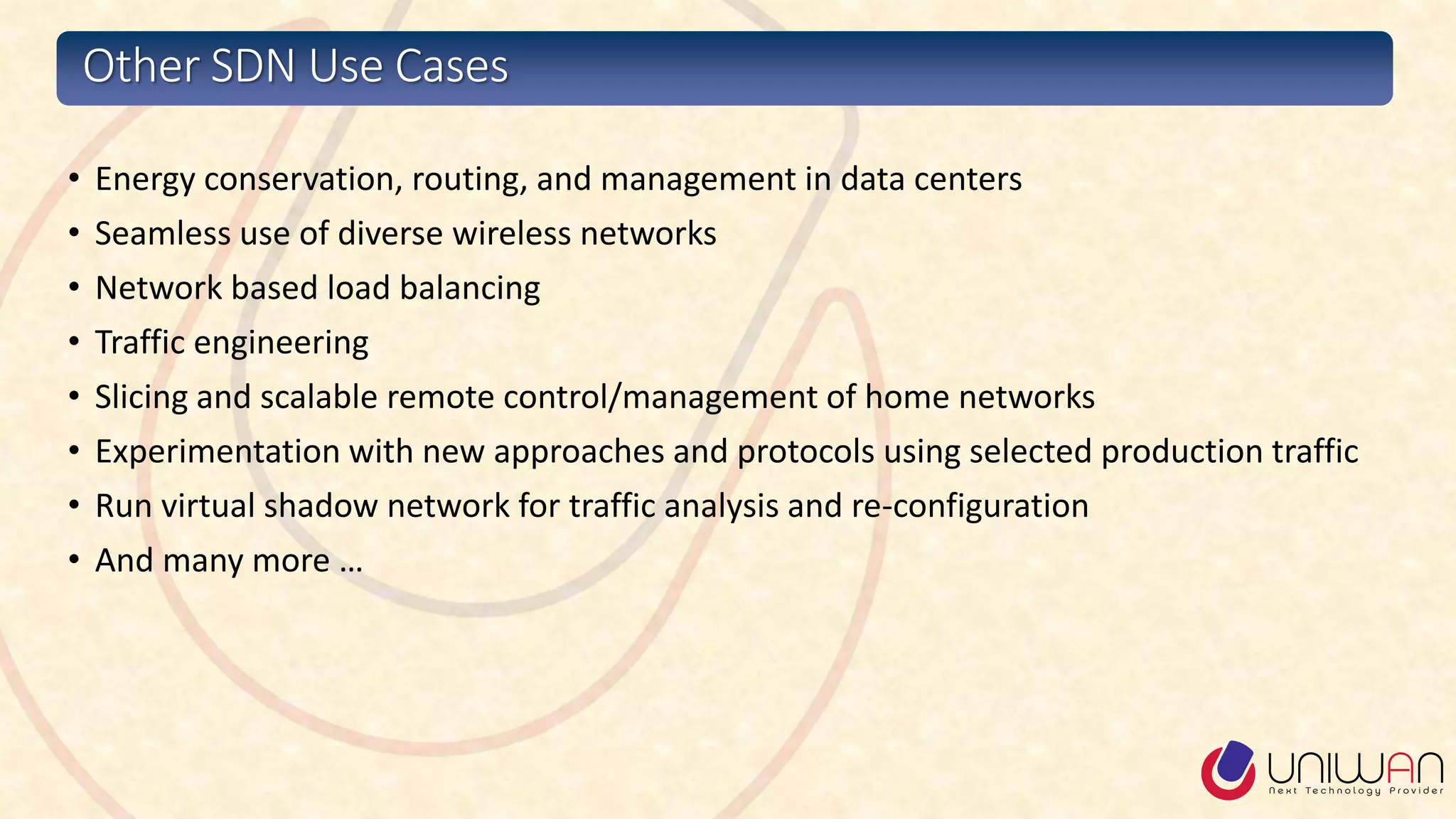

- 27. Other SDN UseCases • Energy conservation, routing, and management in data centers • Seamless use of diverse wireless networks • Network based load balancing • Traffic engineering • Slicing and scalable remote control/management of home networks • Experimentation with new approaches and protocols using selected production traffic • Run virtual shadow network for traffic analysis and re-configuration • And many more …

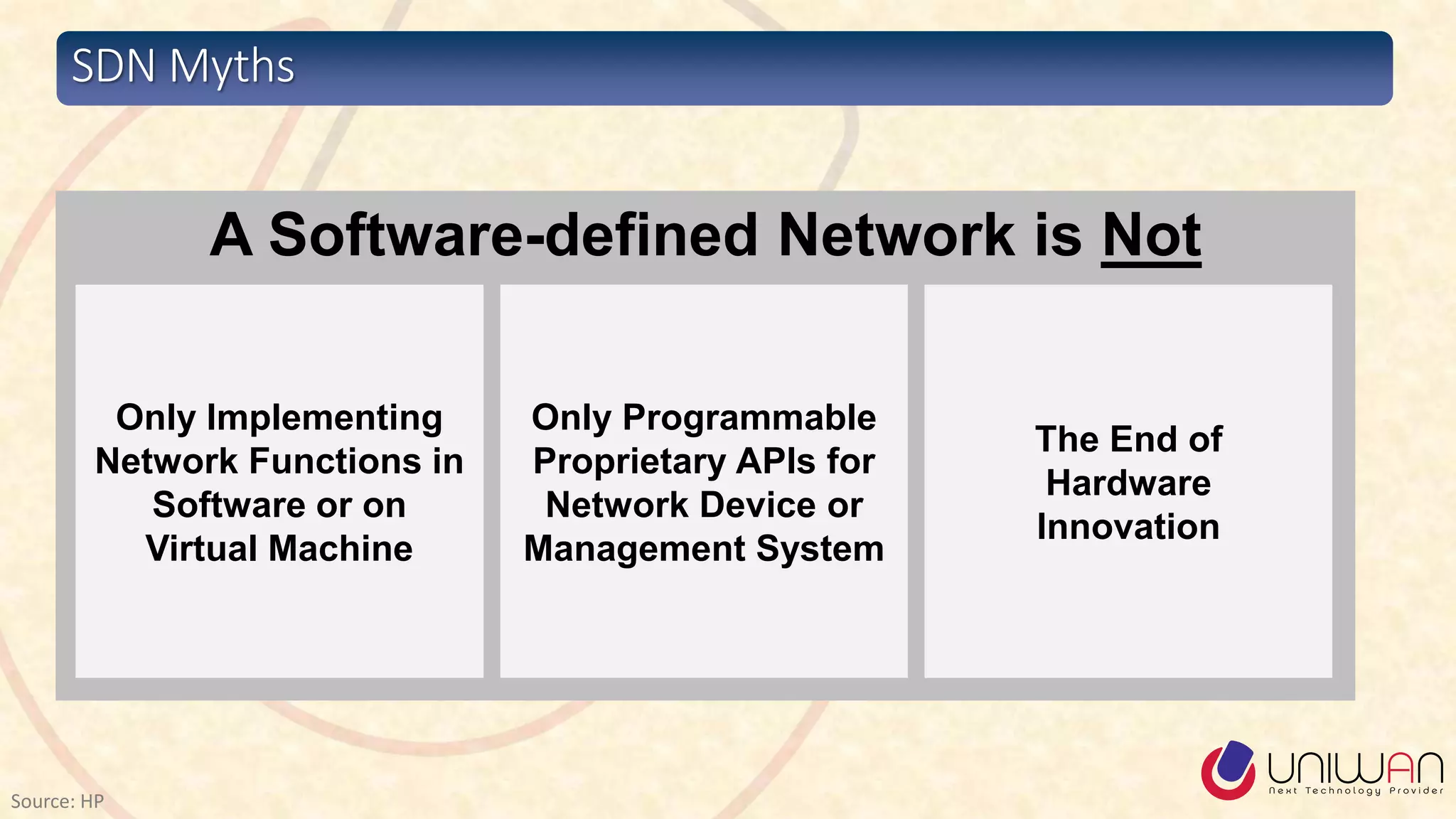

- 28. SDN Myths Source: HP ASoftware-defined Network is Not Only Implementing Network Functions in Software or on Virtual Machine Only Programmable Proprietary APIs for Network Device or Management System The End of Hardware Innovation
- 29. Conclusions • SDN willchange the way we will design Network Infrastructure • Only one interface to the DATA Plane • Separation of the control and DATA • Leveraging techniques from distributed systems • It’s a significant momentum for the research and the industry • We are moving from proprietary local to open and global architecture • Sophos goes that way, you will see ;-)

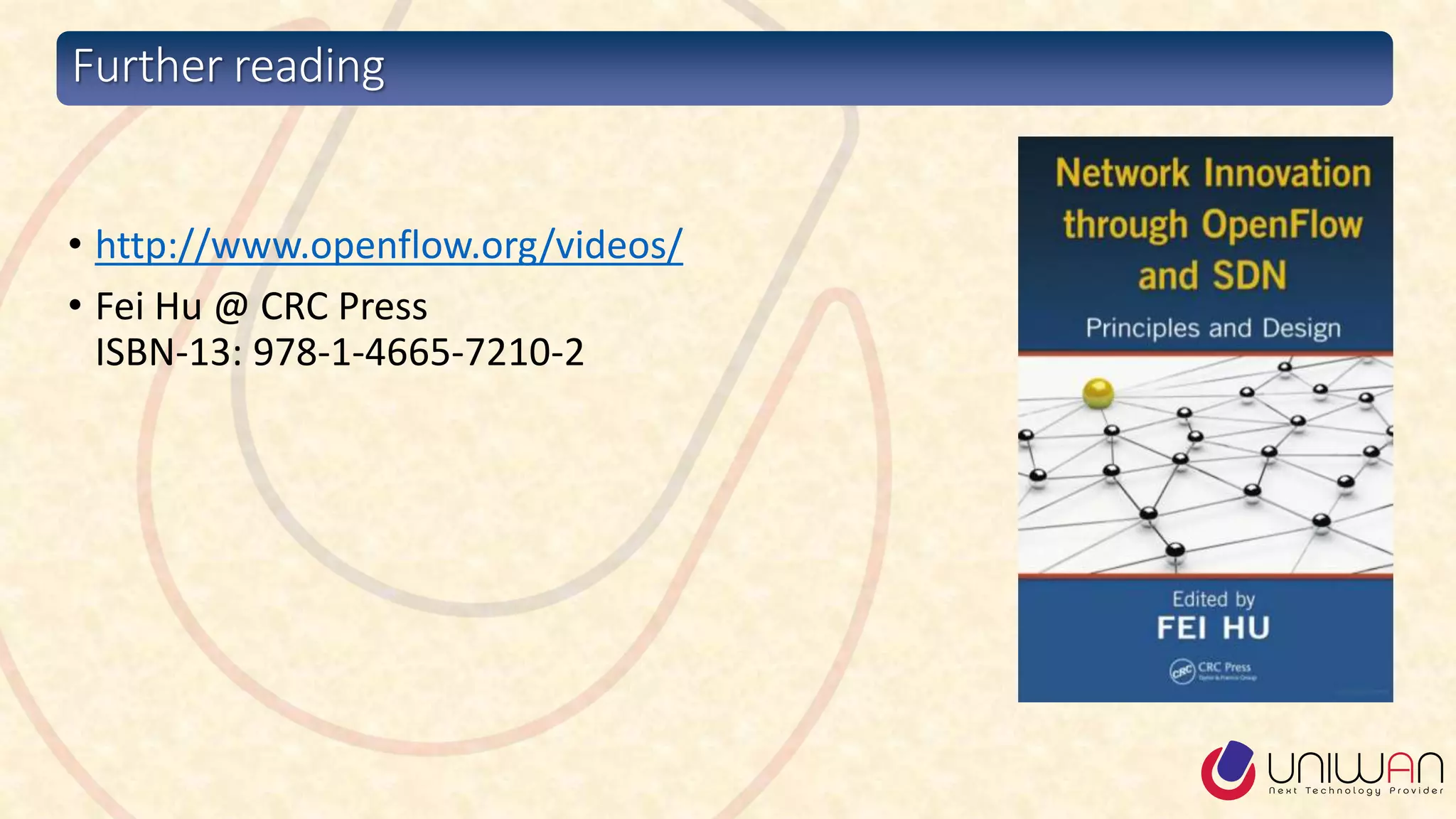

- 30. Further reading • http://www.openflow.org/videos/ •Fei Hu @ CRC Press ISBN-13: 978-1-4665-7210-2
