The presentation “22IT508 - Full Stack Development with Node and React” provides an overview of the concepts, tools, and technologies involved in building modern web applications using Node.js for backend development and React.js for frontend development. It covers: Introduction to Full Stack Development and its importance. Node.js fundamentals – event-driven architecture, asynchronous programming, Express.js, and REST APIs. React.js fundamentals – components, props, state management, hooks, and routing. Connecting frontend and backend – handling HTTP requests, JSON, and API integration. Database connectivity using MongoDB/MySQL with Node.js. Deployment strategies for full stack applications.

1. 22IT508 - Full Stack Development with
Node and React

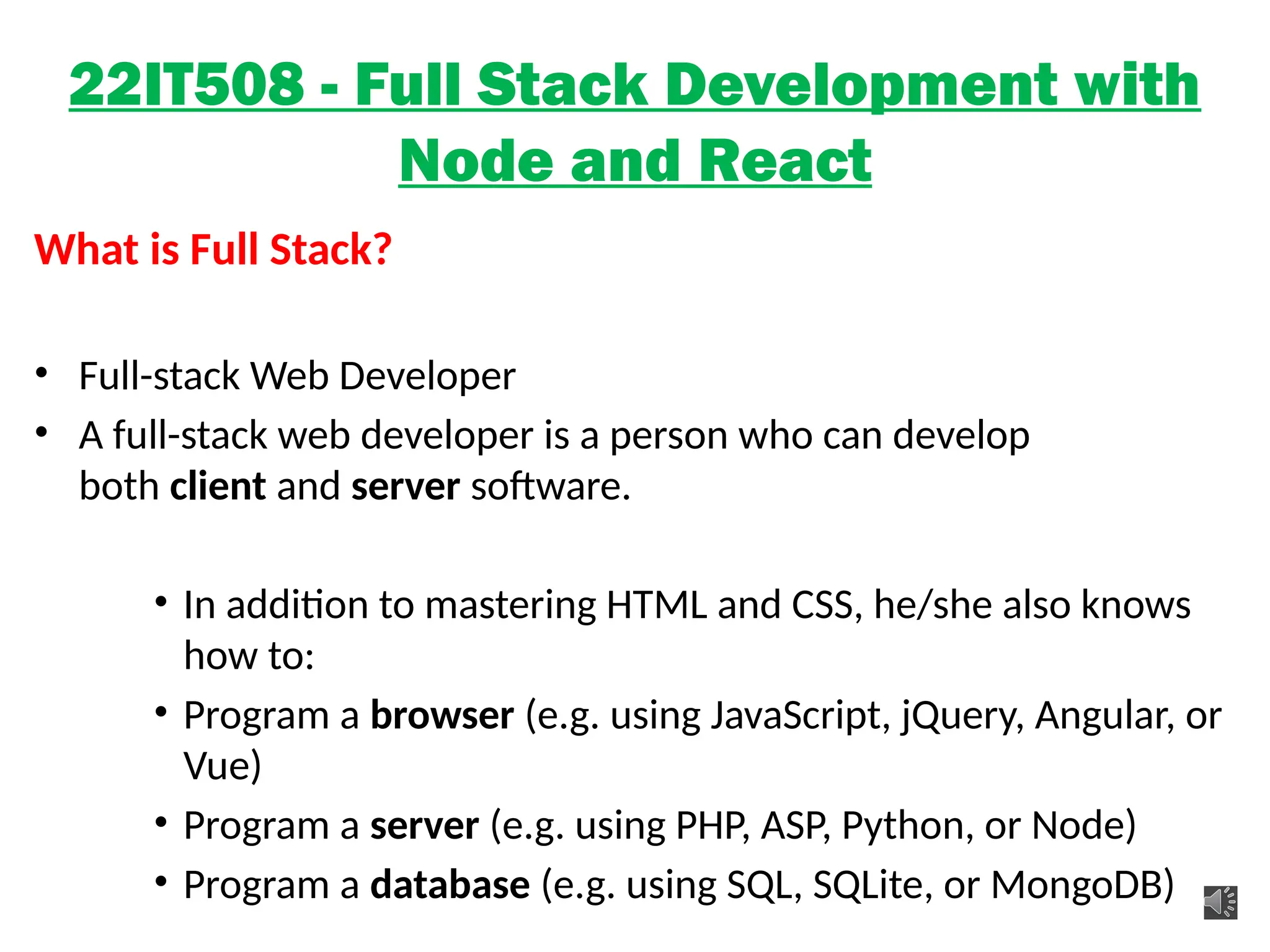

What is Full Stack?
• Full-stack Web Developer
• A full-stack web developer is a person who can develop
both client and server software.
• In addition to mastering HTML and CSS, he/she also knows
how to:
• Program a browser (e.g. using JavaScript, jQuery, Angular, or
Vue)
• Program a server (e.g. using PHP, ASP, Python, or Node)
• Program a database (e.g. using SQL, SQLite, or MongoDB)

2. 22IT517 - SOFTWARE DEFINED NETWORKS
Client Software
(Front-end)
HTML
CSS
Bootstrap
W3.CSS
JavaScript
ES5
HTML DOM
JSON
XML
jQuery
Angular
React
Backbone.js
Ember.js
Redux
Storybook
GraphQL
Meteor.js
Grunt
Gulp
Server Software
(Back-end)
PHP
ASP
C++
C#
Java
Python
Node.js
Express.js
Ruby
REST
Go
SQL
MongoDB
Sass
Less
Firebase.com
Parse.com
PaaS (Azure and
Heroku)

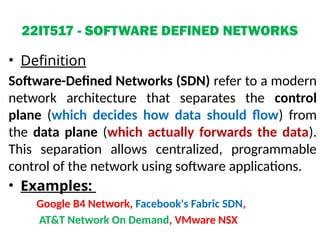

3. 22IT517 - SOFTWARE DEFINED NETWORKS
• Definition
Software-Defined Networks (SDN) refer to a modern
network architecture that separates the control
plane (which decides how data should flow) from
the data plane (which actually forwards the data).
This separation allows centralized, programmable
control of the network using software applications.
• Examples:
Google B4 Network, Facebook's Fabric SDN,
AT&T Network On Demand, VMware NSX

4. Software Defined Network(SDN)

5. SDN ARCHITECTURE

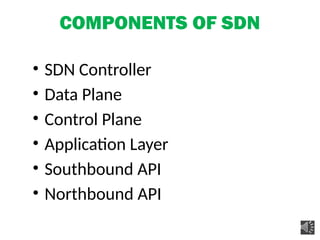

6. COMPONENTS OF SDN
• SDN Controller
• Data Plane
• Control Plane
• Application Layer
• Southbound API
• Northbound API

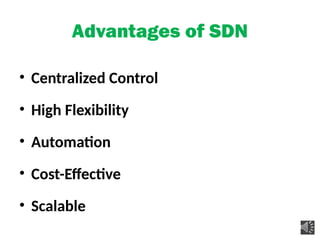

7. Advantages of SDN
• Centralized Control
• High Flexibility
• Automation
• Cost-Effective
• Scalable

8. Disadvantages of SDN
• Initial Setup Complexity
• Security Risks
• Integration Challenges
• Controller Dependency

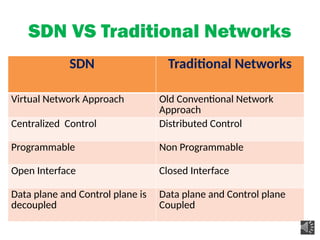

9. SDN VS Traditional Networks
SDN Traditional Networks
Virtual Network Approach Old Conventional Network
Approach
Centralized Control Distributed Control
Programmable Non Programmable
Open Interface Closed Interface
Data plane and Control plane is
decoupled
Data plane and Control plane
Coupled

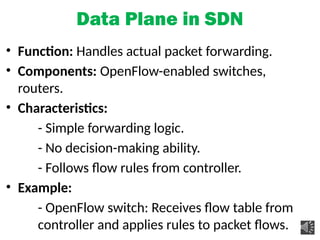

10. Data Plane in SDN
• Function: Handles actual packet forwarding.
• Components: OpenFlow-enabled switches,
routers.
• Characteristics:
- Simple forwarding logic.
- No decision-making ability.
- Follows flow rules from controller.
• Example:
- OpenFlow switch: Receives flow table from
controller and applies rules to packet flows.

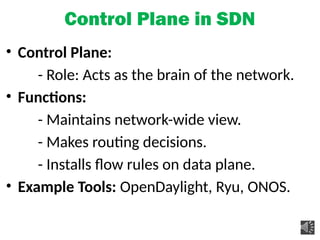

11. Control Plane in SDN
• Control Plane:
- Role: Acts as the brain of the network.
• Functions:
- Maintains network-wide view.
- Makes routing decisions.
- Installs flow rules on data plane.
• Example Tools: OpenDaylight, Ryu, ONOS.

12. Application Plane in SDN
• Application Plane:
- Role: Hosts network applications.
• Examples: Network monitoring, security
apps, traffic engineering.
• Uses Northbound APIs to request services
from the controller.

13. Data Plane Functions and Protocols

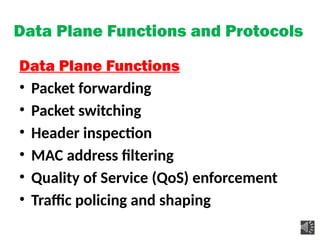

Data Plane Functions
• Packet forwarding
• Packet switching
• Header inspection
• MAC address filtering
• Quality of Service (QoS) enforcement
• Traffic policing and shaping

14. Data Plane Functions and Protocols

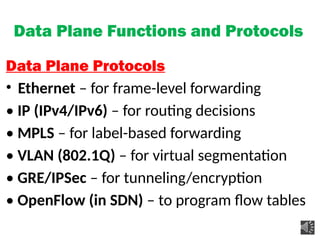

Data Plane Protocols
• Ethernet – for frame-level forwarding
• IP (IPv4/IPv6) – for routing decisions
• MPLS – for label-based forwarding
• VLAN (802.1Q) – for virtual segmentation
• GRE/IPSec – for tunneling/encryption
• OpenFlow (in SDN) – to program flow tables

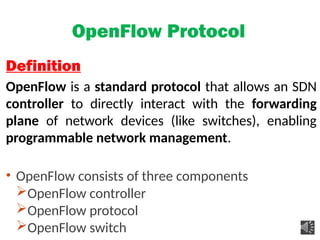

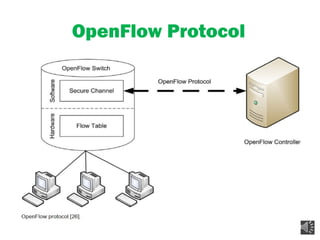

15. OpenFlow Protocol
Definition
OpenFlow is a standard protocol that allows an SDN
controller to directly interact with the forwarding
plane of network devices (like switches), enabling
programmable network management.
• OpenFlow consists of three components
OpenFlow controller
OpenFlow protocol
OpenFlow switch

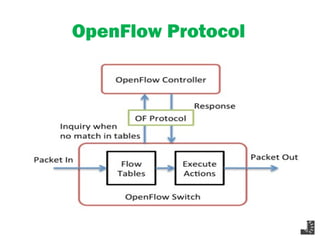

16. OpenFlow Protocol

17. OpenFlow Protocol

18. OpenFlow Protocol

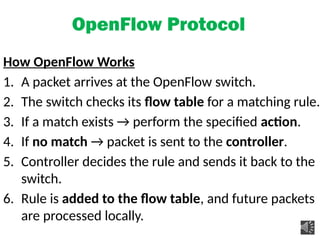

How OpenFlow Works
1. A packet arrives at the OpenFlow switch.
2. The switch checks its flow table for a matching rule.
3. If a match exists → perform the specified action.
4. If no match → packet is sent to the controller.
5. Controller decides the rule and sends it back to the
switch.
6. Rule is added to the flow table, and future packets
are processed locally.

19. OpenFlow Protocol
Benefits of OpenFlow
• Centralized Management
• Dynamic Network Adaptation
• Innovation and Flexibility
• Hardware Agnostic
Examples of Open Flow's Use
• Software-Defined Networking (SDN)
• Network Virtualization
• Traffic Engineering

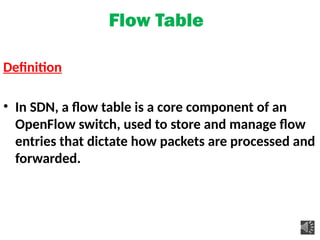

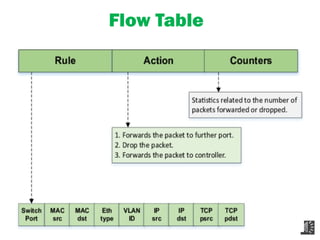

20. Flow Table
Definition
• In SDN, a flow table is a core component of an
OpenFlow switch, used to store and manage flow
entries that dictate how packets are processed and
forwarded.

21. Flow Table

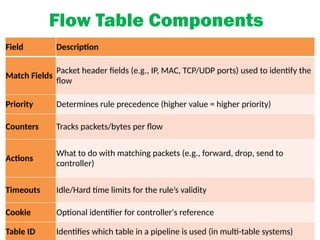

22. Flow Table Components
Field Description
Match Fields
Packet header fields (e.g., IP, MAC, TCP/UDP ports) used to identify the
flow
Priority Determines rule precedence (higher value = higher priority)
Counters Tracks packets/bytes per flow
Actions
What to do with matching packets (e.g., forward, drop, send to
controller)
Timeouts Idle/Hard time limits for the rule’s validity
Cookie Optional identifier for controller's reference
Table ID Identifies which table in a pipeline is used (in multi-table systems)

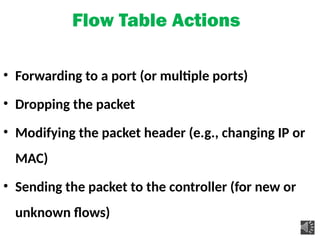

23. Flow Table Actions
• Forwarding to a port (or multiple ports)
• Dropping the packet
• Modifying the packet header (e.g., changing IP or
MAC)
• Sending the packet to the controller (for new or
unknown flows)

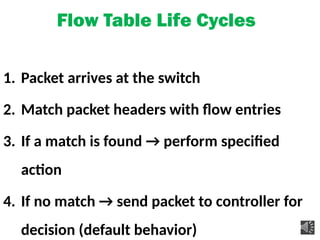

24. Flow Table Life Cycles
1. Packet arrives at the switch
2. Match packet headers with flow entries
3. If a match is found → perform specified
action
4. If no match → send packet to controller for
decision (default behavior)

25. Southbound API
In Software-Defined Networking (SDN), a
southbound API is the interface that allows the
SDN controller to communicate with and
configure the underlying network devices, such
as switches and routers

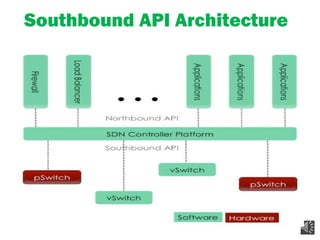

26. Southbound API Architecture

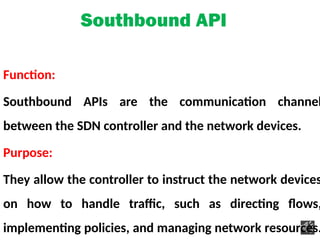

27. Southbound API
Function:
Southbound APIs are the communication channel
between the SDN controller and the network devices.
Purpose:
They allow the controller to instruct the network devices
on how to handle traffic, such as directing flows,
implementing policies, and managing network resources.

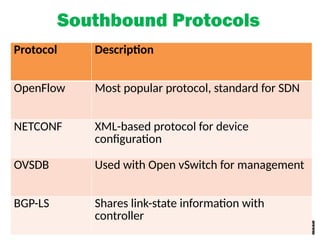

28. Southbound Protocols
Protocol Description
OpenFlow Most popular protocol, standard for SDN
NETCONF XML-based protocol for device
configuration
OVSDB Used with Open vSwitch for management
BGP-LS Shares link-state information with
controller

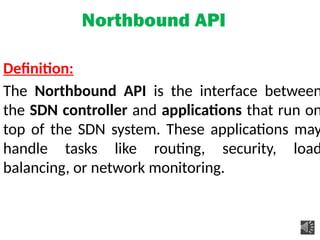

29. Northbound API
Definition:
The Northbound API is the interface between
the SDN controller and applications that run on
top of the SDN system. These applications may
handle tasks like routing, security, load
balancing, or network monitoring.

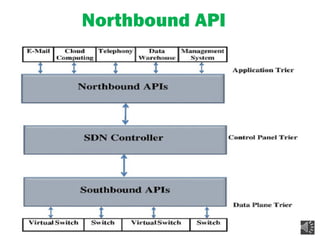

30. Northbound API

31. Northbound API

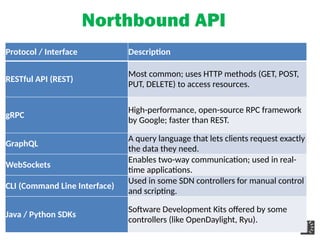

Protocol / Interface Description
RESTful API (REST)
Most common; uses HTTP methods (GET, POST,
PUT, DELETE) to access resources.
gRPC
High-performance, open-source RPC framework
by Google; faster than REST.
GraphQL
A query language that lets clients request exactly
the data they need.
WebSockets
Enables two-way communication; used in real-
time applications.
CLI (Command Line Interface)
Used in some SDN controllers for manual control
and scripting.
Java / Python SDKs
Software Development Kits offered by some
controllers (like OpenDaylight, Ryu).

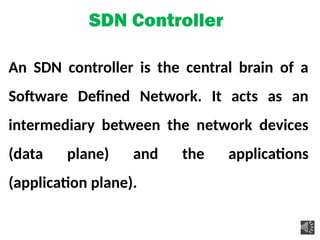

32. SDN Controller
An SDN controller is the central brain of a
Software Defined Network. It acts as an
intermediary between the network devices
(data plane) and the applications
(application plane).

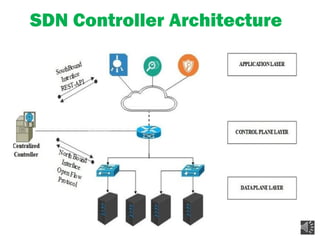

33. SDN Controller Architecture

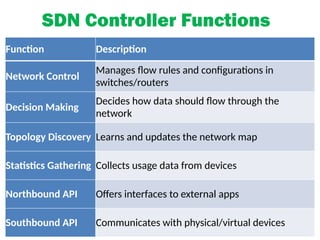

34. SDN Controller Functions
Function Description
Network Control
Manages flow rules and configurations in
switches/routers
Decision Making
Decides how data should flow through the
network
Topology Discovery Learns and updates the network map
Statistics Gathering Collects usage data from devices
Northbound API Offers interfaces to external apps
Southbound API Communicates with physical/virtual devices

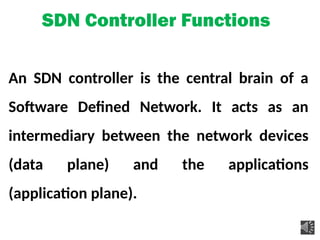

35. SDN Controller Functions
An SDN controller is the central brain of a
Software Defined Network. It acts as an
intermediary between the network devices
(data plane) and the applications
(application plane).

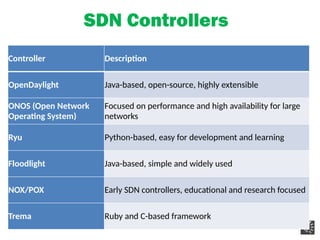

36. SDN Controllers
Controller Description
OpenDaylight Java-based, open-source, highly extensible
ONOS (Open Network
Operating System)
Focused on performance and high availability for large
networks
Ryu Python-based, easy for development and learning
Floodlight Java-based, simple and widely used
NOX/POX Early SDN controllers, educational and research focused
Trema Ruby and C-based framework

37. Measurement and Monitoring in SDN

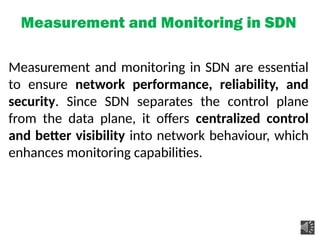

Measurement and monitoring in SDN are essential
to ensure network performance, reliability, and
security. Since SDN separates the control plane
from the data plane, it offers centralized control
and better visibility into network behaviour, which
enhances monitoring capabilities.

38. Measurement in SDN
Measurement involves collecting quantitative data
about the network to understand its current state.
Examples:
• Packet loss rate
• Bandwidth usage
• Flow duration
• Latency and jitter

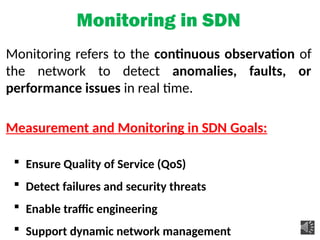

39. Monitoring in SDN
Monitoring refers to the continuous observation of
the network to detect anomalies, faults, or
performance issues in real time.
Measurement and Monitoring in SDN Goals:
 Ensure Quality of Service (QoS)
 Detect failures and security threats
 Enable traffic engineering
 Support dynamic network management

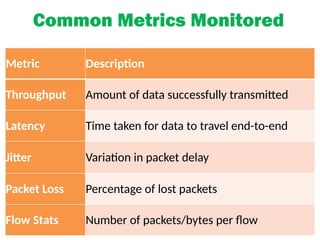

40. Common Metrics Monitored
Metric Description
Throughput Amount of data successfully transmitted
Latency Time taken for data to travel end-to-end
Jitter Variation in packet delay
Packet Loss Percentage of lost packets
Flow Stats Number of packets/bytes per flow

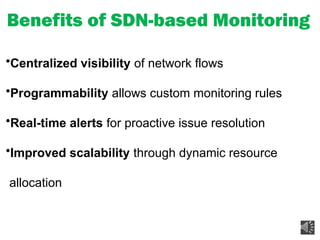

41. Benefits of SDN-based Monitoring
•Centralized visibility of network flows
•Programmability allows custom monitoring rules
•Real-time alerts for proactive issue resolution
•Improved scalability through dynamic resource
allocation

42. Common Attacks in SDN
Attack Type Description Tools Used
Denial of Service
(DoS)
Overloads the controller or
switches with excessive traffic
Hping3, LOIC, Scapy
Distributed DoS
(DDoS)
Floods the SDN controller using
multiple infected systems
HOIC, LOIC, Botnets
Flow Table
Overflow
Fills the switch flow table with fake
rules, preventing normal operations
OFuzz, Scapy, custom scripts
Packet-In Flooding
Sends unknown packets to
switches, causing them to
constantly query the controller
Scapy, Hping3
Man-in-the-
Middle (MITM)
Intercepts or alters data between
switch and controller
Ettercap, Wireshark, Cain &
Abel

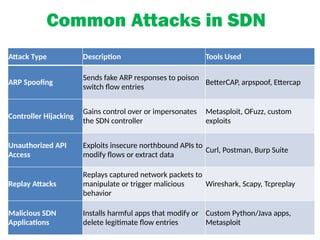

43. Common Attacks in SDN
Attack Type Description Tools Used
ARP Spoofing
Sends fake ARP responses to poison
switch flow entries
BetterCAP, arpspoof, Ettercap
Controller Hijacking
Gains control over or impersonates
the SDN controller
Metasploit, OFuzz, custom
exploits
Unauthorized API
Access
Exploits insecure northbound APIs to
modify flows or extract data
Curl, Postman, Burp Suite
Replay Attacks
Replays captured network packets to
manipulate or trigger malicious
behavior
Wireshark, Scapy, Tcpreplay
Malicious SDN
Applications
Installs harmful apps that modify or
delete legitimate flow entries
Custom Python/Java apps,
Metasploit

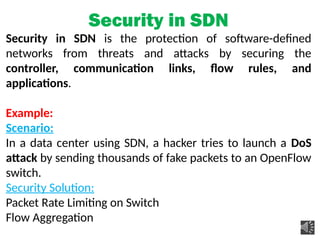

44. Security in SDN
Security in SDN is the protection of software-defined
networks from threats and attacks by securing the
controller, communication links, flow rules, and
applications.
Example:
Scenario:
In a data center using SDN, a hacker tries to launch a DoS
attack by sending thousands of fake packets to an OpenFlow
switch.
Security Solution:
Packet Rate Limiting on Switch
Flow Aggregation

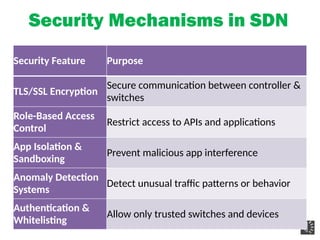

45. Security Mechanisms in SDN
Security Feature Purpose
TLS/SSL Encryption
Secure communication between controller &
switches
Role-Based Access
Control
Restrict access to APIs and applications
App Isolation &
Sandboxing
Prevent malicious app interference
Anomaly Detection
Systems
Detect unusual traffic patterns or behavior
Authentication &
Whitelisting
Allow only trusted switches and devices

46. Securing SDN Architecture

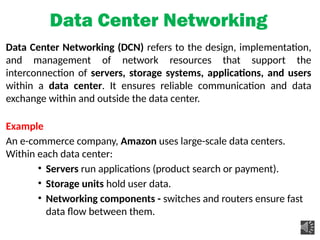

47. Data Center Networking
Data Center Networking (DCN) refers to the design, implementation,
and management of network resources that support the
interconnection of servers, storage systems, applications, and users
within a data center. It ensures reliable communication and data
exchange within and outside the data center.
Example
An e-commerce company, Amazon uses large-scale data centers.
Within each data center:
• Servers run applications (product search or payment).
• Storage units hold user data.
• Networking components - switches and routers ensure fast
data flow between them.

48. Functions of Data Center Networking
• Data Transmission
• Virtualization Support
• Load Balancing
• High Availability
• Traffic Management
• Scalability

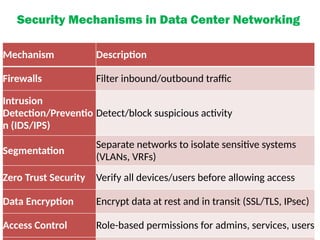

49. Security Mechanisms in Data Center Networking
Mechanism Description
Firewalls Filter inbound/outbound traffic
Intrusion
Detection/Preventio
n (IDS/IPS)
Detect/block suspicious activity
Segmentation
Separate networks to isolate sensitive systems
(VLANs, VRFs)
Zero Trust Security Verify all devices/users before allowing access
Data Encryption Encrypt data at rest and in transit (SSL/TLS, IPsec)
Access Control Role-based permissions for admins, services, users

50. AWS Data Center

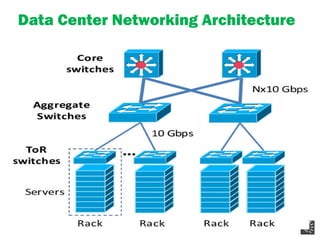

51. Data Center Networking Architecture

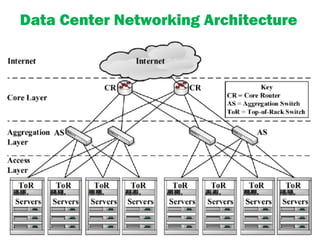

52. Data Center Networking Architecture

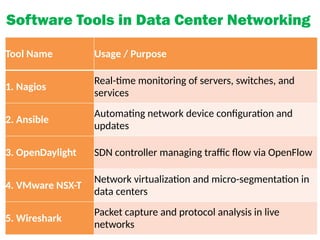

53. Software Tools in Data Center Networking
Tool Name Usage / Purpose
1. Nagios
Real-time monitoring of servers, switches, and
services
2. Ansible
Automating network device configuration and
updates
3. OpenDaylight SDN controller managing traffic flow via OpenFlow
4. VMware NSX-T
Network virtualization and micro-segmentation in
data centers
5. Wireshark
Packet capture and protocol analysis in live
networks

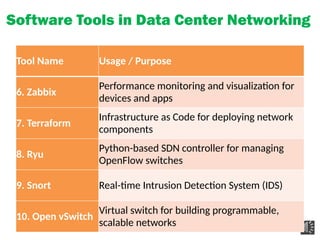

54. Software Tools in Data Center Networking
Tool Name Usage / Purpose
6. Zabbix
Performance monitoring and visualization for
devices and apps
7. Terraform
Infrastructure as Code for deploying network
components
8. Ryu
Python-based SDN controller for managing
OpenFlow switches
9. Snort Real-time Intrusion Detection System (IDS)
10. Open vSwitch
Virtual switch for building programmable,
scalable networks
