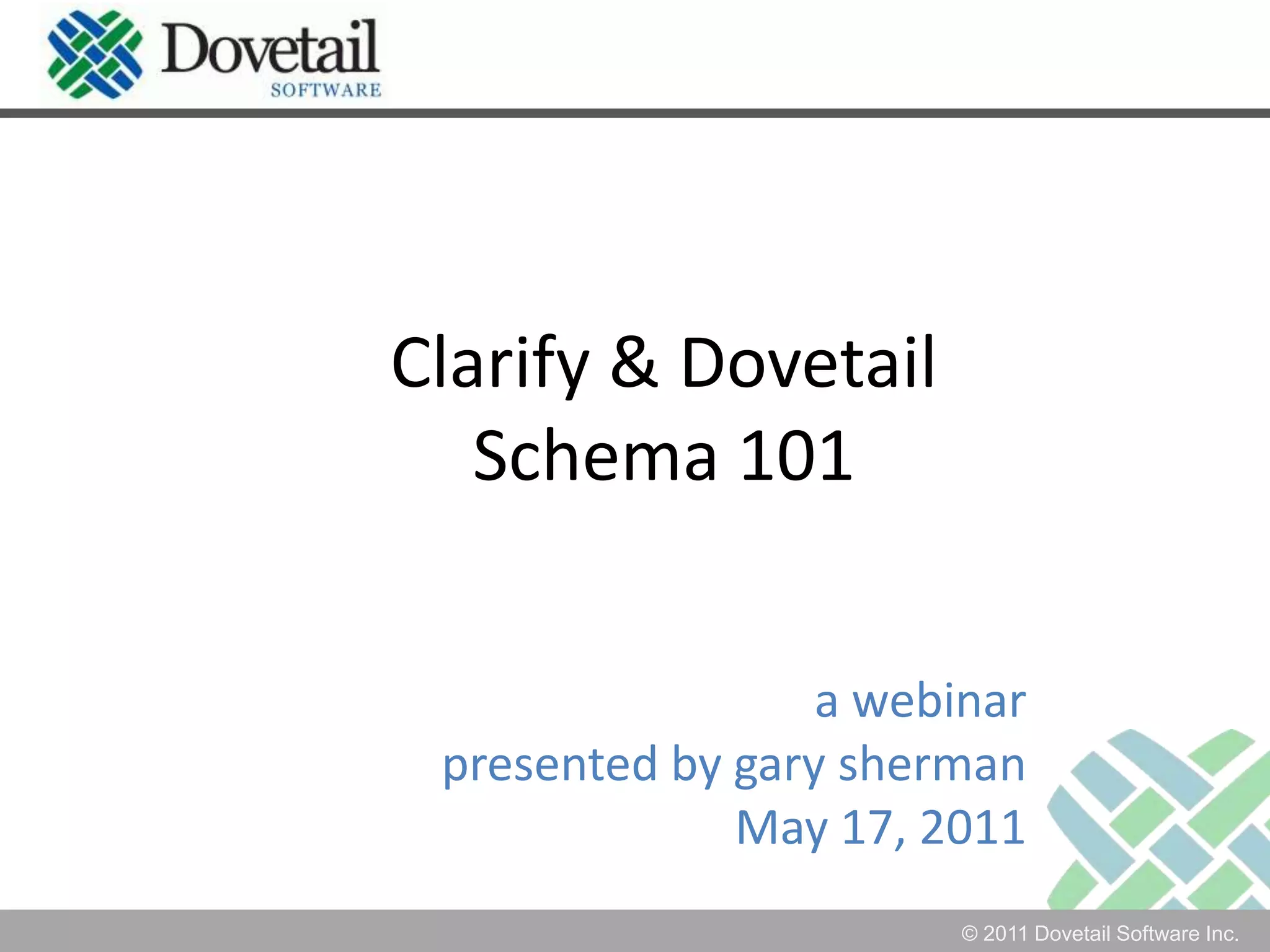

- 1. Clarify & DovetailSchema101a webinarpresented by garyshermanMay 17, 2011
- 2.

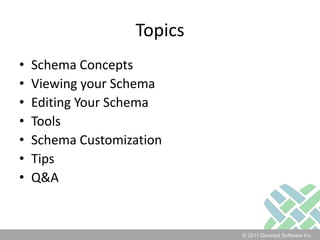

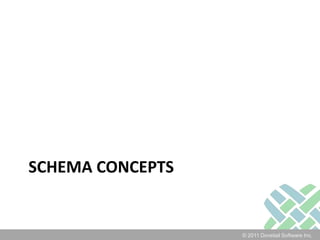

- 3. TopicsSchema ConceptsViewing yourSchemaEditing Your SchemaToolsSchema CustomizationTipsQ&A
- 4.
- 5. Data ModelA datamodel explicitly determines the structure of data or structured data.http://en.wikipedia.org/wiki/Data_model

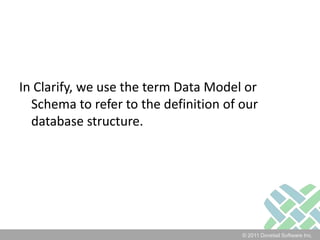

- 6. In Clarify, weuse the term Data Model or Schema to refer to the definition of our database structure.

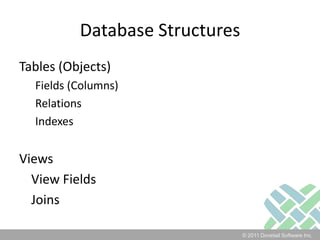

- 7. Database StructuresTables (Objects)Fields(Columns)RelationsIndexesViews View Fields Joins

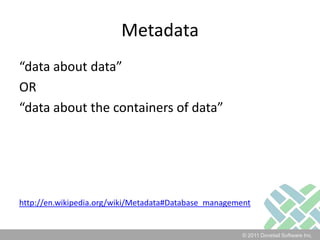

- 8. Metadata“data about data”OR“dataabout the containers of data”http://en.wikipedia.org/wiki/Metadata#Database_management

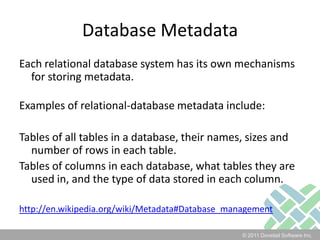

- 9. Database MetadataEach relational database systemhas its own mechanisms for storing metadata. Examples of relational-database metadata include:Tables of all tables in a database, their names, sizes and number of rows in each table.Tables of columns in each database, what tables they are used in, and the type of data stored in each column.http://en.wikipedia.org/wiki/Metadata#Database_management

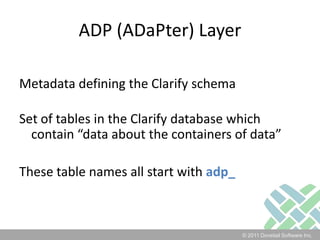

- 10. ADP (ADaPter) LayerMetadatadefining the Clarify schemaSet of tables in the Clarify database which contain “data about the containers of data”These table names all start with adp_

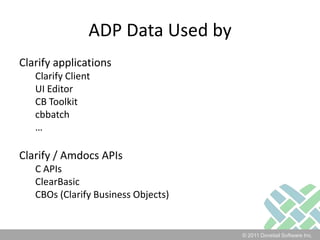

- 11. ADP Data UsedbyClarify applicationsClarify ClientUI EditorCB Toolkitcbbatch…Clarify / Amdocs APIsC APIsClearBasicCBOs (Clarify Business Objects)

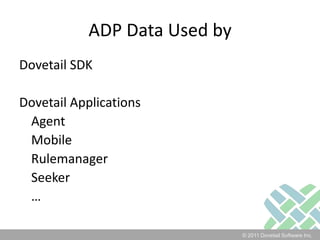

- 12. ADP Data UsedbyDovetail SDKDovetail Applications Agent Mobile Rulemanager Seeker …

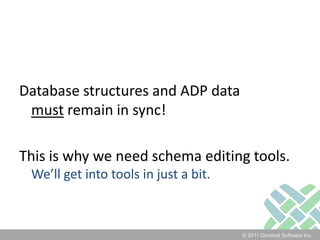

- 13. Database structures andADP data must remain in sync!This is why we need schema editing tools.We’ll get into tools in just a bit.
- 14.
- 15. TablesA Table is anentity encompassing a single conceptHas many fields (columns) which are the attributes of the entityCan have one or more relations which link entities together

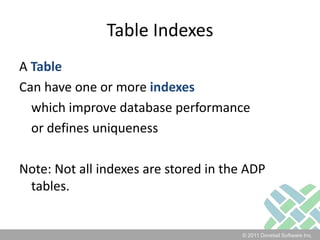

- 16. Table IndexesA TableCanhave one or more indexes which improve database performance or defines uniquenessNote: Not all indexes are stored in the ADP tables.

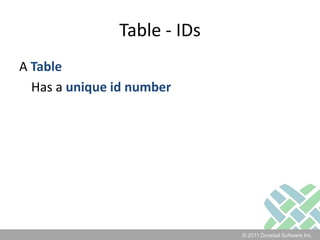

- 17. Table - IDsATable Has a unique id number

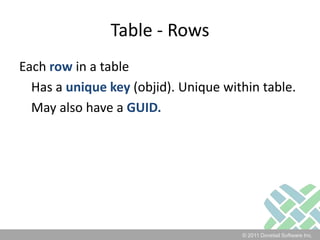

- 18. Table - RowsEachrow in a table Has a unique key (objid). Unique within table. May also have a GUID.

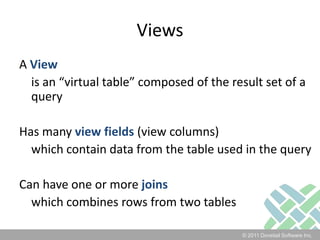

- 19. ViewsA View is an“virtual table” composed of the result set of a queryHas many view fields (view columns) which contain data from the table used in the queryCan have one or more joins which combines rows from two tables
- 20. Theory is nice,but…In theory, the complexity and actual implementation of the schema is abstracted away from you. But, in reality – you’re gonna want to understand how it all works.
- 21.

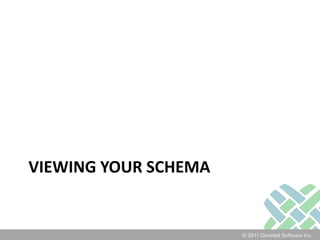

- 22. Viewing your schemaDatabasevendor tools (not so great)Clarify Data Dictionary GuideClarify Data Models Doc (ERDs)Clarify schema file (.sch or .xml)Report that generates a Data Dictionary GuideDovetail schema file (xml)Dovetail BOLT

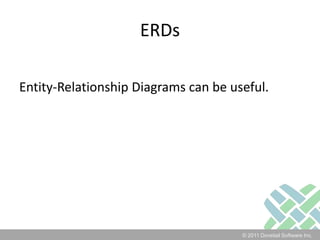

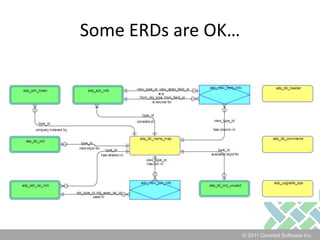

- 23. ERDsEntity-Relationship Diagrams canbe useful.
- 24.

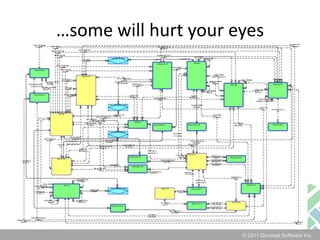

- 25. …some will hurtyour eyes

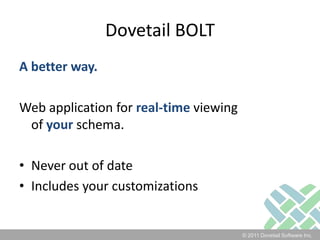

- 26. Dovetail BOLTA betterway.Web application for real-time viewing of your schema.Never out of dateIncludes your customizations
- 27. Let’s take aquick look at BOLT

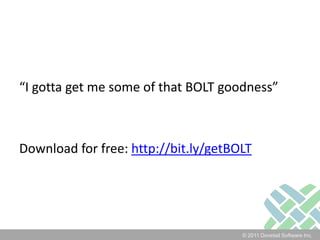

- 28. “I gotta getme some of that BOLT goodness”Download for free: http://bit.ly/getBOLT
- 29.

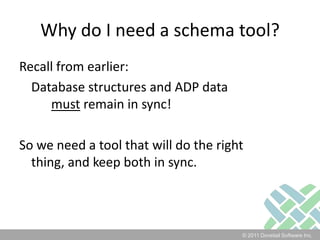

- 30. Why do Ineed a schema tool?Recall from earlier: Database structures and ADP data must remain in sync!So we need a tool that will do the right thing, and keep both in sync.

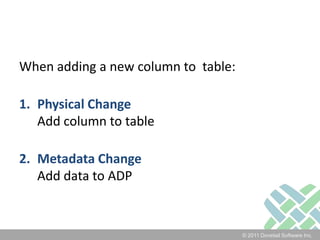

- 31. When adding anew column to table:Physical ChangeAdd column to tableMetadata ChangeAdd data to ADP

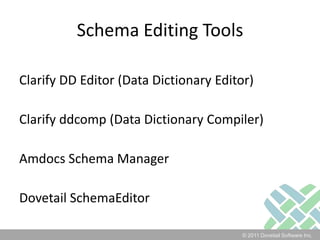

- 32. Schema Editing ToolsClarifyDD Editor (Data Dictionary Editor)Clarify ddcomp (Data Dictionary Compiler)Amdocs Schema ManagerDovetail SchemaEditor

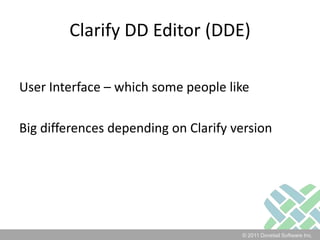

- 33. Clarify DD Editor(DDE)User Interface – which some people likeBig differences depending on Clarify version
- 34. Clarify DD Editor(DDE)Older versions add a new column or view column using UI else, edit schema file, apply using DDELater versions really just a UI wrapper for ddcomp

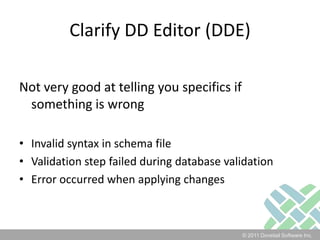

- 35. Clarify DD Editor(DDE)Not very good at telling you specifics if something is wrongInvalid syntax in schema fileValidation step failed during database validationError occurred when applying changes

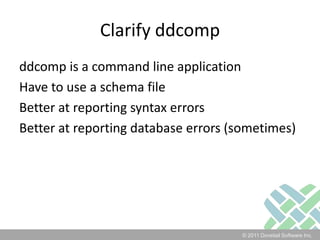

- 36. Clarify ddcompddcomp isa command line applicationHave to use a schema fileBetter at reporting syntax errorsBetter at reporting database errors (sometimes)

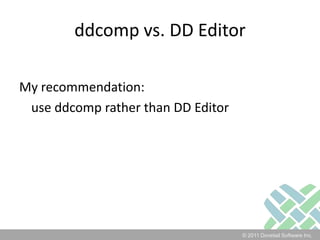

- 37. ddcomp vs. DDEditorMy recommendation: use ddcomp rather than DD Editor

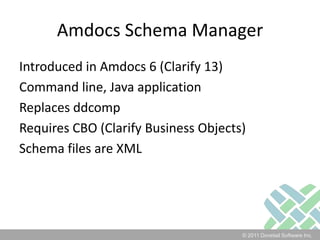

- 38. Amdocs Schema ManagerIntroducedin Amdocs 6 (Clarify 13)Command line, Java applicationReplaces ddcompRequires CBO (Clarify Business Objects)Schema files are XML
- 39. Dovetail SchemaEditorCommand line,.NET applicationWorks with any Clarify versionSchema files are XMLIntellisense & Validation for your schema filesUser_Defined is the default

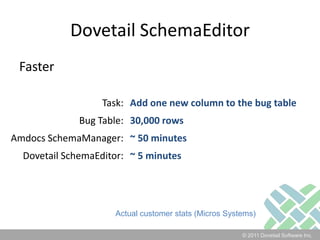

- 40. Dovetail SchemaEditorFaster“I haveused both the Dovetail SchemaEditor and Amdocs SchemaManager to add one new field to the schema.Using our test database, Dovetail SchemaEditor took 5 minutes to complete, and Amdocs SchemaManager took 50 minutes.” - KS, Micros Systems
- 41.

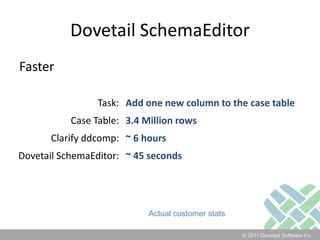

- 42. Dovetail SchemaEditorFasterActual customerstats (Micros Systems)
- 43.

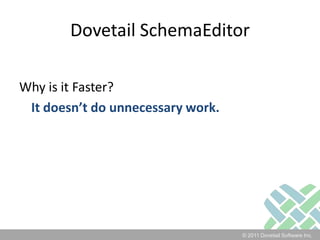

- 44. Dovetail SchemaEditorWhy isit Faster?It doesn’t do unnecessary work.

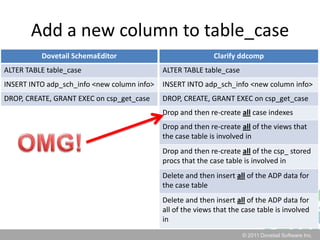

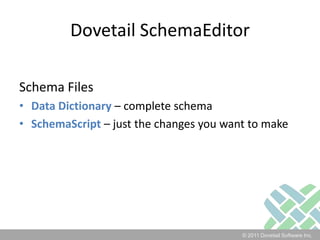

- 45. Add a newcolumn to table_caseOMG!
- 46. Dovetail SchemaEditorSchema FilesDataDictionary – complete schemaSchemaScript – just the changes you want to make
- 47. SchemaScript<schemaScriptxmlns="http://www.dovetailsoftware.com/2006/10/SchemaScript.xsd"> <addColumnname="x_test"table="case" dataType="Integer" /></schemaScript>This is a completeschemascript file

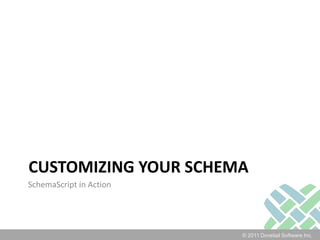

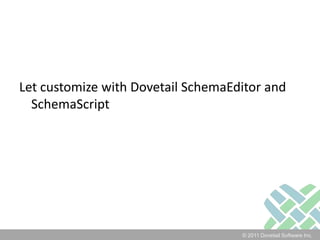

- 48. Customizing Your SchemaSchemaScriptin Action
- 49. Let customize withDovetail SchemaEditor and SchemaScript
- 50.
- 51. A few bigonesGive yourself a restore point!Preview changes before apply!Dev, then test, then production!

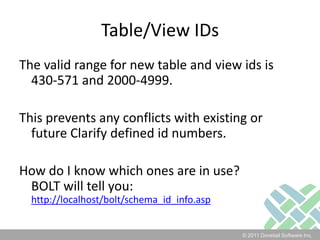

- 52. Table/View IDsThe validrange for new table and view ids is 430-571 and 2000-4999. This prevents any conflicts with existing or future Clarify defined id numbers.How do I know which ones are in use?BOLT will tell you: http://localhost/bolt/schema_id_info.asp

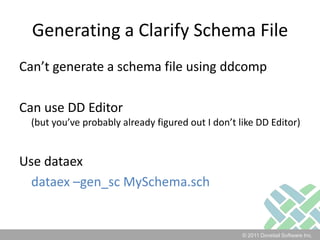

- 53. Custom FieldsUse ofx_ prefixMy $0.02:Use x_prefix for custom fields on baseline tablesI don’t use x_ when adding custom view columnsI don’t use x_ for custom table names, but I do tend to use a customer/company prefix
- 54. Generating a ClarifySchema FileCan’t generate a schema file using ddcompCan use DD Editor(but you’ve probably already figured out I don’t like DD Editor)Use dataexdataex –gen_sc MySchema.sch
- 55. Mark your customschema as User DefinedClarify ddcomp (.SCH):USER_DEFINEDAmdocs SchemaManager (XML):baseline = "false"Dovetail SchmaEditor (XML):isUserDefined = "true"This is the default

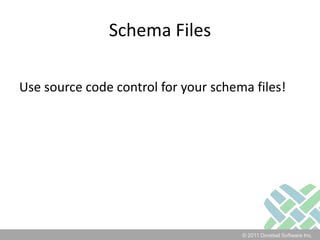

- 56. Schema FilesUse sourcecode control for your schema files!

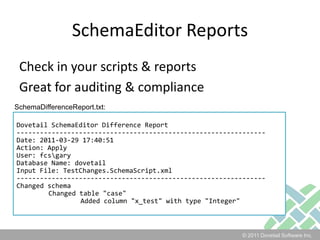

- 57. SchemaEditor ReportsCheck inyour scripts & reportsGreat for auditing & complianceSchemaDifferenceReport.txt:Dovetail SchemaEditor Difference Report----------------------------------------------------------------Date: 2011-03-29 17:40:51Action: ApplyUser: fcs\garyDatabase Name: dovetailInput File: TestChanges.SchemaScript.xml----------------------------------------------------------------Changed schema Changed table "case" Added column "x_test" with type "Integer"

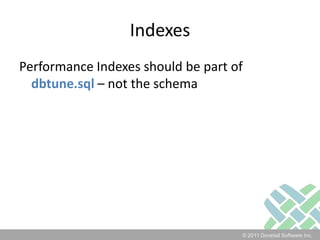

- 58. IndexesPerformance Indexes shouldbe part of dbtune.sql – not the schema

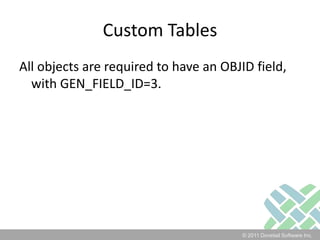

- 59. Custom TablesAll objectsare required to have an OBJID field, with GEN_FIELD_ID=3.
- 60. Additional Tips –Clarify schema filesCustomer Fields must appear after all Clarify Fields for that object.Do NOT swap around ordering of existing fields and relations in an object.Define custom tables and views at the end of the schema file.
- 61. Additional Tips –Clarify schema filesCustomer Relations must appear after all Clarify Relations for that object.All relations must have corresponding inverse relation on the target object.All inverse relations on a target object must be defined with the appropriate inverse cardinality.
- 62.
- 63.

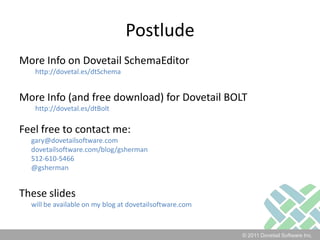

- 64. PostludeMore Info onDovetail SchemaEditorhttp://dovetal.es/dtSchema More Info (and free download) for Dovetail BOLThttp://dovetal.es/dtBoltFeel free to contact me:gary@dovetailsoftware.com dovetailsoftware.com/blog/gsherman 512-610-5466 @gshermanThese slides will be available on my blog at dovetailsoftware.com
- 65. Interested in Schema201?I’m considering doing a Schema 201 webinarSQL Views
- 66.
