This document discusses various approaches to implementing optimistic and pessimistic concurrency in different technologies like .NET, ASP.NET, NHibernate, and LINQ to SQL. It provides code examples and explanations of how to configure optimistic concurrency checks in database queries and handle concurrency violations. Sections cover topics like implementing optimistic concurrency for ADO.NET data adapters, ASP.NET, NHibernate mapping, and LINQ to SQL. Pessimistic concurrency is also briefly introduced along with references for further reading.

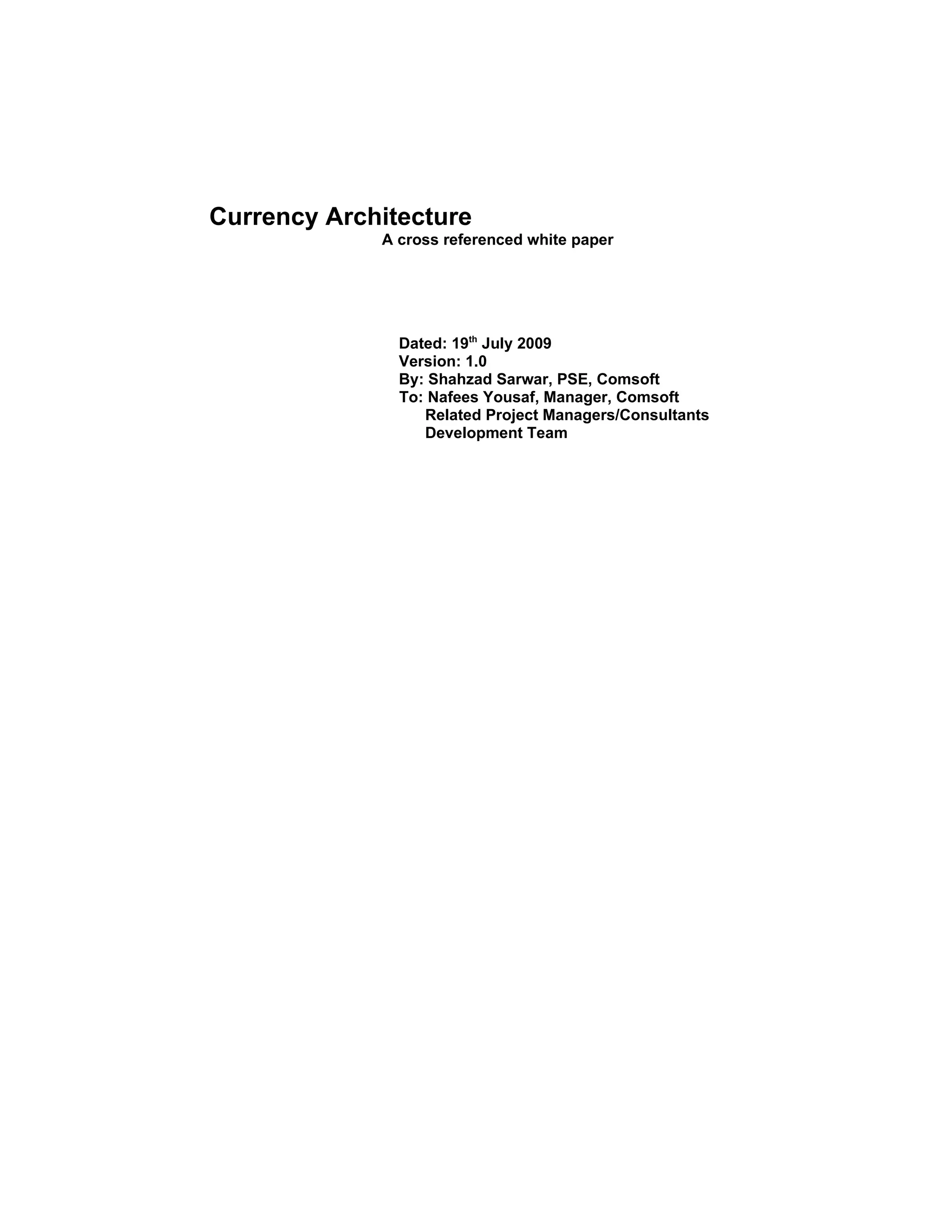

1. Currency Architecture
A cross referenced white paper
Dated: 19th July 2009
Version: 1.0
By: Shahzad Sarwar, PSE, Comsoft
To: Nafees Yousaf, Manager, Comsoft
Related Project Managers/Consultants
Development Team

2. Table of content
1.Revision History...........................................................................................3
2.What is Concurrency/Locking?....................................................................3
3.Types of Concurrency..................................................................................3
4.Difference between Pessimistic Concurrency and Optimistic Concurrency
3
5.Implementation of Optimistic Concurrency:...............................................3
5.1.For .Net Data (Adapter).............................................................................................3
5.2.For ASP .Net..............................................................................................................4
5.3.For Nhibernate:..........................................................................................................6
5.4.For LINQ to SQL.......................................................................................................8
6.Implementation of Pessimistic Concurrency:............................................10

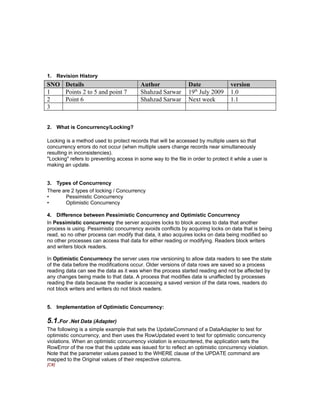

3. 1. Revision History
SNO Details Author Date version
1 Points 2 to 5 and point 7 Shahzad Sarwar 19th July 2009 1.0
2 Point 6 Shahzad Sarwar Next week 1.1
3
2. What is Concurrency/Locking?
Locking is a method used to protect records that will be accessed by multiple users so that
concurrency errors do not occur (when multiple users change records near simultaneously
resulting in inconsistencies).
"Locking" refers to preventing access in some way to the file in order to protect it while a user is
making an update.
3. Types of Concurrency
There are 2 types of locking / Concurrency
• Pessimistic Concurrency
• Optimistic Concurrency
4. Difference between Pessimistic Concurrency and Optimistic Concurrency
In Pessimistic concurrency the server acquires locks to block access to data that another
process is using. Pessimistic concurrency avoids conflicts by acquiring locks on data that is being
read, so no other process can modify that data, it also acquires locks on data being modified so
no other processes can access that data for either reading or modifying. Readers block writers
and writers block readers.
In Optimistic Concurrency the server uses row versioning to allow data readers to see the state
of the data before the modifications occur. Older versions of data rows are saved so a process
reading data can see the data as it was when the process started reading and not be affected by
any changes being made to that data. A process that modifies data is unaffected by processes
reading the data because the readier is accessing a saved version of the data rows, readers do
not block writers and writers do not block readers.
5. Implementation of Optimistic Concurrency:
5.1.For .Net Data (Adapter)
The following is a simple example that sets the UpdateCommand of a DataAdapter to test for
optimistic concurrency, and then uses the RowUpdated event to test for optimistic concurrency
violations. When an optimistic concurrency violation is encountered, the application sets the
RowError of the row that the update was issued for to reflect an optimistic concurrency violation.
Note that the parameter values passed to the WHERE clause of the UPDATE command are
mapped to the Original values of their respective columns.
[C#]

4. SqlConnection nwindConn = new SqlConnection("Data Source=localhost;Integrated Security=SSPI;Initial
Catalog=northwind");
SqlDataAdapter custDA = new SqlDataAdapter("SELECT CustomerID, CompanyName FROM Customers ORDER BY
CustomerID", nwindConn);
// The Update command checks for optimistic concurrency violations in the WHERE clause.
custDA.UpdateCommand = new SqlCommand("UPDATE Customers (CustomerID, CompanyName)
VALUES(@CustomerID, @CompanyName) " +
"WHERE CustomerID = @oldCustomerID AND CompanyName = @oldCompanyName",
nwindConn);
custDA.UpdateCommand.Parameters.Add("@CustomerID", SqlDbType.NChar, 5, "CustomerID");
custDA.UpdateCommand.Parameters.Add("@CompanyName", SqlDbType.NVarChar, 30, "CompanyName");
// Pass the original values to the WHERE clause parameters.
SqlParameter myParm;
myParm = custDA.UpdateCommand.Parameters.Add("@oldCustomerID", SqlDbType.NChar, 5, "CustomerID");
myParm.SourceVersion = DataRowVersion.Original;
myParm = custDA.UpdateCommand.Parameters.Add("@oldCompanyName", SqlDbType.NVarChar, 30,
"CompanyName");
myParm.SourceVersion = DataRowVersion.Original;
// Add the RowUpdated event handler.
custDA.RowUpdated += new SqlRowUpdatedEventHandler(OnRowUpdated);
DataSet custDS = new DataSet();
custDA.Fill(custDS, "Customers");
// Modify the DataSet contents.
custDA.Update(custDS, "Customers");
foreach (DataRow myRow in custDS.Tables["Customers"].Rows)
{
if (myRow.HasErrors)
Console.WriteLine(myRow[0] + "n" + myRow.RowError);
}
protected static void OnRowUpdated(object sender, SqlRowUpdatedEventArgs args)
{
if (args.RecordsAffected == 0)
{
args.Row.RowError = "Optimistic Concurrency Violation Encountered";
args.Status = UpdateStatus.SkipCurrentRow;
}
}
5.2. For ASP .Net
Optimistic concurrency control works by ensuring that the record being updated or deleted has
the same values as it did when the updating or deleting process started. For example, when
clicking the Edit button in an editable GridView, the record's values are read from the database
and displayed in TextBoxes and other Web controls. These original values are saved by the
GridView. Later, after the user makes her changes and clicks the Update button, the original
values plus the new values are sent to the Business Logic Layer, and then down to the Data
Access Layer. The Data Access Layer must issue a SQL statement that will only update the
record if the original values that the user started editing are identical to the values still in the
database.
Figure 2 depicts this sequence of events.

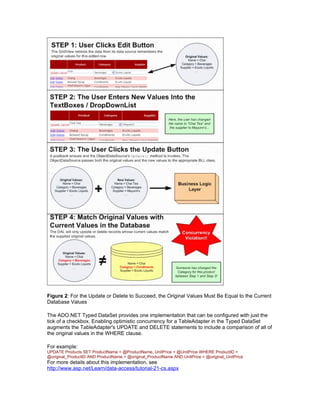

5. Figure 2: For the Update or Delete to Succeed, the Original Values Must Be Equal to the Current
Database Values
The ADO.NET Typed DataSet provides one implementation that can be configured with just the
tick of a checkbox. Enabling optimistic concurrency for a TableAdapter in the Typed DataSet
augments the TableAdapter's UPDATE and DELETE statements to include a comparison of all of
the original values in the WHERE clause.
For example:
UPDATE Products SET ProductName = @ProductName, UnitPrice = @UnitPrice WHERE ProductID =
@original_ProductID AND ProductName = @original_ProductName AND UnitPrice = @original_UnitPrice
For more details about this implementation, see
http://www.asp.net/Learn/data-access/tutorial-21-cs.aspx

6. 5.3. For Nhibernate:
NHibernate has several concurrency models that you can use:
• None
• Optimistic
o Dirty
o All
• Versioned
o Numeric
o Timestamp
o DB timestamp
• Pessimistic
We will explore each of those in turn.
None basically means that we fall back to the transaction semantics that we use in the database.
The database may throw us out, but aside from that, we don’t really care much about things.
Optimistic is more interesting. It basically states that if we detect a change in the entity, we cannot
update it. Let us see a simple example of using optimistic dirty checking for changed fields only:
<class name="Person"
optimistic-lock="dirty"
dynamic-update="true"
table="People">
Using this with this code:
using (var session = sessionFactory.OpenSession())
using (var tx = session.BeginTransaction())
{
var person = session.Get<Person>(1);
person.Name = "other";
tx.Commit();
}
Will result in:
Note that we have so specify dynamic-update to true. This is required because doing so will
generally cause much greater number of query plan to exist in the database cache.
Setting optimistic-lock to all would result in:
If the update fails because the row was updated, we will get a StaleObjectException. Like all
exceptions, this will make the session ineligible for use, and you would have to create a new
session to handle it.

7. Usually a better strategy is to use an explicit version column. We can do it by specifying <version/
>:
<version name="Version" column="Version"/>
And that would result in:
As you can probably guess, if the version doesn’t match, we will get StaleObjectException.
Instead of using numeric values, we can use a timestamp:
<version name="Version" column="Version" type="timestamp"/>
In this case, the property type should be DateTime, and the resulting SQL would be:
This is, of course, a less safe way of doing things, and I recommend that you would use a
numeric value instead.
Another option is to use the database facilities to handle that. in MS SQL Server, this is the
TimeStamp column, which is a 8 byte binary that is changed any time that the row is updated.
We do this by changing the type of the Version property to byte array, and changing the mapping
to:
<version name="Version"
generated="always"
unsaved-value="null"
type="BinaryBlob">
<column name="Version"
not-null="false"
sql-type="timestamp"/>
</version>
Executing the code listed above will result in:
We use the value of the timestamp to ensure that we aren’t overwriting the row data after it was
changed. The database will ensure that the row timestamp will change whenever the row itself is
updated. This plays well with system where you may need to update the underlying tables outside
of NHibernate.
Pessimistic concurrency is also expose with NHibernate, by using the overloads that takes a
LockMode. This is done in a database independent way, using each database facilities and
syntax.

8. For example, let us example the following code:
using (var session = sessionFactory.OpenSession())
using (var tx = session.BeginTransaction())
{
var person = session.Get<Person>(1,LockMode.Upgrade);
person.Name = "other";
tx.Commit();
}
This will result in the following SQL:
We can also issue a separate command to the database to obtain a lock on the row representing
the entity:
using (var session = sessionFactory.OpenSession())
using (var tx = session.BeginTransaction())
{
var person = session.Get<Person>(1);
session.Lock(person, LockMode.Upgrade);
person.Name = "other";
tx.Commit();
}
The Get() would generate a standard select, without the locks, but the Lock() method would
generate the following SQL:
The behavior for conflict in this case is very simple, we wait. If we wait for too long, the timeout
will expire and we will get a timeout exception, because we could not obtain the lock.
5.4. For LINQ to SQL
LINQ to SQL supports optimistic concurrency control in great details.
When an object is refreshed, the LINQ to SQL change tracker holds the following data:
• The values originally taken from the database and used for the update check.
• The new database values from the subsequent query.
LINQ to SQL then determines whether the object is in conflict (that is, whether one or more of its
member values has changed). If the object is in conflict, LINQ to SQL next determines which of
its members are in conflict.
Any member conflict that LINQ to SQL discovers is added to a conflict list.
In the LINQ to SQL object model, an optimistic concurrency conflict occurs when both of the
following conditions are true:
• The client tries to submit changes to the database.
• One or more update-check values have been updated in the database since the client
last read them.

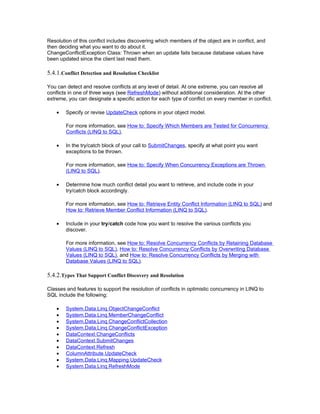

9. Resolution of this conflict includes discovering which members of the object are in conflict, and
then deciding what you want to do about it.
ChangeConflictException Class: Thrown when an update fails because database values have
been updated since the client last read them.
5.4.1.Conflict Detection and Resolution Checklist
You can detect and resolve conflicts at any level of detail. At one extreme, you can resolve all
conflicts in one of three ways (see RefreshMode) without additional consideration. At the other
extreme, you can designate a specific action for each type of conflict on every member in conflict.
• Specify or revise UpdateCheck options in your object model.
For more information, see How to: Specify Which Members are Tested for Concurrency
Conflicts (LINQ to SQL).
• In the try/catch block of your call to SubmitChanges, specify at what point you want
exceptions to be thrown.
For more information, see How to: Specify When Concurrency Exceptions are Thrown
(LINQ to SQL).
• Determine how much conflict detail you want to retrieve, and include code in your
try/catch block accordingly.
For more information, see How to: Retrieve Entity Conflict Information (LINQ to SQL) and
How to: Retrieve Member Conflict Information (LINQ to SQL).
• Include in your try/catch code how you want to resolve the various conflicts you
discover.
For more information, see How to: Resolve Concurrency Conflicts by Retaining Database
Values (LINQ to SQL), How to: Resolve Concurrency Conflicts by Overwriting Database
Values (LINQ to SQL), and How to: Resolve Concurrency Conflicts by Merging with
Database Values (LINQ to SQL).
5.4.2.Types That Support Conflict Discovery and Resolution
Classes and features to support the resolution of conflicts in optimistic concurrency in LINQ to
SQL include the following:
• System.Data.Linq.ObjectChangeConflict
• System.Data.Linq.MemberChangeConflict
• System.Data.Linq.ChangeConflictCollection
• System.Data.Linq.ChangeConflictException
• DataContext.ChangeConflicts
• DataContext.SubmitChanges
• DataContext.Refresh
• ColumnAttribute.UpdateCheck
• System.Data.Linq.Mapping.UpdateCheck
• System.Data.Linq.RefreshMode

10. 6. Implementation of Pessimistic Concurrency:
In next version
6.1. For .Net
In next version
6.2. For ASP .Net
In next version
6.3. For Nhibernate:
In next version
6.4. For LINQ to SQL
In next version
7. Reference:
7.1. .Net
http://msdn.microsoft.com/en-us/library/aa0416cz(VS.71).aspx
7.2. ASP .Net
www.asp.net/Learn/data-access/tutorial-21-cs.aspx
http://www.eggheadcafe.com/articles/20050719.asp
7.3. LINQ 2 SQL
http://msdn.microsoft.com/en-us/library/bb399373.aspx
How to: Detect and Resolve Conflicting Submissions (LINQ to SQL)
Describes how to detect and resolve concurrency conflicts.
How to: Specify When Concurrency Exceptions are Thrown (LINQ to SQL)
Describes how to specify when you should be informed of concurrency conflicts.
How to: Specify Which Members are Tested for Concurrency Conflicts (LINQ to SQL)
Describes how to attribute members to specify whether they are checked for
concurrency conflicts.
How to: Retrieve Entity Conflict Information (LINQ to SQL)
Describes how to gather information about entity conflicts.
How to: Retrieve Member Conflict Information (LINQ to SQL)
Describes how to gather information about member conflicts.
How to: Resolve Concurrency Conflicts by Retaining Database Values (LINQ to SQL)
Describes how to overwrite current values with database values.
How to: Resolve Concurrency Conflicts by Overwriting Database Values (LINQ to
SQL)
Describes how to keep current values by overwriting database values.
How to: Resolve Concurrency Conflicts by Merging with Database Values (LINQ to
SQL)
Describes how to resolve a conflict by merging database and current values.
http://thedatafarm.com/blog/data-access/the-shadowy-side-of-linq-to-sql/
http://blogs.msdn.com/matt/archive/2008/05/22/into-to-linq-to-sql-optimistic-
concurrency.aspx
http://en.csharp-online.net/LINQ_to_ADO.NET
%E2%80%94Optimistic_Concurrency_Database_Transactions
7.4. Nhibernate:
http://nhforge.org/blogs/nhibernate/archive/2009/04/15/nhibernate-mapping-
concurrency.aspx
http://knol.google.com/k/fabio-maulo/nhibernate-chapter-10/1nr4enxv3dpeq/13#
https://www.hibernate.org/hib_docs/nhibernate/html/transactions.html
