Salt stack introduction

©2014 LinkedIn Corporation. All Rights Reserved.
Who am I?
Muzammil Rehman
SRE for Linkedin
Co-founder Tom Hatch.

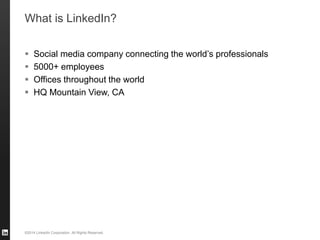

What is LinkedIn?
 Social media company connecting the world’s professionals
 5000+ employees
 Offices throughout the world
 HQ Mountain View, CA

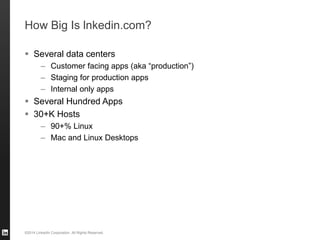

How Big Is lnkedin.com?
 Several data centers
– Customer facing apps (aka “production”)
– Staging for production apps
– Internal only apps
 Several Hundred Apps
 30+K Hosts
– 90+% Linux
– Mac and Linux Desktops

What is salt?
 Configuration management
 Remote command execution framework

Why salt?
 Simplicity
 Parallel execution
 Building on proven technology
 Python client interface
 Fast, flexible, scalable
 Open

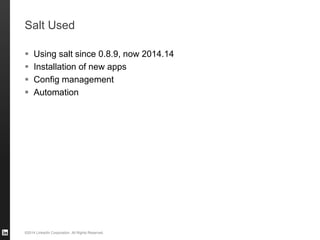

Salt Used
 Using salt since 0.8.9, now 2014.14
 Installation of new apps
 Config management
 Automation

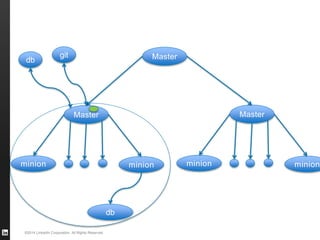

Salt Architecture
 master The Salt master is the central server that all minions
connect to.
 minion Salt minions are the potentially hundreds or thousands of
servers that may be queried and controlled from the master.

Master
minion minion
Master
minion minion
db
Masterdb
git

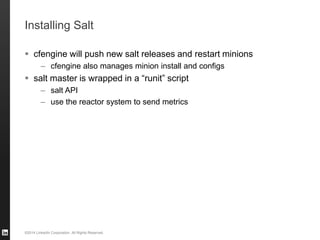

Installing Salt
 cfengine will push new salt releases and restart minions
– cfengine also manages minion install and configs
 salt master is wrapped in a “runit” script
– salt API
– use the reactor system to send metrics

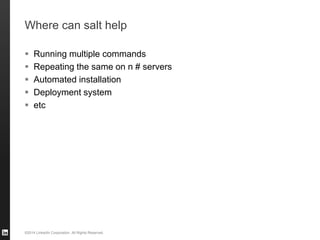

Where can salt help
 Running multiple commands
 Repeating the same on n # servers
 Automated installation
 Deployment system
 etc

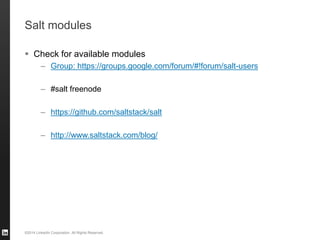

Salt modules
 Check for available modules
– Group: https://groups.google.com/forum/#!forum/salt-users
– #salt freenode
– https://github.com/saltstack/salt
– http://www.saltstack.com/blog/

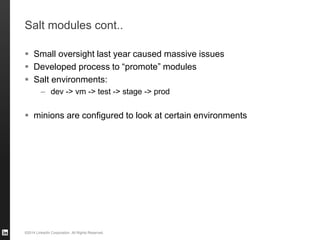

Salt modules cont..
 Small oversight last year caused massive issues
 Developed process to “promote” modules
 Salt environments:
– dev -> vm -> test -> stage -> prod
 minions are configured to look at certain environments

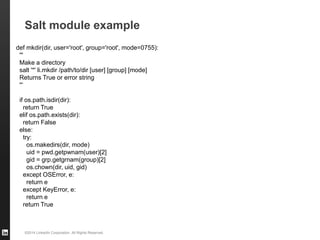

Salt module example
def mkdir(dir, user='root', group='root', mode=0755):
'''
Make a directory
salt '*' li.mkdir /path/to/dir [user] [group] [mode]
Returns True or error string
''’
if os.path.isdir(dir):
return True
elif os.path.exists(dir):
return False
else:
try:
os.makedirs(dir, mode)
uid = pwd.getpwnam(user)[2]
gid = grp.getgrnam(group)[2]
os.chown(dir, uid, gid)
except OSError, e:
return e
except KeyError, e:
return e
return True

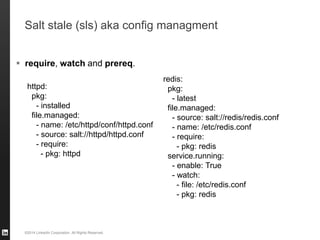

Salt stale (sls) aka config managment
 require, watch and prereq.
httpd:
pkg:
- installed
file.managed:
- name: /etc/httpd/conf/httpd.conf
- source: salt://httpd/httpd.conf
- require:
- pkg: httpd
redis:
pkg:
- latest
file.managed:
- source: salt://redis/redis.conf
- name: /etc/redis.conf
- require:
- pkg: redis
service.running:
- enable: True
- watch:
- file: /etc/redis.conf
- pkg: redis

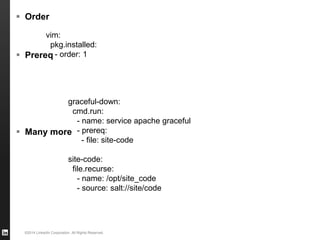

 Order
 Prereq
 Many more
vim:
pkg.installed:
- order: 1
graceful-down:
cmd.run:
- name: service apache graceful
- prereq:
- file: site-code
site-code:
file.recurse:
- name: /opt/site_code
- source: salt://site/code

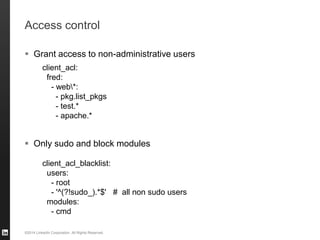

Access control
 Grant access to non-administrative users
 Only sudo and block modules
client_acl:
fred:
- web*:
- pkg.list_pkgs
- test.*
- apache.*
client_acl_blacklist:
users:
- root
- '^(?!sudo_).*$' # all non sudo users
modules:
- cmd

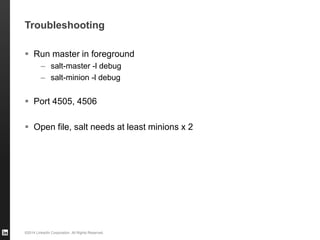

Troubleshooting
 Run master in foreground
– salt-master -l debug
– salt-minion -l debug
 Port 4505, 4506
 Open file, salt needs at least minions x 2

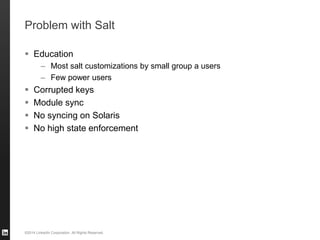

Problem with Salt
 Education
– Most salt customizations by small group a users
– Few power users
 Corrupted keys
 Module sync
 No syncing on Solaris
 No high state enforcement

Demo…

Q n A
