1. Introduction to
Systems Management
with SaltStack
Craig Sebenik
Infrastructure Engineer@Matterport
3 Oct 2015

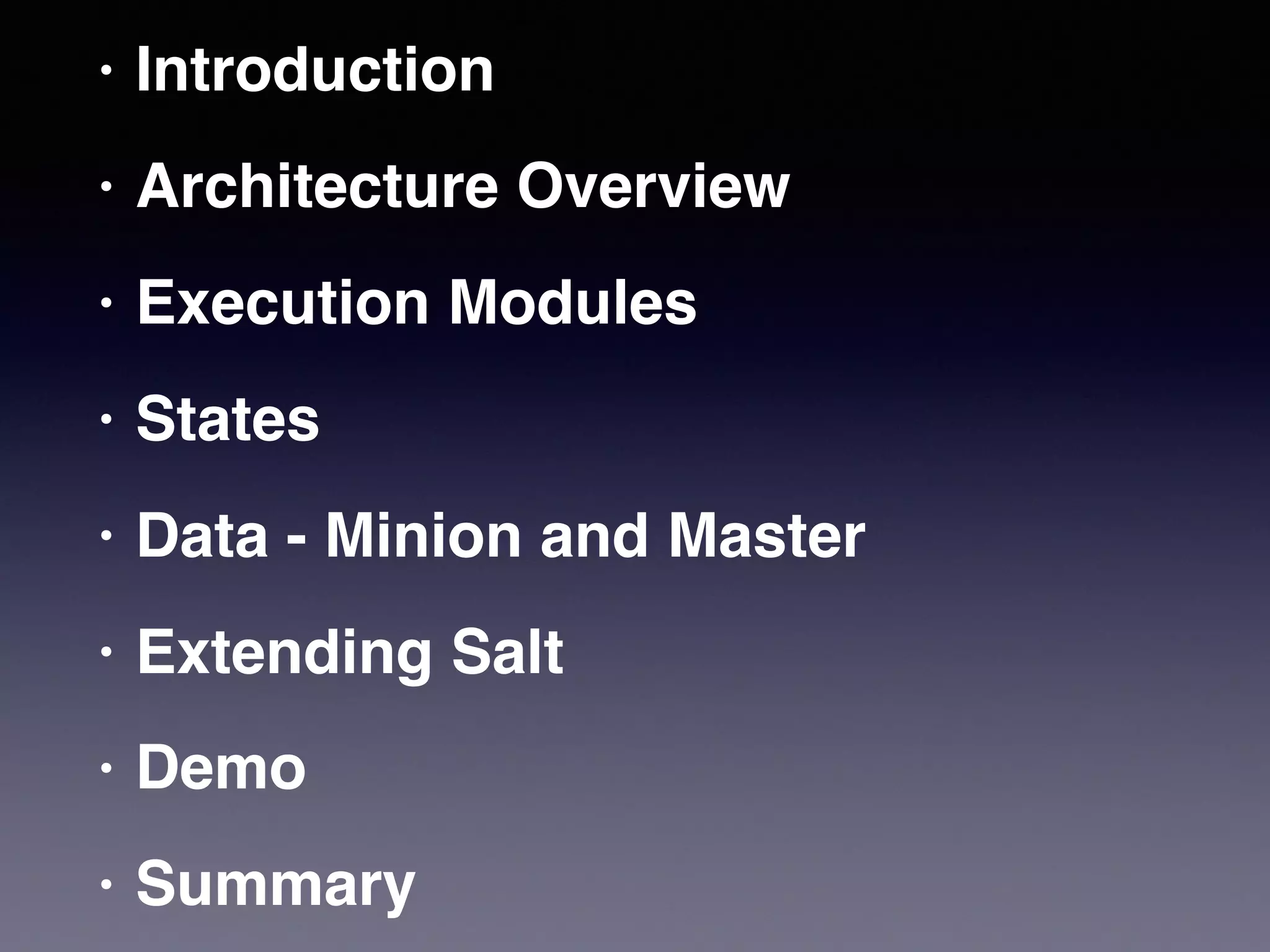

2. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

3. What Is SaltStack?
• System and Configuration Management
• Encrypted communication channel
• Remote execution framework
• 100% open: one of the most active on github
• Scales to tens of thousands of nodes
• Built (and extended) with python

4. What Am I Covering?
• Simple/quick overview of salt
• Very simple examples
• Only a basic single master topology
• Only the core functionality
• Glossing over details: ask questions!

5. Who Am I?
• Degrees in Chemistry, Mathematics, Food
• Computational Chemist (lifetime ago)
• Abbott Labs, Eastman Kodak, Parke-Davis
• Sysadmin/SRE
• NetApp, LinkedIn, Matterport

6. One More Thing About Me…

7. Quick History Of Salt
• Initial release in March 2011
• States added a few months later
• Pillars added March 2012
• Salt SSH added Sept 2013
• Salt Cloud merged in Jan 2014
• Custom transport (RAET) added in Jul 2014

8. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

9. Minions and Master
• Master: central command and control
• Minion: paired with master
• Encrypted communication
• Communication over ZeroMQ using
MessagePack
• Target minions based on their attributes

10. Quick Example

11. What Does This Mean?
• Central management of many nodes
• Ensuring hosts match a “recipe”
• Easy to add more hosts that match a template

12. PUB-SUB
master minion1
minion2
4505

13. Returning Data
master minion1
minion2
4506

14. Targeting Minions
• List: “minion1,minion2
• Globs: “minion*”
• Regular expression: “minion([2|3])”
• Grains: “OS: Ubuntu”
• Combinations of the above

15. Set up Trust With salt-key
• Salt uses standard public key encryption
• Key exchange
• Master needs to verify identity of minions
• User needs to “accept” the minion’s key
• Minion’s public key stored on master
• Master’s public key stored on minion

16. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

17. Execution Modules
• Salt comes with over 100 modules
• Over 1000 functions
• Examples:
• pkg.install, pkg.remove
• file.copy, file.find, file.chown
• user.add, user.info

18. Minor Vocabulary
Clarification
• Modules contains functions
• Modules correspond to python files
• Functions correspond to methods
• There are some exceptions, but beyond today’s
scope

19. Add User To All Hosts

20. What’s Happening
• Master looks at target (‘*’) and determines hosts
• Puts message out on event bus
• Over ZeroMQ using messagepack
• Minion sees message and executes
• All execution is on minion, not master
• Minion returns data back to master

21. Master Maintains Job Data
• Job cache on master
• Contains history of jobs run and data returned
• Tools to query the job cache
• Default is to cache 24 hours of history
• Performance penalties when storing longer

22. Commands Sent In Parallel
• Command sent via event bus
• Minions see and execute
• Jobs are done asynchronously

23. Can Run Locally
• Command to run locally: salt-call
• No central coordination
• Data *IS* still returned to master
• Can bypass with “—local” flag

24. Documentation
• Function called “sys.doc”
• Uses python docstrings
• Important when writing your own custom
modules/functions

25. salt-call Example

26. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

27. States
• Recipe for how a host should be configured
• Default file format is YAML (with jinja)
• Write state files on the master
• Master will sync to minion automatically
• States use the remote execution framework
• But, they are not the same

28. State Example

29. Running State Example

30. Running highstate
• Running individual states can be tedious
• Collect all states for a host (or “template”) in a
single file: top.ls
• Called: top file
• Target just like running the “salt” command

31. Example Top File

32. Running highstate

33. Targeting Example

34. Running Targeting Example

35. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

36. Data: Minion and Master
• Grains: minion side data
• Example: host operating system
• Pillars: master side data
• Example: database passwords

37. Grains: Minion-Side Data
• Data gathered on the minion
• Master has a cache of minion grains
• Salt comes with a number of grains built in
• OS name (eg CentOS)
• number of CPUs
• kernel version

38. Viewing Grains

39. Targeting With Grains

40. Adding Grains
• Minion config
• /etc/salt/grains
• Via command
• sudo salt minion grains.setval foo bar
• Via python (will discuss later)

41. Pillars: Master-Side Data
• Data sent to a specific minion (from master)
• Typically used for sensitive data
• E.g. passwords
• Uses a “top file” (just like “states”)

42. Pillar Example

43. Running Pillar Example

44. Targeted Pillar Data

45. Running Targeted Pillars

46. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

47. Extending Salt
• Jinja
• Custom modules/functions (python)
• salt python API (LocalClient)
• Customizations are synced via salt command
• Easy to automate

48. Templates Using jinja
• Jinja is a widely used python templating
language
• Inspired by Django’s templates
• Default template for flask applications
• Gives basic control commands to flat files

49. Jinja Example

50. Running The ‘vim state’

51. Python Module/Function

52. Custom Modules are NOT
Automatically Synced

53. Running hello.world

54. Docstrings Are Important

55. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

56. Demo Minions
• minion1: development database server
• minion2: development application server
• minion3: production database server
• minion4: production application server

57. • Introduction
• Architecture Overview
• Execution Modules
• States
• Data - Minion and Master
• Extending Salt
• Demo
• Summary

58. Summary
• Master and minions encrypted communications
• Grains: minion-side data, Pillars: master-side data
• Execution functions run on the minions
• States are formulas/recipes to define a host
• Collect multiple states with highstate
• Lots of ways to extend salt functionality

59. Other Features
• Runners: master side orchestration
• Orchestrate Runner: master coordination of states
• Salt cloud: manage cloud virtual machines
• Salt ssh: like normal salt without minion process
• More advanced topologies
• multi-master
• master-less minions (with salt-call)
• GitFS

60. References
• https://docs.saltstack.com/en/latest/
• https://docs.saltstack.com/en/getstarted/
• https://github.com/saltstack/salt

61. Questions?
@craigs55
irc:chitown
https://www.linkedin.com/in/craigsebenik
Yes, we’re hiring!
http://matterport.com/positions/
