SaltStack is an open source configuration management and orchestration tool. It allows users to provision, deploy, and manage infrastructure and applications across multiple cloud and virtual systems. SaltStack uses a master-minion architecture with a master server to control and manage minions (agent servers). Key features include remote execution, configuration management, orchestration abilities, and a communication bus to manage infrastructure at scale.

1. RQ

2. about me
☃ systems engineer @Logicea LLC
☃ I have broken development a few times
☃ I have broken production a few more
☃ I hate databases

3. about this

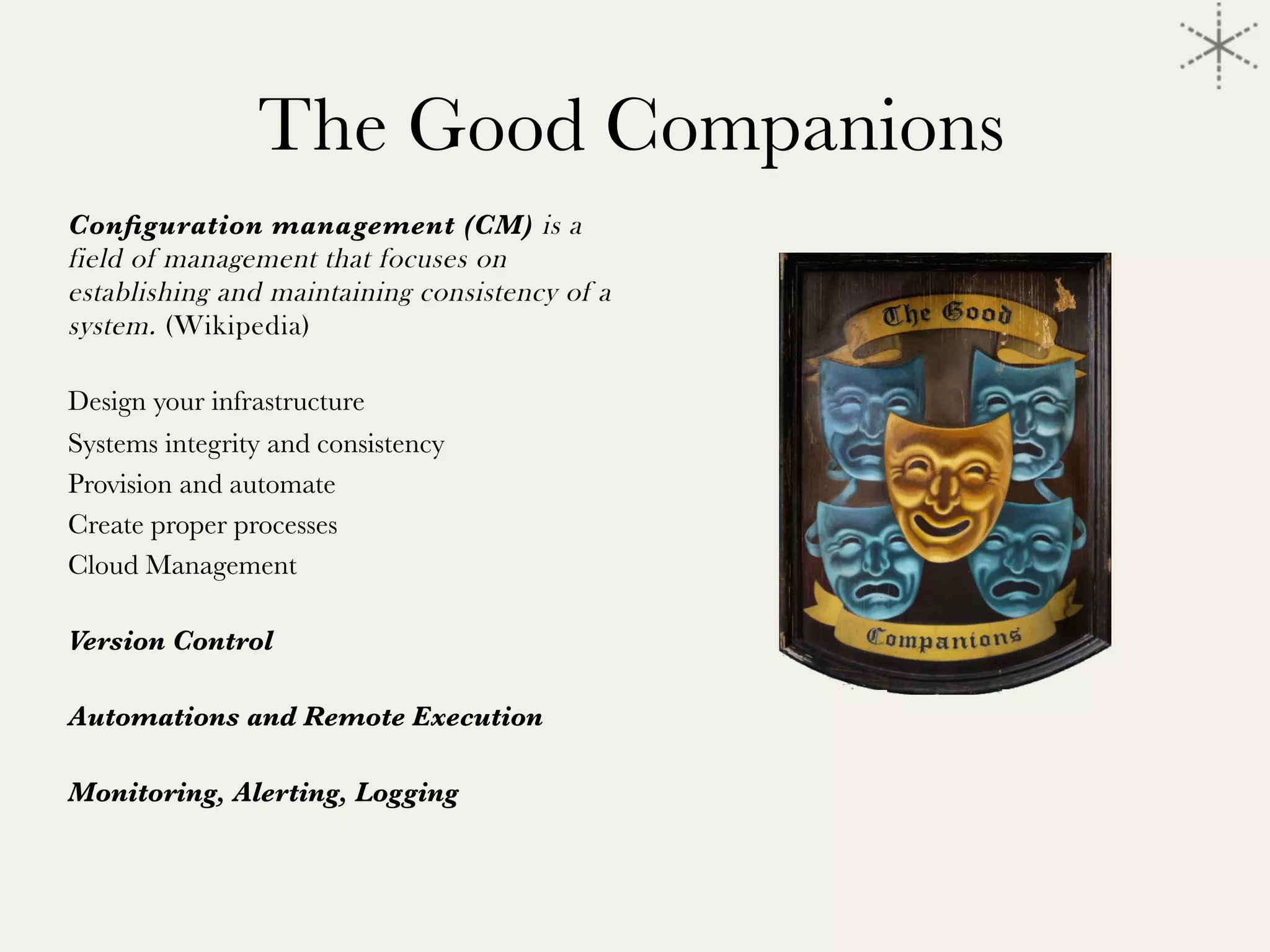

4. The Good Companions
Configuration management (CM) is a
field of management that focuses on
establishing and maintaining consistency of a
system. (Wikipedia)
Design your infrastructure
Systems integrity and consistency
Provision and automate
Create proper processes
Cloud Management
Version Control
Automations and Remote Execution
Monitoring, Alerting, Logging

5. Configuration Management

6. Configuration Management

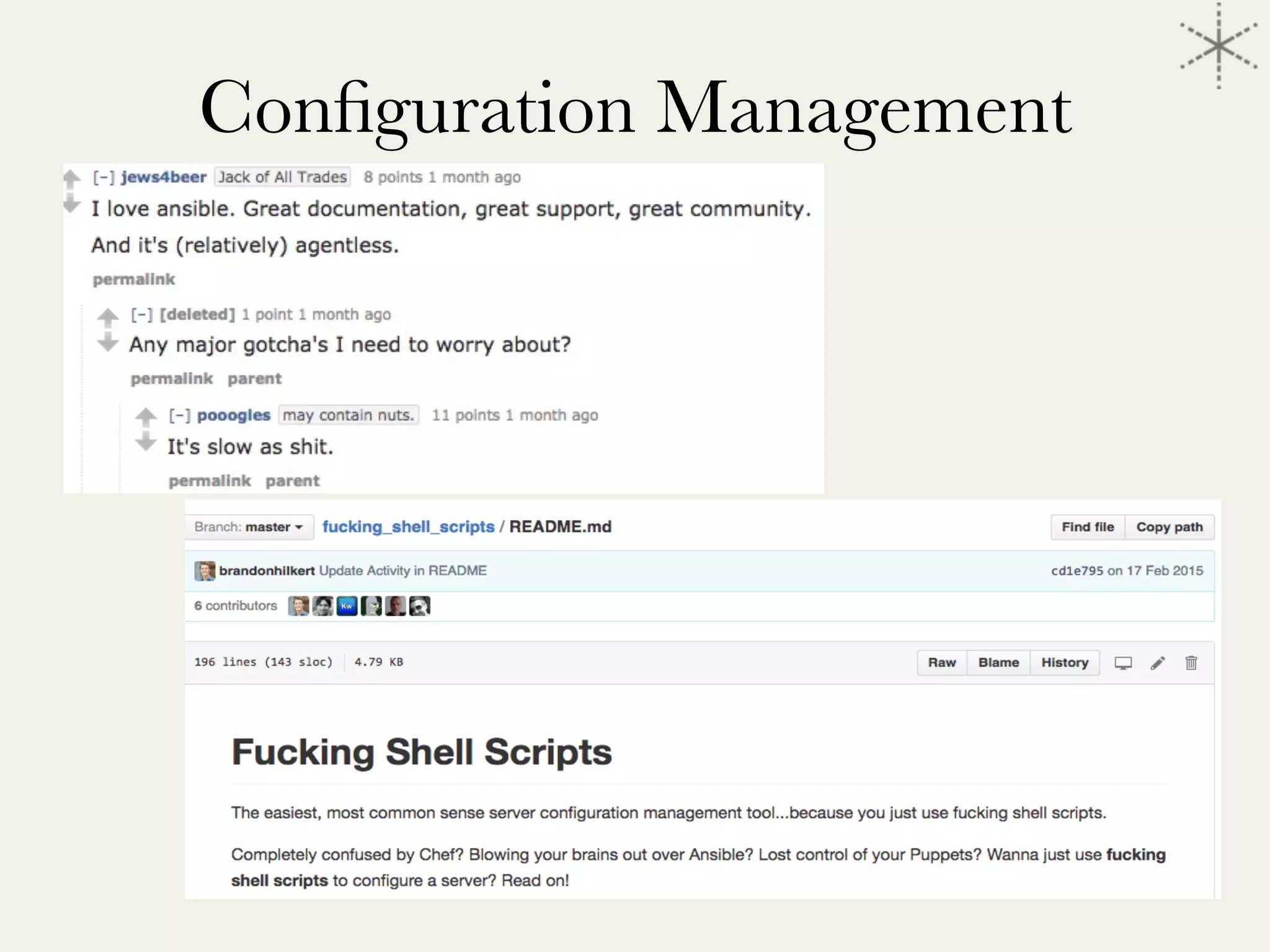

7. Configuration Management

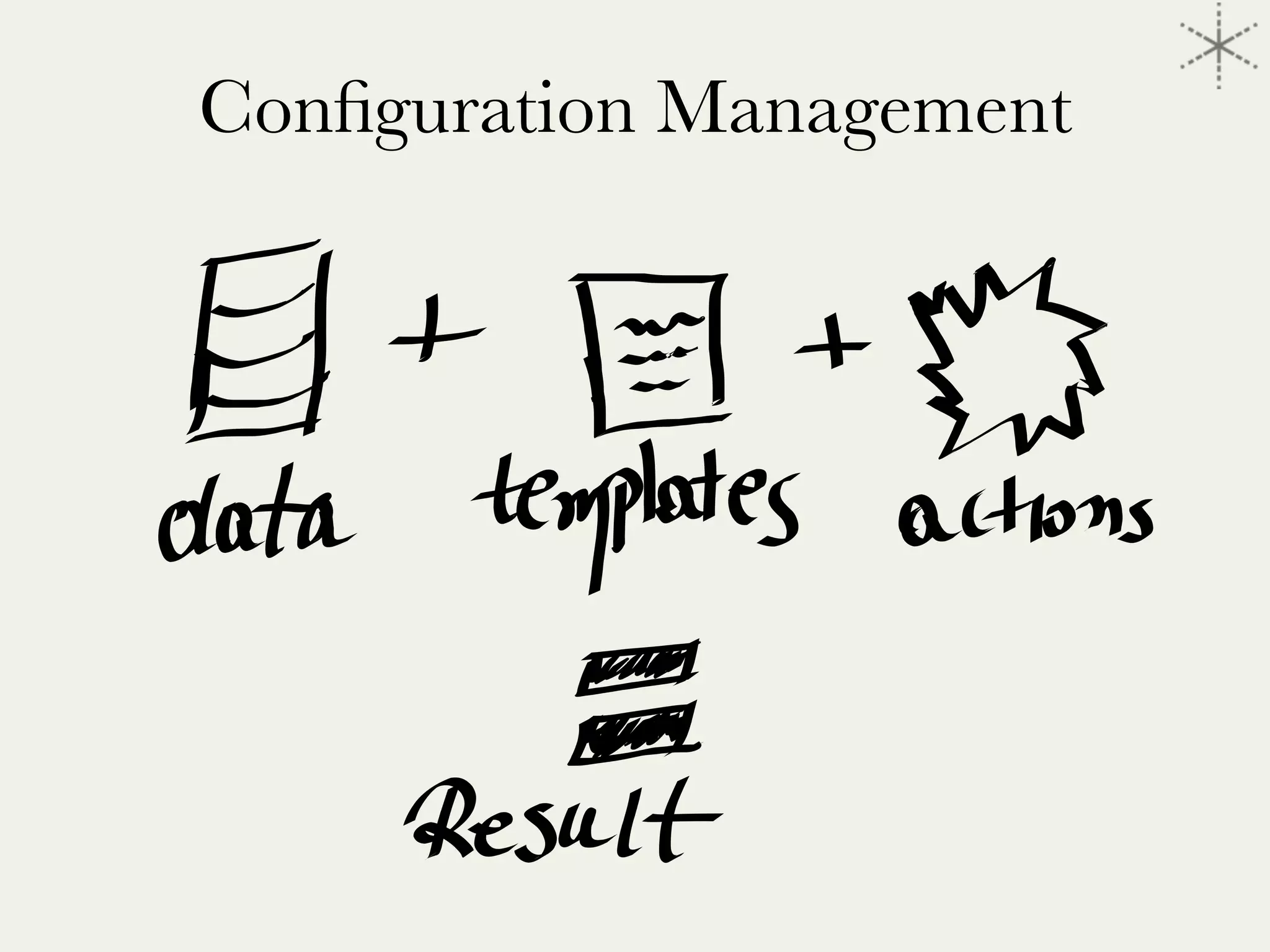

8. Configuration Management

9. kk
YAML

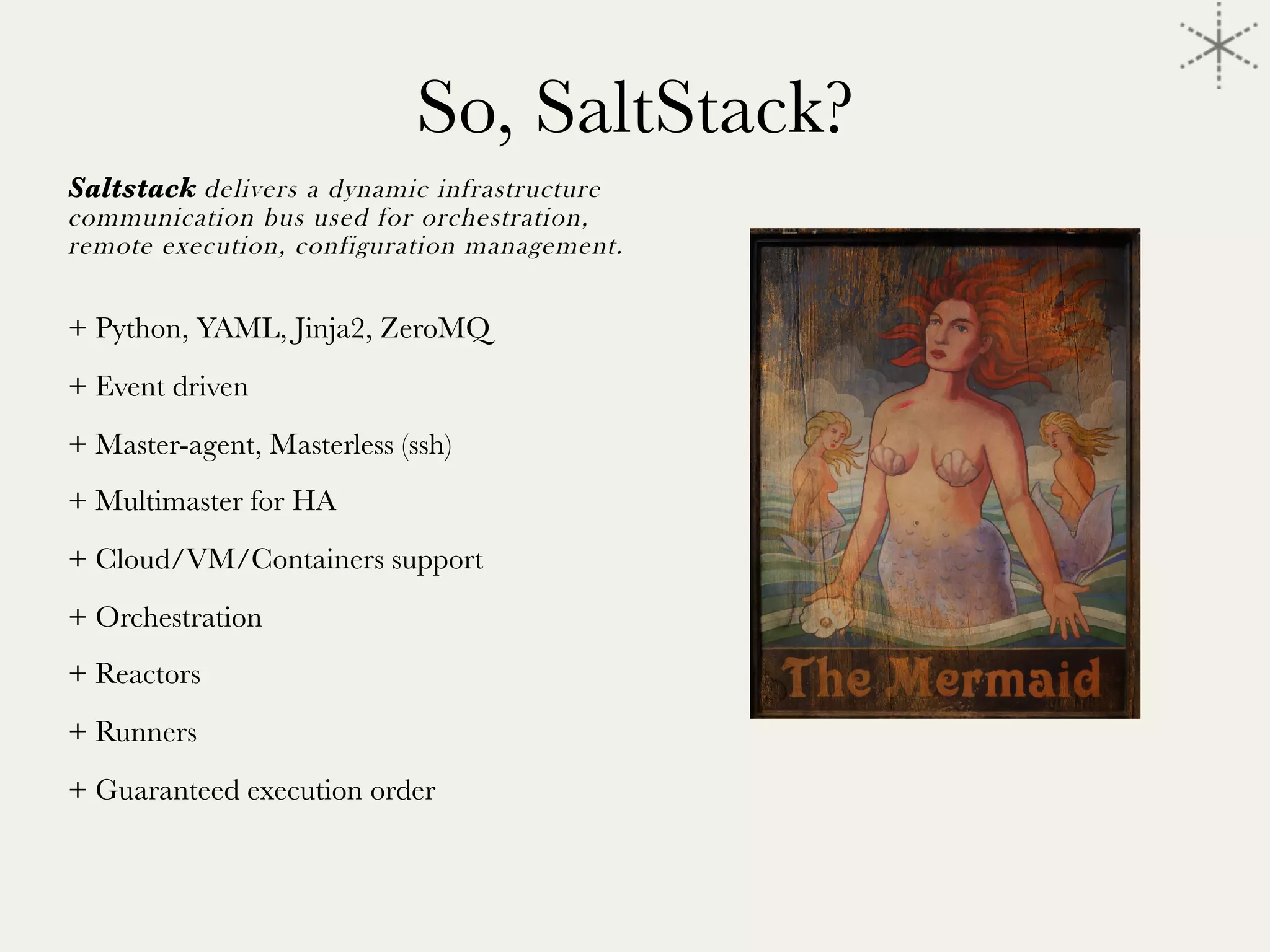

10. So, SaltStack?
Saltstack delivers a dynamic infrastructure
communication bus used for orchestration,
remote execution, configuration management.
+ Python, YAML, Jinja2, ZeroMQ
+ Event driven
+ Master-agent, Masterless (ssh)
+ Multimaster for HA
+ Cloud/VM/Containers support
+ Orchestration
+ Reactors
+ Runners
+ Guaranteed execution order

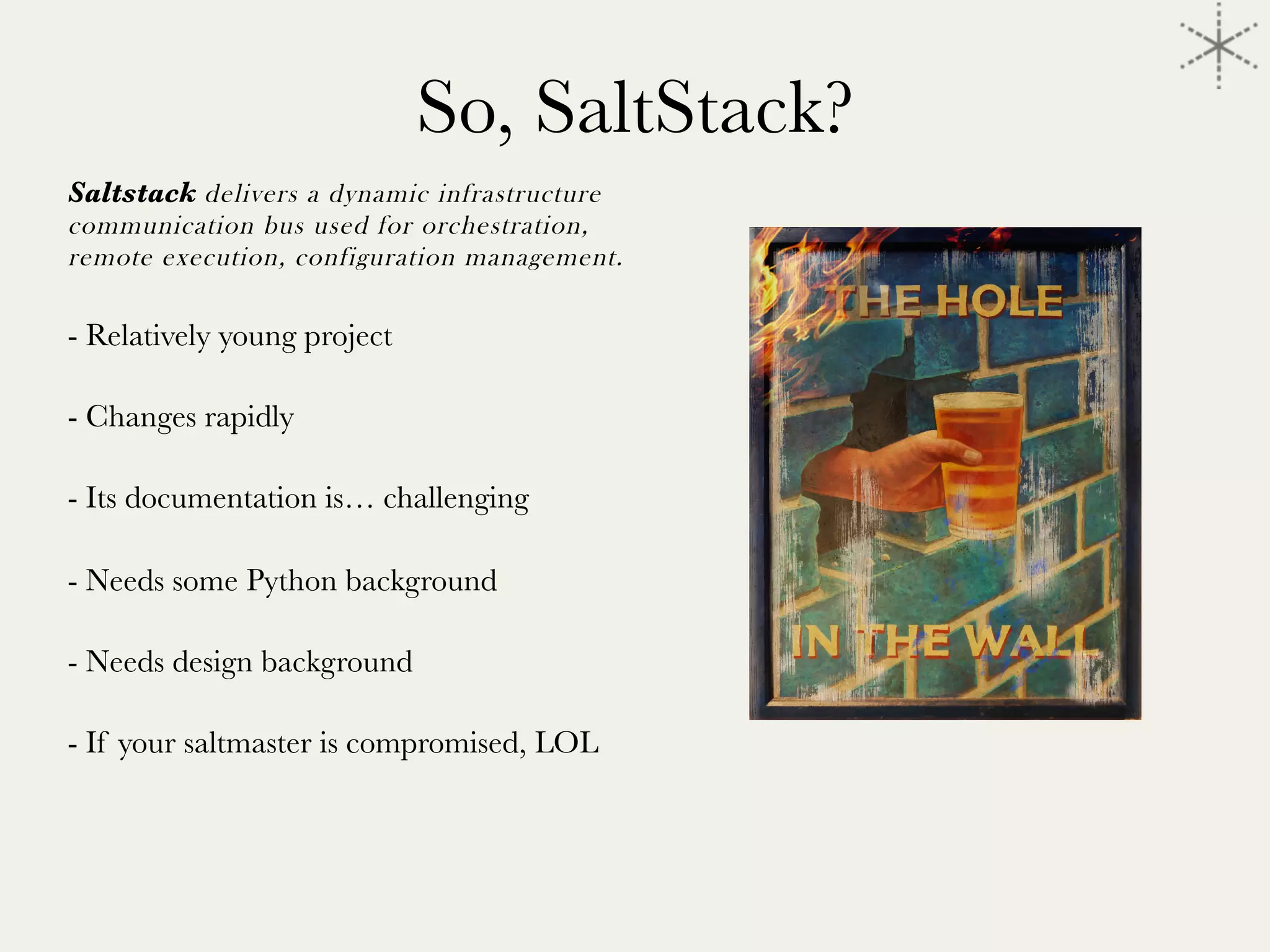

11. So, SaltStack?
Saltstack delivers a dynamic infrastructure
communication bus used for orchestration,
remote execution, configuration management.
- Relatively young project
- Changes rapidly
- Its documentation is… challenging
- Needs some Python background
- Needs design background
- If your saltmaster is compromised, LOL

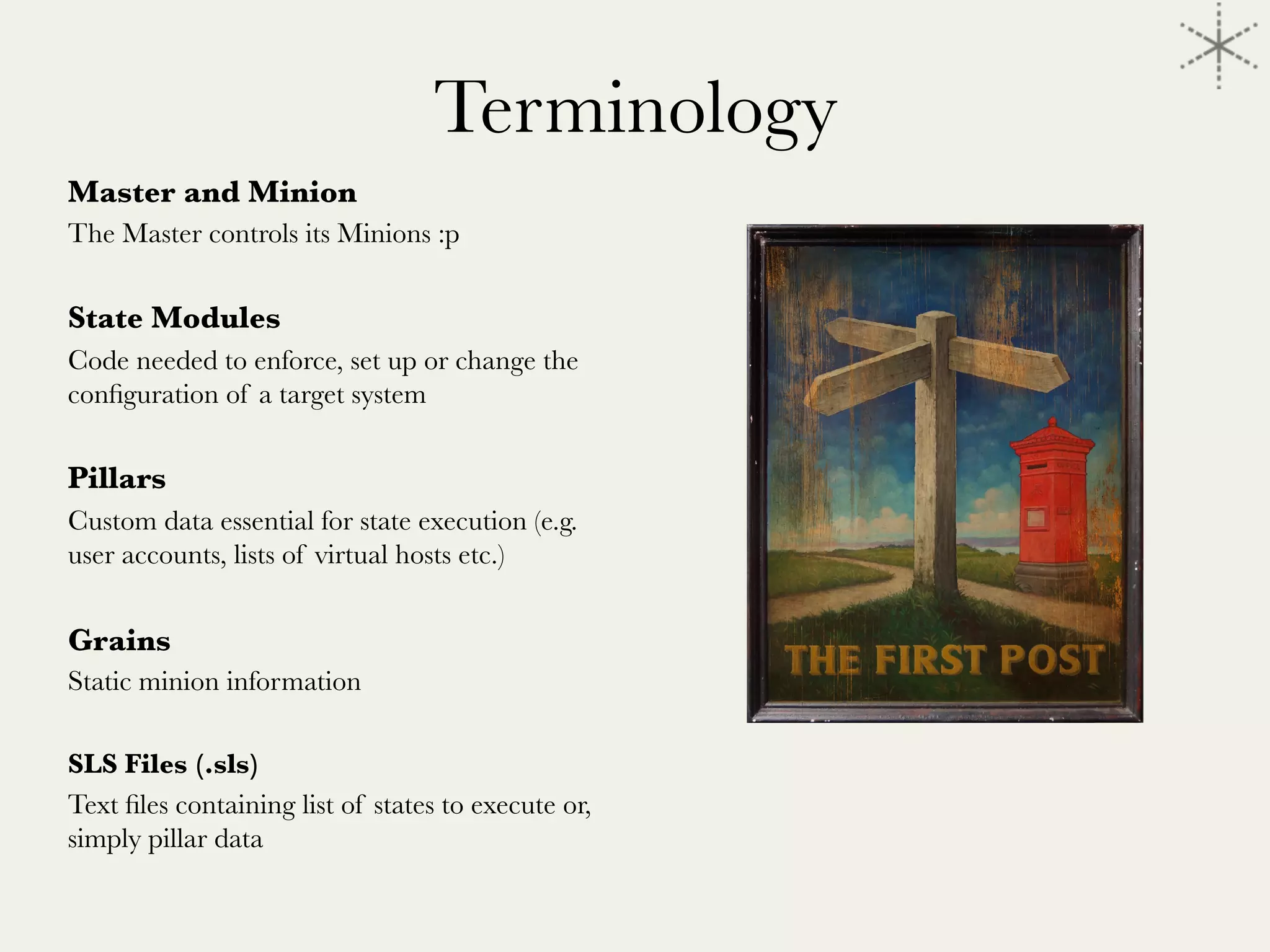

12. Terminology
Master and Minion
The Master controls its Minions :p
State Modules
Code needed to enforce, set up or change the
configuration of a target system
Pillars
Custom data essential for state execution (e.g.
user accounts, lists of virtual hosts etc.)
Grains
Static minion information
SLS Files (.sls)
Text files containing list of states to execute or,
simply pillar data

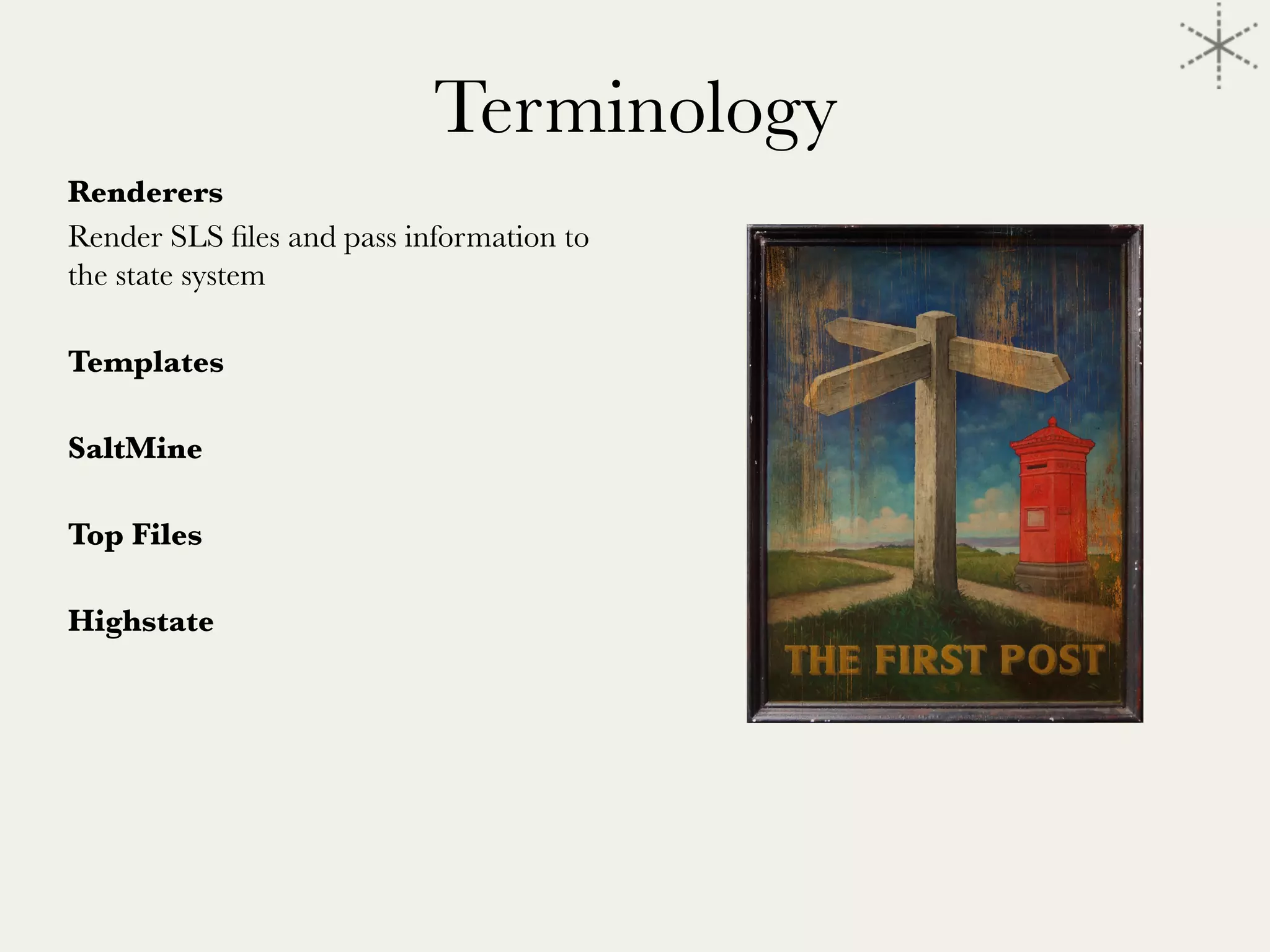

13. Terminology
Renderers
Render SLS files and pass information to
the state system
Templates
SaltMine
Top Files
Highstate

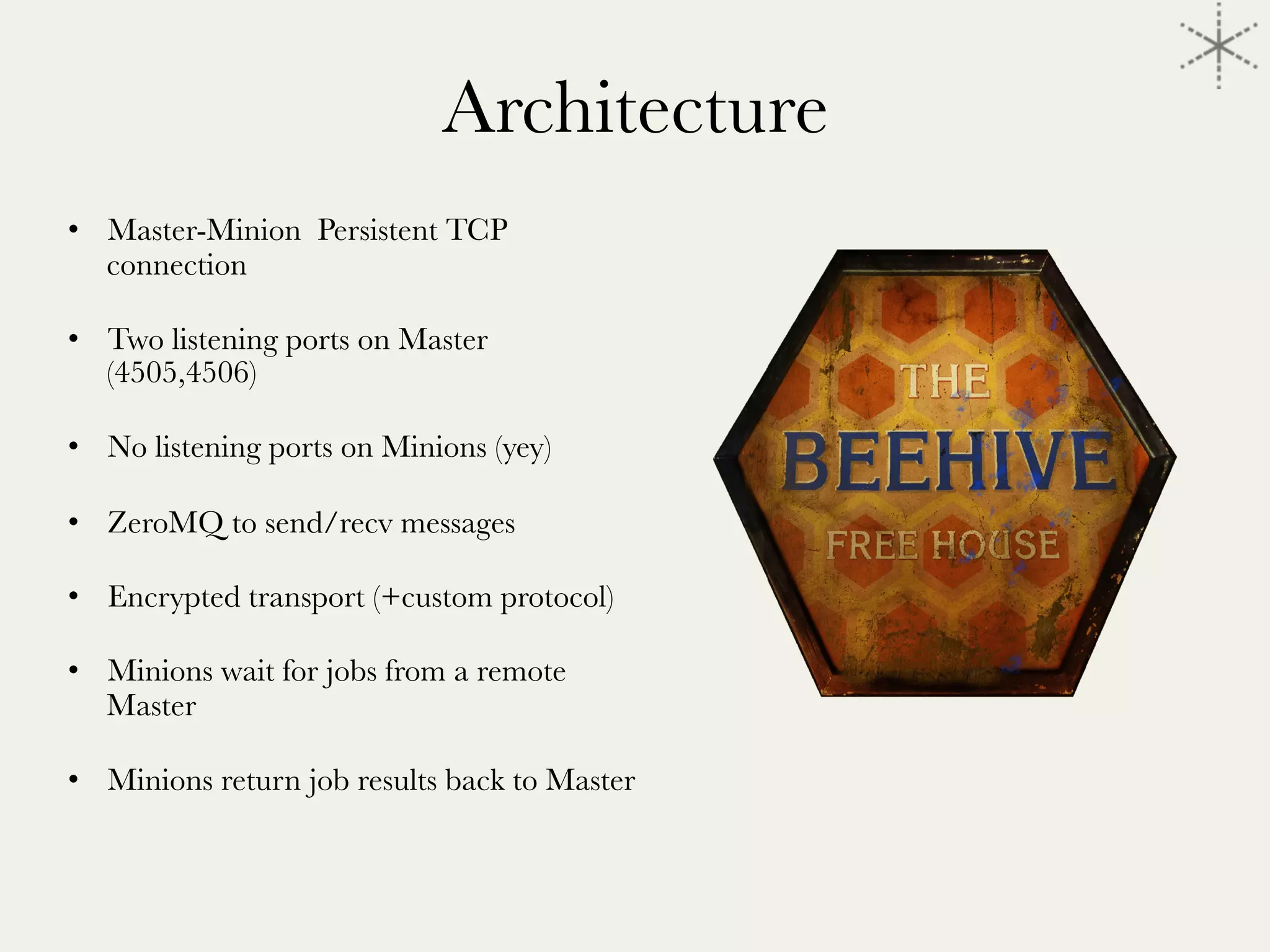

14. Architecture
• Master-Minion Persistent TCP
connection
• Two listening ports on Master
(4505,4506)
• No listening ports on Minions (yey)
• ZeroMQ to send/recv messages
• Encrypted transport (+custom protocol)
• Minions wait for jobs from a remote
Master
• Minions return job results back to Master

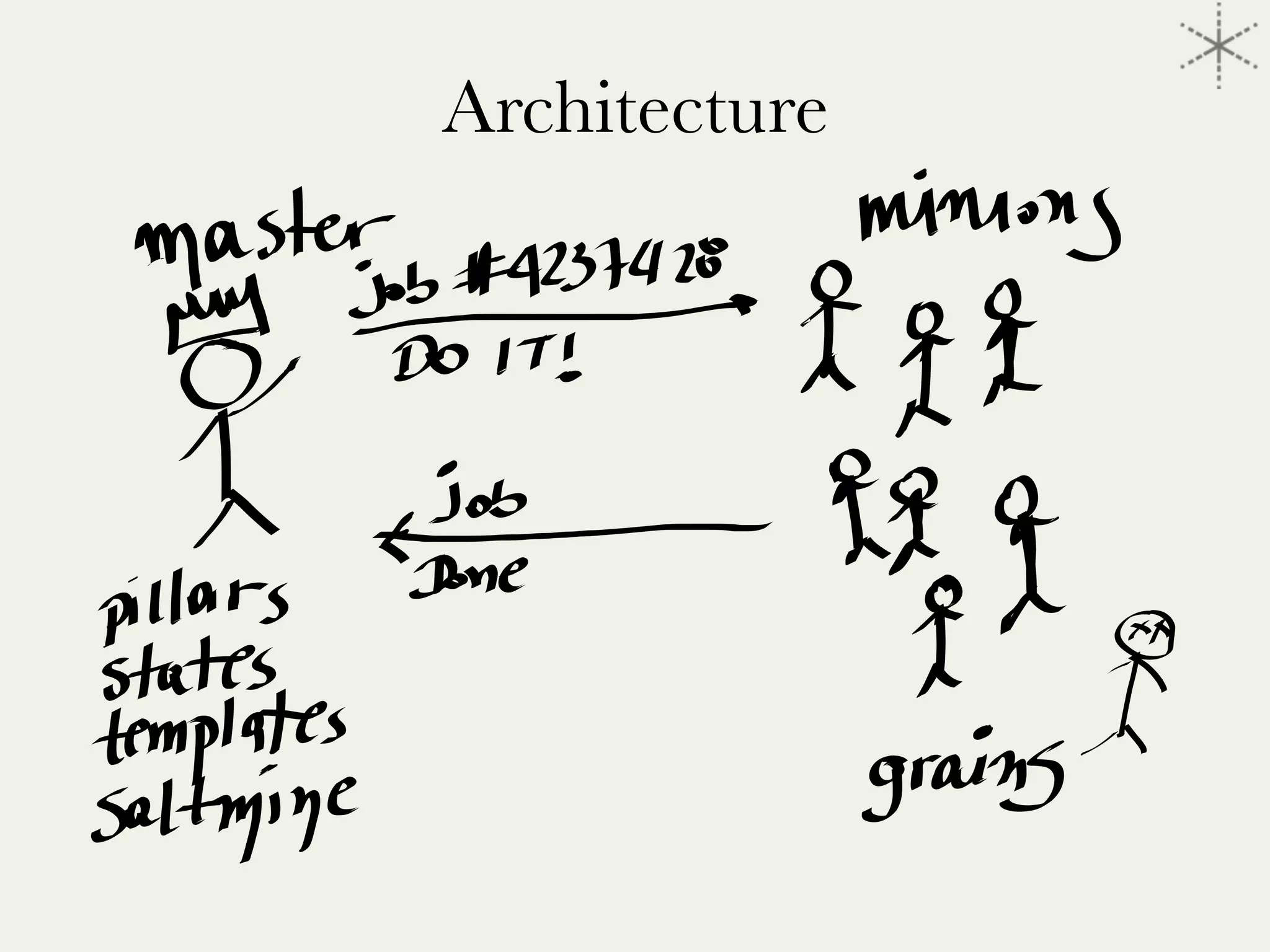

15. Architecture

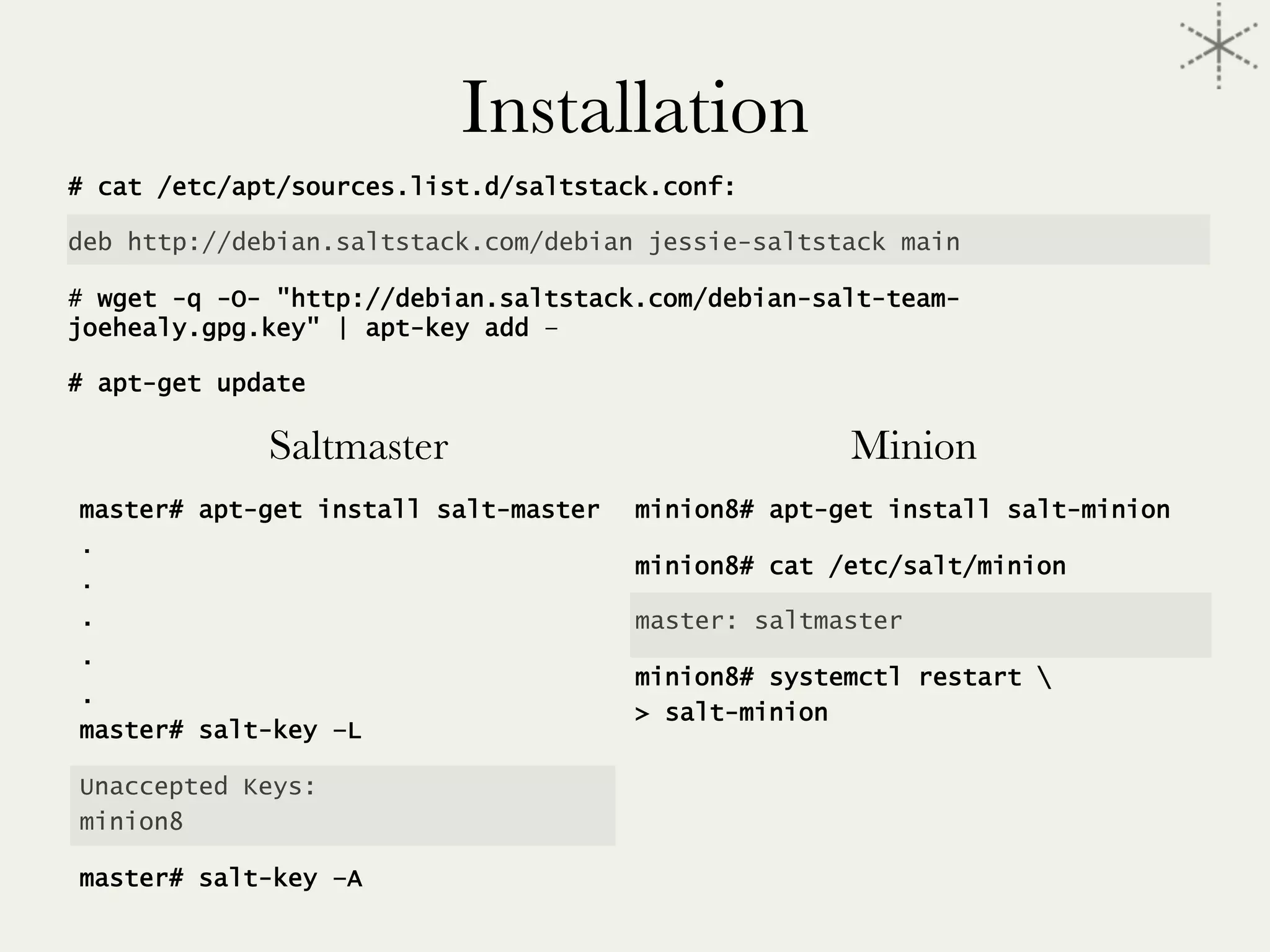

16. Installation
# cat /etc/apt/sources.list.d/saltstack.conf:
deb http://debian.saltstack.com/debian jessie-saltstack main
# wget -q -O- "http://debian.saltstack.com/debian-salt-team-
joehealy.gpg.key" | apt-key add –
# apt-get update
Saltmaster
master# apt-get install salt-master
.
.
.
.
.
master# salt-key –L
Unaccepted Keys:
minion8
master# salt-key –A
Minion
minion8# apt-get install salt-minion
minion8# cat /etc/salt/minion
master: saltmaster
minion8# systemctl restart
> salt-minion

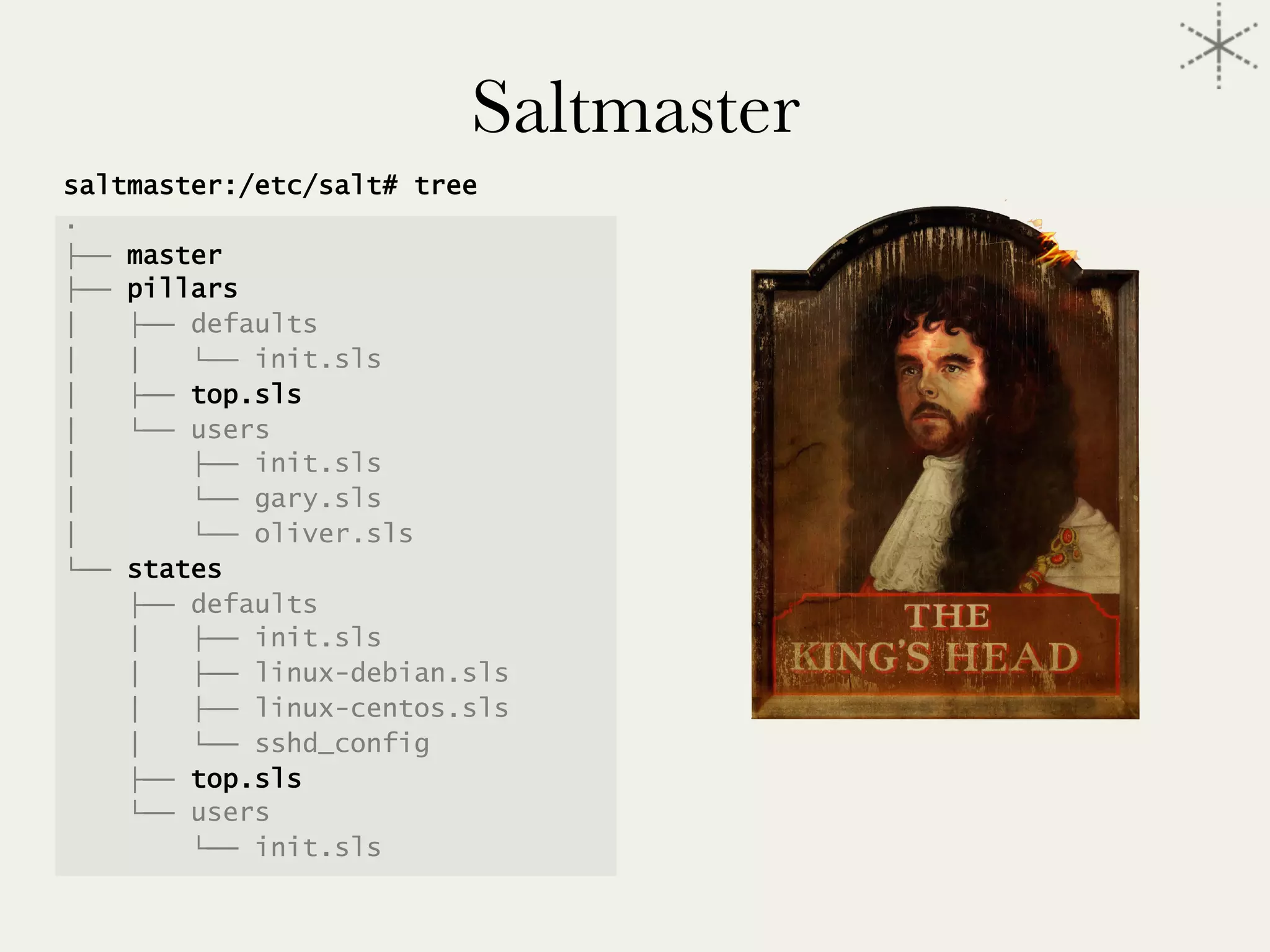

17. Saltmaster
saltmaster:/etc/salt# tree
.
├── master
├── pillars
│ ├── defaults
│ │ └── init.sls
│ ├── top.sls
│ └── users
│ ├── init.sls
│ └── gary.sls
│ └── oliver.sls
└── states
├── defaults
│ ├── init.sls
│ ├── linux-debian.sls
│ ├── linux-centos.sls
│ └── sshd_config
├── top.sls
└── users
└── init.sls

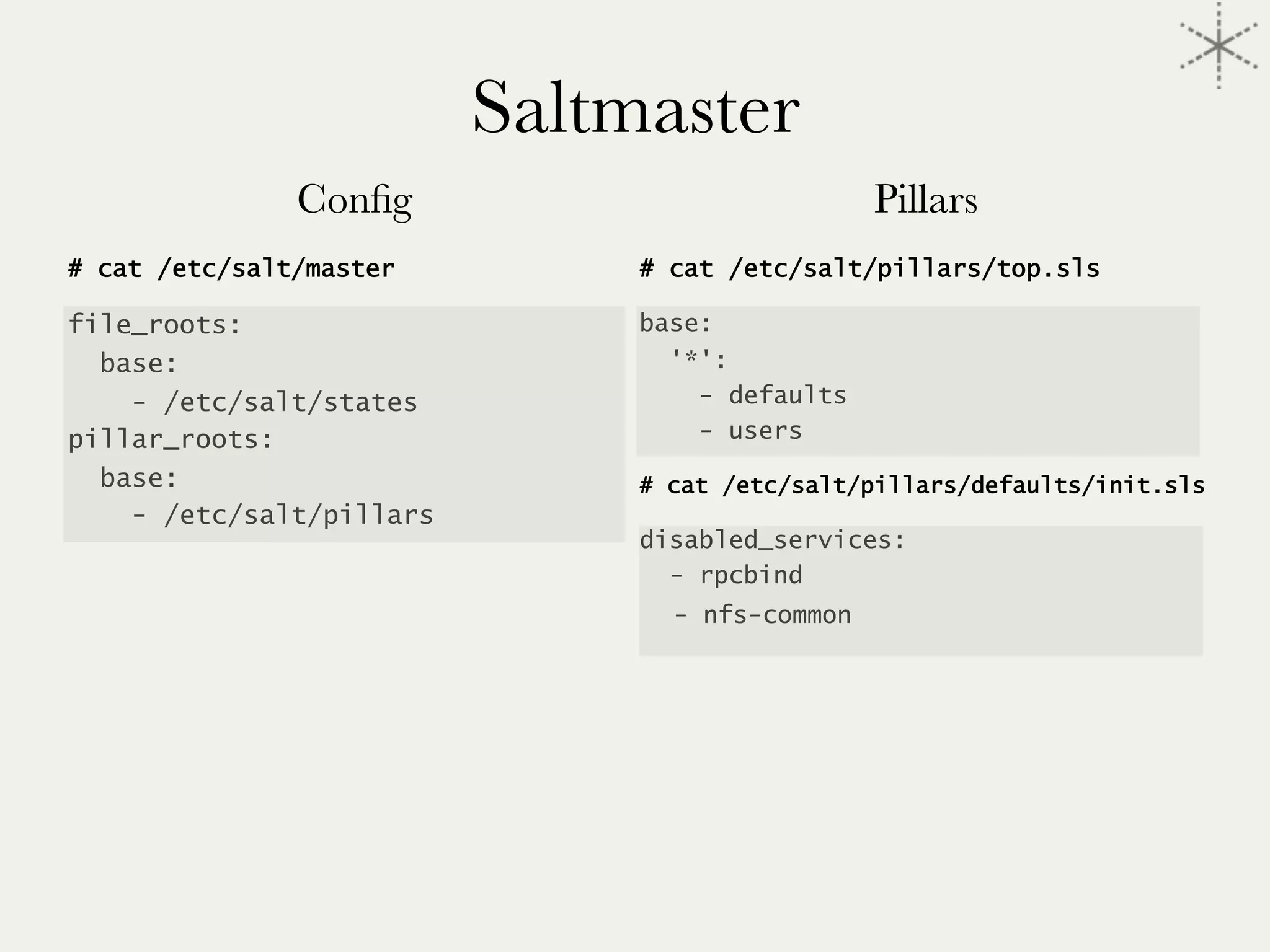

18. Saltmaster
Config
# cat /etc/salt/master
file_roots:
base:
- /etc/salt/states
pillar_roots:
base:
- /etc/salt/pillars
Pillars
# cat /etc/salt/pillars/top.sls
base:
'*':
- defaults
- users
# cat /etc/salt/pillars/defaults/init.sls
disabled_services:
- rpcbind
- nfs-common

19. States
# cat /etc/salt/states/top.sls
base:
'*':
- defaults
- users
# cat /etc/salt/states/defaults/
init.sls
basic_pkgs:
pkg.installed:
- install_recommends: False
- pkgs:
- screen:
- lsof:
- ngrep:
openssh-server:
pkg:
- installed
service:
- name: ssh
- running
- enable: True
- watch:
- file: /etc/ssh/sshd_config
file.managed:
- name: /etc/ssh/sshd_config
- source: salt://defaults/sshd_config
- require:
- pkg: openssh-server
{% if grains['os_family'] == "RedHat" %}
disable_selinux:
file.managed:
- name: /etc/selinux/config
- contents: "SELINUX=disabled"
{% endif %}
Saltmaster

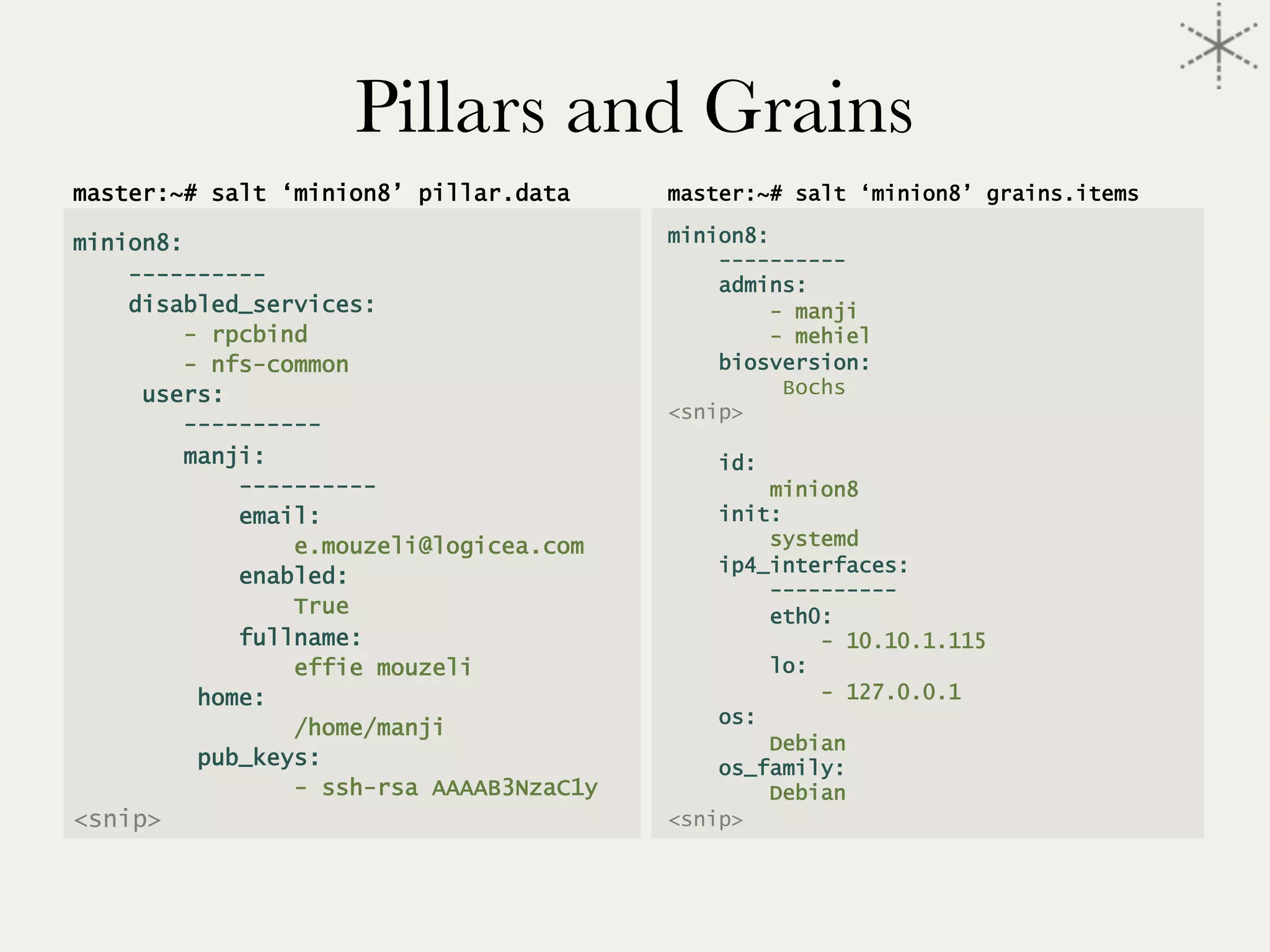

20. Pillars and Grains
master:~# salt ‘minion8’ grains.items
minion8:
----------
admins:
- manji
- mehiel
biosversion:
Bochs
<snip>
id:
minion8
init:
systemd
ip4_interfaces:
----------
eth0:
- 10.10.1.115
lo:
- 127.0.0.1
os:
Debian
os_family:
Debian
<snip>
master:~# salt ‘minion8’ pillar.data
minion8:
----------
disabled_services:
- rpcbind
- nfs-common
users:
----------
manji:
----------
email:
e.mouzeli@logicea.com
enabled:
True
fullname:
effie mouzeli
home:
/home/manji
pub_keys:
- ssh-rsa AAAAB3NzaC1y
<snip>

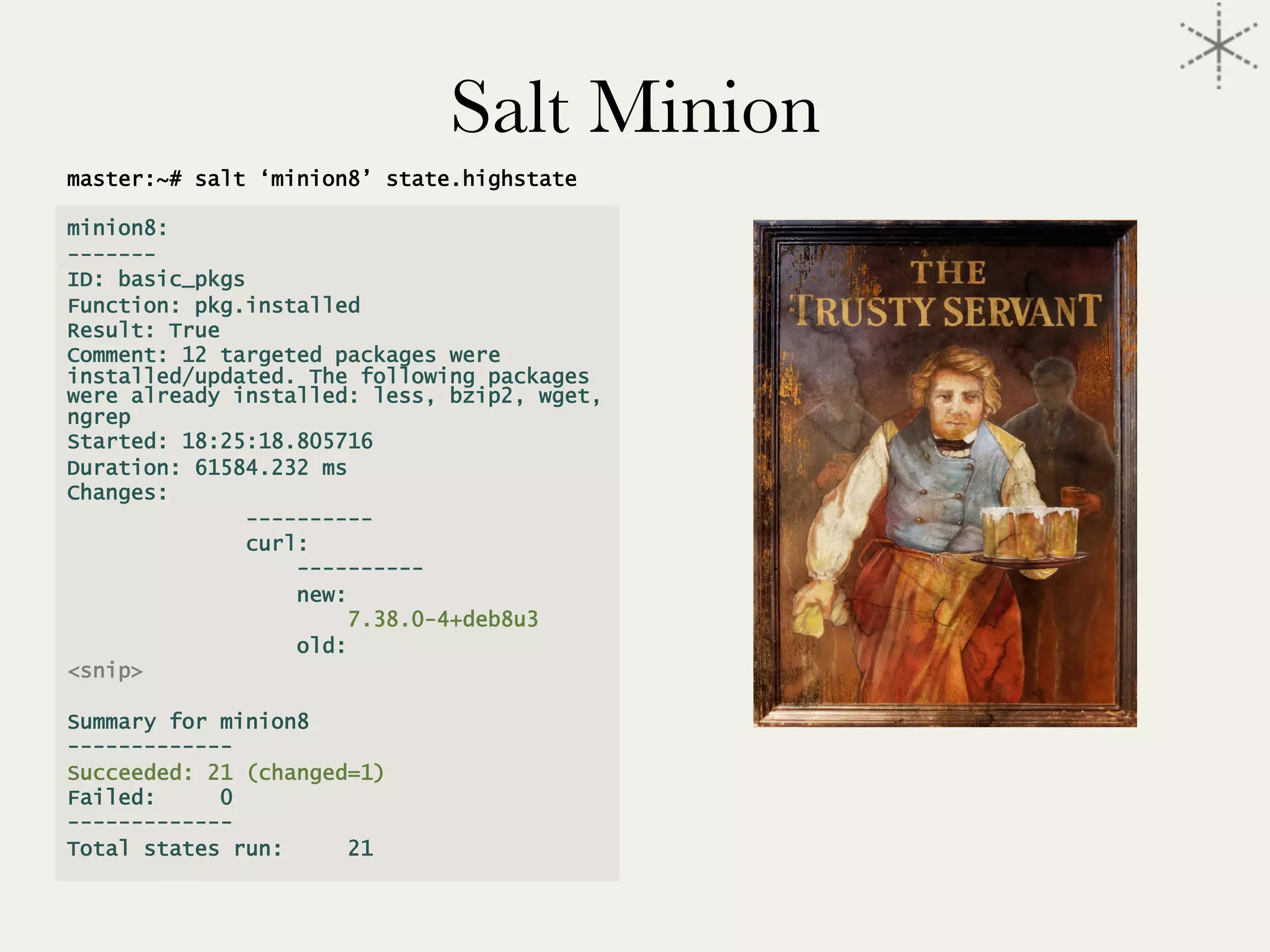

21. master:~# salt ‘minion8’ state.highstate
minion8:
-------
ID: basic_pkgs
Function: pkg.installed
Result: True
Comment: 12 targeted packages were
installed/updated. The following packages
were already installed: less, bzip2, wget,
ngrep
Started: 18:25:18.805716
Duration: 61584.232 ms
Changes:
----------
curl:
----------
new:
7.38.0-4+deb8u3
old:
<snip>
Summary for minion8
-------------
Succeeded: 21 (changed=1)
Failed: 0
-------------
Total states run: 21
Salt Minion

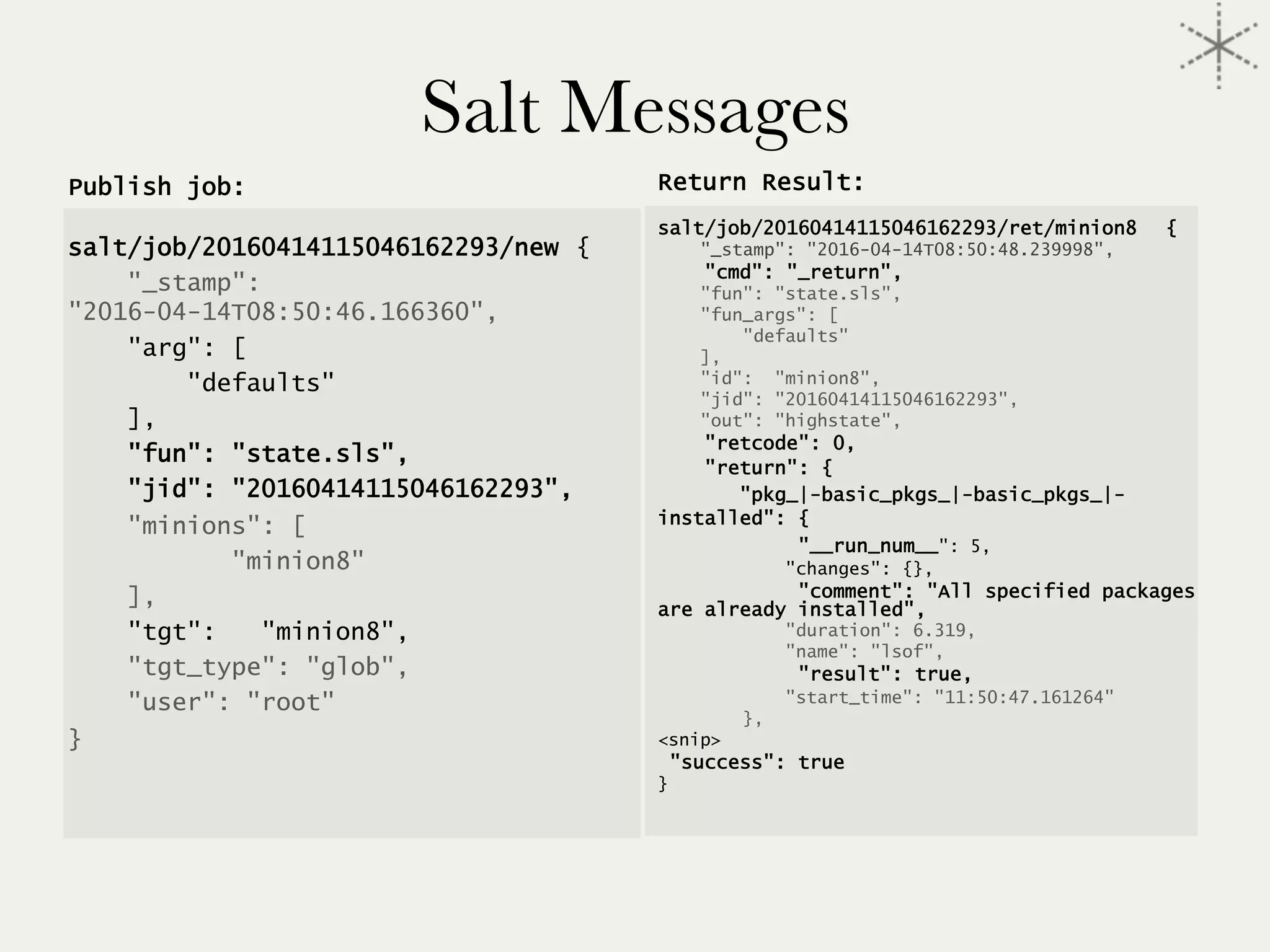

22. Salt Messages
Publish job:
salt/job/20160414115046162293/new {
"_stamp":
"2016-04-14T08:50:46.166360",
"arg": [
"defaults"
],
"fun": "state.sls",
"jid": "20160414115046162293",
"minions": [
"minion8"
],
"tgt": "minion8",
"tgt_type": "glob",
"user": "root"
}
Return Result:
salt/job/20160414115046162293/ret/minion8 {
"_stamp": "2016-04-14T08:50:48.239998",
"cmd": "_return",
"fun": "state.sls",
"fun_args": [
"defaults"
],
"id": "minion8",
"jid": "20160414115046162293",
"out": "highstate",
"retcode": 0,
"return": {
"pkg_|-basic_pkgs_|-basic_pkgs_|-
installed": {
"__run_num__": 5,
"changes": {},
"comment": "All specified packages
are already installed",
"duration": 6.319,
"name": "lsof",
"result": true,
"start_time": "11:50:47.161264"
},
<snip>
"success": true
}

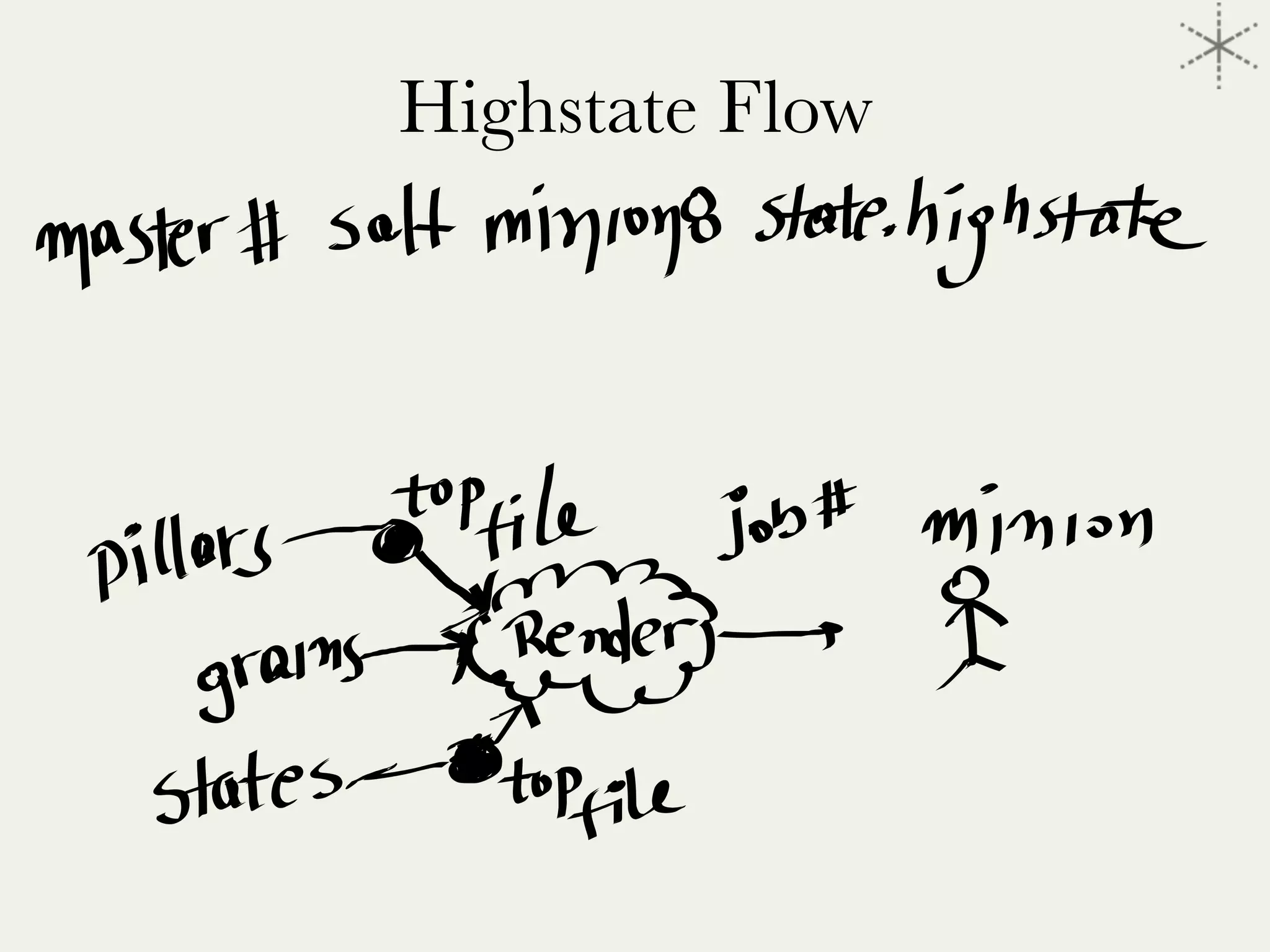

23. Highstate Flow

24. Advanced Topics
Reactors
Runners
Orchestration
Beer Communication
Custom salt modules

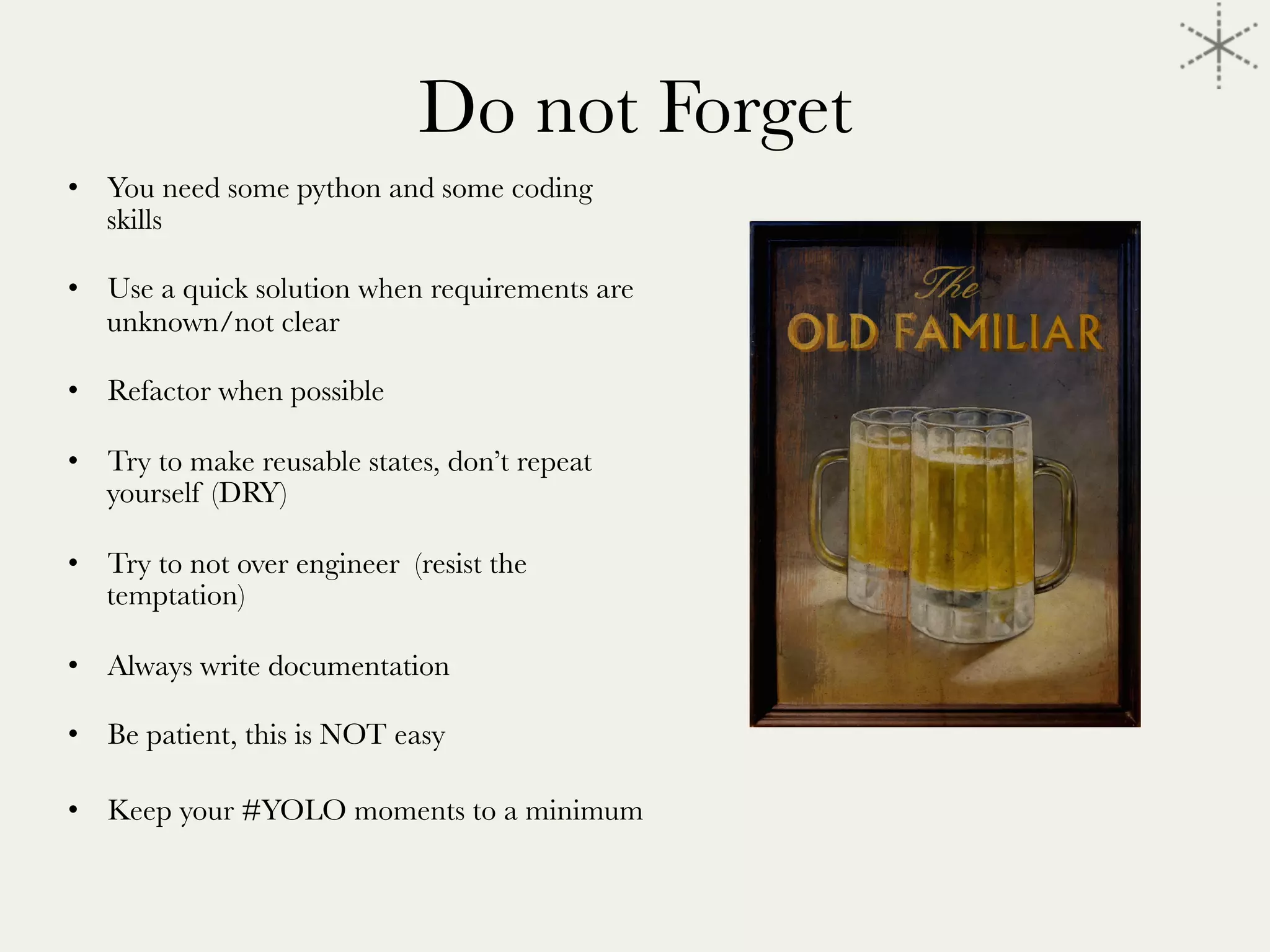

25. Do not Forget
• You need some python and some coding
skills
• Use a quick solution when requirements are
unknown/not clear
• Refactor when possible
• Try to make reusable states, don’t repeat
yourself (DRY)
• Try to not over engineer (resist the
temptation)
• Always write documentation
• Be patient, this is NOT easy
• Keep your #YOLO moments to a minimum

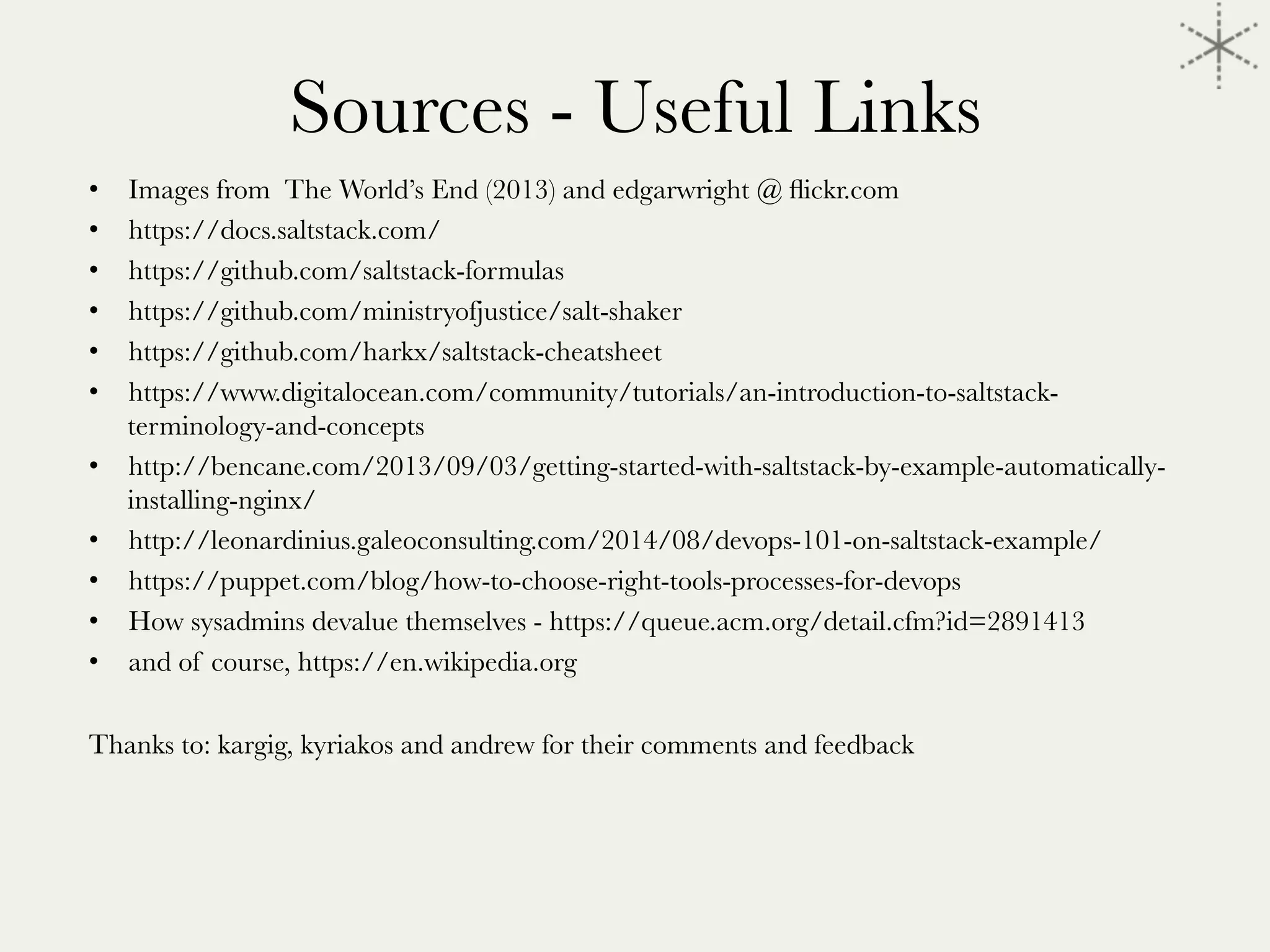

26. Sources - Useful Links
• Images from The World’s End (2013) and edgarwright @ flickr.com
• https://docs.saltstack.com/
• https://github.com/saltstack-formulas
• https://github.com/ministryofjustice/salt-shaker
• https://github.com/harkx/saltstack-cheatsheet
• https://www.digitalocean.com/community/tutorials/an-introduction-to-saltstack-
terminology-and-concepts
• http://bencane.com/2013/09/03/getting-started-with-saltstack-by-example-automatically-
installing-nginx/
• http://leonardinius.galeoconsulting.com/2014/08/devops-101-on-saltstack-example/
• https://puppet.com/blog/how-to-choose-right-tools-processes-for-devops
• How sysadmins devalue themselves - https://queue.acm.org/detail.cfm?id=2891413
• and of course, https://en.wikipedia.org
Thanks to: kargig, kyriakos and andrew for their comments and feedback
