1. Managing network gear and
"dumb" devices using
SaltStack Proxy Minions1
C. R. Oldham
Platform Engineer
SaltStack
Where's
(the)
Waldo?

2. Self-aggrandizement
• North Central Association, Director of IT
• Marvell Semiconductor, Compute Environment Manager
• HopeKids, Executive Director
• SaltStack, Platform Engineer
• Keyboard + Monitor Give it to C. R.
2
➮

3. What is Salt?
• Salt is more than just configuration management, it makes up a unified
system control platform.
• Complete infrastructure control
• A foundation API for communication
• Remote execution, job management, state discovery
• Control and view all aspects from one source, one medium
• Salt is Simplicity
• Salt is designed to be simple
• Easy to set up, use, understand, and extend
• Diving in is the right way to learn
3

4. Founded on Remote Execution
• The foundation of Salt is remote execution. Salt's unique remote
execution system enables extremely fast and reliable remote
control of systems
• Remote Execution allows for server commands to be sent
around an infrastructure
• ZeroMQ topology enables powerful and high speed
communication
• Commands can be executed quickly and in parallel across large
numbers of nodes to execute commands and gather information
4

5. Not Just for Large Infrastructure
• Salt can scale up or down as
far as you need to go
• Home networks
• "Micro" networks
– Arduino, Raspberry Pi,
BeagleBone/BeagleBoard
• "Dumb" devices
– Switches, Routers
– Coffee Makers
– Sprinkler Systems
5
• Remote Services
• Google Apps
• Heroku
• Gondor.IO
• Anything with a REST api

6. Remote Execution Examples
salt -G 'os:Ubuntu' pkg.upgrade
!
salt '*' pkg.install openssl refresh=True
!
salt '*' service.restart apache
!
salt '*' shadow.set_password root '$1$UY...
6

7. State Examples
/webroot/web:
file.directory:
- user: www-data
- group: www-data
- dir_mode: 2755
- file_mode: '0755'
- makedirs: True
7
thorium_proj:
git.latest:
- rev: develop
- name: git@github.com:saltstack/thorium
- user: www-data
- target: {{ thorium.venv.base }}
- force: False
- identity:deploy.key
- require:
- file: /webroot/web/.ssh/deploy.key
!/webroot/web/.ssh/deploy.key:
file.managed:
- user: www-data
- group: www-data
- dir_mode: 0770
- mode: 0600
- source: salt://deploy.key
- makedirs: True
- replace: False

8. Minion - to - Master Communication
• Each minion runs a salt-minion
process
– Python runtime, average RSS 30 MB
– Minions connect to master
– Master controls minions
8
• What if devices we want to
control can't spare 30 MB?
• Enter the PROXY MINION

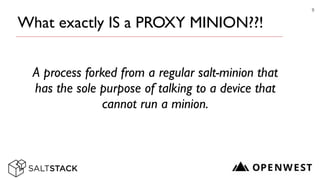

9. What exactly IS a PROXY MINION??!
A process forked from a regular salt-minion that
has the sole purpose of talking to a device that
cannot run a minion.
9

10. GRU == salt-master Minion == salt-minion
Minions == proxy-minion
Car ==
Car == proxied device

11. Where we are going eventually...
salt datacenter-network state.highstate
11
Woohoo!!

12. Aren't there other tools?
• Web interface
• ssh
• The CLI tool that shall remain nameless

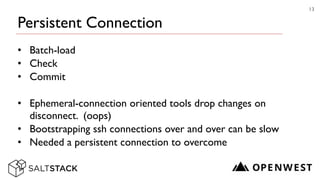

13. Persistent Connection
• Batch-load
• Check
• Commit
!
• Ephemeral-connection oriented tools drop changes on
disconnect. (oops)
• Bootstrapping ssh connections over and over can be slow
• Needed a persistent connection to overcome
13

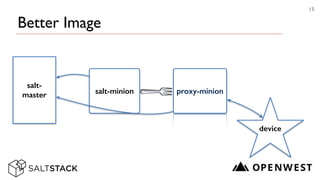

15. Better Image
15
salt-
master salt-minion
device
🍴
proxy-minion

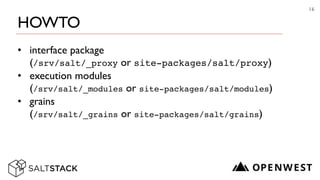

16. HOWTO
• interface package
(/srv/salt/_proxy or site-packages/salt/proxy)
• execution modules
(/srv/salt/_modules or site-packages/salt/modules)
• grains
(/srv/salt/_grains or site-packages/salt/grains)
16

17. Interface package
• Python package that handles heavy-lifting for connection
• Needs a class Proxyconn!
– __init__!
– proxytype!
– id!
– ping!
– shutdown
17

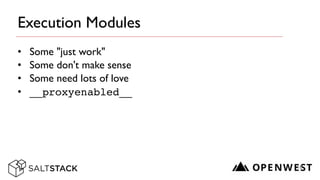

18. Execution Modules
• Some "just work"
• Some don't make sense
• Some need lots of love
• __proxyenabled__
18

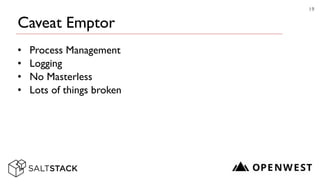

19. Caveat Emptor
• Process Management
• Logging
• No Masterless
• Lots of things broken
19

20. C. R. Oldham
Platform Engineer
SaltStack
20
