1. The missing tool
Artur Martins
(@arturmartins)
Devops Dublin Meetup III
8th July 2015

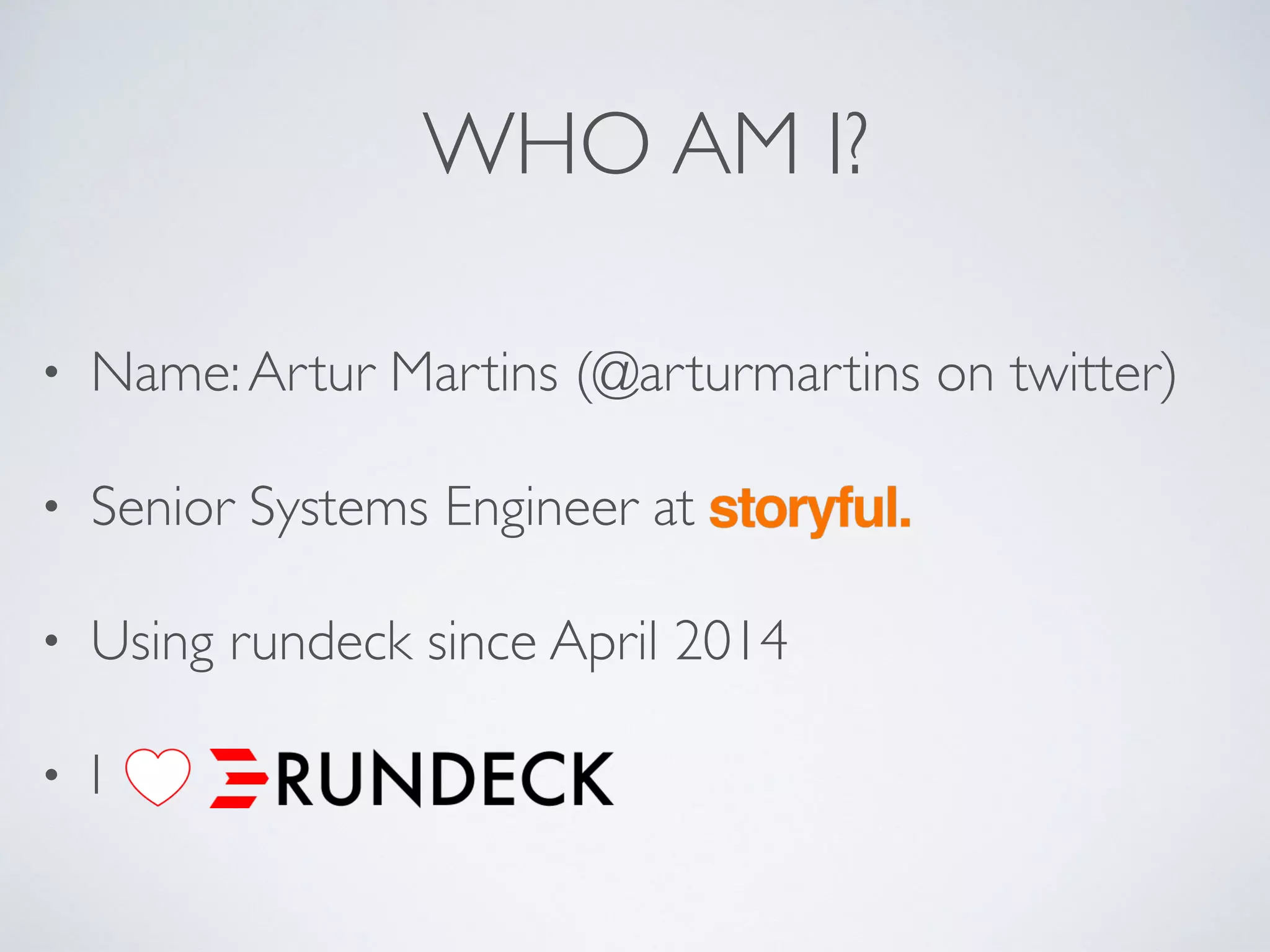

2. WHO AM I?
• Name:Artur Martins (@arturmartins on twitter)
• Senior Systems Engineer at
• Using rundeck since April 2014
• I

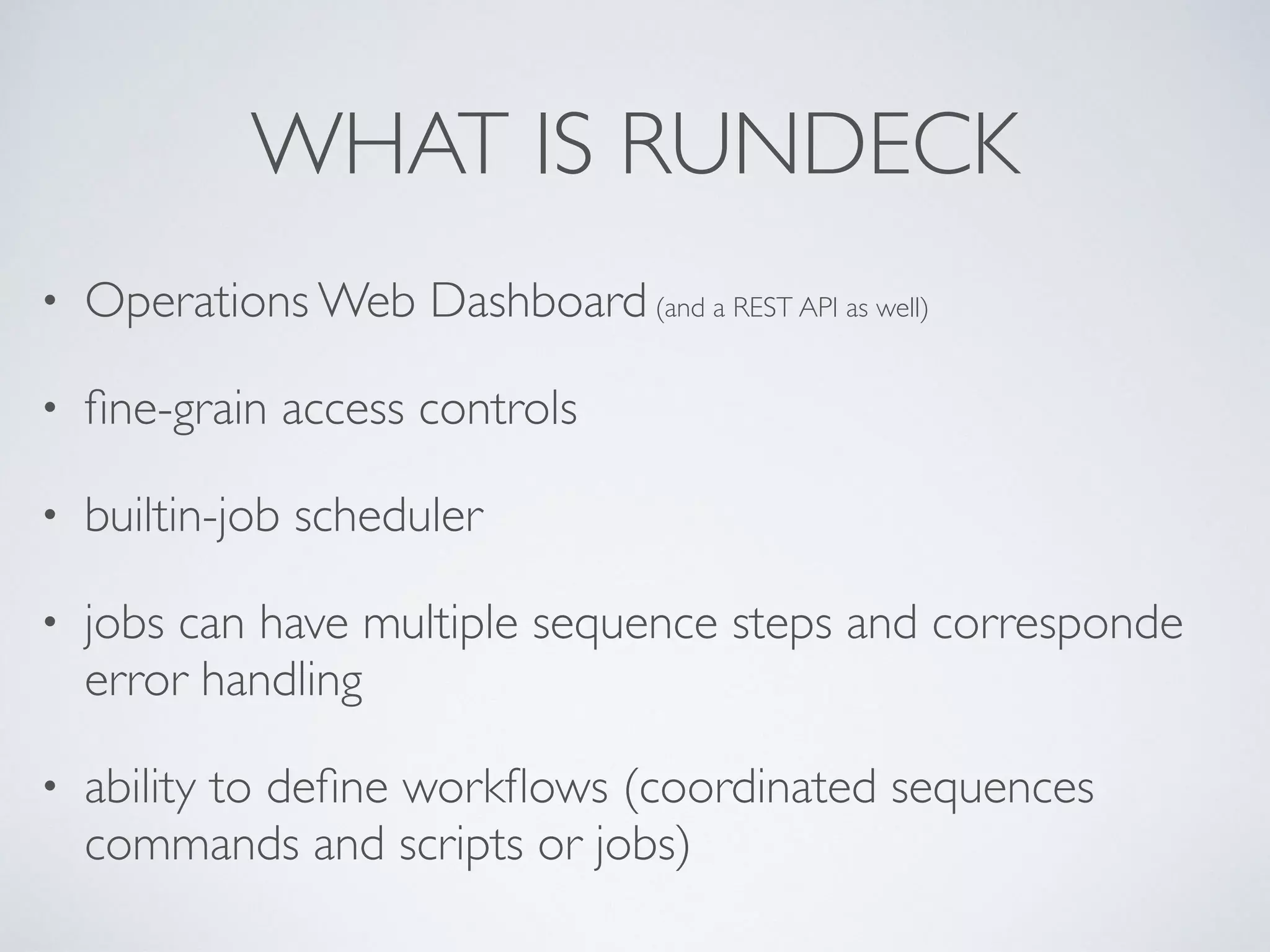

3. WHAT IS RUNDECK
• Operations Web Dashboard (and a REST API as well)
• fine-grain access controls
• builtin-job scheduler
• jobs can have multiple sequence steps and corresponde
error handling
• ability to define workflows (coordinated sequences
commands and scripts or jobs)

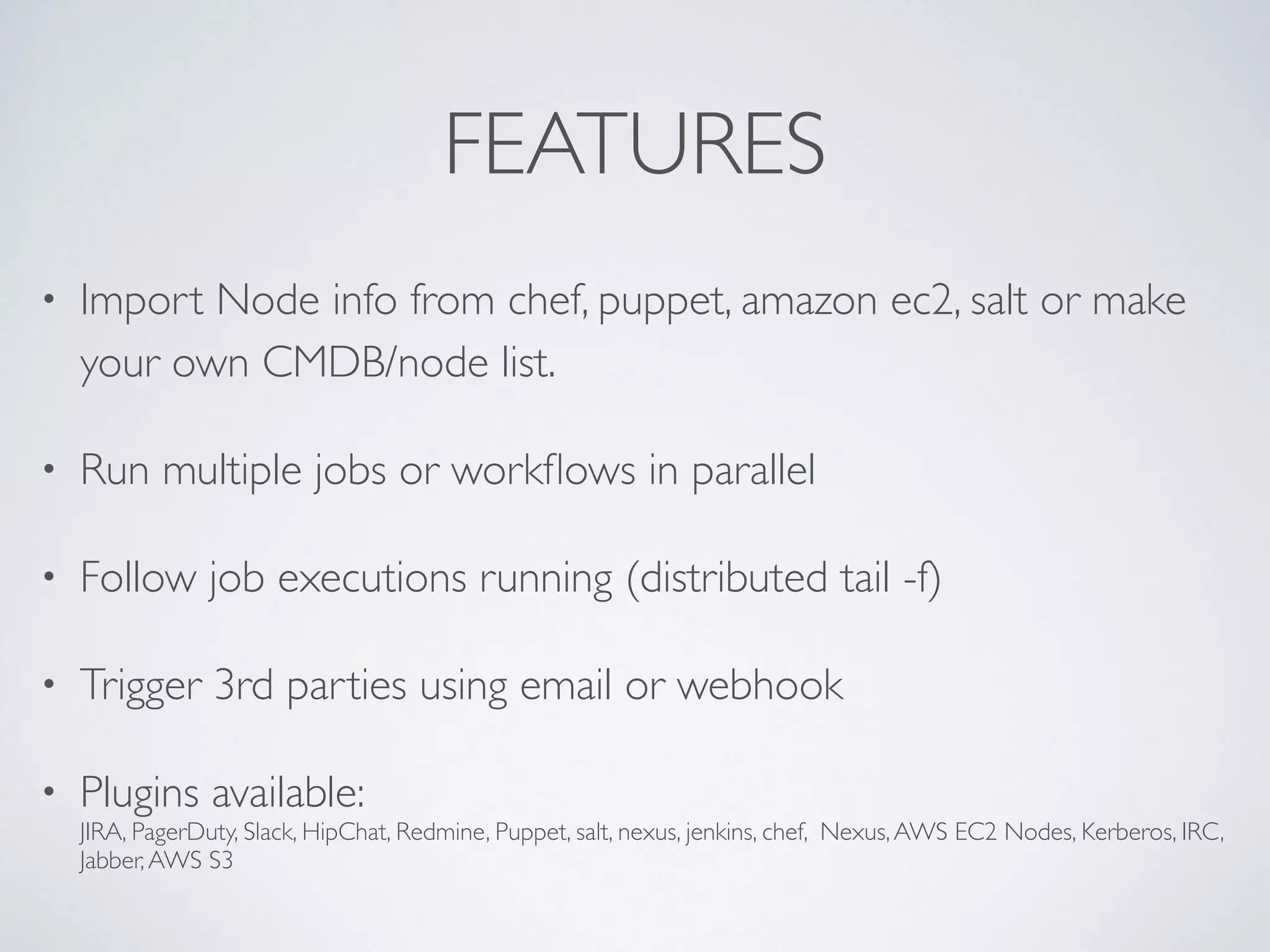

4. FEATURES
• Import Node info from chef, puppet, amazon ec2, salt or make
your own CMDB/node list.
• Run multiple jobs or workflows in parallel
• Follow job executions running (distributed tail -f)
• Trigger 3rd parties using email or webhook
• Plugins available:
JIRA, PagerDuty, Slack, HipChat, Redmine, Puppet, salt, nexus, jenkins, chef, Nexus,AWS EC2 Nodes, Kerberos, IRC,
Jabber,AWS S3

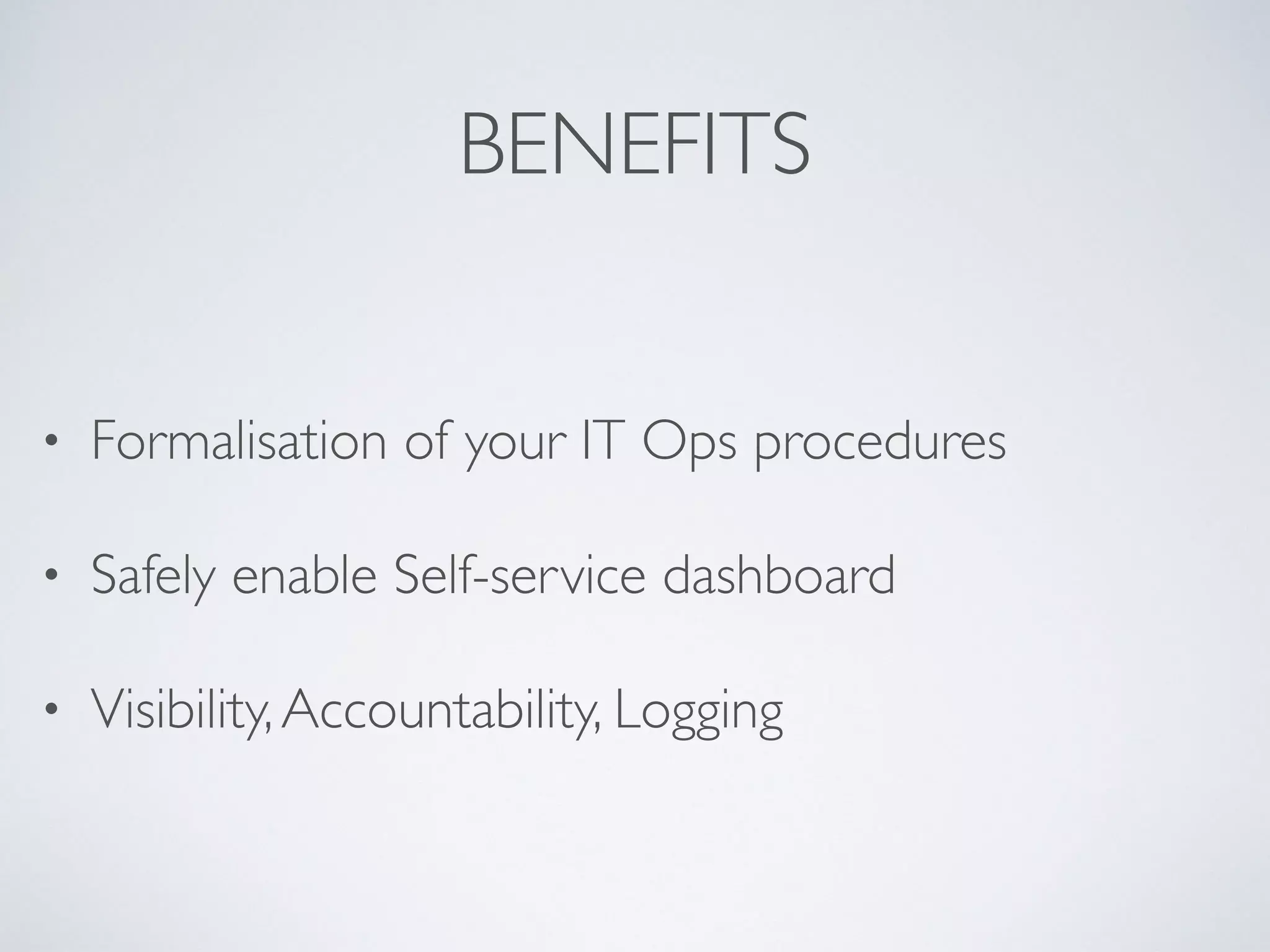

5. BENEFITS
• Formalisation of your IT Ops procedures
• Safely enable Self-service dashboard
• Visibility,Accountability, Logging

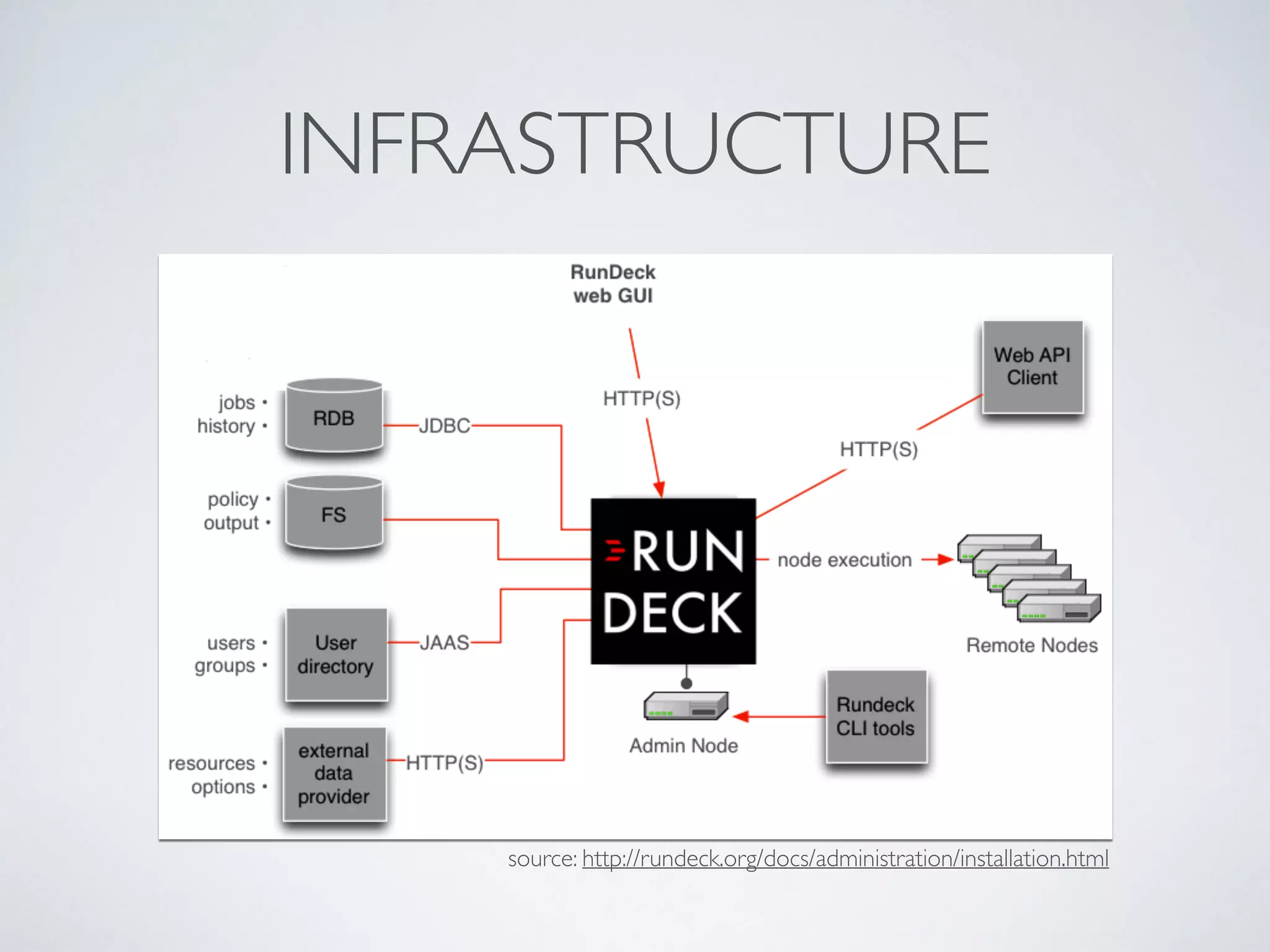

6. INFRASTRUCTURE
source: http://rundeck.org/docs/administration/installation.html

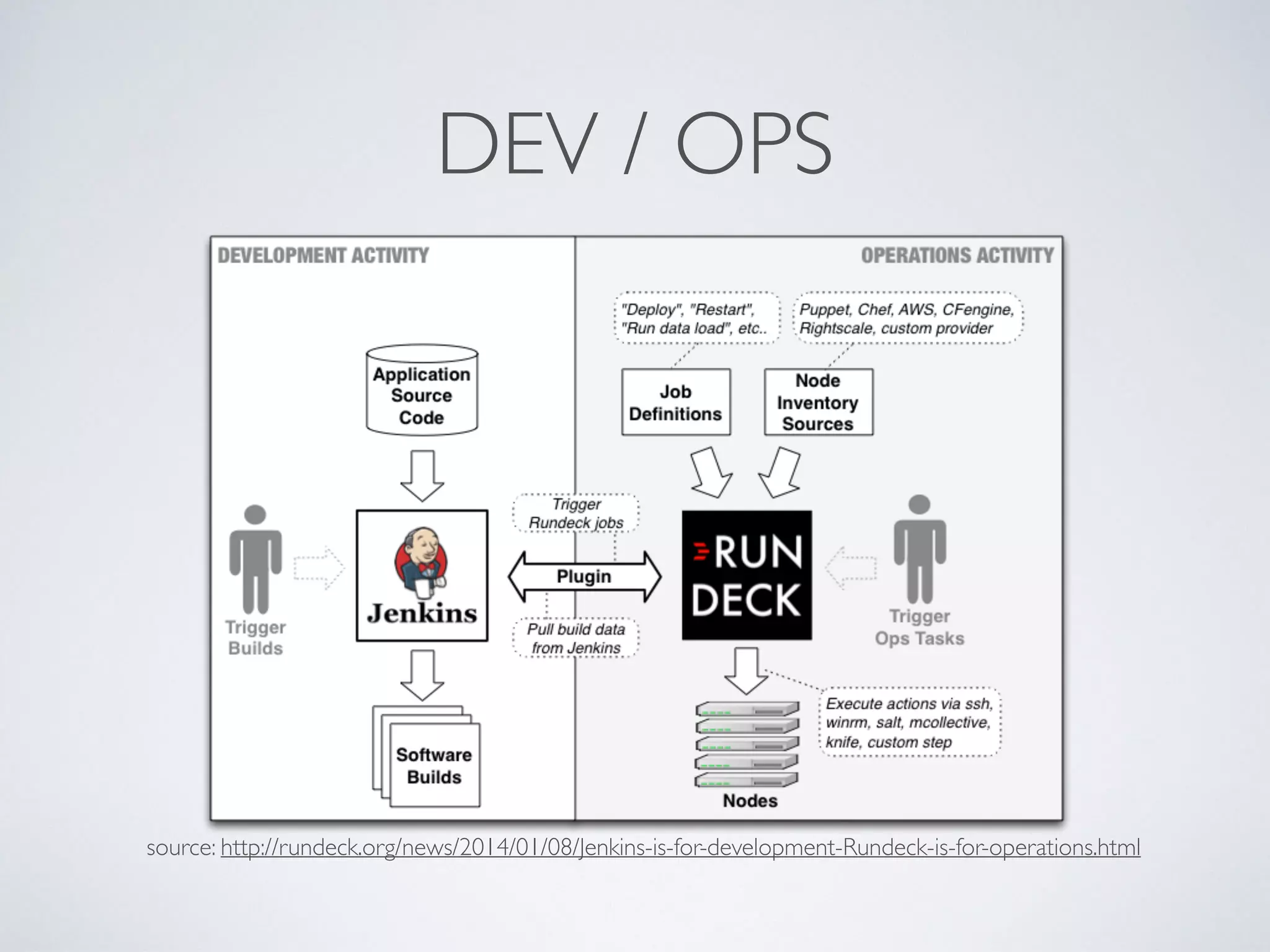

7. DEV / OPS
source: http://rundeck.org/news/2014/01/08/Jenkins-is-for-development-Rundeck-is-for-operations.html

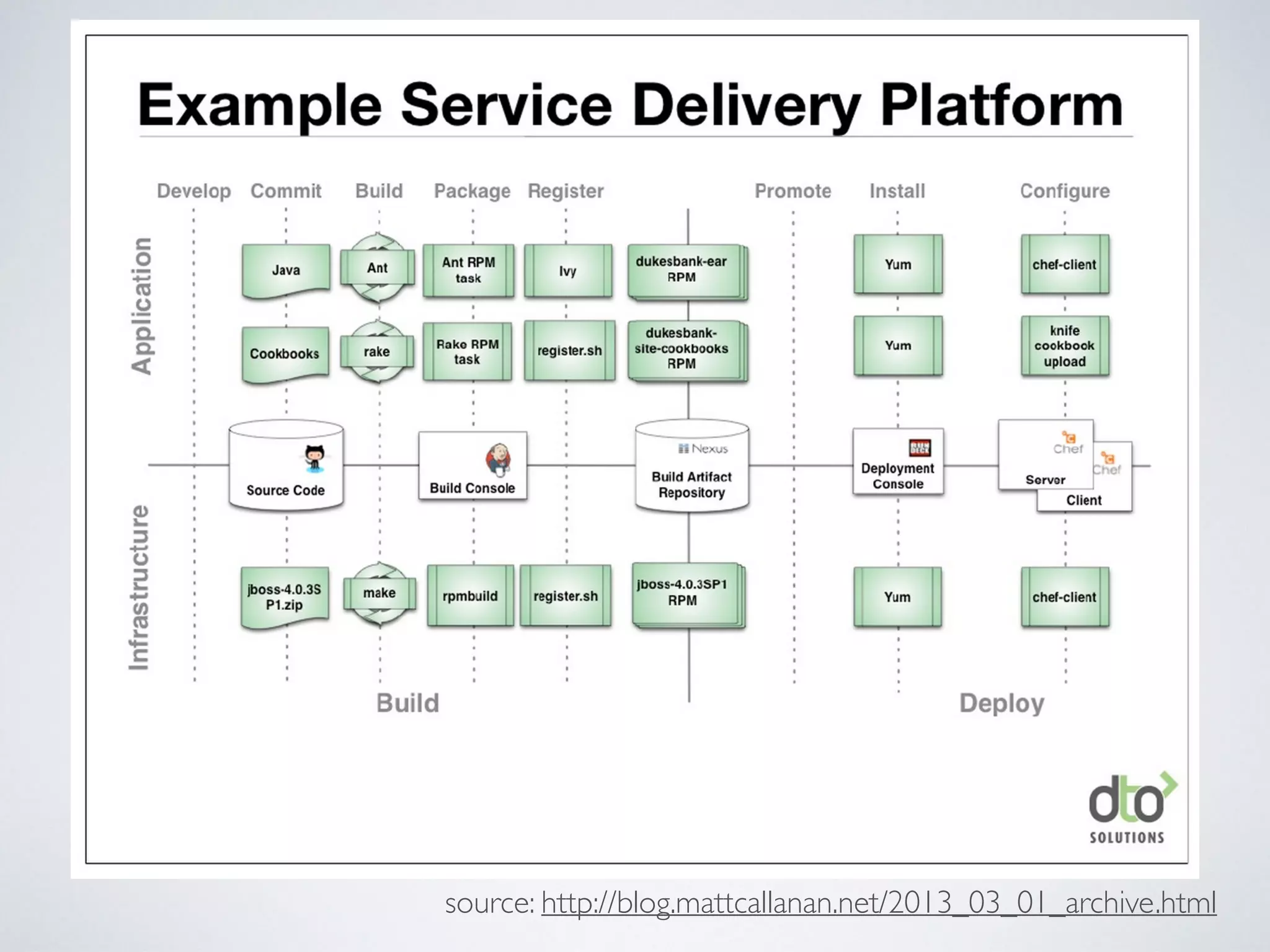

8. source: http://blog.mattcallanan.net/2013_03_01_archive.html

9. OK, I GET IT…

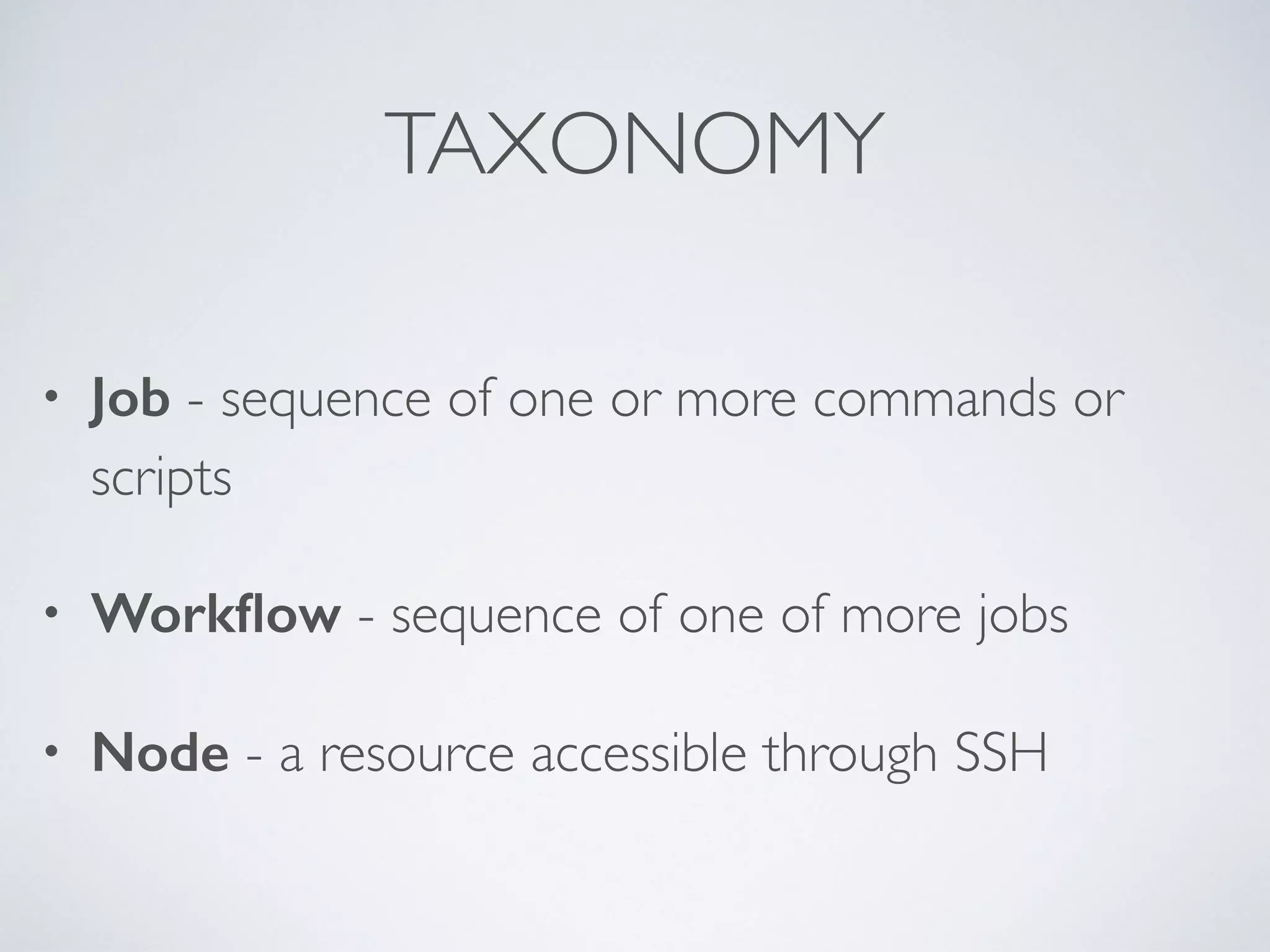

10. TAXONOMY
• Job - sequence of one or more commands or
scripts
• Workflow - sequence of one of more jobs
• Node - a resource accessible through SSH

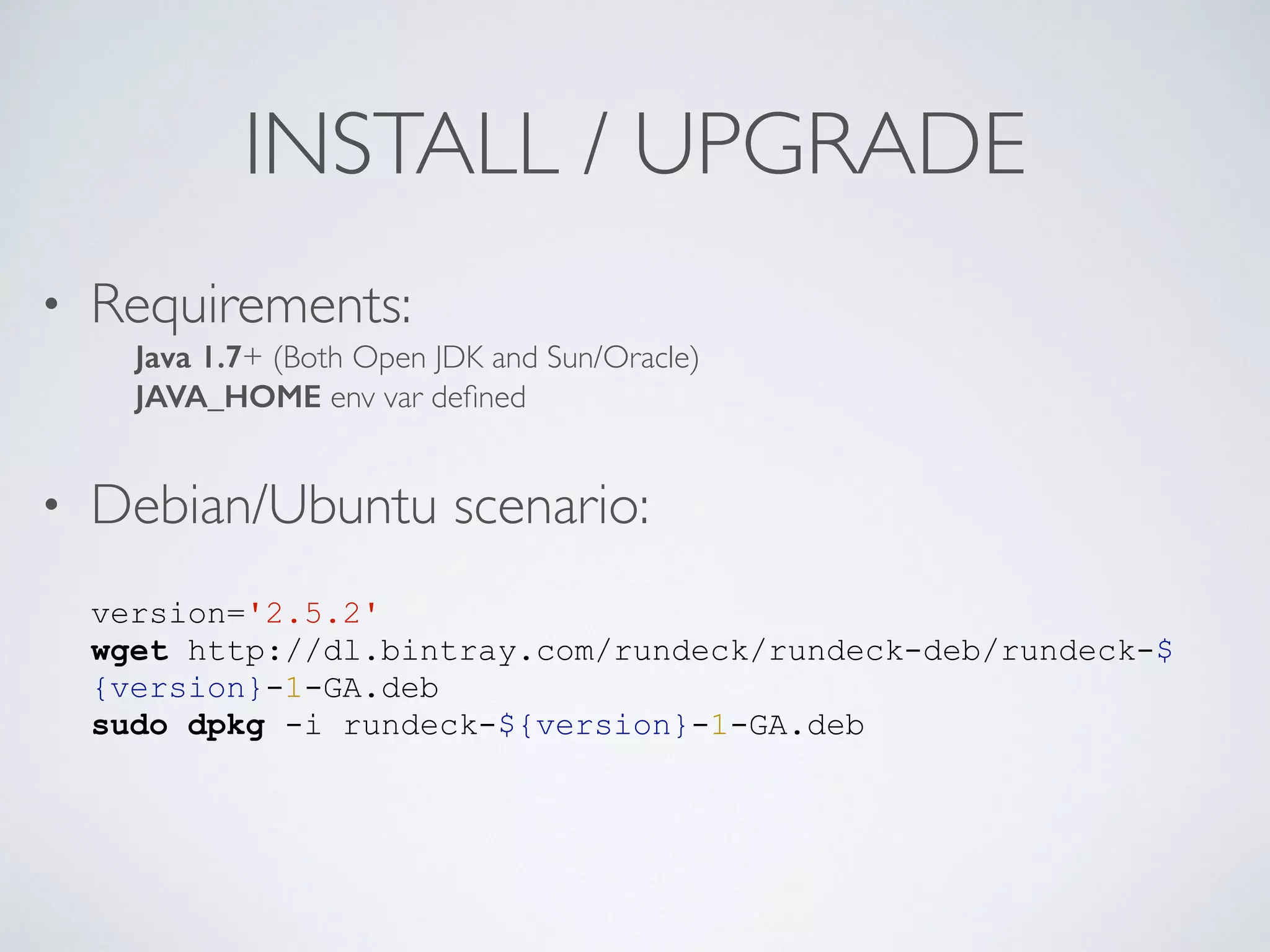

11. INSTALL / UPGRADE
• Requirements:
Java 1.7+ (Both Open JDK and Sun/Oracle)
JAVA_HOME env var defined
• Debian/Ubuntu scenario:
version='2.5.2'
wget http://dl.bintray.com/rundeck/rundeck-deb/rundeck-$
{version}-1-GA.deb
sudo dpkg -i rundeck-${version}-1-GA.deb

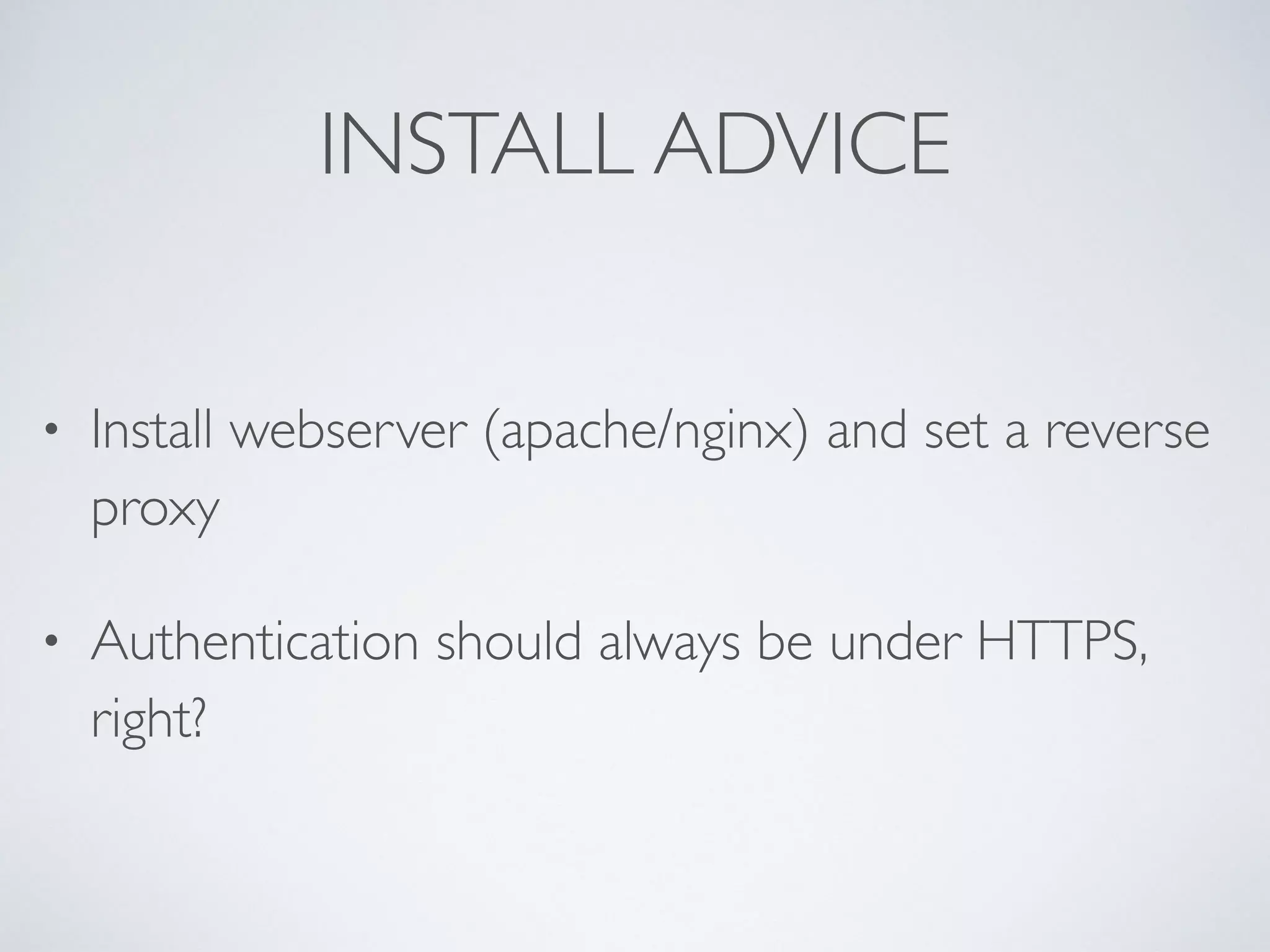

12. INSTALL ADVICE
• Install webserver (apache/nginx) and set a reverse
proxy
• Authentication should always be under HTTPS,
right?

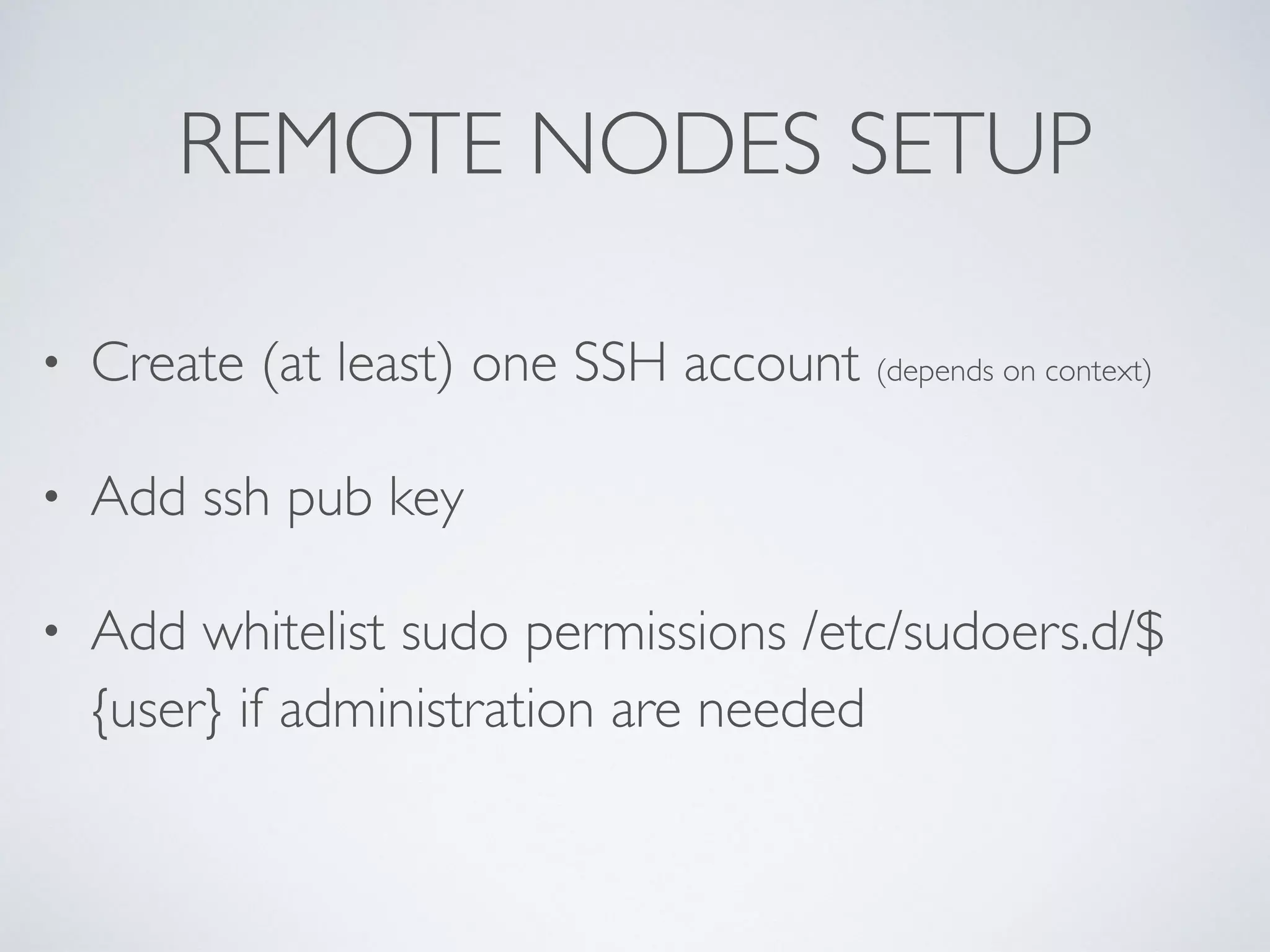

13. REMOTE NODES SETUP
• Create (at least) one SSH account (depends on context)
• Add ssh pub key
• Add whitelist sudo permissions /etc/sudoers.d/$
{user} if administration are needed

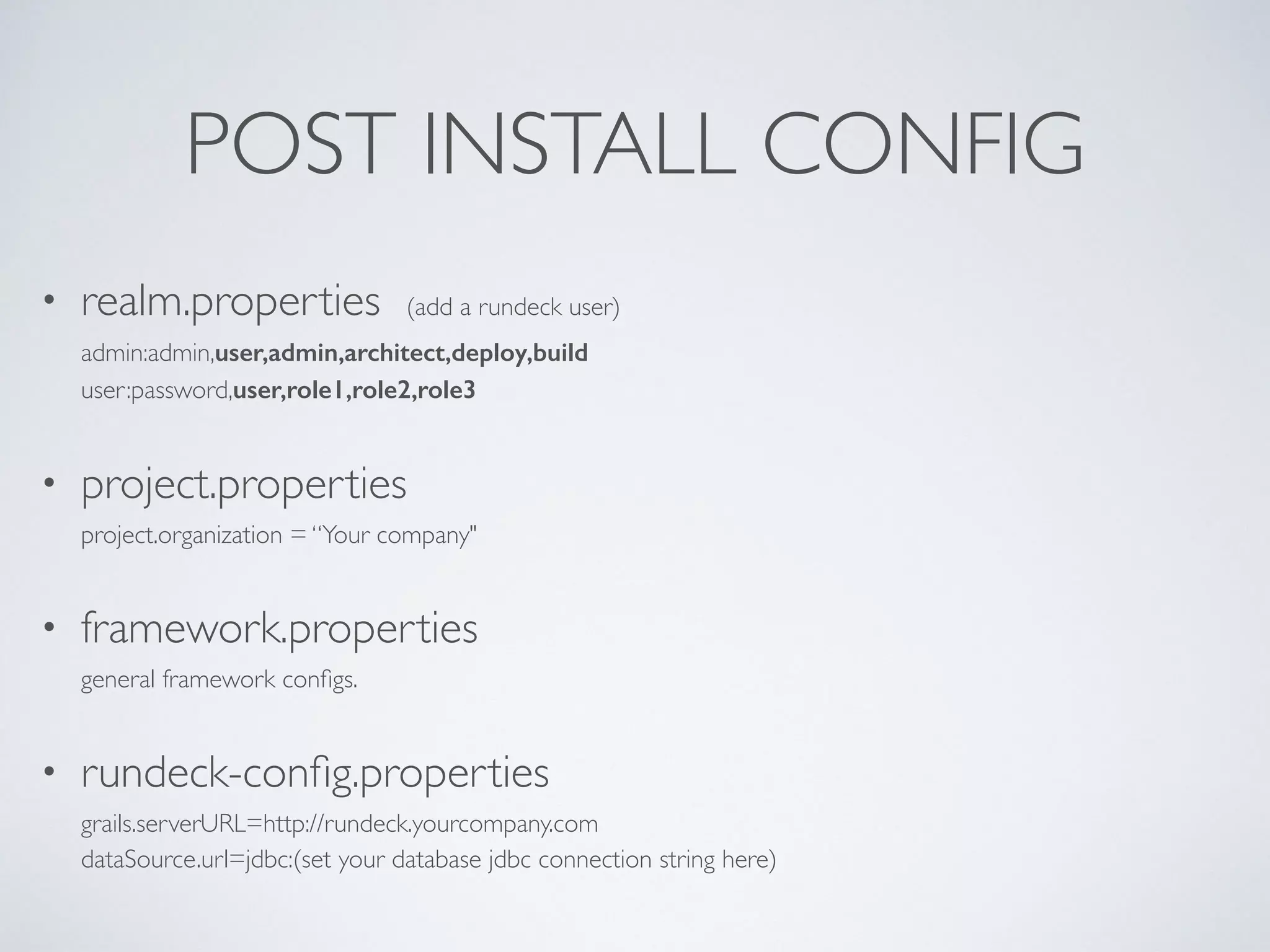

14. POST INSTALL CONFIG
• realm.properties (add a rundeck user)
admin:admin,user,admin,architect,deploy,build
user:password,user,role1,role2,role3
• project.properties
project.organization = “Your company"
• framework.properties
general framework configs.
• rundeck-config.properties
grails.serverURL=http://rundeck.yourcompany.com
dataSource.url=jdbc:(set your database jdbc connection string here)

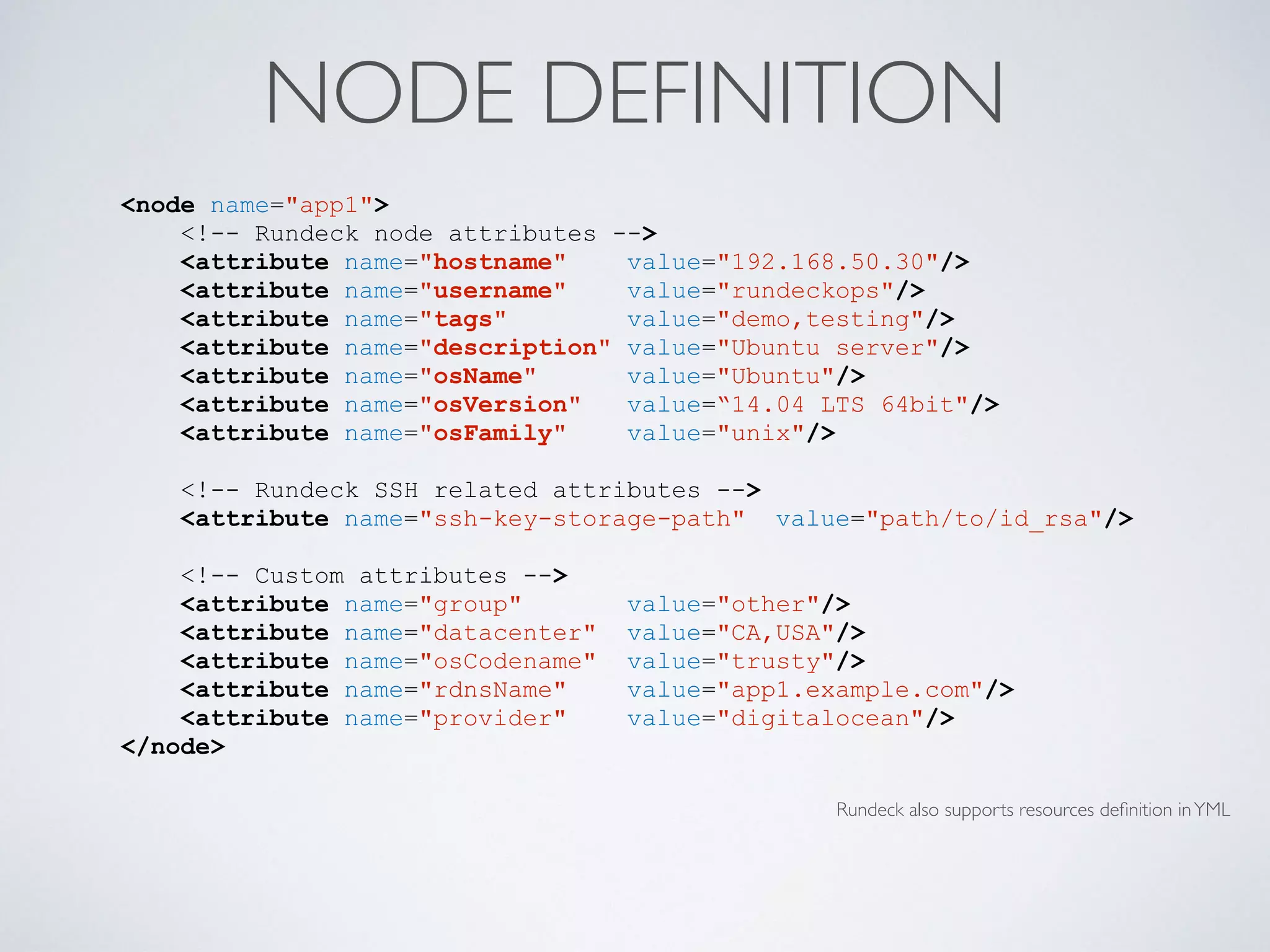

15. NODE DEFINITION
Rundeck also supports resources definition inYML
<node name="app1">
<!-- Rundeck node attributes -->
<attribute name="hostname" value="192.168.50.30"/>
<attribute name="username" value="rundeckops"/>
<attribute name="tags" value="demo,testing"/>
<attribute name="description" value="Ubuntu server"/>
<attribute name="osName" value="Ubuntu"/>
<attribute name="osVersion" value=“14.04 LTS 64bit"/>
<attribute name="osFamily" value="unix"/>
<!-- Rundeck SSH related attributes -->
<attribute name="ssh-key-storage-path" value="path/to/id_rsa"/>
<!-- Custom attributes -->
<attribute name="group" value="other"/>
<attribute name="datacenter" value="CA,USA"/>
<attribute name="osCodename" value="trusty"/>
<attribute name="rdnsName" value="app1.example.com"/>
<attribute name="provider" value="digitalocean"/>
</node>

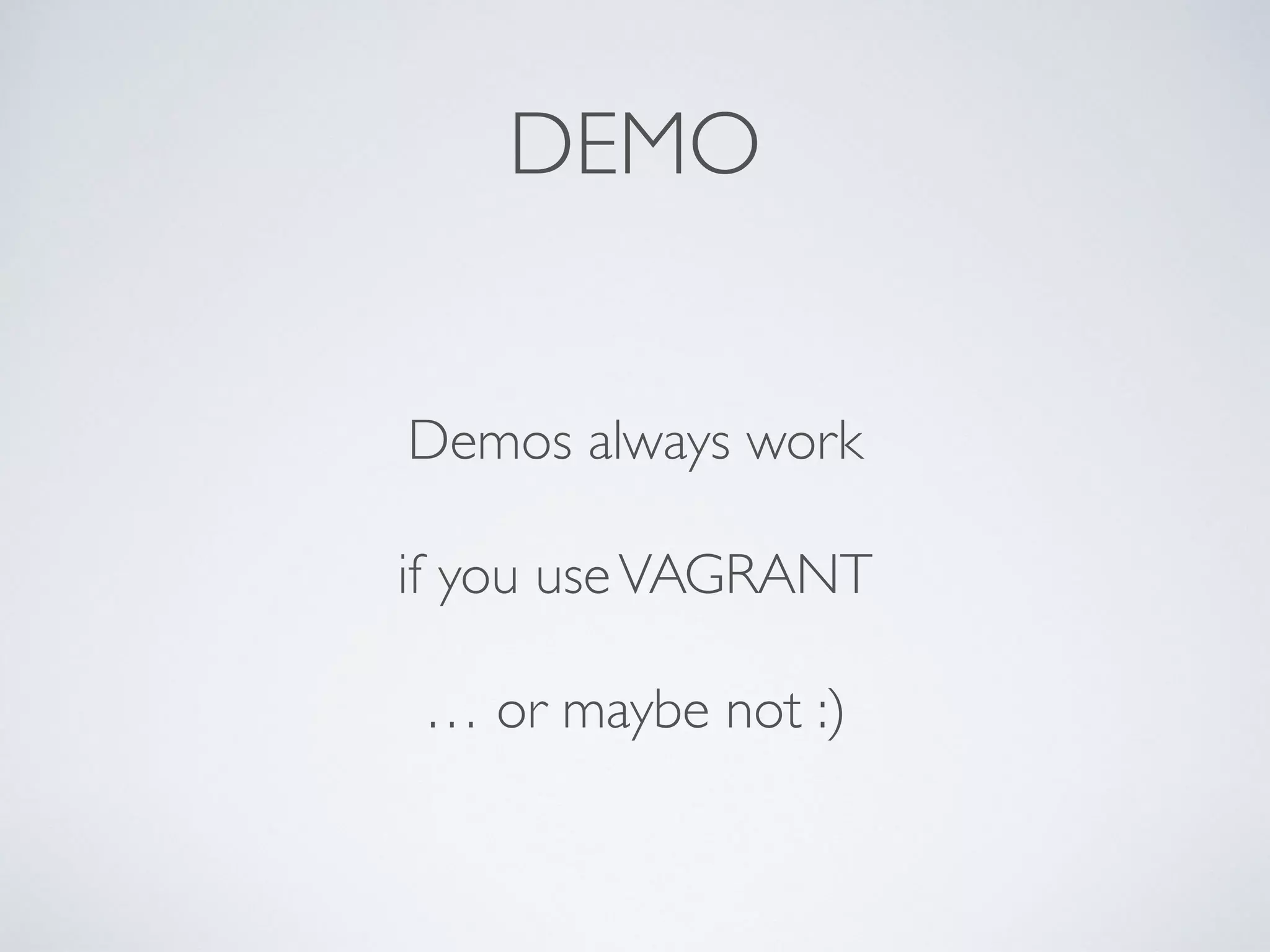

16. DEMO
Demos always work
if you useVAGRANT
… or maybe not :)

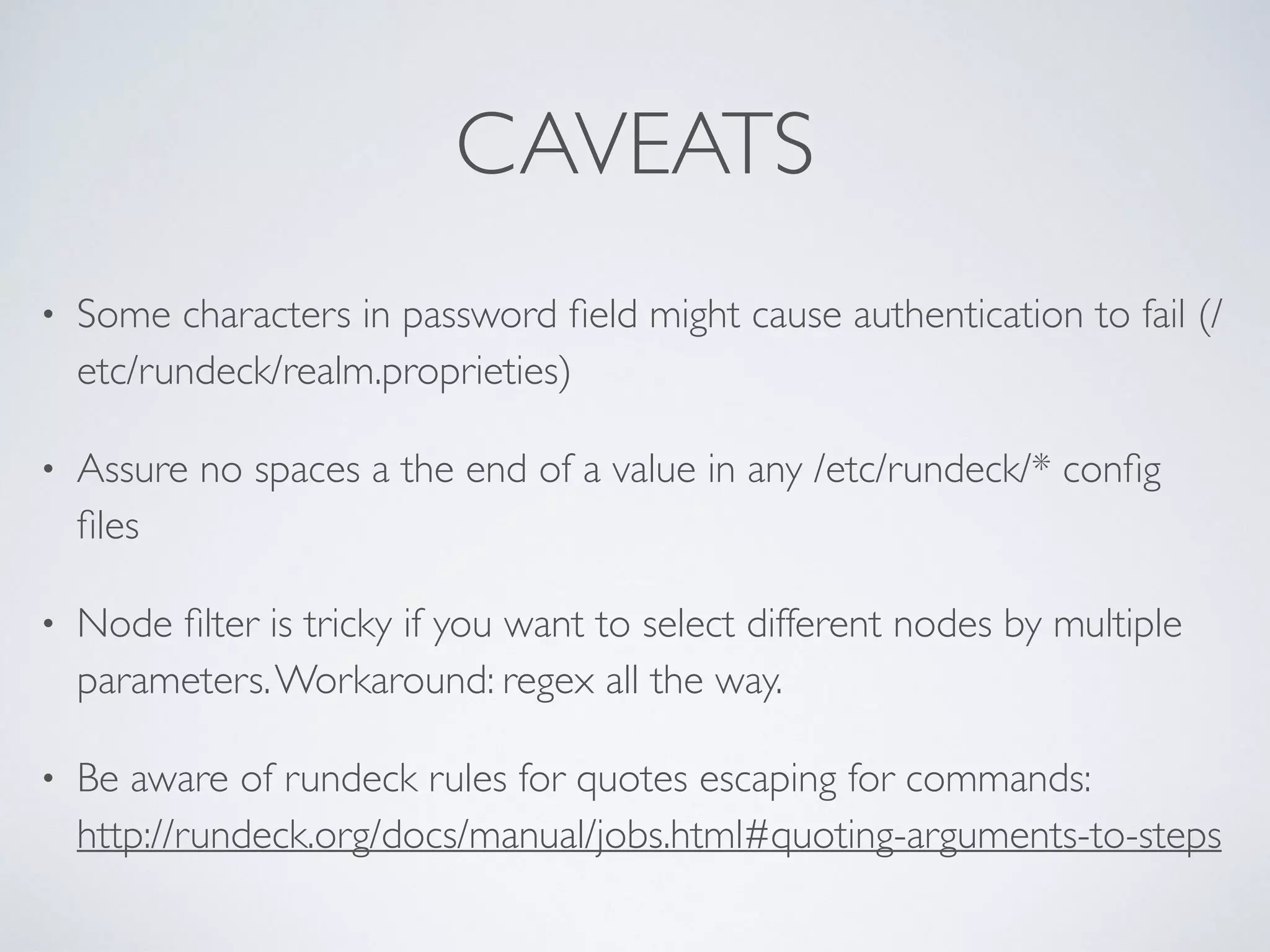

17. CAVEATS
• Some characters in password field might cause authentication to fail (/
etc/rundeck/realm.proprieties)
• Assure no spaces a the end of a value in any /etc/rundeck/* config
files
• Node filter is tricky if you want to select different nodes by multiple
parameters.Workaround: regex all the way.
• Be aware of rundeck rules for quotes escaping for commands:
http://rundeck.org/docs/manual/jobs.html#quoting-arguments-to-steps

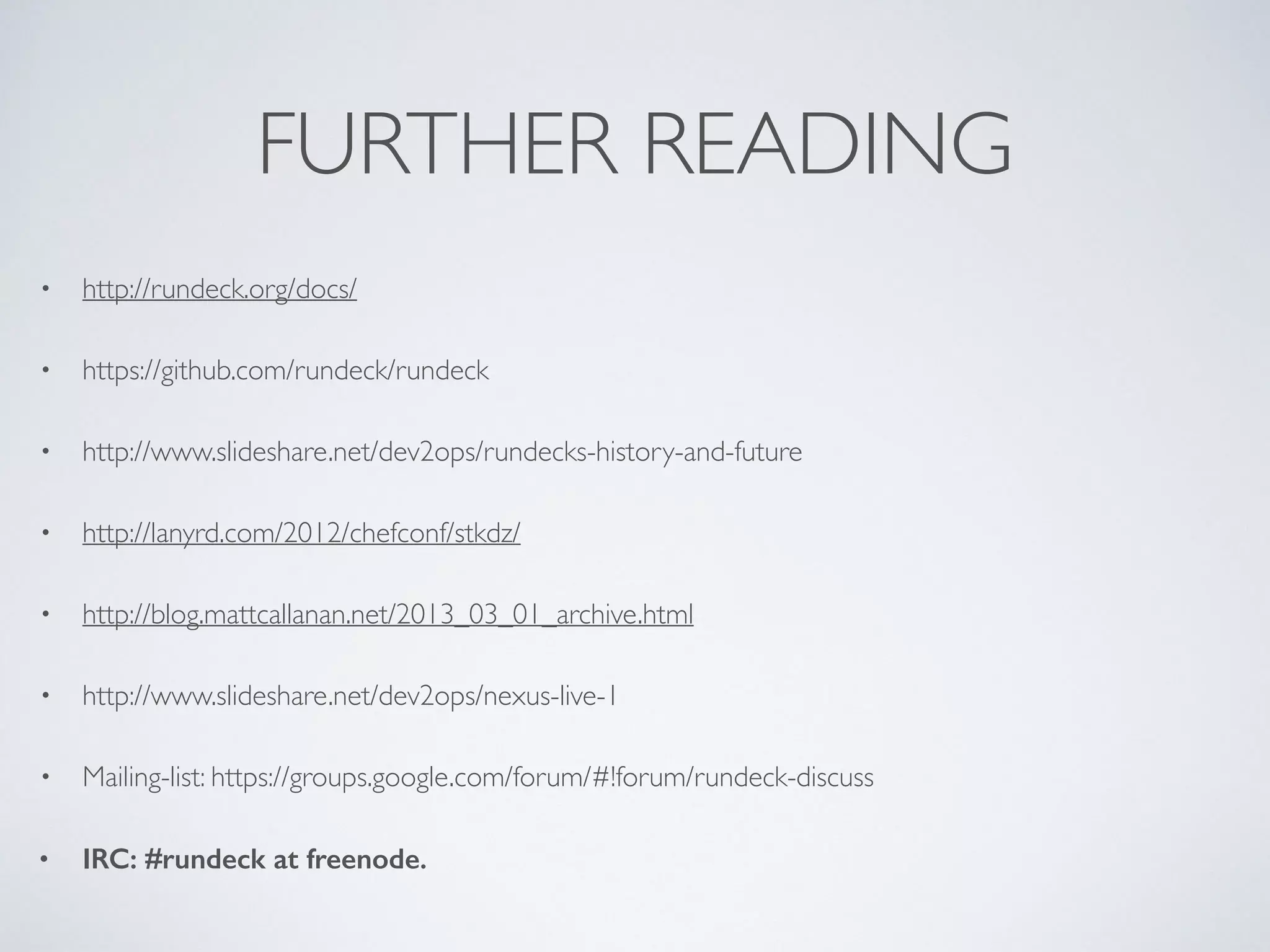

18. FURTHER READING
• http://rundeck.org/docs/
• https://github.com/rundeck/rundeck
• http://www.slideshare.net/dev2ops/rundecks-history-and-future
• http://lanyrd.com/2012/chefconf/stkdz/
• http://blog.mattcallanan.net/2013_03_01_archive.html
• http://www.slideshare.net/dev2ops/nexus-live-1
• Mailing-list: https://groups.google.com/forum/#!forum/rundeck-discuss
• IRC: #rundeck at freenode.
