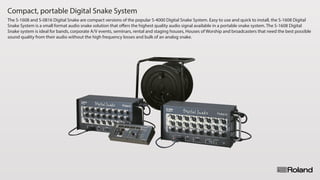

2. Compact, portable Digital Snake System
The S-1608 and S-0816 Digital Snake are compact versions of the popular S-4000 Digital Snake System. Easy to use and quick to install, the S-1608 Digital
Snake System is a small format audio snake solution that offers the highest quality audio signal available in a portable snake system. The S-1608 Digital
Snake system is ideal for bands, corporate A/V events, seminars, rental and staging houses, Houses of Worship and broadcasters that need the best possible
sound quality from their audio without the high frequency losses and bulk of an analog snake.

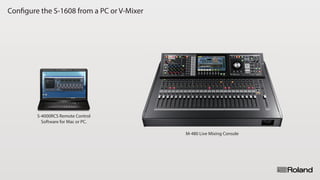

3. Configure the S-1608 from a PC or V-Mixer
S-4000RCS Remote Control
Software for Mac or PC.
M-480 Live Mixing Console

4. Configuration Example - 16x8 Digital Snake System
Console
RS-232C Cable
S-4000R
S-1608
S-0816
Stage
Front of House
Inputs : 16 Snake
Outputs : 8 Snake
8x16Audio
OR

5. Configuration Example - S-1608 Digital Snake System with SONAR REAC Recording
S-1608
FA-66
PC With SONAR Producer
S-0816
S-4000D
Front of House
Stage
Recording
Firewire
Optional Word Clock Monitoring
16 Inputs
8 Outputs
Record Split : 16 Channel

6. Configuration Example - Personal Mixing with S-1608 Digital Snake System
16ch from stage
8ch from console
PC with Control
Software S-4000RCS
USB - RS-232
Software S-4000RCS
USB - RS-232
16ch from stage
8ch from console
S-1608
S-4000D
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
S-0816
Stage
Front of House
Inputs : 16 Analog
Outputs : 8 Analog
Personal Mixers : 16 ( 8 per S-4000D)
(Connect multiple S-4000Ds
inline to enable more M-48s)
1
8

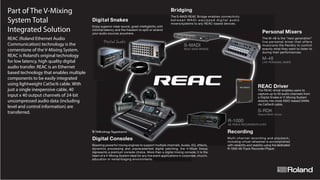

7. Part of The V-Mixing
System Total
Integrated Solution
REAC (Roland Ethernet Audio
Communication) technology is the
cornerstone of the V-Mixing System.
REAC is Roland’s original technology
for low latency, high quality digital
audio transfer. REAC is an Ethernet
based technology that enables multiple
components to be easily integrated
using lightweight Cat5e/6 cable. With
just a single inexpensive cable, 40
input x 40 output channels of 24-bit
uncompressed audio data (including
level and control information) are
transferred.
Digital Snakes
Enjoy superior clear sound, great intelligibility with
minimal latency and the freedom to split or extend
your audio sources anywhere.
Bridging
The S-MADI REAC Bridge enables connectivity
b e t w e e n M A D I - e q u i p p e d d i g i t a l a u d i o
mixers/systems to any REAC-based devices.
Personal Mixers
The M-48 is the “next generation”
live personal mixer that offers
musicians the flexibly to control
exactly what they want to listen to
during their performances.
REAC Driver
The REAC driver enables users to
capture up to 40 audio channels from
a Digital Snake or V-Mixing System
directly into most ASIO-based DAWs
via Cat5e/6 cable.
Recording
Multi-channel recording and playback,
including virtual rehearsal is accomplished
with reliability and stability using the dedicated
R-1000 48-Track Recorder/Player.
R-1000
48-TRACK RECORDER/PLAYER
S-RDK
Roland REAC Driver
S-MADI
REAC MADI BRIDGE
M-48
LIVE PERSONAL MIXER
Digital Consoles
Boasting powerful mixing engines to support multiple channels, buses, EQ, effects,
dynamics processing and unprecedented digital patching, the V-Mixer lineup
represents a premium console choice. More than a digital mixing console; it is the
heart of a V-Mixing System ideal for any live event applications in corporate, church,
education or rental/staging environments.
your audio sources anywhere.your audio sources anywhere.

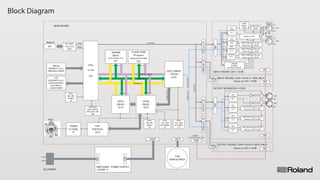

8. Block Diagram

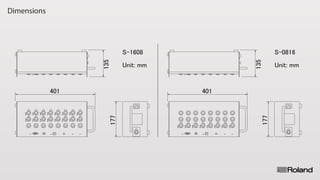

9. Dimensions
