The VC-1 series provides advanced video conversion capabilities, including bi-directional SDI/HDMI conversion with support for various formats and resolutions. It features built-in frame synchronization, audio embedding and de-embedding, and maintains high picture quality without artifacts. The series includes different models like VC-1-DL, VC-1-HS, and VC-1-SC, each designed for specific tasks in video signal management and processing.

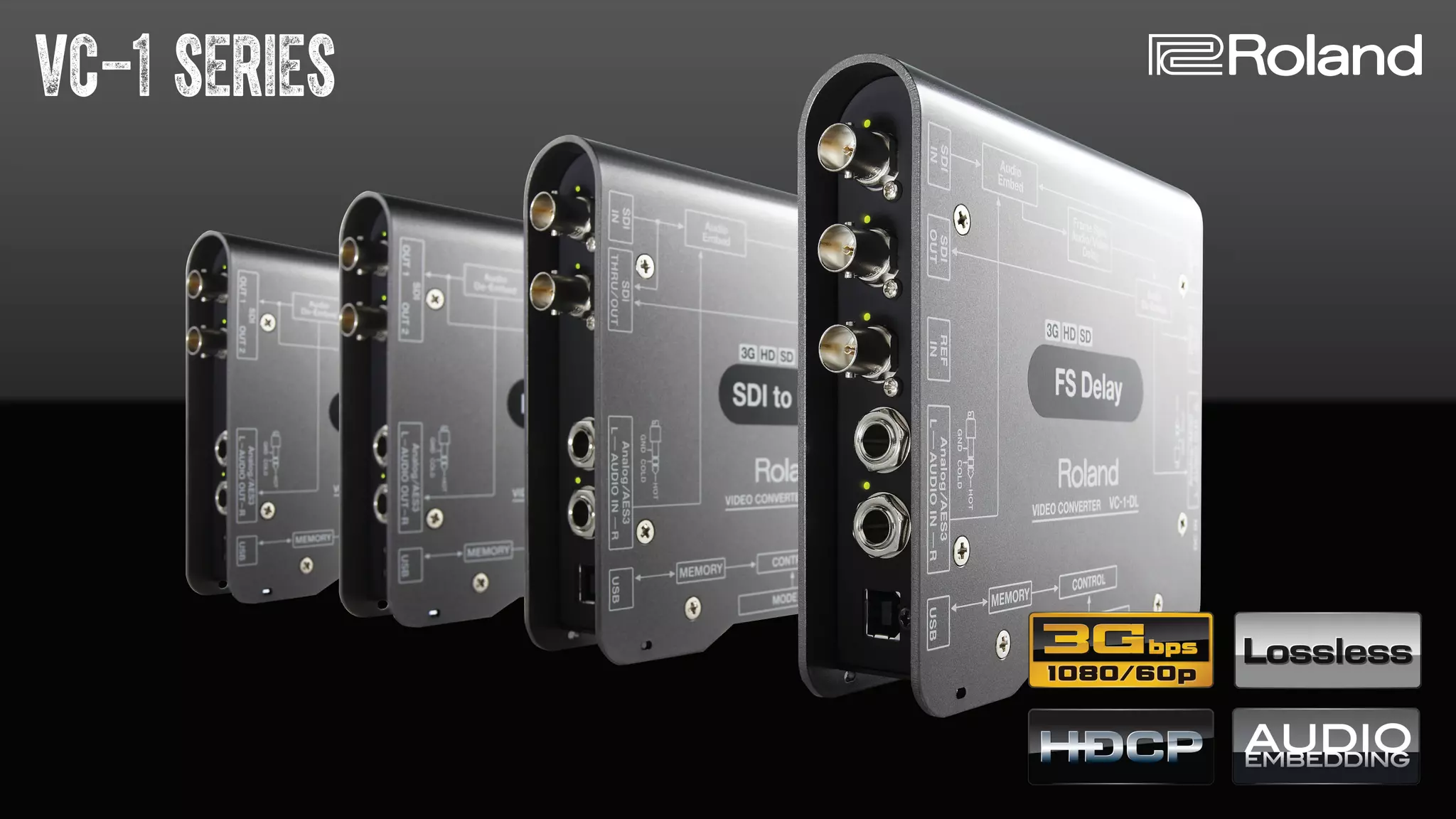

1. VC-1 Series

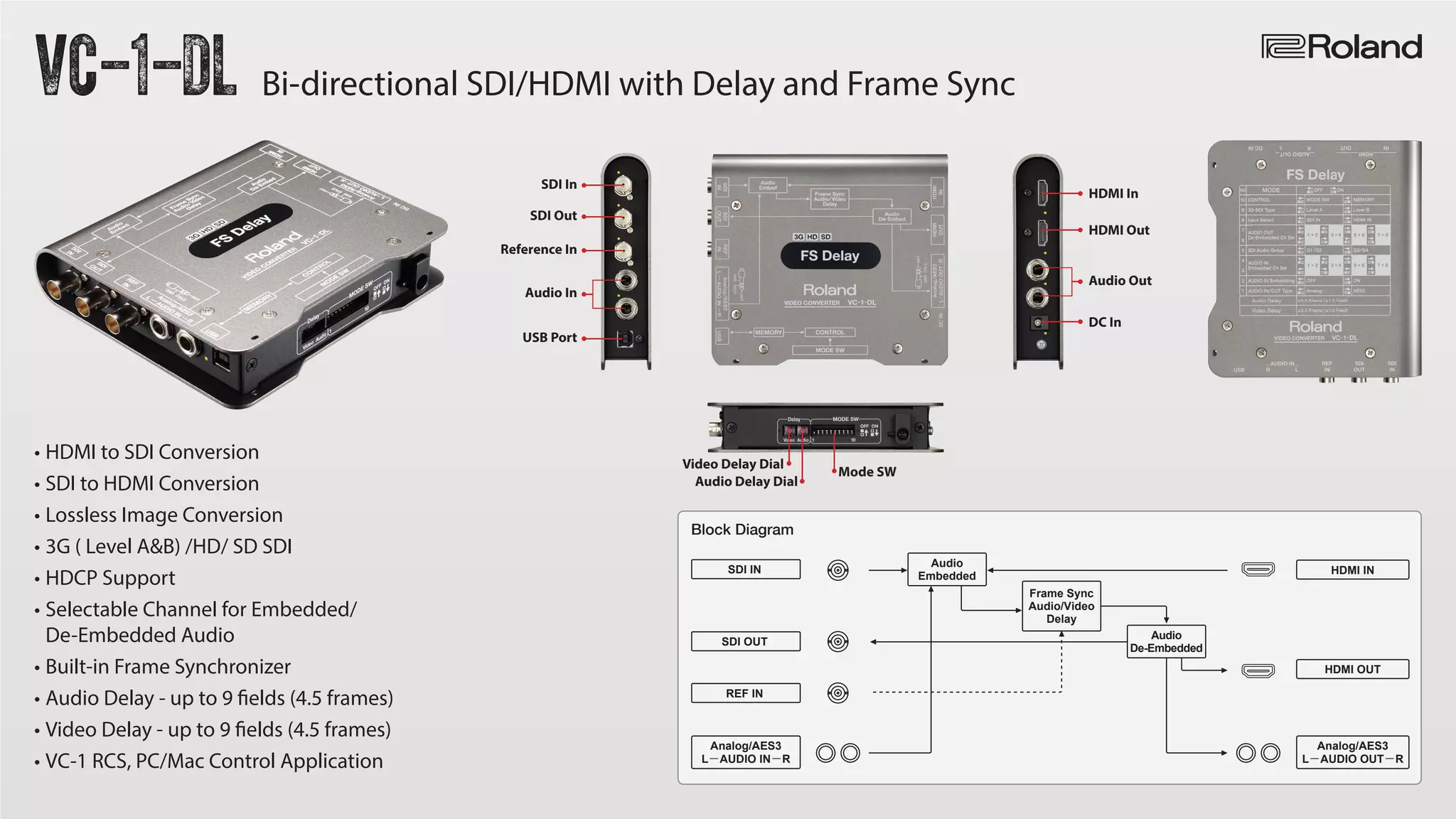

2. VC-1-DL Bi-directional SDI/HDMI with Delay and Frame Sync
Block Diagram
SDI IN
SDI OUT
REF IN
Analog/AES3
L－AUDIO IN－R
Audio
Embedded
Audio
De-Embedded
Frame Sync
Audio/Video
Delay
Analog/AES3
L－AUDIO OUT－R
HDMI OUT
HDMI IN
SDI In
SDI Out
Reference In
Audio In
USB Port
HDMI Out
HDMI In
Audio Out
DC In
Video Delay Dial
Audio Delay Dial
Mode SW
• HDMI to SDI Conversion
• SDI to HDMI Conversion
• Lossless Image Conversion
• 3G ( Level A&B) /HD/ SD SDI
• HDCP Support
• Selectable Channel for Embedded/
De-Embedded Audio
• Built-in Frame Synchronizer
• Audio Delay - up to 9 fields (4.5 frames)
• Video Delay - up to 9 fields (4.5 frames)
• VC-1 RCS, PC/Mac Control Application

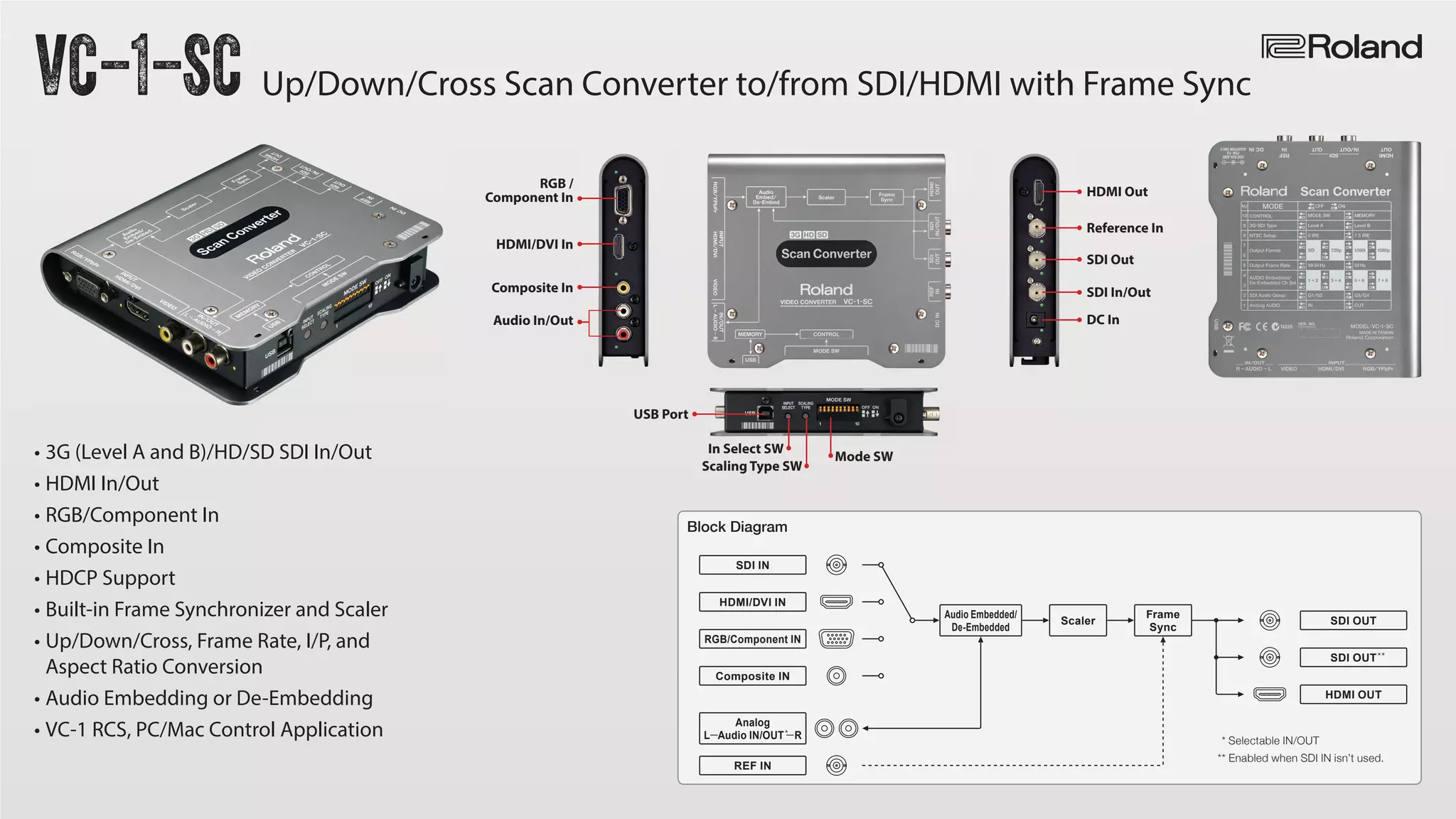

3. VC-1-SC Up/Down/Cross Scan Converter to/from SDI/HDMI with Frame Sync
Block Diagram
Analog
L Audio IN/OUT R
SDI IN
SDI OUT
HDMI OUT
SDI OUT
Composite IN
REF IN
Audio Embedded/
De-Embedded
Scaler
Frame
Sync
* Selectable IN/OUT
** Enabled when SDI IN isn’t used.
HDMI/DVI IN
RGB/Component IN
• 3G (Level A and B)/HD/SD SDI In/Out
• HDMI In/Out
• RGB/Component In
• Composite In
• HDCP Support
• Built-in Frame Synchronizer and Scaler
• Up/Down/Cross, Frame Rate, I/P, and
Aspect Ratio Conversion
• Audio Embedding or De-Embedding
• VC-1 RCS, PC/Mac Control Application
In Select SW
USB Port
Scaling Type SW
Mode SW
HDMI Out
SDI Out
SDI In/Out
Reference In
DC In
RGB /
Component In
HDMI/DVI In
Audio In/Out
Composite In

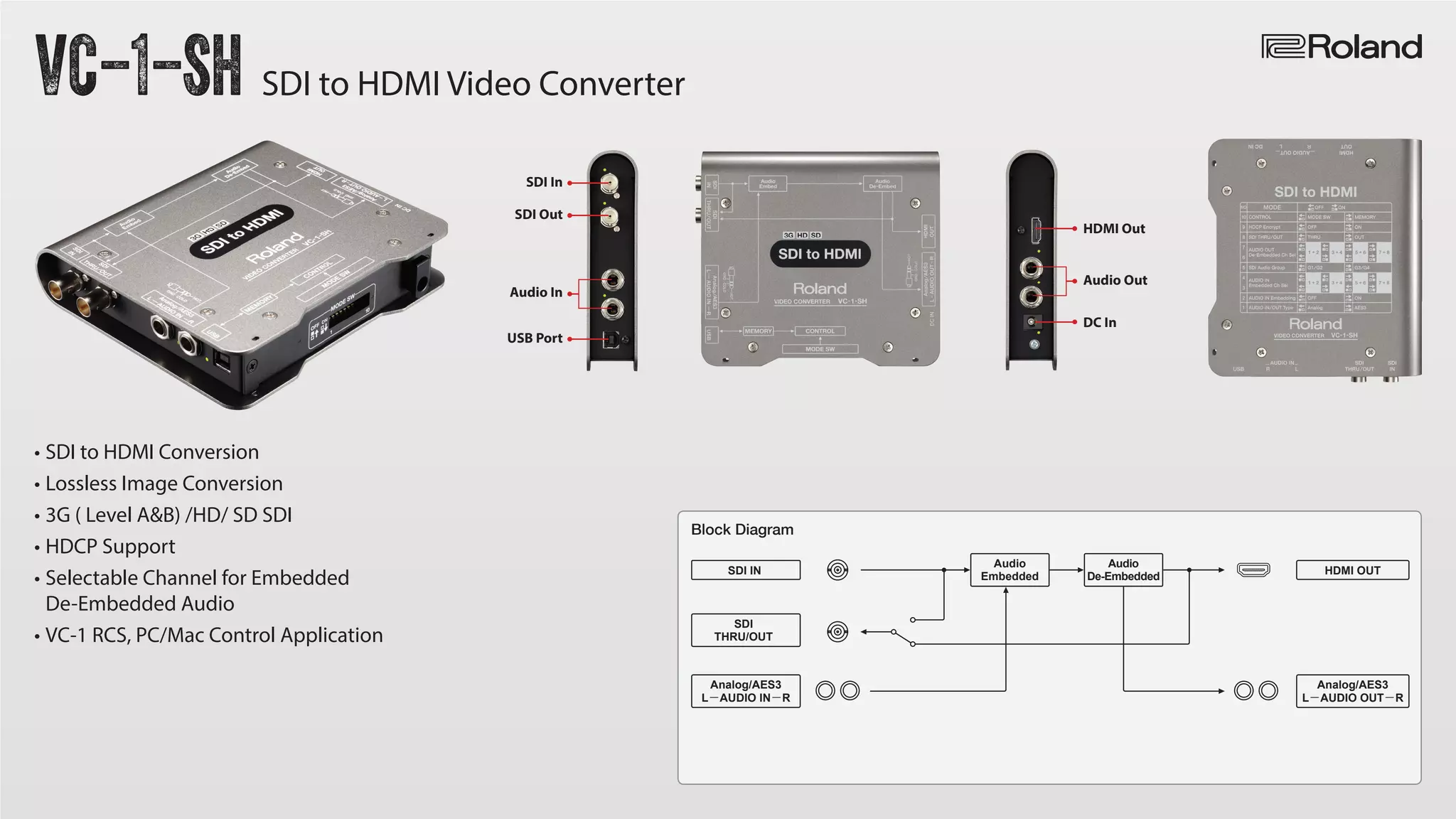

4. VC-1-sh SDI to HDMI Video Converter
Block Diagram
SDI IN
SDI
THRU/OUT
Analog/AES3
L－AUDIO IN－R
Analog/AES3
L－AUDIO OUT－R
Audio
Embedded
Audio
De-Embedded
HDMI OUT
• SDI to HDMI Conversion
• Lossless Image Conversion
• 3G ( Level A&B) /HD/ SD SDI
• HDCP Support
• Selectable Channel for Embedded
De-Embedded Audio
• VC-1 RCS, PC/Mac Control Application
SDI In
SDI Out
Audio In
USB Port
HDMI Out
Audio Out
DC In

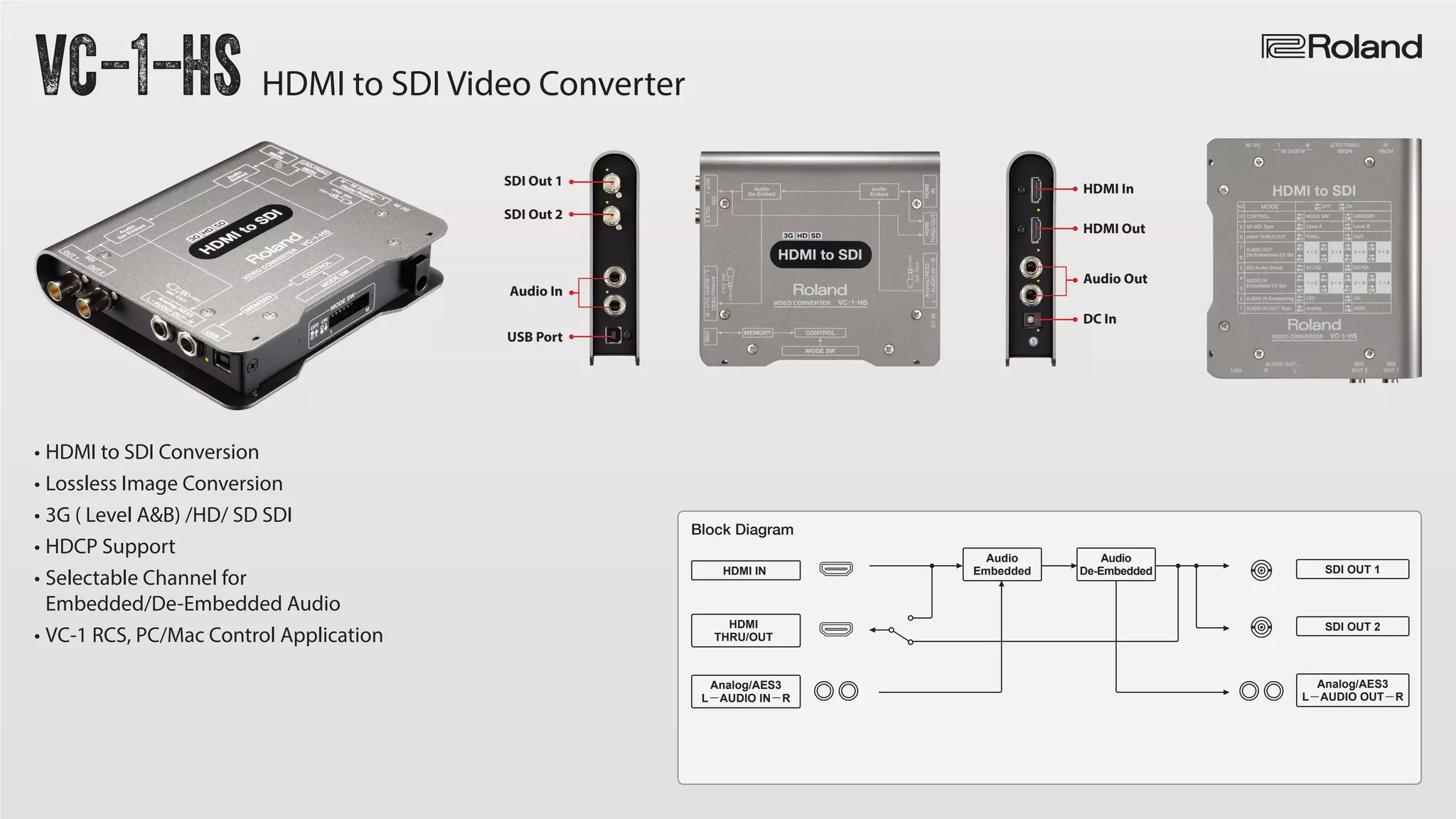

5. VC-1-HS HDMI to SDI Video Converter
Block Diagram
HDMI IN
HDMI
THRU/OUT
Analog/AES3
L－AUDIO IN－R
Analog/AES3
L－AUDIO OUT－R
Audio
Embedded
Audio
De-Embedded SDI OUT 1
SDI OUT 2
• HDMI to SDI Conversion
• Lossless Image Conversion
• 3G ( Level A&B) /HD/ SD SDI
• HDCP Support
• Selectable Channel for
Embedded/De-Embedded Audio
• VC-1 RCS, PC/Mac Control Application
SDI Out 1
SDI Out 2
Audio In
USB Port
HDMI Out
HDMI In
Audio Out
DC In

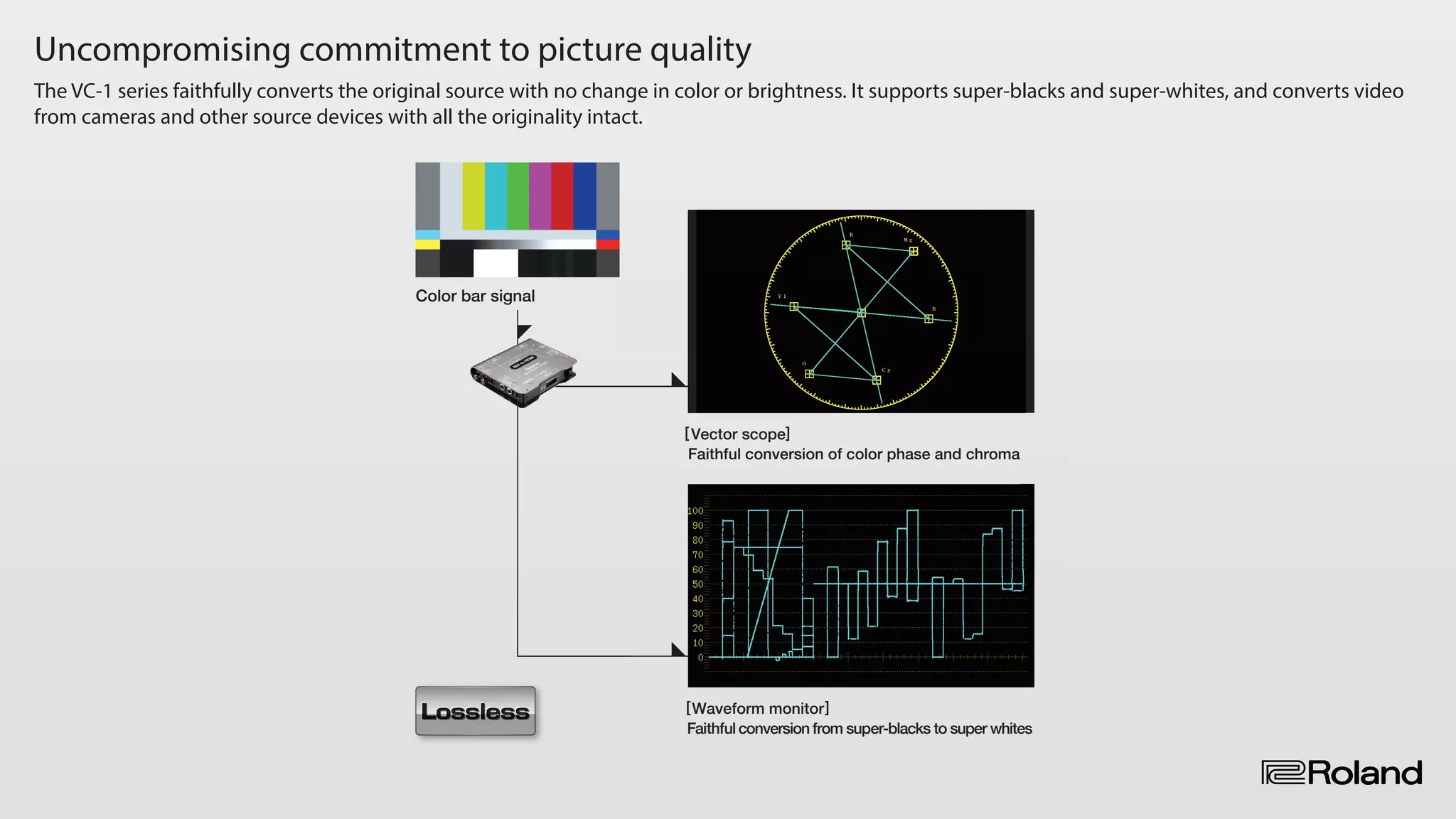

6. Uncompromising commitment to picture quality
The VC-1 series faithfully converts the original source with no change in color or brightness. It supports super-blacks and super-whites, and converts video
from cameras and other source devices with all the originality intact.
[Waveform monitor]
Faithful conversion from super-blacks to super whites
[Vector scope]
Faithful conversion of color phase and chroma
Color bar signal Burst signal
Interlaced (1080/60i) P
[Waveform
Perfect conFaithful conversion of color phase and chroma

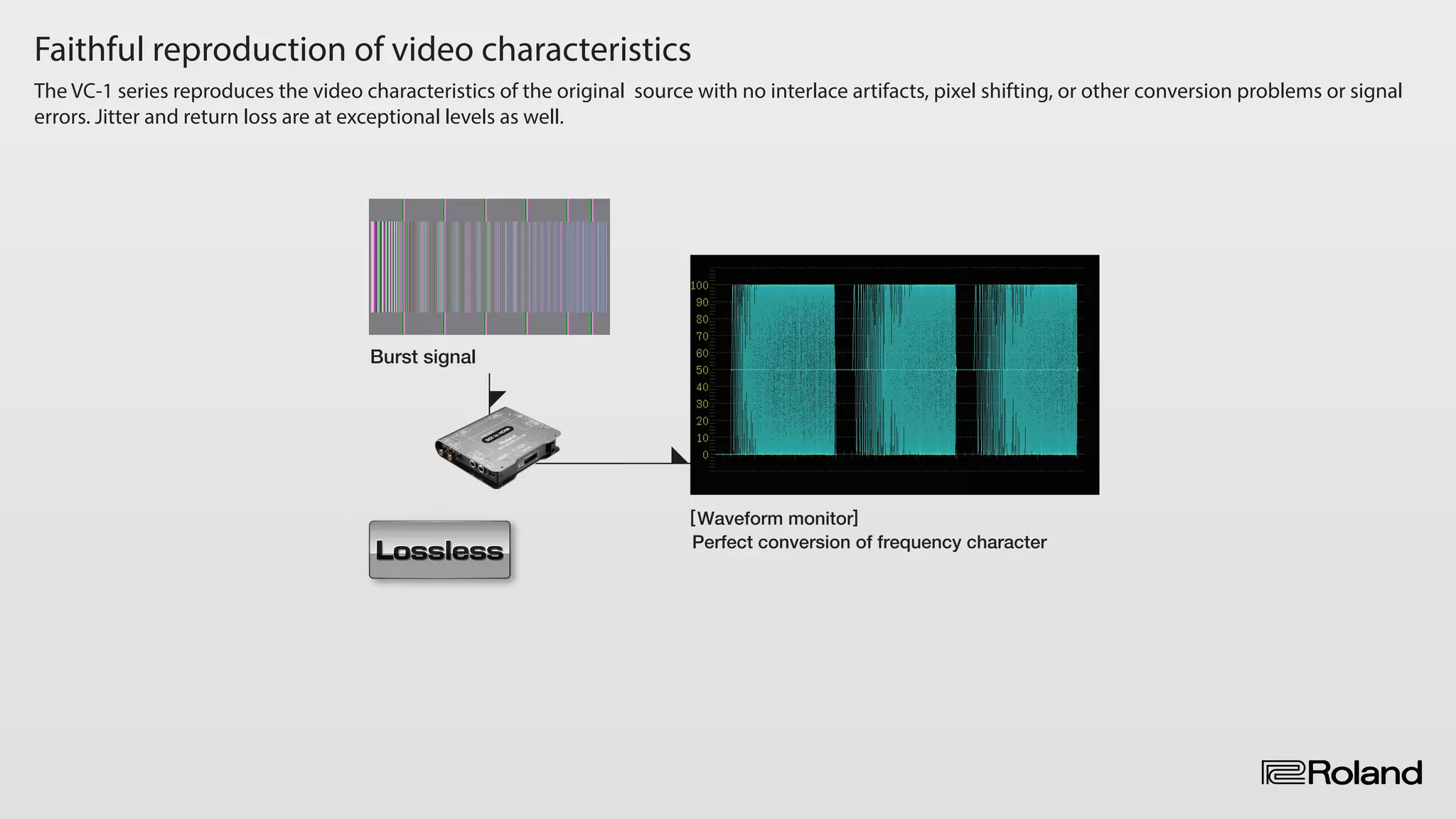

7. Faithful reproduction of video characteristics
The VC-1 series reproduces the video characteristics of the original source with no interlace artifacts, pixel shifting, or other conversion problems or signal
errors. Jitter and return loss are at exceptional levels as well.
sion of color phase and chroma
Burst signal
[Waveform monitor]
Perfect conversion of frequency character

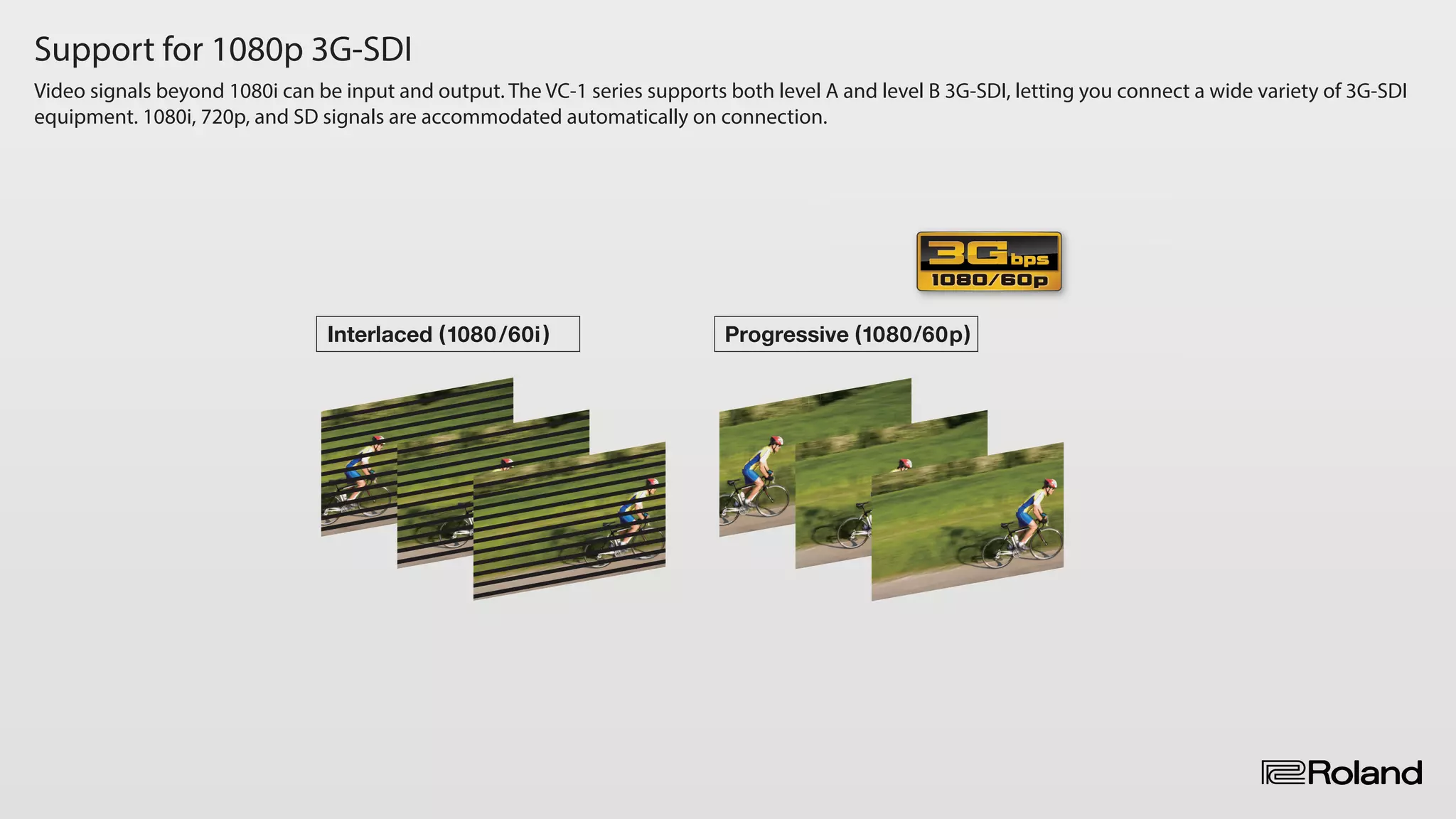

8. Support for 1080p 3G-SDI
Video signals beyond 1080i can be input and output. The VC-1 series supports both level A and level B 3G-SDI, letting you connect a wide variety of 3G-SDI
equipment. 1080i, 720p, and SD signals are accommodated automatically on connection.
super-blacks to super whites
Interlaced (1080/60i) Progressive (1080/60p)
f jitter
ProgressiveProgressiveProgressive (1080/60p)

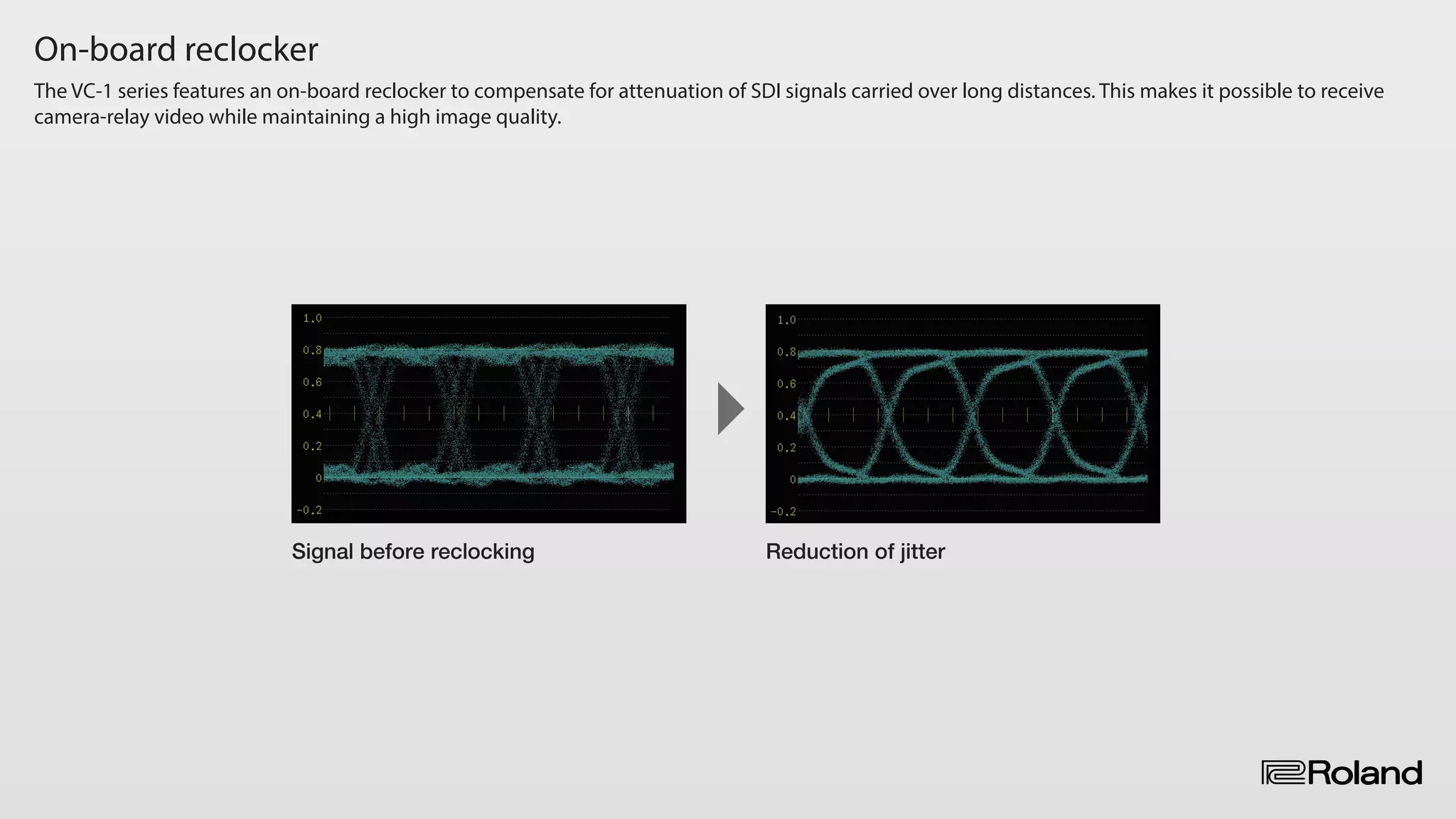

9. On-board reclocker
The VC-1 series features an on-board reclocker to compensate for attenuation of SDI signals carried over long distances. This makes it possible to receive
camera-relay video while maintaining a high image quality.
[Waveform monitor]
Faithful conversion from super-blacks to super whites
Interlaced (108
Signal before reclocking Reduction of jitter

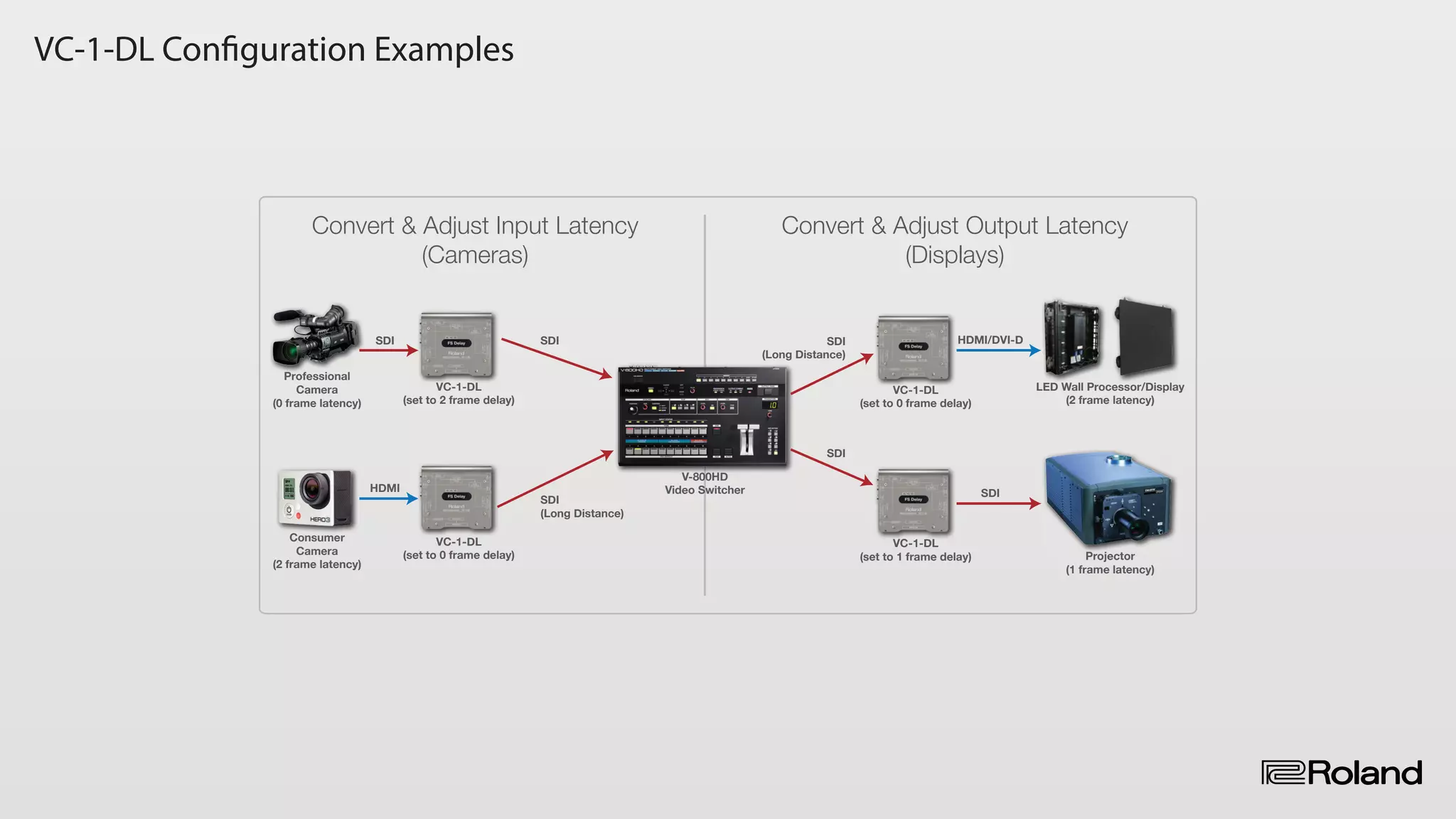

10. VC-1-DL Configuration Examples
Convert & Adjust Output Latency
(Displays)
Convert & Adjust Input Latency
(Cameras)
VC-1-DL
(set to 0 frame delay)
V-800HD
Video Switcher
SDI HDMI/DVI-DSDI
HDMI
Consumer
Camera
(2 frame latency)
Professional
Camera
(0 frame latency)
VC-1-DL
(set to 2 frame delay)
VC-1-DL
(set to 0 frame delay)
VC-1-DL
(set to 1 frame delay)
LED Wall Processor/Display
(2 frame latency)
Projector
(1 frame latency)
SDI
(Long Distance)
SDI
(Long Distance)
SDI
SDI

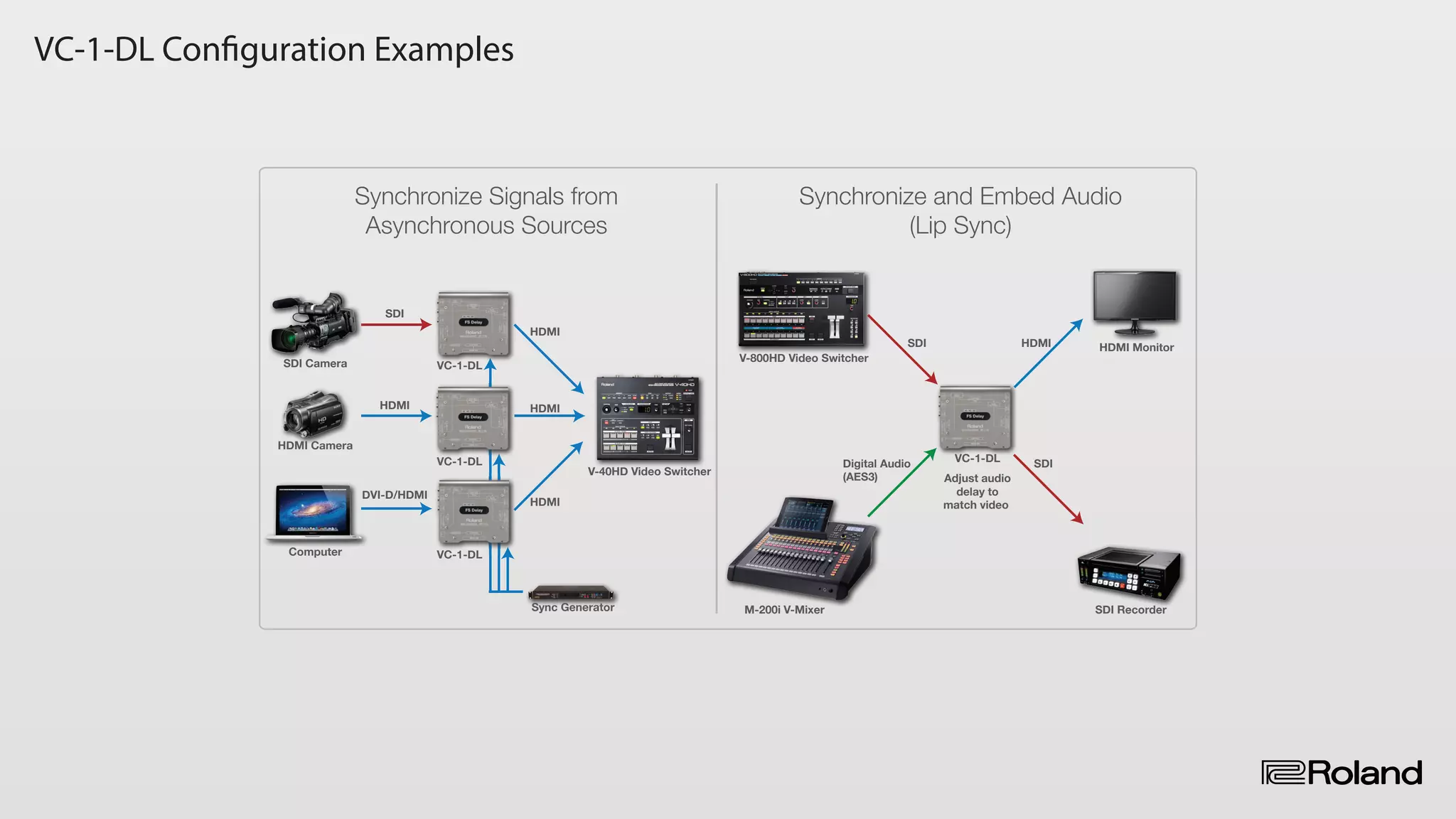

11. VC-1-DL Configuration Examples
Synchronize and Embed Audio
(Lip Sync)
Synchronize Signals from
Asynchronous Sources
V-800HD Video Switcher
SDI Recorder
VC-1-DL
Adjust audio
delay to
match video
M-200i V-Mixer
Digital Audio
(AES3)
SDI
SDI
HDMI MonitorHDMI
HDMI
HDMI
HDMI
V-40HD Video Switcher
Sync Generator
SDI
DVI-D/HDMI
SDI Camera
Computer
HDMI Camera
HDMI
VC-1-DL
VC-1-DL
VC-1-DL

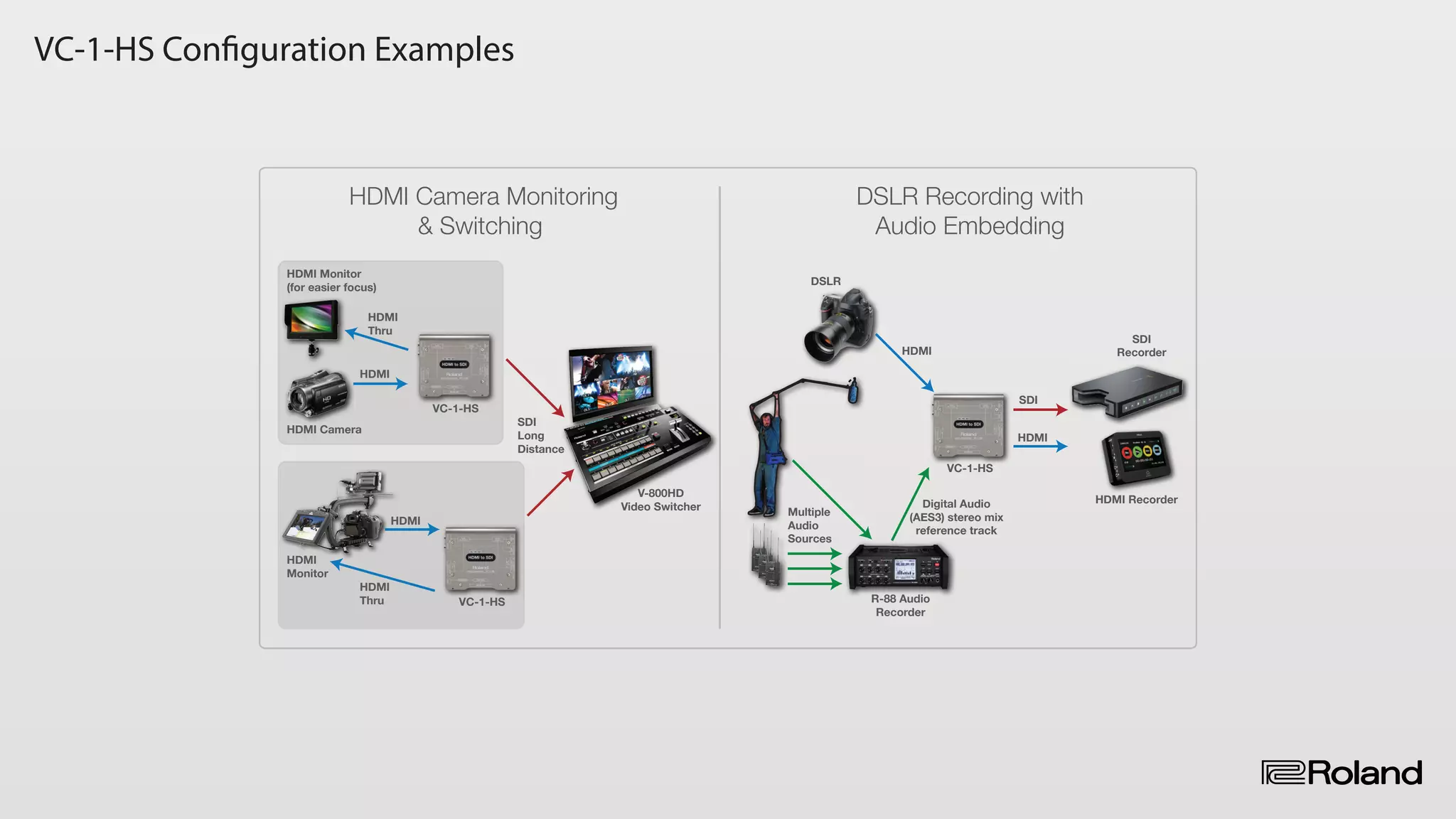

12. VC-1-HS Configuration Examples
DSLR Recording with
Audio Embedding
HDMI Camera Monitoring
& Switching
HDMI
Digital Audio
(AES3) stereo mix
reference track
DSLR
Multiple
Audio
Sources
R-88 Audio
Recorder
HDMI Recorder
SDI
Recorder
HDMI
SDI
VC-1-HS
SDI
Long
Distance
V-800HD
Video Switcher
VC-1-HS
HDMI
HDMI
Monitor
HDMI
Thru
HDMI Monitor
(for easier focus)
HDMI
Thru
HDMI
HDMI Camera
VC-1-HS

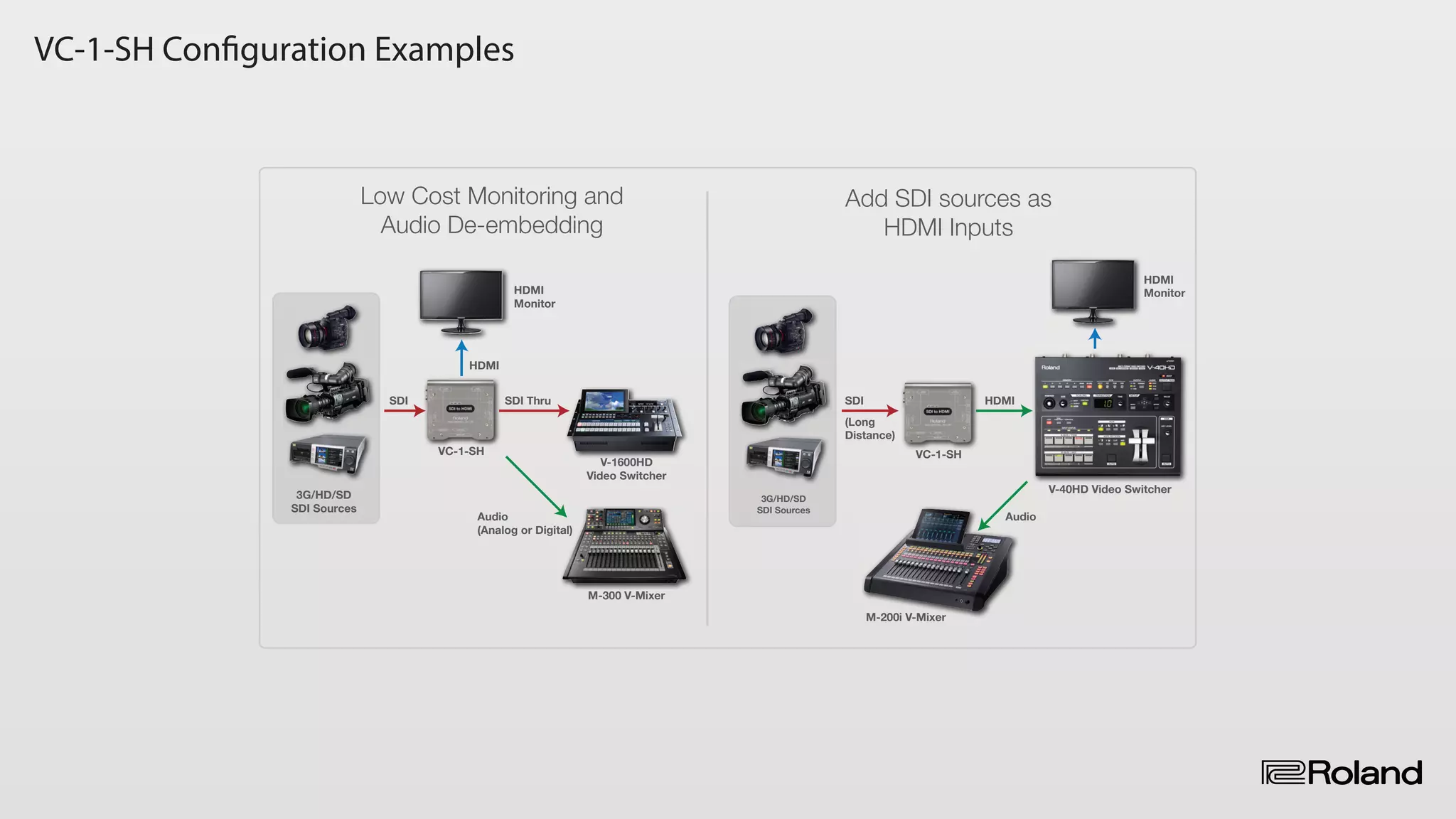

13. VC-1-SH Configuration Examples
3G/HD/SD
SDI Sources
Low Cost Monitoring and
Audio De-embedding
VC-1-SH
V-1600HD
Video Switcher
SDI
V-40HD Video Switcher
M-300 V-Mixer
HDMI
MonitorHDMI
Monitor
HDMI
SDI Thru
Audio
(Analog or Digital)
VC-1-SH
SDI HDMI
(Long
Distance)
M-200i V-Mixer
Audio
Add SDI sources as
HDMI Inputs
3G/HD/SD
SDI Sources

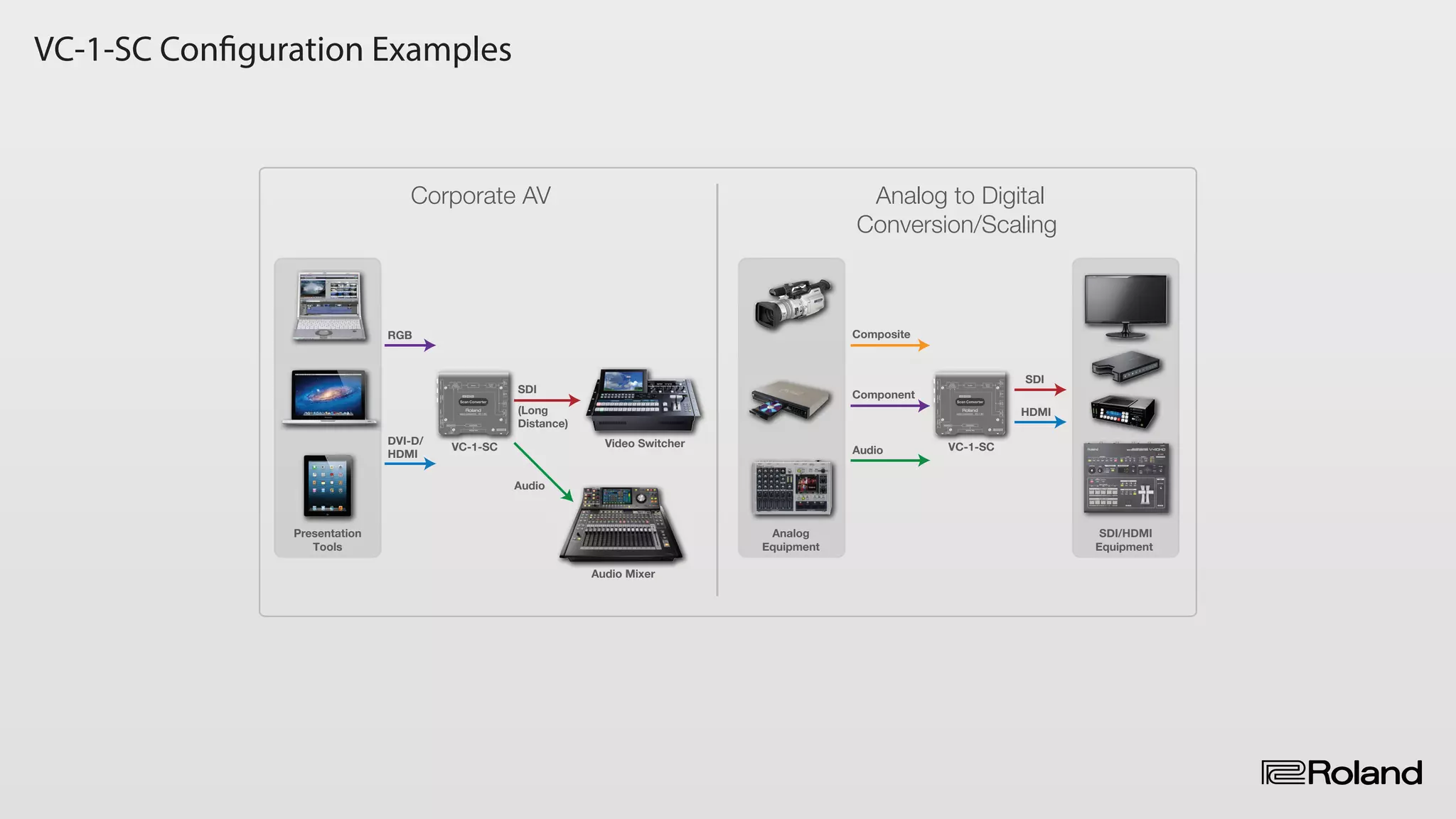

14. VC-1-SC Configuration Examples
Analog to Digital
Conversion/Scaling
HDMI
VC-1-SC
SDI/HDMI
Equipment
SDI
Audio
Component
Composite
Analog
Equipment
Corporate AV
DVI-D/
HDMI
SDI
(Long
Distance)
RGB
VC-1-SC Video Switcher
Audio Mixer
Audio
Presentation
Tools

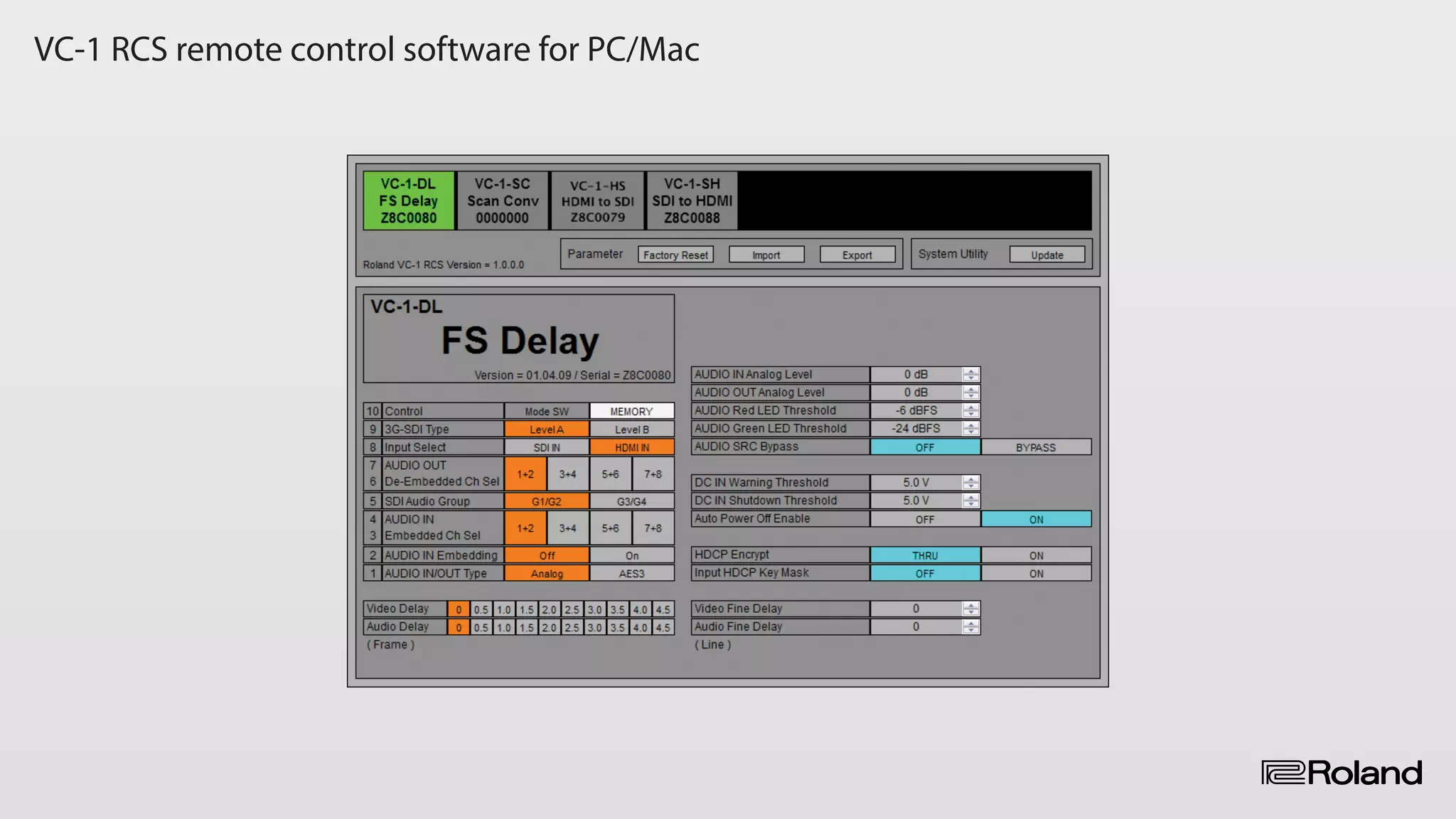

15. VC-1 RCS remote control software for PC/Mac

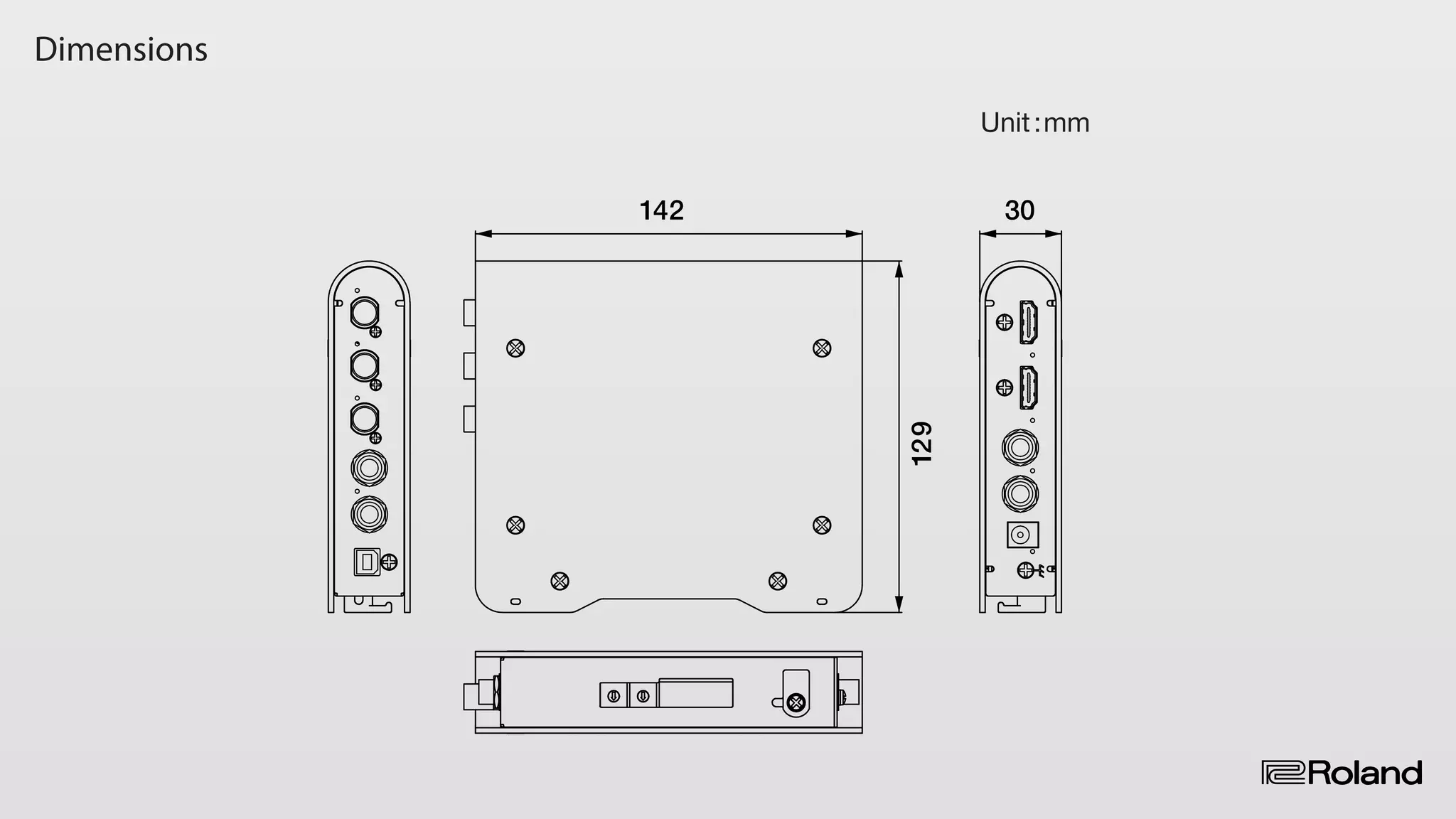

16. Dimensions
142
129
30
Unit:mm
