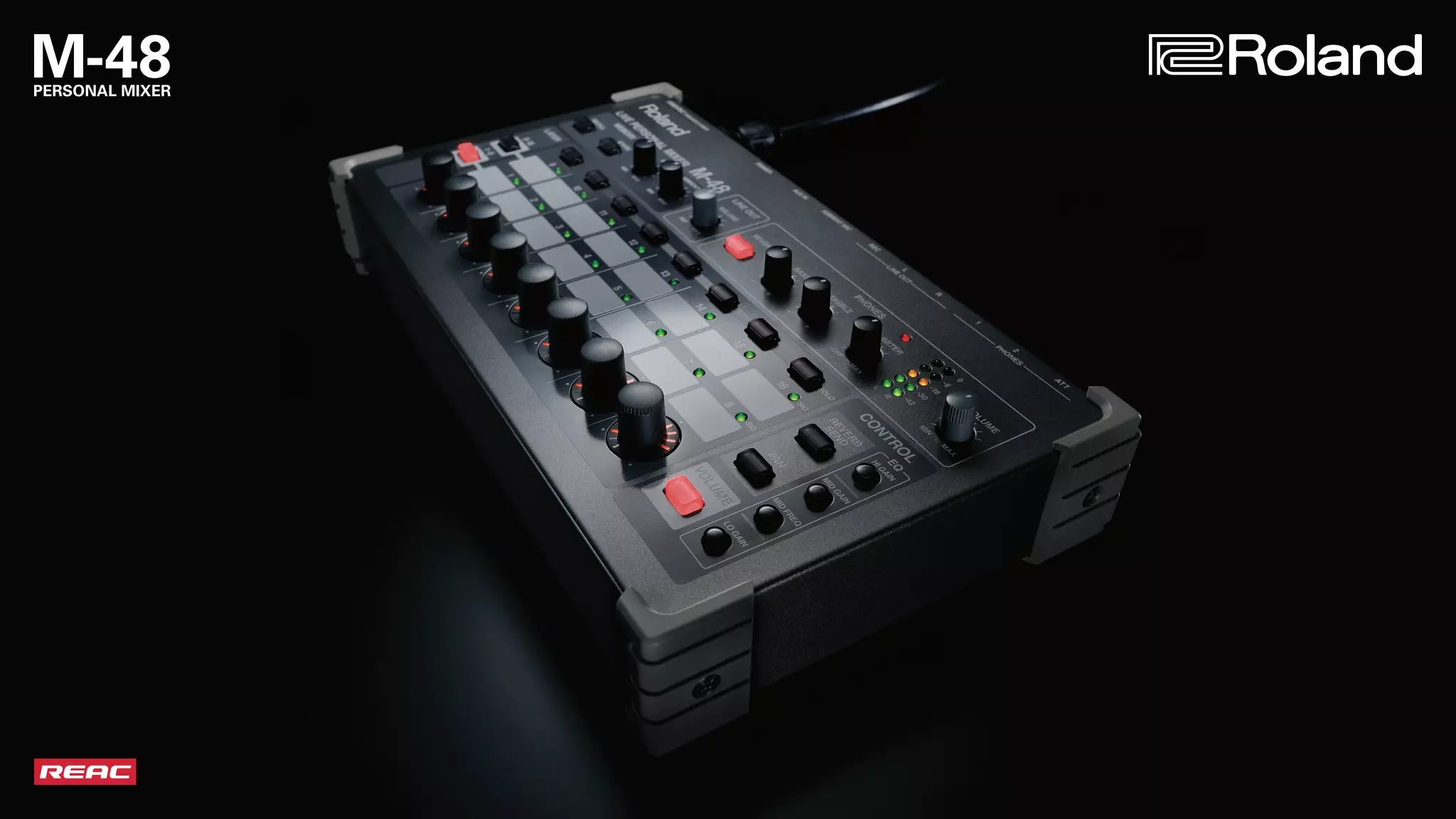

Never before has a personal mixer given you this much control and flexibility over your monitor mix. Designed for the performing musician, the M-48 enables control of up to 40 audio sources that can be managed via 16 stereo groups - assignable and unique per musician. Adjust your mix using level, pan, 3-band EQ and solo. Enhance the playing experience using built-in reverb and an ambient mic. Expand your options with multiple headphones jacks, separate balanced outputs and auxiliary input.

2. Unprecedented Personalization
The M-48 enables control of up to 40 audio channels via 16 stereo groups. No longer do you have to share the same sources and in the same order as
everyone else. Each musician can choose what he or she wants to listen to - a truly personal mix.
Typical Vocal Monitor Setup M-48 Live Personal Monitor System
Simple Setup
No Feedback

3. Professional Sound Control and Quality
Sweeten your monitor mix to your exact preferences with volume, pan, 3-band EQ and built-in reverb per group ?all instantly adjustable by convenient
encoder knobs. A limiter is incorporated for protecting your ears from sudden and dangerous volume spikes. Based on REAC, the all-digital connection
results in a low noise floor, improved musicality and crystal clear sound.

4. Unparalleled Usability
The LED indicators on the control knobs enable instant adjustment and visual confirmation at a glance, even on a dark stage. The built-in ambient mic aids
in communicating with other musicians without have to remove your ear-buds or headphones as well as enabling a stage/room feel if desired. The AUX
Input allows a metronome or other device to be mixed into the primary sound.

5. Convenient Connectivity
Our newly developed“REAC Embedded Power”(via the S-4000D) transfers both power and 40 channels of audio to the M-48 via a single CAT5e cable
?dramatically simplifying wiring and stage layouts. Mini jack and 1/4 inch phone jack headphone outputs are provided. Balanced TRS line outputs support
wedge or other types of powered monitors. An independent stereo output mini jack enables recording with superb sound quality.
Headphones/
In-ear monitor
Wedge Monitor* Portable Recorder Metronome etc.
* Requires separate amplifier.

6. A Complete Digital Mixing System with any Roland Console
With any Roland Live Mixing Console you can setup, maintain and control 40 channels of monitor output to each M-48 connected to the system. All
V-Mixers are equipped with the remote management software, memory recall, etc. providing a simple and flexible setup. Or you can connect to an existing
MADI compatible analog/digital console with the Roland REAC S-MADI Bridge.
M-480 Source Assignment:
Channel assignment for up
to 16 stereo groups is set
using a simple matrix.
M-480 Setup Display:
Control the volume, pan
and EQ of all channels.
Control from M-5000, M-480, M-300 or M-200i Live Mixing Consoles

7. Setup and Manage the M-48 on your PC
M-48’s can be setup and controlled on your PC when using with an existing console. Simply connect to the serial port on the S-1608/S-4000S series Digital
Snakes or S-MADI.
S-4000RCS Remote Control
Software for Mac or PC.

8. Included Mounting Plate
The M-48 can be attached to the top of a microphone stand by using the bundled mounting bracket. The mounting bracket is also designed with a
removeable headphone hanger and accessory tray for your pencil or portable recorder. The optional APC-33 mounting bracket can be used when you need
to mount the M-48 to the middle of a music or mic stand.
M-48 Mounting Plate Optional APC-33
Mounting Bracket
Optional APC-33
Mounting Bracket

9. S-4000D - The REAC Splitter Equipped with Embedded Power
“REAC Embedded Power”is unique Roland technology that enables the transfer of not only the digital audio signal but also the power required by the
connected device - all via one CAT5e cable. The S-4000D Splitter and Power Distributor is equipped with 10 REAC ports including 8 ports of REAC Embedded
Power. The S-4000D can automatically detect and distinguish a product not supporting REAC Embedded Power. In this case, power is not provided allowing
the S-4000D to also function as a standard splitter when required. The S-4000D is required to use the M-48s.

10. Configuration Example - Standard M-480 System with Personal Mixing
REAC BREAC A
Stage
Front of House
42 Inputs : 32 Snake + 10 Console
26 Outputs : 16 Snake + 10 Console
Personal Mixers : Up to 8 per S-4000D
(Connect multiple S-4000Ds
inline to enable more M-48s)
1
8
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
S-1608 S-1608
M-480
S-4000D

11. Configuration Example - Digital Console with Personal Mixing Using S-MADI REAC Bridge
Front of House
Stage
M-48 Personal Mixers
S-4000D Splitter and
Power Distributor
S-MADI REAC MADI Bridge
M-48 Personal MixerDigital Console
1-40
Remote Control Software
REAC
Legend
Word Clock
RS-232
MADI
REAC
Embedded
Power

12. Configuration Example - Personal Mixing via Analog Connection to Analog or Digital Console
PC with Control
Software S-4000RCS
RS-232
Software S-4000RCS
RS-232
Analog or Digital Console
(direct outs, bus outs)
S-4000D
S-4000S-4000
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
Stage
Front of House
1 40
Inputs : 40 Analog
M-48’s : Up to 8 per S-4000D
(Connect multiple S-4000Ds
inline to enable more M-48s)
1
8

13. Configuration Example - Personal Mixing via Digital Connection to Digital Console (40 Ch)
Digital Console
In this example, an M-48 unit
is also placed by the engineer.
By copying settings from another
M-48 unit, the engineer can
monitor the mix of a musician.
PC with Control
Software S-4000RCS
USB - RS-232
Software S-4000RCS
USB - RS-232
S-4000D
M-48
S-4000D
S-4000D
USB - RS-232
S-4000S-4000 (AES-EBU)
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
Stage
Front of House
1 40 (digital outs)
Inputs : 40 Digital
Personal Mixers : 16 (8 per S-4000D)
1
8
1
8

14. Configuration Example - Personal Mixing with S-1608 Digital Snake System
16ch from stage
8ch from console
PC with Control
Software S-4000RCS
USB - RS-232
Software S-4000RCS
USB - RS-232
16ch from stage
8ch from console
S-1608
S-4000D
S-0816
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
Stage
Front of House
Inputs : 16 Analog
Outputs : 8 Analog
M-48 : 16 ( 8 per S-4000D)
(Connect multiple S-4000Ds
inline to enable more M-48s)
1
8

15. Configuration Example - Personal Mixing with S-4000S Digital Snake System
PC with Control
Software S-4000RCS
USB - RS-232USB - RS-232
32ch from stage
8ch from console
S-4000D
S-4000S-3208
S-4000H
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
Stage
Front of House
Inputs : 32 Analog
Outputs : 8 Analog
M-48 : Up to 8 per S-4000D
(Connect multiple S-4000Ds
inline to enable more M-48s)
1
8
32ch from stage
8ch from console

16. Configuration Example - Personal Mixing via Analog Connection to Analog or Digital Console
Analog or Digital Console
(direct outs, bus outs)
PC with Control
Software S-4000RCS
USB - RS-232
Inputs : 16 Analog
M-48 : Up to 8 per S-4000D
(Connect multiple S-4000Ds
inline to enable more M-48s)
S-1608
S-4000D
M-48
M-48
M-48
M-48
M-48
M-48
M-48
M-48
Stage
Front of House
1 16
1
8

17. Part of The V-Mixing
System Total
Integrated Solution
REAC (Roland Ethernet Audio
Communication) technology is the
cornerstone of the V-Mixing System.
REAC is Roland’s original technology
for low latency, high quality digital
audio transfer. REAC is an Ethernet
based technology that enables multiple
components to be easily integrated
using lightweight Cat5e/6 cable. With
just a single inexpensive cable, 40
input x 40 output channels of 24-bit
uncompressed audio data (including
level and control information) are
transferred.
Digital Snakes
Enjoy superior clear sound, great intelligibility with
minimal latency and the freedom to split or extend
your audio sources anywhere.
Bridging
The S-MADI REAC Bridge enables connectivity
b e t w e e n M A D I - e q u i p p e d d i g i t a l a u d i o
mixers/systems to any REAC-based devices.
Personal Mixers
The M-48 is the “next generation”
live personal mixer that offers
musicians the flexibly to control
exactly what they want to listen to
during their performances.
REAC Driver
The REAC driver enables users to
capture up to 40 audio channels from
a Digital Snake or V-Mixing System
directly into most ASIO-based DAWs
via Cat5e/6 cable.
Recording
Multi-channel recording and playback,
including virtual rehearsal is accomplished
with reliability and stability using the dedicated
R-1000 48-Track Recorder/Player.
R-1000
48-TRACK RECORDER/PLAYER
S-RDK
Roland REAC Driver
S-MADI
REAC MADI BRIDGE
M-48
LIVE PERSONAL MIXER
Digital Consoles
Boasting powerful mixing engines to support multiple channels, buses, EQ, effects,
dynamics processing and unprecedented digital patching, the V-Mixer lineup
represents a premium console choice. More than a digital mixing console; it is the
heart of a V-Mixing System ideal for any live event applications in corporate, church,
education or rental/staging environments.
your audio sources anywhere.your audio sources anywhere.

18. Block Diagram

19. Dimensions
67
297
171
Unit: mm
