The R-1000 is a multi-track recorder capable of recording up to 48 tracks of 24-bit audio in a standard broadcast WAV format, with approximately 20 hours of recording time on a 500GB HDD. It integrates easily with DAWs and offers features like virtual preamp functions and intuitive operation for sound checks and rehearsals. The system supports high-quality digital audio transfer through Roland's REAC technology, enabling seamless connectivity between various audio components.

2. Records in standard broadcast WAV format
• Records up to 48 tracks of 24-bit audio in BWF format
• Approximately 20 hours recording (44.1/48kHz) using a 500GB HDD
• Removable Hard disk drive ensures smooth integration with DAWs such as SONAR.
BWFRecordingRecording
BWFRecording

3. Easy and intuitive operation for recording, sound check, rehearsals
The R-1000 is controlled directly not only using Built-in LCD monitor but also from any V-Mixer or a PC/Mac with R-1000RCS software. Using the virtual
preamp function, an engineer can tune the sound system for a new venue by playing back a mix through the console without the need for performers to be
present for sound check. Equally powerful function when using as a tool to teach and train the art of mixing.
Control directly from PC/Mac with R-1000RCS
*R-1000RCS for PC or Mac can be downloaded from www.rolandsystemsgroup.net.
Virtual preamp
setting function
Control directly from any V-Mixer

4. Configure the R-1000 from a PC or V-Mixer.
R-1000RCS Remote Control
Software for Mac or PC.
M-480 Live Mixing Console

5. Configuration Example - Live Recording System (REAC)
This live recording system uses the REAC port of the V-Mixer (SPLIT/BACKUP) connected to the REAC port (TO MASTER) of the R-1000. Up to 40 channels
of 24-bit audio from the V-Mixer is recorded to the R-1000 and once finished can be opened in any DAW software such as Cakewalk SONAR/V-STUDIO by
accessing the HDD.
S-1608
M-480
REAC A REAC B
REAC
Split
R-1000
S-4000S-3208
Multi Track Live Recording
Removable HDD or SDD
Production
(DAW of Choice)
Stage
Front of House Editing & Mastering
Inputs : 58
Outputs : 26

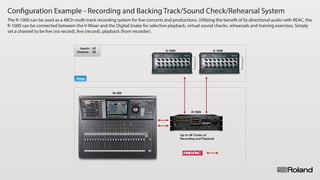

6. Configuration Example - Recording and Backing Track/Sound Check/Rehearsal System
The R-1000 can be used as a 48Ch multi-track recording system for live concerts and productions. Utilizing the benefit of bi-directional audio with REAC, the
R-1000 can be connected between the V-Mixer and the Digital Snake for selective playback, virtual sound checks, rehearsals and training exercises. Simply
set a channel to be live (no record), live (record), playback (from recorder).
S-1608 S-1608
M-480
R-1000
Up to 48 Tracks of
Recording and Playback
Stage
Front of House
Inputs : 42
Outputs : 26

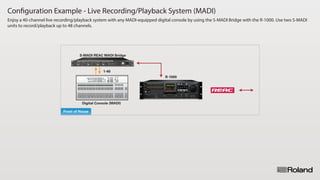

7. Configuration Example - Live Recording/Playback System (MADI)
Enjoy a 40-channel live recording/playback system with any MADI-equipped digital console by using the S-MADI Bridge with the R-1000. Use two S-MADI
units to record/playback up to 48 channels.
Front of House
R-1000
S-MADI REAC MADI Bridge
Digital Console (MADI)
1-40

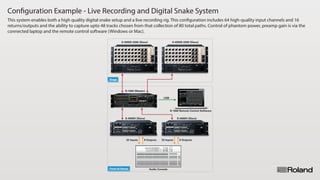

8. Configuration Example - Live Recording and Digital Snake System
This system enables both a high quality digital snake setup and a live recording rig. This configuration includes 64 high-quality input channels and 16
returns/outputs and the ability to capture upto 48 tracks chosen from that collection of 80 total paths. Control of phantom power, preamp gain is via the
connected laptop and the remote control software (Windows or Mac).
Stage
Front of House Audio Console
8 Outputs32 Inputs 8 Outputs32 Inputs
S-4000S-3208 (Slave) S-4000S-3208 (Slave)
S-4000H (Slave) S-4000H (Slave)
R-1000 Remote Control Software
R-1000 (Master)
USB

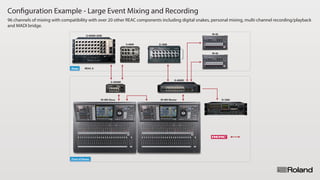

9. Configuration Example - Large Event Mixing and Recording
96 channels of mixing with compatibility with over 20 other REAC components including digital snakes, personal mixing, multi-channel recording/playback
and MADI bridge.
S-1608
M-480 Slave M-480 Master
REAC A
R-1000
S-4000S-3208
S-4000M
S-4000D
S-0808
M-48
M-48
Stage
Front of House

10. Part of The V-Mixing
System Total
Integrated Solution
REAC (Roland Ethernet Audio
Communication) technology is the
cornerstone of the V-Mixing System.
REAC is Roland’s original technology
for low latency, high quality digital
audio transfer. REAC is an Ethernet
based technology that enables multiple
components to be easily integrated
using lightweight Cat5e/6 cable. With
just a single inexpensive cable, 40
input x 40 output channels of 24-bit
uncompressed audio data (including
level and control information) are
transferred.
Digital Snakes
Enjoy superior clear sound, great intelligibility with
minimal latency and the freedom to split or extend
your audio sources anywhere.
Bridging
The S-MADI REAC Bridge enables connectivity
b e t w e e n M A D I - e q u i p p e d d i g i t a l a u d i o
mixers/systems to any REAC-based devices.
Personal Mixers
The M-48 is the “next generation”
live personal mixer that offers
musicians the flexibly to control
exactly what they want to listen to
during their performances.
REAC Driver
The REAC driver enables users to
capture up to 40 audio channels from
a Digital Snake or V-Mixing System
directly into most ASIO-based DAWs
via Cat5e/6 cable.
Recording
Multi-channel recording and playback,
including virtual rehearsal is accomplished
with reliability and stability using the dedicated
R-1000 48-Track Recorder/Player.
R-1000
48-TRACK RECORDER/PLAYER
S-RDK
Roland REAC Driver
S-MADI
REAC MADI BRIDGE
M-48
LIVE PERSONAL MIXER
Digital Consoles
Boasting powerful mixing engines to support multiple channels, buses, EQ, effects,
dynamics processing and unprecedented digital patching, the V-Mixer lineup
represents a premium console choice. More than a digital mixing console; it is the
heart of a V-Mixing System ideal for any live event applications in corporate, church,
education or rental/staging environments.
your audio sources anywhere.your audio sources anywhere.

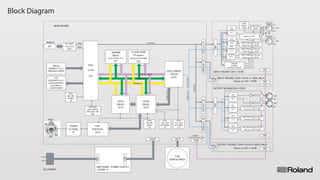

11. Block Diagram

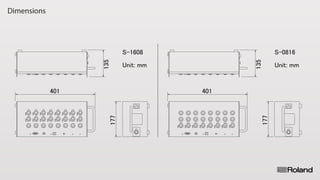

12. Dimensions
401
135
177
S-1608
Unit: mm
401
135
177
S-0816
Unit: mm
