Significant figures refer to the digits in a measurement that are known with reasonable certainty. All non-zero digits are significant, as are zeros between two non-zero digits. Leading zeros are not significant, and trailing zeros may or may not be significant depending on the precision of the measuring instrument. The powers of 10 are always non-significant in determining the number of significant figures.

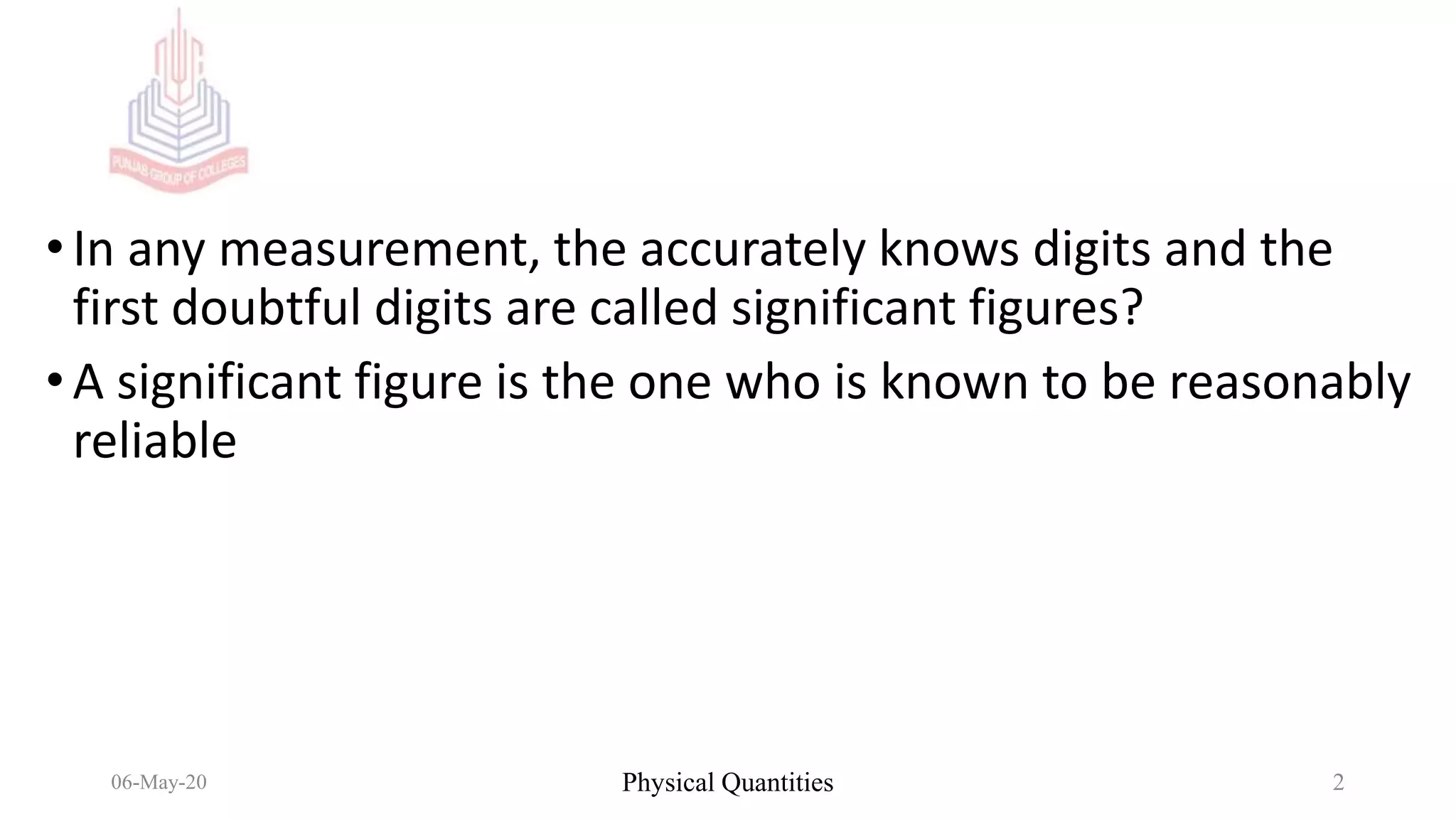

2. •In any measurement, the accurately knows digits and the
first doubtful digits are called significant figures?
•A significant figure is the one who is known to be reasonably
reliable
06-May-20 Physical Quantities 2

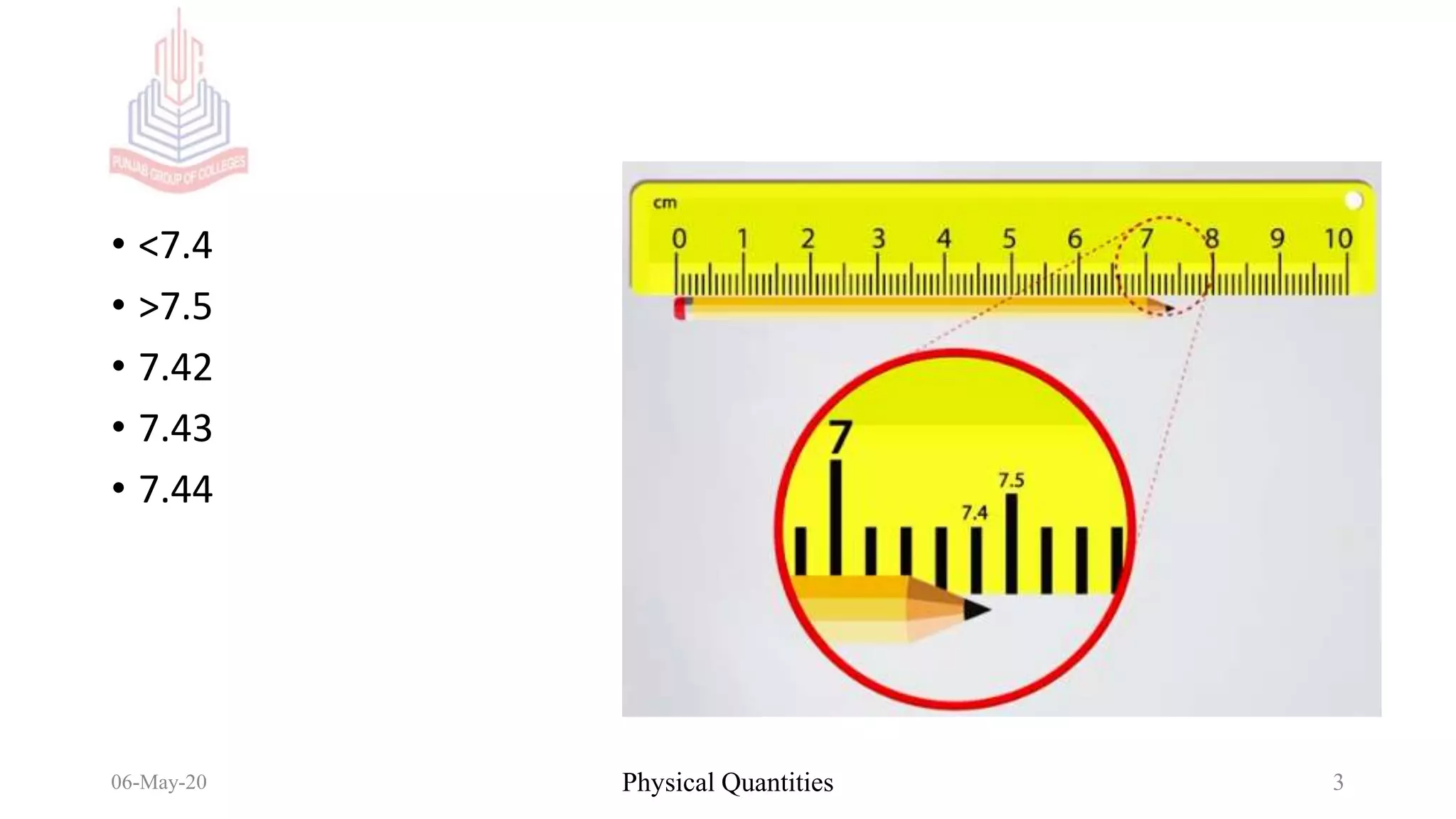

3. • <7.4
• >7.5
• 7.42
• 7.43
• 7.44
06-May-20 Physical Quantities 3

4. All the non-zero digits are significant
06-May-20 Physical Quantities 4

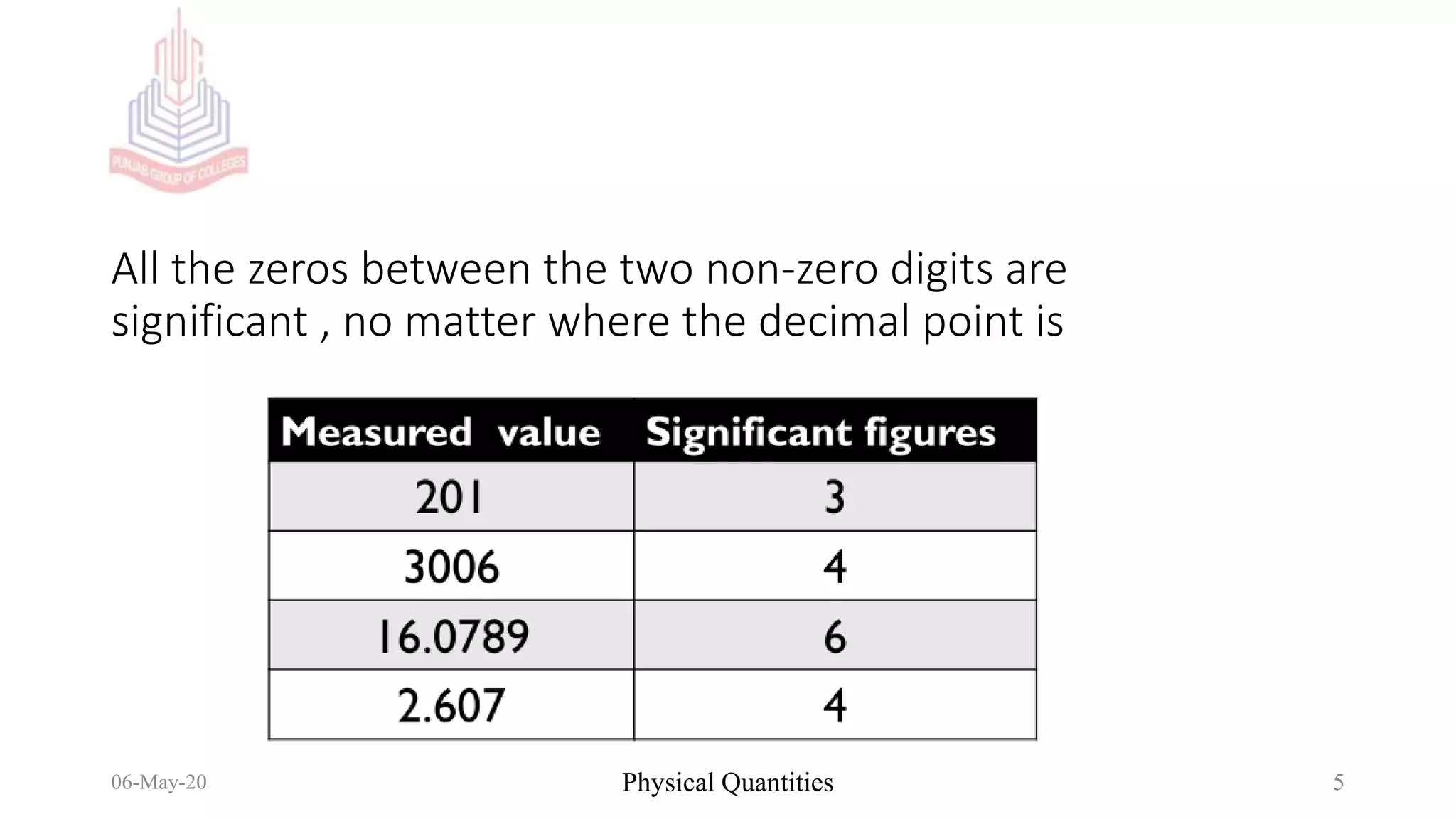

5. All the zeros between the two non-zero digits are
significant , no matter where the decimal point is
06-May-20 Physical Quantities 5

6. Zeros to the left of the significant figures are not
significant
06-May-20 Physical Quantities 6

7. • Zeros to the right of the significant figures( trailing zeros ) are may or
may not be Significant.
• It depends upon the Measuring instrument ( Least Count ) of
measuring instrument
• E.g. 800 kg
• If the least count is 1 kg 800 kg all are confirmed
• If the least count is 10 kg 800 kg first two are confirmed
• If the least count is 100 kg 800 kg only first is confirmed
06-May-20 Physical Quantities 7

8. 06-May-20 Physical Quantities 8

9. • The powers of 10 are always non- significant.
• 23500 can be written as
• There are only three significant figures .
06-May-20 Physical Quantities 9

10. 06-May-20 Physical Quantities 10
