1. SEMINAR ON SUMMER TRAINING
NTPC .LTD SHAKTINAGAR
RAM NARAYAN SHAH
B.TECH (Mech.Engg.)
FINAL YEAR
Roll No.1005340058

3.  “A world class integrated power major, powering India's growth with increasing
global presence.”
 NTPC was set up in 1975 with 100% ownership by the Government of india.
 NTPC has installed capacity of 29,394 MW.
 It has 15 coal based power station (23,395MW) &7 gas based power
station(3,955MW).
 4 power stations in joint venture (1794MW)
 In 1997, Government of India granted NTPC status of “Navratna” company.
 NTPC has embarked on plans to become a 75,000 MW company by 2017.

4.  Installed capacity 2000 MW.
 Location Sonebhadra Uttar Pradesh.
 Coal Source:-Jayant Mine.
 Water Source :- Rihand Reservoir.
 Beneficiary States:- UP, Uttranchal, Rajasthan,
Punjab, Haryana, Delhi, Himanchal Pradesh,
Chandigarh.
 Unit Size:- STAGE 1: 5*200 MW & STAGE2:
2*500MW.

6. A simplified diagram of a thermal power plant

7.  Steam generating equipment
 Condenser
 Prime mover
 Electrical equipments

8.  Boiler
 Superheater
 Economiser
 Air preheater

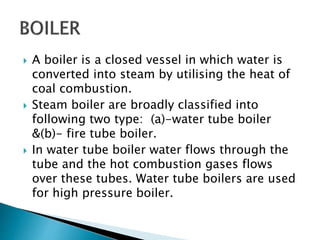

9.  A boiler is a closed vessel in which water is
converted into steam by utilising the heat of
coal combustion.
 Steam boiler are broadly classified into
following two type: (a)-water tube boiler
&(b)- fire tube boiler.

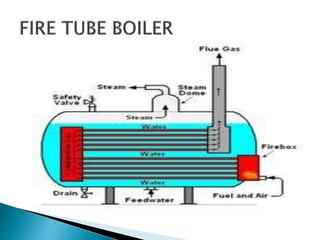

 In water tube boiler water flows through the
tube and the hot combustion gases flows
over these tubes. Water tube boilers are used
for high pressure boiler.

12.  A device which removes last traces of moisture.
 It helps in reduction in requirement of steam
quantity.
 steam being dry reduces the mechanical resistance of
turbine.
 No corrosion at the turbine blades.

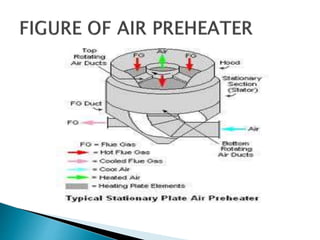

13.  They are such devices which recover the heat
from the flue gases on their way to chimney
and raise the temperature of feed water.
 Air Pre-heaters recover the heat from the flue
gases leaving the economiser and heat the
incoming air required for combustion.

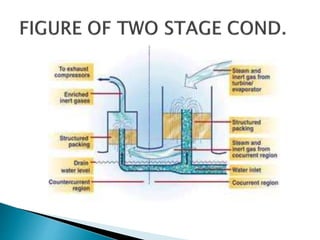

16.  Which condenses the steam at the exhaust
of turbine.
 It creates a very low pressure at the exhaust
of turbine, this helps in converting heat
energy of steam into mechanical energy
in the prime mover.
 The condensed steam can be used as feed
water to the boiler.

18.  A steam turbine is a mechanical device that
extracts thermal energy from pressurized steam,
and converts it into mechanical energy.
 About 86% of all electric generation in the world
is by use of steam turbines.
 It has almost completely replaced the
reciprocating piston steam engine.

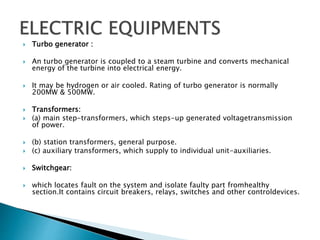

19.  Turbo generator :
 An turbo generator is coupled to a steam turbine and converts mechanical
energy of the turbine into electrical energy.
 It may be hydrogen or air cooled. Rating of turbo generator is normally
200MW & 500MW.
 Transformers:
 (a) main step-transformers, which steps-up generated voltagetransmission
of power.
 (b) station transformers, general purpose.
 (c) auxiliary transformers, which supply to individual unit-auxiliaries.
 Switchgear:
 which locates fault on the system and isolate faulty part fromhealthy
section.It contains circuit breakers, relays, switches and other controldevices.

20.  Source of coal=Jayant mines(madhya
pradesh).
 Location of source=Near singrauli(madhya
pradesh).
 Distance of source from plant =5km.
 Type of coal-D grade.
 Coal requirement: 25,000 MT/day

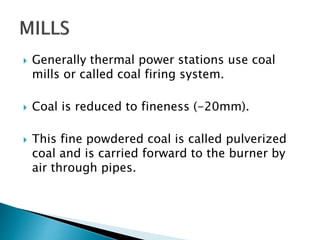

21.  Generally thermal power stations use coal
mills or called coal firing system.
 Coal is reduced to fineness (-20mm).
 This fine powdered coal is called pulverized
coal and is carried forward to the burner by
air through pipes.

22.  A natural result from the burning of fossil fuels,
particularly coal, is the emission of fly ash.
 Ash is mineral matter present in the fuel. For a pulverized
coal unit, 60-80% of ash leaves with the flue gas.
 Electrostatic precipitator has series of collecting & emitting
electrodes in a chamber.
 At the inlet of the chamber there are distributer screen.
 Hooper and flushing system form a base of chamber.
 Efficiency of ESP is approx. 99.8%
