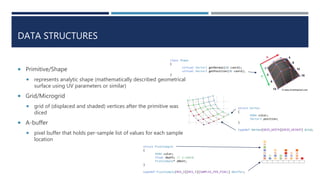

![DATA STRUCTURES
Primitive/Shape
represents analytic shape (mathematically described geometrical
surface using UV parameters or similar)
Grid/Microgrid
grid of (displaced and shaded) vertices after the primitive was
diced
A-buffer
pixel buffer that holds per-sample list of values for each sample
location
struct Vertex
{
RGBA color;
Vector3 position;
}
typedef Vertex[GRID_WIDTH][GRID_HEIGHT] Grid;
struct PixelSample
{
RGBA color;
float depth; // z-coord
PixelSample* pNext;
}
typedef PixelSample[RES_X][RES_Y][SAMPLES_PER_PIXEL] ABuffer;
class Shape
{
virtual Vector3 getNormal(UV coord);
virtual Vector3 getPosition(UV coord);
}](https://image.slidesharecdn.com/reyes-160313155602/85/Reyes-5-320.jpg)

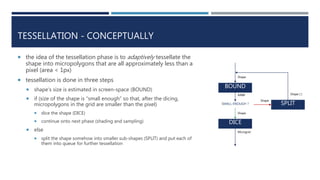

![TESSELLATION - CONCEPTUALLY
the idea of the tessellation phase is to adaptively tessellate the
shape into micropolygons that are all approximately less than a
pixel (area < 1px)
tessellation is done in three steps
shape’s size is estimated in screen-space (BOUND)
if (size of the shape is “small enough” so that, after the dicing,
micropolygons in the grid are smaller than the pixel)
dice the shape (DICE)
continue onto next phase (shading and sampling)
else
split the shape somehow into smaller sub-shapes (SPLIT) and put each of
them into queue for further tessellation
BOUND
DICE
SMALL ENOUGH ? SPLIT
Shape
Shape
Microgrid
Shape
AABB Shape [ ]](https://image.slidesharecdn.com/reyes-160313155602/85/Reyes-6-320.jpg)
![TESSELLATION - DETAILED
Shape
DICE
Microgrid
BOUND
MicrogridCamera
AABB
SMALL ENOUGH ?
SHADE
Microgrid
SPLIT
Shape
Shape [ ]
DISPLACE](https://image.slidesharecdn.com/reyes-160313155602/85/Reyes-10-320.jpg)
![FULL REYES PIPELINE
Shape
DICE
Microgrid
BOUND
MicrogridCamera
AABB
SMALL ENOUGH ?
Microgrid
SPLIT
Shape
Shape [ ]
DISPLACE
SHADE
Microgrid
Microgrid
Micropolygon
SAMPLE
Sample
UPDATE A-BUFFER
STOCHASTIC SAMPLING
RESOLVE
A-Buffer
Image](https://image.slidesharecdn.com/reyes-160313155602/85/Reyes-16-320.jpg)
Uploaded byDragan Okanovic
Reyes
The document details the REYES rendering algorithm, initially developed for film-quality CGI, highlighting its capabilities such as adaptive tessellation, high-quality camera effects, and parallelization. It outlines the workflow phases including bounding, dicing, shading, sampling, and resolving colors, while discussing its advantages and disadvantages. Despite its historical significance, the document notes the emergence of newer techniques like path tracing and adaptive shading that are now prevalent in high-quality CGI production.
![[0821 박민근] 렌즈 플레어(lens flare)](https://cdn.slidesharecdn.com/ss_thumbnails/0821lensflare-100824062136-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Reyes
- 1.

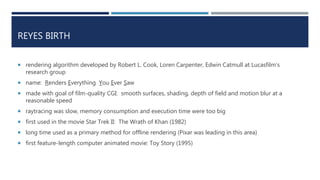

- 2. REYES BIRTH renderingalgorithm developed by Robert L. Cook, Loren Carpenter, Edwin Catmull at Lucasfilm’s research group name: Renders Everything You Ever Saw made with goal of film-quality CGI: smooth surfaces, shading, depth of field and motion blur at a reasonable speed raytracing was slow, memory consumption and execution time were too big first used in the movie Star Trek II: The Wrath of Khan (1982) long time used as a primary method for offline rendering (Pixar was leading in this area) first feature-length computer animated movie: Toy Story (1995)

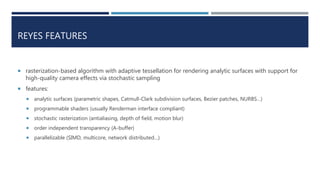

- 3. REYES FEATURES rasterization-basedalgorithm with adaptive tessellation for rendering analytic surfaces with support for high-quality camera effects via stochastic sampling features: analytic surfaces (parametric shapes, Catmull-Clark subdivision surfaces, Bezier patches, NURBS…) programmable shaders (usually Renderman interface compliant) stochastic rasterization (antialiasing, depth of field, motion blur) order independent transparency (A-buffer) parallelizable (SIMD, multicore, network distributed…)

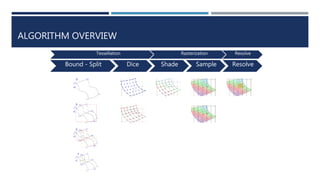

- 4. ALGORITHM OVERVIEW Bound -Split Dice Shade Sample Resolve Tessellation Rasterization Resolve
- 5. DATA STRUCTURES Primitive/Shape represents analytic shape (mathematically described geometrical surface using UV parameters or similar) Grid/Microgrid grid of (displaced and shaded) vertices after the primitive was diced A-buffer pixel buffer that holds per-sample list of values for each sample location struct Vertex { RGBA color; Vector3 position; } typedef Vertex[GRID_WIDTH][GRID_HEIGHT] Grid; struct PixelSample { RGBA color; float depth; // z-coord PixelSample* pNext; } typedef PixelSample[RES_X][RES_Y][SAMPLES_PER_PIXEL] ABuffer; class Shape { virtual Vector3 getNormal(UV coord); virtual Vector3 getPosition(UV coord); }
- 6. TESSELLATION - CONCEPTUALLY the idea of the tessellation phase is to adaptively tessellate the shape into micropolygons that are all approximately less than a pixel (area < 1px) tessellation is done in three steps shape’s size is estimated in screen-space (BOUND) if (size of the shape is “small enough” so that, after the dicing, micropolygons in the grid are smaller than the pixel) dice the shape (DICE) continue onto next phase (shading and sampling) else split the shape somehow into smaller sub-shapes (SPLIT) and put each of them into queue for further tessellation BOUND DICE SMALL ENOUGH ? SPLIT Shape Shape Microgrid Shape AABB Shape [ ]

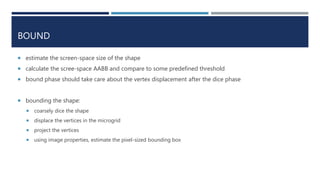

- 7. BOUND estimate thescreen-space size of the shape calculate the scree-space AABB and compare to some predefined threshold bound phase should take care about the vertex displacement after the dice phase bounding the shape: coarsely dice the shape displace the vertices in the microgrid project the vertices using image properties, estimate the pixel-sized bounding box

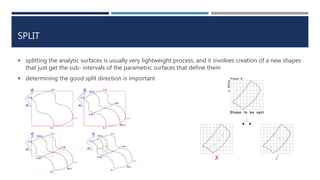

- 8. SPLIT splitting theanalytic surfaces is usually very lightweight process, and it involves creation of a new shapes that just get the sub- intervals of the parametric surfaces that define them determining the good split direction is important ✓✗

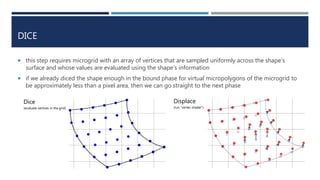

- 9. DICE this steprequires microgrid with an array of vertices that are sampled uniformly across the shape’s surface and whose values are evaluated using the shape’s information if we already diced the shape enough in the bound phase for virtual micropolygons of the microgrid to be approximately less than a pixel area, then we can go straight to the next phase Dice (evaluate vertices in the grid) Displace (run “vertex shader”)

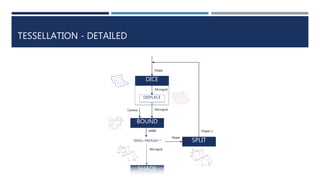

- 10. TESSELLATION - DETAILED Shape DICE Microgrid BOUND MicrogridCamera AABB SMALLENOUGH ? SHADE Microgrid SPLIT Shape Shape [ ] DISPLACE

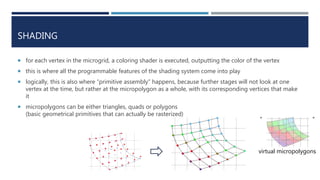

- 11. “ “ virtual micropolygons SHADING for each vertex in the microgrid, a coloring shader is executed, outputting the color of the vertex this is where all the programmable features of the shading system come into play logically, this is also where “primitive assembly” happens, because further stages will not look at one vertex at the time, but rather at the micropolygon as a whole, with its corresponding vertices that make it micropolygons can be either triangles, quads or polygons (basic geometrical primitives that can actually be rasterized)

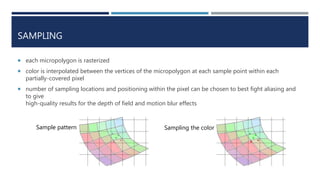

- 12. SAMPLING each micropolygonis rasterized color is interpolated between the vertices of the micropolygon at each sample point within each partially-covered pixel number of sampling locations and positioning within the pixel can be chosen to best fight aliasing and to give high-quality results for the depth of field and motion blur effects Sample pattern Sampling the color

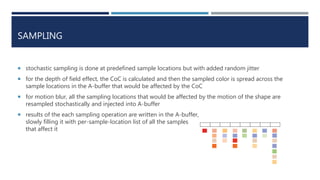

- 13. SAMPLING stochastic samplingis done at predefined sample locations but with added random jitter for the depth of field effect, the CoC is calculated and then the sampled color is spread across the sample locations in the A-buffer that would be affected by the CoC for motion blur, all the sampling locations that would be affected by the motion of the shape are resampled stochastically and injected into A-buffer results of the each sampling operation are written in the A-buffer, slowly filling it with per-sample-location list of all the samples that affect it

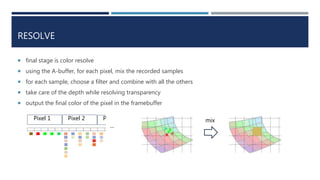

- 14. RESOLVE final stageis color resolve using the A-buffer, for each pixel, mix the recorded samples for each sample, choose a filter and combine with all the others take care of the depth while resolving transparency output the final color of the pixel in the framebuffer Pixel 1 Pixel 2 Pixel 2 mix …

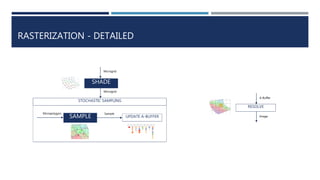

- 15. RASTERIZATION - DETAILED SHADE Microgrid Microgrid Micropolygon SAMPLE Sample UPDATEA-BUFFER STOCHASTIC SAMPLING RESOLVE A-Buffer Image

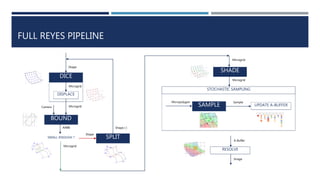

- 16. FULL REYES PIPELINE Shape DICE Microgrid BOUND MicrogridCamera AABB SMALLENOUGH ? Microgrid SPLIT Shape Shape [ ] DISPLACE SHADE Microgrid Microgrid Micropolygon SAMPLE Sample UPDATE A-BUFFER STOCHASTIC SAMPLING RESOLVE A-Buffer Image

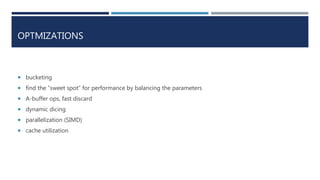

- 17. OPTMIZATIONS bucketing findthe “sweet spot” for performance by balancing the parameters A-buffer ops, fast discard dynamic dicing parallelization (SIMD) cache utilization

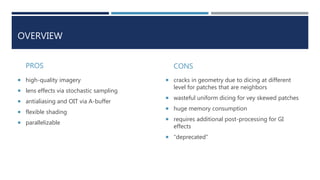

- 18. OVERVIEW PROS high-quality imagery lens effects via stochastic sampling antialiasing and OIT via A-buffer flexible shading parallelizable CONS cracks in geometry due to dicing at different level for patches that are neighbors wasteful uniform dicing for vey skewed patches huge memory consumption requires additional post-processing for GI effects “deprecated”

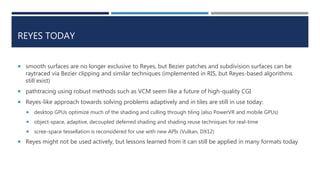

- 19. REYES TODAY smoothsurfaces are no longer exclusive to Reyes, but Bezier patches and subdivision surfaces can be raytraced via Bezier clipping and similar techniques (implemented in RIS, but Reyes-based algorithms still exist) pathtracing using robust methods such as VCM seem like a future of high-quality CGI Reyes-like approach towards solving problems adaptively and in tiles are still in use today: desktop GPUs optimize much of the shading and culling through tiling (also PowerVR and mobile GPUs) object-space, adaptive, decoupled deferred shading and shading reuse techniques for real-time screen-space tessellation is reconsidered for use with new APIs (Vulkan, DX12) Reyes might not be used actively, but lessons learned from it can still be applied in many formats today
- 20. CODE check outhttps://github.com/AbstractAlgorithm/reyes/tree/dev repository for example C++ implementation of Reyes architecture (currently w/o stochastic sampling) see repo’s description for entire list of features pipeline, with bound and cull test: pipeline.hpp Shape structure: shape.hpp Microgrid structure with AABB function used for bound phase: grid.hpp dice: dice function sampling that utilizes OpenGL’s rasterization with simple Z-buffer: rasterize function more to come…

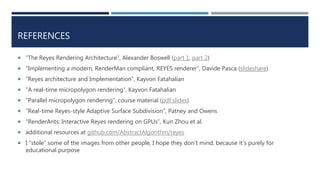

- 21. REFERENCES “The ReyesRendering Architecture”, Alexander Boswell (part 1, part 2) “Implementing a modern, RenderMan compliant, REYES renderer”, Davide Pasca (slideshare) “Reyes architecture and Implementation”, Kayvon Fatahalian “A real-time micropolygon rendering”, Kayvon Fatahalian “Parallel micropolygon rendering”, course material (pdf slides) “Real-time Reyes-style Adaptive Surface Subdivision”, Patney and Owens “RenderAnts: Interactive Reyes rendering on GPUs”, Kun Zhou et al. additional resources at github.com/AbstractAlgorithm/reyes I borrowed some of the images from Davide Pasca’s slides, Alexander Boswell’s blog and Scratchapixel website, it’s purely for educational purpose
- 22.
Editor's Notes
- #3 People that developed Reyes later founded Pixar. Reyes was developed as more reasonable alternative than raytracing, at the time. It was used as Pixar’s main rendering algorithm for a long time, and it still exists today, although now pathtracing is used as a primary method because of the hardware strength and the newer techniques that were developed that aid pathtracing smooth surfaces.
- #4 Reyes is a rasterization algorithm. But since it’s input is analytic geometry, the algorithm tessellates the input geometry until it reaches a certain threshold, whose pieces will then be shaded. Utilizing stochastic sampling, algorithm is able to achieve some very good effects that battle aliasing well and produce high-quality lens effects such as depth of field (defocus) and motion blur. To support transparency, a A-buffer is used as a data structure to hold the shading data. Basic setup of the algorithm makes it very parallelizable and can be distributed amongst different type of systems that are doing the execution.
- #5 Tessellation phase: bound, split, dice Rasterization: shading, sampling Resolve: accumulation of the data
- #6 Primitive is the main geometrical input to the Reyes renderer. It is the main way to describe a scene. Grid serves as a intermediate geometrical representation suitable for later rasterization. Grid itself provides the information about the polygons from which the diced geometry is made. Those tiny polygons are called – micropolygons, and thus the name – microgrid. A-buffer is an advanced version of the pixel storage buffer. Unlike a very common Z-buffer that usually holds only one sample per-pixel (with very limited support for transparency, optional multisapling and only stores the sample with least depth aka closest to the camera), this buffer is made to support all the needs that a renderer might have. Multiple samples per pixel ensure good antialiasing, while the list of all the samples from that location is useful for order independent transparency calculations in the final phase of the renderer when the image is being resolved.
- #8 Bound is used in determining whether the shape needs more fine-grained tessellation or not. To estimate that, we calculate approximate image are that the shape covers. That area will be compared to the microgrid’s resolution that will be used during the dice, and if dicing such shape produces micropolygons that are approximately <1px, then the shape is good to go. Shape can have many bumps over it, and so, to account for those, we need to dice the shape into some number of vertices and use all of them to calculate the bounding box. Less coarse, means more fine-grained. More fine-grained usually means better approximation of the displaced shape. However, being too detailed might lead to big memory consumption and too much time spent on that step. It requiresbalance. Think of this problem like you’re trying to determine the integral of a function. The more you split the function, the more precise you’ll be. But being precise comes at the cost of memory consumption and execution time. Another tricky part is that besides the surface of the shape itself, additional displacement of the vertices can happen from within the shader. So, besides just dicing the shape, we also need to run the displacement program (aka vertex shader) on the vertices to get a good guess where and how big the shape will end up being.
- #9 Splitting usually involves determining the subinterval that the newly created sub-shapes will have after the split. Splitting can be done on both axes at the same time, or one at the time. If later is used, then it is important to take care about which axis is chosen for the split, because the wrongly chosen axis might not help shrinking the bounding box as well as the other axis would do. Certain types of geometry are very hard to find the best splitting axis.
- #14 CoC – circle of confussion
- #16 On left – shading and sampling On right – resolve phase
- #17 On left – tessellation phase with dice, displace, bound and split sub-stages On right – rasterization phase (with shading and sampling sub-stages) and resolve phase
- #18 Bucketing splits the screen into smaller regions. Each section has A-buffer will that is much smaller and can fit into memory easily. In the case of a 1920x1080 A-buffer, with 64spp, where each sample has at least (R8G8B8A8 + D32F) and with variable number of samples in the sample list, the A-buffer can have 10GB+. So bucketing solves this problem by dividing the job into smaller chunks. Problem is when patches overlap several neighboring buckets, then some parts need to be re-done over again. Balancing is crucial. Choosing the good dicing parameters and threshold for splitting are responsible for good performance and memory consumption. This becomes even more important on GPU implementations of the Reyes. Many A-buffer ops can be optimized, as well as the access and the layout of the A-buffer itself. Tiling the buffer at different levels of the granularity may come beneficial, but also introduces need for more memory and execution time. Dynamic dicing and smart splitting are to be considered. Many of the patches are very skewed on the screen, and thus dicing them uniformly along both U and V axis is wasteful. Many parts of the Reyes pipeline are easily parallelizable, but extra care must be taken during the memory management so there’s a good balance and that there’s not “thrashing” of the jobs. Jobs on micropolygons from the same grid are identical so besides SIMD nature that can be utilized, cache coherency can be exploited well. Again, biggest problem is memory consupmption.
- #19 OIT – order independent transparency Cracks are a known flaw in many of the tessellation algorithms, and because the levels of tessellation are not uniform amongst patches that share edges, discontinuities can appear. They manifest as holes and unaligned edges. To address this problem, additional processing during the dicing must happen, or extra post-processing that will stich these cracks with additional geometry. As mentioned, uniform dicing is usually wasteful and doesn’t not correspond well with on-screen coverage. Dicing creates hundreds of micropolygons for each of the thousands or even millions of patches. This requires good memory management and smart balancing. Reyes doesn’t support GI effects per-se. Any such effects need to be injected with post-processing or during the shading by providing additional information about the scene. In this manner, Reyes is very much like rasterization seen in games. More robust GI algorithms are developed and have all the benefits that Reyes once had exclusively for itself, so Reyes architecture is slightly “deprecated”.
- #20 Direct Ray Tracing of Full-Featured Subdivision Surfaces with Bezier Clipping, Tejima at al. (http://jcgt.org/published/0004/01/04/) Decoupled Deferred Shading for Hardware Rasterization, Gabor Liktor , Carsten Dachsbacher (http://cg.ivd.kit.edu/english/ShadingReuse.php) Oxide games is working on a DX12-based Reyes-like renderer with decoupled rasterization: “While forward and deferred rendering have made huge advancements over the last decade, there are still key rendering issues that are difficult to address. Among them, are arbitrary material layering, decoupling shading rate from rasterization, and shader anti-aliasing. Object space lighting is a technique inspired by film rendering techniques like REYES. By reversing the process and shading as early as possible and not in rasterization space, we can achieve arbitrary material layering, shader anti-aliasing, decoupled shading rates, and many more effects, all in real-time. Read more: http://wccftech.com/ashes-singularity-dev-addresses-dx12-object-space-rendering-gdc-2016/” Oxide games will have a presentation about their system @GDC2016.
